F1109P-8-102W
9-Port Fast Unmanaged Switch With
8-Port PoE
www.ip-com.com.cn
Page 2
F1109P-8-102W
9-Port Fast Unmanaged Switch With 8-Port PoE
Products Description
www.ip-com.com.cn

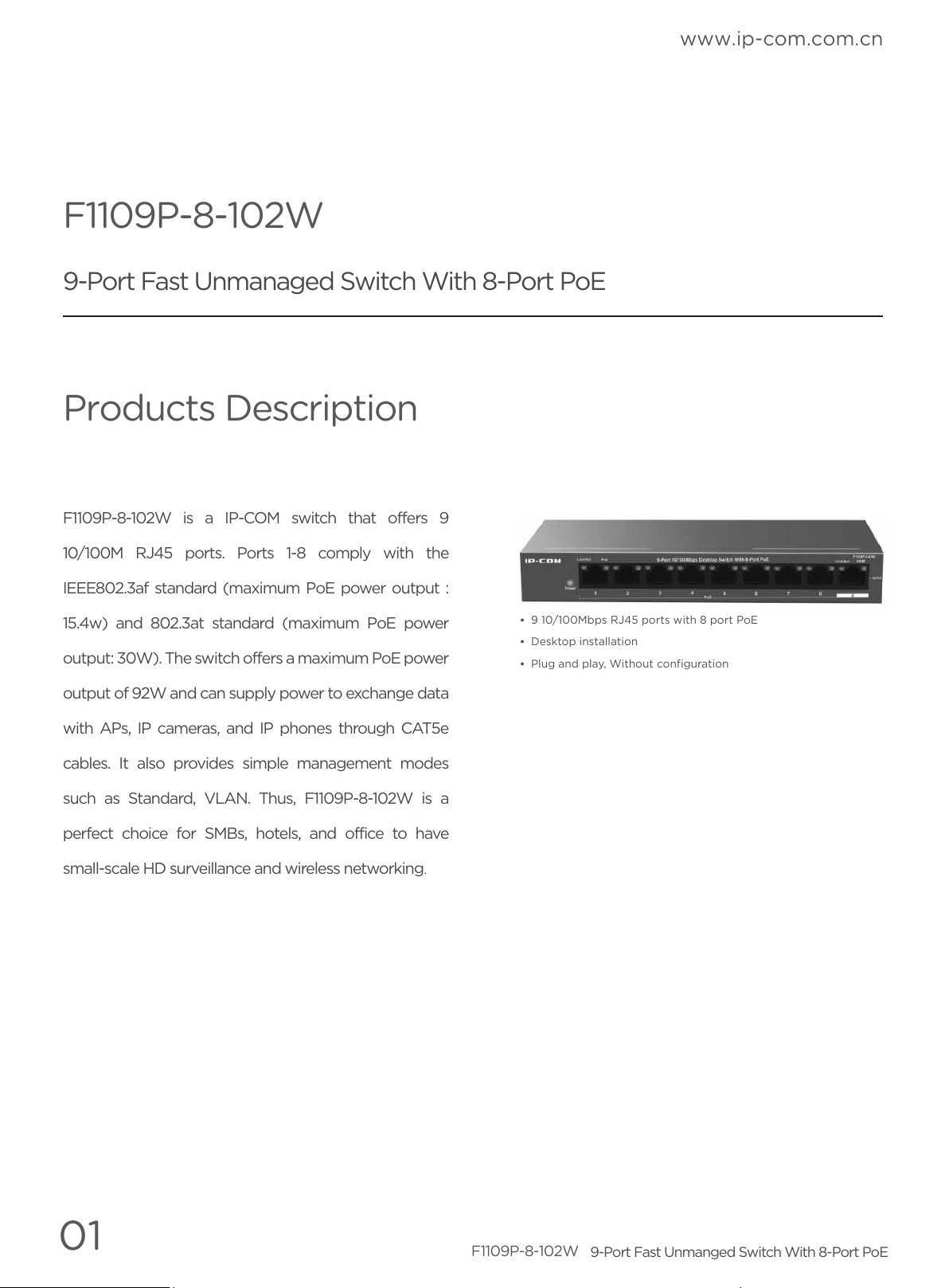

F1109P-8-102W is a IP-COM switch that offers 9
10/100M RJ45 ports. Ports 1-8 comply with the
IEEE802.3af standard (maximum PoE power output :
15.4w) and 802.3at standard (maximum PoE power
output: 30W). The switch offers a maximum PoE power
output of 92W and can supply power to exchange data
with APs, IP cameras, and IP phones through CAT5e
cables. It also provides simple management modes
such as Standard, VLAN. Thus, F1109P-8-102W is a
perfect choice for SMBs, hotels, and office to have
small-scale HD surveillance and wireless networking.
• 9 10/100Mbps RJ45 ports with 8 port PoE
• Desktop installation
• Plug and play, Without configuration
01
F1109P-8-102W
9-Port Fast Unmanged Switch With 8-Port PoE
Page 3

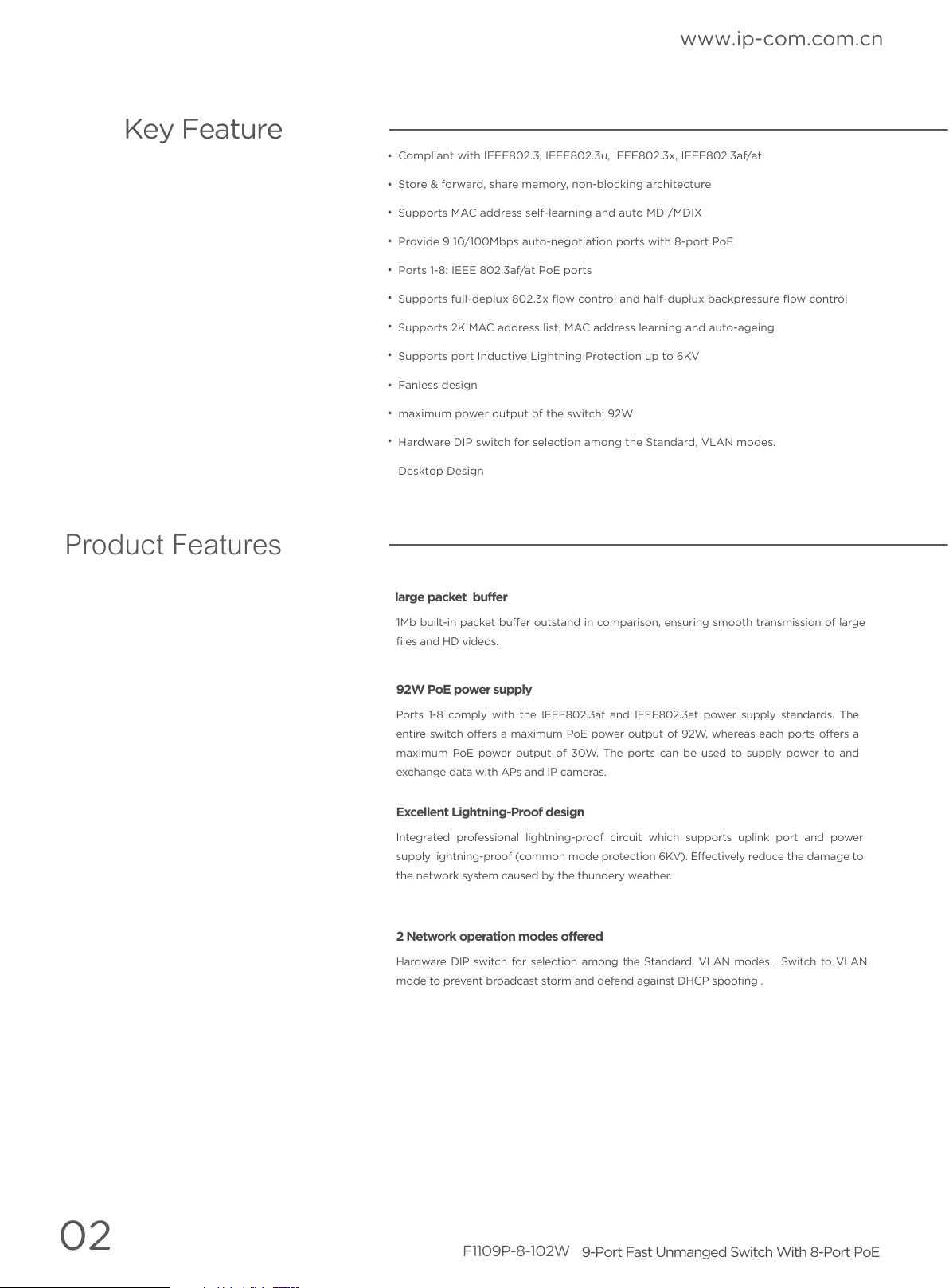

Key Feature
www.ip-com.com.cn
•
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
•
Store & forward, share memory, non-blocking architecture
•
Supports MAC address self-learning and auto MDI/MDIX
•
Provide 9 10/100Mbps auto-negotiation ports with 8-port PoE
•
Ports 1-8: IEEE 802.3af/at PoE ports
•
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
•
Supports 2K MAC address list, MAC address learning and auto-ageing
•
Supports port Inductive Lightning Protection up to 6KV
•
Fanless design
•
maximum power output of the switch: 92W
•
Hardware DIP switch for selection among the Standard, VLAN modes.
Desktop Design
Product Features
large packet buffer
1Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large
files and HD videos.
92W PoE power supply
Ports 1-8 comply with the IEEE802.3af and IEEE802.3at power supply standards. The
entire switch offers a maximum PoE power output of 92W, whereas each ports offers a
maximum PoE power output of 30W. The ports can be used to supply power to and
exchange data with APs and IP cameras.
Excellent Lightning-Proof design
Integrated professional lightning-proof circuit which supports uplink port and power
supply lightning-proof (common mode protection 6KV). Effectively reduce the damage to
the network system caused by the thundery weather.
2 Network operation modes offered
Hardware DIP switch for selection among the Standard, VLAN modes. Switch to VLAN
mode to prevent broadcast storm and defend against DHCP spoofing .
02
F1109P-8-102W
9-Port Fast Unmanged Switch With 8-Port PoE
Page 4

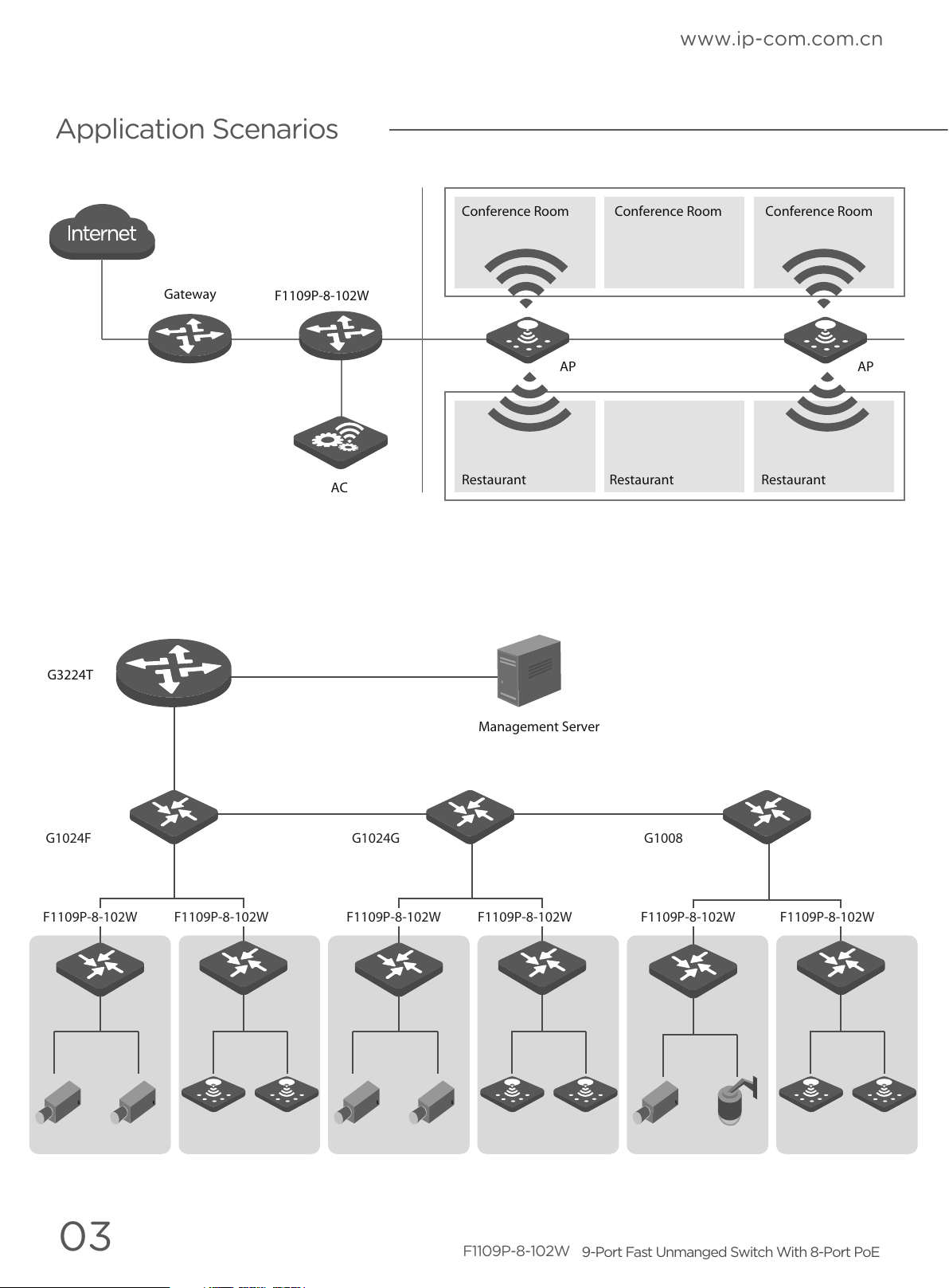

Application Scenarios
www.ip-com.com.cn
Conference Room Conference Room Conference Room
G3224T
Gateway
F1109P-8-102W
AC
AP AP
Restaurant Restaurant Restaurant
Management Server
G1024F G1024G G1008
F1109P-8-102W F1109P-8-102W F1109P-8-102W F1109P-8-102W F1109P-8-102W F1109P-8-102W
03
F1109P-8-102W
9-Port Fast Unmanged Switch With 8-Port PoE
Page 5

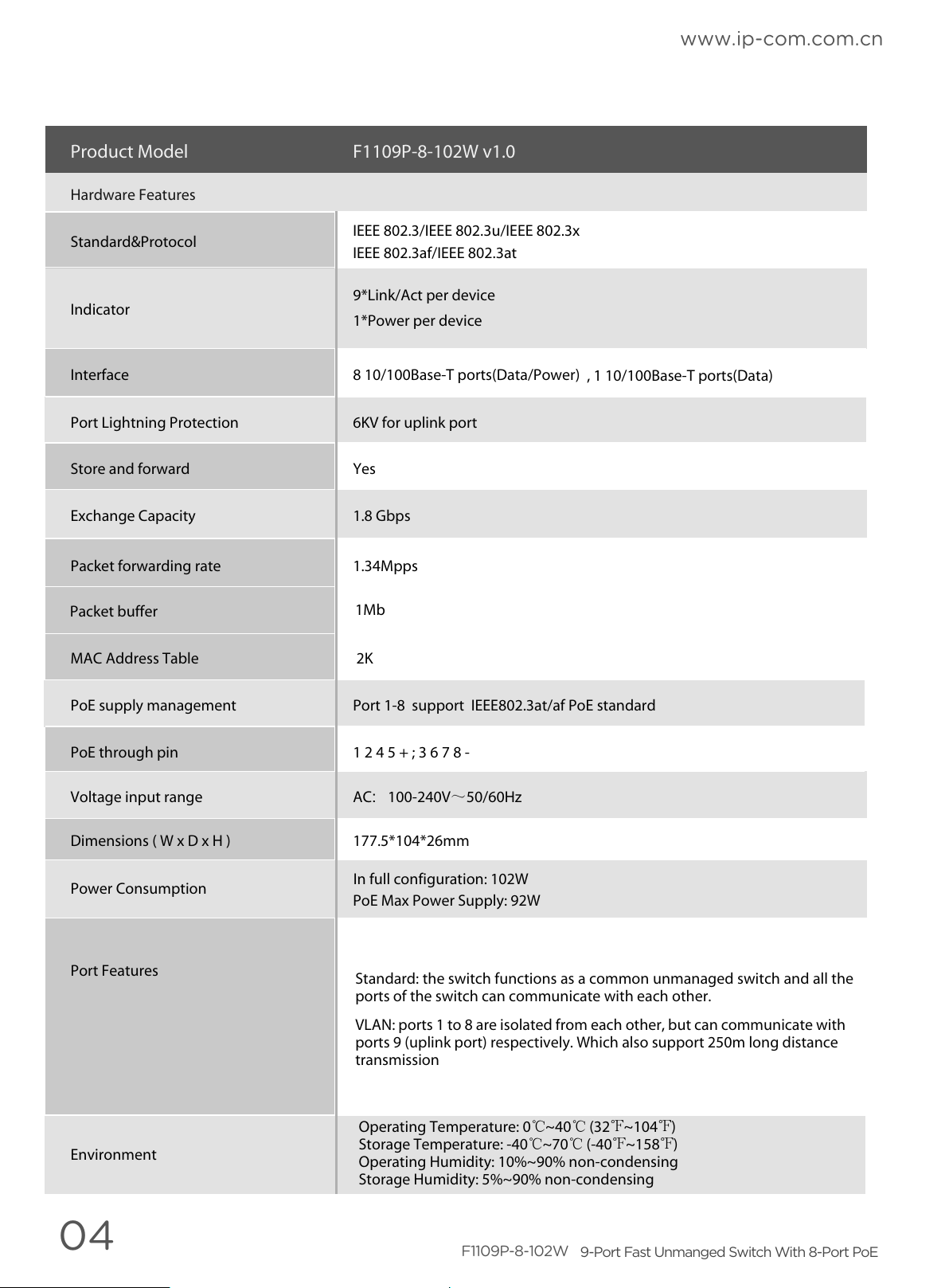

Product Model F1109P-8-102W v1.0
Hardware Features
www.ip-com.com.cn
Standard&Protocol
Indicator
Interface 8 10/100Base-T ports(Data/Power)
Port Lightning Protection 6KV for uplink port
Store and forward Yes
Exchange Capacity
Packet forwarding rate 1.34Mpps
Packet buffer
MAC Address Table 2K
IEEE 802.3/IEEE 802.3u/IEEE 802.3x
IEEE 802.3af/IEEE 802.3at
9*Link/Act per device
1*Power per device
1.8 Gbps
1Mb
, 1 10/100Base-T ports(Data)
PoE supply management Port 1-8 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 + ; 3 6 7 8 -
Voltage input range AC: 100-240V～50/60Hz
Dimensions ( W x D x H ) 177.5*104*26mm
Power Consumption
Port Features
Environment
In full configuration: 102W
PoE Max Power Supply: 92W
Standard: the switch functions as a common unmanaged switch and all the
ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with
ports 9 (uplink port) respectively. Which also support 250m long distance
transmission
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
04
F1109P-8-102W
9-Port Fast Unmanged Switch With 8-Port PoE
Page 6
Headquarters
IP-COM Networks Co.,Ltd.
Tel: +86 755-27653089
Fax: +86 755-27657178
Email: [email protected]
Website: www.ip-com.com.cn
ADD: Tower E3,No1001,Zhongshanyuan Road,Nanshan District,Shenzhen,China.
C o p yrig h t 20 1 6 IP - C O M N e tw o rks C o ., Ltd . All Rig h ts Re s e rve d .
