CPE9
5km Point to Point Outdoor CPE
www.ip-com.com.cn/en
Page 2
CPE9
5km Point to Point Outdoor CPE

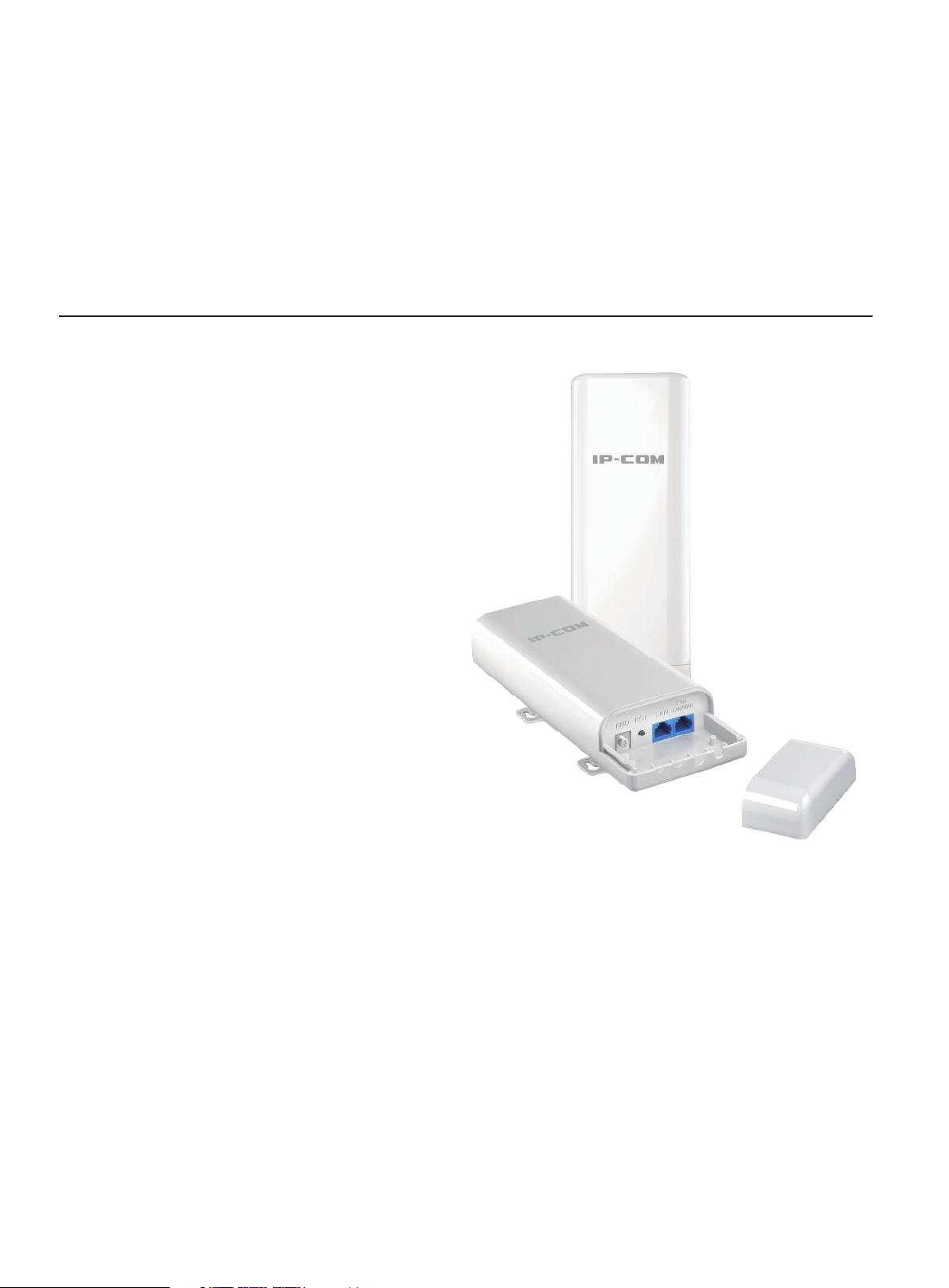

Product Description
CPE9 2.4GHz Outdoor CPE is
designed to WISP CPE solutions and
long distance wireless network
solutions for video surveillance and
data transmission. It features with
12dBi directional antenna to provide
an ecient way to pick up and
maintain a stable signal for a wireless
network. Adopt of auto-bridging
technology,two CPE can connect to
each other automatically to make it
easy to setup.
www.ip-com.com.cn/en
01
5km Point to Point Outdoor CPE
CPE9
Page 3
Key Features
Product Features
www.ip-com.com.cn/en
* 2.4GHz 11n 150Mbps
* 12dbi directional antenna
* IP64 waterproof enclosure
* 6000V Lightning Protection
* AP,Station,WISP operating mode supported
* Up to 60 meters of exible deployment with included PoE Injector
5km+ transmission Range
CPE9 adopts of independent power amplier and 12dBi directional antenna to provide an
ecient way to pick up and maintain a stable signal for a wireless network up to 5km.
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless
connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired
network.
Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that CPE9 receives from peer
device.It is helpful to nd the right location to deploy the device and achieve a better
performance.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, CPE9 can work in
various weather conditions, such as sunshine, rainfall or extremely low/high temperature
environment
Easy to Setup and Manage
CPE9 comes with a centralized management software that helps users easily to manage all the
devices in the network from a single PC-CPE Controller.
02
5km Point to Point Outdoor CPE
CPE9
Page 4
Application Scenarios
Internet
www.ip-com.com.cn/en

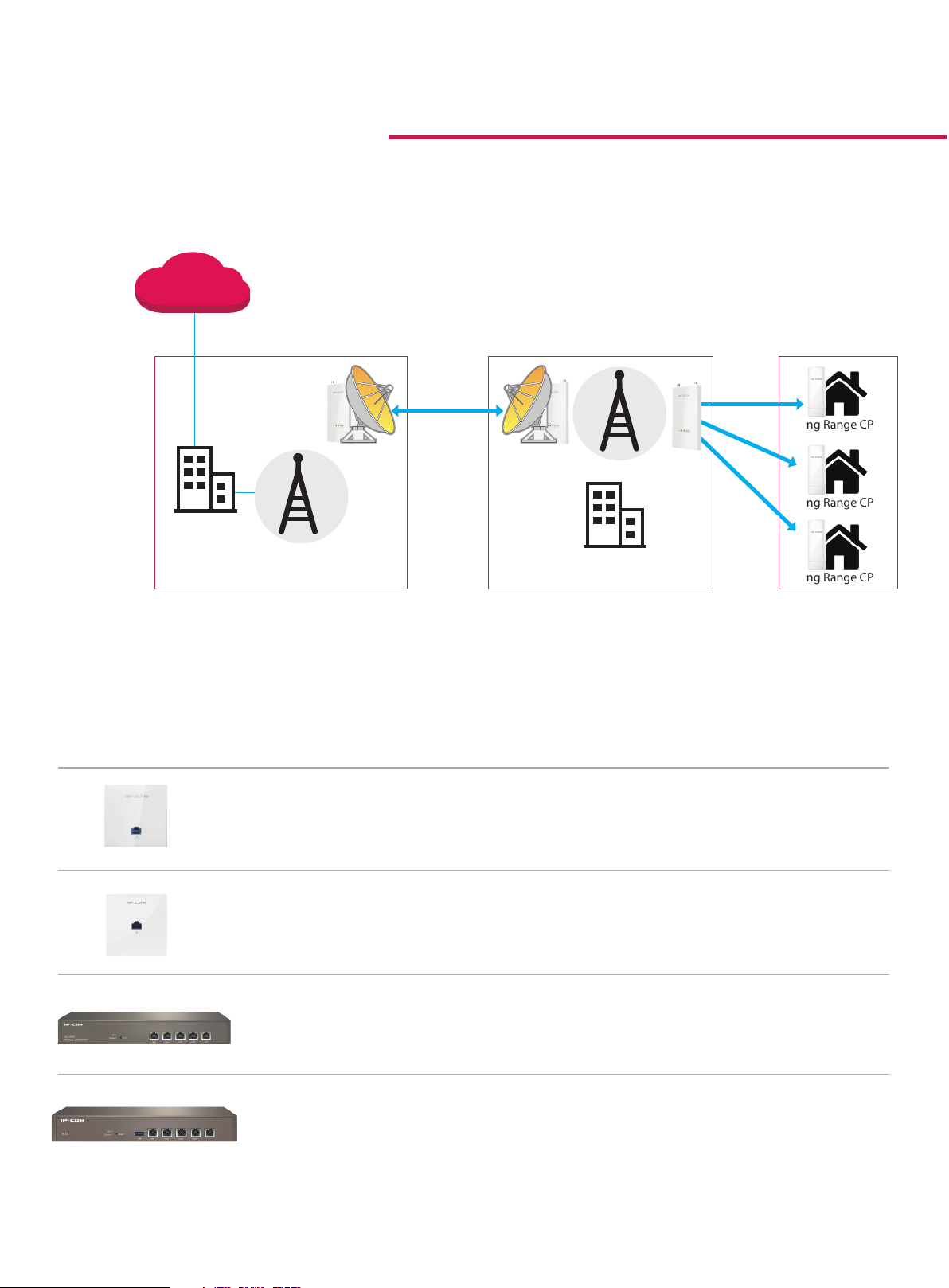

CPE9 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network
solutions for video surveillance and data transmission. It features with 12dBi directional antenna to
provide an ecient way to pick up and maintain a stable signal for a wireless network. Adopt of
auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Backhual Link
Long Range CPE
Basestation+Dish Antenna
Long Range CPE
ISP Data Center
Basestation+Dish Antenna
Main Tower Distributer Tower End User
Related Products
AP255
AP265
ISP Data Center
Long Range CPE
* 2.4GHz 11n 300Mbps
* Two 10/100Mbps LAN ports
* Compliant with PoE 802.3af
* Vlan tagging for multi SSID
* 86 Type wall mount junction box design
* Centralized managed by AC1000/AC2000/AC3000
* 11AC dual band 1167Mbps
* Two 10/100Mbps LAN port
* Compliant with PoE 802.3af
* VLAN tagging for multi SSID
* 86 Type wall mount junction box design
* Centralized managed by AC1000/AC2000/AC3000
03
AC2000
M50
* Easy to congure, manage and monitor Aps
* Maximum AP managed number up to 512
* Remote manage multi branch AP and AC
* Built-in captive portal server and customerized welcome page
* Access device type and customer behavior statistic
* Multi WAN Load Balance
* Captive Portal/PPPoE Server
* Smart bandwidth control
* PPTP/L2TP/IPSec Server
* Built-in AP Controller to capable to mange 16 APs
CPE9
5km Point to Point Outdoor CPE
Page 5
www.ip-com.com.cn/en
Specications
Product Information
Model CPE9
Dimensions 270mm*94.86mm*67.5mm
Deployment Pole Mount
Application Scenarios WISP CPE, Data transmission and Long range video surveillance
Hardware Features
Frequency Range 2.4GHz
Maximum Wireless Rate 150Mbps
Interfaces 2*10/100Mbps Ethernet Port
Antennas Gain 12dbi
Antenna Beamwidth Horizontal: 60° Vertical: 30°
Reset Button 1
GND 1
Power Consumption 4.3W
Waterproof Level IP64
LED indicator PoE/LAN,LED1,LED2,LED3
Power Method
Lightning Protection 6000V
Passive PoE
Receiver sensitivity
12V1A Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins)
Voltage range: 11-13.8V DC
MCS0: -96dbm
MCS7: -72dbm
Software Features
Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
Compliant Standards IEEE 802.11b/g/n
Enable/Disable Wireless Radio Support
SSID Hidden Support
Wireless Client isolation Support
SSID Isolation Support
Client Limitation For SSID Support
Wireless Access Control Support
Weak Signal Client Limitation Support
Transmission Power Adjustable power by 1dBm
WMM Capable Support
APSD Capable Support
04
5km Point to Point Outdoor CPE
CPE9
Page 6
Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge Support
VLAN Tagging for SSID Support
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Remote Web access Support
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndns noip, dyndns.org
Network Diagnoses Ping, Traceroute, Signal Scan
Time&Date Setting Support
Firmware upgrade Support
Backup/Restore Conguration Support
Username Managerment Support
System Log Support
Managed By Controller PC Software - CPE Controller
Others
1*5km Point to Point Outdoor CPE
1*Power Adapter
Package Contents
Operating Temperature -30℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
Operating Humidity 10%~90% non-condensing
Storage Humidity 10%~90% non-condensing
Default login IP 192.168.2.1
Default Login Username admin
Default Login Password admin
Certications FCC/CE/RoHS
1*PoE Injector
2*Plastic Staps
1*Quick Installation Guide
05
