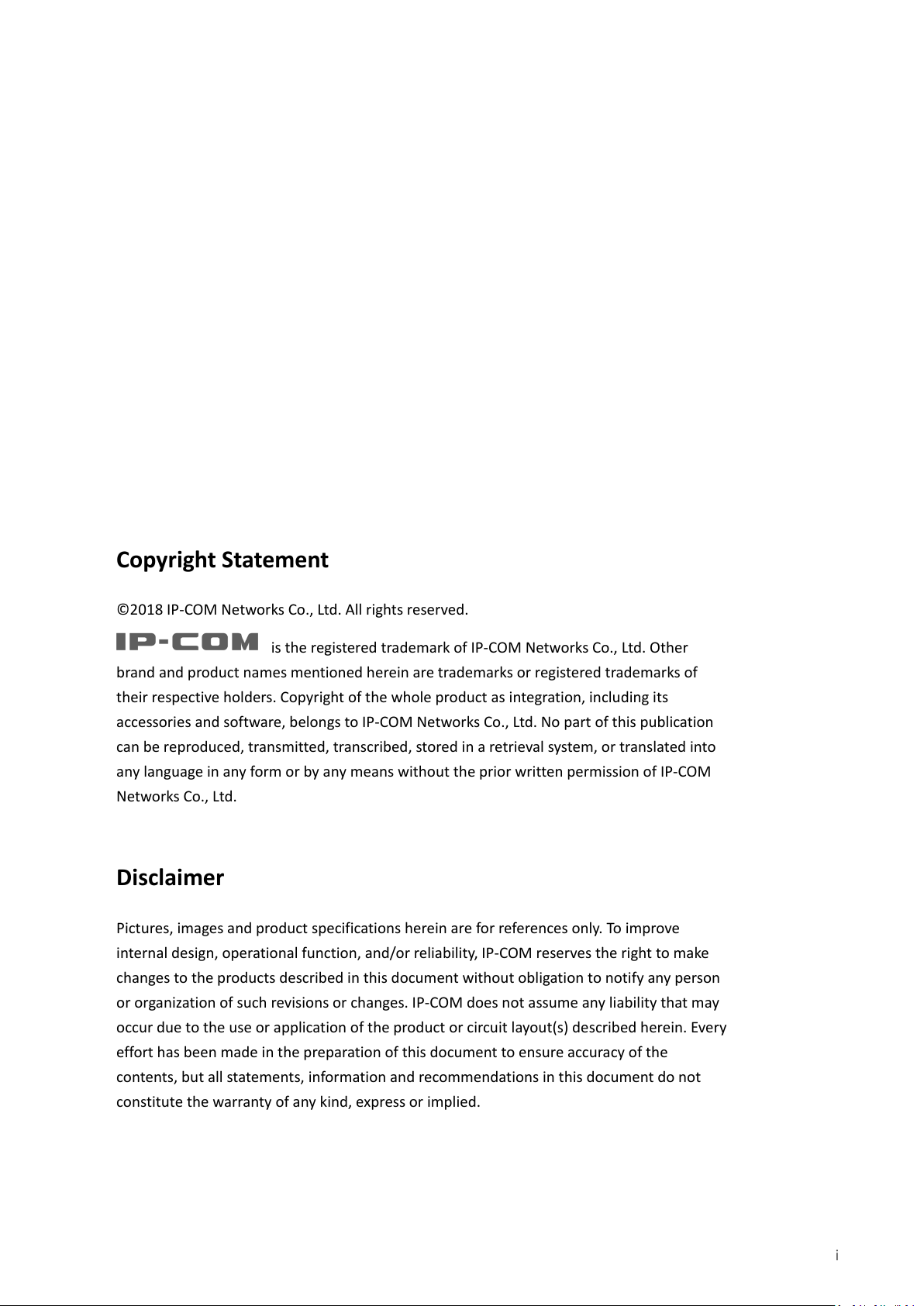

Copyright Statement
©2018 IP-COM Networks Co., Ltd. All rights reserved.
is the registered trademark of IP-COM Networks Co., Ltd. Other
brand and product names mentioned herein are trademarks or registered trademarks of
their respective holders. Copyright of the whole product as integration, including its
accessories and software, belongs to IP-COM Networks Co., Ltd. No part of this publication
can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form or by any means without the prior written permission of IP-COM
Networks Co., Ltd.
Disclaimer
Pictures, images and product specifications herein are for references only. To improve
internal design, operational function, and/or reliability, IP-COM reserves the right to make
changes to the products described in this document without obligation to notify any person
or organization of such revisions or changes. IP-COM does not assume any liability that may
occur due to the use or application of the product or circuit layout(s) described herein. Every
effort has been made in the preparation of this document to ensure accuracy of the
contents, but all statements, information and recommendations in this document do not
constitute the warranty of any kind, express or implied.
i
Item
Presentation
Example
Cascading menus
>
System > Live Users
Parameter and value
Bold
Set User Name to Tom.
Variable
Italic
Format: XX:XX:XX:XX:XX:XX
UI control
Bold
On the Policy page, click the OK button.
Symbol
Meaning
This format is used to highlight information of importance or special interest. Ignoring this type of
note may result in ineffective configurations, loss of data or damage to device.
This format is used to highlight a procedure that will save time or resources.
Acronym or
Abbreviation
Full Spelling
AP
Access Point
ARP
Address Resolution Protocol
AES
Advanced Encryption Standard
CPE
Customer Premises Equipment
CCQ
Client Connection Quality
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
DDNS
Dynamic Domain Name Server
GMT
Greenwich Mean Time
IP
Internet Protocol

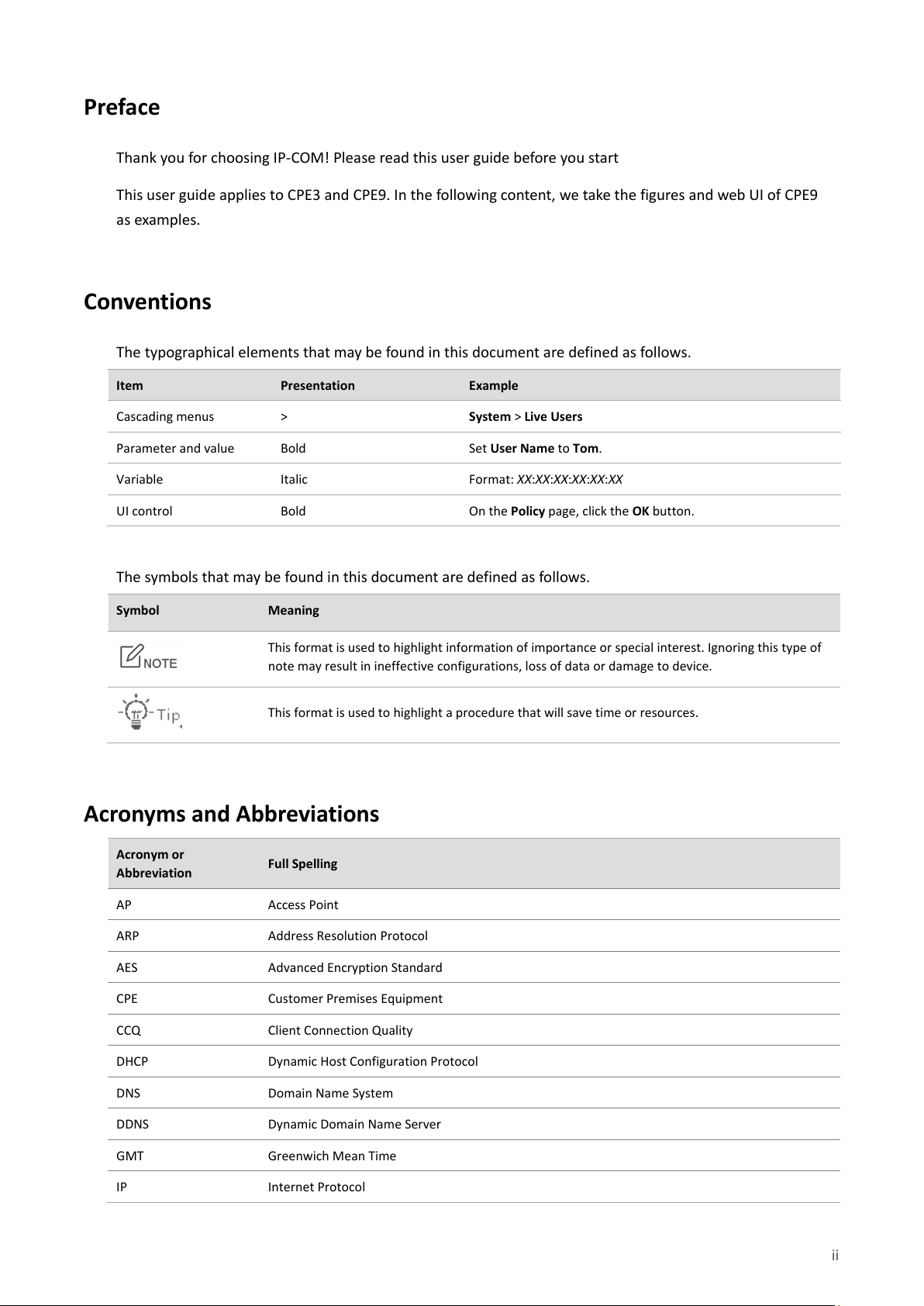

Preface
Thank you for choosing IP-COM! Please read this user guide before you start
This user guide applies to CPE3 and CPE9. In the following content, we take the figures and web UI of CPE9
as examples.
Conventions
The typographical elements that may be found in this document are defined as follows.
The symbols that may be found in this document are defined as follows.
Acronyms and Abbreviations
ii

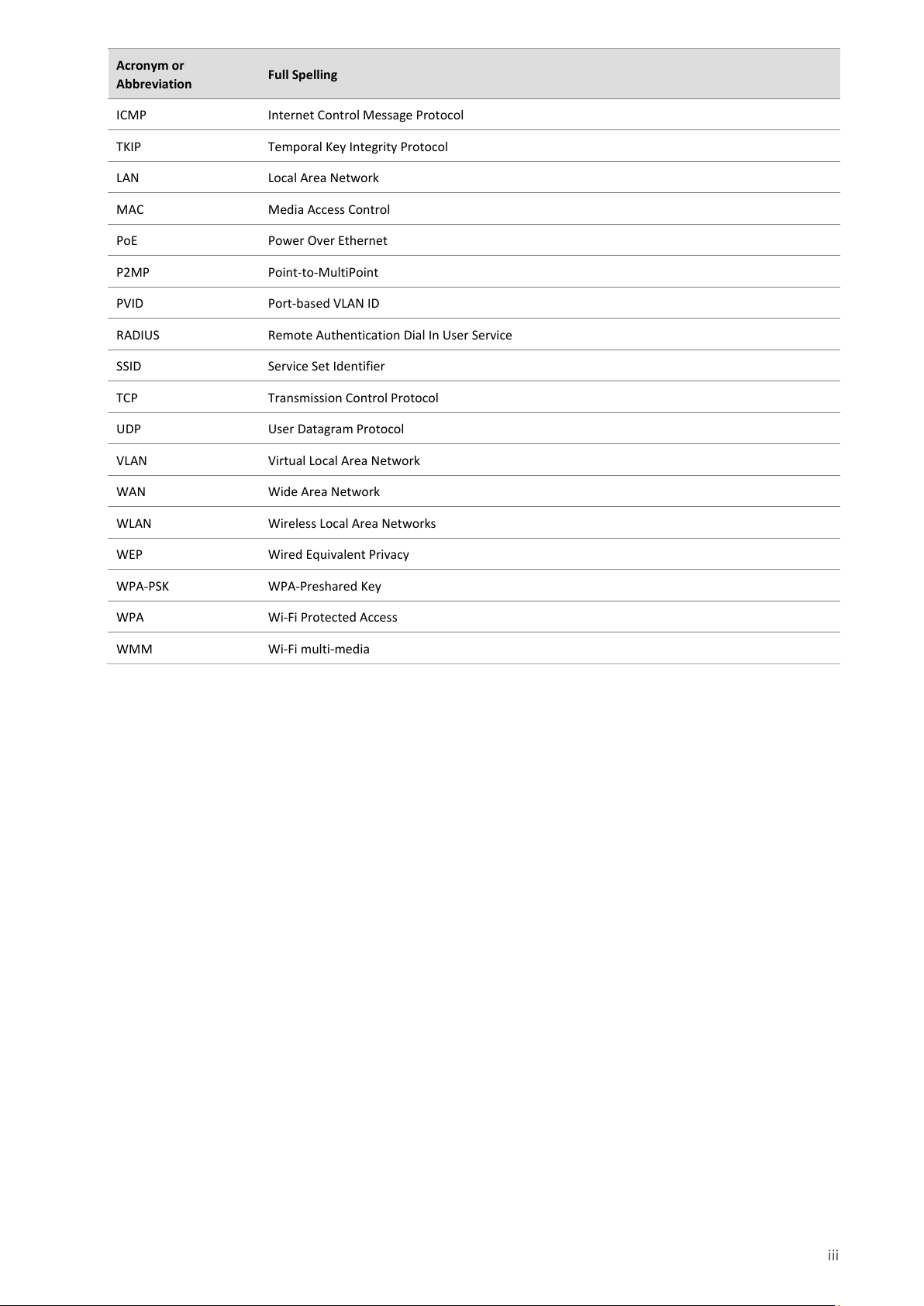

Acronym or
Abbreviation
Full Spelling
ICMP
Internet Control Message Protocol
TKIP
Temporal Key Integrity Protocol
LAN
Local Area Network
MAC
Media Access Control
PoE
Power Over Ethernet
P2MP
Point-to-MultiPoint
PVID
Port-based VLAN ID
RADIUS
Remote Authentication Dial In User Service
SSID
Service Set Identifier
TCP
Transmission Control Protocol
UDP
User Datagram Protocol
VLAN
Virtual Local Area Network
WAN
Wide Area Network
WLAN
Wireless Local Area Networks
WEP
Wired Equivalent Privacy
WPA-PSK
WPA-Preshared Key
WPA
Wi-Fi Protected Access
WMM
Wi-Fi multi-media
iii
+86-755-27653089
info@ip-com.com.cn
http://www.ip-com.com.cn
Additional Information
For more information, search this product model on our website at http://www.ip-com.com.cn.

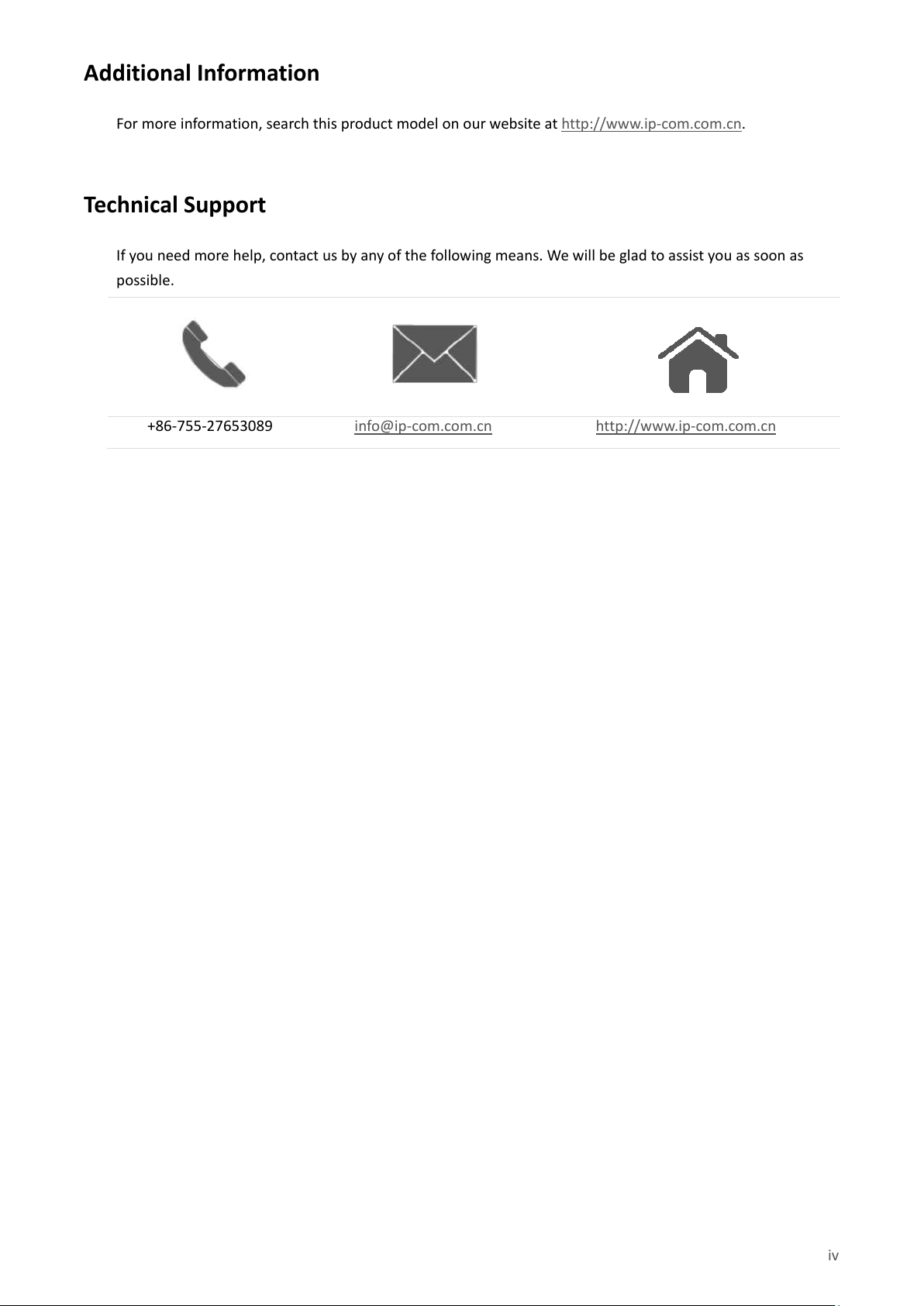

Technical Support
If you need more help, contact us by any of the following means. We will be glad to assist you as soon as
possible.
iv

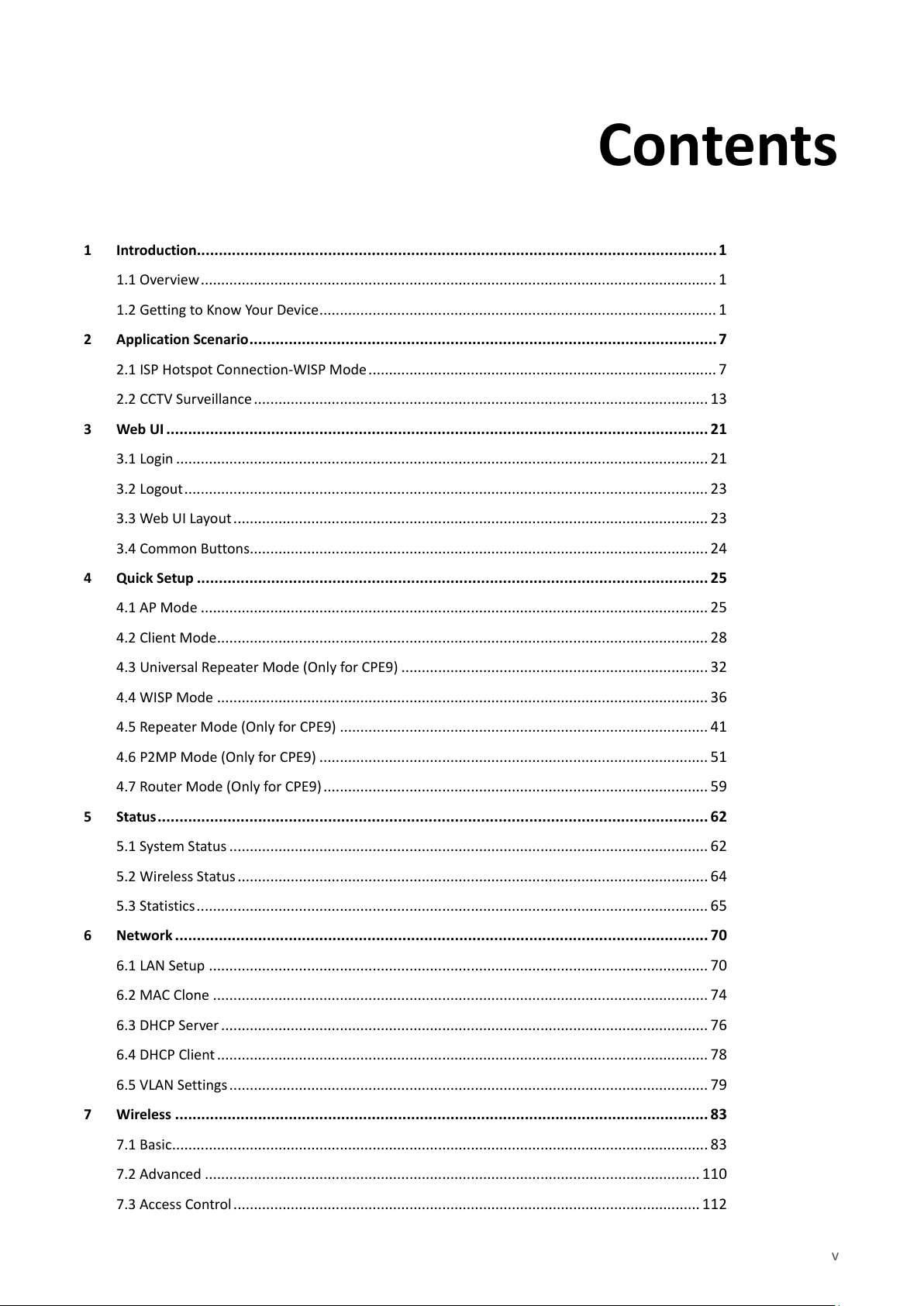

Contents
1 Introduction....................................................................................................................... 1
1.1 Overview .............................................................................................................................. 1
1.2 Getting to Know Your Device ................................................................................................. 1
2 Application Scenario ........................................................................................................... 7
2.1 ISP Hotspot Connection-WISP Mode ..................................................................................... 7
2.2 CCTV Surveillance ............................................................................................................... 13
3 Web UI ............................................................................................................................ 21
3.1 Login .................................................................................................................................. 21
3.2 Logout ................................................................................................................................ 23
3.3 Web UI Layout .................................................................................................................... 23
3.4 Common Buttons ................................................................................................................ 24
4 Quick Setup ..................................................................................................................... 25
4.1 AP Mode ............................................................................................................................ 25
4.2 Client Mode ........................................................................................................................ 28
4.3 Universal Repeater Mode (Only for CPE9) ........................................................................... 32
4.4 WISP Mode ........................................................................................................................ 36
4.5 Repeater Mode (Only for CPE9) .......................................................................................... 41
4.6 P2MP Mode (Only for CPE9) ............................................................................................... 51
4.7 Router Mode (Only for CPE9) .............................................................................................. 59
5 Status .............................................................................................................................. 62
5.1 System Status ..................................................................................................................... 62
5.2 Wireless Status ................................................................................................................... 64
5.3 Statistics ............................................................................................................................. 65
6 Network .......................................................................................................................... 70
6.1 LAN Setup .......................................................................................................................... 70
6.2 MAC Clone ......................................................................................................................... 74
6.3 DHCP Server ....................................................................................................................... 76
6.4 DHCP Client ........................................................................................................................ 78
6.5 VLAN Settings ..................................................................................................................... 79
7 Wireless .......................................................................................................................... 83
7.1 Basic ................................................................................................................................... 83
7.2 Advanced ......................................................................................................................... 110
7.3 Access Control .................................................................................................................. 112
v
8 Advanced ...................................................................................................................... 116
8.1 LAN Rate .......................................................................................................................... 116
8.2 Diagnose .......................................................................................................................... 118
8.3 Bandwidth Control (Only for CPE9) ................................................................................... 125
8.4 Port Forwarding (Only for CPE9) ........................................................................................ 128
8.5 MAC Filter (Only for CPE9) ................................................................................................ 132
8.6 Network Service ............................................................................................................... 136
9 Tools ............................................................................................................................. 152
9.1 Date & Time ..................................................................................................................... 152
9.2 Maintenance .................................................................................................................... 154
9.3 Account ............................................................................................................................ 160
9.4 System Log ....................................................................................................................... 162
Appendix .............................................................................................................................. 163
A.1 FAQ .................................................................................................................................. 163
A.2 Default Parameters ........................................................................................................... 165
vi
Outdoor Point to Point CPE
User Guide

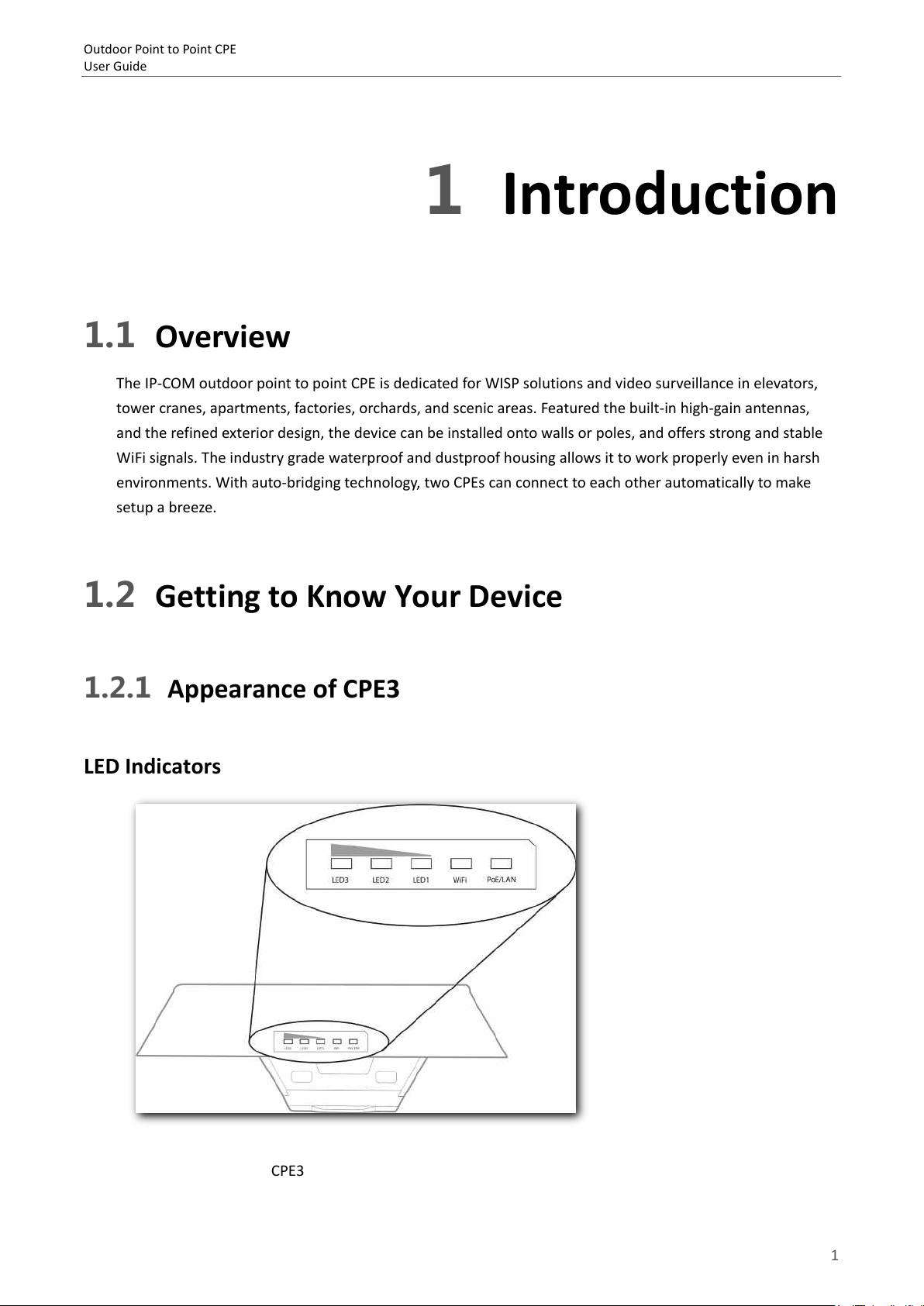

1 Introduction
1.1 Overview
The IP-COM outdoor point to point CPE is dedicated for WISP solutions and video surveillance in elevators,
tower cranes, apartments, factories, orchards, and scenic areas. Featured the built-in high-gain antennas,
and the refined exterior design, the device can be installed onto walls or poles, and offers strong and stable
WiFi signals. The industry grade waterproof and dustproof housing allows it to work properly even in harsh
environments. With auto-bridging technology, two CPEs can connect to each other automatically to make
setup a breeze.
1.2 Getting to Know Your Device
1.2.1 Appearance of CPE3

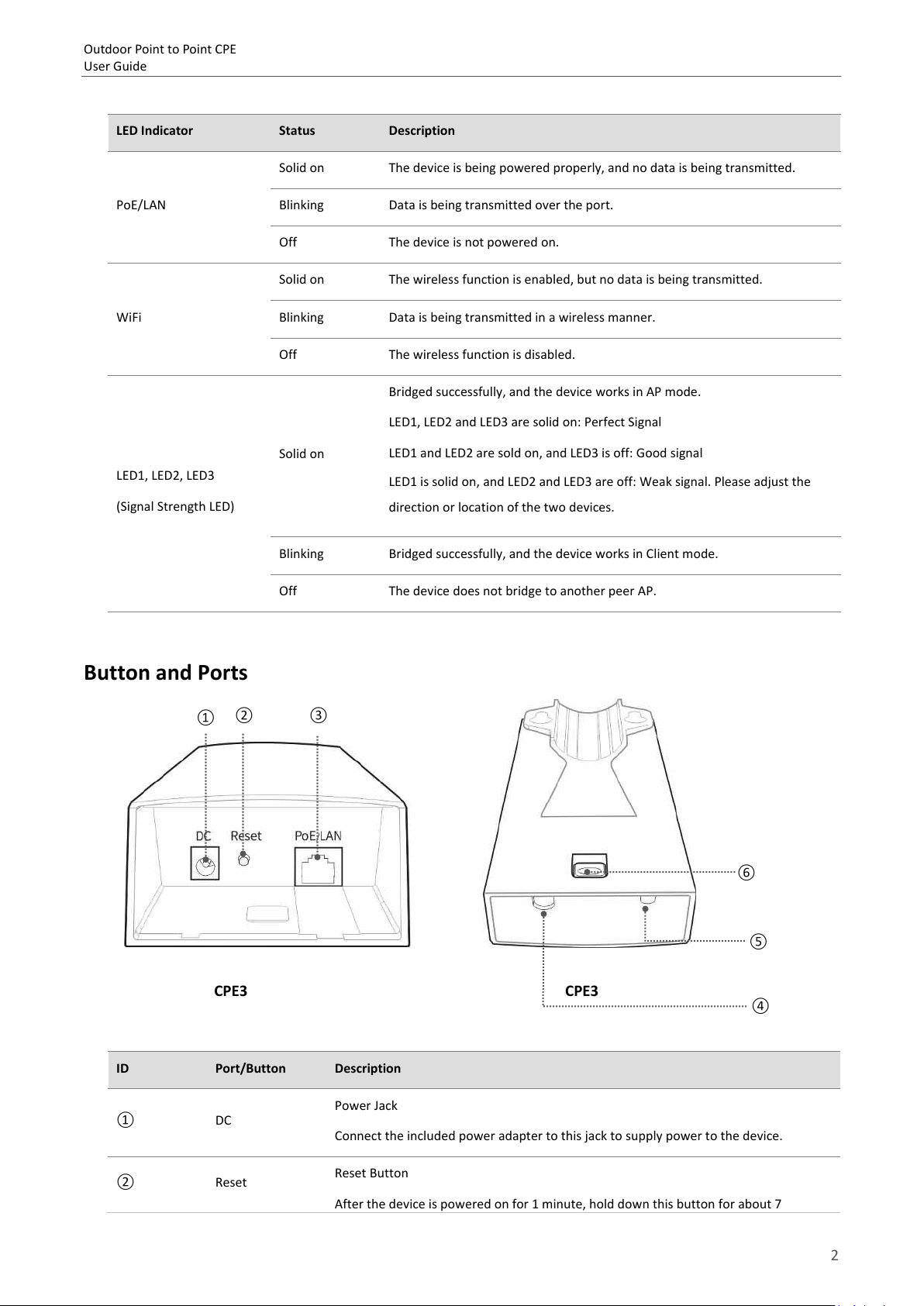

LED Indicators
CPE3
1
Outdoor Point to Point CPE
LED Indicator
Status
Description
PoE/LAN
Solid on
The device is being powered properly, and no data is being transmitted.
Blinking
Data is being transmitted over the port.
Off
The device is not powered on.
WiFi
Solid on
The wireless function is enabled, but no data is being transmitted.
Blinking
Data is being transmitted in a wireless manner.
Off
The wireless function is disabled.
LED1, LED2, LED3
(Signal Strength LED)
Solid on
Bridged successfully, and the device works in AP mode.
LED1, LED2 and LED3 are solid on: Perfect Signal
LED1 and LED2 are sold on, and LED3 is off: Good signal
LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust the
direction or location of the two devices.
Blinking
Bridged successfully, and the device works in Client mode.
Off
The device does not bridge to another peer AP.
ID
Port/Button
Description
①
DC
Power Jack
Connect the included power adapter to this jack to supply power to the device.
②
Reset
Reset Button
After the device is powered on for 1 minute, hold down this button for about 7
①
②
③
⑥
User Guide
Button and Ports
CPE3 CPE3
⑤
④
2
Outdoor Point to Point CPE
ID
Port/Button
Description
seconds. When all the LED indicators on the device light up, the device is restored
factory settings.
③
PoE/LAN
It is used to supply power or transmit data.
To power on the device using PoE, connect this port to the PoE port of the included PoE
injector.
If the device is powered on using a DC power adapter, this port can be connected to a
switch.
④ / Ethernet cable inlet.
⑤ / Power cord inlet.
⑥ / It is used to remove the cover.

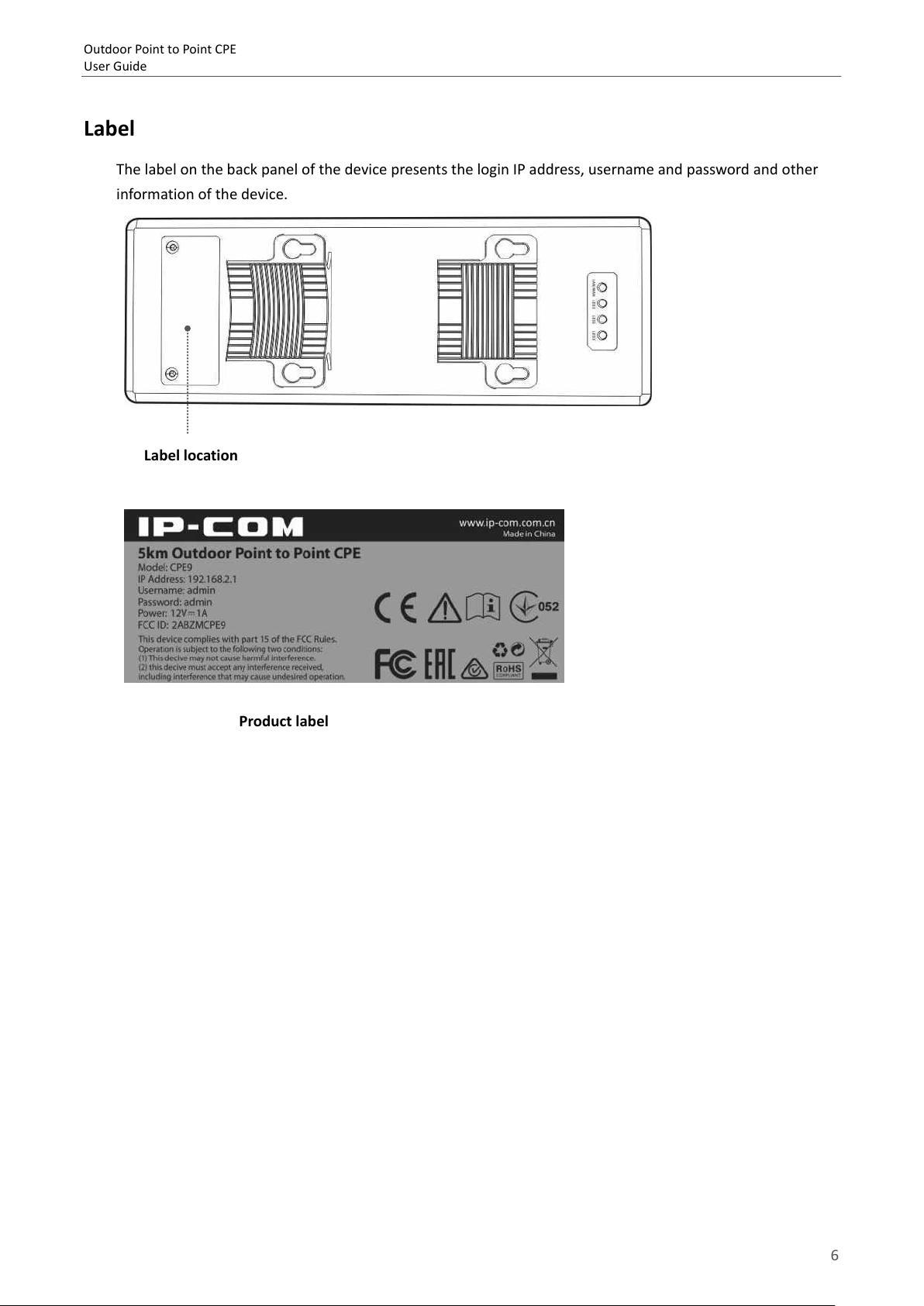

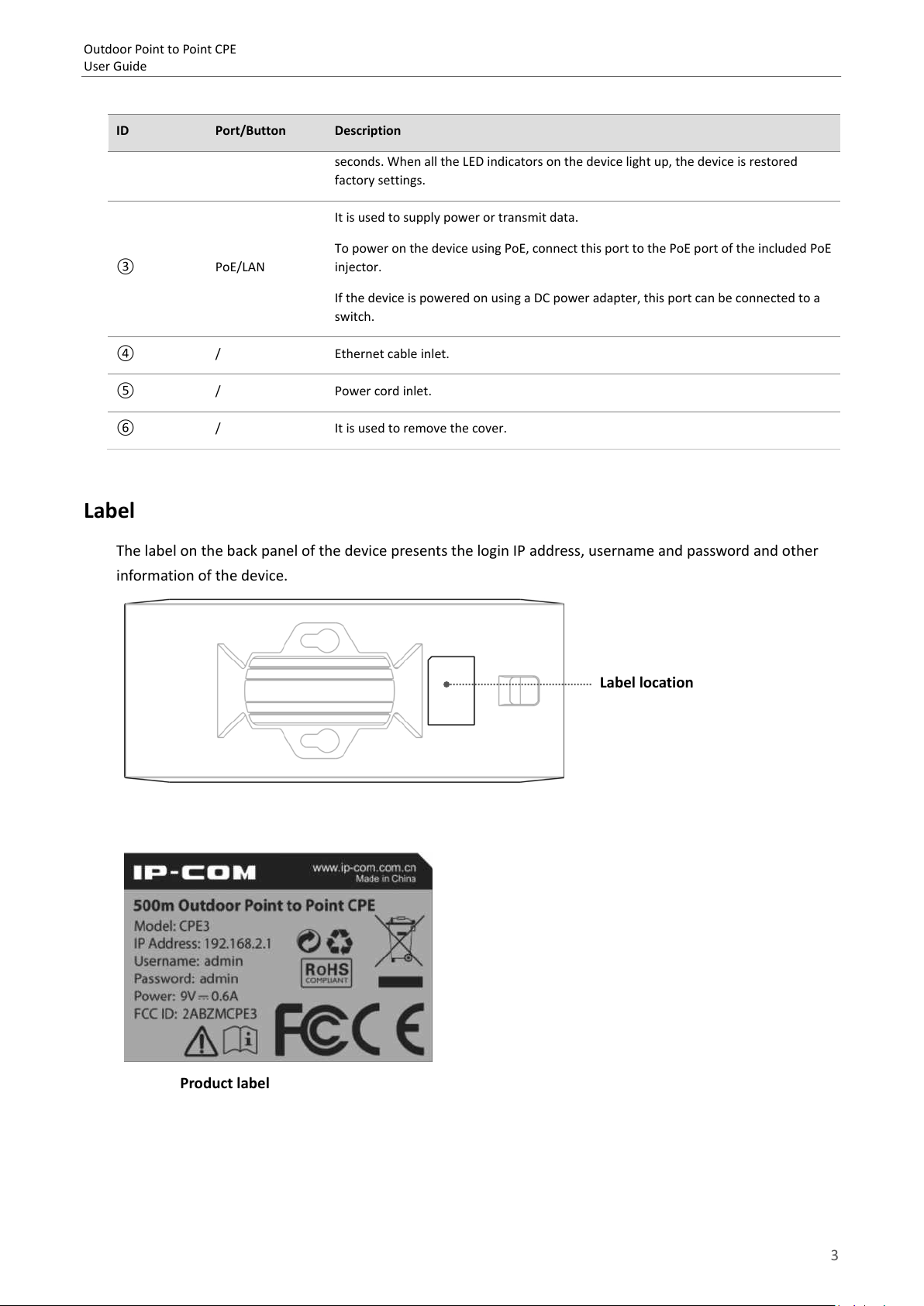

Product label
Label location
User Guide
Label
The label on the back panel of the device presents the login IP address, username and password and other
information of the device.
3
Outdoor Point to Point CPE
LED Indicator
Status
Description
LAN/WAN
Solid on
The device is being powered properly, and no data is being transmitted.
Blinking
Data is being transmitted over the port.
Off
The device is not powered on.
LED1, LED2, LED3
(Signal Strength LED)
Solid on
The device has wireless clients connected to it and may work in AP, Repeater,
or Router mode. If you performed auto bridging, the device is already set to AP
mode.
LED1, LED2 and LED3 are solid on: Perfect Signal
LED1 and LED2 are sold on, and LED3 is off: Good signal
LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust the
direction or location of the two devices.
Blinking
The device is working in Client, Universal Repeater or WISP mode, and
connected to a remote AP. If the device is automatically connected to the other
one, it is set to Client mode.
Off
The device is not connected to a wireless client or a remote AP.
LAN/WAN LED
LED1 - LED3 indicators
User Guide

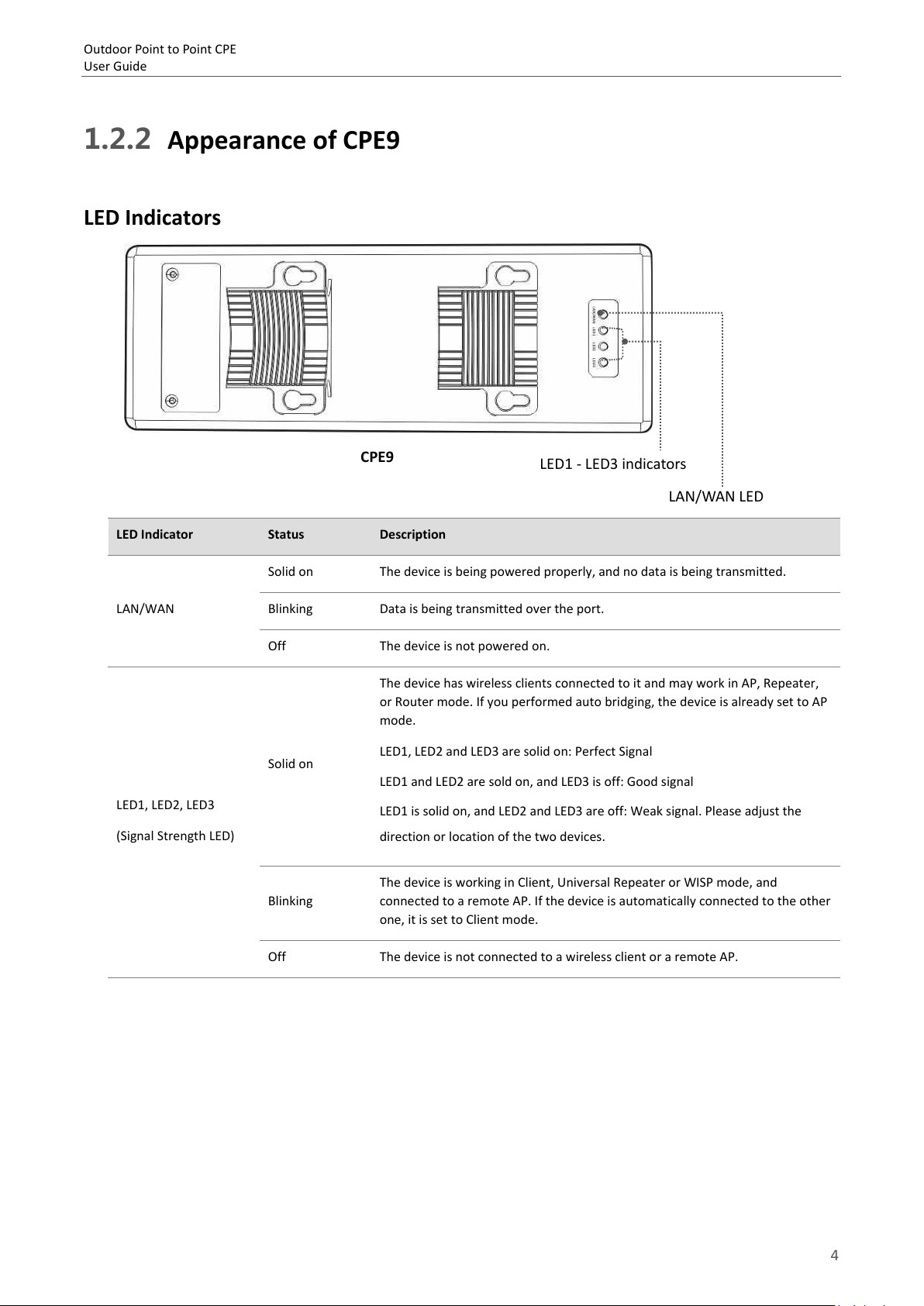

1.2.2 Appearance of CPE9
LED Indicators
CPE9
4

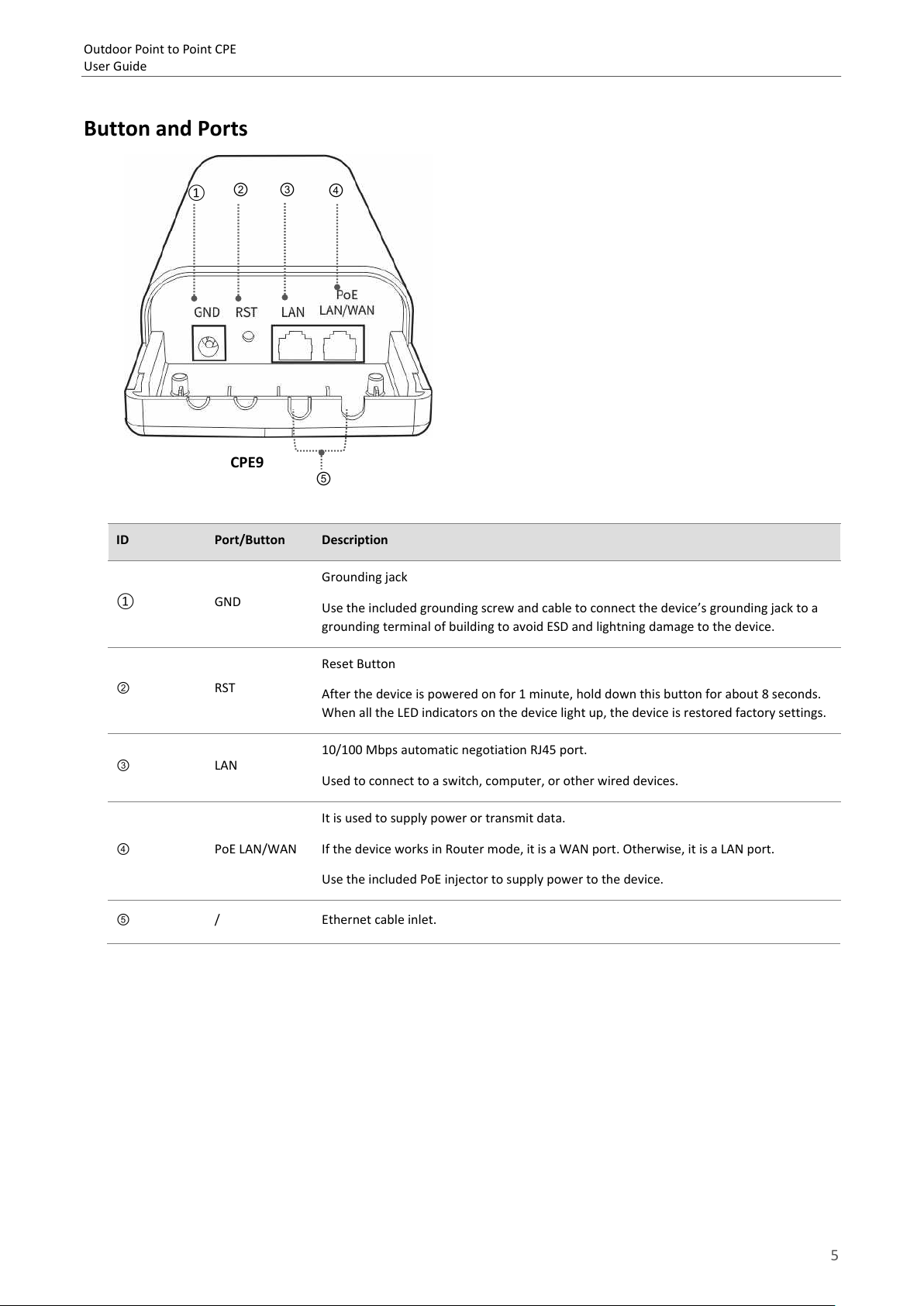

Outdoor Point to Point CPE
ID
Port/Button
Description
①
GND
Grounding jack
Use the included grounding screw and cable to connect the device’s grounding jack to a
grounding terminal of building to avoid ESD and lightning damage to the device.
②
RST
Reset Button
After the device is powered on for 1 minute, hold down this button for about 8 seconds.
When all the LED indicators on the device light up, the device is restored factory settings.
③
LAN
10/100 Mbps automatic negotiation RJ45 port.
Used to connect to a switch, computer, or other wired devices.
④
PoE LAN/WAN
It is used to supply power or transmit data.
If the device works in Router mode, it is a WAN port. Otherwise, it is a LAN port.
Use the included PoE injector to supply power to the device.
⑤ / Ethernet cable inlet.
①
②
③
④
⑤
User Guide
Button and Ports
CPE9
5
Outdoor Point to Point CPE
Product label
Label location
User Guide
Label
The label on the back panel of the device presents the login IP address, username and password and other
information of the device.
6
Outdoor Point to Point CPE
User Guide
2 Application Scenario
2.1 ISP Hotspot Connection-WISP Mode
An apartment needs to bridge an ISP hotspot for internet access.

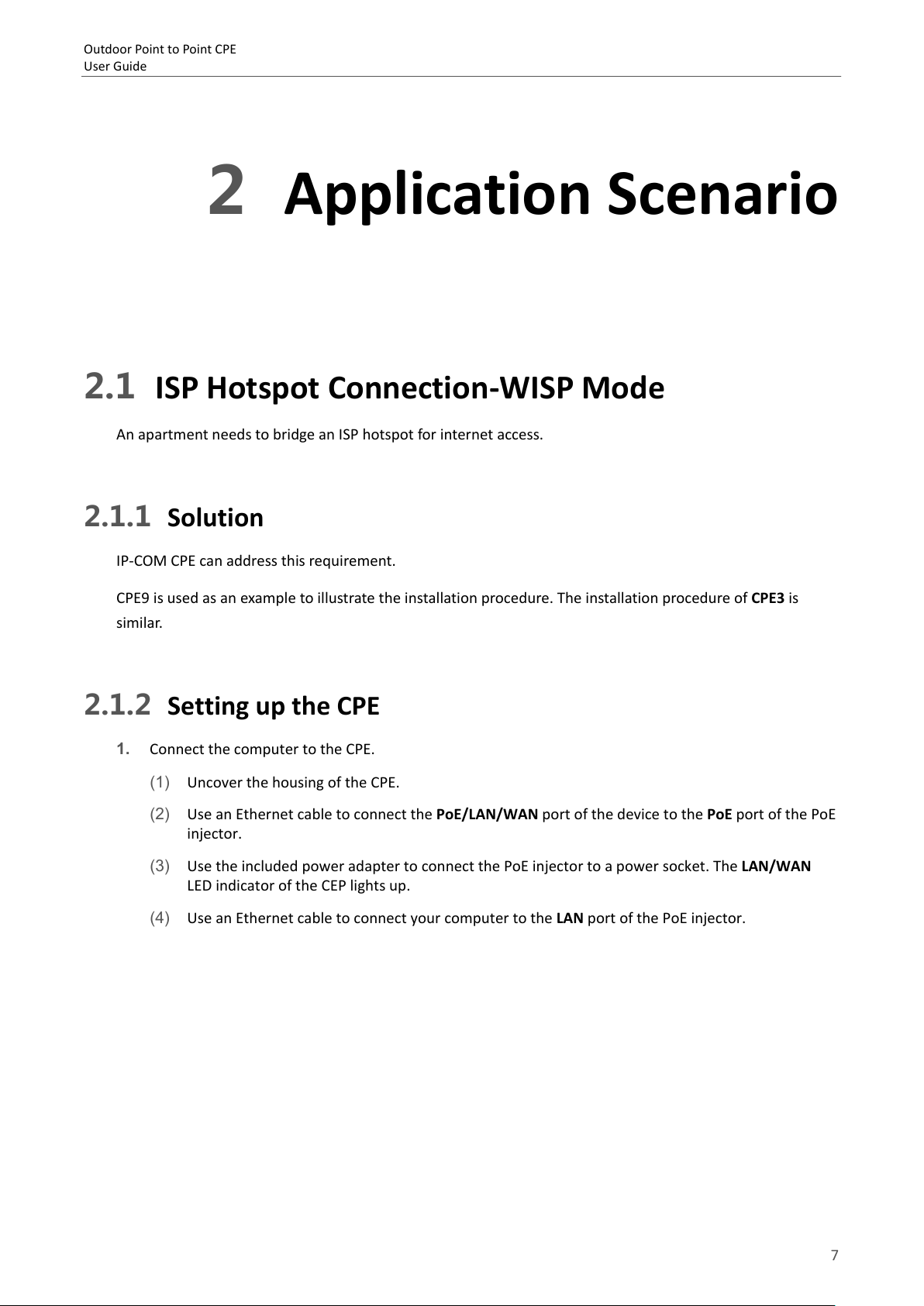

2.1.1 Solution
IP-COM CPE can address this requirement.
CPE9 is used as an example to illustrate the installation procedure. The installation procedure of CPE3 is
similar.
2.1.2 Setting up the CPE
1. Connect the computer to the CPE.
(1) Uncover the housing of the CPE.
(2) Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of the PoE
injector.
(3) Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN
LED indicator of the CEP lights up.
(4) Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
7
Outdoor Point to Point CPE
Tip
User Guide

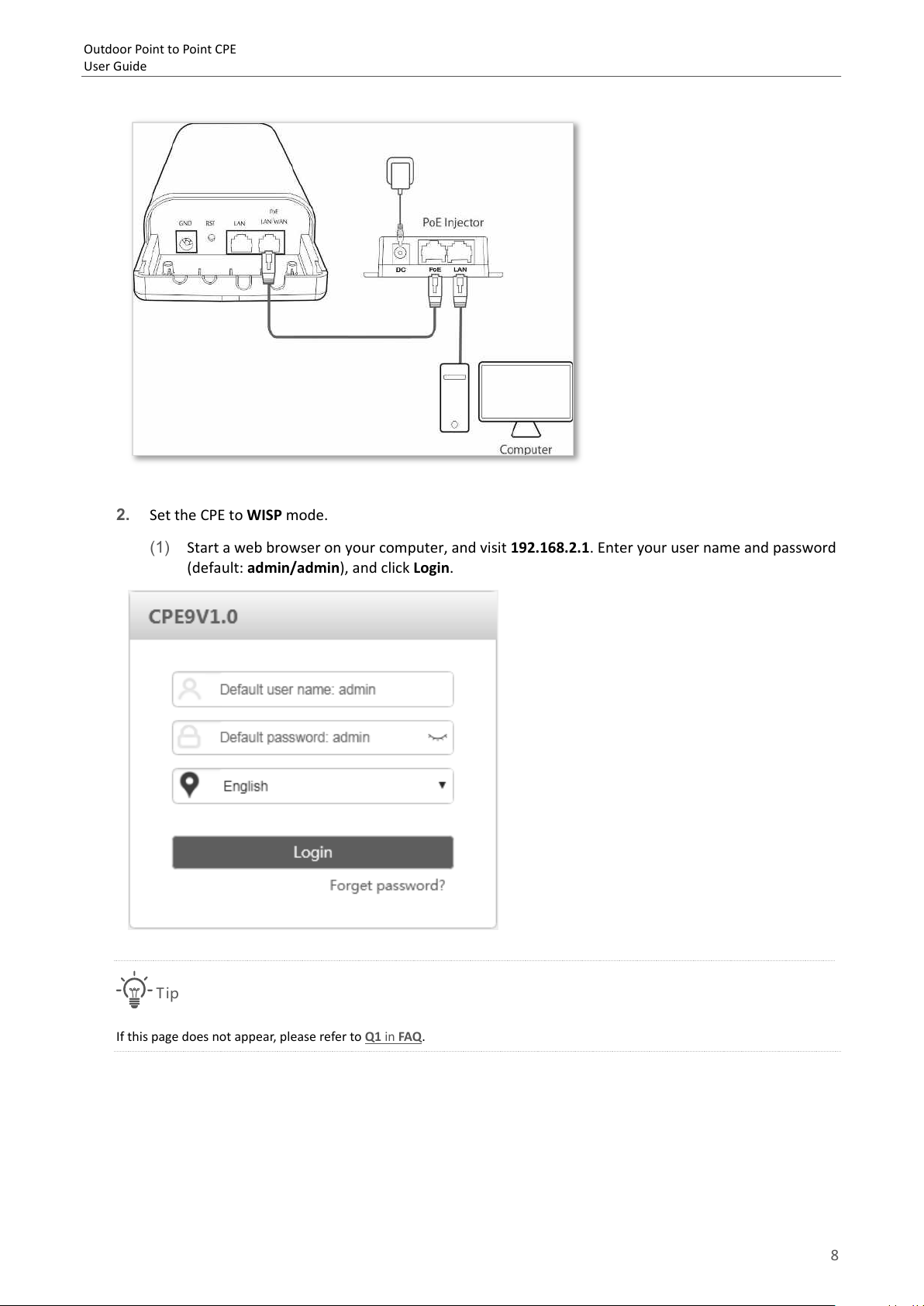

2. Set the CPE to WISP mode.
(1) Start a web browser on your computer, and visit 192.168.2.1. Enter your user name and password
(default: admin/admin), and click Login.
If this page does not appear, please refer to Q1 in FAQ.
8
Outdoor Point to Point CPE
User Guide

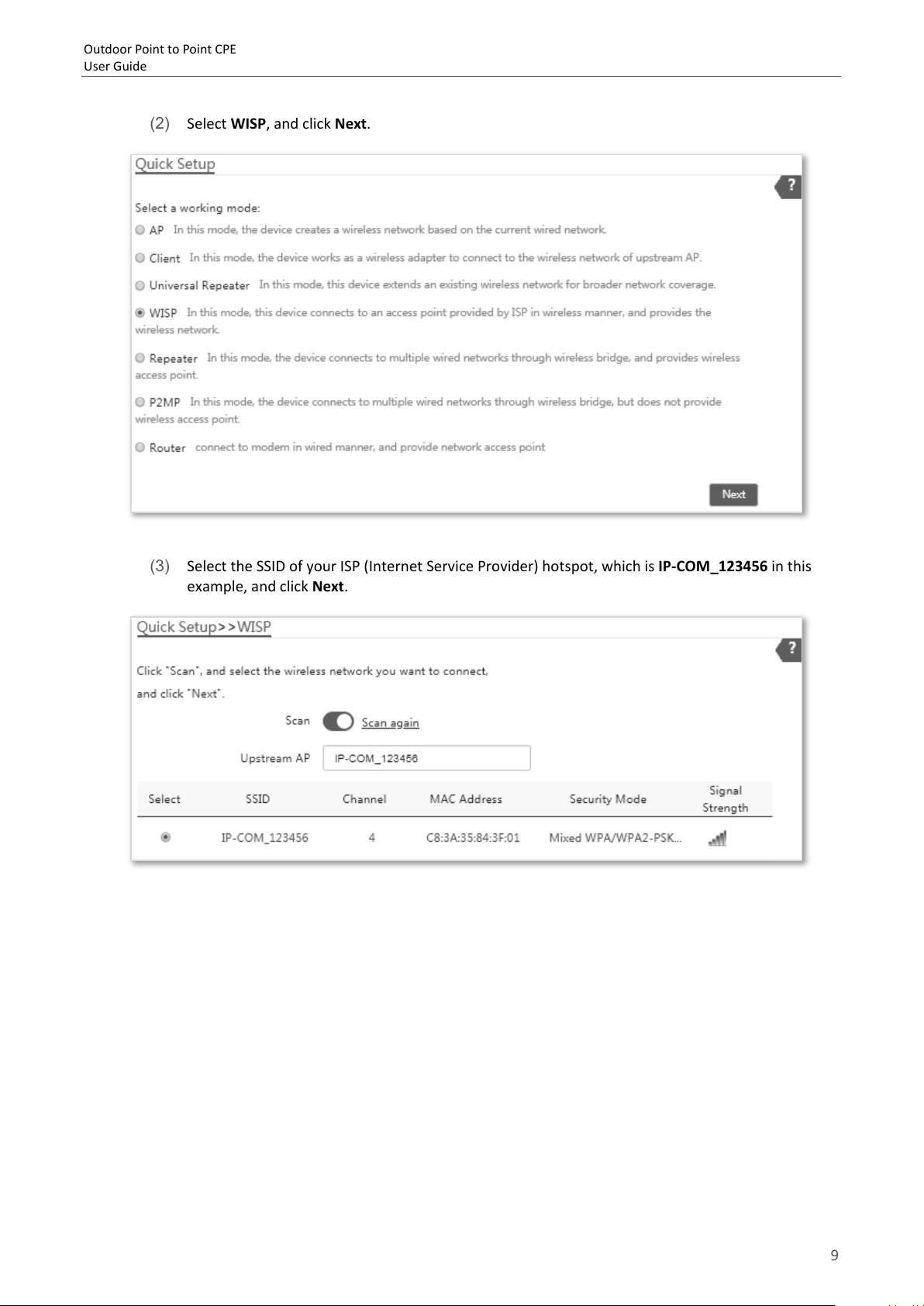

(2) Select WISP, and click Next.
(3) Select the SSID of your ISP (Internet Service Provider) hotspot, which is IP-COM_123456 in this
example, and click Next.
9
Outdoor Point to Point CPE
User Guide

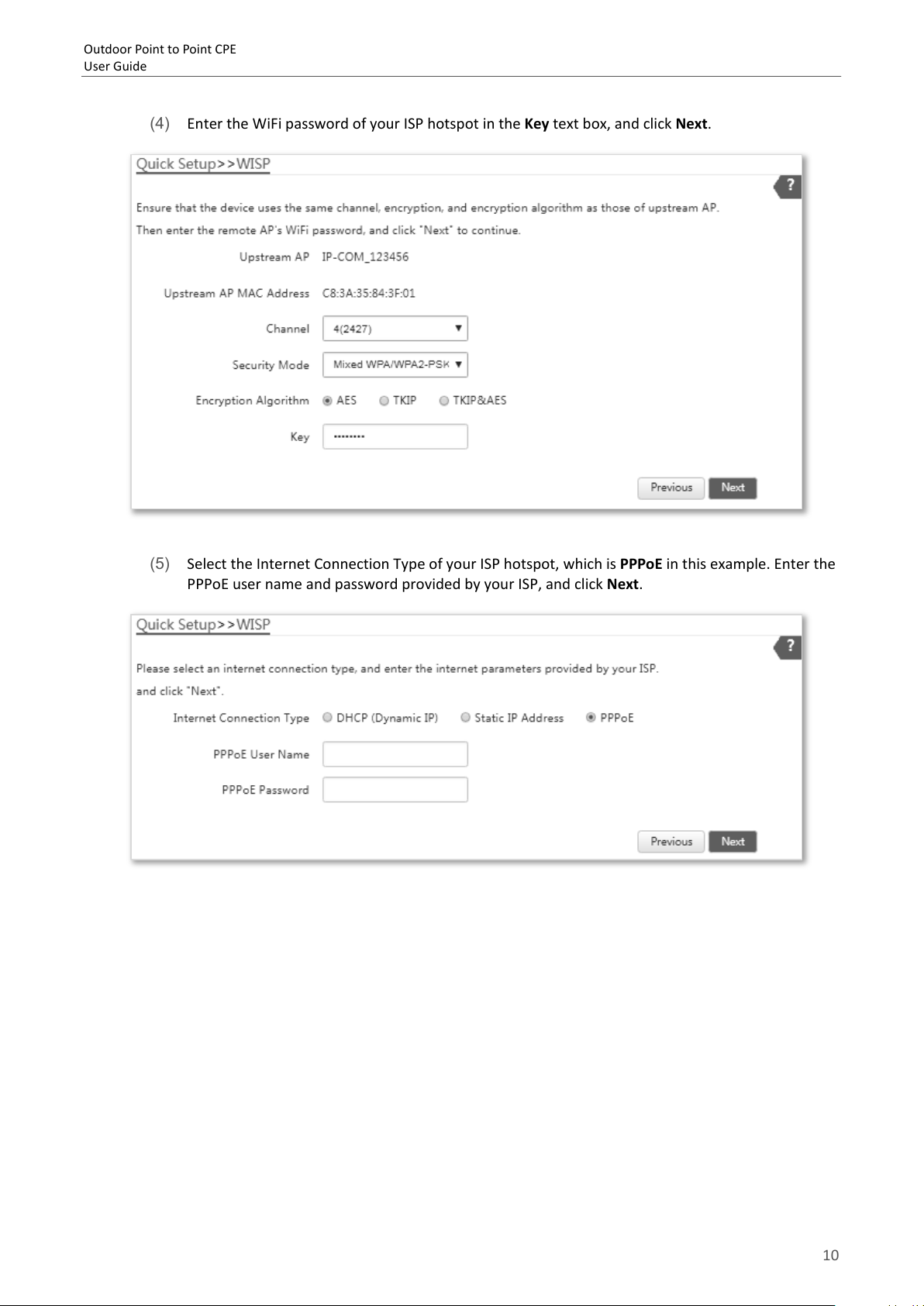

(4) Enter the WiFi password of your ISP hotspot in the Key text box, and click Next.
(5) Select the Internet Connection Type of your ISP hotspot, which is PPPoE in this example. Enter the
PPPoE user name and password provided by your ISP, and click Next.
10
Outdoor Point to Point CPE
User Guide

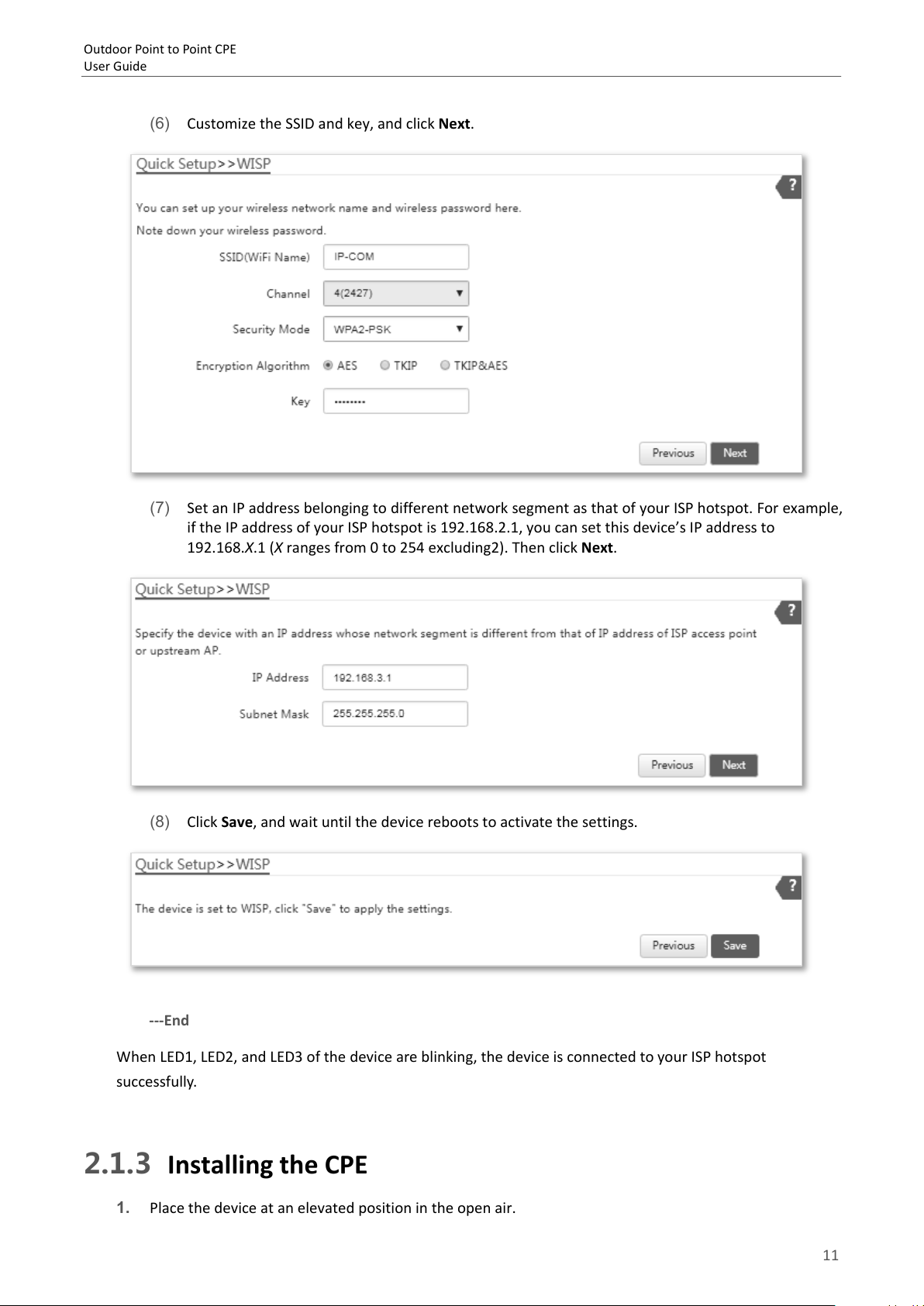

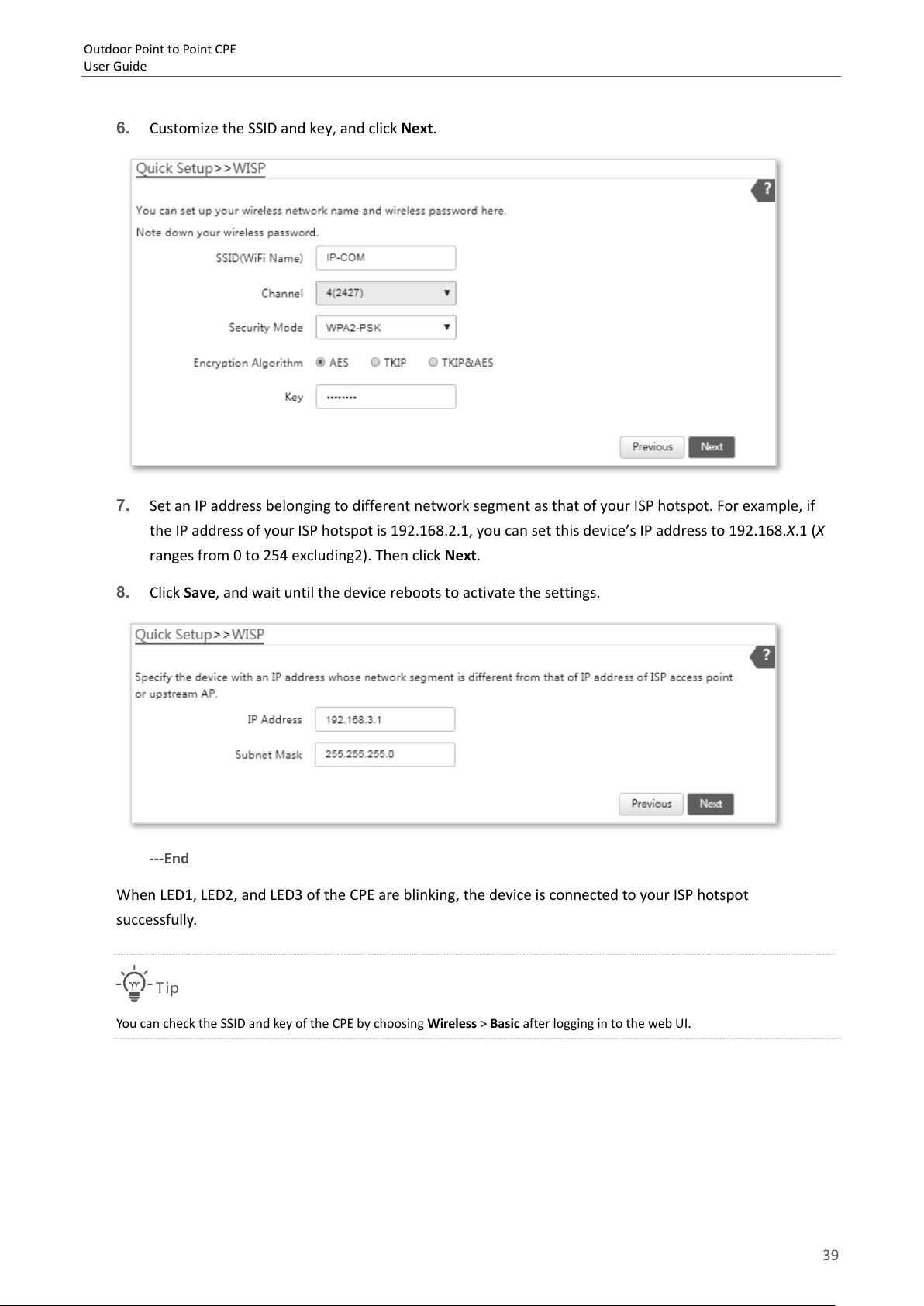

(6) Customize the SSID and key, and click Next.
(7) Set an IP address belonging to different network segment as that of your ISP hotspot. For example,
if the IP address of your ISP hotspot is 192.168.2.1, you can set this device’s IP address to
192.168.X.1 (X ranges from 0 to 254 excluding2). Then click Next.
(8) Click Save, and wait until the device reboots to activate the settings.
---End
When LED1, LED2, and LED3 of the device are blinking, the device is connected to your ISP hotspot
successfully.
2.1.3 Installing the CPE
1. Place the device at an elevated position in the open air.
11
Outdoor Point to Point CPE
User Guide

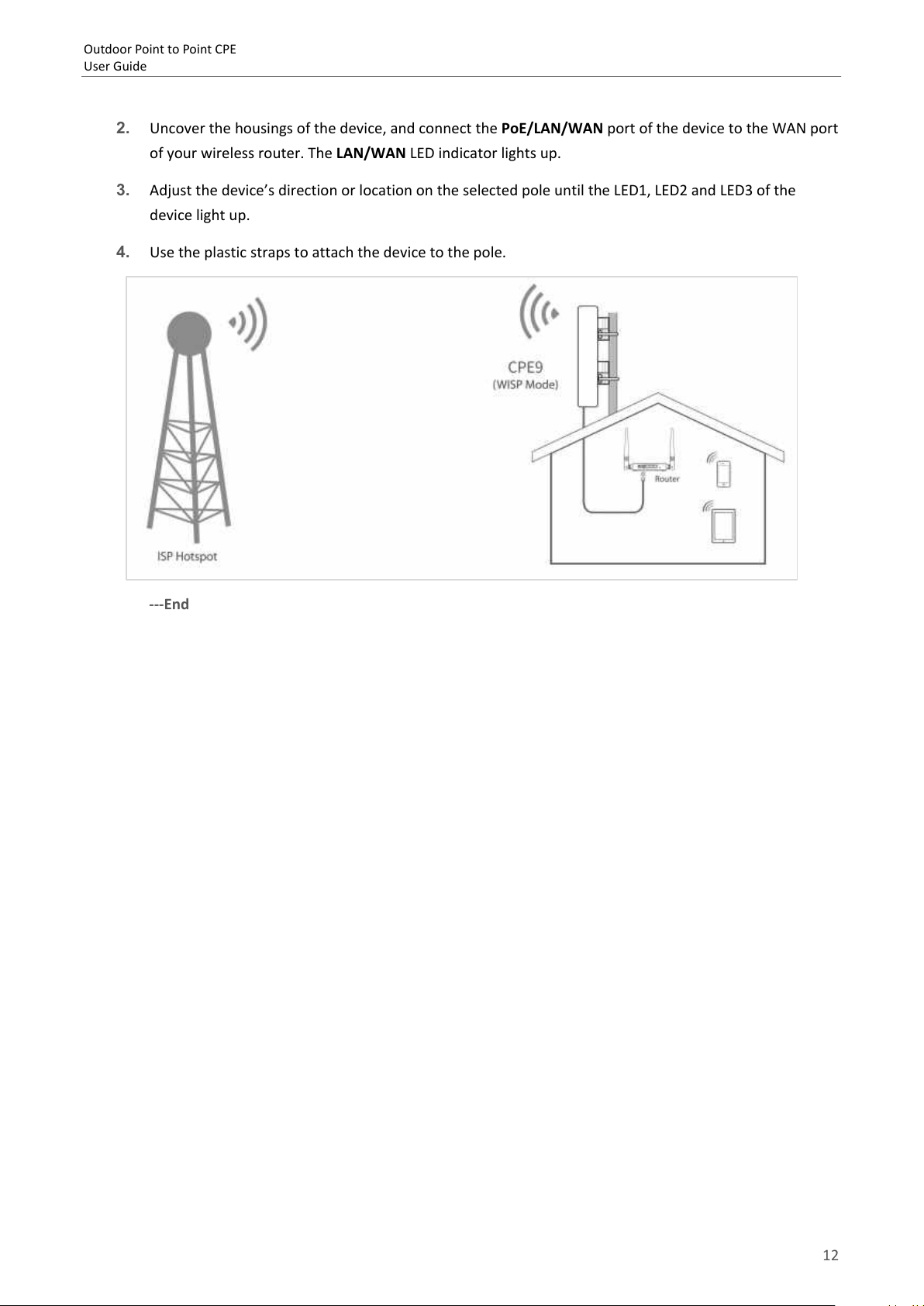

2. Uncover the housings of the device, and connect the PoE/LAN/WAN port of the device to the WAN port
of your wireless router. The LAN/WAN LED indicator lights up.
3. Adjust the device’s direction or location on the selected pole until the LED1, LED2 and LED3 of the
device light up.
4. Use the plastic straps to attach the device to the pole.
---End
12
Outdoor Point to Point CPE
Tip
User Guide

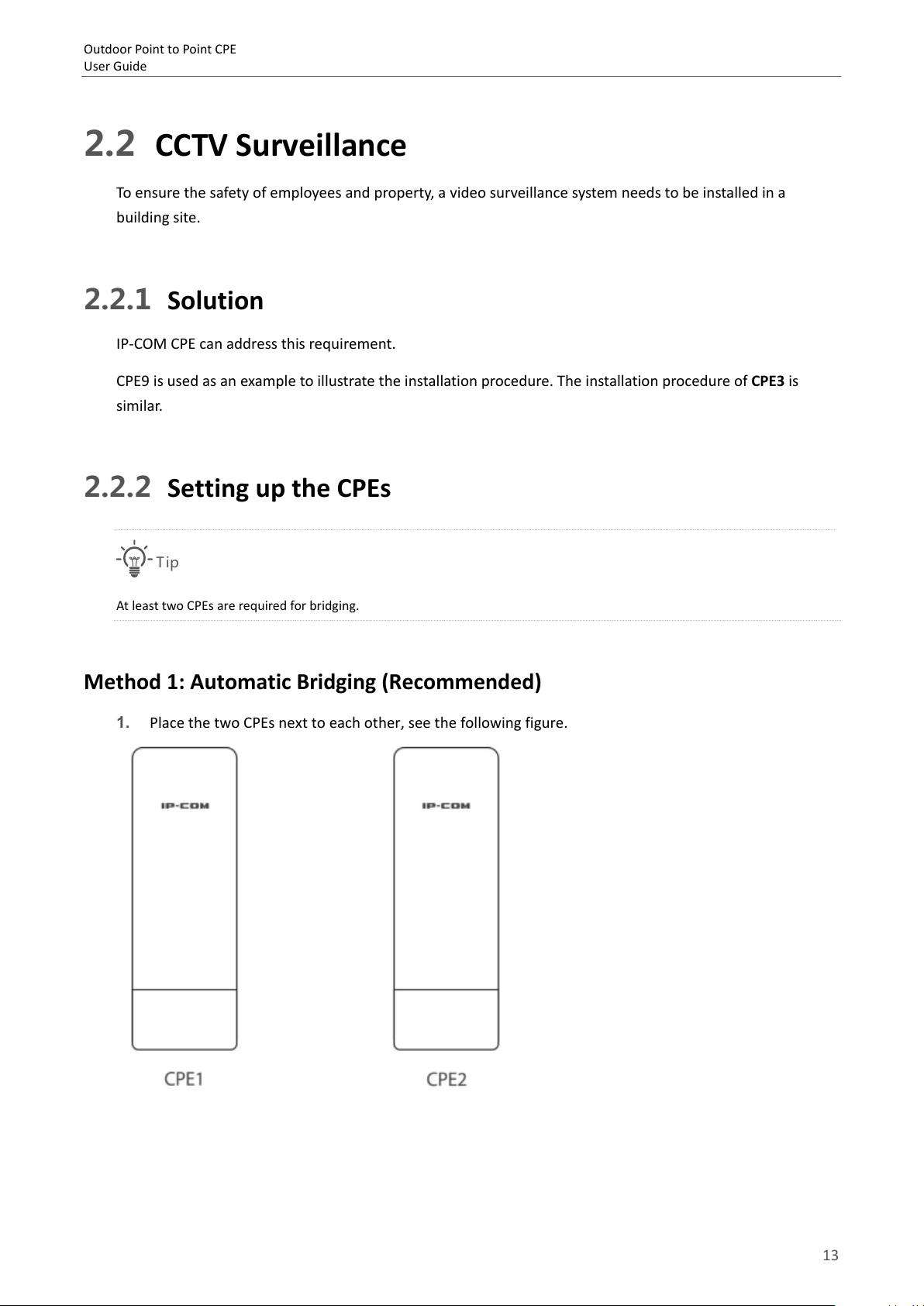

2.2 CCTV Surveillance
To ensure the safety of employees and property, a video surveillance system needs to be installed in a
building site.
2.2.1 Solution
IP-COM CPE can address this requirement.
CPE9 is used as an example to illustrate the installation procedure. The installation procedure of CPE3 is
similar.
2.2.2 Setting up the CPEs
At least two CPEs are required for bridging.
Method 1: Automatic Bridging (Recommended)
1. Place the two CPEs next to each other, see the following figure.
13
Outdoor Point to Point CPE
Note
User Guide

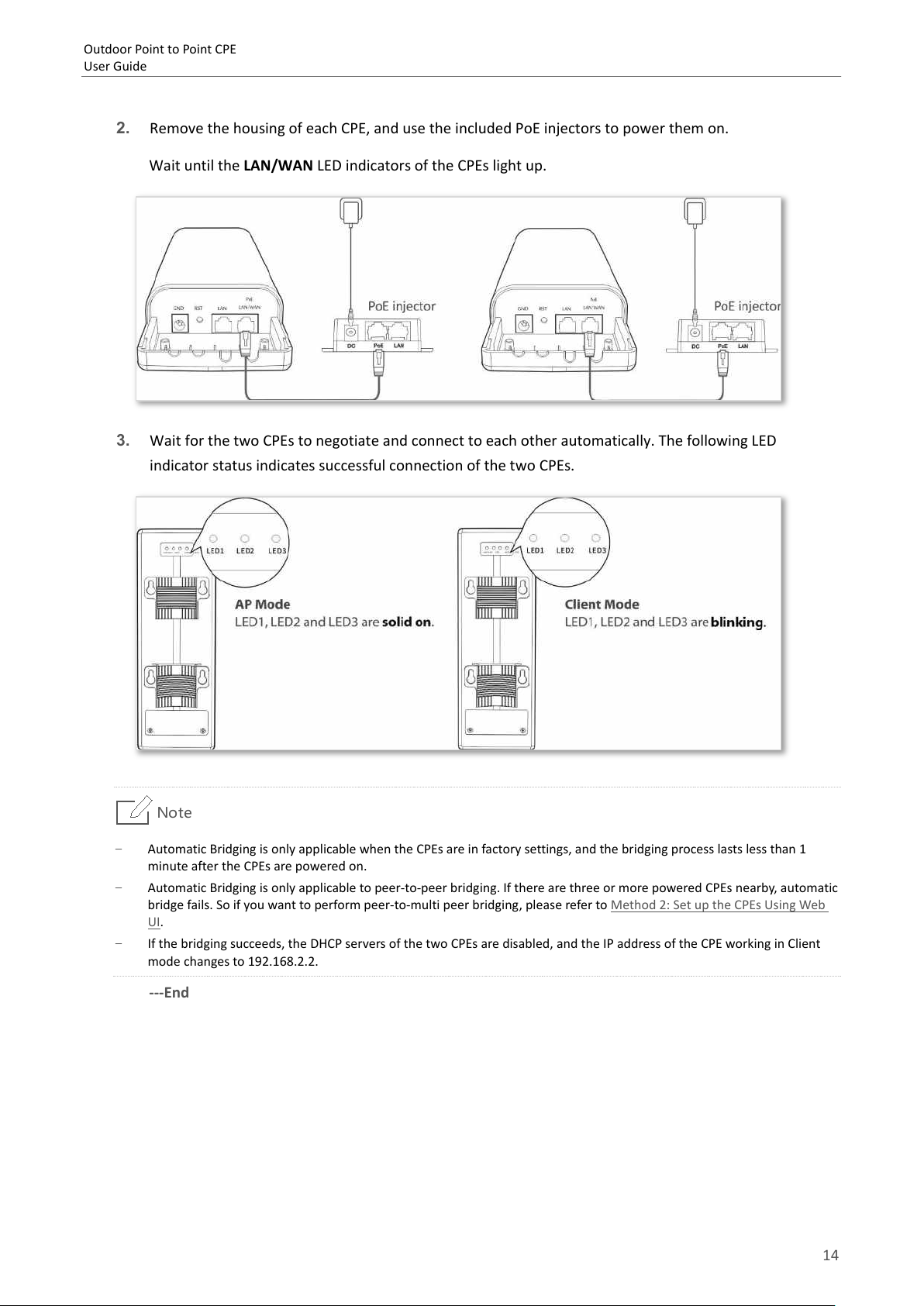

2. Remove the housing of each CPE, and use the included PoE injectors to power them on.
Wait until the LAN/WAN LED indicators of the CPEs light up.
3. Wait for the two CPEs to negotiate and connect to each other automatically. The following LED
indicator status indicates successful connection of the two CPEs.
− Automatic Bridging is only applicable when the CPEs are in factory settings, and the bridging process lasts less than 1
minute after the CPEs are powered on.
− Automatic Bridging is only applicable to peer-to-peer bridging. If there are three or more powered CPEs nearby, automatic
bridge fails. So if you want to perform peer-to-multi peer bridging, please refer to Method 2: Set up the CPEs Using Web
UI.
− If the bridging succeeds, the DHCP servers of the two CPEs are disabled, and the IP address of the CPE working in Client
mode changes to 192.168.2.2.
---End
14
Outdoor Point to Point CPE
User Guide

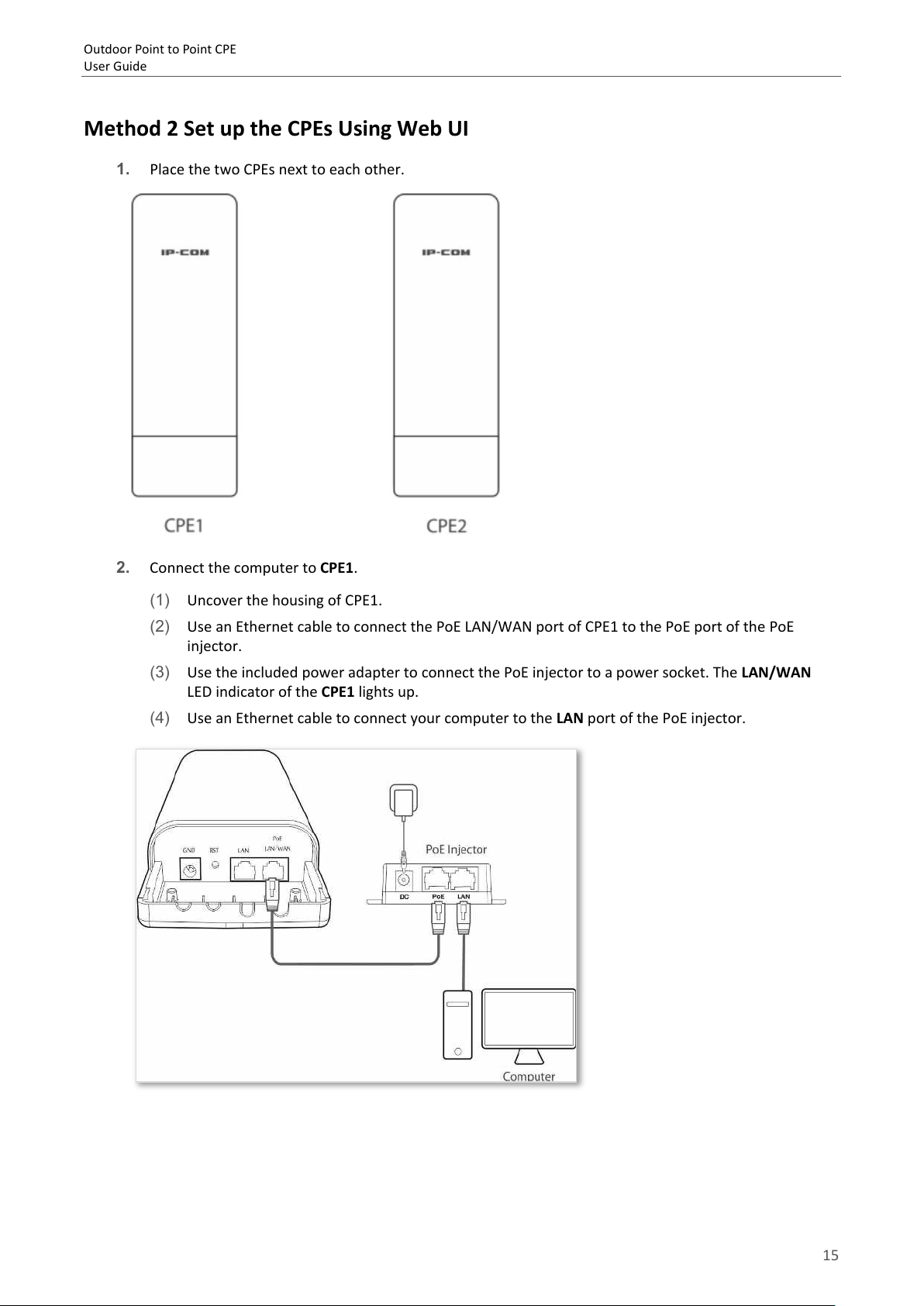

Method 2 Set up the CPEs Using Web UI
1. Place the two CPEs next to each other.
2. Connect the computer to CPE1.
(1) Uncover the housing of CPE1.
(2) Use an Ethernet cable to connect the PoE LAN/WAN port of CPE1 to the PoE port of the PoE
injector.
(3) Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN
LED indicator of the CPE1 lights up.
(4) Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
15
Outdoor Point to Point CPE
Tip
User Guide

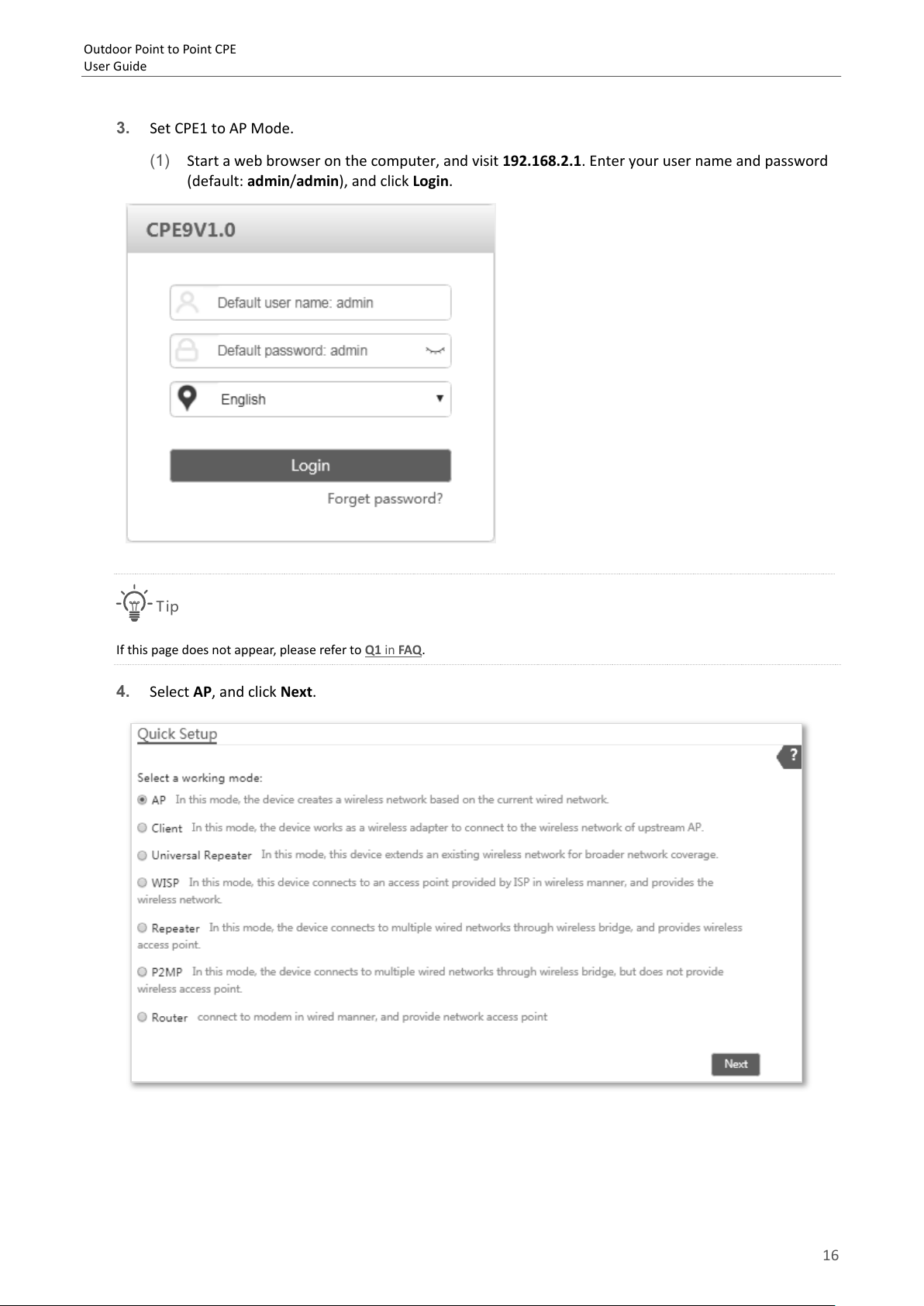

3. Set CPE1 to AP Mode.
(1) Start a web browser on the computer, and visit 192.168.2.1. Enter your user name and password
(default: admin/admin), and click Login.
If this page does not appear, please refer to Q1 in FAQ.
4. Select AP, and click Next.
16
Outdoor Point to Point CPE
User Guide

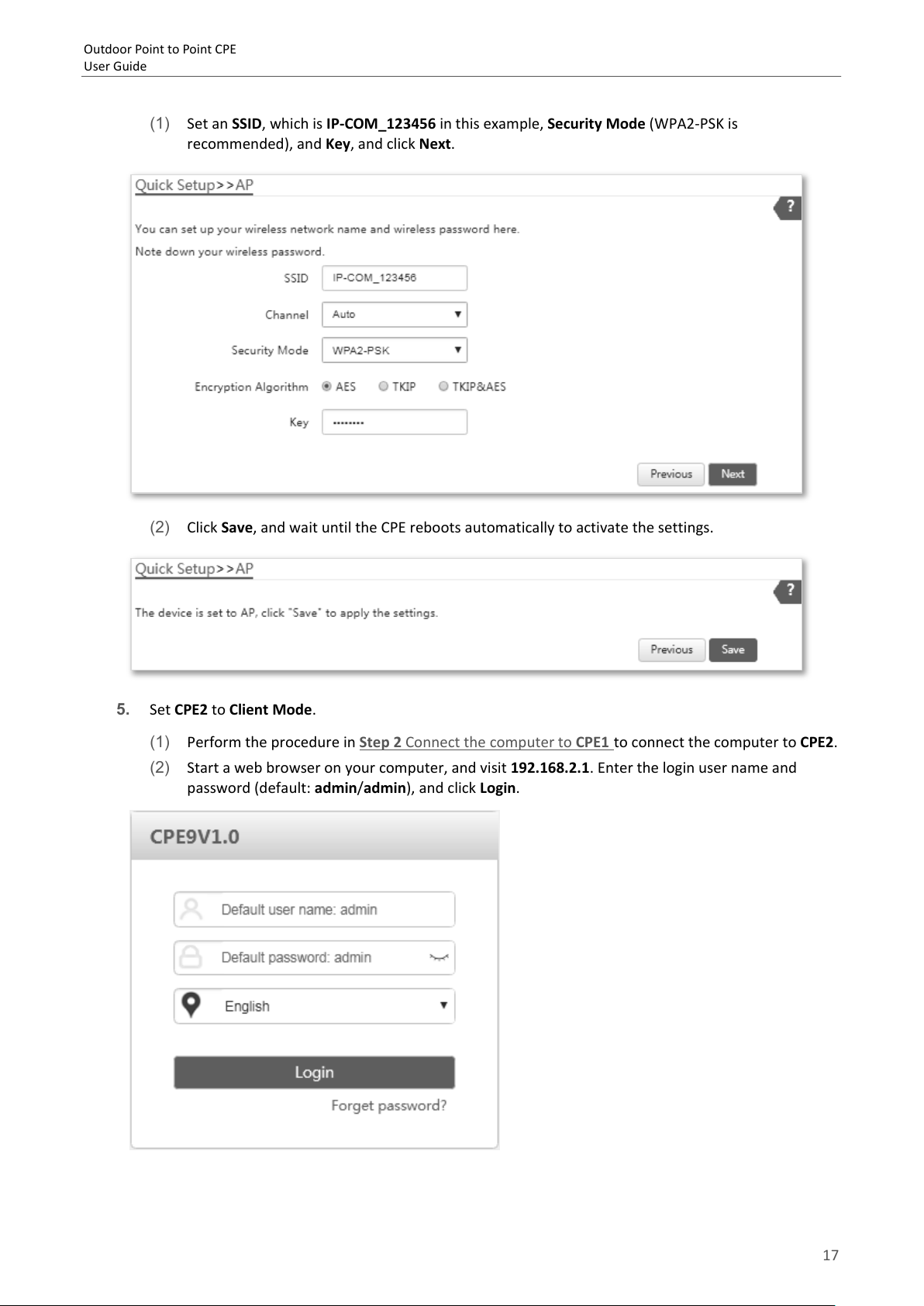

(1) Set an SSID, which is IP-COM_123456 in this example, Security Mode (WPA2-PSK is
recommended), and Key, and click Next.
(2) Click Save, and wait until the CPE reboots automatically to activate the settings.
5. Set CPE2 to Client Mode.
(1) Perform the procedure in Step 2 Connect the computer to CPE1 to connect the computer to CPE2.
(2) Start a web browser on your computer, and visit 192.168.2.1. Enter the login user name and
password (default: admin/admin), and click Login.
17
Outdoor Point to Point CPE
Tip
Tip
User Guide
If this page doesn’t appear, please refer to Q1 in FAQ.

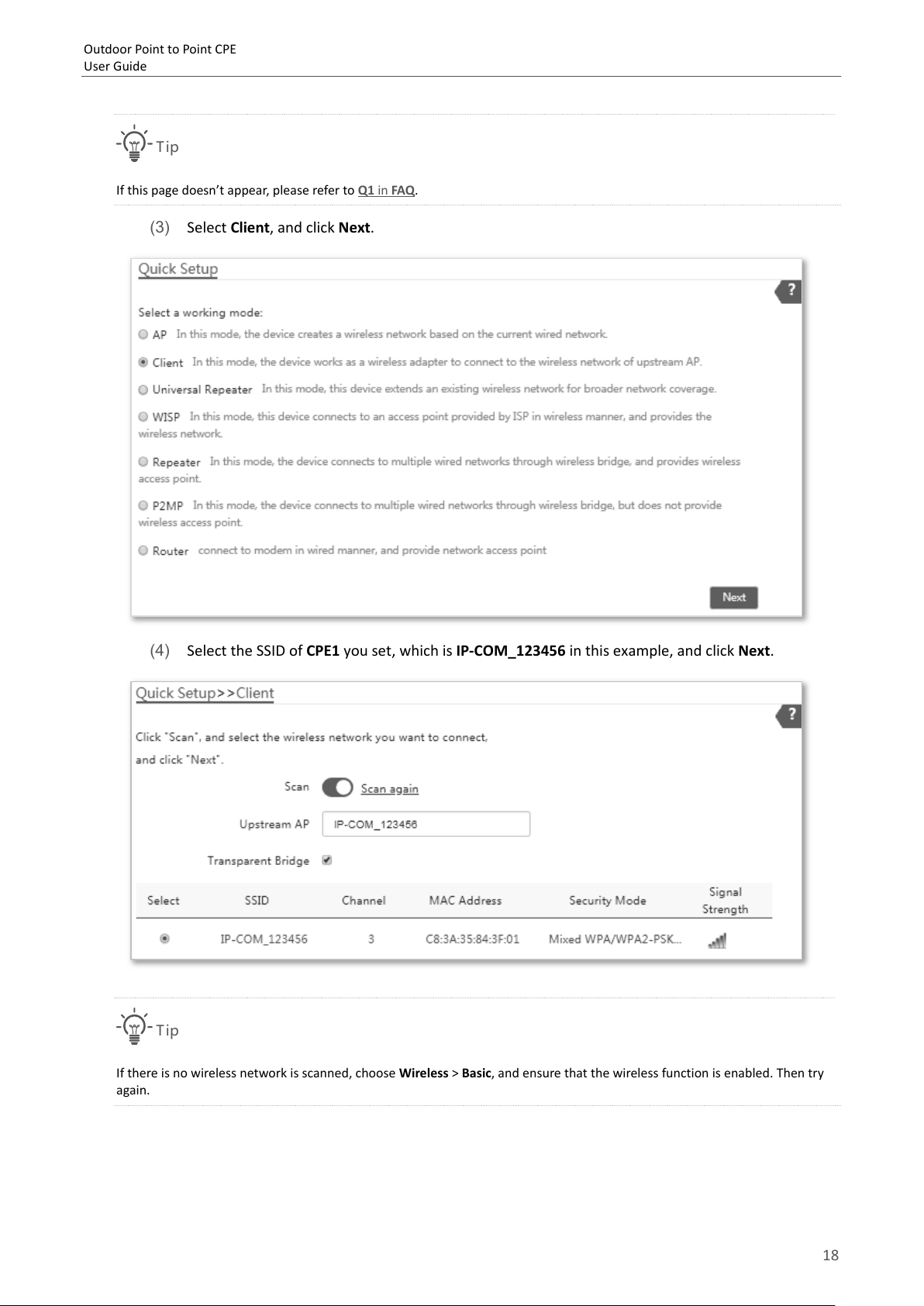

(3) Select Client, and click Next.
(4) Select the SSID of CPE1 you set, which is IP-COM_123456 in this example, and click Next.
If there is no wireless network is scanned, choose Wireless > Basic, and ensure that the wireless function is enabled. Then try
again.
18
Outdoor Point to Point CPE
User Guide

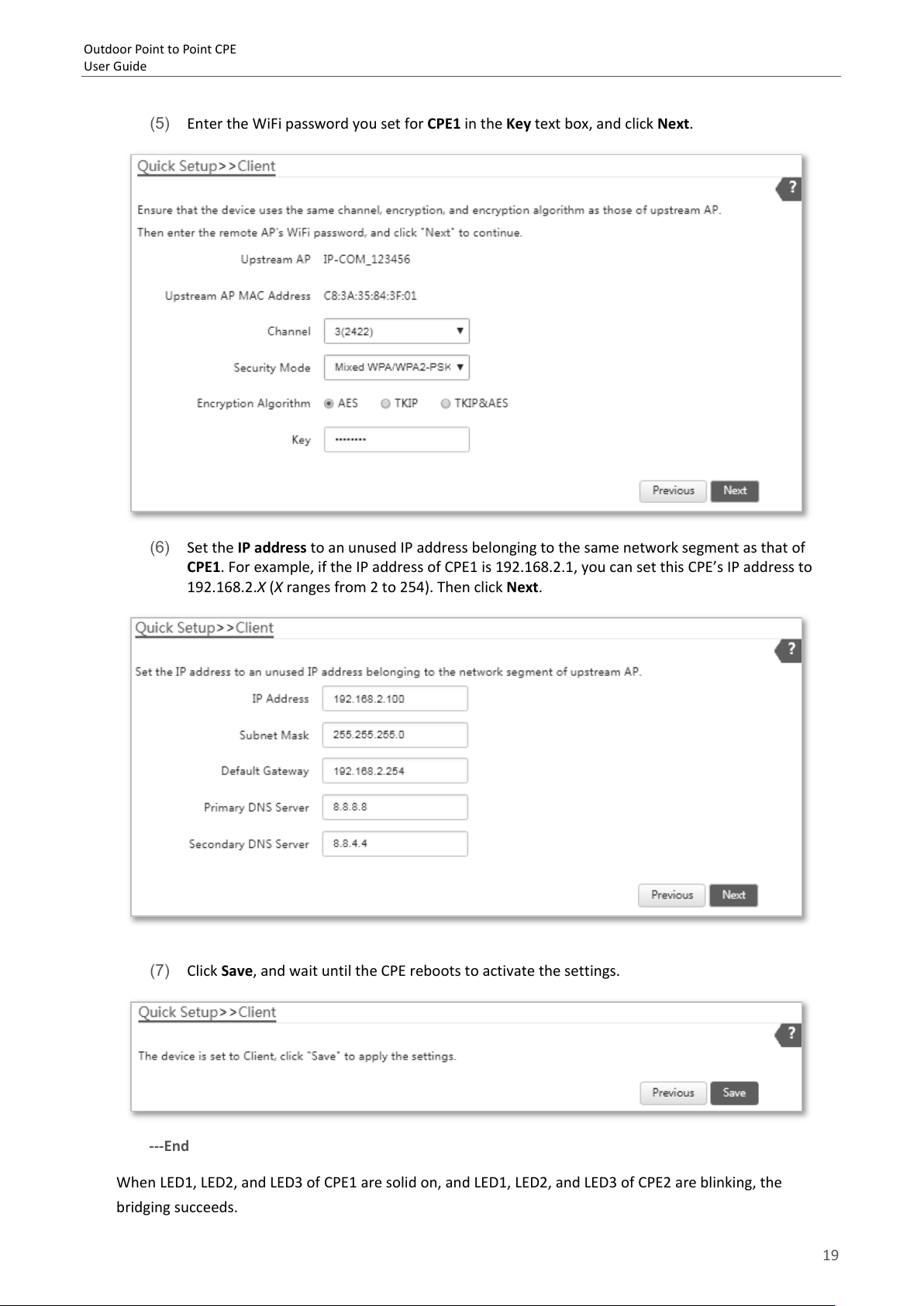

(5) Enter the WiFi password you set for CPE1 in the Key text box, and click Next.
(6) Set the IP address to an unused IP address belonging to the same network segment as that of
CPE1. For example, if the IP address of CPE1 is 192.168.2.1, you can set this CPE’s IP address to
192.168.2.X (X ranges from 2 to 254). Then click Next.
(7) Click Save, and wait until the CPE reboots to activate the settings.
---End
When LED1, LED2, and LED3 of CPE1 are solid on, and LED1, LED2, and LED3 of CPE2 are blinking, the
bridging succeeds.
19
Outdoor Point to Point CPE
Tip
User Guide
You can check the SSID and key of the CPE1 or CPE2 by choosing Wireless > Basic after logging in to the web UI.

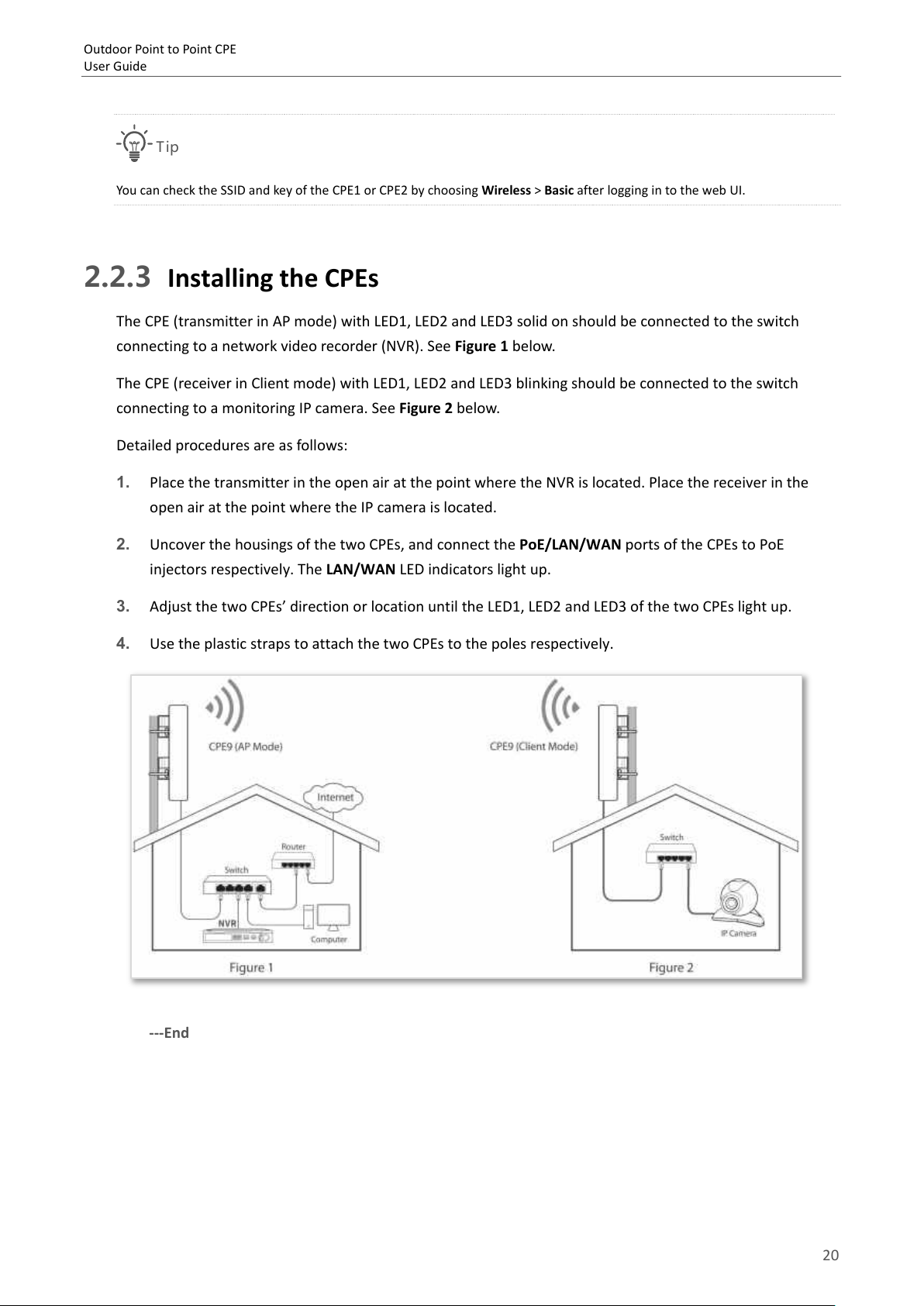

2.2.3 Installing the CPEs
The CPE (transmitter in AP mode) with LED1, LED2 and LED3 solid on should be connected to the switch
connecting to a network video recorder (NVR). See Figure 1 below.
The CPE (receiver in Client mode) with LED1, LED2 and LED3 blinking should be connected to the switch
connecting to a monitoring IP camera. See Figure 2 below.
Detailed procedures are as follows:
1. Place the transmitter in the open air at the point where the NVR is located. Place the receiver in the
open air at the point where the IP camera is located.
2. Uncover the housings of the two CPEs, and connect the PoE/LAN/WAN ports of the CPEs to PoE
injectors respectively. The LAN/WAN LED indicators light up.
3. Adjust the two CPEs’ direction or location until the LED1, LED2 and LED3 of the two CPEs light up.
4. Use the plastic straps to attach the two CPEs to the poles respectively.
---End
20
Outdoor Point to Point CPE
User Guide

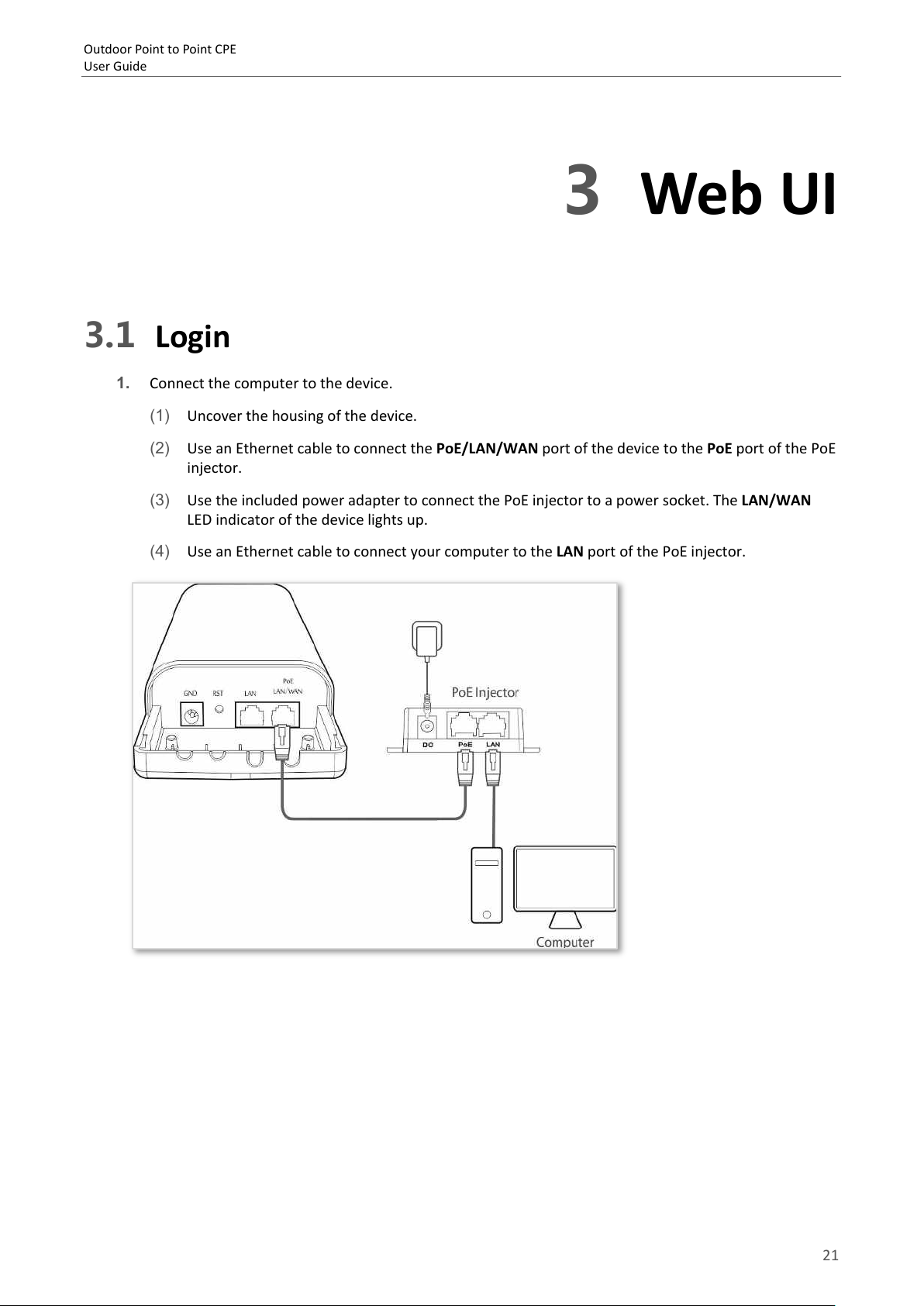

3.1 Login
1. Connect the computer to the device.
(1) Uncover the housing of the device.
(2) Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of the PoE
injector.
3 Web UI
(3) Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN
LED indicator of the device lights up.
(4) Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
21
Outdoor Point to Point CPE
Tip
User Guide

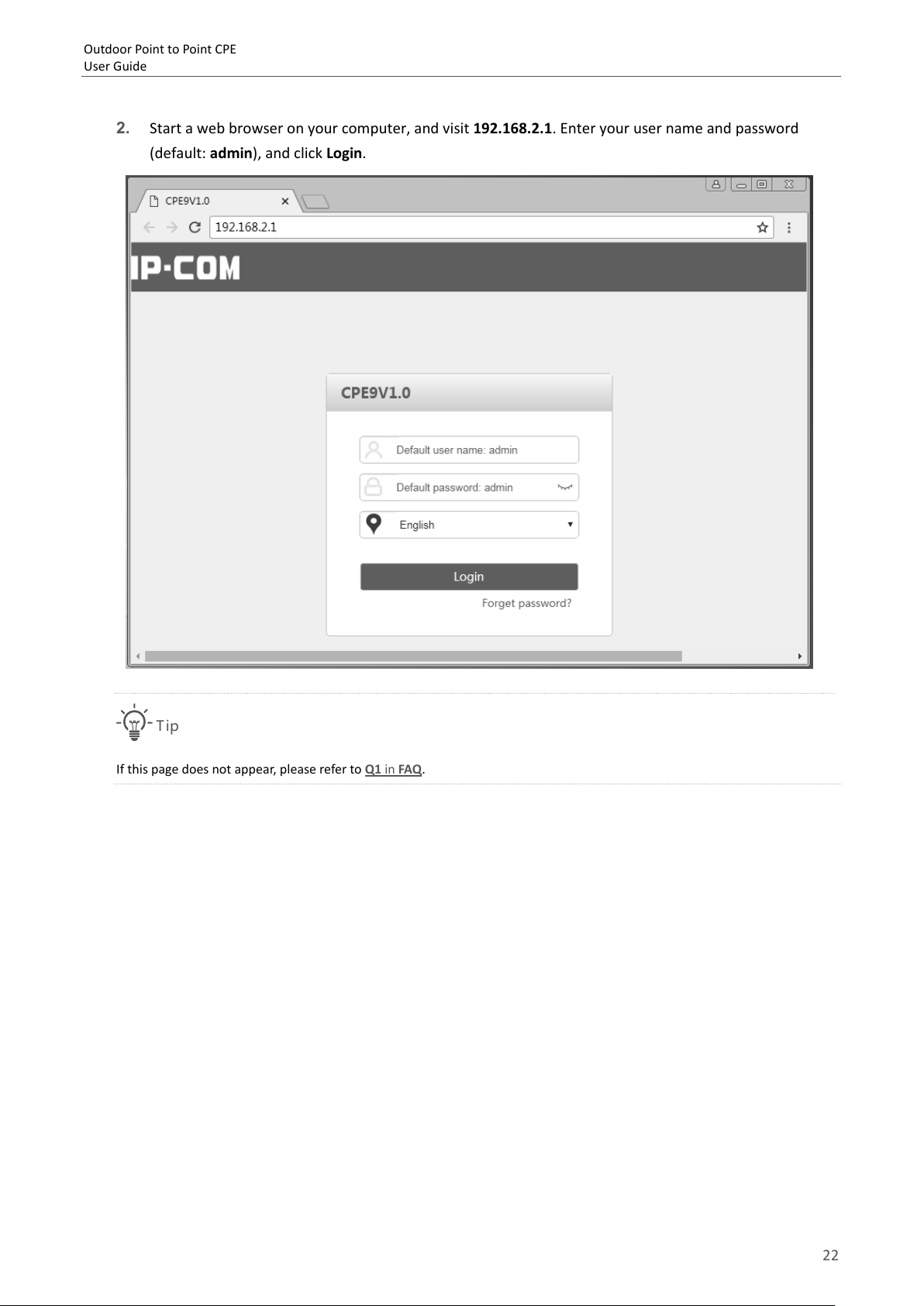

2. Start a web browser on your computer, and visit 192.168.2.1. Enter your user name and password
(default: admin), and click Login.
If this page does not appear, please refer to Q1 in FAQ.
22
Outdoor Point to Point CPE
User Guide

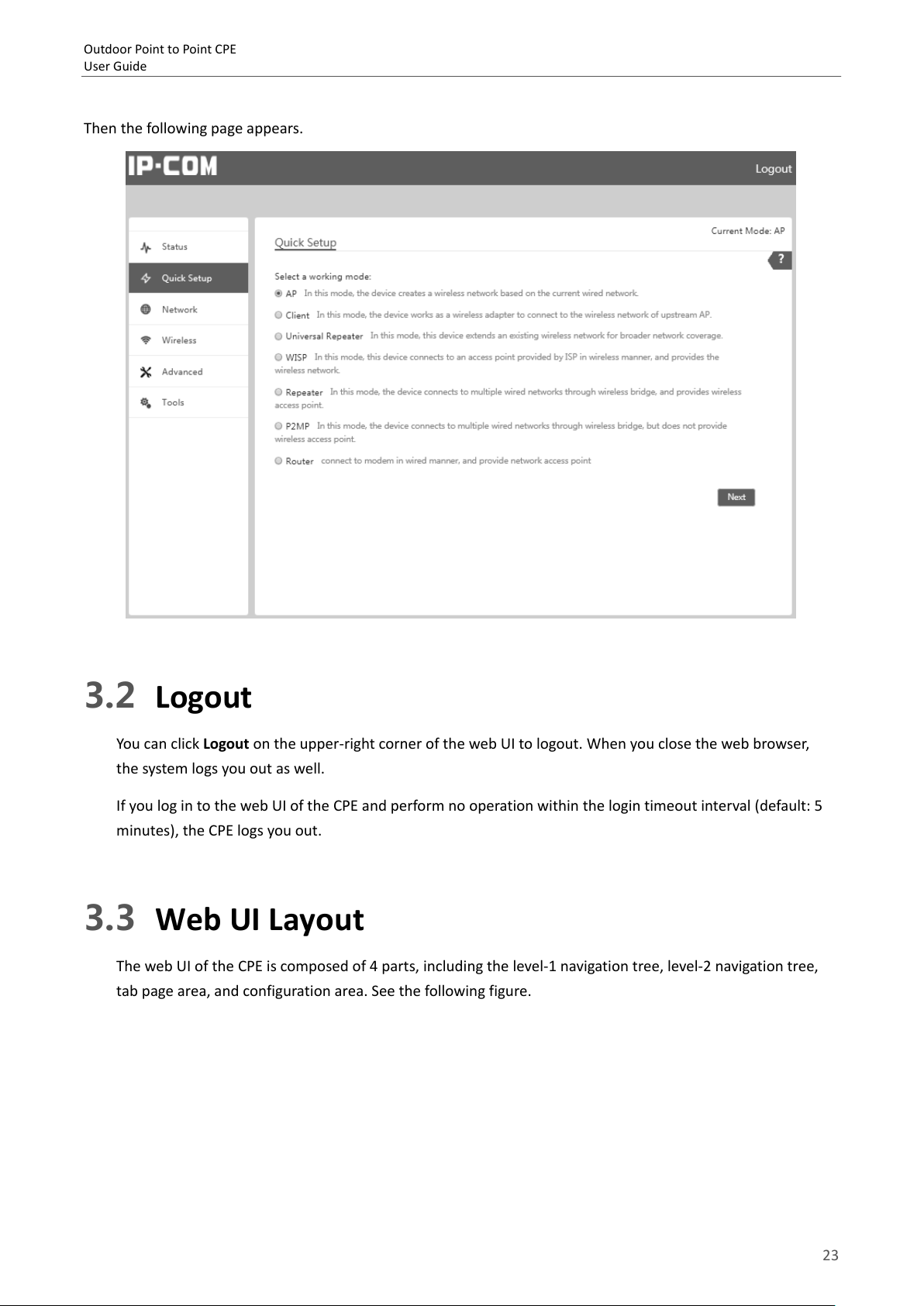

Then the following page appears.
3.2 Logout
You can click Logout on the upper-right corner of the web UI to logout. When you close the web browser,
the system logs you out as well.
If you log in to the web UI of the CPE and perform no operation within the login timeout interval (default: 5
minutes), the CPE logs you out.
3.3 Web UI Layout

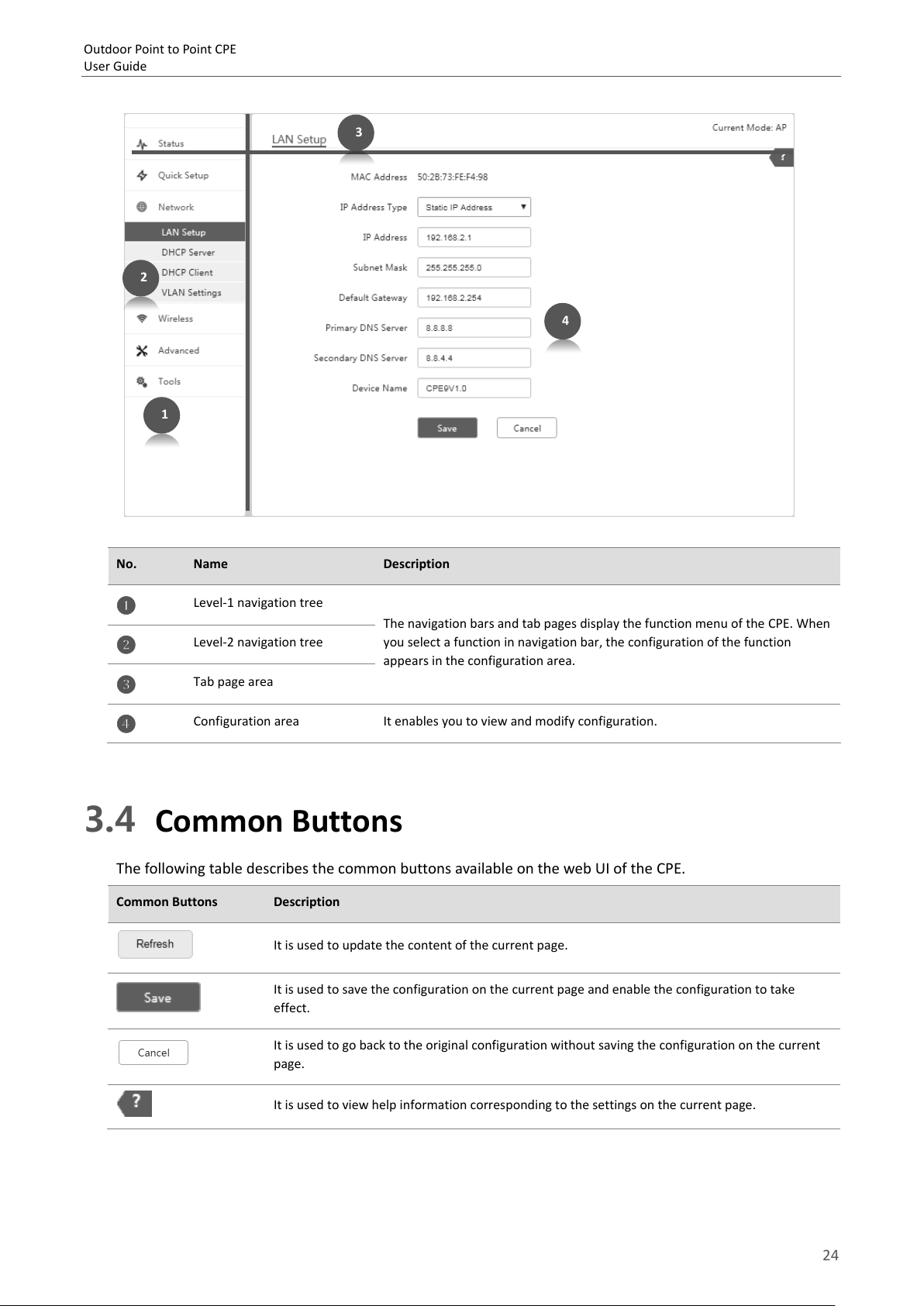

The web UI of the CPE is composed of 4 parts, including the level-1 navigation tree, level-2 navigation tree,
tab page area, and configuration area. See the following figure.
23
Outdoor Point to Point CPE
No.
Name
Description
❶
Level-1 navigation tree
The navigation bars and tab pages display the function menu of the CPE. When
you select a function in navigation bar, the configuration of the function
appears in the configuration area.
❷
Level-2 navigation tree
❸
Tab page area
❹
Configuration area
It enables you to view and modify configuration.
Common Buttons
Description
It is used to update the content of the current page.
It is used to save the configuration on the current page and enable the configuration to take
effect.
It is used to go back to the original configuration without saving the configuration on the current
page.
It is used to view help information corresponding to the settings on the current page.
1
2
3
4
User Guide
3.4 Common Buttons
The following table describes the common buttons available on the web UI of the CPE.
24
Outdoor Point to Point CPE
CPE1: AP mode
Key: 12345678
CPE2: Client mode
User Guide
4 Quick Setup
This module enables you to quickly configure the CPE to deploy your wireless network.
CPE3 supports
P2MP, and Router modes.
AP, Client, and WISP modes. CPE9 supports AP, Client, Universal Repeater, WISP, Repeater,

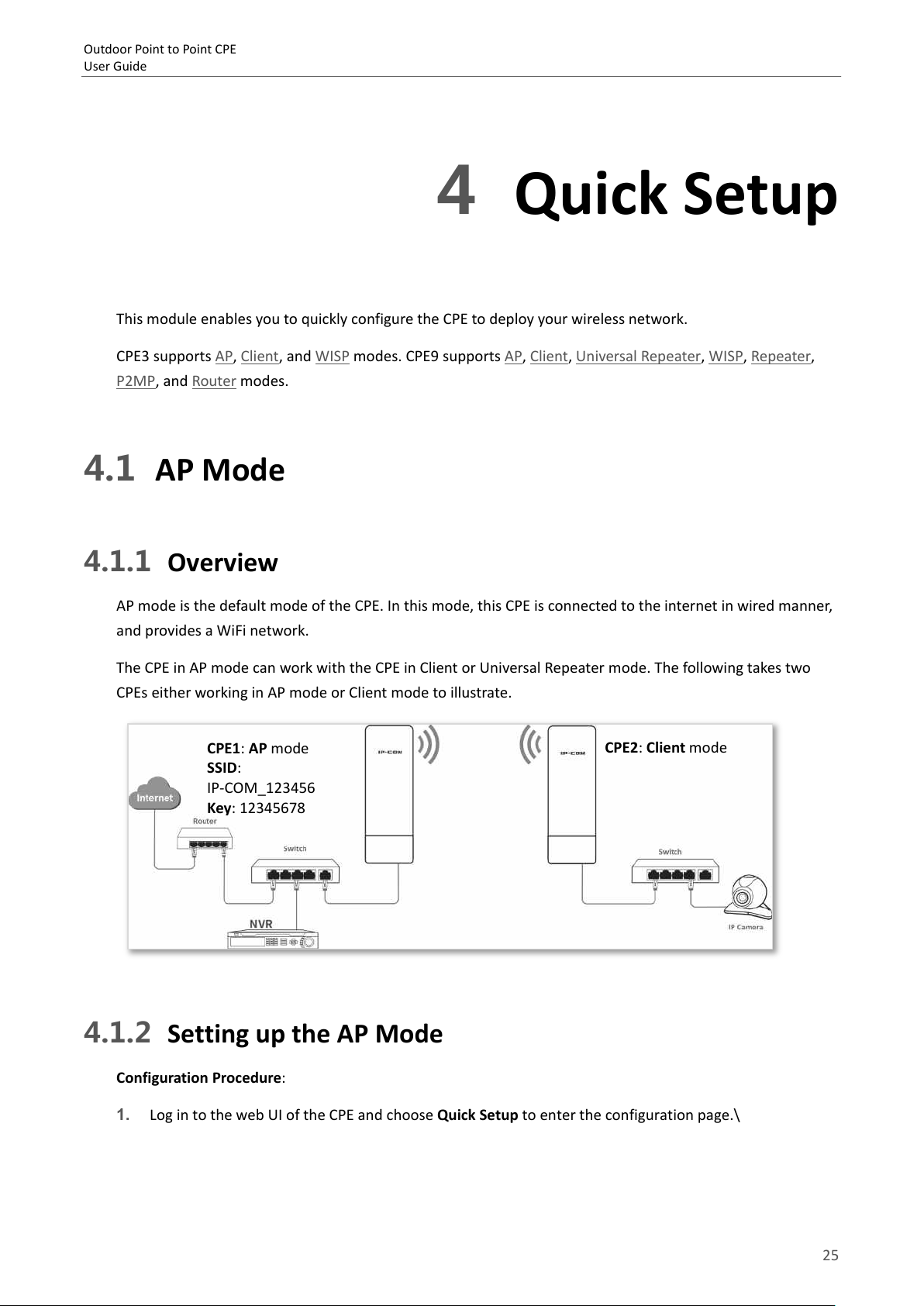

4.1 AP Mode
4.1.1 Overview
AP mode is the default mode of the CPE. In this mode, this CPE is connected to the internet in wired manner,
and provides a WiFi network.
The CPE in AP mode can work with the CPE in Client or Universal Repeater mode. The following takes two
CPEs either working in AP mode or Client mode to illustrate.
SSID:
IP-COM_123456
4.1.2 Setting up the AP Mode
Configuration Procedure:
1. Log in to the web UI of the CPE and choose Quick Setup to enter the configuration page.\
25
Outdoor Point to Point CPE
User Guide

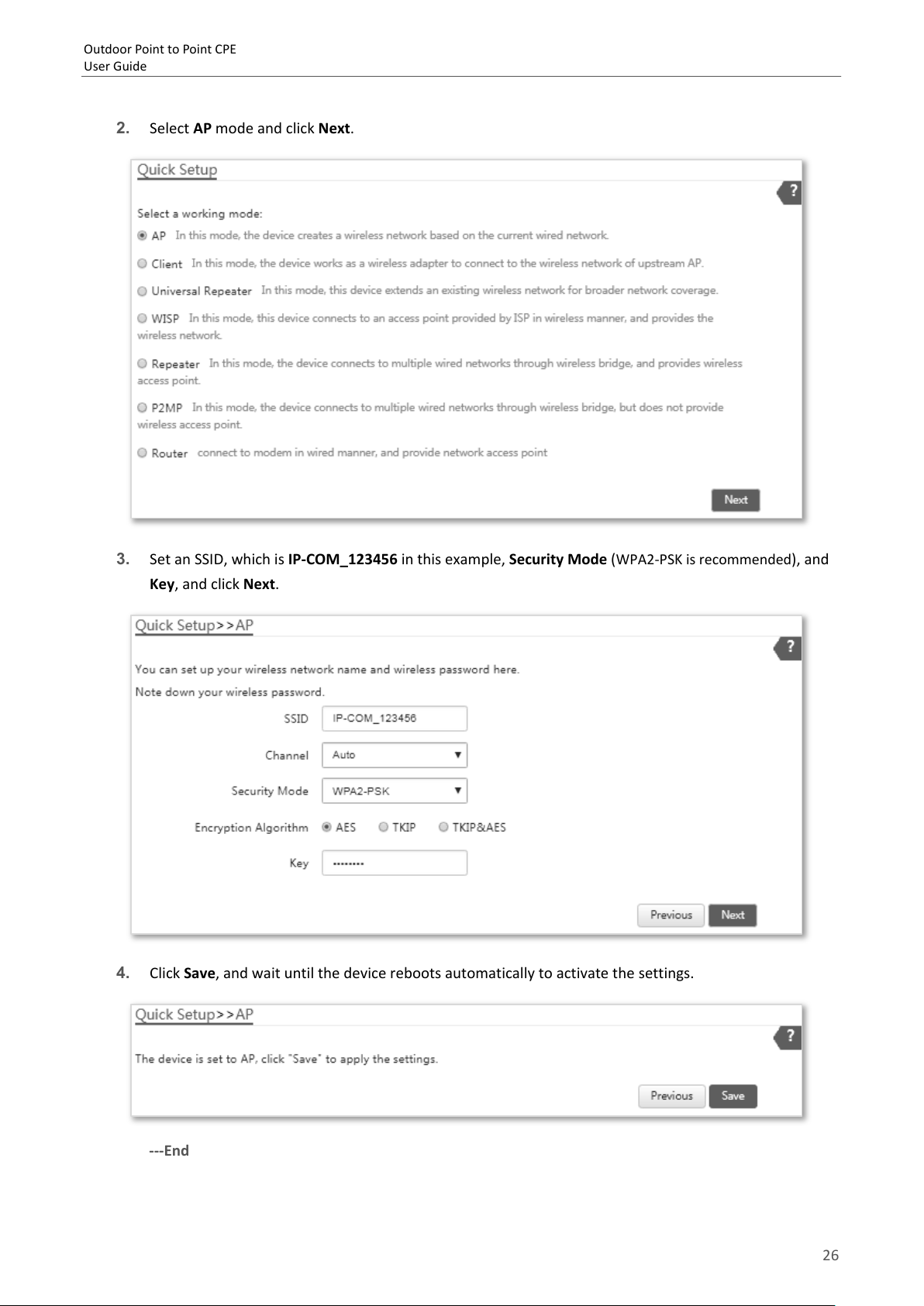

2. Select AP mode and click Next.
3. Set an SSID, which is IP-COM_123456 in this example, Security Mode (WPA2-PSK is recommended), and
Key, and click Next.
4. Click Save, and wait until the device reboots automatically to activate the settings.
---End
26
Outdoor Point to Point CPE

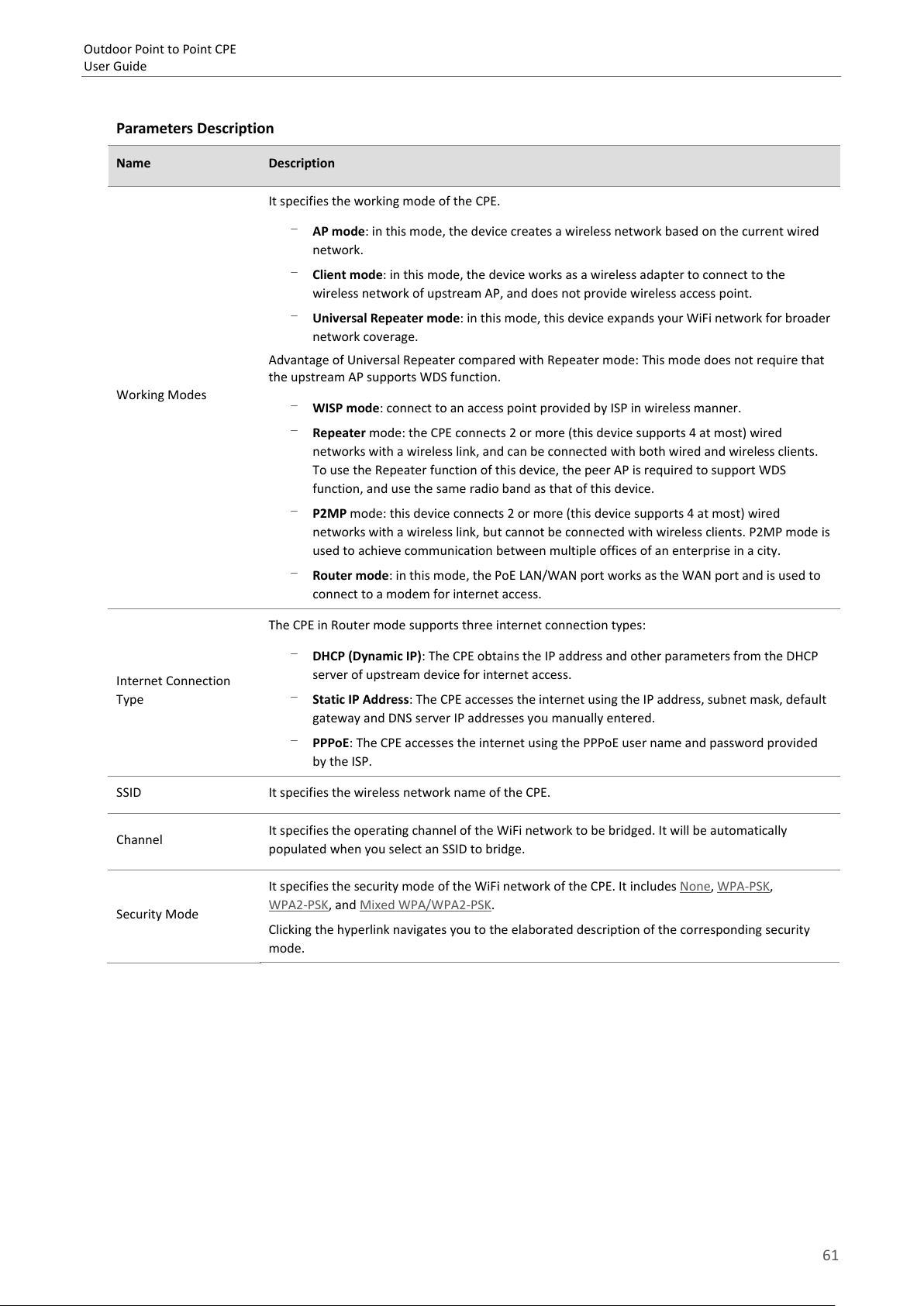

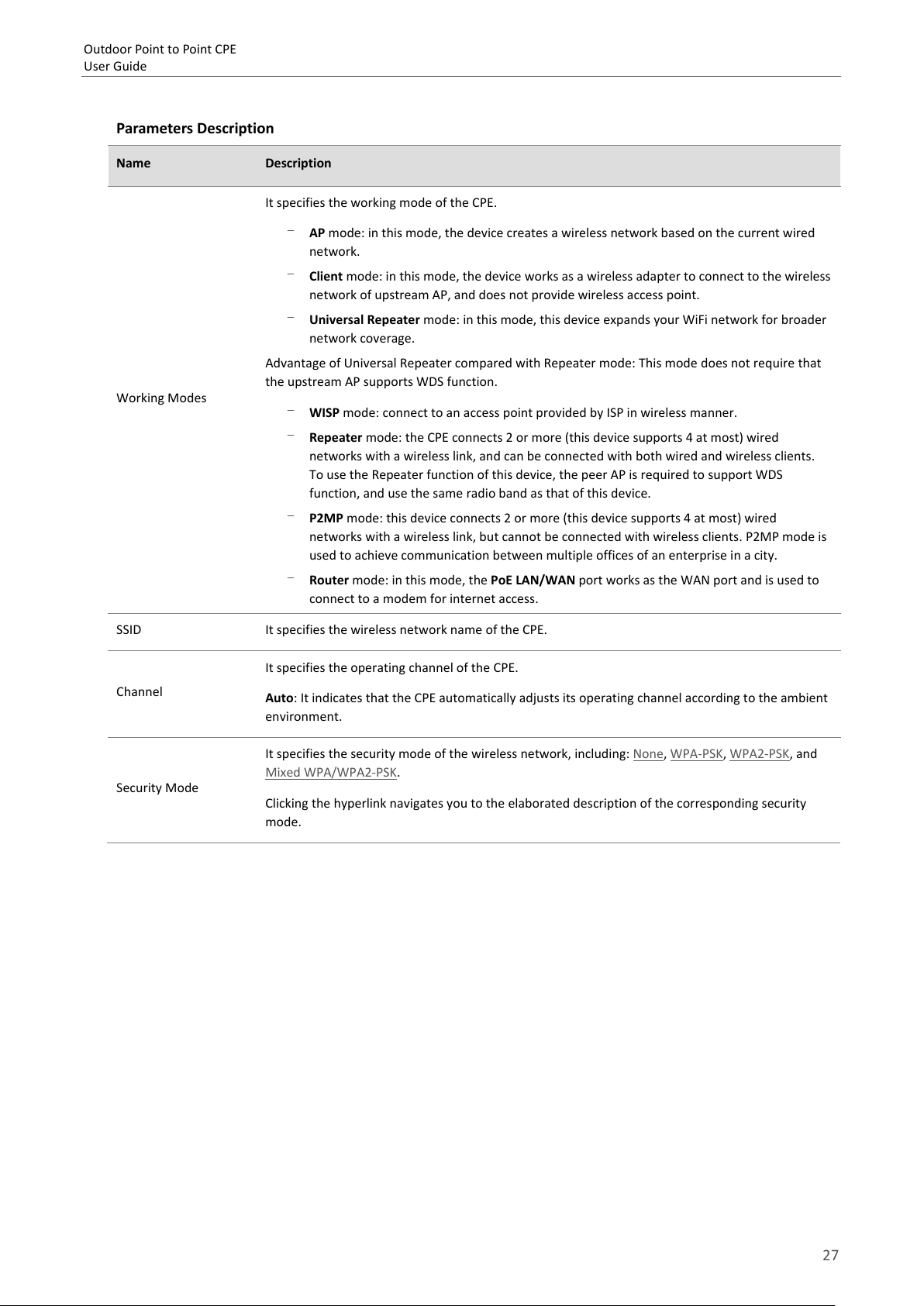

Name
Description

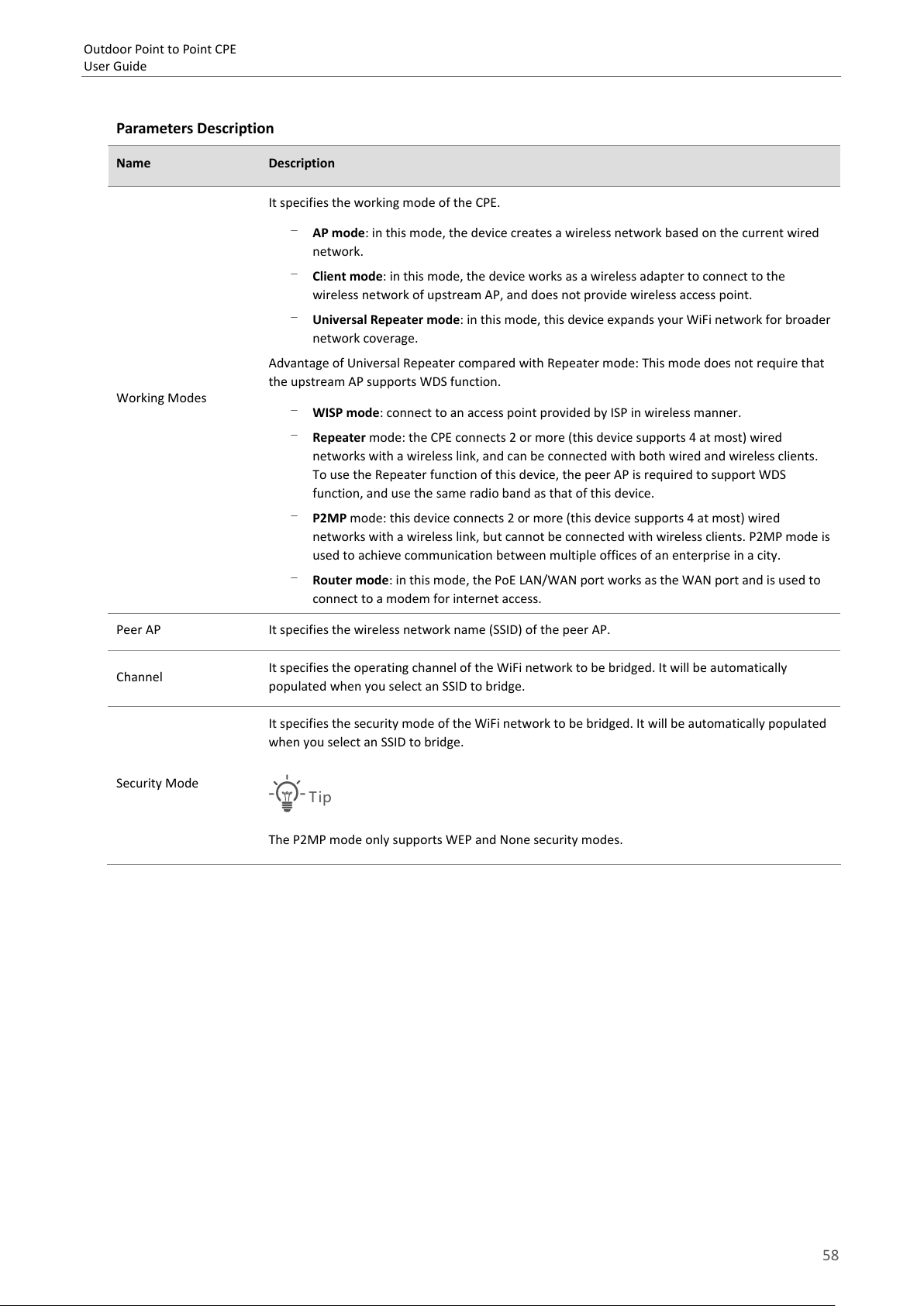

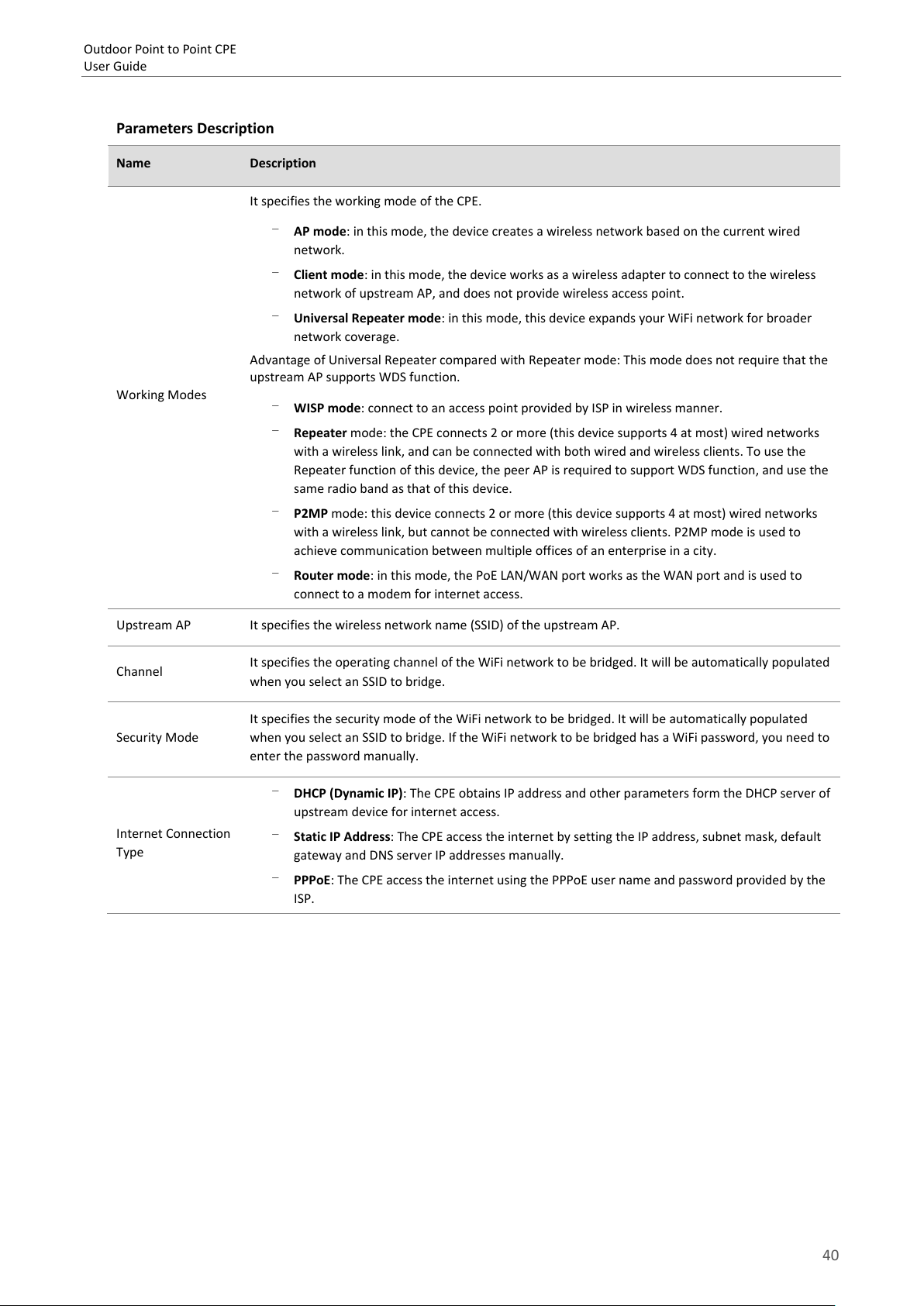

Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the wireless
network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
SSID
It specifies the wireless network name of the CPE.
Channel
It specifies the operating channel of the CPE.
Auto: It indicates that the CPE automatically adjusts its operating channel according to the ambient
environment.
Security Mode
It specifies the security mode of the wireless network, including: None, WPA-PSK, WPA2-PSK, and
Mixed WPA/WPA2-PSK.
Clicking the hyperlink navigates you to the elaborated description of the corresponding security
mode.
User Guide
Parameters Description
27
Outdoor Point to Point CPE
CPE1: AP mode
Key: 12345678
CPE2: Client mode
User Guide
4.2 Client Mode
4.2.1 Overview

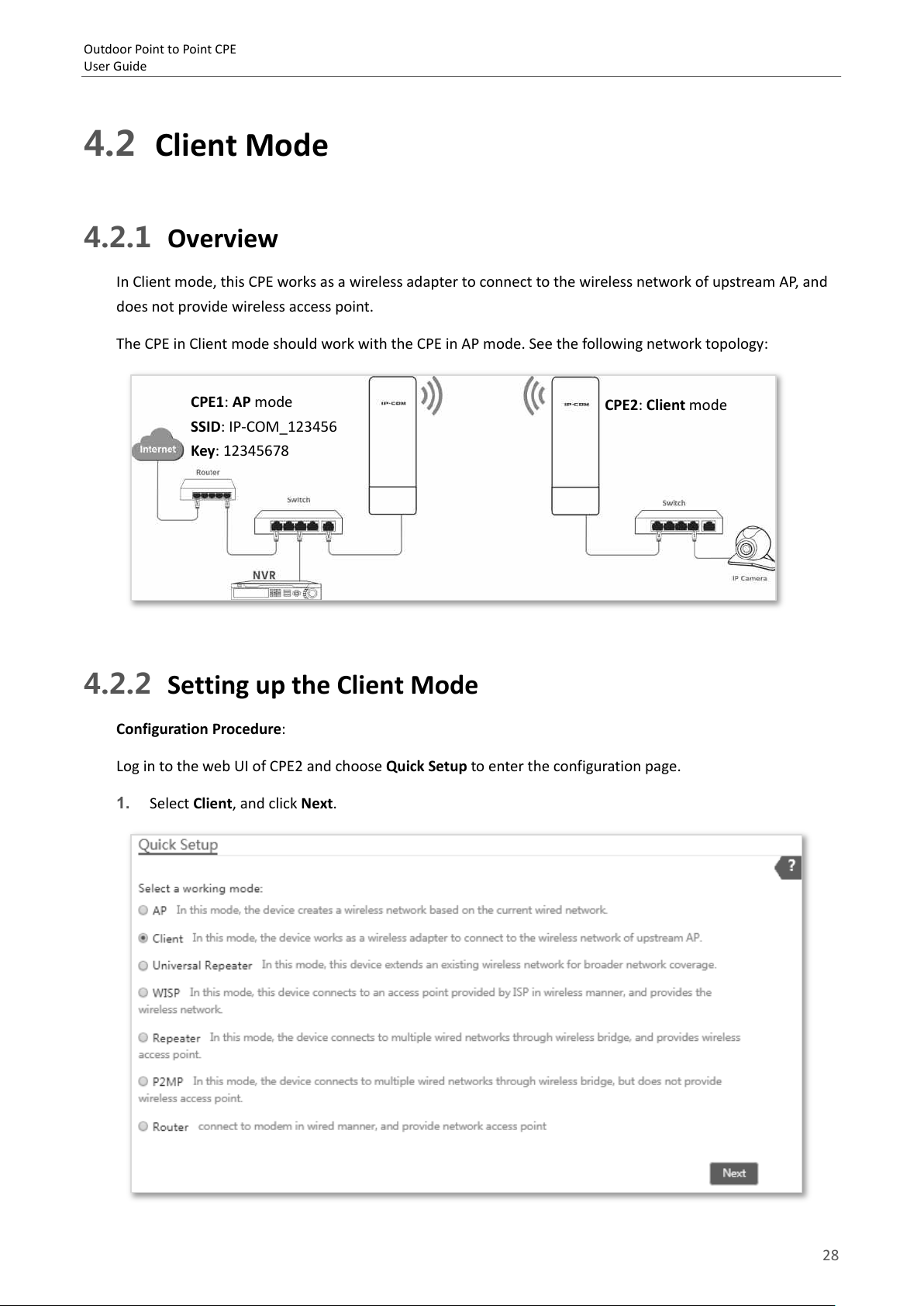

In Client mode, this CPE works as a wireless adapter to connect to the wireless network of upstream AP, and
does not provide wireless access point.
The CPE in Client mode should work with the CPE in AP mode. See the following network topology:
SSID: IP-COM_123456
4.2.2 Setting up the Client Mode
Configuration Procedure:
Log in to the web UI of CPE2 and choose Quick Setup to enter the configuration page.
1. Select Client, and click Next.
28
Outdoor Point to Point CPE
Tip
User Guide

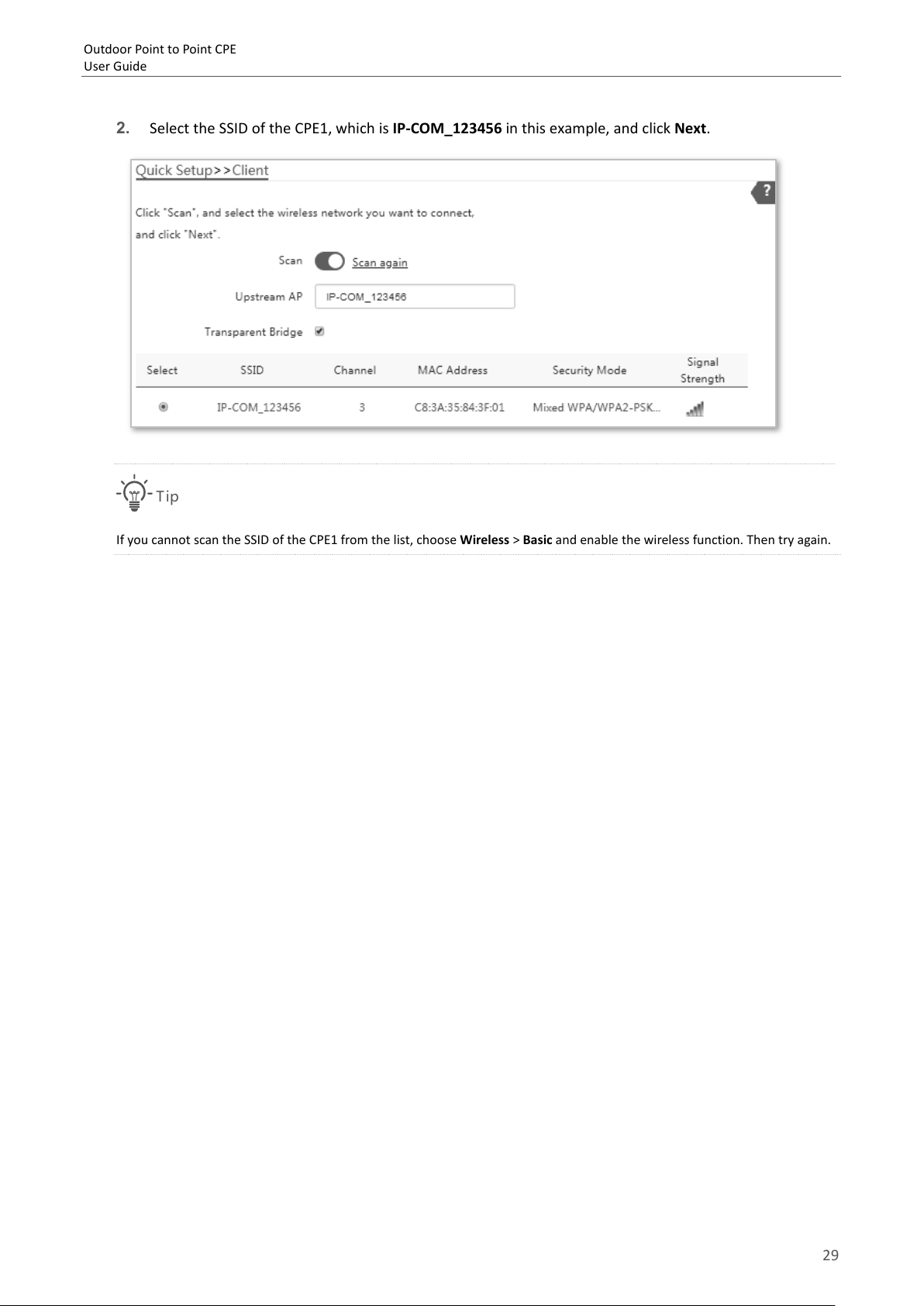

2. Select the SSID of the CPE1, which is IP-COM_123456 in this example, and click Next.
If you cannot scan the SSID of the CPE1 from the list, choose Wireless > Basic and enable the wireless function. Then try again.
29
Outdoor Point to Point CPE
User Guide

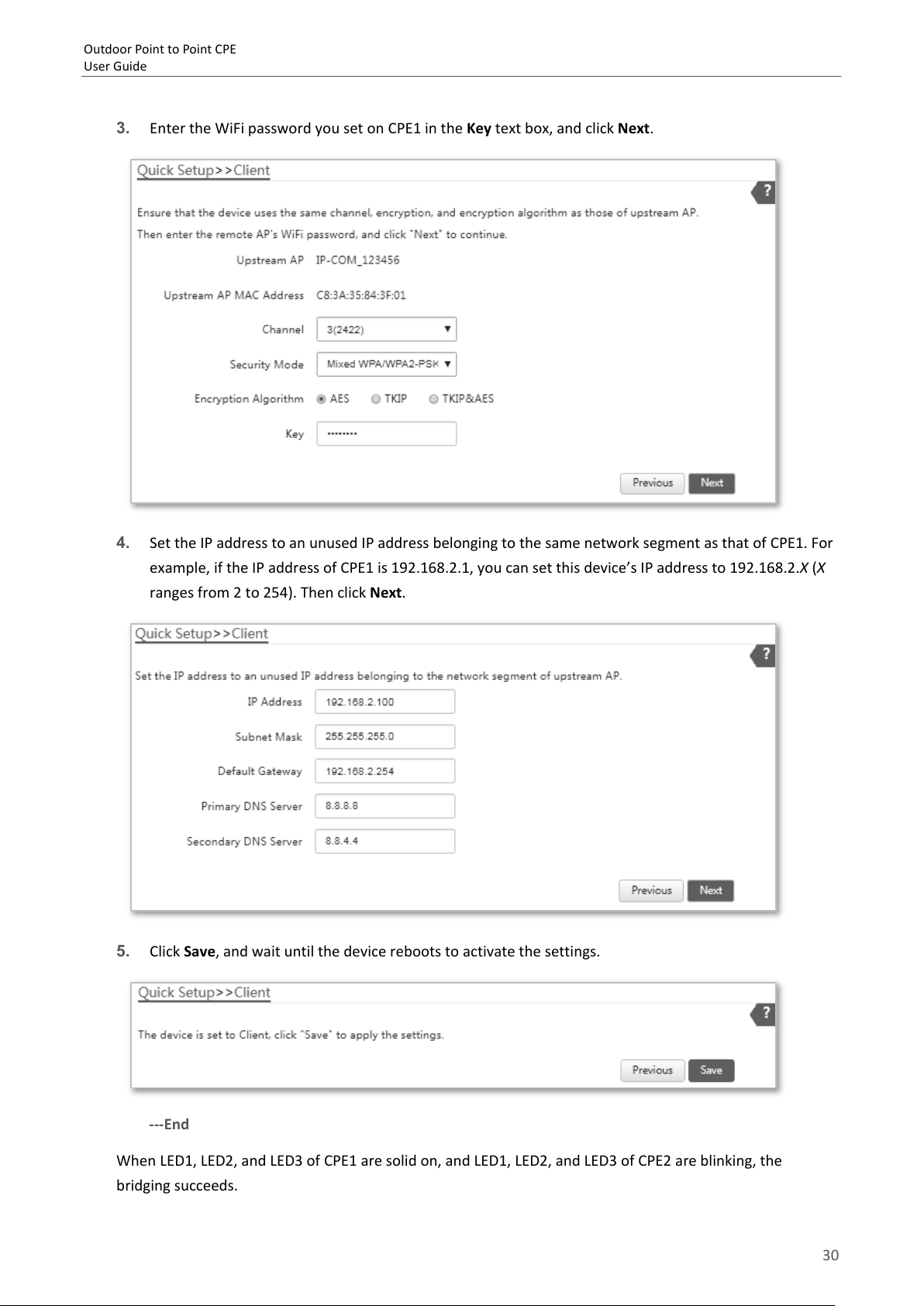

3. Enter the WiFi password you set on CPE1 in the Key text box, and click Next.
4. Set the IP address to an unused IP address belonging to the same network segment as that of CPE1. For
example, if the IP address of CPE1 is 192.168.2.1, you can set this device’s IP address to 192.168.2.X (X
ranges from 2 to 254). Then click Next.
5. Click Save, and wait until the device reboots to activate the settings.
---End
When LED1, LED2, and LED3 of CPE1 are solid on, and LED1, LED2, and LED3 of CPE2 are blinking, the
bridging succeeds.
30

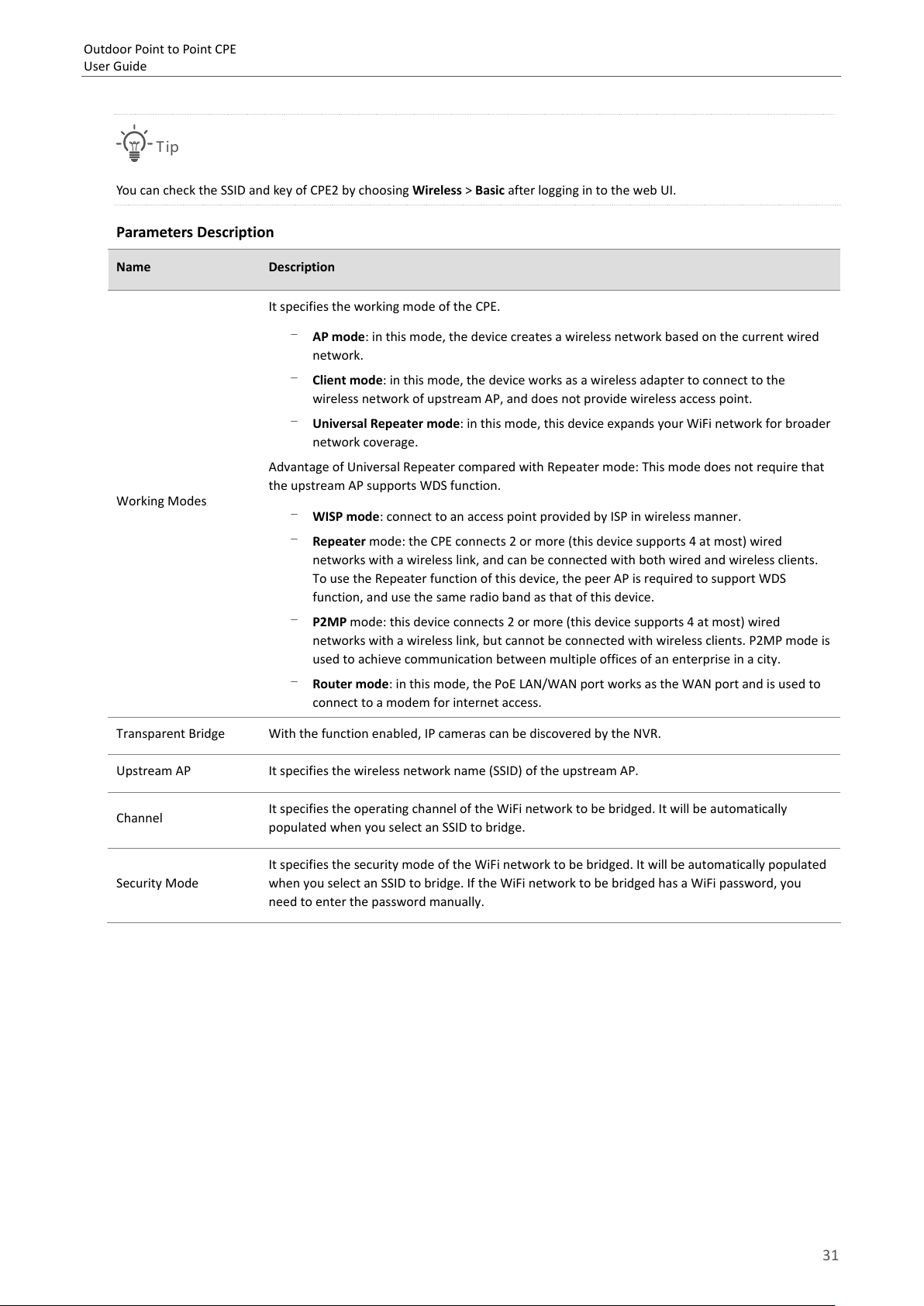

Outdoor Point to Point CPE
Tip
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Transparent Bridge
With the function enabled, IP cameras can be discovered by the NVR.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge. If the WiFi network to be bridged has a WiFi password, you
need to enter the password manually.
User Guide
You can check the SSID and key of CPE2 by choosing Wireless > Basic after logging in to the web UI.
Parameters Description
31
Outdoor Point to Point CPE
CPE1: AP mode
CPE2: Universal
User Guide

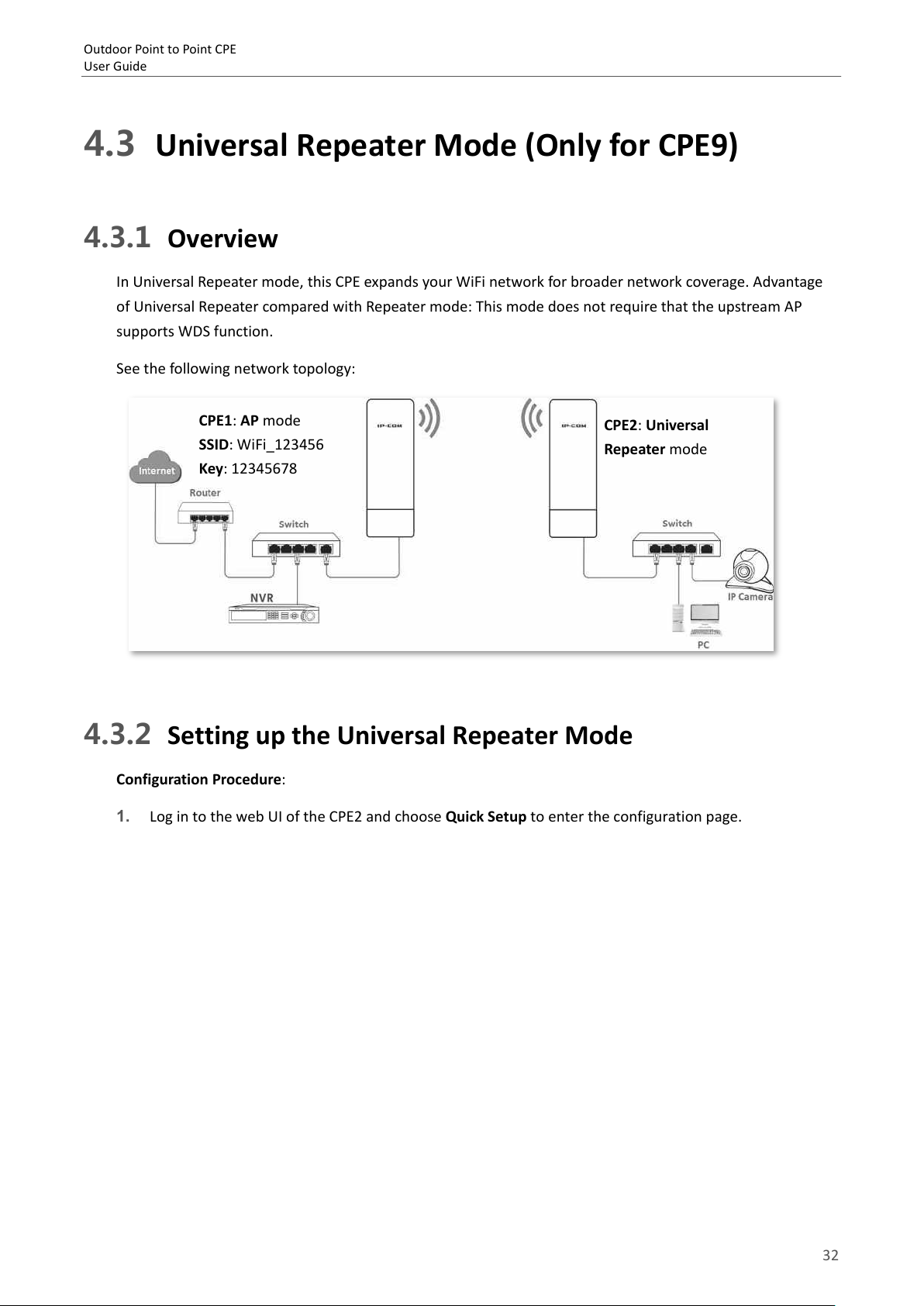

4.3 Universal Repeater Mode (Only for CPE9)
4.3.1 Overview
In Universal Repeater mode, this CPE expands your WiFi network for broader network coverage. Advantage
of Universal Repeater compared with Repeater mode: This mode does not require that the upstream AP
supports WDS function.
See the following network topology:
SSID: WiFi_123456
Key: 12345678
Repeater mode
4.3.2 Setting up the Universal Repeater Mode
Configuration Procedure:
1. Log in to the web UI of the CPE2 and choose Quick Setup to enter the configuration page.
32
Outdoor Point to Point CPE
User Guide

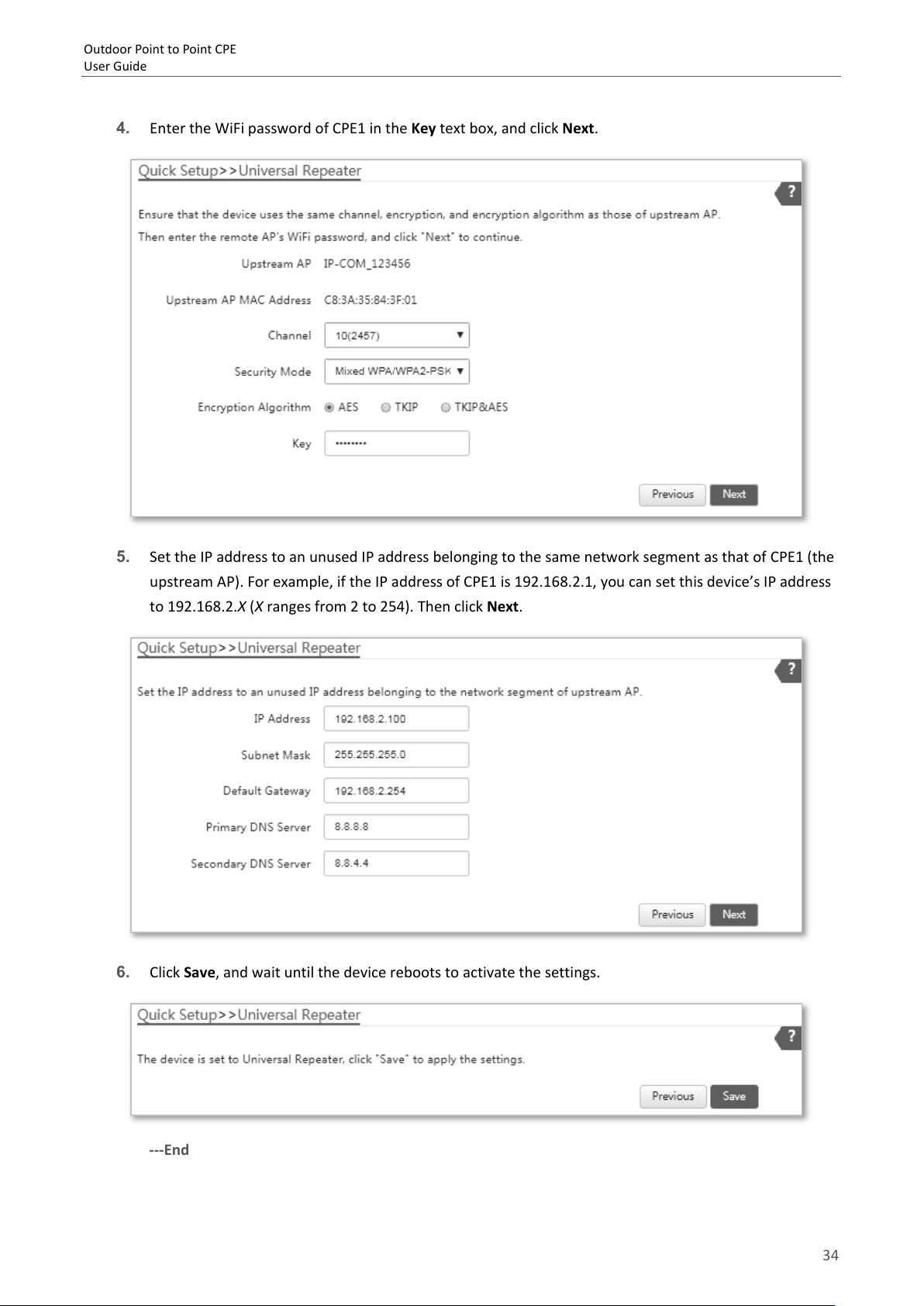

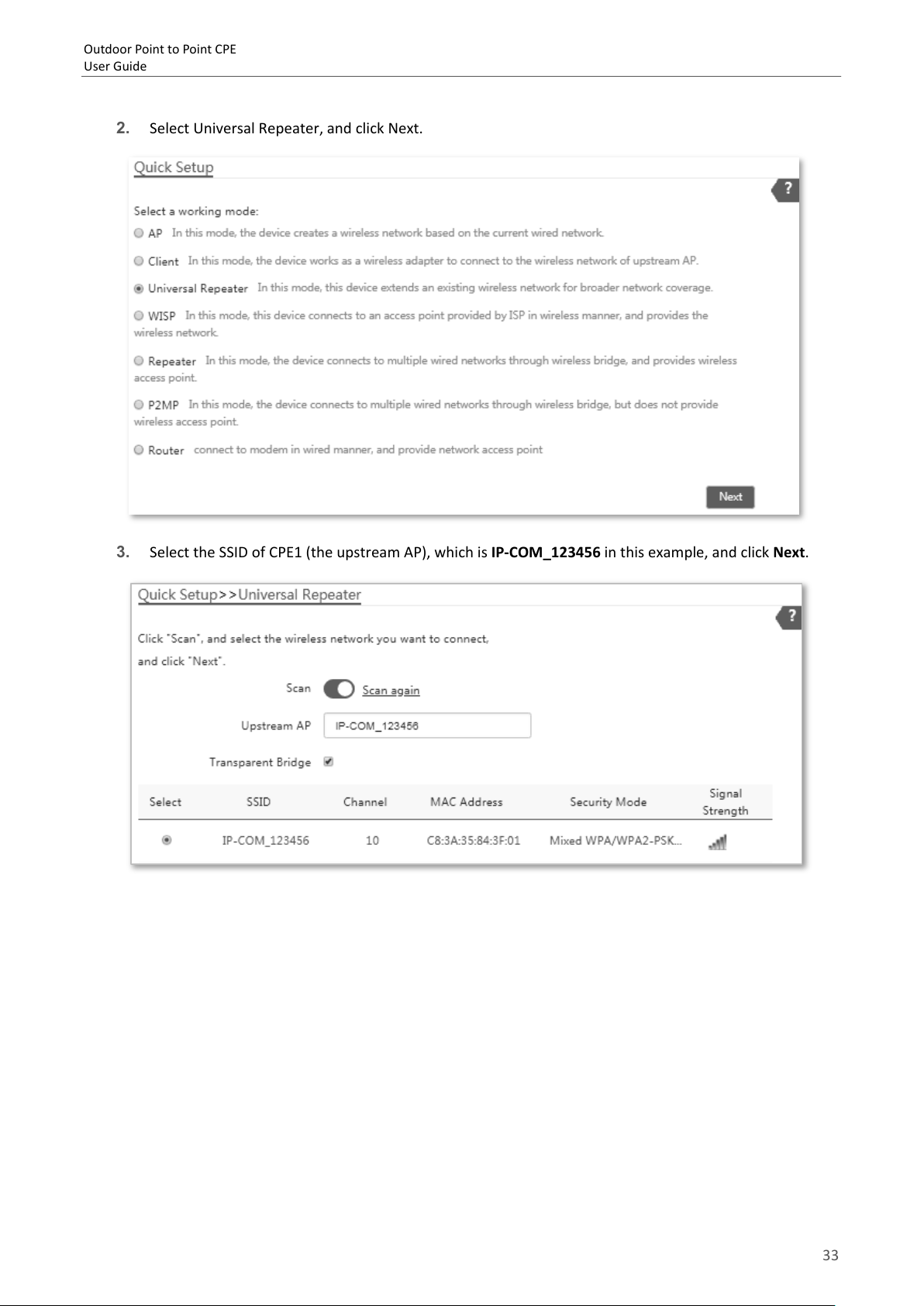

2. Select Universal Repeater, and click Next.
3. Select the SSID of CPE1 (the upstream AP), which is IP-COM_123456 in this example, and click Next.
33
Outdoor Point to Point CPE
User Guide
4. Enter the WiFi password of CPE1 in the Key text box, and click Next.
5. Set the IP address to an unused IP address belonging to the same network segment as that of CPE1 (the
upstream AP). For example, if the IP address of CPE1 is 192.168.2.1, you can set this device’s IP address
to 192.168.2.X (X ranges from 2 to 254). Then click Next.
6. Click Save, and wait until the device reboots to activate the settings.
---End
34
Outdoor Point to Point CPE
Tip
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Transparent Bridge
With the function enabled, IP cameras can be discovered by the NVR.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge. If the WiFi network to be bridged has a WiFi password, you
need to enter the password manually.
User Guide
You can check the SSID and key of CPE2 by choosing Wireless > Basic after logging in to the web UI.
Parameters Description
35
Outdoor Point to Point CPE
SSID: IP-COM_123456
Key: 12345678
User Guide

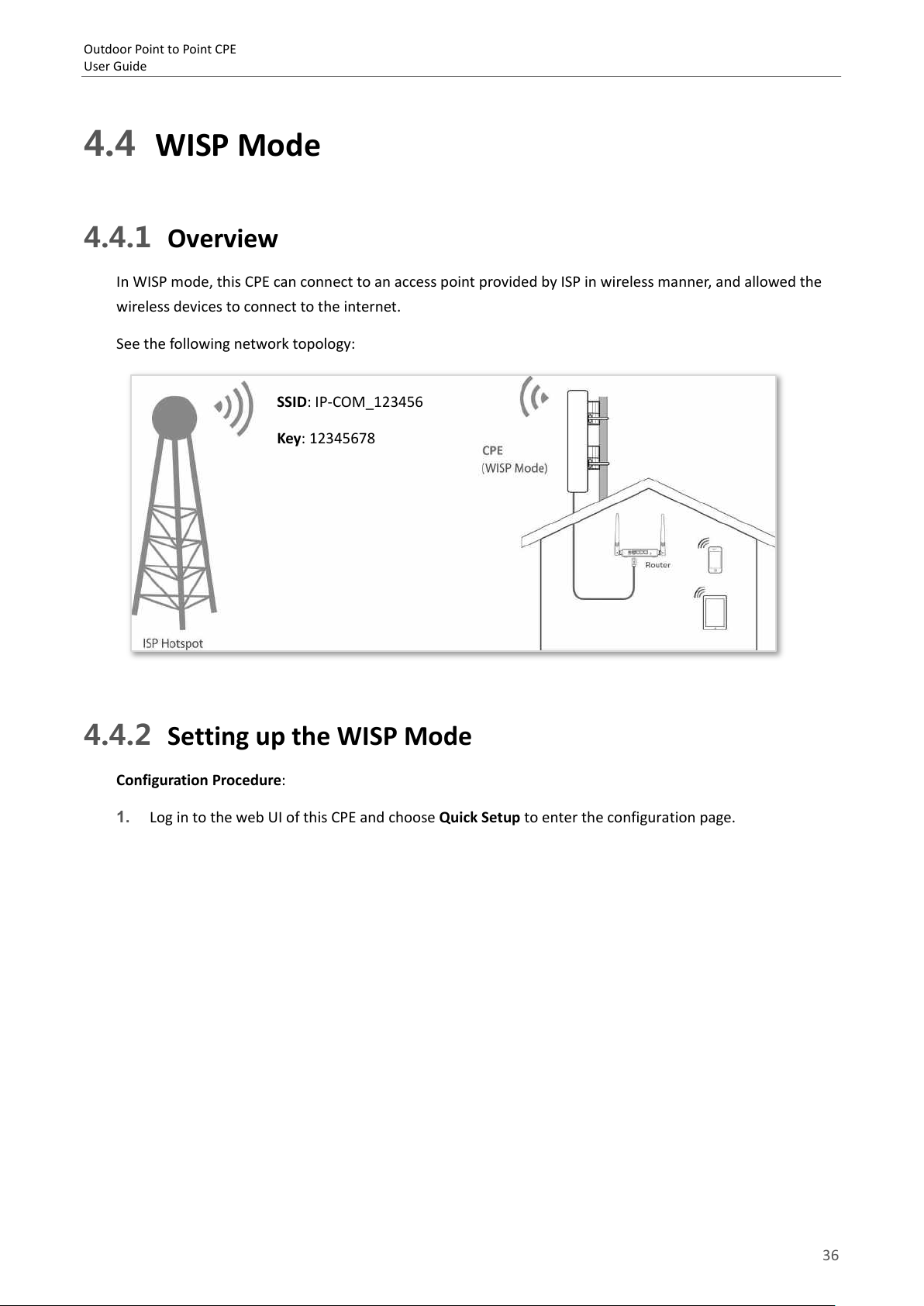

4.4 WISP Mode
4.4.1 Overview
In WISP mode, this CPE can connect to an access point provided by ISP in wireless manner, and allowed the
wireless devices to connect to the internet.
See the following network topology:
4.4.2 Setting up the WISP Mode
Configuration Procedure:
1. Log in to the web UI of this CPE and choose Quick Setup to enter the configuration page.
36
Outdoor Point to Point CPE
User Guide

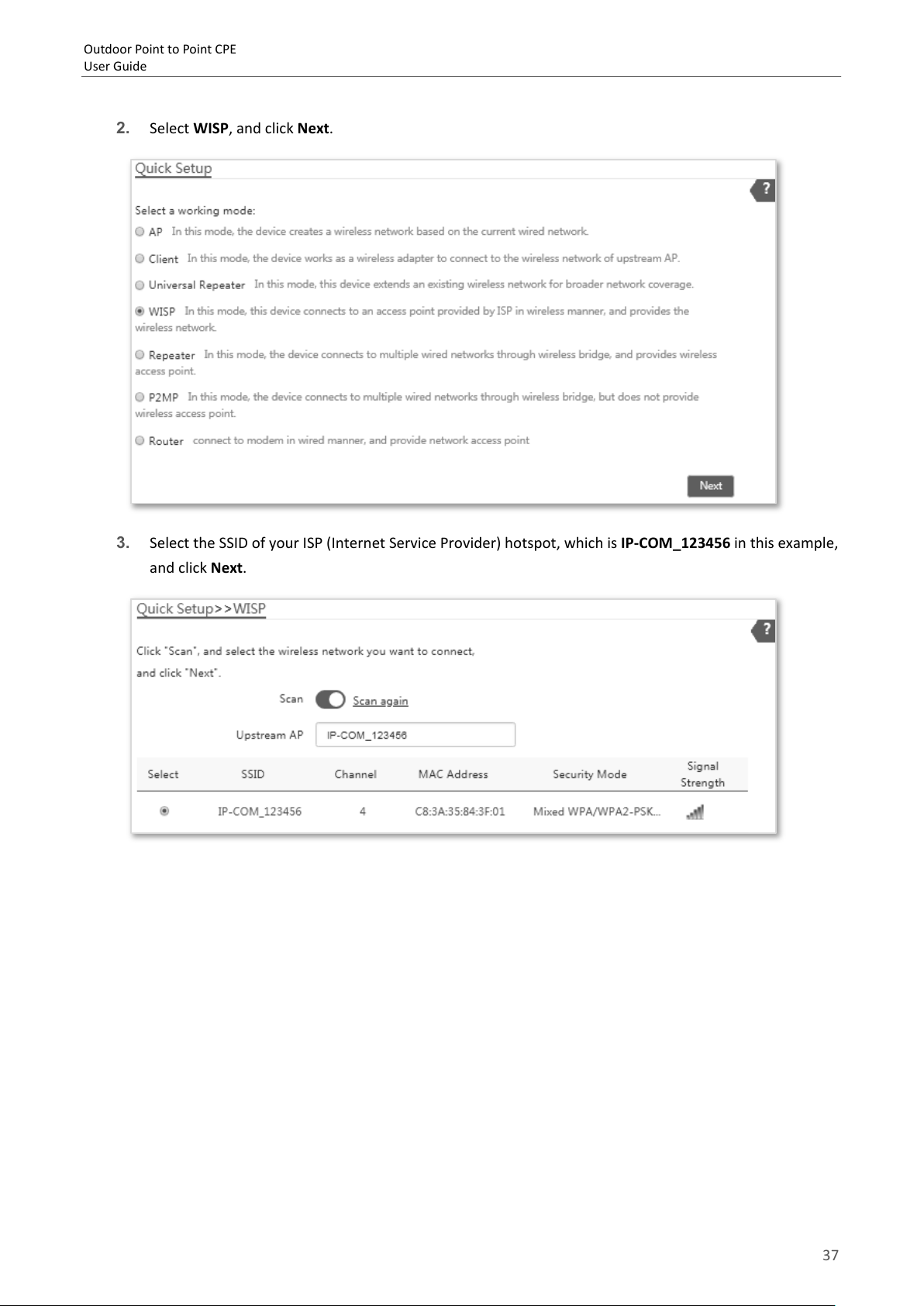

2. Select WISP, and click Next.
3. Select the SSID of your ISP (Internet Service Provider) hotspot, which is IP-COM_123456 in this example,
and click Next.
37
Outdoor Point to Point CPE
User Guide

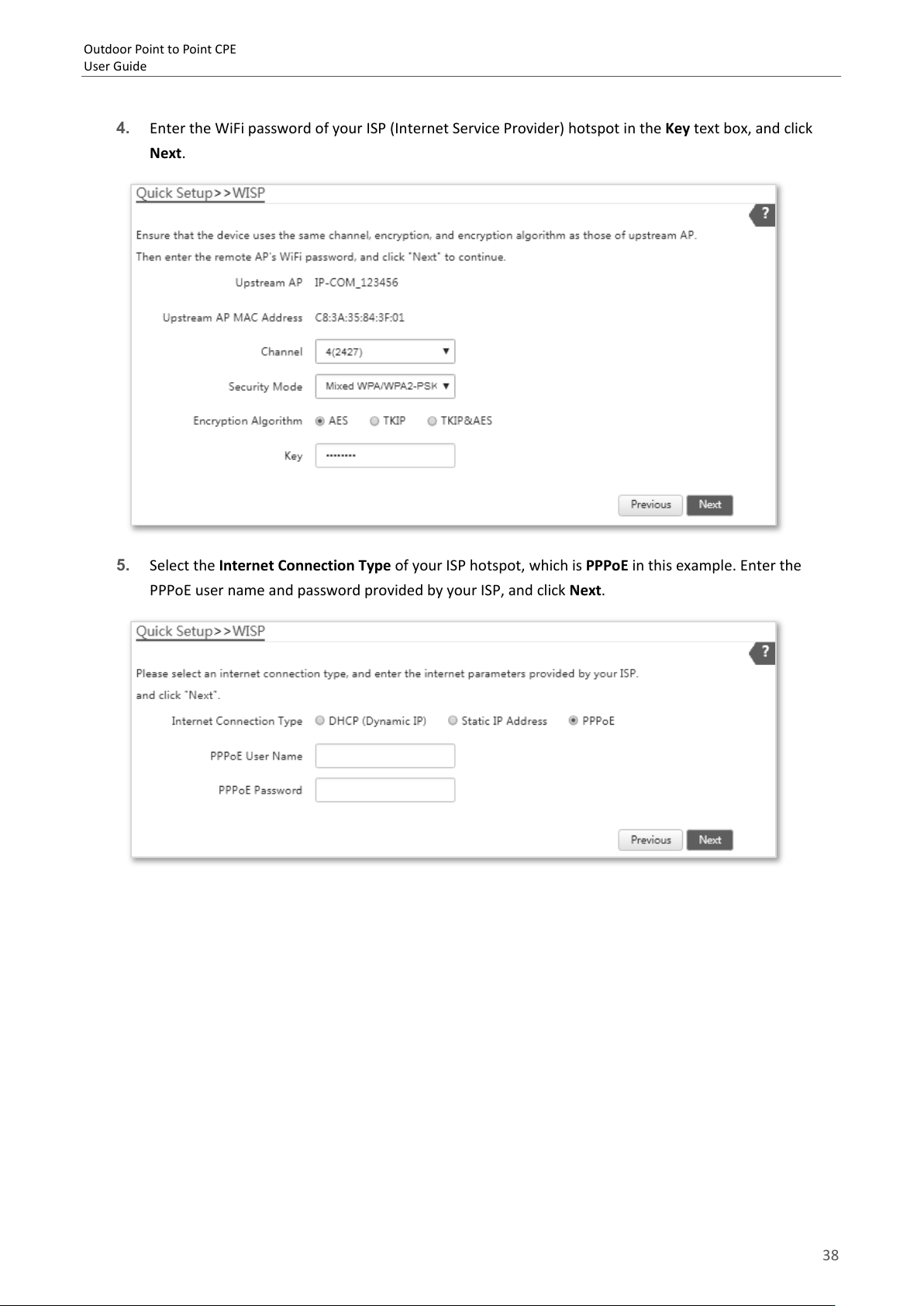

4. Enter the WiFi password of your ISP (Internet Service Provider) hotspot in the Key text box, and click
Next.
5. Select the Internet Connection Type of your ISP hotspot, which is PPPoE in this example. Enter the
PPPoE user name and password provided by your ISP, and click Next.
38
Outdoor Point to Point CPE
Tip
User Guide
6. Customize the SSID and key, and click Next.
7. Set an IP address belonging to different network segment as that of your ISP hotspot. For example, if
the IP address of your ISP hotspot is 192.168.2.1, you can set this device’s IP address to 192.168.X.1 (X
ranges from 0 to 254 excluding2). Then click Next.
8. Click Save, and wait until the device reboots to activate the settings.
---End
When LED1, LED2, and LED3 of the CPE are blinking, the device is connected to your ISP hotspot
successfully.
You can check the SSID and key of the CPE by choosing Wireless > Basic after logging in to the web UI.
39
Outdoor Point to Point CPE
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the wireless
network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that the
upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired networks
with a wireless link, and can be connected with both wired and wireless clients. To use the
Repeater function of this device, the peer AP is required to support WDS function, and use the
same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired networks
with a wireless link, but cannot be connected with wireless clients. P2MP mode is used to
achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge. If the WiFi network to be bridged has a WiFi password, you need to
enter the password manually.
Internet Connection
Type
−
DHCP (Dynamic IP): The CPE obtains IP address and other parameters form the DHCP server of
upstream device for internet access.
−
Static IP Address: The CPE access the internet by setting the IP address, subnet mask, default
gateway and DNS server IP addresses manually.
−
PPPoE: The CPE access the internet using the PPPoE user name and password provided by the
ISP.
User Guide
Parameters Description
40
Outdoor Point to Point CPE
CPE1: Repeater mode
CPE2: Repeater mode
User Guide

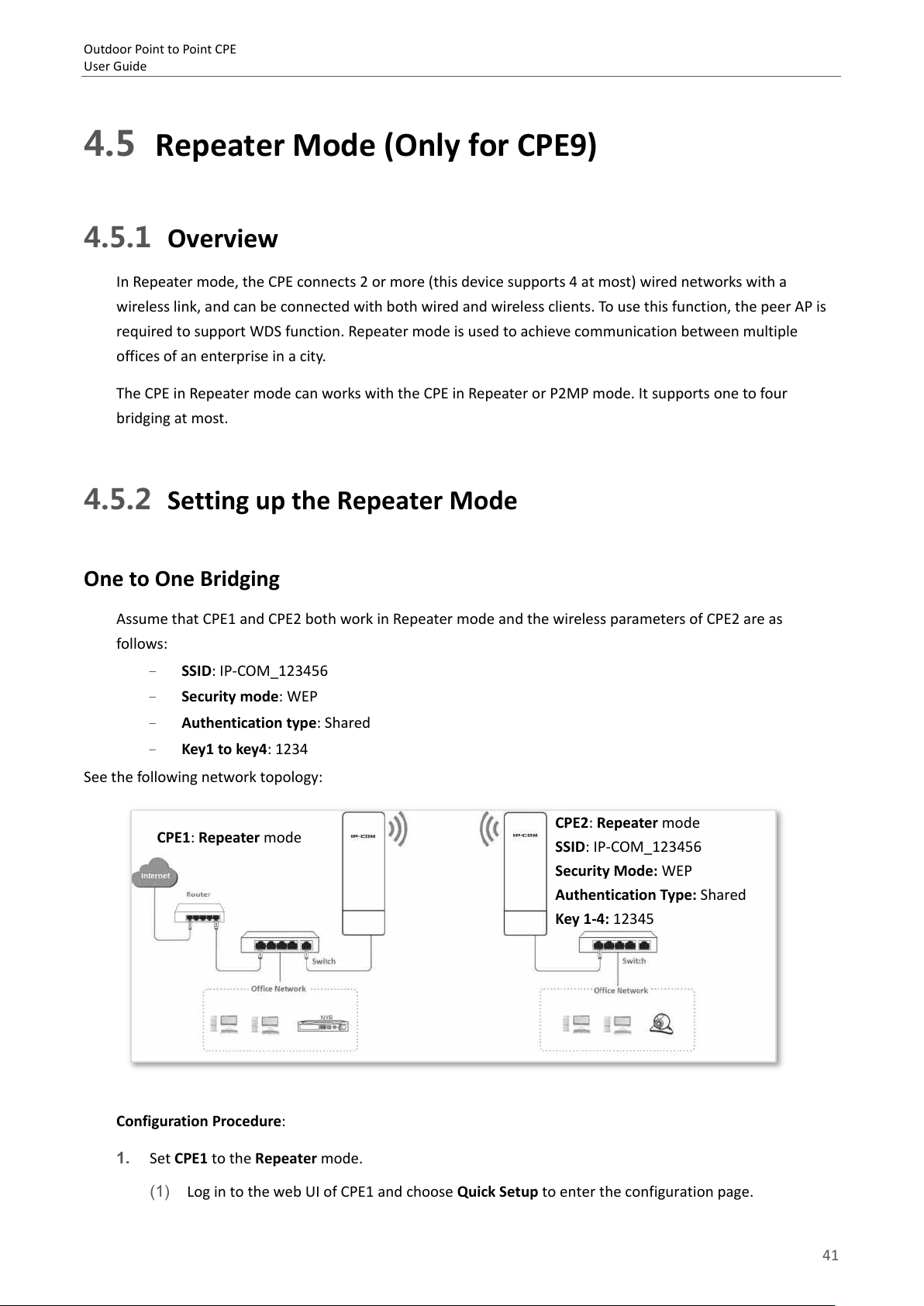

4.5 Repeater Mode (Only for CPE9)
4.5.1 Overview
In Repeater mode, the CPE connects 2 or more (this device supports 4 at most) wired networks with a
wireless link, and can be connected with both wired and wireless clients. To use this function, the peer AP is
required to support WDS function. Repeater mode is used to achieve communication between multiple
offices of an enterprise in a city.
The CPE in Repeater mode can works with the CPE in Repeater or P2MP mode. It supports one to four
bridging at most.
4.5.2 Setting up the Repeater Mode
One to One Bridging
Assume that CPE1 and CPE2 both work in Repeater mode and the wireless parameters of CPE2 are as
follows:
− SSID: IP-COM_123456
− Security mode: WEP
− Authentication type: Shared
− Key1 to key4: 1234
See the following network topology:
SSID: IP-COM_123456
Security Mode: WEP
Authentication Type: Shared
Key 1-4: 12345
Configuration Procedure:
1. Set CPE1 to the Repeater mode.
(1) Log in to the web UI of CPE1 and choose Quick Setup to enter the configuration page.
41
Outdoor Point to Point CPE
Tip
User Guide

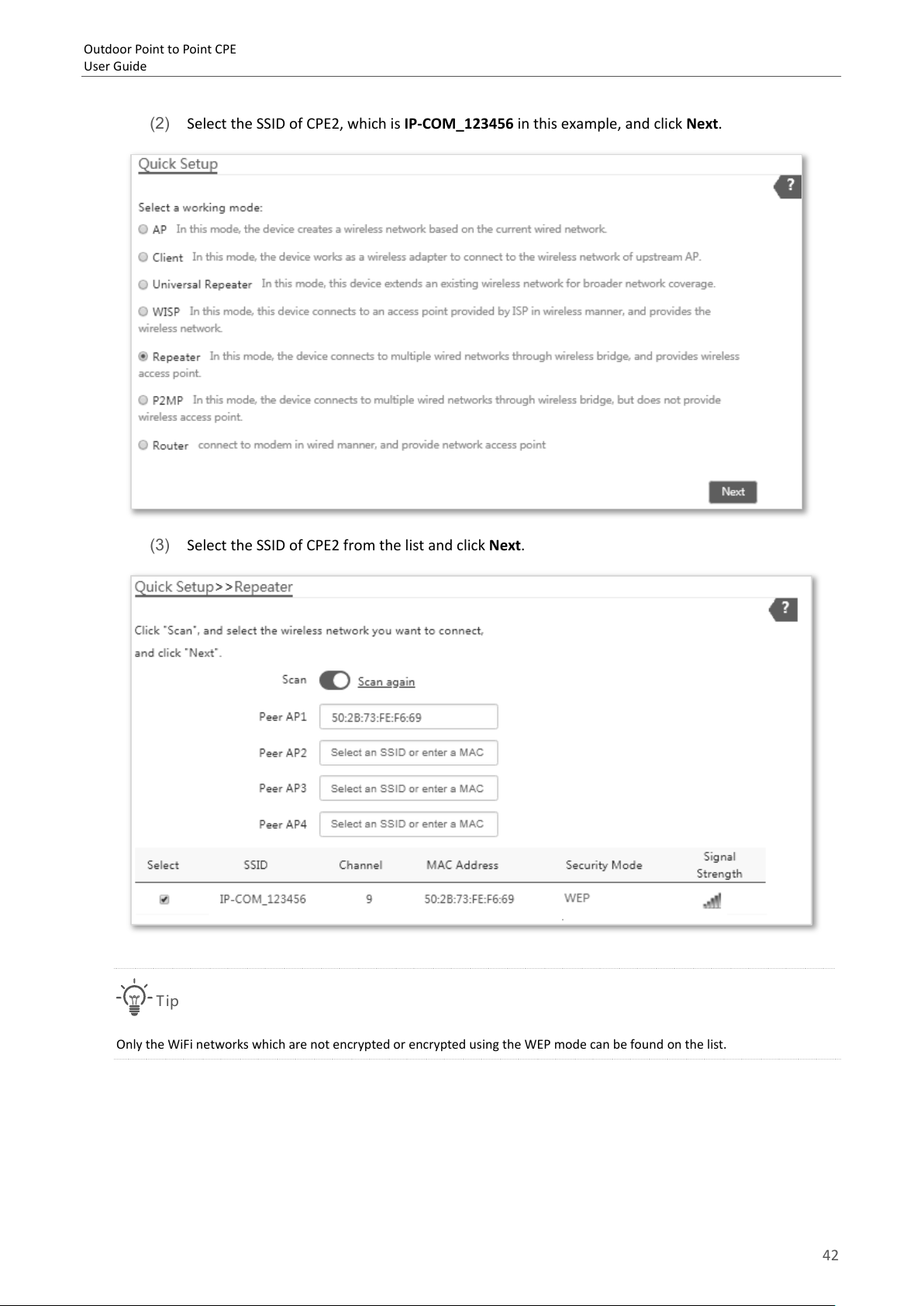

(2) Select the SSID of CPE2, which is IP-COM_123456 in this example, and click Next.
(3) Select the SSID of CPE2 from the list and click Next.
Only the WiFi networks which are not encrypted or encrypted using the WEP mode can be found on the list.
42
Outdoor Point to Point CPE
User Guide

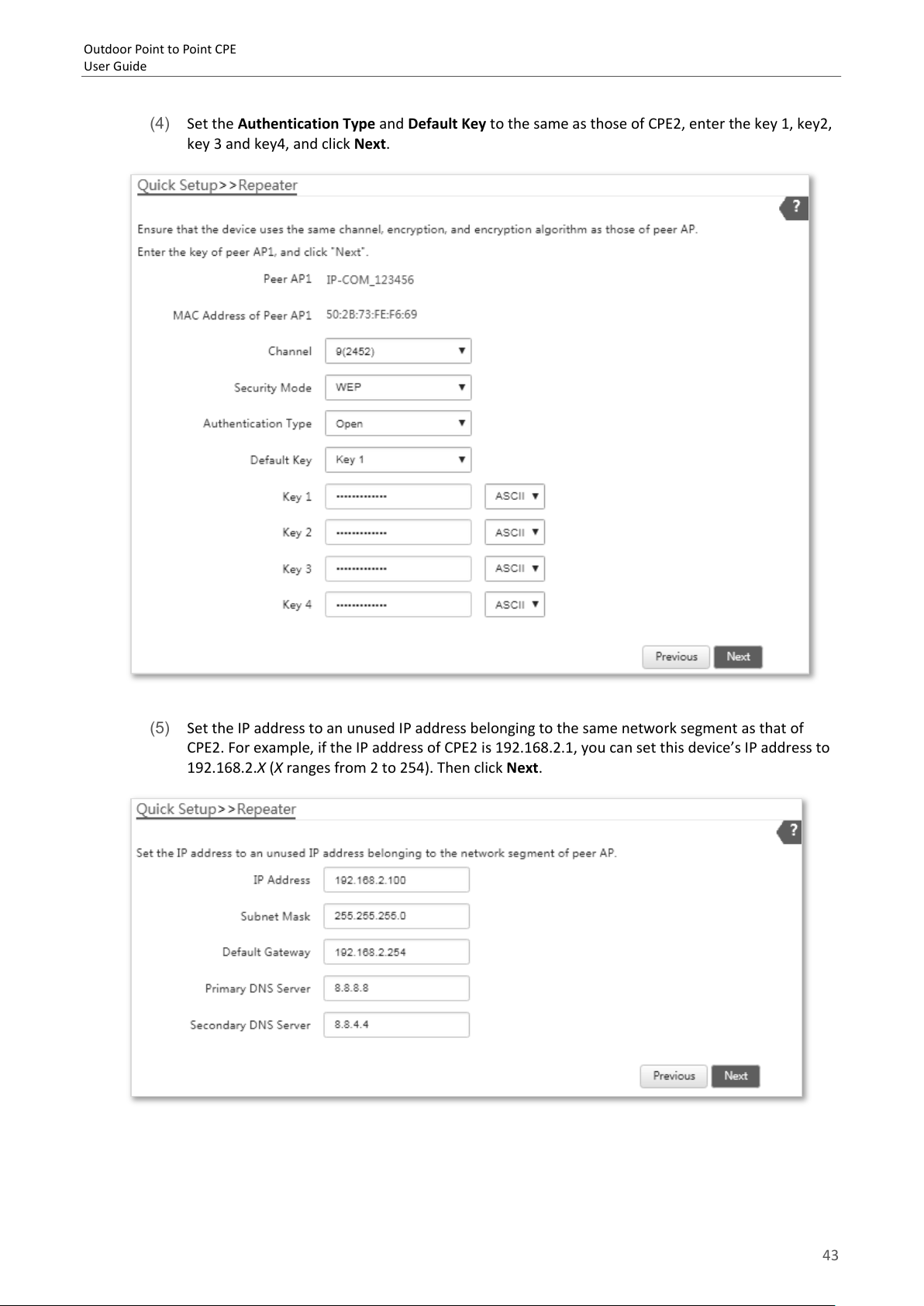

(4) Set the Authentication Type and Default Key to the same as those of CPE2, enter the key 1, key2,
key 3 and key4, and click Next.
(5) Set the IP address to an unused IP address belonging to the same network segment as that of
CPE2. For example, if the IP address of CPE2 is 192.168.2.1, you can set this device’s IP address to
192.168.2.X (X ranges from 2 to 254). Then click Next.
43

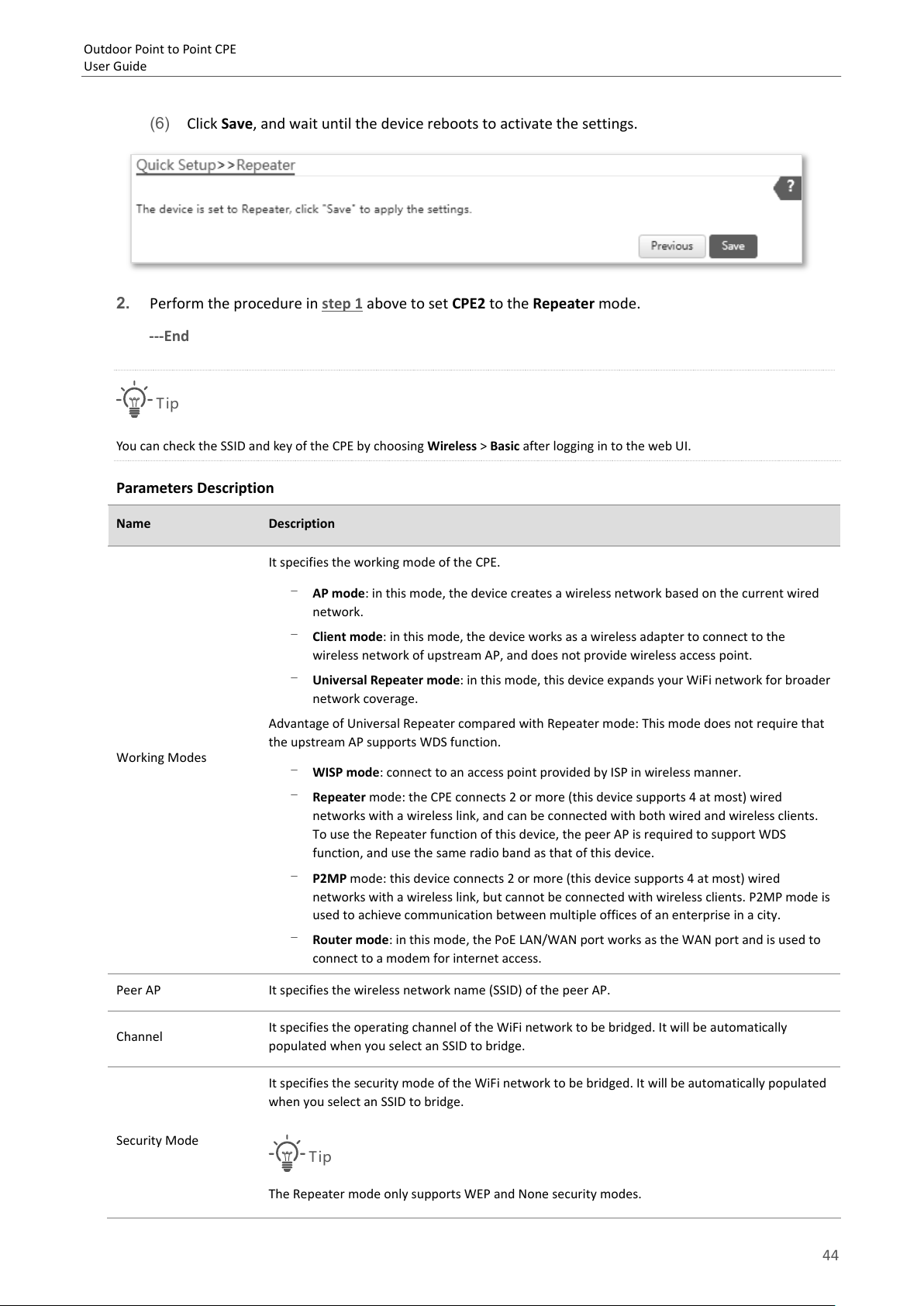

Outdoor Point to Point CPE
Tip
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Peer AP
It specifies the wireless network name (SSID) of the peer AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge.
Tip
The Repeater mode only supports WEP and None security modes.
User Guide
(6) Click Save, and wait until the device reboots to activate the settings.
2. Perform the procedure in step 1 above to set CPE2 to the Repeater mode.
---End
You can check the SSID and key of the CPE by choosing Wireless > Basic after logging in to the web UI.
Parameters Description
44
Outdoor Point to Point CPE
Main CPE
Repeater mode
CPE1
Repeater mode
CPE2
Repeater mode
CPE 3
Repeater mode
CPE 4
Repeater mode
User Guide
One to Four Briding

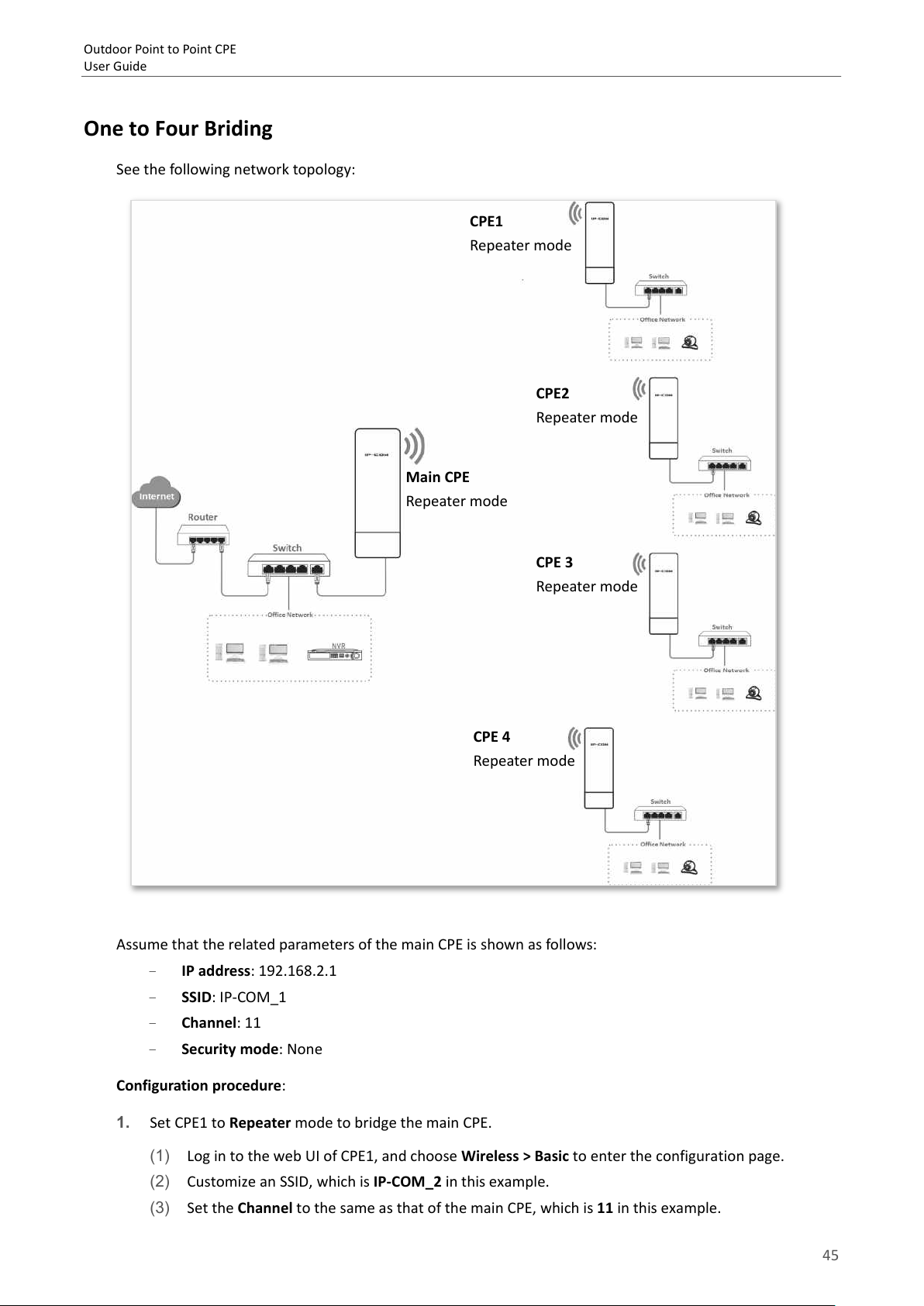

See the following network topology:
Assume that the related parameters of the main CPE is shown as follows:
− IP address: 192.168.2.1
− SSID: IP-COM_1
− Channel: 11
− Security mode: None
Configuration procedure:
1. Set CPE1 to Repeater mode to bridge the main CPE.
(1) Log in to the web UI of CPE1, and choose Wireless > Basic to enter the configuration page.
(2) Customize an SSID, which is IP-COM_2 in this example.
(3) Set the Channel to the same as that of the main CPE, which is 11 in this example.
45
Outdoor Point to Point CPE
User Guide

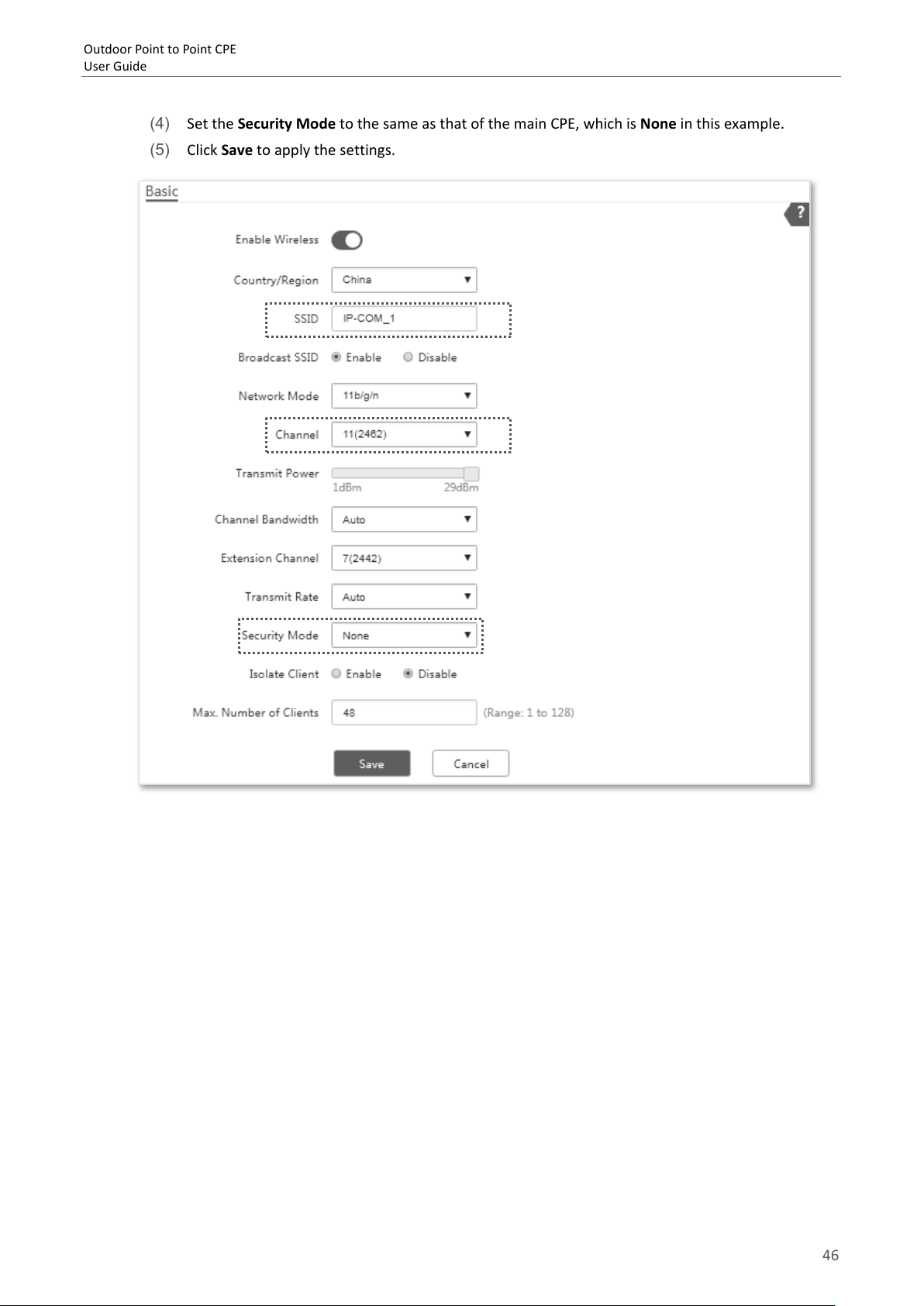

(4) Set the Security Mode to the same as that of the main CPE, which is None in this example.
(5) Click Save to apply the settings.
46
Outdoor Point to Point CPE
Tip
User Guide

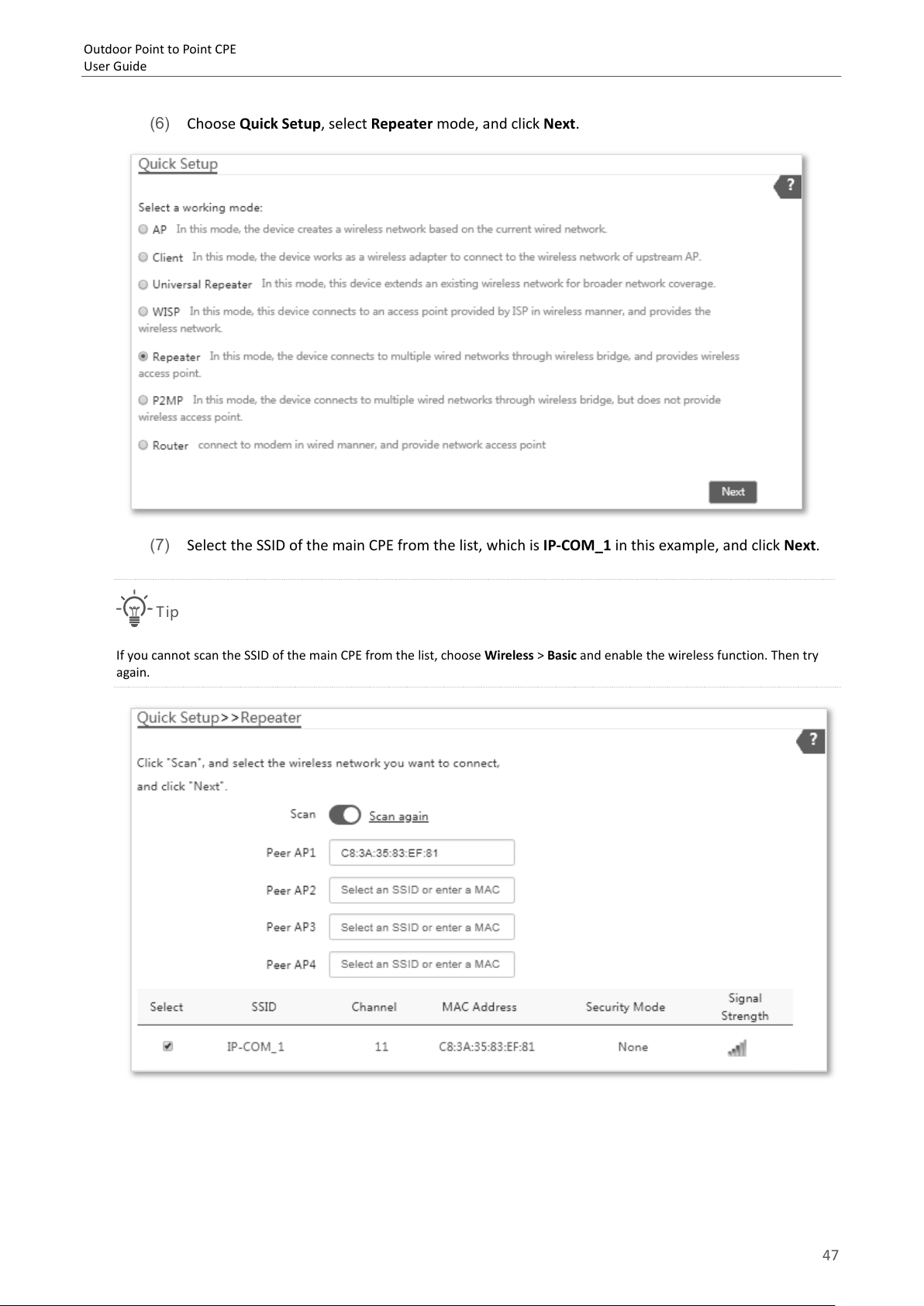

(6) Choose Quick Setup, select Repeater mode, and click Next.
(7) Select the SSID of the main CPE from the list, which is IP-COM_1 in this example, and click Next.
If you cannot scan the SSID of the main CPE from the list, choose Wireless > Basic and enable the wireless function. Then try
again.
47
Outdoor Point to Point CPE
User Guide

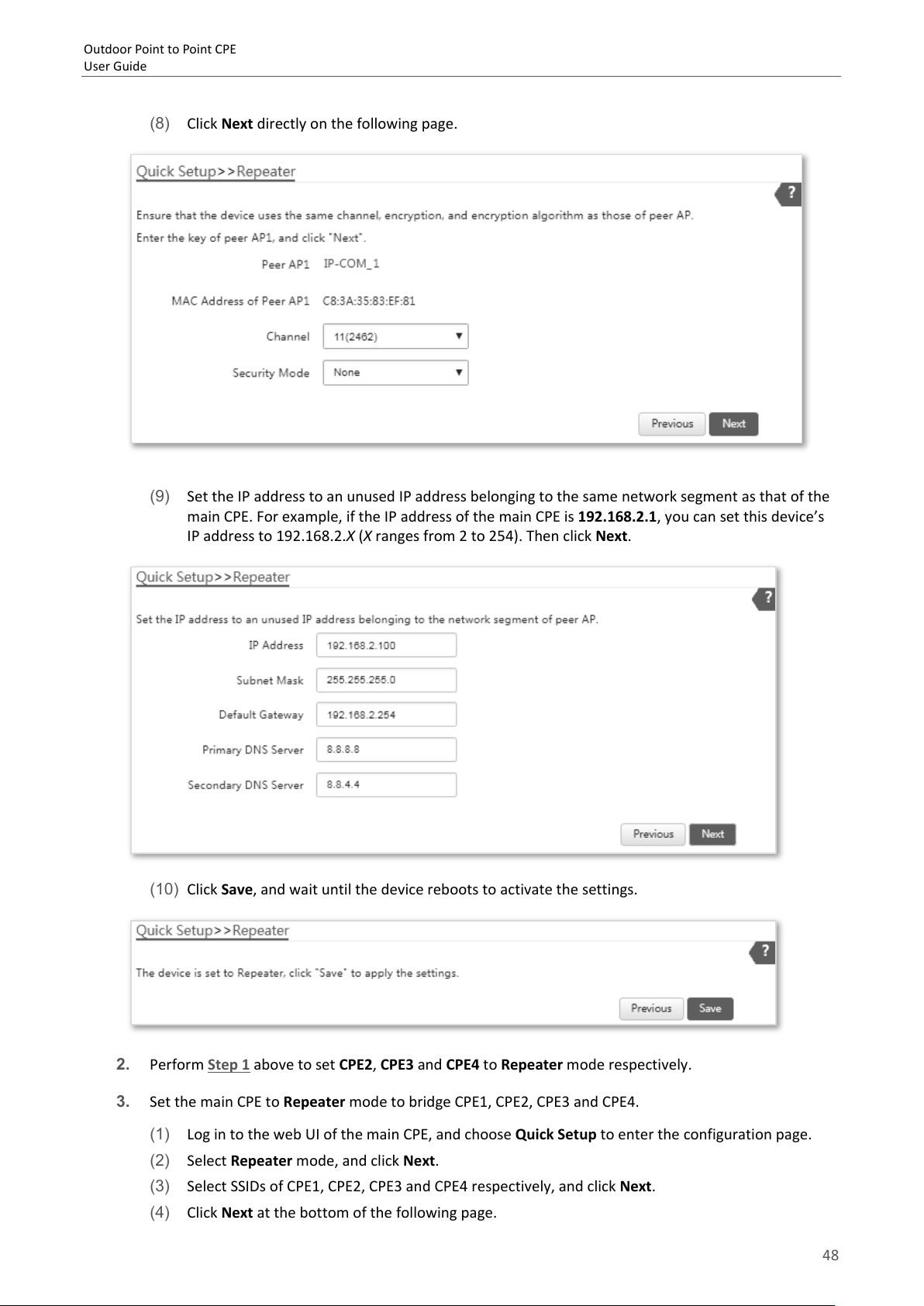

(8) Click Next directly on the following page.
(9) Set the IP address to an unused IP address belonging to the same network segment as that of the
main CPE. For example, if the IP address of the main CPE is 192.168.2.1, you can set this device’s
IP address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
(10) Click Save, and wait until the device reboots to activate the settings.
2. Perform Step 1 above to set CPE2, CPE3 and CPE4 to Repeater mode respectively.
3. Set the main CPE to Repeater mode to bridge CPE1, CPE2, CPE3 and CPE4.
(1) Log in to the web UI of the main CPE, and choose Quick Setup to enter the configuration page.
(2) Select Repeater mode, and click Next.

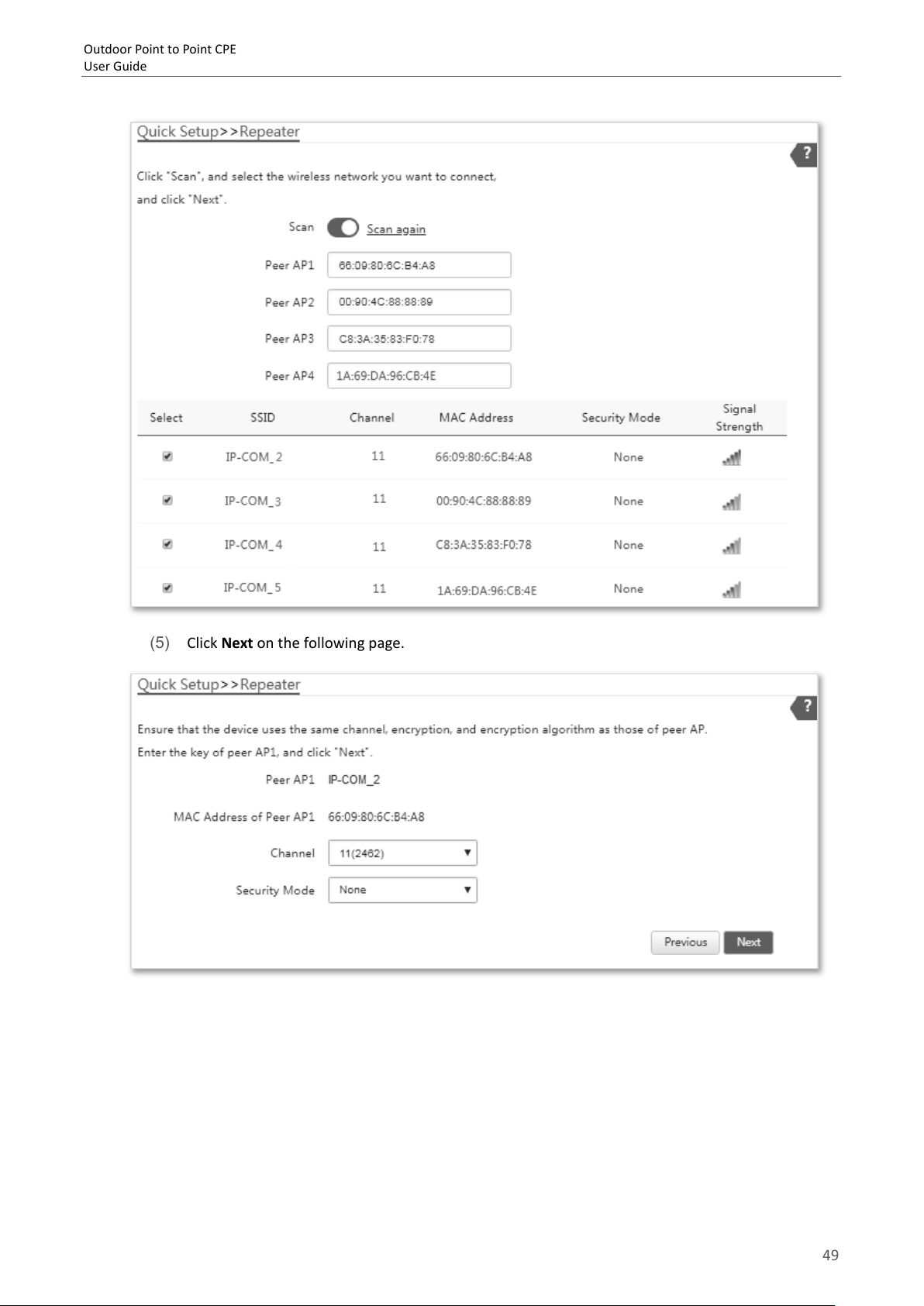

(3) Select SSIDs of CPE1, CPE2, CPE3 and CPE4 respectively, and click Next.
(4) Click Next at the bottom of the following page.
48
Outdoor Point to Point CPE
User Guide
(5) Click Next on the following page.
49
Outdoor Point to Point CPE
User Guide

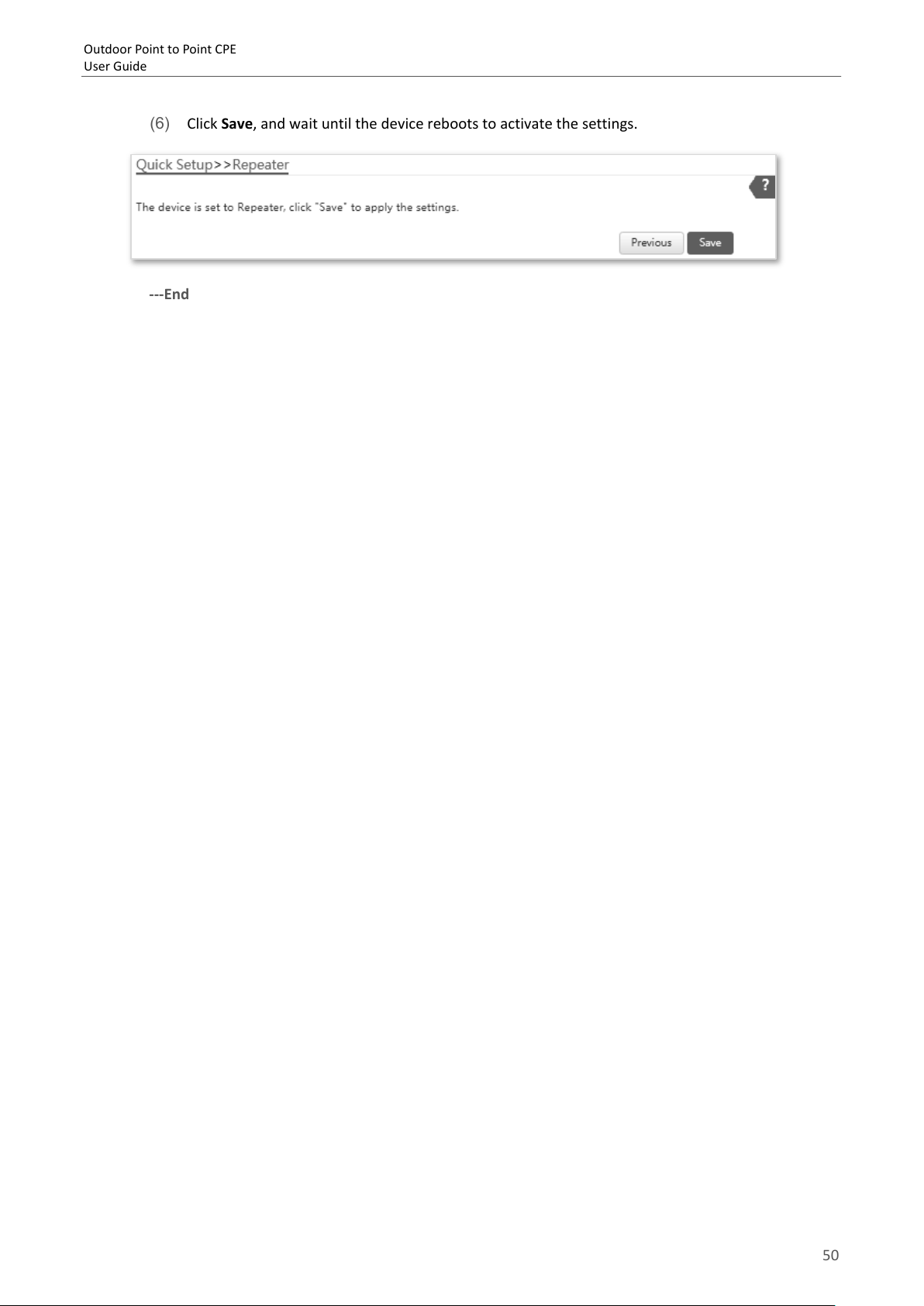

(6) Click Save, and wait until the device reboots to activate the settings.
---End
50
Outdoor Point to Point CPE
User Guide

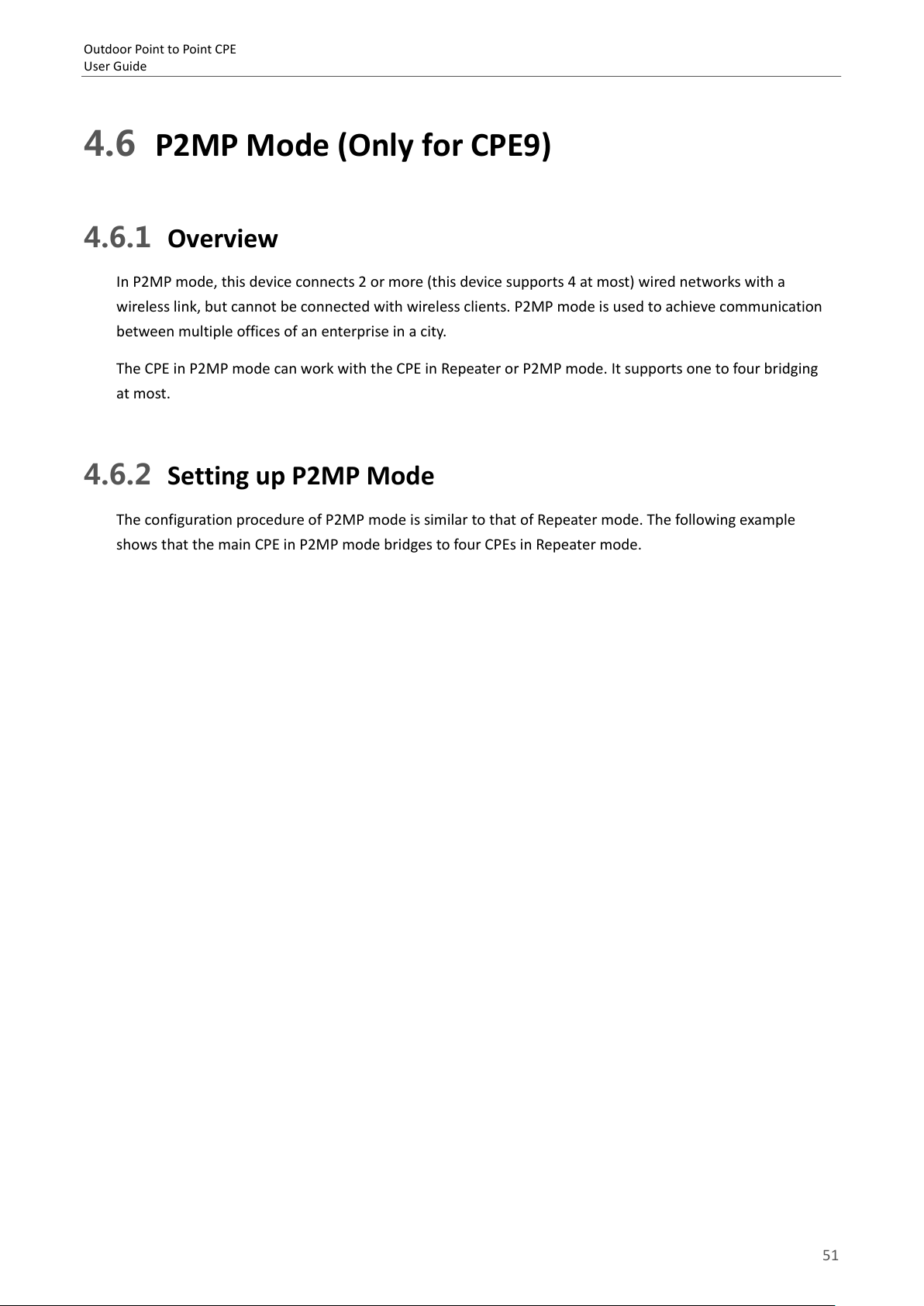

4.6 P2MP Mode (Only for CPE9)
4.6.1 Overview
In P2MP mode, this device connects 2 or more (this device supports 4 at most) wired networks with a
wireless link, but cannot be connected with wireless clients. P2MP mode is used to achieve communication
between multiple offices of an enterprise in a city.
The CPE in P2MP mode can work with the CPE in Repeater or P2MP mode. It supports one to four bridging
at most.
4.6.2 Setting up P2MP Mode
The configuration procedure of P2MP mode is similar to that of Repeater mode. The following example
shows that the main CPE in P2MP mode bridges to four CPEs in Repeater mode.
51
Outdoor Point to Point CPE
CPE2
Repeater Mode
Main CPE
P2MP Mode
CPE1
Repeater Mode
CPE 3
Repeater Mode
CPE 4
Repeater Mode
User Guide

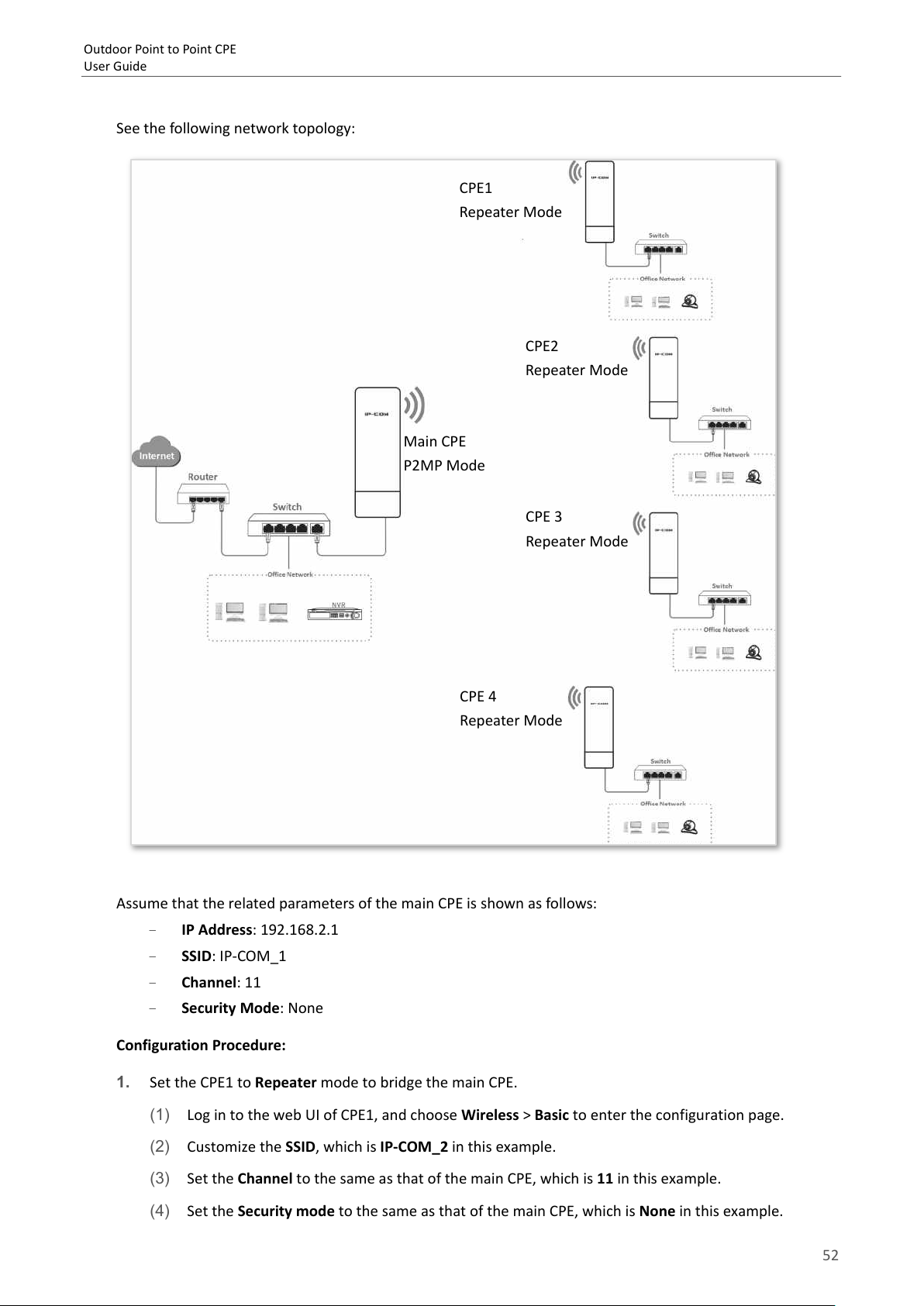

See the following network topology:
Assume that the related parameters of the main CPE is shown as follows:
− IP Address: 192.168.2.1
− SSID: IP-COM_1
− Channel: 11
− Security Mode: None
Configuration Procedure:
1. Set the CPE1 to Repeater mode to bridge the main CPE.
(1) Log in to the web UI of CPE1, and choose Wireless > Basic to enter the configuration page.
(2) Customize the SSID, which is IP-COM_2 in this example.
(3) Set the Channel to the same as that of the main CPE, which is 11 in this example.
(4) Set the Security mode to the same as that of the main CPE, which is None in this example.
52
Outdoor Point to Point CPE
User Guide

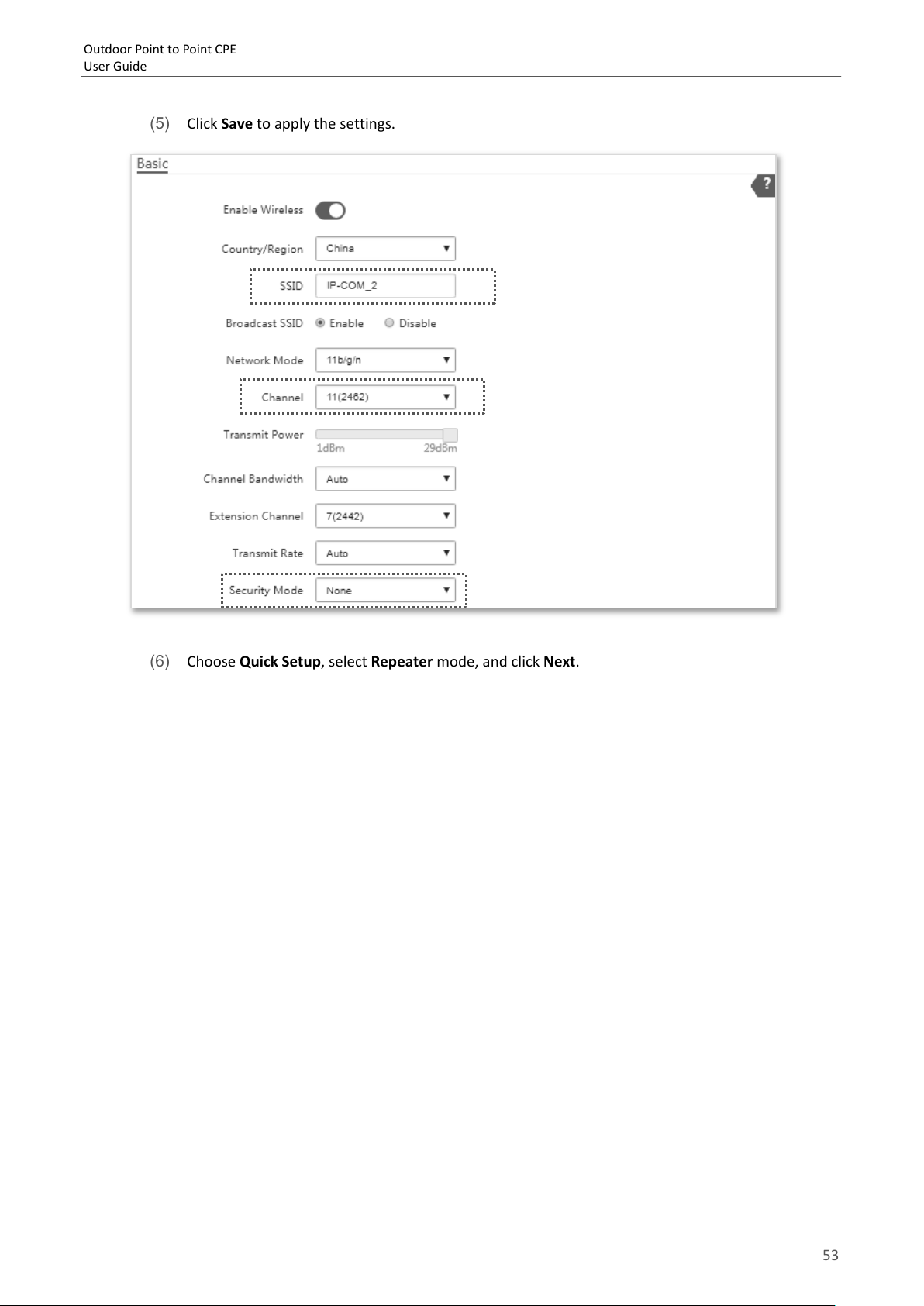

(5) Click Save to apply the settings.
(6) Choose Quick Setup, select Repeater mode, and click Next.
53
Outdoor Point to Point CPE
Tip
User Guide

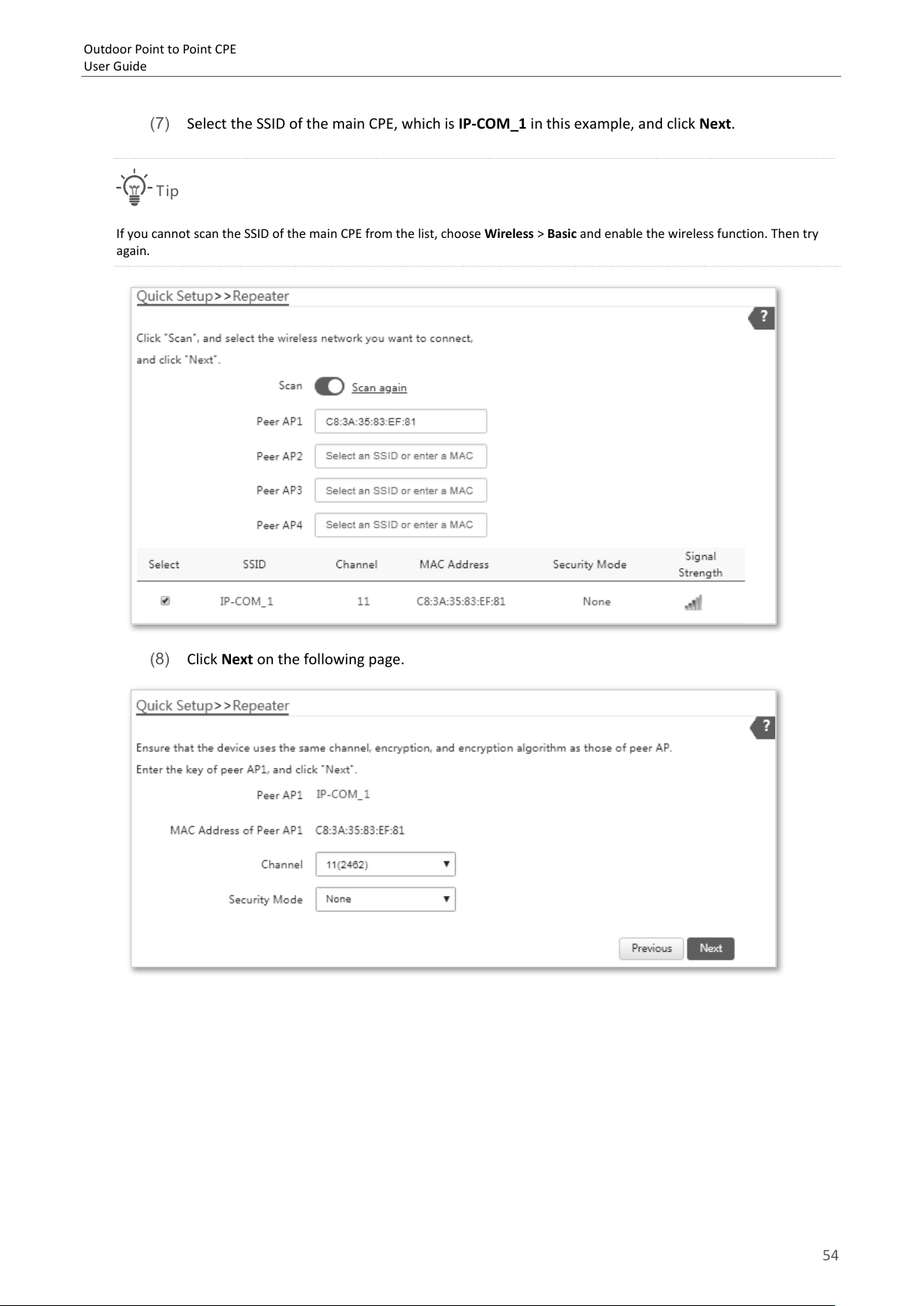

(7) Select the SSID of the main CPE, which is IP-COM_1 in this example, and click Next.
If you cannot scan the SSID of the main CPE from the list, choose Wireless > Basic and enable the wireless function. Then try
again.
(8) Click Next on the following page.
54
Outdoor Point to Point CPE
User Guide

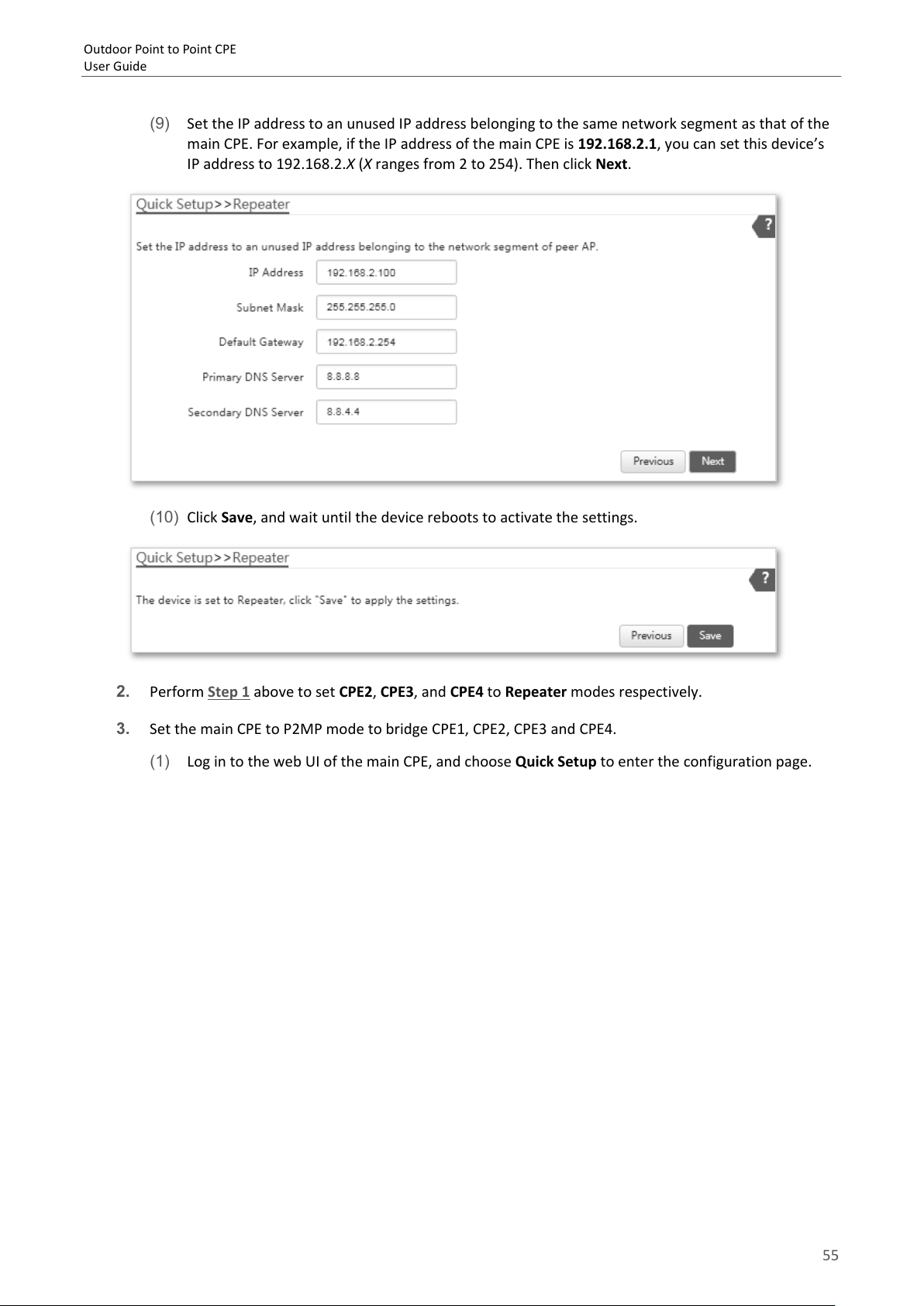

(9) Set the IP address to an unused IP address belonging to the same network segment as that of the
main CPE. For example, if the IP address of the main CPE is 192.168.2.1, you can set this device’s
IP address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
(10) Click Save, and wait until the device reboots to activate the settings.
2. Perform Step 1 above to set CPE2, CPE3, and CPE4 to Repeater modes respectively.
3. Set the main CPE to P2MP mode to bridge CPE1, CPE2, CPE3 and CPE4.
(1) Log in to the web UI of the main CPE, and choose Quick Setup to enter the configuration page.
55
Outdoor Point to Point CPE
User Guide

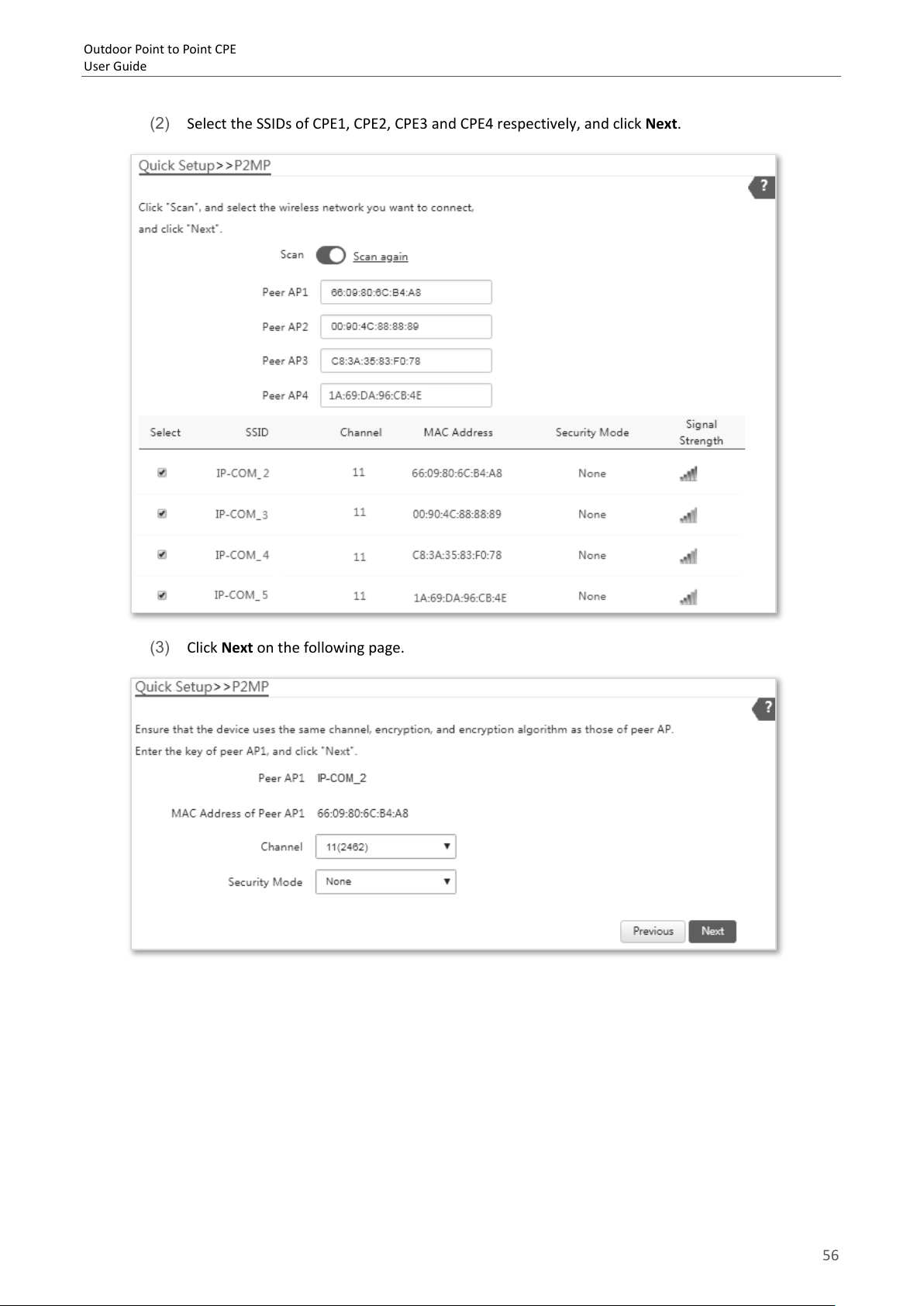

(2) Select the SSIDs of CPE1, CPE2, CPE3 and CPE4 respectively, and click Next.
(3) Click Next on the following page.
56
Outdoor Point to Point CPE
User Guide

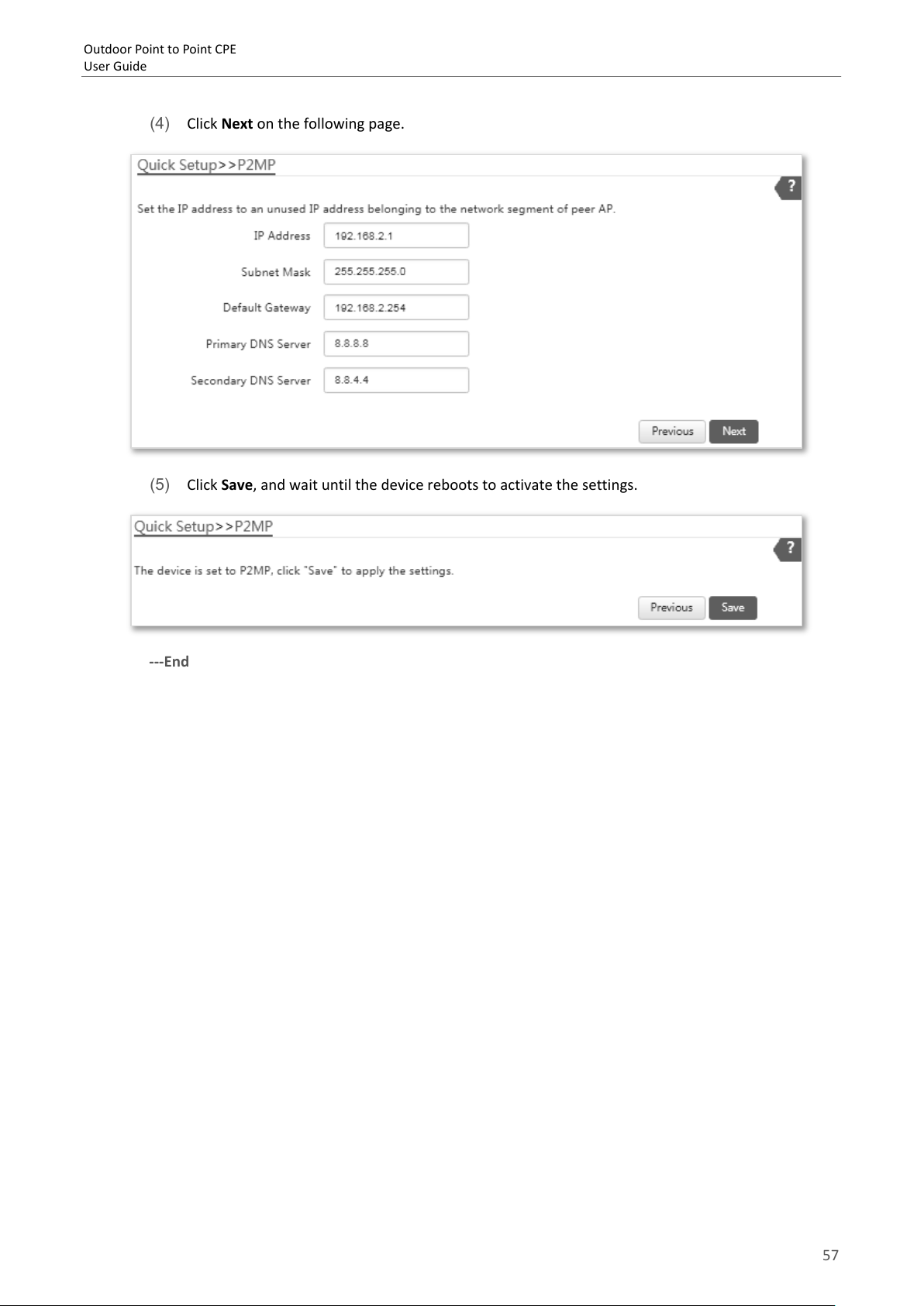

(4) Click Next on the following page.
(5) Click Save, and wait until the device reboots to activate the settings.
---End
57
Outdoor Point to Point CPE
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Peer AP
It specifies the wireless network name (SSID) of the peer AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically populated
when you select an SSID to bridge.
Tip
The P2MP mode only supports WEP and None security modes.
User Guide
Parameters Description
58
Outdoor Point to Point CPE
Router
Router Mode
User Guide

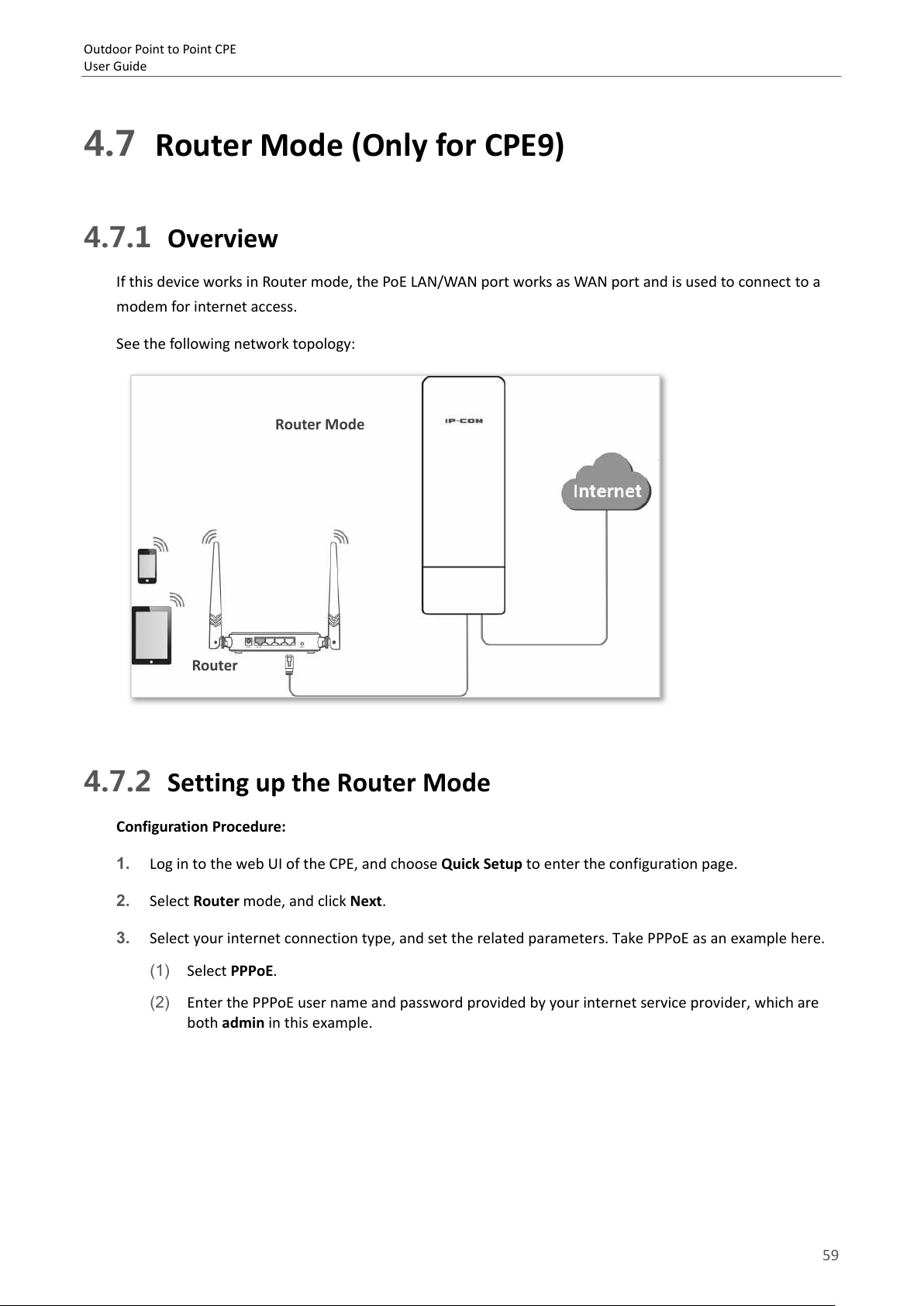

4.7 Router Mode (Only for CPE9)
4.7.1 Overview
If this device works in Router mode, the PoE LAN/WAN port works as WAN port and is used to connect to a
modem for internet access.
See the following network topology:
4.7.2 Setting up the Router Mode
Configuration Procedure:
1. Log in to the web UI of the CPE, and choose Quick Setup to enter the configuration page.
2. Select Router mode, and click Next.
3. Select your internet connection type, and set the related parameters. Take PPPoE as an example here.
(1) Select PPPoE.
(2) Enter the PPPoE user name and password provided by your internet service provider, which are
both admin in this example.
59
Outdoor Point to Point CPE
User Guide
(3) Click Next.

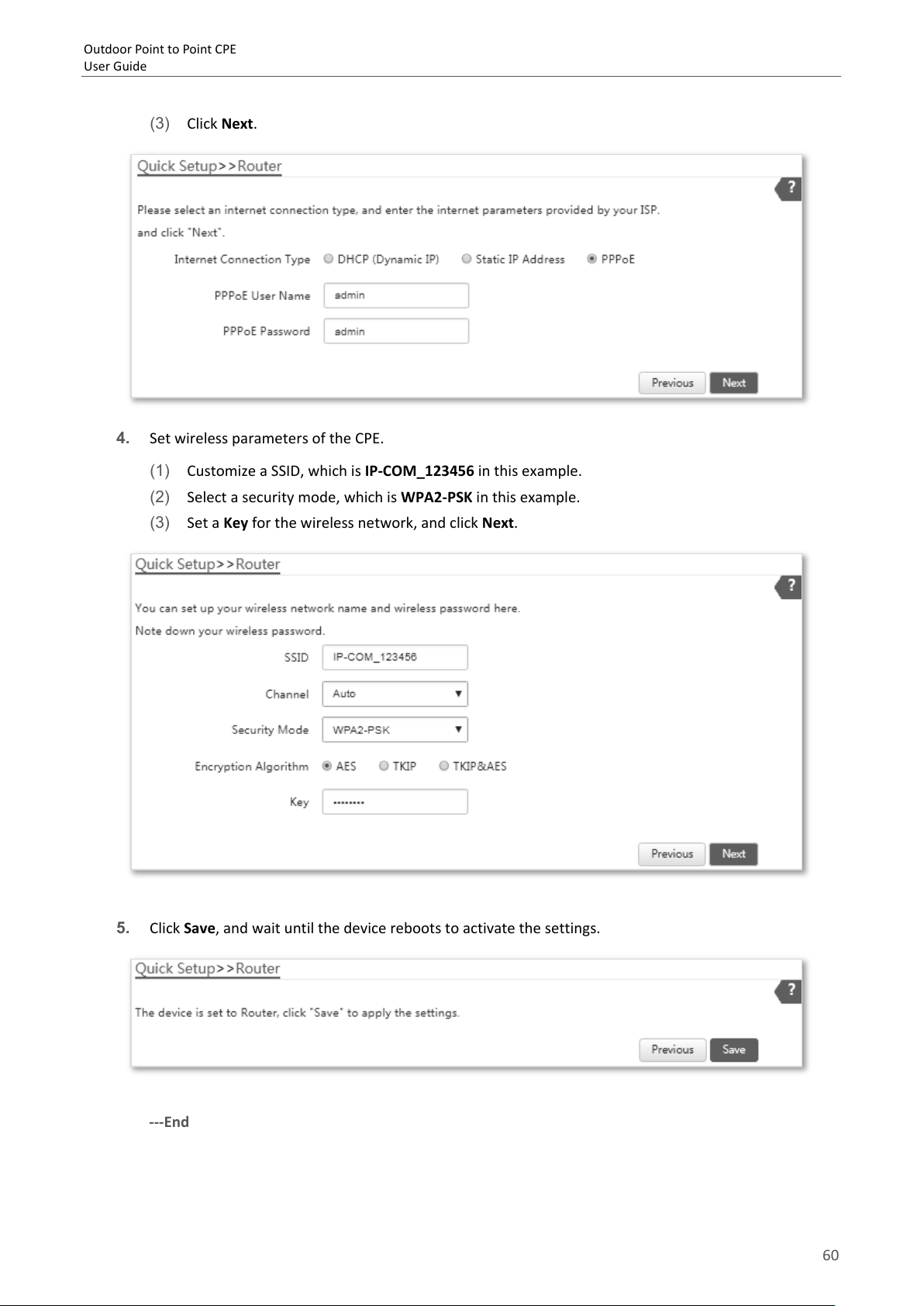

4. Set wireless parameters of the CPE.
(1) Customize a SSID, which is IP-COM_123456 in this example.
(2) Select a security mode, which is WPA2-PSK in this example.
(3) Set a Key for the wireless network, and click Next.
5. Click Save, and wait until the device reboots to activate the settings.
---End
60
Outdoor Point to Point CPE
Name
Description
Working Modes
It specifies the working mode of the CPE.
−
AP mode: in this mode, the device creates a wireless network based on the current wired
network.
−
Client mode: in this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless access point.
−
Universal Repeater mode: in this mode, this device expands your WiFi network for broader
network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not require that
the upstream AP supports WDS function.
−
WISP mode: connect to an access point provided by ISP in wireless manner.
−
Repeater mode: the CPE connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, and can be connected with both wired and wireless clients.
To use the Repeater function of this device, the peer AP is required to support WDS
function, and use the same radio band as that of this device.
−
P2MP mode: this device connects 2 or more (this device supports 4 at most) wired
networks with a wireless link, but cannot be connected with wireless clients. P2MP mode is
used to achieve communication between multiple offices of an enterprise in a city.
−
Router mode: in this mode, the PoE LAN/WAN port works as the WAN port and is used to
connect to a modem for internet access.
Internet Connection
Type
The CPE in Router mode supports three internet connection types:
−
DHCP (Dynamic IP): The CPE obtains the IP address and other parameters from the DHCP
server of upstream device for internet access.
−
Static IP Address: The CPE accesses the internet using the IP address, subnet mask, default
gateway and DNS server IP addresses you manually entered.
−
PPPoE: The CPE accesses the internet using the PPPoE user name and password provided
by the ISP.
SSID
It specifies the wireless network name of the CPE.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network of the CPE. It includes None, WPA-PSK,
WPA2-PSK, and Mixed WPA/WPA2-PSK.
Clicking the hyperlink navigates you to the elaborated description of the corresponding security
mode.
User Guide
Parameters Description
61
Outdoor Point to Point CPE
Name
Description
Device Name
It specifies the name of this device. If this device is not the only one of its kind in the network,
this name helps you identify the device. You can change the name of this device on the
Network > LAN Setup page.
Uptime
It specifies time during which this device is operating.
System Time
It specifies the current system time of this device.
Firmware Version
It specifies the system software version number of this device.
Hardware Version
It specifies the hardware version of this device.
LAN MAC Address
It specifies the MAC address of LAN port of this device. When connecting to another device using
an Ethernet cable, the CPE uses this MAC address to communicate with the device.
WLAN MAC Address
It specifies the MAC address of the wireless network of this device.
User Guide

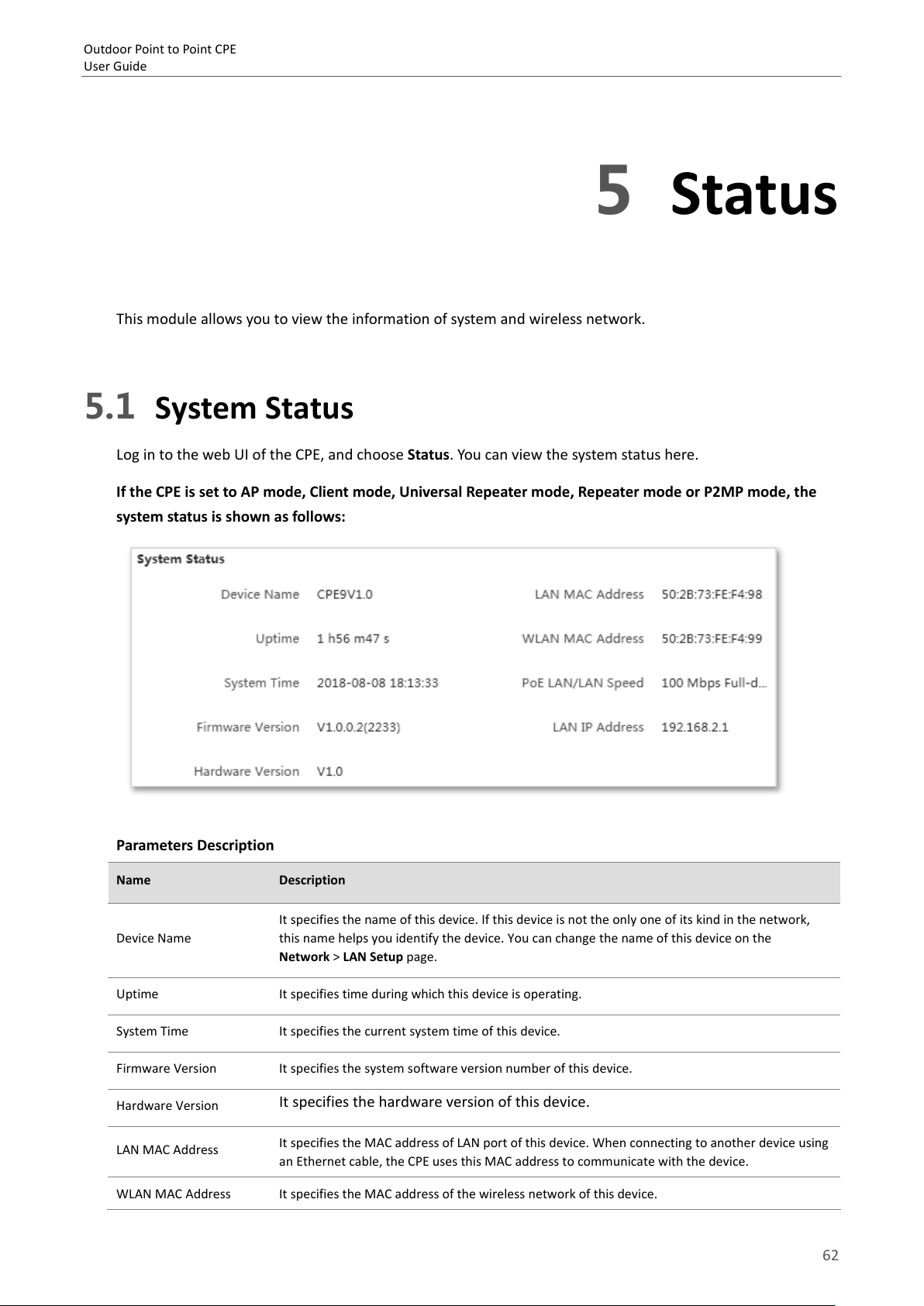

5 Status
This module allows you to view the information of system and wireless network.
5.1 System Status
Log in to the web UI of the CPE, and choose Status. You can view the system status here.
If the CPE is set to AP mode, Client mode, Universal Repeater mode, Repeater mode or P2MP mode, the
system status is shown as follows:
Parameters Description
62
Outdoor Point to Point CPE
Name
Description
PoE LAN/LAN Speed
It specifies the connection status of PoE LAN/WAN and LAN ports. It includes connection rate and
duplex mode.
LAN IP Address
It specifies the IP address (also named management IP address) of this device. By default, it is
192.168.2.1. You can access the web UI of this device using this IP address.
Name
Description
Connection Status
It specifies the connection status of WAN port of this device in WISP or Router mode.
Connection Type
It specifies the internet connection type of this device in WISP or Router mode.
WAN IP Address
It specifies the IP address of WAN port of this device in WISP or Router mode.
Default Gateway
It specifies the default gateway address of this device in WISP or Router mode.
Primary DNS Server
It specifies the IP address of primary DNS server of this device in WISP or Router mode.
Secondary DNS Server
It specifies the IP address of secondary DNS server of this device in WISP or Router mode.
User Guide

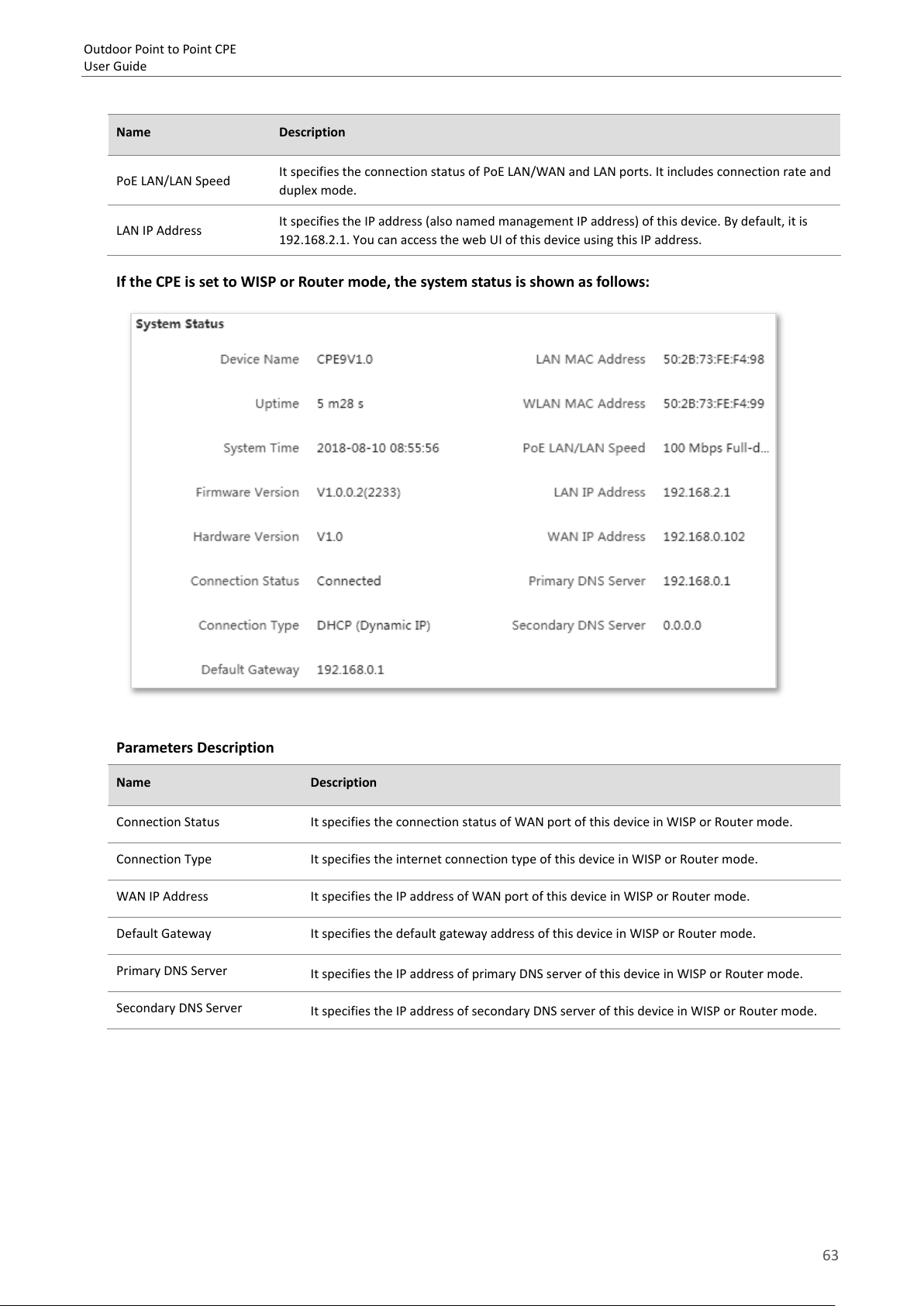

If the CPE is set to WISP or Router mode, the system status is shown as follows:
Parameters Description
63
Outdoor Point to Point CPE
Name
Description
Working Mode
It specifies the working mode the device operates.
SSID
It specifies the wireless network name of this device.
Security Mode
It specifies the security mode of the wireless network of this device.
Channel/Radio Band
It specifies the channel and radio band used by this device to transmit radio signals.
Wireless Client
It specifies the number of wireless clients connected to this device.
AP’s MAC Address
It displays "No Peer AP" if the device works in AP or Router mode. And in other modes,
it displays the MAC address of peer AP to which this device bridged.
Signal Strength
It displays the signal strength of the first device connected to the wireless network of
the device when it works in AP or Router mode. It displays the received signal strength
from peer AP when the device works in Client, Universal Repeater, WISP, Repeater or
P2MP mode.
Background Noise
It specifies the strength of radio interference signals in the ambient environment that
interfere with the channel of this device. Larger absolute value indicates less
interference.
TX/TR Link
It specifies the number of spatial streams the device is transmitting or receiving.
Transmit/Receive Speed
It specifies the wireless transmitting/receiving rate.
−
In AP or Router mode: it displays the transmitting/receiving rate of the first
device connected to the wireless network of this device.
−
In Client, Universal Repeater, WISP, Repeater, or P2MP mode: it displays
transmitting/receiving rate of this device.
User Guide

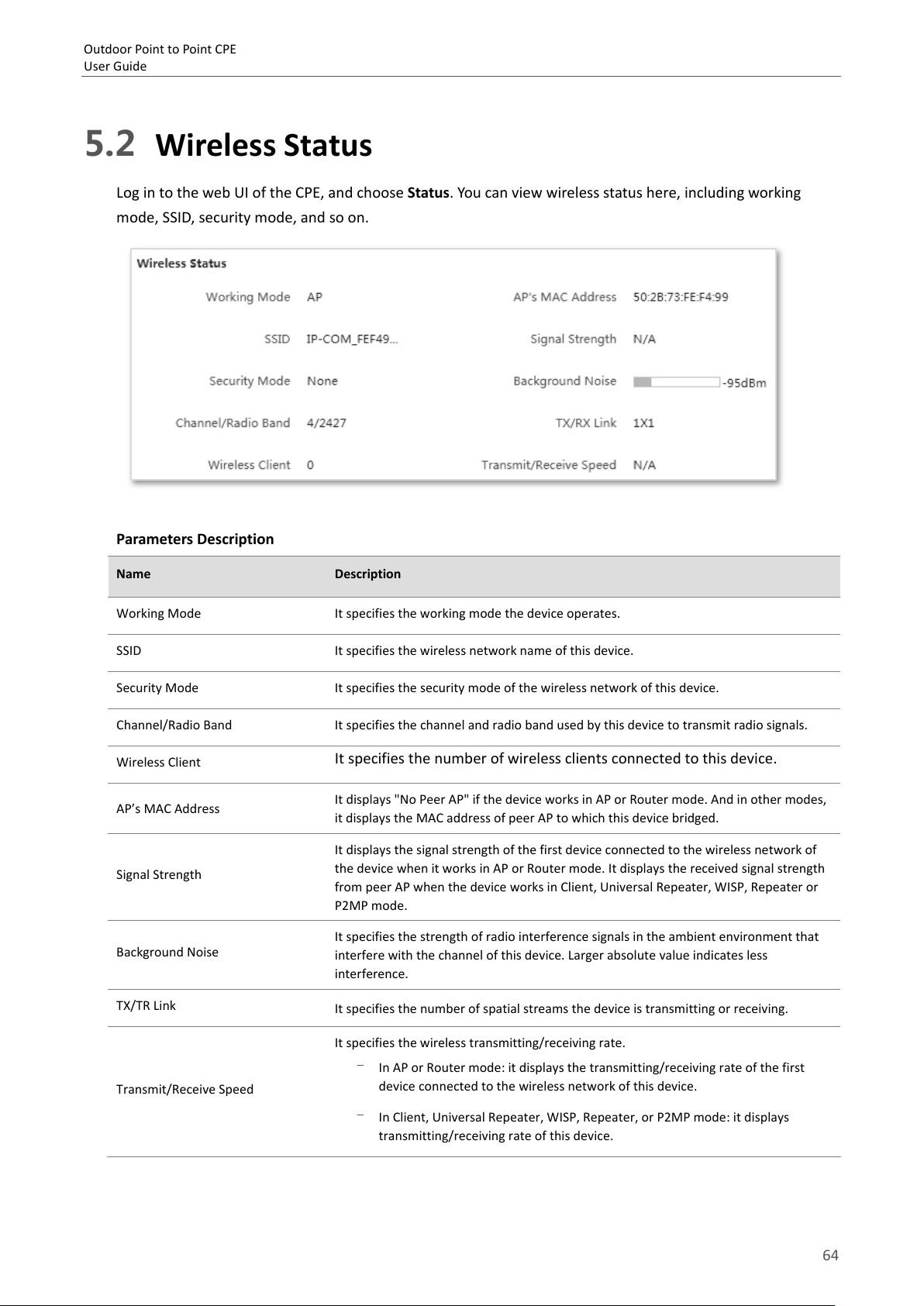

5.2 Wireless Status
Log in to the web UI of the CPE, and choose Status. You can view wireless status here, including working
mode, SSID, security mode, and so on.
Parameters Description
64
Outdoor Point to Point CPE
User Guide

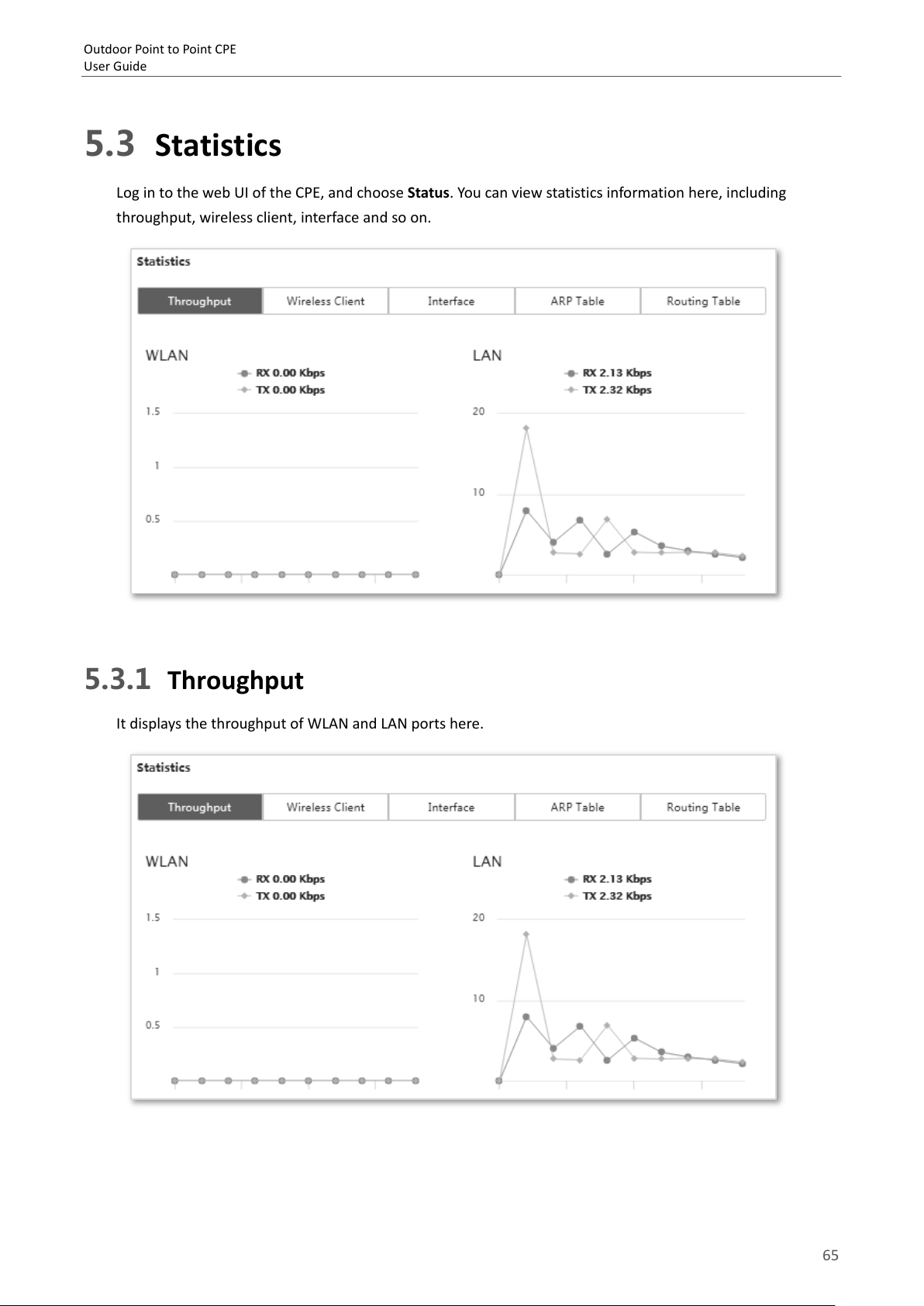

5.3 Statistics
Log in to the web UI of the CPE, and choose Status. You can view statistics information here, including
throughput, wireless client, interface and so on.
5.3.1 Throughput
It displays the throughput of WLAN and LAN ports here.
65
Outdoor Point to Point CPE
Name
Description
IP Address
It specifies the IP address of the corresponding wireless client.
MAC Address
It specifies the MAC address of the corresponding wireless client.
Signal/Noise
It specifies the WiFi signal strength and electromagnet interference signal strength of the
corresponding wireless client.
Transmit/Receive
It specifies the transmitting and receiving rate of the corresponding client.
CCQ
It specifies the connection quality of the corresponding client. Higher percentage indicates better
connection quality.
Connection Duration
It specifies the time that has elapsed since the wireless client is connected to the wireless
network of the CPE.
User Guide

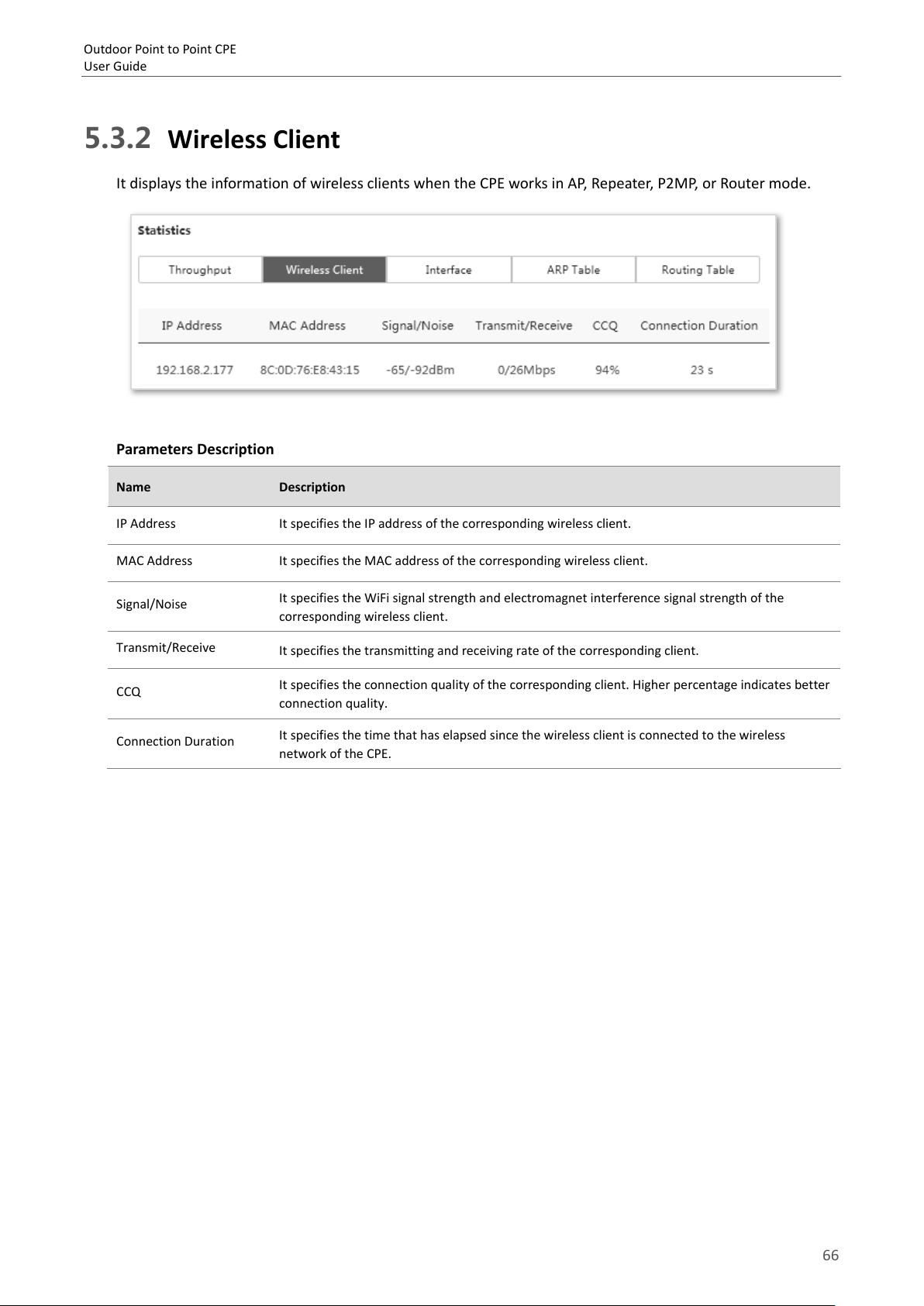

5.3.2 Wireless Client
It displays the information of wireless clients when the CPE works in AP, Repeater, P2MP, or Router mode.
Parameters Description
66
Outdoor Point to Point CPE
Name
Description
IP Address
It specifies the IP address of the upstream device.
MAC Address
It specifies the MAC address of the upstream device.
Signal/Noise
It specifies the WiFi signal strength and electromagnet interference signal strength of the
upstream device.
Transmit/Receive
It specifies the transmitting and receiving rate of the upstream device.
CCQ
It specifies the connection quality of the upstream device. Higher percentage indicates better
connection quality.
Connection Duration
It specifies the time that has elapsed since this CPE bridges to the upstream device.
User Guide

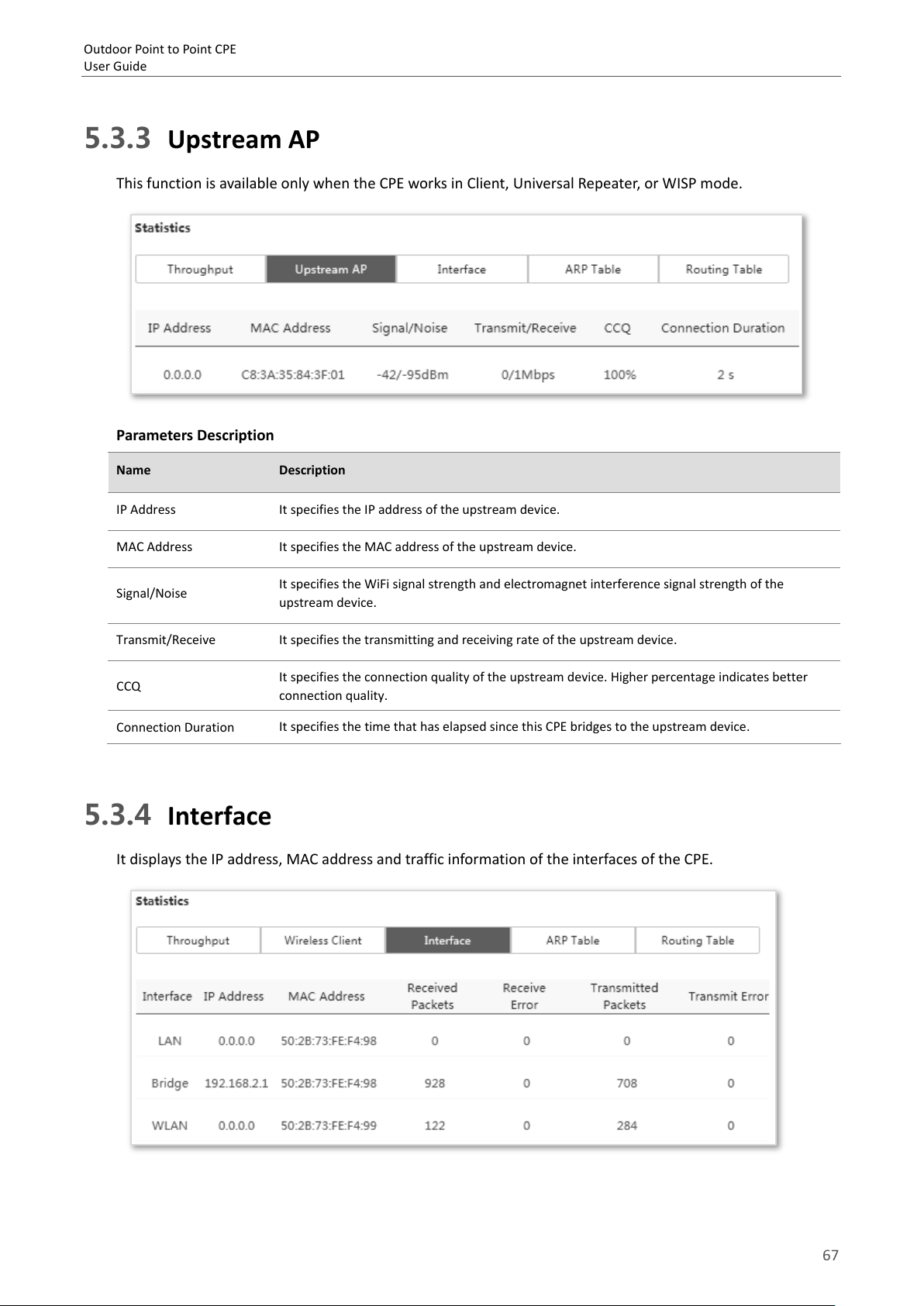

5.3.3 Upstream AP
This function is available only when the CPE works in Client, Universal Repeater, or WISP mode.
Parameters Description
5.3.4 Interface
It displays the IP address, MAC address and traffic information of the interfaces of the CPE.
67

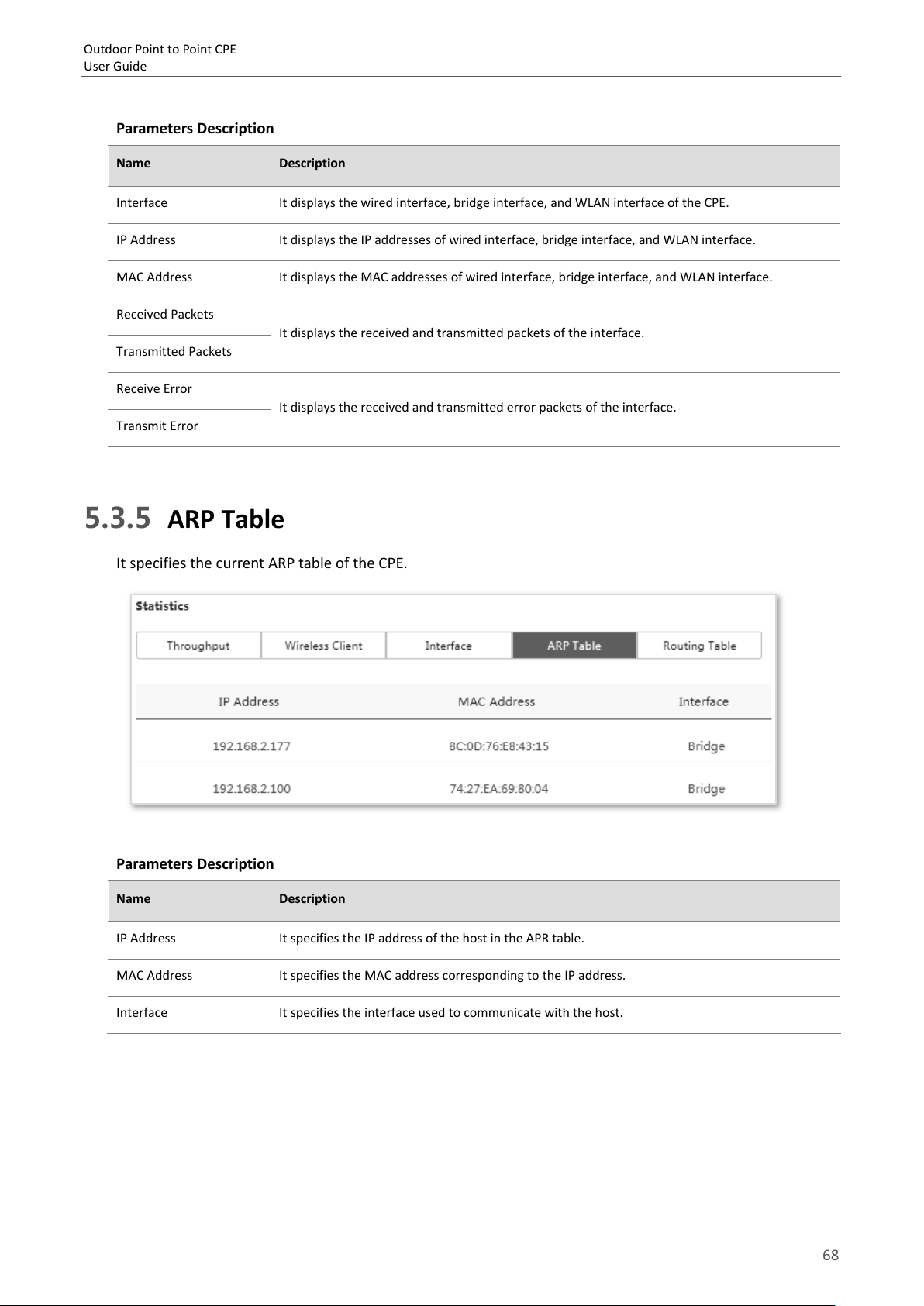

Outdoor Point to Point CPE
Name
Description
Interface
It displays the wired interface, bridge interface, and WLAN interface of the CPE.
IP Address
It displays the IP addresses of wired interface, bridge interface, and WLAN interface.
MAC Address
It displays the MAC addresses of wired interface, bridge interface, and WLAN interface.
Received Packets
It displays the received and transmitted packets of the interface.
Transmitted Packets
Receive Error
It displays the received and transmitted error packets of the interface.
Transmit Error
Name
Description
IP Address
It specifies the IP address of the host in the APR table.
MAC Address
It specifies the MAC address corresponding to the IP address.
Interface
It specifies the interface used to communicate with the host.
User Guide
Parameters Description
5.3.5 ARP Table
It specifies the current ARP table of the CPE.
Parameters Description
68
Outdoor Point to Point CPE
Name
Description
Destination Network
It specifies the IP address of the destination network.
Subnet Mask
It specifies the subnet mask of the destination network.
Next Hop
It specifies the IP address of entrance of the next hop route when the packets egress from the
interface of the CPE.
Interface
It specifies the interface that the packets egress.
User Guide

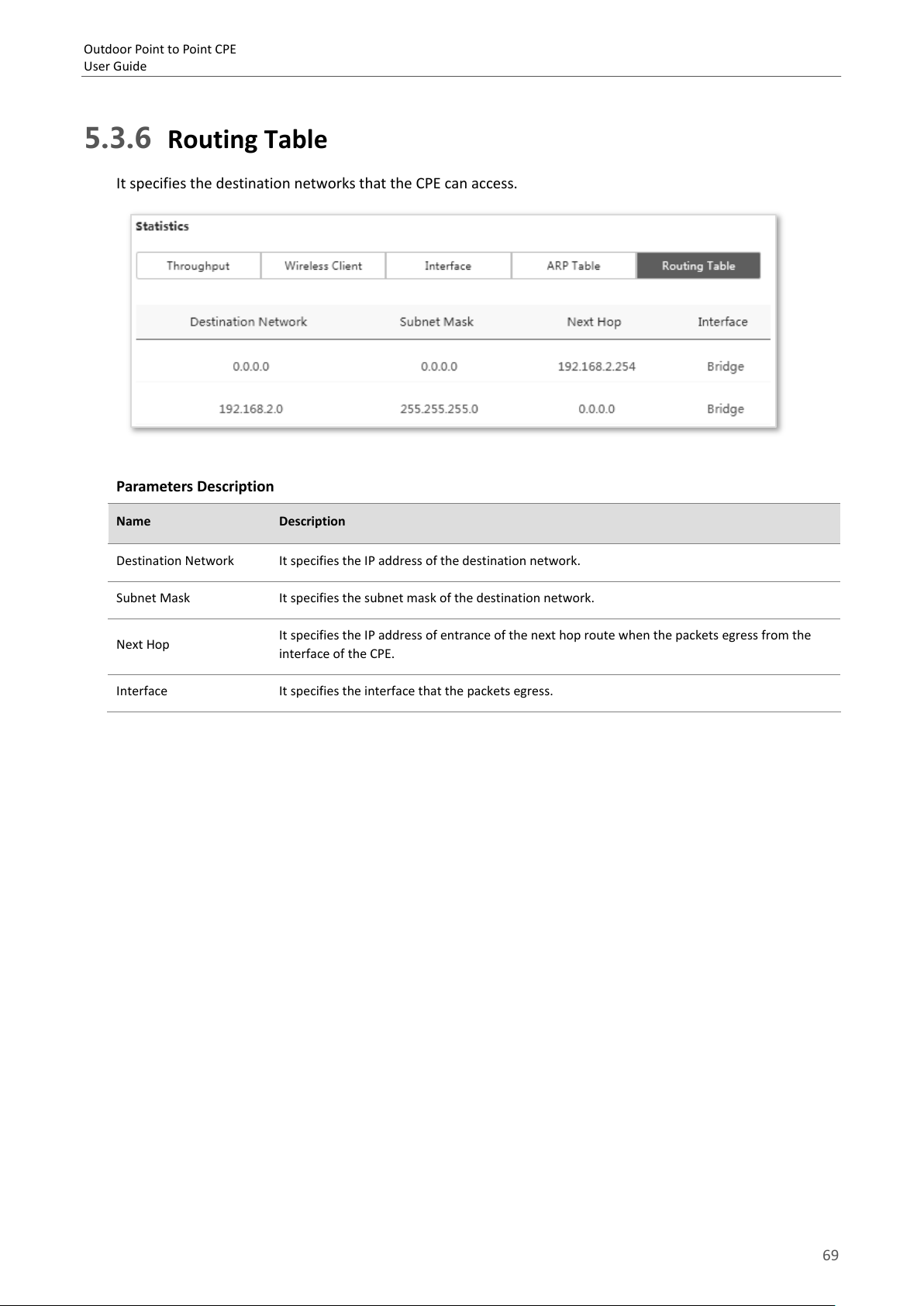

5.3.6 Routing Table
It specifies the destination networks that the CPE can access.
Parameters Description
69
Outdoor Point to Point CPE
Name
Description
MAC Address
It specifies the MAC address of LAN port.
The default SSID of the CPE is IP-COM_XXXXXX, and XXXXXX is the last six characters of this MAC
address.
IP Address Type
It specifies the type of obtaining an IP address. The default is Static IP Address.
Static IP Address: Specify the IP address, subnet mask, default gateway, and DNS server IP
User Guide

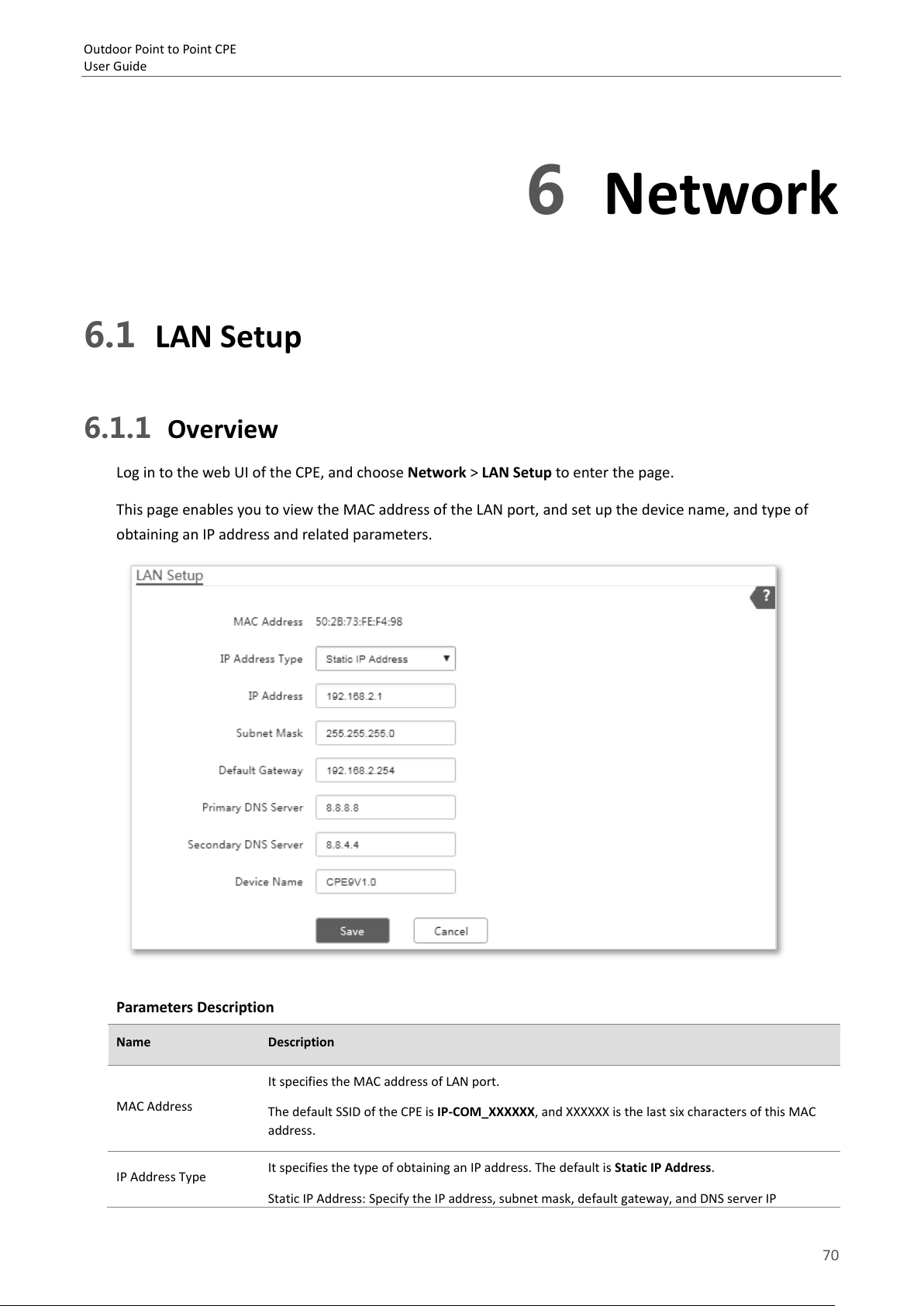

6 Network
6.1 LAN Setup
6.1.1 Overview
Log in to the web UI of the CPE, and choose Network > LAN Setup to enter the page.
This page enables you to view the MAC address of the LAN port, and set up the device name, and type of
obtaining an IP address and related parameters.
Parameters Description
70

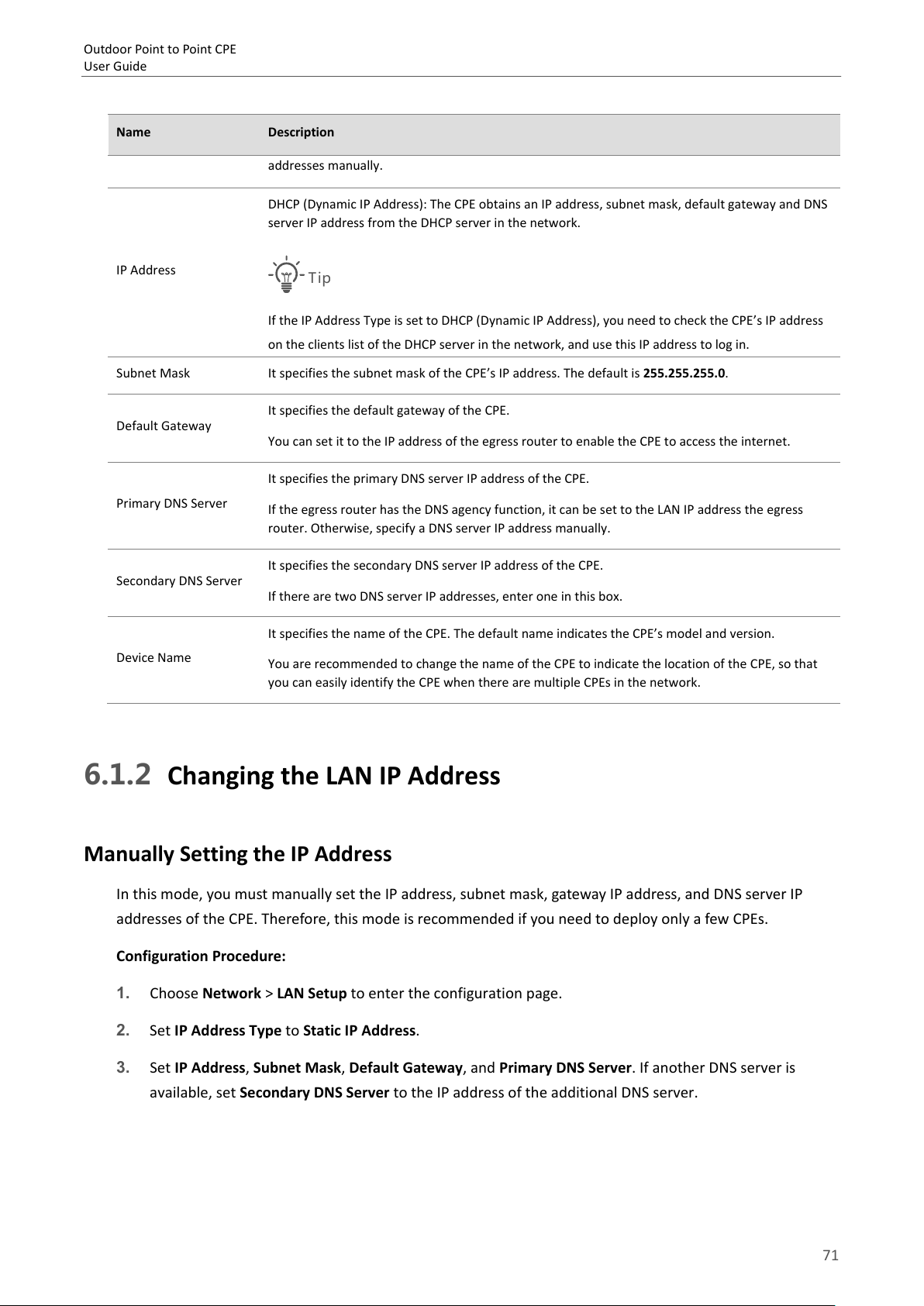

Outdoor Point to Point CPE
Name
Description
addresses manually.
IP Address
DHCP (Dynamic IP Address): The CPE obtains an IP address, subnet mask, default gateway and DNS
server IP address from the DHCP server in the network.
Tip
If the IP Address Type is set to DHCP (Dynamic IP Address), you need to check the CPE’s IP address
on the clients list of the DHCP server in the network, and use this IP address to log in.
Subnet Mask
It specifies the subnet mask of the CPE’s IP address. The default is 255.255.255.0.
Default Gateway
It specifies the default gateway of the CPE.
You can set it to the IP address of the egress router to enable the CPE to access the internet.
Primary DNS Server
It specifies the primary DNS server IP address of the CPE.
If the egress router has the DNS agency function, it can be set to the LAN IP address the egress
router. Otherwise, specify a DNS server IP address manually.
Secondary DNS Server
It specifies the secondary DNS server IP address of the CPE.
If there are two DNS server IP addresses, enter one in this box.
Device Name
It specifies the name of the CPE. The default name indicates the CPE’s model and version.
You are recommended to change the name of the CPE to indicate the location of the CPE, so that
you can easily identify the CPE when there are multiple CPEs in the network.
User Guide
6.1.2 Changing the LAN IP Address
Manually Setting the IP Address
In this mode, you must manually set the IP address, subnet mask, gateway IP address, and DNS server IP
addresses of the CPE. Therefore, this mode is recommended if you need to deploy only a few CPEs.
Configuration Procedure:
1. Choose Network > LAN Setup to enter the configuration page.
2. Set IP Address Type to Static IP Address.
3. Set IP Address, Subnet Mask, Default Gateway, and Primary DNS Server. If another DNS server is
available, set Secondary DNS Server to the IP address of the additional DNS server.
71
Outdoor Point to Point CPE
User Guide

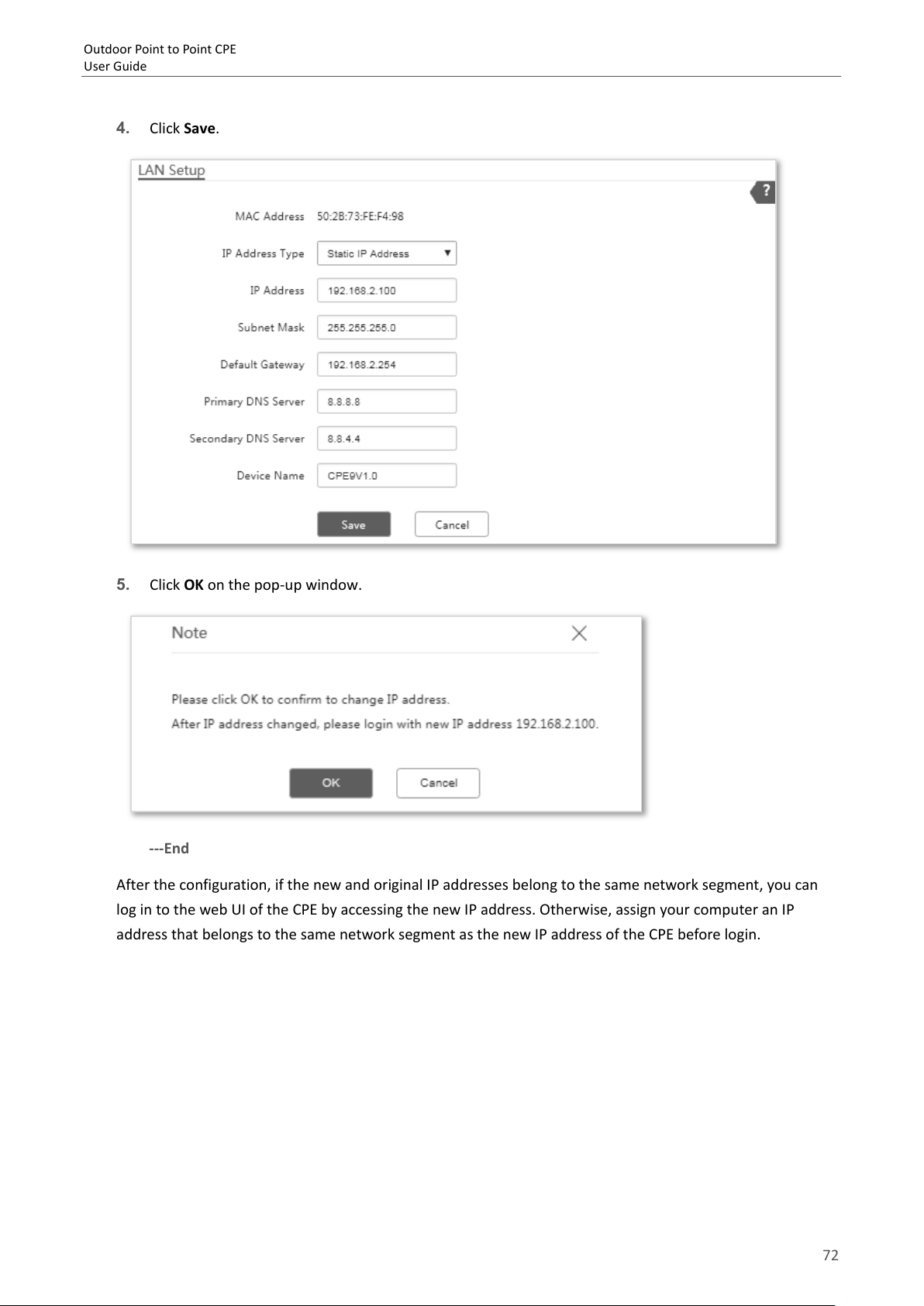

4. Click Save.
5. Click OK on the pop-up window.
---End
After the configuration, if the new and original IP addresses belong to the same network segment, you can
log in to the web UI of the CPE by accessing the new IP address. Otherwise, assign your computer an IP
address that belongs to the same network segment as the new IP address of the CPE before login.
72
Outdoor Point to Point CPE
User Guide

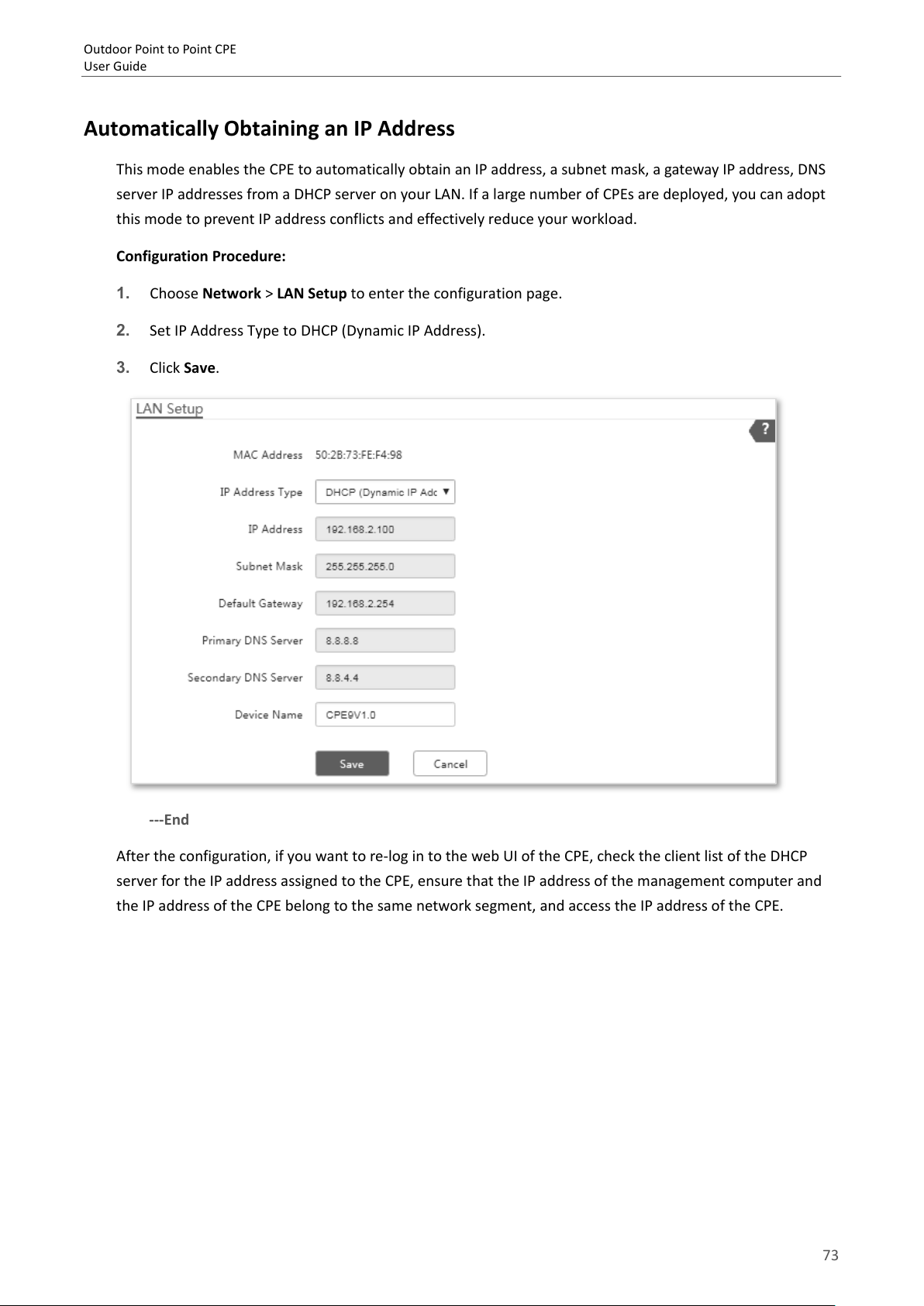

Automatically Obtaining an IP Address
This mode enables the CPE to automatically obtain an IP address, a subnet mask, a gateway IP address, DNS
server IP addresses from a DHCP server on your LAN. If a large number of CPEs are deployed, you can adopt
this mode to prevent IP address conflicts and effectively reduce your workload.
Configuration Procedure:
1. Choose Network > LAN Setup to enter the configuration page.
2. Set IP Address Type to DHCP (Dynamic IP Address).
3. Click Save.
---End
After the configuration, if you want to re-log in to the web UI of the CPE, check the client list of the DHCP
server for the IP address assigned to the CPE, ensure that the IP address of the management computer and
the IP address of the CPE belong to the same network segment, and access the IP address of the CPE.
73
Outdoor Point to Point CPE
User Guide

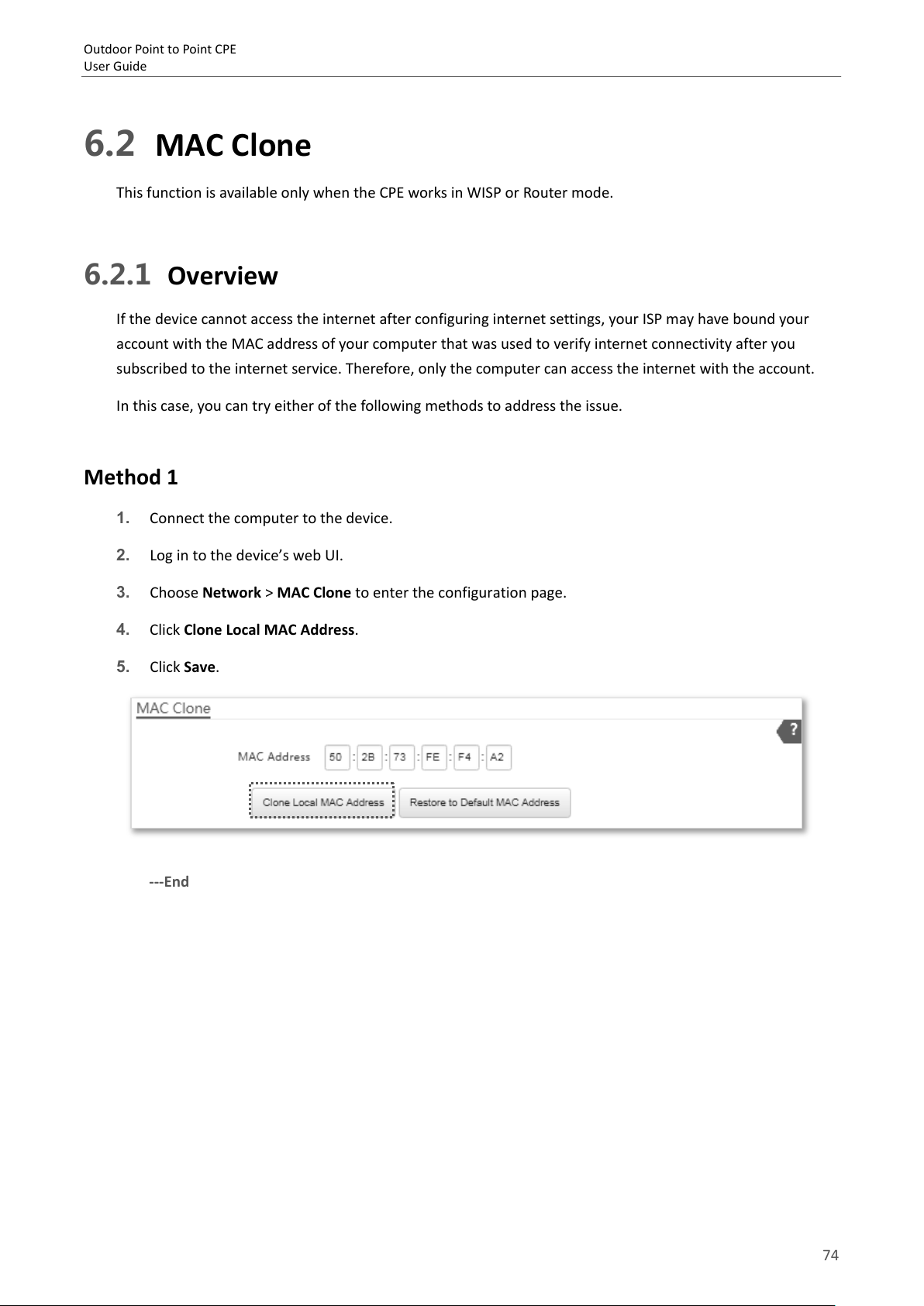

6.2 MAC Clone
This function is available only when the CPE works in WISP or Router mode.
6.2.1 Overview
If the device cannot access the internet after configuring internet settings, your ISP may have bound your
account with the MAC address of your computer that was used to verify internet connectivity after you
subscribed to the internet service. Therefore, only the computer can access the internet with the account.
In this case, you can try either of the following methods to address the issue.
Method 1
1. Connect the computer to the device.
2. Log in to the device’s web UI.
3. Choose Network > MAC Clone to enter the configuration page.
4. Click Clone Local MAC Address.
5. Click Save.
---End
74
Outdoor Point to Point CPE
Tip
User Guide

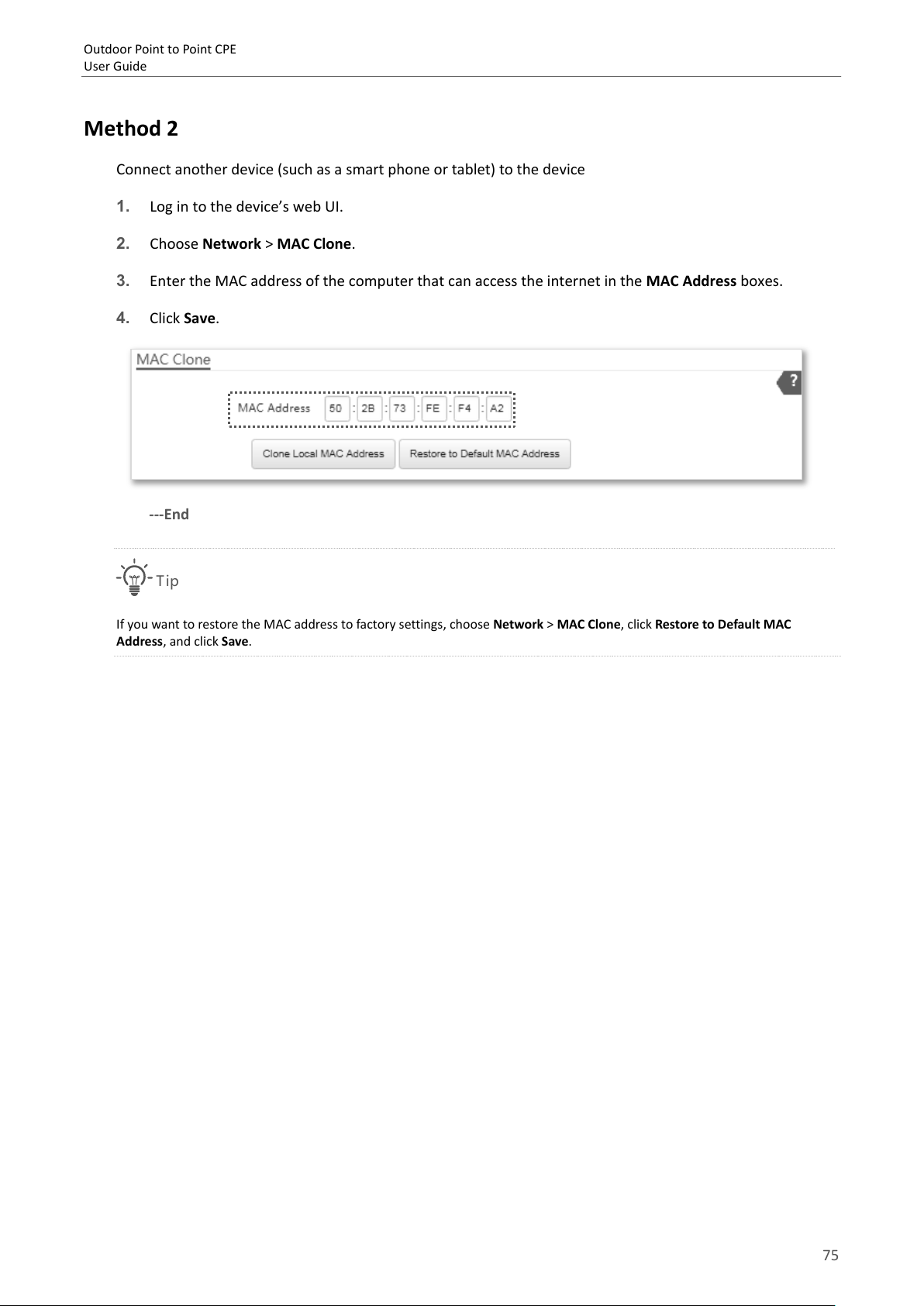

Method 2
Connect another device (such as a smart phone or tablet) to the device
1. Log in to the device’s web UI.
2. Choose Network > MAC Clone.
3. Enter the MAC address of the computer that can access the internet in the MAC Address boxes.
4. Click Save.
---End
If you want to restore the MAC address to factory settings, choose Network > MAC Clone, click Restore to Default MAC
Address, and click Save.
75
Outdoor Point to Point CPE
Tip
*
*
*
User Guide

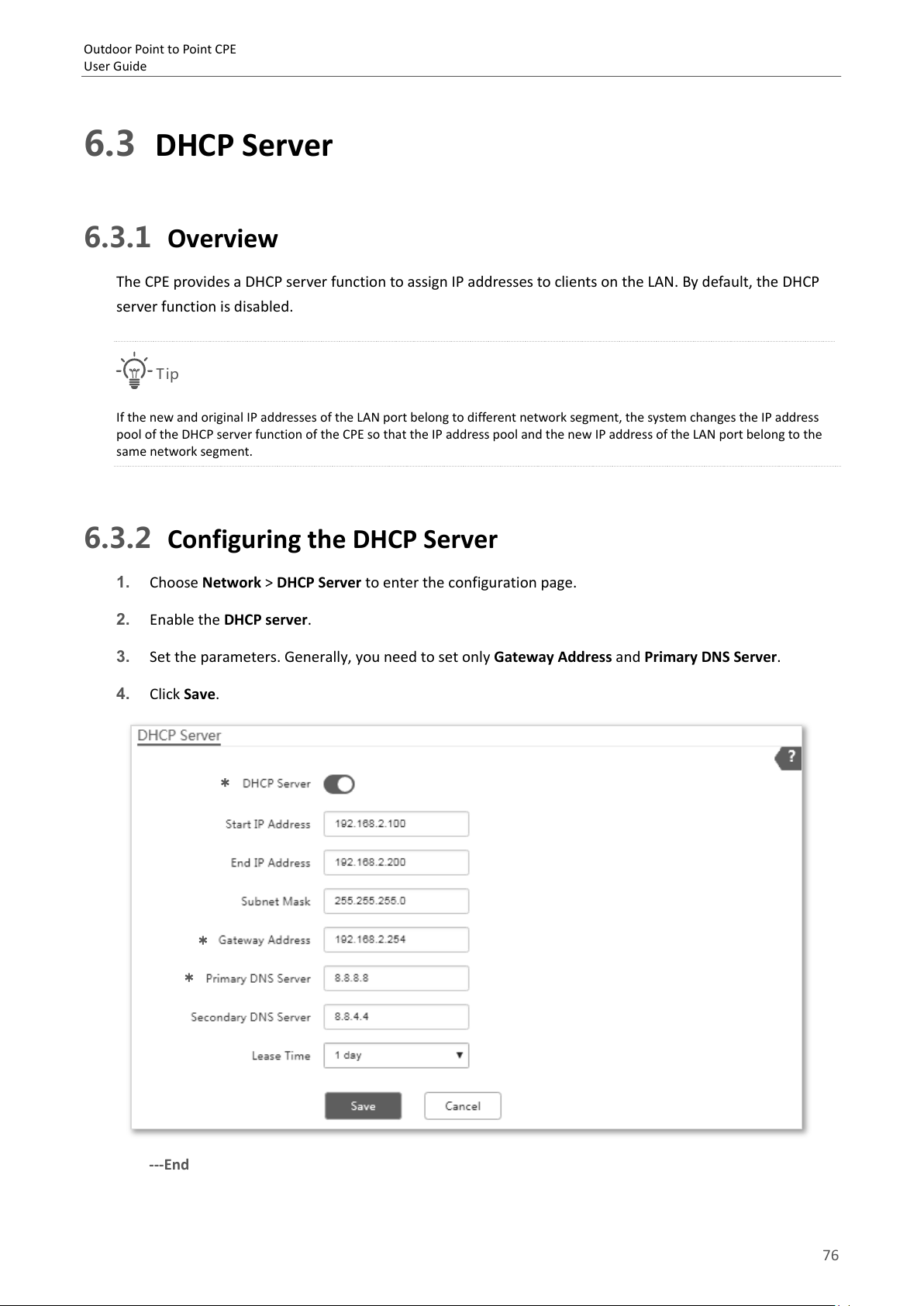

6.3 DHCP Server
6.3.1 Overview
The CPE provides a DHCP server function to assign IP addresses to clients on the LAN. By default, the DHCP
server function is disabled.
If the new and original IP addresses of the LAN port belong to different network segment, the system changes the IP address
pool of the DHCP server function of the CPE so that the IP address pool and the new IP address of the LAN port belong to the
same network segment.
6.3.2 Configuring the DHCP Server
1. Choose Network > DHCP Server to enter the configuration page.
2. Enable the DHCP server.
3. Set the parameters. Generally, you need to set only Gateway Address and Primary DNS Server.
4. Click Save.
---End
76

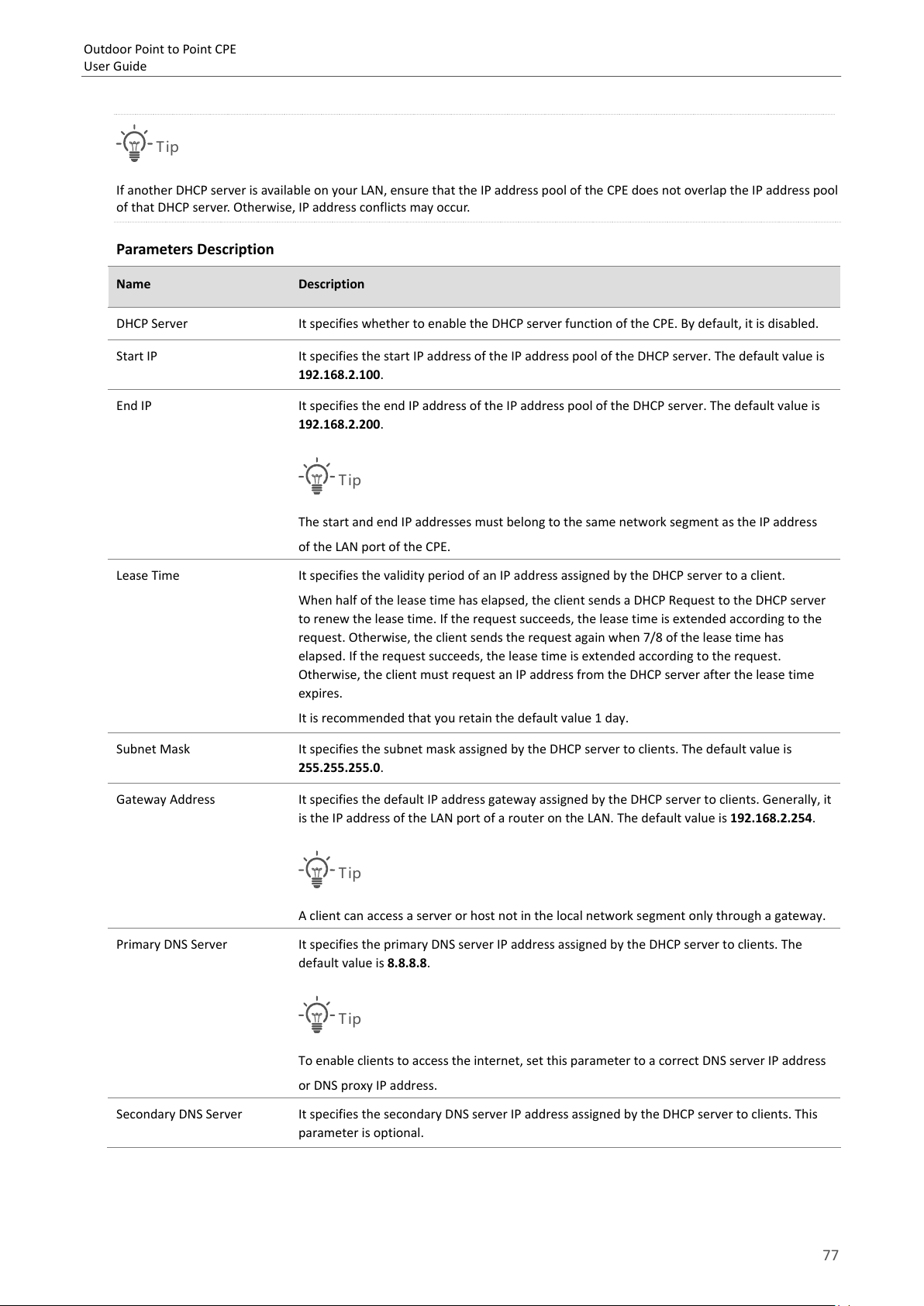

Outdoor Point to Point CPE
Tip
Name
Description
DHCP Server
It specifies whether to enable the DHCP server function of the CPE. By default, it is disabled.
Start IP
It specifies the start IP address of the IP address pool of the DHCP server. The default value is
192.168.2.100.
End IP
It specifies the end IP address of the IP address pool of the DHCP server. The default value is
192.168.2.200.
Tip
The start and end IP addresses must belong to the same network segment as the IP address
of the LAN port of the CPE.
Lease Time
It specifies the validity period of an IP address assigned by the DHCP server to a client.
When half of the lease time has elapsed, the client sends a DHCP Request to the DHCP server
to renew the lease time. If the request succeeds, the lease time is extended according to the
request. Otherwise, the client sends the request again when 7/8 of the lease time has
elapsed. If the request succeeds, the lease time is extended according to the request.
Otherwise, the client must request an IP address from the DHCP server after the lease time
expires.
It is recommended that you retain the default value 1 day.
Subnet Mask
It specifies the subnet mask assigned by the DHCP server to clients. The default value is
255.255.255.0.
Gateway Address
It specifies the default IP address gateway assigned by the DHCP server to clients. Generally, it
is the IP address of the LAN port of a router on the LAN. The default value is 192.168.2.254.
Tip
A client can access a server or host not in the local network segment only through a gateway.
Primary DNS Server
It specifies the primary DNS server IP address assigned by the DHCP server to clients. The
default value is 8.8.8.8.
Tip
To enable clients to access the internet, set this parameter to a correct DNS server IP address
or DNS proxy IP address.
Secondary DNS Server
It specifies the secondary DNS server IP address assigned by the DHCP server to clients. This
parameter is optional.
User Guide
If another DHCP server is available on your LAN, ensure that the IP address pool of the CPE does not overlap the IP address pool
of that DHCP server. Otherwise, IP address conflicts may occur.
Parameters Description
77
Outdoor Point to Point CPE
User Guide

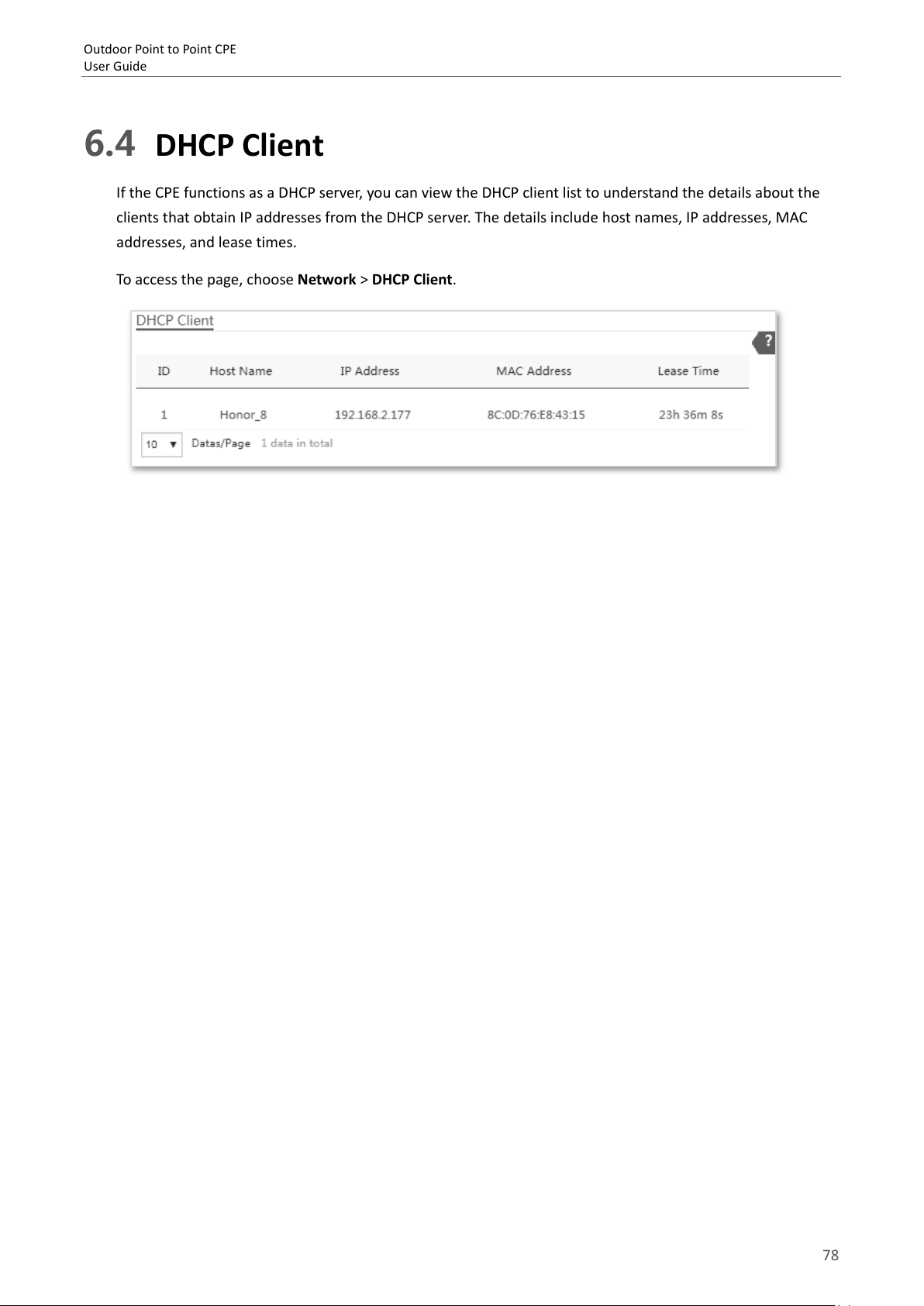

6.4 DHCP Client
If the CPE functions as a DHCP server, you can view the DHCP client list to understand the details about the
clients that obtain IP addresses from the DHCP server. The details include host names, IP addresses, MAC
addresses, and lease times.
To access the page, choose Network > DHCP Client.
78
Outdoor Point to Point CPE
Name
Description
VLAN Settings
It specifies whether to enable the VLAN function of this device. By default, it is disabled. After the
VLAN function is enabled, the PoE LAN/WAN port is used as trunk port.
PVID
It specifies the ID of the default native VLAN of the trunk port. The default ID is 1. After the VLAN
function is enabled, the PoE LAN/WAN port is used as trunk port.
Management VLAN
It specifies the ID of the management VLAN of this device. The default ID is 1. After changing the
management VLAN, you can manage this device only after connecting your computer to the new
management VLAN.
WLAN VLAN ID
It allows you to set a VLAN ID for the wireless network of this device. By default, it is set to 1000.
After the VLAN function is enabled, the WLAN interface functions as an access port, whose PVID is
the same as VLAN ID.
User Guide

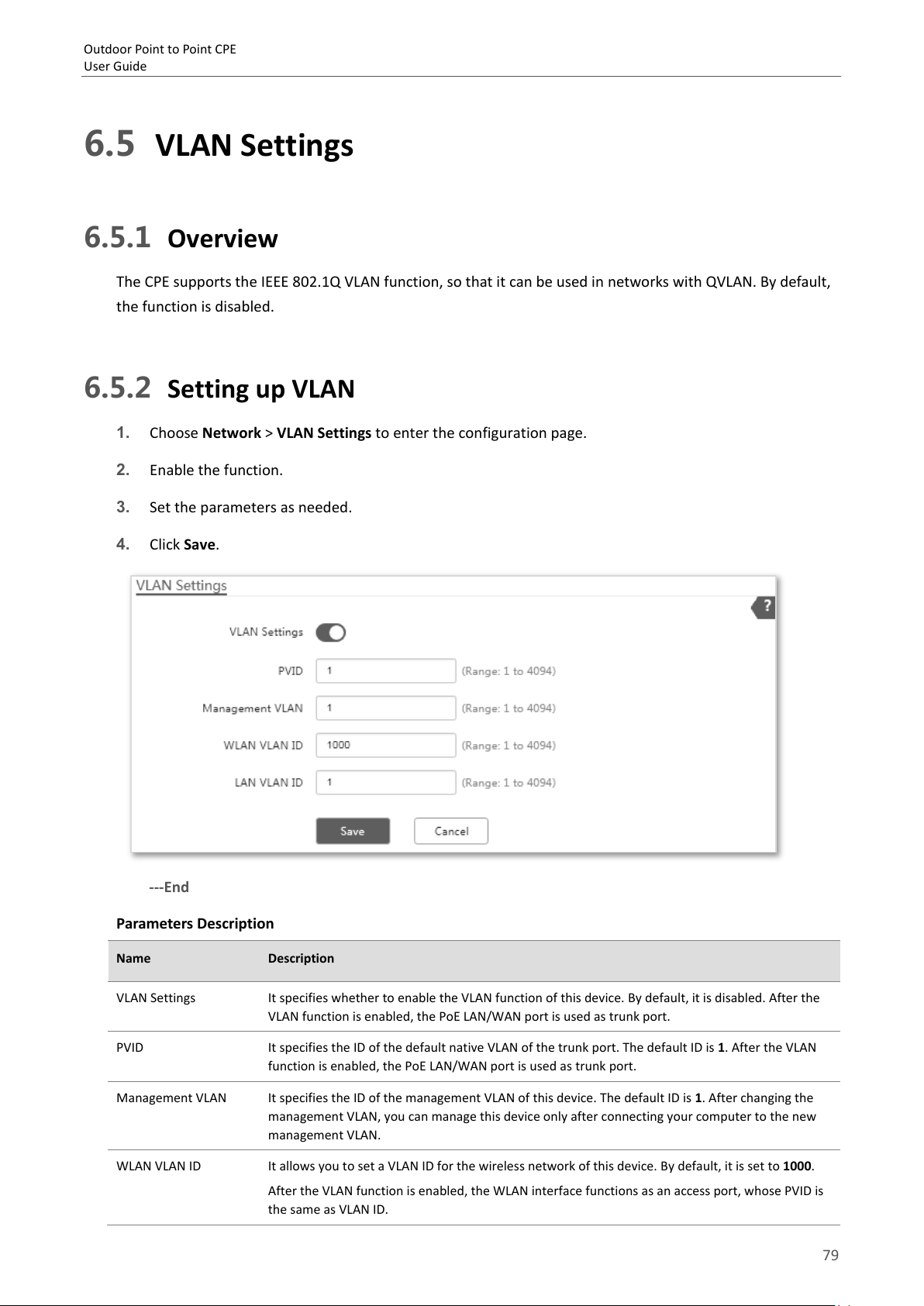

6.5 VLAN Settings
6.5.1 Overview
The CPE supports the IEEE 802.1Q VLAN function, so that it can be used in networks with QVLAN. By default,
the function is disabled.
6.5.2 Setting up VLAN
1. Choose Network > VLAN Settings to enter the configuration page.
2. Enable the function.
3. Set the parameters as needed.
4. Click Save.
---End
Parameters Description
79

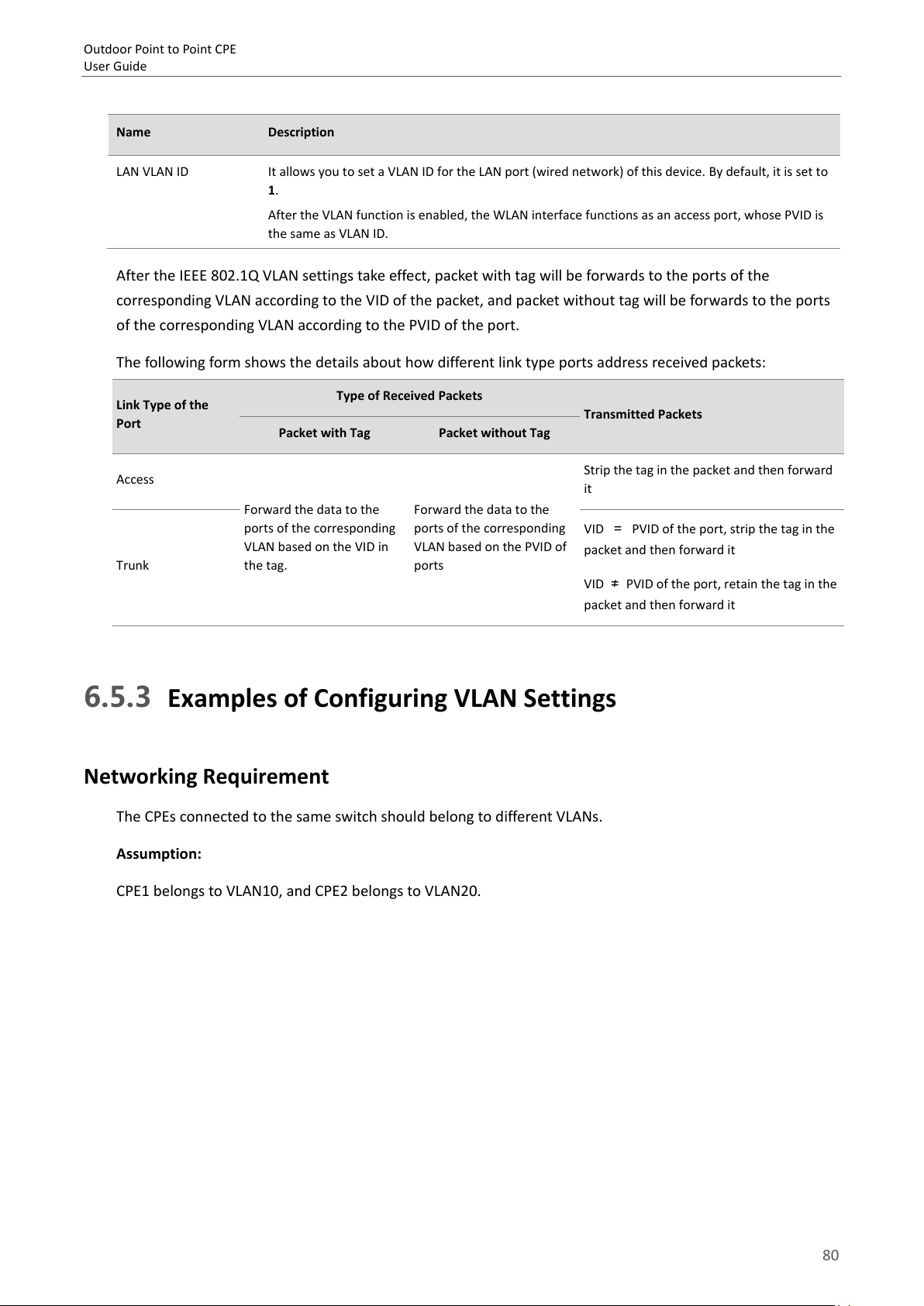

Outdoor Point to Point CPE
Name
Description
LAN VLAN ID
It allows you to set a VLAN ID for the LAN port (wired network) of this device. By default, it is set to
1.
After the VLAN function is enabled, the WLAN interface functions as an access port, whose PVID is
the same as VLAN ID.
Link Type of the
Port
Type of Received Packets
Transmitted Packets
Packet with Tag
Packet without Tag
Access
Forward the data to the
ports of the corresponding
VLAN based on the VID in
the tag.
Forward the data to the
ports of the corresponding
VLAN based on the PVID of
ports
Strip the tag in the packet and then forward
it
Trunk
VID ＝ PVID of the port, strip the tag in the
packet and then forward it
VID ≠ PVID of the port, retain the tag in the
packet and then forward it
User Guide
After the IEEE 802.1Q VLAN settings take effect, packet with tag will be forwards to the ports of the
corresponding VLAN according to the VID of the packet, and packet without tag will be forwards to the ports
of the corresponding VLAN according to the PVID of the port.
The following form shows the details about how different link type ports address received packets:
6.5.3 Examples of Configuring VLAN Settings
Networking Requirement
The CPEs connected to the same switch should belong to different VLANs.
Assumption:
CPE1 belongs to VLAN10, and CPE2 belongs to VLAN20.
80

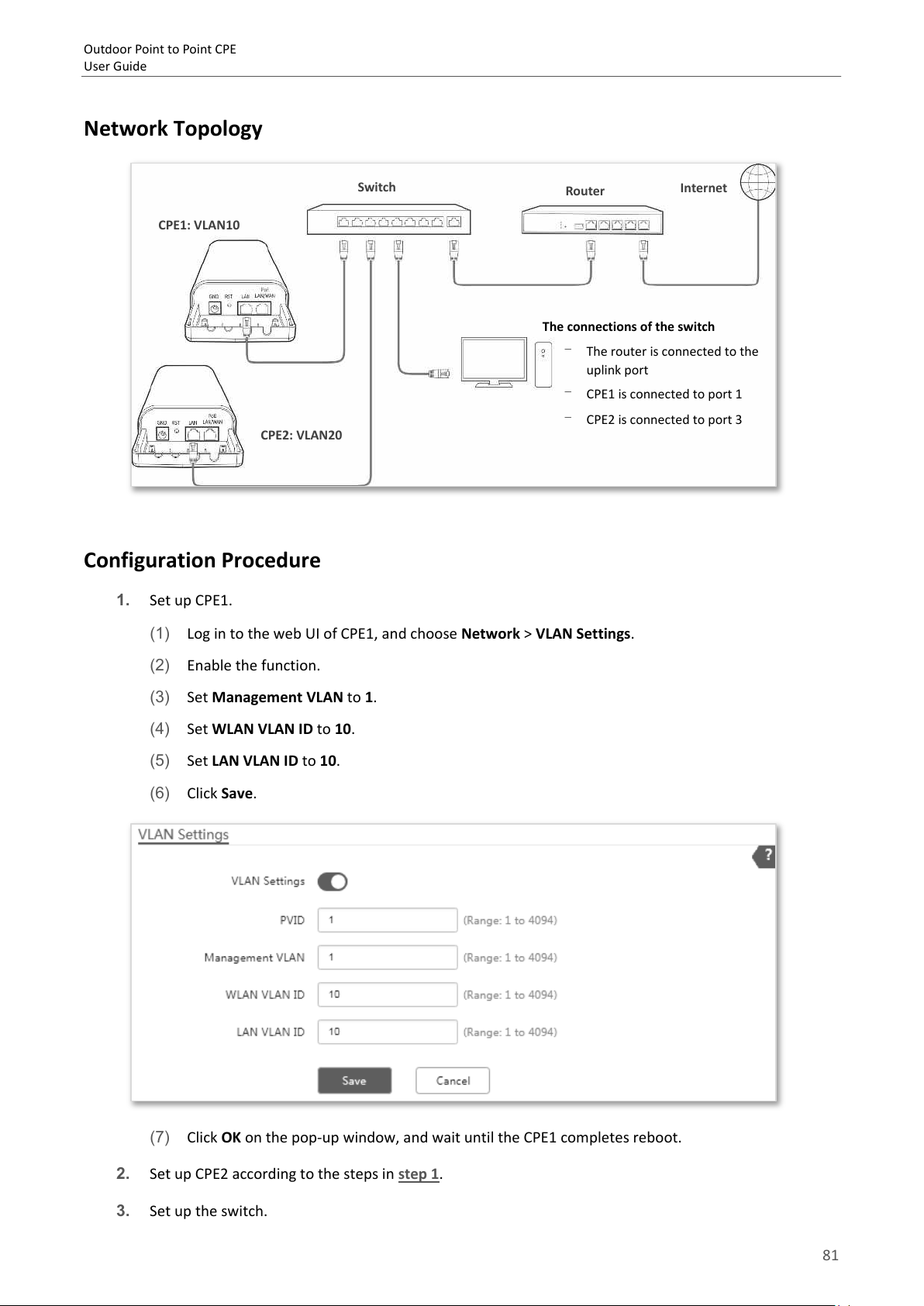

Outdoor Point to Point CPE
CPE2: VLAN20
CPE1: VLAN10
Switch
Router
Internet
The connections of the switch
User Guide
Network Topology
−
The router is connected to the
uplink port
−
CPE1 is connected to port 1
−
CPE2 is connected to port 3
Configuration Procedure
1. Set up CPE1.
(1) Log in to the web UI of CPE1, and choose Network > VLAN Settings.
(2) Enable the function.
(3) Set Management VLAN to 1.
(4) Set WLAN VLAN ID to 10.
(5) Set LAN VLAN ID to 10.
(6) Click Save.
2. Set up CPE2 according to the steps in step 1.
3. Set up the switch.
(7) Click OK on the pop-up window, and wait until the CPE1 completes reboot.
81
Outdoor Point to Point CPE
Ports of the Switch
VLAN ID (Allow the packets belonging
to the following VLANs to access)
Type of Port
PVID
Uplink port (Connected to a
router)
1,10,20
Trunk
1
Port 1 (Connected to CPE1)
1,10
Trunk
1
Port 3 (Connected to CPE2)
1,20
Trunk
1
Port of the router is
connected to
VLAN ID (Allow the packets belonging
to the following VLANs to access)
Type of Port
PVID
The switch
10, 20
Trunk
1
User Guide

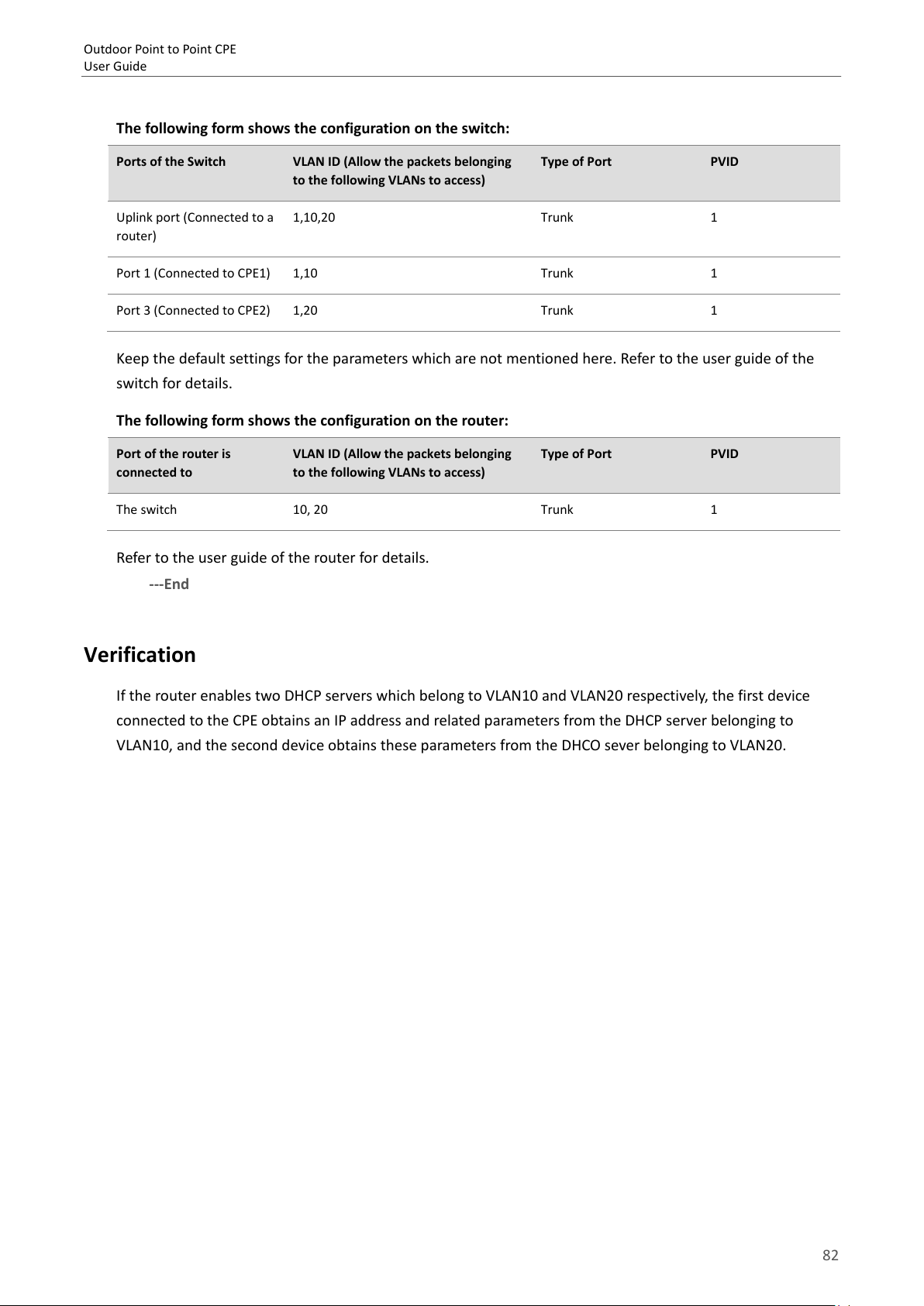

The following form shows the configuration on the switch:
Keep the default settings for the parameters which are not mentioned here. Refer to the user guide of the
switch for details.
The following form shows the configuration on the router:
Refer to the user guide of the router for details.
---End
Verification
If the router enables two DHCP servers which belong to VLAN10 and VLAN20 respectively, the first device
connected to the CPE obtains an IP address and related parameters from the DHCP server belonging to
VLAN10, and the second device obtains these parameters from the DHCO sever belonging to VLAN20.
82
Outdoor Point to Point CPE
User Guide

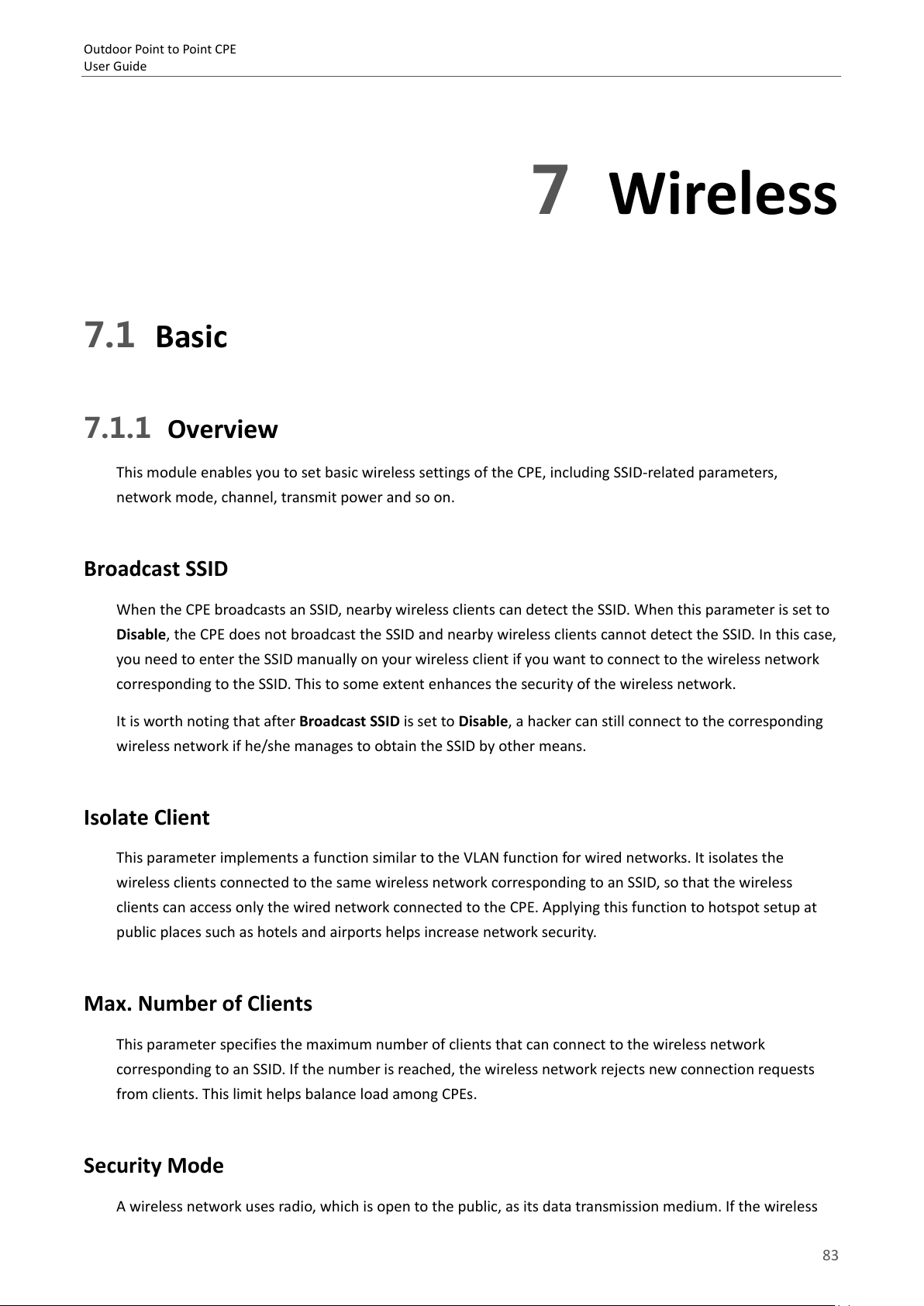

7 Wireless
7.1 Basic
7.1.1 Overview
This module enables you to set basic wireless settings of the CPE, including SSID-related parameters,
network mode, channel, transmit power and so on.
Broadcast SSID
When the CPE broadcasts an SSID, nearby wireless clients can detect the SSID. When this parameter is set to
Disable, the CPE does not broadcast the SSID and nearby wireless clients cannot detect the SSID. In this case,
you need to enter the SSID manually on your wireless client if you want to connect to the wireless network
corresponding to the SSID. This to some extent enhances the security of the wireless network.
It is worth noting that after Broadcast SSID is set to Disable, a hacker can still connect to the corresponding
wireless network if he/she manages to obtain the SSID by other means.
Isolate Client
This parameter implements a function similar to the VLAN function for wired networks. It isolates the
wireless clients connected to the same wireless network corresponding to an SSID, so that the wireless
clients can access only the wired network connected to the CPE. Applying this function to hotspot setup at
public places such as hotels and airports helps increase network security.
Max. Number of Clients
This parameter specifies the maximum number of clients that can connect to the wireless network
corresponding to an SSID. If the number is reached, the wireless network rejects new connection requests
from clients. This limit helps balance load among CPEs.
Security Mode
A wireless network uses radio, which is open to the public, as its data transmission medium. If the wireless
83

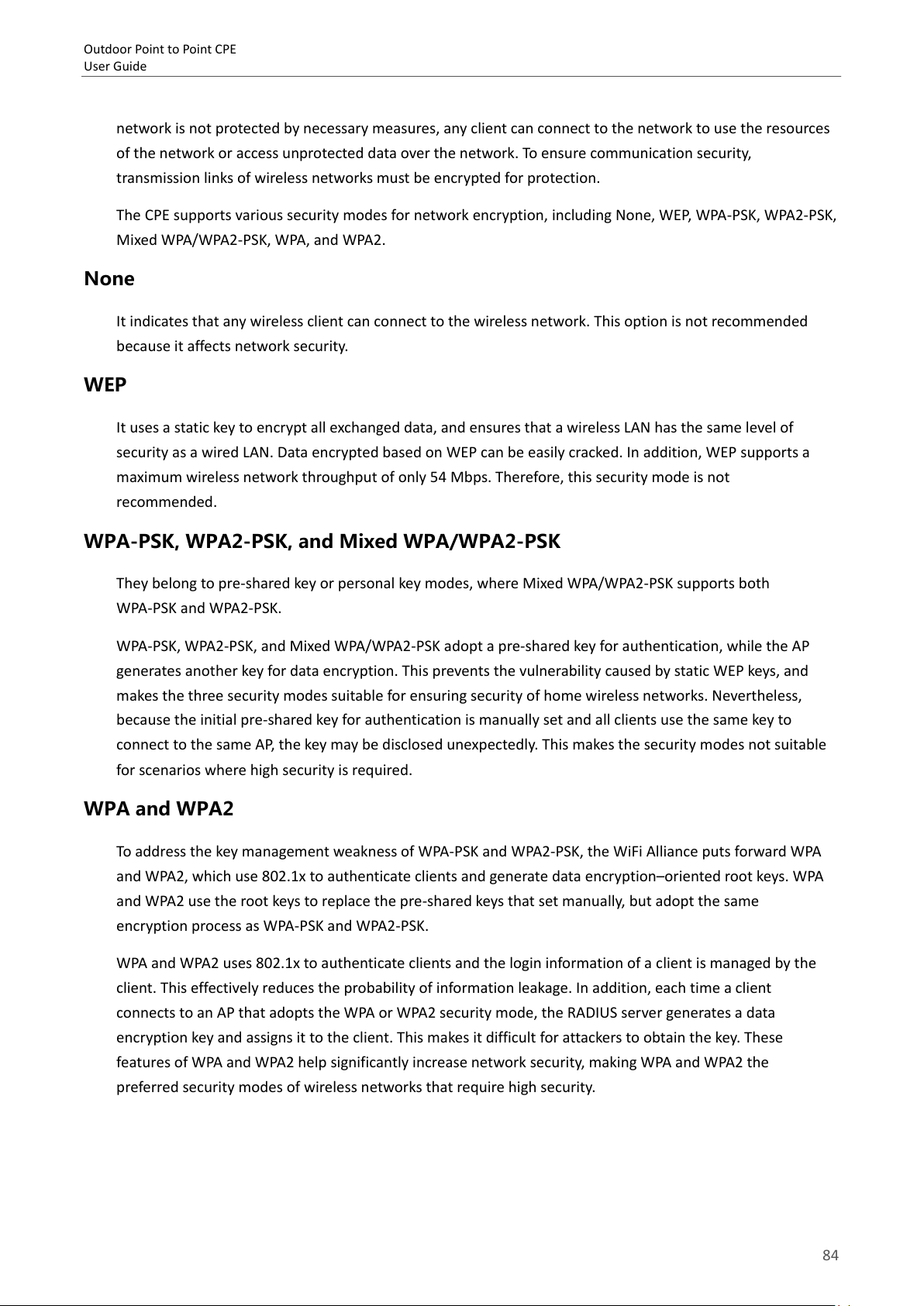

Outdoor Point to Point CPE
User Guide
network is not protected by necessary measures, any client can connect to the network to use the resources
of the network or access unprotected data over the network. To ensure communication security,
transmission links of wireless networks must be encrypted for protection.
The CPE supports various security modes for network encryption, including None, WEP, WPA-PSK, WPA2-PSK,
Mixed WPA/WPA2-PSK, WPA, and WPA2.
None
It indicates that any wireless client can connect to the wireless network. This option is not recommended
because it affects network security.
WEP
It uses a static key to encrypt all exchanged data, and ensures that a wireless LAN has the same level of
security as a wired LAN. Data encrypted based on WEP can be easily cracked. In addition, WEP supports a
maximum wireless network throughput of only 54 Mbps. Therefore, this security mode is not
recommended.
WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK
They belong to pre-shared key or personal key modes, where Mixed WPA/WPA2-PSK supports both
WPA-PSK and WPA2-PSK.
WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK adopt a pre-shared key for authentication, while the AP
generates another key for data encryption. This prevents the vulnerability caused by static WEP keys, and
makes the three security modes suitable for ensuring security of home wireless networks. Nevertheless,
because the initial pre-shared key for authentication is manually set and all clients use the same key to
connect to the same AP, the key may be disclosed unexpectedly. This makes the security modes not suitable
for scenarios where high security is required.
WPA and WPA2
To address the key management weakness of WPA-PSK and WPA2-PSK, the WiFi Alliance puts forward WPA
and WPA2, which use 802.1x to authenticate clients and generate data encryption–oriented root keys. WPA
and WPA2 use the root keys to replace the pre-shared keys that set manually, but adopt the same
encryption process as WPA-PSK and WPA2-PSK.
WPA and WPA2 uses 802.1x to authenticate clients and the login information of a client is managed by the
client. This effectively reduces the probability of information leakage. In addition, each time a client
connects to an AP that adopts the WPA or WPA2 security mode, the RADIUS server generates a data
encryption key and assigns it to the client. This makes it difficult for attackers to obtain the key. These
features of WPA and WPA2 help significantly increase network security, making WPA and WPA2 the
preferred security modes of wireless networks that require high security.
84
Outdoor Point to Point CPE
*
*
*
User Guide

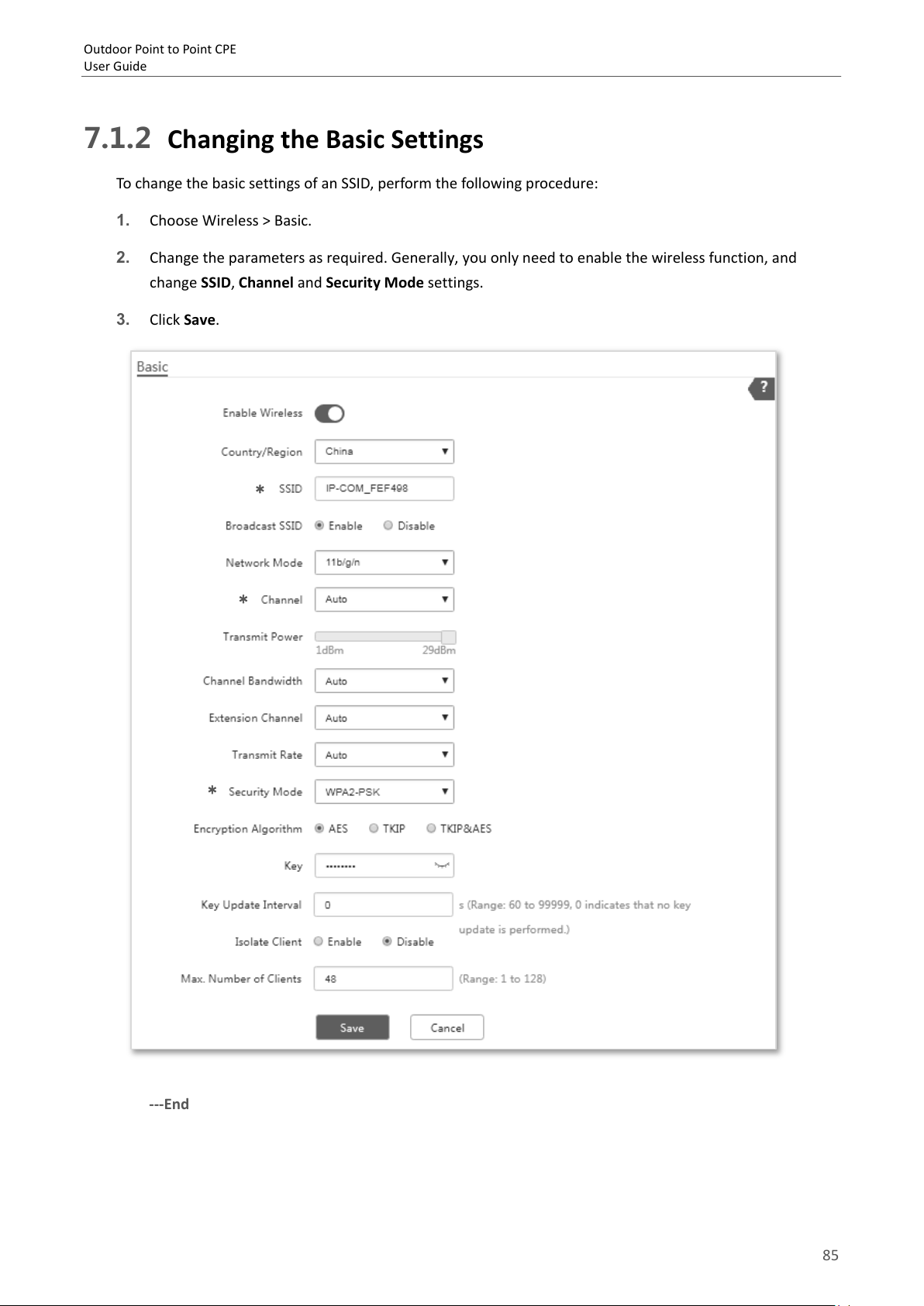

7.1.2 Changing the Basic Settings
To change the basic settings of an SSID, perform the following procedure:
1. Choose Wireless > Basic.
2. Change the parameters as required. Generally, you only need to enable the wireless function, and
change SSID, Channel and Security Mode settings.
3. Click Save.
---End
85

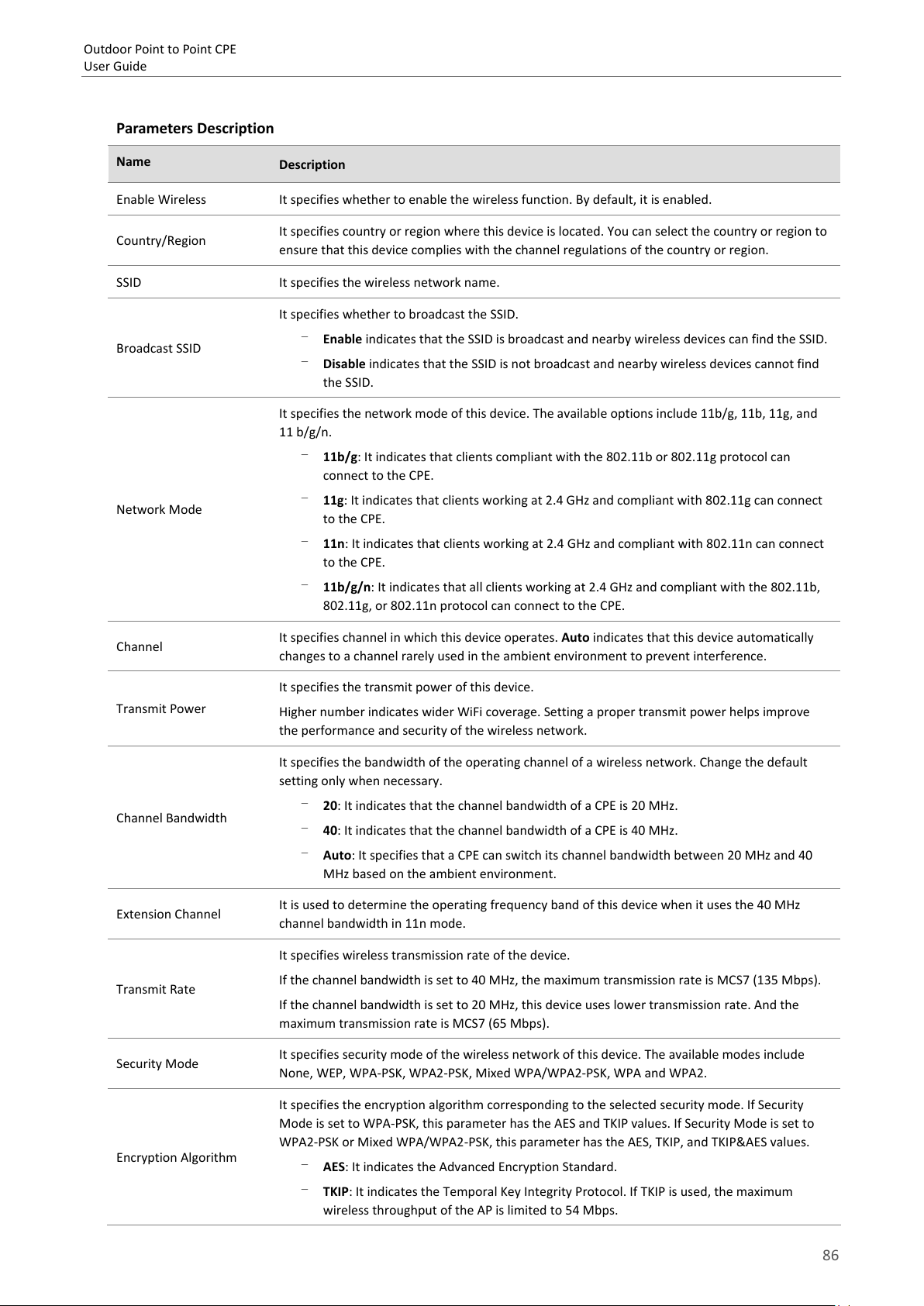

Outdoor Point to Point CPE
Name
Description
Enable Wireless
It specifies whether to enable the wireless function. By default, it is enabled.
Country/Region
It specifies country or region where this device is located. You can select the country or region to
ensure that this device complies with the channel regulations of the country or region.
SSID
It specifies the wireless network name.
Broadcast SSID
It specifies whether to broadcast the SSID.
−
Enable indicates that the SSID is broadcast and nearby wireless devices can find the SSID.
−
Disable indicates that the SSID is not broadcast and nearby wireless devices cannot find
the SSID.
Network Mode
It specifies the network mode of this device. The available options include 11b/g, 11b, 11g, and
11 b/g/n.
−
11b/g: It indicates that clients compliant with the 802.11b or 802.11g protocol can
connect to the CPE.
−
11g: It indicates that clients working at 2.4 GHz and compliant with 802.11g can connect
to the CPE.
−
11n: It indicates that clients working at 2.4 GHz and compliant with 802.11n can connect
to the CPE.
−
11b/g/n: It indicates that all clients working at 2.4 GHz and compliant with the 802.11b,
802.11g, or 802.11n protocol can connect to the CPE.
Channel
It specifies channel in which this device operates. Auto indicates that this device automatically
changes to a channel rarely used in the ambient environment to prevent interference.
Transmit Power
It specifies the transmit power of this device.
Higher number indicates wider WiFi coverage. Setting a proper transmit power helps improve
the performance and security of the wireless network.
Channel Bandwidth
It specifies the bandwidth of the operating channel of a wireless network. Change the default
setting only when necessary.
−
20: It indicates that the channel bandwidth of a CPE is 20 MHz.
−
40: It indicates that the channel bandwidth of a CPE is 40 MHz.
−
Auto: It specifies that a CPE can switch its channel bandwidth between 20 MHz and 40
MHz based on the ambient environment.
Extension Channel
It is used to determine the operating frequency band of this device when it uses the 40 MHz
channel bandwidth in 11n mode.
Transmit Rate
It specifies wireless transmission rate of the device.
If the channel bandwidth is set to 40 MHz, the maximum transmission rate is MCS7 (135 Mbps).
If the channel bandwidth is set to 20 MHz, this device uses lower transmission rate. And the
maximum transmission rate is MCS7 (65 Mbps).
Security Mode
It specifies security mode of the wireless network of this device. The available modes include
None, WEP, WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA and WPA2.
Encryption Algorithm
It specifies the encryption algorithm corresponding to the selected security mode. If Security
Mode is set to WPA-PSK, this parameter has the AES and TKIP values. If Security Mode is set to
WPA2-PSK or Mixed WPA/WPA2-PSK, this parameter has the AES, TKIP, and TKIP&AES values.
−
AES: It indicates the Advanced Encryption Standard.
−
TKIP: It indicates the Temporal Key Integrity Protocol. If TKIP is used, the maximum
wireless throughput of the AP is limited to 54 Mbps.
User Guide
Parameters Description
86
Outdoor Point to Point CPE

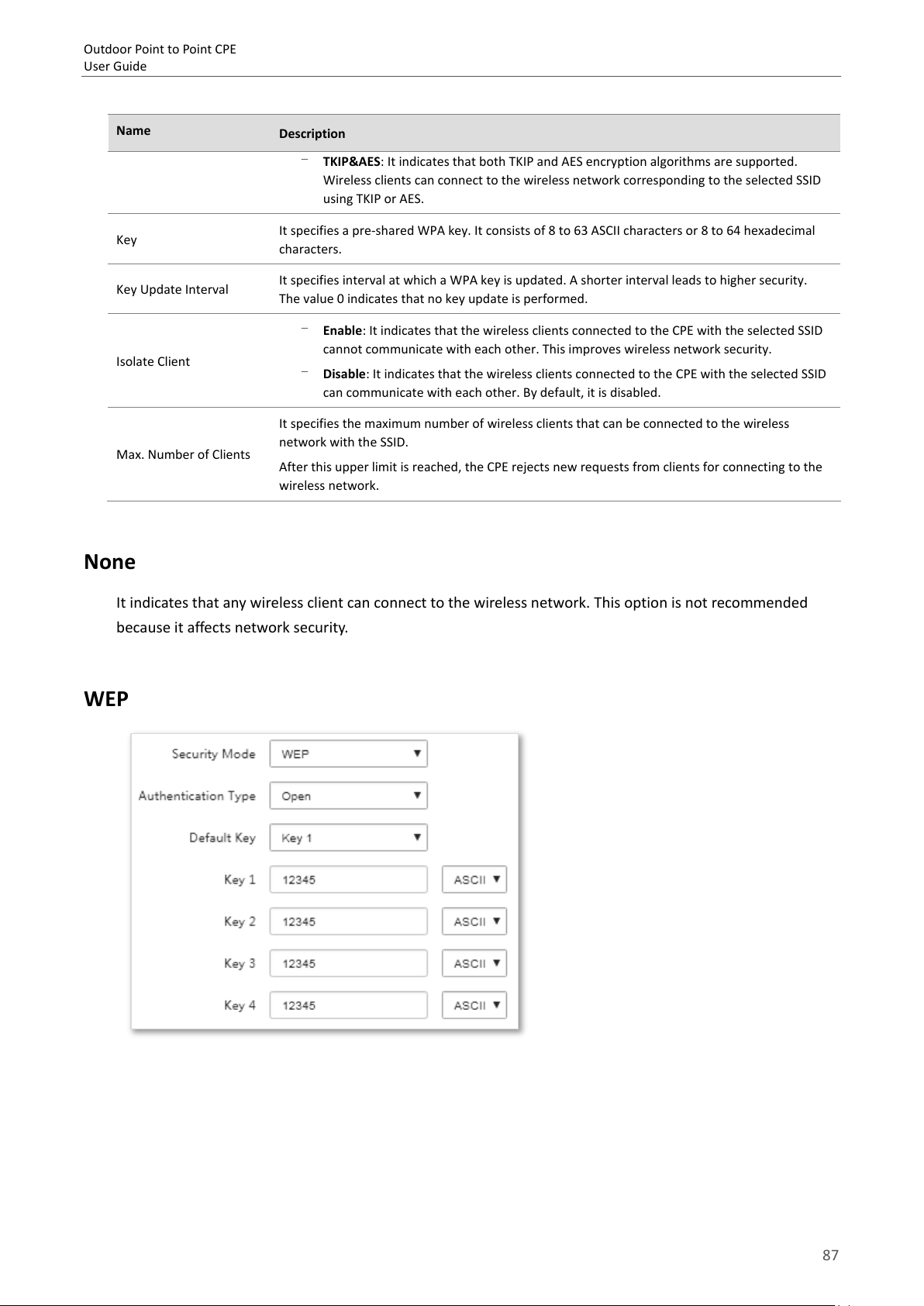

Name
Description
−
TKIP&AES: It indicates that both TKIP and AES encryption algorithms are supported.
Wireless clients can connect to the wireless network corresponding to the selected SSID
using TKIP or AES.
Key
It specifies a pre-shared WPA key. It consists of 8 to 63 ASCII characters or 8 to 64 hexadecimal
characters.
Key Update Interval
It specifies interval at which a WPA key is updated. A shorter interval leads to higher security.
The value 0 indicates that no key update is performed.
Isolate Client
−
Enable: It indicates that the wireless clients connected to the CPE with the selected SSID
cannot communicate with each other. This improves wireless network security.
−
Disable: It indicates that the wireless clients connected to the CPE with the selected SSID
can communicate with each other. By default, it is disabled.
Max. Number of Clients
It specifies the maximum number of wireless clients that can be connected to the wireless
network with the SSID.
After this upper limit is reached, the CPE rejects new requests from clients for connecting to the
wireless network.
User Guide
None
It indicates that any wireless client can connect to the wireless network. This option is not recommended
because it affects network security.
WEP
87
Outdoor Point to Point CPE

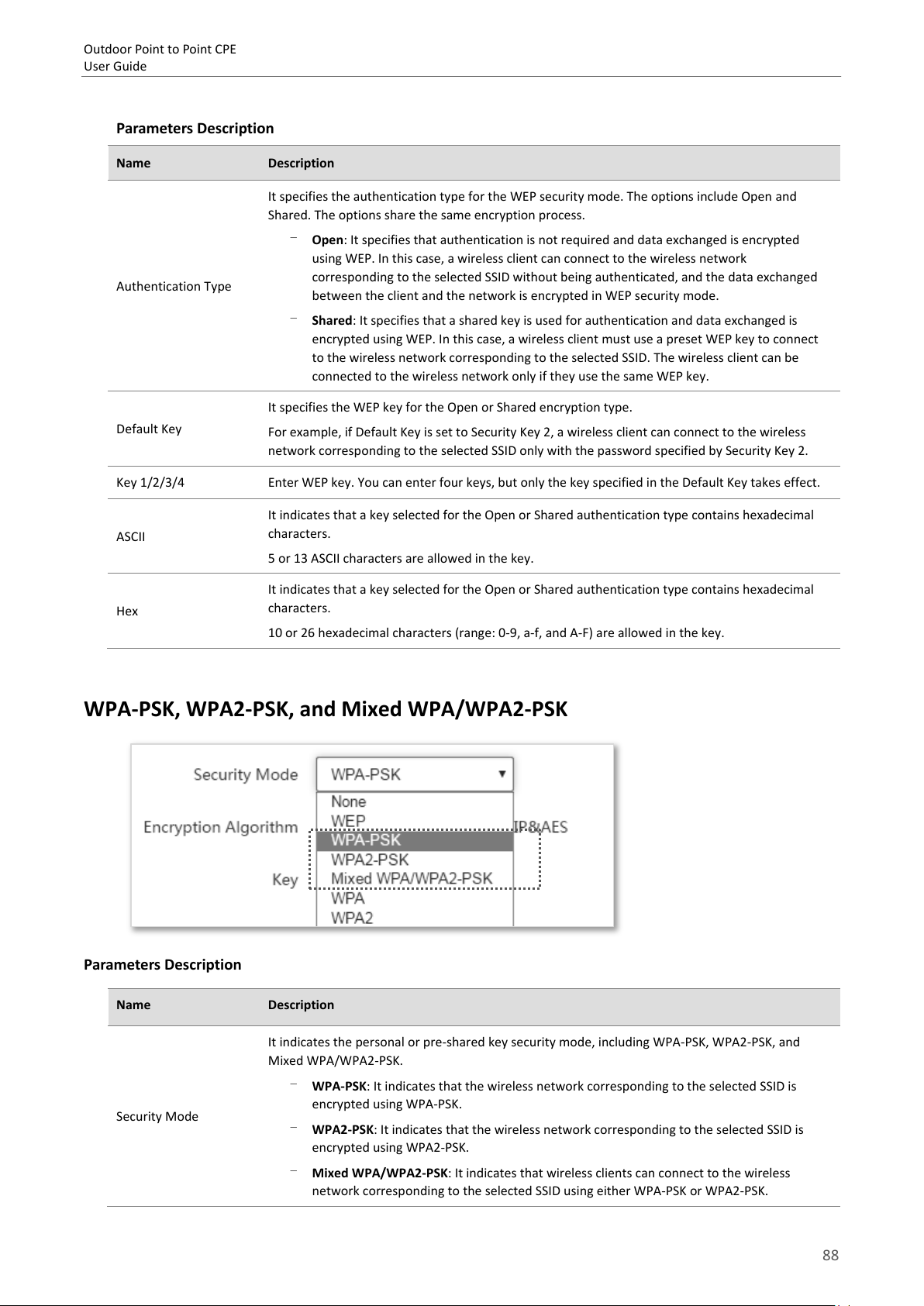

Name
Description
Authentication Type
It specifies the authentication type for the WEP security mode. The options include Open and
Shared. The options share the same encryption process.
−
Open: It specifies that authentication is not required and data exchanged is encrypted
using WEP. In this case, a wireless client can connect to the wireless network
corresponding to the selected SSID without being authenticated, and the data exchanged
between the client and the network is encrypted in WEP security mode.
−
Shared: It specifies that a shared key is used for authentication and data exchanged is
encrypted using WEP. In this case, a wireless client must use a preset WEP key to connect
to the wireless network corresponding to the selected SSID. The wireless client can be
connected to the wireless network only if they use the same WEP key.
Default Key
It specifies the WEP key for the Open or Shared encryption type.
For example, if Default Key is set to Security Key 2, a wireless client can connect to the wireless
network corresponding to the selected SSID only with the password specified by Security Key 2.
Key 1/2/3/4
Enter WEP key. You can enter four keys, but only the key specified in the Default Key takes effect.
ASCII
It indicates that a key selected for the Open or Shared authentication type contains hexadecimal
characters.
5 or 13 ASCII characters are allowed in the key.
Hex
It indicates that a key selected for the Open or Shared authentication type contains hexadecimal
characters.
10 or 26 hexadecimal characters (range: 0-9, a-f, and A-F) are allowed in the key.
Name
Description
Security Mode
It indicates the personal or pre-shared key security mode, including WPA-PSK, WPA2-PSK, and
Mixed WPA/WPA2-PSK.
−
WPA-PSK: It indicates that the wireless network corresponding to the selected SSID is
encrypted using WPA-PSK.
−
WPA2-PSK: It indicates that the wireless network corresponding to the selected SSID is
encrypted using WPA2-PSK.
−
Mixed WPA/WPA2-PSK: It indicates that wireless clients can connect to the wireless
network corresponding to the selected SSID using either WPA-PSK or WPA2-PSK.
User Guide
Parameters Description
WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK
Parameters Description
88
Outdoor Point to Point CPE

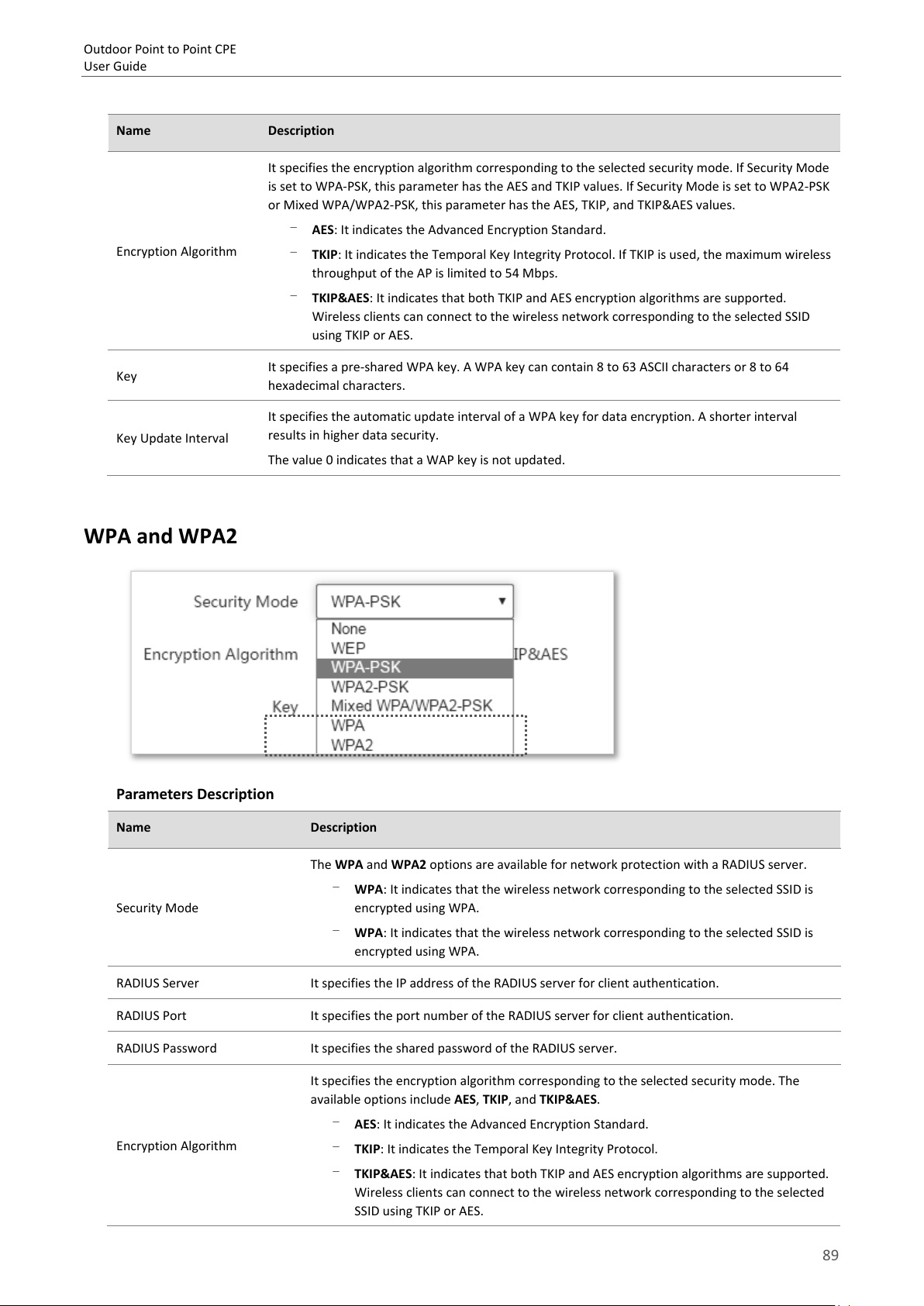

Name
Description
Encryption Algorithm
It specifies the encryption algorithm corresponding to the selected security mode. If Security Mode
is set to WPA-PSK, this parameter has the AES and TKIP values. If Security Mode is set to WPA2-PSK
or Mixed WPA/WPA2-PSK, this parameter has the AES, TKIP, and TKIP&AES values.
−
AES: It indicates the Advanced Encryption Standard.
−
TKIP: It indicates the Temporal Key Integrity Protocol. If TKIP is used, the maximum wireless
throughput of the AP is limited to 54 Mbps.
−
TKIP&AES: It indicates that both TKIP and AES encryption algorithms are supported.
Wireless clients can connect to the wireless network corresponding to the selected SSID
using TKIP or AES.
Key
It specifies a pre-shared WPA key. A WPA key can contain 8 to 63 ASCII characters or 8 to 64
hexadecimal characters.
Key Update Interval
It specifies the automatic update interval of a WPA key for data encryption. A shorter interval
results in higher data security.
The value 0 indicates that a WAP key is not updated.
Name
Description
Security Mode
The WPA and WPA2 options are available for network protection with a RADIUS server.
−
WPA: It indicates that the wireless network corresponding to the selected SSID is
encrypted using WPA.
−
WPA: It indicates that the wireless network corresponding to the selected SSID is
encrypted using WPA.
RADIUS Server
It specifies the IP address of the RADIUS server for client authentication.
RADIUS Port
It specifies the port number of the RADIUS server for client authentication.
RADIUS Password
It specifies the shared password of the RADIUS server.
Encryption Algorithm
It specifies the encryption algorithm corresponding to the selected security mode. The
available options include AES, TKIP, and TKIP&AES.
−
AES: It indicates the Advanced Encryption Standard.
−
TKIP: It indicates the Temporal Key Integrity Protocol.
−
TKIP&AES: It indicates that both TKIP and AES encryption algorithms are supported.
Wireless clients can connect to the wireless network corresponding to the selected
SSID using TKIP or AES.
User Guide
WPA and WPA2
Parameters Description
89
Outdoor Point to Point CPE

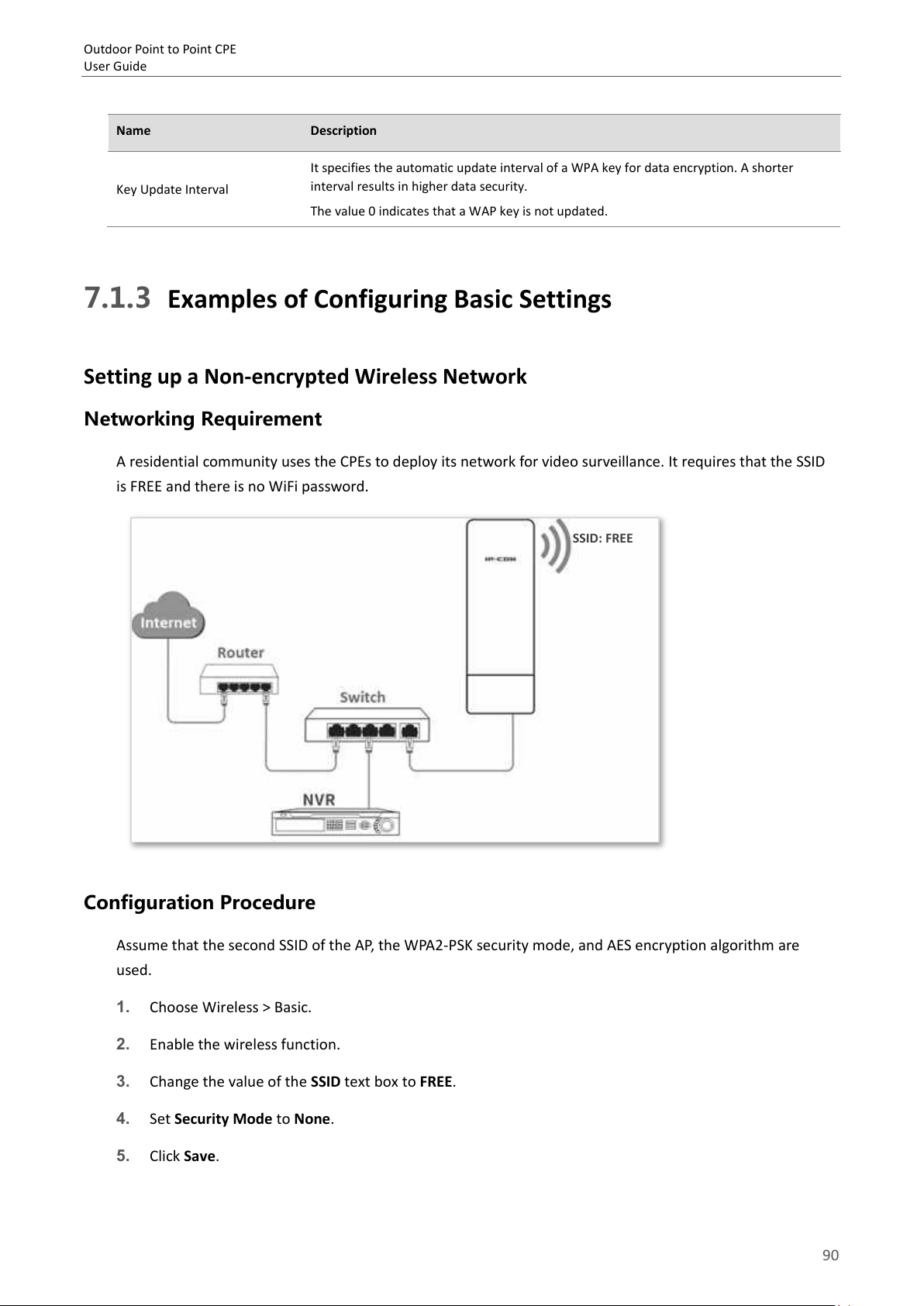

Name
Description
Key Update Interval
It specifies the automatic update interval of a WPA key for data encryption. A shorter
interval results in higher data security.
The value 0 indicates that a WAP key is not updated.
SSID: FREE
User Guide
7.1.3 Examples of Configuring Basic Settings
Setting up a Non-encrypted Wireless Network
Networking Requirement
A residential community uses the CPEs to deploy its network for video surveillance. It requires that the SSID
is FREE and there is no WiFi password.
Configuration Procedure
Assume that the second SSID of the AP, the WPA2-PSK security mode, and AES encryption algorithm are
used.
1. Choose Wireless > Basic.
2. Enable the wireless function.
3. Change the value of the SSID text box to FREE.
4. Set Security Mode to None.
5. Click Save.
90
Outdoor Point to Point CPE
*
*
*
*
User Guide

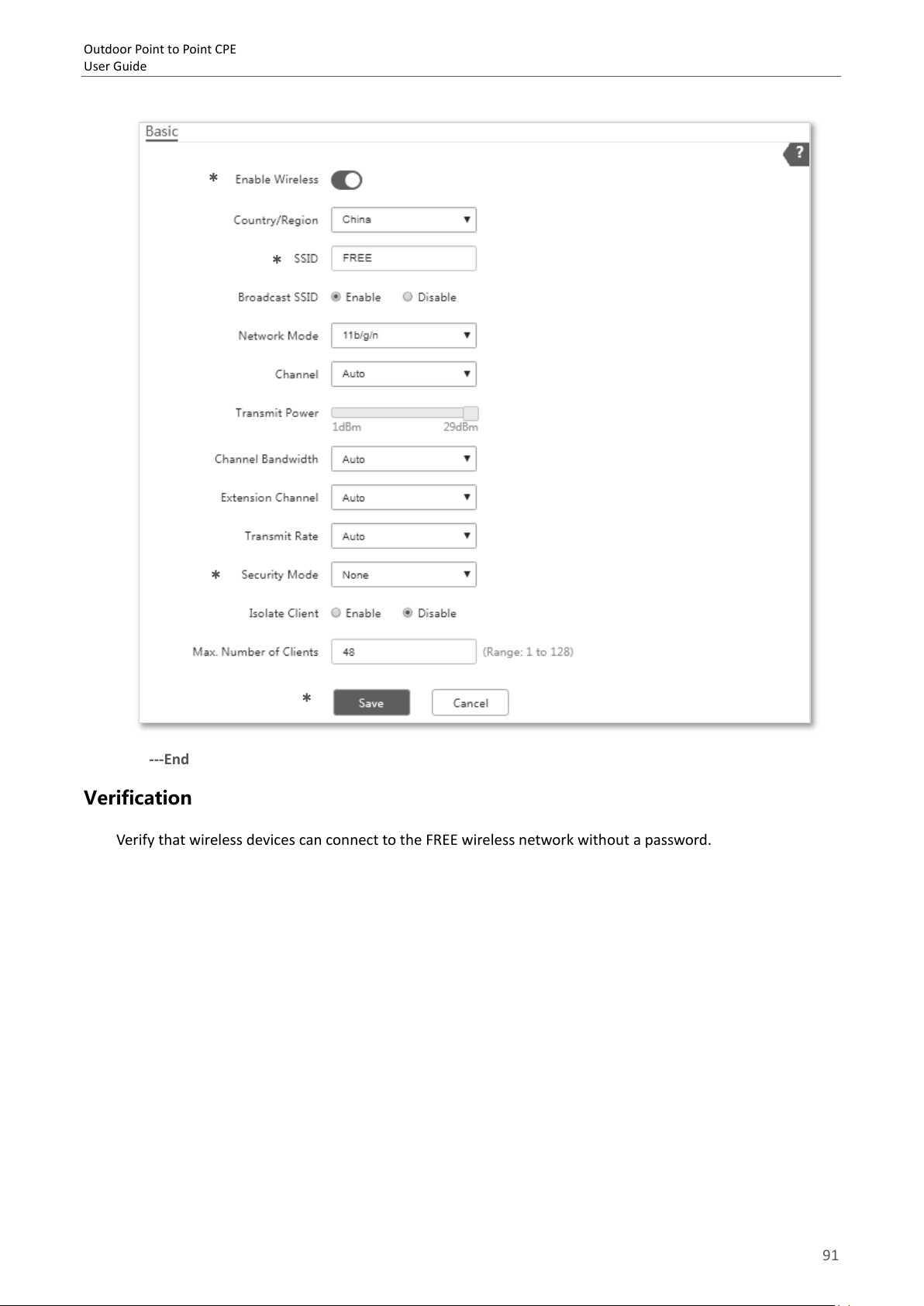

---End
Verification
Verify that wireless devices can connect to the FREE wireless network without a password.
91
Outdoor Point to Point CPE
SSID: Factory
Key: 87654321
User Guide

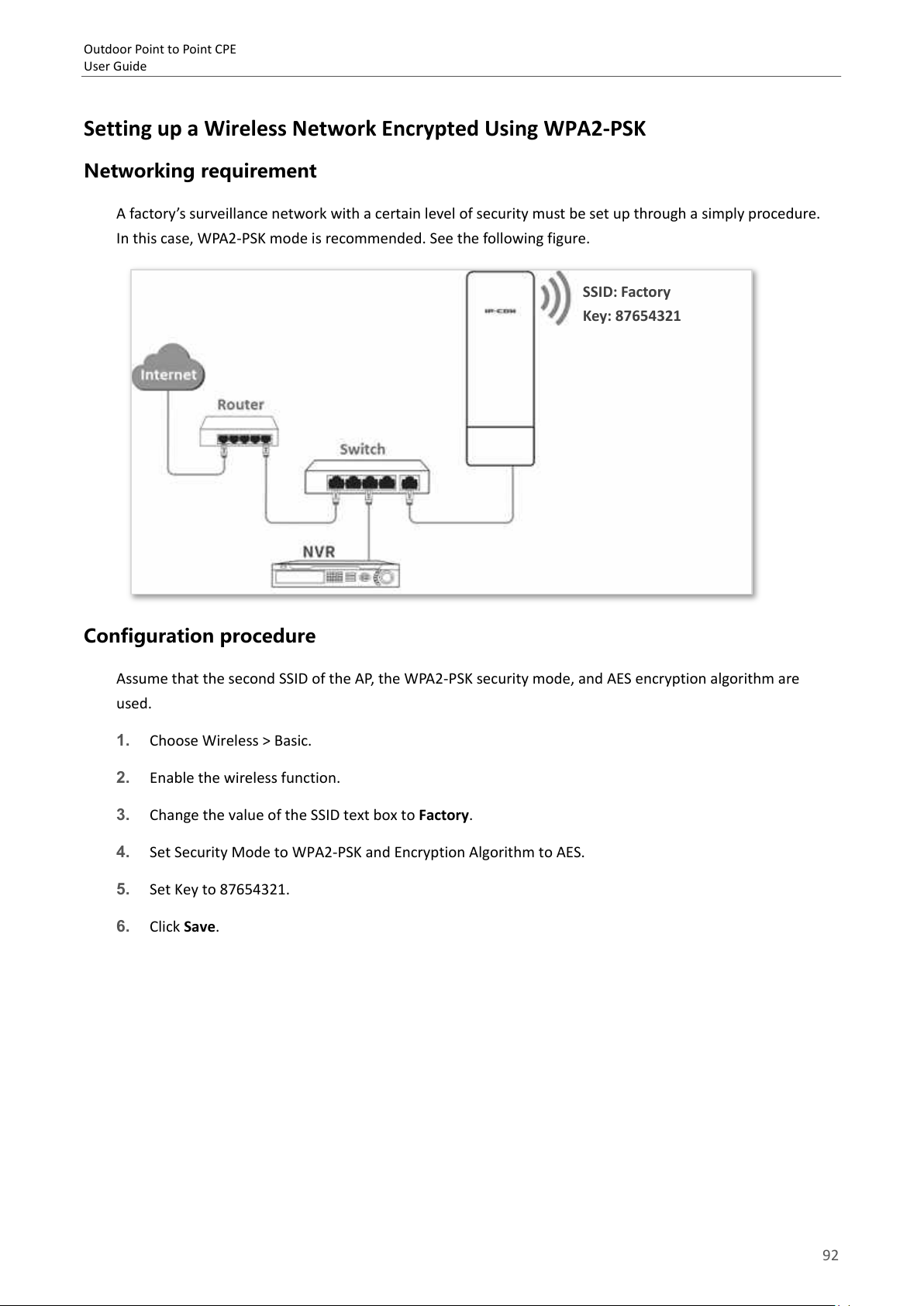

Setting up a Wireless Network Encrypted Using WPA2-PSK
Networking requirement
A factory’s surveillance network with a certain level of security must be set up through a simply procedure.
In this case, WPA2-PSK mode is recommended. See the following figure.
Configuration procedure
Assume that the second SSID of the AP, the WPA2-PSK security mode, and AES encryption algorithm are
used.
1. Choose Wireless > Basic.
2. Enable the wireless function.
3. Change the value of the SSID text box to Factory.
4. Set Security Mode to WPA2-PSK and Encryption Algorithm to AES.
5. Set Key to 87654321.
6. Click Save.
92
Outdoor Point to Point CPE
*
*
*
*
*
*
User Guide

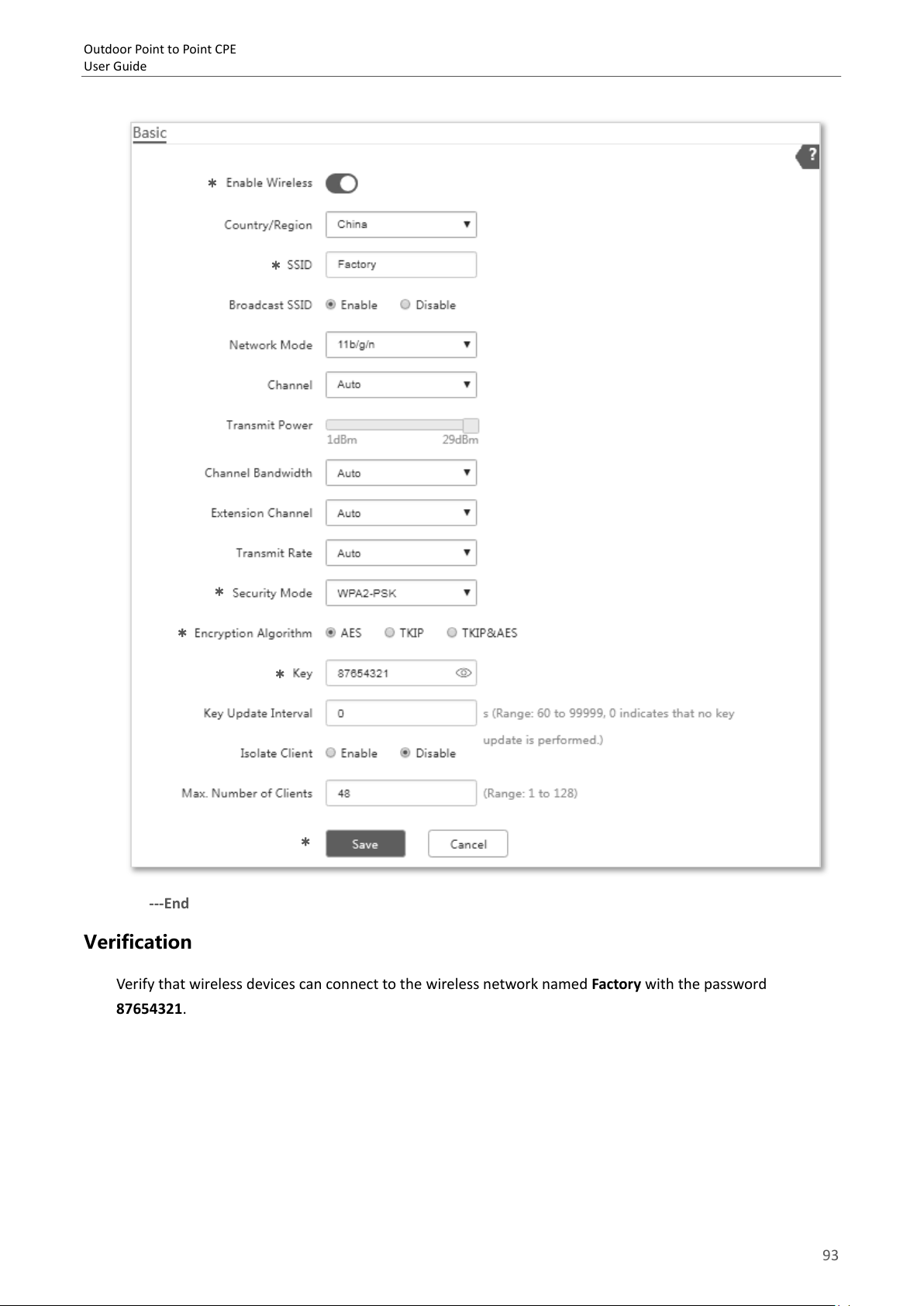

---End
Verification
Verify that wireless devices can connect to the wireless network named Factory with the password
87654321.
93
Loading...
