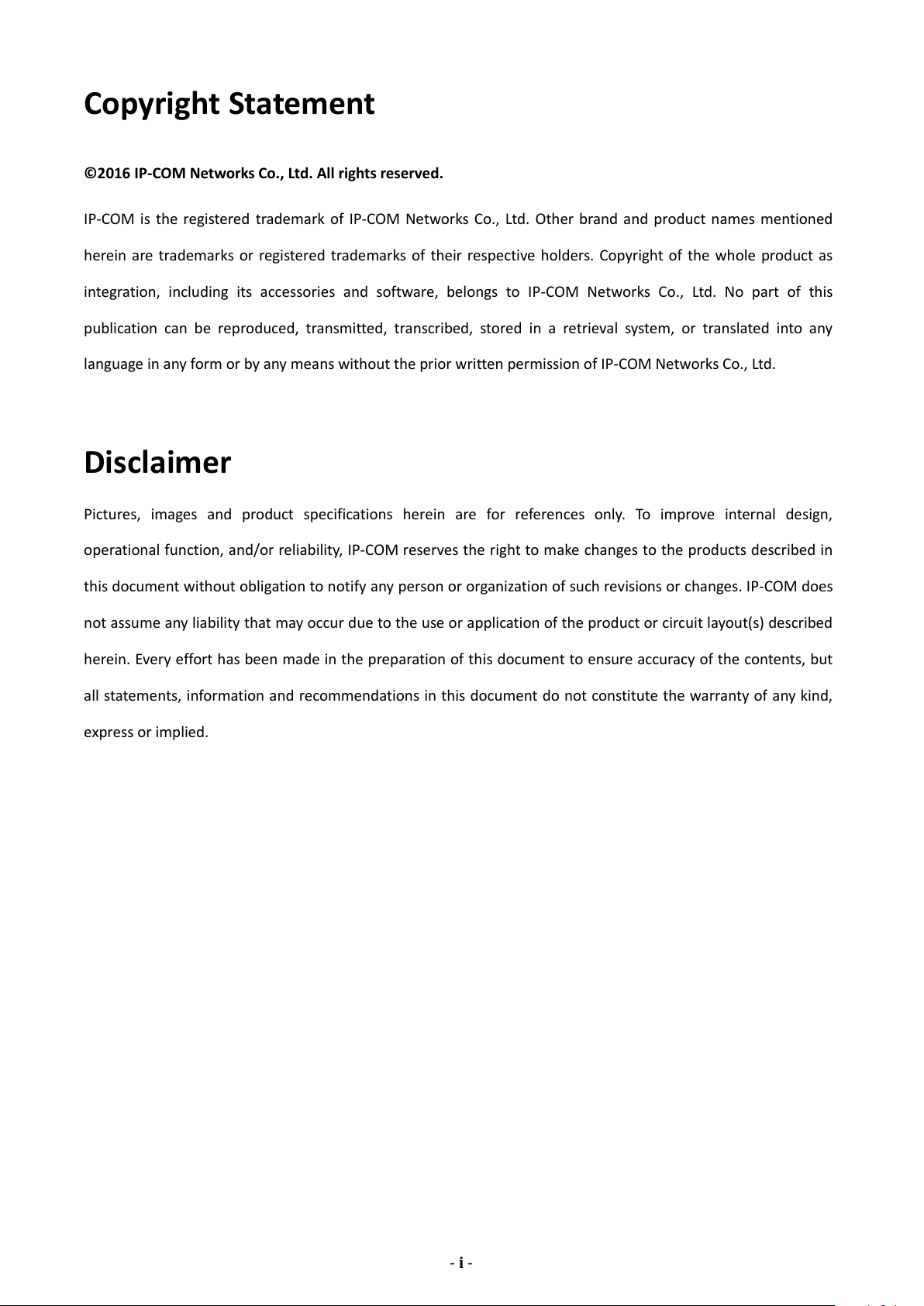

IP-COM is the registered trademark of IP-COM Networks Co., Ltd. Other brand and product names mentioned

herein are trademarks or registered trademarks of their respective holders. Copyright of the whole product as

integration, including its accessories and software, belongs to IP-COM Networks Co., Ltd. No part of this

publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means without the prior written permission of IP-COM Networks Co., Ltd.

Disclaimer

Pictures, images and product specifications herein are for references only. To improve internal design,

operational function, and/or reliability, IP-COM reserves the right to make changes to the products described in

this document without obligation to notify any person or organization of such revisions or changes. IP-COM does

not assume any liability that may occur due to the use or application of the product or circuit layout(s) described

herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but

all statements, information and recommendations in this document do not constitute the warranty of any kind,

express or implied.

- i -

Page 3

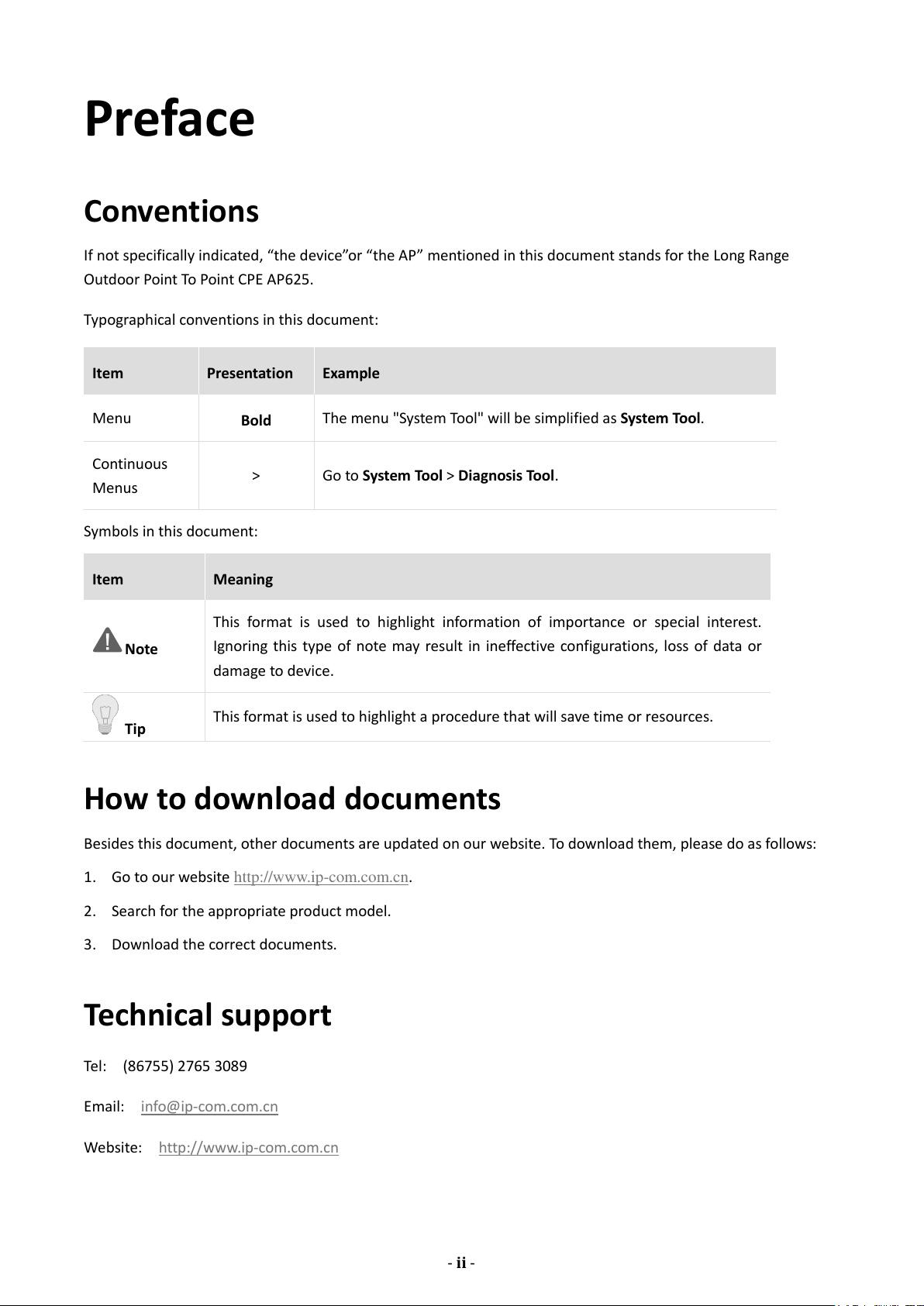

Preface

Item

Presentation

Example

Bold

The menu "System Tool" will be simplified as System Tool.

Continuous

Menus

Go to System Tool > Diagnosis Tool.

Item

Meaning

Note

This format is used to highlight information of importance or special interest.

Ignoring this type of note may result in ineffective configurations, loss of data or

damage to device.

Tip

This format is used to highlight a procedure that will save time or resources.

Conventions

If not specifically indicated, “the device”or “the AP” mentioned in this document stands for the Long Range

Outdoor Point To Point CPE AP625.

Typographical conventions in this document:

Symbols in this document:

How to download documents

Besides this document, other documents are updated on our website. To download them, please do as follows:

1. Go to our website http://www.ip-com.com.cn.

2. Search for the appropriate product model.

3. Download the correct documents.

Technical support

Tel: (86755) 2765 3089

Email: info@ip-com.com.cn

Website: http://www.ip-com.com.cn

- ii -

Page 4

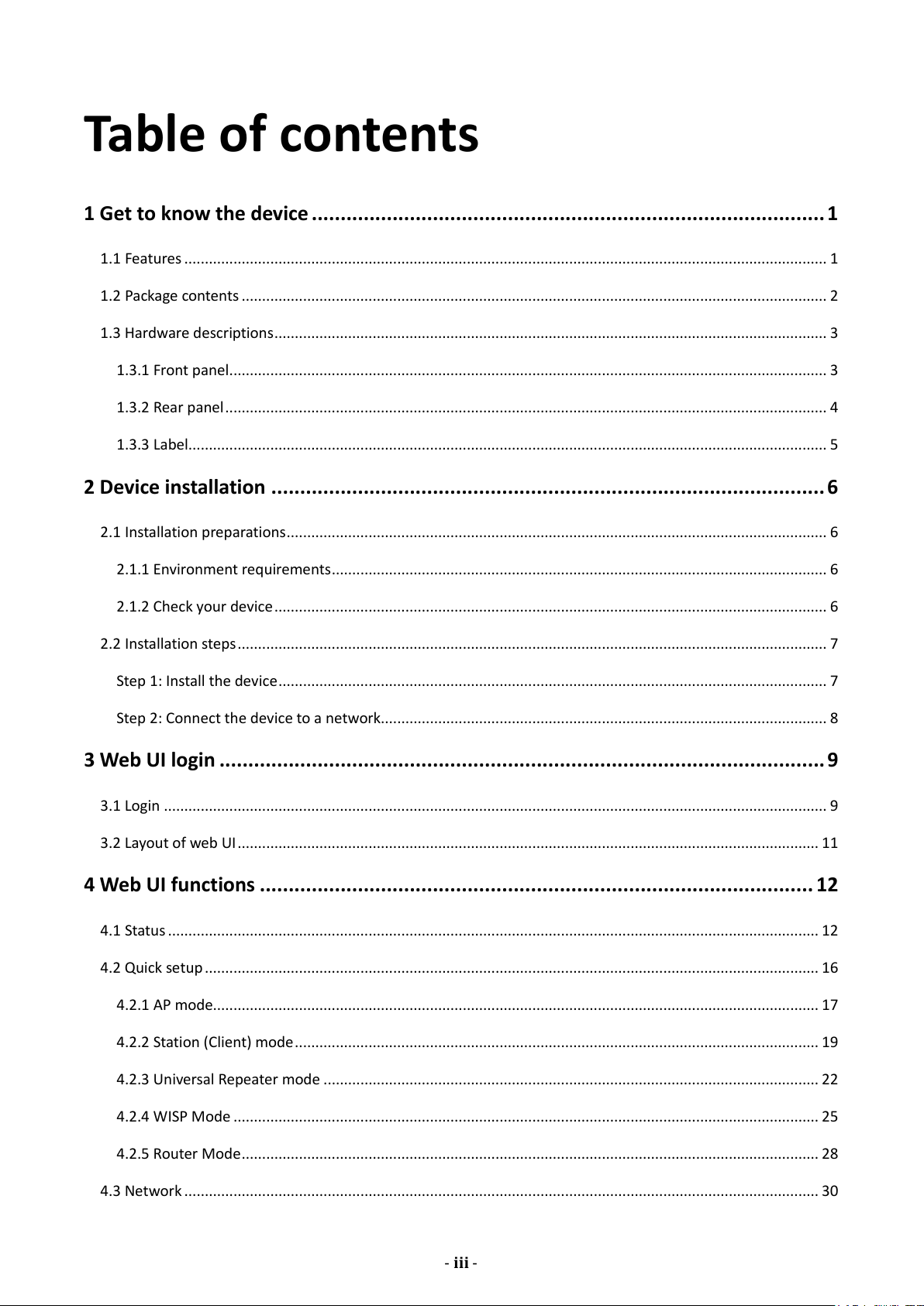

1 Get to know the device ......................................................................................... 1

1.1 Features ............................................................................................................................................................. 1

1.2 Package contents ............................................................................................................................................... 2

1.3 Hardware descriptions ....................................................................................................................................... 3

1.3.1 Front panel .................................................................................................................................................. 3

1.3.2 Rear panel ................................................................................................................................................... 4

1.3.3 Label ............................................................................................................................................................ 5

2 Device installation ................................................................................................ 6

2.1 Installation preparations .................................................................................................................................... 6

2.1.1 Environment requirements ......................................................................................................................... 6

2.1.2 Check your device ....................................................................................................................................... 6

2.2 Installation steps ................................................................................................................................................ 7

Step 1: Install the device ...................................................................................................................................... 7

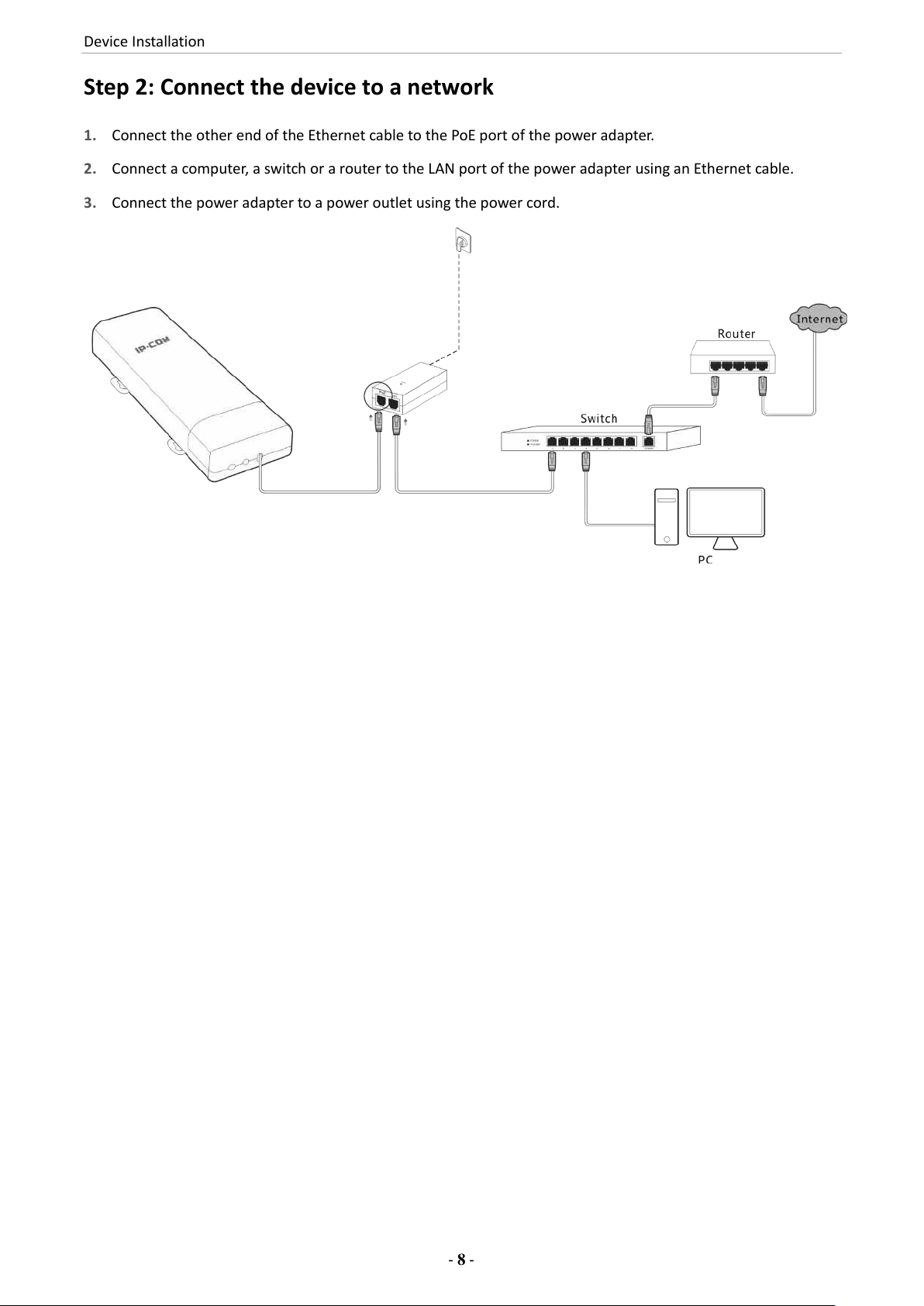

Step 2: Connect the device to a network............................................................................................................. 8

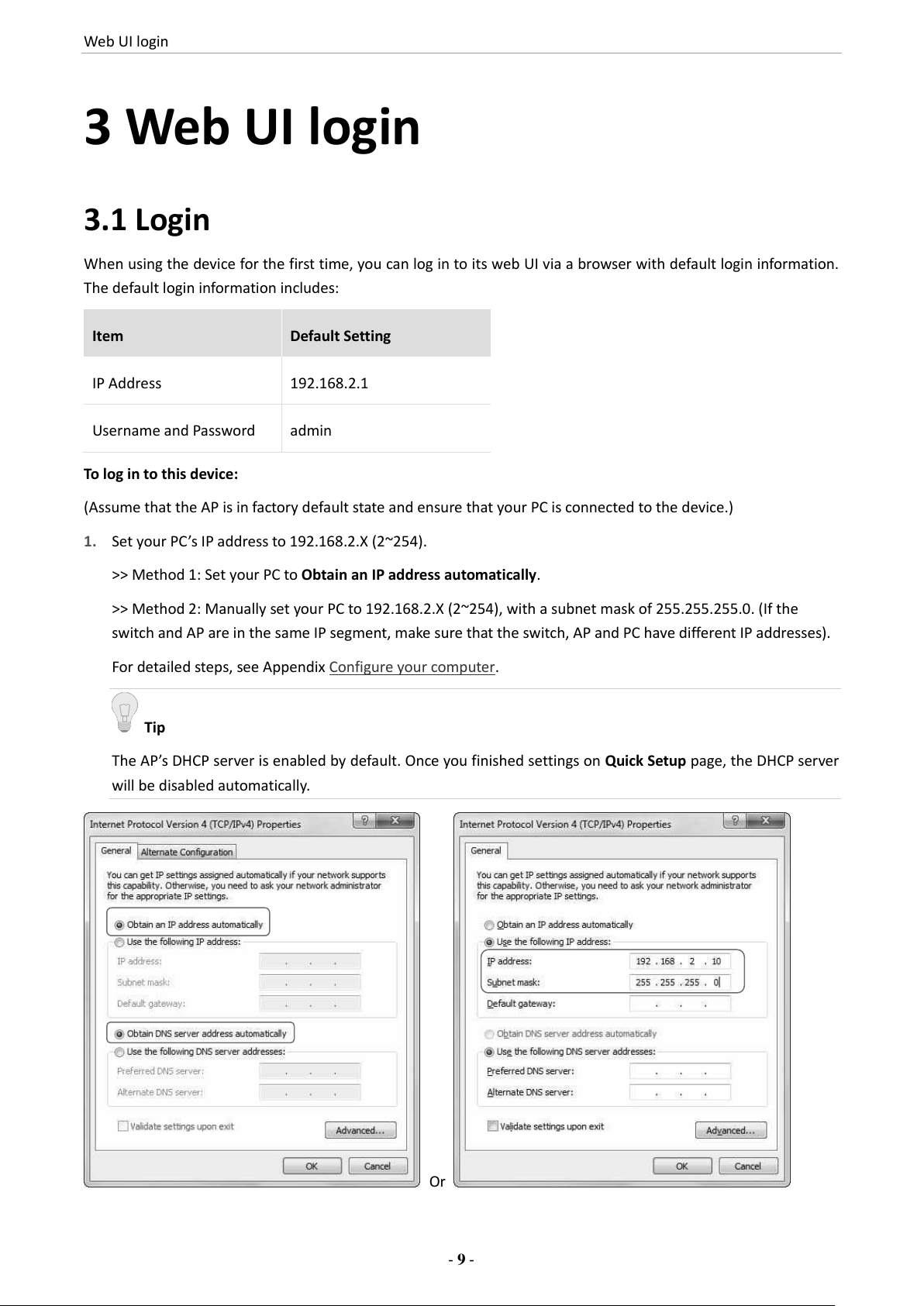

3 Web UI login ......................................................................................................... 9

3.1 Login .................................................................................................................................................................. 9

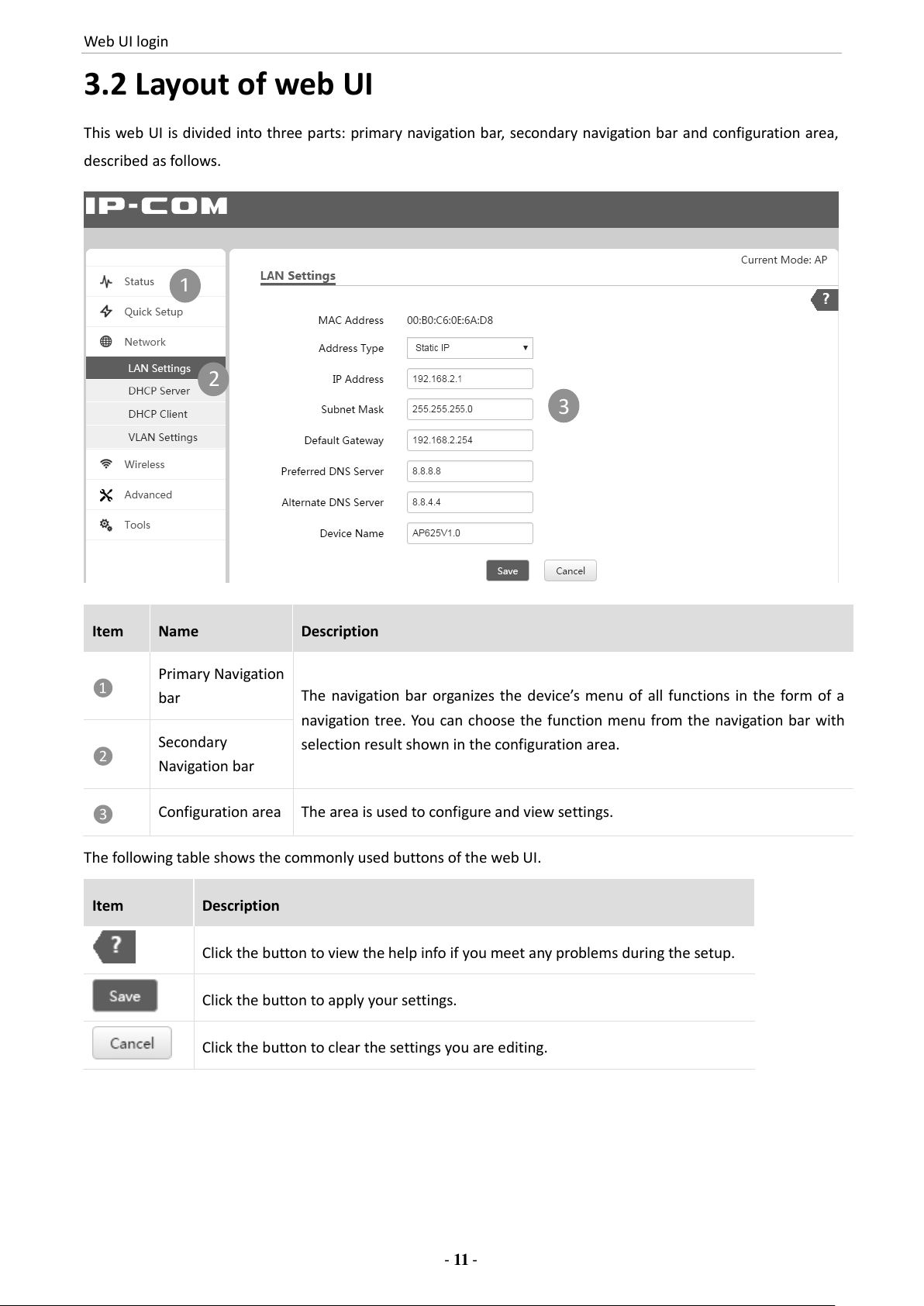

3.2 Layout of web UI .............................................................................................................................................. 11

4 Web UI functions ................................................................................................ 12

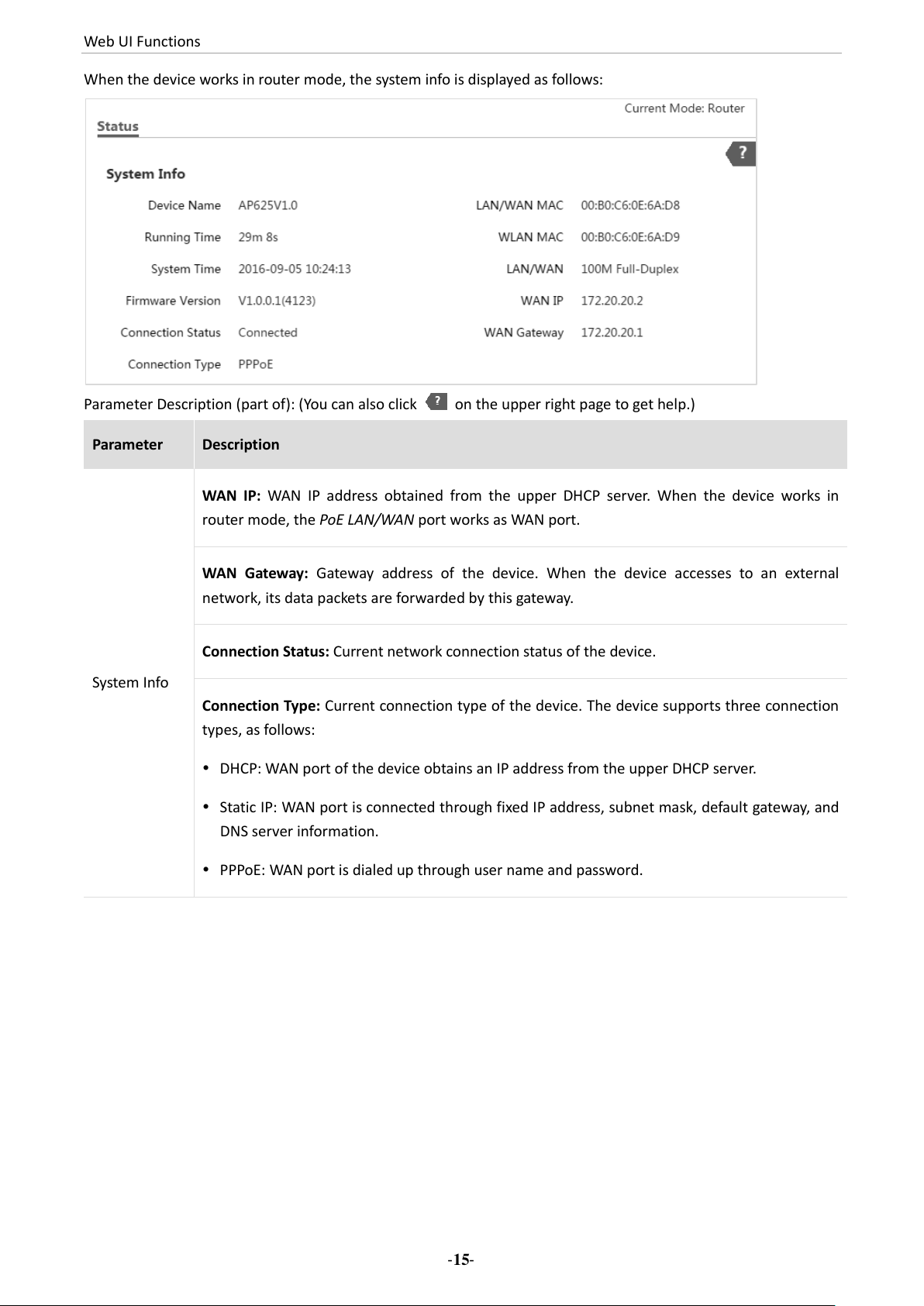

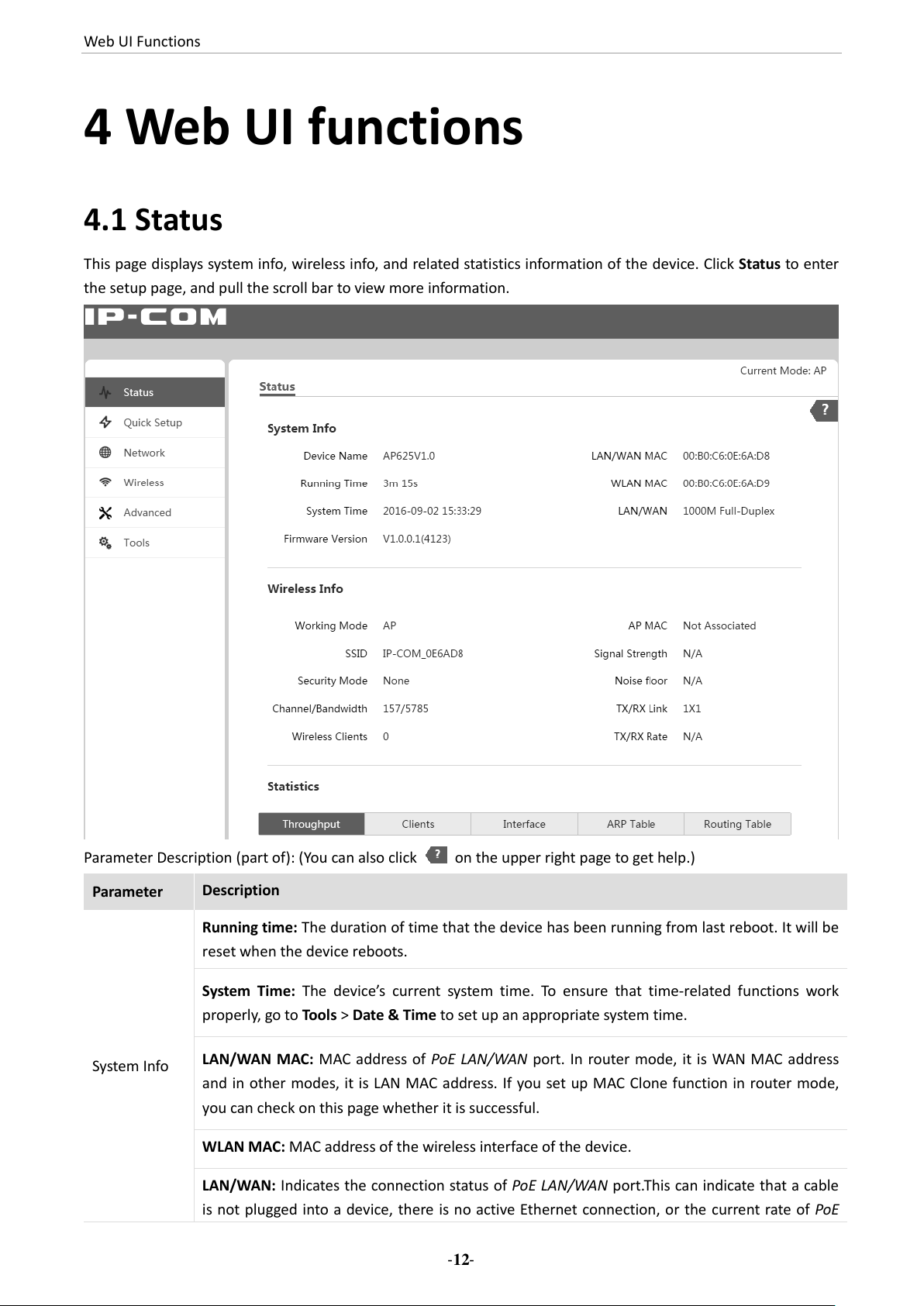

4.1 Status ............................................................................................................................................................... 12

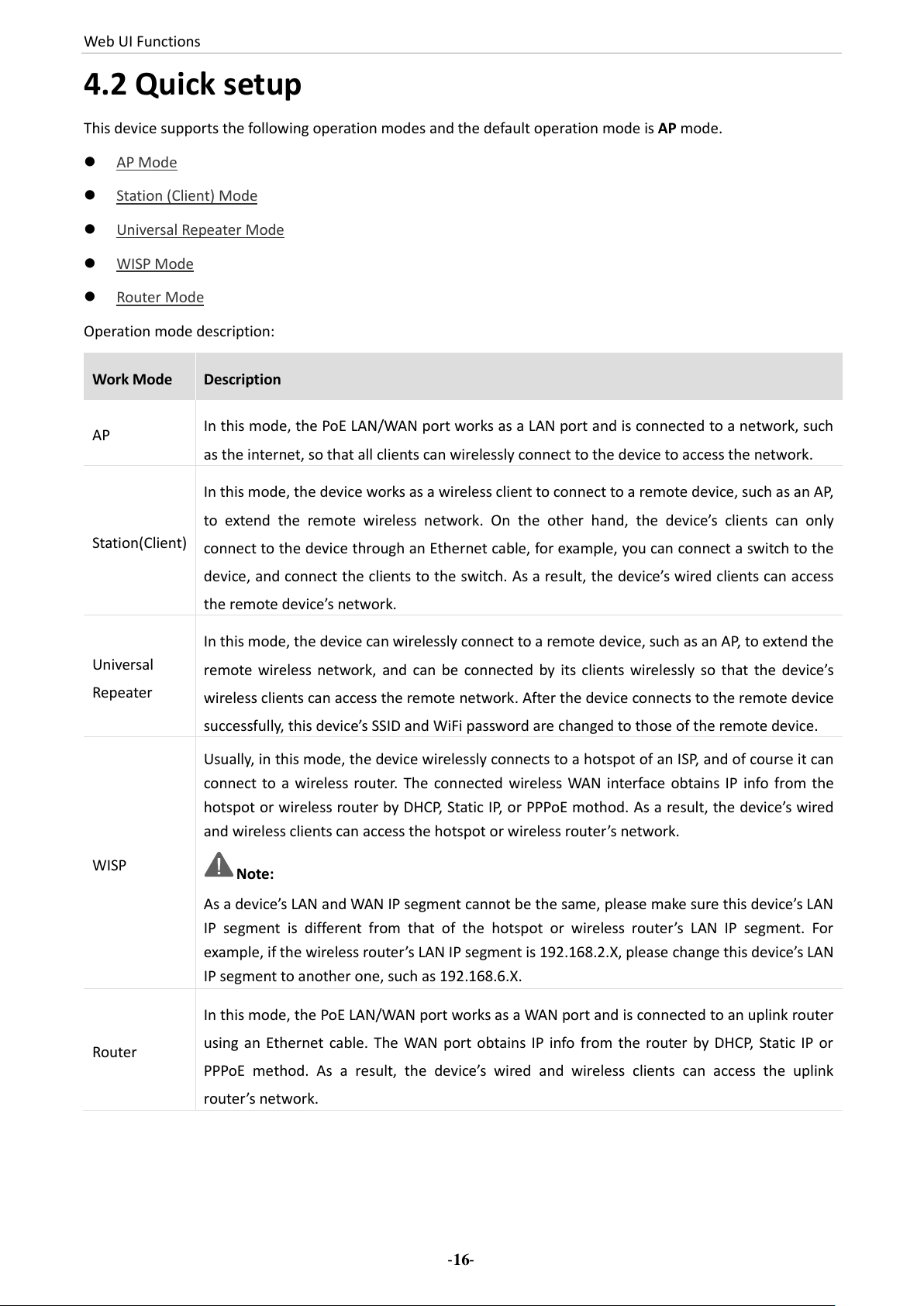

4.2 Quick setup ...................................................................................................................................................... 16

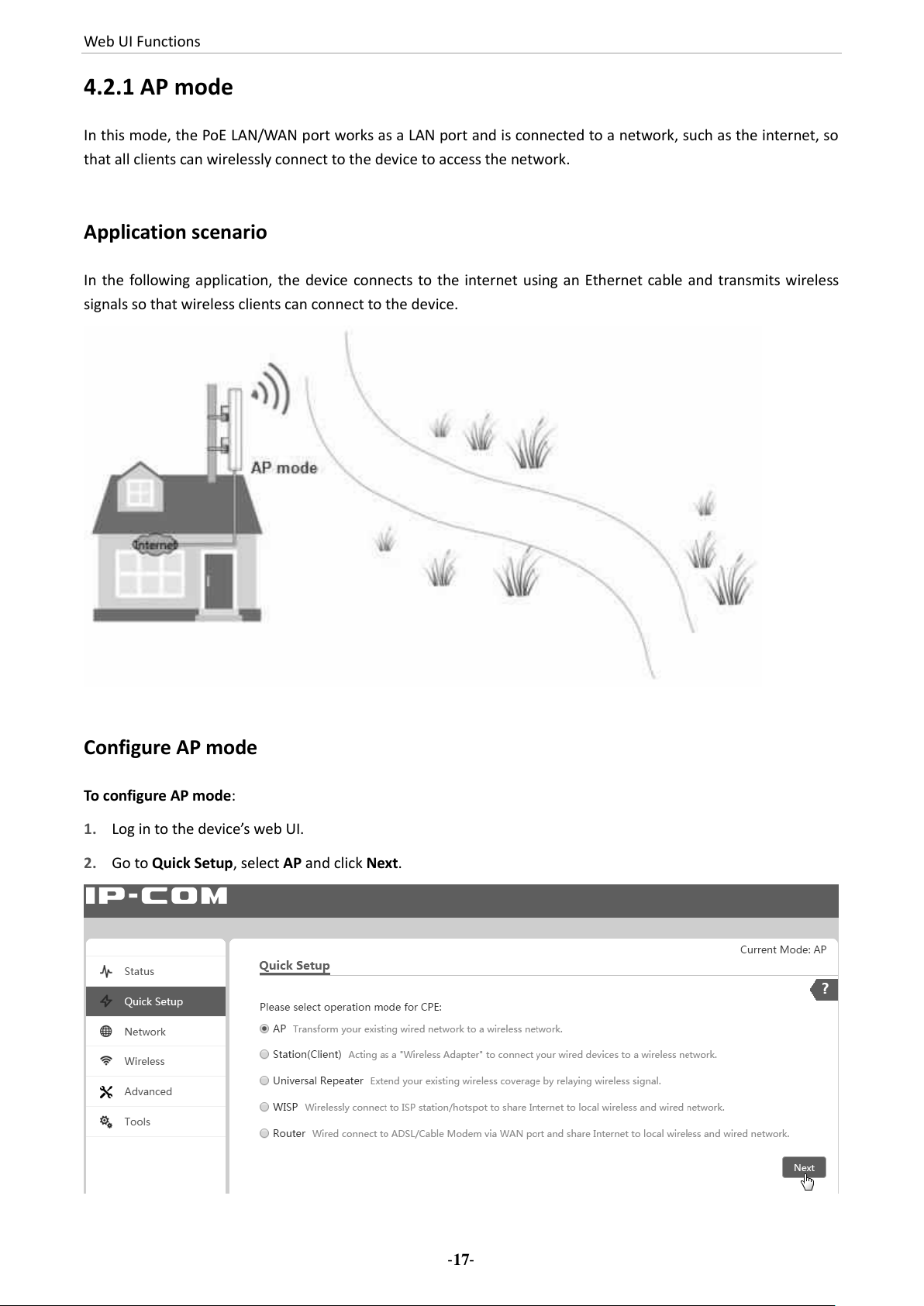

4.2.1 AP mode.................................................................................................................................................... 17

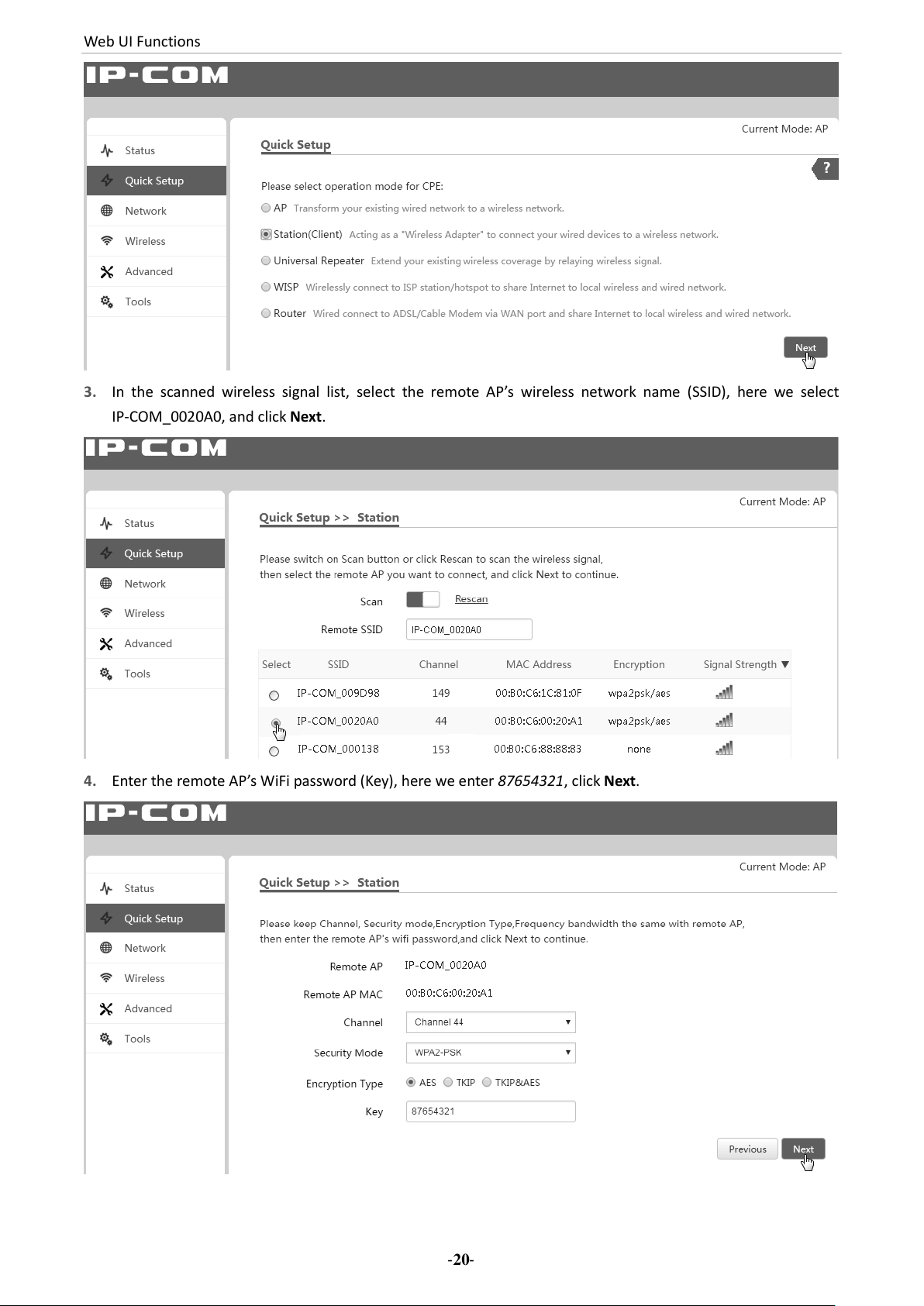

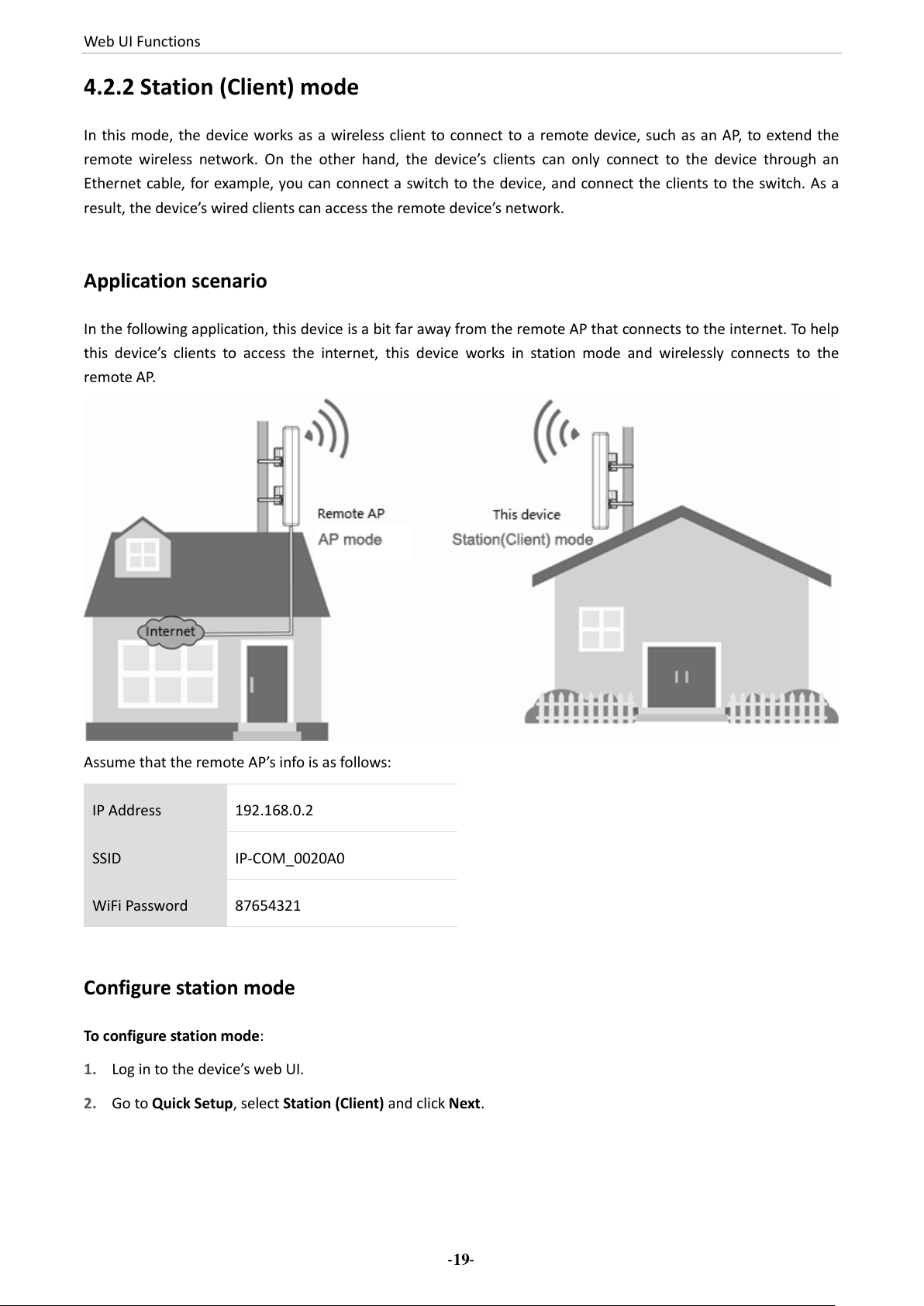

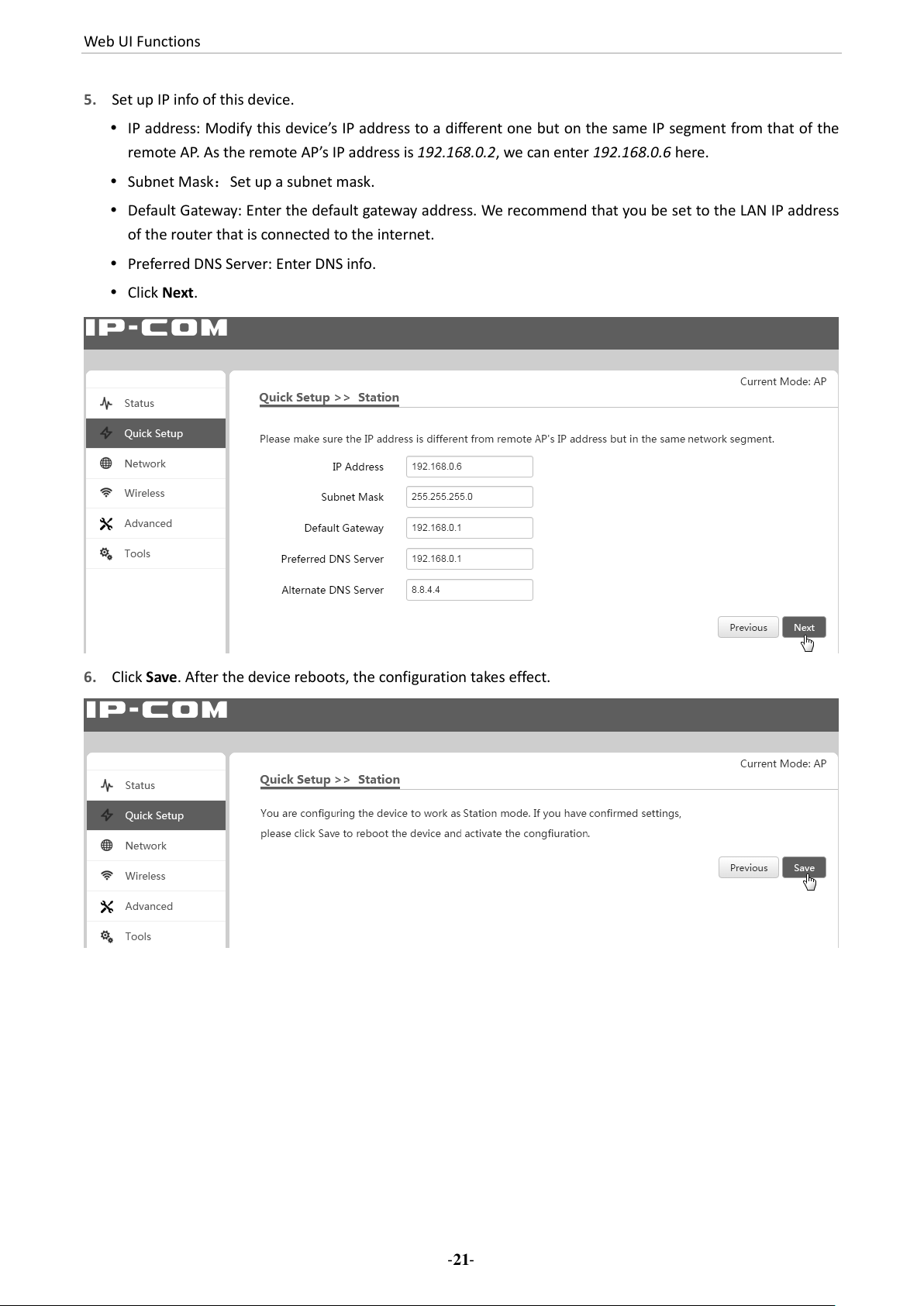

4.2.2 Station (Client) mode ................................................................................................................................ 19

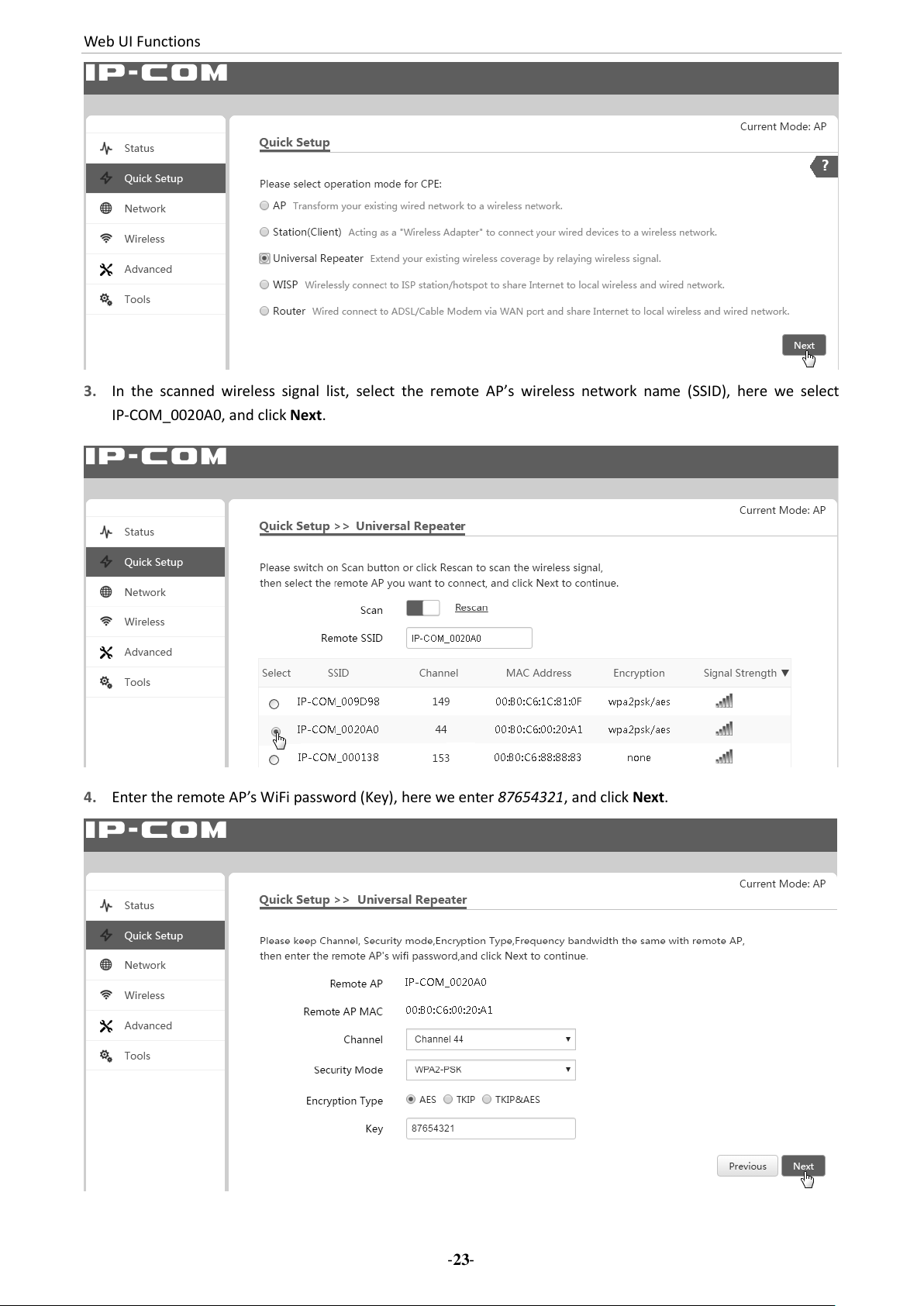

4.2.3 Universal Repeater mode ......................................................................................................................... 22

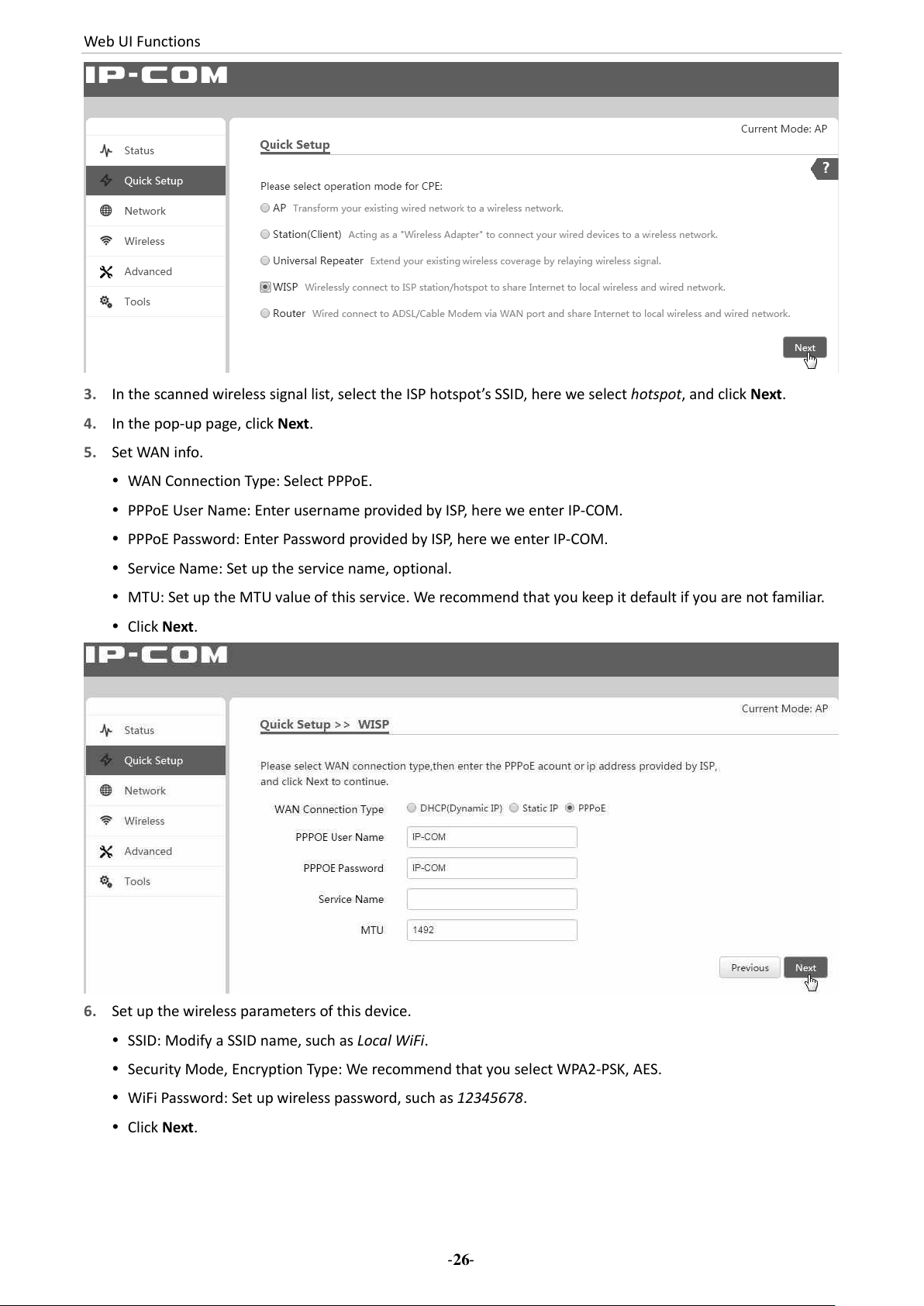

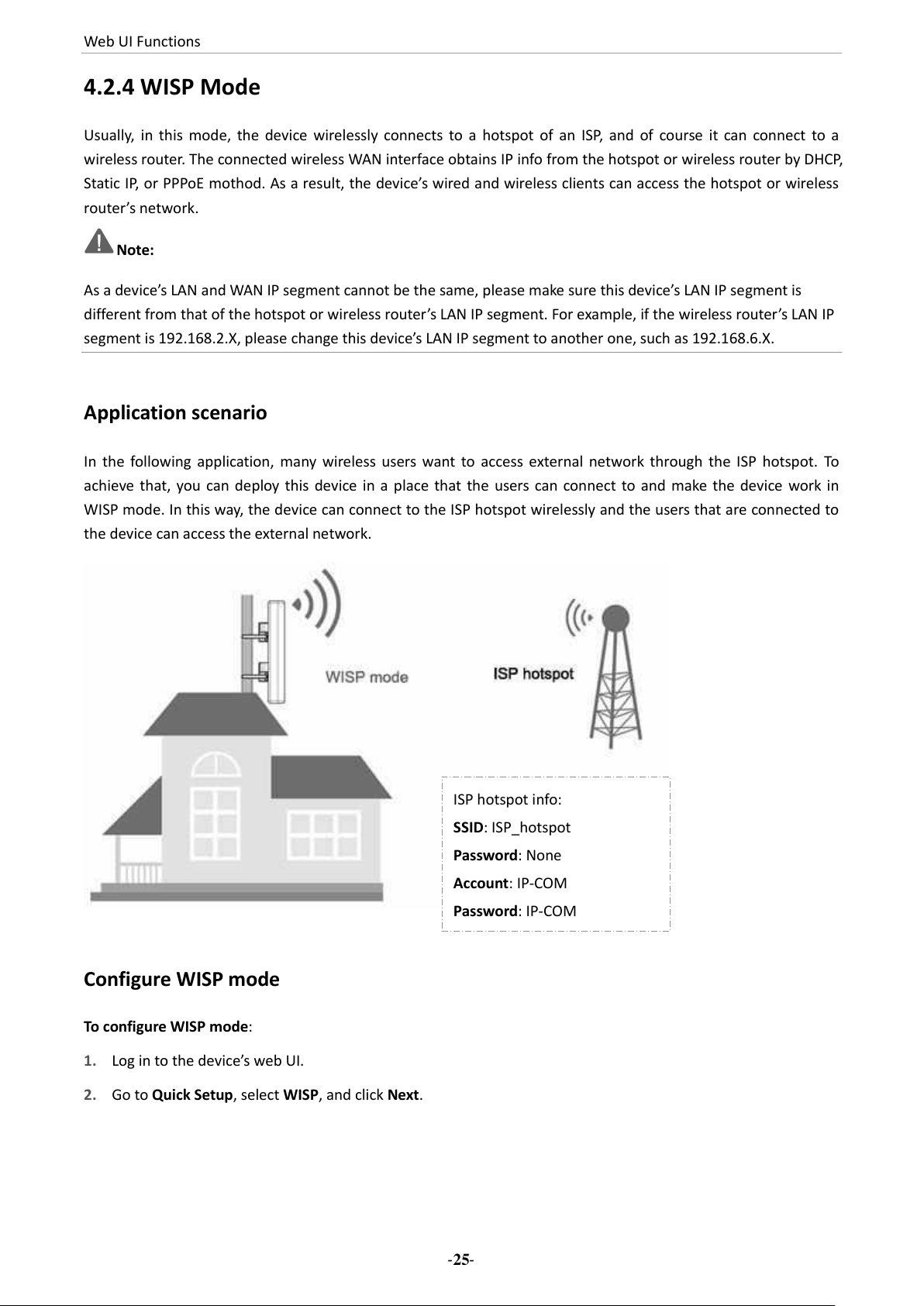

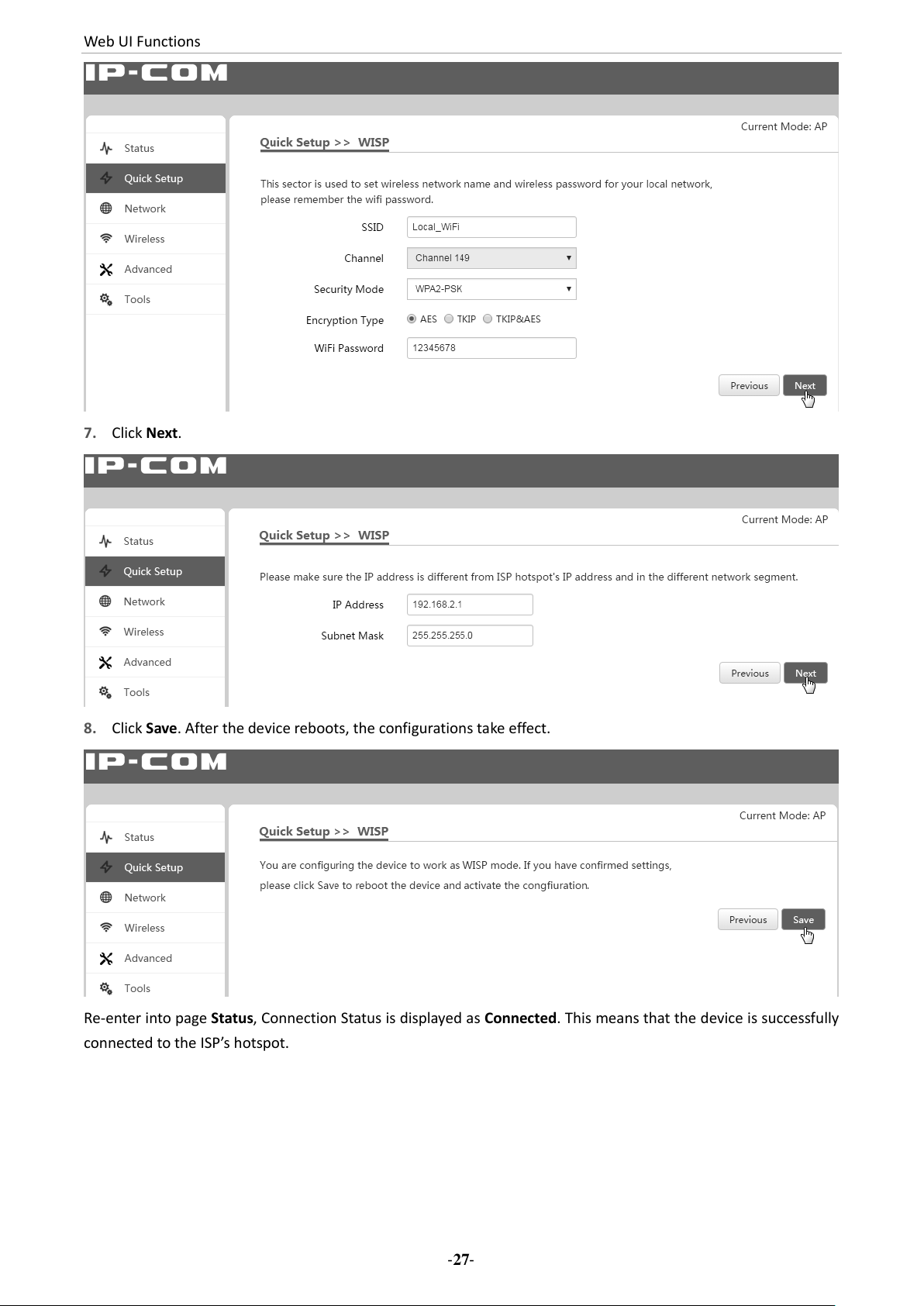

4.2.4 WISP Mode ............................................................................................................................................... 25

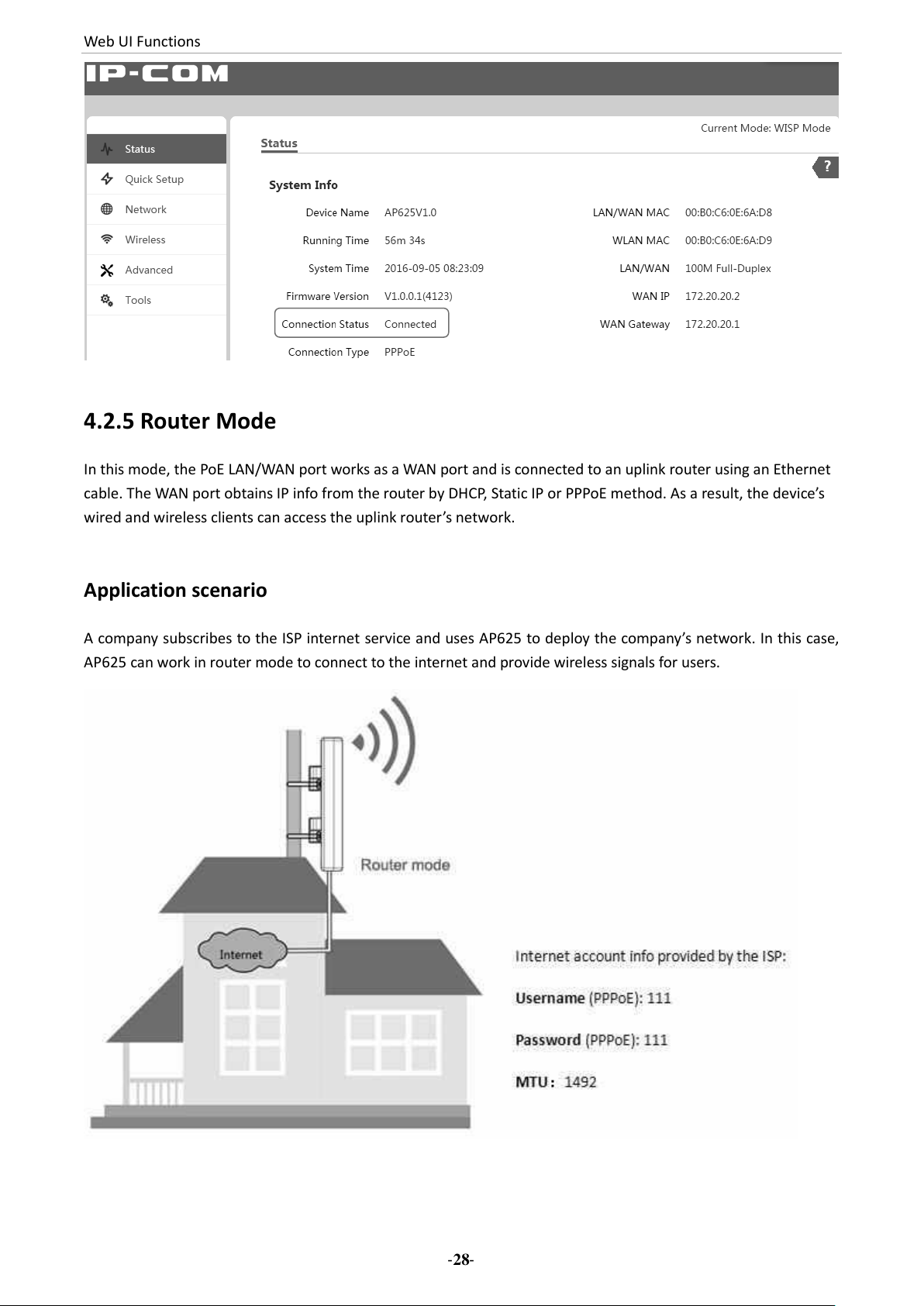

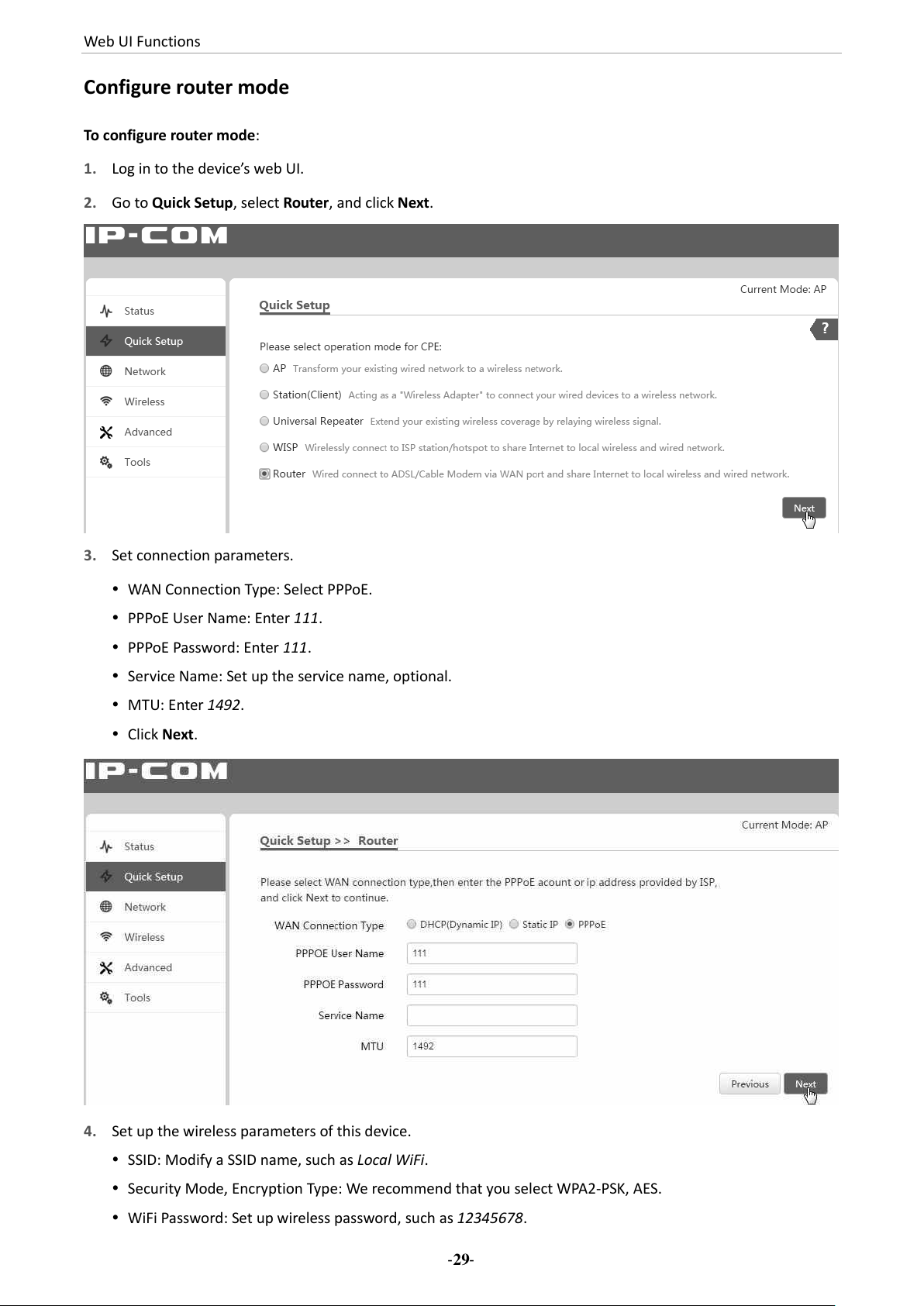

4.2.5 Router Mode ............................................................................................................................................. 28

4.3 Network ........................................................................................................................................................... 30

- iii -

Page 5

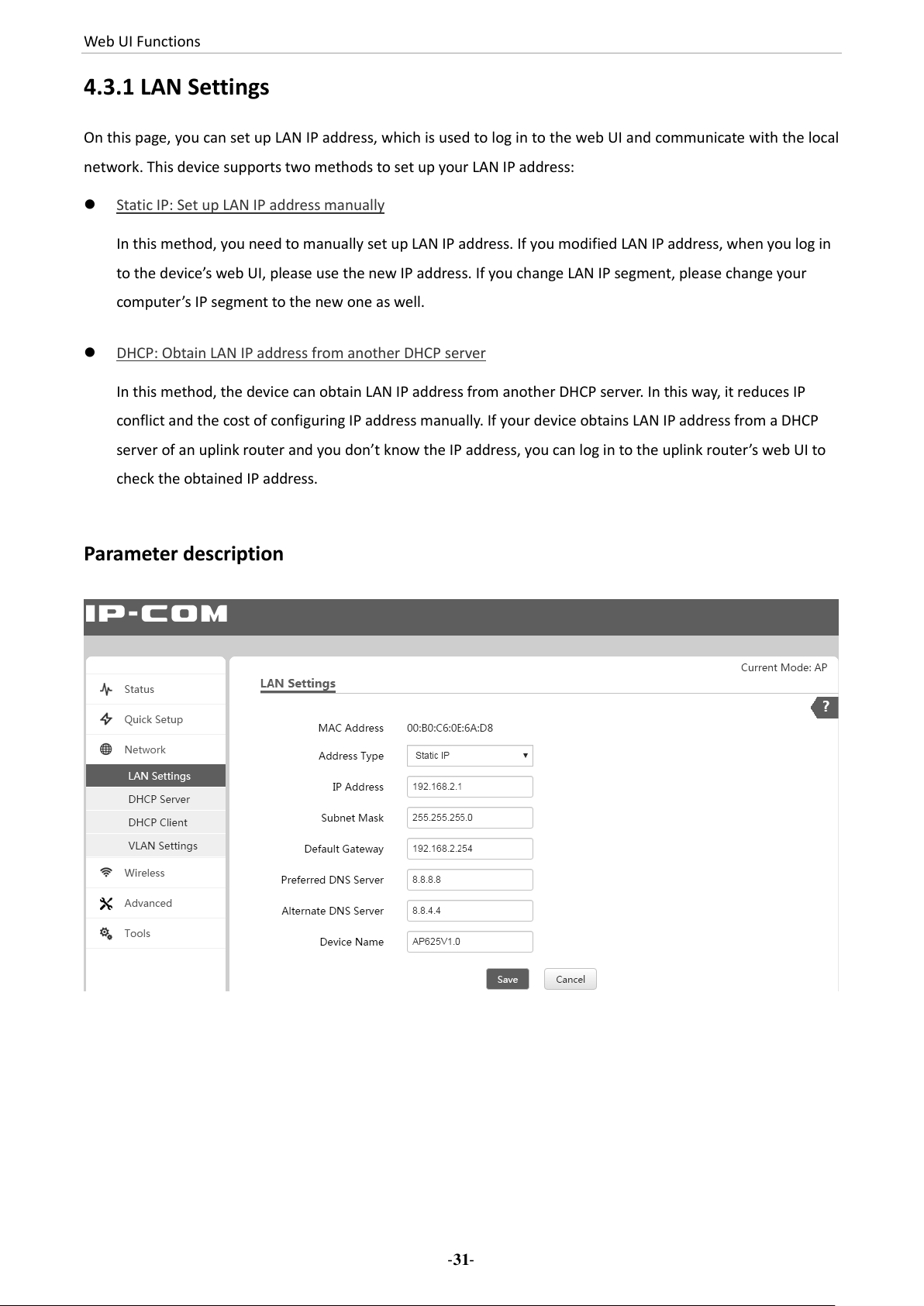

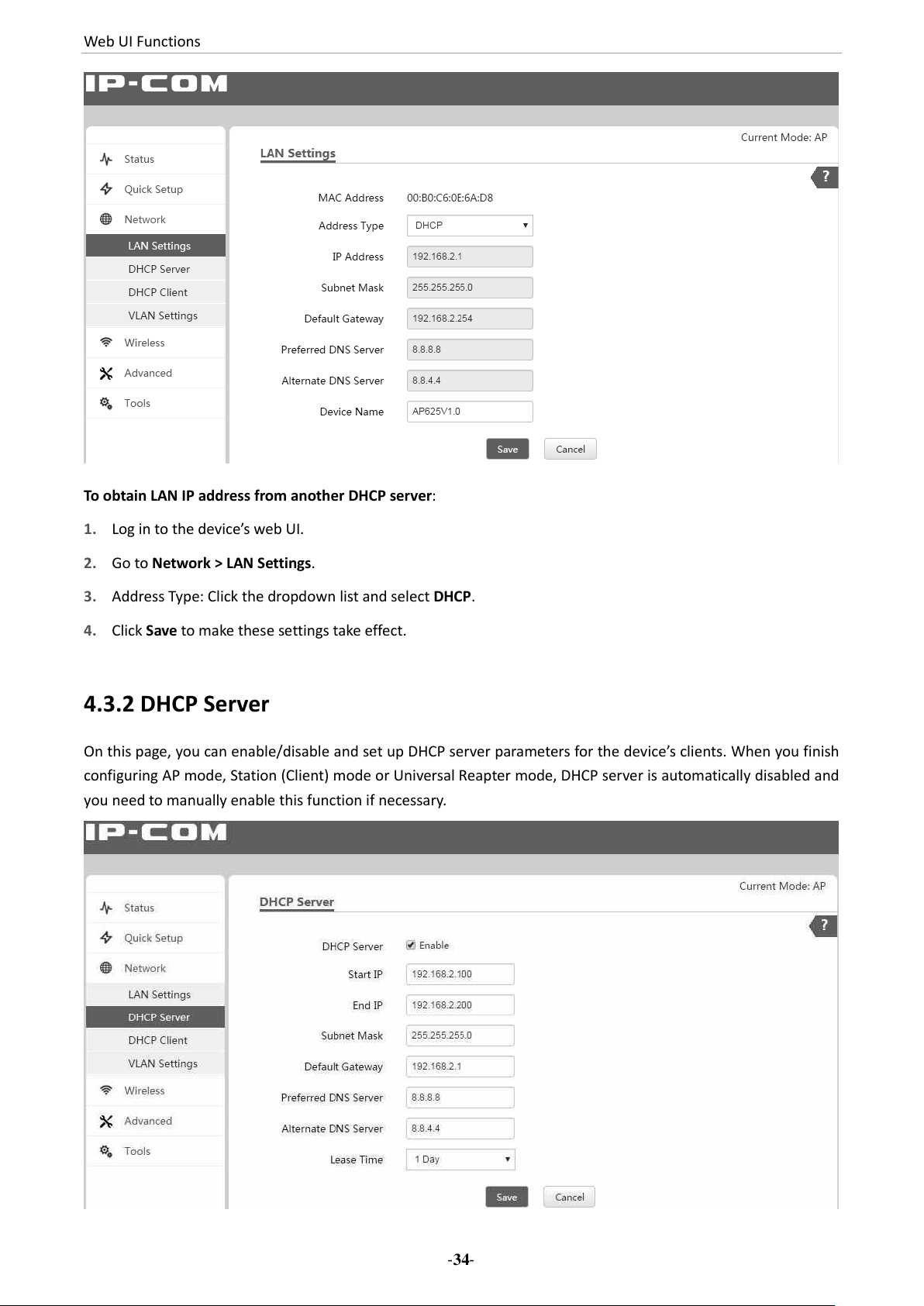

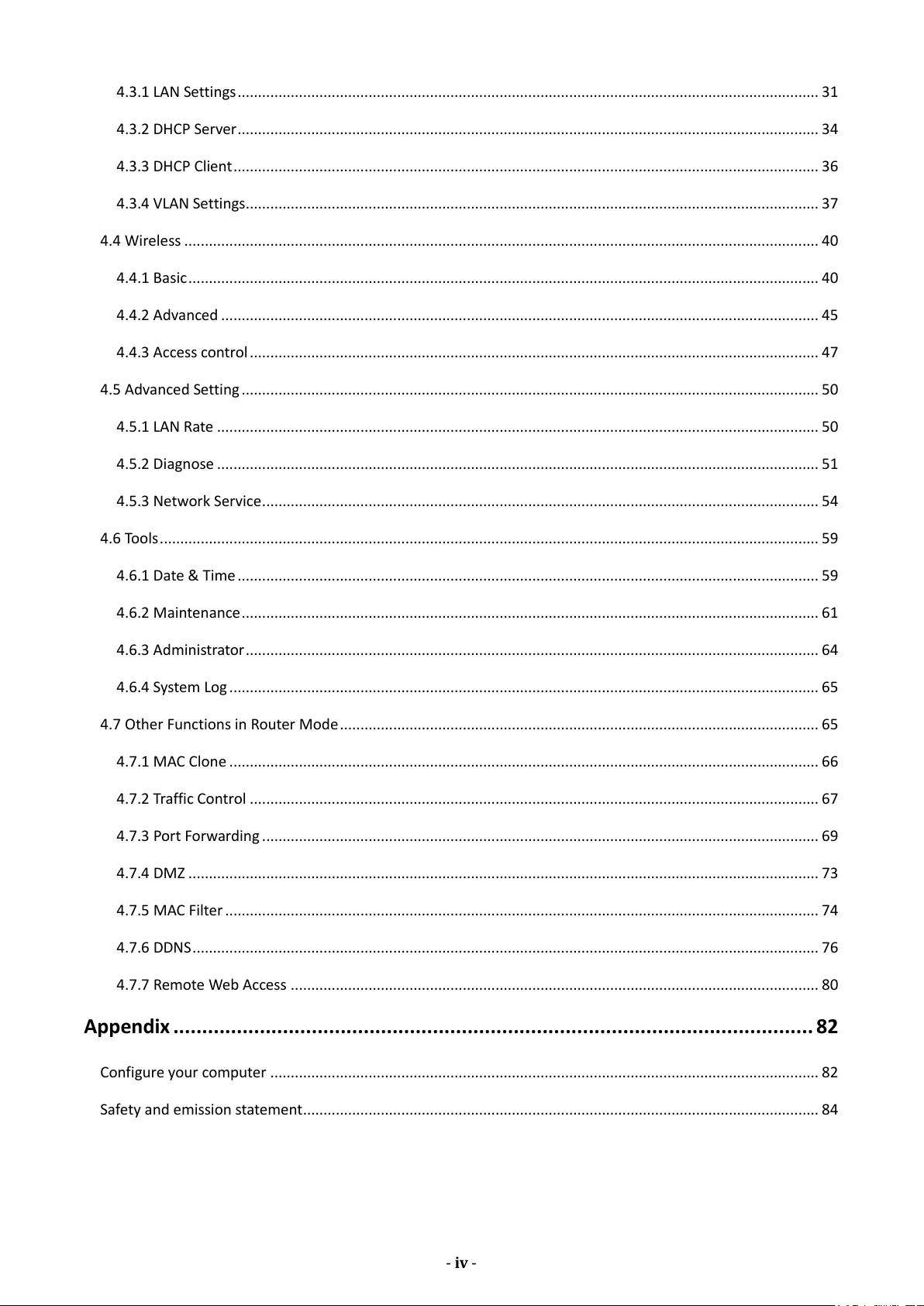

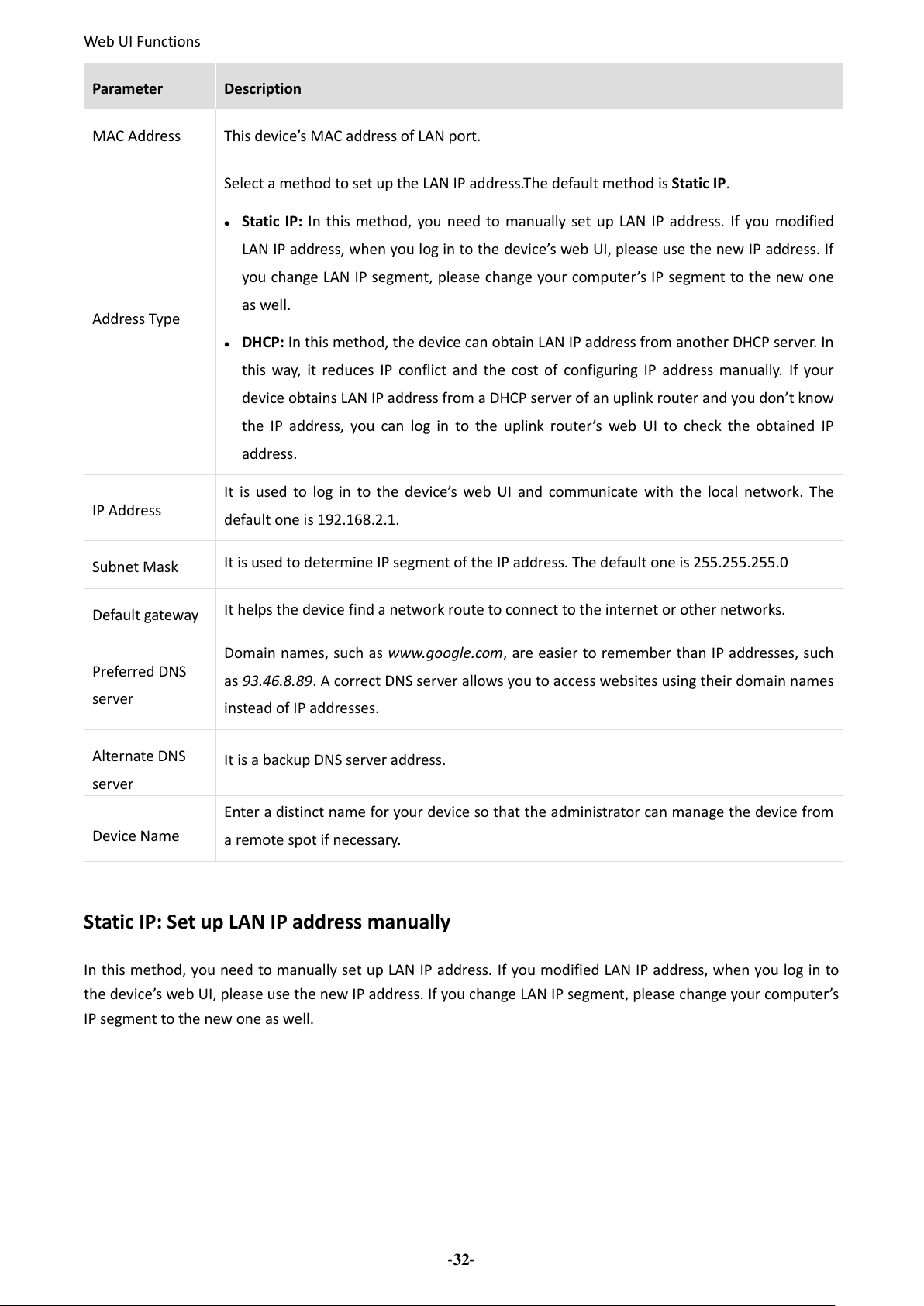

4.3.1 LAN Settings .............................................................................................................................................. 31

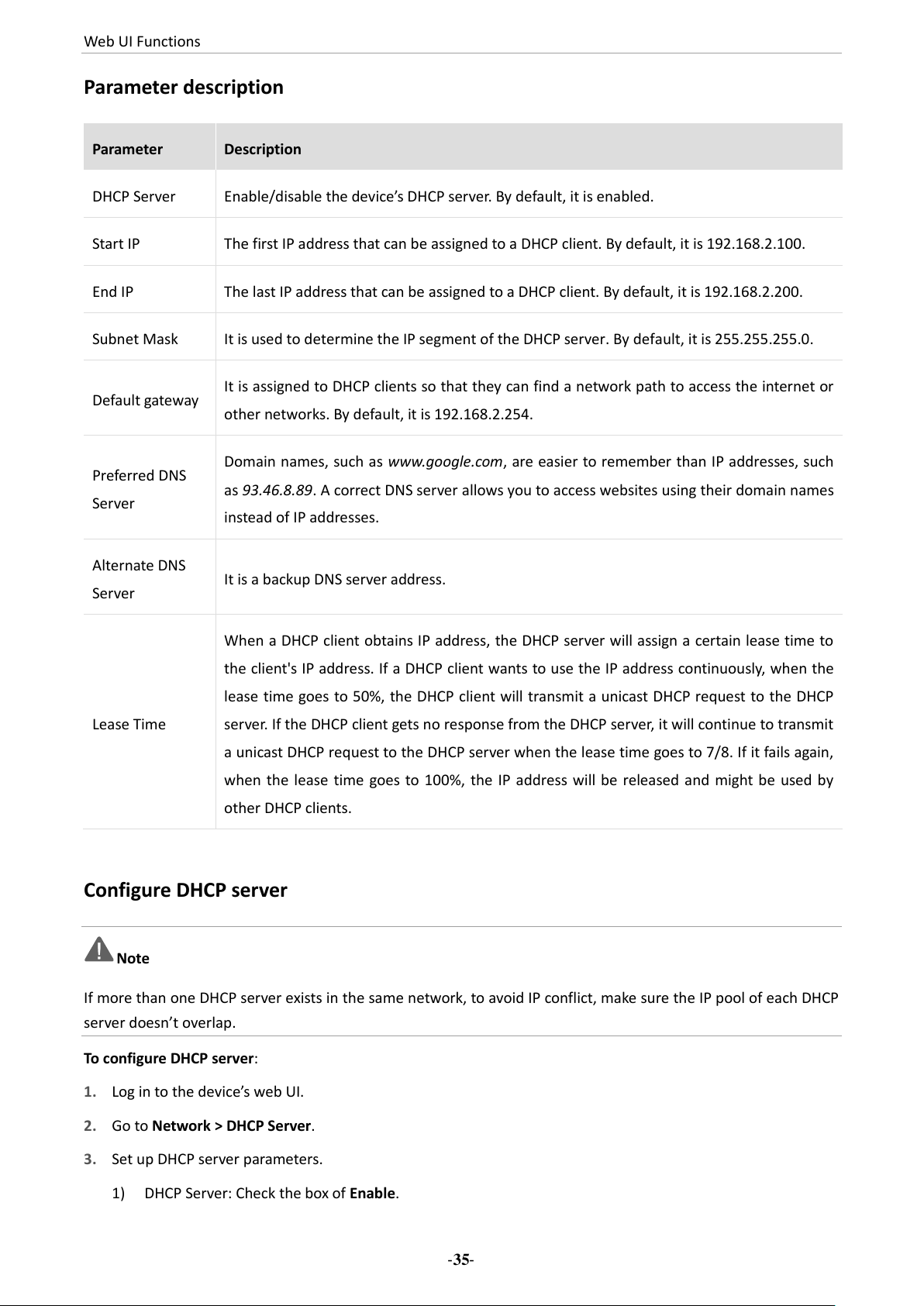

4.3.2 DHCP Server .............................................................................................................................................. 34

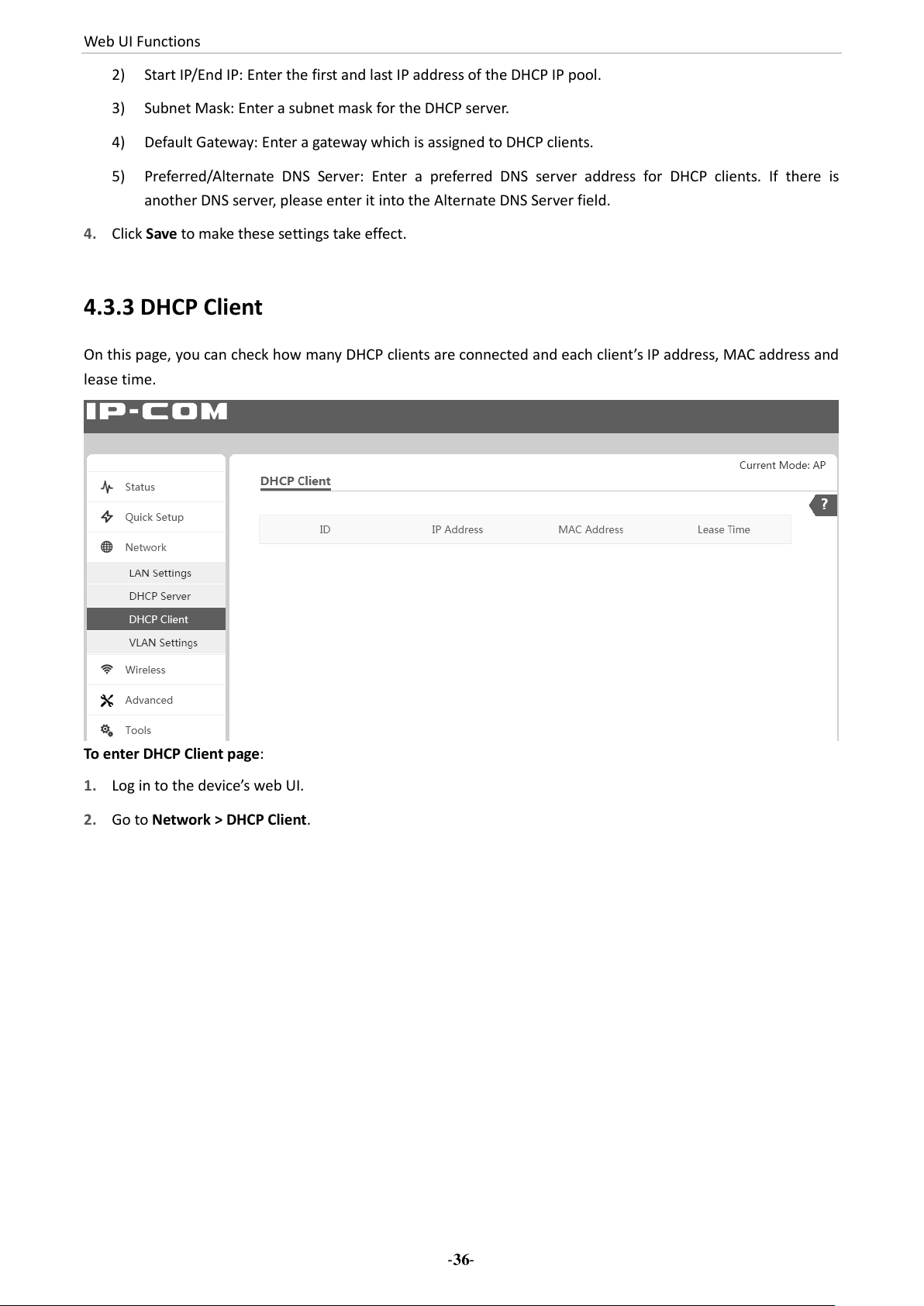

4.3.3 DHCP Client ............................................................................................................................................... 36

4.3.4 VLAN Settings ............................................................................................................................................ 37

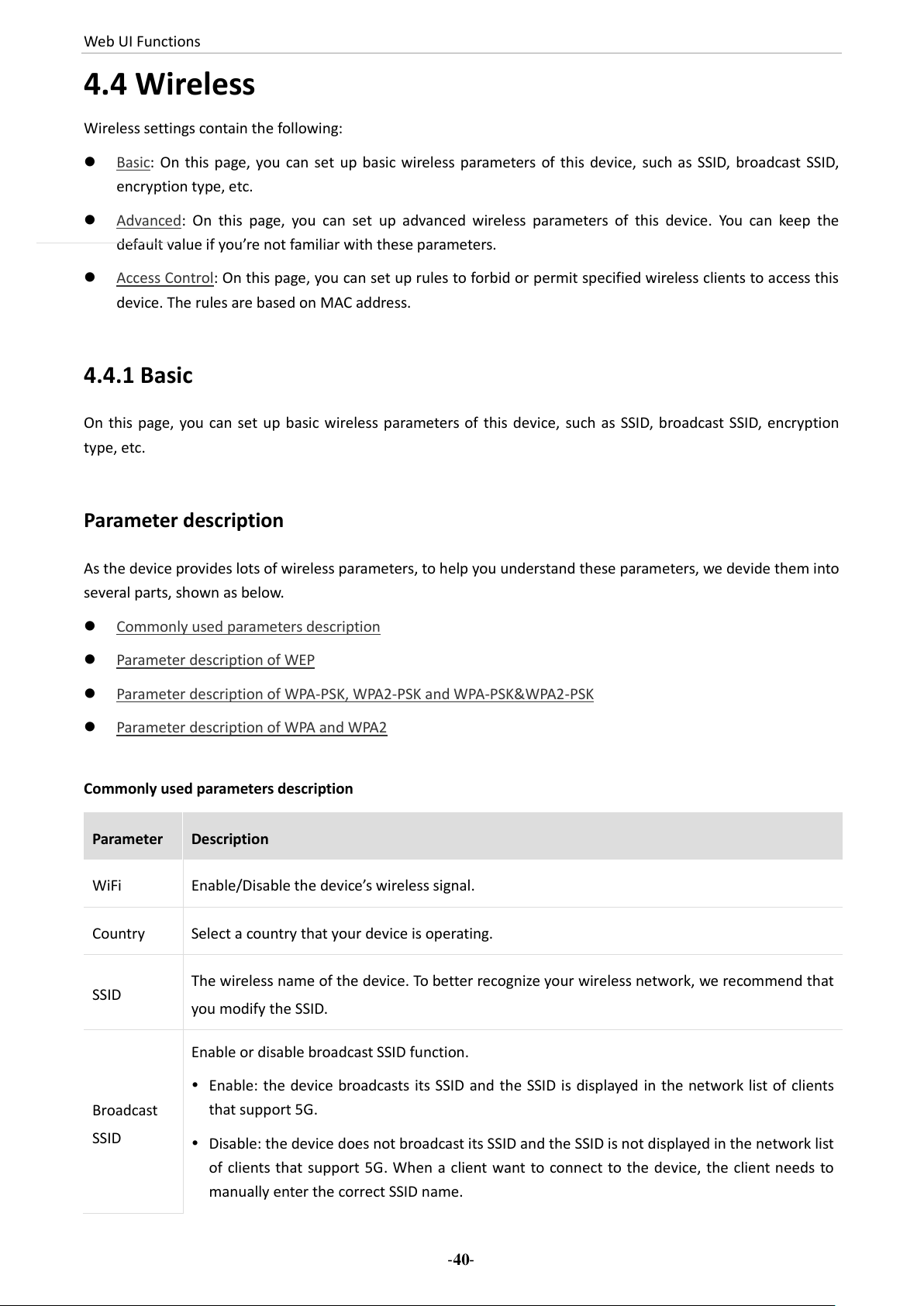

4.4 Wireless ........................................................................................................................................................... 40

4.4.1 Basic .......................................................................................................................................................... 40

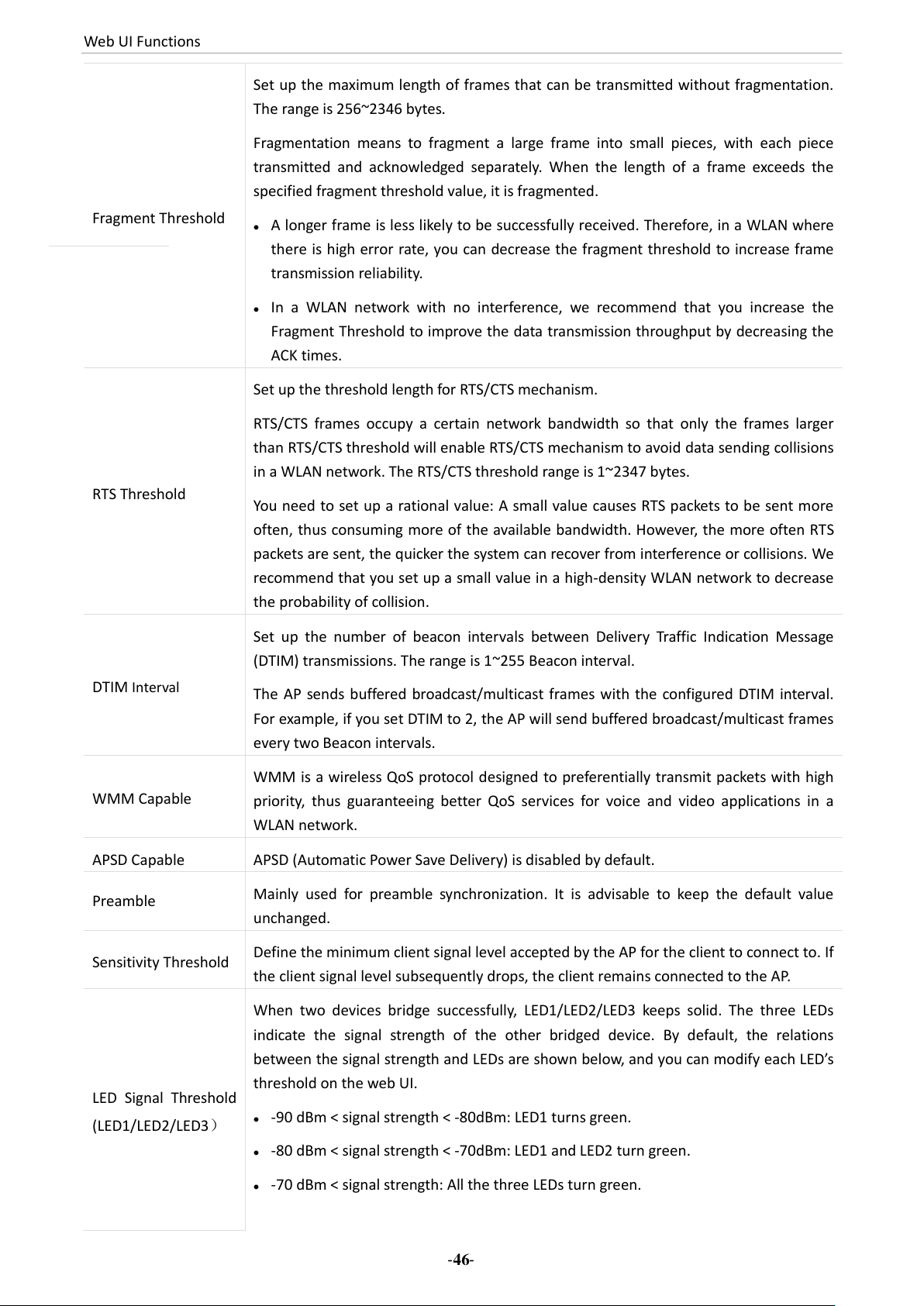

4.4.2 Advanced .................................................................................................................................................. 45

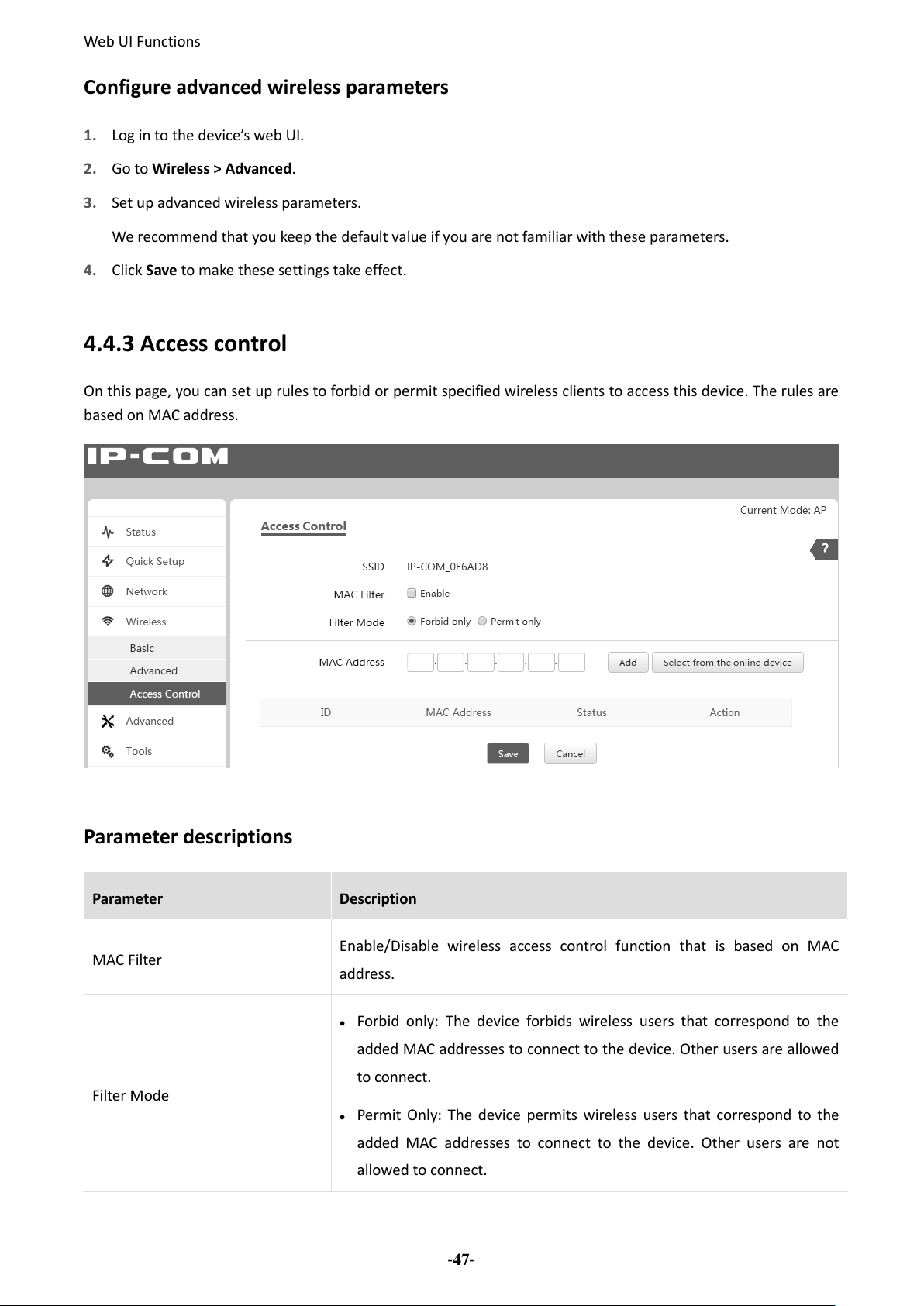

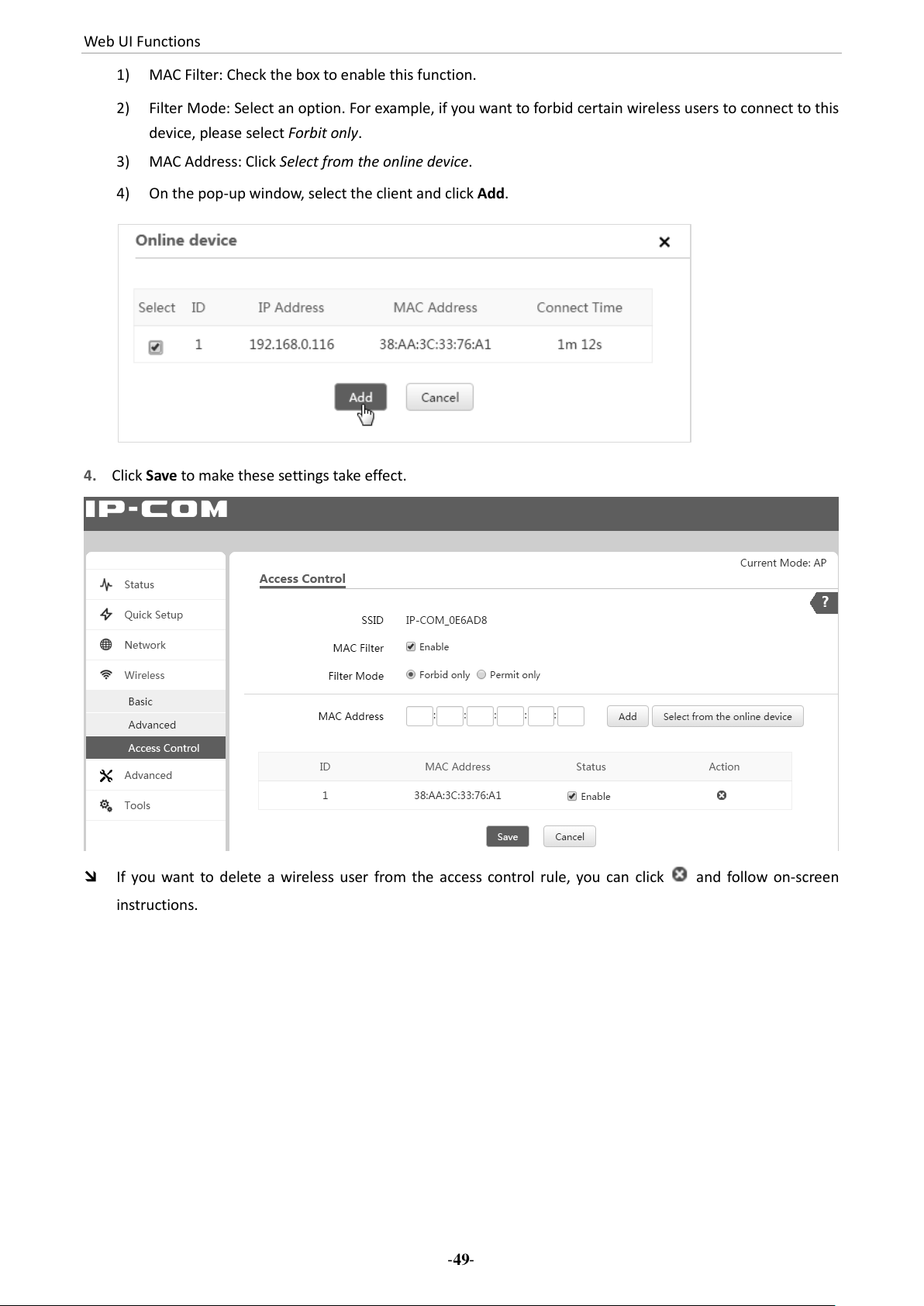

4.4.3 Access control ........................................................................................................................................... 47

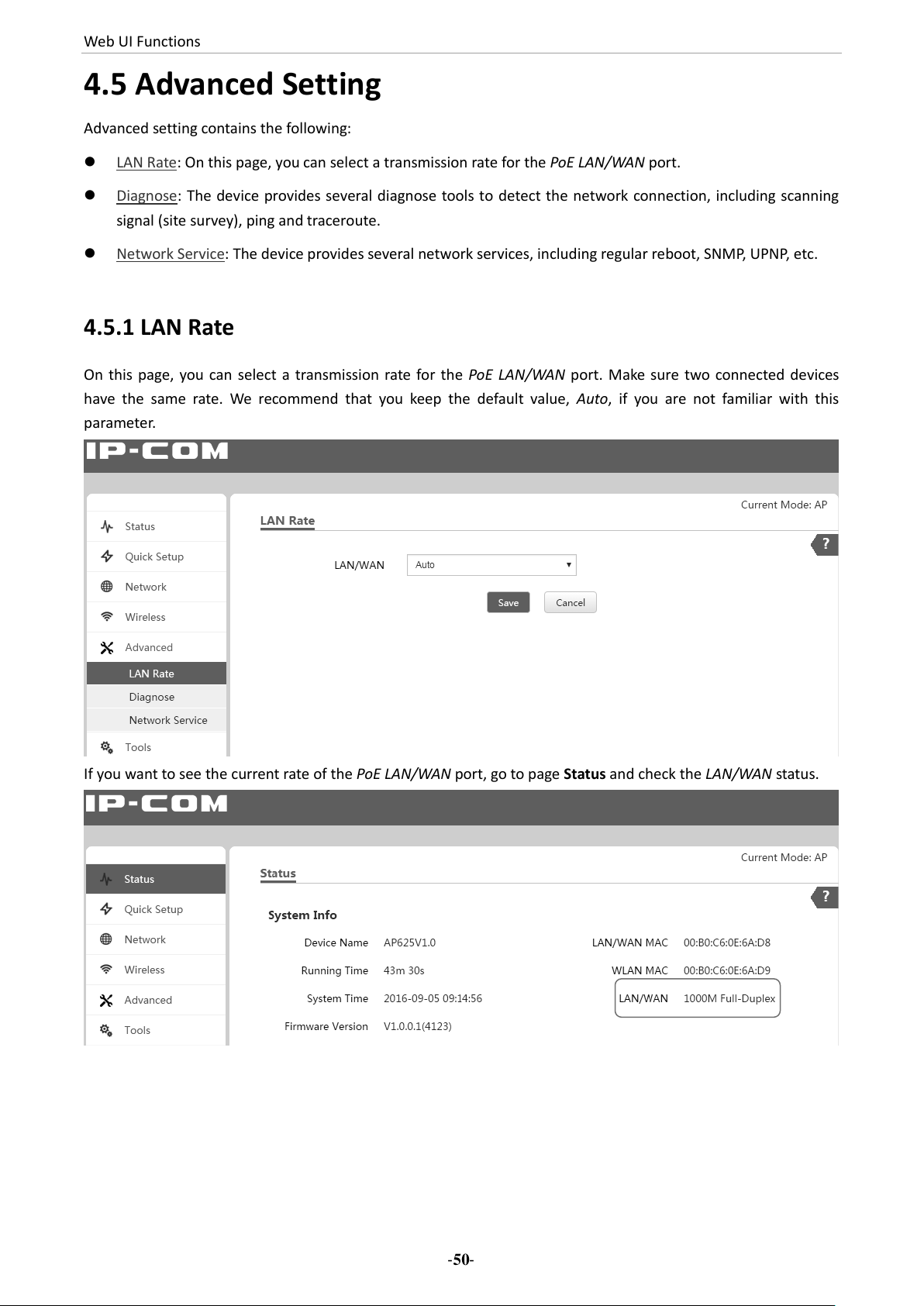

4.5 Advanced Setting ............................................................................................................................................. 50

4.5.1 LAN Rate ................................................................................................................................................... 50

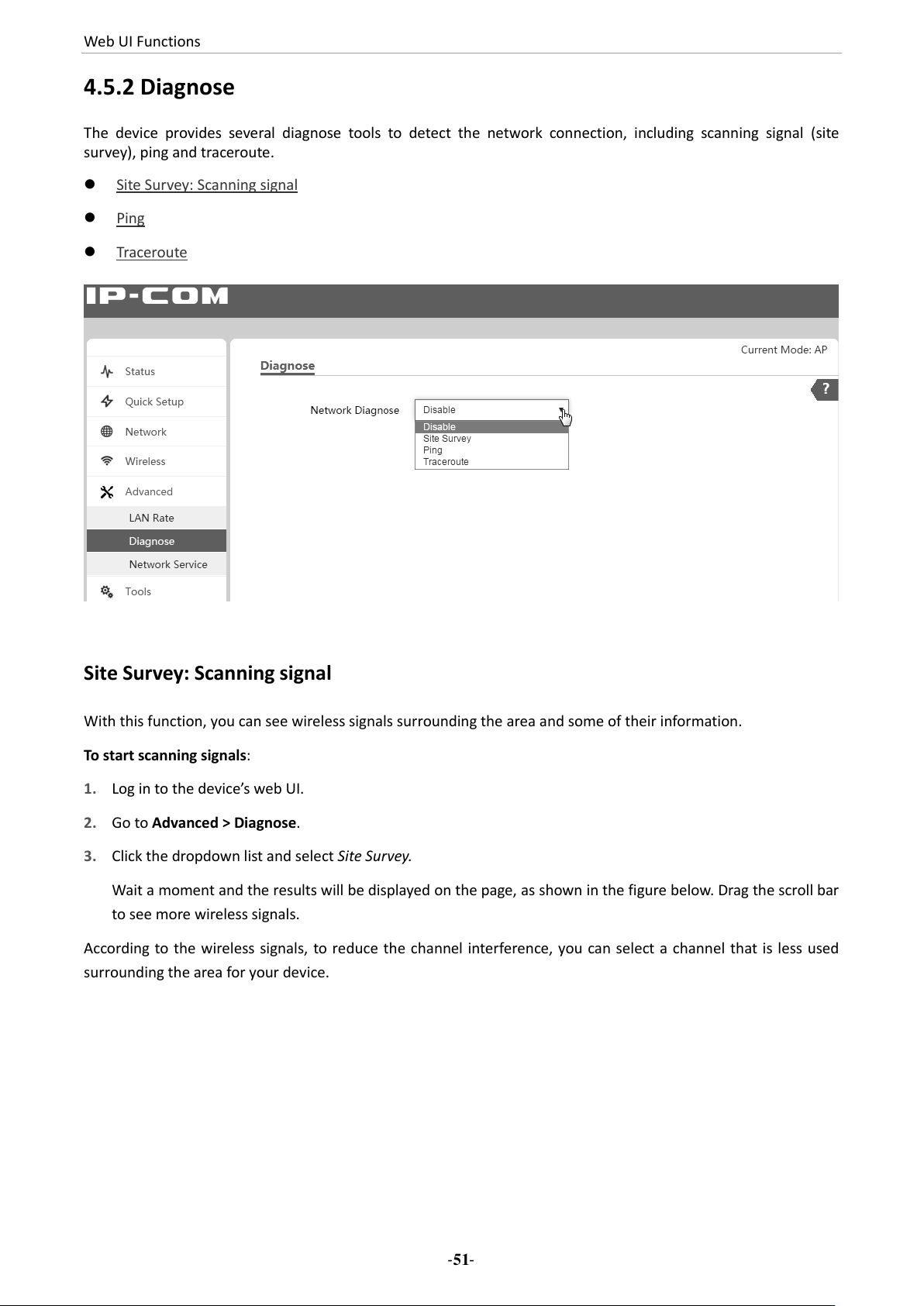

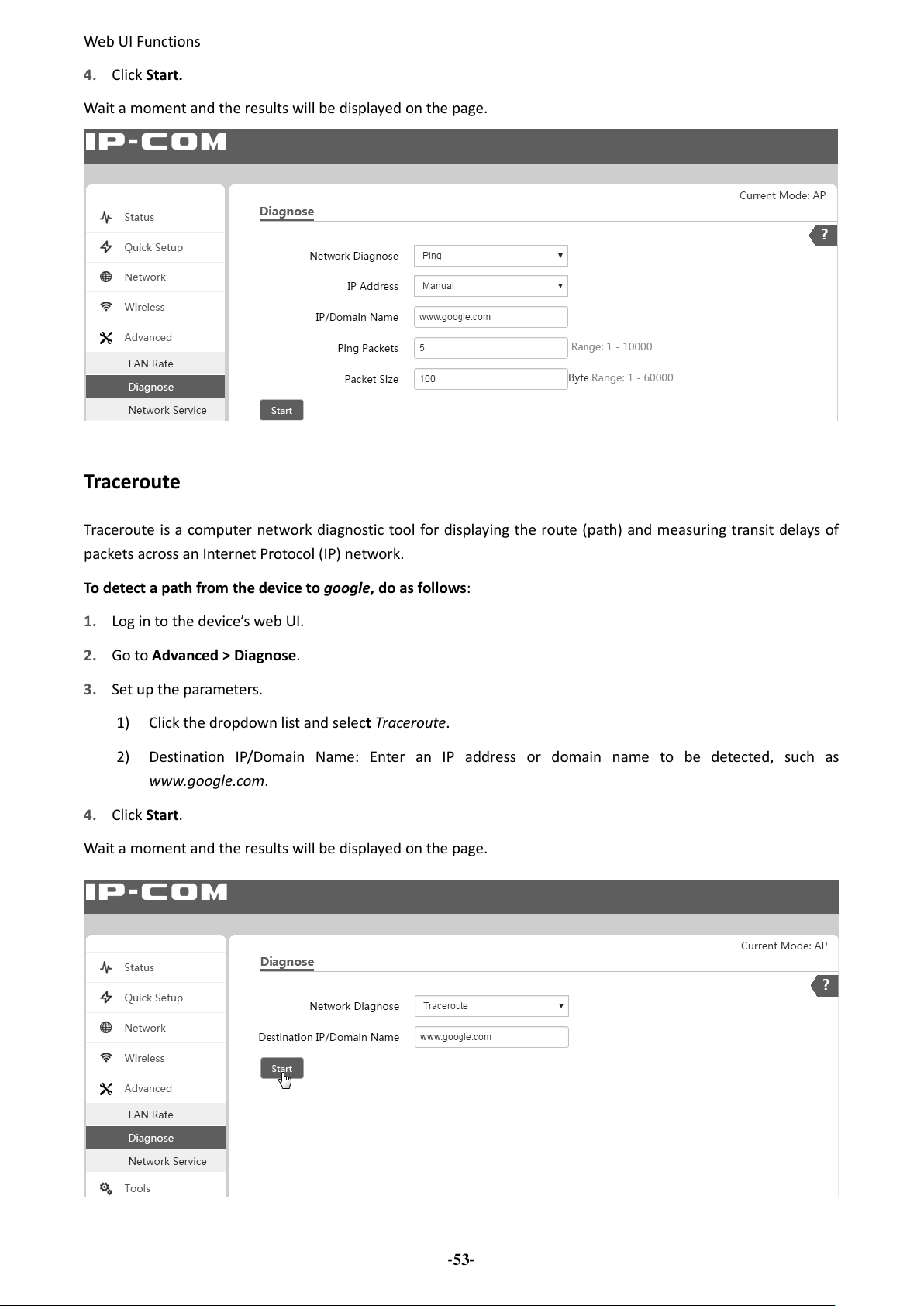

4.5.2 Diagnose ................................................................................................................................................... 51

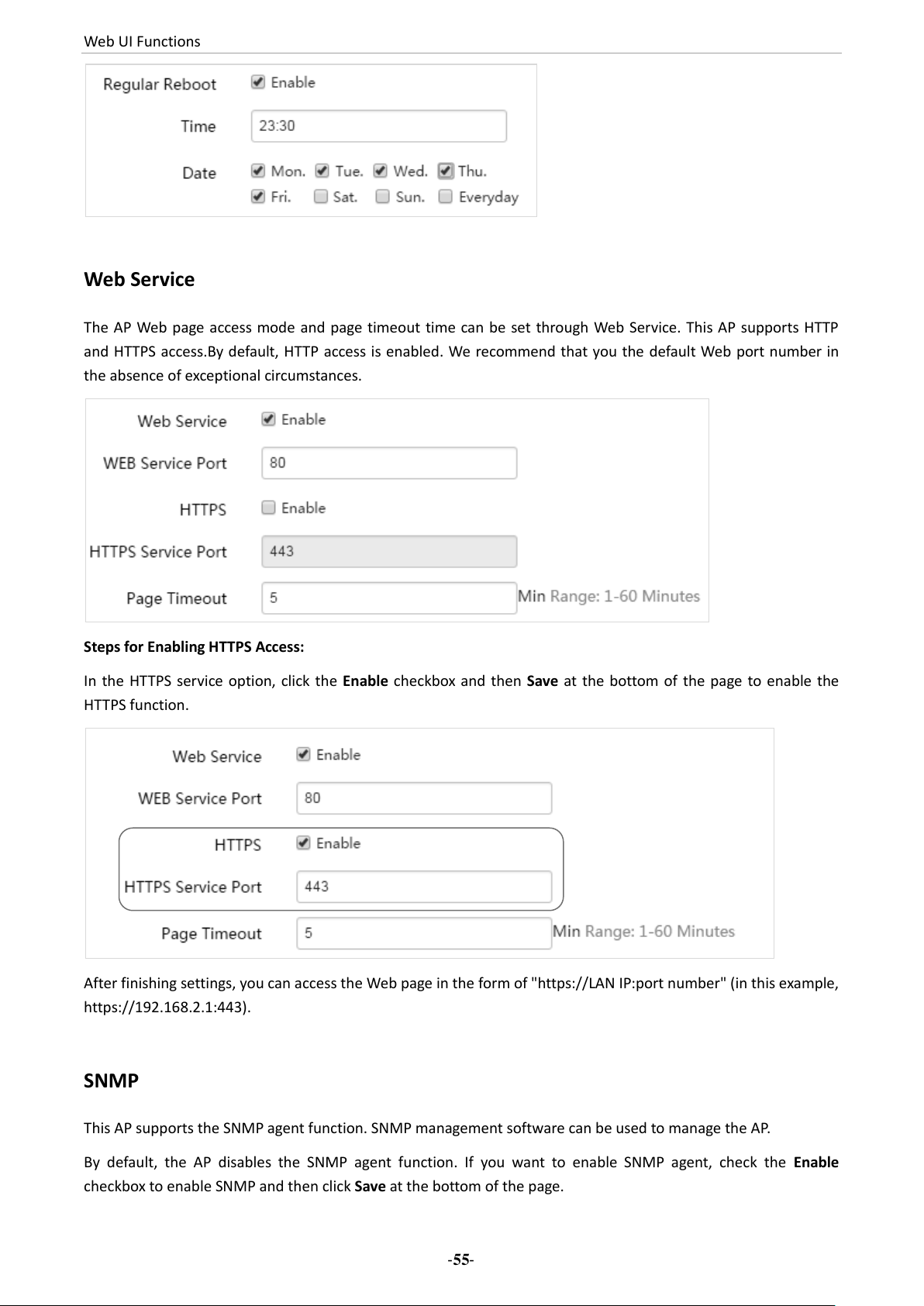

4.5.3 Network Service ........................................................................................................................................ 54

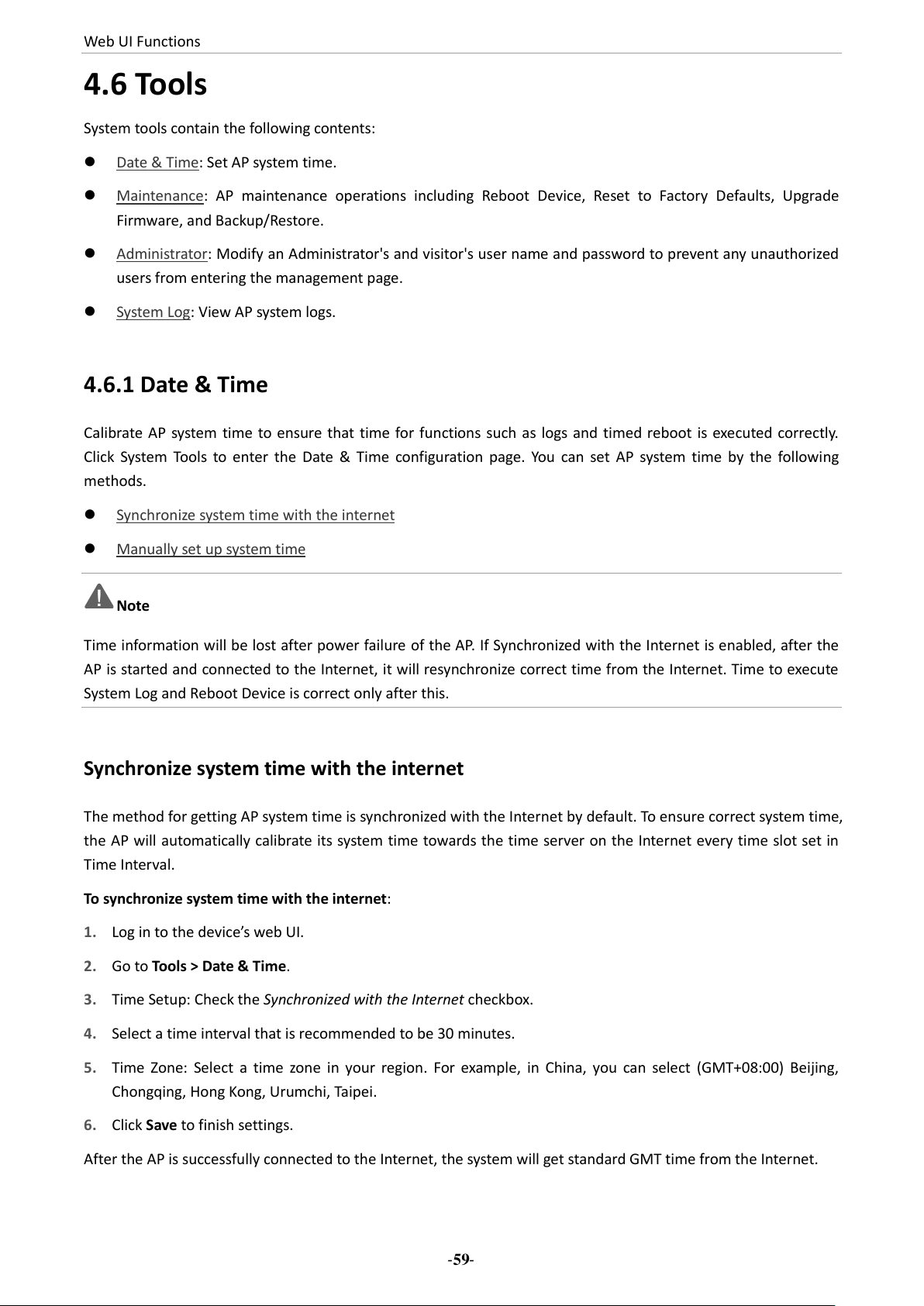

4.6 Tools ................................................................................................................................................................. 59

4.6.1 Date & Time .............................................................................................................................................. 59

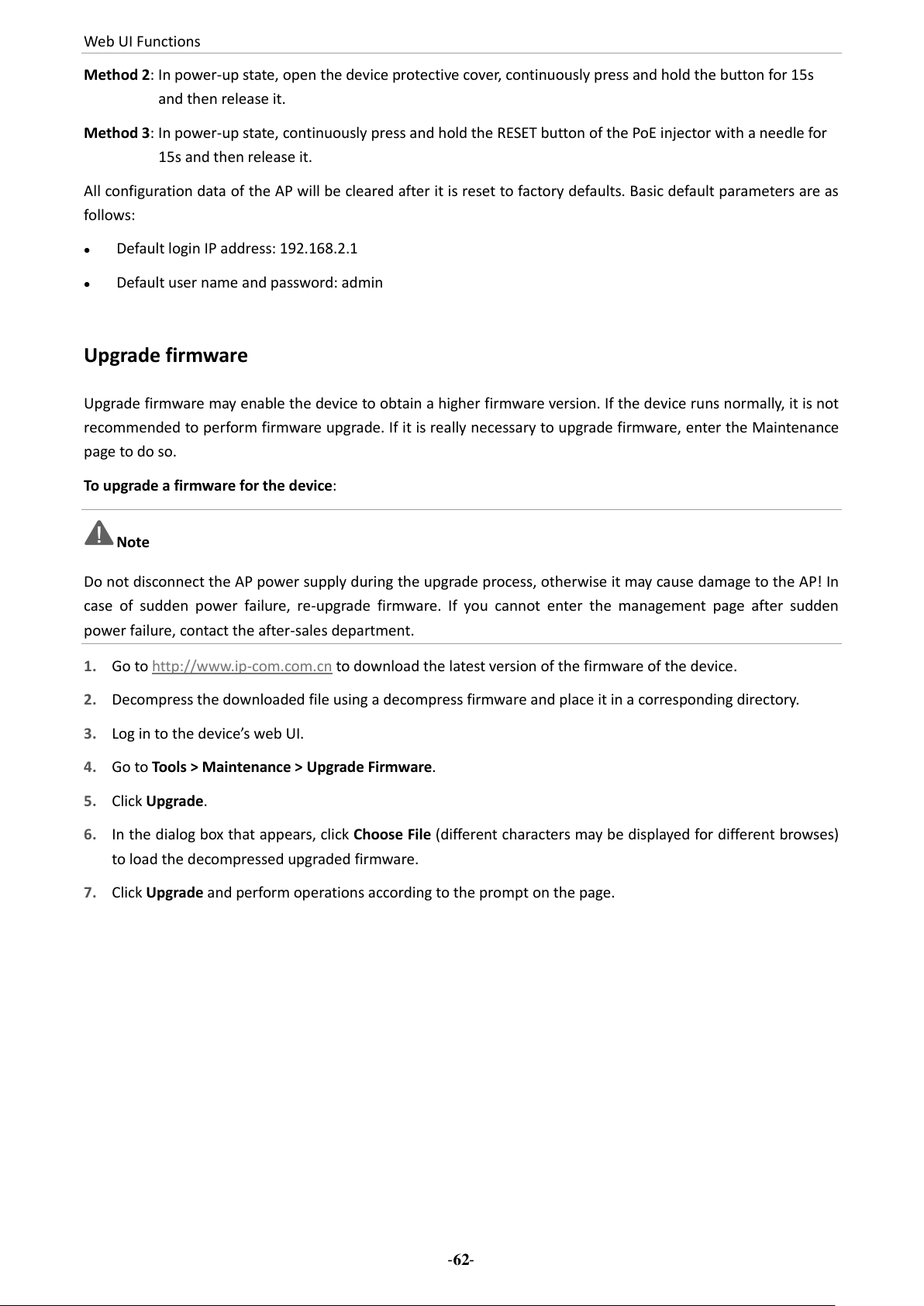

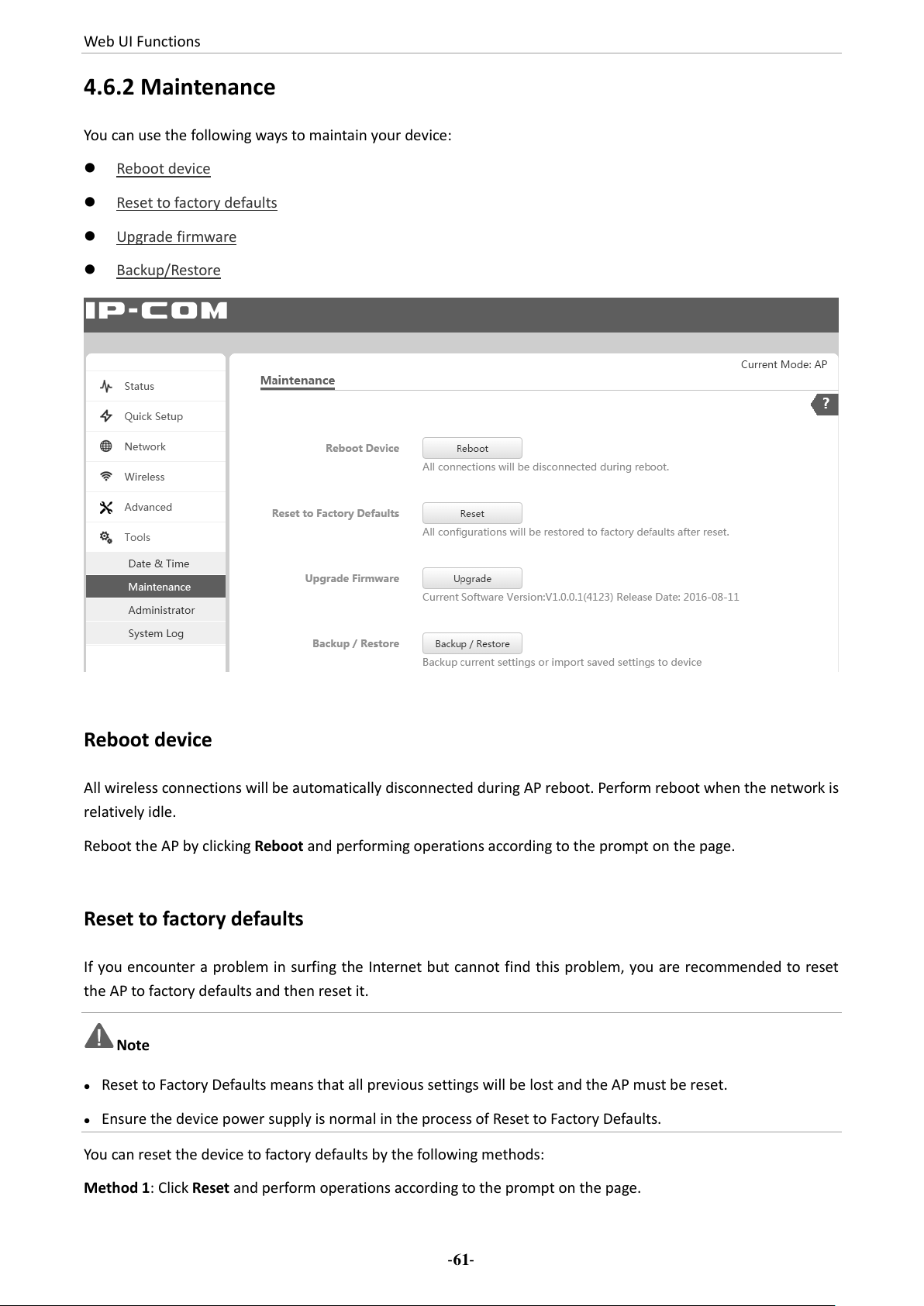

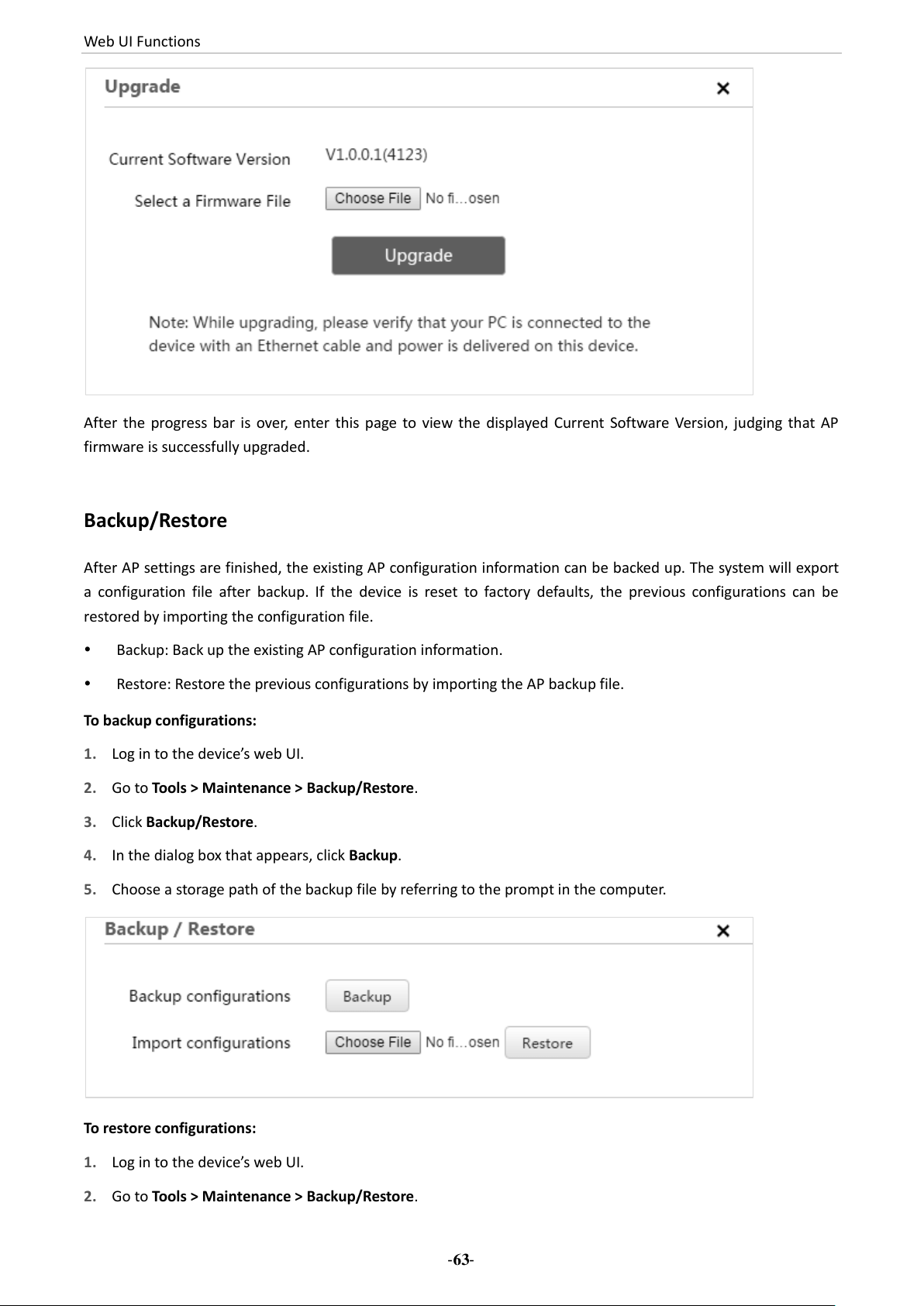

4.6.2 Maintenance ............................................................................................................................................. 61

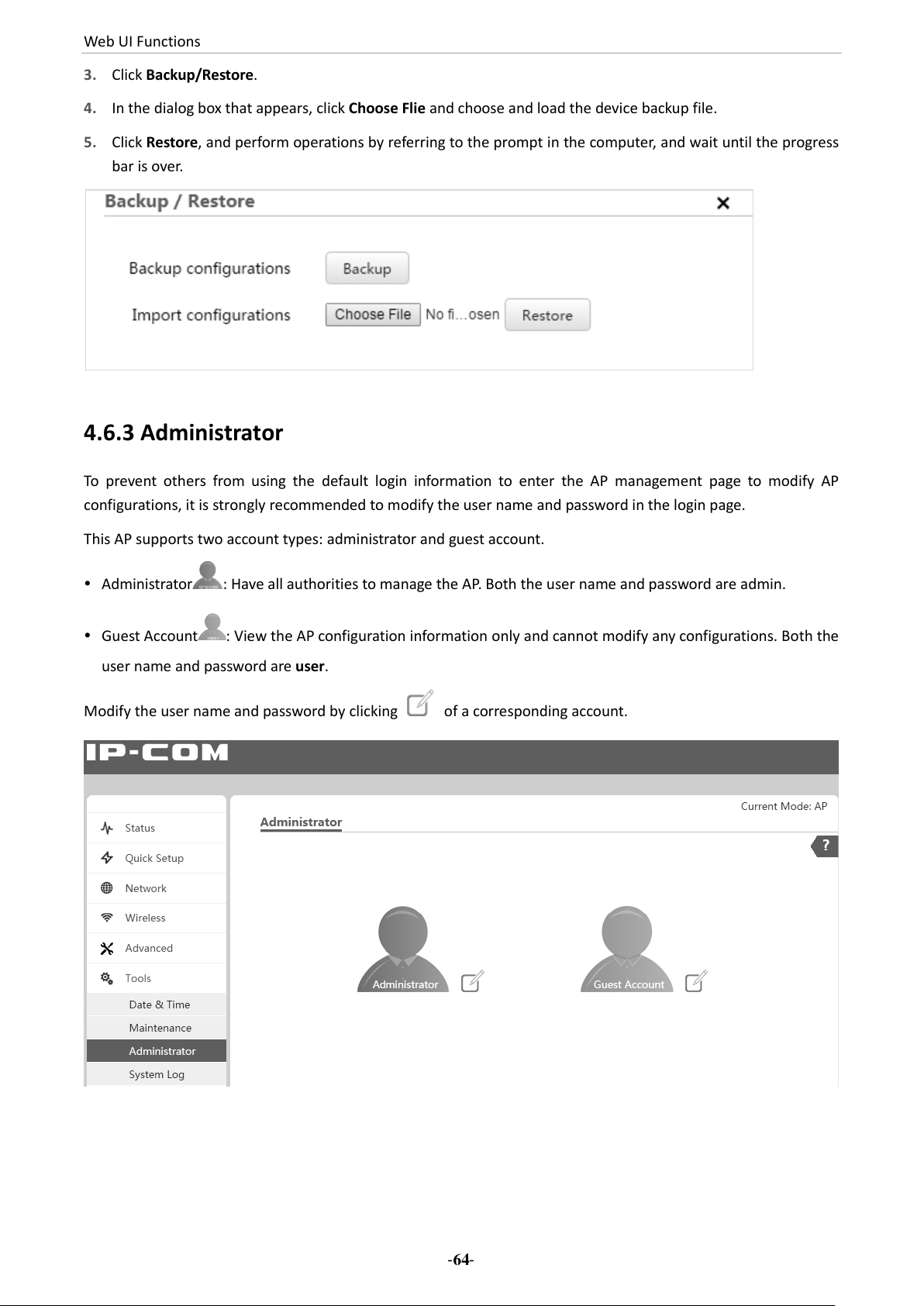

4.6.3 Administrator ............................................................................................................................................ 64

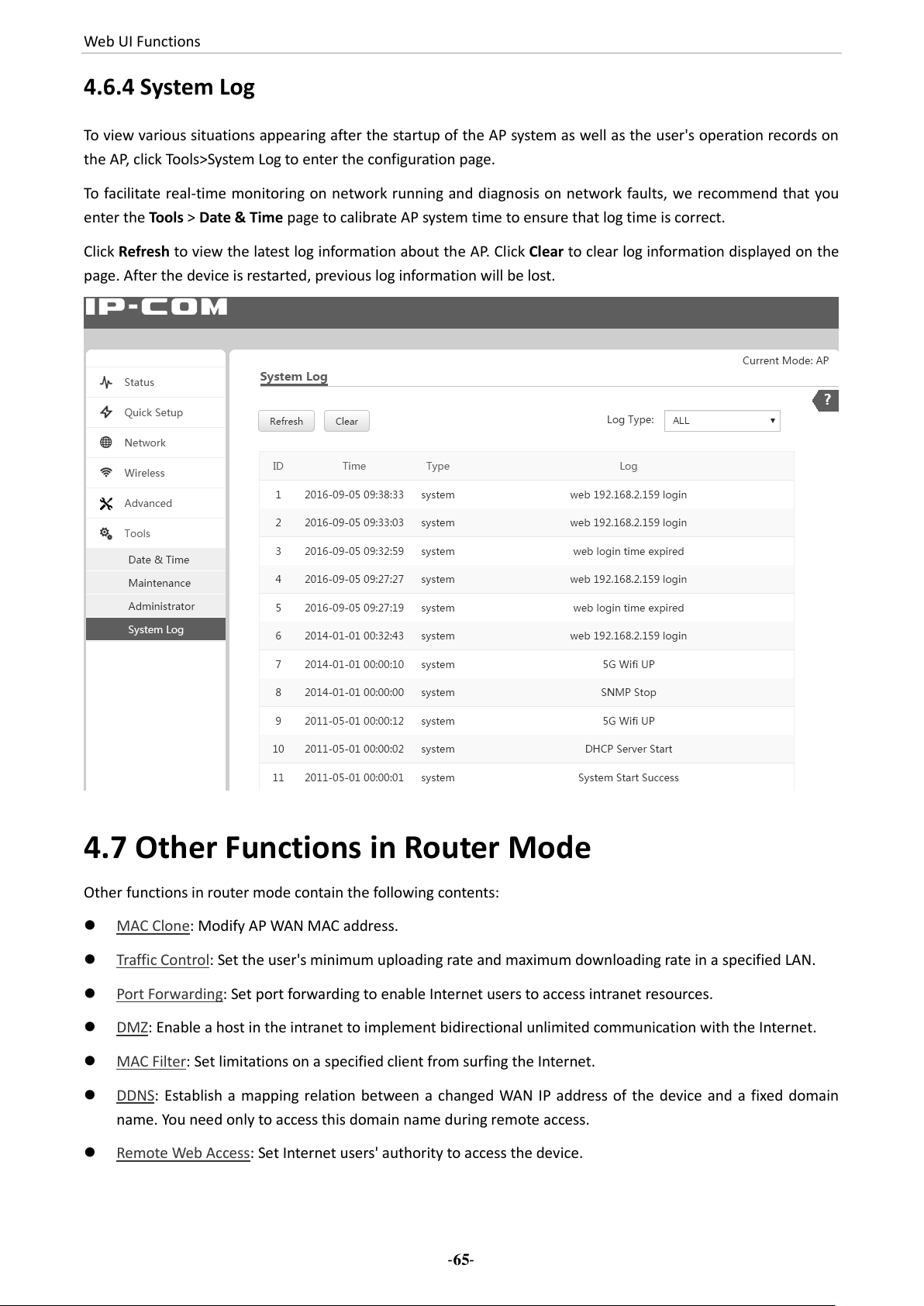

4.6.4 System Log ................................................................................................................................................ 65

4.7 Other Functions in Router Mode ..................................................................................................................... 65

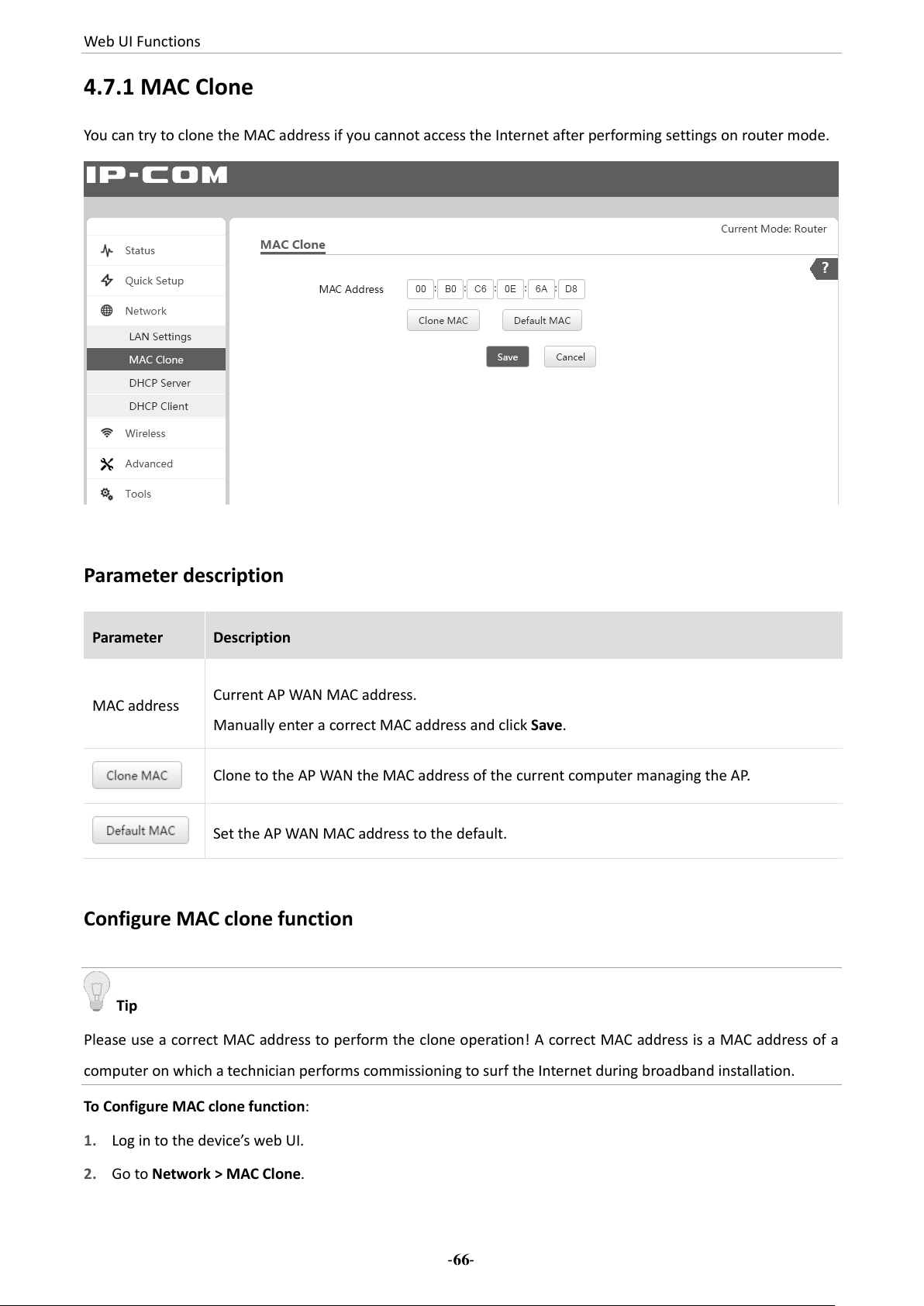

4.7.1 MAC Clone ................................................................................................................................................ 66

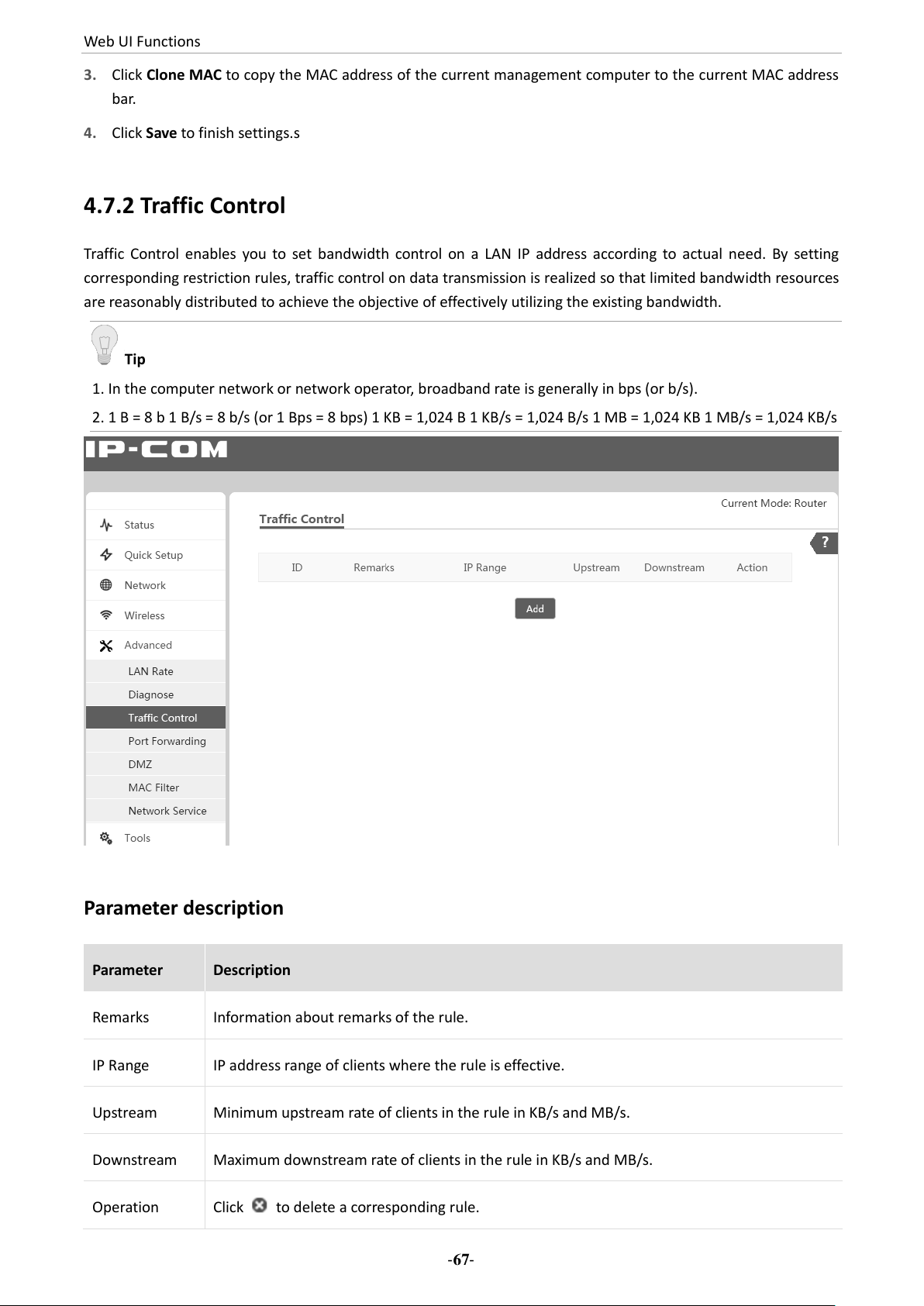

4.7.2 Traffic Control ........................................................................................................................................... 67

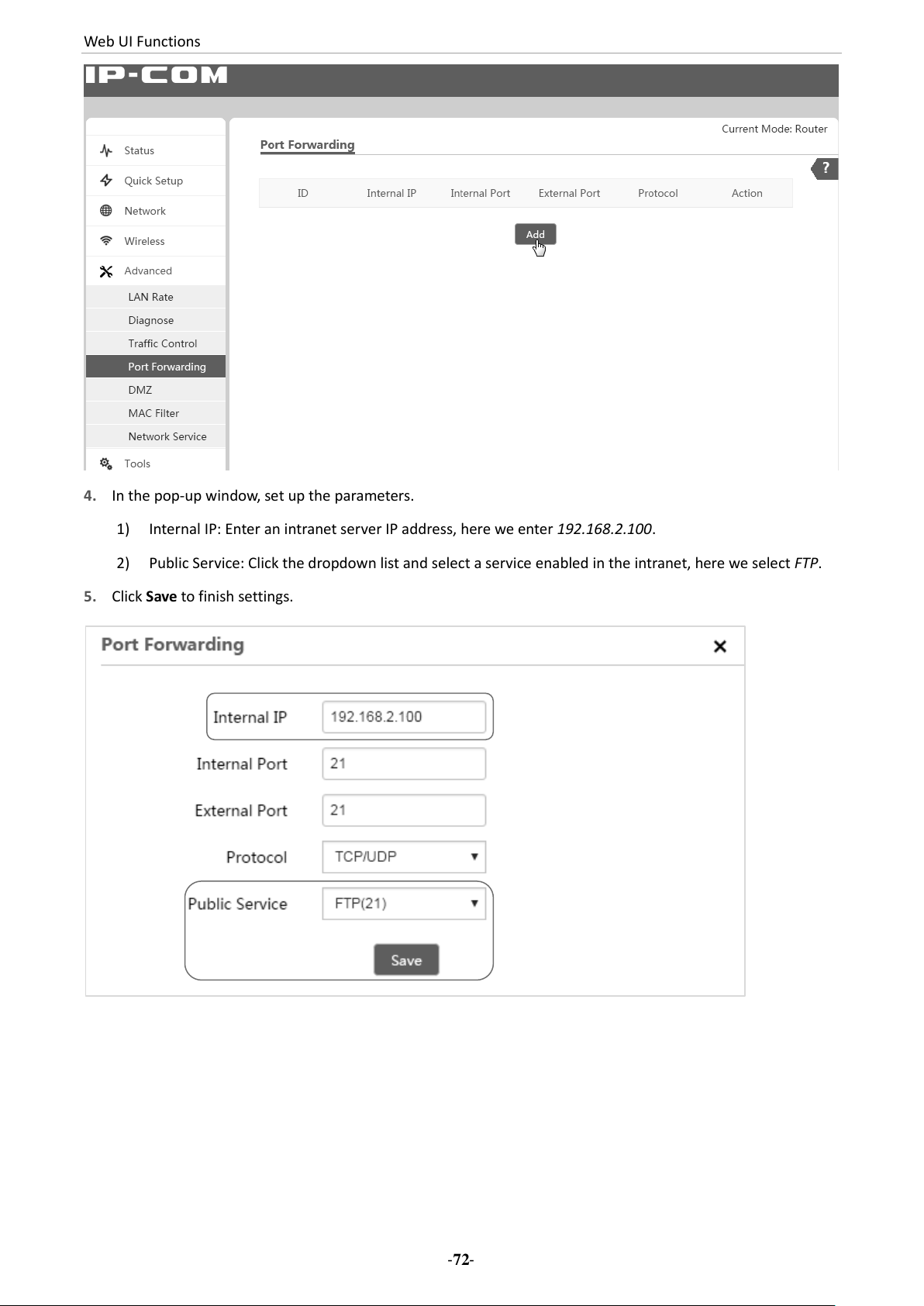

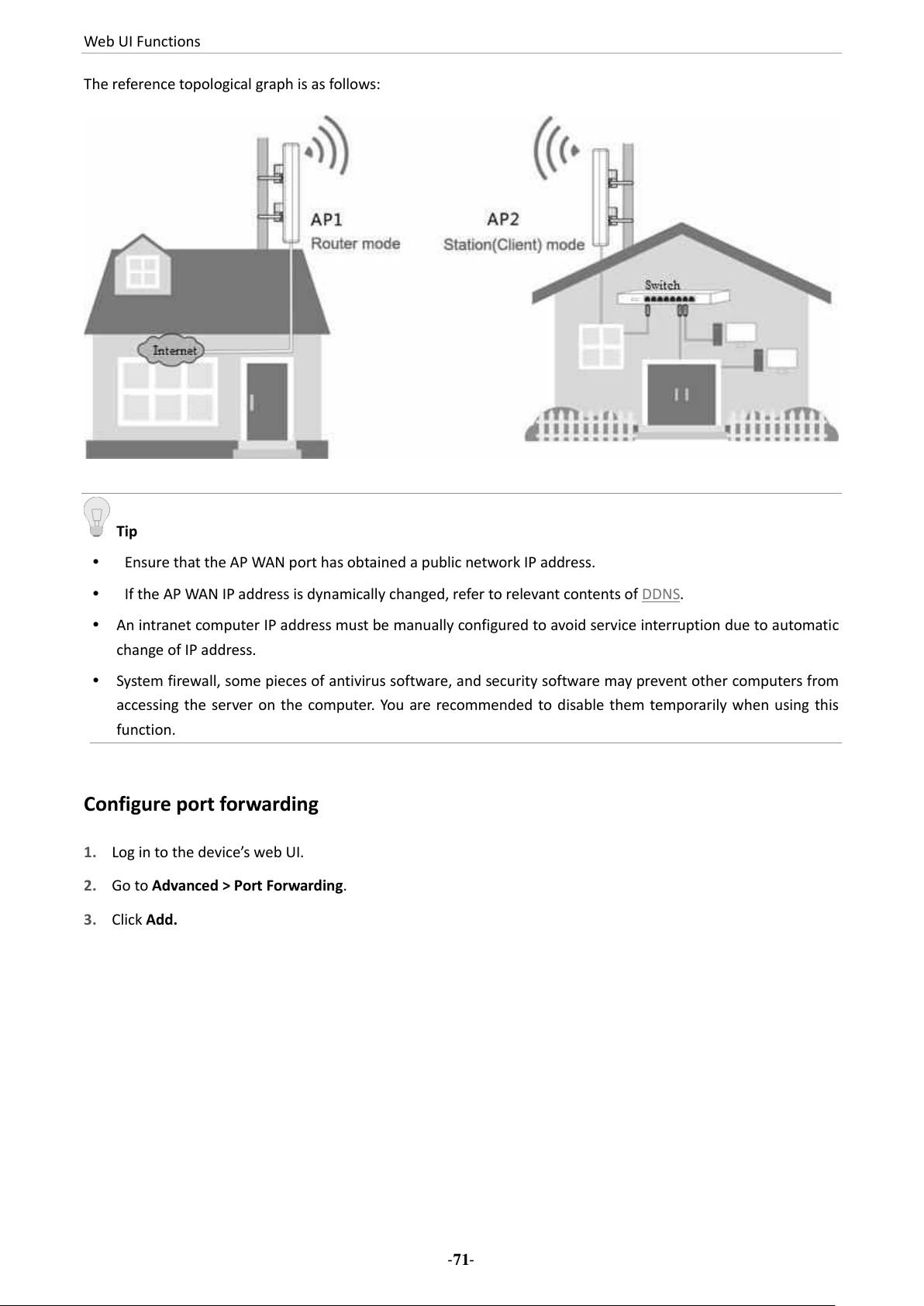

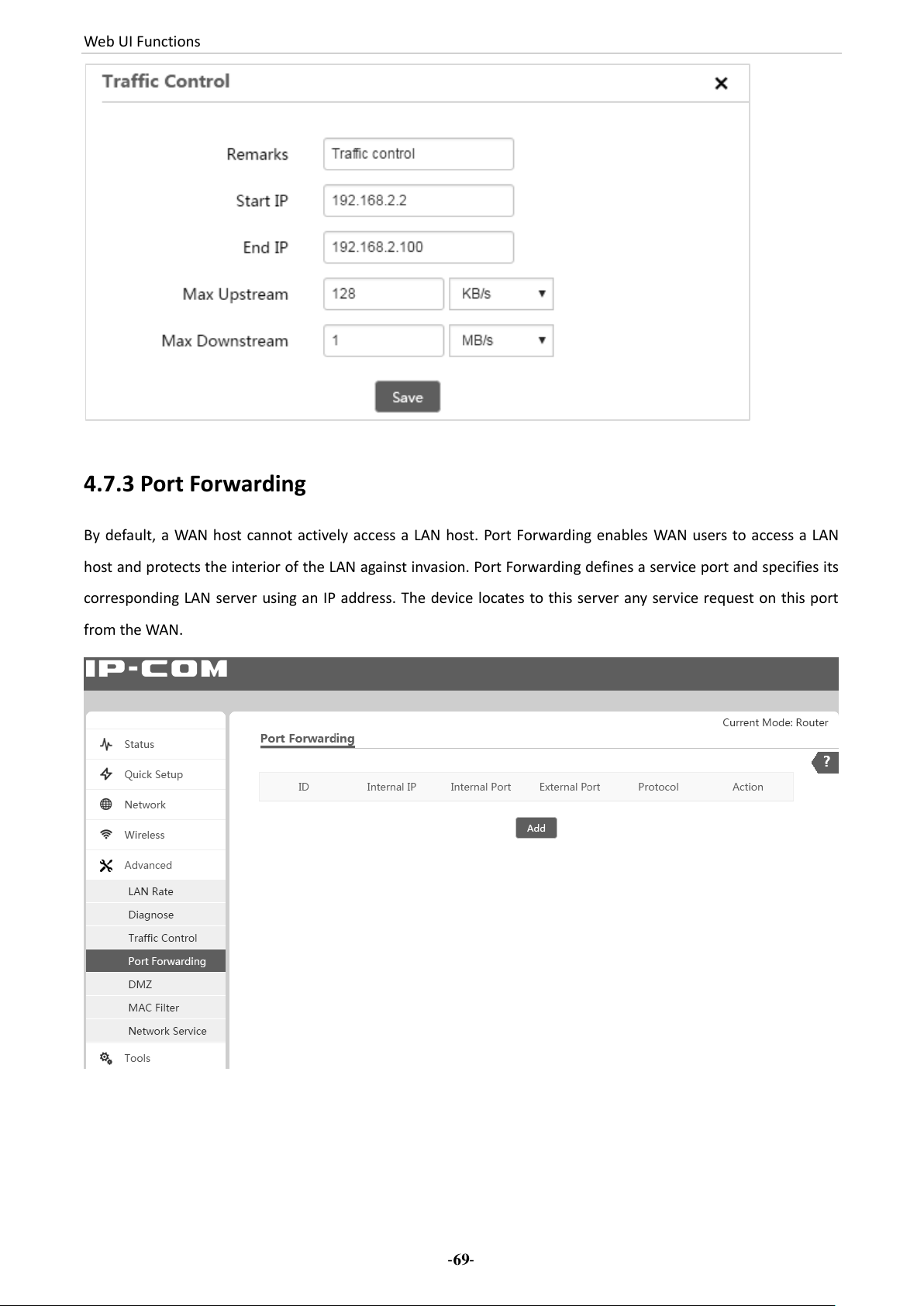

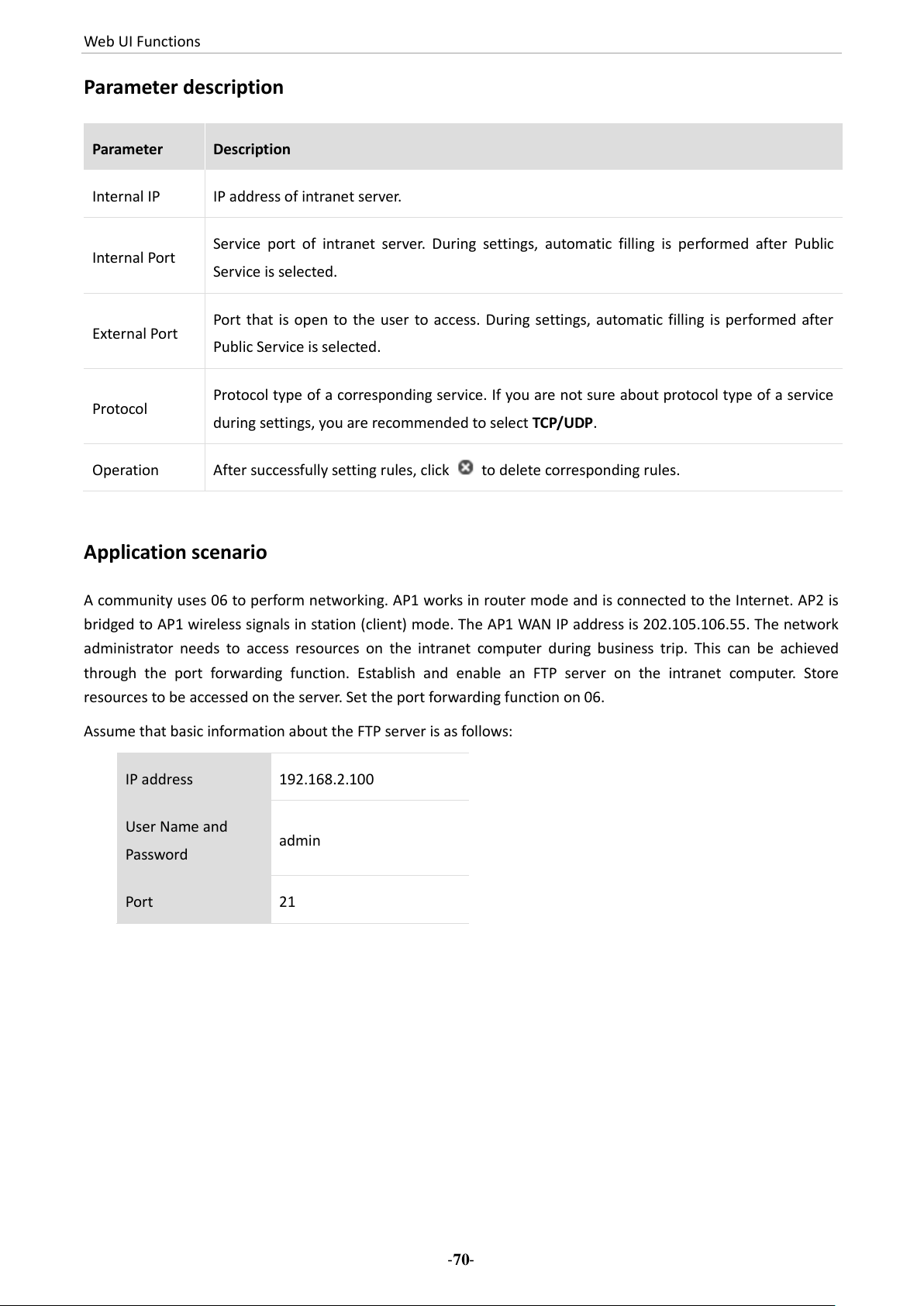

4.7.3 Port Forwarding ........................................................................................................................................ 69

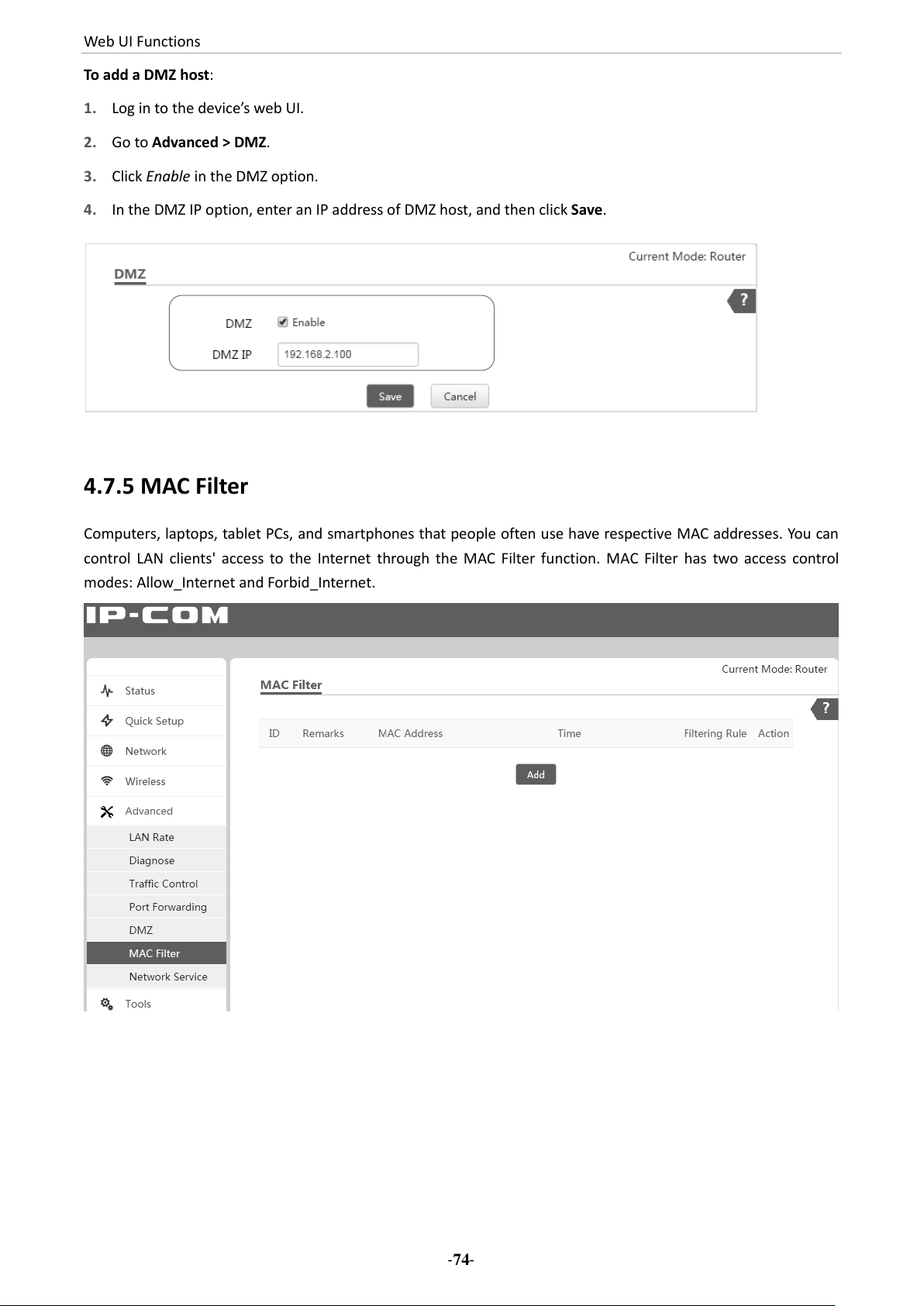

4.7.4 DMZ .......................................................................................................................................................... 73

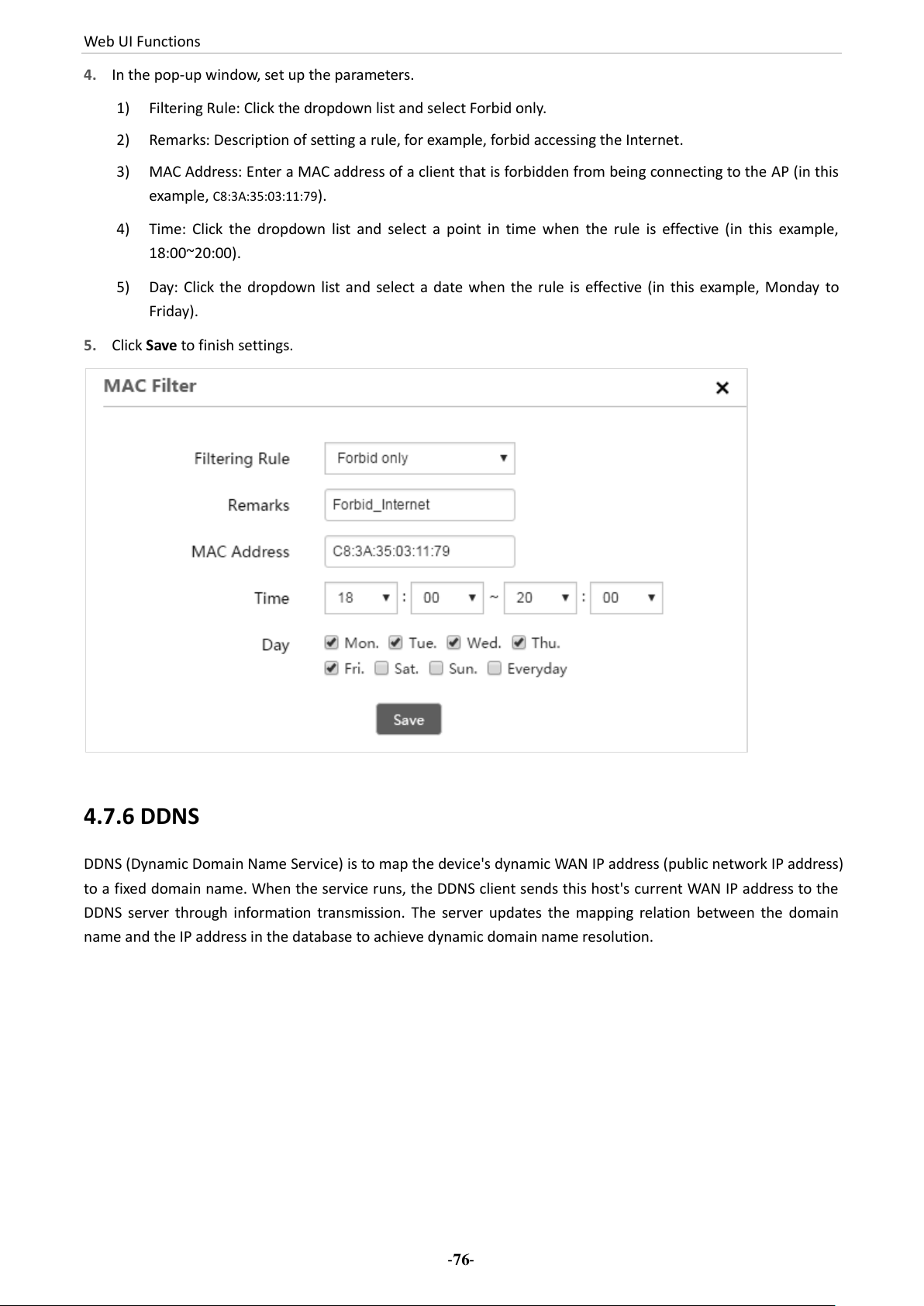

4.7.5 MAC Filter ................................................................................................................................................. 74

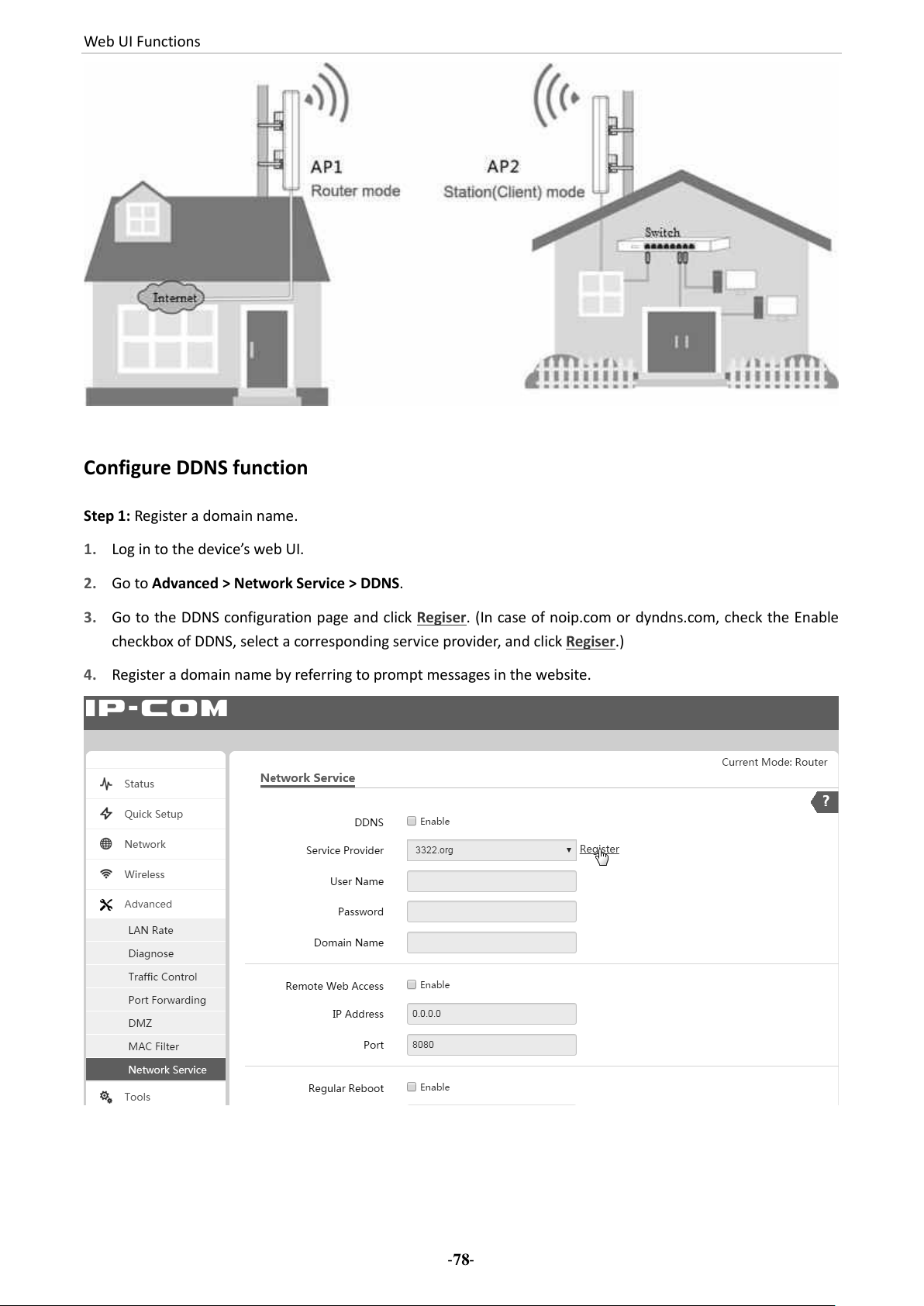

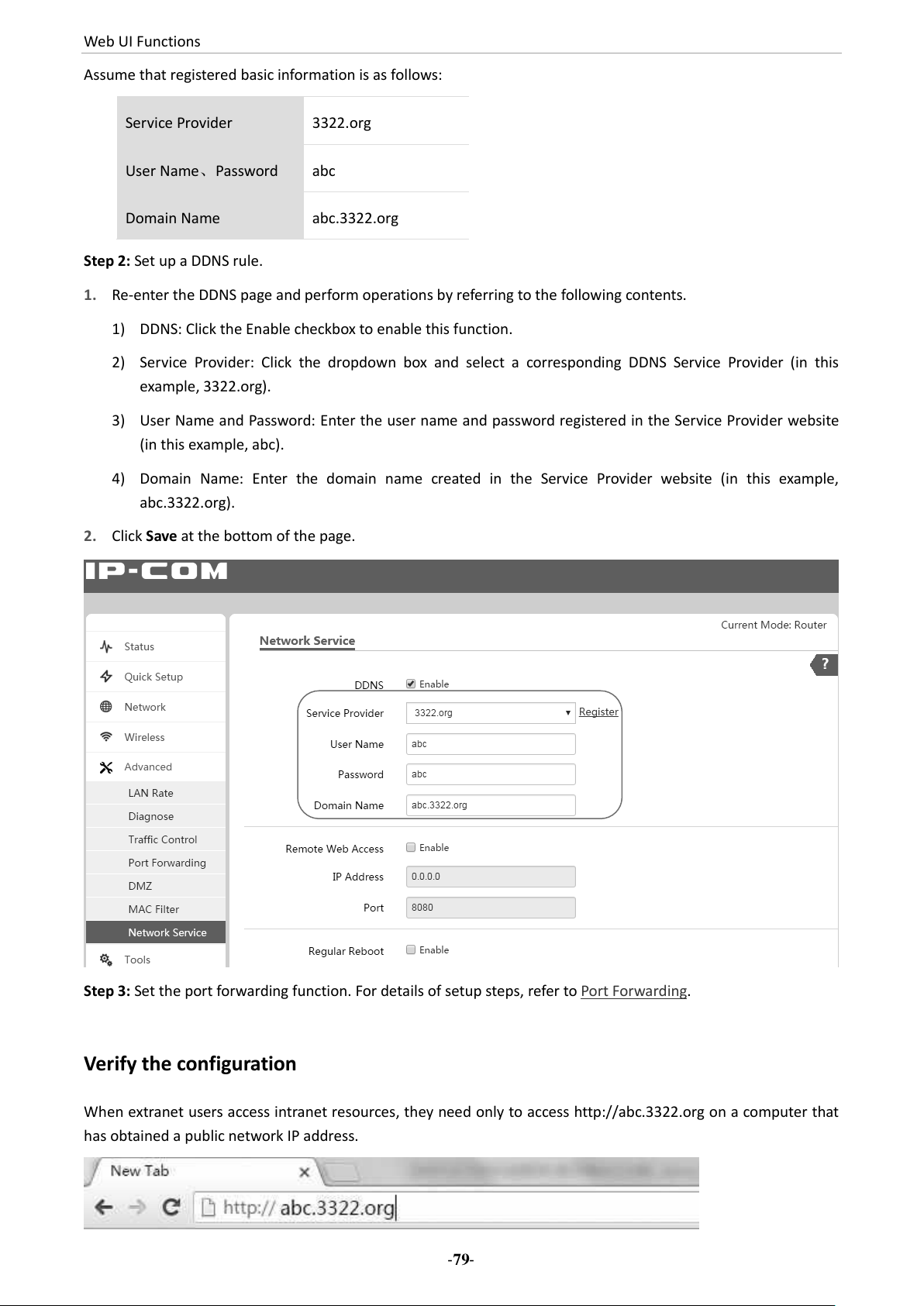

4.7.6 DDNS ......................................................................................................................................................... 76

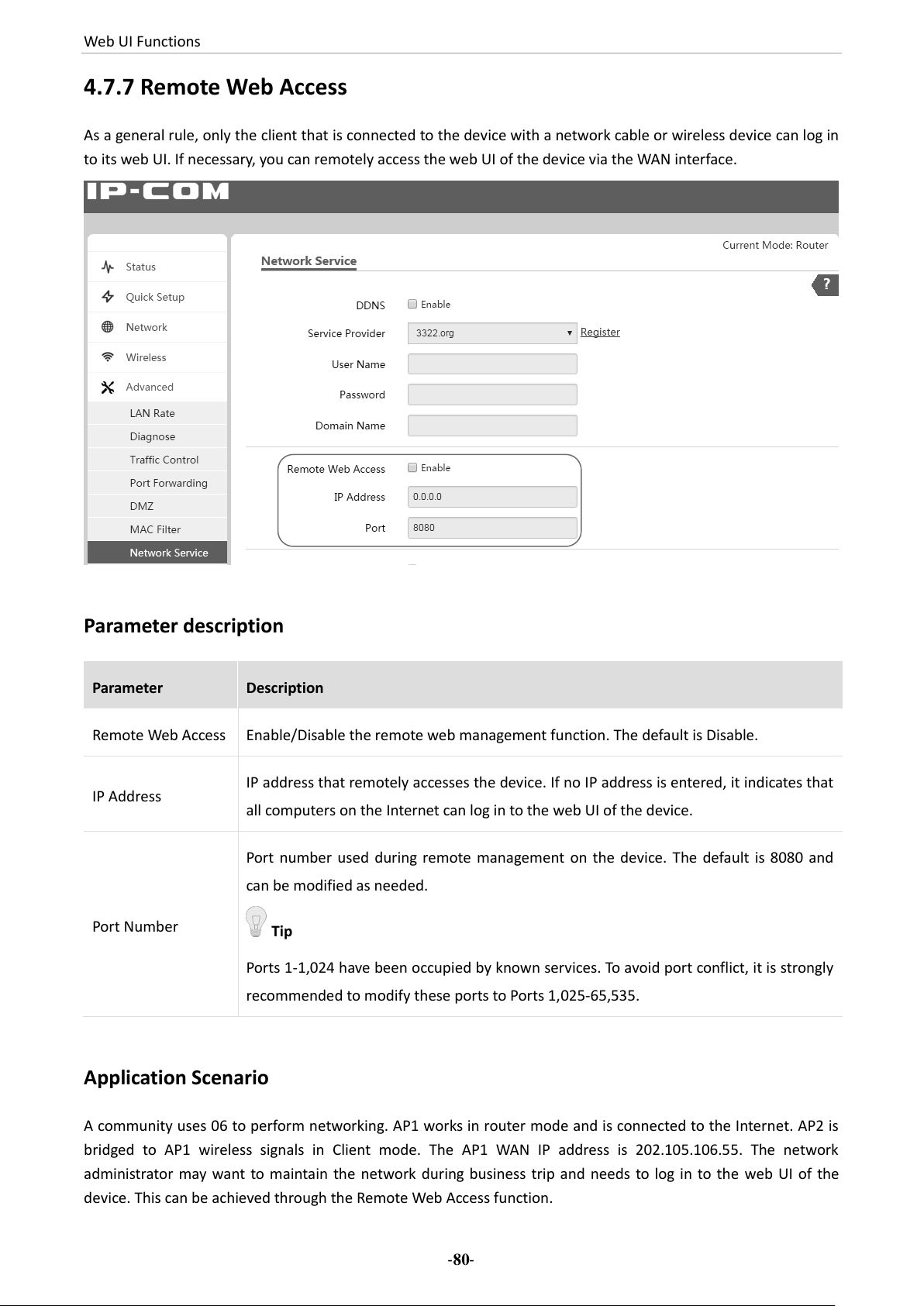

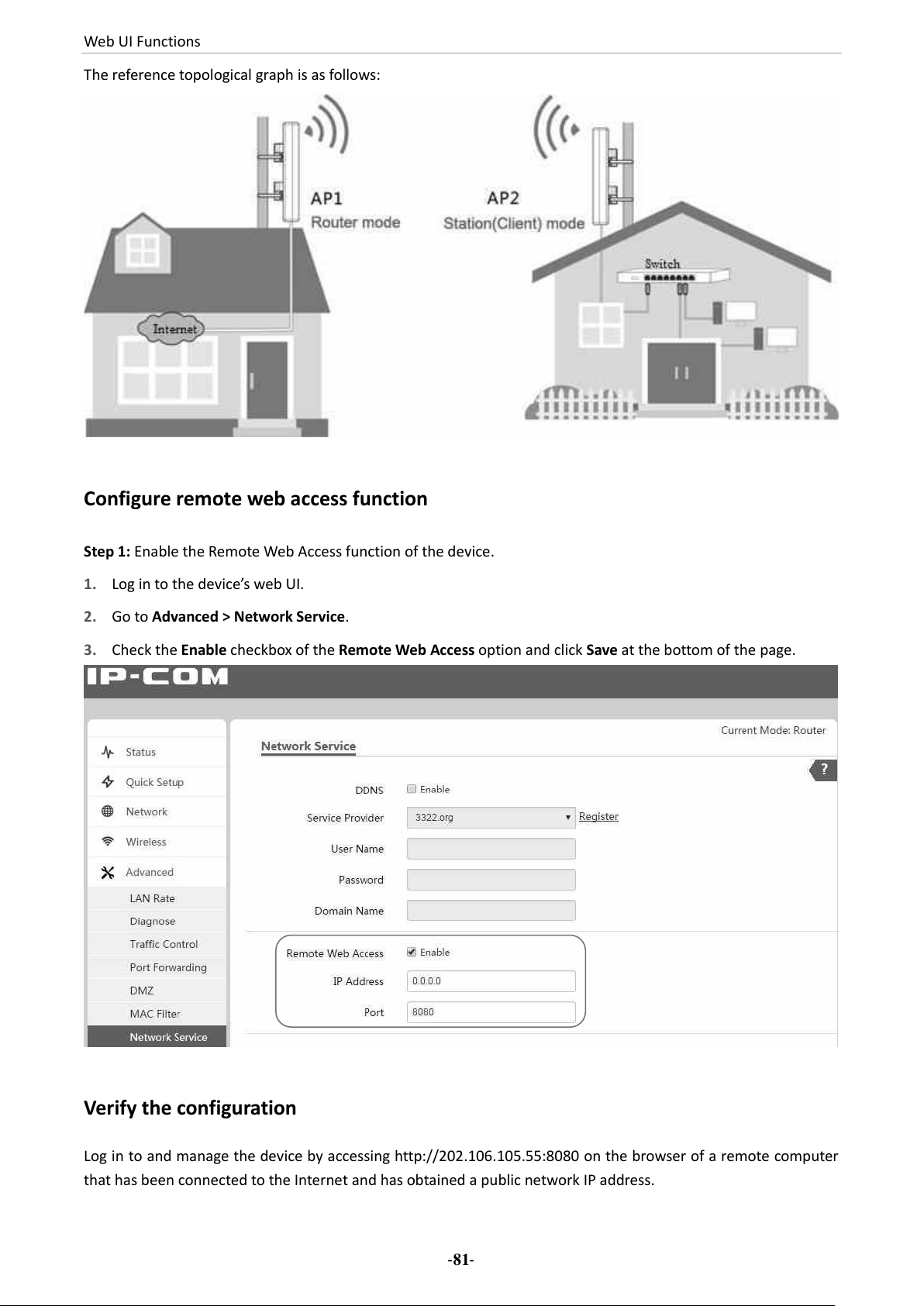

4.7.7 Remote Web Access ................................................................................................................................. 80

Appendix ............................................................................................................... 82

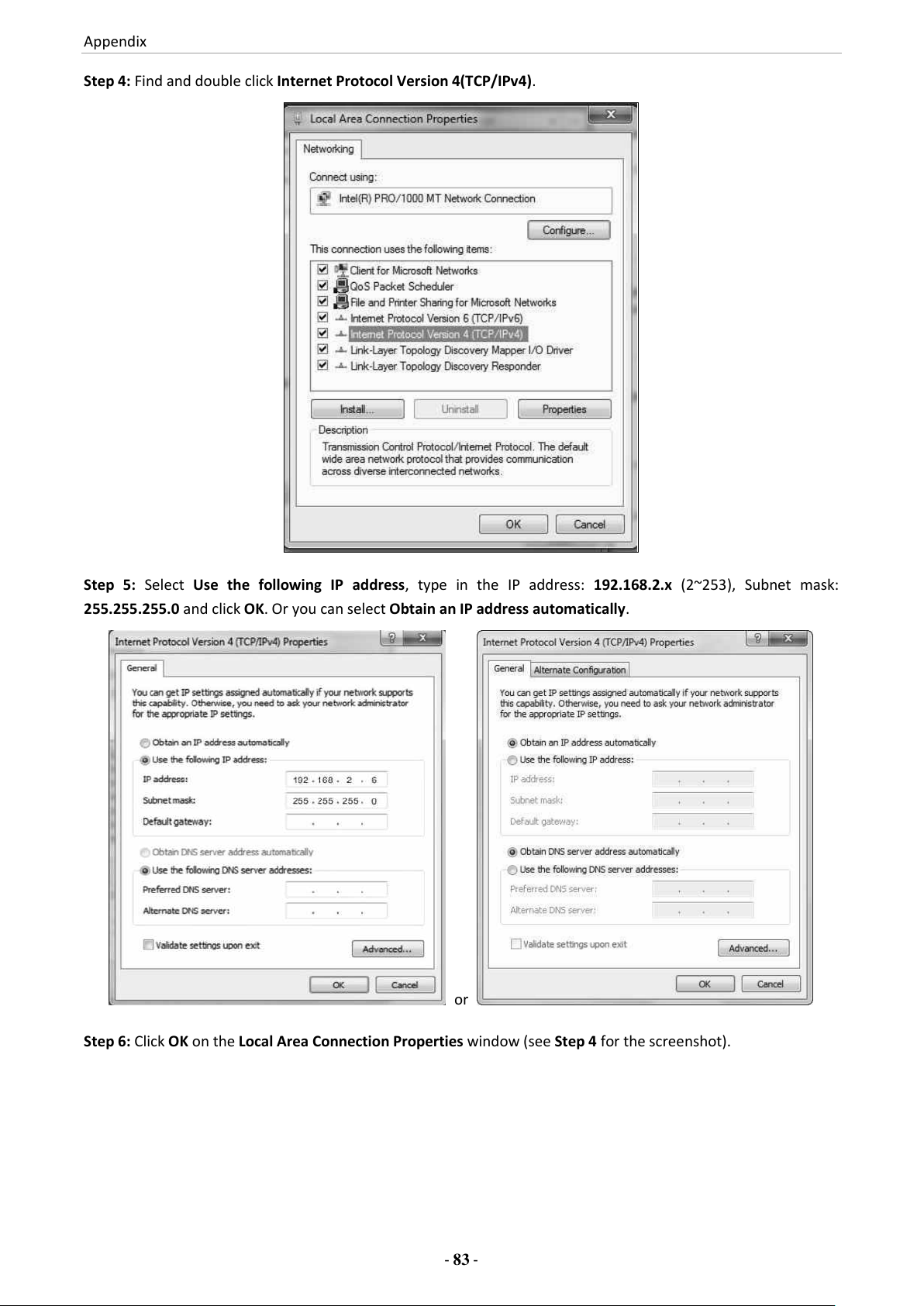

Configure your computer ...................................................................................................................................... 82

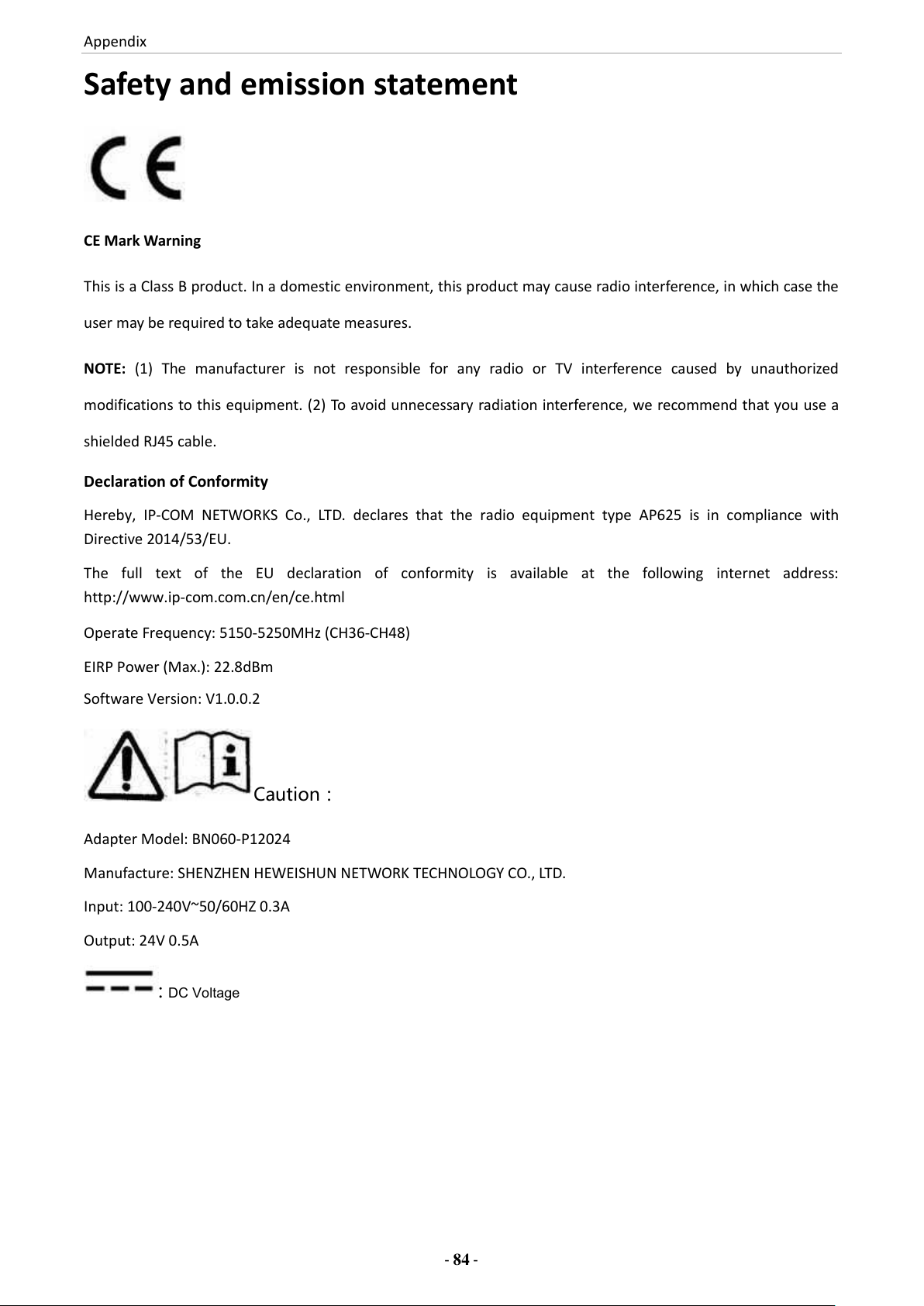

Safety and emission statement .............................................................................................................................. 84

- iv -

Page 6

Get to Know the Device

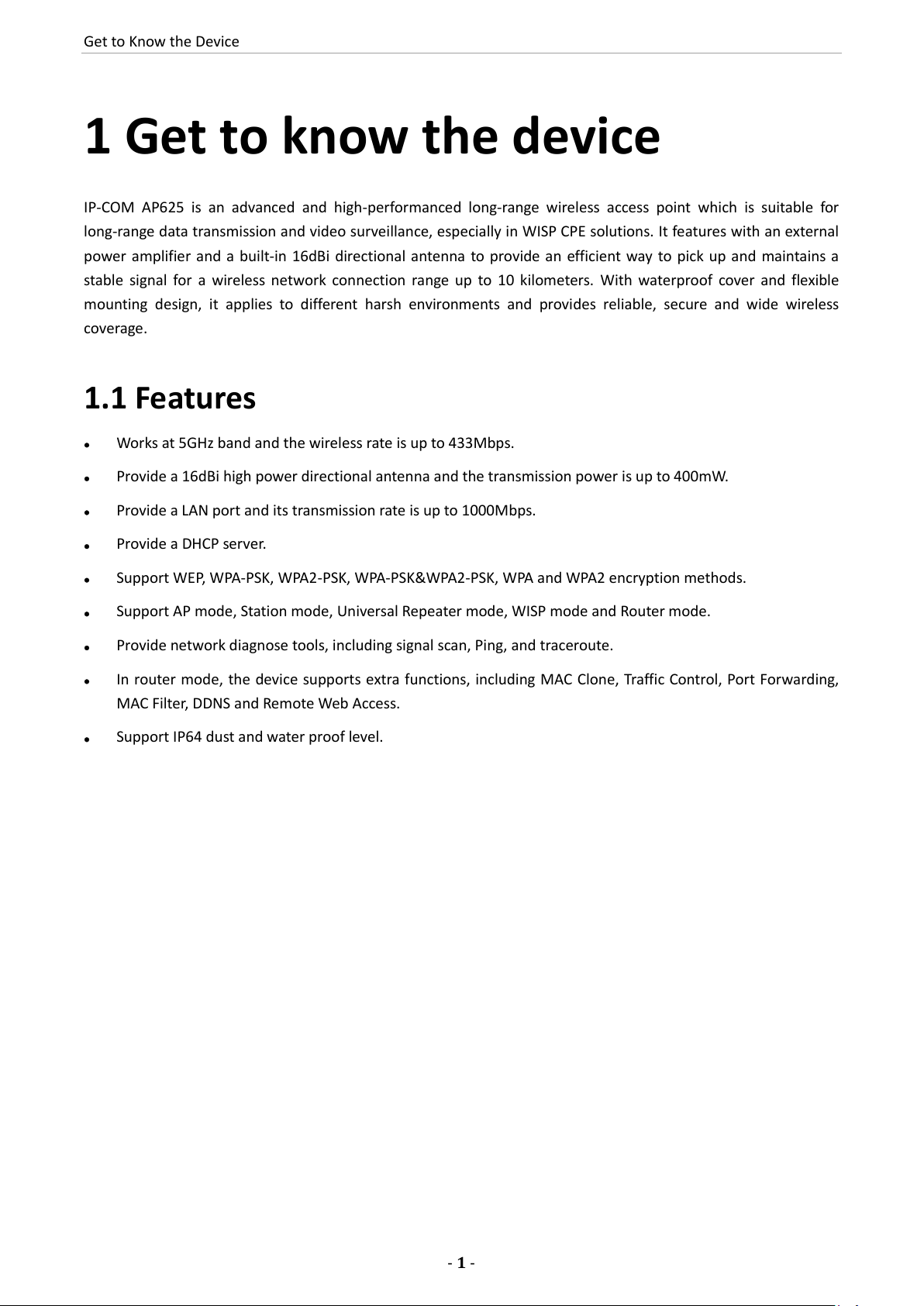

1 Get to know the device

IP-COM AP625 is an advanced and high-performanced long-range wireless access point which is suitable for

long-range data transmission and video surveillance, especially in WISP CPE solutions. It features with an external

power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a

stable signal for a wireless network connection range up to 10 kilometers. With waterproof cover and flexible

mounting design, it applies to different harsh environments and provides reliable, secure and wide wireless

coverage.

1.1 Features

 Works at 5GHz band and the wireless rate is up to 433Mbps.

 Provide a 16dBi high power directional antenna and the transmission power is up to 400mW.

 Provide a LAN port and its transmission rate is up to 1000Mbps.

 Provide a DHCP server.

 Support WEP, WPA-PSK, WPA2-PSK, WPA-PSK&WPA2-PSK, WPA and WPA2 encryption methods.

 Support AP mode, Station mode, Universal Repeater mode, WISP mode and Router mode.

 Provide network diagnose tools, including signal scan, Ping, and traceroute.

 In router mode, the device supports extra functions, including MAC Clone, Traffic Control, Port Forwarding,

MAC Filter, DDNS and Remote Web Access.

 Support IP64 dust and water proof level.

- 1 -

Page 7

Get to Know the Device

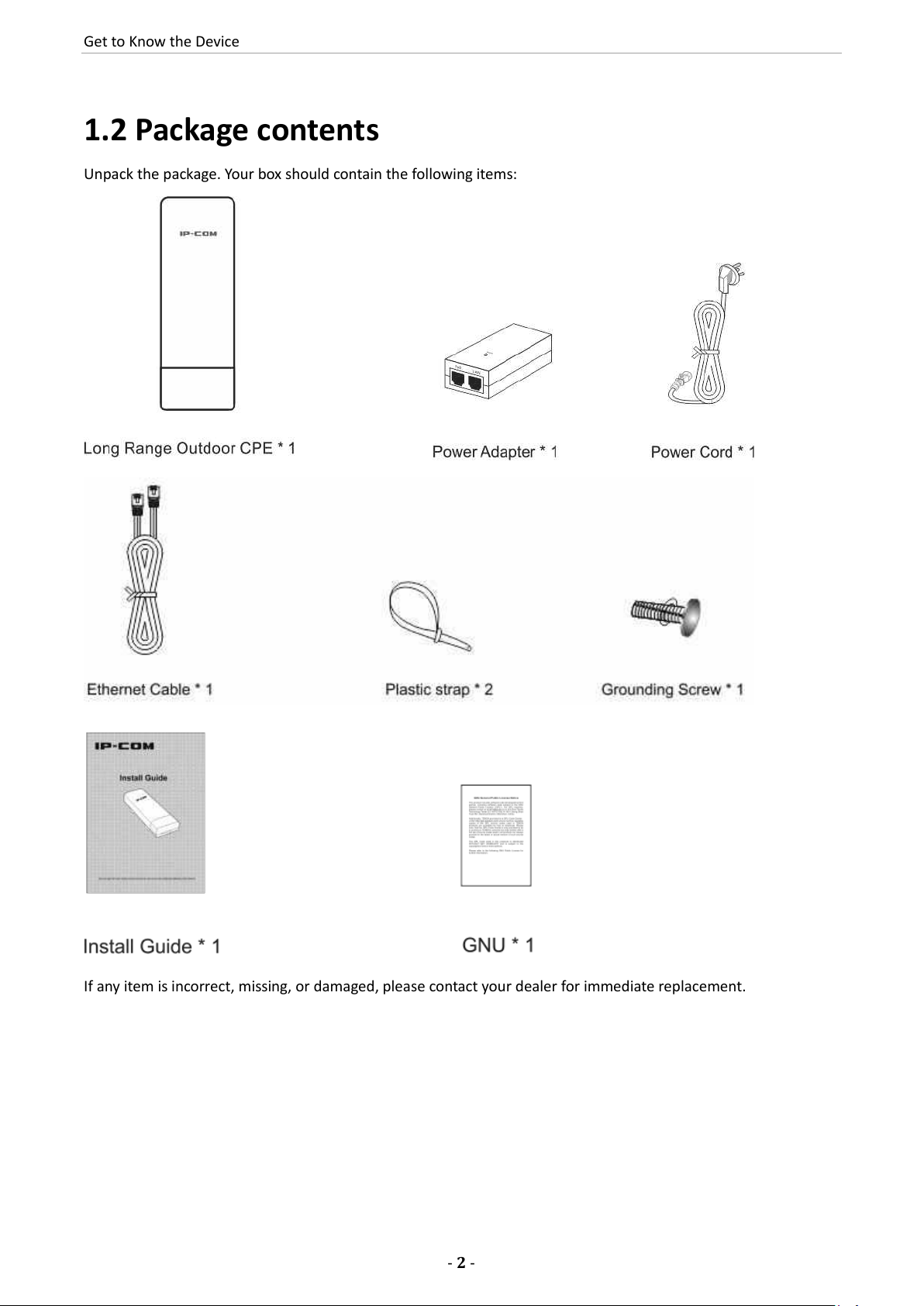

1.2 Package contents

Unpack the package. Your box should contain the following items:

If any item is incorrect, missing, or damaged, please contact your dealer for immediate replacement.

- 2 -

Page 8

Get to Know the Device

Item

Port / Button

Description

①

GND

Used to protect the device from surge and lightning. To achieve that, please

connect the GND port to the grounding bar of a building with a grounding cable and

the included grounding screw.

②

OFF/STA/AP

Used to adjust operation mode of the device.

 OFF: the default position. When it is on OFF position, you can change

operation mode through web UI.

 STA: When it is on STA position, the device only works at station mode and you

can't change the operation mode through web UI.

 AP: When it is on AP position, the device only works at AP mode and you can't

change the operation mode through web UI.

③

Bridge/RST

Used to bridge two devices or reset the device.

 To bridge two devices:

1. Press and hold this button for 3~7 seconds on an AP625 that works in AP

mode. When you release the button, LED1/LED2/LED3 starts blinking.

2. Within two minutes, press and hold this button for 3~7 seconds on

another AP625 that works in Station mode. When you release the button,

LED1/LED2/LED3 starts blinking and the two devices start to bridge.

LED1/LED2/LED3 of the two devices will light off and when they light and keep

solid, it indicates that the two deivces bridge successfully.

 To reset the device:

Press and hold this button for over 15 seconds to restore the device to factory

default.

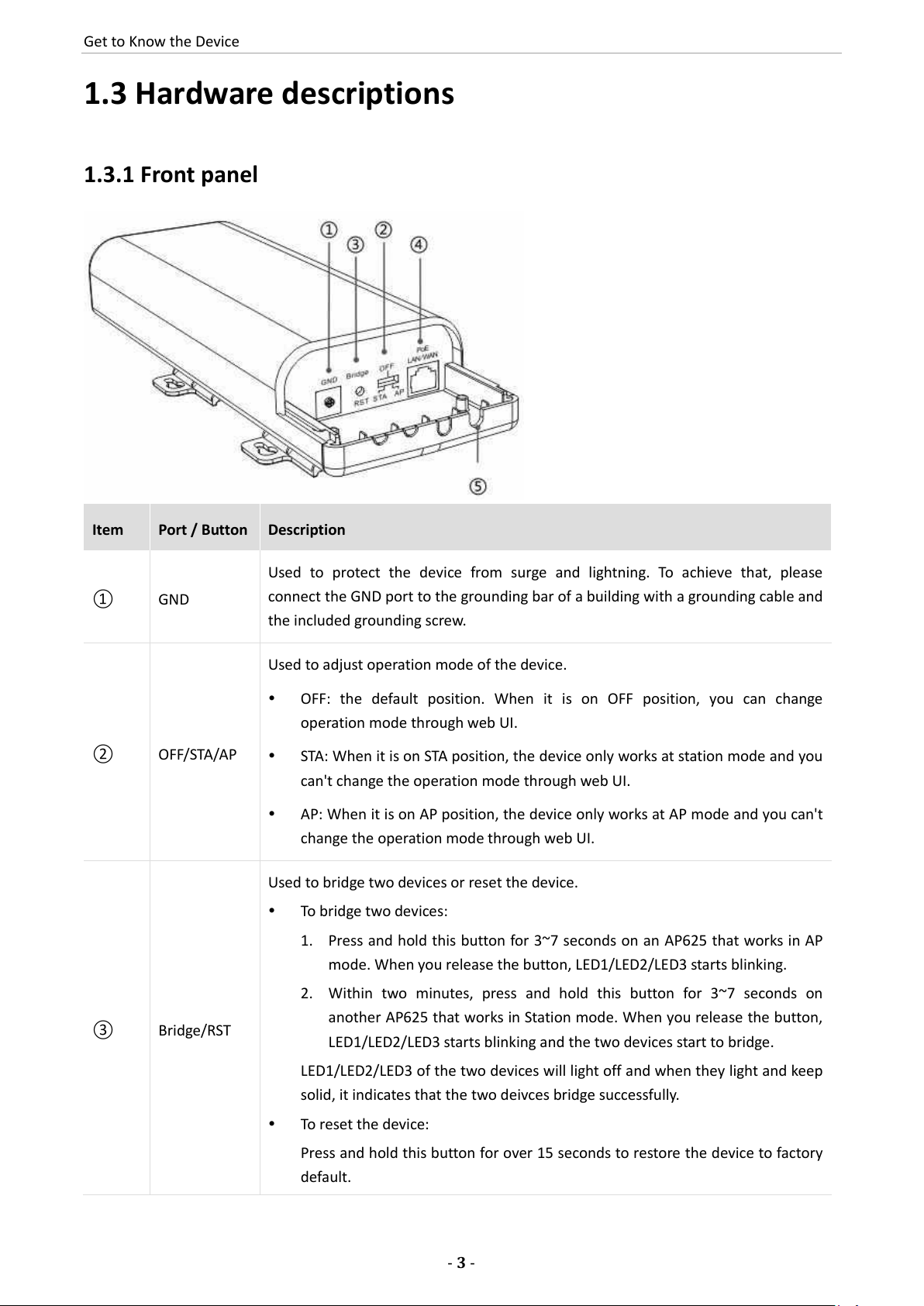

1.3 Hardware descriptions

1.3.1 Front panel

- 3 -

Page 9

Get to Know the Device

Item

Port / Button

Description

④

PoE

LAN/WAN

 This port can connect to a PoE power adapter to provide power for the device

and can transmit data.

 It works interchangeably as a WAN port in router mode and a LAN port in

other modes.

⑤

Ethernet slot

It is used for an Ethernet cable to get through so that the device cover can be firmly

fixed.

LED

Status

Description

LAN/WAN

(PoE LAN/WAN)

Off

The device is powered off.

Solid

The device is powered on and is not transmitting data.

Blinking

The device is powered on and is transmitting data.

LED1, LED2,LED3

(Signal Threshhold LED)

Off

The device does not bridge to another device.

Blinking

The bridging between two devices is in progress.

Solid

When two devices bridge successfully, LED1/LED2/LED3 keeps solid.

The three LEDs indicate the signal strength of the other bridged

device. By default, the relations between the signal strength and LEDs are shown below, and you can modify each LED’s threshold on the

web UI.

 -90 dBm < signal strength < -80dBm: LED1 turns green.

 -80 dBm < signal strength < -70dBm: LED1 and LED2 turn green.

 -70 dBm < signal strength: All the three LEDs turn green.

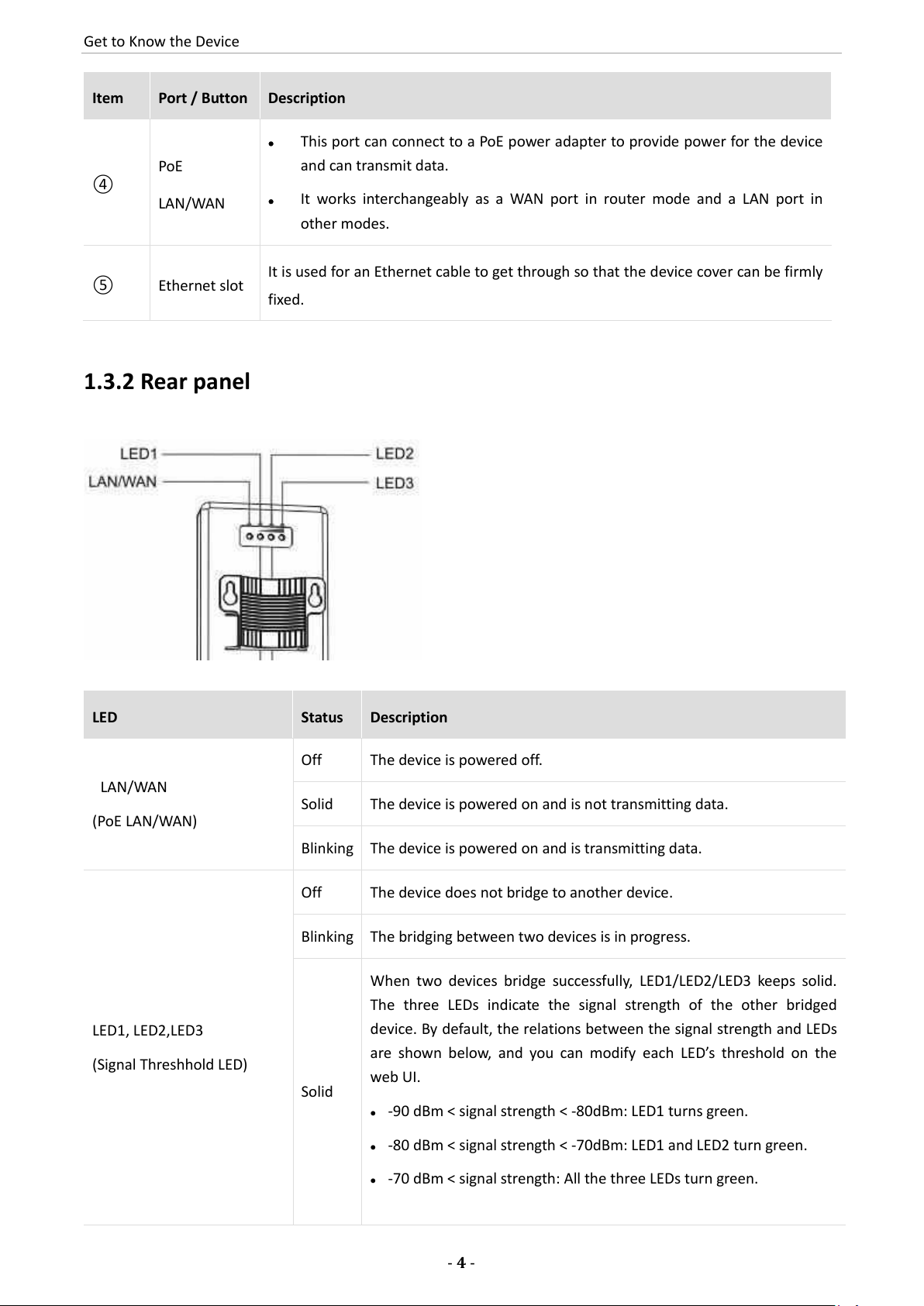

1.3.2 Rear panel

- 4 -

Page 10

Get to Know the Device

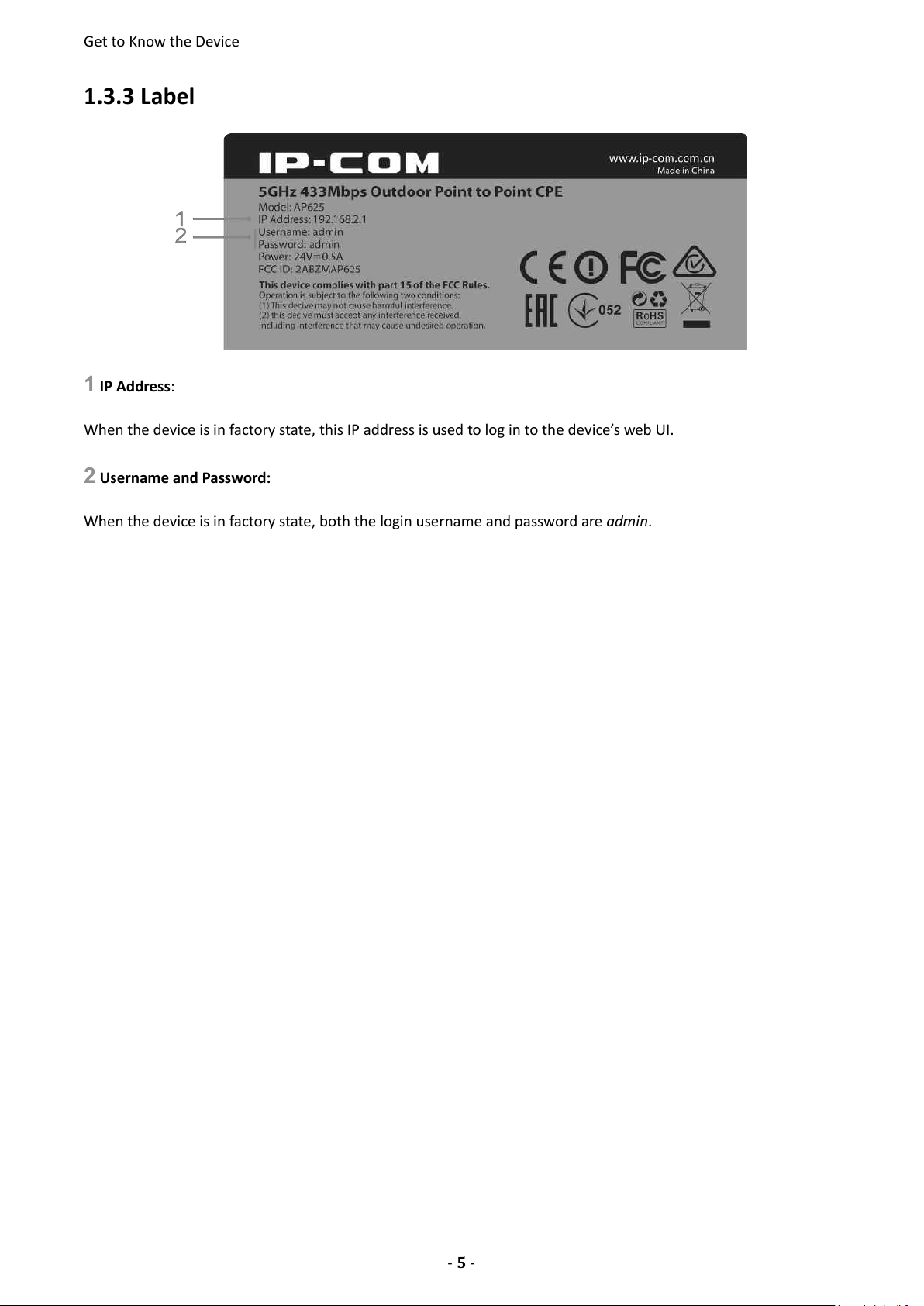

1.3.3 Label

1 IP Address:

When the device is in factory state, this IP address is used to log in to the device’s web UI.

2 Username and Password:

When the device is in factory state, both the login username and password are admin.

- 5 -

Page 11

Device Installation

Item

Requirement

Temperature

-30℃ ~ 55℃

Humidity

10%~90%RH (non-condensing)

LED

Status

Description

LAN/WAN

(PoE LAN/WAN)

solid

The device is not transmitting data.

blinking

The device is transmitting data.

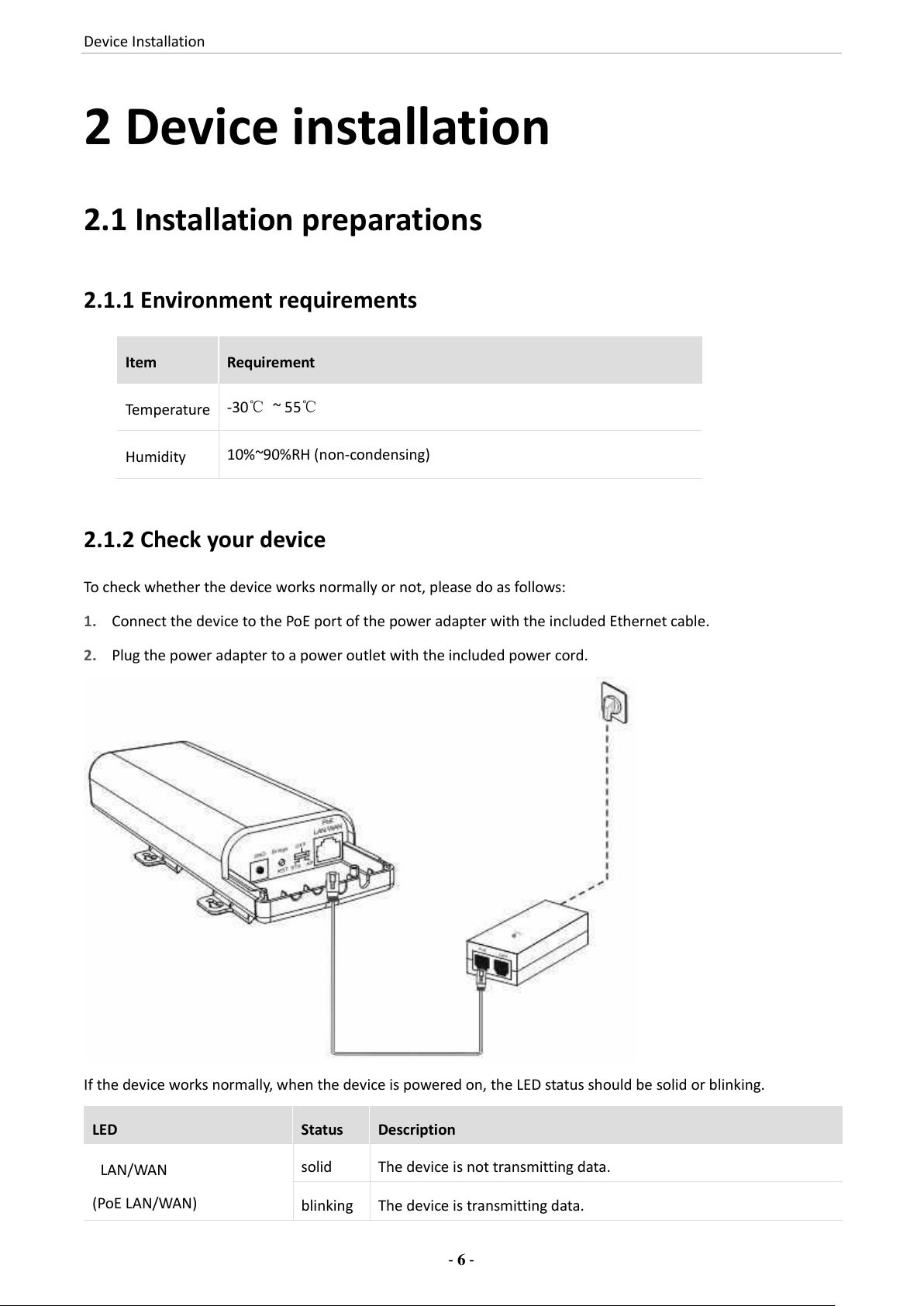

2 Device installation

2.1 Installation preparations

2.1.1 Environment requirements

2.1.2 Check your device

To check whether the device works normally or not, please do as follows:

1. Connect the device to the PoE port of the power adapter with the included Ethernet cable.

2. Plug the power adapter to a power outlet with the included power cord.

If the device works normally, when the device is powered on, the LED status should be solid or blinking.

- 6 -

Page 12

Device Installation

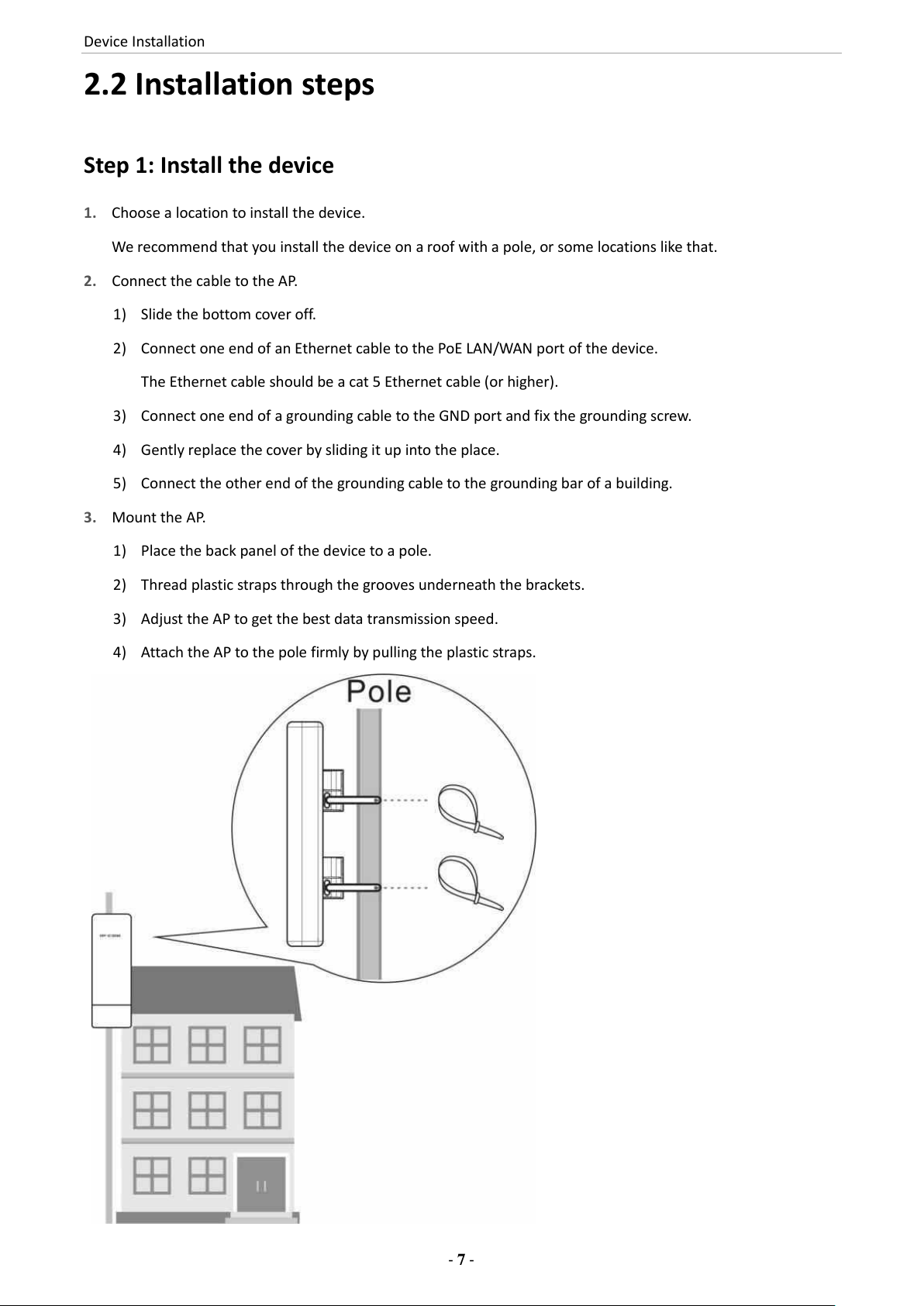

2.2 Installation steps

Step 1: Install the device

1. Choose a location to install the device.

We recommend that you install the device on a roof with a pole, or some locations like that.

2. Connect the cable to the AP.

1) Slide the bottom cover off.

2) Connect one end of an Ethernet cable to the PoE LAN/WAN port of the device.

The Ethernet cable should be a cat 5 Ethernet cable (or higher).

3) Connect one end of a grounding cable to the GND port and fix the grounding screw.

4) Gently replace the cover by sliding it up into the place.

5) Connect the other end of the grounding cable to the grounding bar of a building.

3. Mount the AP.

1) Place the back panel of the device to a pole.

2) Thread plastic straps through the grooves underneath the brackets.

3) Adjust the AP to get the best data transmission speed.

4) Attach the AP to the pole firmly by pulling the plastic straps.

- 7 -

Page 13

Device Installation

Step 2: Connect the device to a network

1. Connect the other end of the Ethernet cable to the PoE port of the power adapter.

2. Connect a computer, a switch or a router to the LAN port of the power adapter using an Ethernet cable.

3. Connect the power adapter to a power outlet using the power cord.

- 8 -

Page 14

Web UI login

Item

Default Setting

IP Address

192.168.2.1

Username and Password

admin

3 Web UI login

3.1 Login

When using the device for the first time, you can log in to its web UI via a browser with default login information.

The default login information includes:

To log in to this device:

(Assume that the AP is in factory default state and ensure that your PC is connected to the device.)

1. Set your PC’s IP address to 192.168.2.X (2~254).

>> Method 1: Set your PC to Obtain an IP address automatically.

>> Method 2: Manually set your PC to 192.168.2.X (2~254), with a subnet mask of 255.255.255.0. (If the

switch and AP are in the same IP segment, make sure that the switch, AP and PC have different IP addresses).

For detailed steps, see Appendix

Tip

The AP’s DHCP server is enabled by default. Once you finished settings on Quick Setup page, the DHCP server

will be disabled automatically.

Configure your computer.

- 9 -

Page 15

Web UI login

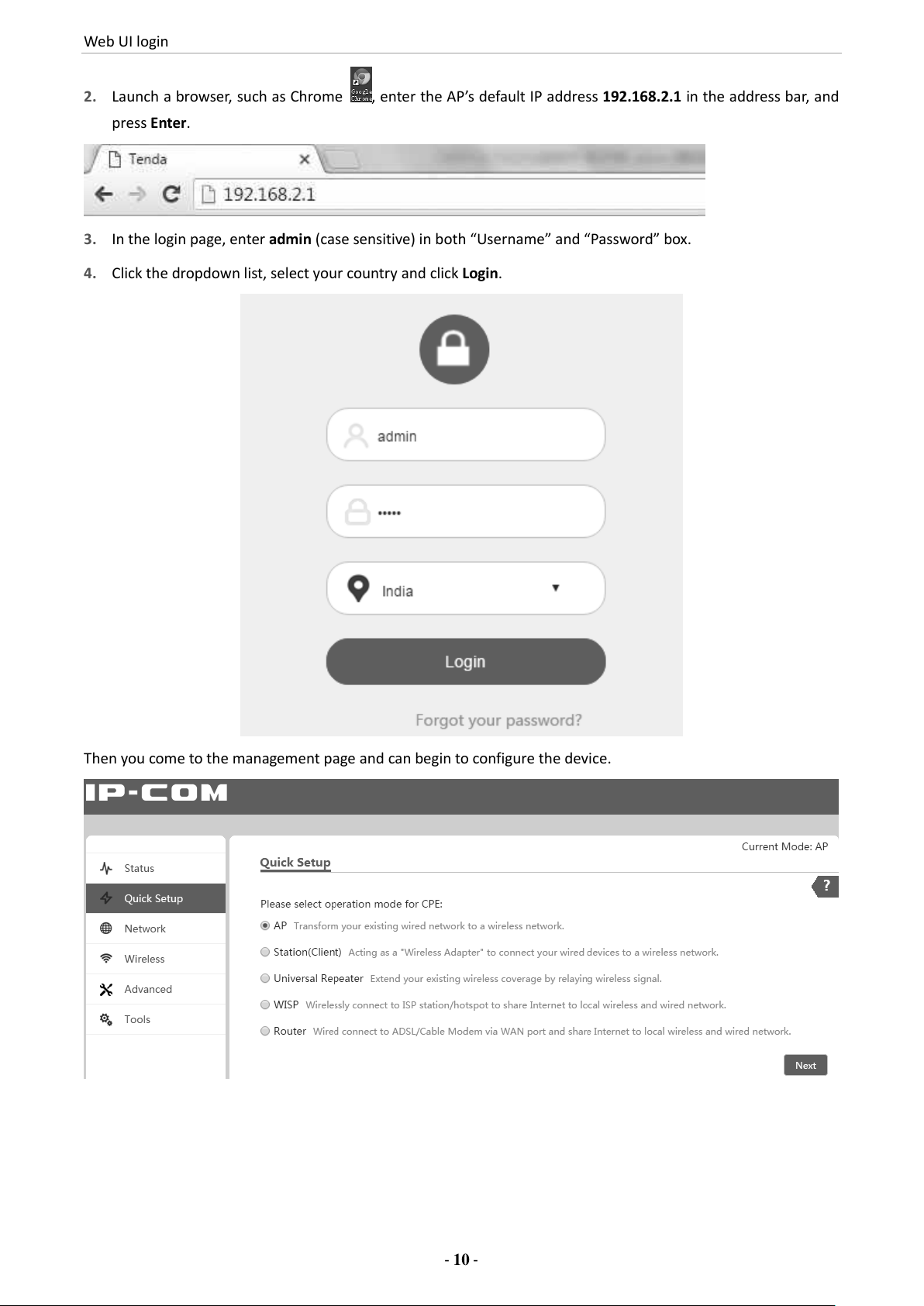

2. Launch a browser, such as Chrome , enter the AP’s default IP address 192.168.2.1 in the address bar, and

press Enter.

3. In the login page, enter admin (case sensitive) in both “Username” and “Password” box.

4. Click the dropdown list, select your country and click Login.

Then you come to the management page and can begin to configure the device.

- 10 -

Page 16

Web UI login

Item

Name

Description

❶

Primary Navigation

bar

The navigation bar organizes the device’s menu of all functions in the form of a

navigation tree. You can choose the function menu from the navigation bar with

selection result shown in the configuration area.

❷

Secondary

Navigation bar

❸

Configuration area

The area is used to configure and view settings.

Item

Description

Click the button to view the help info if you meet any problems during the setup.

Click the button to apply your settings.

Click the button to clear the settings you are editing.

3.2 Layout of web UI

This web UI is divided into three parts: primary navigation bar, secondary navigation bar and configuration area,

described as follows.

The following table shows the commonly used buttons of the web UI.

- 11 -

Page 17

Web UI Functions

Parameter

Description

System Info

Running time: The duration of time that the device has been running from last reboot. It will be

reset when the device reboots.

System Time: The device’s current system time. To ensure that time-related functions work

properly, go to Tools > Date & Time to set up an appropriate system time.

LAN/WAN MAC: MAC address of PoE LAN/WAN port. In router mode, it is WAN MAC address

and in other modes, it is LAN MAC address. If you set up MAC Clone function in router mode,

you can check on this page whether it is successful.

WLAN MAC: MAC address of the wireless interface of the device.

LAN/WAN: Indicates the connection status of PoE LAN/WAN port.This can indicate that a cable

is not plugged into a device, there is no active Ethernet connection, or the current rate of PoE

4 Web UI functions

4.1 Status

This page displays system info, wireless info, and related statistics information of the device. Click Status to enter

the setup page, and pull the scroll bar to view more information.

Parameter Description (part of): (You can also click on the upper right page to get help.)

-12-

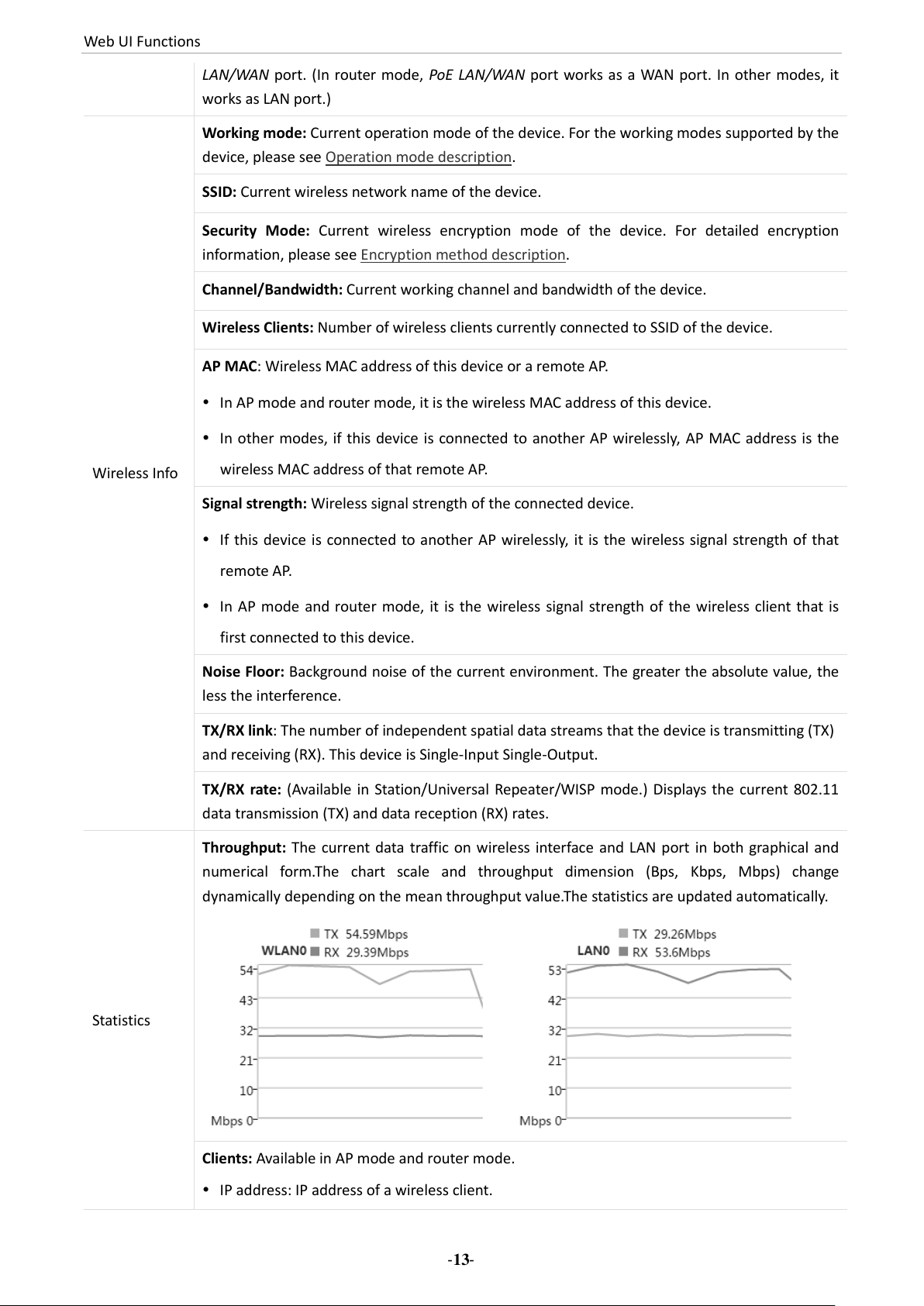

Page 18

Web UI Functions

LAN/WAN port. (In router mode, PoE LAN/WAN port works as a WAN port. In other modes, it

works as LAN port.)

Wireless Info

Working mode: Current operation mode of the device. For the working modes supported by the

device, please see

Operation mode description.

SSID: Current wireless network name of the device.

Security Mode: Current wireless encryption mode of the device. For detailed encryption

information, please see Encryption method description.

Channel/Bandwidth: Current working channel and bandwidth of the device.

Wireless Clients: Number of wireless clients currently connected to SSID of the device.

AP MAC: Wireless MAC address of this device or a remote AP.

 In AP mode and router mode, it is the wireless MAC address of this device.

 In other modes, if this device is connected to another AP wirelessly, AP MAC address is the

wireless MAC address of that remote AP.

Signal strength: Wireless signal strength of the connected device.

 If this device is connected to another AP wirelessly, it is the wireless signal strength of that

remote AP.

 In AP mode and router mode, it is the wireless signal strength of the wireless client that is

first connected to this device.

Noise Floor: Background noise of the current environment. The greater the absolute value, the

less the interference.

TX/RX link: The number of independent spatial data streams that the device is transmitting (TX)

and receiving (RX). This device is Single-Input Single-Output.

TX/RX rate: (Available in Station/Universal Repeater/WISP mode.) Displays the current 802.11

data transmission (TX) and data reception (RX) rates.

Statistics

Throughput: The current data traffic on wireless interface and LAN port in both graphical and

numerical form.The chart scale and throughput dimension (Bps, Kbps, Mbps) change

dynamically depending on the mean throughput value.The statistics are updated automatically.

Clients: Available in AP mode and router mode.

 IP address: IP address of a wireless client.

-13-

Page 19

Web UI Functions

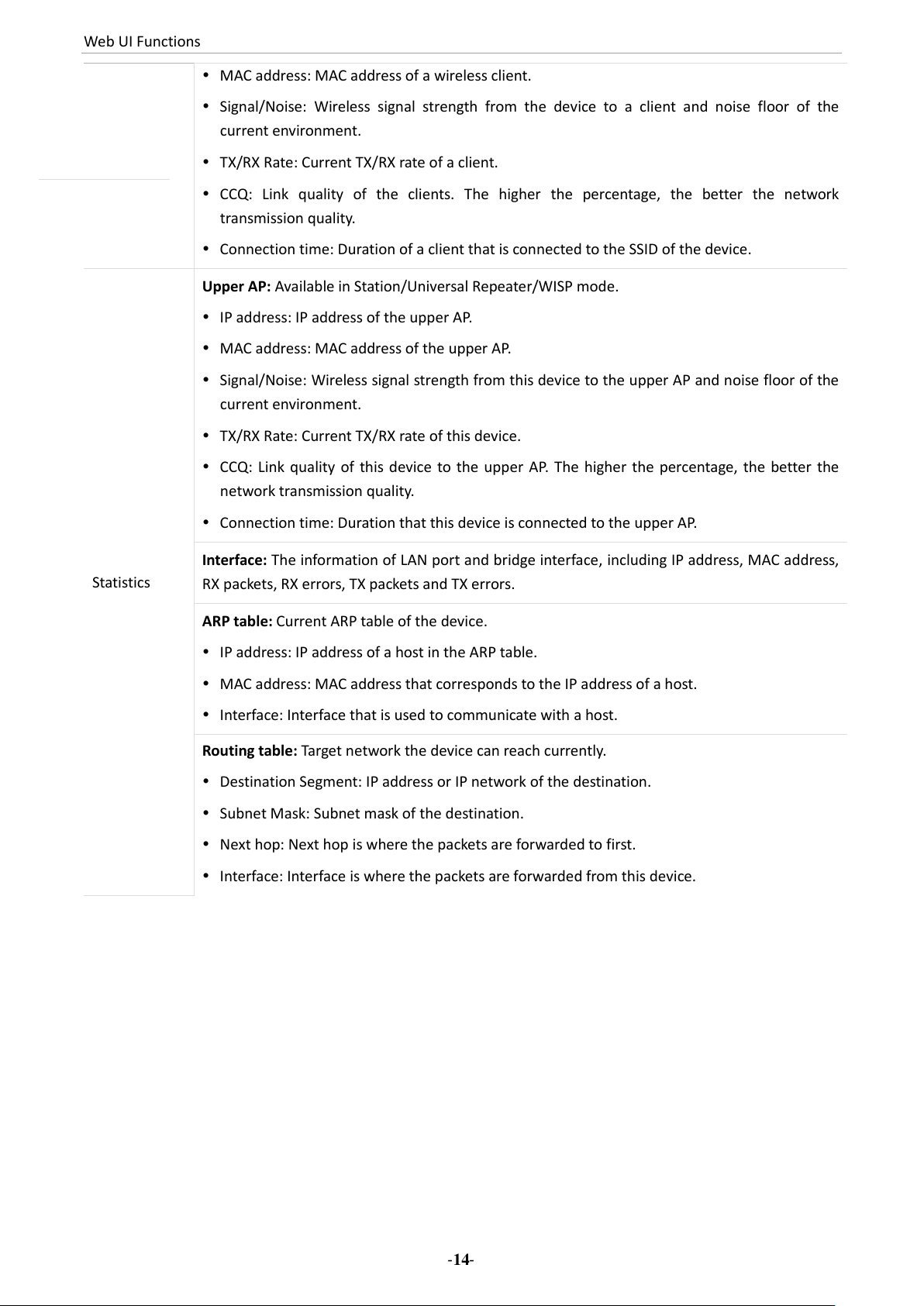

 MAC address: MAC address of a wireless client.

 Signal/Noise: Wireless signal strength from the device to a client and noise floor of the

current environment.

 TX/RX Rate: Current TX/RX rate of a client.

 CCQ: Link quality of the clients. The higher the percentage, the better the network

transmission quality.

 Connection time: Duration of a client that is connected to the SSID of the device.

Statistics

Upper AP: Available in Station/Universal Repeater/WISP mode.

 IP address: IP address of the upper AP.

 MAC address: MAC address of the upper AP.

 Signal/Noise: Wireless signal strength from this device to the upper AP and noise floor of the

current environment.

 TX/RX Rate: Current TX/RX rate of this device.

 CCQ: Link quality of this device to the upper AP. The higher the percentage, the better the

network transmission quality.

 Connection time: Duration that this device is connected to the upper AP.

Interface: The information of LAN port and bridge interface, including IP address, MAC address,

RX packets, RX errors, TX packets and TX errors.

ARP table: Current ARP table of the device.

 IP address: IP address of a host in the ARP table.

 MAC address: MAC address that corresponds to the IP address of a host.

 Interface: Interface that is used to communicate with a host.

Routing table: Target network the device can reach currently.

 Destination Segment: IP address or IP network of the destination.

 Subnet Mask: Subnet mask of the destination.

 Next hop: Next hop is where the packets are forwarded to first.

 Interface: Interface is where the packets are forwarded from this device.

-14-

Page 20

Web UI Functions

Parameter

Description

System Info

WAN IP: WAN IP address obtained from the upper DHCP server. When the device works in

router mode, the PoE LAN/WAN port works as WAN port.

WAN Gateway: Gateway address of the device. When the device accesses to an external

network, its data packets are forwarded by this gateway.

Connection Status: Current network connection status of the device.

Connection Type: Current connection type of the device. The device supports three connection

types, as follows:

 DHCP: WAN port of the device obtains an IP address from the upper DHCP server.

 Static IP: WAN port is connected through fixed IP address, subnet mask, default gateway, and

DNS server information.

 PPPoE: WAN port is dialed up through user name and password.

When the device works in router mode, the system info is displayed as follows:

Parameter Description (part of): (You can also click on the upper right page to get help.)

-15-

Page 21

Web UI Functions

Work Mode

Description

In this mode, the PoE LAN/WAN port works as a LAN port and is connected to a network, such

as the internet, so that all clients can wirelessly connect to the device to access the network.

Station(Client)

In this mode, the device works as a wireless client to connect to a remote device, such as an AP, to extend the remote wireless network. On the other hand, the device’s clients can only

connect to the device through an Ethernet cable, for example, you can connect a switch to the device, and connect the clients to the switch. As a result, the device’s wired clients can access the remote device’s network.

Universal

Repeater

In this mode, the device can wirelessly connect to a remote device, such as an AP, to extend the remote wireless network, and can be connected by its clients wirelessly so that the device’s

wireless clients can access the remote network. After the device connects to the remote device successfully, this device’s SSID and WiFi password are changed to those of the remote device.

WISP

Usually, in this mode, the device wirelessly connects to a hotspot of an ISP, and of course it can

connect to a wireless router. The connected wireless WAN interface obtains IP info from the hotspot or wireless router by DHCP, Static IP, or PPPoE mothod. As a result, the device’s wired and wireless clients can access the hotspot or wireless router’s network.

Note:

As a device’s LAN and WAN IP segment cannot be the same, please make sure this device’s LAN

IP segment is different from that of the hotspot or wireless router’s LAN IP segment. For example, if the wireless router’s LAN IP segment is 192.168.2.X, please change this device’s LAN

IP segment to another one, such as 192.168.6.X.

Router

In this mode, the PoE LAN/WAN port works as a WAN port and is connected to an uplink router

using an Ethernet cable. The WAN port obtains IP info from the router by DHCP, Static IP or

PPPoE method. As a result, the device’s wired and wireless clients can access the uplink router’s network.

4.2 Quick setup

This device supports the following operation modes and the default operation mode is AP mode.



AP Mode

 Station (Client) Mode

 Universal Repeater Mode

 WISP Mode

 Router Mode

Operation mode description:

-16-

Page 22

Web UI Functions

4.2.1 AP mode

In this mode, the PoE LAN/WAN port works as a LAN port and is connected to a network, such as the internet, so

that all clients can wirelessly connect to the device to access the network.

Application scenario

In the following application, the device connects to the internet using an Ethernet cable and transmits wireless

signals so that wireless clients can connect to the device.

Configure AP mode

To configure AP mode:

1. Log in to the device’s web UI.

2. Go to Quick Setup, select AP and click Next.

-17-

Page 23

Web UI Functions

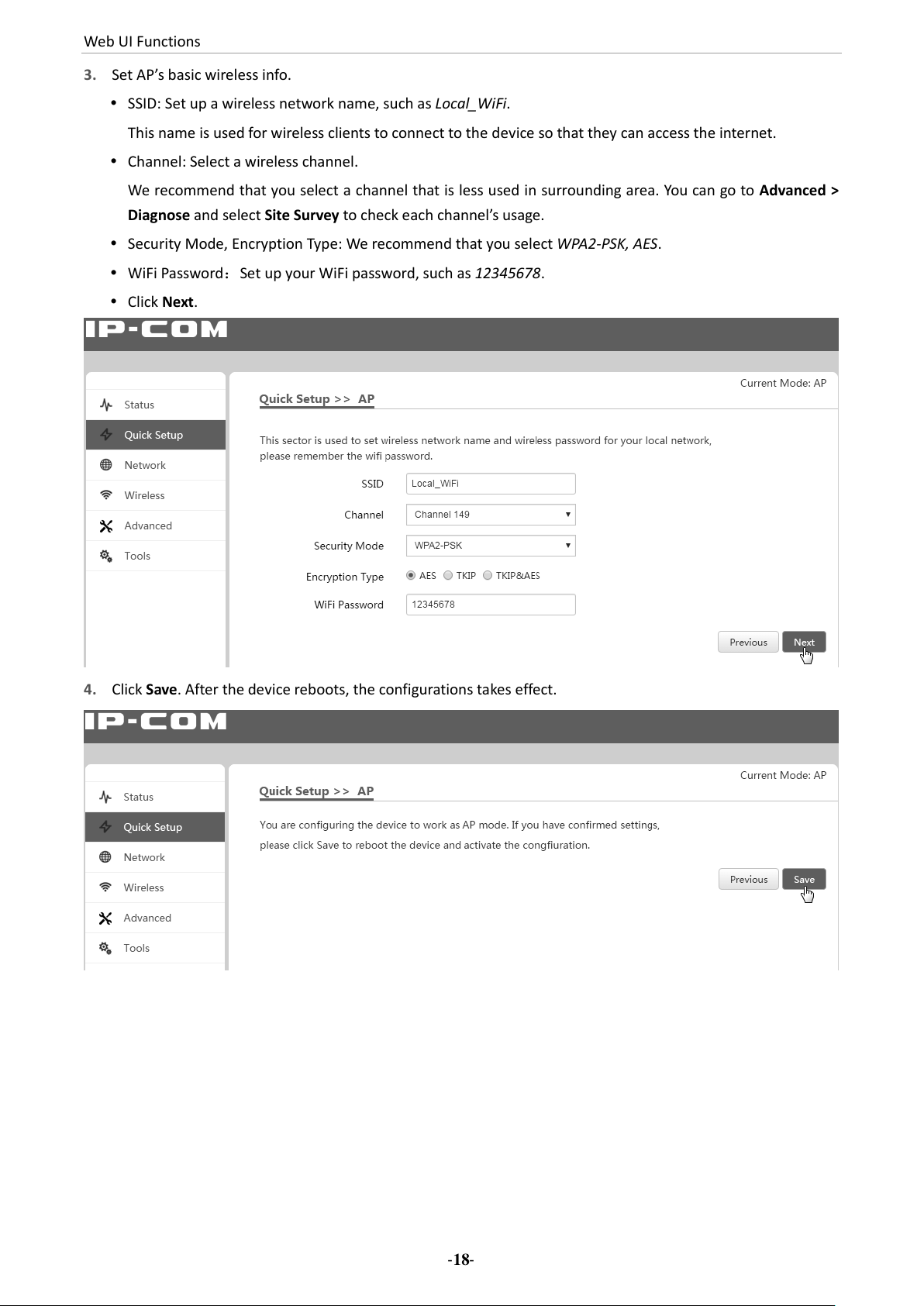

3. Set AP’s basic wireless info.

 SSID: Set up a wireless network name, such as Local_WiFi.

This name is used for wireless clients to connect to the device so that they can access the internet.

 Channel: Select a wireless channel.

We recommend that you select a channel that is less used in surrounding area. You can go to Advanced > Diagnose and select Site Survey to check each channel’s usage.

 Security Mode, Encryption Type: We recommend that you select WPA2-PSK, AES.

 WiFi Password：Set up your WiFi password, such as 12345678.

 Click Next.

4. Click Save. After the device reboots, the configurations takes effect.

-18-

Page 24

Web UI Functions

IP Address

192.168.0.2

SSID

IP-COM_0020A0

WiFi Password

87654321

4.2.2 Station (Client) mode

In this mode, the device works as a wireless client to connect to a remote device, such as an AP, to extend the remote wireless network. On the other hand, the device’s clients can only connect to the device through an

Ethernet cable, for example, you can connect a switch to the device, and connect the clients to the switch. As a result, the device’s wired clients can access the remote device’s network.

Application scenario

In the following application, this device is a bit far away from the remote AP that connects to the internet. To help this device’s clients to access the internet, this device works in station mode and wirelessly connects to the

remote AP.

Assume that the remote AP’s info is as follows:

Configure station mode

To configure station mode:

1. Log in to the device’s web UI.

2. Go to Quick Setup, select Station (Client) and click Next.

-19-

Page 25

Web UI Functions

3. In the scanned wireless signal list, select the remote AP’s wireless network name (SSID), here we select

IP-COM_0020A0, and click Next.

4. Enter the remote AP’s WiFi password (Key), here we enter 87654321, click Next.

-20-

Page 26

Web UI Functions

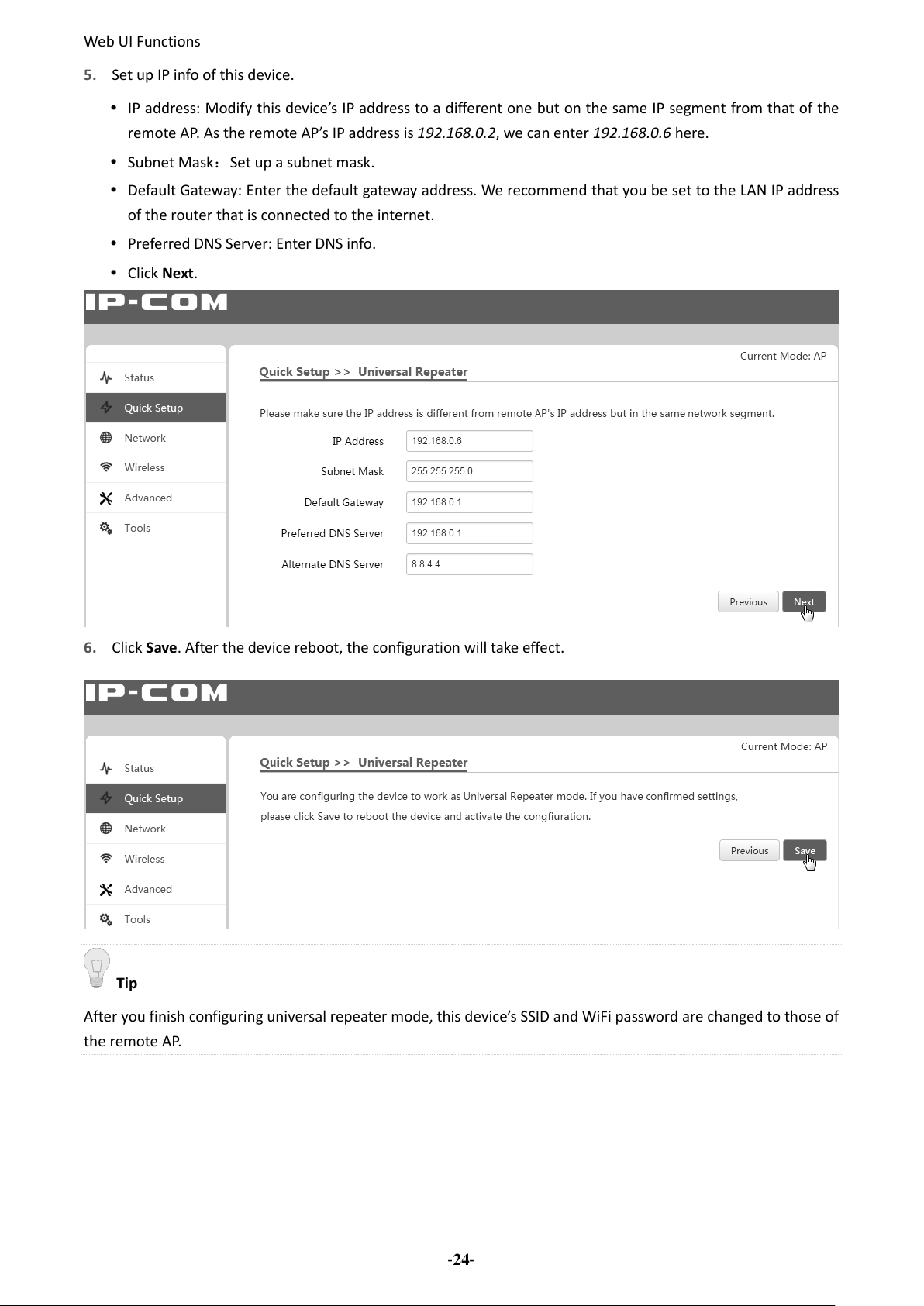

5. Set up IP info of this device.

 IP address: Modify this device’s IP address to a different one but on the same IP segment from that of the

remote AP. As the remote AP’s IP address is 192.168.0.2, we can enter 192.168.0.6 here.

 Subnet Mask：Set up a subnet mask.

 Default Gateway: Enter the default gateway address. We recommend that you be set to the LAN IP address

of the router that is connected to the internet.

 Preferred DNS Server: Enter DNS info.

 Click Next.

6. Click Save. After the device reboots, the configuration takes effect.

-21-

Page 27

Web UI Functions

IP address

192.168.0.2

SSID

IP-COM_0020A0

WiFi Password

87654321

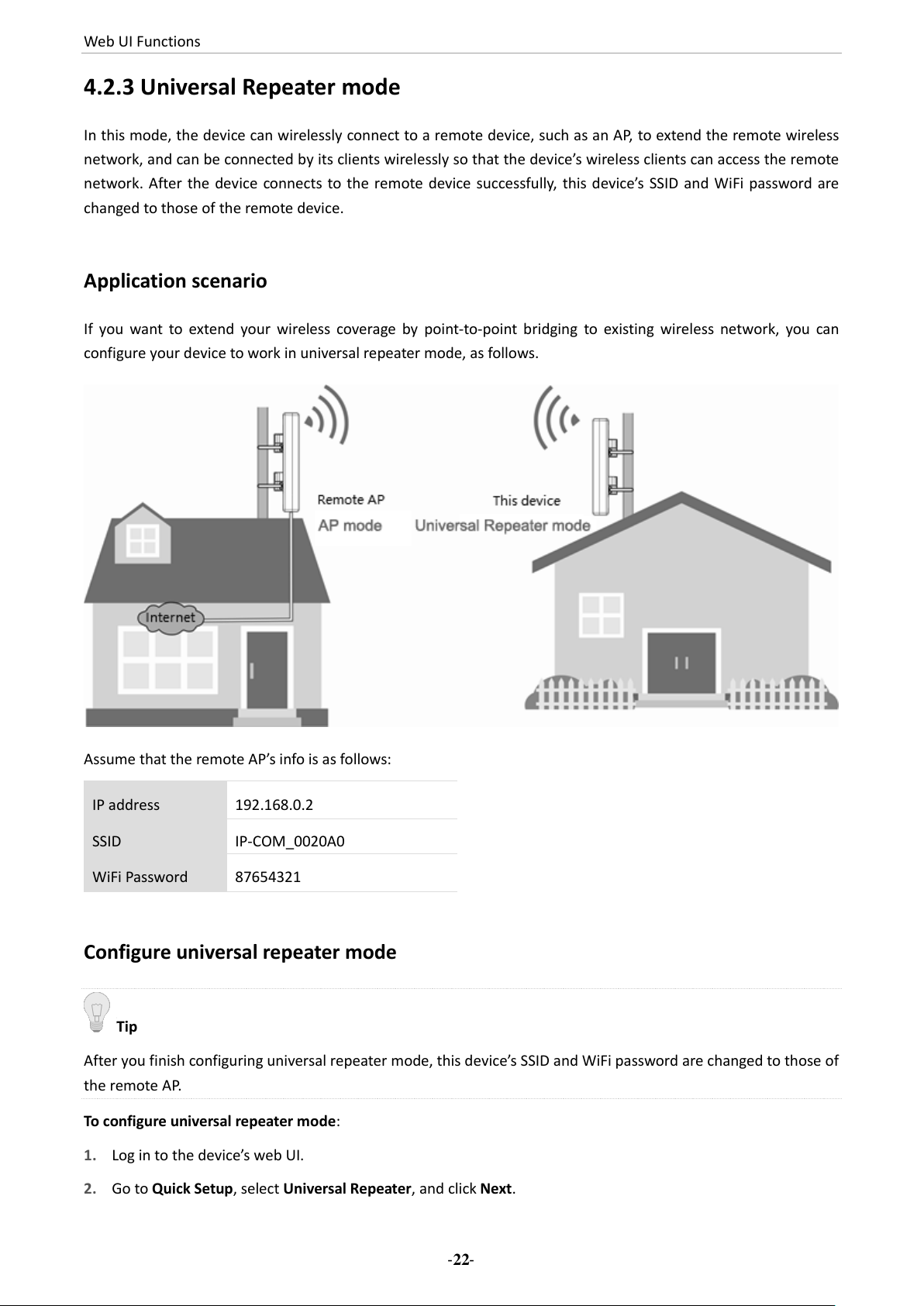

4.2.3 Universal Repeater mode

In this mode, the device can wirelessly connect to a remote device, such as an AP, to extend the remote wireless network, and can be connected by its clients wirelessly so that the device’s wireless clients can access the remote network. After the device connects to the remote device successfully, this device’s SSID and WiFi password are

changed to those of the remote device.

Application scenario

If you want to extend your wireless coverage by point-to-point bridging to existing wireless network, you can

configure your device to work in universal repeater mode, as follows.

Assume that the remote AP’s info is as follows:

Configure universal repeater mode

Tip

After you finish configuring universal repeater mode, this device’s SSID and WiFi password are changed to those of

the remote AP.

To configure universal repeater mode:

1. Log in to the device’s web UI.

2. Go to Quick Setup, select Universal Repeater, and click Next.

-22-

Page 28

Web UI Functions

3. In the scanned wireless signal list, select the remote AP’s wireless network name (SSID), here we select

IP-COM_0020A0, and click Next.

4. Enter the remote AP’s WiFi password (Key), here we enter 87654321, and click Next.

-23-

Page 29

Web UI Functions

5. Set up IP info of this device.

 IP address: Modify this device’s IP address to a different one but on the same IP segment from that of the

remote AP. As the remote AP’s IP address is 192.168.0.2, we can enter 192.168.0.6 here.

 Subnet Mask：Set up a subnet mask.

 Default Gateway: Enter the default gateway address. We recommend that you be set to the LAN IP address

of the router that is connected to the internet.

 Preferred DNS Server: Enter DNS info.

 Click Next.

6. Click Save. After the device reboot, the configuration will take effect.

Tip

After you finish configuring universal repeater mode, this device’s SSID and WiFi password are changed to those of

the remote AP.

-24-

Page 30

Web UI Functions

Password: IP-COM

4.2.4 WISP Mode

Usually, in this mode, the device wirelessly connects to a hotspot of an ISP, and of course it can connect to a

wireless router. The connected wireless WAN interface obtains IP info from the hotspot or wireless router by DHCP, Static IP, or PPPoE mothod. As a result, the device’s wired and wireless clients can access the hotspot or wireless router’s network.

Note:

As a device’s LAN and WAN IP segment cannot be the same, please make sure this device’s LAN IP segment is different from that of the hotspot or wireless router’s LAN IP segment. For example, if the wireless router’s LAN IP segment is 192.168.2.X, please change this device’s LAN IP segment to another one, such as 192.168.6.X.

Application scenario

In the following application, many wireless users want to access external network through the ISP hotspot. To

achieve that, you can deploy this device in a place that the users can connect to and make the device work in

WISP mode. In this way, the device can connect to the ISP hotspot wirelessly and the users that are connected to

the device can access the external network.

Configure WISP mode

To configure WISP mode:

1. Log in to the device’s web UI.

2. Go to Quick Setup, select WISP, and click Next.

ISP hotspot info:

SSID: ISP_hotspot

Password: None

Account: IP-COM

-25-

Page 31

Web UI Functions

3. In the scanned wireless signal list, select the ISP hotspot’s SSID, here we select hotspot, and click Next.

4. In the pop-up page, click Next.

5. Set WAN info.

 WAN Connection Type: Select PPPoE.

 PPPoE User Name: Enter username provided by ISP, here we enter IP-COM.

 PPPoE Password: Enter Password provided by ISP, here we enter IP-COM.

 Service Name: Set up the service name, optional.

 MTU: Set up the MTU value of this service. We recommend that you keep it default if you are not familiar.

 Click Next.

6. Set up the wireless parameters of this device.

 SSID: Modify a SSID name, such as Local WiFi.

 Security Mode, Encryption Type: We recommend that you select WPA2-PSK, AES.

 WiFi Password: Set up wireless password, such as 12345678.

 Click Next.

-26-

Page 32

Web UI Functions

7. Click Next.

8. Click Save. After the device reboots, the configurations take effect.

Re-enter into page Status, Connection Status is displayed as Connected. This means that the device is successfully connected to the ISP’s hotspot.

-27-

Page 33

Web UI Functions

4.2.5 Router Mode

In this mode, the PoE LAN/WAN port works as a WAN port and is connected to an uplink router using an Ethernet

cable. The WAN port obtains IP info from the router by DHCP, Static IP or PPPoE method. As a result, the device’s wired and wireless clients can access the uplink router’s network.

Application scenario

A company subscribes to the ISP internet service and uses AP625 to deploy the company’s network. In this case,

AP625 can work in router mode to connect to the internet and provide wireless signals for users.

-28-

Page 34

Web UI Functions

Configure router mode

To configure router mode:

1. Log in to the device’s web UI.

2. Go to Quick Setup, select Router, and click Next.

3. Set connection parameters.

 WAN Connection Type: Select PPPoE.

 PPPoE User Name: Enter 111.

 PPPoE Password: Enter 111.

 Service Name: Set up the service name, optional.

 MTU: Enter 1492.

 Click Next.

4. Set up the wireless parameters of this device.

 SSID: Modify a SSID name, such as Local WiFi.

 Security Mode, Encryption Type: We recommend that you select WPA2-PSK, AES.

 WiFi Password: Set up wireless password, such as 12345678.

-29-

Page 35

Web UI Functions

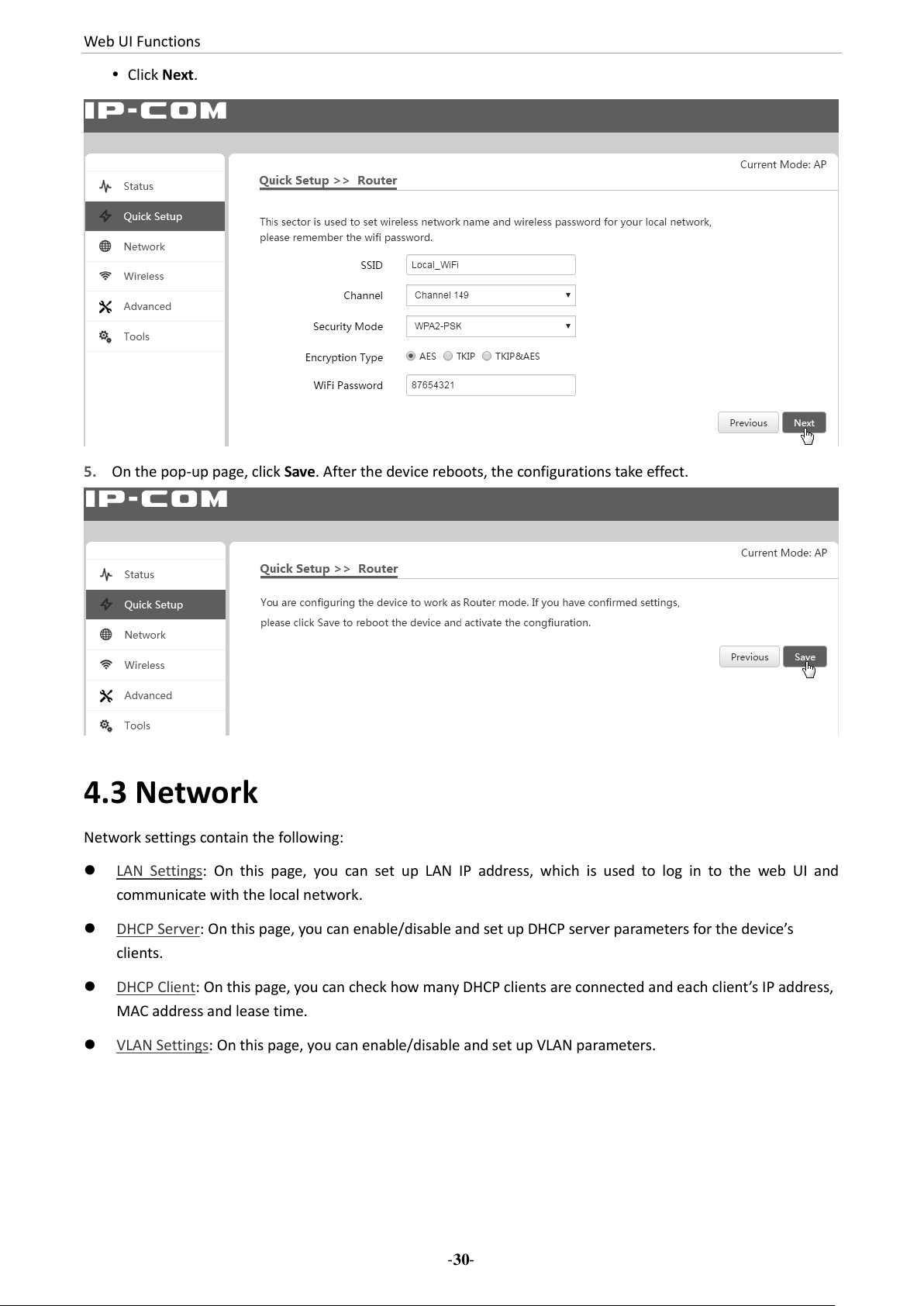

 Click Next.

5. On the pop-up page, click Save. After the device reboots, the configurations take effect.

4.3 Network

Network settings contain the following:

LAN Settings: On this page, you can set up LAN IP address, which is used to log in to the web UI and



communicate with the local network.

 DHCP Server: On this page, you can enable/disable and set up DHCP server parameters for the device’s

clients.

 DHCP Client: On this page, you can check how many DHCP clients are connected and each client’s IP address,

MAC address and lease time.

 VLAN Settings: On this page, you can enable/disable and set up VLAN parameters.

-30-

Page 36

Web UI Functions

4.3.1 LAN Settings

On this page, you can set up LAN IP address, which is used to log in to the web UI and communicate with the local

network. This device supports two methods to set up your LAN IP address:

Static IP: Set up LAN IP address manually



In this method, you need to manually set up LAN IP address. If you modified LAN IP address, when you log in to the device’s web UI, please use the new IP address. If you change LAN IP segment, please change your computer’s IP segment to the new one as well.

 DHCP: Obtain LAN IP address from another DHCP server

In this method, the device can obtain LAN IP address from another DHCP server. In this way, it reduces IP

conflict and the cost of configuring IP address manually. If your device obtains LAN IP address from a DHCP server of an uplink router and you don’t know the IP address, you can log in to the uplink router’s web UI to

check the obtained IP address.

Parameter description

-31-

Page 37

Web UI Functions

Parameter

Description

MAC Address

This device’s MAC address of LAN port.

Address Type

Select a method to set up the LAN IP address.The default method is Static IP.

 Static IP: In this method, you need to manually set up LAN IP address. If you modified

LAN IP address, when you log in to the device’s web UI, please use the new IP address. If you change LAN IP segment, please change your computer’s IP segment to the new one

as well.

 DHCP: In this method, the device can obtain LAN IP address from another DHCP server. In

this way, it reduces IP conflict and the cost of configuring IP address manually. If your device obtains LAN IP address from a DHCP server of an uplink router and you don’t know the IP address, you can log in to the uplink router’s web UI to check the obtained IP

address.

IP Address

It is used to log in to the device’s web UI and communicate with the local network. The

default one is 192.168.2.1.

Subnet Mask

It is used to determine IP segment of the IP address. The default one is 255.255.255.0

Default gateway

It helps the device find a network route to connect to the internet or other networks.

Preferred DNS

server

Domain names, such as www.google.com, are easier to remember than IP addresses, such

as 93.46.8.89. A correct DNS server allows you to access websites using their domain names

instead of IP addresses.

Alternate DNS

server

It is a backup DNS server address. Device Name

Enter a distinct name for your device so that the administrator can manage the device from

a remote spot if necessary.

Static IP: Set up LAN IP address manually

IP segment to the new one as well.

-32-

Page 38

Web UI Functions

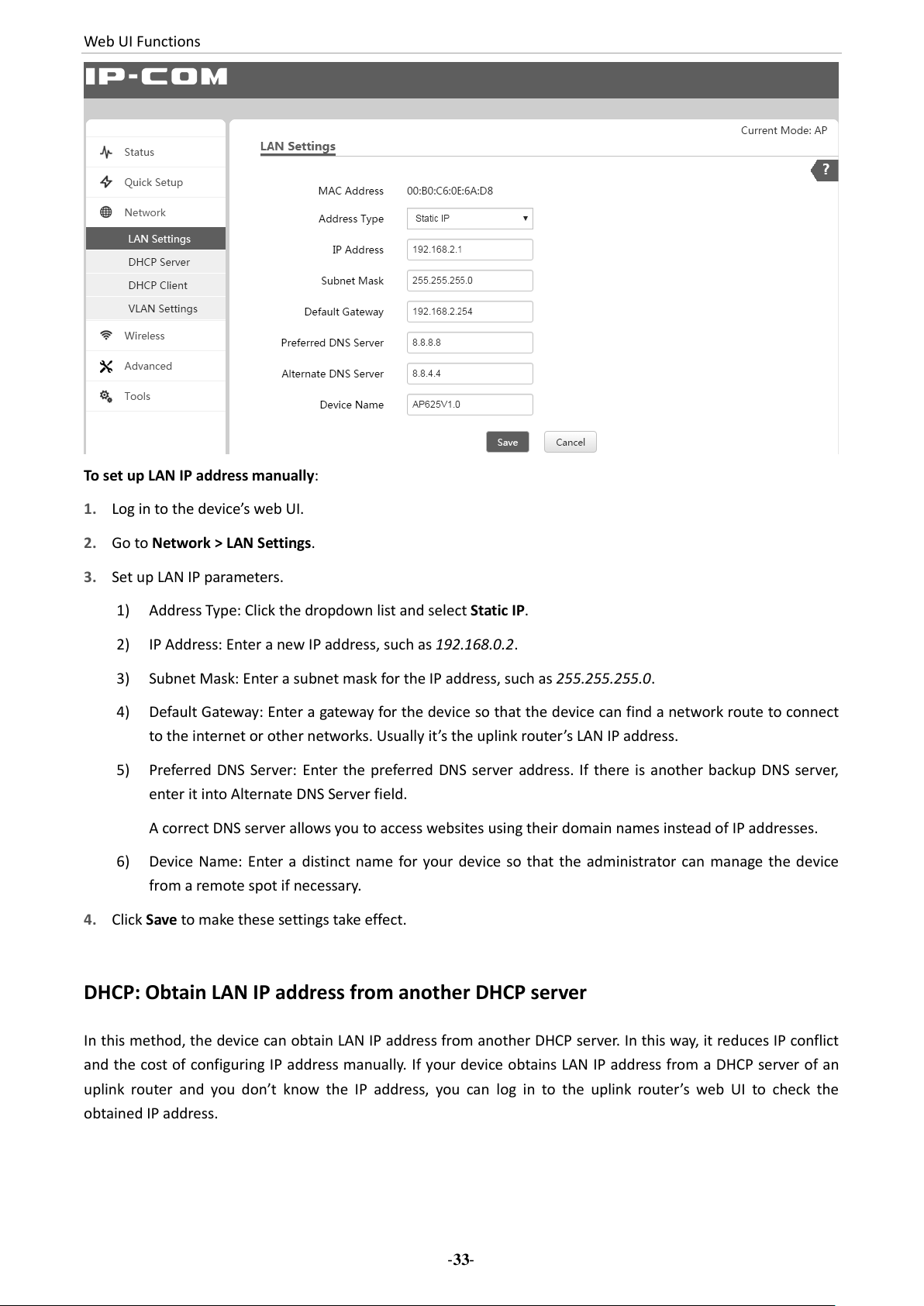

To set up LAN IP address manually:

1. Log in to the device’s web UI.

2. Go to Network > LAN Settings.

3. Set up LAN IP parameters.

1) Address Type: Click the dropdown list and select Static IP.

2) IP Address: Enter a new IP address, such as 192.168.0.2.

3) Subnet Mask: Enter a subnet mask for the IP address, such as 255.255.255.0.

4) Default Gateway: Enter a gateway for the device so that the device can find a network route to connect

to the internet or other networks. Usually it’s the uplink router’s LAN IP address.

5) Preferred DNS Server: Enter the preferred DNS server address. If there is another backup DNS server,

enter it into Alternate DNS Server field.

A correct DNS server allows you to access websites using their domain names instead of IP addresses.

6) Device Name: Enter a distinct name for your device so that the administrator can manage the device

from a remote spot if necessary.

4. Click Save to make these settings take effect.

DHCP: Obtain LAN IP address from another DHCP server

In this method, the device can obtain LAN IP address from another DHCP server. In this way, it reduces IP conflict

and the cost of configuring IP address manually. If your device obtains LAN IP address from a DHCP server of an uplink router and you don’t know the IP address, you can log in to the uplink router’s web UI to check the

obtained IP address.

-33-

Page 39

Web UI Functions

To obtain LAN IP address from another DHCP server:

1. Log in to the device’s web UI.

2. Go to Network > LAN Settings.

3. Address Type: Click the dropdown list and select DHCP.

4. Click Save to make these settings take effect.

4.3.2 DHCP Server

On this page, you can enable/disable and set up DHCP server parameters for the device’s clients. When you finish

configuring AP mode, Station (Client) mode or Universal Reapter mode, DHCP server is automatically disabled and

you need to manually enable this function if necessary.

-34-

Page 40

Web UI Functions

Parameter

Description

DHCP Server

Enable/disable the device’s DHCP server. By default, it is enabled.

Start IP

The first IP address that can be assigned to a DHCP client. By default, it is 192.168.2.100.

End IP

The last IP address that can be assigned to a DHCP client. By default, it is 192.168.2.200.

Subnet Mask

It is used to determine the IP segment of the DHCP server. By default, it is 255.255.255.0.

Default gateway

It is assigned to DHCP clients so that they can find a network path to access the internet or

other networks. By default, it is 192.168.2.254.

Preferred DNS

Server

Domain names, such as www.google.com, are easier to remember than IP addresses, such

as 93.46.8.89. A correct DNS server allows you to access websites using their domain names

instead of IP addresses.

Alternate DNS

Server

It is a backup DNS server address.

Lease Time

When a DHCP client obtains IP address, the DHCP server will assign a certain lease time to

the client's IP address. If a DHCP client wants to use the IP address continuously, when the

lease time goes to 50%, the DHCP client will transmit a unicast DHCP request to the DHCP

server. If the DHCP client gets no response from the DHCP server, it will continue to transmit

a unicast DHCP request to the DHCP server when the lease time goes to 7/8. If it fails again,

when the lease time goes to 100%, the IP address will be released and might be used by

other DHCP clients.

Parameter description

Configure DHCP server

Note

If more than one DHCP server exists in the same network, to avoid IP conflict, make sure the IP pool of each DHCP server doesn’t overlap.

To configure DHCP server:

1. Log in to the device’s web UI.

2. Go to Network > DHCP Server.

3. Set up DHCP server parameters.

1) DHCP Server: Check the box of Enable.

-35-

Page 41

Web UI Functions

2) Start IP/End IP: Enter the first and last IP address of the DHCP IP pool.

3) Subnet Mask: Enter a subnet mask for the DHCP server.

4) Default Gateway: Enter a gateway which is assigned to DHCP clients.

5) Preferred/Alternate DNS Server: Enter a preferred DNS server address for DHCP clients. If there is

another DNS server, please enter it into the Alternate DNS Server field.

4. Click Save to make these settings take effect.

4.3.3 DHCP Client

On this page, you can check how many DHCP clients are connected and each client’s IP address, MAC address and

lease time.

To enter DHCP Client page:

1. Log in to the device’s web UI.

2. Go to Network > DHCP Client.

-36-

Page 42

Web UI Functions

Parameter

Description

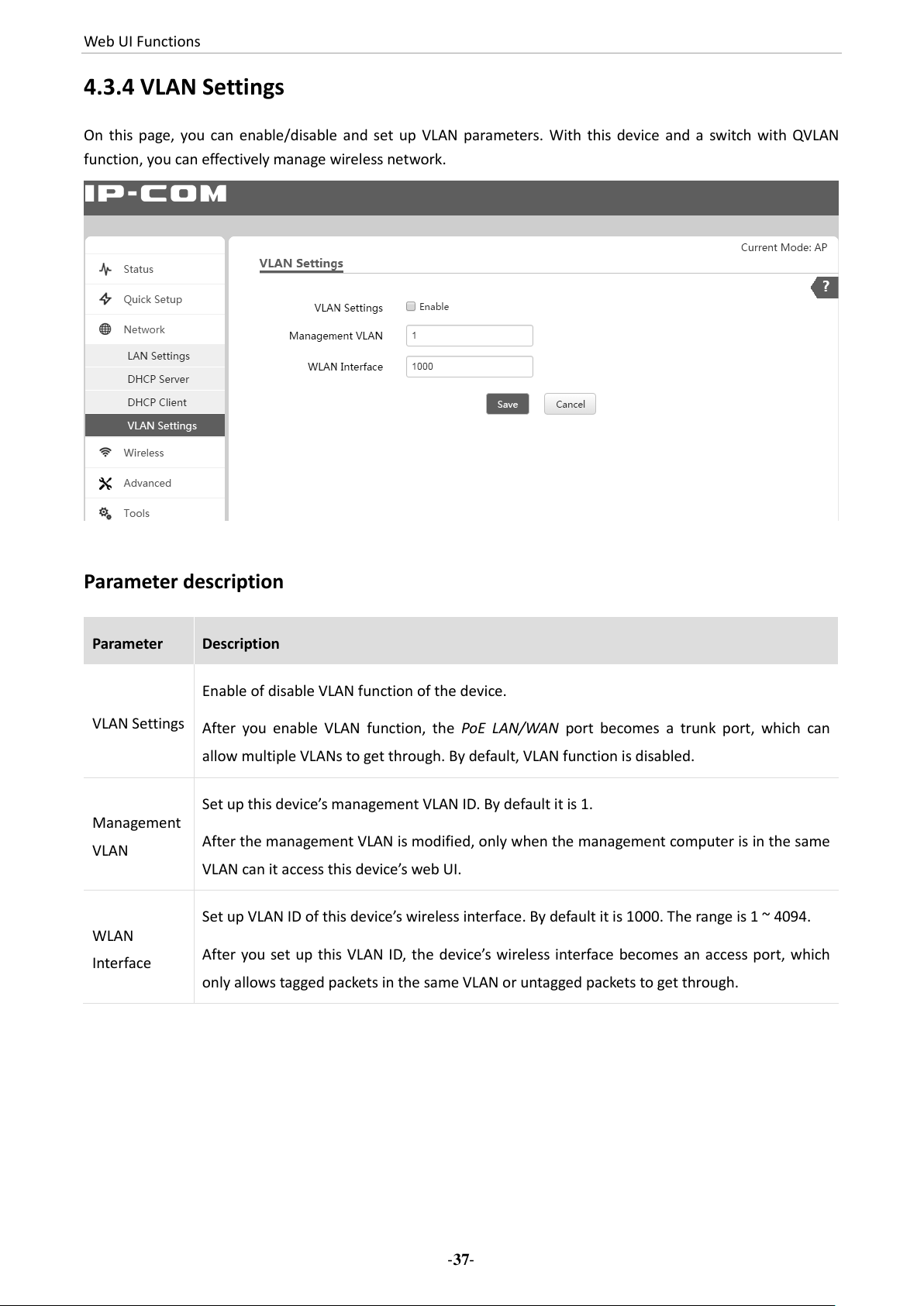

VLAN Settings

Enable of disable VLAN function of the device.

After you enable VLAN function, the PoE LAN/WAN port becomes a trunk port, which can

allow multiple VLANs to get through. By default, VLAN function is disabled.

Management

VLAN

Set up this device’s management VLAN ID. By default it is 1.

After the management VLAN is modified, only when the management computer is in the same VLAN can it access this device’s web UI.

WLAN

Interface

Set up VLAN ID of this device’s wireless interface. By default it is 1000. The range is 1 ~ 4094.

After you set up this VLAN ID, the device’s wireless interface becomes an access port, which

only allows tagged packets in the same VLAN or untagged packets to get through.

4.3.4 VLAN Settings

On this page, you can enable/disable and set up VLAN parameters. With this device and a switch with QVLAN

function, you can effectively manage wireless network.

Parameter description

-37-

Page 43

Web UI Functions

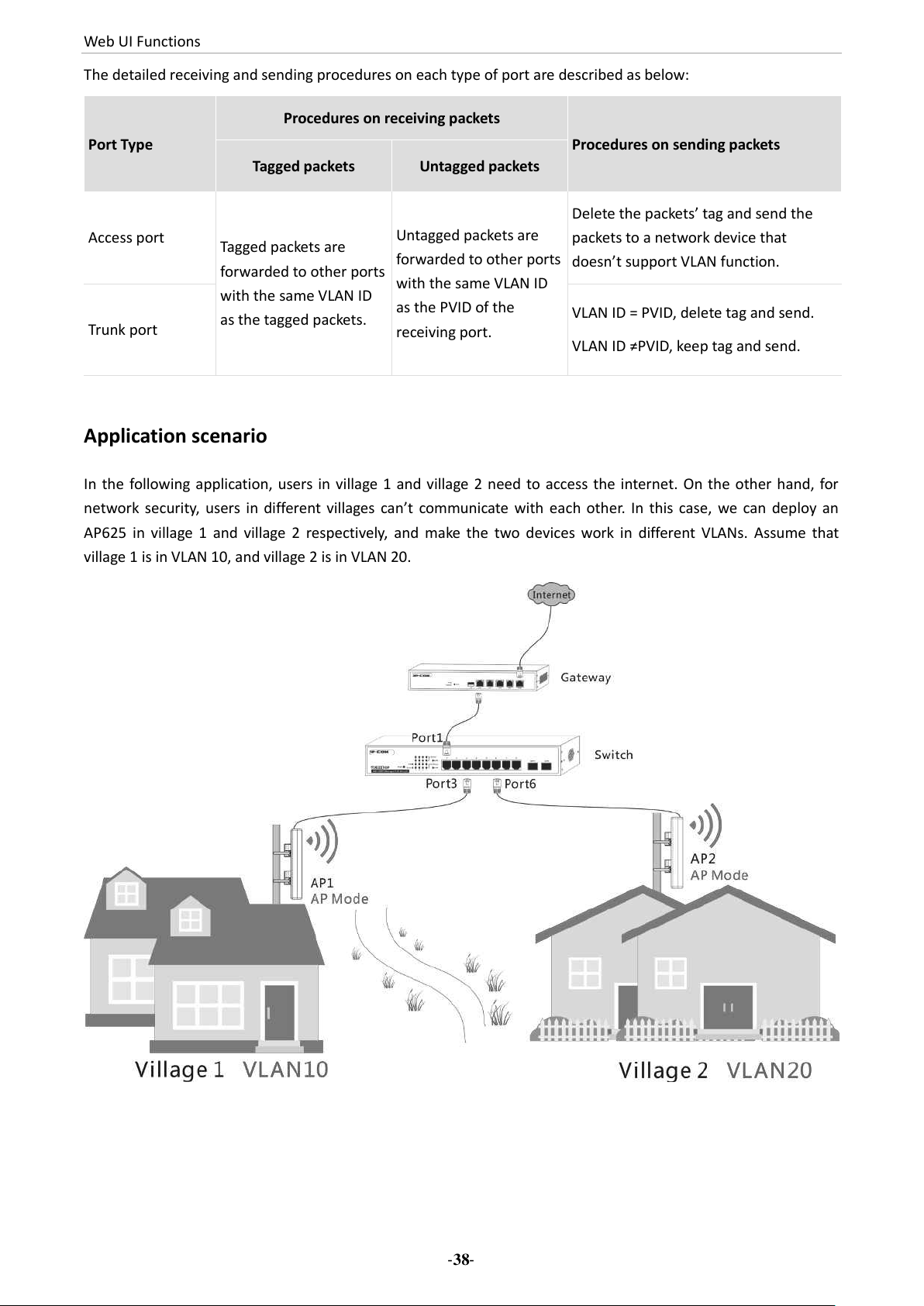

Port Type

Procedures on receiving packets

Procedures on sending packets

Tagged packets

Untagged packets

Access port

Tagged packets are

forwarded to other ports

with the same VLAN ID

as the tagged packets.

Untagged packets are

forwarded to other ports

with the same VLAN ID

as the PVID of the

receiving port.

Delete the packets’ tag and send the

packets to a network device that doesn’t support VLAN function.

Trunk port

VLAN ID = PVID, delete tag and send.

VLAN ID ≠PVID, keep tag and send.

The detailed receiving and sending procedures on each type of port are described as below:

Application scenario

In the following application, users in village 1 and village 2 need to access the internet. On the other hand, for

network security, users in different villages can’t communicate with each other. In this case, we can deploy an

AP625 in village 1 and village 2 respectively, and make the two devices work in different VLANs. Assume that

village 1 is in VLAN 10, and village 2 is in VLAN 20.

-38-

Page 44

Web UI Functions

Switch Port

Allowed VLAN ID

Port Type

PVID

Port 1 (Connect to Gateway)

1, 10, 20

Trunk port

Port 3 (Connect to AP1)

1,10

Trunk port

Port 6 (Connect to AP2)

1,20

Trunk port

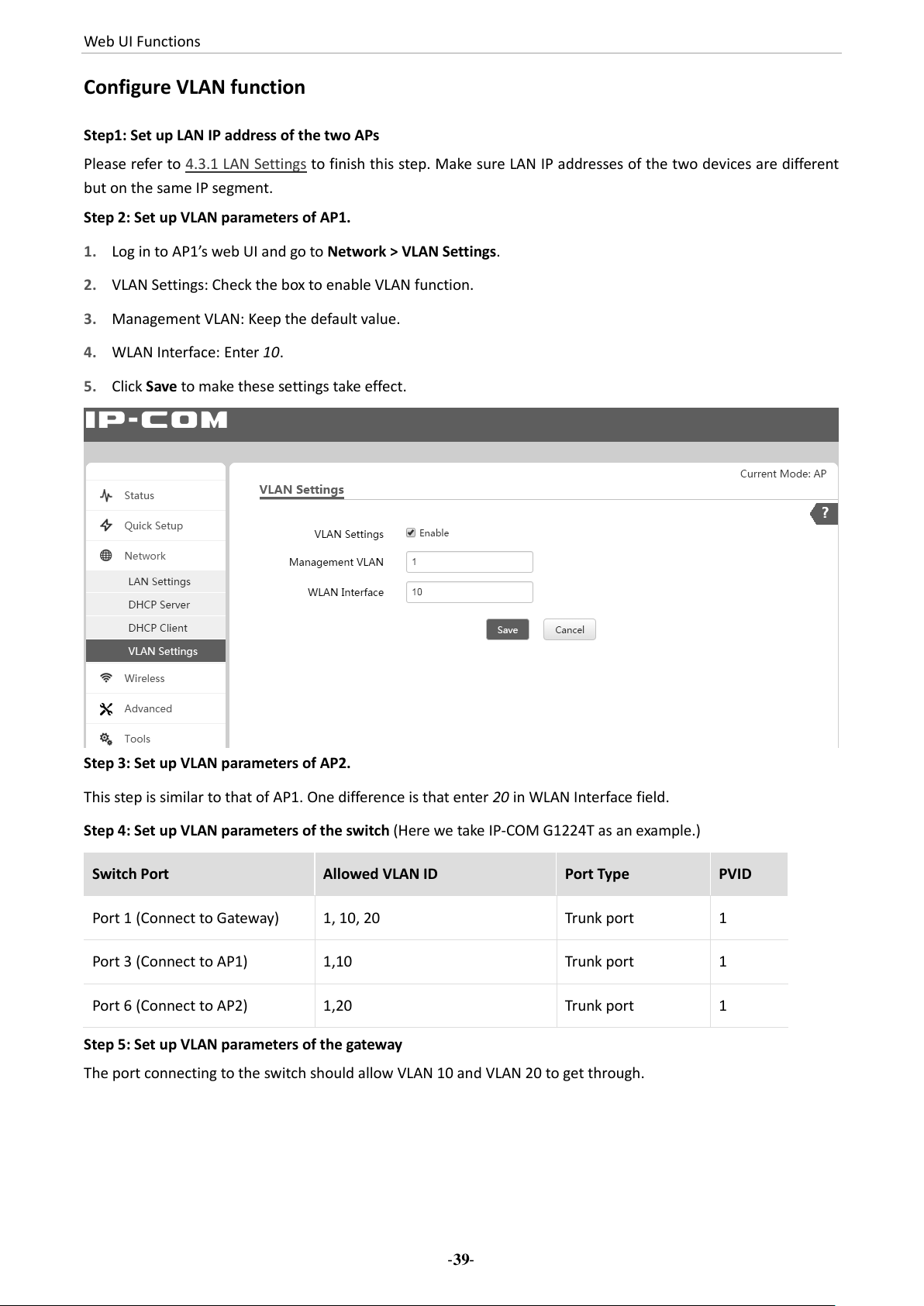

Configure VLAN function

Step1: Set up LAN IP address of the two APs

Please refer to

but on the same IP segment.

Step 2: Set up VLAN parameters of AP1.

1. Log in to AP1’s web UI and go to Network > VLAN Settings.

2. VLAN Settings: Check the box to enable VLAN function.

3. Management VLAN: Keep the default value.

4. WLAN Interface: Enter 10.

5. Click Save to make these settings take effect.

4.3.1 LAN Settings to finish this step. Make sure LAN IP addresses of the two devices are different

Step 3: Set up VLAN parameters of AP2.

This step is similar to that of AP1. One difference is that enter 20 in WLAN Interface field.

Step 4: Set up VLAN parameters of the switch (Here we take IP-COM G1224T as an example.)

Step 5: Set up VLAN parameters of the gateway

The port connecting to the switch should allow VLAN 10 and VLAN 20 to get through.

-39-

Page 45

Web UI Functions

Parameter

Description

WiFi

Enable/Disable the device’s wireless signal.

Country

Select a country that your device is operating.

SSID

The wireless name of the device. To better recognize your wireless network, we recommend that

you modify the SSID.

Broadcast

SSID

Enable or disable broadcast SSID function.

 Enable: the device broadcasts its SSID and the SSID is displayed in the network list of clients

that support 5G.

 Disable: the device does not broadcast its SSID and the SSID is not displayed in the network list

of clients that support 5G. When a client want to connect to the device, the client needs to

manually enter the correct SSID name.

4.4 Wireless

Wireless settings contain the following:



Basic: On this page, you can set up basic wireless parameters of this device, such as SSID, broadcast SSID,

encryption type, etc.

 Advanced: On this page, you can set up advanced wireless parameters of this device. You can keep the

default value if you’re not familiar with these parameters.

 Access Control: On this page, you can set up rules to forbid or permit specified wireless clients to access this

device. The rules are based on MAC address.

4.4.1 Basic

On this page, you can set up basic wireless parameters of this device, such as SSID, broadcast SSID, encryption

type, etc.

Parameter description

As the device provides lots of wireless parameters, to help you understand these parameters, we devide them into

several parts, shown as below.

 Commonly used parameters description

 Parameter description of WEP

 Parameter description of WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK

 Parameter description of WPA and WPA2

Commonly used parameters description

-40-

Page 46

Web UI Functions

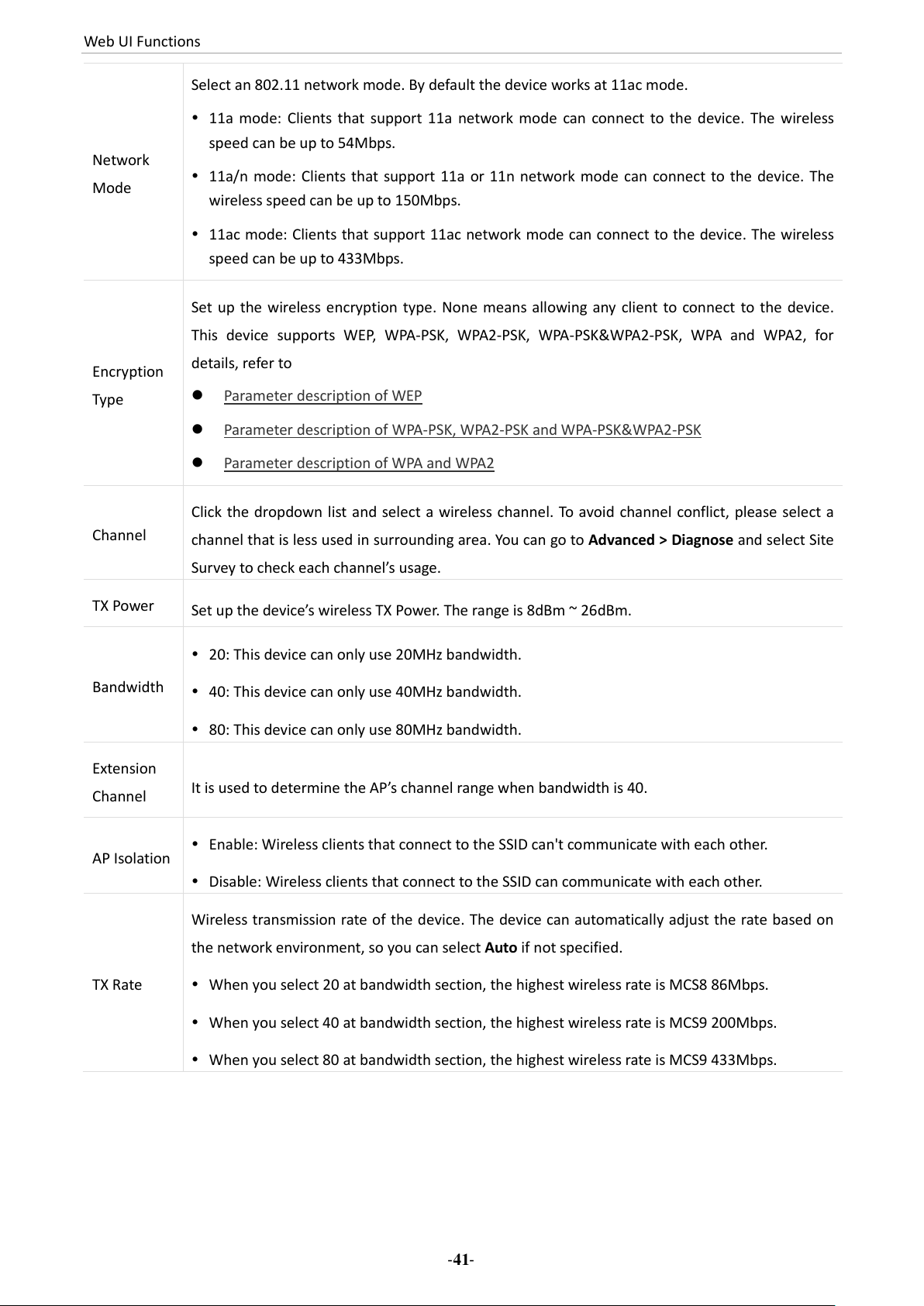

Network

Mode

Select an 802.11 network mode. By default the device works at 11ac mode.

 11a mode: Clients that support 11a network mode can connect to the device. The wireless

speed can be up to 54Mbps.

 11a/n mode: Clients that support 11a or 11n network mode can connect to the device. The

wireless speed can be up to 150Mbps.

 11ac mode: Clients that support 11ac network mode can connect to the device. The wireless

speed can be up to 433Mbps.

Encryption

Type

Set up the wireless encryption type. None means allowing any client to connect to the device.

This device supports WEP, WPA-PSK, WPA2-PSK, WPA-PSK&WPA2-PSK, WPA and WPA2, for

details, refer to

 Parameter description of WEP

 Parameter description of WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK

 Parameter description of WPA and WPA2

Channel

Click the dropdown list and select a wireless channel. To avoid channel conflict, please select a

channel that is less used in surrounding area. You can go to Advanced > Diagnose and select Site Survey to check each channel’s usage.

TX Power

Set up the device’s wireless TX Power. The range is 8dBm ~ 26dBm.

Bandwidth

 20: This device can only use 20MHz bandwidth.

 40: This device can only use 40MHz bandwidth.

 80: This device can only use 80MHz bandwidth.

Extension

Channel

It is used to determine the AP’s channel range when bandwidth is 40.

AP Isolation

 Enable: Wireless clients that connect to the SSID can't communicate with each other.

 Disable: Wireless clients that connect to the SSID can communicate with each other.

TX Rate

Wireless transmission rate of the device. The device can automatically adjust the rate based on

the network environment, so you can select Auto if not specified.

 When you select 20 at bandwidth section, the highest wireless rate is MCS8 86Mbps.

 When you select 40 at bandwidth section, the highest wireless rate is MCS9 200Mbps.

 When you select 80 at bandwidth section, the highest wireless rate is MCS9 433Mbps.

-41-

Page 47

Web UI Functions

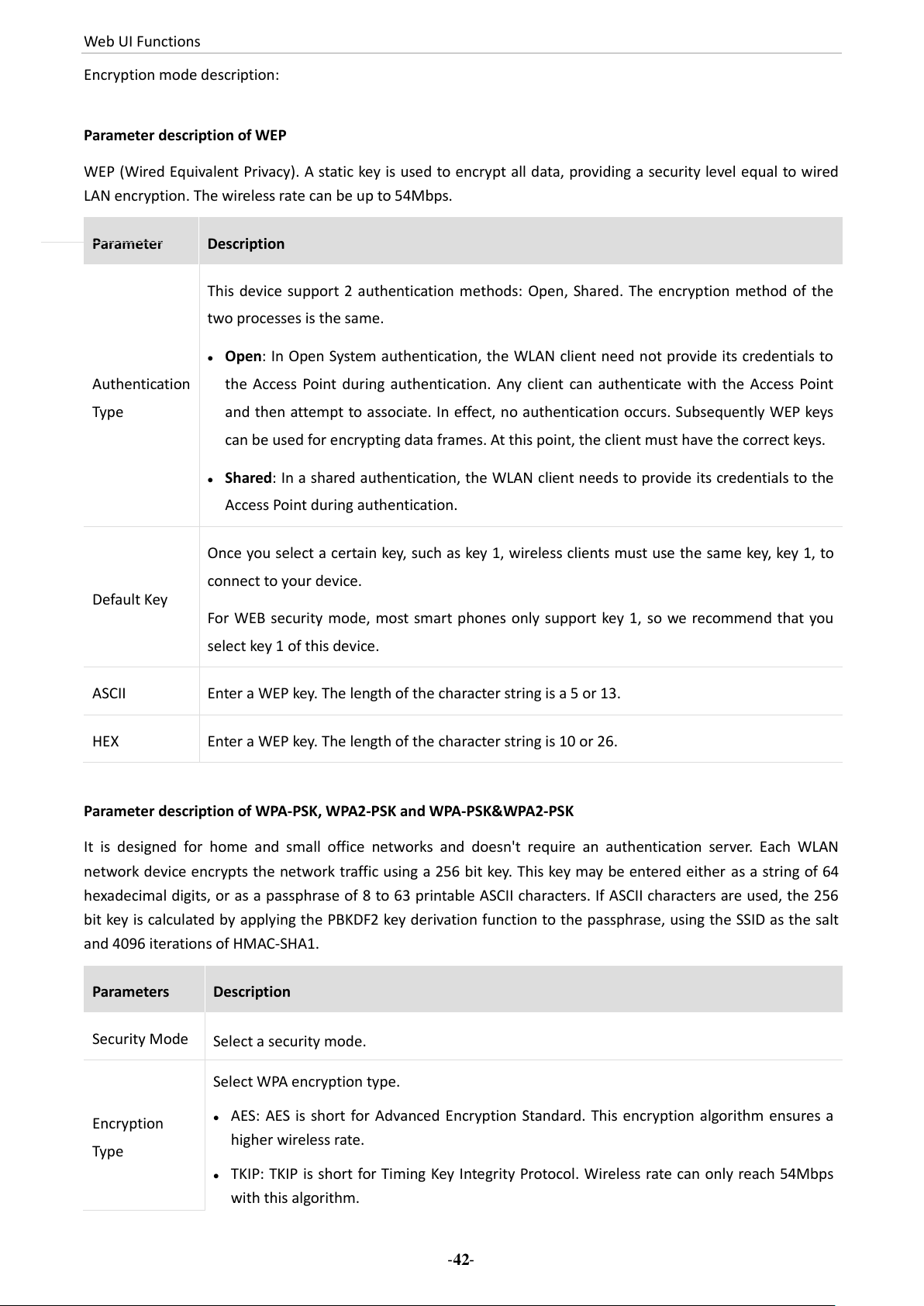

Parameter

Description

Authentication

Type

This device support 2 authentication methods: Open, Shared. The encryption method of the

two processes is the same.

 Open: In Open System authentication, the WLAN client need not provide its credentials to

the Access Point during authentication. Any client can authenticate with the Access Point

and then attempt to associate. In effect, no authentication occurs. Subsequently WEP keys

can be used for encrypting data frames. At this point, the client must have the correct keys.

 Shared: In a shared authentication, the WLAN client needs to provide its credentials to the

Access Point during authentication.

Default Key

Once you select a certain key, such as key 1, wireless clients must use the same key, key 1, to

connect to your device.

For WEB security mode, most smart phones only support key 1, so we recommend that you

select key 1 of this device.

ASCII

Enter a WEP key. The length of the character string is a 5 or 13.

HEX

Enter a WEP key. The length of the character string is 10 or 26.

Parameters

Description

Security Mode

Select a security mode.

Encryption

Type

Select WPA encryption type.

 AES: AES is short for Advanced Encryption Standard. This encryption algorithm ensures a

higher wireless rate.

 TKIP: TKIP is short for Timing Key Integrity Protocol. Wireless rate can only reach 54Mbps

with this algorithm.

Encryption mode description:

Parameter description of WEP

WEP (Wired Equivalent Privacy). A static key is used to encrypt all data, providing a security level equal to wired

LAN encryption. The wireless rate can be up to 54Mbps.

Parameter description of WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK

It is designed for home and small office networks and doesn't require an authentication server. Each WLAN

network device encrypts the network traffic using a 256 bit key. This key may be entered either as a string of 64

hexadecimal digits, or as a passphrase of 8 to 63 printable ASCII characters. If ASCII characters are used, the 256

bit key is calculated by applying the PBKDF2 key derivation function to the passphrase, using the SSID as the salt

and 4096 iterations of HMAC-SHA1.

-42-

Page 48

Web UI Functions

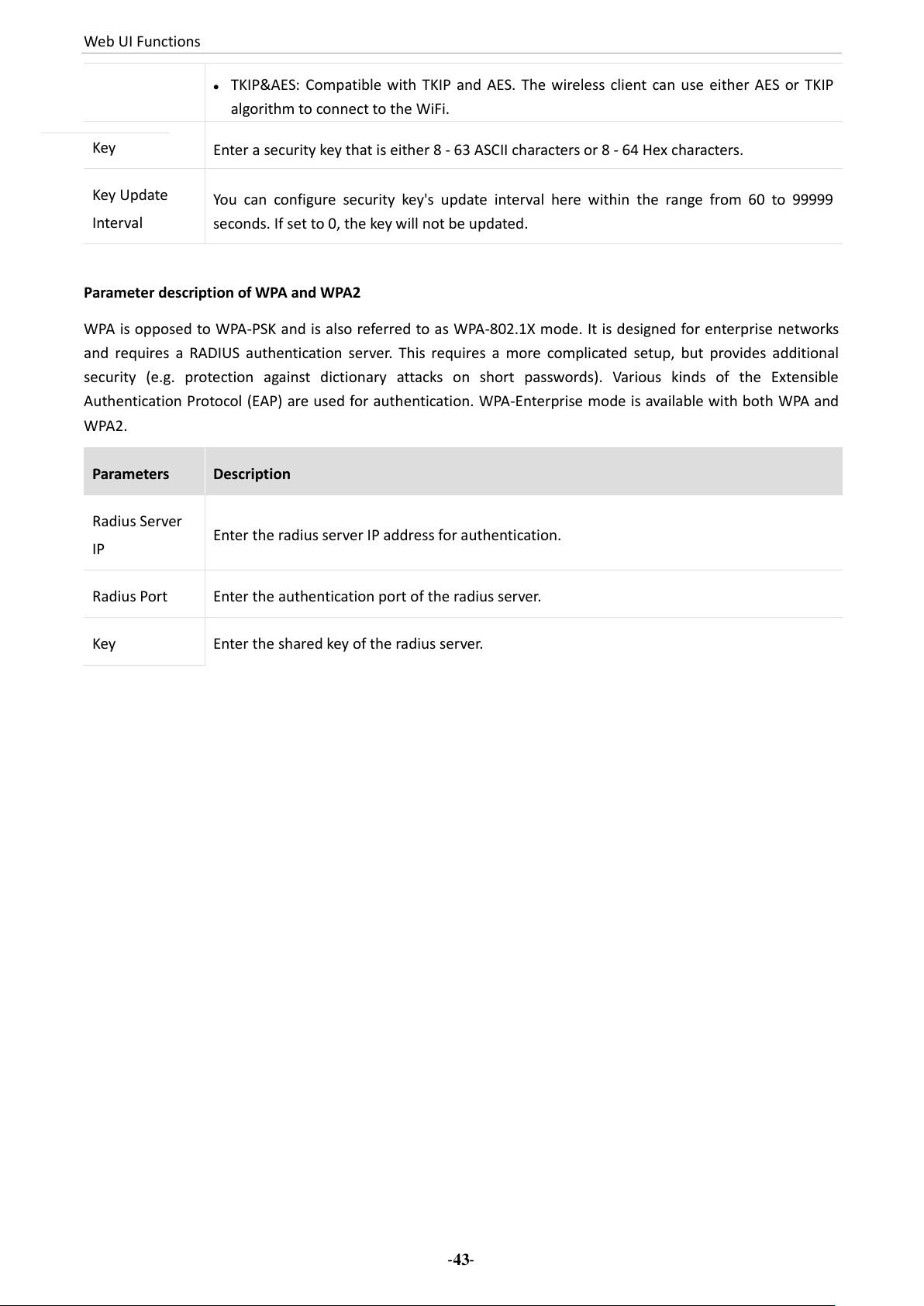

 TKIP&AES: Compatible with TKIP and AES. The wireless client can use either AES or TKIP

algorithm to connect to the WiFi.

Key

Enter a security key that is either 8 - 63 ASCII characters or 8 - 64 Hex characters.

Key Update

Interval

You can configure security key's update interval here within the range from 60 to 99999

seconds. If set to 0, the key will not be updated.

Parameters

Description

Radius Server

Enter the radius server IP address for authentication. Radius Port

Enter the authentication port of the radius server.

Key

Enter the shared key of the radius server.

Parameter description of WPA and WPA2

WPA is opposed to WPA-PSK and is also referred to as WPA-802.1X mode. It is designed for enterprise networks

and requires a RADIUS authentication server. This requires a more complicated setup, but provides additional

security (e.g. protection against dictionary attacks on short passwords). Various kinds of the Extensible

Authentication Protocol (EAP) are used for authentication. WPA-Enterprise mode is available with both WPA and

WPA2.

-43-

Page 49

Web UI Functions

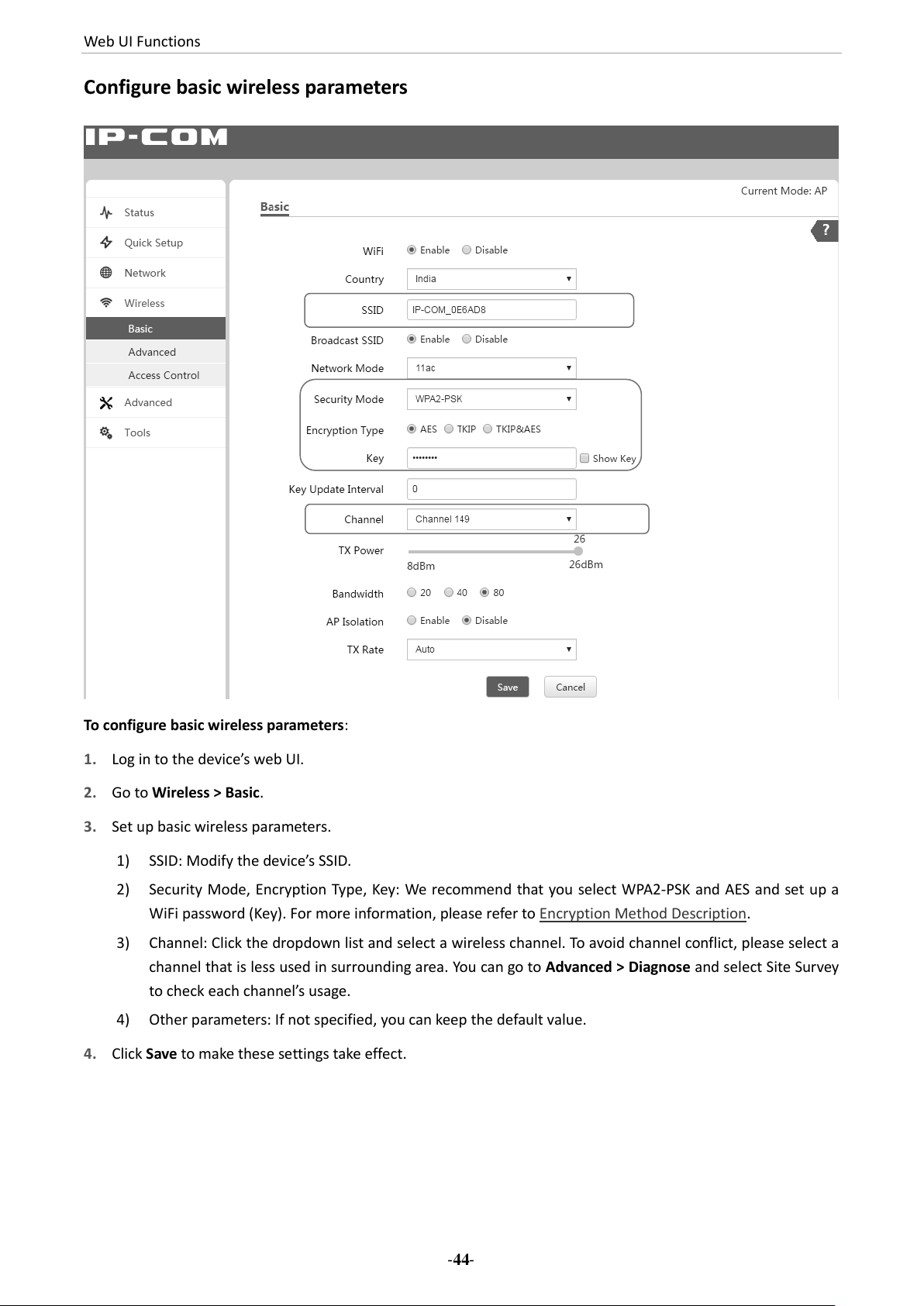

Configure basic wireless parameters

To configure basic wireless parameters:

1. Log in to the device’s web UI.

2. Go to Wireless > Basic.

3. Set up basic wireless parameters.

1) SSID: Modify the device’s SSID.

2) Security Mode, Encryption Type, Key: We recommend that you select WPA2-PSK and AES and set up a

WiFi password (Key). For more information, please refer to Encryption Method Description.

3) Channel: Click the dropdown list and select a wireless channel. To avoid channel conflict, please select a

channel that is less used in surrounding area. You can go to Advanced > Diagnose and select Site Survey to check each channel’s usage.

4) Other parameters: If not specified, you can keep the default value.

4. Click Save to make these settings take effect.

-44-

Page 50

Web UI Functions

Parameter

Description

Transmission Range

This device’s wireless transmission range.

Beacon Interval

Set up an interval for sending beacon frames. The range is 20~999ms.

Beacon frames are transmitted at a regular interval to allow mobile clients to join the

network. Beacon frames are used for a client to identify nearby APs. In general, the

smaller the value is, the quicker a wireless client can connect to the AP. the larger the value is, the higher the data transmission of the WLAN network’s efficiency is.

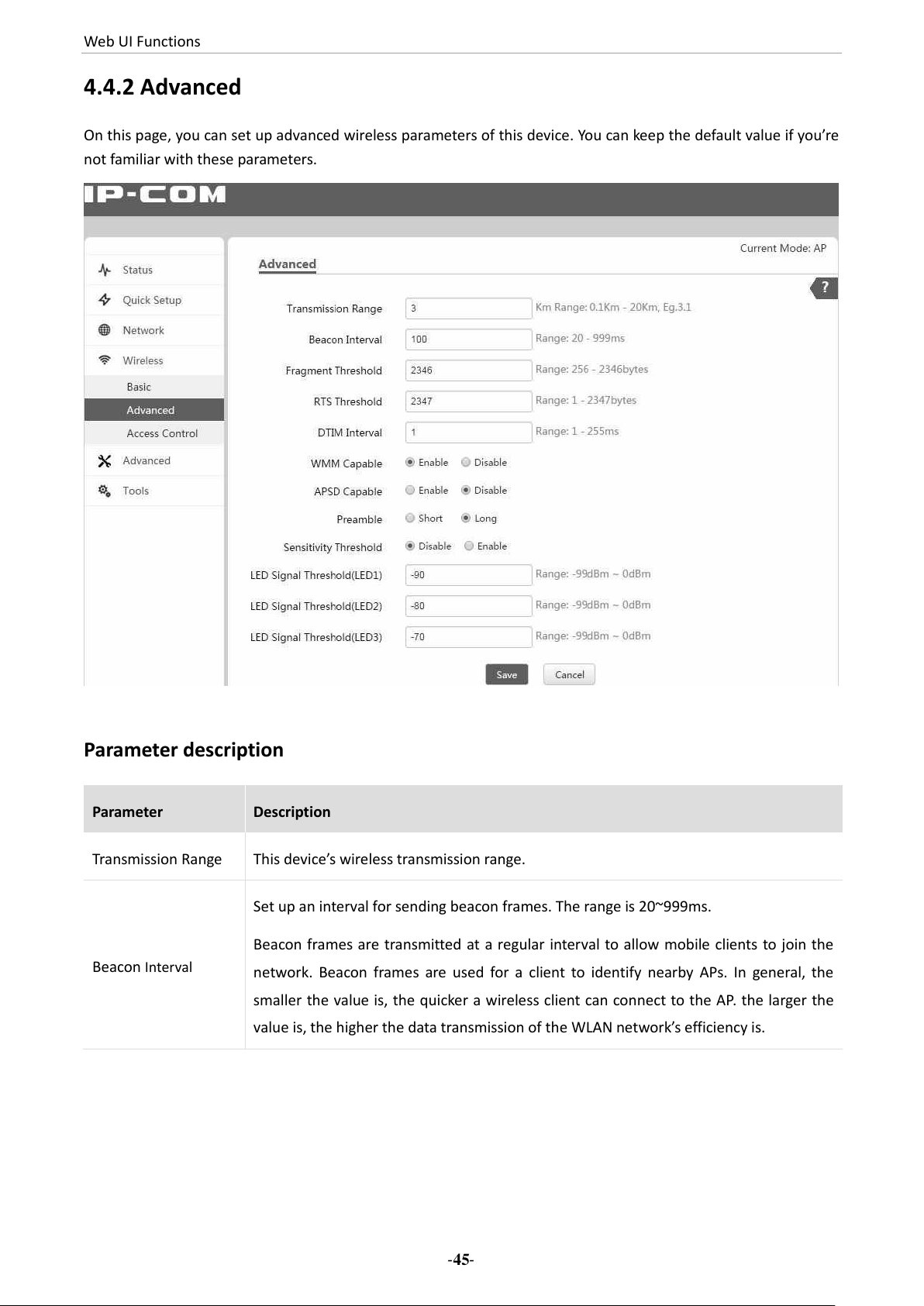

4.4.2 Advanced

On this page, you can set up advanced wireless parameters of this device. You can keep the default value if you’re

not familiar with these parameters.

Parameter description

-45-

Page 51

Web UI Functions

Fragment Threshold

Set up the maximum length of frames that can be transmitted without fragmentation.

The range is 256~2346 bytes.

Fragmentation means to fragment a large frame into small pieces, with each piece

transmitted and acknowledged separately. When the length of a frame exceeds the

specified fragment threshold value, it is fragmented.

 A longer frame is less likely to be successfully received. Therefore, in a WLAN where

there is high error rate, you can decrease the fragment threshold to increase frame

transmission reliability.

 In a WLAN network with no interference, we recommend that you increase the

Fragment Threshold to improve the data transmission throughput by decreasing the

ACK times.

RTS Threshold

Set up the threshold length for RTS/CTS mechanism.

RTS/CTS frames occupy a certain network bandwidth so that only the frames larger

than RTS/CTS threshold will enable RTS/CTS mechanism to avoid data sending collisions

in a WLAN network. The RTS/CTS threshold range is 1~2347 bytes.

You need to set up a rational value: A small value causes RTS packets to be sent more

often, thus consuming more of the available bandwidth. However, the more often RTS

packets are sent, the quicker the system can recover from interference or collisions. We

recommend that you set up a small value in a high-density WLAN network to decrease

the probability of collision.

DTIM Interval

Set up the number of beacon intervals between Delivery Traffic Indication Message

(DTIM) transmissions. The range is 1~255 Beacon interval.

The AP sends buffered broadcast/multicast frames with the configured DTIM interval.

For example, if you set DTIM to 2, the AP will send buffered broadcast/multicast frames

every two Beacon intervals.

WMM Capable

WMM is a wireless QoS protocol designed to preferentially transmit packets with high

priority, thus guaranteeing better QoS services for voice and video applications in a

WLAN network.

APSD Capable

APSD (Automatic Power Save Delivery) is disabled by default.

Preamble

Mainly used for preamble synchronization. It is advisable to keep the default value

unchanged.

Sensitivity Threshold

Define the minimum client signal level accepted by the AP for the client to connect to. If

the client signal level subsequently drops, the client remains connected to the AP.

LED Signal Threshold

(LED1/LED2/LED3）

When two devices bridge successfully, LED1/LED2/LED3 keeps solid. The three LEDs

indicate the signal strength of the other bridged device. By default, the relations between the signal strength and LEDs are shown below, and you can modify each LED’s

threshold on the web UI.

 -90 dBm < signal strength < -80dBm: LED1 turns green.

 -80 dBm < signal strength < -70dBm: LED1 and LED2 turn green.

 -70 dBm < signal strength: All the three LEDs turn green.

-46-

Page 52

Web UI Functions

Parameter

Description

MAC Filter

Enable/Disable wireless access control function that is based on MAC

address.

Filter Mode

 Forbid only: The device forbids wireless users that correspond to the

added MAC addresses to connect to the device. Other users are allowed

to connect.

 Permit Only: The device permits wireless users that correspond to the

added MAC addresses to connect to the device. Other users are not

allowed to connect.

Configure advanced wireless parameters

1. Log in to the device’s web UI.

2. Go to Wireless > Advanced.

3. Set up advanced wireless parameters.

We recommend that you keep the default value if you are not familiar with these parameters.

4. Click Save to make these settings take effect.

4.4.3 Access control

On this page, you can set up rules to forbid or permit specified wireless clients to access this device. The rules are

based on MAC address.

Parameter descriptions

-47-

Page 53

Web UI Functions

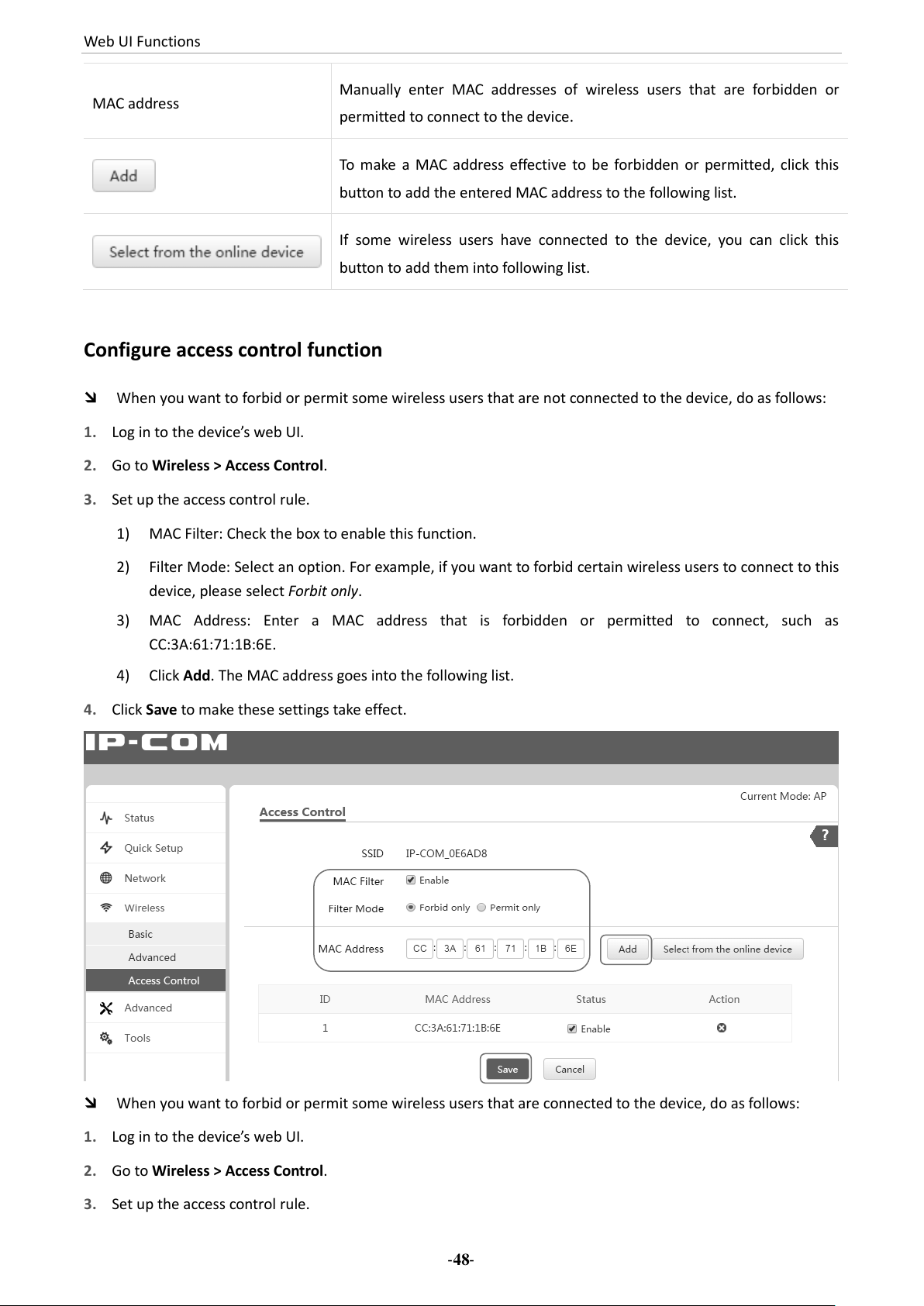

MAC address

Manually enter MAC addresses of wireless users that are forbidden or

permitted to connect to the device.

To make a MAC address effective to be forbidden or permitted, click this

button to add the entered MAC address to the following list.

If some wireless users have connected to the device, you can click this

button to add them into following list.

Configure access control function

 When you want to forbid or permit some wireless users that are not connected to the device, do as follows:

1. Log in to the device’s web UI.

2. Go to Wireless > Access Control.

3. Set up the access control rule.

1) MAC Filter: Check the box to enable this function.

2) Filter Mode: Select an option. For example, if you want to forbid certain wireless users to connect to this

device, please select Forbit only.

3) MAC Address: Enter a MAC address that is forbidden or permitted to connect, such as

CC:3A:61:71:1B:6E.

4) Click Add. The MAC address goes into the following list.

4. Click Save to make these settings take effect.

 When you want to forbid or permit some wireless users that are connected to the device, do as follows:

1. Log in to the device’s web UI.

2. Go to Wireless > Access Control.

3. Set up the access control rule.

-48-

Page 54

Web UI Functions

1) MAC Filter: Check the box to enable this function.

2) Filter Mode: Select an option. For example, if you want to forbid certain wireless users to connect to this

device, please select Forbit only.

3) MAC Address: Click Select from the online device.

4) On the pop-up window, select the client and click Add.

4. Click Save to make these settings take effect.

 If you want to delete a wireless user from the access control rule, you can click and follow on-screen

instructions.

-49-

Page 55

Web UI Functions

4.5 Advanced Setting

Advanced setting contains the following:



LAN Rate: On this page, you can select a transmission rate for the PoE LAN/WAN port.

 Diagnose: The device provides several diagnose tools to detect the network connection, including scanning

signal (site survey), ping and traceroute.

 Network Service: The device provides several network services, including regular reboot, SNMP, UPNP, etc.

4.5.1 LAN Rate

On this page, you can select a transmission rate for the PoE LAN/WAN port. Make sure two connected devices

have the same rate. We recommend that you keep the default value, Auto, if you are not familiar with this

parameter.

If you want to see the current rate of the PoE LAN/WAN port, go to page Status and check the LAN/WAN status.

-50-

Page 56

Web UI Functions

4.5.2 Diagnose

The device provides several diagnose tools to detect the network connection, including scanning signal (site survey), ping and traceroute.

Site Survey: Scanning signal



 Ping

 Traceroute

Site Survey: Scanning signal

With this function, you can see wireless signals surrounding the area and some of their information.

To start scanning signals:

1. Log in to the device’s web UI.

2. Go to Advanced > Diagnose.

3. Click the dropdown list and select Site Survey.

Wait a moment and the results will be displayed on the page, as shown in the figure below. Drag the scroll bar

to see more wireless signals.

According to the wireless signals, to reduce the channel interference, you can select a channel that is less used

surrounding the area for your device.

-51-

Page 57

Web UI Functions

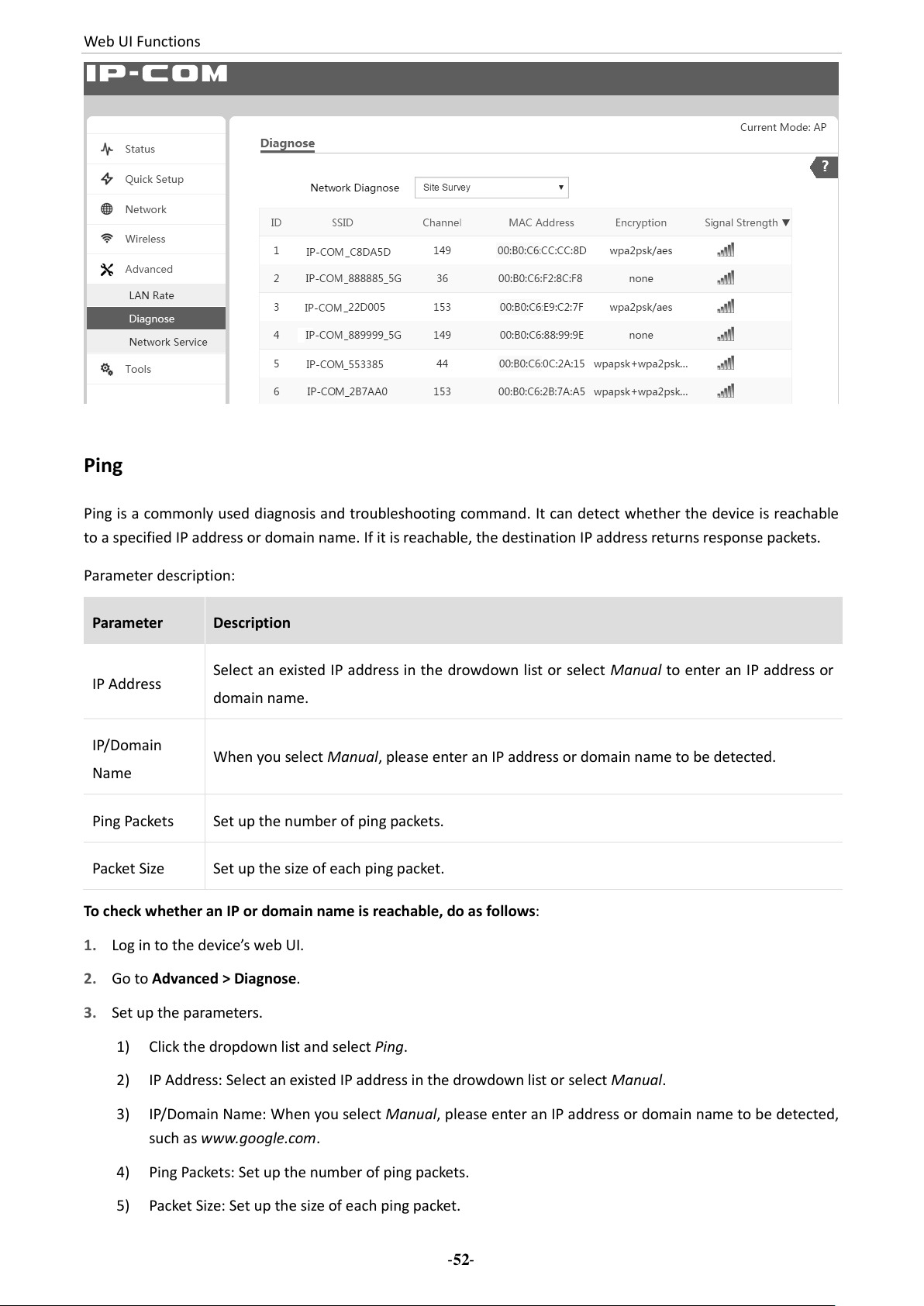

Parameter

Description

IP Address

Select an existed IP address in the drowdown list or select Manual to enter an IP address or

domain name.

IP/Domain

Name

When you select Manual, please enter an IP address or domain name to be detected. Ping Packets

Set up the number of ping packets.

Packet Size

Set up the size of each ping packet.

Ping

Ping is a commonly used diagnosis and troubleshooting command. It can detect whether the device is reachable

to a specified IP address or domain name. If it is reachable, the destination IP address returns response packets.

Parameter description:

To check whether an IP or domain name is reachable, do as follows:

1. Log in to the device’s web UI.

2. Go to Advanced > Diagnose.

3. Set up the parameters.

1) Click the dropdown list and select Ping.

2) IP Address: Select an existed IP address in the drowdown list or select Manual.

3) IP/Domain Name: When you select Manual, please enter an IP address or domain name to be detected,

such as www.google.com.

4) Ping Packets: Set up the number of ping packets.

5) Packet Size: Set up the size of each ping packet.

-52-

Page 58

Web UI Functions

4. Click Start.

Wait a moment and the results will be displayed on the page.

Traceroute

Traceroute is a computer network diagnostic tool for displaying the route (path) and measuring transit delays of

packets across an Internet Protocol (IP) network.

To detect a path from the device to google, do as follows:

1. Log in to the device’s web UI.

2. Go to Advanced > Diagnose.

3. Set up the parameters.

1) Click the dropdown list and select Traceroute.

2) Destination IP/Domain Name: Enter an IP address or domain name to be detected, such as

www.google.com.

4. Click Start.

Wait a moment and the results will be displayed on the page.

-53-

Page 59

Web UI Functions

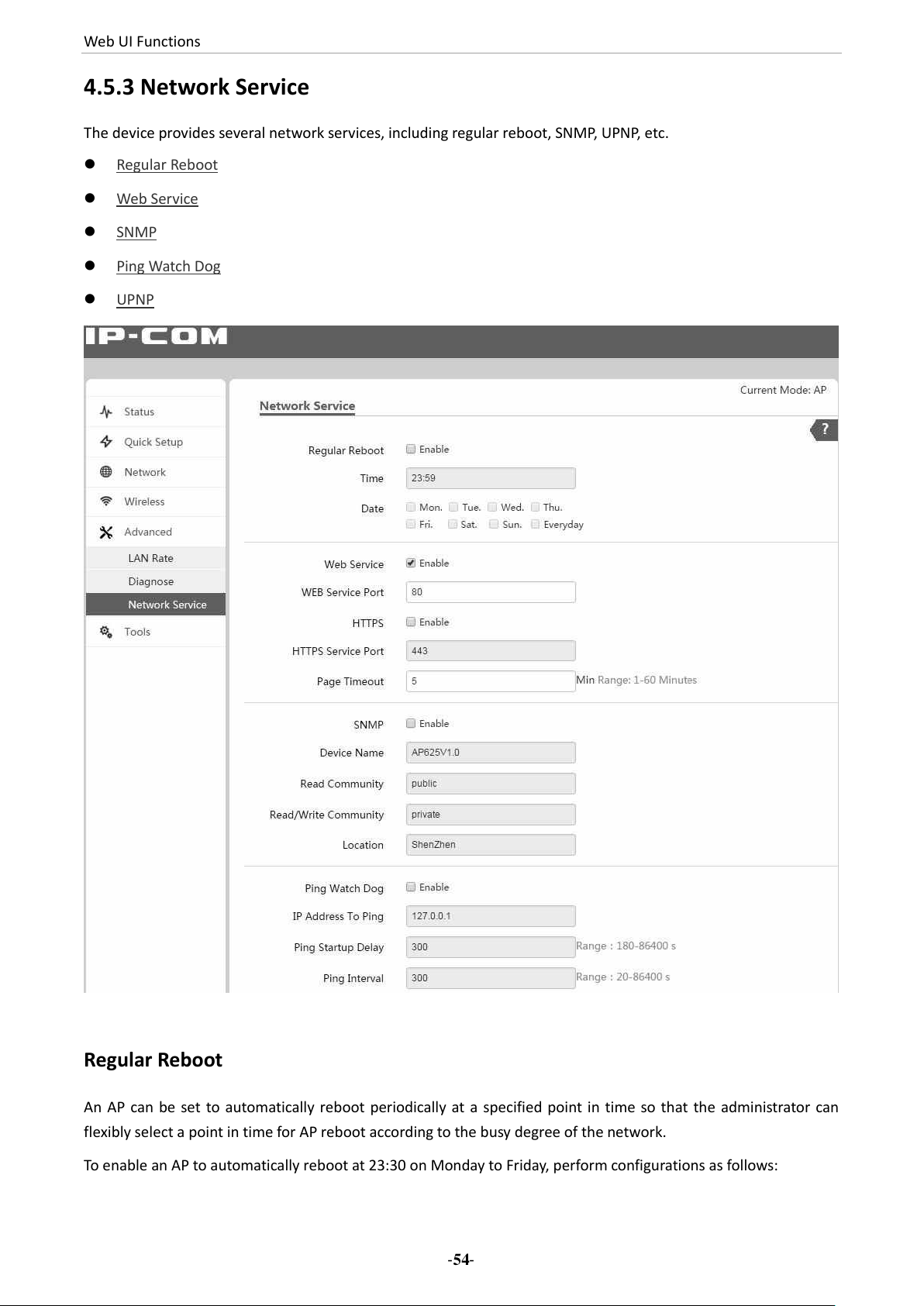

4.5.3 Network Service

The device provides several network services, including regular reboot, SNMP, UPNP, etc.

Regular Reboot



 Web Service

 SNMP

 Ping Watch Dog

 UPNP

Regular Reboot

An AP can be set to automatically reboot periodically at a specified point in time so that the administrator can

flexibly select a point in time for AP reboot according to the busy degree of the network.

To enable an AP to automatically reboot at 23:30 on Monday to Friday, perform configurations as follows:

-54-

Page 60

Web UI Functions

Web Service

The AP Web page access mode and page timeout time can be set through Web Service. This AP supports HTTP

and HTTPS access.By default, HTTP access is enabled. We recommend that you the default Web port number in

the absence of exceptional circumstances.

Steps for Enabling HTTPS Access:

In the HTTPS service option, click the Enable checkbox and then Save at the bottom of the page to enable the

HTTPS function.

After finishing settings, you can access the Web page in the form of "https://LAN IP:port number" (in this example,

https://192.168.2.1:443).

SNMP

This AP supports the SNMP agent function. SNMP management software can be used to manage the AP.

By default, the AP disables the SNMP agent function. If you want to enable SNMP agent, check the Enable

checkbox to enable SNMP and then click Save at the bottom of the page.

-55-

Page 61

Web UI Functions

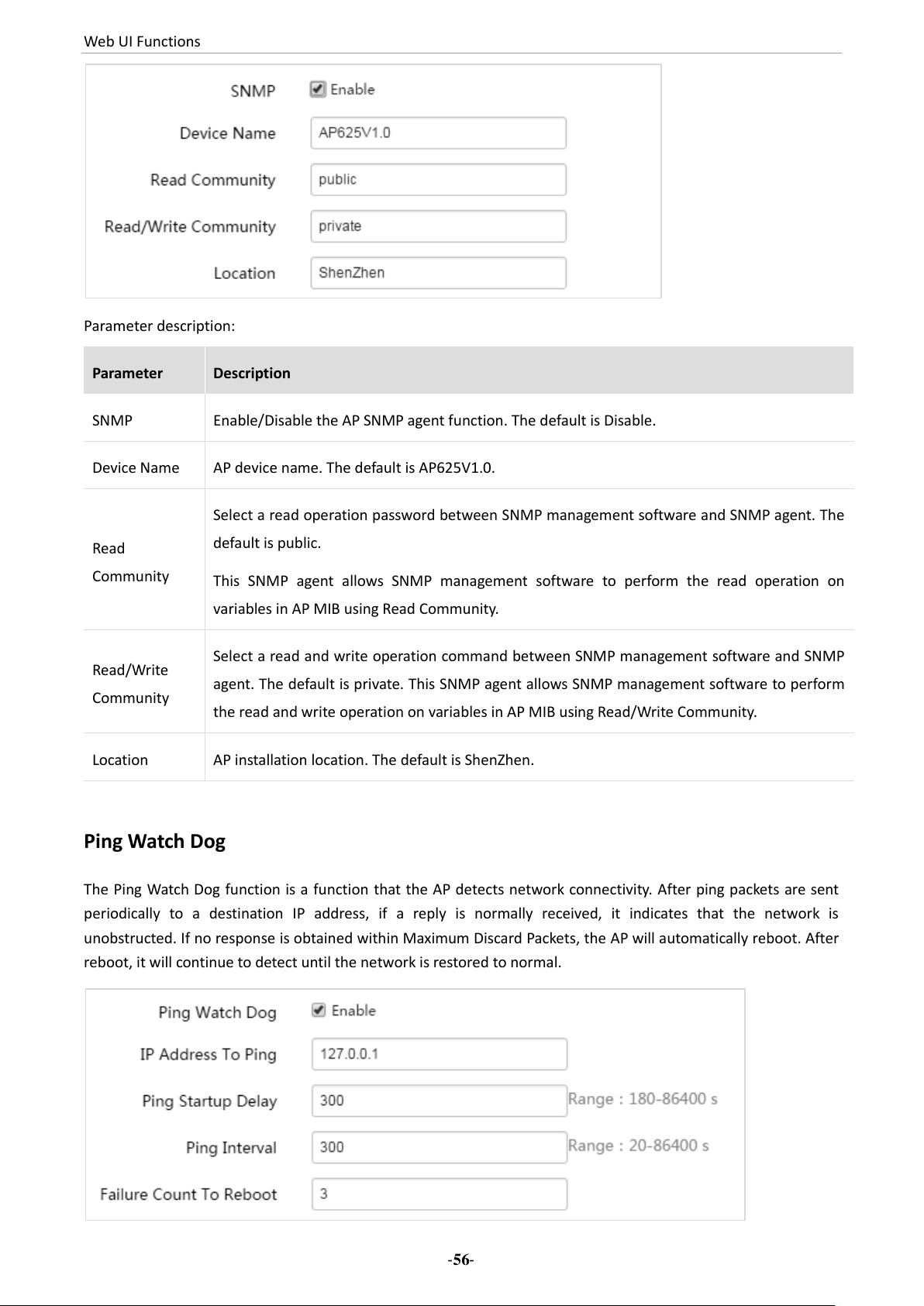

Parameter

Description

SNMP

Enable/Disable the AP SNMP agent function. The default is Disable.

Device Name

AP device name. The default is AP625V1.0.

Read

Community

Select a read operation password between SNMP management software and SNMP agent. The

default is public.

This SNMP agent allows SNMP management software to perform the read operation on

variables in AP MIB using Read Community.

Read/Write

Community

Select a read and write operation command between SNMP management software and SNMP

agent. The default is private. This SNMP agent allows SNMP management software to perform

the read and write operation on variables in AP MIB using Read/Write Community.

Location

AP installation location. The default is ShenZhen.

Parameter description:

Ping Watch Dog

The Ping Watch Dog function is a function that the AP detects network connectivity. After ping packets are sent

periodically to a destination IP address, if a reply is normally received, it indicates that the network is

unobstructed. If no response is obtained within Maximum Discard Packets, the AP will automatically reboot. After

reboot, it will continue to detect until the network is restored to normal.

-56-

Page 62

Web UI Functions

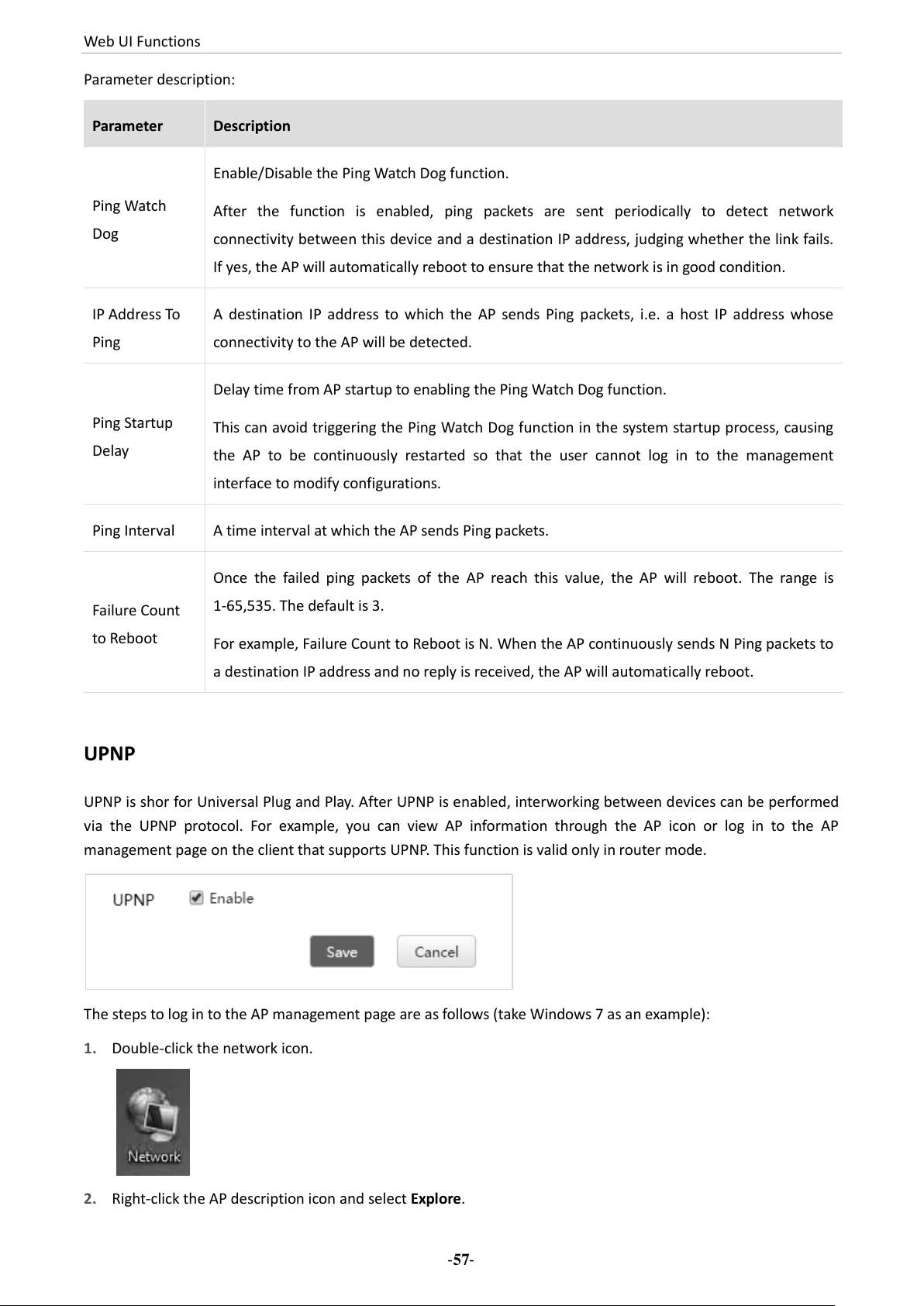

Parameter

Description

Ping Watch

Dog

Enable/Disable the Ping Watch Dog function.

After the function is enabled, ping packets are sent periodically to detect network

connectivity between this device and a destination IP address, judging whether the link fails.

If yes, the AP will automatically reboot to ensure that the network is in good condition.

IP Address To

Ping

A destination IP address to which the AP sends Ping packets, i.e. a host IP address whose

connectivity to the AP will be detected.

Ping Startup

Delay

Delay time from AP startup to enabling the Ping Watch Dog function.

This can avoid triggering the Ping Watch Dog function in the system startup process, causing

the AP to be continuously restarted so that the user cannot log in to the management

interface to modify configurations.

Ping Interval

A time interval at which the AP sends Ping packets.

Failure Count

to Reboot

Once the failed ping packets of the AP reach this value, the AP will reboot. The range is

1-65,535. The default is 3.

For example, Failure Count to Reboot is N. When the AP continuously sends N Ping packets to

a destination IP address and no reply is received, the AP will automatically reboot.

Parameter description:

UPNP

UPNP is shor for Universal Plug and Play. After UPNP is enabled, interworking between devices can be performed

via the UPNP protocol. For example, you can view AP information through the AP icon or log in to the AP

management page on the client that supports UPNP. This function is valid only in router mode.

The steps to log in to the AP management page are as follows (take Windows 7 as an example):

1. Double-click the network icon.

2. Right-click the AP description icon and select Explore.

-57-

Page 63

Web UI Functions

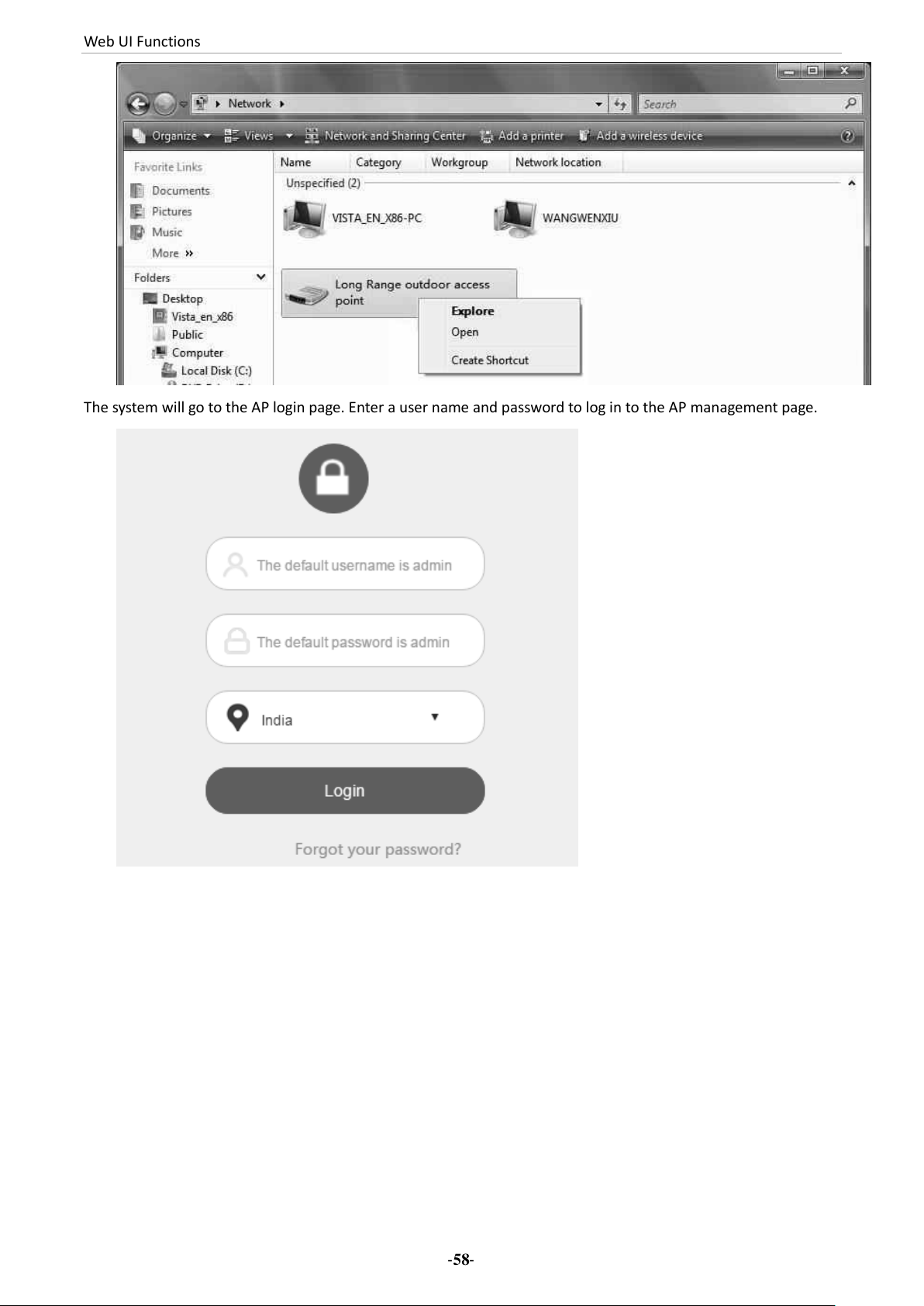

The system will go to the AP login page. Enter a user name and password to log in to the AP management page.

-58-

Page 64

Web UI Functions

4.6 Tools

System tools contain the following contents:



Date & Time: Set AP system time.

 Maintenance: AP maintenance operations including Reboot Device, Reset to Factory Defaults, Upgrade

Firmware, and Backup/Restore.

 Administrator: Modify an Administrator's and visitor's user name and password to prevent any unauthorized

users from entering the management page.

 System Log: View AP system logs.

4.6.1 Date & Time

Calibrate AP system time to ensure that time for functions such as logs and timed reboot is executed correctly.

Click System Tools to enter the Date & Time configuration page. You can set AP system time by the following

methods.

 Synchronize system time with the internet

 Manually set up system time

Note

Time information will be lost after power failure of the AP. If Synchronized with the Internet is enabled, after the

AP is started and connected to the Internet, it will resynchronize correct time from the Internet. Time to execute

System Log and Reboot Device is correct only after this.

Synchronize system time with the internet

The method for getting AP system time is synchronized with the Internet by default. To ensure correct system time,

the AP will automatically calibrate its system time towards the time server on the Internet every time slot set in

Time Interval.

To synchronize system time with the internet:

1. Log in to the device’s web UI.

2. Go to Tools > Date & Time.

3. Time Setup: Check the Synchronized with the Internet checkbox.

4. Select a time interval that is recommended to be 30 minutes.

5. Time Zone: Select a time zone in your region. For example, in China, you can select (GMT+08:00) Beijing,

Chongqing, Hong Kong, Urumchi, Taipei.

6. Click Save to finish settings.

After the AP is successfully connected to the Internet, the system will get standard GMT time from the Internet.

-59-

Page 65

Web UI Functions

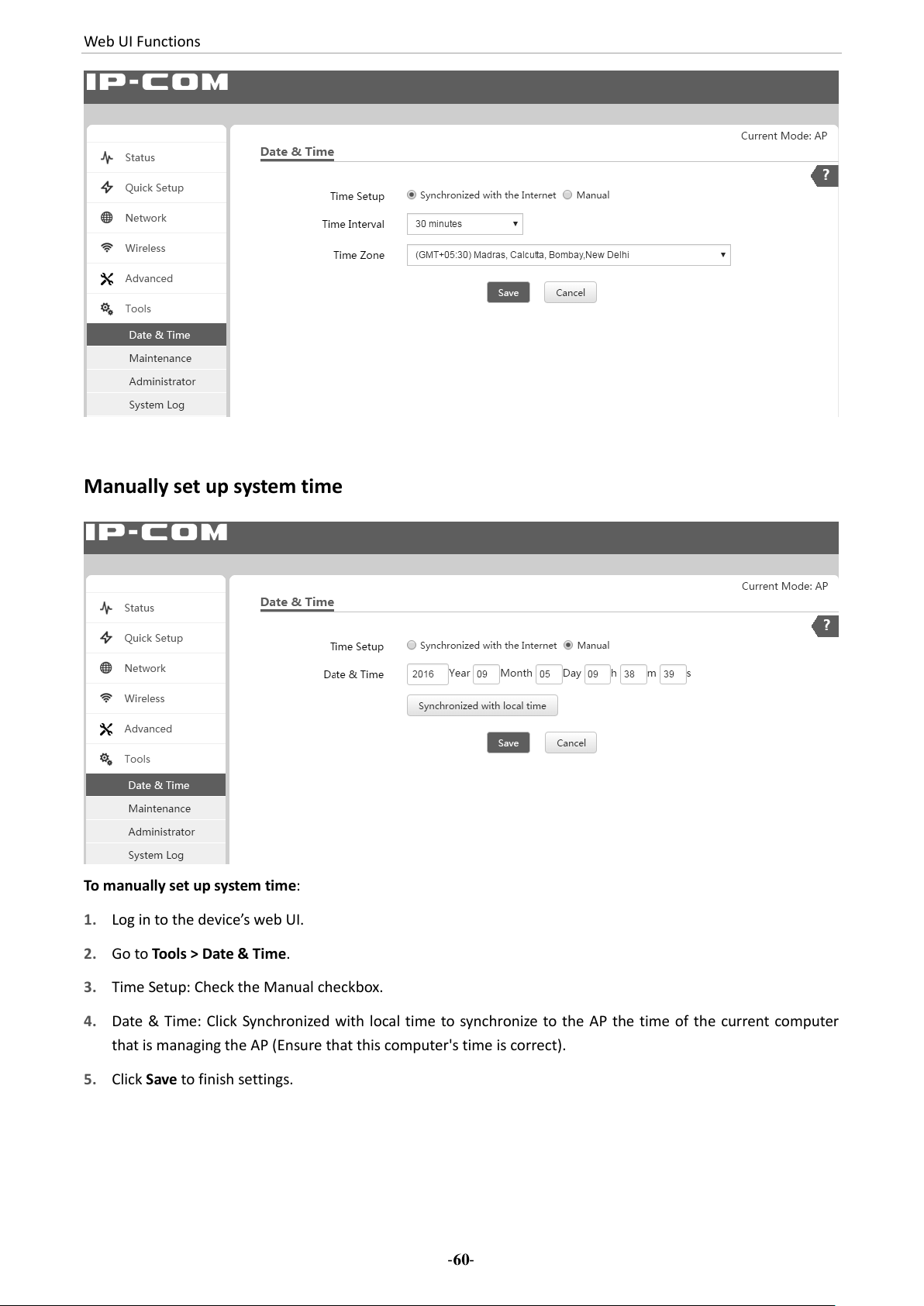

Manually set up system time

To manually set up system time:

1. Log in to the device’s web UI.

2. Go to Tools > Date & Time.

3. Time Setup: Check the Manual checkbox.

4. Date & Time: Click Synchronized with local time to synchronize to the AP the time of the current computer

that is managing the AP (Ensure that this computer's time is correct).

5. Click Save to finish settings.

-60-

Page 66

Web UI Functions

4.6.2 Maintenance

You can use the following ways to maintain your device:

Reboot device



 Reset to factory defaults

 Upgrade firmware

 Backup/Restore

Reboot device

All wireless connections will be automatically disconnected during AP reboot. Perform reboot when the network is

relatively idle.

Reboot the AP by clicking Reboot and performing operations according to the prompt on the page.

Reset to factory defaults

If you encounter a problem in surfing the Internet but cannot find this problem, you are recommended to reset

the AP to factory defaults and then reset it.

Note

 Reset to Factory Defaults means that all previous settings will be lost and the AP must be reset.

 Ensure the device power supply is normal in the process of Reset to Factory Defaults.

You can reset the device to factory defaults by the following methods:

Method 1: Click Reset and perform operations according to the prompt on the page.

-61-

Page 67

Web UI Functions

Method 2: In power-up state, open the device protective cover, continuously press and hold the button for 15s

and then release it.

Method 3: In power-up state, continuously press and hold the RESET button of the PoE injector with a needle for

15s and then release it.

All configuration data of the AP will be cleared after it is reset to factory defaults. Basic default parameters are as

follows:

 Default login IP address: 192.168.2.1

 Default user name and password: admin

Upgrade firmware

Upgrade firmware may enable the device to obtain a higher firmware version. If the device runs normally, it is not

recommended to perform firmware upgrade. If it is really necessary to upgrade firmware, enter the Maintenance

page to do so.

To upgrade a firmware for the device:

Note

Do not disconnect the AP power supply during the upgrade process, otherwise it may cause damage to the AP! In

case of sudden power failure, re-upgrade firmware. If you cannot enter the management page after sudden

power failure, contact the after-sales department.

1. Go to http://www.ip-com.com.cn to download the latest version of the firmware of the device.

2. Decompress the downloaded file using a decompress firmware and place it in a corresponding directory.

3. Log in to the device’s web UI.

4. Go to Tools > Maintenance > Upgrade Firmware.

5. Click Upgrade.

6. In the dialog box that appears, click Choose File (different characters may be displayed for different browses)

to load the decompressed upgraded firmware.

7. Click Upgrade and perform operations according to the prompt on the page.

-62-

Page 68

Web UI Functions

After the progress bar is over, enter this page to view the displayed Current Software Version, judging that AP

firmware is successfully upgraded.

Backup/Restore

After AP settings are finished, the existing AP configuration information can be backed up. The system will export

a configuration file after backup. If the device is reset to factory defaults, the previous configurations can be

restored by importing the configuration file.

 Backup: Back up the existing AP configuration information.

 Restore: Restore the previous configurations by importing the AP backup file.

To backup configurations:

1. Log in to the device’s web UI.

2. Go to Tools > Maintenance > Backup/Restore.

3. Click Backup/Restore.

4. In the dialog box that appears, click Backup.

5. Choose a storage path of the backup file by referring to the prompt in the computer.

To restore configurations:

1. Log in to the device’s web UI.

2. Go to Tools > Maintenance > Backup/Restore.

-63-

Page 69

Web UI Functions

3. Click Backup/Restore.

4. In the dialog box that appears, click Choose Flie and choose and load the device backup file.

5. Click Restore, and perform operations by referring to the prompt in the computer, and wait until the progress

bar is over.

4.6.3 Administrator

To prevent others from using the default login information to enter the AP management page to modify AP

configurations, it is strongly recommended to modify the user name and password in the login page.

This AP supports two account types: administrator and guest account.

 Administrator : Have all authorities to manage the AP. Both the user name and password are admin.

 Guest Account : View the AP configuration information only and cannot modify any configurations. Both the

user name and password are user.

Modify the user name and password by clicking of a corresponding account.

-64-

Page 70

Web UI Functions

4.6.4 System Log

To view various situations appearing after the startup of the AP system as well as the user's operation records on

the AP, click Tools>System Log to enter the configuration page.

To facilitate real-time monitoring on network running and diagnosis on network faults, we recommend that you

enter the Tools > Date & Time page to calibrate AP system time to ensure that log time is correct.

Click Refresh to view the latest log information about the AP. Click Clear to clear log information displayed on the

page. After the device is restarted, previous log information will be lost.

4.7 Other Functions in Router Mode

Other functions in router mode contain the following contents:

 MAC Clone: Modify AP WAN MAC address.

 Traffic Control: Set the user's minimum uploading rate and maximum downloading rate in a specified LAN.

 Port Forwarding: Set port forwarding to enable Internet users to access intranet resources.

 DMZ: Enable a host in the intranet to implement bidirectional unlimited communication with the Internet.

 MAC Filter: Set limitations on a specified client from surfing the Internet.

 DDNS: Establish a mapping relation between a changed WAN IP address of the device and a fixed domain

name. You need only to access this domain name during remote access.



Remote Web Access: Set Internet users' authority to access the device.

-65-

Page 71

Web UI Functions

Parameter

Description

MAC address

Current AP WAN MAC address.

Manually enter a correct MAC address and click Save.

Clone to the AP WAN the MAC address of the current computer managing the AP.

Set the AP WAN MAC address to the default.

4.7.1 MAC Clone

You can try to clone the MAC address if you cannot access the Internet after performing settings on router mode.

Parameter description

Configure MAC clone function

Tip

Please use a correct MAC address to perform the clone operation! A correct MAC address is a MAC address of a

computer on which a technician performs commissioning to surf the Internet during broadband installation.

To Configure MAC clone function:

1. Log in to the device’s web UI.

2. Go to Network > MAC Clone.

-66-

Page 72

Web UI Functions

Parameter

Description

Remarks

Information about remarks of the rule.

IP Range

IP address range of clients where the rule is effective.

Upstream

Minimum upstream rate of clients in the rule in KB/s and MB/s.

Downstream

Maximum downstream rate of clients in the rule in KB/s and MB/s.

Operation

Click to delete a corresponding rule.

3. Click Clone MAC to copy the MAC address of the current management computer to the current MAC address

bar.

4. Click Save to finish settings.s

4.7.2 Traffic Control

Traffic Control enables you to set bandwidth control on a LAN IP address according to actual need. By setting

corresponding restriction rules, traffic control on data transmission is realized so that limited bandwidth resources

are reasonably distributed to achieve the objective of effectively utilizing the existing bandwidth.

Tip

1. In the computer network or network operator, broadband rate is generally in bps (or b/s).

2. 1 B = 8 b 1 B/s = 8 b/s (or 1 Bps = 8 bps) 1 KB = 1,024 B 1 KB/s = 1,024 B/s 1 MB = 1,024 KB 1 MB/s = 1,024 KB/s

Parameter description

-67-

Page 73

Web UI Functions

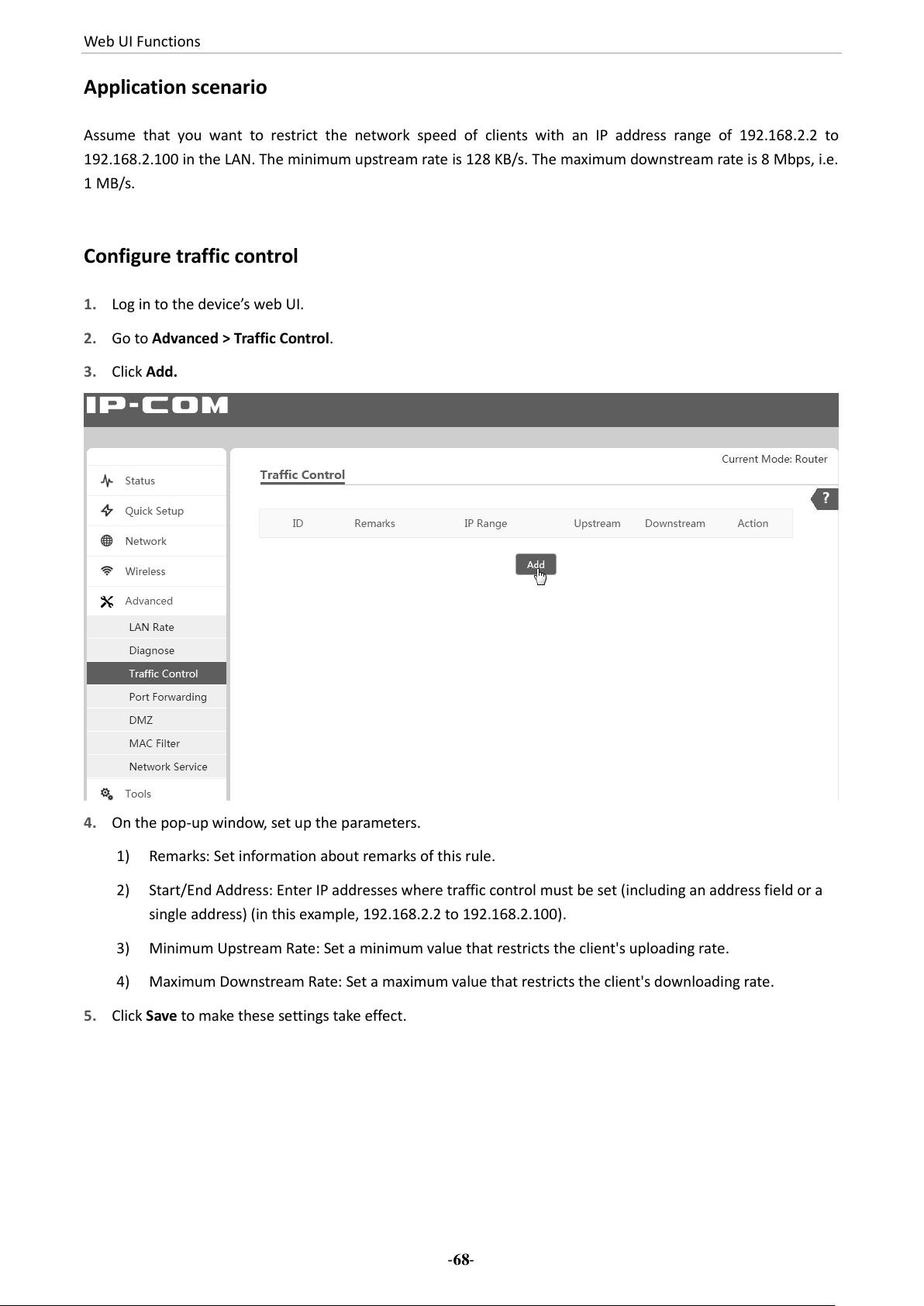

Application scenario

Assume that you want to restrict the network speed of clients with an IP address range of 192.168.2.2 to

192.168.2.100 in the LAN. The minimum upstream rate is 128 KB/s. The maximum downstream rate is 8 Mbps, i.e.

1 MB/s.

Configure traffic control

1. Log in to the device’s web UI.

2. Go to Advanced > Traffic Control.

3. Click Add.

4. On the pop-up window, set up the parameters.

1) Remarks: Set information about remarks of this rule.

2) Start/End Address: Enter IP addresses where traffic control must be set (including an address field or a

single address) (in this example, 192.168.2.2 to 192.168.2.100).

3) Minimum Upstream Rate: Set a minimum value that restricts the client's uploading rate.

4) Maximum Downstream Rate: Set a maximum value that restricts the client's downloading rate.

5. Click Save to make these settings take effect.

-68-

Page 74

Web UI Functions

4.7.3 Port Forwarding

By default, a WAN host cannot actively access a LAN host. Port Forwarding enables WAN users to access a LAN

host and protects the interior of the LAN against invasion. Port Forwarding defines a service port and specifies its

corresponding LAN server using an IP address. The device locates to this server any service request on this port

from the WAN.

-69-

Page 75

Web UI Functions

Parameter

Description

Internal IP

IP address of intranet server.

Internal Port

Service port of intranet server. During settings, automatic filling is performed after Public

Service is selected.

External Port

Port that is open to the user to access. During settings, automatic filling is performed after

Public Service is selected.

Protocol

Protocol type of a corresponding service. If you are not sure about protocol type of a service

during settings, you are recommended to select TCP/UDP.

Operation

After successfully setting rules, click to delete corresponding rules.

IP address

192.168.2.100

User Name and

Password

admin Port

Parameter description

Application scenario

A community uses 06 to perform networking. AP1 works in router mode and is connected to the Internet. AP2 is

bridged to AP1 wireless signals in station (client) mode. The AP1 WAN IP address is 202.105.106.55. The network

administrator needs to access resources on the intranet computer during business trip. This can be achieved

through the port forwarding function. Establish and enable an FTP server on the intranet computer. Store

resources to be accessed on the server. Set the port forwarding function on 06.

Assume that basic information about the FTP server is as follows:

-70-

Page 76

Web UI Functions

The reference topological graph is as follows:

Tip

 Ensure that the AP WAN port has obtained a public network IP address.

 If the AP WAN IP address is dynamically changed, refer to relevant contents of DDNS.

 An intranet computer IP address must be manually configured to avoid service interruption due to automatic

change of IP address.

 System firewall, some pieces of antivirus software, and security software may prevent other computers from

accessing the server on the computer. You are recommended to disable them temporarily when using this

function.

Configure port forwarding

1. Log in to the device’s web UI.

2. Go to Advanced > Port Forwarding.

3. Click Add.

-71-

Page 77

Web UI Functions

4. In the pop-up window, set up the parameters.

1) Internal IP: Enter an intranet server IP address, here we enter 192.168.2.100.

2) Public Service: Click the dropdown list and select a service enabled in the intranet, here we select FTP.

5. Click Save to finish settings.

-72-

Page 78

Web UI Functions

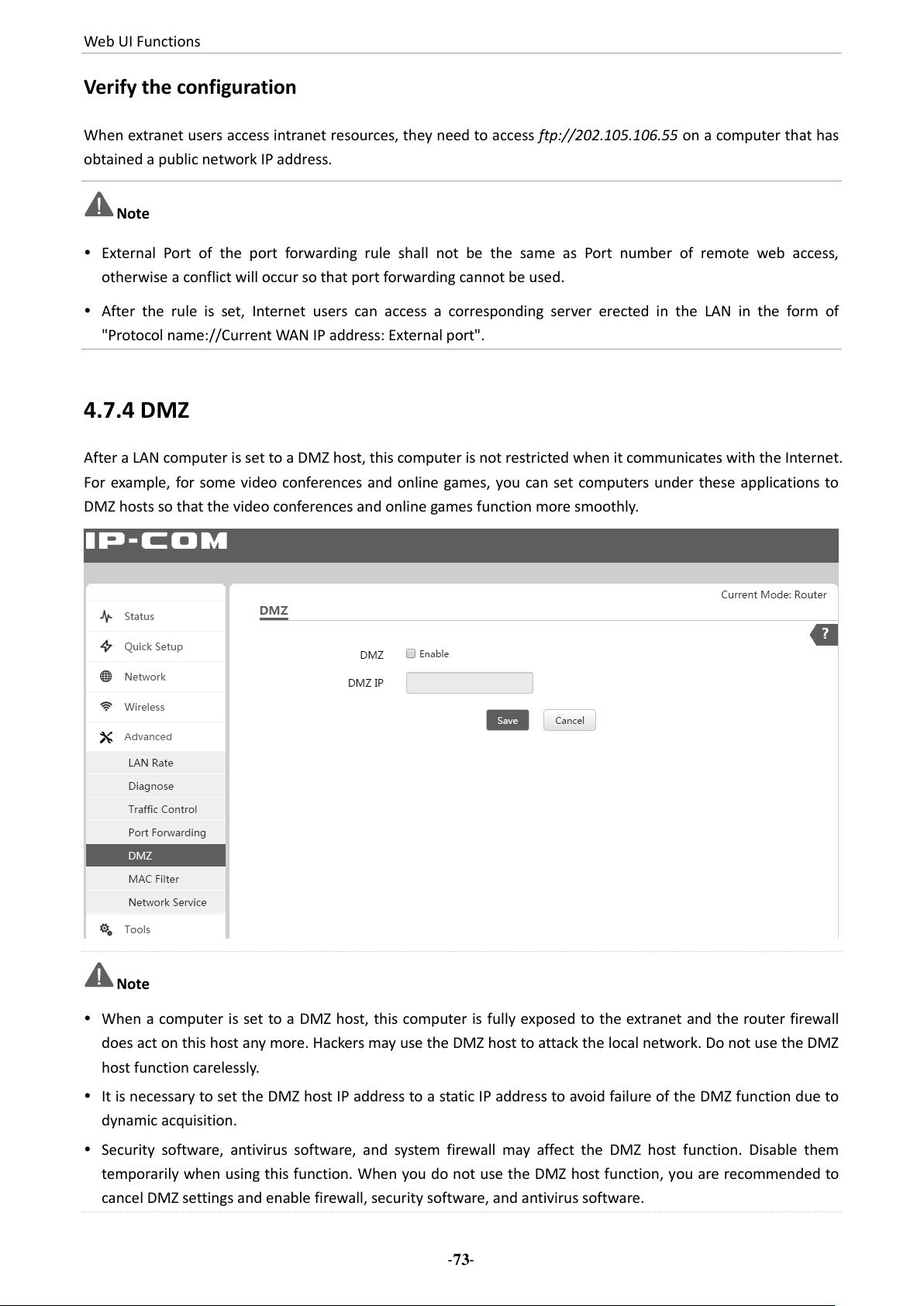

Verify the configuration

When extranet users access intranet resources, they need to access ftp://202.105.106.55 on a computer that has

obtained a public network IP address.

Note

 External Port of the port forwarding rule shall not be the same as Port number of remote web access,

otherwise a conflict will occur so that port forwarding cannot be used.

 After the rule is set, Internet users can access a corresponding server erected in the LAN in the form of

"Protocol name://Current WAN IP address: External port".

4.7.4 DMZ

After a LAN computer is set to a DMZ host, this computer is not restricted when it communicates with the Internet.

For example, for some video conferences and online games, you can set computers under these applications to

DMZ hosts so that the video conferences and online games function more smoothly.

Note

 When a computer is set to a DMZ host, this computer is fully exposed to the extranet and the router firewall

does act on this host any more. Hackers may use the DMZ host to attack the local network. Do not use the DMZ

host function carelessly.

 It is necessary to set the DMZ host IP address to a static IP address to avoid failure of the DMZ function due to

dynamic acquisition.

 Security software, antivirus software, and system firewall may affect the DMZ host function. Disable them

temporarily when using this function. When you do not use the DMZ host function, you are recommended to

cancel DMZ settings and enable firewall, security software, and antivirus software.

-73-

Page 79

Web UI Functions

To add a DMZ host:

1. Log in to the device’s web UI.

2. Go to Advanced > DMZ.

3. Click Enable in the DMZ option.

4. In the DMZ IP option, enter an IP address of DMZ host, and then click Save.

4.7.5 MAC Filter

Computers, laptops, tablet PCs, and smartphones that people often use have respective MAC addresses. You can

control LAN clients' access to the Internet through the MAC Filter function. MAC Filter has two access control

modes: Allow_Internet and Forbid_Internet.

-74-

Page 80

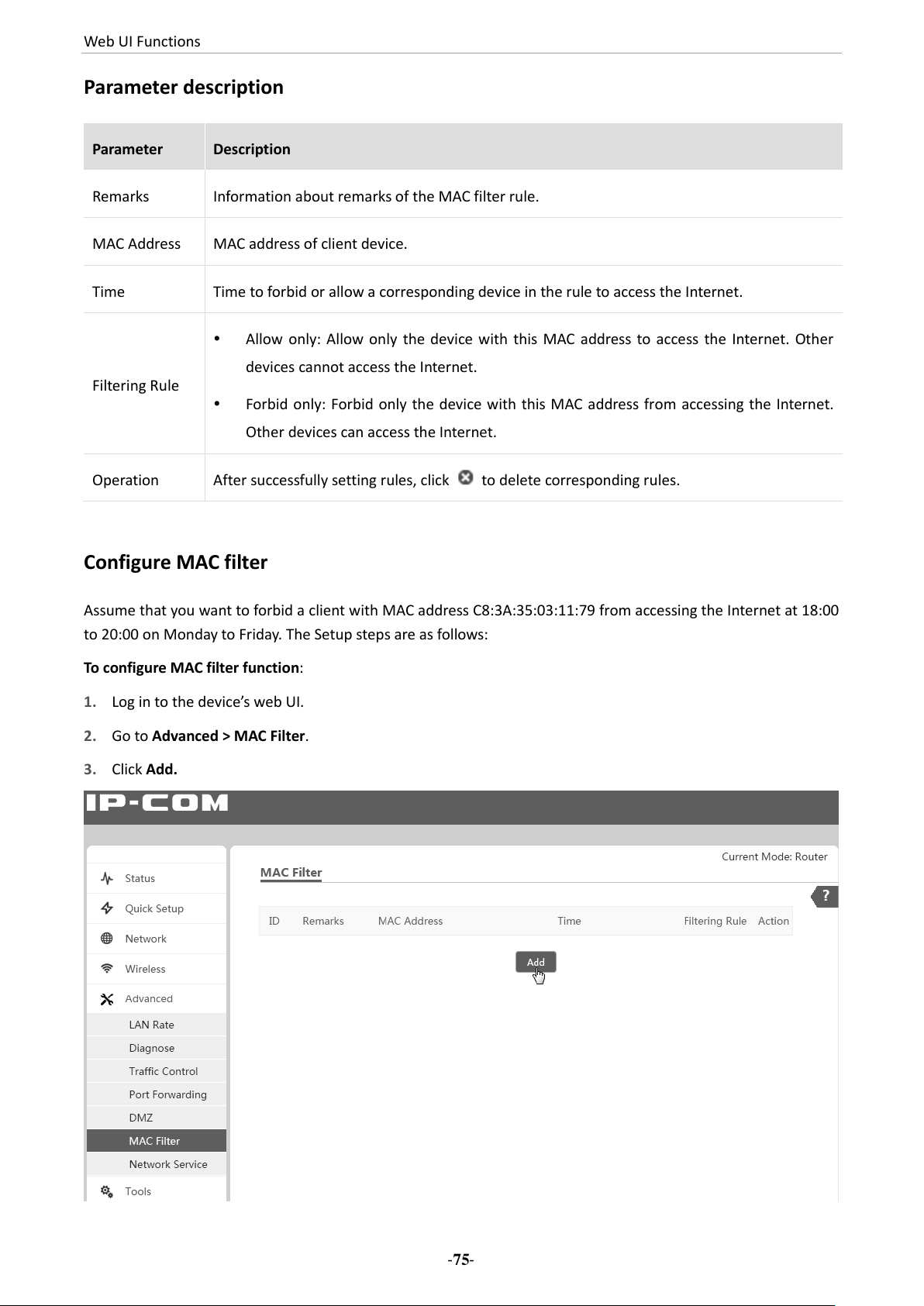

Web UI Functions

Parameter

Description

Remarks

Information about remarks of the MAC filter rule.

MAC Address

MAC address of client device.

Time

Time to forbid or allow a corresponding device in the rule to access the Internet.

Filtering Rule

 Allow only: Allow only the device with this MAC address to access the Internet. Other

devices cannot access the Internet.

 Forbid only: Forbid only the device with this MAC address from accessing the Internet.

Other devices can access the Internet.

Operation

After successfully setting rules, click to delete corresponding rules.

Parameter description

Configure MAC filter

Assume that you want to forbid a client with MAC address C8:3A:35:03:11:79 from accessing the Internet at 18:00

to 20:00 on Monday to Friday. The Setup steps are as follows:

To configure MAC filter function:

1. Log in to the device’s web UI.

2. Go to Advanced > MAC Filter.

3. Click Add.

-75-

Page 81

Web UI Functions

4. In the pop-up window, set up the parameters.

1) Filtering Rule: Click the dropdown list and select Forbid only.

2) Remarks: Description of setting a rule, for example, forbid accessing the Internet.

3) MAC Address: Enter a MAC address of a client that is forbidden from being connecting to the AP (in this

example,

4) Time: Click the dropdown list and select a point in time when the rule is effective (in this example,

18:00~20:00).

5) Day: Click the dropdown list and select a date when the rule is effective (in this example, Monday to

Friday).

5. Click Save to finish settings.

C8:3A:35:03:11:79).

4.7.6 DDNS

DDNS (Dynamic Domain Name Service) is to map the device's dynamic WAN IP address (public network IP address)

to a fixed domain name. When the service runs, the DDNS client sends this host's current WAN IP address to the

DDNS server through information transmission. The server updates the mapping relation between the domain

name and the IP address in the database to achieve dynamic domain name resolution.

-76-

Page 82

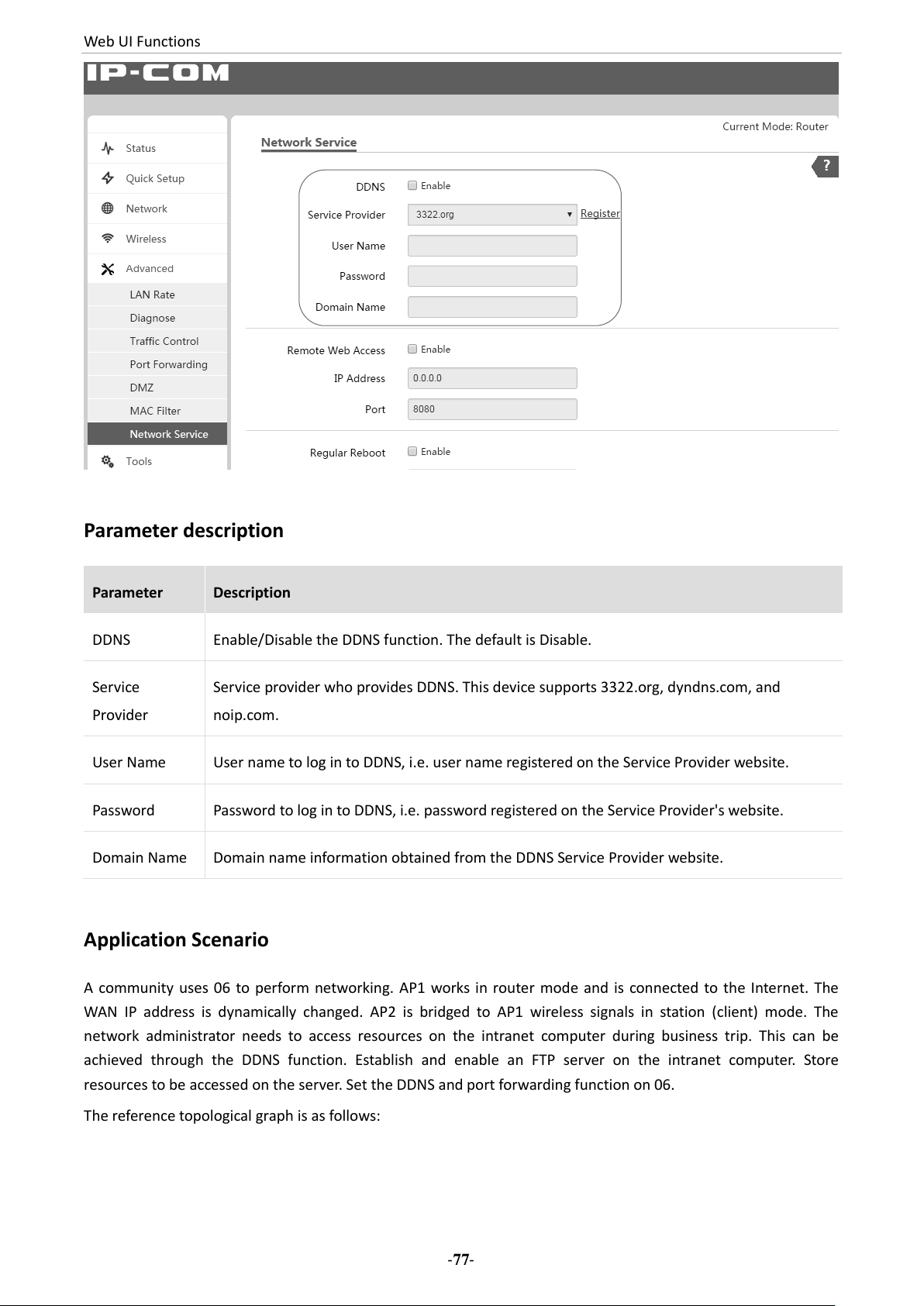

Web UI Functions

Parameter

Description

DDNS

Enable/Disable the DDNS function. The default is Disable.

Service

Provider

Service provider who provides DDNS. This device supports 3322.org, dyndns.com, and

noip.com.

User Name

User name to log in to DDNS, i.e. user name registered on the Service Provider website.

Password

Password to log in to DDNS, i.e. password registered on the Service Provider's website.

Domain Name

Domain name information obtained from the DDNS Service Provider website.

Parameter description

Application Scenario

A community uses 06 to perform networking. AP1 works in router mode and is connected to the Internet. The

WAN IP address is dynamically changed. AP2 is bridged to AP1 wireless signals in station (client) mode. The

network administrator needs to access resources on the intranet computer during business trip. This can be

achieved through the DDNS function. Establish and enable an FTP server on the intranet computer. Store

resources to be accessed on the server. Set the DDNS and port forwarding function on 06.

The reference topological graph is as follows:

-77-

Page 83

Web UI Functions

Configure DDNS function

Step 1: Register a domain name.

1. Log in to the device’s web UI.

2. Go to Advanced > Network Service > DDNS.

3. Go to the DDNS configuration page and click Regiser. (In case of noip.com or dyndns.com, check the Enable

checkbox of DDNS, select a corresponding service provider, and click Regiser.)

4. Register a domain name by referring to prompt messages in the website.

-78-

Page 84

Web UI Functions

Service Provider

3322.org

User Name、Password

abc

Domain Name

abc.3322.org

Assume that registered basic information is as follows:

Step 2: Set up a DDNS rule.

1. Re-enter the DDNS page and perform operations by referring to the following contents.

1) DDNS: Click the Enable checkbox to enable this function.

2) Service Provider: Click the dropdown box and select a corresponding DDNS Service Provider (in this

example, 3322.org).

3) User Name and Password: Enter the user name and password registered in the Service Provider website

(in this example, abc).

4) Domain Name: Enter the domain name created in the Service Provider website (in this example,

abc.3322.org).

2. Click Save at the bottom of the page.

Step 3: Set the port forwarding function. For details of setup steps, refer to

Verify the configuration

When extranet users access intranet resources, they need only to access http://abc.3322.org on a computer that

has obtained a public network IP address.

Port Forwarding.

-79-

Page 85

Web UI Functions

Parameter

Description

Remote Web Access

Enable/Disable the remote web management function. The default is Disable.

IP Address

IP address that remotely accesses the device. If no IP address is entered, it indicates that

all computers on the Internet can log in to the web UI of the device.

Port Number

Port number used during remote management on the device. The default is 8080 and

can be modified as needed.

Tip

Ports 1-1,024 have been occupied by known services. To avoid port conflict, it is strongly

recommended to modify these ports to Ports 1,025-65,535.

4.7.7 Remote Web Access

As a general rule, only the client that is connected to the device with a network cable or wireless device can log in

to its web UI. If necessary, you can remotely access the web UI of the device via the WAN interface.

Parameter description

Application Scenario

A community uses 06 to perform networking. AP1 works in router mode and is connected to the Internet. AP2 is

bridged to AP1 wireless signals in Client mode. The AP1 WAN IP address is 202.105.106.55. The network

administrator may want to maintain the network during business trip and needs to log in to the web UI of the

device. This can be achieved through the Remote Web Access function.

-80-

Page 86

Web UI Functions

The reference topological graph is as follows:

Configure remote web access function

Step 1: Enable the Remote Web Access function of the device.

1. Log in to the device’s web UI.

2. Go to Advanced > Network Service.

3. Check the Enable checkbox of the Remote Web Access option and click Save at the bottom of the page.

Verify the configuration

that has been connected to the Internet and has obtained a public network IP address.

-81-

Page 87

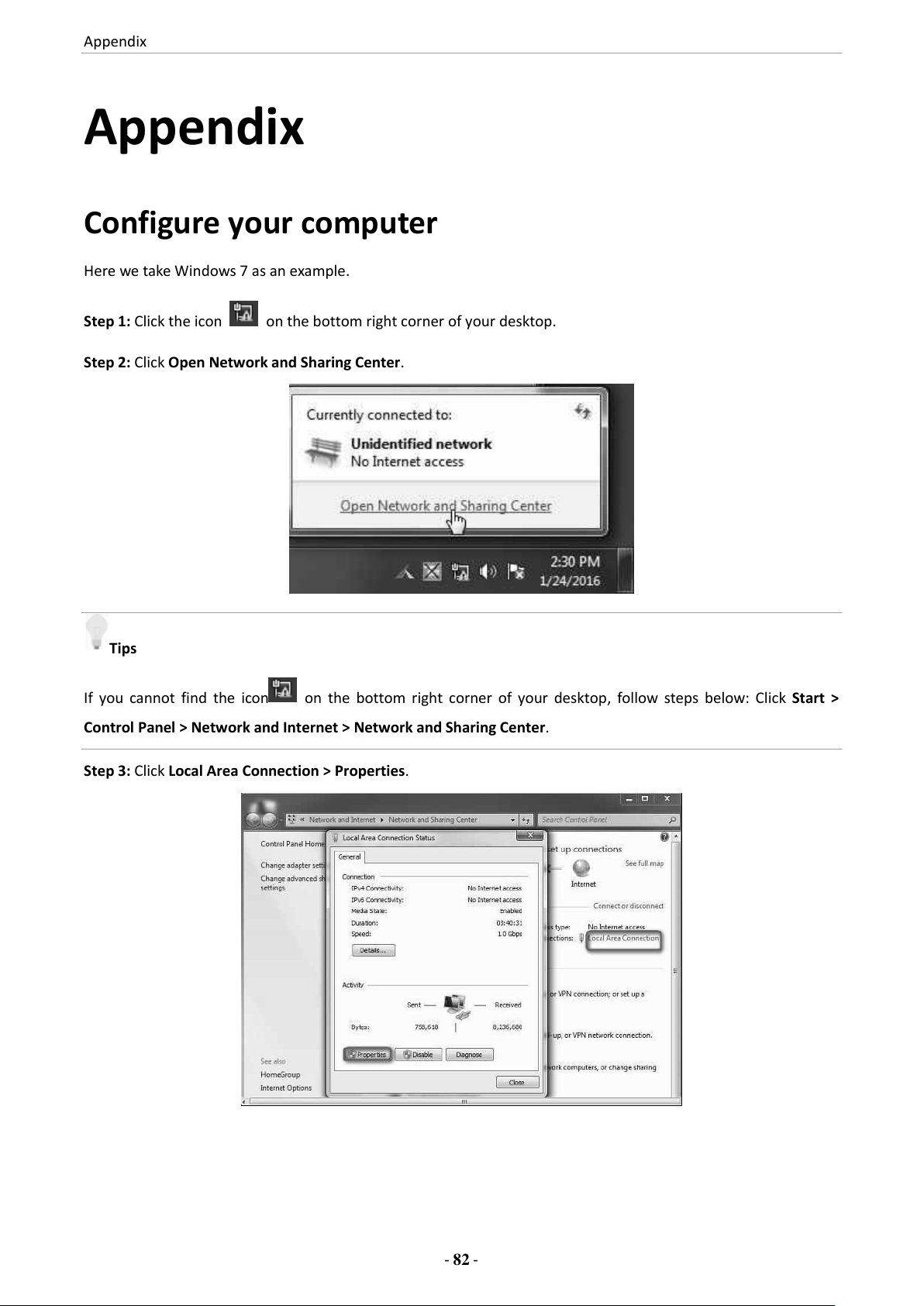

Appendix

Configure your computer

Here we take Windows 7 as an example.

Step 1: Click the icon on the bottom right corner of your desktop.

Step 2: Click Open Network and Sharing Center.

Tips

If you cannot find the icon on the bottom right corner of your desktop, follow steps below: Click Start >

Control Panel > Network and Internet > Network and Sharing Center.

Step 3: Click Local Area Connection > Properties.

- 82 -

Page 88

Appendix

Step 4: Find and double click Internet Protocol Version 4(TCP/IPv4).

Step 5: Select Use the following IP address, type in the IP address: 192.168.2.x (2~253), Subnet mask:

255.255.255.0 and click OK. Or you can select Obtain an IP address automatically.

Step 6: Click OK on the Local Area Connection Properties window (see Step 4 for the screenshot).

- 83 -

Page 89

Appendix

Safety and emission statement

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the

user may be required to take adequate measures.

NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. (2) To avoid unnecessary radiation interference, we recommend that you use a

shielded RJ45 cable.

Declaration of Conformity

Hereby, IP-COM NETWORKS Co., LTD. declares that the radio equipment type AP625 is in compliance with

Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.ip-com.com.cn/en/ce.html

Operate Frequency: 5150-5250MHz (CH36-CH48)

EIRP Power (Max.): 22.8dBm

Software Version: V1.0.0.2

Caution：

Adapter Model: BN060-P12024

Manufacture: SHENZHEN HEWEISHUN NETWORK TECHNOLOGY CO., LTD.

Input: 100-240V~50/60HZ 0.3A

Output: 24V 0.5A

: DC Voltage

- 84 -

Page 90

Appendix

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this

product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its

impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys an new

electrical or electronic equipment.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this

equipment.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

- 85 -

Page 91

Appendix

NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. (2) To avoid unnecessary radiation interference, we recommend that you use a

shielded RJ45 cable.

- 86 -

IP-COM ICIP-AP625 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Conventions

How to download documents

Technical support

Table of contents

1 Get to know the device

1.1 Features

1.2 Package contents

1.3 Hardware descriptions

1.3.1 Front panel

1.3.2 Rear panel

1.3.3 Label

2 Device installation

2.1 Installation preparations

2.1.1 Environment requirements

2.1.2 Check your device

2.2 Installation steps

Step 1: Install the device

Step 2: Connect the device to a network

3 Web UI login

3.1 Login

3.2 Layout of web UI

4 Web UI functions

4.1 Status

4.2 Quick setup

4.2.1 AP mode

Application scenario

Configure AP mode

4.2.2 Station (Client) mode

Application scenario

Configure station mode

4.2.3 Universal Repeater mode

Application scenario

Configure universal repeater mode

4.2.4 WISP Mode

Application scenario

Configure WISP mode

4.2.5 Router Mode

Application scenario

Configure router mode

4.3 Network

4.3.1 LAN Settings

Parameter description

Static IP: Set up LAN IP address manually

DHCP: Obtain LAN IP address from another DHCP server

4.3.2 DHCP Server

Parameter description

Configure DHCP server

4.3.3 DHCP Client

4.3.4 VLAN Settings

Parameter description

Application scenario

Configure VLAN function

4.4 Wireless

4.4.1 Basic

Parameter description

Commonly used parameters description

Parameter description of WEP

Parameter description of WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK

Parameter description of WPA and WPA2

Configure basic wireless parameters

4.4.2 Advanced

Parameter description

Configure advanced wireless parameters

4.4.3 Access control

Parameter descriptions

Configure access control function

4.5 Advanced Setting

4.5.1 LAN Rate

4.5.2 Diagnose

Site Survey: Scanning signal

Ping

Traceroute

4.5.3 Network Service

Regular Reboot

Web Service
