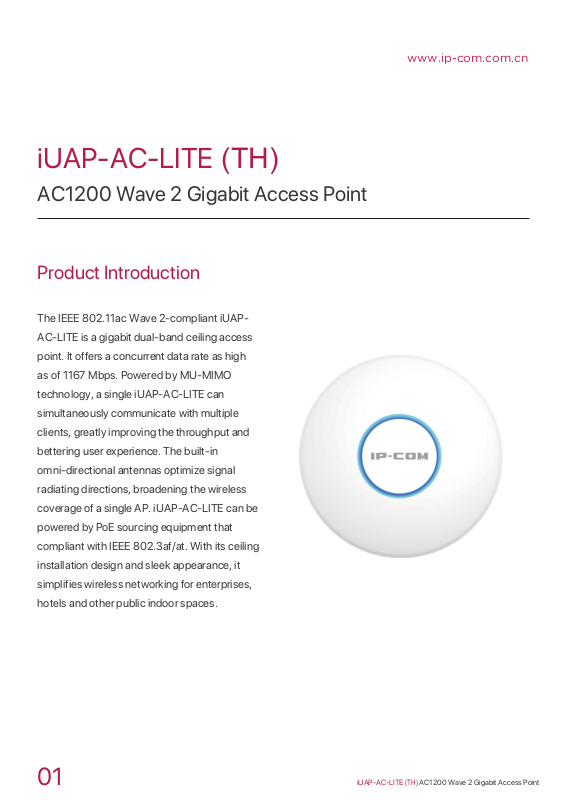

Page 1
iUAP-AC-LITE (TH)
AC1200 Wave 2 Gigabit Access Point
Product Introduction
The IEEE 802.11ac Wave 2-compliant iUAP-
www.ip-com.com.cn
AC-LITE is a gigabit dual-band ceiling access
point. It offers a concurrent data rate as high
as of 1167 Mbps. Powered by MU-MIMO
technology, a single iUAP-AC-LITE can
simultaneously communicate with multiple
clients, greatly improving the throughput and
bettering user experience. The built-in
omni-directional antennas optimize signal
radiating directions, broadening the wireless
coverage of a single AP. iUAP-AC-LITE can be
powered by PoE sourcing equipment that
compliant with IEEE 802.3af/at. With its ceiling
installation design and sleek appearance, it
simplifies wireless networking for enterprises,
hotels and other public indoor spaces.
01
iUAP-AC-LITE (TH) AC1200 Wave 2 Gigabit Access Point
Page 2
Packaging
Product Information
www.ip-com.com.cn
Model
Appearance Ceiling
Dimensions 176* 176* 43.5mm
iUAP-AC-LITE (TH)
Hardware Specifications
Frequency band
Wireless standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate 1 - 300 Mbps
5 GHz data rate 6 - 867 Mbps
Ethernet port 1*10/100/1000 Base-TX port
Button 1*Reset
LED indicator 1*Power
Max. power consumption Full-load 11.5W
Power supply standard IEEE 802.3at & 24V, 0.5A Passive PoE
Antenna gain 2*4 dBi
2.400 - 2.500 GHz, 5.150 - 5.350 GHz
Max EIRP
20 dBi
Software Specifications
Operating modes AP, Client+AP
Hide SSID Supported
Max. No. of SSID 2.4 GHz: 8, 5 GHz: 4
Max. connected clients 2.4 GHz: 128, 5 GHz: 256
WEP Supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA Supported
WPA2 Supported
02
iUAP-AC-LITE(TH) AC1200 Wave 2 Gigabit Access Point
Page 3
Packaging
Access control MAC address-based
Adjustable power transmit Supported
Frequency analysis Supported
AP isolation Supported
Connected clients control Supported
RSSI threshold Supported
Transmission Power Adjustable power by 1dBm
WMM Supported
VLAN tagging for SSID Supported
LED indicator control Supported
Diagnostics tool Ping, Traceroute
Scheduled reboot Supported
www.ip-com.com.cn
Reboot at specified interval Supported
Management Web UI
System logs Supported
Firmware upgrade Local and AC upgrade
Reboot Local and AC reboot
Reset Local and AC reset
Backup configuration Supported
Restore configuration Supported
Operating Environment
Default login IP address 192.168.0.254
Default user name admin
Default password admin
Operating temperature -10℃ - 45℃
Operating humidity (10%-90%) RH, non-condensing
Storage temperature
-30℃ - 70℃
Storage humidity
03
(10%-90%) RH, non-condensing
iUAP-AC-LITE (TH) AC1200 Wave 2 Gigabit Access Point
