G1109P-8-102W
9-Port Gigabit Unmanaged Switch With
8-Port PoE
www.ip-com.com.cn
Page 2
G1109P-8-102W
9-Port Gigabit Unmanaged Switch With 8-Port PoE
Products Description
www.ip-com.com.cn

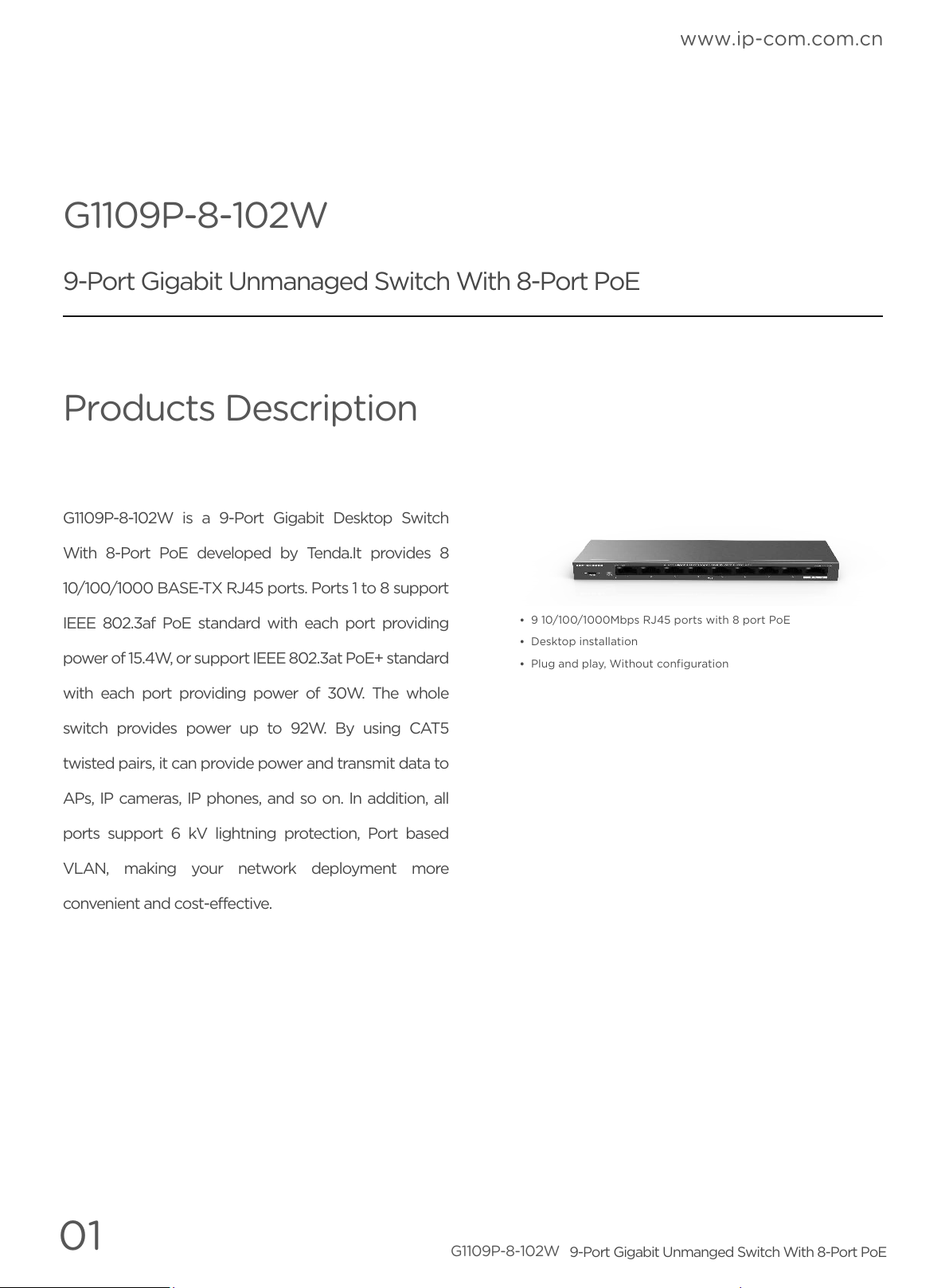

G1109P-8-102W is a 9-Port Gigabit Desktop Switch
With 8-Port PoE developed by Tenda.It provides 8
10/100/1000 BASE-TX RJ45 ports. Ports 1 to 8 support
IEEE 802.3af PoE standard with each port providing
power of 15.4W, or support IEEE 802.3at PoE+ standard
with each port providing power of 30W. The whole
switch provides power up to 92W. By using CAT5
twisted pairs, it can provide power and transmit data to
APs, IP cameras, IP phones, and so on. In addition, all
ports support 6 kV lightning protection, Port based
VLAN, making your network deployment more
convenient and cost-effective.
• 9 10/100/1000Mbps RJ45 ports with 8 port PoE
• Desktop installation
• Plug and play, Without configuration
01
G1109P-8-102W
9-Port Gigabit Unmanged Switch With 8-Port PoE
Page 3

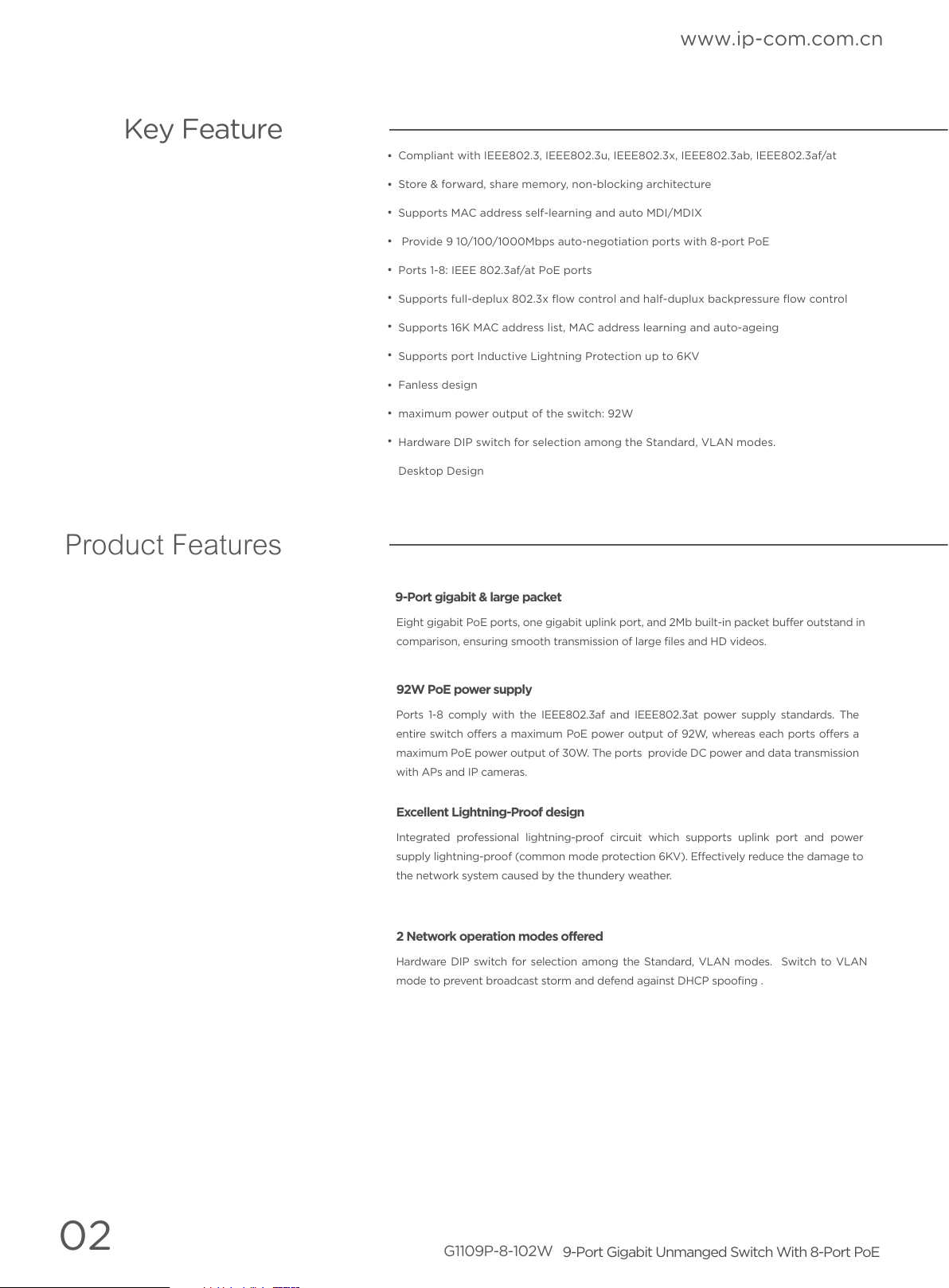

Key Feature
www.ip-com.com.cn
•
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af/at
•
Store & forward, share memory, non-blocking architecture
•
Supports MAC address self-learning and auto MDI/MDIX
•
Provide 9 10/100/1000Mbps auto-negotiation ports with 8-port PoE
•
Ports 1-8: IEEE 802.3af/at PoE ports
•
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
•
Supports 16K MAC address list, MAC address learning and auto-ageing
•
Supports port Inductive Lightning Protection up to 6KV
•
Fanless design
•
maximum power output of the switch: 92W
•
Hardware DIP switch for selection among the Standard, VLAN modes.
Desktop Design
Product Features
9-Port gigabit & large packet
Eight gigabit PoE ports, one gigabit uplink port, and 2Mb built-in packet buffer outstand in
comparison, ensuring smooth transmission of large files and HD videos.
92W PoE power supply
Ports 1-8 comply with the IEEE802.3af and IEEE802.3at power supply standards. The
entire switch offers a maximum PoE power output of 92W, whereas each ports offers a
maximum PoE power output of 30W. The ports provide DC power and data transmission
with APs and IP cameras.
Excellent Lightning-Proof design
Integrated professional lightning-proof circuit which supports uplink port and power
supply lightning-proof (common mode protection 6KV). Effectively reduce the damage to
the network system caused by the thundery weather.
2 Network operation modes offered
Hardware DIP switch for selection among the Standard, VLAN modes. Switch to VLAN
mode to prevent broadcast storm and defend against DHCP spoofing .
02
G1109P-8-102W
9-Port Gigabit Unmanged Switch With 8-Port PoE
Page 4

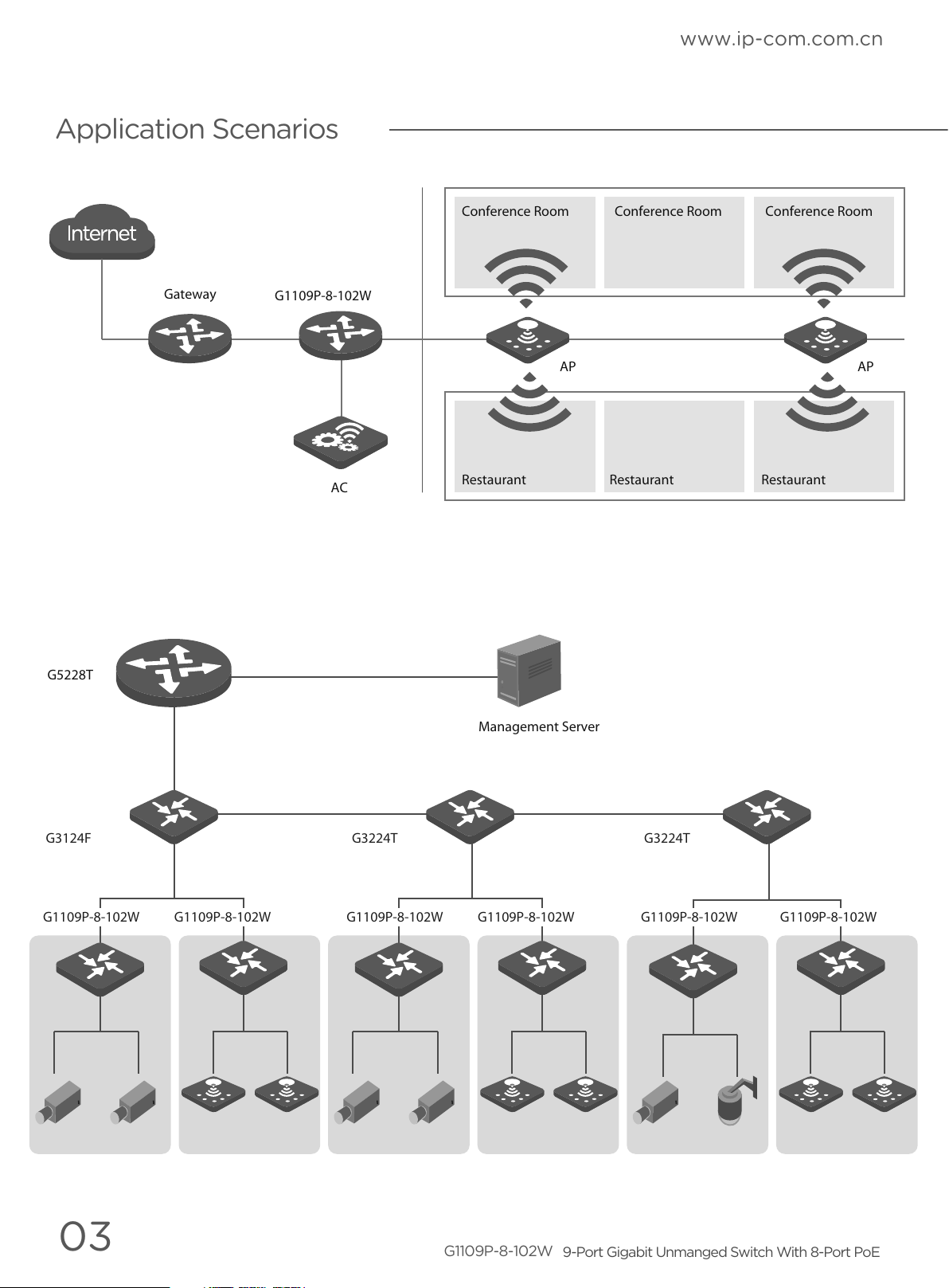

Application Scenarios
www.ip-com.com.cn
Conference Room Conference Room Conference Room
G5228T
Gateway
G1109P-8-102W
AC
AP AP
Restaurant Restaurant Restaurant
Management Server
G3124F G3224T G3224T
G1109P-8-102W G1109P-8-102W G1109P-8-102W G1109P-8-102W G1109P-8-102W G1109P-8-102W
03
G1109P-8-102W
9-Port Gigabit Unmanged Switch With 8-Port PoE
Page 5

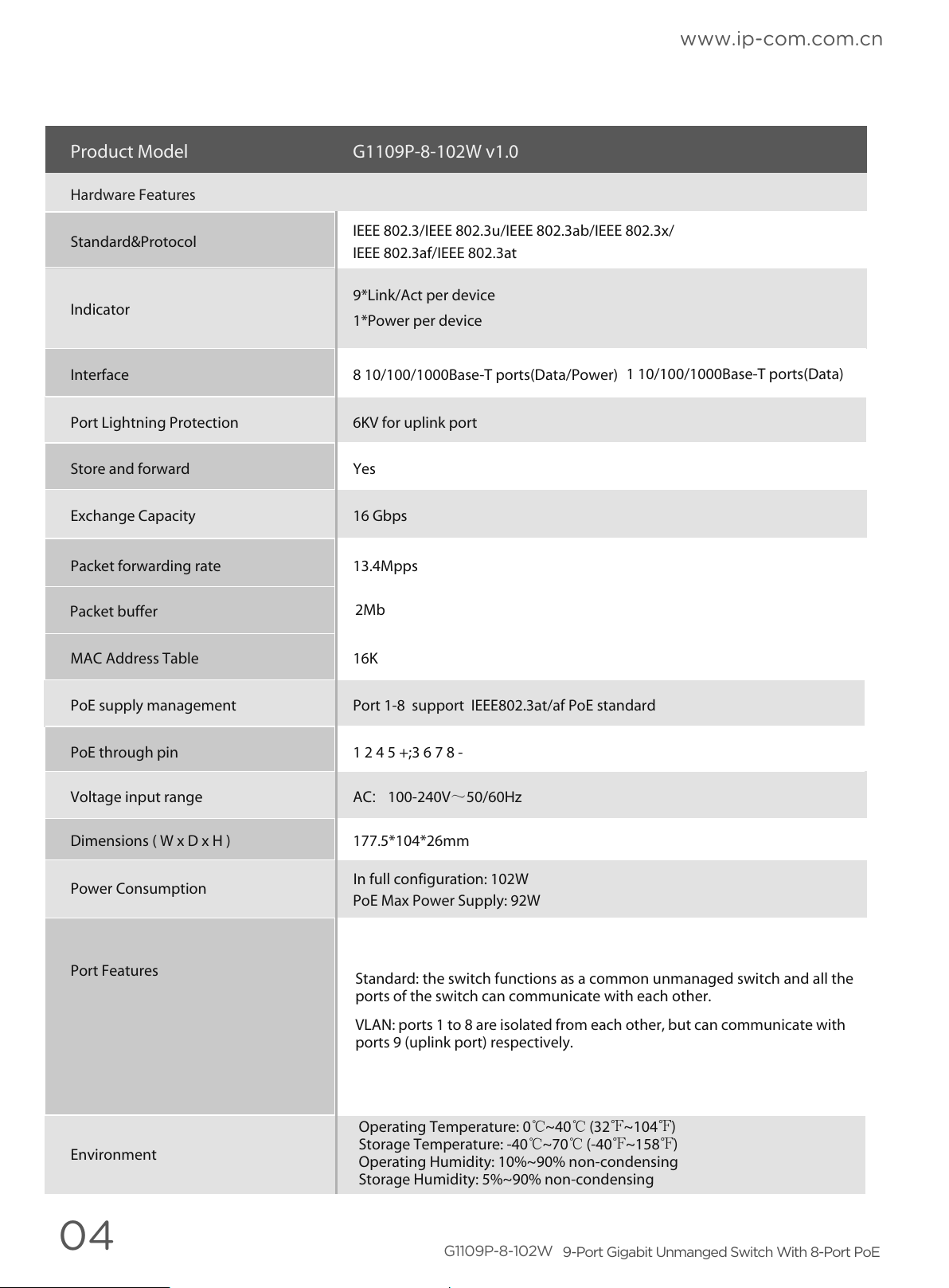

Product Model G1109P-8-102W v1.0
Hardware Features
www.ip-com.com.cn
Standard&Protocol
Indicator
Interface 8 10/100/1000Base-T ports(Data/Power)
Port Lightning Protection 6KV for uplink port
Store and forward Yes
Exchange Capacity 16 Gbps
Packet forwarding rate 13.4Mpps
Packet buffer
MAC Address Table 16K
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/
IEEE 802.3af/IEEE 802.3at
9*Link/Act per device
1*Power per device
2Mb
1 10/100/1000Base-T ports(Data)
PoE supply management Port 1-8 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 +;3 6 7 8 -
Voltage input range AC: 100-240V～50/60Hz
Dimensions ( W x D x H ) 177.5*104*26mm
Power Consumption
Port Features
Environment
In full configuration: 102W
PoE Max Power Supply: 92W
Standard: the switch functions as a common unmanaged switch and all the
ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with
ports 9 (uplink port) respectively.
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
04
G1109P-8-102W
9-Port Gigabit Unmanged Switch With 8-Port PoE
Page 6
Headquarters
IP-COM Networks Co.,Ltd.
Tel: +86 755-27653089
Fax: +86 755-27657178
Email: [email protected]
Website: www.ip-com.com.cn
ADD: Tower E3,No1001,Zhongshanyuan Road,Nanshan District,Shenzhen,China.
