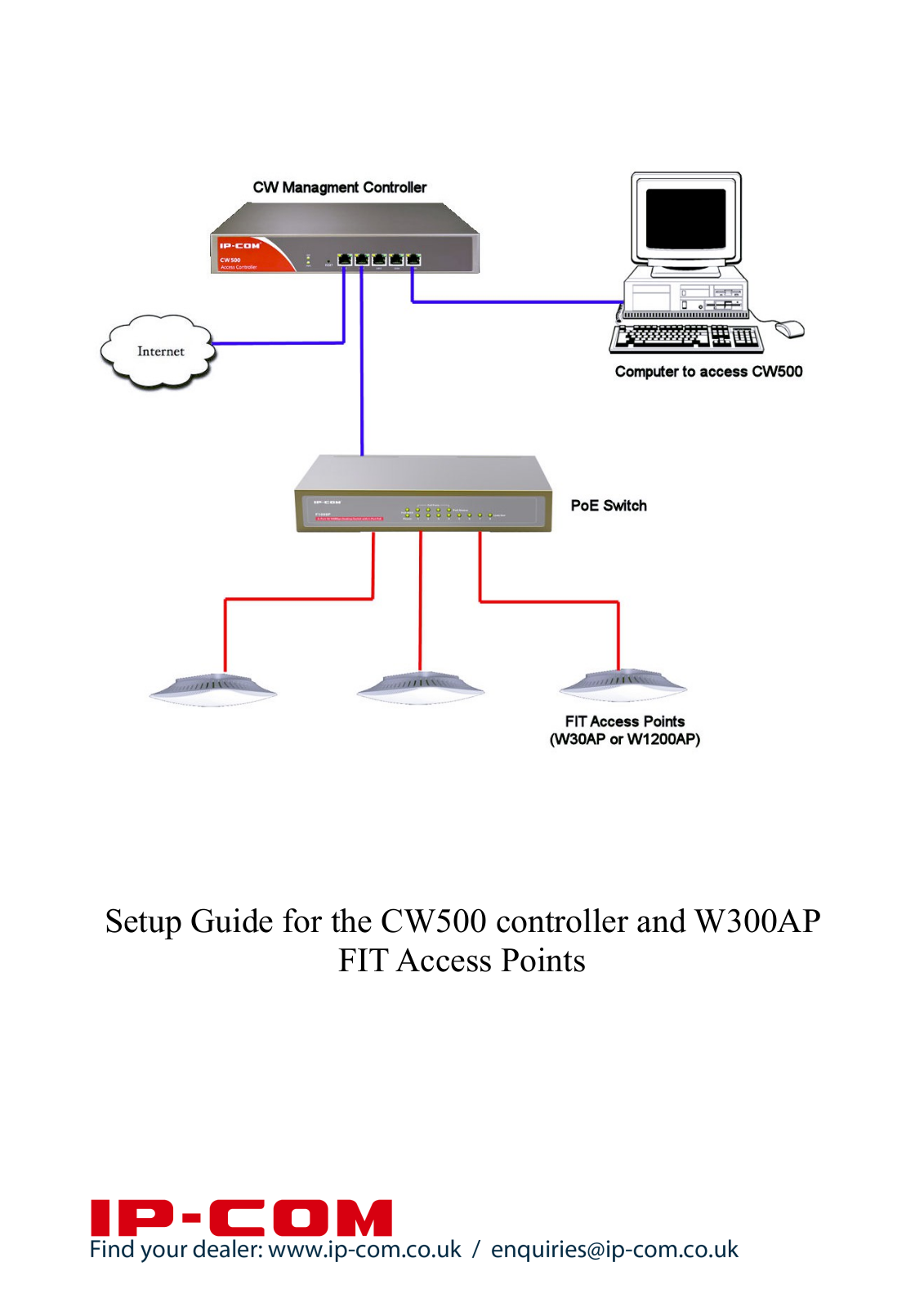

IP-COM W300AP, CW500 Setup Manual

Setup Guide for the CW500 controller and W300AP

FIT Access Points

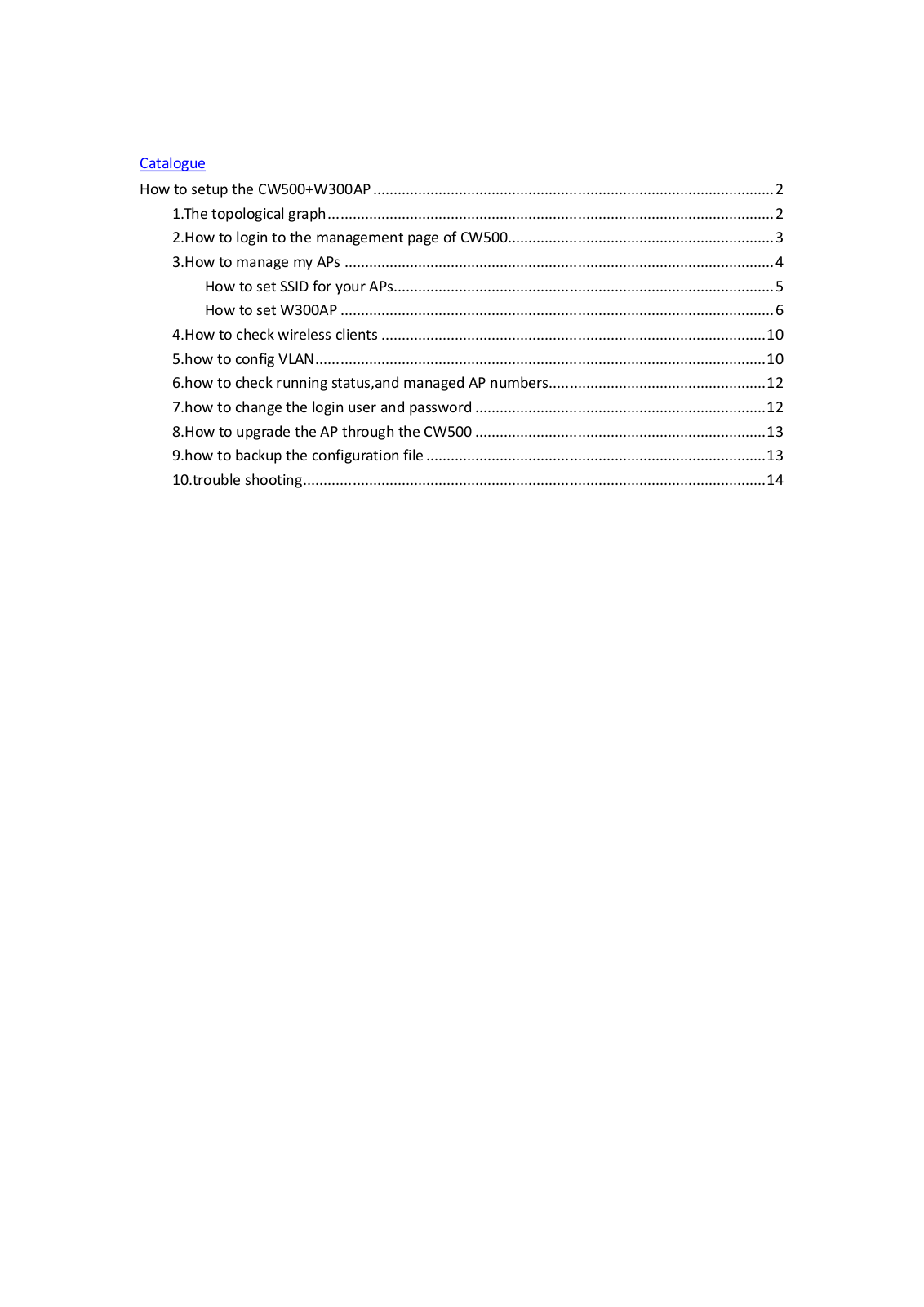

Catalogue

How to setup the CW500+W300AP .................................................................................................. 2

1.The topological graph ............................................................................................................. 2

2.How to login to the management page of CW500................................................................. 3

3.How to manage my APs ......................................................................................................... 4

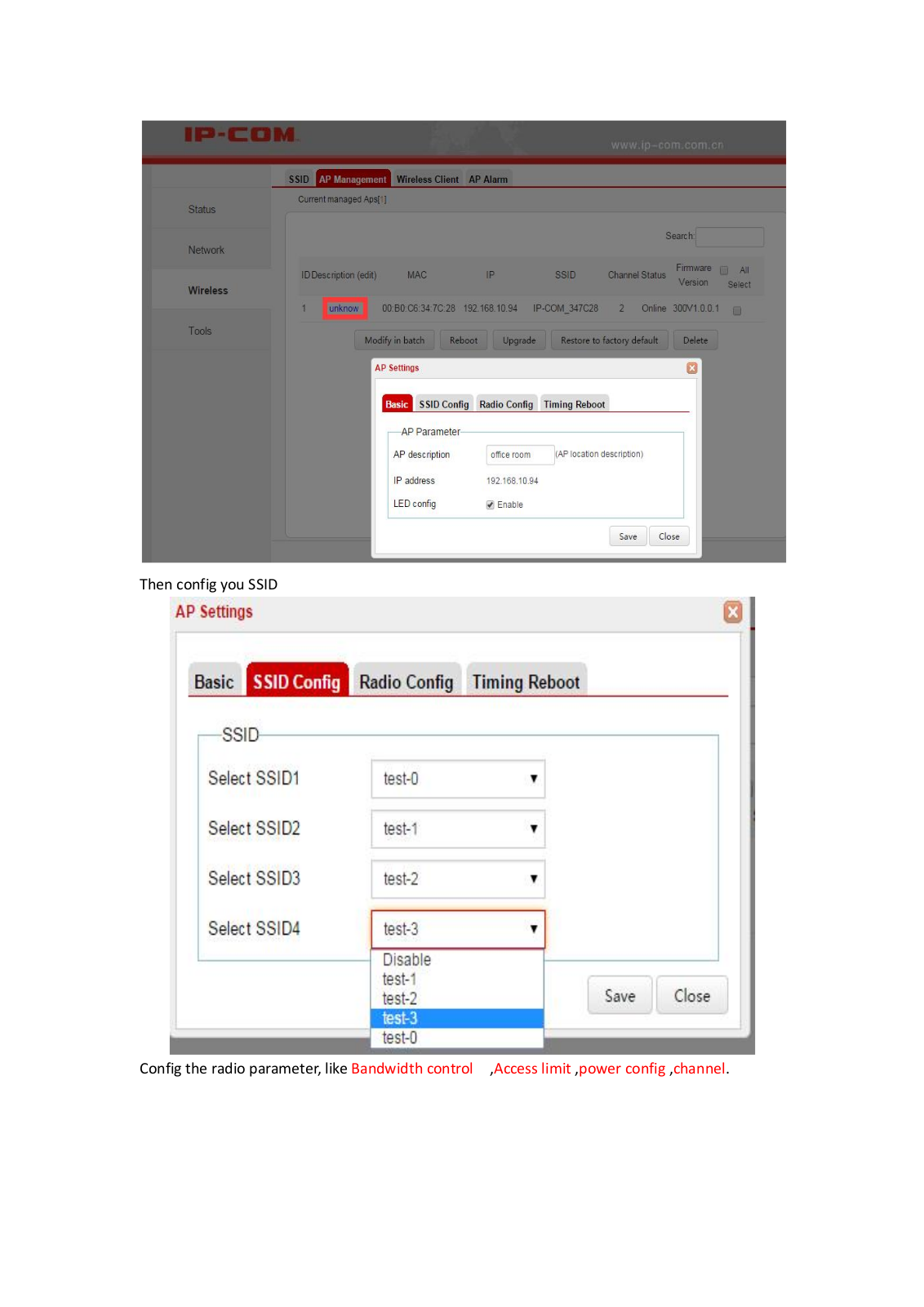

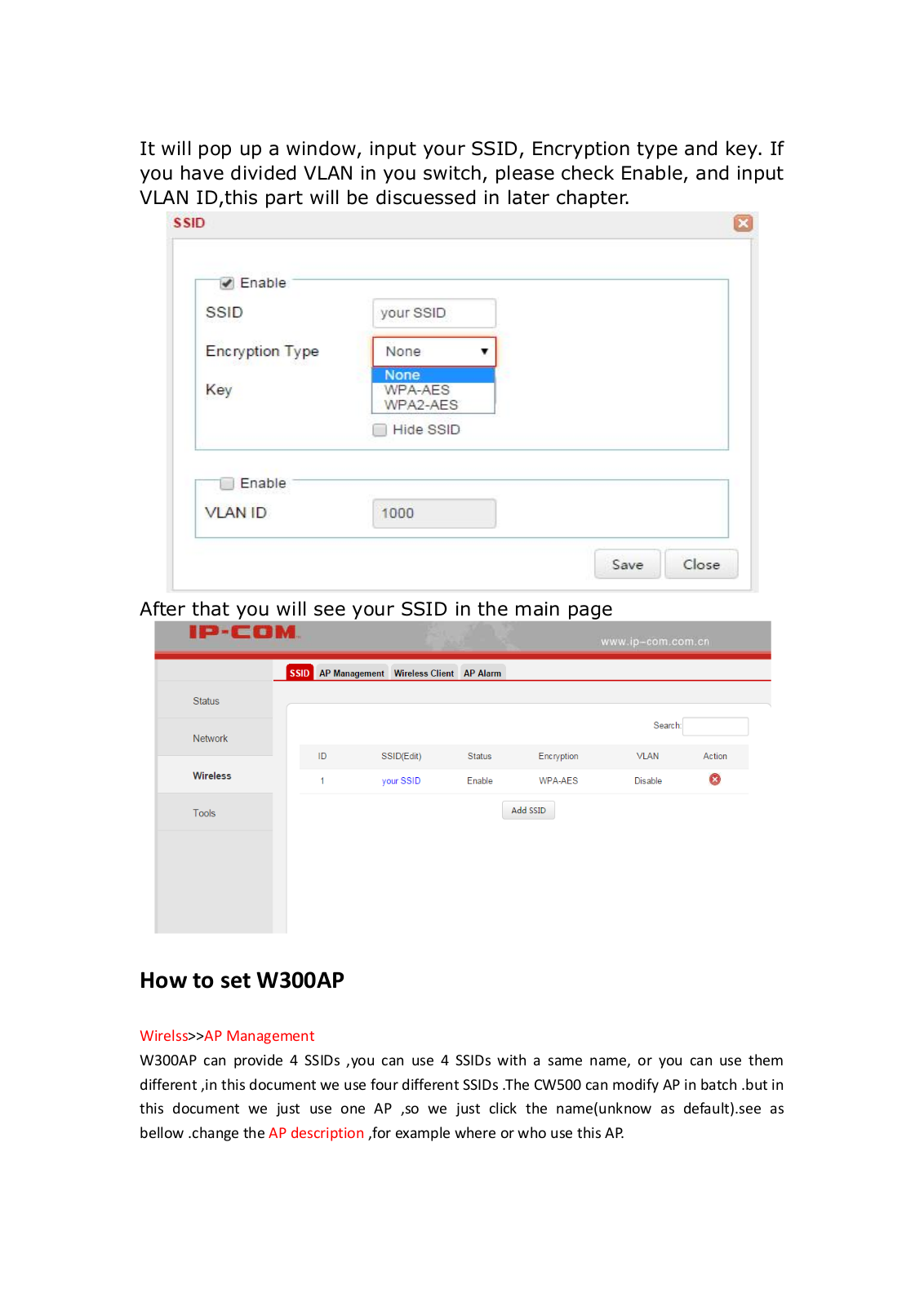

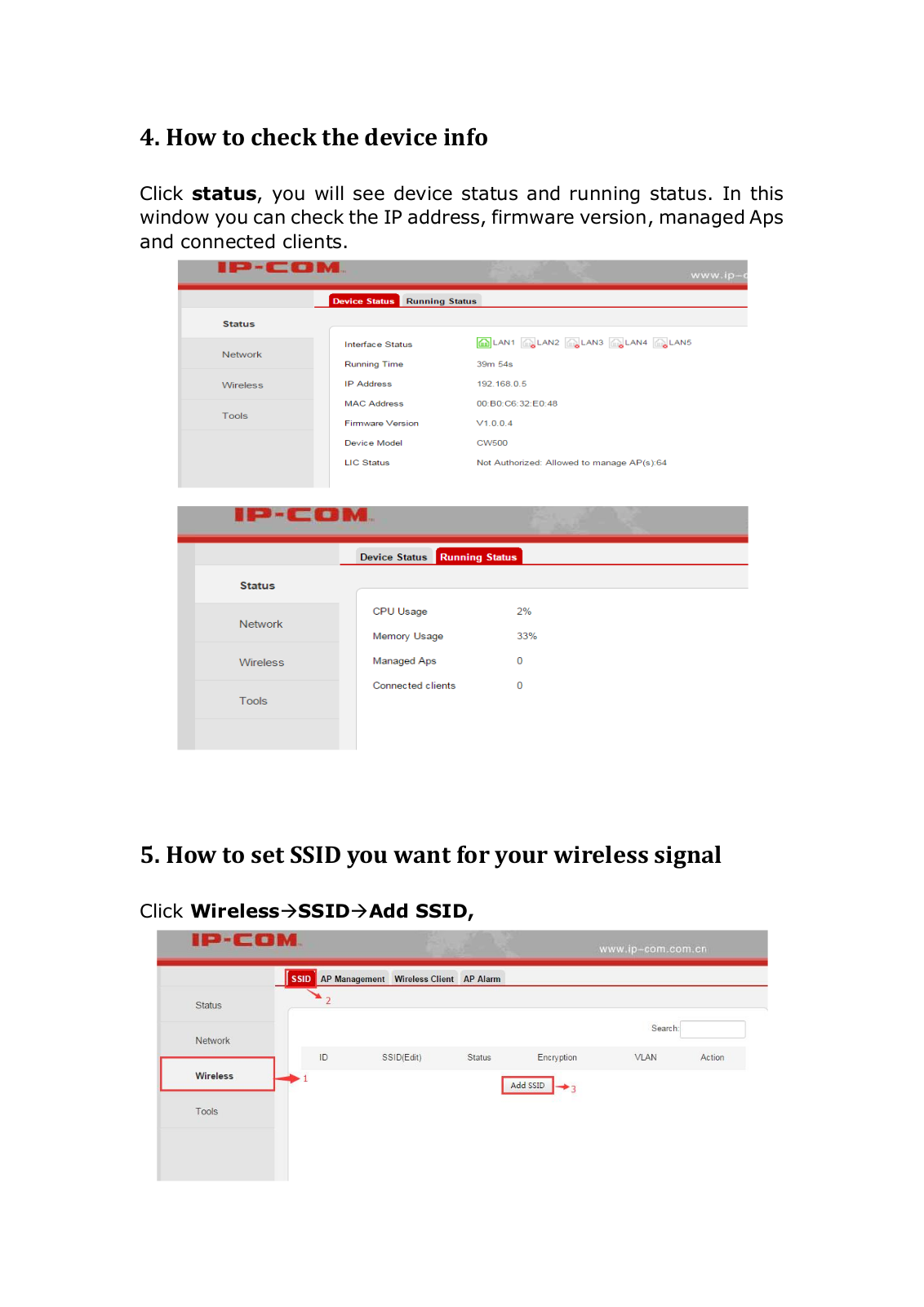

How to set SSID for your APs ............................................................................................. 5

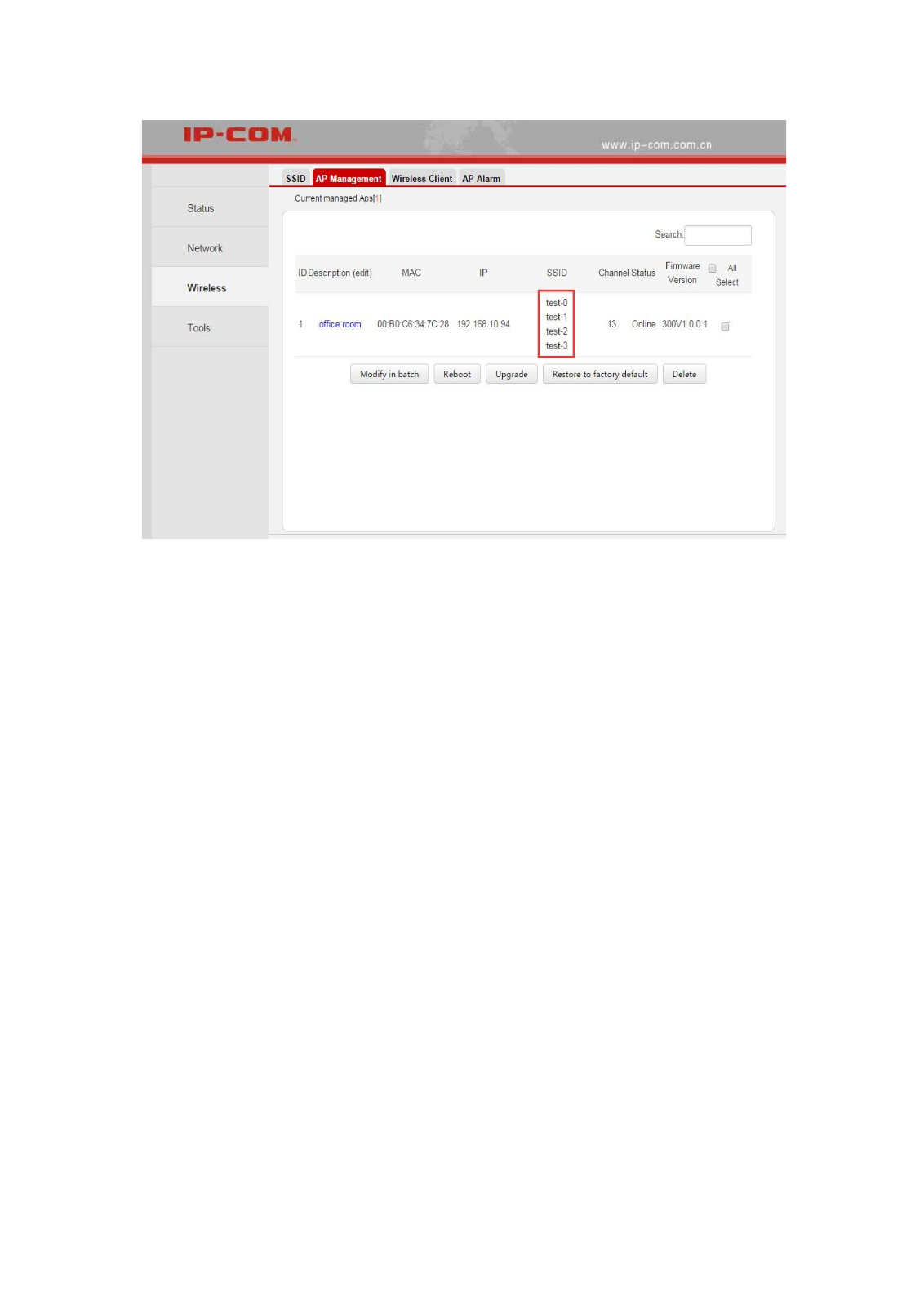

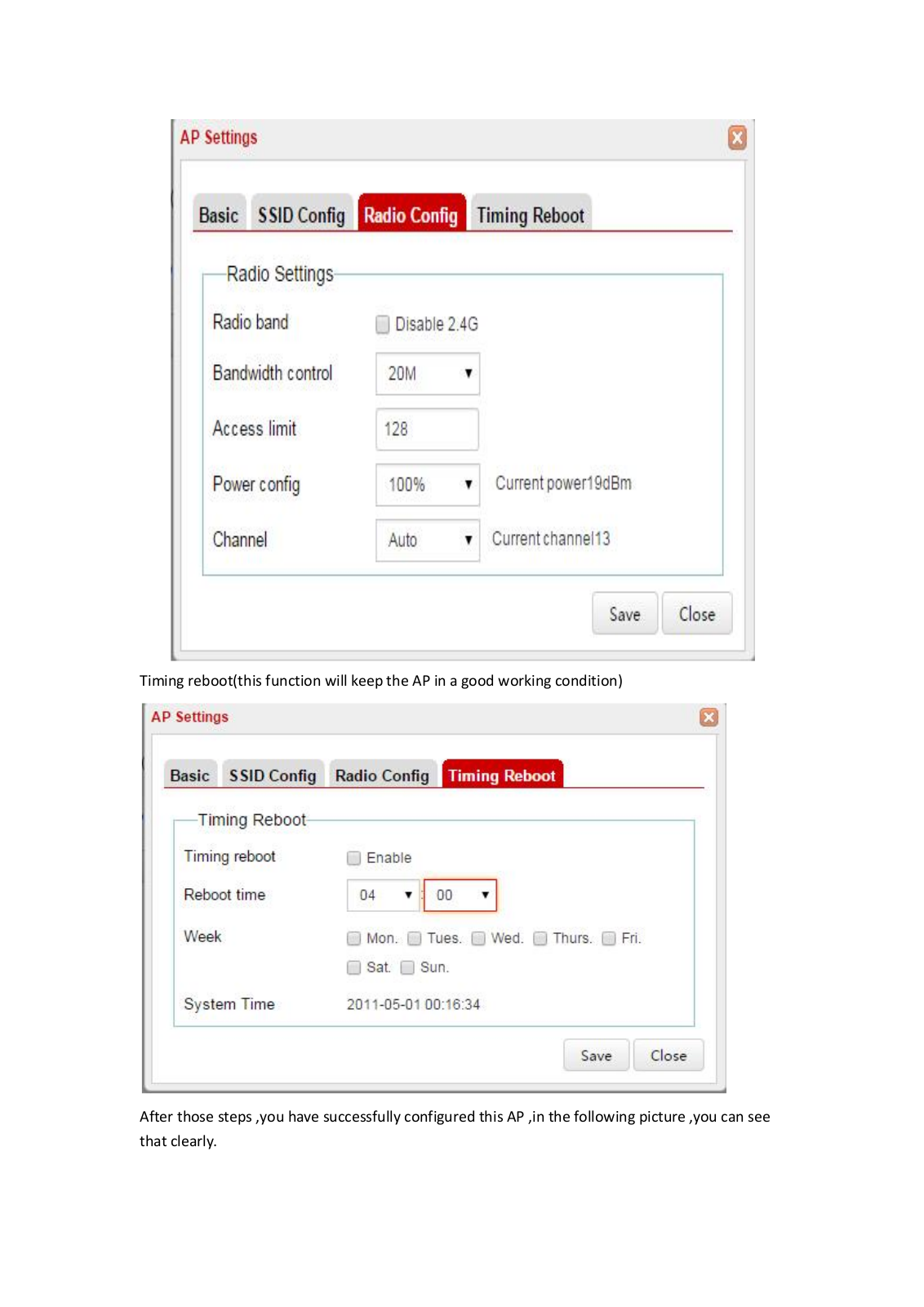

How to set W300AP .......................................................................................................... 6

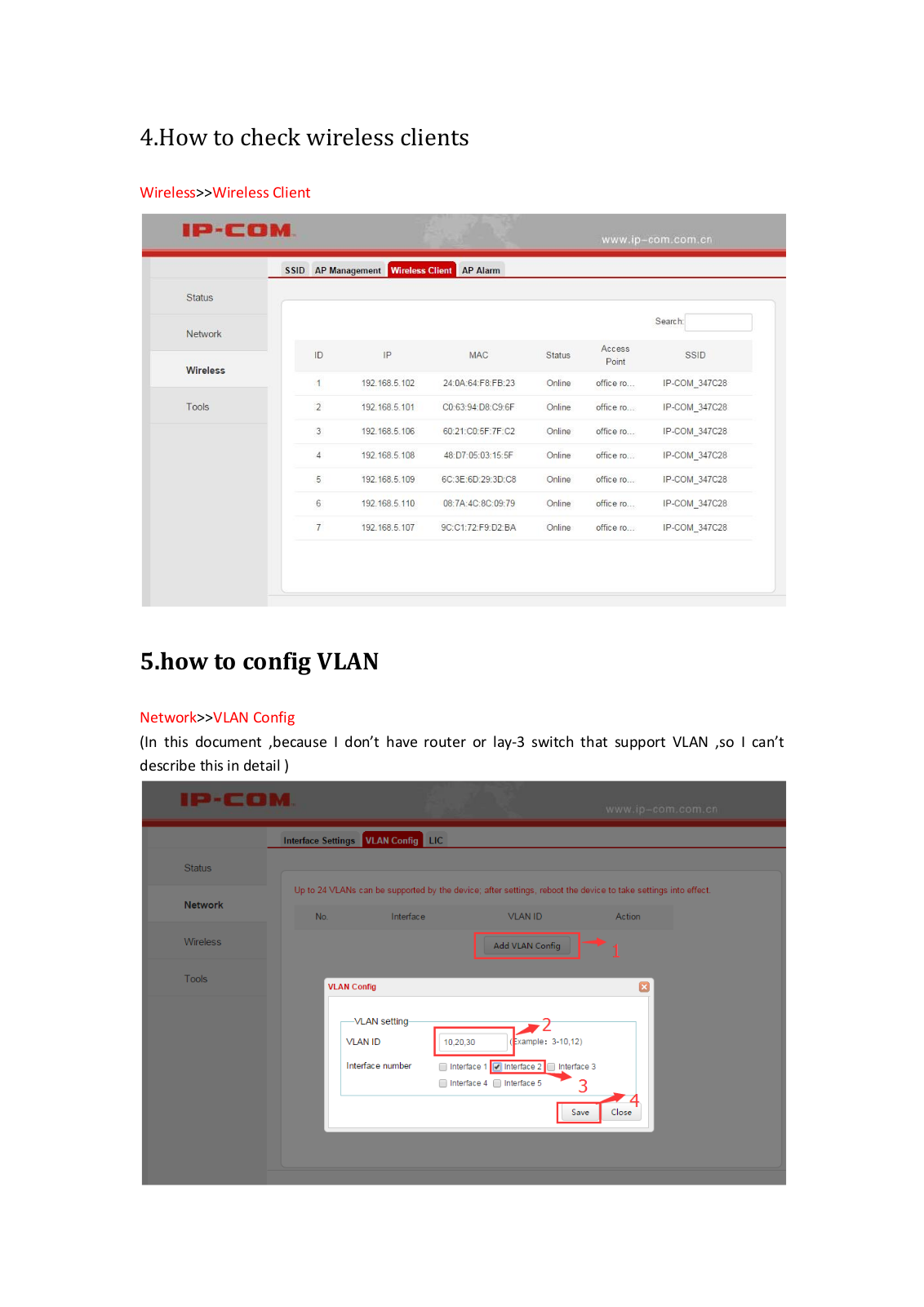

4.How to check wireless clients .............................................................................................. 10

5.how to config VLAN .............................................................................................................. 10

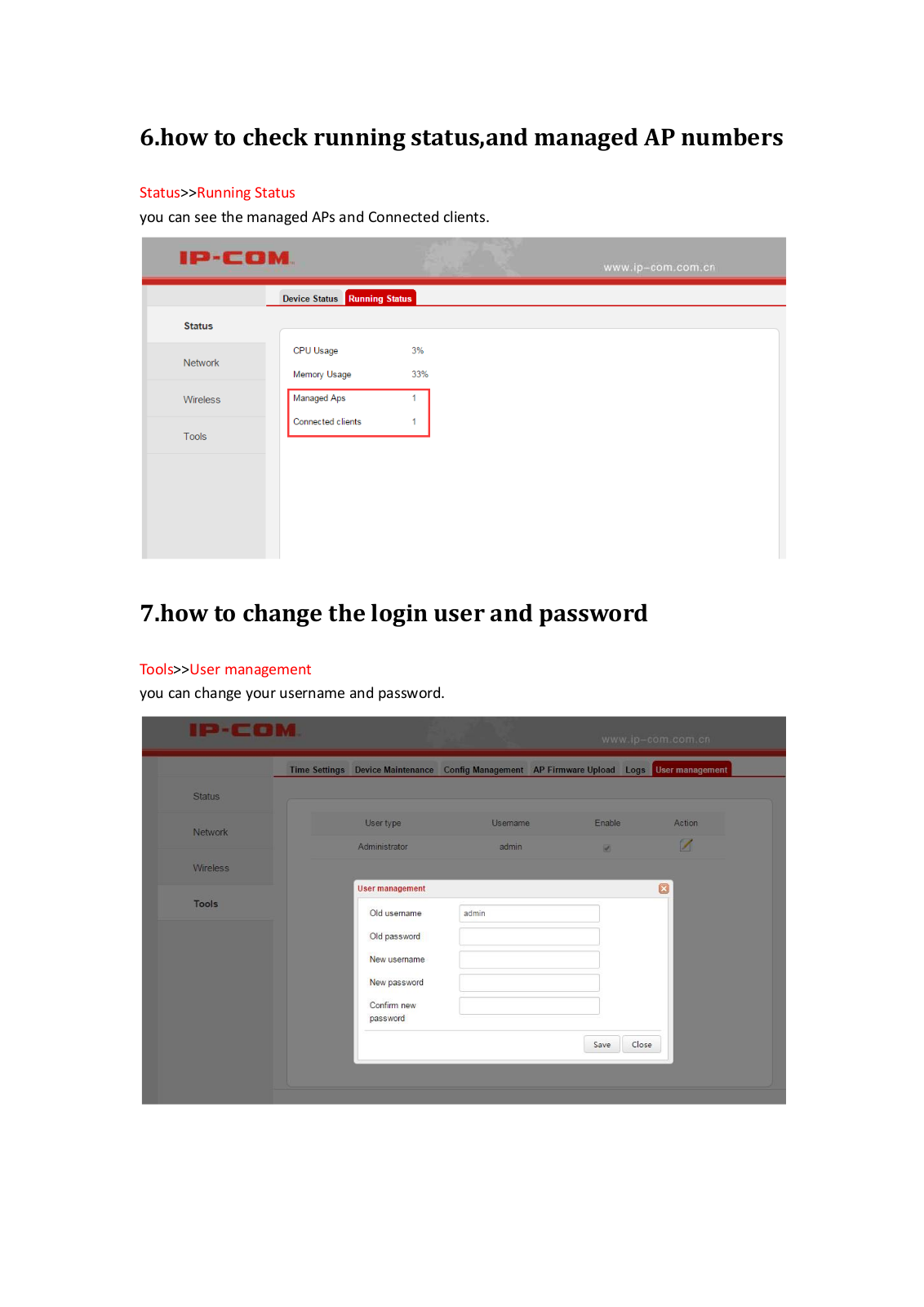

6.how to check running status,and managed AP numbers ..................................................... 12

7.how to change the login user and password ....................................................................... 12

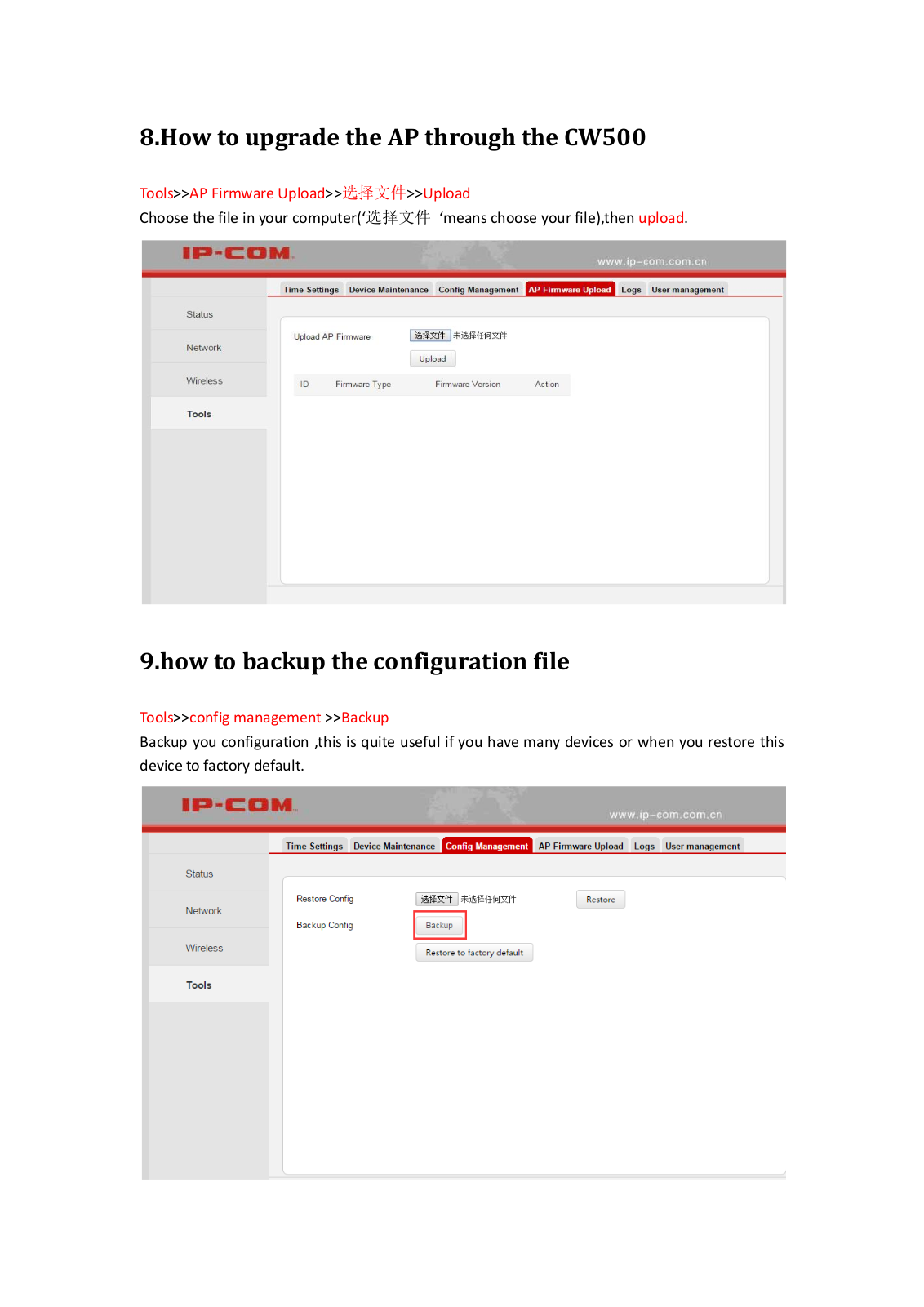

8.How to upgrade the AP through the CW500 ....................................................................... 13

9.how to backup the configuration file ................................................................................... 13

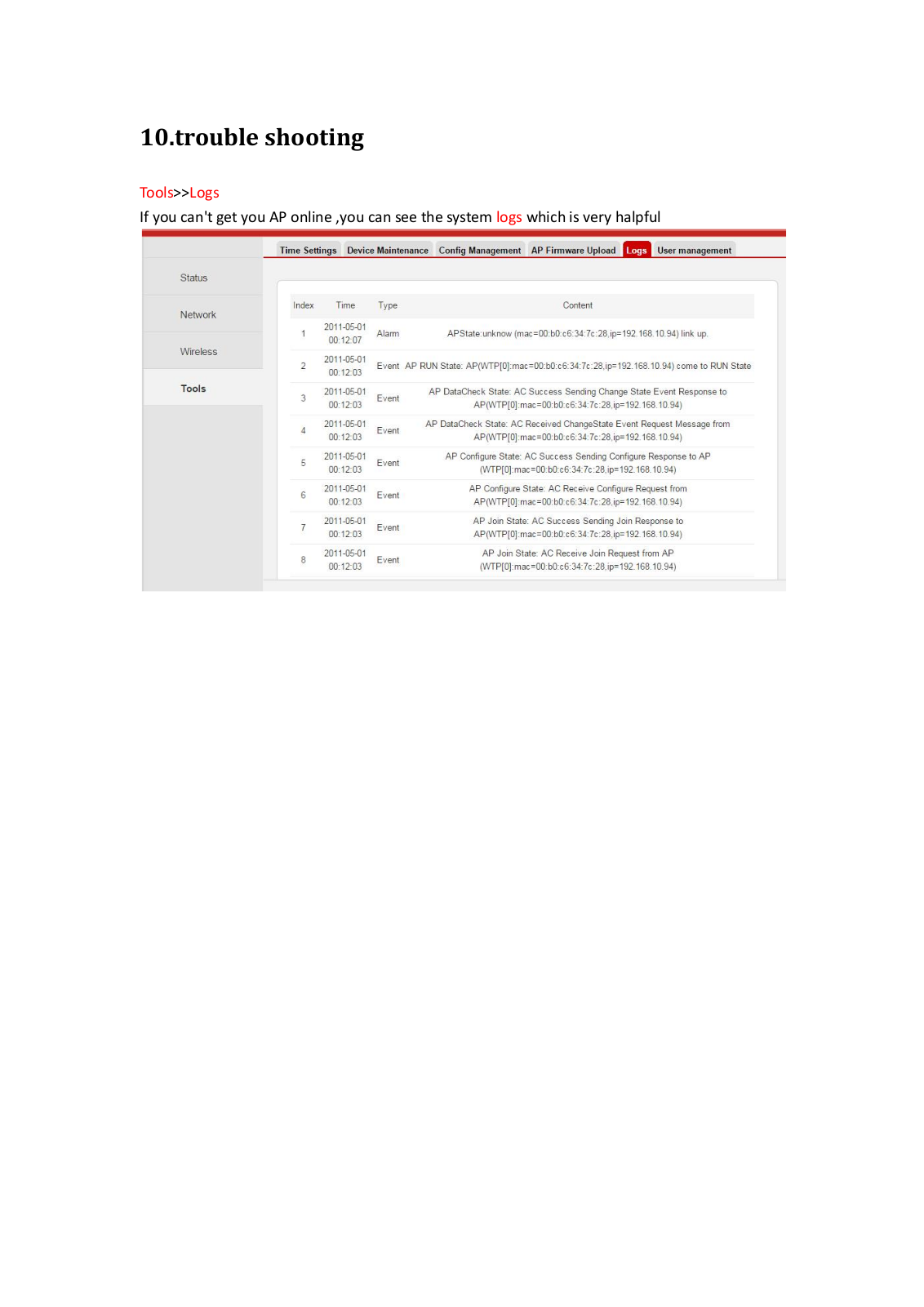

10.trouble shooting ................................................................................................................. 14

CW500+W300AP user guide

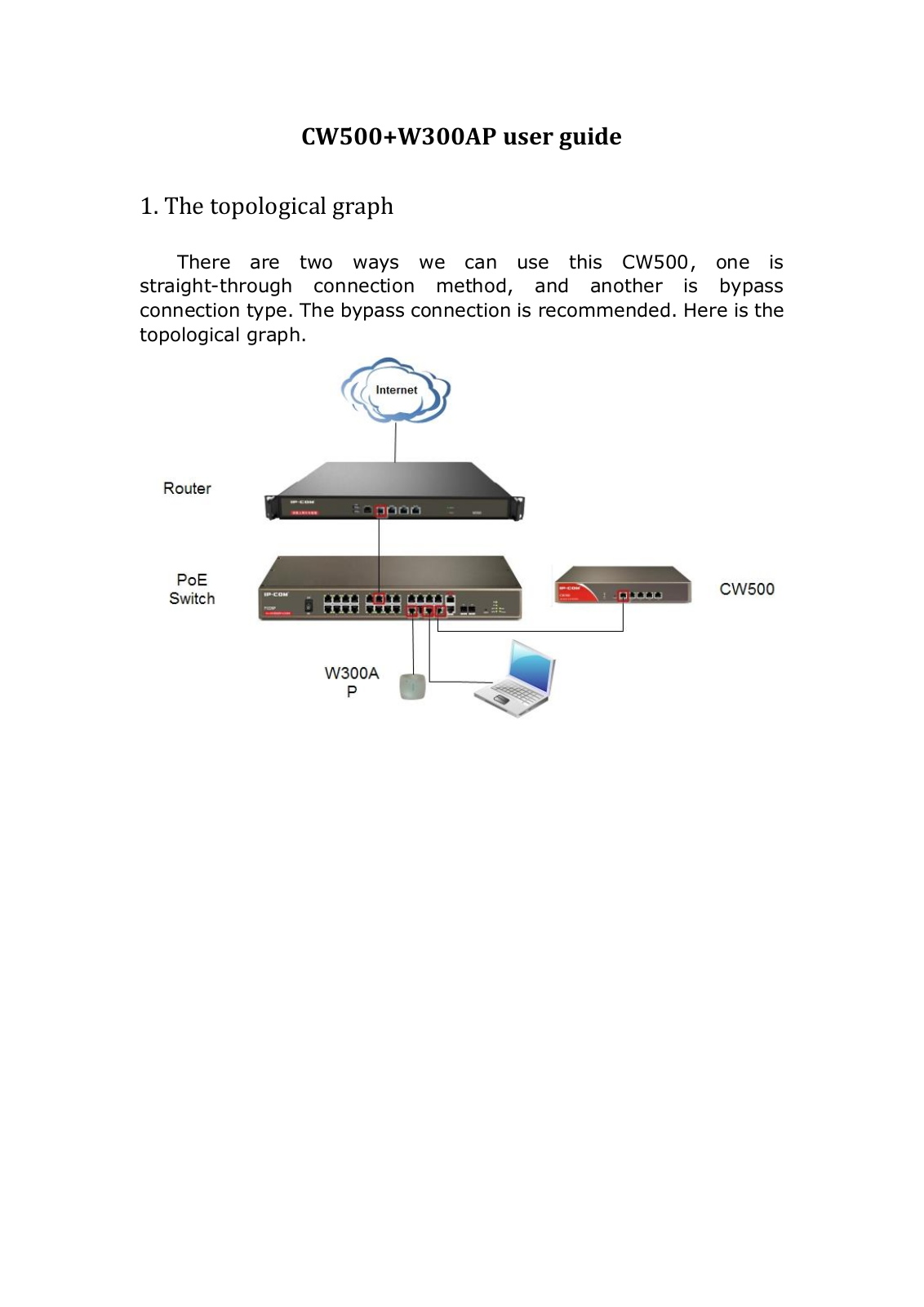

1. The topological graph

There are two ways we can use this CW500, one is
straight-through connection method, and another is bypass
connection type. The bypass connection is recommended. Here is the
topological graph.

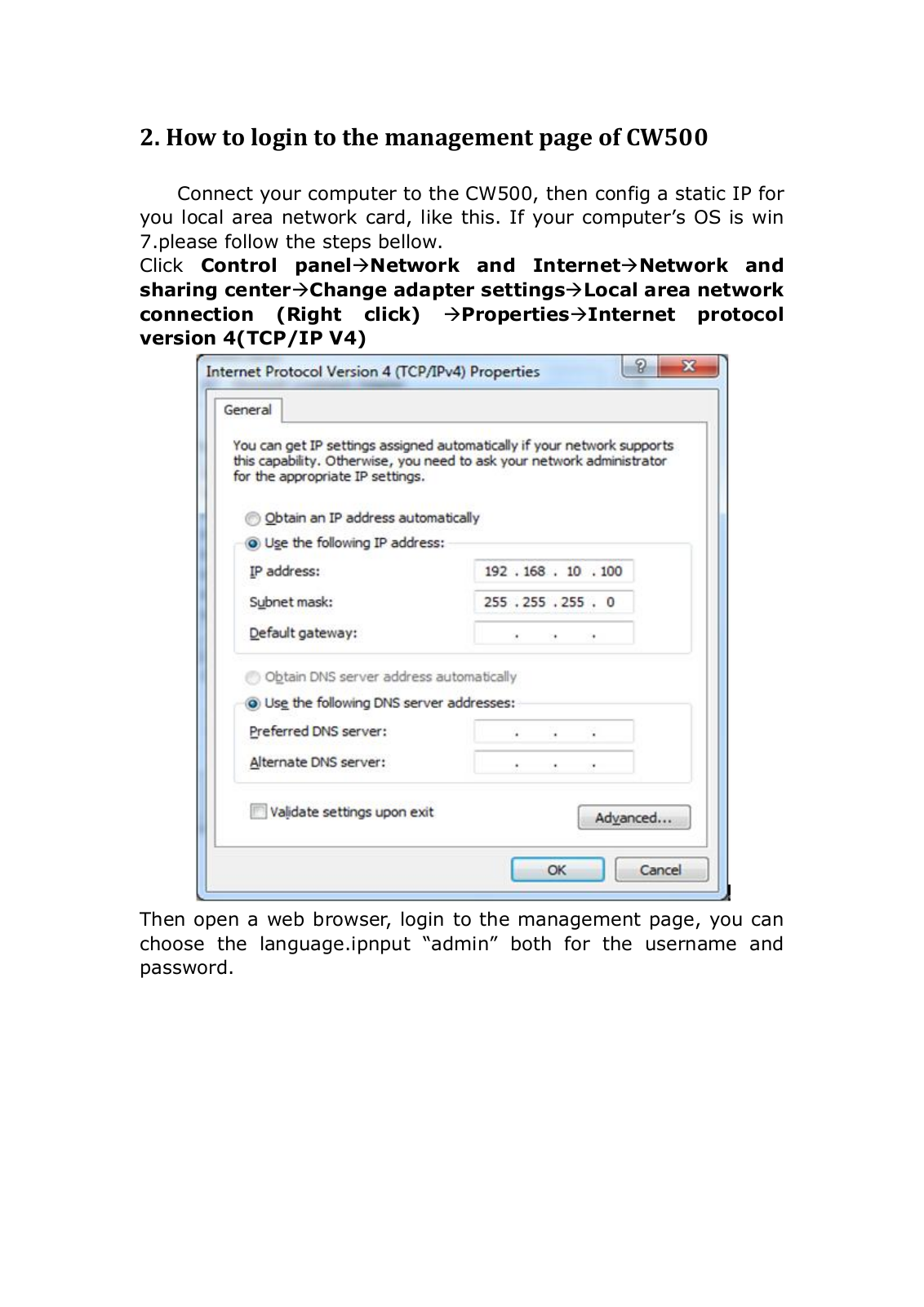

2. How to login to the management page of CW500

Connect your computer to the CW500, then config a static IP for
you local area network card, like this. If your computer’s OS is win

7.please follow the steps bellow.
Click Control panelNetwork and InternetNetwork and

sharing centerChange adapter settingsLocal area network
connection (Right click) PropertiesInternet protocol
version 4(TCP/IP V4)

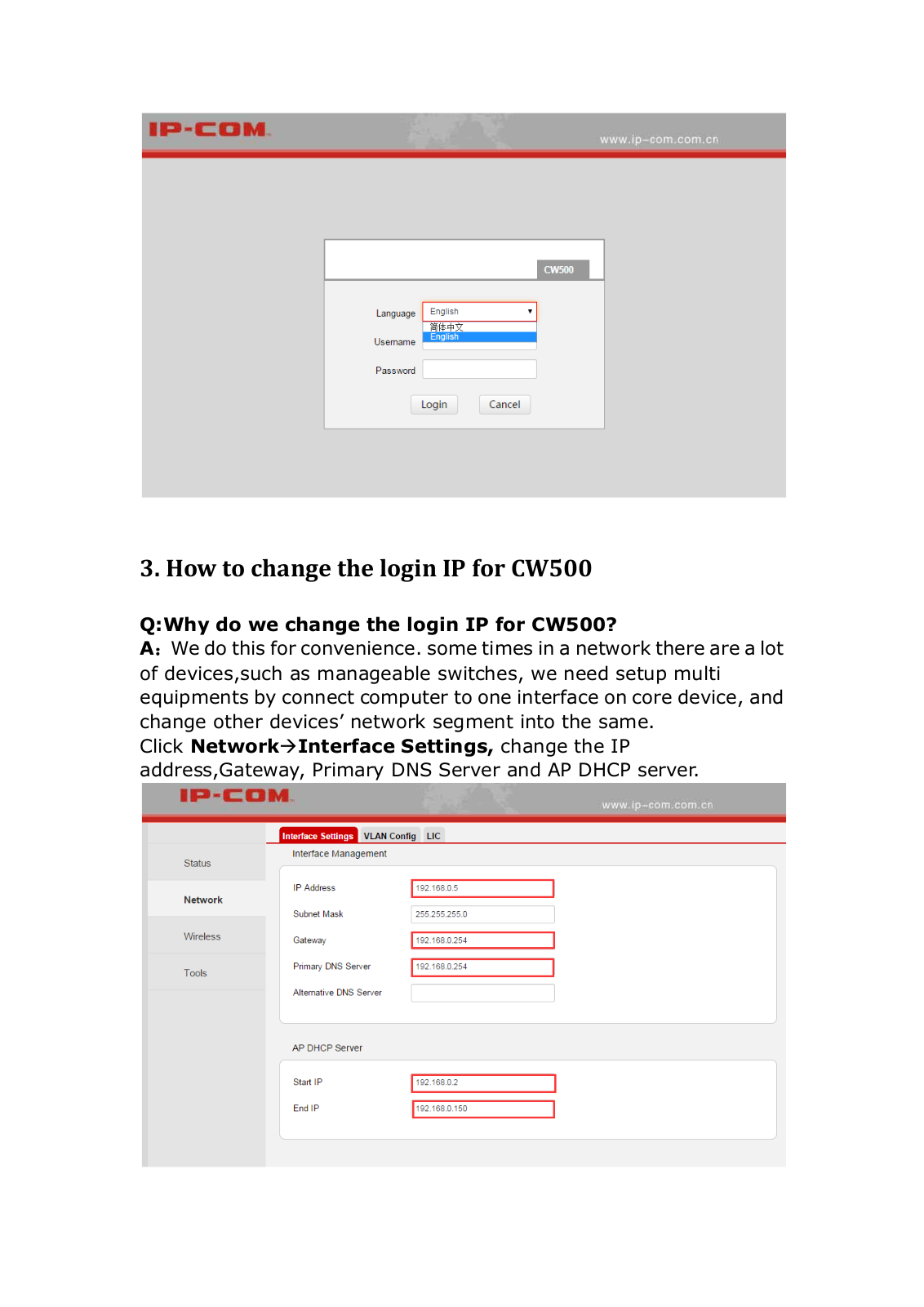

Then open a web browser, login to the management page, you can
choose the language.ipnput “admin” both for the username and
password.

3. How to change the login IP for CW500

Q:Why do we change the login IP for CW500?
A：We do this for convenience. some times in a network there are a lot

of devices,such as manageable switches, we need setup multi
equipments by connect computer to one interface on core device, and
change other devices’ network segment into the same.
Click NetworkInterface Settings, change the IP
address,Gateway, Primary DNS Server and AP DHCP server.
