IP-COM AP355 User Manual

- i -

Copyright Statement

©2016 IP-COM Networks Co., Ltd. All rights reserved.

IP-COM is the registered trademark of IP-COM Networks Co., Ltd. Other brand and product names mentioned
herein are trademarks or registered trademarks of their respective holders. Copyright of the whole product as
integration, including its accessories and software, belongs to IP-COM Networks Co., Ltd. No part of this
publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means without the prior written permission of IP-COM Networks Co., Ltd.

Disclaimer

Pictures, images and product specifications herein are for references only. To improve internal design, operational
function, and/or reliability, IP-COM reserves the right to make changes to the products described in this document
without obligation to notify any person or organization of such revisions or changes. IP-COM does not assume
any liability that may occur due to the use or application of the product or circuit layout(s) described herein. Every
effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements,
information and recommendations in this document do not constitute the warranty of any kind, express or implied.

- ii -

Preface

Thank you for choosing IP-COM! Before using your device, please read this guide carefully.

Conventions

If not specifically indicated, “AP”, “this device” or “this product” mentioned in this User Guide stands for

AP355V2.0.

As this AP supports both 2.4G and 5G, we will take 2.4G as an illustration throughout this guide.

Typographical conventions in this User Guide:

Item

Presentation

Example

Button

Bold

“Click the Save button” can be simplified as “Click Save”.

Menu

Bold

“The menu Basic” can be simplified as Basic.

Continuous Steps

>

Click Wireless > Basic

Symbols in this User Guide:

Item

Meaning

Note

This format is used to highlight information of importance or special interest. Ignoring this
type of note may result in ineffective configurations, loss of data or damage to device.

Tip

This format is used to highlight a procedure that will save time or resources.

- iii -

How to Obtain Latest Product Info

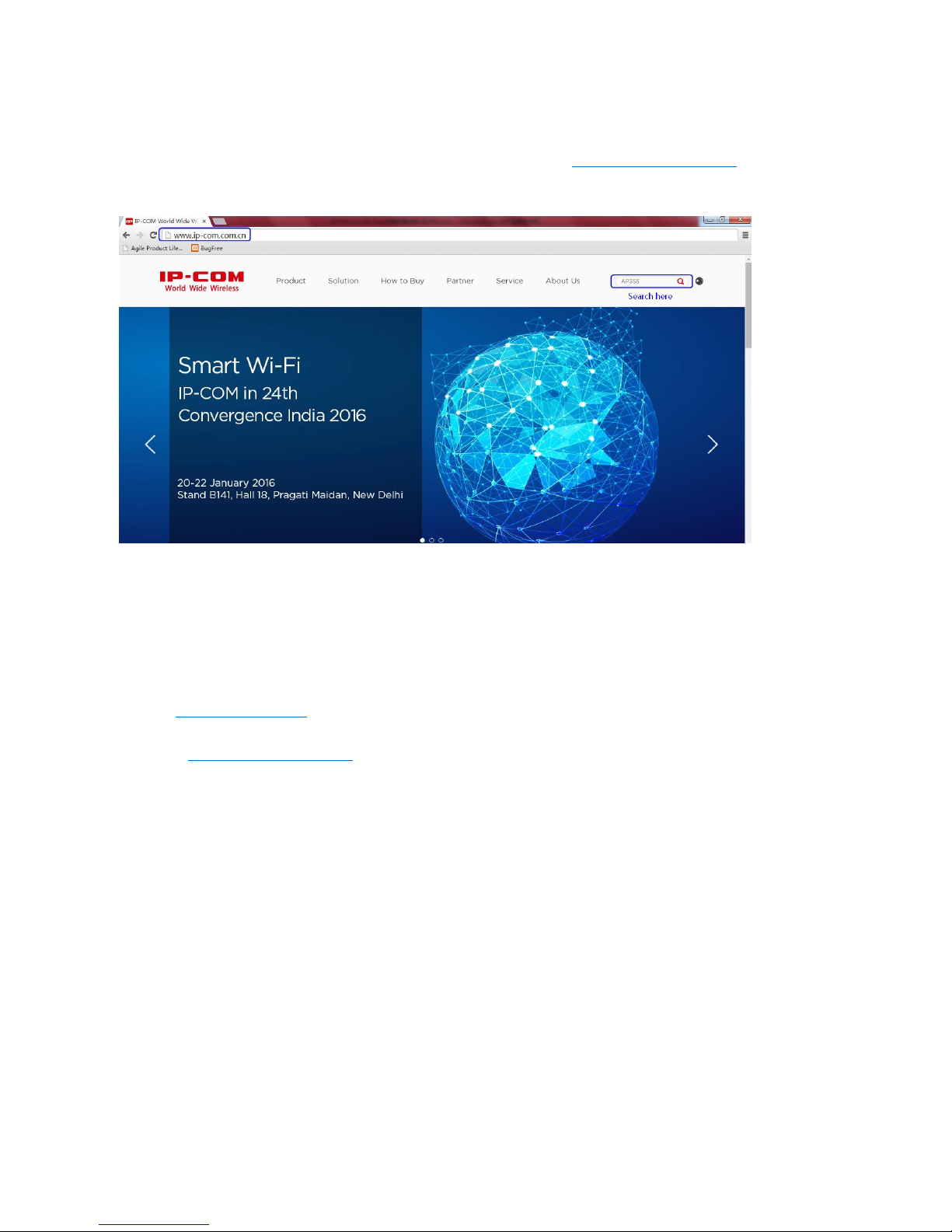

As AP355V2.0 can also be managed by IP-COM access controller AC2000, you can also view the User Guide of
AC2000. For latest product information, visit IP-COM official website http://www.ip-com.com.cn and input the
corresponding product model in the search bar.

Technical Support

Tel: [phone]

Email: [e-mail]

Website: http://www.ip-com.com.cn

- iv -

Contents

Copyright Statement ............................................................................................................................. i

Disclaimer .............................................................................................................................................. i

Preface .................................................................................................................................................. ii

Conventions ................................................................................................................................... ii

How to Obtain Latest Product Info ............................................................................................... iii

Technical Support ......................................................................................................................... iii

Contents ............................................................................................................................................... iv

1 Product Overview ............................................................................................................................. 1

1.1 Overview ...................................................................................................................................... 2

1.2 Package Contents ......................................................................................................................... 2

1.3 Appearance ................................................................................................................................... 3

1.3.1 LEDs, interface & button ....................................................................................................... 3

1.3.2 Label ...................................................................................................................................... 4

2 Device Management .......................................................................................................................... 5

2.1 Network Tolopogy ........................................................................................................................ 6

2.2 Management Method .................................................................................................................... 8

2.3 Web Login .................................................................................................................................... 9

2.4 Web Logout ................................................................................................................................ 10

2.5 Web Layout ................................................................................................................................ 11

2.6 Commonly Used Buttons ........................................................................................................... 11

3 More Features ................................................................................................................................. 12

3.1 Status .......................................................................................................................................... 13

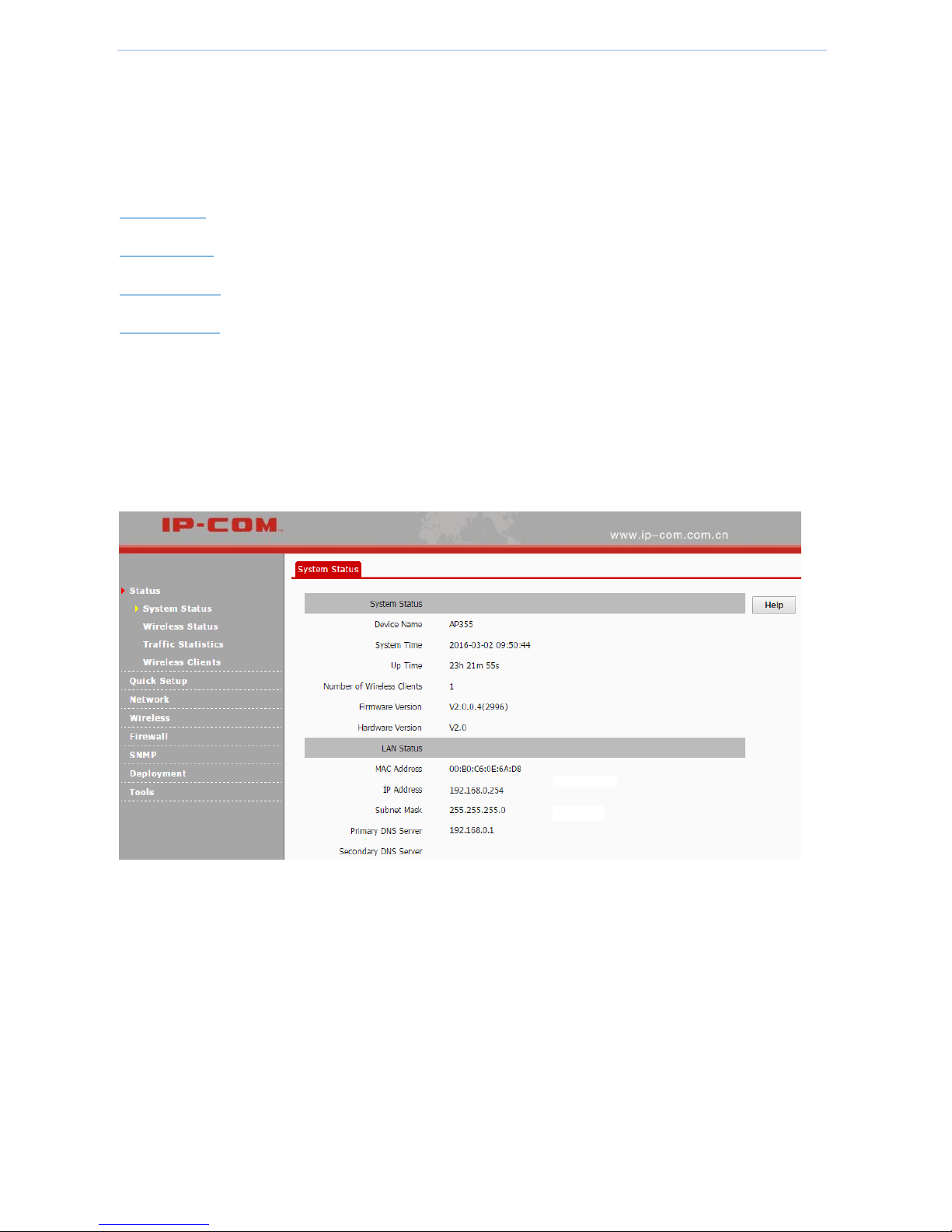

3.1.1 System Status ....................................................................................................................... 13

3.1.2 Wireless Status ..................................................................................................................... 13

3.1.3 Traffic Statistics ................................................................................................................... 14

- v -

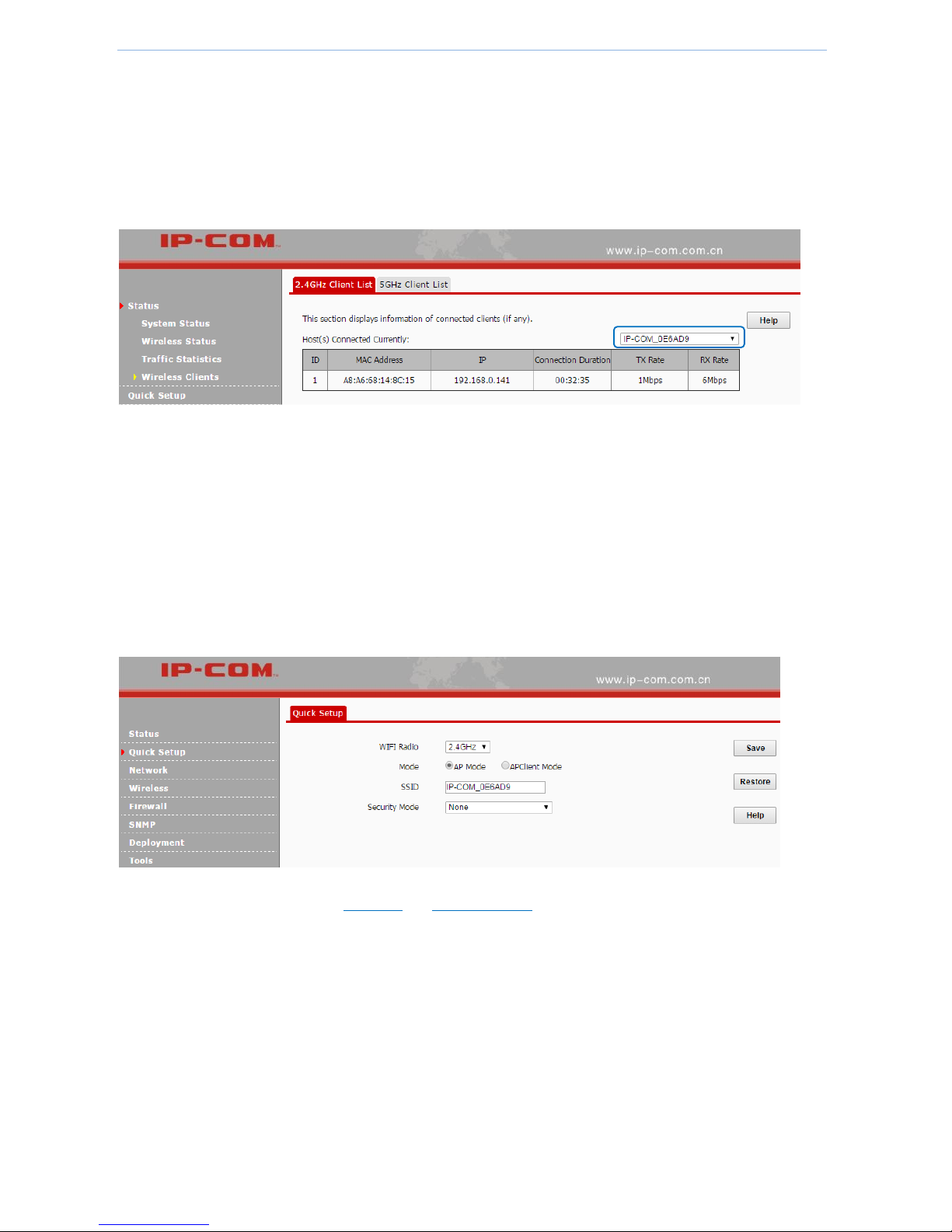

3.1.4 Wireless Clients ................................................................................................................... 15

3.2 Quick Setup ................................................................................................................................ 15

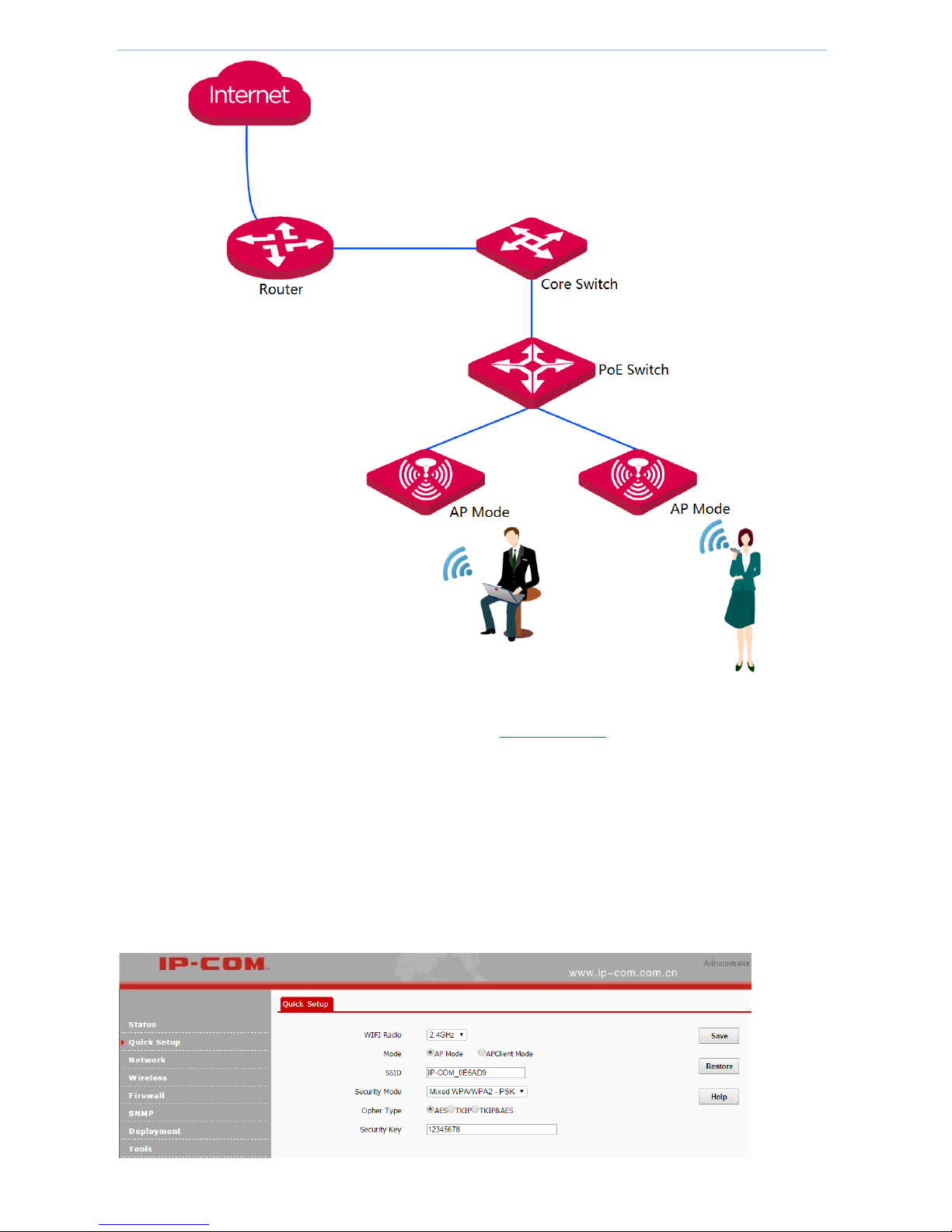

3.2.1 AP Mode .............................................................................................................................. 15

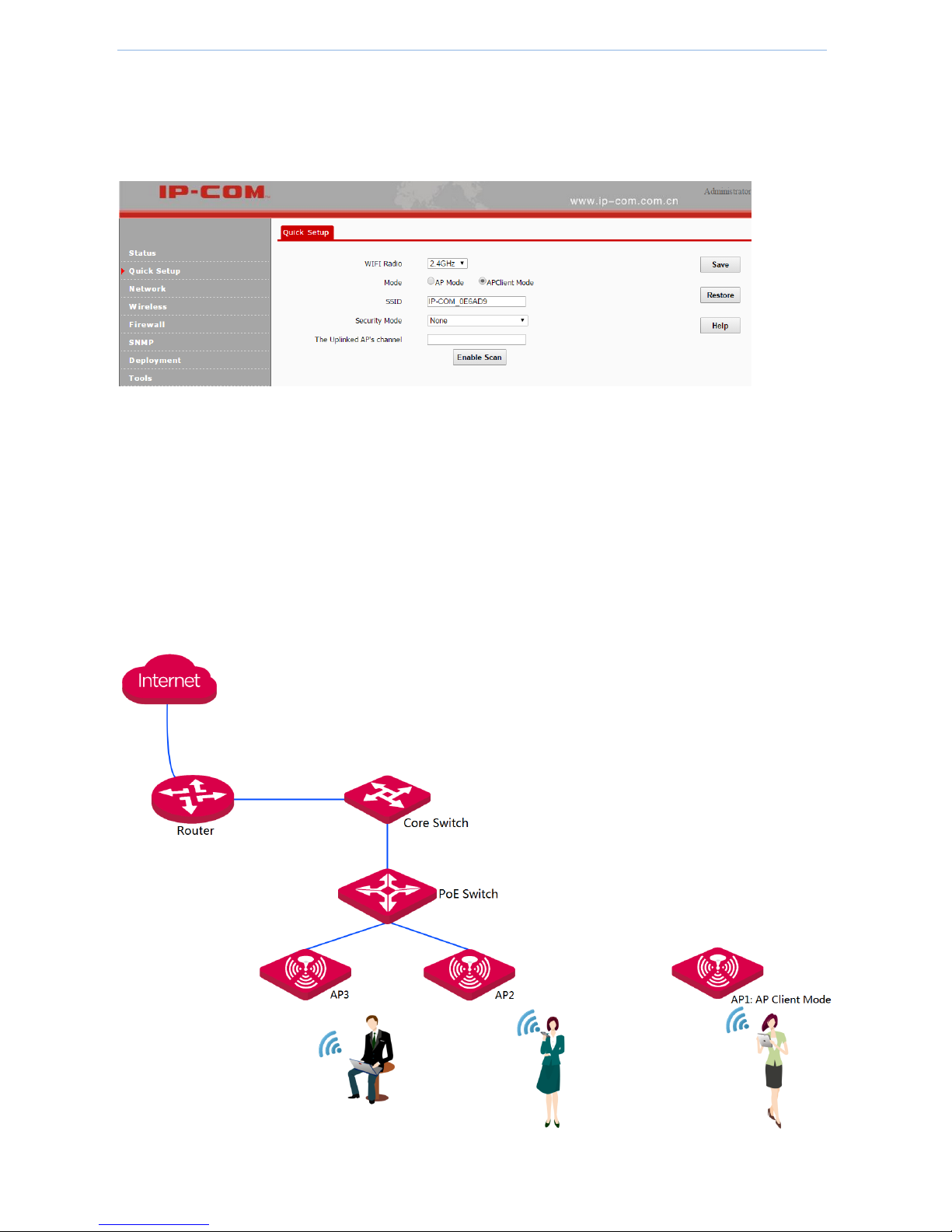

3.2.2 AP Client Mode .................................................................................................................... 17

3.3 Network ...................................................................................................................................... 19

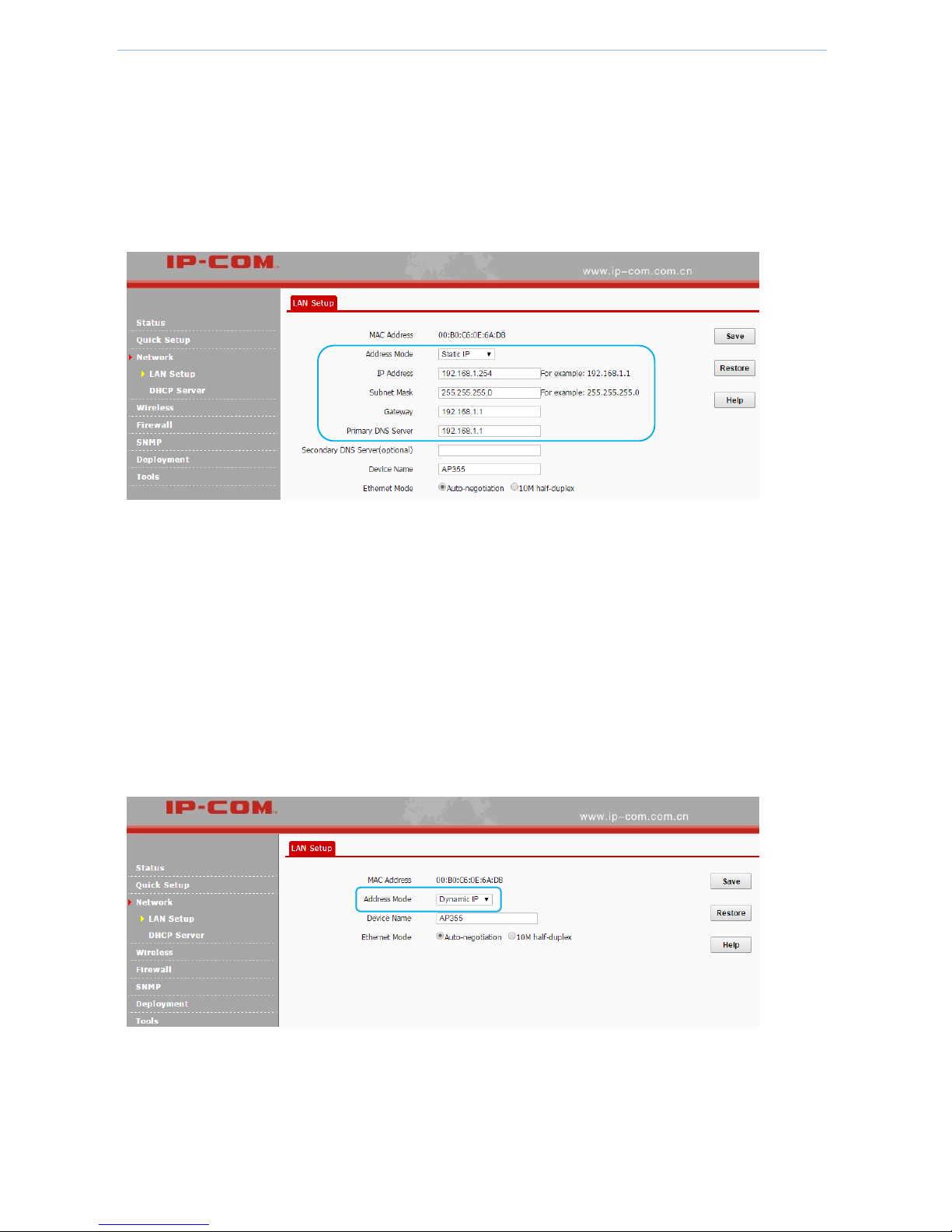

3.3.1 LAN Setup ........................................................................................................................... 19

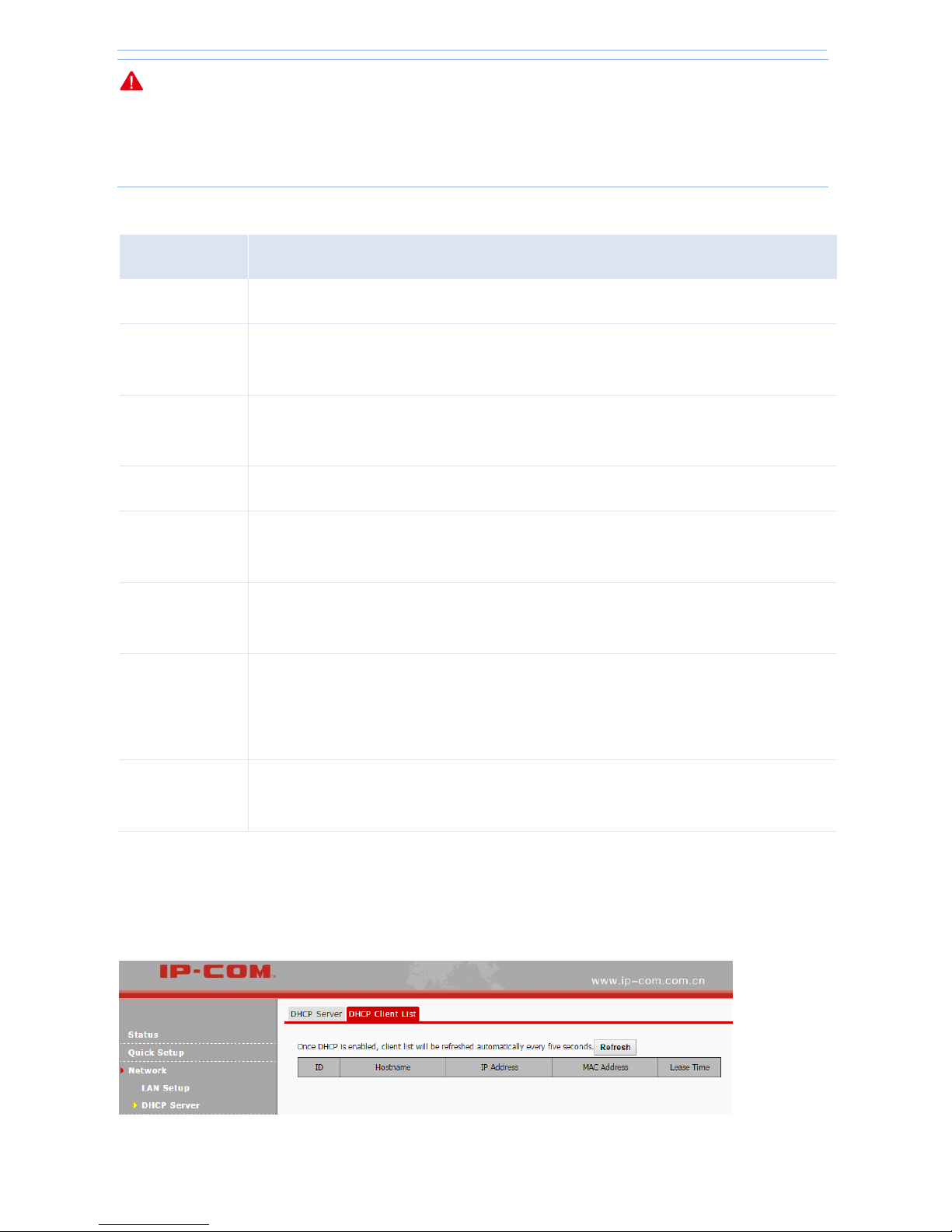

3.3.2 DHCP Server........................................................................................................................ 22

3.4 Wireless ...................................................................................................................................... 24

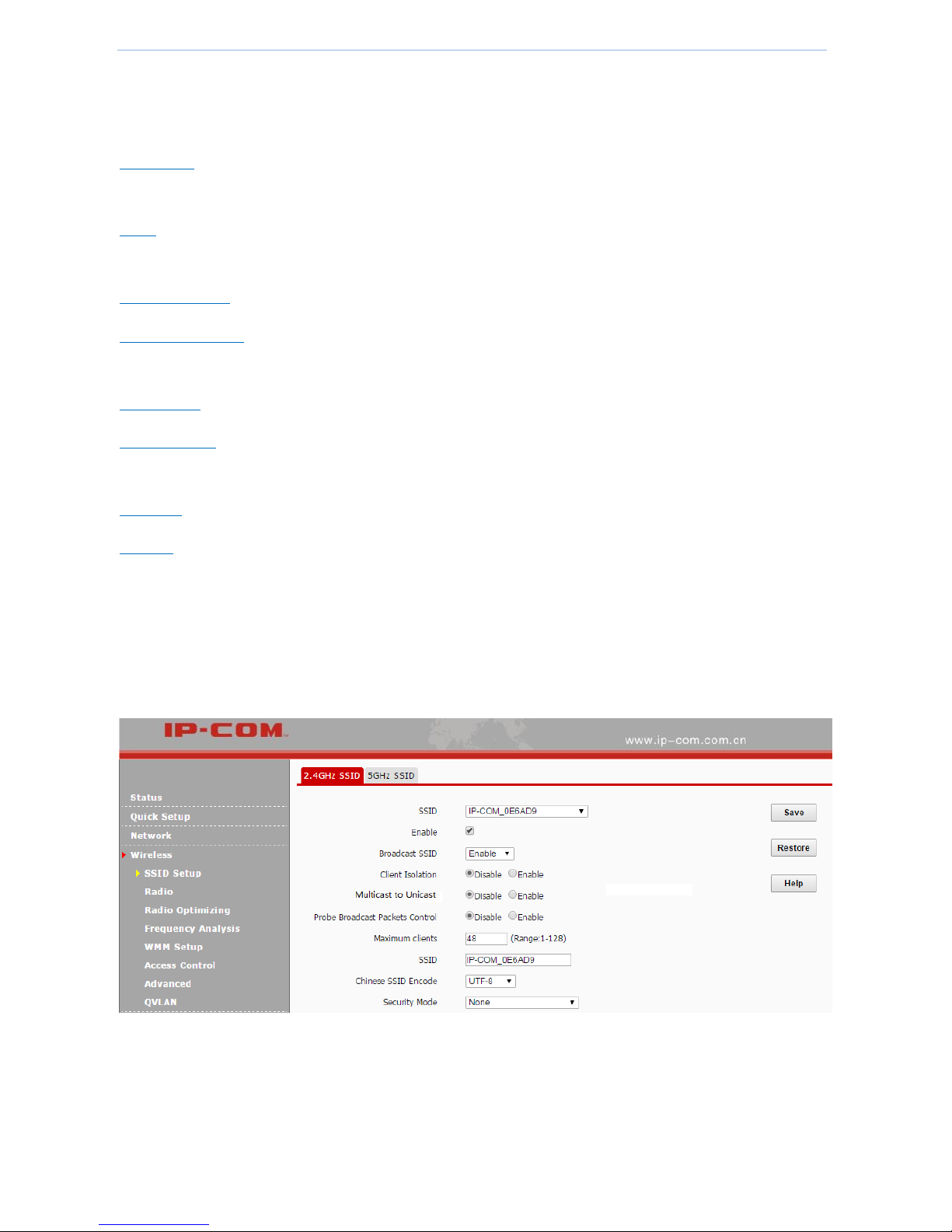

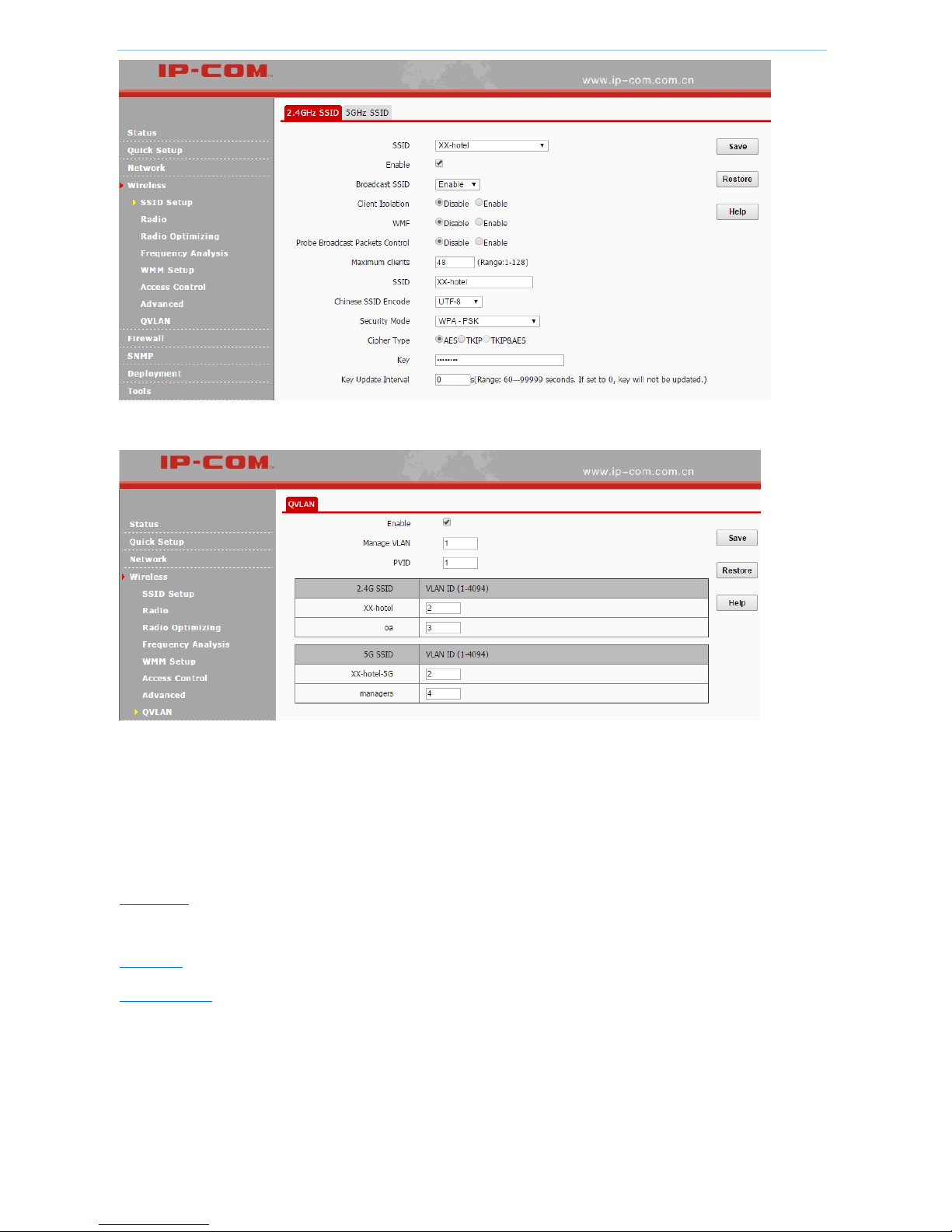

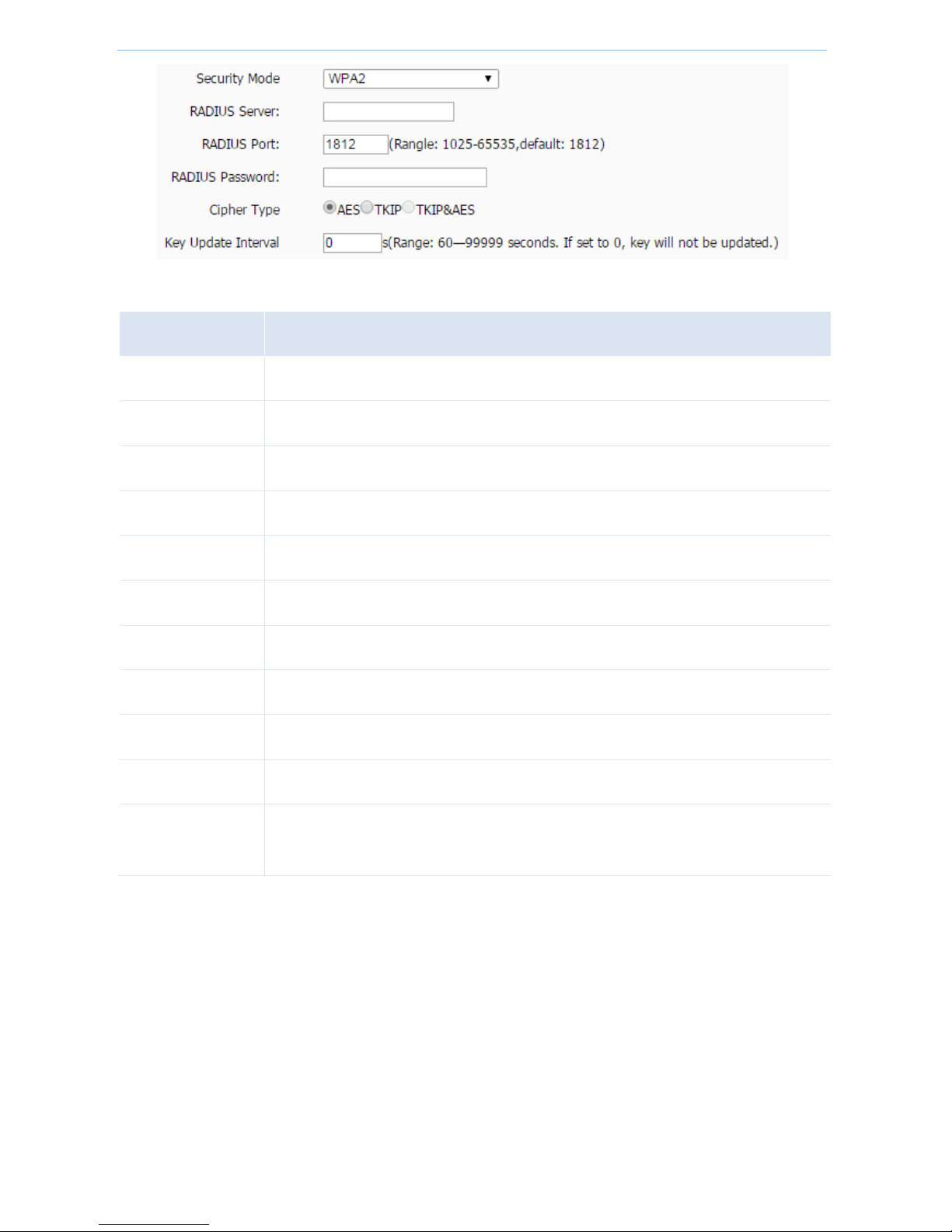

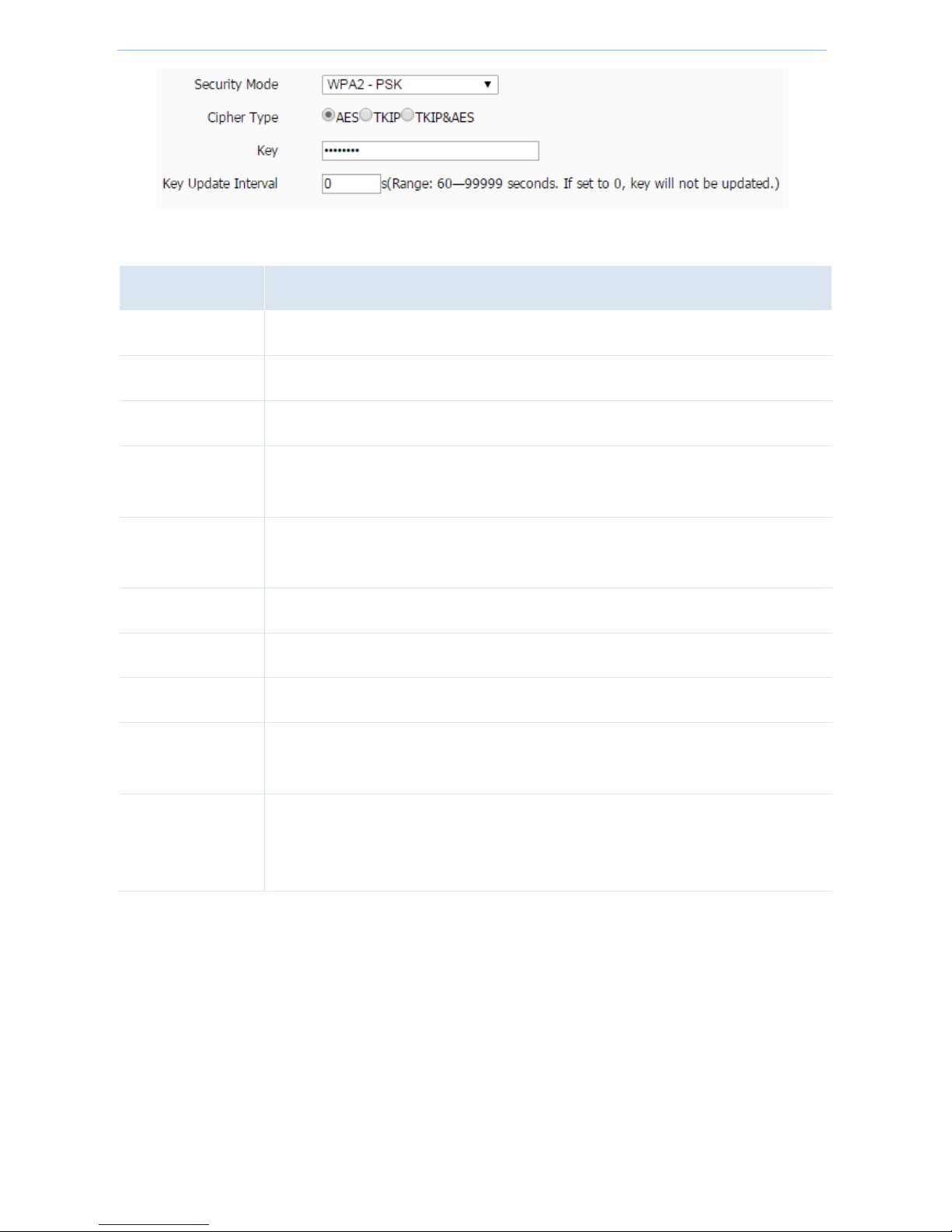

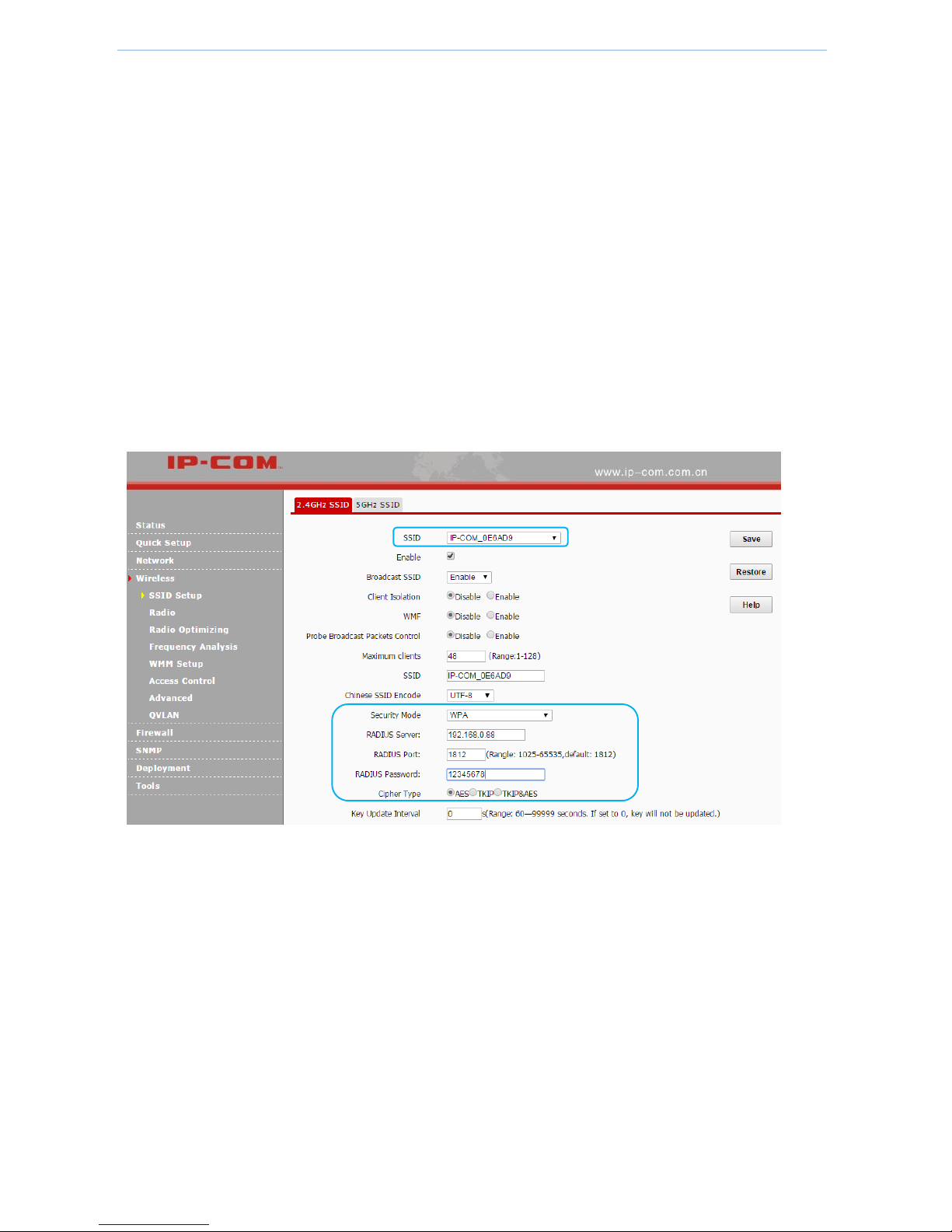

3.4.1 SSID Setup ........................................................................................................................... 24

3.4.2 Radio .................................................................................................................................... 32

3.4.3 Radio Optimizing ................................................................................................................. 34

3.4.4 Frequency Analysis .............................................................................................................. 37

3.4.5 WMM Setup ......................................................................................................................... 39

3.4.6 Access Control ..................................................................................................................... 41

3.4.7 Advanced ............................................................................................................................. 44

3.4.8 QVLAN ............................................................................................................................... 45

3.5 Firewall ....................................................................................................................................... 49

3.5.1 URL Filter ............................................................................................................................ 49

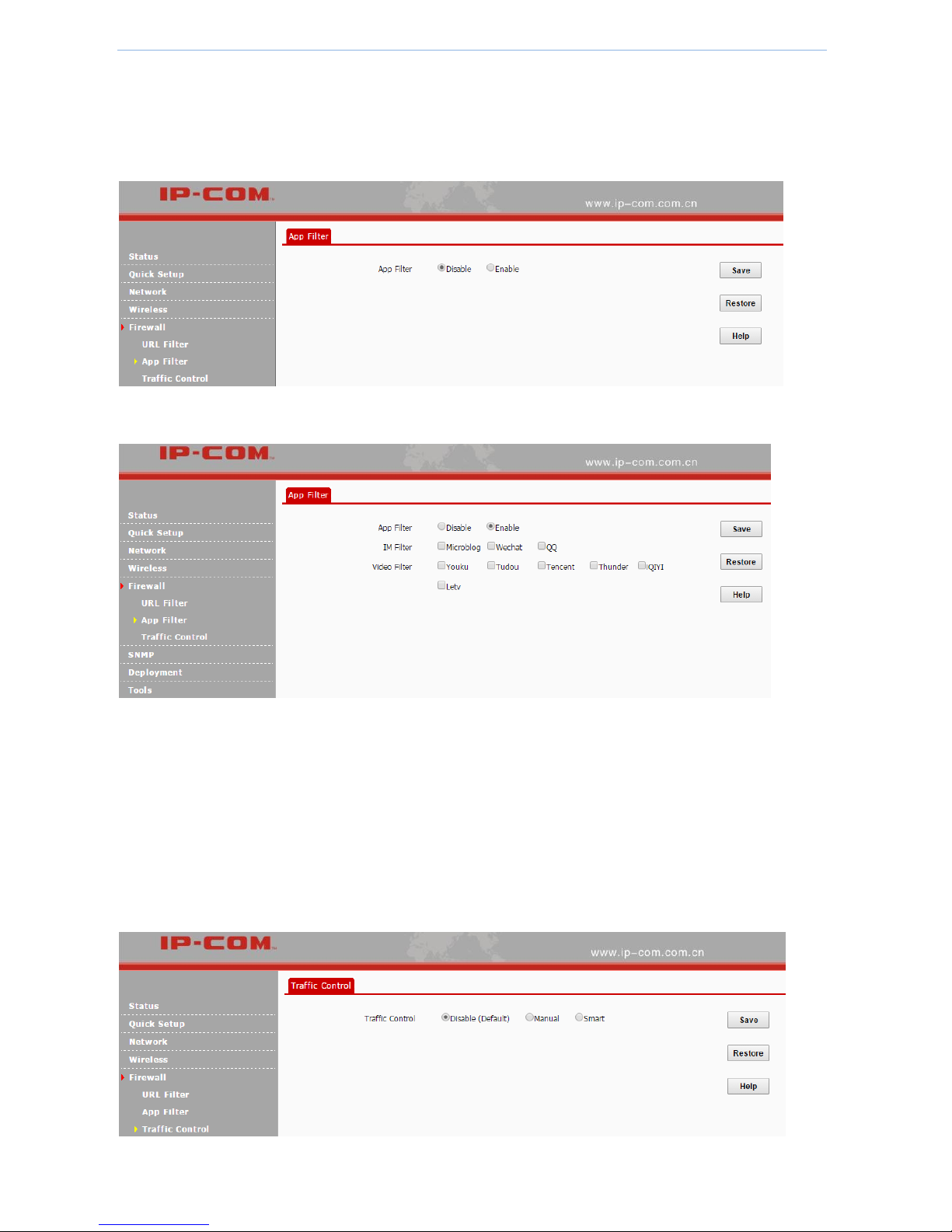

3.5.2 App Filter ............................................................................................................................. 52

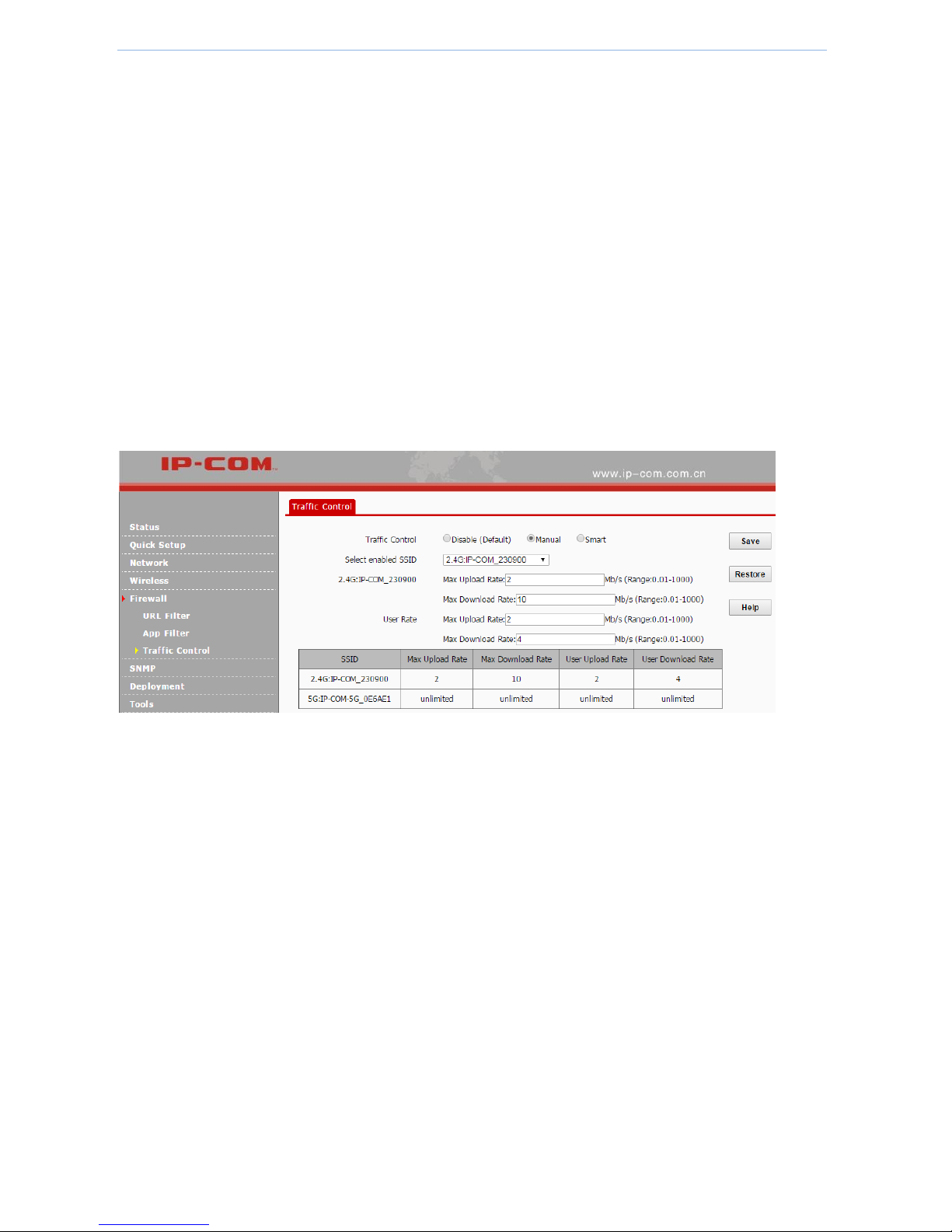

3.5.3 Traffic Control ..................................................................................................................... 52

3.6 SNMP ......................................................................................................................................... 54

3.7 Deployment ................................................................................................................................ 55

3.8 Tools ........................................................................................................................................... 57

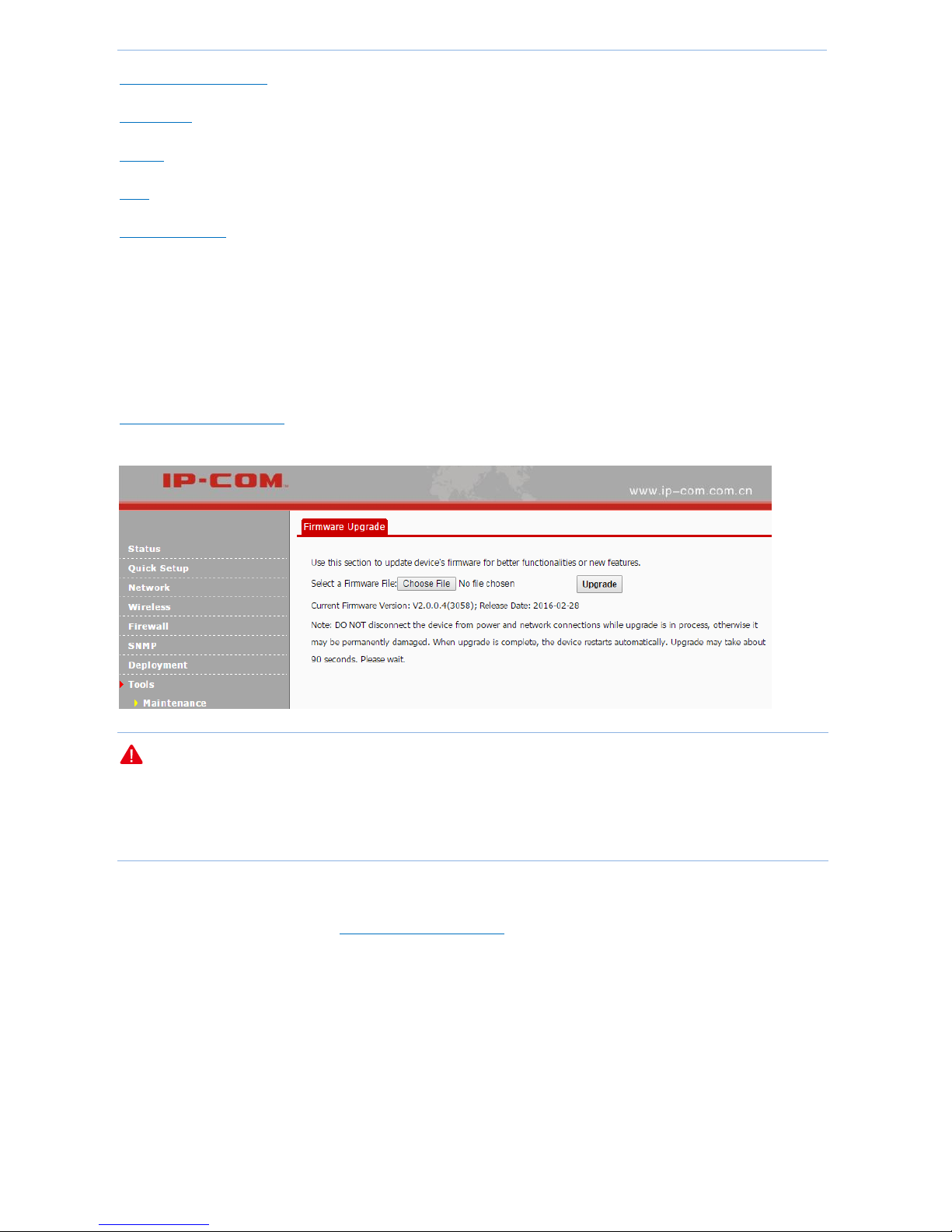

3.8.1 Maintenance ......................................................................................................................... 58

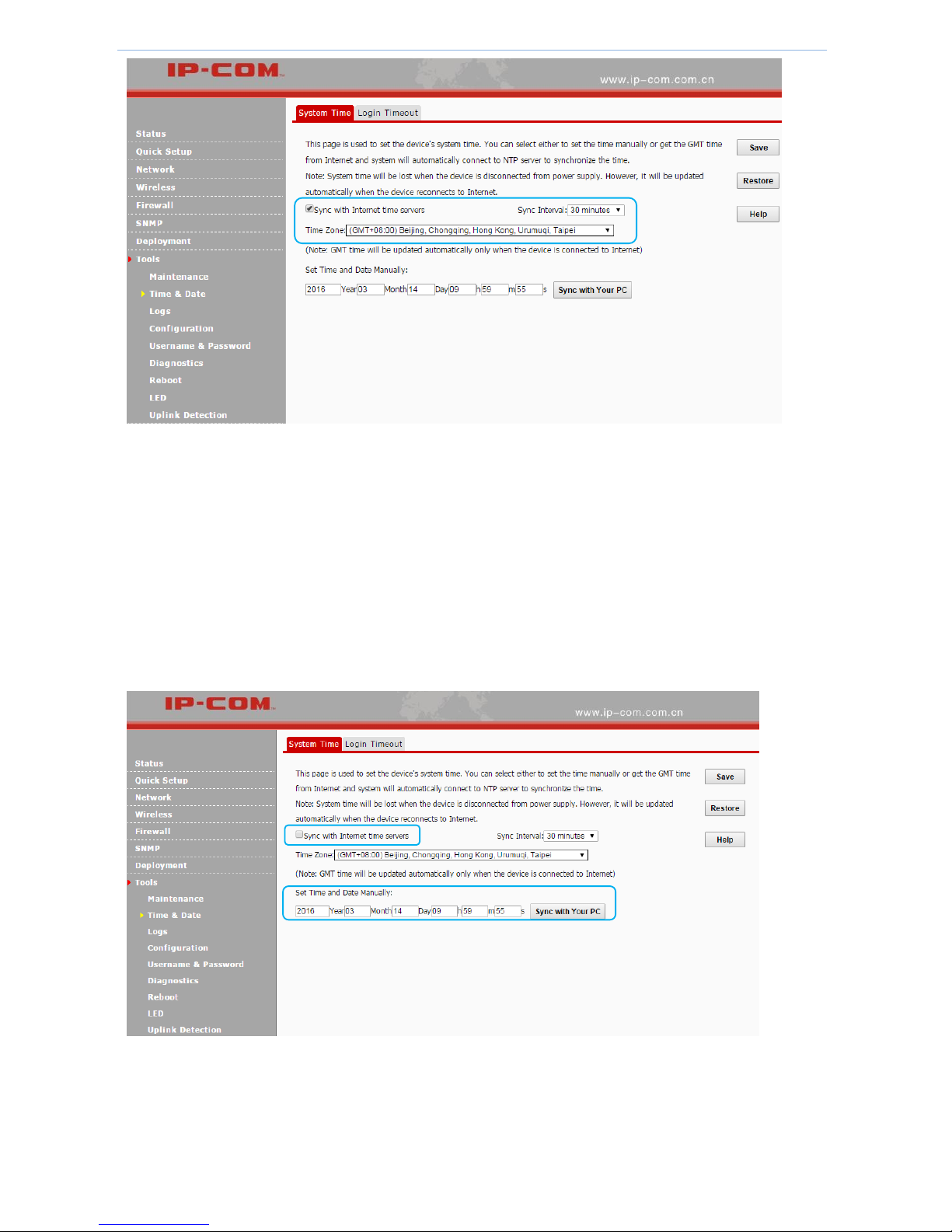

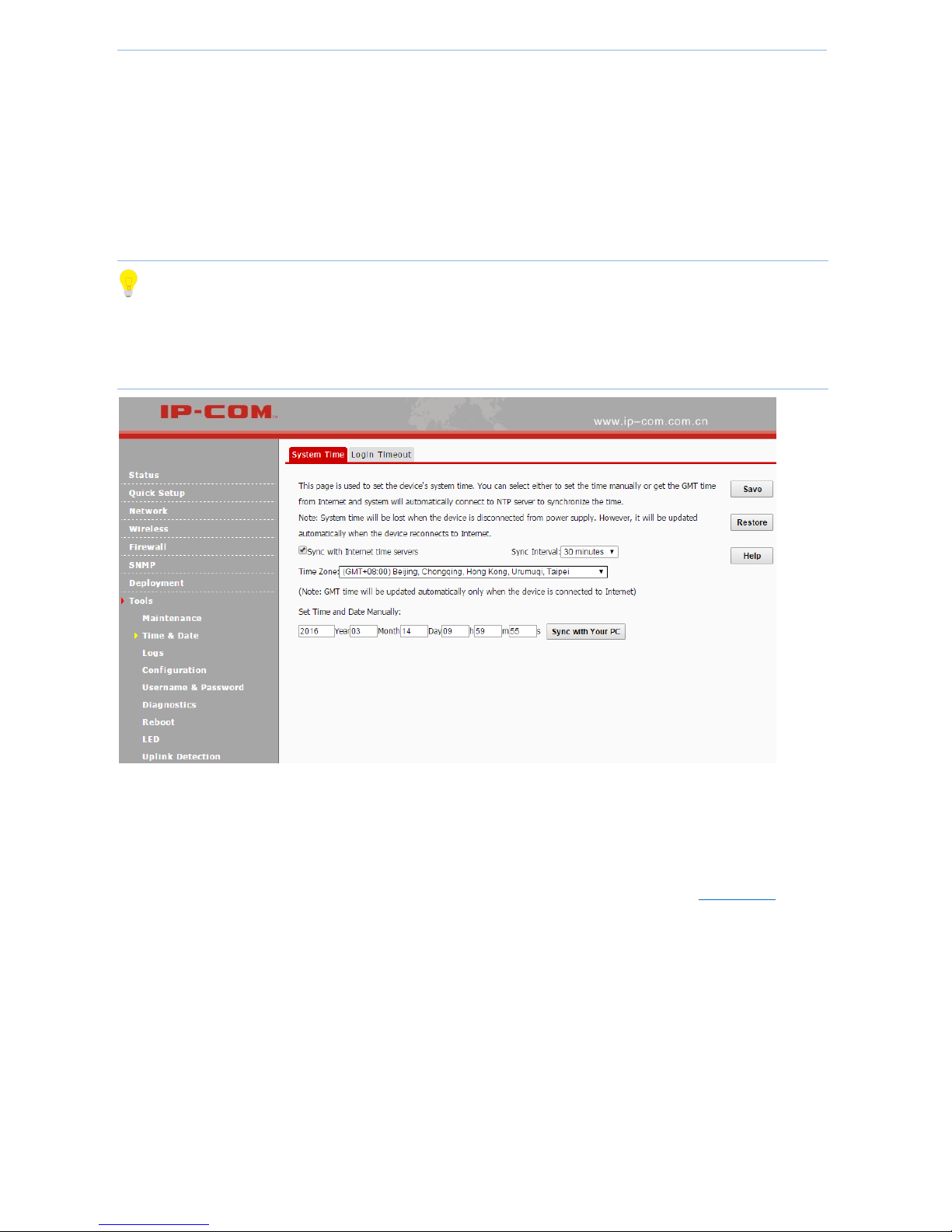

3.8.2 Time & Date ......................................................................................................................... 59

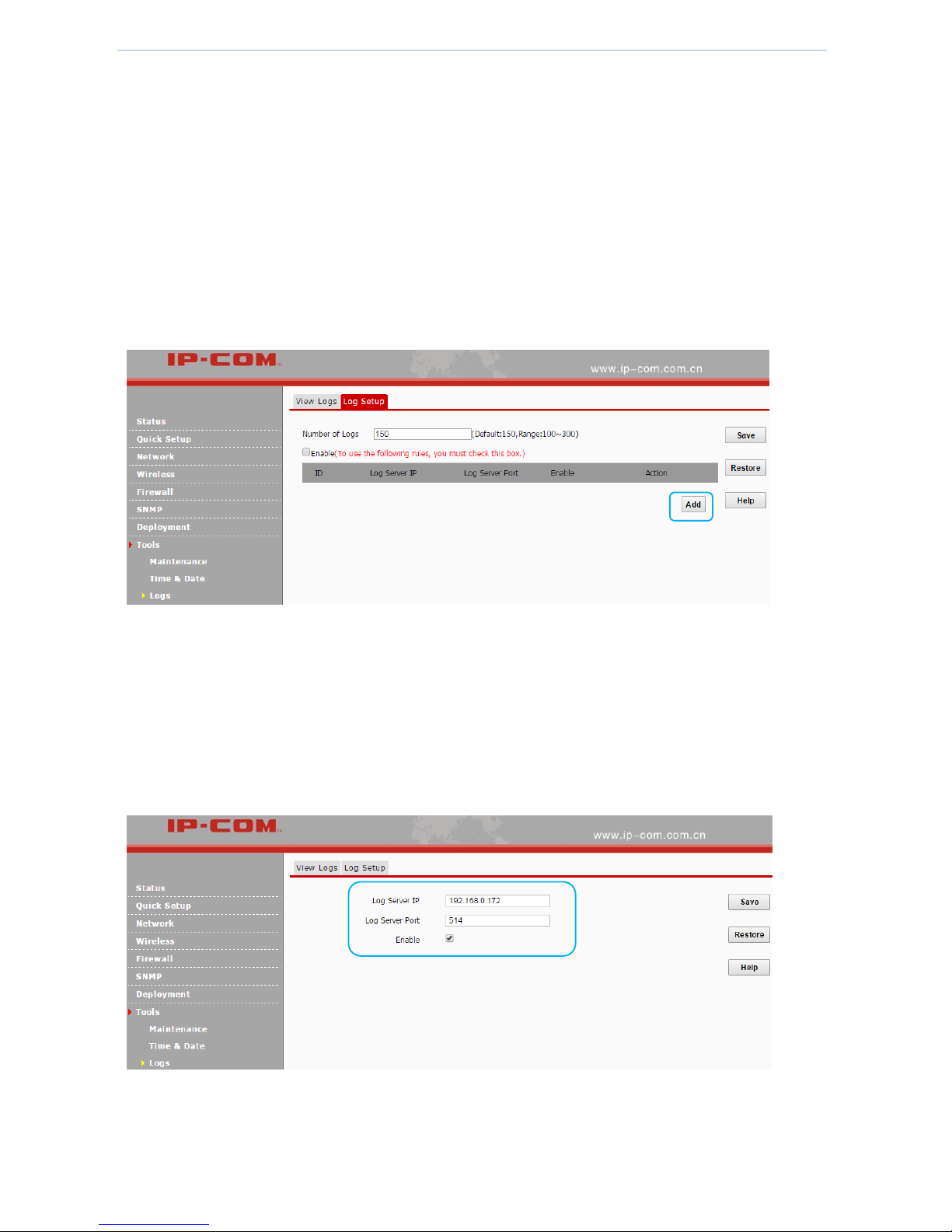

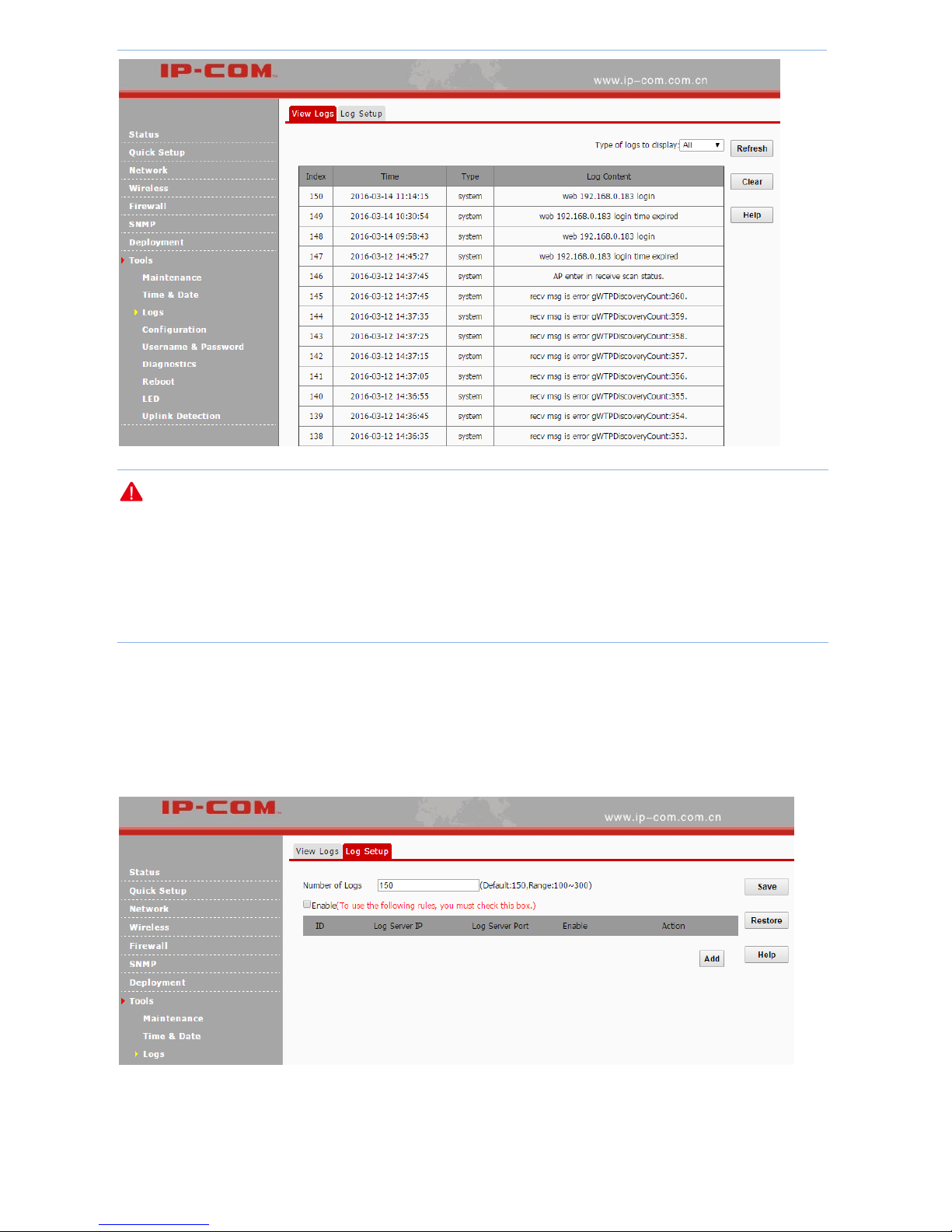

3.8.3 Logs ..................................................................................................................................... 61

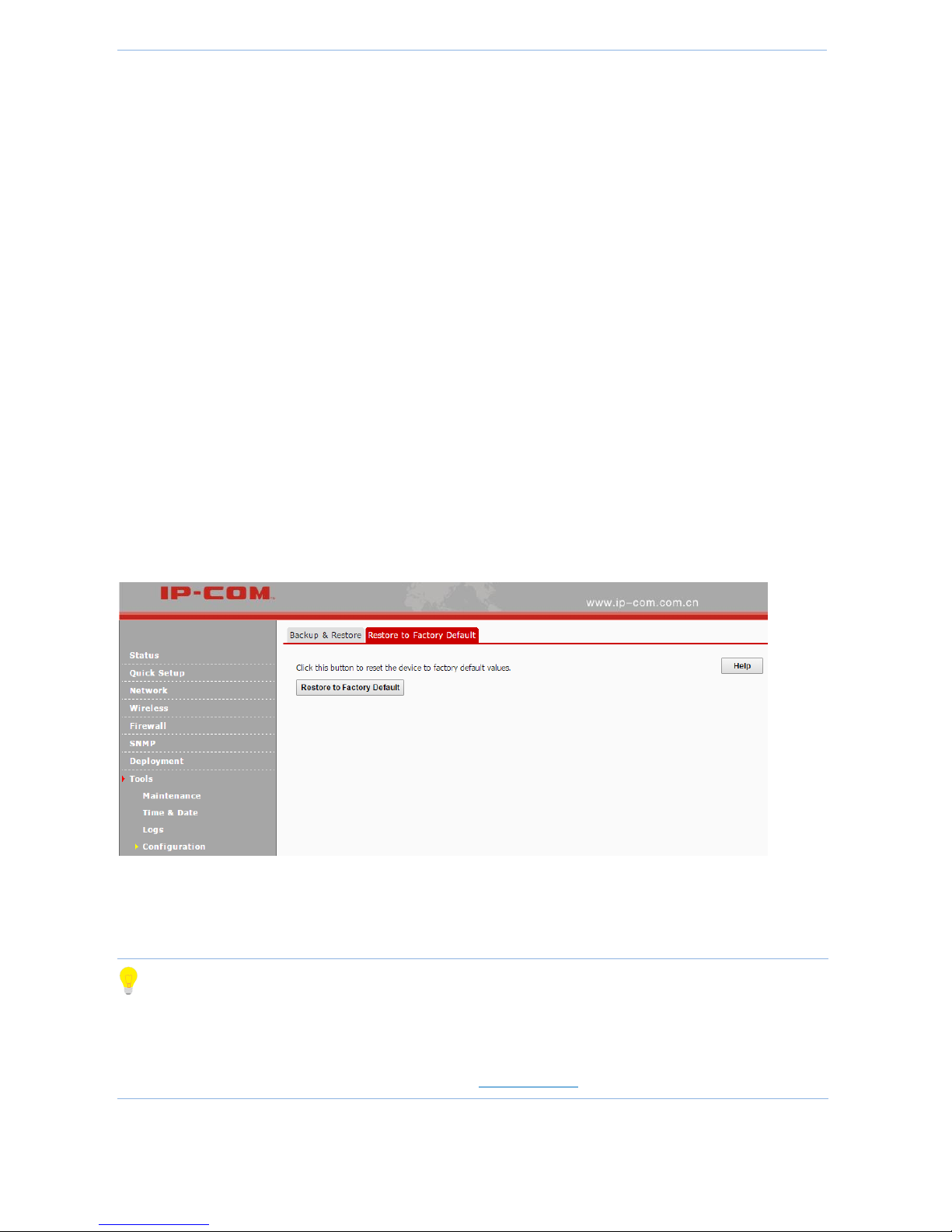

3.8.4 Configuration ....................................................................................................................... 64

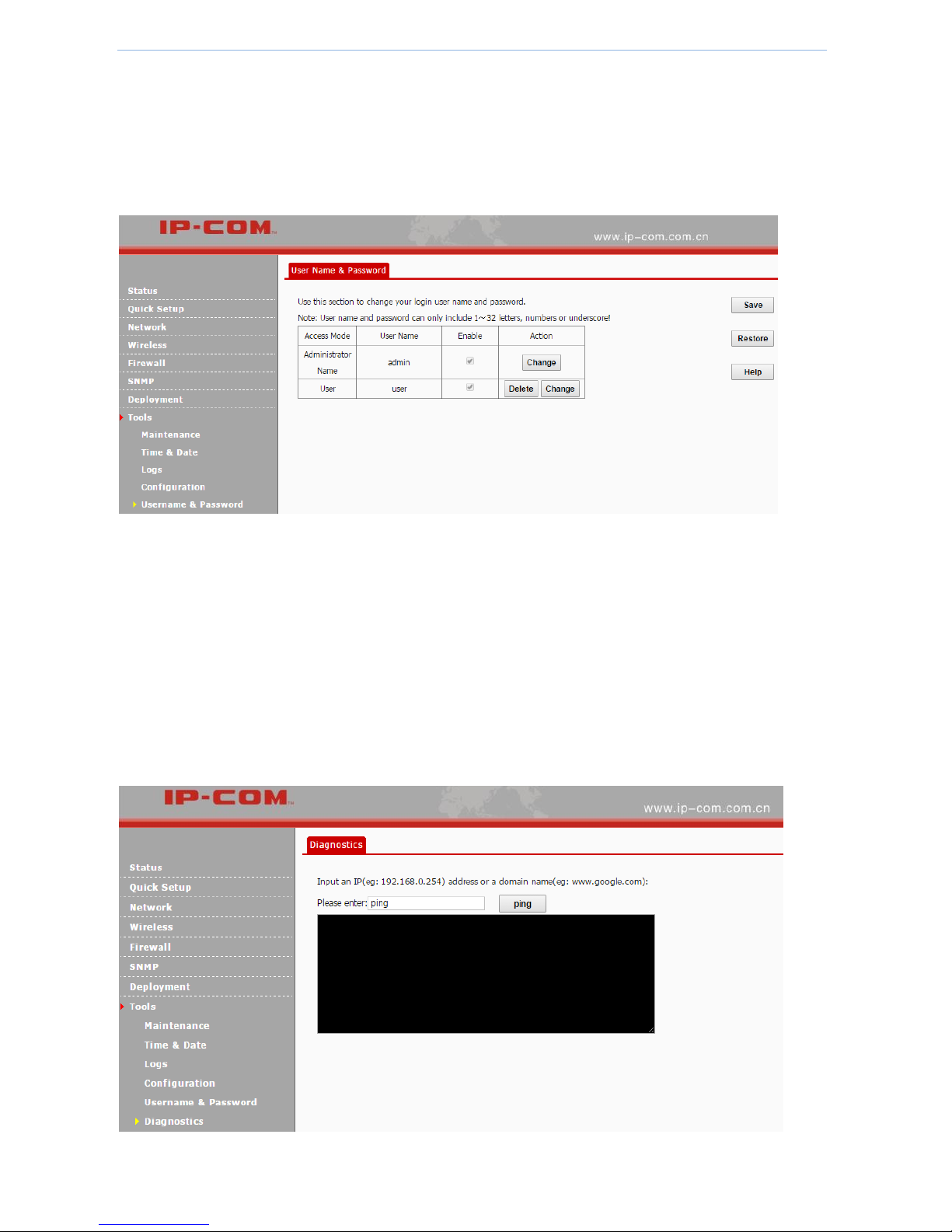

3.8.5 User Name & Password ....................................................................................................... 66

3.8.6 Diagnostics ........................................................................................................................... 66

- vi -

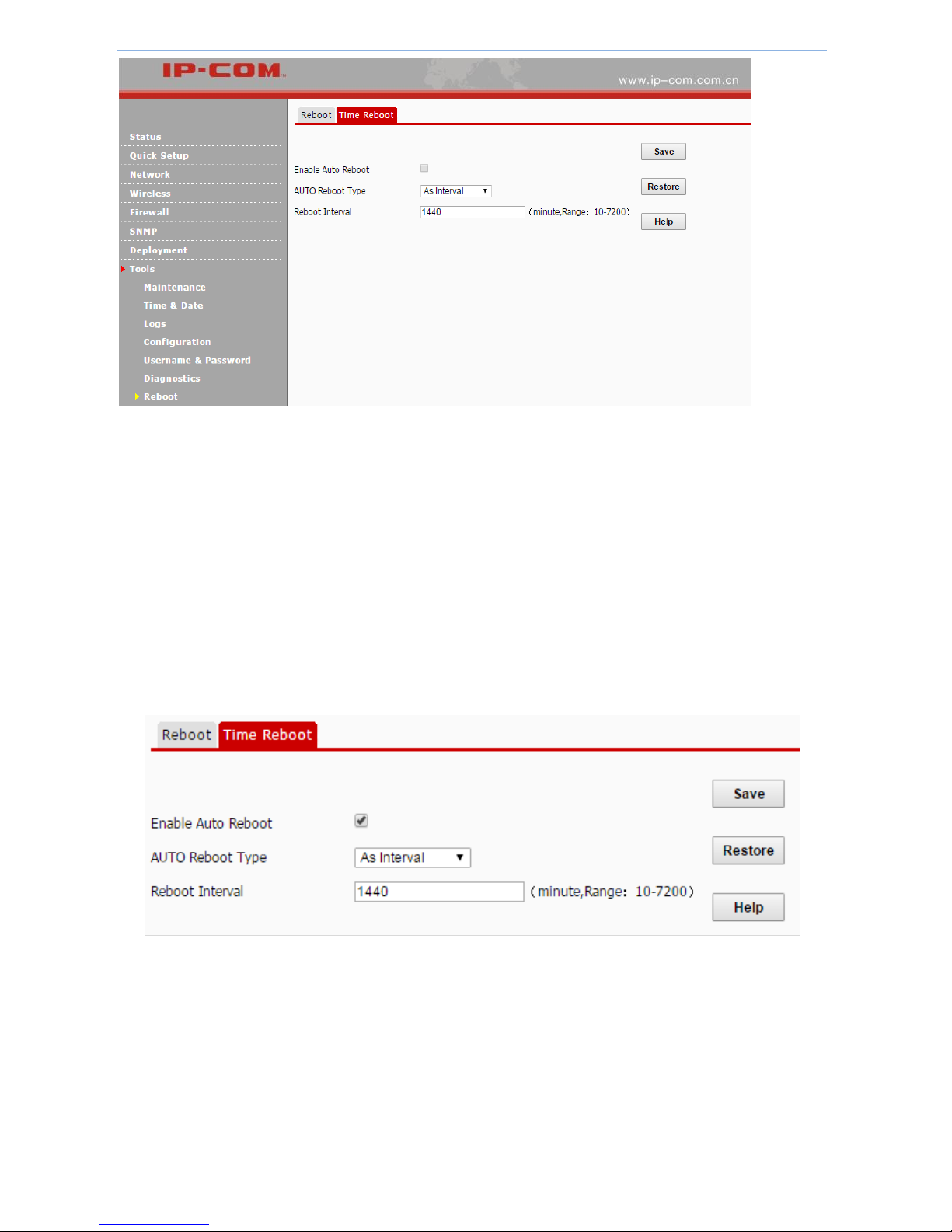

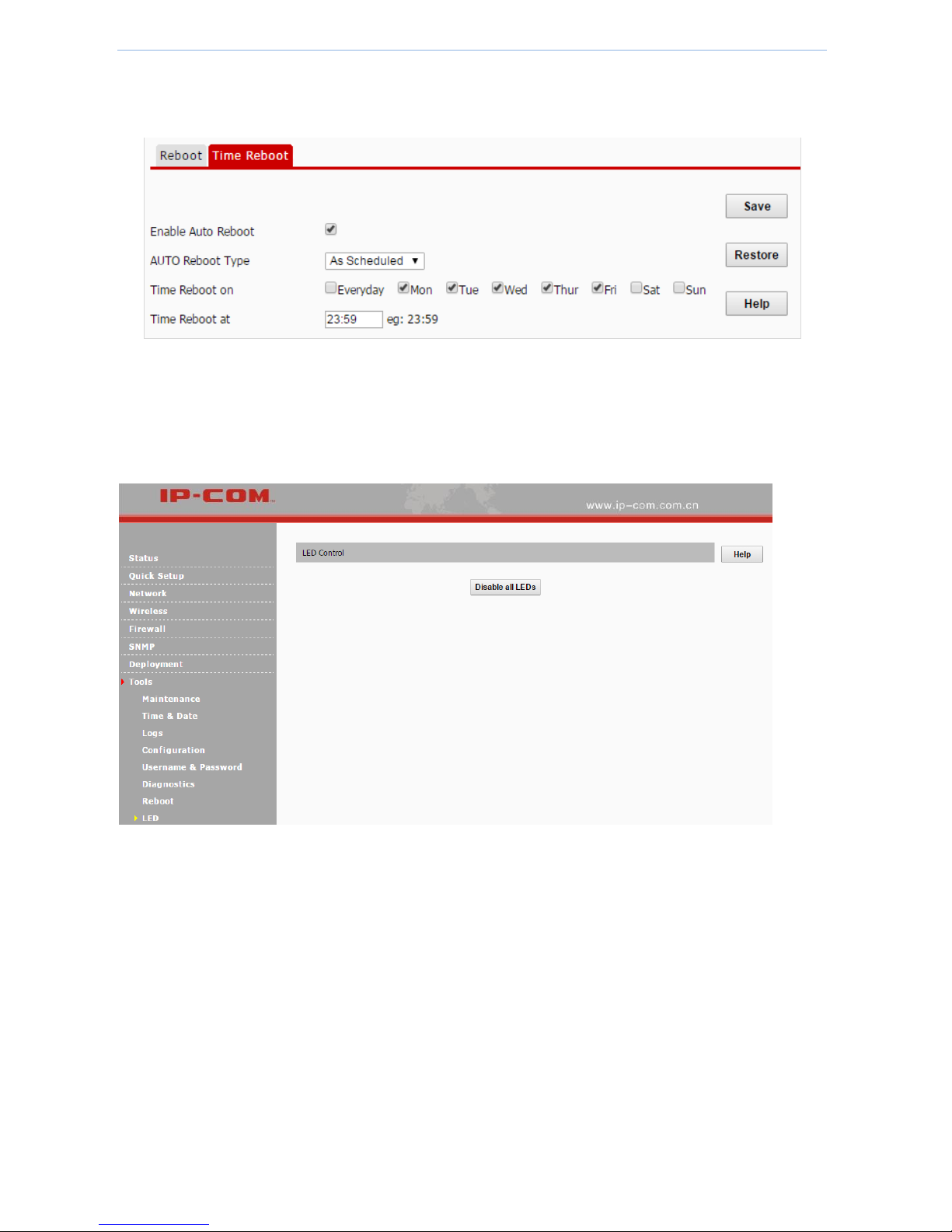

3.8.7 Reboot .................................................................................................................................. 67

3.8.8 LED ...................................................................................................................................... 69

3.8.9 Uplink Detection .................................................................................................................. 69

Appendix ............................................................................................................................................. 71

A FAQs ............................................................................................................................................. 72

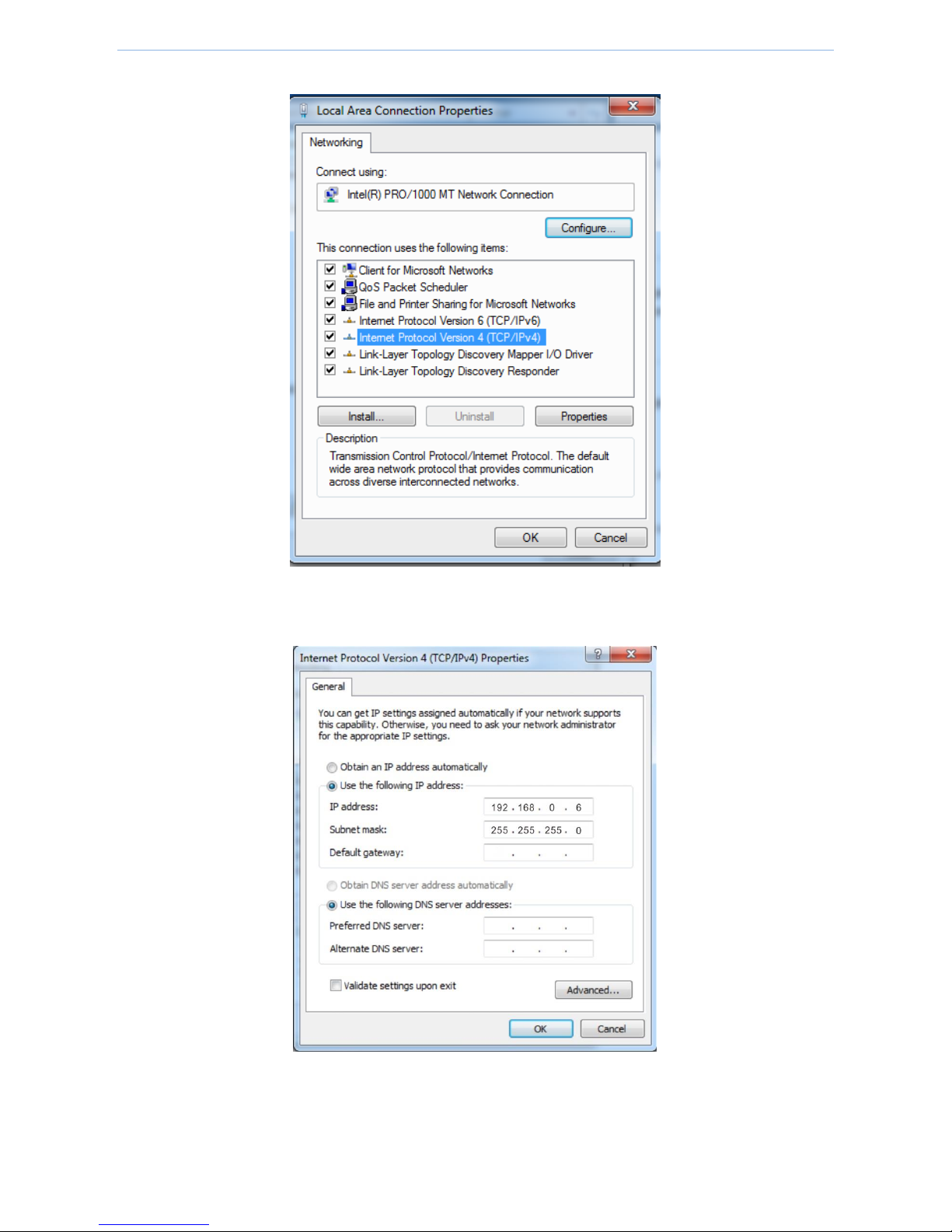

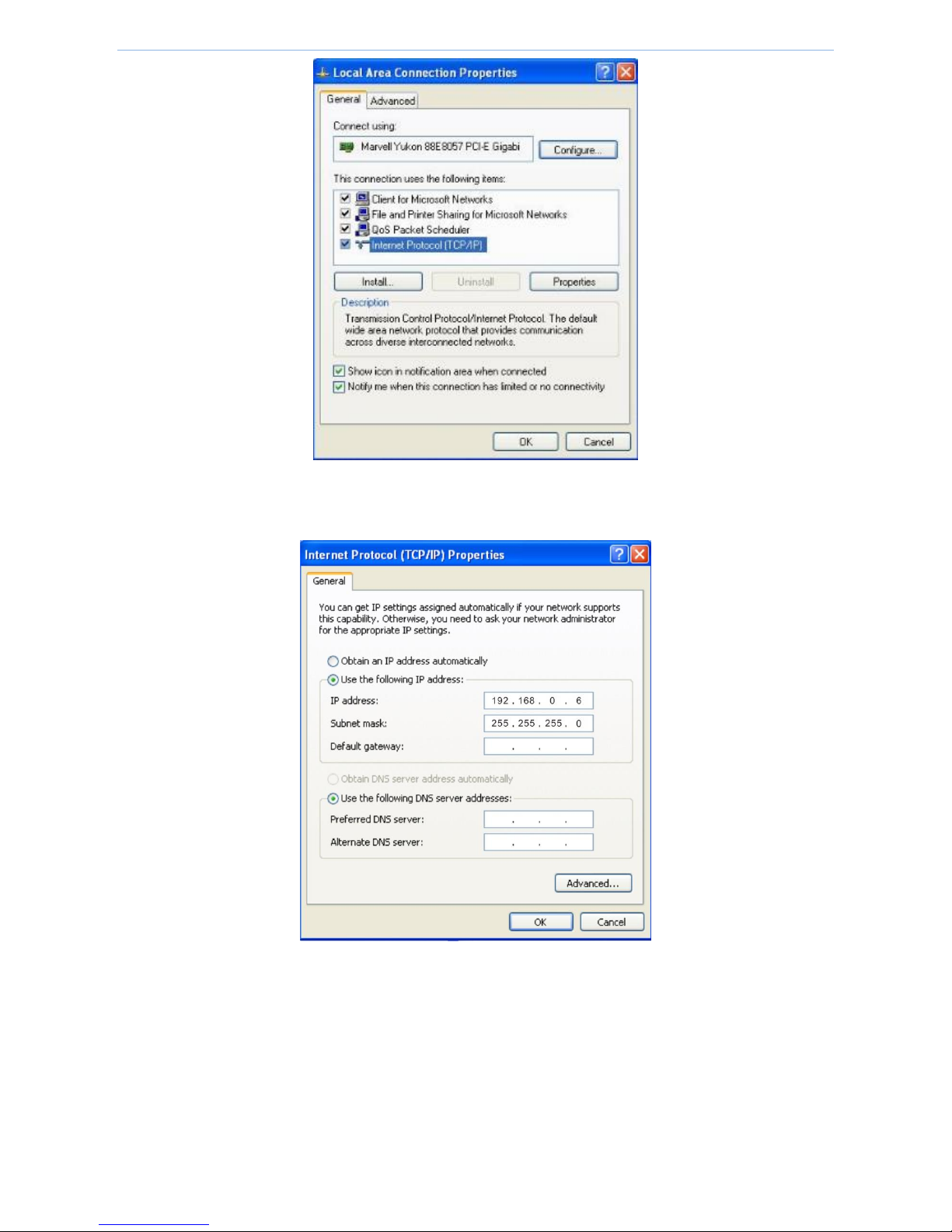

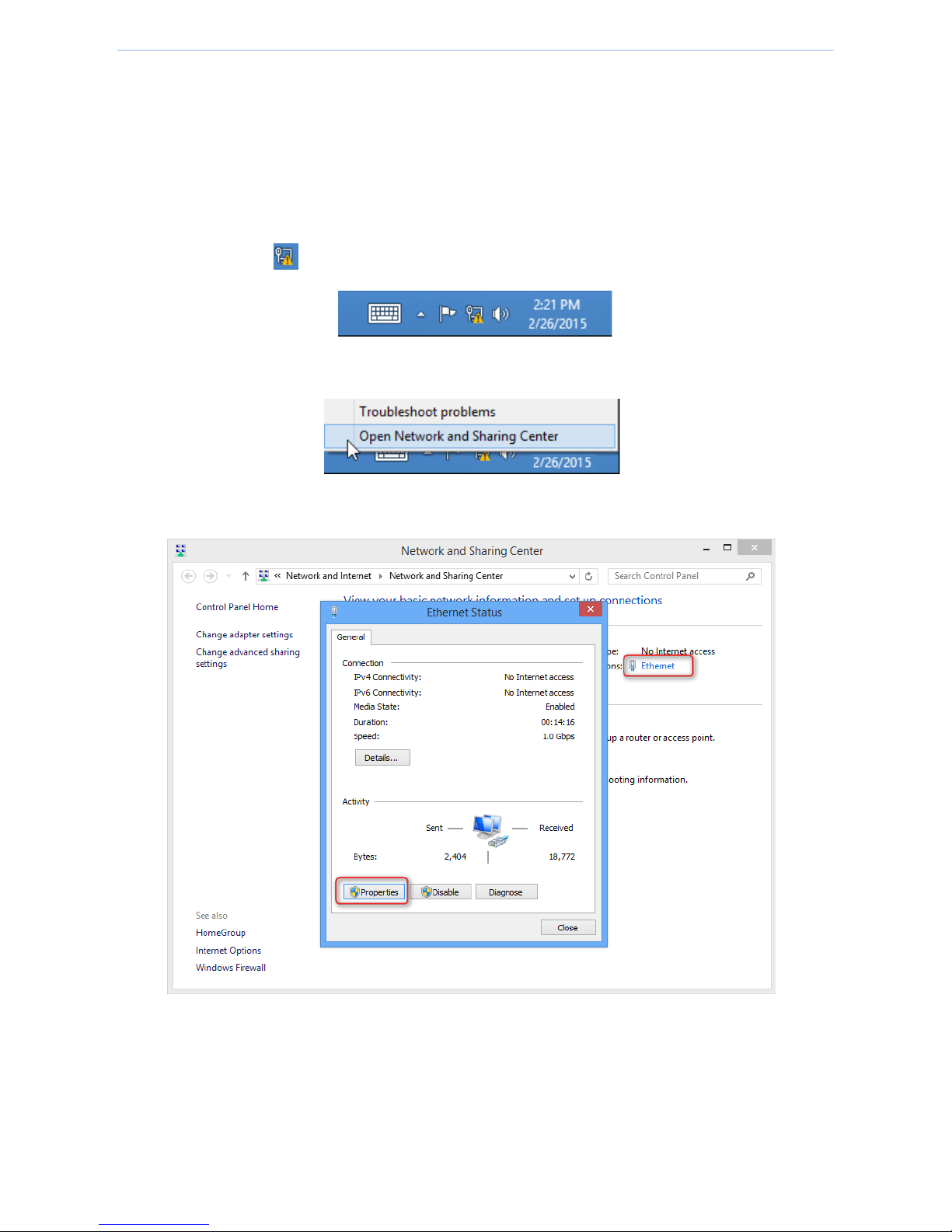

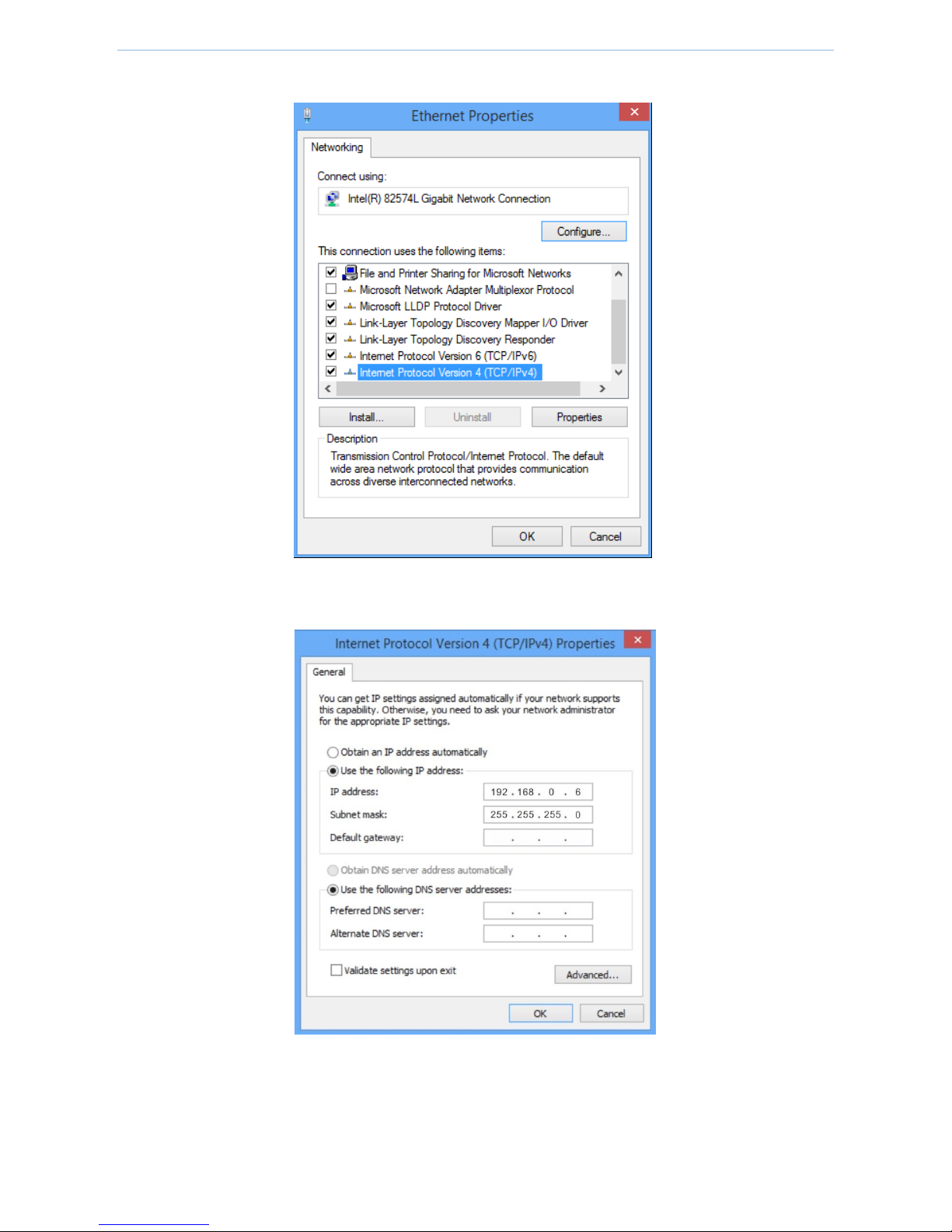

B Configure PC ................................................................................................................................ 73

Windows 8 .................................................................................................................................... 73

Windows 7 .................................................................................................................................... 75

Windows XP ................................................................................................................................. 77

C Default Settings ............................................................................................................................ 79

D Safety and Emission Statement .................................................................................................... 82

1

1 Product Overview

Overview

Package Contents

Appearance

Product Overview

- 2 -

1.1 Overview

IP-COM AP355, the high-density ceiling access point, is an enterprise-grade, high performance Gigabit Wi-Fi
access point, prepared for ultra-high density environments. Through the 802.11ac WiFi technology and enhanced
transmitted power and receive sensitivity, it can increase WiFi coverage, improve access density and operation
stability. You can power on this AP either with the included power adapter or with an IEEE 802.3at-compliant PoE
device. Under the management and control of the IP-COM series AC, it supports advanced features like access
control, load balancing, seamless roaming, multiple authentication modes and so on. It is an ideal choice for
medium-sized enterprise offices, conference halls, multimedia classroom WLAN Deployment.

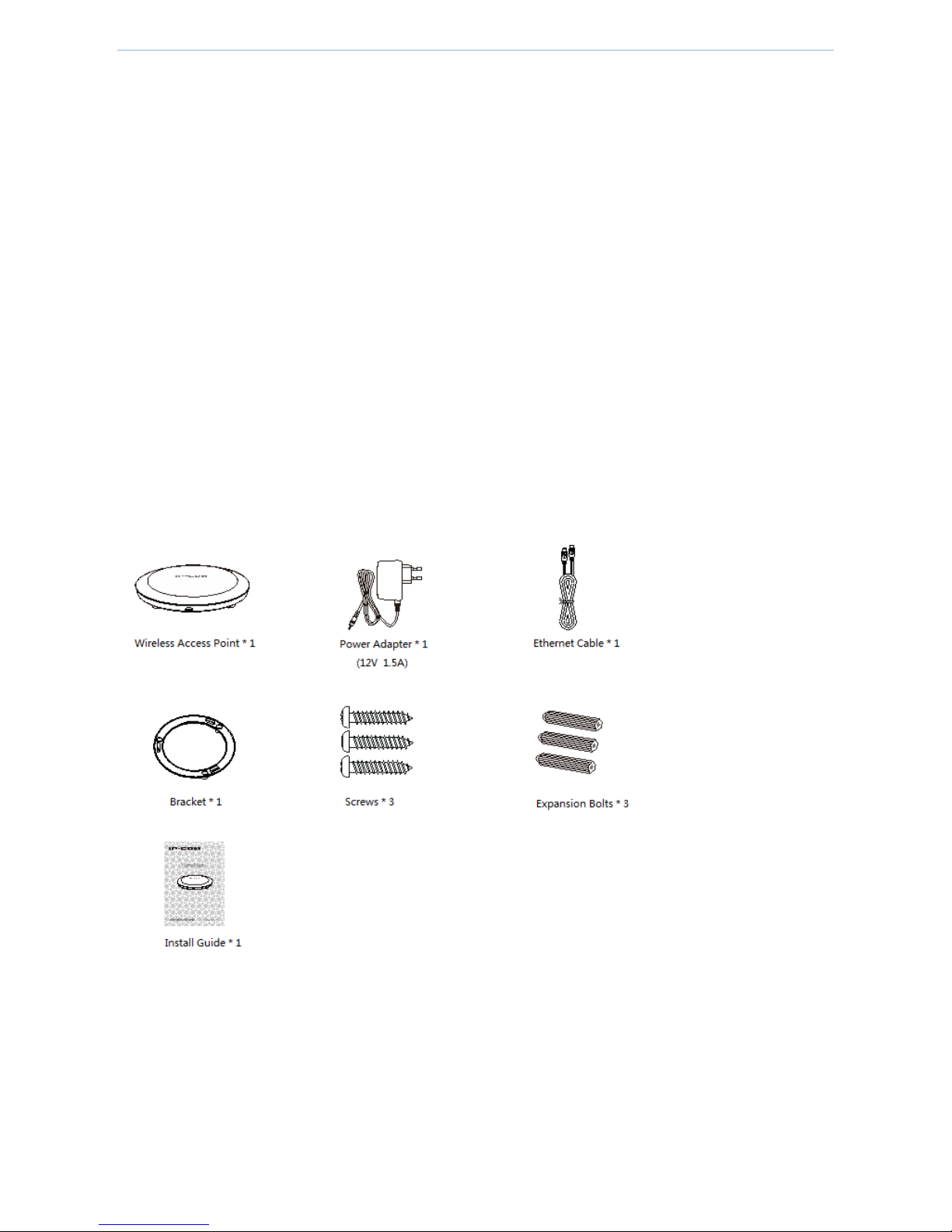

1.2 Package Contents

Unpack the package and verify that the following items are included:

If any item is missing, incorrect or damaged, please contact our reseller with the original package for replacement.

Product Overview

- 3 -

1.3 Appearance

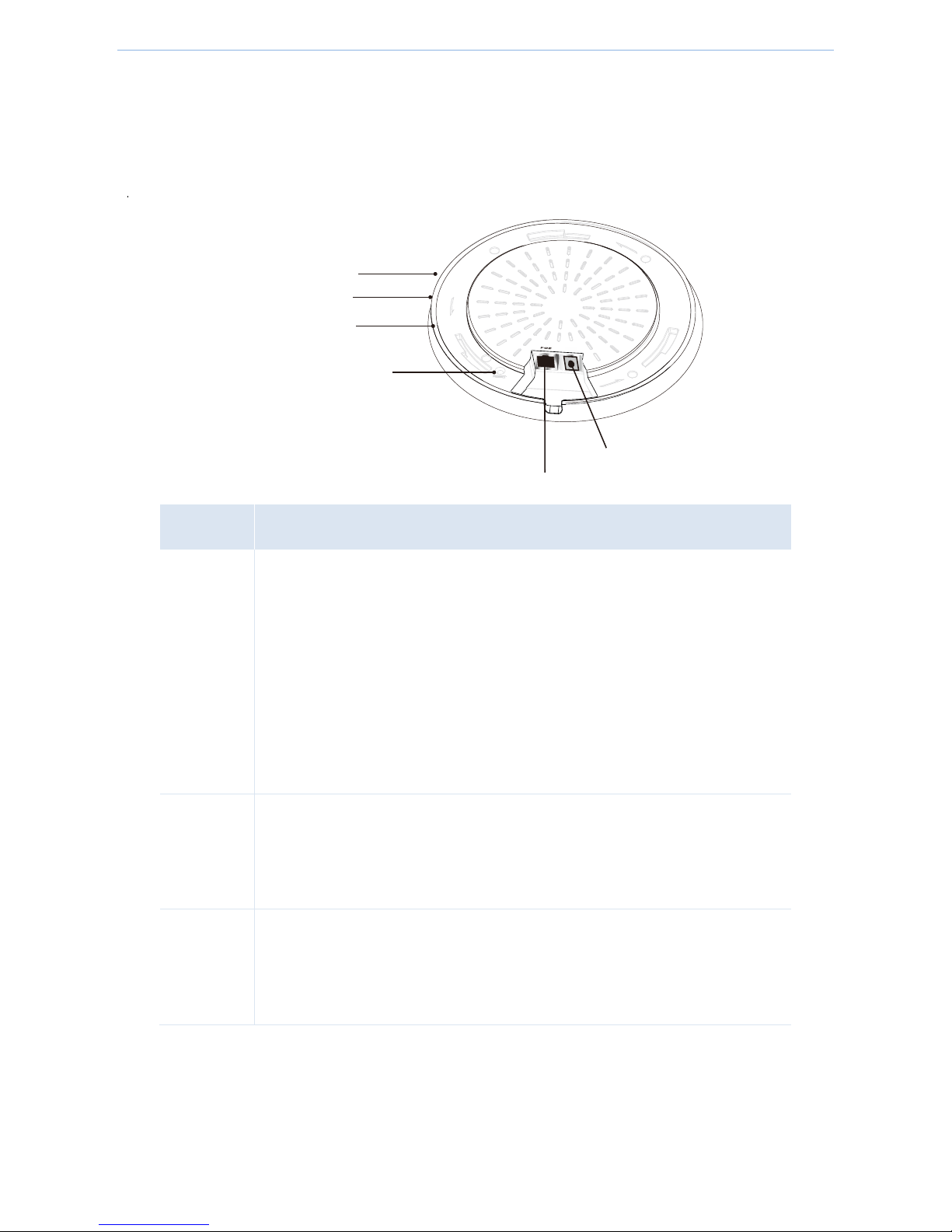

1.3.1 LEDs, interface & button

LEDs

Description

SYS

The system/AC LED. When the AP is not managed by an AC (access controller), it
displays green. When the AP is managed by an AC successfully, it displays orange.

 Solid green: The AP is powered on.
 Blinking green: The AP works properly.
 Blinking orange: The AP has been managed by an AC. You need to log in to

the Web UI of the AC to view the AP’s login IP address.

 Off: The AP is not powered on, malfunctions occur or LEDs are disabled

manually.

2.4GHz

 Solid: 2.4G WiFi is enabled.
 Blinking: 2.4G wireless data is being transmitted.
 Off: 2.4G WiFi is disabled or LEDs are disabled manually.

5GHz

 Solid: 5G WiFi is enabled.
 Blinking: 5G wireless data is being transmitted.
 Off: 5G WiFi is disabled or LEDs are disabled manually.

PoE

P

W

R

RESET

PWR

2.4GHz

SYS

5GHz

Product Overview

- 4 -

Interface & Button

Description

RESET

Pressing it for over 7 seconds restores the device to its factory defaults.

PoE

LAN/PoE (802.3at) port. You can connect it to a computer, or an IEEE

802.3at-compliant PoE switch, etc.

PWR

Used for connecting to the included power adapter for power supply.

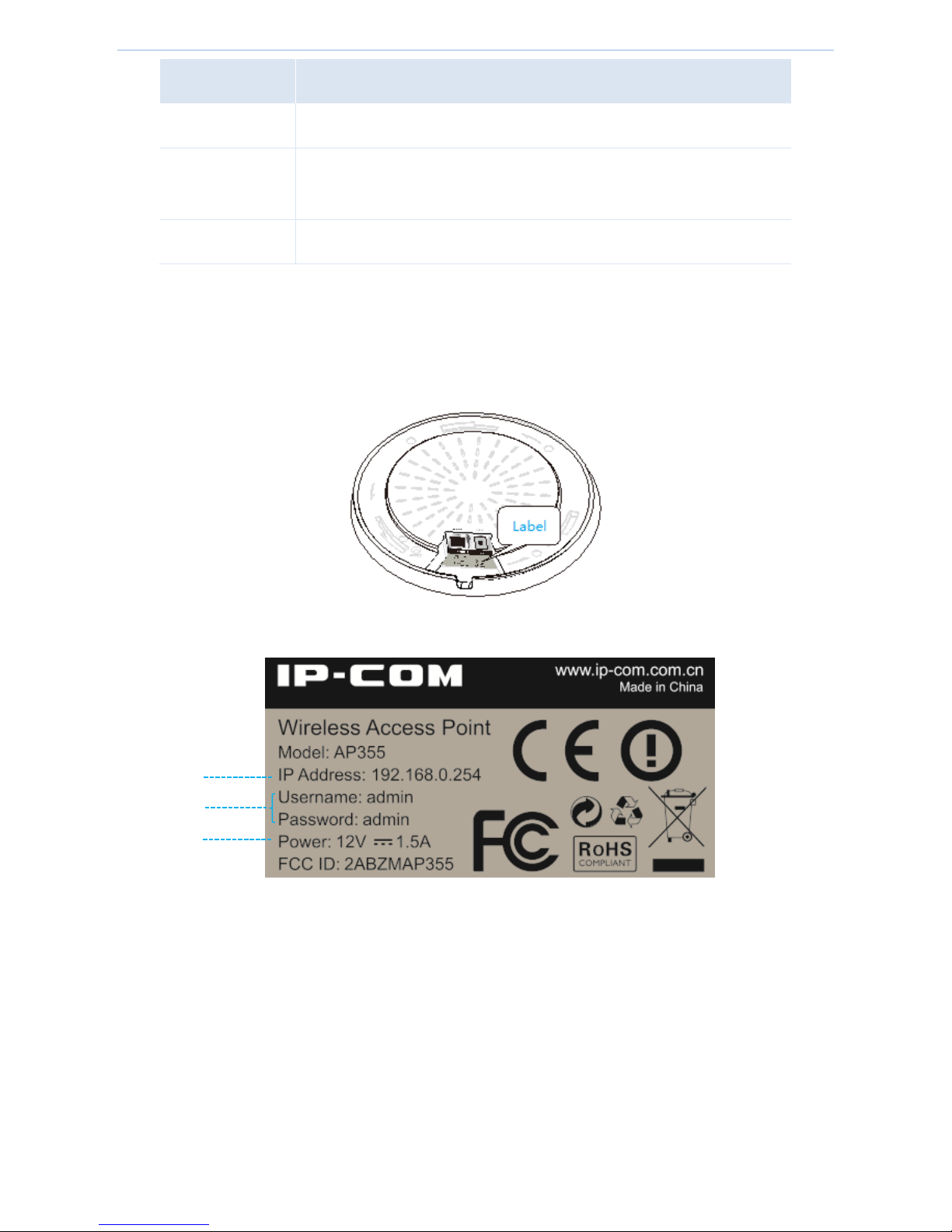

1.3.2 Label

The label is attached on the bottom of the device as shown below:

General descriptions of the label:

(1) Default login IP address of the AP. When the AP is not managed by an AC (access controller), you can use this
IP address to log in to the web UI of the AP.
(2) Default login user name and password of the AP Web UI.
(3) Power input of the AP. You can use the included power adapter to power on the AP.

（1）

（2）

（3）

2

2 Device Management

Network Topology

Management Method

Web Login

Web Logout

Web Layout

Commonly Used Buttons

Device Management

- 6 -

2.1 Network Tolopogy

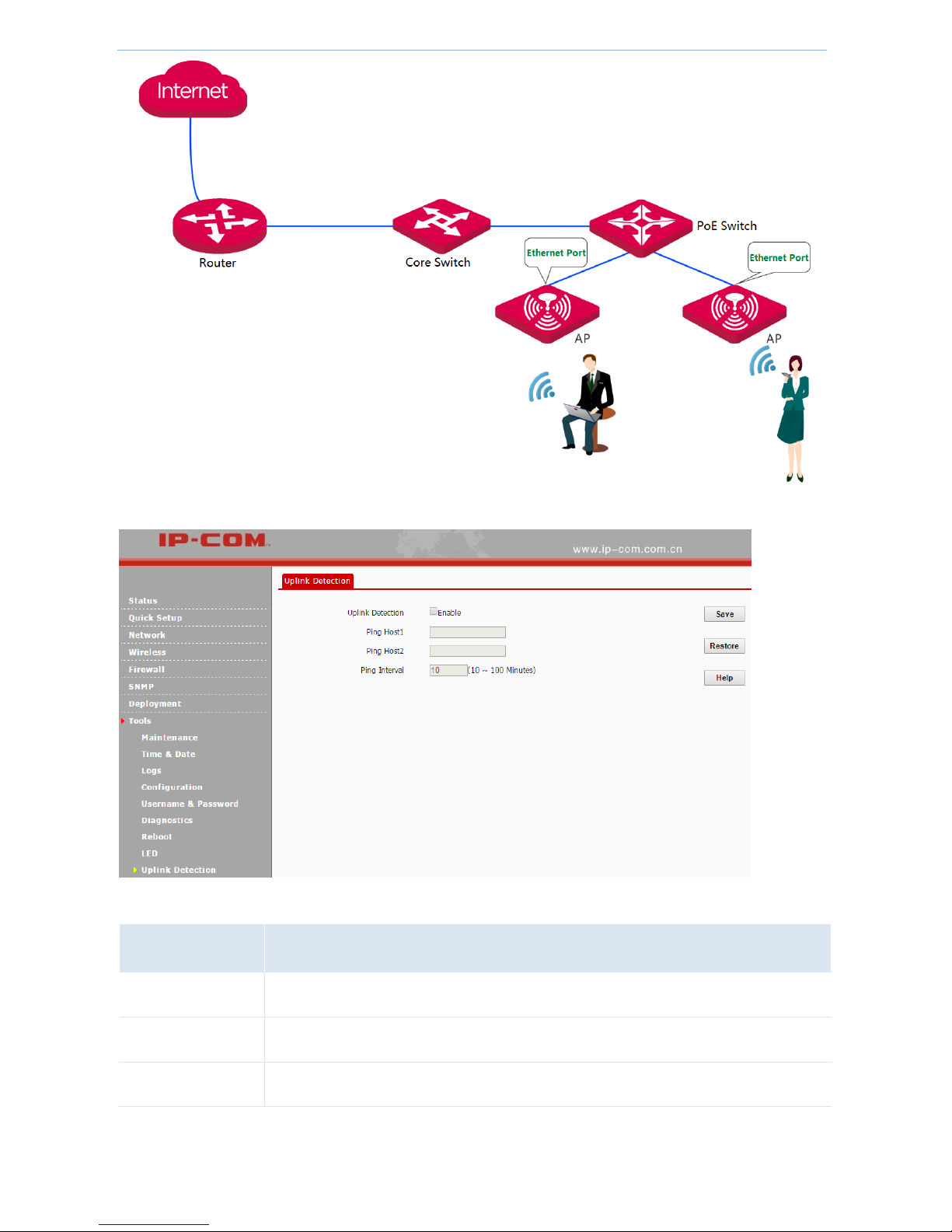

For small-scale networks, you can deploy your network as shown below. In this case, you can manage the AP via
its own Web UI.

Device Management

- 7 -

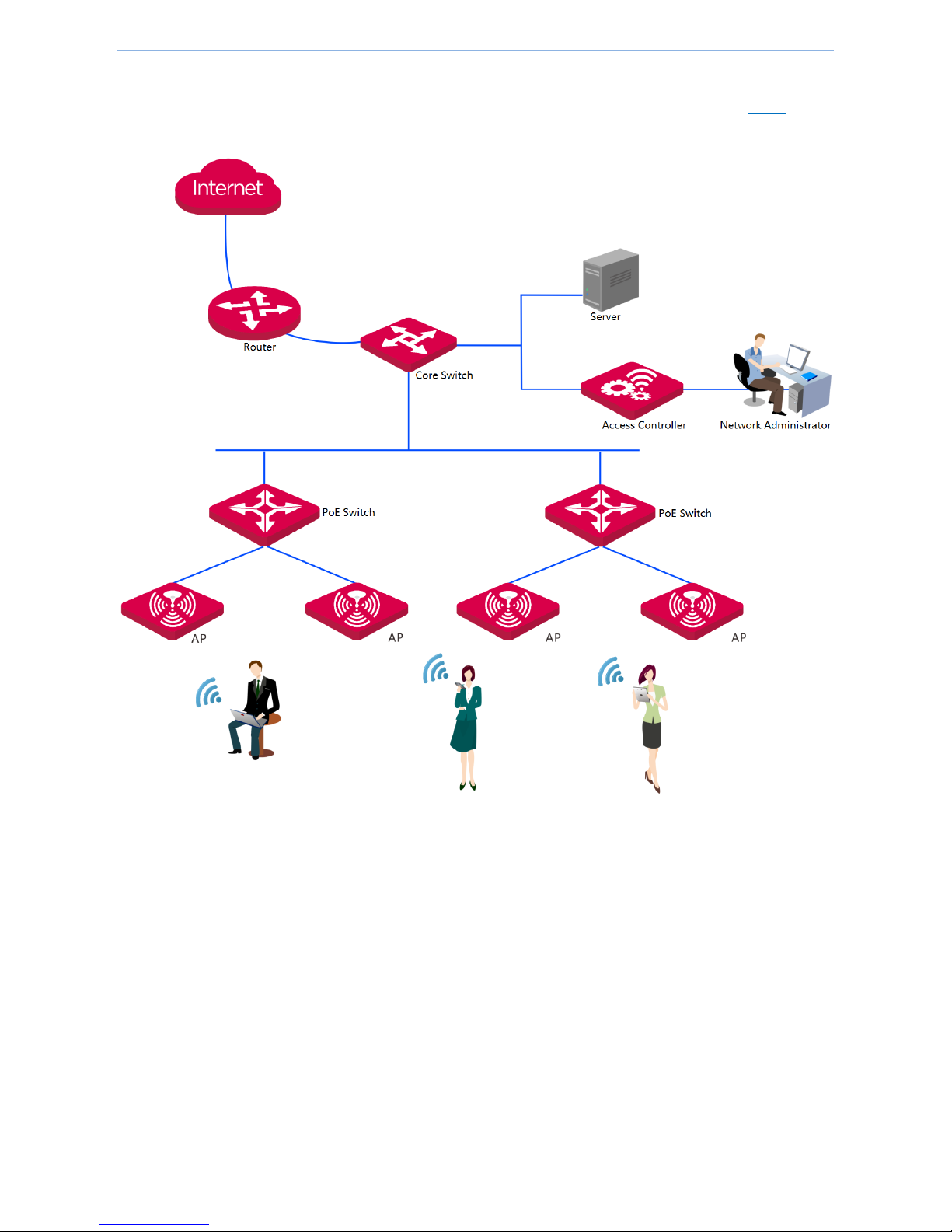

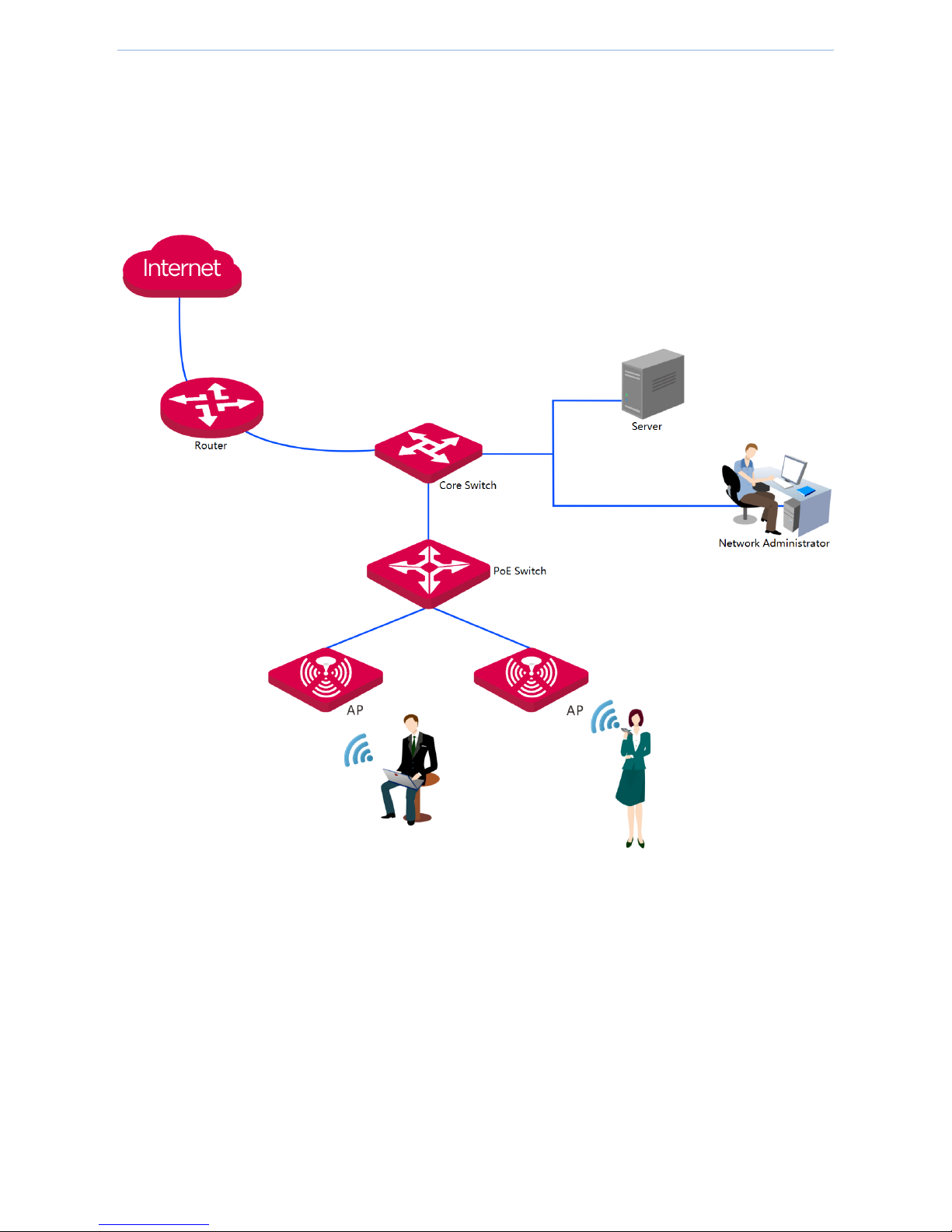

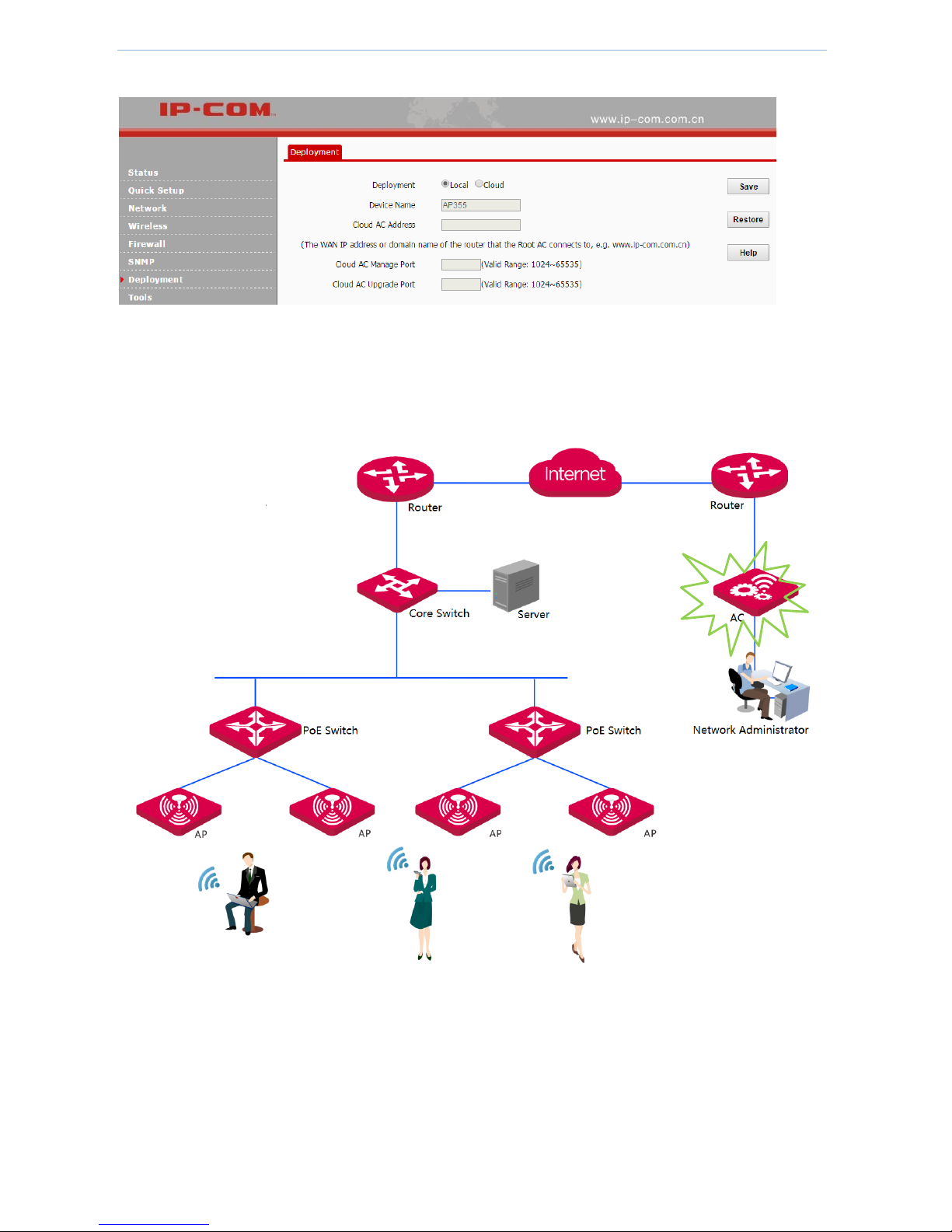

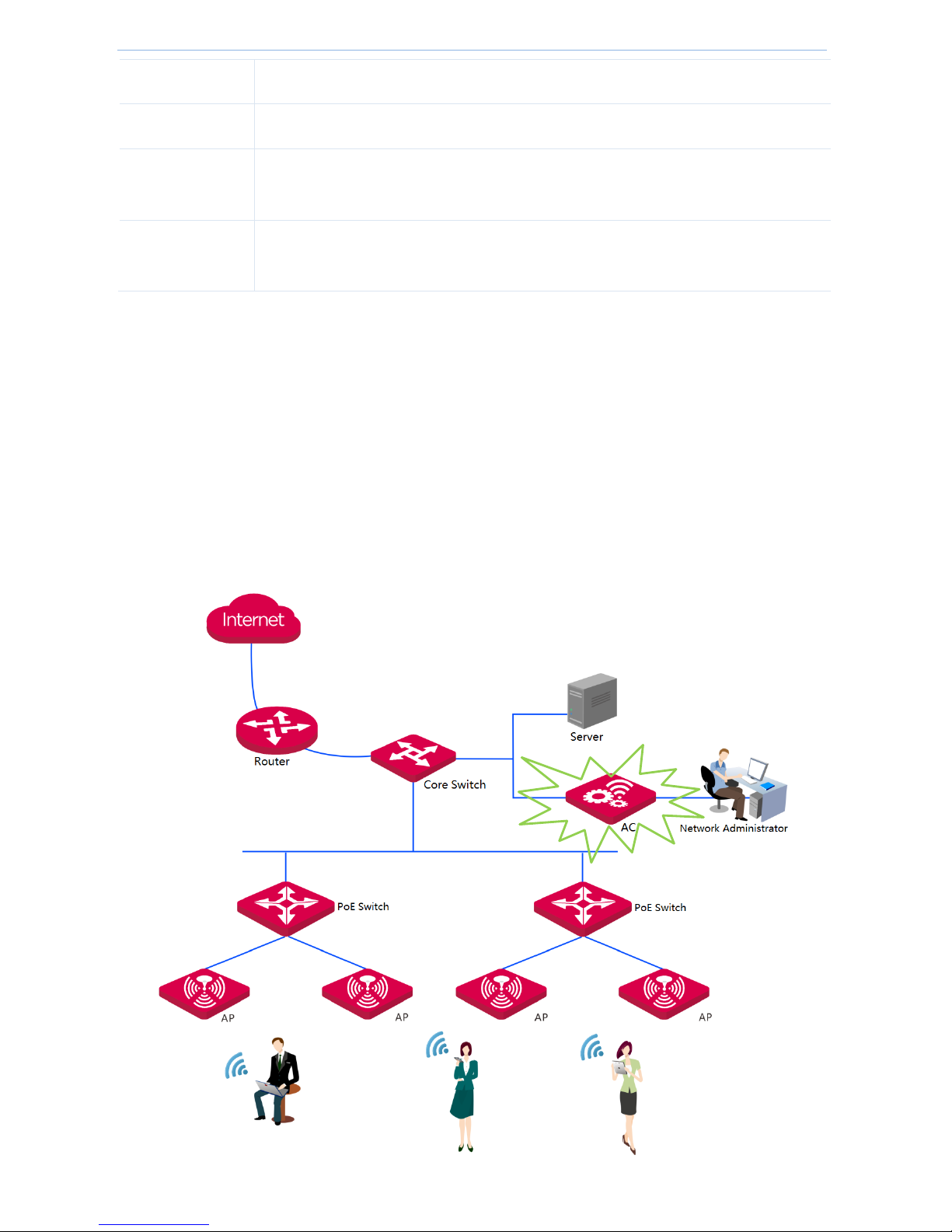

For centralized, large-scale networks, it is complicated for you to manage all APs independently in your network.
In this case, you can deploy an access controller (like AC2000) to manage all your APs (APs work in Local mode)
centrally.

Device Management

- 8 -

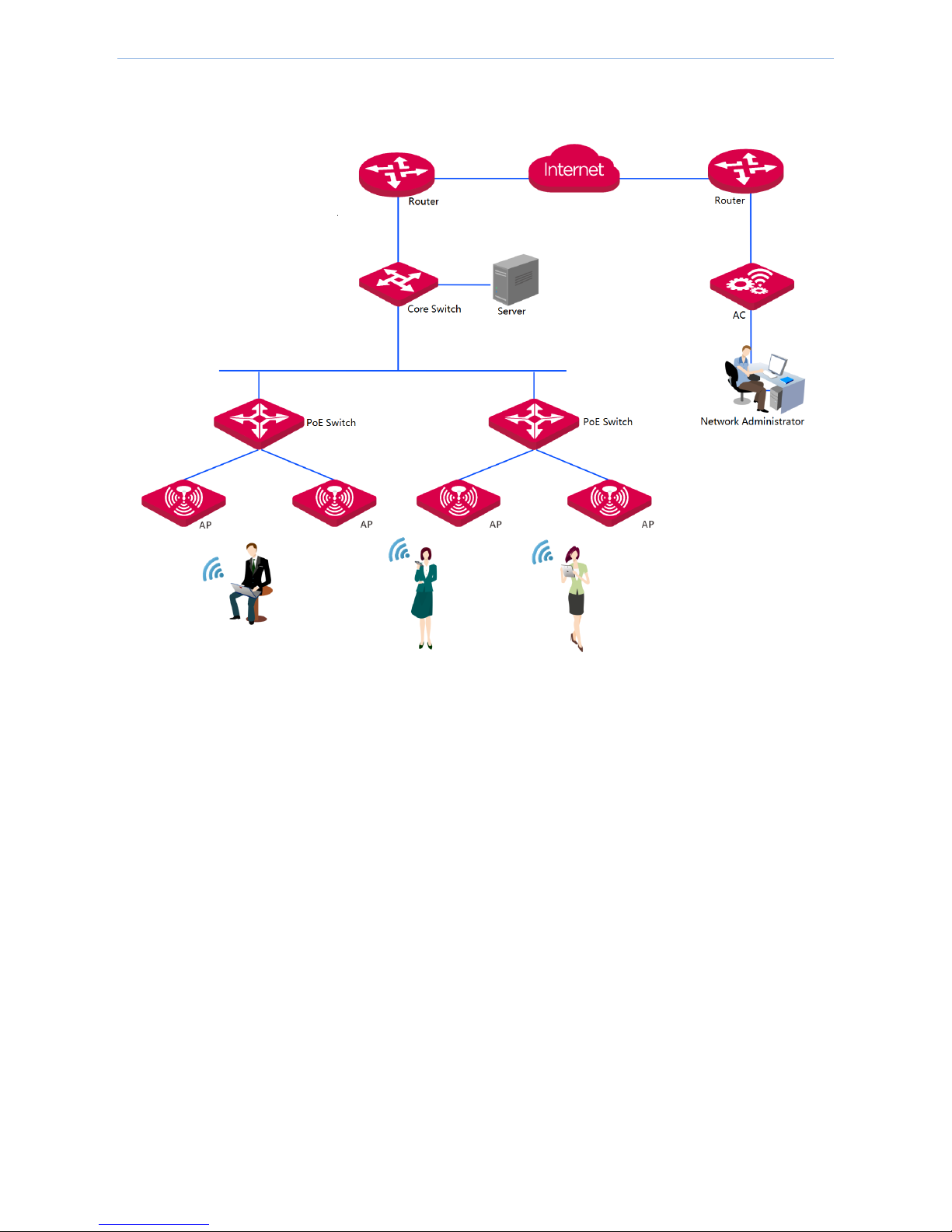

When many APs are scattered here and there, it is suggested to set these APs in Cloud mode, so that the AC (in
cloud mode) from the Internet side can centrally manage these scattered cloud APs.

2.2 Management Method

You can manage this AP either via its own Web UI or via the IP-COM access controller AC2000.

When the AP has been connected to an IP-COM access controller AC2000, it will be managed by the access
controller and obtain its IP address info from the access controller. In this case, you can log in to the Web UI of the
access controller to manage the AP.

You can visit IP-COM official website http://www.ip-com.com.cn to download User Guide of the corresponding
access controller.

In this User Guide, we only instruct you how to manage the AP via its own Web UI.

Device Management

- 9 -

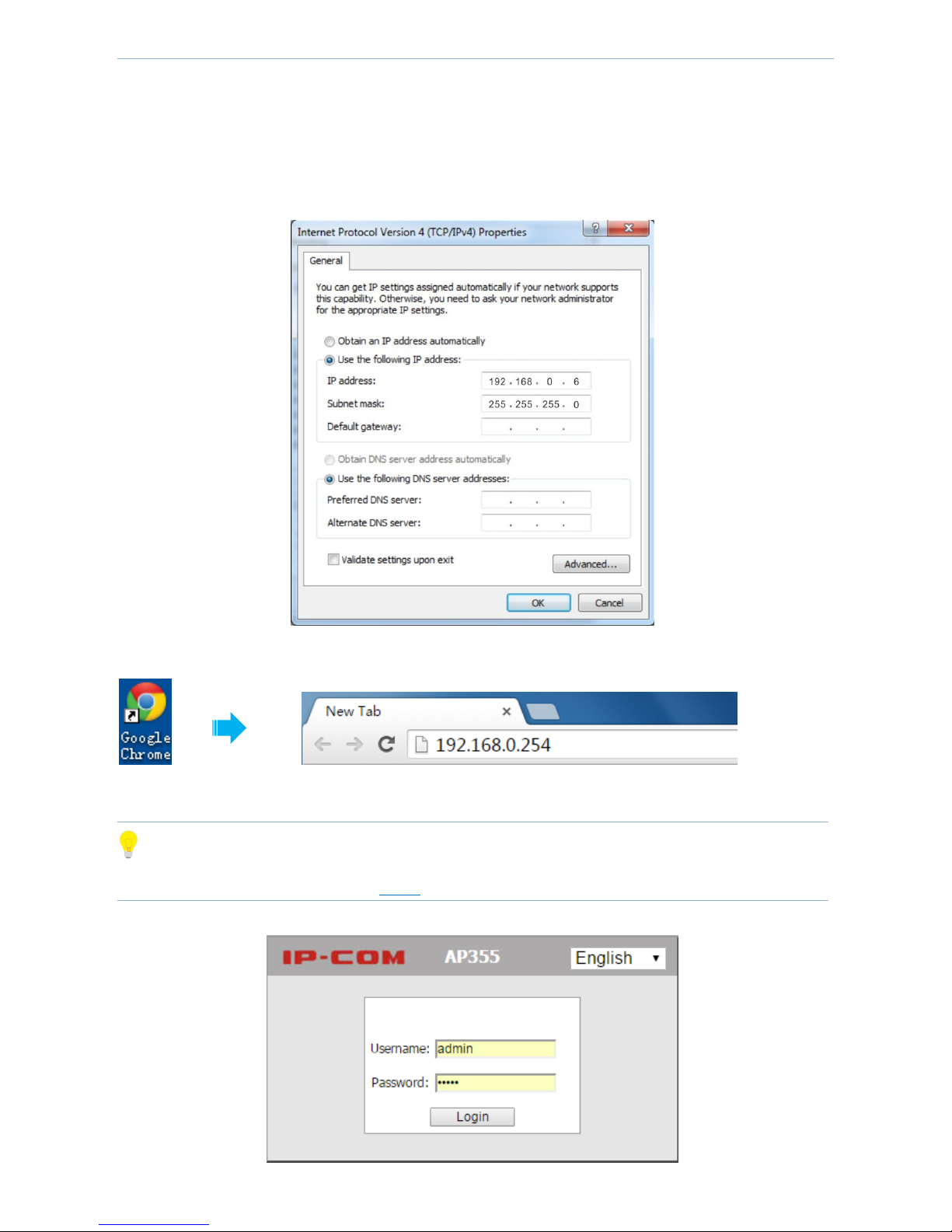

2.3 Web Login

Connect the management PC to the switch which the AP is connecting to and then follow steps below:

1. Set your management PC’s IP to a static IP address within the following range: 192.168.0.X (2~253) and a

subnet mask of 255.255.255.0.

2. Launch a web browser, say “Google”, enter 192.168.0.254 in the address bar, and then press Enter.

3. Then you’ll be prompted to enter the default login username and password (admin for both). Click Login.

Tip

If the following page does not appear, see FAQ 1.

Device Management

- 10 -

4. Then you’ll be directed to the web UI of the AP successfully. For more settings, see 3 More Features.

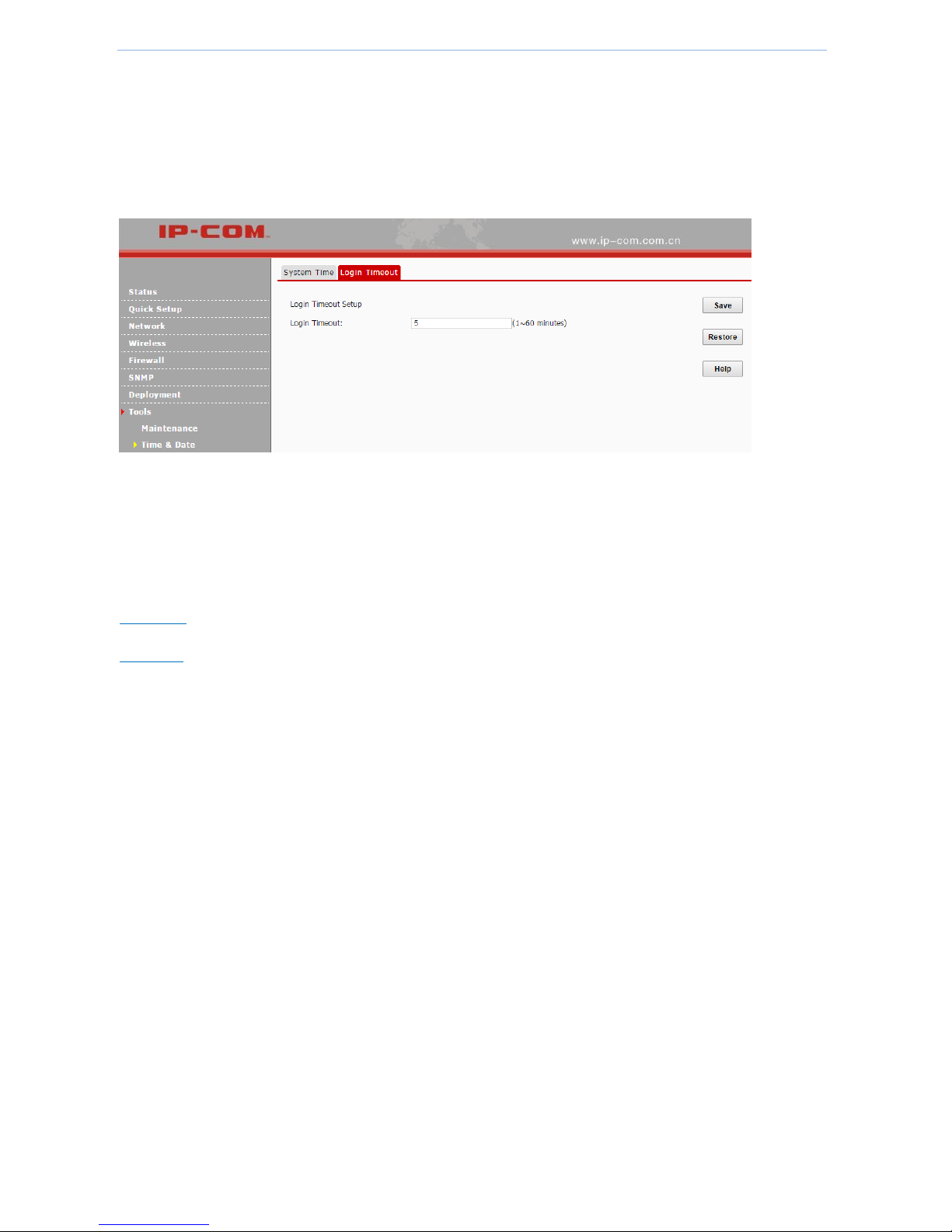

2.4 Web Logout

You will be automatically logged out of the web UI after a period of inactivity. You can set the length of the
inactive period, that is to say, the web login timeout is configurable. By default, it is 5 minutes. When it logs out,
your current settings won’t be saved automatically. Thus, it is suggested to save your current settings before web
logout.

Device Management

- 11 -

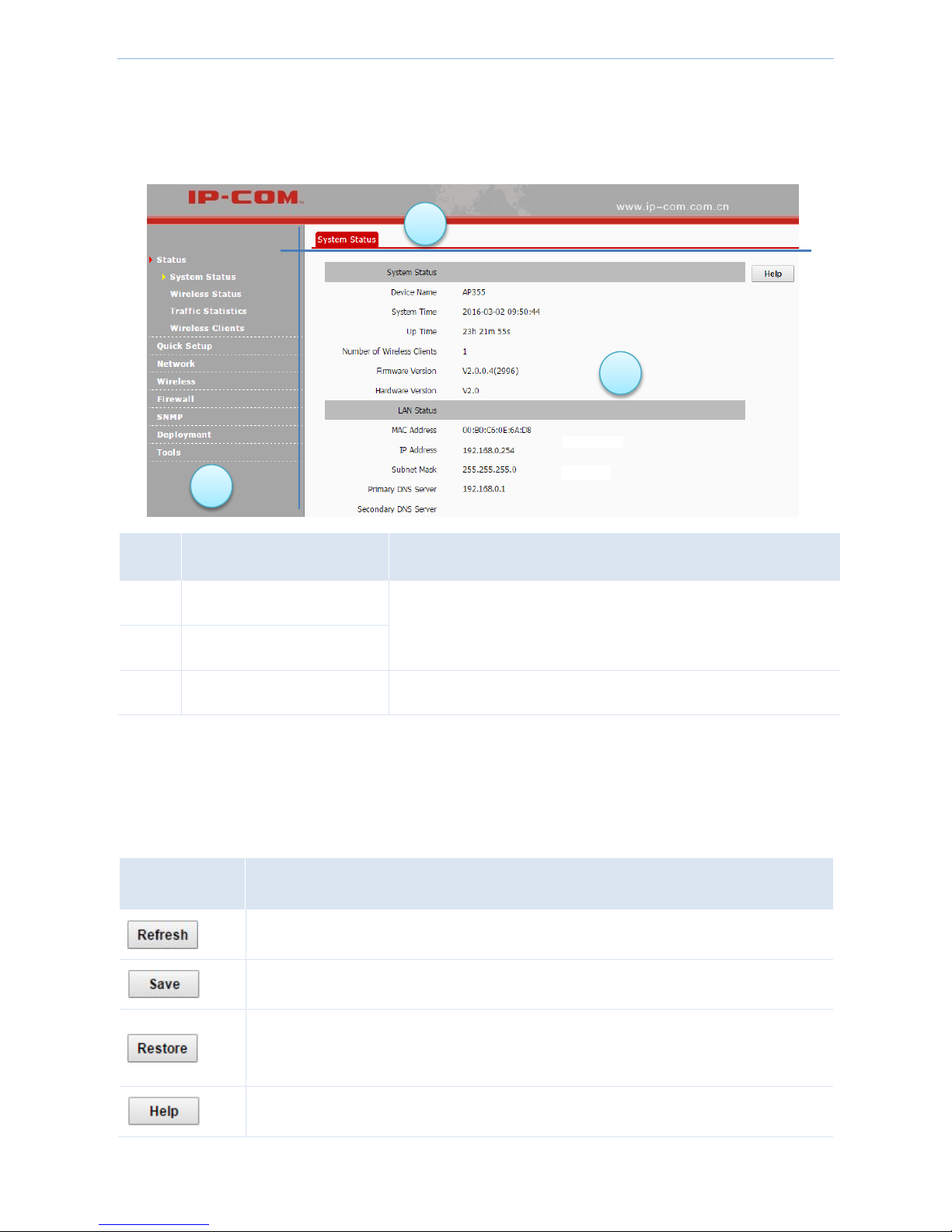

2.5 Web Layout

Three parts are included on the web page: primary/secondary navigation, three-stage navigation and the
configuration/display section.

ID

Name

Description

❶

Primary/Secondary Navigation

Feature menus of the AP. It is very convenient for you to choose
feature menus.

❷

Three-stage Navigation

❸

Configuration/Display Section

You can configure or view your settings here.

2.6 Commonly Used Buttons

Brief introduction for commonly used buttons:

Button

Description

Click it to update info on the current page.

Click it to save and apply your current configurations.

Click it to cancel current settings that you haven’t saved and restore to previous

configurations.

Click it to view the help info for the corresponding page.

1 2 3

3

3 More Features

Status

Quick Setup

Network

Wireless

Firewall

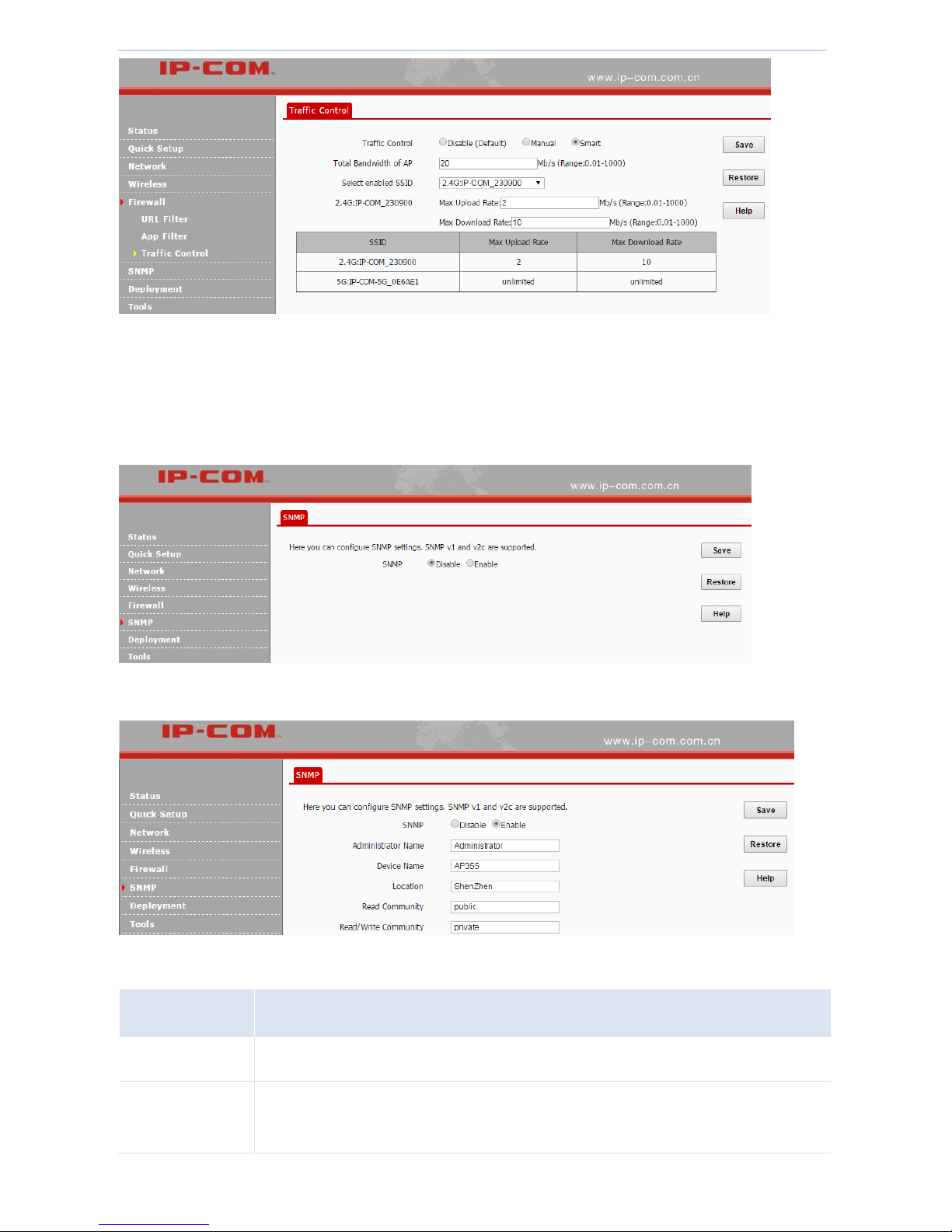

SNMP

Deployment

Tools

More Features

- 13 -

3.1 Status

This section gives you an overview of device status and basic information. The following parts are included:

System Status: Display the AP’s current system status and LAN information.

Wireless Status: Display connected devices’ radio status and SSID status information.

Traffic Statistics: Display traffic statistics of all SSIDs both at 2.4GHz and 5GHz.

Wireless Clients: Display information of connected devices.

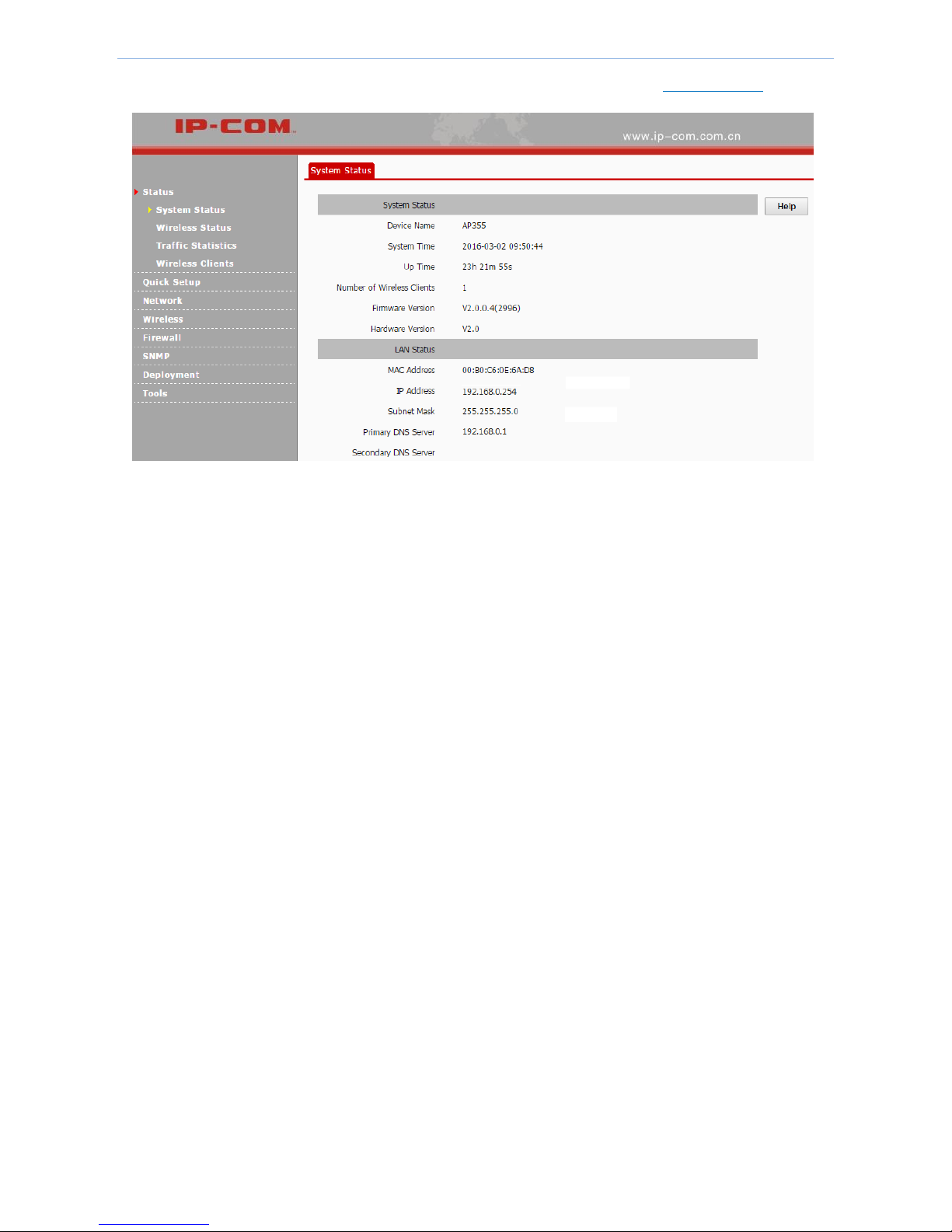

3.1.1 System Status

This page displays system status information and LAN information of this AP, including device name, system
time, up time, number of wireless clients, firmware version, hardware version, MAC address, IP address, etc.

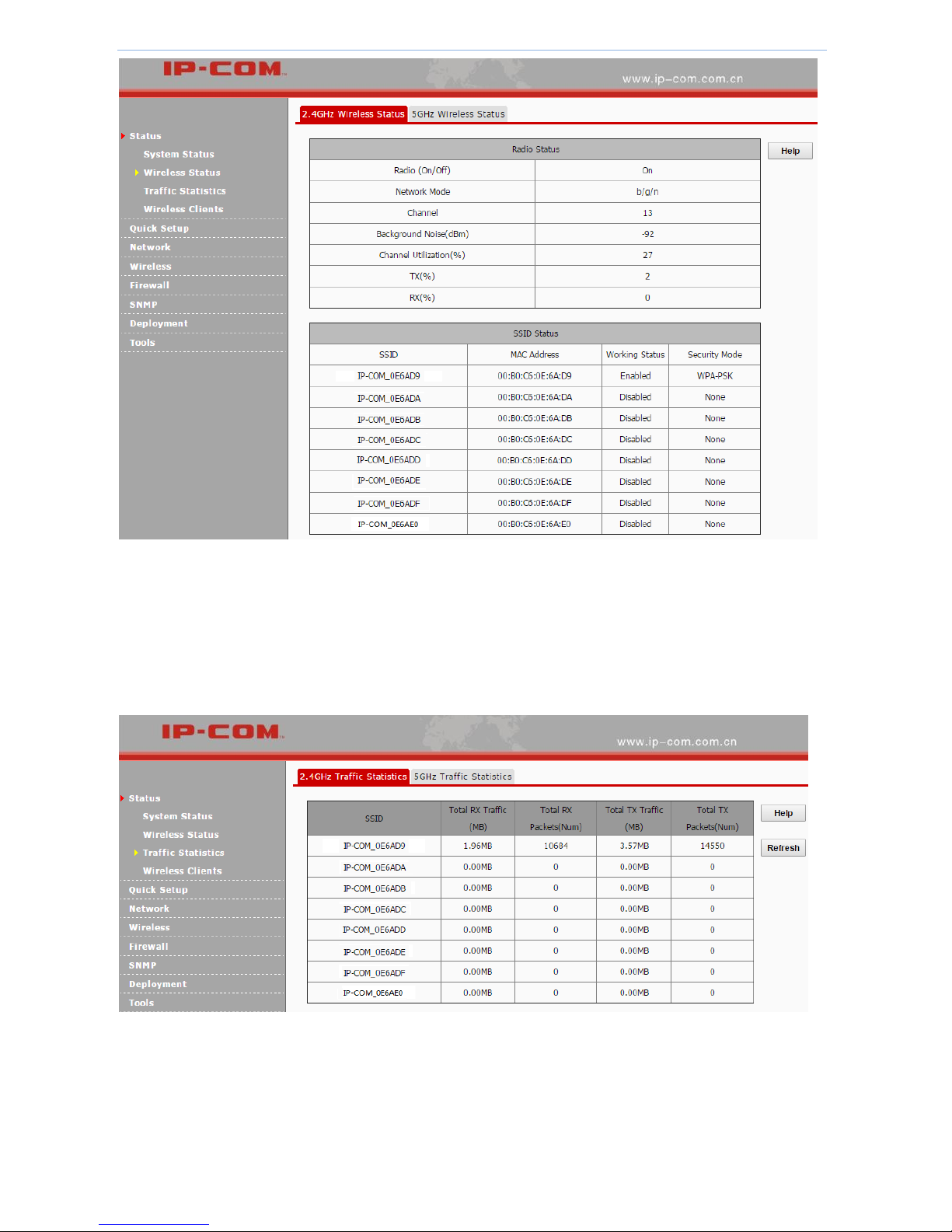

3.1.2 Wireless Status

This page displays radio status and SSID status at both 2.4GHz and 5GHz. Up to 8 SSIDs can be supported at

2.4GHz and 4 SSIDs can be supported at 5GHz. Click Status > Wireless Status to enter page below. To view
5GHz wireless status, click 5GHz Wireless Status.

More Features

- 14 -

3.1.3 Traffic Statistics

This page displays total RX/TX traffic statistics and total RX/TX traffic packets of corresponding SSIDs. Click
Status > Traffic Statistics to enter page below. To view 5GHz traffic statistics, click 5GHz Traffic Statistics.

Click Refresh to view latest traffic statistics.

More Features

- 15 -

3.1.4 Wireless Clients

This page displays information, like MAC address, IP, connection duration and link speed of connected clients.
Click Status > Wireless Clients to enter page below. To view 5GHz client info, click 5GHz Client List.

Click the drop-down menu at the top right corner and you can select to view the corresponding SSID’s connected
client info.

3.2 Quick Setup

This section mainly walks you through operating modes of the AP. Click Quick Setup to enter page below and
you can select the proper operating mode in terms of your network environment.

This AP supports 2 working modes: AP Mode and AP Client Mode. It's in AP Mode by default.

3.2.1 AP Mode

In this mode, the AP is connected to the Internet with an Ethernet cable, and converts the wired signal to wireless
signal for wireless coverage. The network topology is shown as below:

More Features

- 16 -

Configuration Steps: (In this example, the wireless radio is 2.4GHz, security mode is Mixed WPA/WPA-PSK,

and encryption type is AES. For other options, please refer to 3.4.1 SSID Setup.)

1. WiFi Radio: Select 2.4GHz.

2. Mode: Select AP Mode.

3. SSID: Modify the SSID (optional). The SSID is the WiFi name you need to connect to for Internet access.

4. Security Mode: Select Mixed WPA/WPA2-PSK from the drop-down list, select AES, and customize a wireless

password.

5. Click Save to apply your settings.

More Features

- 17 -

3.2.2 AP Client Mode

In this mode, the AP will be connected to the uplink router wirelessly, and expands the uplink signal for clients
connected to the AP. Plus, configurations are only required on this AP.

Application Scenario in AP Client Mode:

There’s already an AP (Hereinafter referred as the remote AP) installed in a hotel. Due to limited WiFi coverage or

other objects’ intereference, some rooms of the hotel may be unable to enjoy WiFi smoothly.

Then you can install one more AP in the room where WiFi signal is not strong enough for WiFi extension with AP
Client Mode. In this case, customers in distance can also enjoy the Internet.

You can take the following topology for reference.

More Features

- 18 -

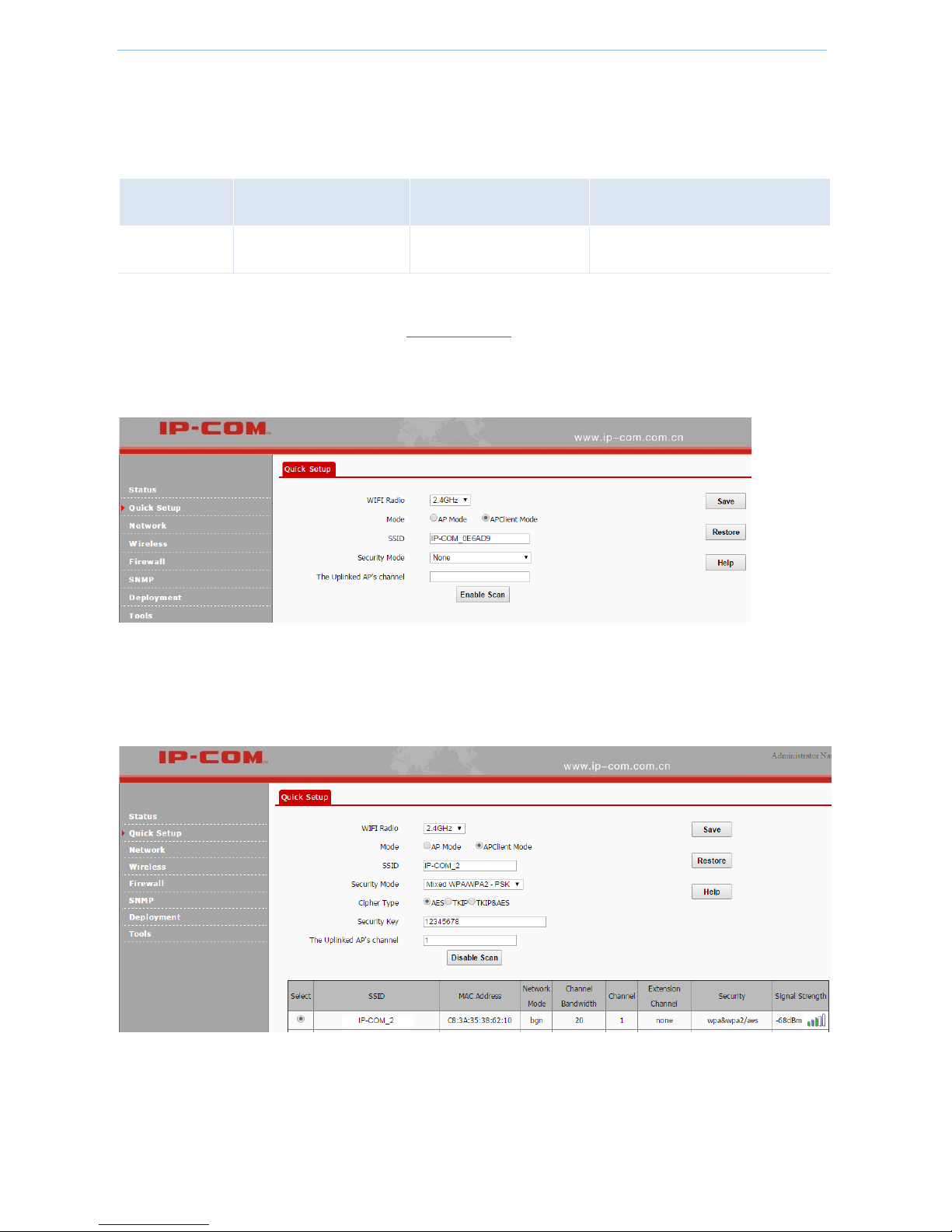

Configuration Steps:

Assume that AP2 is the remote router as the topology displays.

1. Log in to the AP2's UI and note down the corresponding info. Assuming AP2's info is as below:

SSID

Security Mode

Key (WiFi password)

IP address

IP-COM_2

Mixed WPA/WPA2-PSK

86754321

192.168.0.254

2. Log in to the AP1's UI and set its IP address to one that is different from AP2 but on the same network segment,
say, 192.168.0.253. For details, please refer to 3.3.1 LAN Setup.

3. Re-log in to the AP1's UI with the new IP address, click Quick Setup, select AP Client Mode and click Enable
Scan.

4. Select the AP2's SSID, IP-COM_2, in the list.

5. Security Key: Enter AP2's Key (WiFi password).

6. Click Save to apply your settings.

After AP1 has bridged to AP2 successfully, wireless clients, such as smart phones, can scan and connect to AP1's
SSID, IP-COM_0E6AD9 in this case, for Internet access.

More Features

- 19 -

3.3 Network

This section consists of the following two parts:

LAN Setup: Display the AP's MAC address of LAN port, support to configure the AP's IP info, device name and

Ethernet Mode.

DHCP Server: Consist of DHCP Server and DHCP Client list.

3.3.1 LAN Setup

This section displays the AP's MAC address of LAN port and supports to configure the AP's IP info, device name
and Ethernet Mode.

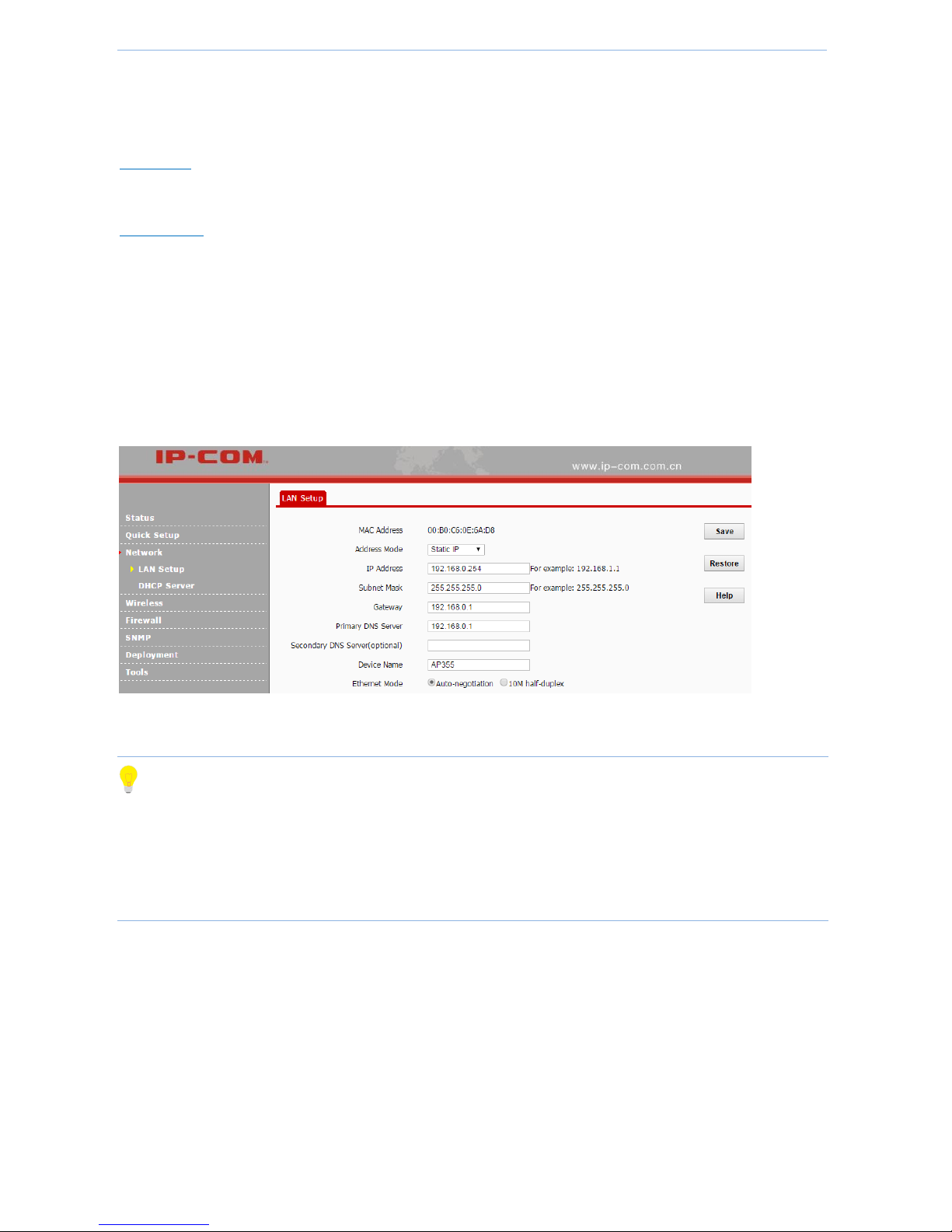

Click Network to configure LAN parameters.

This AP supports two address modes, Static IP and Dynamic IP, to obtain an IP address.

Tip

1. If the AP's IP address has changed, you need to change your PC's IP address to one that is different from the AP
but on the same network segment, and re-log in to AP's UI with AP's new IP address.

2. By default, the AP's IP address is 192.168.0.254. It will be changed once managed by an AC successfully, and

you can log in to AC's UI to check it.

Static IP

In this address mode, you need to configure the IP info manually. And it applies to small-scale network, where
only several APs are deployed.

Configuration Steps:

1. Address Mode: Select Static IP.

More Features

- 20 -

2. IP Address: Enter the AP's IP address, such as 192.168.1.254.

3. Subnet Mask: Enter the subnet mask of IP address. In general, it's 255.255.255.0.

4. Gateway: Enter the default gateway, such as 192.168.1.1.

5. Primary DNS Server: Enter the correct DNS IP address. The Secondary DNS Server is optional.

6. Click Save to apply your settings.

Dynamic IP

In this address mode, the AP will automatically get IP info, including IP address, subnet mask, gateway and
primary/secondary DNS server, from the existing DHCP server. It applies to large-scale network, for avoiding IP
collision and reducing workload of the administrator.

Configuration Steps:

1. Address Mode: Select Dynamic IP.

2. Click Save to apply your settings.

More Features

- 21 -

Parameters Description:

Item

Description

MAC address

AP's MAC address of LAN port.

The primary SSID of the AP is IP-COM_XXXXXX, and XXXXXX is the last six
characters of this MAC address.

Address Mode

Select the AP's address mode to obtain IP info. It's Static IP by default.
 Static IP: Configure the AP's IP info manually, including IP address, subnet mask,

gateway and DNS server.

 Dynamic IP: The AP will automatically get IP info, including IP address, subnet mask,

gateway and primary/secondary DNS server, from the existing DHCP server.

Tip

In Dynamic IP address mode, after the AP get IP info successfully, you need log in to the
existing DHCP server' UI to check the AP's IP address in the DHCP Client List page. And
re-log in to the AP's UI with the obtained IP address.

IP address

It's the AP's IP address for management. The computer in the same LAN with the AP can log
in to the AP's UI with this IP address.

In general, it is in the same network segment with the LAN IP address of gateway.

Tip

If the AP's IP address has changed, you need to change your PC's IP address to one that is
different from the AP but on the same network segment, and re-log to AP's UI with AP's
new IP address.

Subnet Mask

AP's subnet mask of IP address. It's 255.255.255.0 by default.

Gateway

In general, AP's gateway is the LAN IP address of the uplink router.

Primary DNS
server

You need to enter the correct primary DNS IP address to ensure the AP's Internet service.

If the uplink router is a DNS agent, this primary DNS server address can be the LAN IP
address of the uplink router.

If not, please enter the correct DNS server IP address.

Secondary DNS
server (optional)

The secondary DNS server address is optional. If you have got two DNS server IP address,
you can enter one of them here.

Device Name

By default, the AP's device name is the AP's model. It is recommended to change the device
name.

More Features

- 22 -

Ethernet Mode

Transmission distance of its RJ45 port. The default value is Auto-negotiation, in which the
Ethernet cable can be as long as 328 feet. The faster the auto-negotiation speed is, the

shorter the transmission distance will be. When the AP can’t communicate with its remote

device, it is advisable to select 10M half-duplex mode.

3.3.2 DHCP Server

This AP has a built-in DHCP server, which is disabled by default. The following two parts are included:

DHCP Server: Configure relevant parameters of the DHCP server.

DHCP Client List: Display client info obtained from the DHCP server.

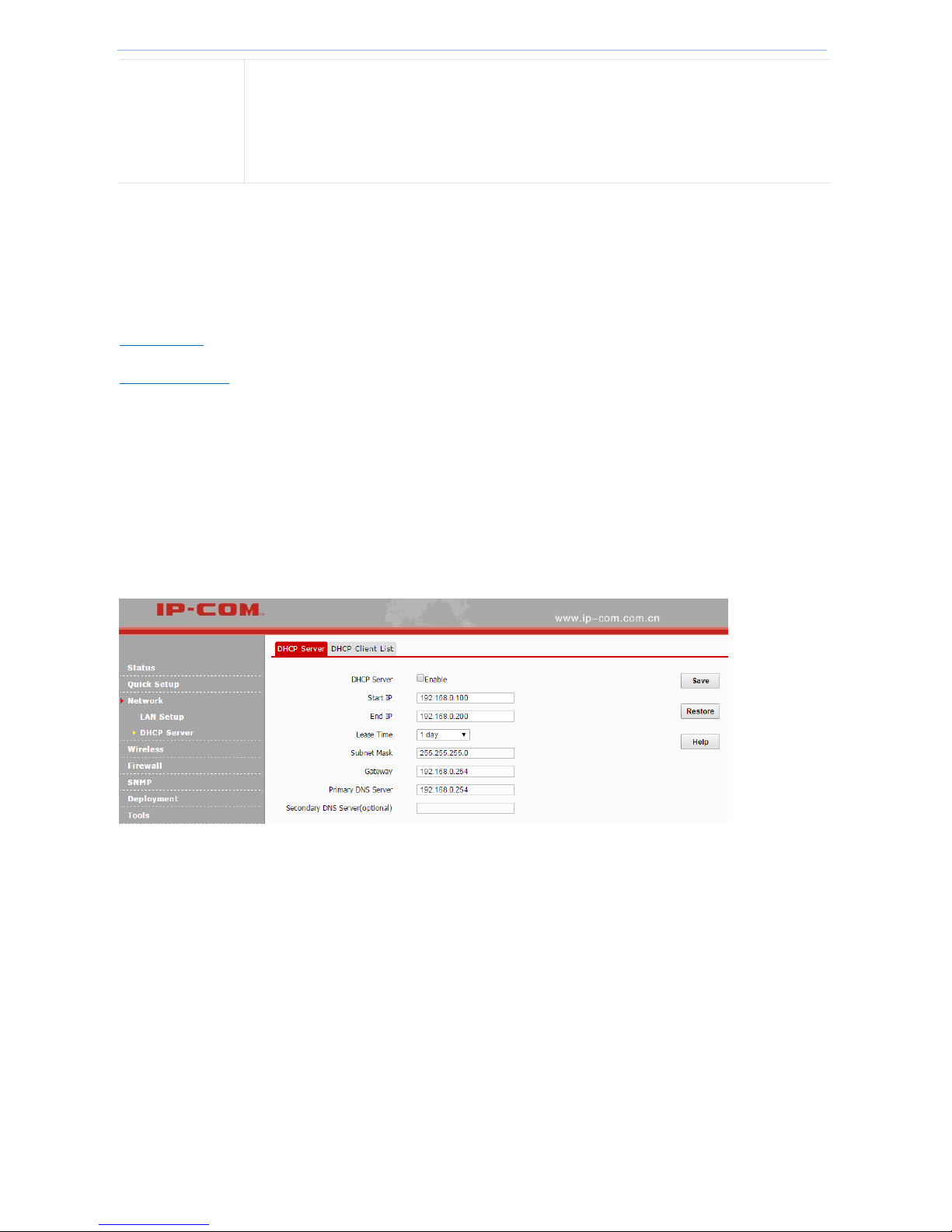

DHCP Server

If you enable the built-in DHCP server on the device, it will automatically configure the TCP/IP settings for all
your LAN computers (including IP address, subnet mask, gateway and DNS etc.), eliminating the need of manual
intervention. Just be sure to set all computers on your LAN to be DHCP clients by selecting Obtain an IP

Address Automatically respectively on each PC. Click Network > DHCP Server to enter page below:

To enable the DHCP server:

1. DHCP Server: Check the Enable box to enable the DHCP server.

2. Start/End IP: Configure the start/end IP address of the address pool.

3. Lease Time: “1 day” is recommended.

4. Subnet Mask: “255.255.255.0” is recommended.

5. Gateway: Configure the default gateway IP that the DHCP server will assign to clients.

6. Primary/Secondary DNS Server: Configure the primary DNS server. If there’s another DNS address, enter it in

the Secondary DNS Server field.

7. Click Save to apply your settings.

More Features

- 23 -

Note

If there are other DHCP servers in the network, whether enable the DHCP server on the AP, depends on your
actual needs. If you need to enable the DHCP server on the AP, to avoid IP conflicts, make sure that IP address
pool of the AP is not overlapped with that of other DHCP servers.

Parameters Description:

Item

Description

DHCP Server

Check/Uncheck it to enable/disable the DHCP server. It is disabled by default.

Start IP

The start IP address that the DHCP server can assign to clients. By default, it is

192.168.0.100.

End IP

The end IP address that the DHCP server can assign to clients. By default, it is

192.168.0.200.

Lease Time

How long the IP address can be used by the client device. It is 1 day by default.

Subnet Mask

The subnet mask that the DHCP server will assign to clients. It is “255.255.255.0” by
default.

Gateway

The default gateway IP that the DHCP server will assign to clients. It is “192.168.0.254” by
default.

Primary DNS
Server

Primary DNS server address. It is “192.168.0.254” by default.

To ensure that the client can have an access to the Internet via the domain name, please enter
the correct DNS server address.

Secondary DNS
Server (optional)

Secondary DNS server address. It is an optional item.

DHCP Client List

Click Network > DHCP Server > DHCP Client List to view DHCP clients information.

Click Refresh to view the latest DHCP client info.

More Features

- 24 -

3.4 Wireless

This section allows you to configure wireless settings for your AP. The following parts are included:

SSID Setup: Configure basic SSID information for your AP, including SSID (WiFi name), clients, encryption

information, etc.

Radio: Configure wireless radio information for your AP, including Enable/Disable WiFi, network mode, channel,

etc.

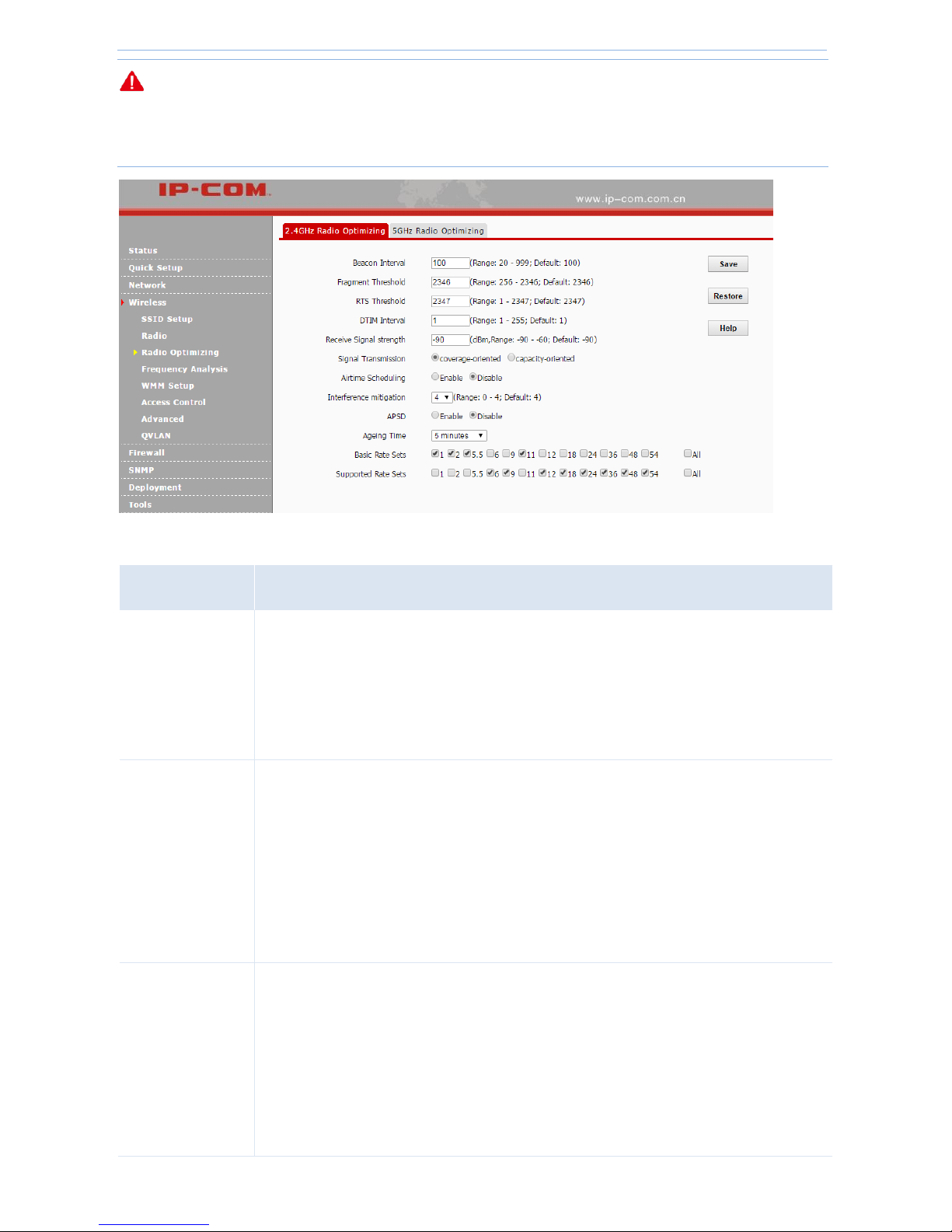

Radio Optimizing: Optimize AP’s wireless performance (For professional technical staffs).

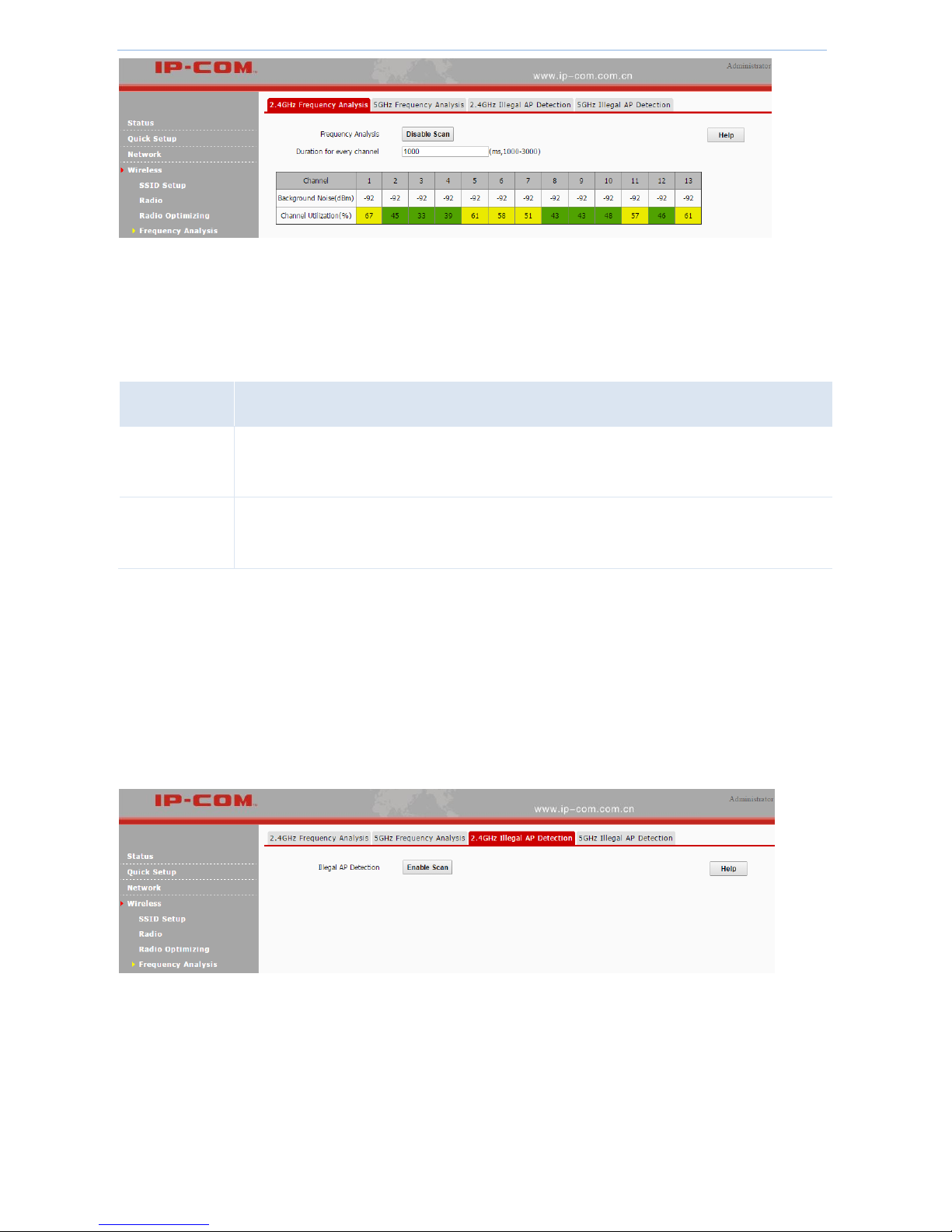

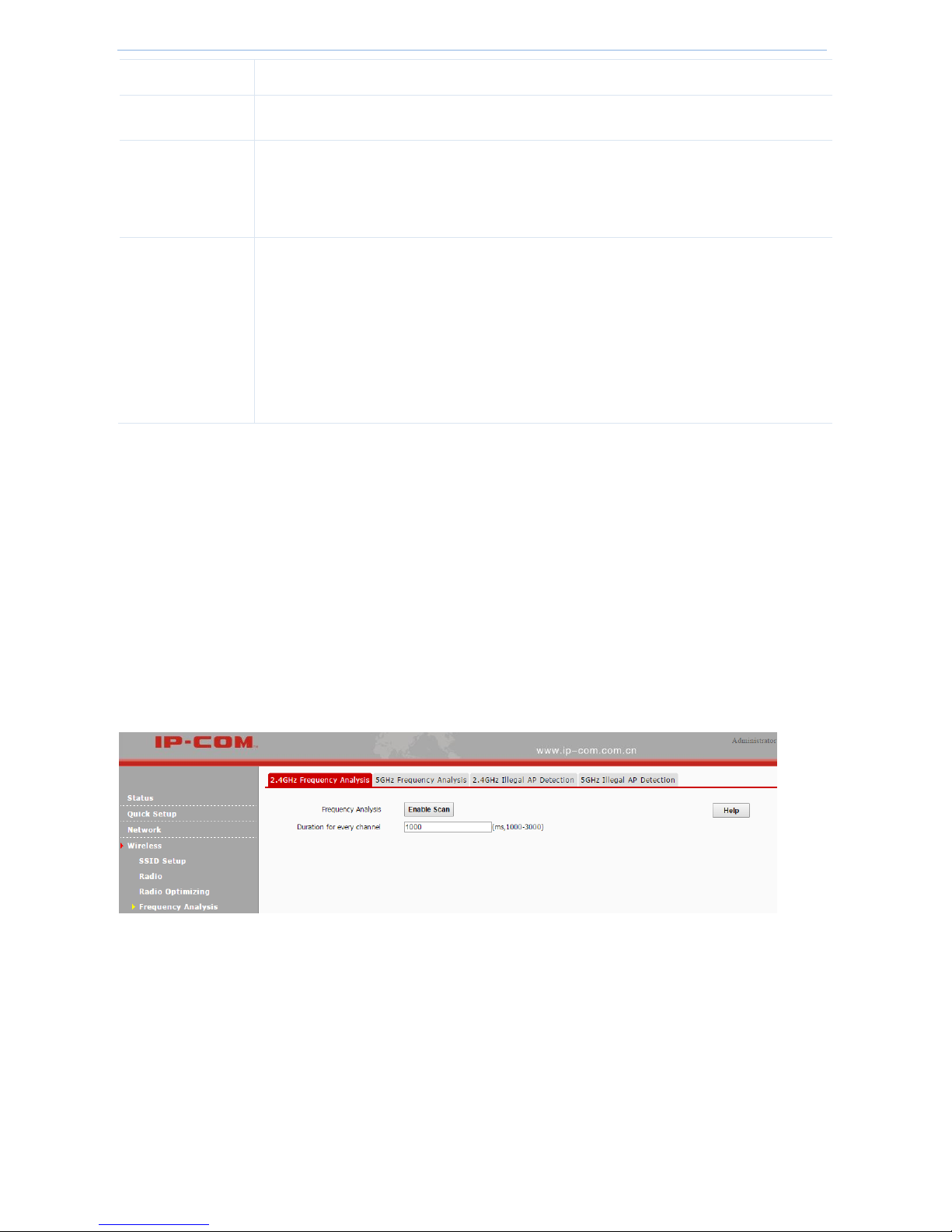

Frequency Analysis: Give you an overview of background noise and channel utilization on each channel, and

nearby wireless signals.

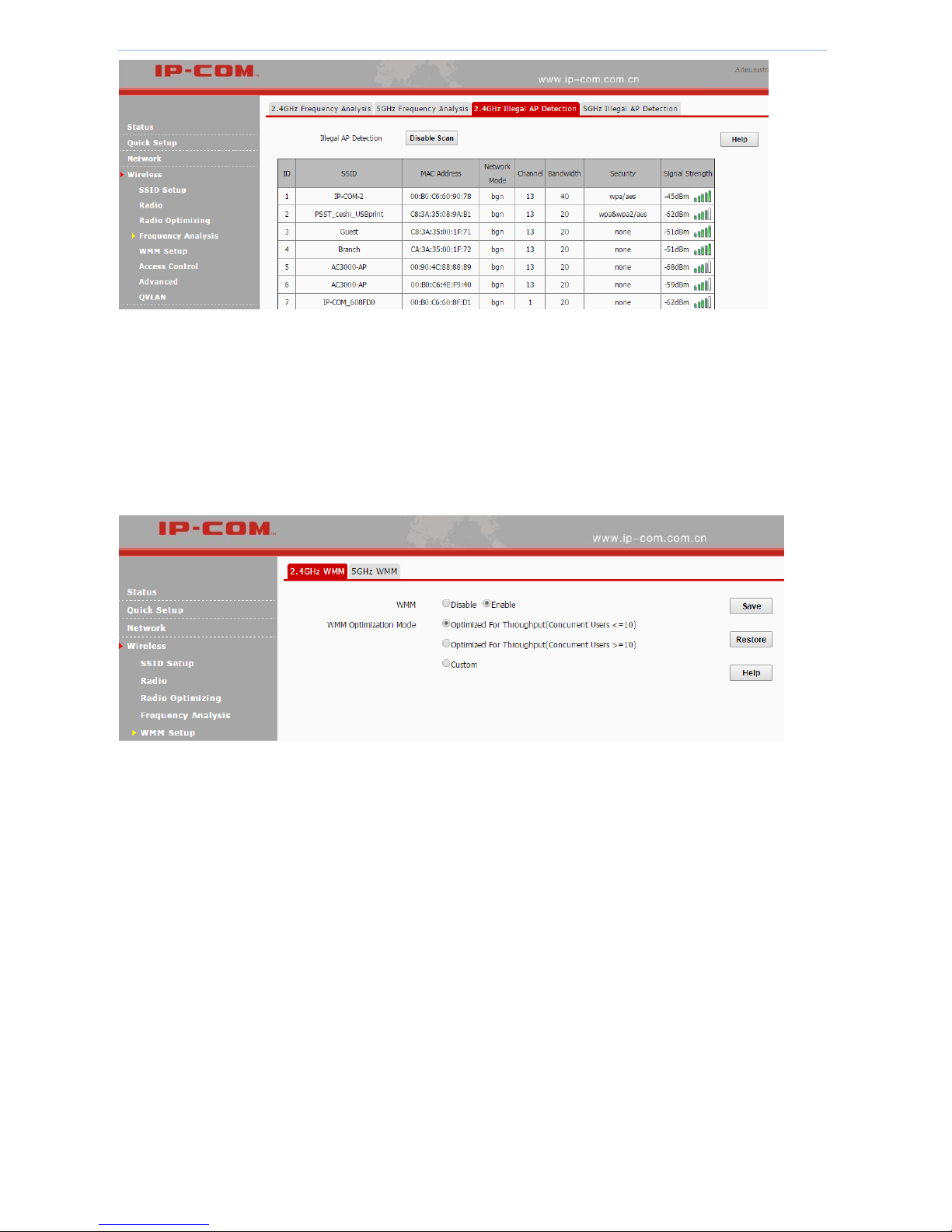

WMM Setup: Comfigure WMM settings.

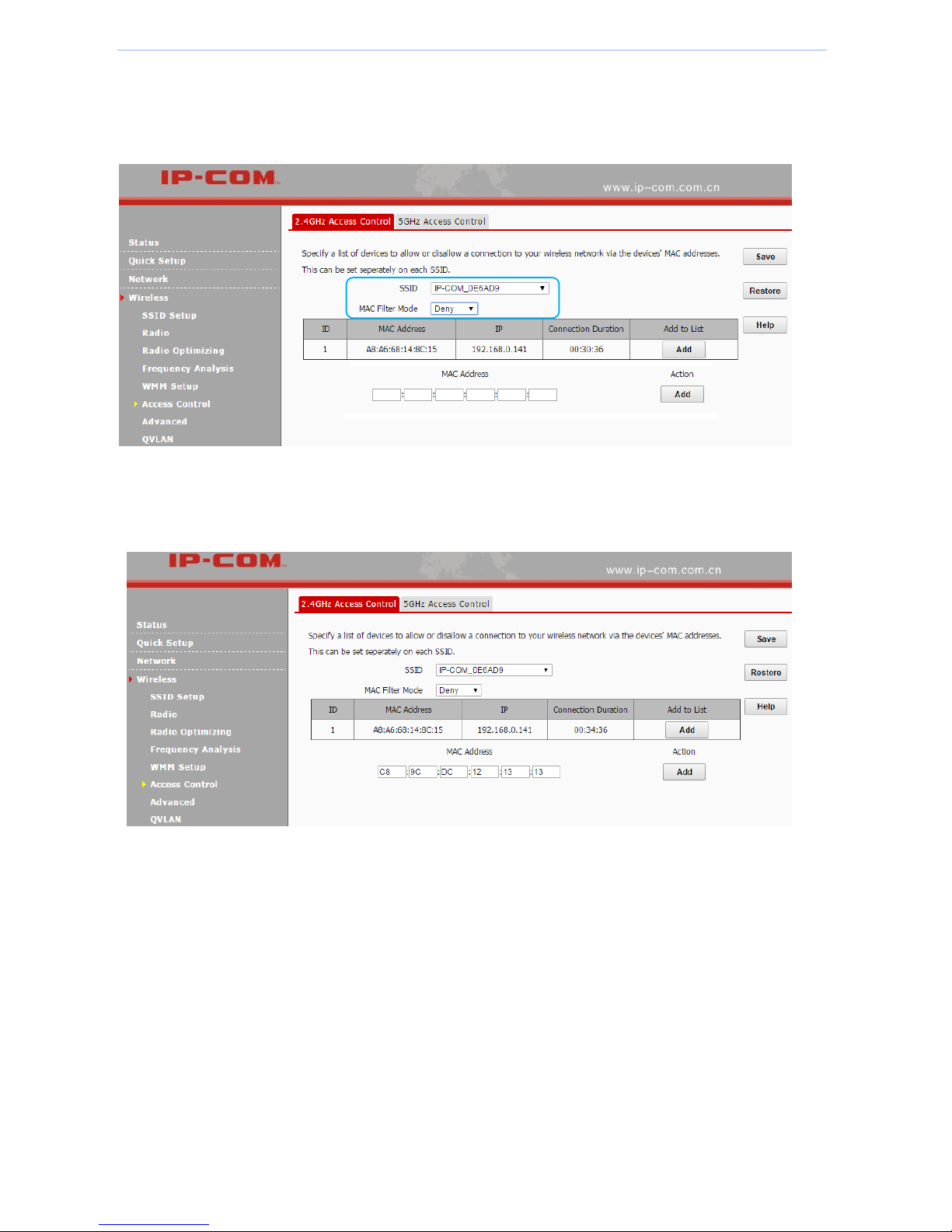

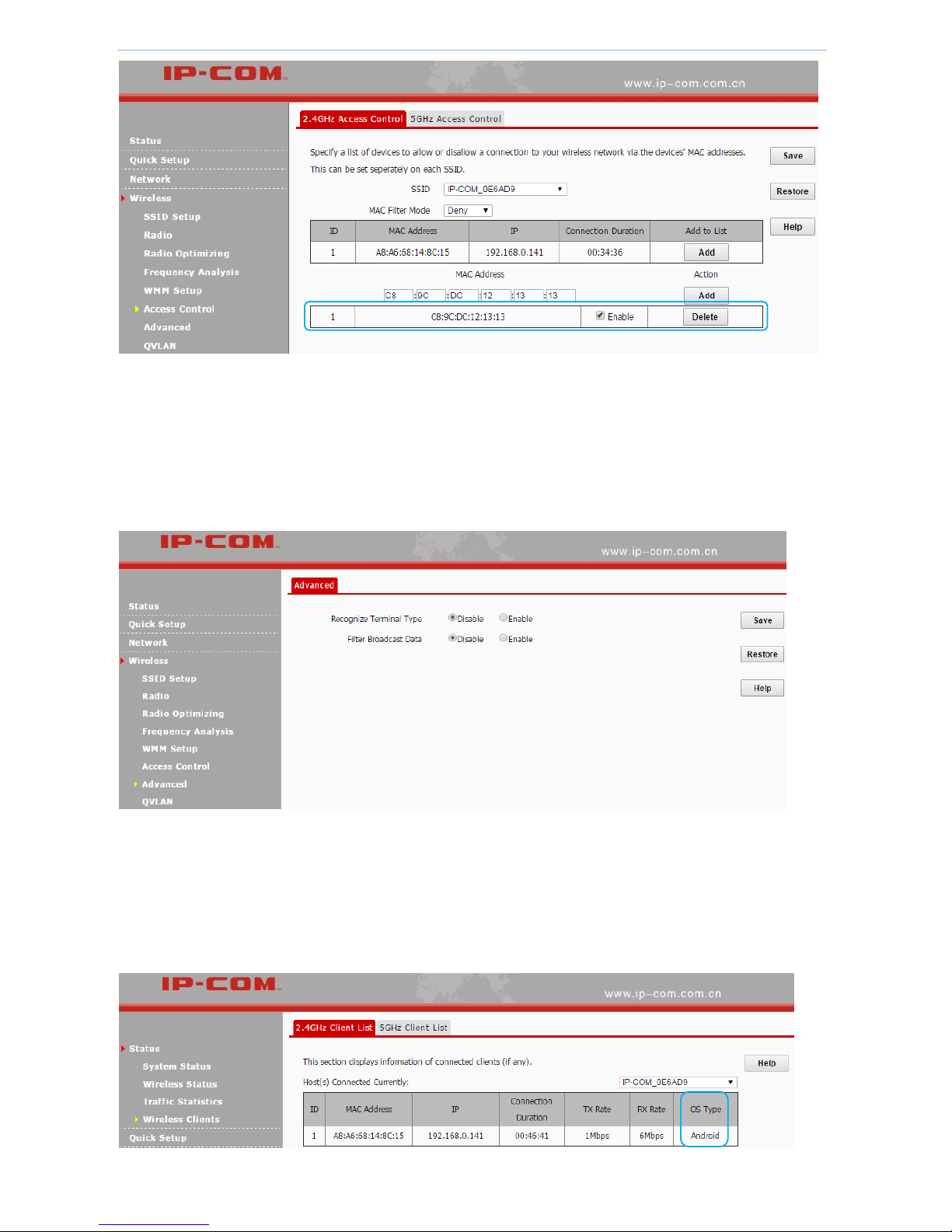

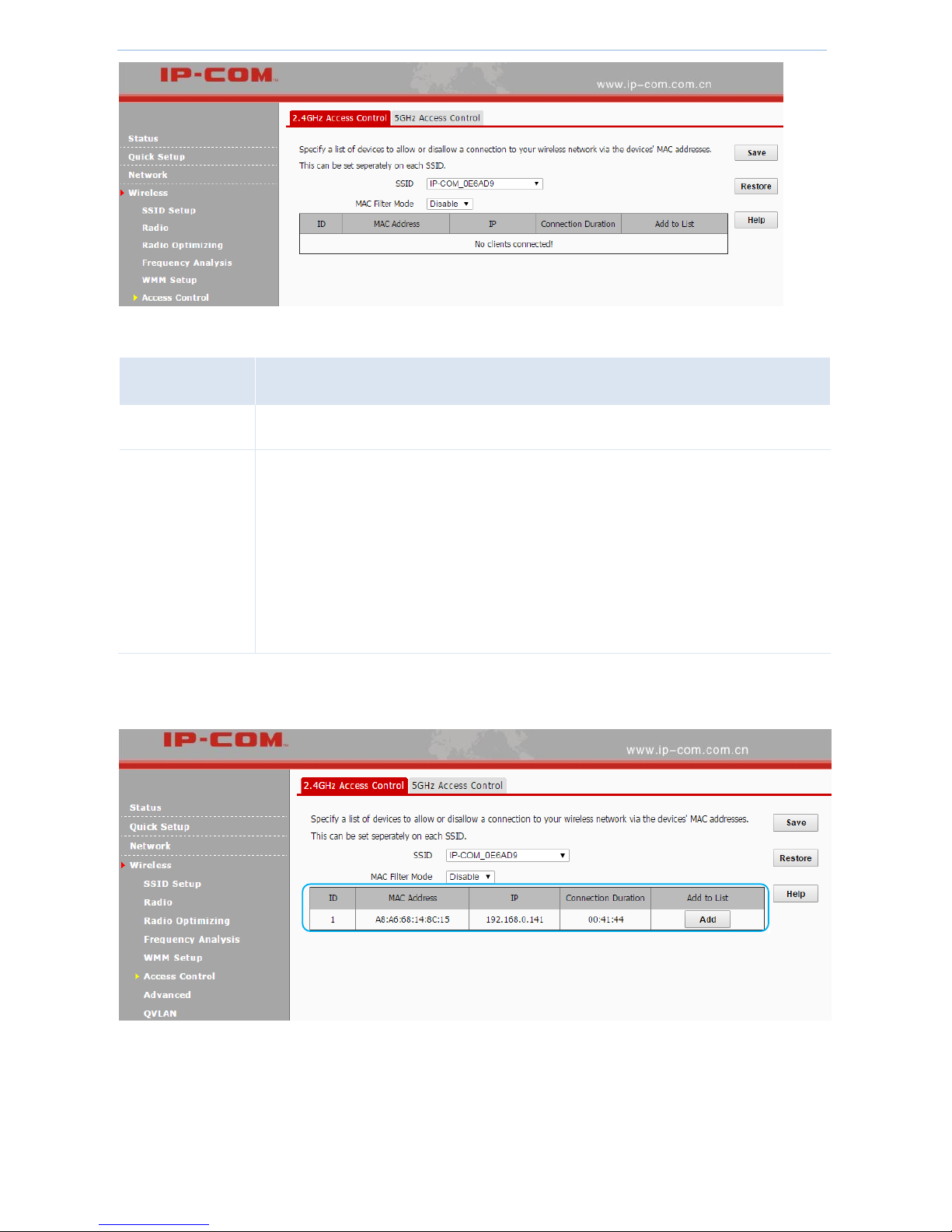

Access Control: Configure a list of devices to allow or disallow a connection to your WiFi via devices’ MAC

addresses.

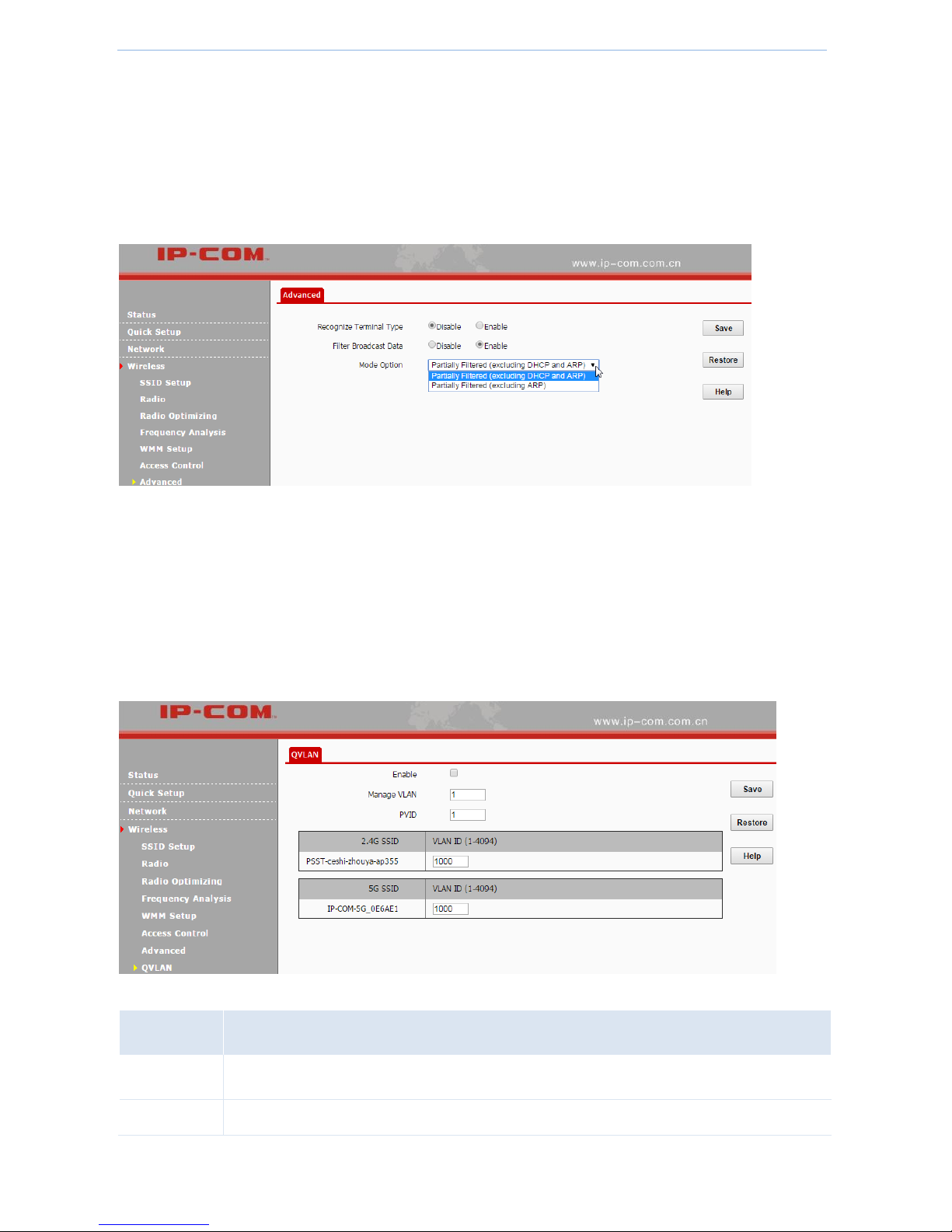

Advanced: Configure to recognize terminal types and filter broadcast data.

QVLAN: Configure QVLAN settings to secure your WiFi.

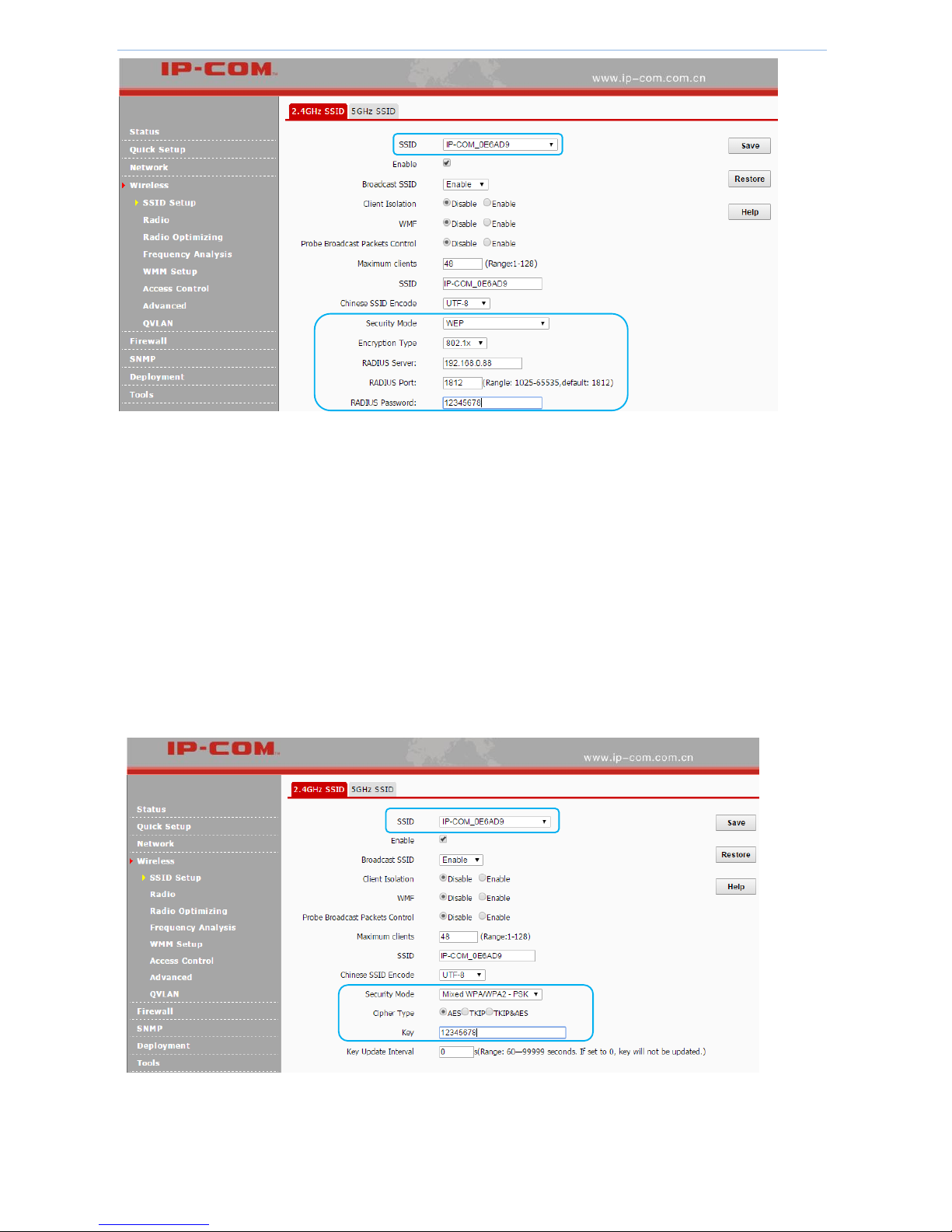

3.4.1 SSID Setup

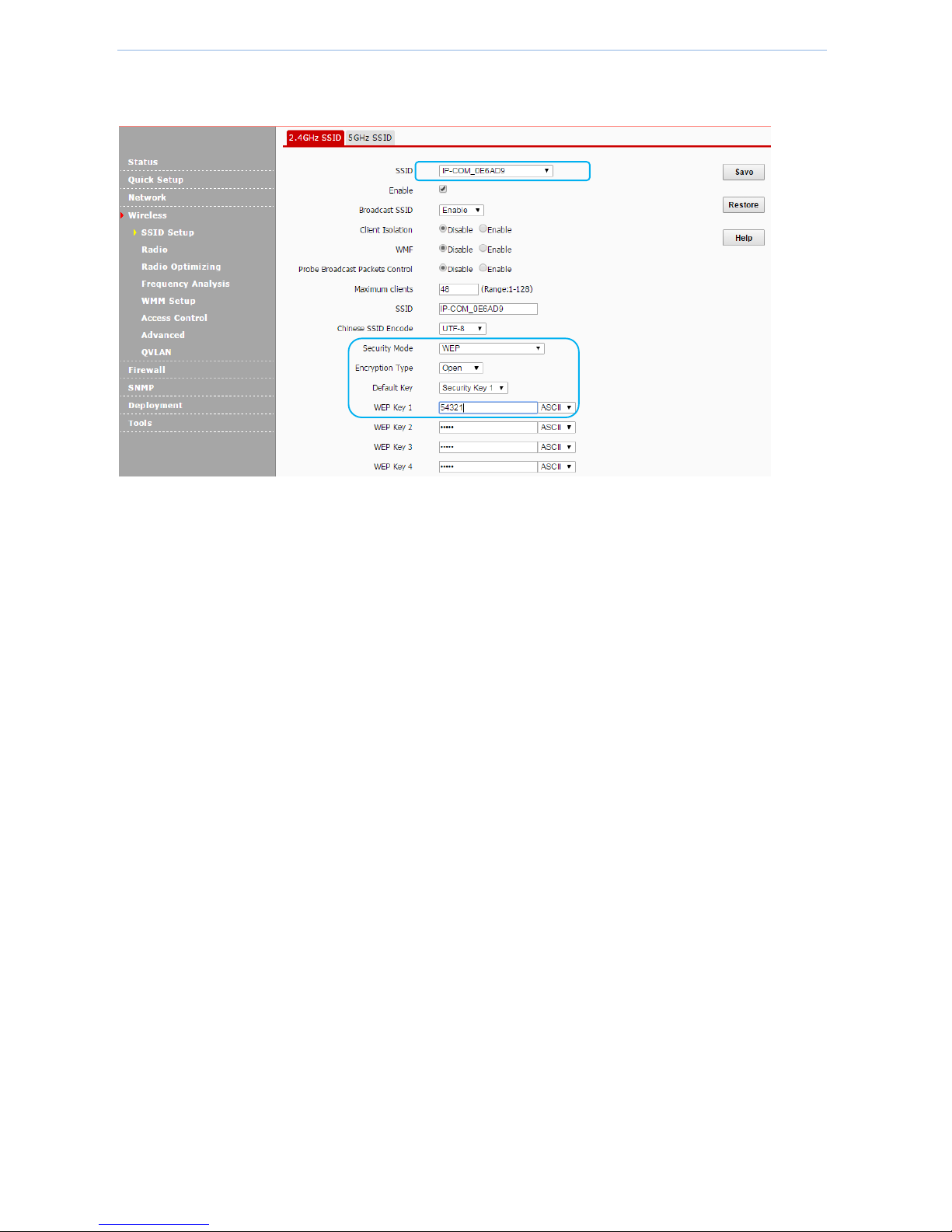

Click Wireless to configure basic SSID settings. To configure 5GHz SSID settings, click 5GHz SSID.

Configuration steps for SSID settings:

If not necessary, leave other settings unchanged.

1. SSID: Click the drop-down menu to select the SSID you want to configure.

More Features

- 25 -

2. Enable: Check the Enable box to enable the selected SSID.

3. Configure the maximum number of wireless clients which can be allowed to connect to the SSID.

4. SSID: Modify the SSID (WiFi name).

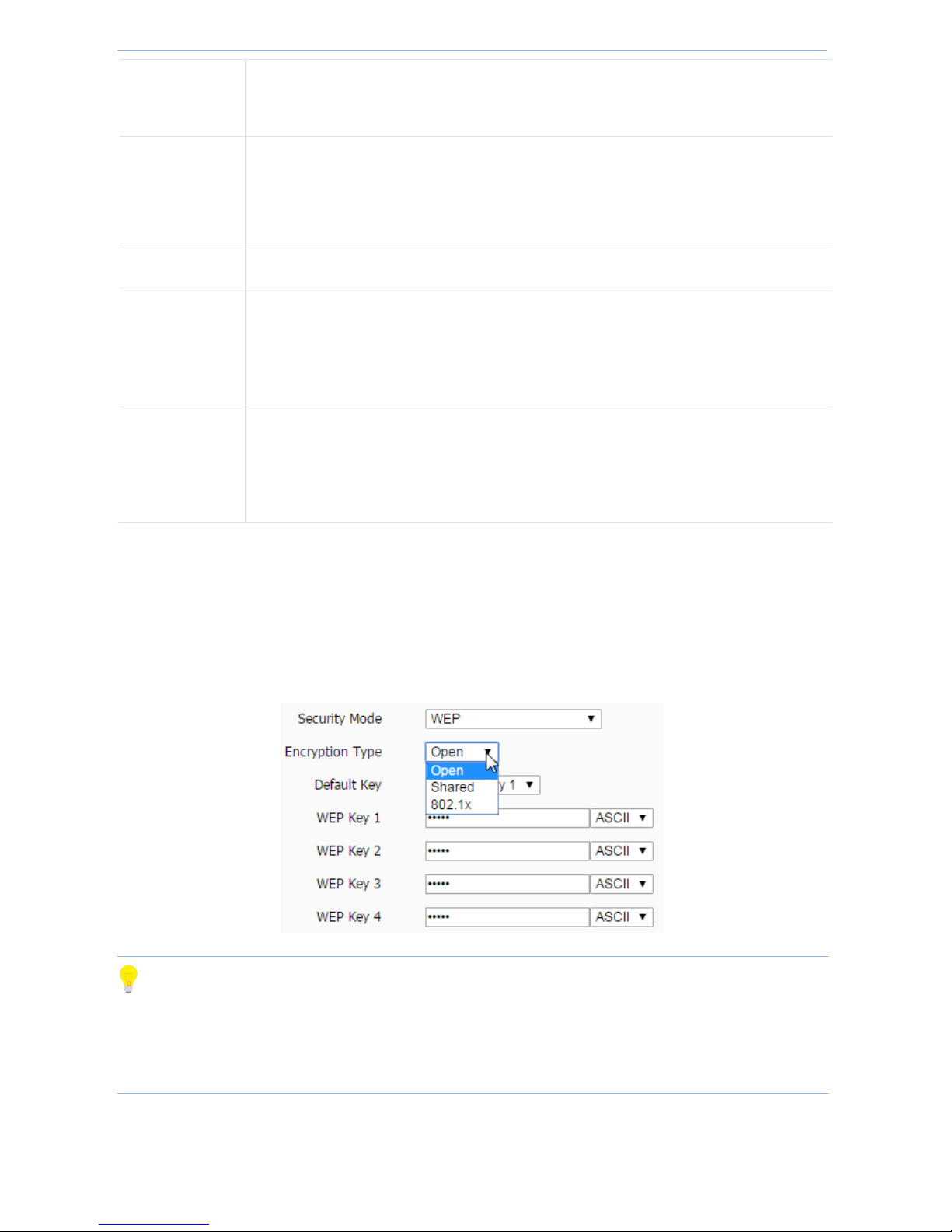

5. Security Mode: Select a proper security mode for your SSID (For specific steps, see parameters described in the

followings).

6. Click Save to apply your settings.

Parameters Description:

Item

Description

SSID

Select the SSID you want to configure.

Up to 8 SSIDs at the 2.4GHz radio can be supported on this device. The default SSID is
IP-COM_XXXXXX, which is the primary SSID of the AP at 2.4GHz.

Up to 4 SSIDs at the 5GHz radio can be supported on this device. The default SSID is
IP-COM-5G_YYYYYY, which is the primary SSID of the AP at 5GHz.

Enable

When you check it, Wi-Fi will be allowed for the selected SSID. By default, one SSID is
enabled at both 2.4GHz and 5GHz, and other SSIDs are disabled.

Broadcast SSID

Configure the selected SSID’s broadcast status.

 Enable: When it is enabled, wireless clients are able to scan the SSID.

 Disable: when it is disabled, wireless clients are unable to scan the SSID. At this time,

if you want to connect to it wirelessly, you have to type in the SSID manually.

Tip

SSID can be hidden automatically on this AP. When the number of the maximum clients has
been reached, the SSID will be hidden.

Client Isolation

Configure the client isolation status of the selected SSID.

 Enable: When this feature is enabled, wireless clients connected to the SSID won’t be

able to communicate with each other, which can enhance wireless network security.

 Disable: When this feature is disabled, Wireless clients connected to the SSID are able

to communicate with each other.

Multicast to
Unicast

Multicast to Unicast: Generally, multicast packets are usually transmitted at the lowest rate,
like 1 Mbps. As unicast packets have advantages, like high auto-negotiation rate and reliable
feedback mechanism, multicast-to-unicast can be a solution to packets drooping and large
transmission delay.

More Features

- 26 -

Probe Broadcast
Packets Control

Onec this feature is enabled, for probe request without SSID info, AP won't respond to it. In
this way, it will efficiently reduce the consumption of the air interface.

Maximum
Clients

Configure the maximum number of wireless clients which can connect to the SSID.

When the number of connected wireless clients has reached this value, no more wireless
clients can connect to the SSID.

SSID

Configure the SSID (WiFi name).

Chinese SSID
Encode

Select Chinese SSID encodes to match wireless clients with different code formats in a
better way. It is UTF-8 by default. If two or more SSIDs are enabled on this AP, it is
advisable to set some SSIDs to UTF-8 and set others to GB2312 so that any client can
recognize and connect to it.

Security Mode

Display wireless encryption information of the current SSID. Available security modes are:
None, WEP, WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA, and WPA2. Next we
will give you more details about them.

WEP

WEP (Wired Equivalent Privacy): WEP is a security mode for data which is delivered between two devices to
protect wireless network from illegal users. Wireless speed can reach up to 54Mbps if WEP is used. For better
network security, this kind of encryption is not suggested.

Three encryption types are supported for WEP: Open, Shared and 802.1x.

Tip

Most smart phones can only use WEP key 1 to connect to the WEP-encrypted (Open or Shared) WiFi. When the
security mode is WEP, and the encryption type is Open or Shared, to verify that your smart phone can connect to
the AP’s WiFi, you’d better select WEP Key 1 as the default key.

More Features

- 27 -

Parameters description for WEP:

Item

Description

Encryption Type

Select the encryption type for WEP: Open, Shared or 802.1x. The only difference among
them is the authentication type.

Open

Use "no authentication" + WEP Encryption.

Wireless clients can associate with the device without authentication. Only data in
transmission is encrypted with WEP encryption.

Shared

Use shared key authentication + WEP Encryption.

A WEP key that is mutually agreed in advance is required from both sides while wireless
clients try to associate with the device. Association is established only if the two sides
provide the same WEP key.

802.1x

Use 802.1x authentication + WEP encryption. When this option is selected, only
authenticated users can access the wireless network.

Default Key

Used for specifying the current WEP key (Open and Shared). If the default key is WEP
Key 2, wireless clients need to use WEP Key 2 to connect to the AP.

ASCII

5~13 ASCII characters are supported.

Hex

10 or 26 HEX characters (0~9, a~f, A~F) are supported.

RADIUS Server

The IP address of the RADIUS server for authentication in the LAN. This option is only
available for 802.1x.

RADIUS Port

Port for RADIUS authentication. This option is only available for 802.1x.

RADIUS Password

Password for accessing the RADIUS server. This option is only available for 802.1x.

WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK

Wi-Fi Protected Access (WPA) and Wi-Fi Protected Access II (WPA2) are two security protocols and security
certification programs developed by the Wi-Fi Alliance to secure wireless computer networks. Only authorized
network users can access the wireless network. WPA-PSK adopts enhanced encryption algorithm over WEP.

More Features

- 28 -

Parameters description for WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK:

Item

Description

Security Mode

Select the security mode: WPA-PSK, WPA2-PSK or Mixed WPA/WPA2-PSK.

WPA-PSK

Support AES and TKIP.

WPA2-PSK

Support AES, TKIP and TKIP&AES.

Mixed
WPA/WPA2-PSK

This is the mixed mode compliant with both WPA-PSK and WPA2-PSK.

Cipher Type

Select the cipher type. WPA-PSK: AES and TKIP. WPA2-PSK and Mixed
WPA/WPA2-PSK: AES, TKIP and TKIP&AES.

AES

Advanced Encryption Standard. If selected, wireless speed can reach up to 300Mbps.

TKIP

Temporal Key Integrity Protocol. If selected, wireless speed can reach up to 54Mbps.

TKIP&AES

If selected, both AES and TKIP enabled wireless clients can join your wireless network.

Key

Specify the security key you wish to configure (8~63 ASCII characters or 8~64 HEX
characters).

Key Update Interval

Configure the key update interval for encrypting WPA data. Theoretically, the shorter the
key update interval is, the more secure the WPA data will be. It is advisable to leave the
default value unchanged.

WPA, WPA2

The WPA protocol implements the majority of the IEEE 802.11i standard. It enhances data encryption through the
Temporal Key Integrity Protocol (TKIP) which is a 128-bit per-packet key, meaning that it dynamically generates
a new key for each packet. WPA also includes a message integrity check feature to prevent data packets from
being hampered with. Only authorized network users can access the wireless network. The later WPA2 protocol
features compliance with the full IEEE 802.11i standard and uses Advanced Encryption Standard (AES) in
addition to TKIP encryption protocol to guarantee better security than that provided by WEP or WPA.

More Features

- 29 -

Parameters description for WPA, WPA2:

Item

Description

Security Mode

Select the security mode, WPA or WPA2.

WPA

Support AES and TKIP.

WPA2

Support AES, TKIP and TKIP&AES.

RADIUS Server

The IP address of the RADIUS server for authentication in the LAN.

RADIUS Port

Port for RADIUS authentication.

RADIUS Password

Password for accessing the RADIUS server.

Cipher Type

Support AES, TKIP and TKIP&AES.

AES

Advanced Encryption Standard. If selected, wireless speed can reach up to 300Mbps.

TKIP

Temporal Key Integrity Protocol. If selected, wireless speed can reach up to 54Mbps.

TKIP&AES

If selected, both AES and TKIP enabled wireless clients can join your wireless network.

Key Update Interval

Configure the key update interval for encrypting WPA data. Theoretically, the shorter the
key update interval is, the more secure the WPA data will be.

Configuration steps for Open/Shared:

In this example, the radio is 2.4GHz, the encryption type is Open, the default key is Security Key 1 and the WEP
key 1 is 54321 and ASCII)

1. SSID: Select the SSID (WiFi name) you want to encrypt, say, IP-COM_0E6AD9.

2. Security Mode: Select WEP.

3. Encryption Type: Select Open.

4. Default Key: Select Security Key 1.

More Features

- 30 -

5. WEP Key 1: Enter “54321”.

6. Click Save to apply your settings.

Configuration steps for 802.1x:

In this example, the radio is 2.4GHz, the RADIUS server is 192.168.0.88, the RADIUS port is 1812 and its
password is 12345678.

1. SSID: Select the SSID you want to encrypt, say, IP-COM_0E6AD9.

2. Security Mode: Select WEP.

3. Encryption Type: Select 802.1x.

4. RADIUS Server: Enter the IP address of the radius server, say, 192.168.0.88.

5. RADIUS port: Enter 1812 (The default value is suggested).

6. RADIUS password: Enter 12345678.

7. Click Save to apply your settings.

More Features

- 31 -

Configuration steps for WPA-PSK, WPA2-PSK, mixed WPA/WPA2-PSK:

In this example, the radio is 2.4GHz, the security mode is mixed WPA/WPA2-PSK, the cipher type is AES and its
key is 12345678.

1. SSID: Select the SSID you want to encrypt, say “IP-COM_0E6AD9”.

2. Security Mode: Select Mixed WPA/WPA2-PSK.

3. Encryption Type: Select AES.

4. Key: Enter 12345648.

5. Click Save to apply your settings.

More Features

- 32 -

Configuration Steps for WPA, WPA2:

In this example, the radio is 2.4GHz, the RADIUS server is 192.168.0.88, the RADIUS port is 1812, the RADIUS
password is 12345678, and the cipher type is AES.

1. SSID: Select the SSID you want to encrypt, say, IP-COM_0E6AD9.

2. Security Mode: Select WPA.

3. RADIUS Server: Enter the IP address of the radius server, say, 192.168.0.88.

4. RADIUS Port: Enter 1812 (The default value is suggested).

5. RADIUS password: Enter 12345678.

6. Cipher Type: Select AES.

7. Click Save to apply your settings.

3.4.2 Radio

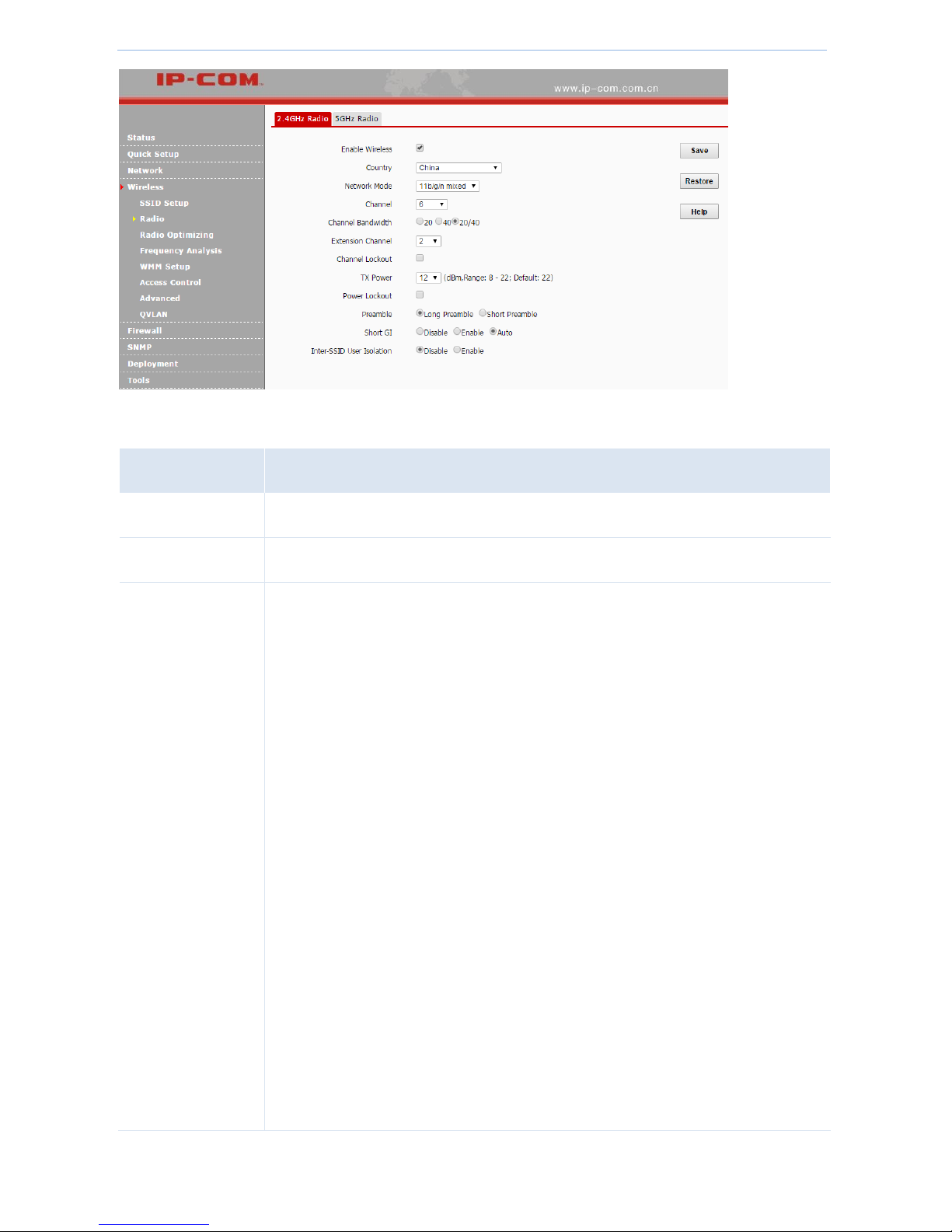

Click Wireless > Radio to configure radio settings. To configure 5GHz radio settings, click 5GHz Radio.

More Features

- 33 -

Parameters Description:

Item

Description

Enable Wireless

Check/Uncheck it to enable/disable WiFi feature.

Country

Select the country where your device works to match channels in different regions.

Network Mode

Select a proper network mode for your device.

11b, 11g, 11b/g and 11b/g/n are available for 2.4GHz.

 11b: Select it if you have only 11b wireless devices in your wireless network. Up to

11Mbps wireless rate is supported in this mode.

 11g: Select it if you have only 11g wireless devices in your wireless network. Up to

54Mbps wireless rate is supported in this mode.

 11b/g: Select it if you have 11b and 11g wireless devices in your wireless network.

Up to 54Mbps wireless rate is supported in this mode.

 11b/g/n: Select it if you have 11b, 11g and 11n wireless devices in your wireless

network. Up to 300Mbps wireless rate is supported in this mode.

11a, 11ac and 11a/n are available for 5GHz.

 11a: Select it if you have only 11a wireless devices in your wireless network. Up to

54Mbps wireless rate is supported in this mode.

 11ac: Select it if you only have 11ac wireless devices in your wireless network. Up

to 900Mbps wireless rate is supported in this mode.

 11a/n: Select it if you have 11a and 11n wireless devices in your wireless network.

Up to 300Mbps wireless rate is supported in this mode.

More Features

- 34 -

Channel

Select a proper channel for your wireless network.

Channel Bandwidth

Select a proper channel bandwidth to enhance wireless performance. Wireless speed in
the channel bandwidth of 20/40 is 2 times in 20.

Extension Channel

This item is available when the bandwidth is 40.

Channel Lockout

Once this option is enabled, you can’t modify the country, channel, channel bandwidth

and extension channel manually.

TX Power

Configure wireless transmission power. The higher the TX power is, the wider the AP’s

WiFi coverage will be. However, reducing the TX power to some extent will be helpful
for your wireless performance and network security.

Power Lockout

Once this option is enabled, you can’t modify power manually.

Preamble

Preamble is used to synchronize a data transmission by indicating the end of header
information and the start of data. There are two types of preambles: long preamble and
short preamble.

 Long Preamble: It can be compatible with some old wireless adapters.
 Short Preamble: The longer the preamble is, the shorter valid data will be. The short

preamble can help to enhance wireless transmission efficiency.

Short GI

The purpose of the guard interval is to introduce immunity to propagation delays, echoes
and reflections, to which digital data is normally very sensitive. Enabling the short GI
can yield a 10% improvement in data throughput. When Auto is selected, whether Short
GI is enabled or disabled, it depends on its actual networking environment.

Inter-SSID User
Isolation

Configure the AP’s different SSIDs’ user isolation status.

 Disable: Once disabled, clients connect to different SSIDs can’t communicate with

each other. This will enhance your network security.

 Enable: Once enabled, clients connect to different SSIDs can communicate with

each other.

3.4.3 Radio Optimizing

Click Wireless > Radio Optimizing to optimize radio settings. To optimize 5GHz radio settings, click 5GHz
Radio Optimizing.

More Features

- 35 -

Note

If you are new to networking and have never configured these settings before, we recommend you to leave the
default settings unchanged.

Parameters Description:

Item

Description

Beacon Interval

This is a time interval between any two consecutive Beacon packets sent by an Access
Point to synchronize a wireless network. Specify a valid value between 20 and 999. The
default setting is 100. Generally, the smaller the value is, the faster the client will connect
to the AP; the larger the value is, the faster the wireless data will be transmitted. It is
advisable to leave the default value unchanged.

Fragment
Threshold

Specify a valid Fragment Threshold value between 256 and 2346. The default is 2346. Any
wireless packet exceeding the preset value will be divided into several fragments before
transmission. When the error rate is relatively high, you can lower the fragment threshold.
In this way, if transmission failure occurs, only packets that are not sent successfully needs
re-sending, which will improve the transmission throughput. With no interference, you can
improve the fragment threshold to reduce times to acknowledge frames, also improving the
transmission throughput.

RTS Threshold

The default is 2347. If a packet exceeds the preset value, RTS/CTS scheme will be used to
reduce collisions. Set it to a smaller value provided that there are distant clients and
interference. If the RTS threshold value is relatively small, the wireless access point uses
the Carrier Sense Multiple Access with Collision Detection (CSMA/CD) mechanism, and
the data frame is transmitted immediately after the silence period. The faster the frame is
sent, the faster the wireless network will recover from collisions. As the collision detection
mechanism will occupy some bandwidths, when the packet size is less than the RTS

More Features

- 36 -

threshold, it is not advisable to enable this mechanism.

DTIM Interval

A DTIM (Delivery Traffic Indication Message) Interval is a countdown informing clients
of the next window for listening to broadcast and multicast messages. When such packets
arrive in the router's buffer, the router will send DTIM (delivery traffic indication message)
and DTIM interval to alert clients of the receiving packets. Specify a valid value between 1
and 255. The default is 1. Fox example, when the DTIM is 1, it means that the AP will
send all cached packets every other Beacon interval.

Receive Signal
strength

Configure signal strength for connected clients. When the wireless client’s signal strength

is lower than the setting value, the wireless client will not be allowed to connect to the AP
so that the wireless client can connect to a stronger WiFi.

5GHZ SSID
Priority

This option is only available at 5GHz.

When there are 2 SSIDs with the same SSID and password, one at 2.4GHz, and the other
at 5GHz, and the client support 2.4GHz and 5GHz, the client will take its priority to
connect to the SSID at 5GHz. In this case, only WPA/WPA2-PSK and Mixed
WPA/WPA2-PSK are supported.

5GHZ Threshold

This option is available when 5GHz SSID Priority is enabled.

The AP will check the receive signal strength at 5GHz. If the receive signal strength is
lower than the threshold value at 5GHz, the client will not be allowed to connect to the AP.

Signal
Transmission

This item is only available at 2.4GHz.
 Coverage-oriented: When coverage-oriented is selected, the AP’s WiFi coverage will

be wider.

 Capacity-oriented: When you deploy many APs in your network, capacity-oriented

option is recommended.

Airtime
Scheduling

Airtime Scheduling gives equal amounts of air time (instead of equal number of frames) to
each client regardless of its theoretical data rate. This will ensure higher download speed to
latest devices when slower devices are connected to the same AP.

Interference
mitigation

Interference mitigation: interference mitigation mode, range: 0-4. The default is 4. This is
only available in 2.4GHz.

 0: All interference mitigation is disabled.
 1: Non-wireless LAN Interference mitigation is enabled.
 2: Wireless LAN Interference mitigation is enabled.
 3: Auto Wireless LAN Interference mitigation is enabled and active.
 4: Auto Wireless LAN Interference mitigation is enabled and noise reduction is

More Features

- 37 -

enabled.

APSD

Automatic power save delivery. It is advisable to keep the default value unchanged.

Ageing Time

When the client connects to the AP successfully, and if there’s no data transmission

between the client and the AP within the set ageing time, the client will be disconnected. If
there’s data transmission within the set ageing time, the ageing time stops.

Basic Rate Sets,
Supported Rate
Sets

 Basic Rate Sets: Check the transmission rate sets you want the AP to advertise. Basic

rate sets indicate rates that the AP will advertise to the network for the purposes of
setting up communication with other APs and client stations on the network.

 Supported Rate Sets: Check the transmission rate sets you want the AP to support.

The AP will automatically choose the most efficient rate based on factors like error
rates and distance of client stations from the AP.

3.4.4 Frequency Analysis

This section allows you to view background noise and channel utilization on each channel, and nearby wireless
signals.

2.4GHz & 5GHz Frequency Analysis

Click Wireless > Frequency Analysis to enter page below, and then click Enable Scan to view 2.4GHz
frequency analysis. To view 5GHz frequency analysis, click 5GHz Frequency Analysis.

Click Enable Scan, wait for a while, and then you can view background noise and channel utilization on each
channel. You can select a channel whose utilization is relatively low as the AP's working channel.

More Features

- 38 -

If the channel utilization is 0~50%, it will display in green, indicating the channel is in good condition. If the
channel utilization is 50%~80%, it will display in yellow, indicating the congested channel. If the channel
utilization is 80%~100%, it will display in red, indicating no more available channel.

Parameters Description:

Item

Description

Duration for
every channel

Time for every channel when scaning.

Background
Noise

It refers to all kinds of electromagnetic waves in wireless communication. If there’s much
noise, data transmission may be affected.

2.4GHz & 5GHz Illegal AP Detection

This is mainly used for scaning signal of other devices nearby, displaying SSID, MAC, channel, signal strength,
etc. To view 2.4GHz illegal AP detection, click Wireless > Frequency Analysis > 2.4GHz Illegal AP Detection,
and then click Enable Scan on the pop-out page; To view 5GHz illegal AP detection, click Wireless > Frequency
Analysis > 5GHz Illegal AP Detection, and then click Enable Scan on the pop-out page.

According to the list you’ve scanned, you can select a channel which is least used by other devices, so that
wireless transmission efficiency can be improved.

More Features

- 39 -

3.4.5 WMM Setup

WMM (Wi-Fi Multimedia) is a Wi-Fi Alliance interoperability certification, based on the IEEE 802.11e standard.
It provides basic Quality of service (QoS) features to IEEE 802.11 networks.

Click Wireless > WMM Setup to enter page below:

More Features

- 40 -

By default, WMM is enabled and three application modes are available:
 Optimized for Throughput (Concurrent Users <=10): If the number of Concurrent Users is less than 10,

“Optimized for Throughput” template is recommended.

 Optimized for Capacity (Concurrent Users >=10): If the number of Concurrent Users is more than 10,

“Optimized for Capacity” template is recommended.

 Custom: You can customize the WMM EDCA parameters. For more details, see description below.

Description for WMM EDCA:

If Custom is selected, the following page will pop-out.

WMM prioritizes traffic according to four Access Categories (AC) – voice (AC_VO), video (AC_VI), best effort
(AC_BE), and background (AC_BK). If you are not familiar with these parameters, leave the default setting
unchanged.

Parameters Description:

Item

Description

No ACK

No ACK is a kind of policy to be used only while the network communication is in good
condition with little interference. To some extent, No ACK can improve transmission
efficiency. But, if the communication quality is not good, packets dropping may increase.

More Features

- 41 -

EDCA

EDCA (Enhanced Distributed Channel Access) is a channel contention mechanism defined
by WMM, so that packets which have high priority can be transmitted in advance and get
more bandwidth.

EDCA AP
Parameters

EDCA parameters of the AP.

EDCA STA
Parameters

EDCA P parameters of the station.

EDCA
Parametrs

 CWmin: Exponent form of CWmin
 CWmax: Exponent form of CWmax

CW: contention window. CWmin (Exponent form of Cwmin) and CWmax (Exponent form
of Cwmax) codetermine average backoff time. The greater these two values are, the longer
the average backoff time will be.

 AIFSN (Arbitration Inter Frame Spacing Number): According to WMM, different ACs

can have different idle waiting time. The greater the AIFSN value is, the longer the idle
waiting time will be.

 TXOP Limit (Transmission Opportunity Limit): The maximum use time for the channel

for the user while contending successfully. The greater the value is, the longer the
channel can be used by the user. If it is set to “0”, only one packet can be sent every
time the channel is used.

AC_BE,
AC_BK,
AC_VI,
AC_VO

4 priority queues are ranked from high to low by WMM: AC-VO, AC-VI, AC-BE and
AC-BK to ensure that packets with higher priority have more abilities to occupy channels.

3.4.6 Access Control

Click Wireless > Access Control to enter page below. This page allows you to specify a list of devices to allow or
disallow a connection to your wireless network via the devices’ MAC addresses. To deactivate this feature, select
"Disable"; to activate it, select "Allow" or "Deny".

More Features

- 42 -

Parameters Description:

Item

Description

SSID

Select the SSID you wish to configure access control settings.

MAC Filter Mode

Configure the MAC filter mode.

 Disable: Disable the Access Control feature.
 Allow: Only MAC addresses in the access control list are allowed to connect to the

SSID.

 Deny: Only MAC addresses in the access control list are not allowed to connect to

the SSID.

On this page, you can also view wireless clients currently connected to the selected SSID so that you can quickly
add the MAC address you wish to configure access control settings.

Client List

More Features

- 43 -

To only deny the computer at the MAC address of the C8:9C:DC:12:13:13 to join your SSID
IP-COM_0E6AD9:

1. Select the SSID IP-COM_0E6AD9 and set the MAC filter mode to Deny.

2. Enter C8:9C:DC:12:13:13 in the MAC Address field and click Add.

If the MAC address you want to configure has been in the client list, directly click Add.

3. Click Save to apply your settings.

More Features

- 44 -

3.4.7 Advanced

This section allows you to recognize terminal types and filter broadcast data. Click Wireless > Advanced to enter
page below:

Recognize Terminal Type

When this feature is enabled, the AP will be able to recognize the terminal type, which makes your network
management more efficient. Then click Status > Wireless Clients to view the terminal type.

Access Control List

More Features

- 45 -

Filter Broadcast Data

As a main method for discovering unknown devices, broadcast plays an important role in networking. With the
increase of computers in networking, broadcast packets increase and the network is occupied by large numbers of
broadcast packets. Thus, the networking transmission capacity will be reduced greatly. This feature helps to filter
broadcast packets, avoiding broadcast storm effectively.

3.4.8 QVLAN

When using this feature, users could also assign different VLAN IDs to different wireless networks, which makes
it possible to get it work with switches which as VLAN assigned for different access levels and authorities. Click
Wireless > QVLAN to enter page below:

Parameters Description:

Item

Description

Enable

Check it to enable the QVLAN feature. It is disabled by default.
Manage

802.1Q manage VLAN ID of the AP. The default value is 1. Once the manage VLAN is

More Features

- 46 -

VLAN

changed, you need to re-connect to the new manage VLAN to manage the AP.

PVID

Belonging VLAN ID of the LAN port of the AP. The default is 1. Once QVLAN is enabled, the
LAN port of the AP will be the Trunk port.

2.4G SSID

Display SSIDs which have been enabled at 2.4GHz on the AP.

5G SSID

Display SSIDs which have been enabled at 5GHz on the AP.

VLAN ID

Configure the corresponding SSID’s VLAN ID. It is 1000 by default. You can specify a value
between 1 and 4094.

When the VLAN is enabled, wireless port of the SSID can be regarded as an Access port. Its
PVID and VLAN ID are the same.

Different data, tagged or untagged, will be processed in different ways, after being received or sent by ports of
different link types, which is illustrated in the following table:

Port Type

Receiving Packets

Sending Packets

Receiving Tag Packets

Receiving Untag

Packets

Access

Packets will be
forwarded to other ports
in the corresponding
VLAN according to the
VID in the Tag.

Data will be forwarded
to other ports in the
corresponding VLAN
according to PVID on
this port.

Packets will be sent after removing the
VLAN tag.

Trunk

VID ＝ PVID: Packets will be sent
after removing the VLAN tag.

VID ≠ PVID: Packets will be sent
directly.

QVLAN Application Example:

【Requirements】

WiFi needs to be covered in a hotel. People in a hotel are generally classified into three kinds: hotel executives,
hotel staffs and guests. Hotel executives can access both the Internet and internal network in the hotel. Hotel staffs
can only have the access to internal network in the hotel. Guests can only access the Internet via Ethernet cables or
wirelessly.

More Features

- 47 -

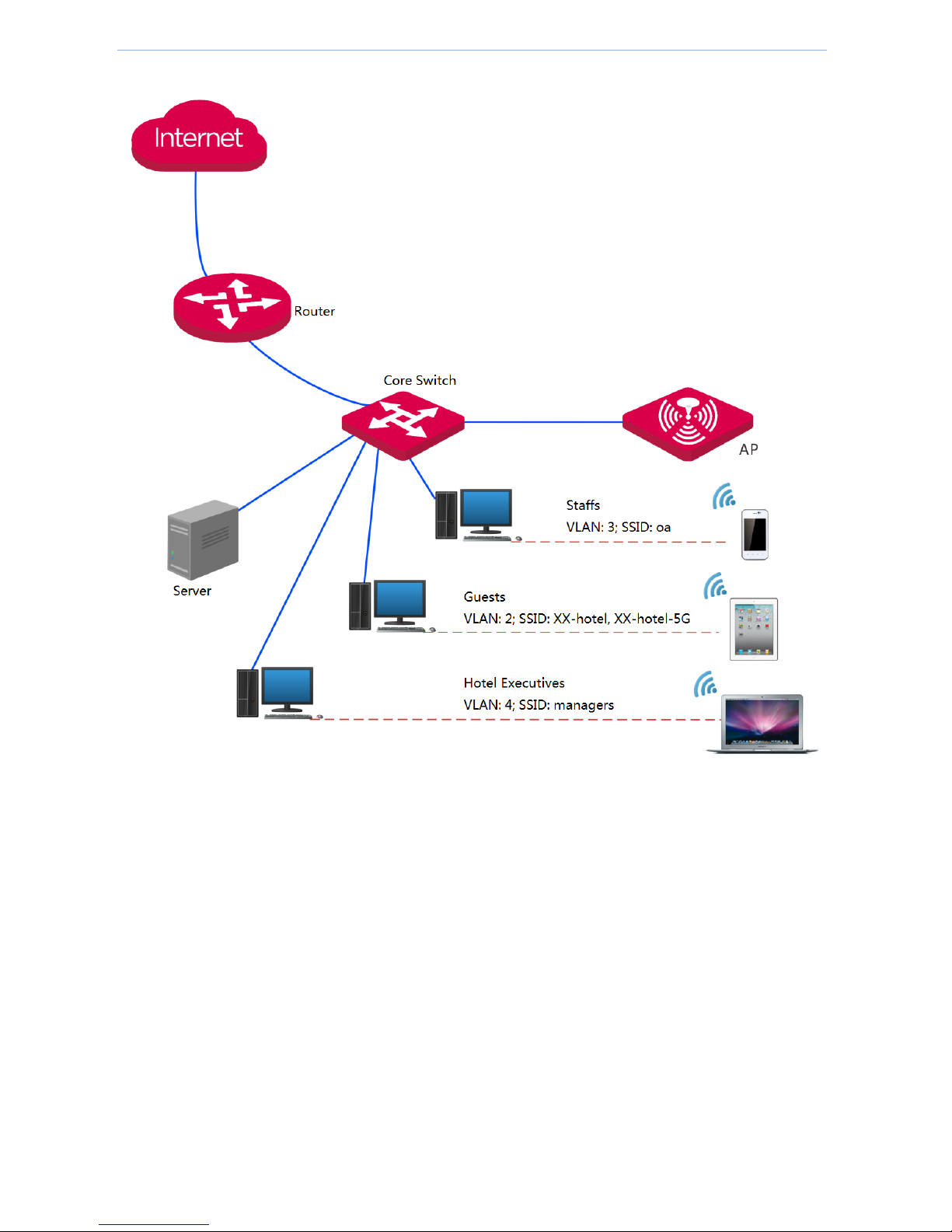

【Network Topology】

【Solution】

 Divide 802.1 QVLAN on the core switch to isolate hotel executives, hotel staffs and guests.

 IP-COM AP355: Multiple SSIDs and QVLAN settings

 Different SSIDs have different security settings, and different people connect to different SSIDs.

 Three kinds of clients are involved in this example. And up to 12 SSIDs (2.4GHz: 8; 5GHz: 4) can be

supported on this AP. Remaining SSIDs will be:

1） set to SSIDs which will be used by large amounts of clients, like guest and staffs. Verify that these SSIDs’

VLAN settings are correct.

2）disabled.

More Features

- 48 -

【Configurations】

1. Divide VLAN on the core switch.

Port Connect to…

VLAN

Port Type

PVID

Guests

2

Access

2

Staffs

3

Access

3

Hotel Executives

4

Access

4

AP

1, 2, 3, 4

Trunk, all VLANs allowed

1

Internal Server

3, 4

Trunk, VLAN3 and VLAN4 allowed

1

Router

2, 4

Trunk, VLAN2 and VLAN4 allowed

1

2. SSIDs and VLANs configured on the AP

Wireless Clients

SSID

VLAN ID

Guests

XX-hotel

VLAN2

Guests

XX-hotel-5G

VLAN2

Staffs

oa

VLAN3

Hotel Executives

managers

VLAN4

【Configuration Considerations】

To ensure that wireless clients connecting to AP(s) can have normal accesses, QVLAN settings should be
supported and configured on the router and on the internal server.

【Configuration steps on this AP】

1. Log in to the Web UI of the AP and click Wireless > SSID Setup.

2. Enable 4 SSIDs. In this example, we’ll enable 2 SSIDs at 2.4GHz and 2 SSIDs at 5GHz. They will be:

XX-hotel, XX-hotel-5G, oa, managers. Make them encrypted and then click Save.

More Features

- 49 -

3. Click Wireless > QVLAN to configure QVLAN settings on the AP.

3.5 Firewall

The following parts are included:

URL Filter: Configure different access rights for different URL categories to rationally manage network access

rights.

App Filter: Filter some popular mobile apps, like IM, Video, etc.
Traffic Control: Configure traffic control rules so that all clients can share network resources properly.

3.5.1 URL Filter

This page allows you to configure access rights for specified URLs, like online shopping, video, etc. By default,
this feature is disabled. Click Firewall > URL Filter to enter page below:

More Features

- 50 -

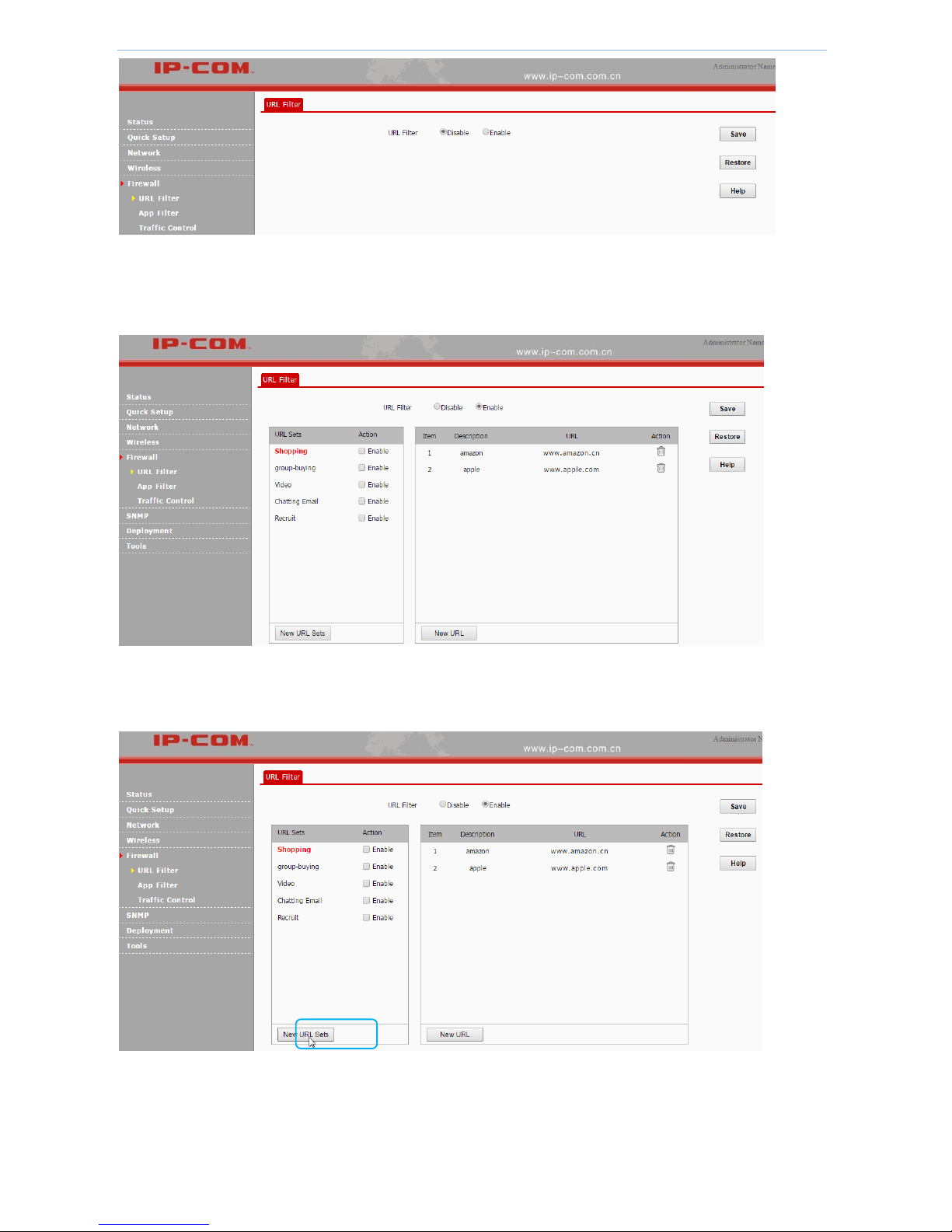

The default 5 URL categories (online shopping, shopping, video, Email and Recruit) can't be deleted. Click URL
Category to customize URL info. Up to 10 URL entries can be supported for every URL category. Once some
URLs are enabled to be filtered, clients won’t be able to access them.

To add a new URL sets:

1. Click New URL Sets.

More Features

- 51 -

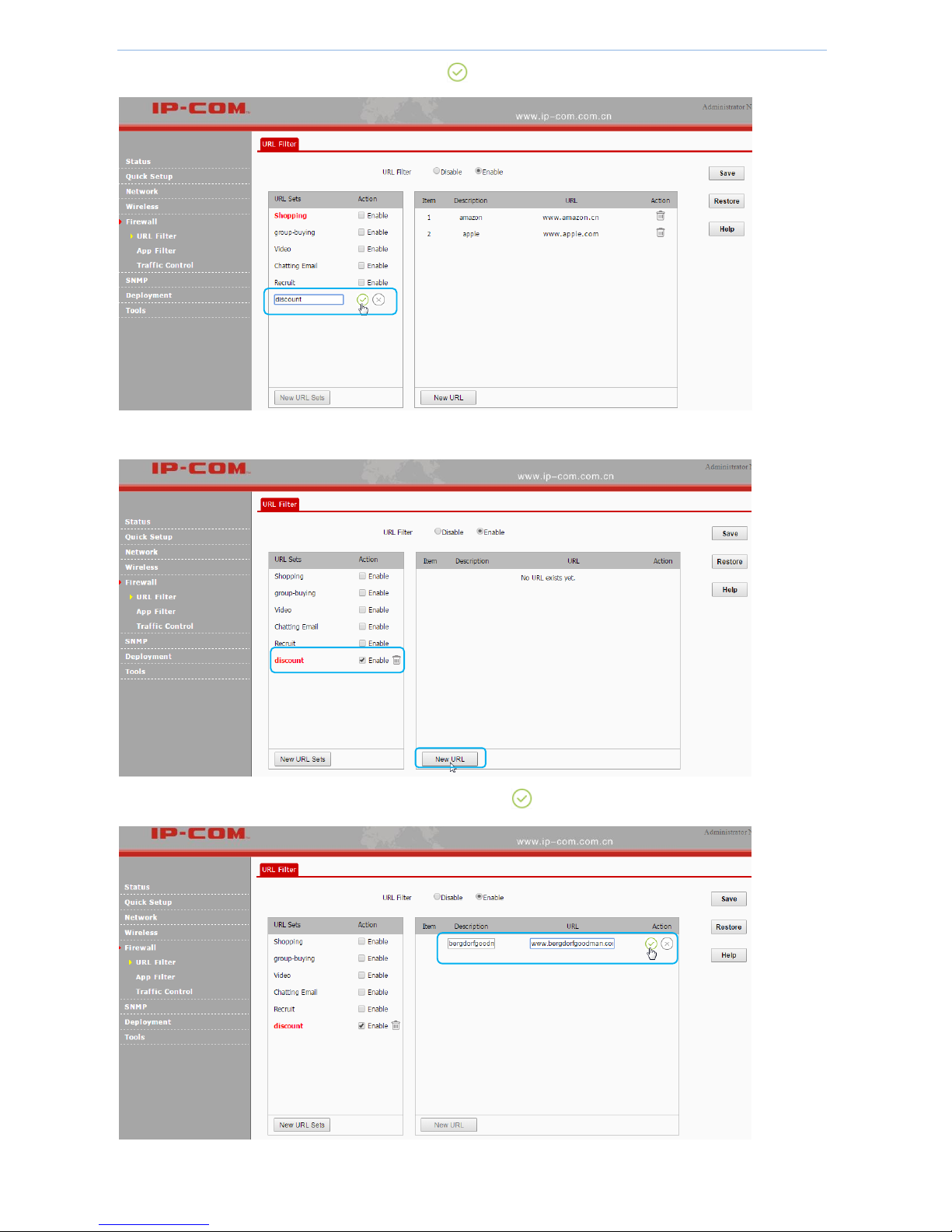

2. Specify the URL set, say, discount, and then click .

3. Click the URL set you’ve created, and then click New URL.

4. Give a description for the URL, specify the URL field, click and then click Save.

More Features

- 52 -

3.5.2 App Filter

This feature allows you to filter some apps, like IM, Video, etc. This feature is disabled by default. Click Firewall >
App Filter to enter page below:

Checking the box before the corresponding app can enable its filtering. Then clients won’t be able to use this app.

3.5.3 Traffic Control

Some apps, like P2P download, may consume lots of bandwidth. However, the total bandwidth is limited. If some
apps consume too much bandwidth, others' network experience will be affected. To ensure that all users can share
network resources properly, you can limit wireless clients' traffic via this feature. It is disabled by default. Click
Firewall > Traffic Control to enter page below:

More Features

- 53 -

The following two traffic control methods are supported on this device:

(1) Manual: Every SSID and every client can only use the pre-configured bandwidth and the actual traffic can't be
greater than the set limit.

(2) Smart: Based on the total bandwidth the ISP has provided, all clients dynamically share the AP's total
bandwidth on average in case of bandwidth waste.

Configuration steps for manual traffic control:

1. Traffic Control: Select Manual.

2. Select the SSID you want to configure from the drop-down menu.

3. Set the max upload/download rate for both the SSID and the user.

4. Click Save to apply your settings.

Configuration steps for smart traffic control:

1. Traffic Control: Select Smart.

2. Total Bandwidth of AP: Set the total bandwidth the ISP has provided.

3. Select the SSID you want to configure from the drop-down menu.

4. Set the max upload/download rate.

5. Click Save to apply your settings.

More Features

- 54 -

3.6 SNMP

If you want to manage your AP via SNMP, click SNMP to enter page below:

By default, SNMP is disabled. Check the Enable box to enable SNMP.

Parameters Description:

Item

Description

SNMP

Disable/Enable the SNMP feature. It is disabled by default.

Administrator
Name

Administrator name of the AP. It is “Administrator” by default.

More Features

- 55 -

Device Name

Device name of the AP. The default name is AP355.

Location

Where the AP is located. The default is Shenzhen.

Read Community

Indicate the community string for read access to permit reading this AP’s SNMP

information. The default is public.

Read/Write
Community

Indicate the community string for write/read access to permit reading and writing this AP’s
SNMP information. The default is private.

3.7 Deployment

Two deployment modes are supported on this AP: Local and Cloud. If there are many APs deployed in your
network, it is suggested to use IP-COM access controller AC2000 to centrally manage these APs.

 Local

When there are many APs centrally deployed in your network, it is suggested to set these APs in Local mode, so
that APs can be managed by the local AC (access controller).

More Features

- 56 -

By default, it is in Local mode.

 Cloud

When many APs are scattered here and there, it is suggested to set these APs in Cloud mode, so that the AC (cloud
AC) from the Internet side can centrally manage these scattered cloud APs.

More Features

- 57 -

Go to Deployment page, select Cloud:

Parameters Description:

Item

Description

Deployment

Configure different deployment modes to manage APs. It is in Local mode by default.
 Local: When this mode is selected, all current APs can only be managed by the local

AC.

 Cloud: When this mode is selected, all current APs can only be managed by the

cloud AC or a cloud server. Options need to be configured in Cloud mode:

Device Name

Name of the AP. This item is only available in Cloud mode. It will be very convenient for
the network administrator to recognize and manage APs if the device name is modified.

Cloud AC Address

The WAN IP address or domain of the router that the cloud AC connects to. This item is
only available in Cloud mode.

Cloud AC Manage
Port

The port of the router that the cloud AC connects to and that is used for managing cloud
APs (Range: 1024~65535). This item is only available in Cloud mode.

Cloud AC Upgrade
Port

The port of the router that the cloud AC connects to and that is used for upgrading cloud
APs (Range: 1024~65535). This item is only available in Cloud mode.

3.8 Tools

The following nine parts are included in Tools section.

Maintenance: Upgrade the AP’s system software.

Time & Date: Configure system time and web idle timeout for the AP.

Logs: View and manage system logs of the AP.

Configuration: Backup and restore your configurations, and reset your AP to its factory defaults.

More Features

- 58 -

User Name & Password: Modify login username and password to prevent unauthorized accesses.

Diagnostics: Troubleshoot your AP to quickly find out where the problem is.

Reboot: Restart your AP.

LED: Turn on/off the LED of the AP.

Uplink Detection: Used for uplink detection.

3.8.1 Maintenance

If your device is in normal operation, it is not advisable to upgrade your device. If you want to acquire the latest
software version or better value-added functions for your device, you can access our official website

http://www.ip-com.com.cn to download the latest software for upgrading. Click Tools > Maintenance to enter

page below:

Note

Do not disconnect power supply of the AP. If the power supply is interrupted, the upload may fail and you need to
re-upgrade it. If you are unable to log in to its web UI after cutting off its power supply during the upgrading,
cousult our technical stuff for assitance.

Upgrading Steps:

1. Launch a web browser and go to http://www.ip-com.com.cn to download the latest firmware.

2. Go to the Maintenance page.

3. Click Choose File (in Google browser) to locate and select the upgrade file in the corresponding directory on

your hard disk.

4. Click Upgrade and then follow onscreen instructions to finish the upgrade.

When the upgrading completes, view the current firmware version to judge that whether you’ve upgraded your AP
successfully or not.

More Features

- 59 -

3.8.2 Time & Date

This page allows you to configure the AP’s system time and web login timeout.

System Time

Click Tools > Time & Date > System Time to enter page below. This page is used to set the device’s system time.

Tip

Once power is not delivered on this device, the time settings will be lost. By default, Sync with Internet time
servers is enabled. When the device is able to access the Internet, it will automatically connect to the NTP server
on the Internet to synchronize the time.

System time can be configured using the following 2 methods:

 Sync with Internet time servers

If enabled, system automatically connects to NTP server on the Internet to synchronize the time. To enable this
feature, please verify that your AP has connected to the Internet successfully. Method: go to LAN Setup page to
configure its IP info.

Configuration Steps:

1. Check the Sync with Internet time servers box.

2. Select the sync interval, say, 30 minutes.

3. Select your time zone.

4. Click Save to apply your settings.

More Features

- 60 -

 Set Time and Date Manually

Specify the time and date manually or click Sync with Your PC to automatically copy your current PC's time to
the device.

Configuration Steps:

1. Uncheck the Sync with Internet time servers box.

2. Click Sync with your PC or enter the correct date and time in the input fields.

3. Click Save to apply your settings.

More Features

- 61 -

Login Timeout

You are automatically logged out of the web UI after a period of inactivity. You can set the length of the inactive
period. The default login timeout is 5 minutes. To change the login timeout, click Tools > Time & Date > Login

Timeout to enter page below:

3.8.3 Logs

The following two parts are included:

View Logs: View system logs since the latest reboot.

Log Setup: Configure log server and how many logs can be displayed on each page.

View Logs

Click Tools > Logs > View Logs to enter page below. Here you can view the history of the device’s actions. Two
types of logs are supported on this device: All and System. You can select any one of them from the drop-down
list. Click Refresh to update current log info or click Clear to clear all logs.

More Features

- 62 -

Note

 Rebooting your AP will clear all your system logs.
 Configuring QVLAN settings, powering off your AP, backing up and restoring configurations, resetting and

upgrading your AP will reboot your AP.

 To verify that the logs are correctly recorded, go to Tools > Time & Date to make your system time correct.

Log Setup

Click Tools > Logs > Log Setup to configure system logs. Here you can set up the number of logs and rules of log
settings.

More Features

- 63 -

 Number of Logs

Up to 300 entries can be logged. The default is 150.

 Log Server

If configured successfully, the system will begin to log events and simultaneously send them to the specified log
server in your LAN. You can view all logs there.

Configuration Steps:

1. Click Add.

2. Log Server IP: Specify the IP address of the syslog server in your LAN, say, 192.168.0.172.

3. Log Server Port: Specify the port of the syslog server in your LAN (If not allowed to configure a port on your

server, enter the default value 514).

4. Check the Enable box to enable the log server.

5. Click Save to apply your settings.

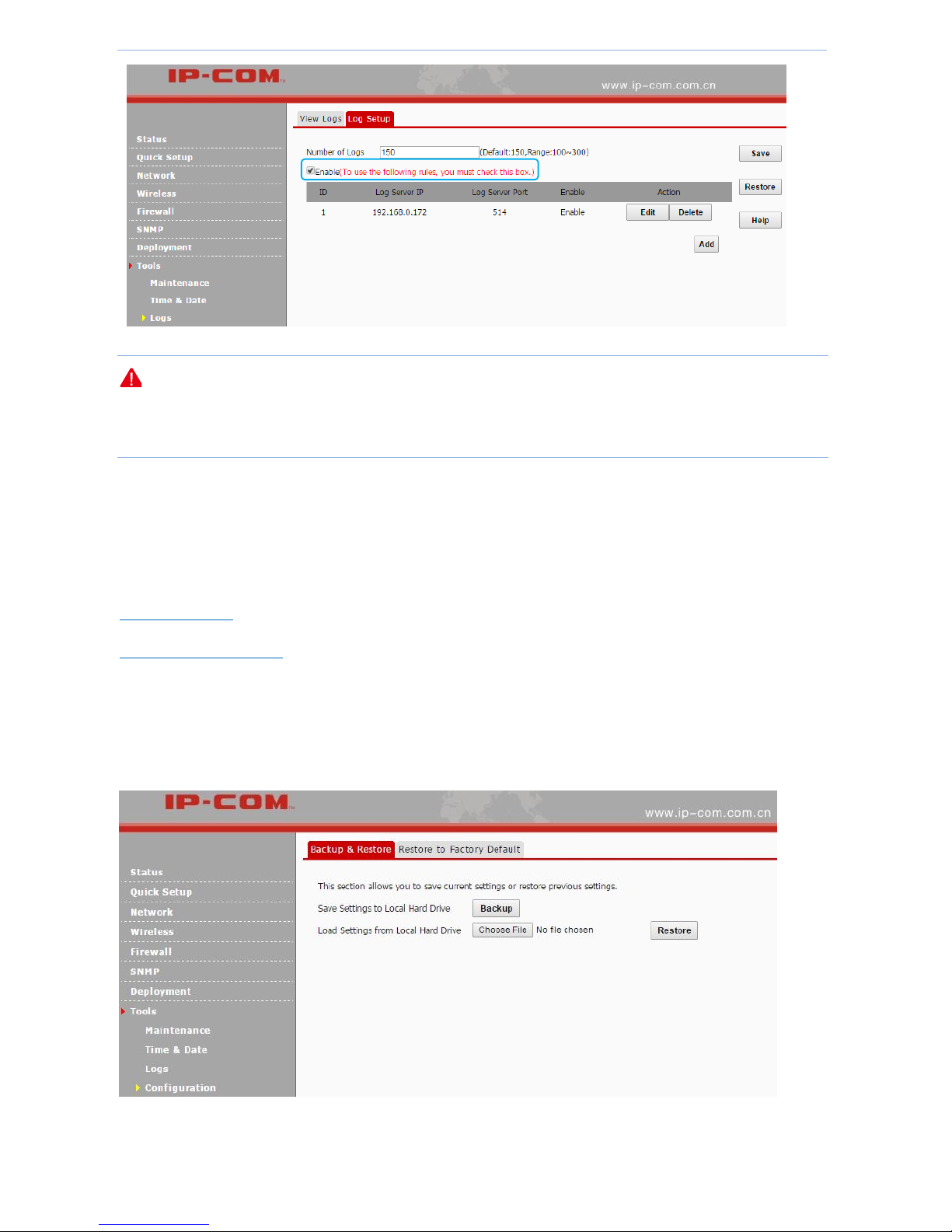

6． Check the "To use the following rules, you must check this box." Option to activate your settings and then

click Save.

More Features

- 64 -

Note

To make sure that system logs can be sent to the server successfully, you need to go to Network > LAN Setup to

set your AP’s IP address, subnet mask and gateway so that the route between the AP and the log serve is reachable.

3.8.4 Configuration

The following two parts are included:

Backup & Restore: Backup current configurations to your local PC and restore previous configurations to your AP.

Restore to Factory Default: Restore your AP to its factory defaults.

Backup & Restore

Click Tools > Configuration to enter page below:

More Features

- 65 -

 Backup

If you configure many settings on this device, which will make this device work in good status, it’s suggested to

backup settings, which will be convenient for troubleshooting and saving time for next time’s configuration.

Method: Click Backup and then follow onscreen prompts.

 Restore

If you need to configure the same settings for multiple APs, or if your AP works improperly, you can restore your
AP to its previous configurations which you’ve backed up.

Method: Click Choose File (in Google browser) to download your previous configurations, click Restore and
then follow onscreen prompts.

Restore to Factory Default

If the device or client connected to the device fails to access the Internet due to incorrect configurations and you
cannot solve the problem, click Tools > Configuration > Restore to Factory Default to reset the device and then
reconfigure it.

If you forgot the login info of the AP, like login IP address or login username, you can press and hold the RESET
button with something like a needle for at least 7 seconds to reset your AP.

Tip

After resetting your AP, the login IP address of the AP is 192.168.0.254, and the login username and password are

admin for both. For other default settings, see Appendix 2 Default Settings.

More Features

- 66 -

3.8.5 User Name & Password

Click Tools > User Name & Password to enter page below. Here you can change the user name and password for
web login. We suggest that you change this password to a more secure one.

By default, two accounts are supported: administrator and user. The administrator can manage your AP, while the

user can only view the AP’s relevant information. Both the user name and password for the administrator are

admin. Both the user name and password for the user are user.

3.8.6 Diagnostics

This page allows you to test your network connection. If your network is malfunctioning, click Tools >
Diagnostics to use the ping utility to test your network and find out where the problem is.

More Features

- 67 -

3.8.7 Reboot

When some settings you have configured cannot be activated or your device is functioning improperly, please
reboot your device. The following two parts are included:

Reboot: Reboot your AP manually.

Time Reboot: Reboot your AP at the specified time.

Tip

While rebooting your AP, all your WiFi connections will be disconnected. Thus, please reboot your AP when the
network is not busy.

Reboot

Click Tools > Reboot to reboot your AP manually.

Time Reboot

Click Tools > Reboot > Time Reboot to enter page below. Here you can reboot your device at the specified time.
Once this feature is enabled, please make sure that your device is synchronized with the Internet time server.

More Features

- 68 -

Two methods for time reboot are available: As Interval and As Scheduled.

 As Interval

The device will reboot automatically at intervals according to the interval you’ve configured.

1. Check the Enable Auto Reboot Box.

2. Select As Interval from the drop-down list.

3. Specify the reboot interval (Recommended: 1440 minutes).

4. Click Save to apply your settings.

 As Scheduled

The device will reboot regularly according to the time you’ve configured.

1. Check the Enable Auto Reboot box.

2. Select As Scheduled from the drop-down list.

3. Check corresponding dates from Mon (Monday) to Sun (Sunday) to specify the reboot date.

More Features

- 69 -

4. Specify the reboot time.

5. Click Save to apply your settings.

3.8.8 LED

Click Tools > LED to turn off/on all LEDs.

3.8.9 Uplink Detection

When "Uplink Detection" is enabled, AP will periodically Ping the configured host. If its Ping packets are
unreachable to the host, wireless clients will re-associate with another AP by disabling this AP’s SSID broadcast.
This action can ensure that the client can connect to an AP which has normal access to the Internet.

The network topology is shown as below:

More Features

- 70 -

Click Tools > Uplink Detection to enter page below:

Parameters Description:

Item

Description

Uplink Detection

Enable/Disable the uplink detection feature.

Ping Host 1/2

Specify the address of the Ping host which connects to the Ethernet port of the AP.

Ping Interval

Configure the interval for Ping test.

4

Appendix

FAQs

Configure PC

Default Settings

Safety and Emission Statement

Appendix

- 72 -

A FAQs

Q1: I enter 192.168.0.254 in the web browser but cannot access this AP’s web UI. What should I do?

 Verify that Ethernet cables are properly connected;

 Check the TCP/IP settings on your PC and verify that IP address is 192.168.0.X (2-253);

 Clear the browser cache or try another web browser;

 Disable the firewall of your PC or try another PC;

 If there are at least 2 APs in your network, and they are not centrally managed by an AC, please connect APs

one by one to the switch and modify their IP addresses.

 If your AP has been managed by an AC, its login IP address might not be 192.168.0.254. Log in to the AC,

view the new IP address of your AP and then use the new one to log in to it.

If you are still unable to log in, please press the RESET button to restore the device to its factory default settings
and follow this install guide to configure your settings again.

Q2: The AP can’t be discovered by the AC. What should I do?

 Verify the AP has been connected properly and powered on.

 If VLAN has been divided in your network, verify that corresponding VLAN settings have been configured

on the AC.

 Restart or reset your AP and try again.

For more info, you can visit our website http://www.ip-com.com.cn, send an e-mail to [e-mail], or
give us a call by (86755) 2765 3089. We’ll help you out as soon as possible.

Appendix

- 73 -

B Configure PC

Windows 8

1. Right click the icon on the bottom right corner of your desktop.

2. Click Open Network and Sharing Center.

3. Click Ethernet > Properties.

Appendix

- 74 -

4. Find and double click Internet Protocol Version 4(TCP/IPv4).

5. Select Use the following IP address, type in the IP address: 192.168.0.x (2~253), Subnet mask: 255.255.255.0

and click OK.

6. Click OK on the Ethernet Properties window.

Appendix

- 75 -

Windows 7

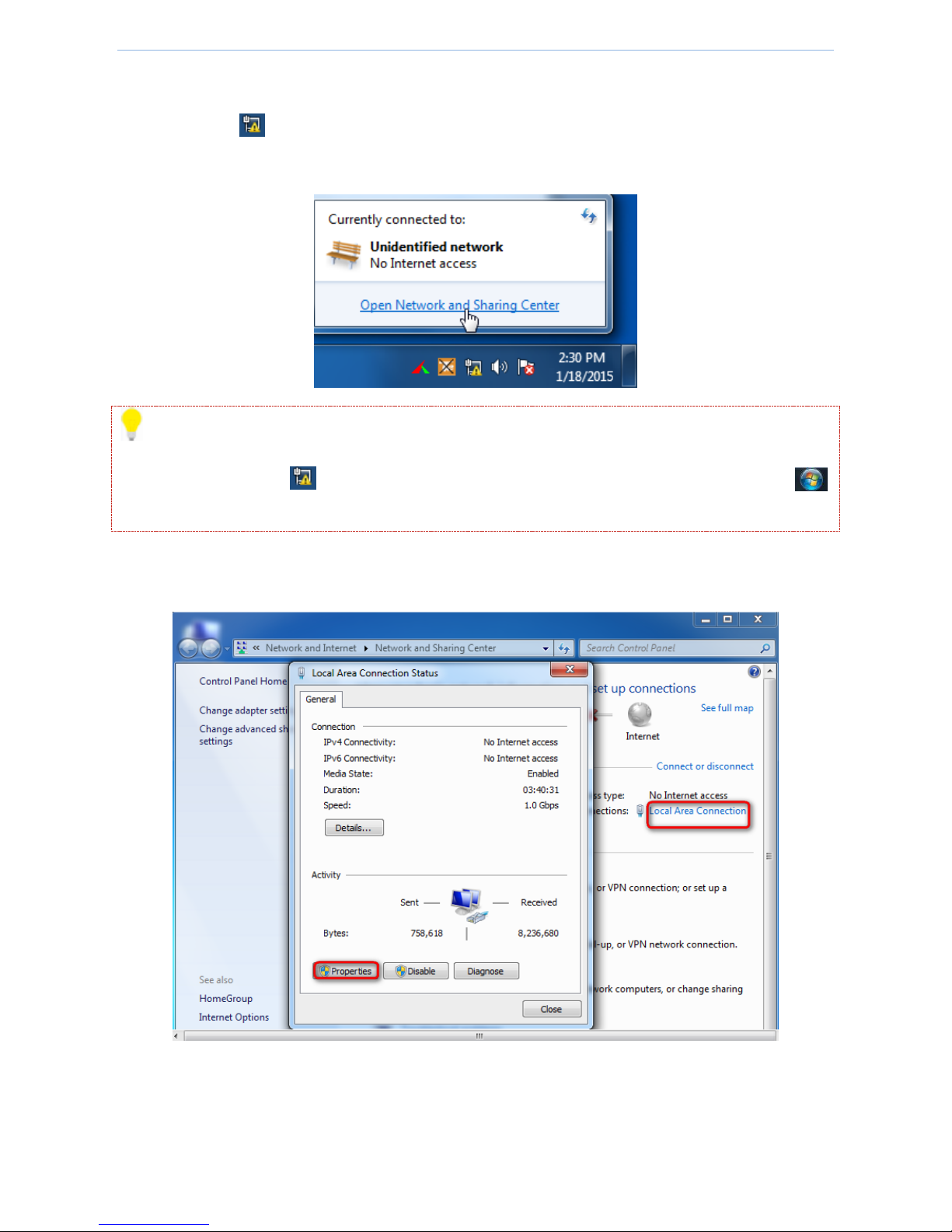

1. Click the icon on the bottom right corner of your desktop.

2. Click Open Network and Sharing Center.

Tip

If you cannot find the icon on the bottom right corner of your desktop, follow steps below: Click Start
> Control Panel > Network and Internet > Network and Sharing Center.

3. Click Local Area Connection > Properties.

Appendix

- 76 -

4. Find and double click Internet Protocol Version 4(TCP/IPv4).

5. Select Use the following IP address, type in the IP address: 192.168.0.x (2~253), Subnet mask: 255.255.255.0

and click OK.

6. Click OK on the Local Area Connection Properties window.

Appendix

- 77 -

Windows XP

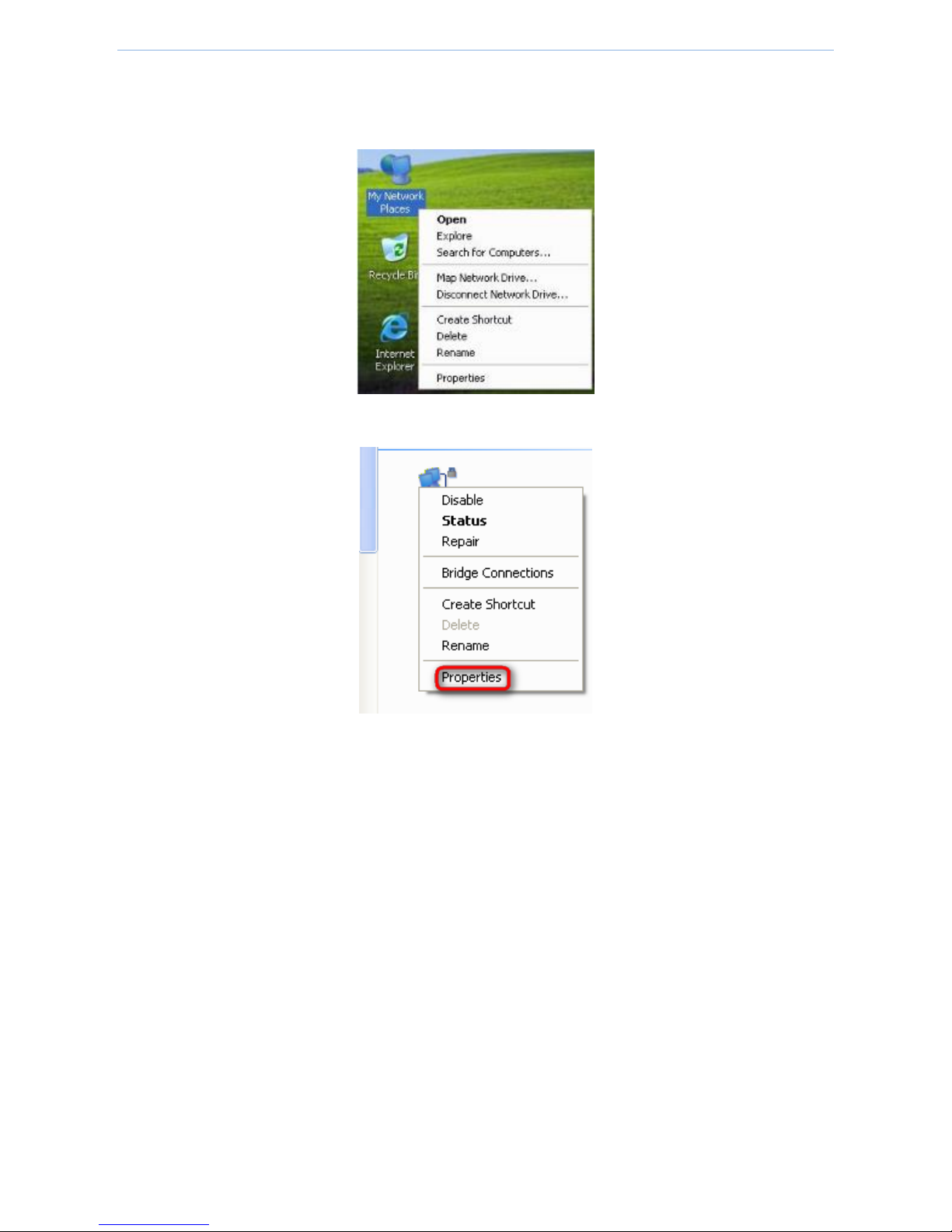

1. Right click My Network Places on your desktop and select Properties.

2. Right click Local Area Connection and select Properties.

3. Scroll down to find and double click Internet Protocol (TCP/IP).

Appendix

- 78 -

4. Select Use the following IP address, type in the IP address: 192.168.0.x (2~253), Subnet mask: 255.255.255.0

and click OK.

5. Click OK on the Local Area Connection Properties window.

Appendix

- 79 -

C Default Settings

Parameters

Default Settings

Device Login

IP

192.168.0.254

User
Name|Password

Administrator

admin|admin

User

user|user

Quick Setup

Working Mode

AP mode

LAN sETUP

Address Mode

Static IP

IP Address (Management IP)

192.168.0.254

Subnet Mask

255.255.255.0

Gateway

192.168.0.1

Primary DNS server

192.168.0.1

Secondary DNS Server

/

Device Name

AP355

DHCP Server

Disable

SNMP

Disable

Deployment

Local

Tools

Time &
Date

System Time

Sync with Internet time server. Time zone:

(GMT+08:00)Beijing, Chongqing, Hong Kong,
Urumuqi, Taipei

Web Login Timeout

5 minutes

Number of Logs

150

Time Reboot

Disable

LED

On

Appendix

- 80 -

Parameters

Default Settings

Wireless

SSID Setup

SSID

2.4G Primary SSID

IP-COM_XXXXXX

5G Primary SSID

IP-COM-5G_YYYYYY

SSID
Primary SSID

Enable

Other SSIDs

Disable

Broadcast SSID

Enable

Client Isolation

Disable

Multicast to Unicast

Disable

Probe Broadcast Packets Control

Disable

Maximum Clients

48

Chinese SSID Encode

UTF-8

Security Mode

None

Radio

WiFi

Enable

Country

China

Network Mode

2.4G: 11/b/g/n mixed; 5G: 11ac

Channel

Auto

Channel Bandwidth

2.4G: 20/40MHz; 5G: 80MHz

Extension Channel

2.4G: Auto; 5G: /

Channel Lockout

Disable

TX Power

2.4G: 22dBm; 5G: 20dBm

Power Lockout

Disable

Preamble

Long Preamble

Short GI

Auto

Inter-SSID User Isolation

Disable

Appendix

- 81 -

Parameters

Default Settings

Wireless

(Continued)

Radio
Optimizing

Beacon Interval

100

Fragment Threshold

2346

RTS Threshold

2347

DTIM Interval

1

Receive Signal strength

-90dBm

Signal Transmission

Available for 2.4G, coverage-oriented

5G SSID Priority

Available for 5G, disable

Airtime Scheduling

Disable

Interference mitigation

Available for 2.4G, 4

APSD

Disable

Ageing Time

5 minutes

Basic Rate Sets

2.4G: 1, 2, 5.5, 11Mbps

5G: 6, 12, 24Mbps

Supported Rate Sets

2.4G: 6, 9, 12, 18, 24, 36, 48, 54Mbps

5G: 9, 18, 36, 48, 54Mbps

WMM Setup

Enable, Optimized for Throughput (concurrent users ≤ 10)

Access
Control

Disable

Advanced
Recognize Terminal Type

Disable

Filter Broadcast Data

Disable

QVLAN

Disable

Appendix

- 82 -

D Safety and Emission Statement

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.

Operations in the 5.15-5.25GHz band are restricted to indoor use only.

This equipment complies with the European Council Recommendation of 12 July 1999 on the Limitation of
Exposure of the General Public to Electromagnetic Fields [1999/519/EC].

NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a
shielded RJ45 cable.

This device is restricted to be used in the indoor.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the following measures:

Appendix

- 83 -

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also
complies with Part 15 of the FCC RF Rules.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
