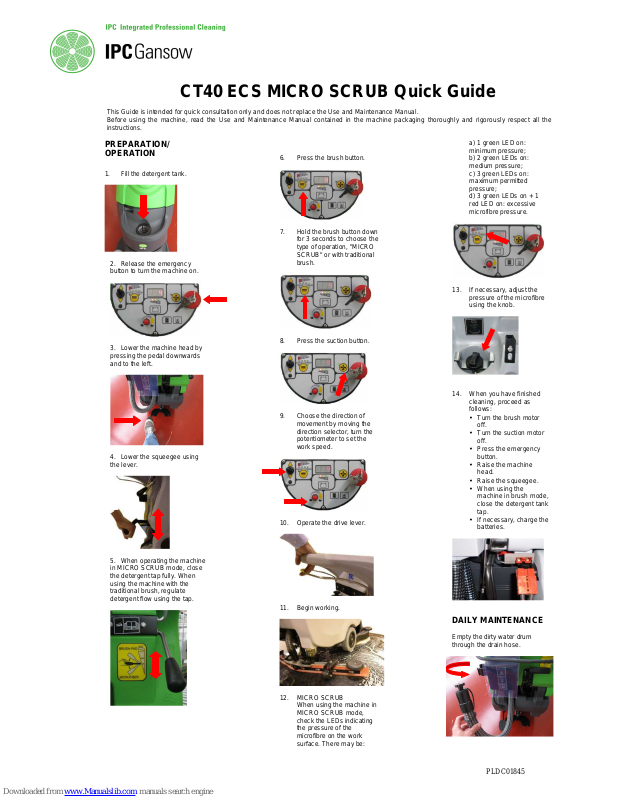

CT40 ECS MICRO SCRUB Quick Guide
This Guide is intended for quick consultation only and does not replace the Use and Maintenance Manual.
Before using the machine, read the Use and Maintenance Manual contained in the machine packaging thoroughly and rigorously respect all the
instructions.
PREPARATION/
OPERATION

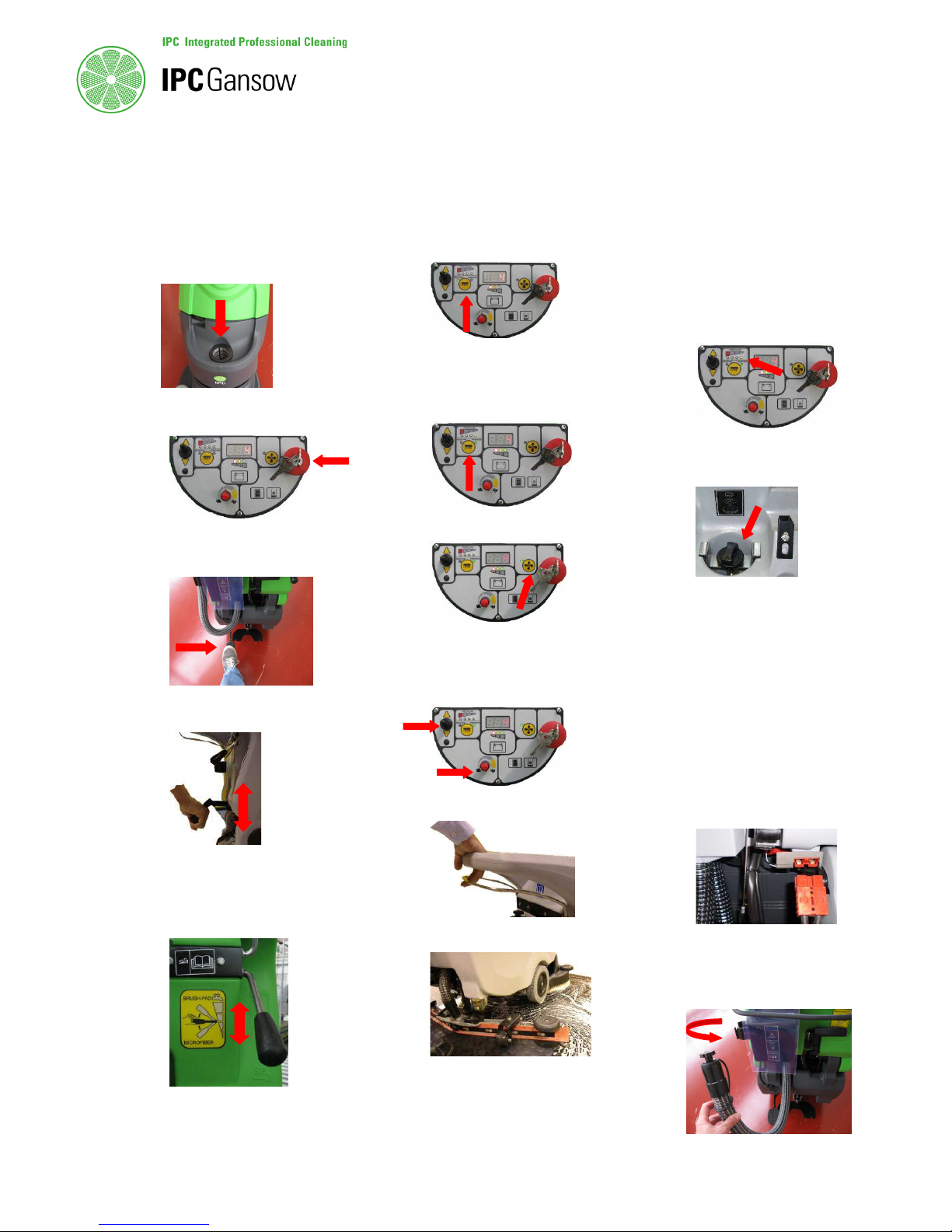

1. Fill the detergent tank.
2. Release the emergency
button to turn the machine on.
3. Lower the machine head by
pressing the pedal downwards
and to the left.
4. Lower the squeegee using
the lever.
5. When operating the machine
in MICRO SCRUB mode, close
the detergent tap fully. When
using the machine with the
traditional brush, regulate
detergent flow using the tap.
6. Press the brush button.
7. Hold the brush button down
for 3 seconds to choose the
type of operation, "MICRO
SCRUB" or with traditional
brush.
8. Press the suction button.
9. Choose the direction of
movement by moving the
direction selector, turn the
potentiometer to set the
work speed.
10. Operate the drive lever.
11. Begin working.
12. MICRO SCRUB
When using the machine in
MICRO SCRUB mode,
check the LEDs indicating
the pressure of the
microfibre on the work
surface. There may be:
a) 1 green LED on:
minimum pressure;
b) 2 green LEDs on:
medium pressure;
c) 3 green LEDs on:
maximum permitted
pressure;
d) 3 green LEDs on + 1
red LED on: excessive
microfibre pressure.
13. If necessary, adjust the
pressure of the microfibre
using the knob.
14. When you have finished
cleaning, proceed as
follows:
• Turn the brush motor
off.
• Turn the suction motor
off.
• Press the emergency
button.
• Raise the machine
head.
• Raise the squeegee.
• When using the
machine in brush mode,
close the detergent tank
tap.
• If necessary, charge the
batteries.
DAILY MAINTENANCE
Empty the dirty water drum
through the drain hose.
Page 2
PLDC01845

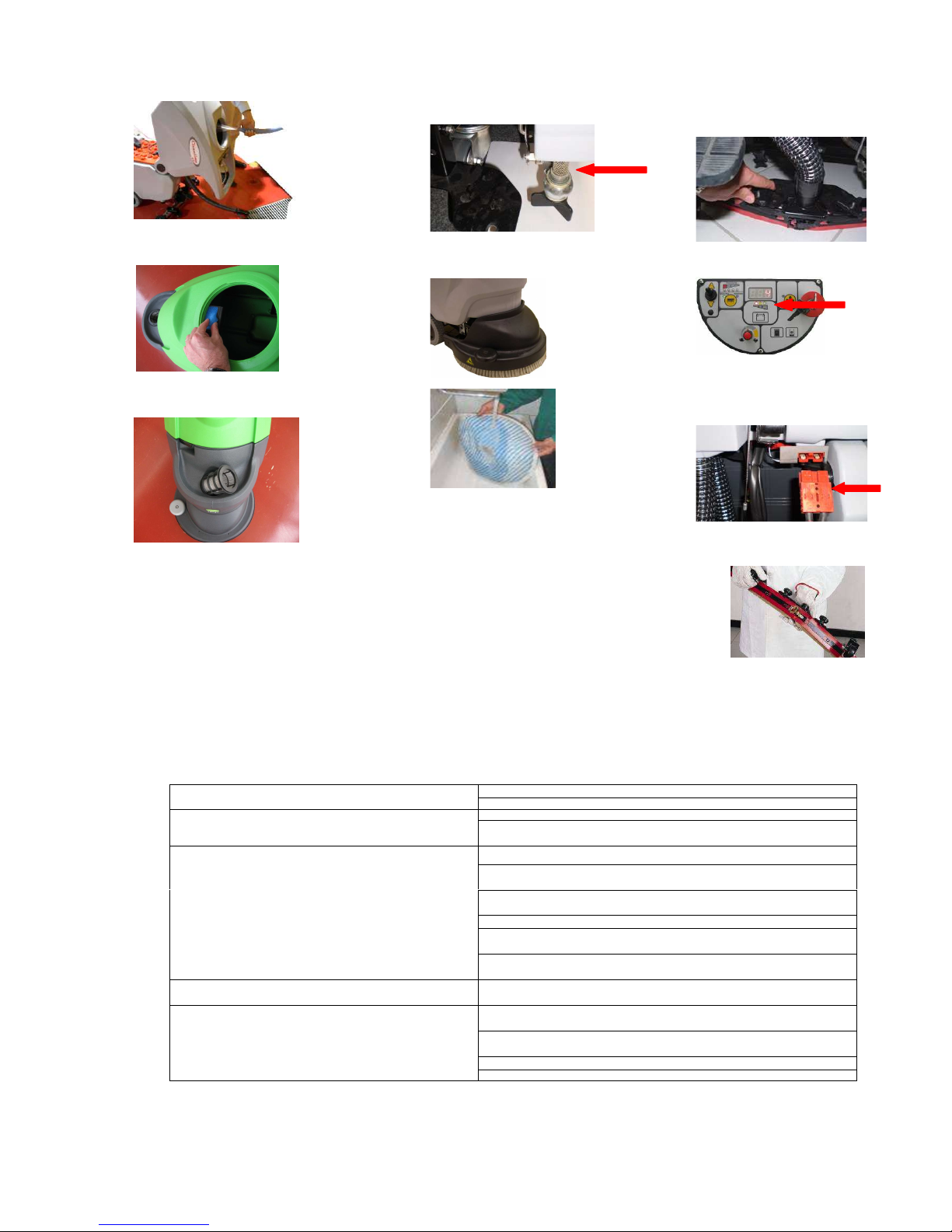

Clean the dirty water drum.
Check the suction filter is undamaged
and clean.
Check the detergent tank fill filter is
undamaged and clean.
Check the detergent output filter
is undamaged and clean.
Clean the brush and wash the
microfibre in a washing machine.
Check the squeegee is clean
and the blades are not
damaged.
Check the battery charge.
To charge, insert the battery
charger connector into the
connector alongside the
squeegee lifting lever.
REPLACING THE SQUEEGEE BLADES
• release the clip;
• remove the two blade retainers by pushing them towards the outside of the squeegee then extracting them;
• remove the blade;
• reuse the same blade by reversing the edge in contact with the floor until all four edges are worn out, or replace with
a new blade, fitting it onto the screws on the body of the squeegee;
• reposition the two blade retainers by centring the widest part of the slots over the fixing screws on the squeegee
body, then pushing the blade retainers inwards;
• fasten the clip.
AUTOMATIC BRUSH ATTACHMENT
Attaching the brush, rest the brush on the floor in front of the machine and centre it with the guard. Lower the head and operate the brush/drive lever
repeatedly until the brush automatically engages on the flange hub. If the operation is not successful, repeat by pressing on the lever again and
repeating the centring.
Removing the brush, raise the machine head by pushing the head lift pedal down and then to the right and operating the brush/drive lever repeatedly.
After operating the lever a few times, the brush is released and falls to the ground.
TROUBLESHOOTING
CHECK THE EMERGENCY BUTTON IS NOT PRESSED
THE MACHINE DOES NOT COME ON/START UP
CHECK THE BATTERY CHARGE
CHECK THE DIRTY WATER DRUM IS NOT FULL
THE SUCTION MOTOR DOES NOT WORK
CHECK THE DIRTY WATER DRUM LEVEL SENSOR IS NOT
BLOCKED/MALFUNCTIONING
CHECK THE SQUEEGEE BLADES ARE NOT WORN
CHECK THERE IS NO DEBRIS BETWEEN THE TWO SQUEEGEE BLADES
CHECK THERE IS NO DEBRIS IN THE SUCTION HOSE
CHECK THE SUCTION FILTER IS UNDAMAGED AND CLEAN
CHECK THE DETERGENT TANK LID IS CLOSED CORRECTLY
THE MACHINE LEAVES THE FLOOR WET
CHECK THE SUCTION HOSE IS CORRECTLY ATTACHED TO THE SQUEEGEE
THE MACHINE LEAVES THE FLOOR DIRTY
CHECK THE TYPE OF BRUSH/PAD/MICROFIBRE IN USE IS SUITABLE FOR THE TYPE
OF DIRT AND FLOOR.
CHECK THE FLOOR HAS BEEN BRUSHED BEFORE USING THE MACHINE
CHECK THERE IS NO DEBRIS BETWEEN THE TWO SQUEEGEE BLADES
CHECK THE SQUEEGEE BLADES ARE NOT WORN
THE MACHINE LEAVES STRIPES OF WET FLOOR
CHECK THE SQUEEGEE IS CORRECTLY ADJUSTED
