Page 1
PLDC01855

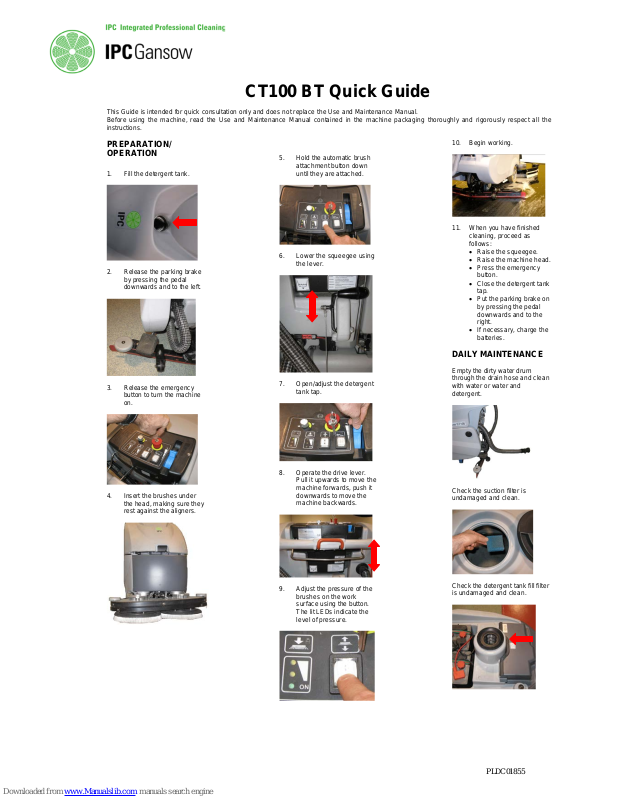

CT100 BT Quick Guide
This Guide is intended for quick consultation only and does not replace the Use and Maintenance Manual.
Before using the machine, read the Use and Maintenance Manual c ontained in the machine p ackaging thoroughly and ri gorously respect all the
instructions.
PREPARATION/
OPERATION
1. Fill the detergent tank.
2. Release the parking brake
by pressin g the pedal
downwards and to the left.
3. Release the emergency
button to turn the machine
on.
4. Insert the brushes under
the head, making sure they
rest against the aligners .
5. Hold the automatic brush
attachment button down
until they are attached.
6. Lower the squeegee using
the lever.
7. Open/adjust the detergent
tank tap.
8. Operate the drive lever.
Pull it upwards to move the
machine forwards, push it
downwards to move the
machine backwards.
9. Adjust the pressure of the
brushes on the work
surface using the button.
The lit LEDs indicate the
level of pressure.
10. Begin working.
11. When you have finished
cleaning, proceed as
follows:
• Raise the squeegee.
• Raise the machine head.
• Press the emergency
button.
• Close the detergent tank
tap.
• Put the parking brake on
by pressin g the pedal
downwards and to the
right.
• If necessary, charge the
batteries.
DAILY MAINTENANCE
Empty the dirty water drum
through the drain hose and clean
with water or water and
detergent.
Check the suction filter is
undamaged and clean.
Check the detergent tank fill filter
is undamaged and clean.
Page 2
PLDC01855
Check the detergent output filter
is undamaged and clean.
Clean the brushes.
Check the squeegee is clean and
the blades are not damaged.
Check the battery charge.
To charge, insert the battery
charger connector into the
connector alongsi de the
squeegee lifting lever.
REPLACING THE SQUEEGEE BLADES
• release the clip;
• remove the two blade retainers by pushing them towards the outside of the squeegee then extracting them;
• remove the blade;
• reuse the same blade by reversing the edg e in contact with the flo or u nti l all f o ur e dg es ar e worn o ut , or r epl ac e wit h a
new blade, fitting it onto the screws on the body of the squeegee;
• reposition the two blade retainers b y ce ntri n g t he wid est pa rt of the s lots over the fixing sc re ws on the squ eegee body,
then pushing the blade retainers inwards;
• fasten the clip.
•
AUTOMATIC BRUSH ATTACHMENT
Attaching:
insert the brushes un der the h ead, m ak ing sure t hey rest a gains t the ali gner s. Hol d the aut omatic b rus h attachm ent butt on
down until they are attached.
Releasing:
lift the head using the lift button, then press the release button.
TROUBLESHOOTING
THE MACHINE DOES NOT COME ON/START UP
CHECK THE EMERGENCY BUTTON IS NOT PRESSED
CHECK THE BATTERY CHARGE
THE SUCTION MOTOR DOES NOT WORK
CHECK THE SQUEEGEE IS L OWERED IN THE WORKIN G POSITION
THE MACHINE LEAVES THE FLOOR WET
CHECK THE SQUEEGEE BLADES ARE NOT WORN
CHECK THERE IS NO DEBRIS BETWEEN THE TWO SQ UEEGEE BLADES
CHECK THERE IS NO DEBRIS IN THE SUCTION HOSE
CHECK THE SUCTION FILTER IS UNDAMAGED AND CLEAN
CHECK THE DETERGENT TANK LID IS CLOSED CORRECTLY
CHECK THE SUCTION HOSE IS CORRECTLY ATTACH ED TO THE SQUEEGEE
THE MACHINE LEAVES THE FLOOR DIRTY
CHECK THE TYPE OF BRUSH/PAD IN USE IS SUITABLE FOR THE TYPE OF DIRT AND
FLOOR.
THE MACHINE LEAVES STRIPES OF WET FLOOR
CHECK THE FLOOR HAS BEEN BRUSHED BEFORE USING THE MACHINE
CHECK THERE IS NO DEBRIS BETWEEN THE TWO SQ UEEGEE BLADES
CHECK THE SQUEEGEE BLADES ARE NOT WORN
CHECK THE SQUEEGEE IS CORRECTLY ADJUSTED
