Page 1
OPERATIONS
MANUAL
CT230
Page 2
ENGLISH
2
1.
INDEX
1. INDEX................................................................................................................................... 2
2. GENERAL INFORMATION.................................................................................................. 4
2.1. S
COPE OF THE MANUAL
...................................................................................................................4
2.2. I
DENTIFYING THE MACHINE
.............................................................................................................5
2.3. D
OCUMENTATION PROVIDED WITH THE MACHINE
...........................................................................5
3. TECHNICAL INFORMATION............................................................................................... 5
3.1. G
ENERAL DESCRIPTION
...................................................................................................................5
3.2. L
EGEND
.......................................................................................................................................... 5
3.3. D
ANGER ZONES
...............................................................................................................................5
3.4. A
CCESSORIES
..................................................................................................................................6
4. SAFETY INFORMATION ..................................................................................................... 6
4.1. S
AFETY REGULATIONS
....................................................................................................................6
5. HANDLING AND INSTALLATION.......................................................................................9
5.1. L
IFTING AND TRANSPORTING THE PACKAGED MACHINE
..................................................................9
5.2. C
HECKS ON DELIVERY
.....................................................................................................................9
5.3. U
NPACKING
....................................................................................................................................9
5.4. B
ATTERIES
......................................................................................................................................9
5.4.1. Batteries: preparation .............................................................................................................10
5.4.2. Batteries: installation and connection.....................................................................................10
5.4.3. Batteries: removal...................................................................................................................11
5.5. T
HE BATTERY CHARGER
...............................................................................................................12
5.5.1. Choosing the battery charger.................................................................................................. 12
5.5.2. Preparing the battery charger.................................................................................................12
5.6. L
IFTING AND TRANSPORTING THE MACHINE
..................................................................................12
6. PRACTICAL GUIDE FOR THE OPERATOR.....................................................................12
6.1. C
ONTROLS - DESCRIPTION
............................................................................................................12
6.2. M
OUNTING AND ADJUSTING THE SQUEEGEE
..................................................................................14
6.3. M
OVING THE MACHINE WHEN NOT IN OPERATION
.........................................................................14
6.4. M
OUNTING AND CHANGING THE BRUSH/DRIVE DISKS
....................................................................14
6.5. D
ETERGENTS - INSTRUCTIONS
....................................................................................................... 15
6.6. P
REPARING THE MACHINE FOR WORK
............................................................................................15
6.7. W
ORKING
......................................................................................................................................16
6.8. S
OME USEFUL TIPS TO GET THE MOST FROM YOUR SCRUBBER DRIER
............................................17
6.8.1. Prewashing with brushes or pads.............................................................................................17
6.8.2. Drying......................................................................................................................................17
6.9. D
RAINING THE DIRTY WATER
........................................................................................................17
6.10. D
RAINING THE CLEAN WATER
....................................................................................................... 18
7. PERIODS OF INACTIVITY................................................................................................. 18
8. BATTERY MAINTENANCE AND CHARGING.................................................................. 18
8.1. C
HARGING PROCEDURE
.................................................................................................................19
9. MAINTENANCE INSTRUCTIONS ..................................................................................... 19
9.1. M
AINTENANCE - GENERAL RULES
................................................................................................. 19
9.2. R
OUTINE MAINTENANCE
...............................................................................................................20
9.2.1 CT 160 basket filter: cleaning .................................................................................................20
9.2.2 CT 230 basket filter and float switch.......................................................................................20
9.2.3 CT 160 suction motor air filter: cleaning.................................................................................20
9.2.4 CT 230 Suction motor air filter: cleaning................................................................................20
9.2.5 Detergent filter: cleaning.........................................................................................................20
9.2.6 Squeegee blades: replacing......................................................................................................20
9.2.7 Fuses: replacement ..................................................................................................................21
Page 3
ENGLISH
3
9.3. R
OUTINE MAINTENANCE
...............................................................................................................22
9.3.1. Daily operations......................................................................................................................22
9.3.2. Weekly operations ...................................................................................................................22
9.3.3. Six monthly operations ............................................................................................................22
10.
CONFIGURING THE SCRUBBER DRIER.................................................................... 23
11.
TROUBLESHOOTING...................................................................................................24
Page 4
ENGLISH
4
2.
GENERAL INFORMATION
Read this manual carefully before carrying out any work on the machine1
2.1. Scope of the manual
This manual has been written by the Manufacturer and is an integral part of the machine.
It defines the purpose for which the machine has been designed and constructed and
contains all the information required by operators2.
In addition to this manual containing all user information, other publications are available
providing specific information for maintenance personnel3.
Constant respect for the instructions guarantees the safety of the operator and the
machine, low running costs and high quality results and extends the working life of the
machine. Failure to respect the instructions may lead to damage to the operator,
machine, floor being washed and environment.
To find the topic that interests you more rapidly, consult the list of contents at the
beginning of the manual.
Parts of the text requiring special attention are highlighted in bold and preceded by the
symbols illustrated and described here.
! DANGER
Indicates the need for attention in order to avoid a series of consequences which
could cause death or damage to the health of the operator.
IMPORTANT
Indicates the need for attention in order to avoid a series of consequences which
could cause damage to the machine or work environment or financial loss.
i INFORMATION
Particularly important instructions.
In line with the company's policy of constant product development and updating, the
Manufacturer reserves the right to make modifications without warning.
Although your machine may differ appreciably from the illustrations in this document,
safety and the information contained in this manual are guaranteed.
1
The definition "machine" replaces the trade name covered by this manual..
2
Persons responsible for using the machine without performing any operations requiring precise technical skills.
3
Persons with experience, technical training and a knowledge of legislation and standards, able to perform all the
necessary operations and to recognise and avoid possible risks in handling, installation, use and maintenance of this
machine.
Page 5
ENGLISH
5
2.2. Identifying the machine
The rating plate provides the following information:
• model;
• power supply;
• total nominal power;
• serial number;
• year of fabrication;
• dry weight;
• maximum slope;
• barcode with serial number;
• manufacturer's identification.
2.3. Documentation provided with the machine
• User manual;
• guarantee certificate;
• EC certificate of conformity.
3.
TECHNICAL INFORMATION
3.1. General description
This machine is a scrubber drier for sweeping, washing and drying flat, horizontal, smooth
or moderately rough, even and obstacle free floors in civil and industrial premises.
The scrubber drier spreads a solution of water and detergent in the correct concentration
on the floor and then scrubs it to remove the dirt. By carefully choosing the detergent and
brushes (or abrasive disks) from the wide range of accessories available, the machine
can be adapted to a wide range of combinations of types of floor and dirt.
A suction system incorporated in the machine dries the floor after washing by means of
the low pressure generated in the dirty water tank by the suction motor. The squeegee
connected to the tank collects the dirty water.
3.2. Legend
The main parts of the machine are as follows:
• detergent tank (fig. A, ref. 1): contains and transports the mixture of clean water and
detergent;
• dirty water tank (fig. A, ref. 2): collects the dirty water picked up from the floor after
washing;
• control panel (fig. A, ref. 3);
• head assembly (fig. A, ref. 4): the main element is the brushes which distribute the
detergent solution on the floor and remove the dirt;
• squeegee assembly (fig. A, ref. 5): wipes and dries the floor by collecting the water;
3.3. Danger zones
A - Tank assembly: when using certain detergents, danger of irritation for eyes, skin,
mucous membranes and respiratory tract and of asphyxia. Danger represented by
the dirt collected from the environment (germs and chemical substances). Danger of
crushing between the tank assembly and chassis.
! DANGER
The tank assembly (CT 230) MUST ALWAYS BE raised and lowered using the
handles incorporated in the tank (fig. C, ref. 3).
Page 6
ENGLISH
6
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
B -Control panel danger of short circuit.
C -Bottom of washing head: danger due to brush rotation.
D -Rear wheels: danger of crushing between the wheel and chassis.
E -Battery compartment: danger of short circuit between the battery poles and presence
of hydrogen during charging.
F - Side brushes: danger due to brush rotation.
3.4. Accessories
• Bristle brushes: for washing delicate floors and polishing;
• Polypropylene brushes: for normal floor washing;
• Tynex brushes: for removing accumulated stubborn dirt on resistant floors;
• Drive disks: enable the following disks to be used:
∗ Yellow disks: for washing and polishing marble and similar
surfaces;
∗ Green disks: for washing resistant floors;
∗ Black disks: for thorough washing of resistant floors with
stubborn dirt.
• CHEM DOSE (CT 230 only) (fig. G): system for controlling detergent independently
from the detergent tank.
4.
SAFETY INFORMATION
4.1. Safety regulations
Read the "User Manual" carefully before start-up and use or before performing
maintenance or any other work on the machine.
IMPORTANT
Rigorously respect all instructions in the Manual (in particular those relating to
danger and important information) and on the safety plates fitted to the machine.
The Manufacturer declines all liability for damage to people or things resulting from
failure to observe the instructions.
The appliance must be used exclusively by persons trained in its use and/or who have
demonstrated their ability and have been expressly instructed to use the appliance.
The machine must not be used by minors.
The machine must not be used for purposes other than those for which it was expressly
designed. Scrupulously respect all safety standards and conditions applicable to the type
of building in which the machine is to be operated (e.g. pharmaceutical companies,
hospitals, chemicals, etc).
Do not use the machine in places with inadequate lighting or explosive atmospheres, on
public roads, in the presence of dirt hazardous to health (dust, gas, etc) and in unsuitable
environments.
The machine is designed for temperatures of between +4°C and +35°C when in use and
between +0°C and +50°C when not in use.
Page 7
ENGLISH
7
The machine is designed to work in a humidity of between 30% and 95%.
Never use or pick up flammable liquids or explosives (e.g. petrol, fuel oil, etc), flammable
gases, dry dusts, acids and solvents (e.g. paint solvents, acetone etc) even if diluted.
Never pick up flaming or incandescent objects.
Never use the machine on slopes or ramps of more than 16%. In the case of slight
slopes, do not use the machine transversally, always manoeuvre with care and do not
reverse. When transporting the machine on steeper ramps or slopes, take the utmost
care to avoid tipping up and/or uncontrolled acceleration. Move the machine on ramps
and/or steps only with the brush head and squeegee raised.
Never park the machine on a slope.
The machine must never be left unattended with the motors on. Before leaving it, turn the
motors off and make sure it cannot move accidentally by putting the parking brake on and
disconnecting it from the power supply.
Always pay attention to other people, children in particular, present in the place where you
are working.
Children must be supervised to make sure they do not play with the appliance.
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Never use the machine to transport people or things or to tow things. Do not tow the
machine.
Never rest objects of any weight on the machine for any reason.
Never obstruct ventilation and heat dispersion slits.
Never remove, modify or circumvent safety devices.
Numerous unpleasant experiences have shown that a wide range of personal objects
may cause serious accidents. Before beginning work, remove jewellery, watches, ties,
etc.
The operator must always use personal protection devices: protective apron or overalls,
non-slip waterproof shoes, rubber gloves, protective goggles and ear protectors and mask
to protect the respiratory tract.
Keep the hands away from moving parts.
Never use detergents other than those specified. Follow the instructions on the relative
safety sheet. Detergents should be kept out of reach of children. In the event of contact
with the eyes, wash immediately with abundant water. If swallowed, consult a doctor
immediately.
Make sure the power sockets used for the battery charger are connected to a suitable
earth system and protected by differential thermal solenoid switches.
Make sure the electrical characteristics of the machine (voltage, frequency, absorbed
power) given on the rating plate are the same as those of the mains electricity supply.
It is indispensable to respect the battery manufacturer's instructions and current
legislation. The batteries should always be kept clean and dry to avoid surface leakage
current. Protect the batteries from impurities such as metal dust.
Never rest tools on the batteries as this could cause short circuit and explosion.
When using battery acid, always follow the relative safety instructions scrupulously.
Battery charger (OPTIONAL): check the power cable regularly for damage. If the power
cable is damaged, the charger must not be used.
In the presence of particularly strong magnetic fields, assess the possible effect on the
control electronics.
Never wash the machine with water jets.
The fluids collected contain detergent, disinfectant, water and organic and inorganic
material. They must be disposed off in accordance with current legislation.
In the case of malfunction and/or faulty operation, turn the machine off immediately
(disconnecting it from the mains power supply or batteries) and do not tamper. Contact a
service centre authorised by the Manufacturer.
All maintenance operations must be performed in an adequately lit place and only after
disconnecting the machine from the power supply.
Page 8
ENGLISH
8
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
The tank assembly MUST ALWAYS BE lowered/raised using the handles incorporated in
the tank (fig. C, ref. 3). Danger of crushing the limbs.
The tank assembly (CT 160 – CT 230) MUST ALWAYS BE lowered/raised with the tanks
empty.
All work on the electrical system and all maintenance and repair operations other than
those explicitly described in this manual must be performed by specialised personnel
expert in the sector only.
Only original accessories and spare parts supplied by the Manufacturer may be used in
order to guarantee safe problem-free operation of the machine. Never use parts removed
from other machines or from other kits.
This machine has been designed and constructed to provide ten years' service from the
fabrication date shown on the rating plate. After this time, whether the machine has been
used or not, it should be disposed of according to current legislation in the country in
which it is used:
- the machine must be disconnected from the power supply, emptied of liquids and
cleaned;

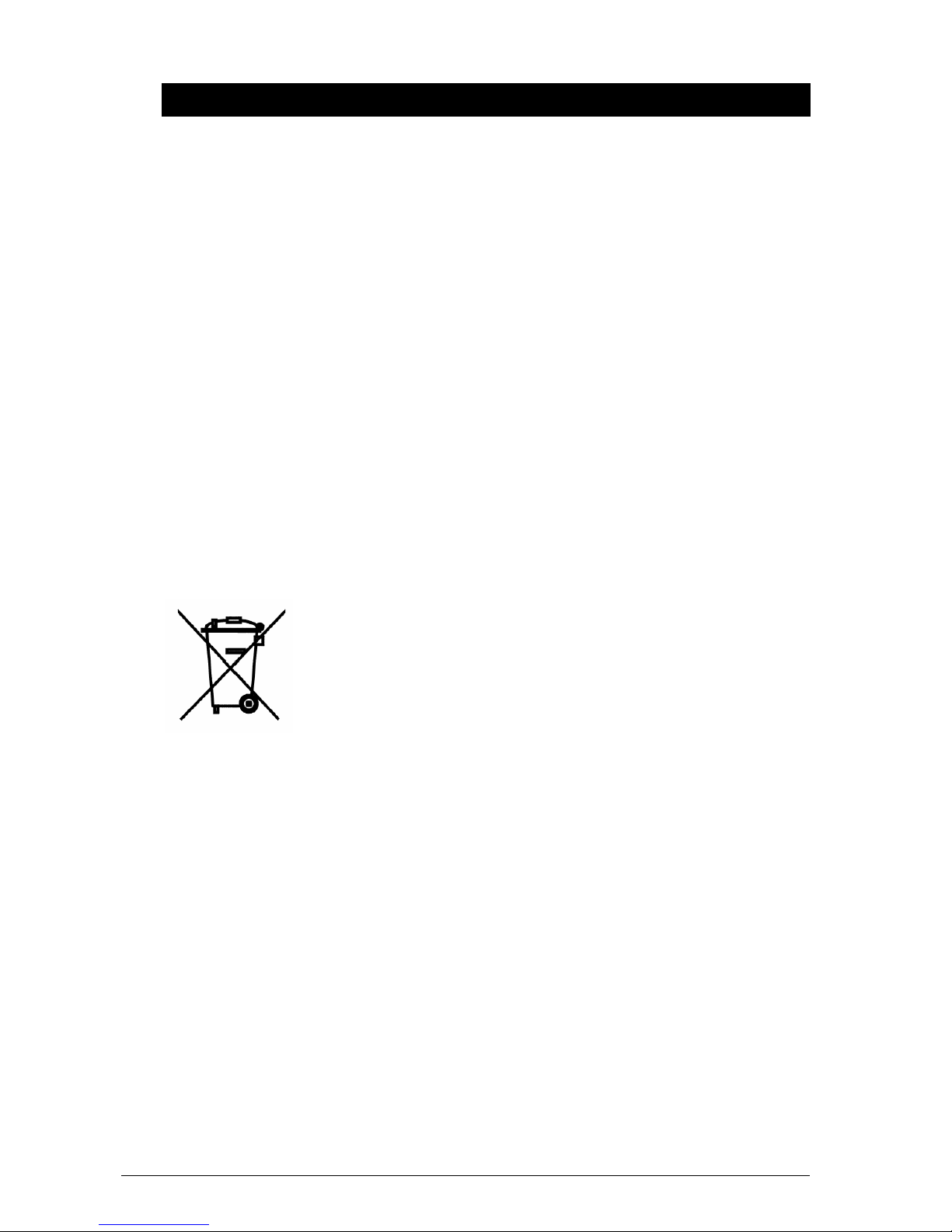

- the product is classified as WEEE type special waste and is covered by the
requisites of the new environmental protection regulations (2002/96/EC WEEE). It
must be disposed of separately from ordinary waste in compliance with current
legislation and standards.
Special waste. Do not dispose of with ordinary waste.
Alternatively the machine must be returned to the Manufacturer for a complete overhaul.
If you decide to stop using the machine, you are recommended to remove the batteries
and dispose of them at an authorised collection centre.
You should also make sure that all parts of the appliance which could represent a hazard,
particularly to children, are made safe.
Page 9
ENGLISH
9
5.
HANDLING AND INSTALLATION
5.1. Lifting and transporting the packaged machine
IMPORTANT
During all lifting operations, make sure the packaged machine is firmly anchored to
avoid it tipping up or being accidentally dropped.
Always load/unload lorries in adequately lit areas.
The machine, packaged on a wooden pallet by the Manufacturer, must be loaded using
suitable equipment (see EC Directive 2006/42 and subsequent amendments and/or
additions) onto the transporting vehicle. At destination, it must be unloaded using similar
means.
The squeegees are packed in cardboard boxes without pallet.
A fork lift truck must always be used to lift the packaged body of the machine. Handle
with care to avoid knocking or overturning the machine.
5.2. Checks on delivery
When the carrier delivers the machine, make sure the packaging and machine are both
whole and undamaged. If the machine is damaged, make sure the carrier is aware of the
damage and before accepting the goods, reserve the right (in writing) to request
compensation for the damage.
5.3. Unpacking
IMPORTANT
When unpacking the machine, the operator must be provided with the necessary
personal protection devices (gloves, goggles, etc) to limit the risk of accident.
Unpack the machine as follows:
• cut and remove the plastic straps using scissors or nippers;
• remove the cardboard;
• remove the bags in the battery compartment and check the contents:
- use and maintenance manual, declaration of conformity, guarantee certificate;
- battery bridges with terminals
- connector for battery charger;
• depending on the model, remove the metal brackets or cut the plastic straps fixing the
machine chassis to the pallet;
• using a sloping ramp, push the machine backwards off the pallet;
• unpack the brushes and squeegee;
• clean the outside of the machine in respect of safety regulations;
• once the machine is clear of the packaging, the batteries can be installed (see relevant
paragraph).
The packaging may be kept as it can be reused to protect the machine if it is moved to
another site or to a repair workshop.
Otherwise it must be disposed off in compliance with current legislation.
5.4. Batteries
Two different types of battery may be installed on these machines:
• tubular leak-proof batteries: the electrolyte level must be checked regularly. When
necessary, top up with distilled water until the plates are covered. Do not overfill (5 mm
max. above the plates).
• gel batteries: this type of battery requires no maintenance.
Page 10
ENGLISH
10
The technical characteristics must correspond to those indicated in the paragraph on the
technical specification of the machine. The use of heavier batteries could seriously
jeopardise manoeuvrability and lead to the brush motor overheating. Batteries with a
lower capacity and weight will require charging more frequently.
They must be kept charged, dry and clean and the connections must be tight.
i INFORMATION
Follow the instructions below to set the machine’s software for the type of battery
installed:
1. with the machine off, hold the buttons P1 (fig. B, ref. 1) and P3 (fig. B, ref. 2) down
simultaneously and then start the machine by turning the ignition key (fig. B, ref. 3)
to "1".
2. press the settings button (fig. B, ref. 4) 3 times.
3. press the "flow regulation" buttons (fig. B, ref. 5) to select the type of battery
installed on the machine "ACd" for acid battery (tubular leak-proof batteries) or
"GEL" (GEL batteries).
4. memorise the parameter displayed by holding the settings button (fig. B, ref. 4)
down until the battery voltage is displayed.
5.4.1. Batteries: preparation
! DANGER
While installing or performing maintenance on the batteries, the operator must be
provided with the necessary personal protection devices (gloves, goggles, overalls,
etc) to limit the risk of accident. Keep away from naked flames, avoid short
circuiting the battery poles, avoid sparks and do not smoke.
The batteries are normally supplied filled with acid and ready for use.
If the batteries are dry, before mounting them on the machine, proceed as follows:
• remove the caps and fill all elements with specific sulphuric acid solution until the
plates are entirely covered (this requires at least a couple of passes for each element);
• leave for 4-5 hours to allow the air bubbles to come to the surface and the plates to
absorb the electrolyte;
• make sure the level of electrolyte is still above the plates and if necessary top up with
sulphuric acid solution;
• close the caps;
• mount the batteries on the machine (following the procedure described below).
Before starting up the machine for the first time, charge the batteries as follows.
5.4.2. Batteries: installation and connection
! DANGER
Check that all switches on the control panel are in the "0" (off) position.
Make sure you connect the terminals marked with a "+" to the positive poles of the
battery. Do not check the battery charge by sparking.
Follow the instructions given below meticulously as shortcircuiting the batteries
could cause them to explode.
CT160
• Make sure the dirty water tank is empty and empty it if necessary (see relevant
paragraph).
• Lift the dirty water tank (fig. C, ref. 5) and tilt it backwards to access the battery
compartment (fig. C, ref. 2) from the top, Rotate the seat cowling (fig. C, ref. 4)
forwards.
Page 11
ENGLISH
11
CT230
• Make sure the two tanks are empty (if necessary, empty them, see relevant section),
then unscrew the safety knob (fig. C, ref. 1).
• Lift the tank assembly and rotate it inwards, providing access to the battery
compartment from the top (fig. C, ref. 2).
! DANGER
The tank assembly (CT 230) MUST ALWAYS BE raised using the handles
incorporated in the tank (fig. C, ref. 3). Danger of crushing the limbs.
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
• Place the batteries in the battery compartment in the direction shown in the diagram
on the compartment.
IMPORTANT
Mount the batteries on the machine using lifting means suitable for their weight.
The positive and negative poles have different diameters.
• Referring to the wiring layout shown in the above diagram, connect the battery cable
and bridge terminals to the battery poles. Arrange the cables as shown in the
diagram, tighten the terminals on the poles and cover with Vaseline.
• Lower the tank assembly into the working position
! DANGER
The tank assembly (CT 230) MUST ALWAYS BE lowered using the handles
incorporated in the tank (fig. C, ref. 3). Danger of crushing the limbs.
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
• When using the machine, follow the instructions below.
5.4.3. Batteries: removal
! DANGER
When removing the batteries, the operator must be equipped with suitable personal
protection devices (gloves, goggles, overalls, safety shoes, etc) to reduce the risk
of accidents. Make sure the switches on the control panel are in the "0" position
(off) and the machine is turned off. Keep away from naked flames, do not short
circuit the battery poles, do not cause sparks and do not smoke. Proceed as
follows:
• disconnect the battery wiring and bridge terminals from the battery poles.
• if necessary, remove the devices fixing the battery to the base of the machine.
• lift the batteries from the compartment using suitable lifting equipment.
Page 12
ENGLISH
12
5.5. The battery charger
IMPORTANT
Never allow the batteries to become excessively flat as this could damage them
irreparably.
5.5.1. Choosing the battery charger
Make sure the battery charger is compatible with the batteries to be charged:
− tubular lead batteries: you are recommended to use an automatic battery charger
Consult the battery charger manufacturer and manual to confirm the choice.
− gel batteries: use a charger specific for this type of battery.
5.5.2. Preparing the battery charger
If you wish to use a battery charger not provided with the machine, you must fit it with the
connector supplied with the machine (see paragraph "Unpacking" in this manual).
To install the connector, proceed as follows:
• remove about 13 mm of protective sheath from the red and black wires of the battery
charger;
• insert the wires into the connector contacts and squeeze them forcefully with suitable
pliers;
• respect the polarity (red wire + black wire –) when inserting the wires into the
connector.
5.6. Lifting and transporting the machine
IMPORTANT
All phases must be performed in an adequately lit room and adopting the safety
measures most appropriate to the situation.
The operator must always use personal protection devices.
To load the machine onto a means of transport, proceed as follows:
• empty the dirty water tank and detergent tank;
• remove the squeegee and brushes (or drive disks);
• remove the batteries;
• place the machine on the pallet and fix it with plastic straps or metal brackets;
• lift the pallet (with the machine) using a fork lift truck and load it onto the means of
transport;
• anchor the machine to the means of transport with cables connected to the pallet and
machine itself.
6.
PRACTICAL GUIDE FOR THE OPERATOR
6.1. Controls - Description
With reference to fig. B, the machine has the following controls and indicator lights:
• Display (fig. B, ref. 6): displays alarms and menus. During normal operation, the hour
counter (giving the actual number of hours the machine has been operating) and
battery voltage are displayed.
• Main Switch (fig. B, ref. 3): enables and disables electrical power to all machine
functions. To start up the machine, turn the key clockwise.
• Emergency button (fig. B, ref. 7): this acts as a safety device
. To stop the machine
press the button.
Page 13
ENGLISH
13
• Brush button (MANUAL OPERATION) (fig. B, ref. 8): enables (LED on) and disables
(LED off) brush operation and head raising and lowering.
• Suction button (MANUAL OPERATION) (fig. B, ref. 9): starts and stops the suction
motor responsible for drying the floor being washed. When the suction motor is
turned on, the squeegee is automatically lowered. When it is turned off, the squeegee
is automatically raised.
• Detergent flow regulation buttons (fig. B, ref. 5): pressing these buttons regulates
the quantity of detergent delivered (displayed by LEDs).
• Detergent tank level indicator (fig. B, ref. 10): the LED comes on when there is no
longer sufficient water in the detergent tank.
• Dirty water tank level indicator (fig. B, ref. 11): when the dirty water tank is full the
LED comes on and after a few seconds the suction motor shuts down.
• Direction selector (fig. B, ref. 12): move this selector to set movement of the machine
to forwards or reverse
• Alarm indicator (fig. B, ref. 13), the frequency with which the LED lights up defines
the electronic board error code (see chapter 11). During operation in the absence of
malfunction, the LED is on steadily.
• Horn (fig. B, ref. 14): acoustic warning.
• Settings button (fig. B, ref. 4): when pressed, scrolls through the various parameters
which can be set on the machine software.
• Work programme buttons (AUTOMATIC OPERATION): set the work programme to
be used.
1. P1 (fig. B, ref. 1) light wash programme for smooth not excessively dirty floors.
2. P2 (fig. B, ref. 15) medium wash programme for smooth floors with evident
dirt.
3. P3 (fig. B, ref. 2) heavy wash programme for rough floors (concrete etc.) with
stubborn dirt.
Please note: before setting a new work programme, the previous programme
must be deselected.
• Brush attachment/release button (fig. B, ref. 16): enables automatic brush
attachment or release
• CHEM DOSE switch (optional) (fig. B, ref. 17): enables and disables CHEM DOSE
operation
• Service brake/parking brake (fig. D, ref. 1), acts mechanically on the two drum
brakes on the rear wheels.
• Machine movement pedal (fig. D, ref. 2): pivoting device to regulate machine speed.
• Side brush lifting levers (fig R, ref. 1): raising or lowering these levers disables or
enables operation of the side brushes (when present).
• Speed potentiometer (fig. B, ref. 18): regulates the speed of the machine forwards
and backwards.
i INFORMATION
The machine (CT 230 only) has a safety system to prevent it tipping over. This
reduces the speed on bends, irrespective of the pressure exerted on the machine
movement pedal. This reduction of speed on bends is therefore not a malfunction,
but a feature which increases the machine's stability in all conditions.
Page 14
ENGLISH
14
6.2. Mounting and adjusting the squeegee
The squeegee (fig. E) is responsible for the first phase of drying.
To mount the squeegee on the machine, proceed as follows:
• make sure the squeegee mount (fig. E, ref. 1) is raised;
• insert the sleeve of the suction hose (fig. E, ref. 2) fully into the squeegee;
• slacken the two knobs (fig. E, ref. 3) at the centre of the squeegee;
• insert the two threaded pins into the slots on the support;
• fix the squeegee by tightening the two knobs (fig. E, ref. 3).
• The squeegee blades scrape the film of water and detergent from the floor and
prepare the way for perfect drying. With time, the constant rubbing makes the edge
of the blade in contact with the floor rounded and cracked, reducing the drying
efficiency and requiring it to be replaced. The state of wear should be checked
frequently.
• For perfect drying, the squeegee must be adjusted in such a way that the edge of the
rear blade bends during operation by about 45° with respect to the floor at every point.
The angle of the blades can be adjusted during work by turning the knob (fig. E, ref.
5) on the squeegee mount. The height of the squeegee can be adjusted by adjusting
the height of the wheels on the squeegee mount (fig. E, ref. 4).
6.3. Moving the machine when not in operation
To move the machine, proceed as follows:
• raise the squeegee;
• raise the head;
• use the selector (fig. B, ref. 12) to set the direction of movement;
• operate the accelerator pedal (fig. D, ref. 2).
IMPORTANT
Do not leave the machine unattended or parked with the key inserted in the main
switch and the parking brake off.
6.4. Mounting and changing the brush/drive disks
IMPORTANT
Never work without the brushes and drive disks correctly installed.
Automatic brush attachment: with the head raised and the machine off, lift the side
flaps on both sides (fig. F, ref. 1) and place the brushes under the head, making sure they
rest against the centring devices to align them with the attachment assembly. Start the
machine by turning the main switch and press the brush attachment/release button (fig. B,
ref. 16). The machine first performs a release operation (LED flashing), then immediately
afterwards enables the attachment operation (LED flashing). The machine is now ready
for attachment of the brushes, performed by pressing the brush attachment/release
button (fig. B, ref. 16) again. When the button is pressed, the LED flashes until the
attachment operation is complete.
Automatic brush release:
stop brush rotation and turn the suction motor off, then press the brush
attachment/release button (fig. B, ref. 16). The machine performs the release operation
(LED flashing).
Attaching the brushes on a roller head: with the head raised and the machine off, open
the side flap plate (fig. S, ref. 1) by unhooking the spring (fig. S, ref. 2). Remove the brush
compartment cover (fig. S, ref. 3) by pulling the release lever (fig. S, ref. 4), then insert
the brushes in the two compartments, making sure you intercept the guide pin on the
opposite side correctly. Replace the cover and close the side flap plate.
Page 15
ENGLISH
15
Releasing the brushes on a roller head: repeat the above procedure in reverse.
Attaching the side brushes (when present): to facilitate transport, the side brushes are
not installed in the operating position. To install the side brushes, proceed as follows:
• Unscrew the screws on the side brush motor shaft.
• Make sure the cotter pin is inserted on the motor shaft.
• Insert the brush complete with flange on the motor shaft.
• Screw the locking screw up again.
Releasing the side brushes: repeat the above procedure in reverse.
6.5. Detergents - Instructions
IMPORTANT
Always dilute the detergent according to the manufacturer's instructions. Do not
use sodium hypochlorite (bleach) or other oxidants, particularly in strong
concentrations. Do not use solvents or hydrocarbons. The temperature of the
water and detergent must not exceed the maximum indicated in the technical
specification. They must be free of sand and/or other impurities.
The machine has been designed for use with low-foam biodegradable detergents made
specifically for scrubber driers.
For a complete and up-to-date list of the detergents and chemicals available, contact the
Manufacturer.
Use products suitable for the floor and dirt to be removed only.
Follow the safety regulations on use of detergents given in the section "Safety
regulations".
6.6. Preparing the machine for work
IMPORTANT
Before starting work, wear overalls, ear protectors, non-slip waterproof shoes,
mask to protect the respiratory tract, gloves and all other personal protection
devices recommended by the supplier of the detergent used or necessitated by the
work environment.
Before starting work, proceed as follows:
• check the battery charge (charge if necessary);
• make sure the dirty water tank (fig. A, ref. 2) is empty. If necessary, empty it;
• via the opening, fill the detergent tank (fig. A, ref. 1) with a suitable concentration of
clean water and low-foam detergent. Leave at least 5 cm between the surface of the
liquid and the opening of the tank;
• if the machine is fitted with the optional CHEM DOSE accessory, fill the CHEM DOSE
tank (fig. G, ref. 2) with appropriately diluted low-foam detergent.
• mount the most suitable brushes or drive disks for the floor and work to be performed
(see paragraph 3.4);
• make sure the squeegee (fig. E) is firmly attached and connected to the suction hose
(fig. E, ref. 2). Make sure the back blade is not worn.
i INFORMATION
If you are using the machine for the first time, we recommend trying it on a large
obstacle-free surface first to acquire the necessary familiarity.
Always empty the dirty water tank before filling the detergent tank again.
For effective cleaning and to extend the working life of the machine, follow a few simple
rules:
Page 16
ENGLISH
16
• prepare the work area by removing all possible obstacles;
• begin working from the furthermost point to avoid walking on the area you have just
cleaned;
• choose the straightest possible working routes;
• divide large floors into parallel rectangular sections.
If necessary, finish off by passing a mop or rag rapidly over parts inaccessible to the
scrubber drier.
6.7. Working
i INFORMATION
The seat (fig. D, ref. 3) has a safety sensor which allows the machine to move only
when the operator is seated.
i INFORMATION
The machine (CT 230 only) has a safety system to prevent it tipping over. This
reduces the speed on bends, irrespective of the pressure exerted on the machine
movement pedal. This reduction of speed on bends is therefore not a malfunction,
but a feature which increases the machine's stability in all conditions.
i INFORMATION
When the machine movement pedal is released, all functions shut down
automatically within 5 seconds (Auto Power-Off). While the machine is in stand-by,
the light corresponding to the set programme will flash. To reactivate the
functions, just move the machine without deselecting the set programme (Auto
Power-On).
After setting up the machine, proceed as follows:
• start the machine by turning the key (main switch) clockwise (fig. B, ref. 3).
• Select the most suitable programme from the three available. Pressing one of the work
programme buttons activates all the functions of the chosen programme (brush motors
and suction motor on).
• P1 (fig. B, ref. 1) light wash programme for smooth not excessively dirty floors.
• P2 (fig. B, ref. 15) medium wash programme for smooth floors with evident dirt.
• P3 (fig. B, ref. 2) heavy wash programme for rough floors (concrete etc.) with
stubborn dirt.
• Press the detergent flow regulation buttons (fig. B, ref. 5): to set the quantity of
detergent delivered (displayed by LEDs).
• use the direction selector (fig. B, ref. 12) to set the direction of movement;
• press the machine movement pedal (fig. D, ref. 2).
• the maximum working speed can be set by turning the speed potentiometer (fig. B, ref.
18).
• If the machine is fitted with side brushes, these must be lowered using the levers on
the steering column. The brush motors will not start unless the brushes are fully
lowered (fig. R, ref. 1).
• Begin working.
•
• If the machine is fitted with the optional CHEM DOSE accessory, press the button (fig.
B, ref. 17) to turn the device on, then adjust the detergent mixture to send to the
Page 17
ENGLISH
17
brushes using the regulation screw (fig. G, ref. 1). The quantity can be adjusted from
0.5% to 3% per litre of water.
IMPORTANT
Empty the dirty water tank each time you fill the detergent tank.
• when the dirty water tank is full, the corresponding level indicator comes on (fig. B, ref.
11) and after a few seconds the suction motor shuts down. You must stop working and
empty the tank.
• when the detergent tank is empty, the corresponding level indicator comes on (fig. B,
ref. 10), the machine emits an intermittent beep and "water reserve" is displayed. You
must stop work and fill the detergent tank.
• The machine has a safety device which automatically disables all functions, apart from
the drive, when the batteries drop below about 29 V. You must charge the batteries.
At the end of work:
• Disable the chosen wash programme (fig. B, ref. 1,2,15 (LED off);
• release the machine movement pedal (fig. D, ref. 2)
• turn the optional CHEM DOSE accessory off (fig. B, ref. 17);
• put the parking brake (fig. D, ref. 1) on;
• stop the machine by turning the key (main switch) anticlockwise (fig. B, ref. 3).
• disconnect the batteries;
• empty and clean the dirty water tank using the drain hose (fig. H, ref. 1).
• empty and clean the debris bin, ROLLER head version (fig. S, ref 5).
6.8. Some useful tips to get the most from your scrubber drier
•
In the event of particularly stubborn dirt on the floor, washing and drying can be
performed in two separate operations.
6.8.1. Prewashing with brushes or pads
• start the machine by turning the key (main switch) clockwise (fig. B, ref. 3).
• adjust the detergent flow (fig. B, ref. 5);
• press the brush button (fig. B, ref. 8) (LED on);
• stop the suction motor by pressing the button (fig. B, ref. 9) (LED off);
• If the machine is fitted with the optional CHEM DOSE accessory, press the button (fig.
B, ref. 17) to turn the device on, then adjust the detergent mixture to send to the
brushes using the regulation screw (fig. G, ref. 1). The quantity can be adjusted from
0.5% to 3% per litre of water.
• begin washing.
The flow of water must be adjusted in proportion to the desired advance speed. The
slower the machine moves forwards, the less water is needed.
Persist when washing particularly dirty points to give the detergent time to perform its
chemical action detaching and suspending the dirt and the brushes time to exert an
effective mechanical action.
6.8.2. Drying
Turn the suction motor on by pressing the button (fig. B, ref. 9), then pass over the same
area washed previously. The result is equivalent to in-depth washing and subsequent
ordinary maintenance will take less time.
6.9. Draining the dirty water
! DANGER
Page 18
ENGLISH
18
Use suitable personal protection devices.
The dirty water tank drain hose is at the back of the machine on the right.
To empty the tank:
• move the machine near a drain;
• remove the drain hose (fig. H, ref. 1) from its housing;
• keeping the end of the hose as high as possible, unscrew and remove the cap;
• lower the end of the hose gradually, controlling the intensity of the flow of water by
adjusting the height from the ground;
• check the amount of dirt left in the dirty water tank and if necessary wash it out;
• close the drain hose (fig. H, ref. 1) by replacing the cap, check that it is tightly closed
and replace the hose in its housing.
You are then ready to wash and dry again.
6.10. Draining the clean water
! DANGER
Use suitable personal protection devices.
To empty the tank:
• move the machine near a drain;
• remove the drain hose (fig. H, ref. 2) from its housing;
• keeping the end of the hose as high as possible, unscrew and remove the cap;
• lower the end of the hose gradually, controlling the intensity of the flow of water by
adjusting the height from the ground;
• when the detergent tank is empty, close the drain hose (fig. H, ref. 2) by replacing the
cap, check that it is tightly closed and replace the hose in its housing.
i INFORMATION
The water and detergent solution can also be used to wash the dirty water tank.
7.
PERIODS OF INACTIVITY
If the machine is not used for some time, remove the squeegee, brushes and drive disks,
wash them and put them away in a dry place (preferably in a bag or wrapped in plastic
film) away from dust. Park the machine with the parking brake on.
Make sure the tanks are completely empty and perfectly clean.
Disconnect the machine from the power supply.
Charge the batteries completely before storing them. During long periods of inactivity,
you should charge the batteries regularly (at least once every two months) to keep them
constantly at maximum charge.
IMPORTANT
If you do not charge the batteries regularly, they may be irrevocably damaged.
8.
BATTERY MAINTENANCE AND CHARGING
! DANGER
Page 19
ENGLISH
19
Do not check the batteries by sparking.
The batteries give off flammable fumes. Put out all fires and hot embers before
checking or topping up the batteries.
Perform the operations described above in a ventilated room.
To avoid permanent damage to the batteries, do not run them down completely.
Remember that when the battery voltage displayed drops to about 29V, the batteries
must be charged.
8.1. Charging procedure
• connect the battery charger connector to the battery wiring connector;
IMPORTANT
In the case of gel batteries, use a charger specific for gel batteries only.
• Charge the batteries as described in the battery charger manual;
• at the end of charging, disconnect the connectors;
9.
MAINTENANCE INSTRUCTIONS
! DANGER
Never perform any maintenance operations without first disconnecting the
batteries.
Maintenance on the electrical circuit and all other operations not explicitly
described in this manual must be performed by specialised personnel only, in
compliance with current safety legislation and as described in the maintenance
manual.
! DANGER
The tank assembly (CT 230) MUST ALWAYS BE lowered/raised using the handles
incorporated in the tank (fig. C, ref. 3). Danger of crushing the limbs.
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
! DANGER
The tank assembly (CT 160 – CT 230) MUST ALWAYS BE lowered/raised with the
tanks empty.
! DANGER
When the tank assembly (CT230) is raised, the gas spring on the left side of the
machine (fig. T) must be locked in place by turning the green ring to the closed
padlock position to prevent the tanks from closing accidentally.
9.1. Maintenance - General rules
Performing regular maintenance according to the Manufacturer's instructions improves
performance and extends the working life of the machine.
Page 20
ENGLISH
20
When cleaning the machine, respect the following:
• avoid the use of high pressure washers. Water could penetrate the electrical
compartment or motors leading to damage or the risk of short circuit;
• do not use steam to avoid the heat warping plastic parts;
• do not use hydrocarbons or solvents as they could damage the cowling and rubber
parts.
9.2. Routine maintenance
9.2.1 CT 160 basket filter: cleaning
• remove the basket filter from the water fill hole (fig. I, ref. 5);
• clean the filter with running water or the detergent solution used on the machine;
• replace the filter, making sure it is correctly positioned in its housing.
• put the cap back.
9.2.2 CT 230 basket filter and float switch
• access the dirty water tank by turning the lid (fig. I, ref. 1);
• make sure the dirty water tank is empty;
• remove the float switch guard (fig. I, ref. 2).
• clean the float switch (fig. I, ref. 3) at the front of the dirty water tank, taking care not to
direct the water jet directly against the float switch;
• remote the basket filter from the water fill hole (fig. I, ref. 4);
• clean the filter with running water or the detergent solution used on the machine;
• replace the filter, making sure it is correctly positioned in its housing.
• close the dirty water tank lid (fig. I, ref. 1).
9.2.3 CT 160 suction motor air filter: cleaning
• rotate the seat cowling (fig. L, ref. 3) forwards, lift the suction motor assembly cover
(fig. L, ref. 4) and remove the filter (fig. L, ref. 5);
• clean the filter with running water or the detergent solution used on the machine;
• dry the filter thoroughly, then replace in its housing;
• close the seat cowling (fig. L, ref. 3).
9.2.4 CT 230 Suction motor air filter: cleaning
• lift the suction motor assembly cover (fig. L, ref. 1) and remove the filter (fig. L, ref. 2);
• clean the filter with running water or the detergent solution used on the machine;
• dry the filter thoroughly, then replace in its housing;
• replace the suction motor assembly cover (fig. L, ref. 1).
9.2.5 Detergent filter: cleaning
• unscrew the cover above the filter assembly (fig. M, ref. 1);
• remove the filter;
• clean the filter with running water or the detergent solution used on the machine;
• replace the filter in its housing and screw the cover back on the filter assembly.
9.2.6 Squeegee blades: replacing
The squeegee blades collect the film of water and detergent from the floor and prepare
the way for perfect drying. With time, the constant rubbing leaves the edge of the blade
Page 21
ENGLISH
21
in contact with the floor rounded and cracked, reducing the drying efficiency and requiring
it to be replaced.
CT 160 Turning or replacing the rear blade:
• remove the squeegee from its mount by unscrewing the two knobs (fig. N, ref. 1);
• remove the suction hose sleeve from the squeegee;
• unscrew the nuts (fig. N, ref. 2);
• release the clip (fig. N, ref. 3);
• extract the two blade retainers (fig. N, ref. 4);
• remove the blade (fig. N, ref. 5);
• reuse the same blade by reversing the edge in contact with the floor until all four edges
are worn out, or replace with a new blade, fitting it onto the screws on the body of the
squeegee;
• replace the two blade retainers (fig. N, ref. 4) and screw up the nuts (fig. N, ref. 2)
• refasten the clip (fig. N, ref. 3).
Replace the squeegee in its support following the instructions in paragraph 6.2.
CT 160Turning or replacing the front blade:
• remove the squeegee from its mount by unscrewing the two knobs (fig. O, ref. 1);
• remove the suction hose sleeve from the squeegee;
• unscrew the nuts (fig. O, ref. 2);
• extract the two blade retainers (fig. O, ref. 3);
• remove the blade (fig. O, ref. 4);
• reuse the same blade by reversing the edge in contact with the floor until both edges
are worn out, or replace with a new blade, fitting it onto the screws on the body of the
squeegee;
• replace the two blade retainers (fig. O, ref. 3) and screw up the nuts (fig. O, ref. 2).
Replace the squeegee in its support following the instructions in paragraph 6.2.
CT 230 Turning or replacing the front and rear blade:
• remove the squeegee from its mount by unscrewing the two knobs (fig. P, ref. 1);
• remove the suction hose sleeve from the squeegee;
• unscrew the nuts (fig. P, ref. 2);
• extract the two blade retainers (fig. P, ref. 3);
• remove the blades (fig. P, ref. 5-6)
• reuse the same blade by reversing the edge in contact with the floor until both edges
are worn out, or replace with a new blade, fitting it onto the screws on the body of the
squeegee;
• replace the two blade retainers (fig. P, ref. 3) and screw up the nuts (fig. P, ref. 2).
Replace the squeegee in its support following the instructions in paragraph 6.2.
9.2.7 Fuses: replacement
The fuses protecting the electrical and electronic components are at the front of the
machine under the front guard (fig. Q, ref. 1) and near the battery compartment (fig. Q,
ref. 2).
To replace the fuses:
• make sure the machine is disconnected from the batteries;
• lift the fuse holder lid and remove the blown fuse;
• fit a new fuse and close the fuse holder cover.
Fuse table: for the complete fuse table, see the spare parts catalogue.
IMPORTANT
Never use a fuse with a higher amperage than specified.
Page 22
ENGLISH
22
If a fuse continues to blow, the fault in the wiring, boards (if present) or motors must be
identified and repaired. Have the machine checked by qualified personnel.
9.3. Routine maintenance
9.3.1. Daily operations
After each day's work, proceed as follows:
• disconnect the machine from the power supply;
• empty the dirty water tank and clean if necessary;
• clean the squeegee blades and check for wear. If necessary, replace;
• check that the suction hole in the squeegee is not blocked, if necessary remove
encrusted dirt;
• charge the batteries according to the procedure described;
• empty and clean the debris bin, ROLLER head version (fig. S, ref 5).
9.3.2. Weekly operations
• clean the dirty water tank float switch and make sure it is working correctly;
• clean the suction air filter and make sure it is undamaged, if necessary, replace;
• clean the detergent filter (fig. M, ref. 1) and check that it is not damaged (replace if
necessary);
• clean the suction hose;
• clean the dirty water tank and detergent tank;
• check the level of battery electrolyte and top up with distilled water if necessari;
• check operation of the service brake.
9.3.3. Six monthly operations
Have the electrical circuit checked by qualified personnel.
Page 23
ENGLISH
23
10.
CONFIGURING THE SCRUBBER DRIER
To change the default settings, proceed as follows.
With the machine on but no function active, press the settings button (fig. B, ref. 4) for at
least 5 seconds. You can now vary the parameters below in the following order:
1. LANGUAGE: select using the "+" and "-" buttons (fig. B, ref. 5). Press the settings
button (fig. B, ref. 4) to save the setting then move on to the next parameter.
2. PROGRAMME 1 BRUSH PRESSURE FROM 010 TO 100: change using the "+"
and "-" buttons (fig. B, ref. 5). Press the settings button (fig. B, ref. 4) to save the
setting then move on to the next parameter. DEFAULT = 030
3. PROGRAMME 1 BRUSH ENABLING ON-OFF change using the "+" and "-"
buttons (fig. B, ref. 5). Press the settings button (fig. B, ref. 4) to save the setting
then move on to the next parameter. DEFAULT = ON
4. PROGRAMME 1 SUCTION MOTOR ENABLING ON-OFF change using the "+"
and "-" buttons (fig. B, ref. 5). Press the settings button (fig. B, ref. 4) to save the
setting then move on to the next parameter. DEFAULT = ON
5. PROGRAMME 1 WATER DELIVERY: change using the "+" and "-" buttons (fig. B,
ref. 5). The following values can be set:
OFF, when the programme is run, water delivery is not active
Lev. 1, pump active at 18% of working cycle
Lev. 2, pump active at 36% of working cycle
Lev. 3, pump active at 45% of working cycle
Lev. 4, pump active at 60% of working cycle
Lev. 5, pump active at 75% of working cycle
Lev. 6, pump active at 100% of working cycle
AUTO, pump active in proportion to working cycle of drive
Up to 16% speed, pump 18% active
Up to 32% speed, pump 36% active
Up to 50% speed, pump 45% active
Up to 65% speed, pump 60% active
Up to 80% speed, pump 75% active
More than 80% speed, pump 100% active
Press the settings button (fig. B, ref. 4) to save the setting then move on to the
next parameter.
DEFAULT = 2
6. PROGRAMME 1 SPEED: maximum drive speed. The parameter can be varied
from 010 to 100. It can be changed using the "+" and "-" buttons (fig. B, ref. 5).
Press the settings button (fig. B, ref. 4) to save the setting then move on to the
next parameter. DEFAULT = 100
7. PROGRAMME 1 POWER ENABLING ON-OFF: change using the "+" and "-"
buttons (fig. B, ref. 5) Press the settings button (fig. B, ref. 4) to save the setting
then move on to the next parameter. DEFAULT = ON
For PROGRAMMES 2 and 3, use the above procedure. To exit the settings
menu, hold the settings button (fig. B, ref. 4) down until battery voltage is
displayed.
Page 24
ENGLISH
24
11.
TROUBLESHOOTING
11.1. How to resolve possible problems
Possible problems affecting the whole machine.
PROBLEM CAUSE REMEDY
The machine does not function
• battery connector disconnected • connect the batteries to the
machine
• the batteries are flat • charge the batteries
The brushes do not turn
• brush switch not pressed • press the brush switch
• the accelerator has not been
operated
• operate the accelerator
• the batteries are flat • charge the batteries
• the reduction unit is faulty • have the reduction unit
replaced
• the motor is faulty • have the motor replaced
The side brushes do not turn
• the brushes are raised • lower the side brushes using
the lever on the steering
column
• the fuse has tripped • reset the fuse by pressing
the button on the fuse itself
• the reduction unit is faulty • have the reduction unit
replaced
• the motor is faulty • have the motor replaced
The machine does not clean
evenly
• the brush or disks are worn • replace
No detergent is delivered
• the detergent tank is empty • fill it
• the hose delivering the
detergent to the brush is
blocked
• unblock and open the circuit
• the solenoid valve is faulty • replace the solenoid valve
• pump malfunction • replace the pump.
• the filter is clogged • clean the filter
The detergent flow does not
stop
• the solenoid valve is faulty • replace the solenoid valve
The suction motor does not
start
• the suction button has not been
pressed (off)
• press the suction button.
• there is no power to the suction
motor or the motor is faulty
• check that the motor power
connector is correctly
connected to the main
wiring; if it is correctly
connected, have the motor
replaced
• dirty water tank full • empty the dirty water tank.
The squeegee does not clean
or suction is ineffective
• the edge of the rubber blades in
contact with the floor is worn
• replace the rubber blade
• the squeegee or hose is
blocked or damaged
• unblock and repair the
damage
Page 25
ENGLISH
25
• the float switch has tripped (dirty
water tank), is clogged by dirt or
broken
• empty the dirty water tank or
reset the float switch
• the suction hose is blocked • unblock the hose
• the suction hose is not
connected to the squeegee or is
damaged
• connect or repair the hose
• there is no power to the suction
motor or the motor is faulty
• check that the motor power
connector is correctly
connected to the main wiring
and that the fuse is not
blown; in the second case
have the motor replaced
The machine does not move
• the suction motor does not
operate
• release the emergency
button; make sure the motor
is connected correctly to the
main wiring; check the type of
alarm present on the board
(see chapter 11); replace the
motor.
• the motor thermal cutout has
tripped; the motor has
overheated
• stop the machine, turn it off
and leave it to cool for at
least 45’
• the batteries are flat • charge the batteries
The batteries do not provide
the normal work time
• the battery poles and charging
terminals are dirty and oxidised
• clean and grease the poles
and terminals, charge the
batteries
• the electrolyte level is low • top up all the elements with
distilled water as described in
the instructions
• the battery charger does not
work or is unsuitable
• see battery charger
instructions
• there are considerable
differences in density between
the various elements of the
battery
• replace the damaged battery
• you are using the machine with
excessive pressure on the
brushes
• reduce pressure on the
brush
The battery discharges too fast
during use, even though it has
been charged correctly and
when tested with a hydrometer
at the end of charging, it
turned out to be uniformly
charged
• the battery is new and does not
deliver 100% of its expected
capacity
• the battery must be "run-in"
by performing 20-30 charges
and discharges to obtain
maximum performance
• the machine is being used at
maximum capacity for
continuous periods and the
working time is not sufficient
• if possible, use batteries with
a higher capacity or replace
the batteries with others
charged previously
• the electrolyte has evaporated
and does not cover the plates
completely
• top up all elements with
distilled water until the plates
are covered then charge the
battery
The electrolyte in the battery is
turbid
• The battery has reached the
end of the charging/discharging
cycles declared by the
manufacturer
• replace the battery
Page 26
ENGLISH
26
• the battery has been recharged
with too high a current
• replace the battery
• the battery has been charged
beyond the limit suggested by
the Manufacturer
• replace the battery
ALARMS ON THE DISPLAY:
ERROR CODE DISPLAYED CAUSE SOLUTION
The machine has worked for too long
at a high pressure
Wait 30 minutes for the temperature to
drop
The work programme being used is
too heavy for the type of surface
Change from P3 to P2 or P1 (if P1 is
already being used, follow the setting
instructions to reduce the pressure)
BRUSH TEMPERATURE PAUSE
Electronics damaged Replace the power board
BATTERY RESERVE
The battery voltage is <31.5V Charge the battery
BATTERY FLAT
The battery voltage is <29V Charge the battery
BATTERY EXHAUSTED
The battery voltage is <27V
Check the level of acid in the battery
and charge
The brushes are worn Replace the brushes
BRUSHES EXHAUSTED
The floor is very smooth and the brush
motor does not reach the required
absorption
Change the work programme from P3
to P2 or P1
The parking brake is on Release the parking brake
The brake pedal microswitch is not
mounted correctly
Adjust the position of the microswitch
PARKING BRAKE
The brake pedal microswitch is not
functioning correctly
Replace the microswitch
The level sensor is activated by the
water level
Empty the dirty water tank then reset
the machine
DIRTY WATER TANK LEVEL
The level sensor is blocked in the
CLOSED position
Check and if necessary replace the
sensor
The level sensor is activated by the
water level
Prepare to empty the dirty water tank.
WATER RESERVE
The level sensor is blocked in the
CLOSED position
Check and if necessary replace the
sensor
The level sensor is activated by the
water level
Fill the detergent tank, then reset the
machine
NO WATER
Check and if necessary replace the
sensor
Page 27
ENGLISH
27
Motor drive alarm board
If the machine drive stops, control the status LED (fig. B, ref. 13) to identify the error code. In the
absence of malfunctions, the status LED is lit steadily while the machine is in operation. If a
malfunction is detected, the status LED provides two types of information, a slow flash (2 Hz) or a
rapid flash (4 Hz) to indicate the severity of the malfunction.
Malfunctions with a slow flash are cancelled automatically once the malfunction has been repaired
and the machine functions normally again. Malfunctions with a rapid flash ("*" in the table) are
considered more serious. The machine must be turned of using the key switch (fig. B ref. 3) to reset
operation after repairing the malfunction.
The indication of severity remains active for 10 seconds, after which the status LED flashes
constantly showing a two digit malfunction code until the repairs have been carried out.
For example, error code "1,4" is displayed as follows:
☼ ☼☼☼ example alarm code 1,4
LED CODES DESCRIPTION
* 1,1 ☼ ☼ Drive motor output malfunction - Overcurrent error
* 1,2 ☼ ☼☼ EEPROM malfunction, main contactor malfunction,
malfunction of board components, incorrect drive motor
voltage
1,3 ☼ ☼☼☼ NOT USED
1,4 ☼ ☼☼☼☼ NOT USED
2,1 ☼☼ ☼
Incorrect machine start up sequence (with key)
2,2 ☼☼ ☼☼ Incorrect machine start up sequence (with key)
* 2,3 ☼☼ ☼☼☼ Incorrect start up sequence for more than five seconds
2,4 ☼☼ ☼☼☼☼ Malfunction of speed limiter potentiometer on control
panel
3,1 ☼☼☼ ☼ NOT USED
3,2 ☼☼☼ ☼☼ NOT USED
3,3 ☼☼☼ ☼☼☼ Accelerator pedal malfunction
3,4 ☼☼☼ ☼☼☼☼ NOT USED
4,1 ☼☼☼☼ ☼ Battery voltage too low (voltage < 21 V)
4,2 ☼☼☼☼ ☼☼ Battery voltage too high (voltage > 48 V)
4,3 ☼☼☼☼ ☼☼☼ Drive motor > 80°C thermal cutout tripped
4,4 ☼☼☼☼ ☼☼☼☼ NOT USED
Loading...
