Wet/Dry Vacuums
Polyethylene, Polypropylene, & Steel
Operations and Parts Manual
429P
430P
415ST
415PLT
Models:
315P
415P
415S
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
WARNING
WARNING
WARNINGWARNING
DANGER:
DANGER:
DANGER: DANGER:
or death. Read and observe all DANGER statements found in your Owner’s Manual and on your
machine.
WARNING:
WARNING:
WARNING: WARNING:
other personnel; property damage could occur as well. Read and observe all WARNING statements
found in your Owner’s Manual and on your machine.
CAUTION:
CAUTION:
CAUTION: CAUTION:
machine or to other property. Read and observe all CAUTION statements found in your Owner’s
Manual and your machine.
DANGER:
DANGER:
DANGER: DANGER:
maintenance procedure to your machine could result in injury to you or to other personnel; damage to
the machine or to other property could result as well. You must have training in the operation of this
machine before using it. If you or your operator(s) cannot read English, have this manual explained
fully before attempting to operate this machine.
DANGER:
DANGER:
DANGER: DANGER:
property damage. Do not operate this machine until it is completely assembled. Inspect the machine
carefully before operation. Use only as described in this manual. Use only the manufacturer’s
recommended attachments.
DANGER:
DANGER:
DANGER: DANGER:
Do not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable
materials.
DANGER:
DANGER:
DANGER: DANGER:
DANGER:
DANGER:
DANGER: DANGER:
ashes.
DANGER:
DANGER:
DANGER: DANGER:
DANGER:
DANGER:
DANGER: DANGER:
the machine if the power cord is damaged. Do not use the electrical cord to move the machine. Keep
cord away from heated surfaces. Do not unplug by pulling on the cord; grasp the plug, not the cord.
Turn off all controls before unplugging. Do not close a door on cord or pull around sharp edges or
corners.
DANGER:
DANGER:
DANGER: DANGER:
properly disconnected from the power source. Disconnect the power supply before attempting any
maintenance or service.
Failure to read and observe all DANGER statements could result in severe bodily injury
Failure to read and observe all WARNING statements could result in injury to you or to
Failure to read and observe all CAUTION statements could result in damage to the
Failure to read the Owner’s Manual prior to operating or attempting any service or
Operating a machine that is not completely or fully assembled could result in injury or
Machines can cause an explosion when operated near flammable materials and vapors.
Do not
Do not pick up flammable fluids, dust or vapors.
Do not Do not
Do not
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot
Do not Do not
This machine is not
Using a machine with a damaged power cord could result in an electrocution. Do not use
Electrocution could occur if maintenance and repairs are performed on a unit that is not
is not suitable for picking up health endangering dust.
is not is not
3
Warning:
damage. Read all machine labels before attempting to operate the machine. Make sure all of the
labels are attached or fastened to the machine. Get replacement labels and decals from the
manufacturer’s distributor.
Warning:
Warning: Warning:
Warning:
Warning:
Warning: Warning:
components of the machine dry. Always store the machine in a dry area.
Warning:
Warning:
Warning: Warning:
tor or damage to the machine. Do not use this machine as a step or furniture. Do not allow to be used
as a toy. Close attention is necessary when used by or near children.
Warning:
Warning:
Warning: Warning:
clothing, hair, fingers, and all parts of the body away from openings and moving parts.
Warning:
Warning:
Warning: Warning:
plug or appliance with wet hands.
Warning:
Warning:
Warning: Warning:
Warning:
Warning:
Warning: Warning:
the fan/brush stops completely or dust and debris may be ejected.
Warning:
Warning:
Warning: Warning:
dropped into water, return it to an Authorized service center.
Warning:
Warning:
Warning: Warning:
openings. Do not use any opening blocked: keep free of dust, lint, hair, and anything that may reduce
air flow.
Warning:
Warning:
Warning: Warning:
in place. Do not use the machine without the dust bag and/or filters in place.
Warning:
Warning:
Warning: Warning:
unless caution is used. Use extreme caution when cleaning on stairs.
Warning:
Warning:
Warning: Warning:
the electrical ground. Whenever possible connect the machine to an outlet protected by a ground fault
interrupter (GFCI). See “Grounding Instructions.”
Operating a machine without observing all labels, decals, etc., could result in injury or
Electrical components can “short-out” if exposed to water or moisture. Keep the electrical
Use of this machine to move other objects or to climb on could result in injury to the opera-
Moving parts of this machine can cause injury and/or damage. Keep hands, feet, loose
Electrocution could occur if you handle the plug or appliance with wet hands. Do not handle
Do not use without dust bag and or filters in place.
Rotating fan blades inside the cover. Before opening cover, switch off machine. Wait until
If the machine is not working properly, has been dropped, damaged, left outdoors, or
Damage could occur to machine if openings are blocked. Do not put any object into
Injury could occur to the operator or the machine if used without the dust bag and/or filters
Injury to the operator and/or damage to the machine could occur when cleaning on stairs,
To reduce the risk of electrical shock, always use a 3-wire electrical system connected to
SAVE THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
4
120 Volt Machine Instructions For
120 Volt Machine Instructions For
120 Volt Machine Instructions For 120 Volt Machine Instructions For
Connection To The Power Supply And The
Connection To The Power Supply And The
Connection To The Power Supply And The Connection To The Power Supply And The
Electrical Ground
Electrical Ground
Electrical GroundElectrical Ground
This machine must be connected to the electrical ground
to protect the operator from electrical shock. The machine
has an approved power cord with three conductors and a
plug with three terminals. Connect the plug to a receptacle that has three holes and is connected to the electrical
ground. The green (or green and yellow) conductor in the
cord is the ground wire. Never connect this wire to any
terminal other than the ground terminal.
This machine uses a 120 volt AC 60 cycle electrical
circuit. Make sure you have the correct frequency and
voltage before connecting the power cord to an outlet.

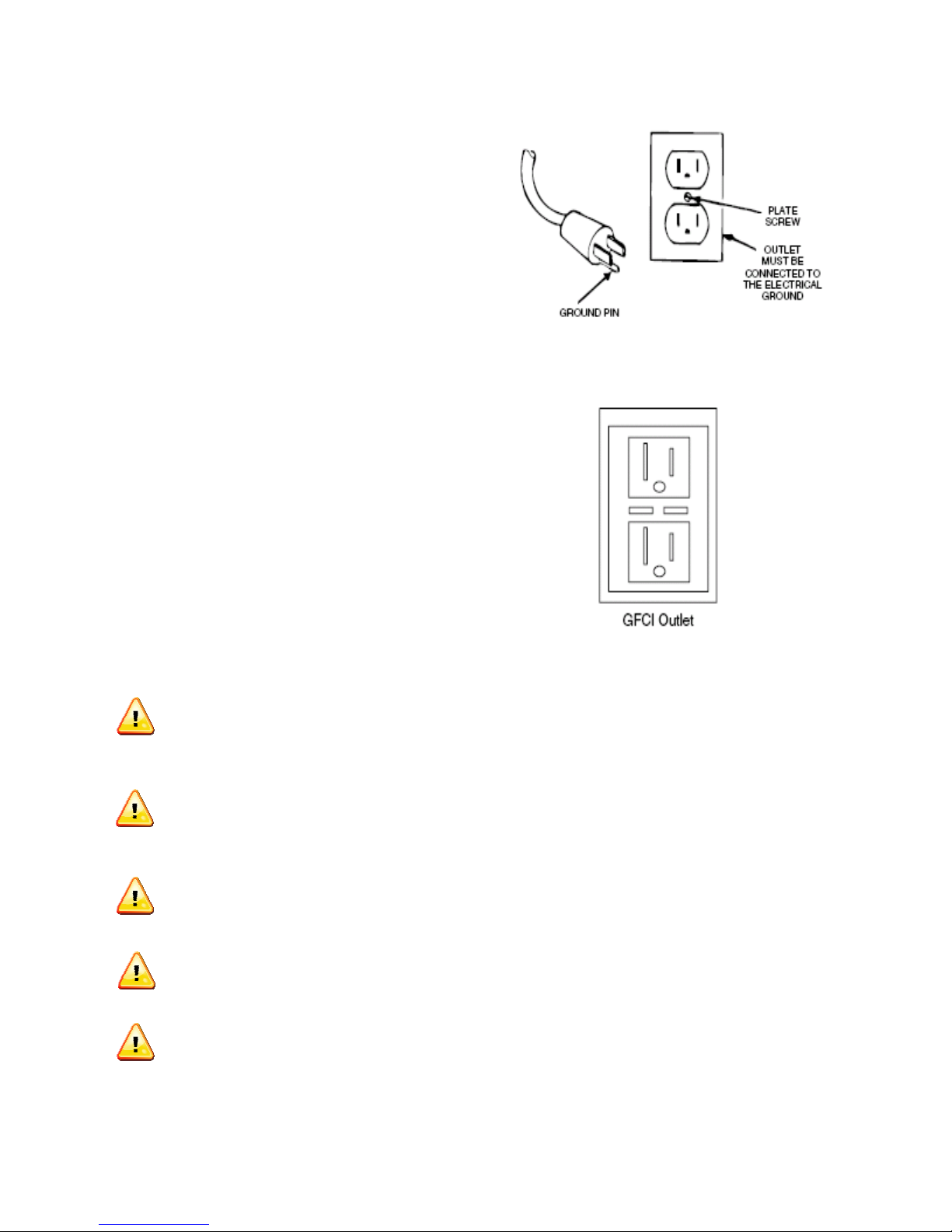

The machine has a plug as shown in Figure 1. If a receptacle connected to the electrical ground as shown in Figure 1 is not available, have one installed by an electrical
contractor. Do not use an adapter.
Do not use an adapter.
Do not use an adapter.Do not use an adapter.
Warning:
Warning:
Warning: Warning:
a dry area.
Warning:
Warning:
Warning: Warning:
the electrical ground. Whenever possible connect the machine to an outlet protected by a ground fault
interrupter (GFCI).
Warning:
Warning:
Warning: Warning:
electrical contractor.
Warning:
Warning:
Warning: Warning:
Warning:
Warning:
Warning: Warning:
use one that is at least one size larger in wire size. Such as a power cord that is marked 12/3 would
need to use an extension cord that is marked 10/3. Do not use an extension cord that is undersized.
To reduce the risk of electrical shock, protect the machine from rain. Keep the machine in
To reduce the risk of electrical shock, always use a 3-wire electrical system connected to
Do not cut, remove or break the ground pin. If the outlet does not fit the plug, consult your
Have worn, cut or damaged cords and plugs replaced by an authorized service person.
If it becomes necessary to use an extension cord to reach an electrical outlet, you must
5
IMPORTANT INSTRUCTIONS
IMPORTANT INSTRUCTIONS
IMPORTANT INSTRUCTIONSIMPORTANT INSTRUCTIONS
•
Before use, the equipment must be correctly assembled with all of its components
•
Check that the electrical outlet is correct for use with the plug on the machine
•
Before connecting, check that the specified motor voltage corresponds to the main
voltage available
•
Never use the equipment near flammable, explosive or toxic substances: sparks from
the motor could cause dangerous reactions.
•
Always unplug the machine from the electrical outlet when leaving machine unattended or before attempting any repair.
•
Service and repair should be done by qualified personnel only. Use only original
manufacturer’s replacement parts.
Operation
Operation
OperationOperation
This machine is a commercial vacuum designed for wet or dry pick up. And must be stored
This machine is a commercial vacuum designed for wet or dry pick up. And must be stored
This machine is a commercial vacuum designed for wet or dry pick up. And must be stored This machine is a commercial vacuum designed for wet or dry pick up. And must be stored
in a dry location.
in a dry location.
in a dry location.in a dry location.
•
Machines with dual or triple vac motors can be run together or independently as the
job requires.
•
Dry soil can be vacuumed directly into the tank or into a disposable paper bag fitted
onto the vacuum inlet.
•
For wet pick-up, remove polyester filter. The machine is equipped with a shut-off float.
As the tank is filled to capacity, a float rises and seals the vac intake, causing a loss of
vacuum. Switch off the vacuum when this happens and bring the machine to a drain.
•
To empty the machine, either use the drain hose mounted on the back of the tank, or
remove the motor head assembly and tilt the tank backwards on tipping models, or lift
and dump out the contents of smaller units.
•
With both wet and dry applications be sure to frequently clean the filter. This is
especially true when the vacuum is being used with strippers and floor finish.
1
.
Store the cord on the hook.
2. Store the appliance indoors, away from sources of heat.
3. This appliance is provided with an automatically reset
thermal limiter to avoid damage to motor. If thermal limiter
operates do one or more of the following:
• Change the bag
• Clean or replace the cartridge filter
• Check hose and tank inlet for any obstructions
• Wait a few minutes for the thermal limiter to re-close the circuit
After Use
After Use
After UseAfter Use
6
Periodic Maintenance
Periodic Maintenance
Periodic MaintenancePeriodic Maintenance
(Every six to twelve months)
(Every six to twelve months)
(Every six to twelve months)(Every six to twelve months)
1. Check filter for wear, replace dirt saturated filters that do
not respond to normal cleaning.
2. Inspect gasket seals and replace those which have begun to
leak.
3. Examine carbon motor brushes and commutator.
Servicing The Filter
Servicing The Filter
Servicing The FilterServicing The Filter
S8053200
The filter is accessed by lifting the head assembly off the tank.
The Polyester filter assembly is easily removed by simply lifting the filter basket out of the tank.
The cartridge filters they are removed very easily. First remove the filter retainer by turning the black knob 90
degrees counter-clockwise. The cartridge filter will then slide off of the support assembly.
Note:
Note:
Note:Note:
• Be sure to frequently clean the filters.
• Allow filters to thoroughly air dry after washing them before returning them to the machine.
• Worn filters can affect vacuum performance. Replace the filters when they become worn out and normal
cleaning will not restore vacuum performance.
Servicing The Vac Motor
Servicing The Vac Motor
Servicing The Vac MotorServicing The Vac Motor
Motor Replacement
Motor Replacement
Motor ReplacementMotor Replacement
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the
cover to one side.
3. Disconnect the motor’s 2 red lead wires from the main wiring bridge.
4. Disconnect green/yellow wire by removing the screw from the motor core.
5. Remove the four motor mounting screws.
6. Remove motor plate and set aside.
7. Take out the motor and remove the upper and lower gaskets.
8. Inspect gaskets. If they show signs of wear replace the.
9. Install gaskets onto new motor ensuring that they are properly seated.
10. Install the new motor. Make sure foam mufflers are positioned properly.
11. Attach motor plate to motor.
12. Connect green/yellow wire to motor core.
13. Connect motor’s 2 red lead wires to main wiring bridge.
14. Re-assemble vac cover.
15. Test for proper operation.
7
Servicing The Vac Motor
Servicing The Vac Motor
Servicing The Vac MotorServicing The Vac Motor
Carbon Brush Replacement
Carbon Brush Replacement
Carbon Brush ReplacementCarbon Brush Replacement
(Replacement Carbon Brushes: Part# S8053200)
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that attach the main cover to the head
assembly and set the cover to one side.
3. Remove the screws that attach the inner cover to the head assembly and set aside.
4. Remove the carbon brush assembly by removing the 2 screws that attach it to the vac
motor. See Figure 1
5. Slide off the carbon brush connector from the motor terminal. See Figure 2
6. Inspect armature commuator. If it is extremely pitted, grooved or not concentric then
the motor will need to be replaced or sent to a qualified service center.
7. Reverse steps 6 through 4 to install new carbon brush and housing.
8. Repeat steps 4 through 7 for the other carbon brush.
9. Reverse steps 3 and 2 for re-assembly.
10. Test for proper operation.
Figure 1 Figure 2
8
315 Vacuum Motor Assembly
No. Part # Description Qty.
1 S81122 Power Cord 1
2 S80138 Strain Relief 1
3 S80139 Clamp, Cord 1
4 S81006 Screw 5x20 2
5 S83444 Terminal Block 1
6 S82928AUG6 Cord Hook 1
7 S82627 Screw 5x40 1
8 S82927G6 Handle 1
9 S81026 Screw 5x30 1
10 S81006 Screw 5x20 2
11 S81054 Screw 5x50 2
12 S81026 Screw 5x30 2
13 S82929AUG6 Cover, Single Motor 315 1
14 S80326 Switch 1
15 S83937 Filter 1
16 S81050 Screw 5x35 6
17 S82738-1AUVE1 Cover, Motor 1
18 S83969 Gasket 1
19 S83900 Filter 1
21 S82627 Screw 5x40 6
22 S81006 Screw 5x20 4
23 S82591-1AUG6 Motor Retainer 1
24 S83901 Gasket 1
25 S81120S Motor 1000watt 120V 1
26 S83901 Gasket 1
27 S83866 Disk, Noise Reduction 1
28 S81189GG6 Base, with Gasket 1
Filter Assembly 315
No. Part# Description Qty.
1 S83706 Bushing 4
2 S83724 Screw 5x25 4
3 S82143NE Body, Float 1
5 S80507 Ring, Filter 1
6 S82860 Filter Bag 1
7 S82859 Support, Filter Bag 1
9
415 Vacuum Motor Assembly
No. Part # Description Qty.
1 S81122 Power Cord 16x3 1
2 S80138 Strain Relief 1
3 S80139 Clamp, Cord 1
4 S81006 Screw, 5x20 2
5 S82931AUG6 Cord Hook 1
6 S81054 Screw 5x30 4
7 S82930G6 Handle 1
8 S81026 Screw 5x25 1
9 S81006 Screw 5x20 2
10 S81005 Screw 5x14 2
11 S83436 Terminal Block 1
12 S81054 Screw 5x30 4
13 S82932AUG6 Cover, Single Motor 1
14 S81006 Screw 5x20 2
15 S80326 Switch 1
16 S83937 Filter 1
17 S83273 Screw 5x35 9
18 S81502 Grommet 1
19 S83383AU Cap 2
20 S82957AUVEI Cover, Motor 1
21 S82627 Screw 5x25 9
22 S82627 Screw 5x25 3
23 S82937AUG6 Motor Retainer 1
24 S81004 Screw 4.5x20 1
25 S83433 Terminal Board 1
26 S83969 Gasket 1
27 S81006 Screw 5x20 4
29 S83901 Gasket 1
30 S81120S Motor 1000watt 120V 1
31 S83901 Gasket 1
32 S81006 Screw 5x20 8
33 S83901 Gasket 2
34 S83451AU Plug 2
35 S83454 Filter 3
36 S83456 Filter 3
37 S83519 Cap 2
38 S83108G6 Base with Gasket 1
Filter Assembly 415
No. Part # Description Qty.
1 S83706 Bushing 4
2 S83724 Screw 5x25 4
3 S821243NE Body Filter Assembly 1
5 S82676-1G Float w/Gasket 1
6 S80473 Filter Ring 1
7 S82845 Filter Bag 1
8 S82833-1 Filter Support 1
10
429 Vacuum Motor Assembly
No. Part # Description Qty.
1 T82102005 Power Cord 14x3 1
2 S80138 Strain Relief 1
3 S80139 Clamp, Cord 1
4 S81006 Screw, 5x20 2
5 S82931AUG6 Cord Hook 1
6 S81054 Screw 5x30 4
7 S82930G6 Handle 1
8 S81026 Screw 5x25 1
9 S81006 Screw 5x20 2
10 S81005 Screw 5x14 2
11 S83436 Terminal Block 1
12 S81054 Screw 5x30 4
13 S82963AUG6 Cover, Dual Motor 1
14 S81006 Screw 5x20 2
15 S80326 Switch 2
16 S83937 Filter 2
17 S83273 Screw 5x35 9
18 S81502 Grommet 1
19 S83383AU Cap 2
20 S82957AUVEI Cover, Motor 1
21 S82627 Screw 5x25 9
22 S82627 Screw 5x25 3
23 S82937AUG6 Motor Retainer 1
24 S81004 Screw 4.5x20 1
25 S83433 Terminal Board 1
26 S83969 Gasket 2
27 S81006 Screw 5x20 8
29 S83901 Gasket 2
30 S81120S Motor 1000watt 120V 2
31 S83901 Gasket 2
32 S81006 Screw 5x20 4
33 S83901 Gasket 1
34 S83451AU Plug 1
35 S83454 Filter 3
36 S83456 Filter 3
37 S83519 Cap 2
38 S83108G6 Base with Gasket 1
Filter Assembly 429
No. Part # Description Qty.
1 S83706 Bushing 4
2 S83724 Screw 5x25 4
3 S821243NE Body Filter Assembly 1
5 S82676-1G Float w/Gasket 1
6 S80473 Filter Ring 1
7 S82845 Filter Bag 1
8 S82833-1 Filter Support 1
11
430 Vacuum Motor Assembly
No. Part # Description Qty.
1 T80070 Power Cord 12x3 1
2 S820881 Strain Relief 1
3 S80139 Clamp, Cord 1
4 S81006 Screw, 5x20 2
5 S82931AUG6 Cord Hook 1
6 S81054 Screw 5x30 4
7 S82930G6 Handle 1
8 S81026 Screw 5x25 1
9 S81006 Screw 5x20 2
10 S81005 Screw 5x14 2
11 S83436 Terminal Block 1
12 S81054 Screw 5x30 4
13 S82963AUG6 Cover, Dual Motor 1
14 S81006 Screw 5x20 2
15 S80326 Switch 3
16 S83937 Filter 3
17 S83273 Screw 5x35 9
18 S81502 Grommet 1
19 N/A N/A
20 S82957AUVEI Cover, Motor 1
21 S82627 Screw 5x25 9
22 S82627 Screw 5x25 3
23 S82937AUG6 Motor Retainer 1
24 S81004 Screw 4.5x20 1
25 S83433 Terminal Board 1
26 S83969 Gasket 3
27 S81006 Screw 5x20 12
29 S83901 Gasket 3
30 S81119S Motor 800watt 120V 3
31 S83901 Gasket 3
32 N/A N/A
33 N/A N/A
34 N/A
35 S83454 Filter 3
36 S83456 Filter 3
37 S80468 Valve 3
38 S83108G6 Base with Gasket 1
Filter Assembly 430
No. Part # Description Qty.
1 S83706 Bushing 4
2 S83724 Screw 5x25 4
3 S821243NE Body Filter Assembly 1
5 S82676-1G Float w/Gasket 1
6 S80473 Filter Ring 1
7 S82845 Filter Bag 1
8 S82833-1 Filter Support 1
12
Tank Assembly 315P
No. Part# Description Qty.
S82668 Complete Tank Assy. 1
1 S82599 Tank, Black 1
2 S81300 Rivet 4
3 S81847 Clamp 2
4 S81050 Screw 5x35 4
5 S82846 Gasket 1
6 S82586G6 Retainer 1
7 S82593 Deflector 1
8 S82652AG6VE Inlet Cover 1
9 S80558 Caster 6
13

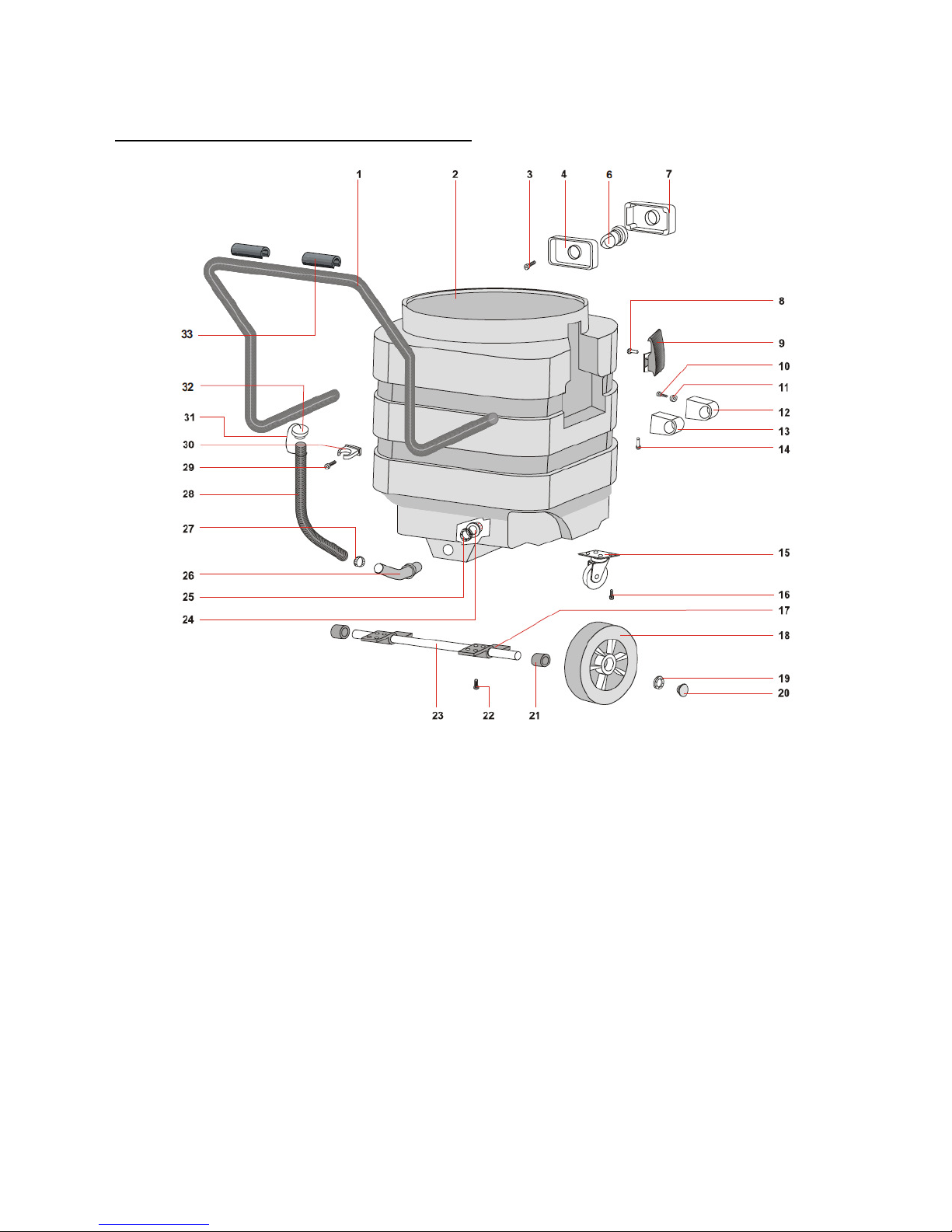

Tank and Cart Assembly 415P, 429P, 430P
No. Part# Description Qty.
1 S82558 Handle 1
2 S82637NE Tank, Poly 24g Black 1
3 S81026 Screw 5x30 4
4 S82584G6 Retainer, Tank 1
5 S82846 Gasket 1
6 S82593 Deflector 1
6a S82767 Deflector (430P) 1
7 S82652AG6VE Inlet Cover w/button 1
7a S82762AG6VE Inlet Cover w/button (430P) 1
8 S81300 Rivet 4
9 S81847 Latch 2
10 S81050 Screw 8
11 S82974 Washer, Plastic 8
12 S81072-1NE Support, Handle Front 2
13 S81860-1NE Support, Handle Rear 2
14 S81302NE Rivet 4.8x17 2
15 S82559 Caster, Swivel 2
16 S82680 Screw 8
17 S82556 Support, Axle 2
14
No. Part# Description Qty.
18 S80904 Wheel, Rear 2
19 S82557 Retainer, Wheel 2
20 S83835NE Cap, Wheel 2
21 S82607 Spacer, wheel 2
22 S81006 Screw 8
23 S82555 Axle 1
24 S80834 Nut, 1.25” 1
25 S80256 Gasket 1
26 S82763 Elbow, Drain 1
27 S83592 Clamp 1
28 S82765 Hose, Drain 1
29 S83156 Screw 1
30 S82788 Clamp 1
31 S82812 Retainer, Drain Plug1
32 S82764 Drain Plug 1
33 S86250 Handle Grip 2

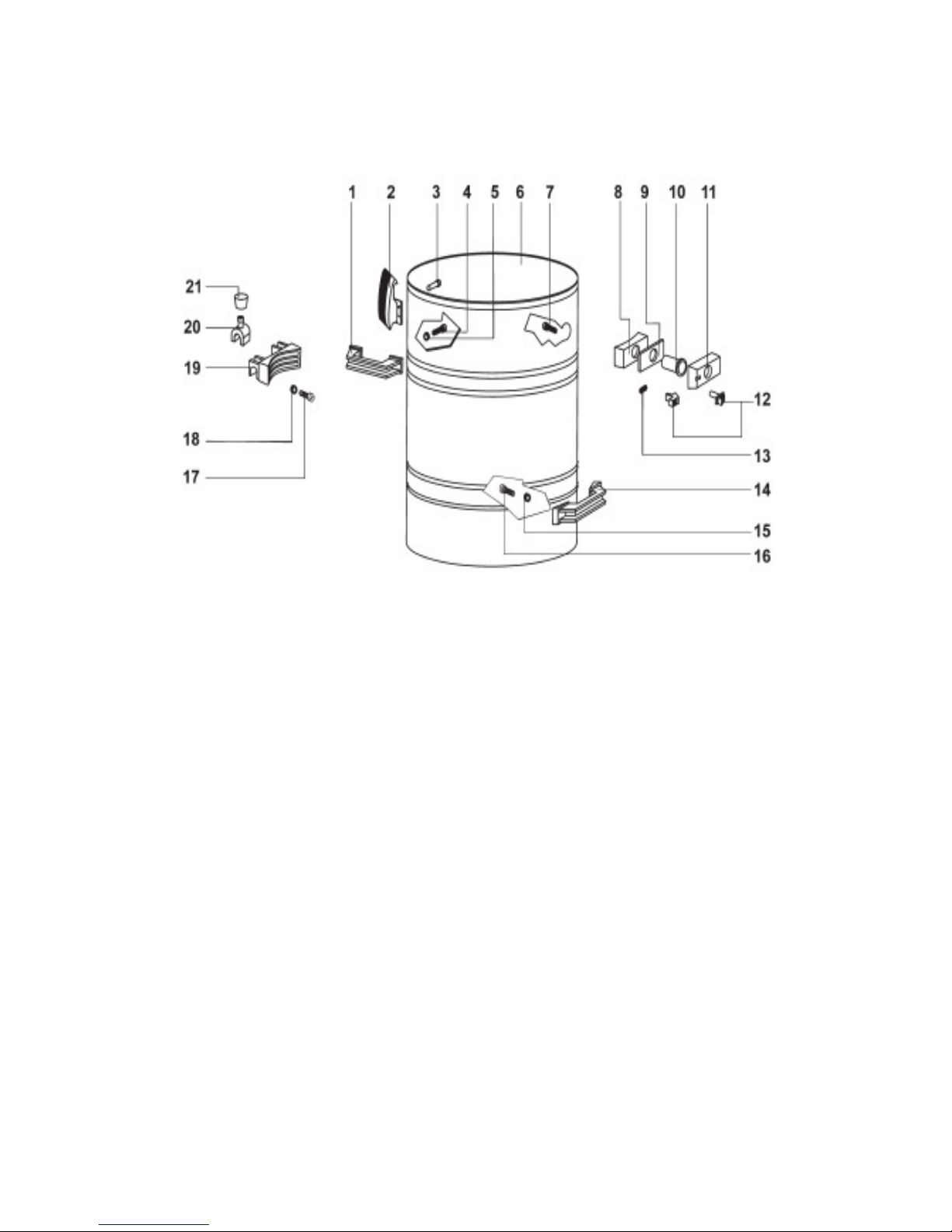

Tank Assembly 415ST
No. Part# Description Qty.
1 S82993 Handle 2
2 S81847 Clamp, Tank 2
3 S81302 Rivet 5x19 4
4 S83629 Screw 5x25 4
5 S83883 Washer 4
6 S83253 Tank-Steel 1
7 S81026 Screw 5x30 4
8 S82586 Adapter, Tank 1
9 S82846 Gasket 1
10 S82593 Deflector 1
11 S82583 Adapter, Hose 1
12 S82594 Button 1
13 S82608 Spring 1
14 S82993 Handle 1
15 S82974 Washer 2
16 S83629 Screw 5x25 2
17 S83156 Screw 5x25 4
18 S83883 Washer 4
19 S82968 Hook, Tank 1
20 S82970 Swivel 2
21 S82969 Knob, Release 2
15
Cart Assembly 415ST
No. Part# Description Qty.
1 S83250 Cart 1
2 S80976 Plug 2
3 S82557 Cap, End 2
4 S80904 Wheel 2
5 S83835 Cap 2
6 S81012 Washer 2
7 S80478 Nut 2
8 S80479 Caster, Swivel 2
9 S81979 Screw 5x25 4
10 S83450 Clip Pad 4
11 S86250 Hand Grip 2
16
Tank Assembly 415S
No. Part# Description Qty.
1 S82993 Handle 2
2 S81847 Clamp, Tank 2
3 S81302 Rivet 5x19 4
4 S83629 Screw 5x25 4
5 S83883 Washer 4
6 S80476 Tank 1
7 S81026 Screw 5x30 4
8 S82586 Adapter, Tank 1
9 S82846 Gasket 1
10 S82593 Deflector 1
11 S82583 Inlet Cover 1
12 S82594 Button 1
17
Cart Assembly 415S
No. Part# Description Qty.
1 S82993 Handle 1
2 S80917 Support, Handle 2
3 S80913 T-Tube 2
4 S81301 Rivet 5x11 2
5 S80902 Block 1
6 S80914 Hand Wheel 8x60 1
7 S81402 Spring 1
8 S81403 Plate, Threaded 1
9 S81301 Rivet 5x11 2
10 S80901 Base, Cart 1
11 S80915 Screw 12x140 2
12 S81028 Masher M12 2
13 S80904 Wheel 2
14 S81401 Bushing 2
15 S82052 Spacer 2
16 S81301 Rivet 5x11 2
17 S80479 Caster 2
18 S81012 Washer 2
19 S80478 Nut M10 2
20 S86250 Hand Grip 2
18
Tank Assembly 415PLT
No. Part# Description Qty.
1 S81847 Clamp, Tank 2
2 S81300 Rivet 5x24.5 4
3 S83773 Tank 1
4 S81026 Screw 5x30 4
5 S82586 Adapter, Tank 1
6 S82846 Gasket 1
7 S82593 Deflector 1
8 S82583 Inlet Cover 1
9 S82594 Button 1
10 S82608 Spring 1
11 S83771 Bumper 1
12 S82993 Handle 1
13 S83883 Washer, Plastic 2
14 S81026 Screw 5x30 2
15 S81026 Screw 5x30 4
16 S83883 Washer, Plastic 4
17 S82172 Hook, Tank 1
19

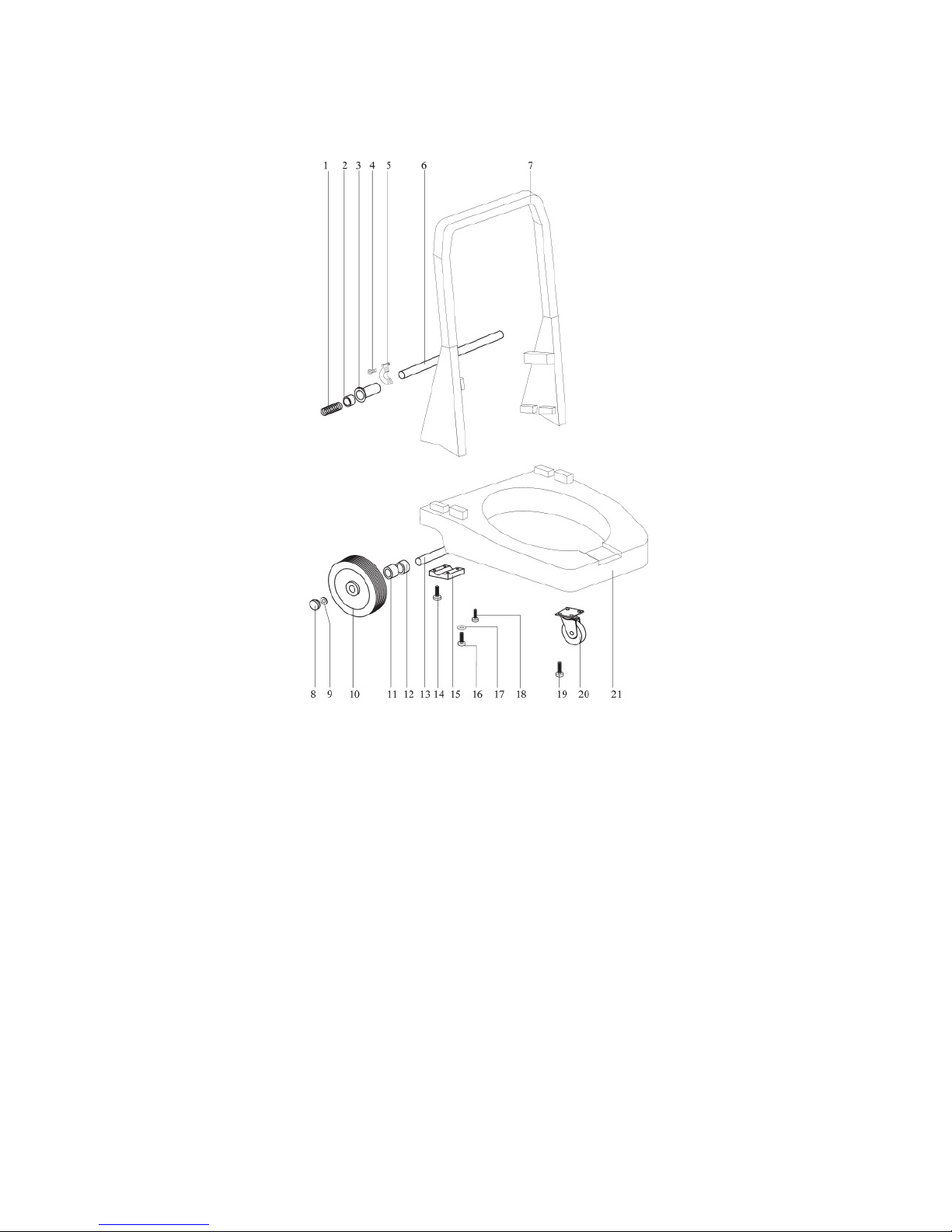

Cart Assembly 415PLT
No. Part# Description Qty.
1 S82053 Spring 2
2 S82607 Spacer 2
3 S82173 Lock, Plastic 2
4 S81979 Screw 5x25 4
5 S83725 Clamp 2
6 S83751 Shaft 1
7 S83694 Handle 1
8 S83835 Cap, Axle 2
9 S82557 Cap, End 2
10 S80904 Wheel 2
11 S82607 Spacer 2
12 S82980 Spacer 2
13 S83752 Axle 1
14 S81026 Screw 5x30 8
15 S82967 Support, Axle 2
16 S81050 Screw 5x35 2
17 S82974 Washer 6
18 S82627 Screw 5x40 12
19 S81006 Screw 5x20 8
20 S82559 Caster 2
21 S83797 Base, Cart 1
20
Tools
4
1
8
2
5
6
3
Item Part# Description Qty
1 S70003 Crevice Tool 1
2 S76295 Round Brush 1
3 S70008 Hose 1
4 S76387 Wand, Straight 2
5 S76389 Wand, Curved 1
6 S76384 16” Floor Brush 1
7 S76385 16” Floor Squeegee 1
7a S82333 Replacement Squeegee Blades 2
1 S76388 Adapter 1
S72672 Complete Tool Kit 1
7
21
Filters
Part# Description Where Used
S82860 Filter Bag, Standard Polyester 315 models
S82845 Filter Bag, Standard Polyester 415/429/430 models
S83742* Cartridge Filter, Paper 315 models
S73742* Cartridge Filter, Polyester 315 models
S82881* Cartridge Filter, HEPA Equivalent 315 models
S82852* Cartridge Filter, Paper 415/429/430 models
S76061* Cartridge Filter, Polyester 415/429/430 models
S82995* Cartridge Filter, HEPA Equivalent 415/429/430 models
S82855 Cartridge Filter Retainer all models
T80092 Paper Filter Bags 5/pkg. 315 models
T80093 Paper Filter Bags 3/pkg. 415/429/430 models
*also requires S82855 Retainer
Recommended Spare Parts
S8TOEG845 Motor Carbon Brush
S80326 Main Power Switch
S82860 Polyester Filter, 315
S82845 Polyester Filter, 415/429/430
22
S70042 22” Front-Mounted Squeegee fits all 415/429/430 models
No. Part# Description Qty.
1 S82164 Handwheel 8x45 1
2 S82187 Small Block, Fixed 1
3 S82163 Handwheel 6x25 1
4 S83115 Plate, Adjustment 1
5 S82189 Driver Pivot 1
6 S81033 Nut M8 2
7 S81732 Adjustment Knob 2
8 S86137 Spring 2
9 S82245 Squeegee, Rear 1
10 S86138 Wheel 2
11 S81034 Washer M8 1
12 S82177 Body, Wet Fix Tool 1
13 S82198 Spacer 2
14 S82196 Squeegee, Front 1
15 S82197 Bracket, Squeegee 2
16 S81856 Screw M4x16 16
17 S80010 Hose 1
18 S82297 Mounting Bracket 1
19 S81035 Nut M5 4
20 S81036 Washer M5 4
21 S81755 Screw 5x16 4
22 S81006 Screw 5x20 4
23
T80020
30” Front-Mounted Squeegee fits 415/429/430 models with Polyethylene Tanks
No. Part# Description Qty.
1 BD735602 Blade, Slotted 2
2 BD735601 Blade, Solid 2
3 BD7015509 Support, Blade 2
4 BD735609 Nut, Nylock 1/4-20 2
5 BD715508 Housing Assy. 1
6 BD735609 Nut, Nylock 1/4-20 2
7 BD735607 Wheel, Guide 2
8 BD735608 Bolt, 1/4-20 x 1.75” 2
9 BD705201 Lifting Arm Assy. 2
10 BD705202 Cross Member 1
11 BD705203 Latch Assy. 1
12 BD735610 Bolt, 1/4-20 x 1” 6
13 BD735609 Nut, Nylock 1/4-20 6
14 BD735605 Nut, Nylock 10-24 22
15 BD735603 Screw 10-24 15
Not Pictured T80021 Hose Assy. 1
24
T80054
30” Front-Mounted Squeegee fits 415PLT Plastic Tipping Tank
No. Part# Description Qty.
1 T80021 Hose Assy. 1
2 BD715508 Housing 1
3 BD735608 Bolt, Guide Wheel 1/4-20 x 1.75” 2
4 BD735607 Guide Wheel 2
5 BD735611 Jam Nut 1/4-20 2
6 BD735603 Screw 10-32 x 5/8” 18
7 BD735609 Nylock Nut 1/4-20 2
8 BD735605 Nylock Nut 10-32 4
9 BD735602 Blade, Slotted 2
10 BD735601 Blade, Solid 2
11 BD715509 Blade Support 2
12 BD735603 Screw 10-32 x 5/8” 18
13 BD735609 Nylock Nut 1/4-20 4
14 BD735612 Bolt 1/4-20 x 3/4” 4
15 BD705225R Lifting Arm, Right Side 1
16 BD705225L Lifting Arm, Left Side 1
17 BD705209 Clamp, Lifting Arm 2
18 BD705210 Cross Member 1
19 BD735614 Nylock Nut 5/16-18 2
20 BD735612 Bolt 1/4-20 x 3/4” 2
21 BD705212 Pedal Mount 2
22 BD705209 Clamp, Pedal Mount 2
23 BD735609 Nylock Nut 1/4-20 2
24 BD705229 Pedal Assy. 1
25
Warranty Policy
Limited Warranty
IPC Eagle warrants new cleaning equipment against defects in material and
workmanship under normal use and service to the original purchaser as detailed
below
3 years
Subject to the conditions stated below, IPC Eagle warrants all Polyethylene Tanks to
be free from defects in materials and workmanship for a 3-year period. Parts replaced
or repaired are warranted for the remainder of the original warranty period.
1 year
Subject to the conditions stated below, IPC Eagle warrants all other cleaning
equipment components to be free from defects in materials and workmanship for a 1year period. Parts replaced or repaired are warranted for the remainder of the original
warranty period.
IPC Eagle will furnish and charge for replacement parts, including transportation, to
the original owner through an IPC Eagle authorized service center. If the part is
returned within 30 days and is found defective, the owner will be credited for the cost
of the replacement part including shipping and handling.
Labor charges are covered for one year from the date of purchase if provided by an
authorized IPC Eagle service center.
Wear items exempt from warranty include belts, carbon brushes, power cords, wheels,
brushes, pads, handle grips, filters, screens, hoses, and squeegees.
This warranty shall not apply to failures caused by misuse or abuse, improper
maintenance as stated in the operation manuals, use of unauthorized repair parts,
repairs by other than an IPC Eagle authorized service center, and damage in transit.
IPC Eagle disclaims and denies any liability for any direct, indirect, special incidental
or consequential damage which may be suffered as a result of sale, delivery,
servicing, use, loss of any product, downtime, labor, freight, or other charges not
expressly included herein.
.
26
27
28
Loading...
