INTRODUCTION / GENERAL WARNINGS

Welcome on board!
We thank you for choosing IPC and congratulate you for purchasing
the Genius 1050
A sweeper especially designed to guarantee safety and concern for
the environment.
The innovative design, the robust and trustworthy structure and the
recyclable components make Genius 1050. a truly unique machine.
Before using your machine, we advise you to carefully read this
handbook. It is an invaluable guide to the characteristics of your
machine and will help you use it correctly.
In particular, it provides precious information concerning safety,

integrity and concern for the environment.

INTRODUCTION

Thi s instruction handbook contains guideli nes and practical
information concerning the use, adjustment and routine maintenance
of your new machine.
Your machine has been designed and built to oer the best in terms
of performance, comfort and ease-of-use in a variety of dierent
conditions. Before delivery, your machine has been checked at our
factory and by our dealer to guarantee that it is handed over to you in
perfect working order. To maintain the machine in this condition and
ensure problem-free operation, strictly follow the instructions given
in the handbook. Before attempting to use the machine, read this
handbook and keep it to hand for any future consultation. The words
RIGHT and LEFT always refer to the direction in which the machine
is travelling. If you have any doubts concerning the machine, do not
hesitate to contact your dealer. Dealers will oer you competent
personnel, original spare parts and all the equipment you will need.
NEVER use the machine without its guards and safety systems. For
your safety, make sure all guards and safety systems are closed and
correctly mounted before starting the machine.

GENERAL SAFETY RULES

To prevent damage and bodily harm, strictly follow the safety rules below.
Read the safety labels on the machine and do not cover them for any reason
whatsoever. Replace them if they are damaged or become unreadable.

· The storage temperature ranges from 0° to + 50°C.

· The optimal working temperature should range from 0° and + 40°C.

· The ambient humidity must range from 30 to 95 %.

· Do not use the machine as means of transport.

· Do not use solvents or similar substances to clean the machine.

· Avoid running the brushes when the machine is still, to prevent damage
the floor.

· Do not use the machine to draw up inflammable liquid.

· If fires break out, use a dry-chemical extinguisher. DO NOT USE WATER.

· Do not bump against shelves or scaffolding when there is a risk of objects
falling over.

· Adapt the speed of the machine to the conditions of adherence.

· Avoid using the machine if its stability is not guaranteed.

·If you notice that the machine is not working properly, make sure this does
not depend on failure to carry out the routine maintenance operations. If this

is not your case, contact an authorised service centre.

· Always use ORIGINAL spare parts. You can purchase these from a
dealer or authorised retailer.
Disconnect the machine from the mains before carrying out any
maintenance operation.

· Do not remove guards that need to be removed with the aid of
tools.

· Do not wash the machine with direct jets of pressurised water or
with corrosive substances.

· Every 200 hours of work, have the machine checked by an authorised
service centre.

· This product is classied as RAEE type special waste and is covered
by the requisites of the new environmental protection regulations
(2002/96/CE RAEE). It must be disposed of separately from ordinary
waste in compliance with current legislation and standards.

- USE AND STORAGE IN ENVIRONMENTS WHERE THERE IS A RISK OF
EXPLOSION IS PROHIBITED.

MODIFICATIONS AND IMPROVEMENTS

Our company policy is based on the continuous improvement of our
products. We therefore reserve the right to apply modications and
improvements whenever we believe these are necessary, without
having to upgrade the machines previously sold.

SAFETY

Accident-prevention is also your responsibility.

No accident-prevention plan can be eective without the total co­operation of the person directly responsible for machine operation.
Most accidents that occur in a company, during work or transport are
caused by failure to observe the basic rules concerning safety.
A careful and prudent user is the best guarantee against accidents
and will prove to be much more eective than even the strictest
accident-prevention plan.
During work, pay attention to the persons standing in the area to
clean, especially children.

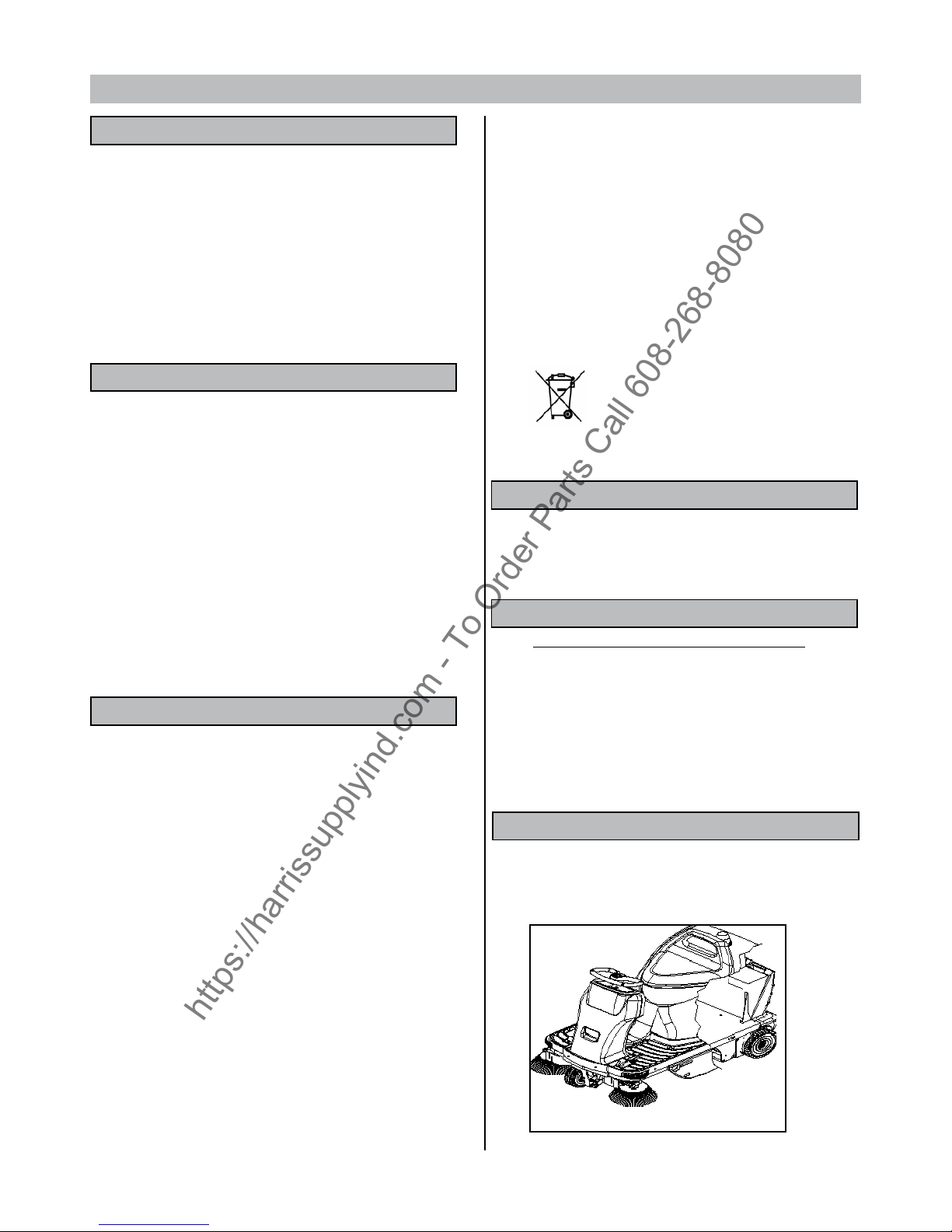

SERIAL NUMBER – CE MARKING

Make sure the machine is tted with a plate featuring the serial number
and the CE mark. It is axed in the position shown in Fig. If the plate is
not in place, contact your retailer immediately.

Special waste. Do not dispose of with
ordinary waste.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 2 -

UNPACKING

Unpack your machine with great care, avoiding any manoeuvre that
could lead to damage.
Once you have unpacked it, make sure all parts are in a good
condition. If you notice any damage, DO NOT use the machine and
contact your retailer immediately.
For reasons concerning packaging and transport, some parts and
optional items may be supplied disassembled. To assemble them,
follow the instructions given in this handbook in the respective
sections.

Contents of the package

N° 1 Machine
N° 1 or 2 Side brush
N° 2 Keys for starting
N° 1 Use and maintenance handbook
N° 1 Declaration of conformity
N° 1 Warranty coupon

- - - - Batteries (if purchased)
N° 1 Battery connection kit
N° 1 Battery charger (if purchased)

The DP version also features the operating instructions of the
engine.
If you notice that any of the above are missing, contact your retailer
immediately.

NOTE To prevent it from getting lost during transport, the
keys have been put inside the envelope containing the technical
literature.

Make sure the packaging materials (bags – cartons – pallets – hooks
– etc.) are put
away, out of the reach of children.

Precautions to take before starting the machine:

To facilitate transport, the side brush (or brushes) is not mounted in
its expected working position.
To put it in place, read the – Preparing a new machine – section.

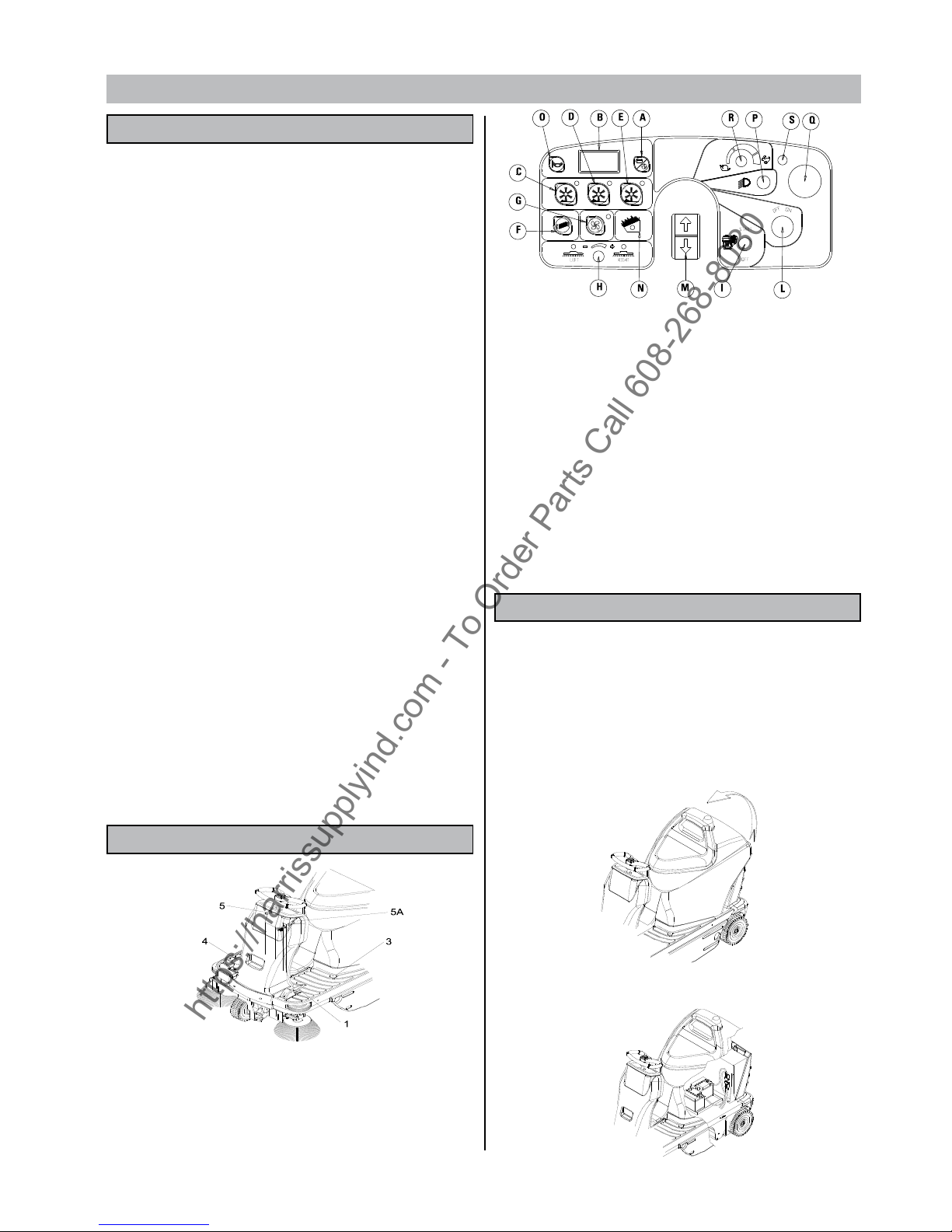

THE CONTROLS AND THE CONTROL PANEL

1) - Brake lock pedal and parking brake pedal

3) - Flap raising pedal

4) - Accelerator pedal

5) - Right hand side brush control lever
5A) - Left hand side brush control lever

A) - Selection of displayed data
B) - Display
C) - Key and indicator of work programme 1
D) - Key and indicator of work programme 2
E)

- Key and indicator of work programme 3
F) - Filter shaker ON button
G) - ON-OFF button and aspirator motor indicator
H) - Side brush speed adjustment knob
I) - Button to start/stop the engine (Dual Version)
L) - Ignition key
M)

- Forward/reverse button
N) - Waste bin “full” indicator (Optional)
O) - Claxon
P) - Light switch
Q) - Emergency
R) - Maximum speed adjustment knob
S) - Drive board alarm indicator, identies the error code on the board
according to the frequency with which the LED ashes.

In the absence of malfunctions, the status LED is steadily on while
the machine is in operation.

PREPARING THE MACHINE

Either in the petrol or in the DP version, the machine calls for a set
of 24 V batteries.
The machine can be supplied in three options:

1. Batteries supplied with the machine, tted and lled with acid,
ready for use.

2. Batteries supplied and tted dry (without the liquid electrolyte).

3. Batteries not supplied.

Raise the bonnet carrying the seat by pushing it forward towards the
steering wheel and check which option applies to your machine.

If the batteries are tted, open up one of the vent caps of each battery
and check if they are lled with electrolyte.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 3 -

English (Translation of original instructions)

1 - If the batteries are already lled:

a) Check the level of electrolyte and top up if necessary (use only
distilled water).
b) Recharge (see the MAINTENANCE section and the battery
instruction handbook).

2 - If the batteries are supplied without liquid (i.e. dry), they must
be lled with sulphuric acid (density from 1.27 to 1.29 kg at 25°C),
according to the instructions given in the next paragraph and in the
battery handbook.

Filling batteries with acid.
Pay particular attention when you are handling sulphuric acid. This
substance is corrosive. If it comes into contact with your skin or eyes,
wash with plenty of fresh water and seek medical assistance.
Batteries must be lled in a ventilated area.

Fill the cells (or single elements) of the batteries with acid. The correct
level is indicated in the battery instruction handbooks.
After an hour, top up the cells, if necessary, with more acid.

Let the batteries rest – with the machine stopped – for another
hour and then rell, in accordance to the instructions given in the
handbook provided with the battery (refer to the “MAINTENANCE”
section). During the charging operations, all battery caps must be
open.

3- If the machine has been supplied without batteries, these must be
purchased and installed accordingly.
Competent battery specialists should preferably be contacted to
choose and install the new batteries.

The electrical connection cables supplied with the machine may be
used to connect the batteries.
Once the batteries have been installed, connect the battery connector
to the machine.

If the machine is in the DP version, it must be lled with lead-free
petrol , depending on the engine. A label indicating the kind of fuel
to use is in any case applied near the fuel cap.

Check the level of oil in the engine (see the “MAINTENANCE”
chapter).

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 4 -

USING THE MACHINE

TURNING ON THE MACHINE
Fit in the ignition key and turn it clockwise. Three zeros will come up on
the display for about three seconds, followed by the voltage rating of
the battery.
The operator’s seat features a safety device that disables traction (forward
and reverse) when the operator gets up from his seat.
NOTE: temporary activation of the indicator lights on the console and of
the horn is to be considered normal.

Let at least three seconds pass after you have turned o the machine,
before turning it on again.
Check the state of the batteries on the appropriate display.

The display has two functions: Voltmeter and Hour meter.

The voltmeter features an undervoltage checking function which
automatically disables all services, traction excluded, if the battery charge
level drops below 20.5V (“FLAT BATTERY” ashes on the display)
In this case, recharge the battery (see the “MAINTENANCE” section and
the battery handbook).
If the battery charge level is suitably high, you can start your work.
If the machine features a petrol engine, rst start the engine.

STARTING/STOPPING THE PETROL ENGINE

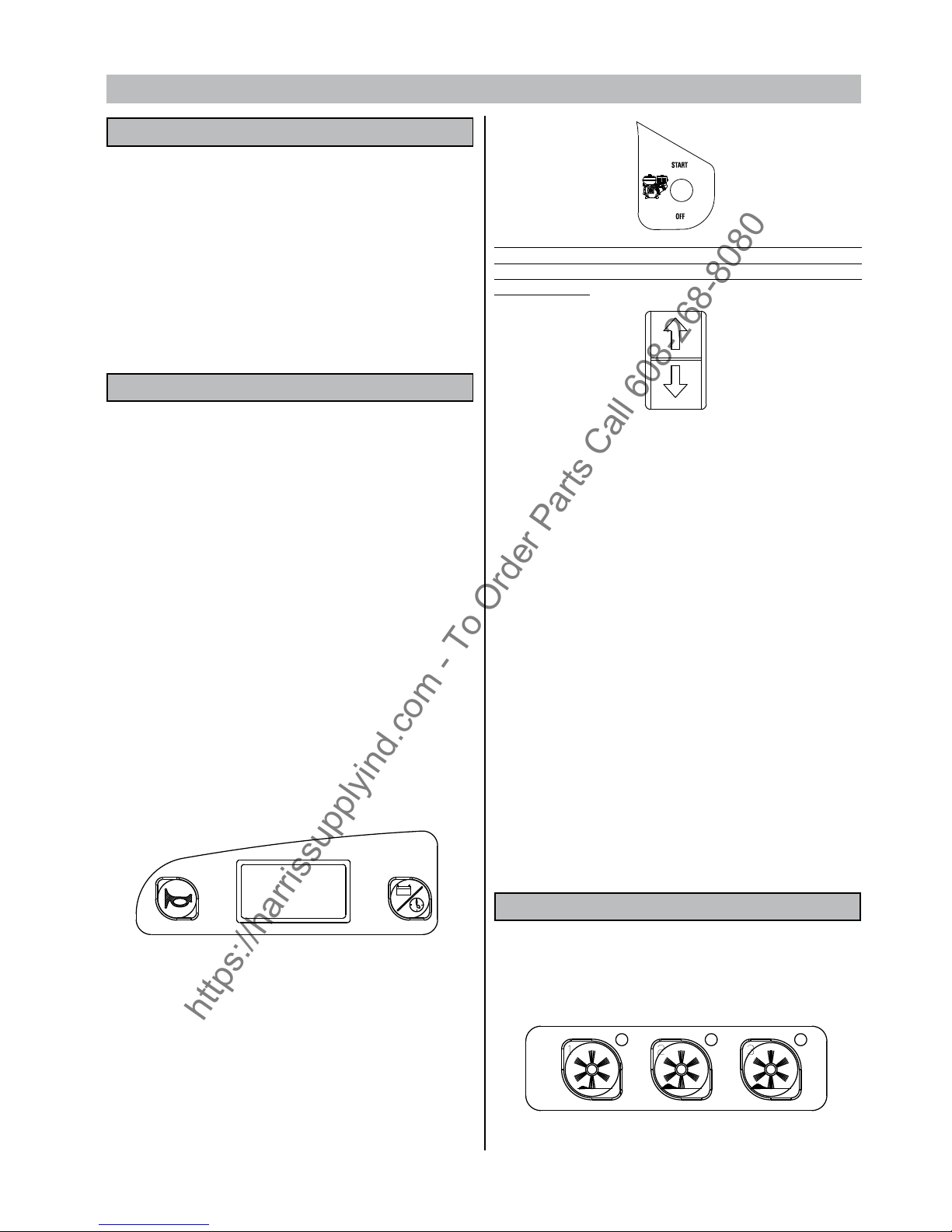

To start the endothermic engine, push toggle switch I towards
its START position (see switchboard); the toggle switch will ick
automatically back to its initial position.

N.B.: if the engine does not start immediately, the maximum activation
time of the starter motor must not exceed 5 seconds for a petrol
engine . These activation intervals can be repeated after a short
resting time (approximately 8 – 10 sec.).
To stop the motor, ick toggle switch I to OFF.

When the machine is running with the endothermic engine, make sure
the cooling fan is running too. If the alternator overheats, the overheating
protection device it is tted with will stop the machine with the “ENGINE
PAUSE” error code.

To switch the machine ON, select either forward or reverse on the button
on the steering wheel. Then press the accelerator pedal and the machine
will start moving.
AUTO-POWER-ON/OFF
An automatic system turns the machine functions on and off
automatically.
When one of the three work programmes is selected by pressing the P1,
P2 or P3 button, the following functions are temporarily activated: centre
brush, suction motor, side brushes. The LED of the chosen programme
and the centre brush LED come on at the same time.
If the accelerator pedal is not pressed, after a few seconds the functions
shut down and the three LEDS start ashing. The sweeper is now in AUTO­POWER-OFF mode. All functions are automatically reactivated when the
user presses the accelerator pedal: AUTO-POWER-ON.

NOTE: When the accelerator is released all the machine functions are
automatically switched off, with the exception of the endothermic
engine, which will be switched o after approximately 6 seconds (AUTO
POWER OFF).

USING THE WORK PROGRAMMES

After turning on the machine and starting the engine, if necessary,
choose among the three available programmes, the one best suiting
your requirements by pressing one of the three keys.

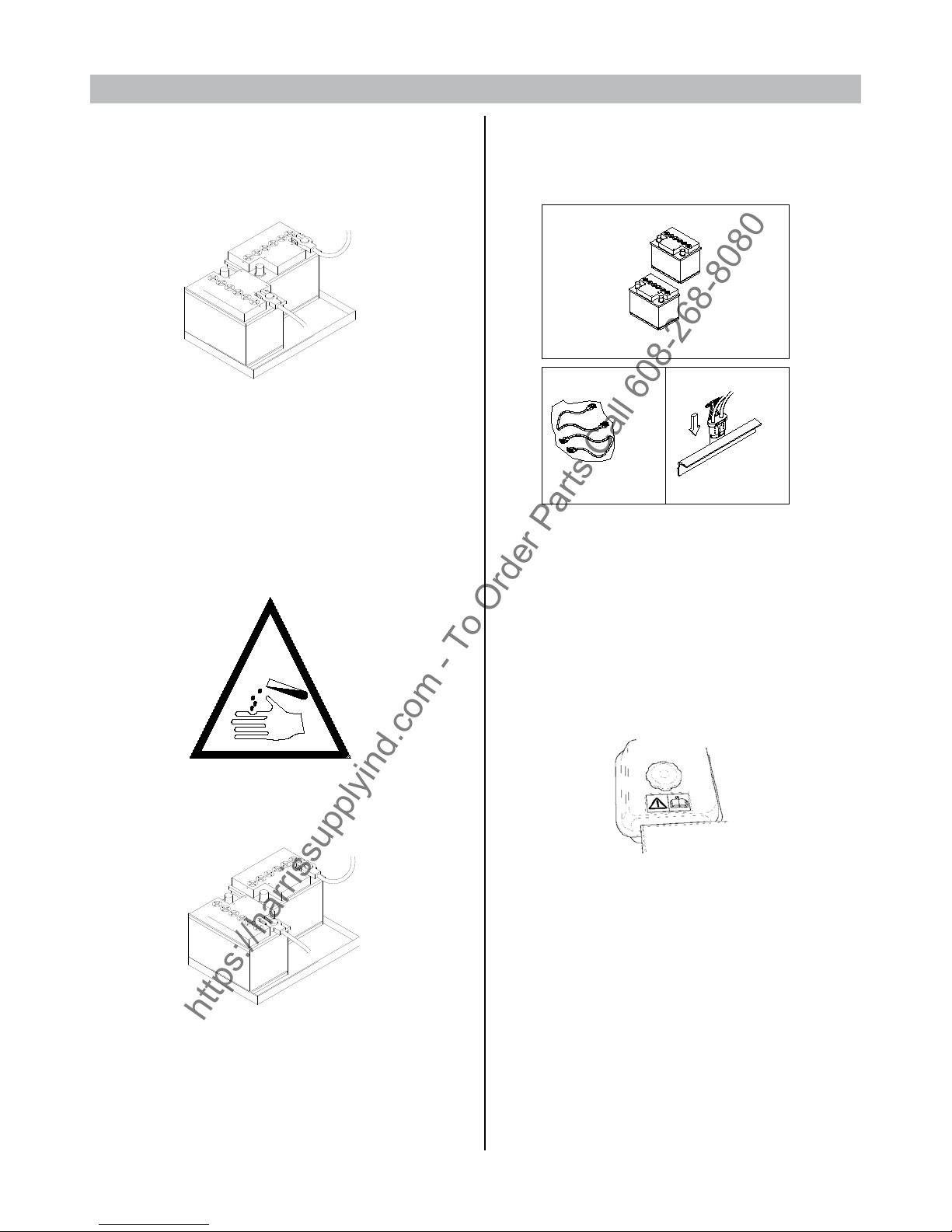

REMOVING THE BATTERIES

When removing the batteries, the operator must be equipped with suitable
personal protection devices (gloves, goggles, overalls, safety shoes, etc) to
reduce the risk of accidents.
Make sure the switches on the control panel are in the “0” position (o) and the
machine is turned o. Keep away from naked ames, do not short circuit the
battery poles, do not cause sparks and do not smoke. Proceed as follows.

• disconnect the battery wiring and bridge terminals from the battery poles.

• if necessary, remove the devices fixing the battery to the base of the
machine.

• lift the batteries from the compartment using suitable lifting equipment.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 5 -

English (Translation of original instructions)

BUTTON 2 (Medium cleaning, carpet or other surfaces)

BUTTON 3 (Heavy duty cleaning, outdoors, asphalt or rough surfaces
with rubble, etc.).

NOTE: the parameters of programmes 1, 2 and 3 are factory set. To
modify any of the settings, contact the retailer’s service centre.

Adjust maximum forward movement speed according to the working
conditions

Lower the left and/or right side brush by pulling out and lowering
the relevant knob.

NOTE: the relevant left or right indicator light will come on.
To move the brushes back to their OFF position, pull up the knobs.

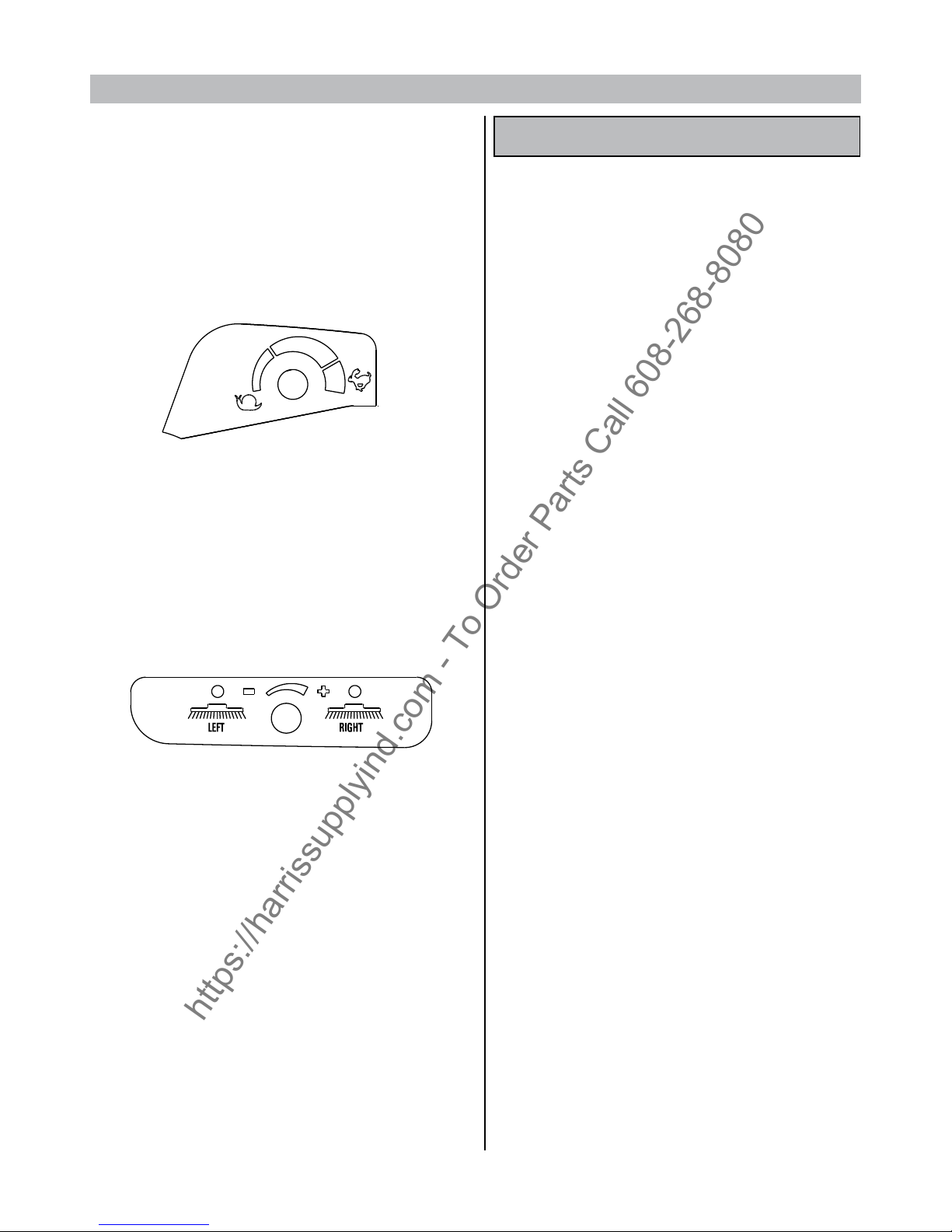

The speed of the side brushes can be changed using the adjustment
knob shown in the gure.

The machine features a red emergency stop button.
Press this button (the red warning light will come on) to bring all
machine functions, engine included, to an immediate stop. To restart
the machine, press the red button down and start up the functions
requested.

If you are using the machine on wet ground, it is essential to protect
the machine’s paper lters by turning o the aspirator motor with
the ON/OFF button.

FURTHER PERFORMANCES OF THE MACHINE FEATURING AN

ENGINE

The version featuring an engine can guarantee the same working
eciency even when the motor is o, for instance when the fuel has
run out or when working in closed environments.
The working autonomy, in this case, will depend on the capacity
(Amperes/hour) of the batteries installed, on the intensity of the work
programme chosen and on the battery charge status.
To guarantee the working life of the batteries, the machine features
some safety systems:

1- When the battery voltage drops below 20.5 Volt, all machine
functions, with the exception of the traction system, are automatically
stopped. When this situation occurs, recharge the batteries or turn
on the engine.

2- Protection against excessive battery charging
Being tted with a current generator featuring an electronic circuit,
that acts as voltage regulator, the machine can correctly charge the
battery without damaging it with an excessive charge.
In fact, when the battery has been properly charged, it will except
no further charging energy.

3- Using the machine with a battery or engine

Further to the tests effected and the results obtained from the
evaluation of the energy consumption of our hybrid system, we can
arm that Genius 1050 can work autonomously. In other words, the
machine does not have to be stopped to recharge the set of batteries
. Tests have been made with all three programmes at the user ’s
disposal, namely P1, P2 and P3, on asphalted surfaces and normal
slopes, and the sweeper has worked autonomously.
However, being the machine designed also for heavy duty working
conditions (slopes of over 16%, extremely rough surfaces to clean),
the batteries may need to be recharged.

In this case, we recommend the use of an intelligent batter y
charge with a IUIa charging curve and a nal proportional charge,
appropriately designed for this kind of machine and of a suitable size
for the battery installed.

After you have ended your work, disable the selected programme (1­2-3) and turn o the engine by icking the toggle switch ‘I’ to OFF.

Before leaving the machine, make sure that the side brushes are raised
from the oor, the parking brake is engaged and that the ignition key
has been take out of the instrument board.

BUTTON 1

(Light cleaning, indoors, concrete, quartz, smooth oors,

etc.)

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 6 -

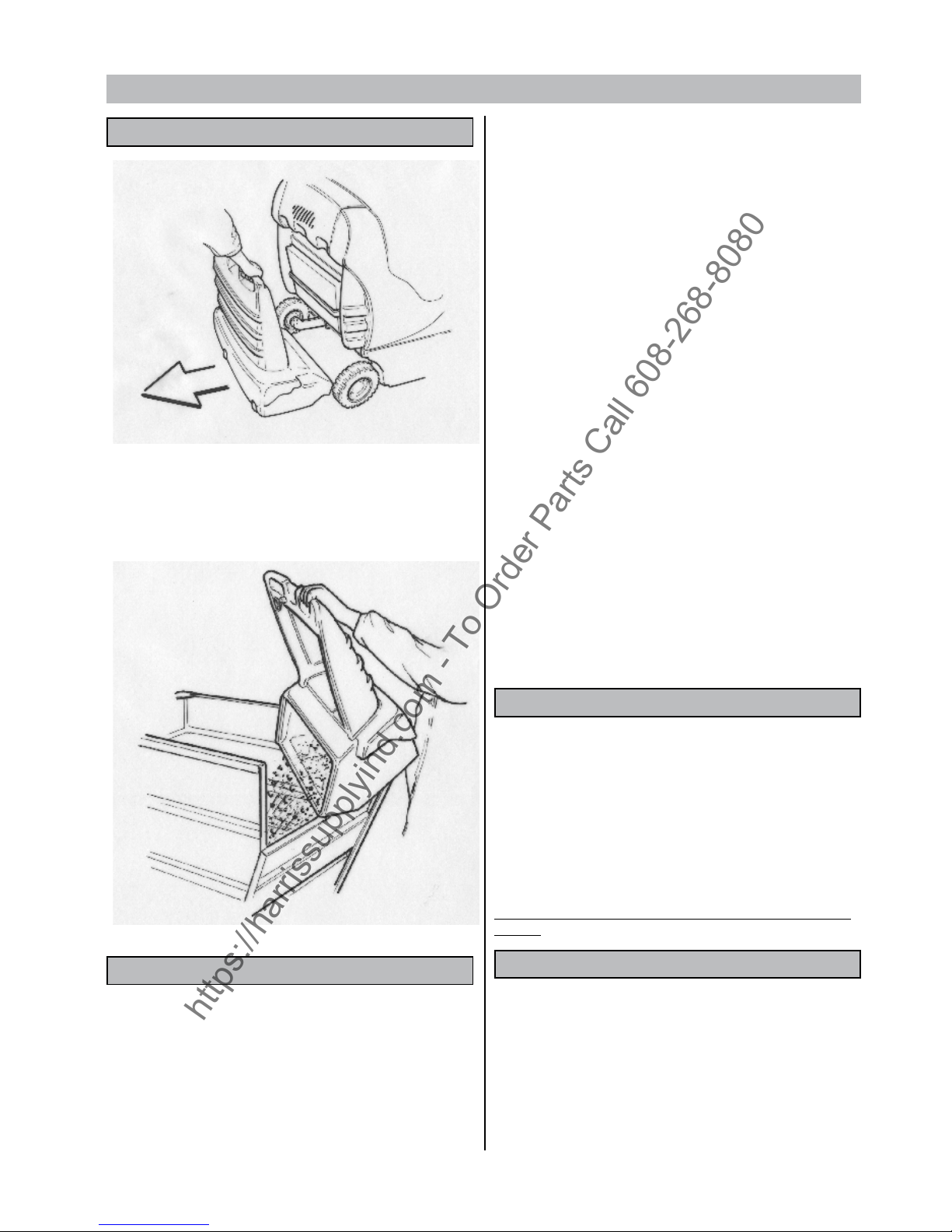

EMPTYING THE WASTE BIN

1-Move to the waste container.
2-Pull lever that locks/releases the bin.
3-Pull out the bin and empty it.

4-Ret the bin and lock it in place with lever

CLEANING AND SERVICING THE FILTER

The lter is a very important component of the machine and essential
for correct operation.
Pro per filter maintenance will allow you to obtain the best
performance from your machine.
The lter can be cleaned in any of the following three ways:

1) by means of the automatic cleaning system
Accord ing to the chosen work progra mme, the machin e is
programmed to automatically clean the filter at regular preset

intervals.

2) by means of an electric lter shaker that is manually started

Just a simple command is needed to keep the lter in perfect
working order: press the button marked ‘F’ and hold it down for a few
seconds. Repeat this operation 4 or 5 times.
Remember that the cleaner the lter, the better the results of your
cleaning session. It is recommended to carry this operation
out at the end of each work cycle.

NOTE: dusty environments
If you are using the machine in a dusty environment (e.g. sawmills
– warehouses where haulage vehicles pass, etc.), it is a good idea to
use the lter shaker more frequently.

3) by manually cleaning the lter

If operating the lter shaker is not enough to keep the lter clean

- and in any case every 20 hours of work - clean the lter manually.
Before carrying out any kind of intervention on the machine, make
sure it is turned o and that all functions are deactivated. To obtain
this condition, turn the switch marked ‘L’ to OFF.

1° Remove the rear box from the machine

2° Take the lter out of its seat by turning the two xing handles.

3° Blow compressed air onto the side of the filter featuring the
protective net (at a pressure of 6 bar at the most).

4° Ret the lters and the rear panel.

FITTING AND REPLACING THE SIDE BRUSHES

To facilitate transport, the side brush (or brushes) is not tted in its
expected working position.
To t the brush in its correct working position, proceed as follows:

1- Pull up the brush knob.
2- Loosen the screw on the shaft of the side brush motor.
3- Remove the key protection.
4- Place the brush with its ange on the shaft.
5- Tighten the xing screw.

To replace worn side brushes, carry out the operations listed above.
Important : raise and lower the side brushes while the machine is
running.

REPLACING LIGHT BULBS

To replace the front light bulb:

Remove the front cover by loosening the xing screws.

Replace the bulb, making sure that the new bulb has suitable electrical
features.

Ret the front cover.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 7 -

English (Translation of original instructions)

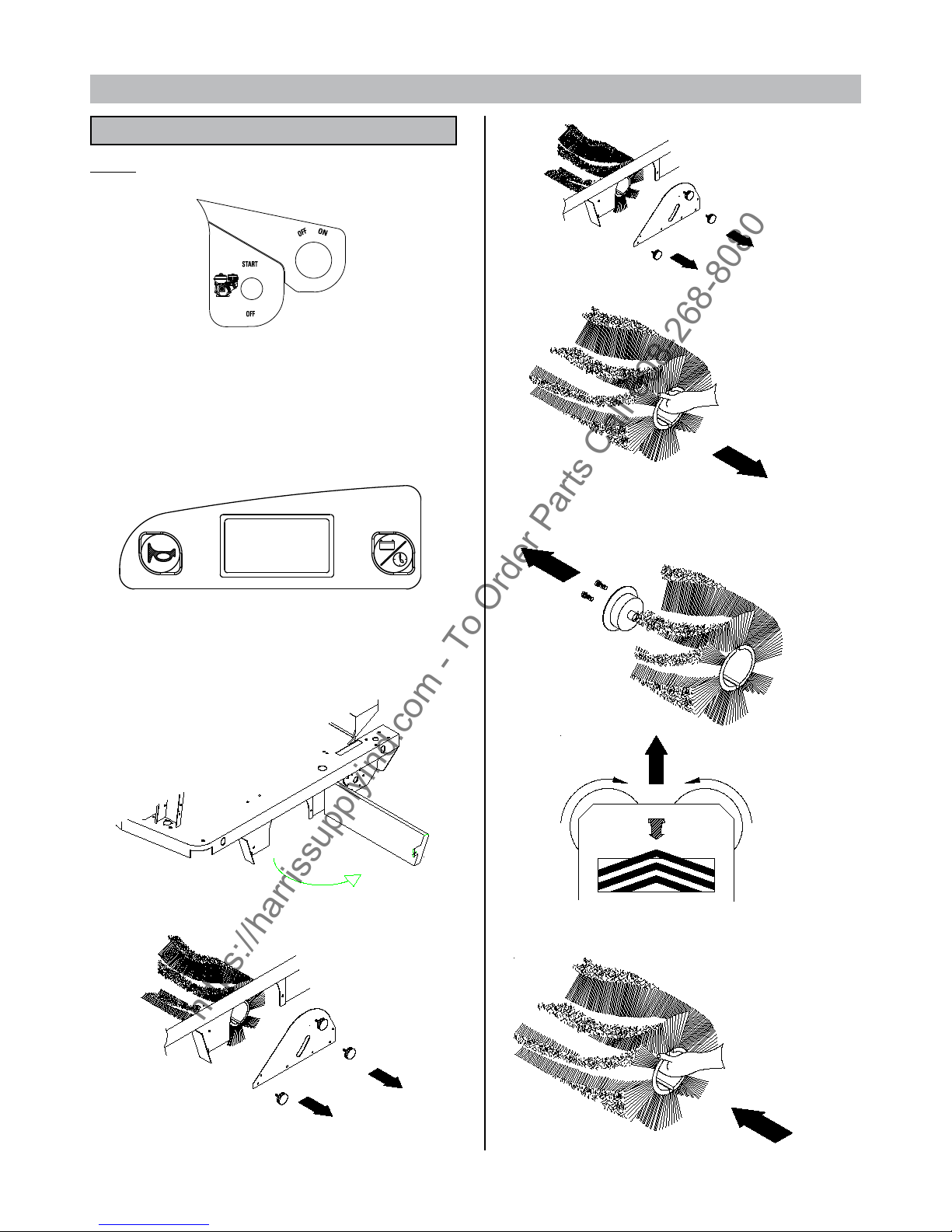

REPLACING THE CENTRE BRUSH

Caution: this operation must be carried out with the machine o and
the key removed.

This machine features a system for automatically adjusting the
pressure exerted and compensating for wear.

The need to replace the central brush is highlighted on the display
by the wording “BRUSH WORN OUT”

To replace the centre brush, proceed as follows:

Open up the door on the left hand side of the machine by loosening
the knob, as shown in the gure.

Unscrew and remove the knobs that x the brush housing cover

Remove the cover of the brush compartment.

Remove the worn brush.

Remove the adapter of the brush stem and t it onto the new brush.
Maintain the same inclination of the bristles.
(See the next gure).

Ret the adapter and mount the new brush. Make sure the adapter
is inserted into the hub.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 8 -

Ret the cover of the brush compartment and tighten the knobs by
following the disassembly instructions in reverse order.

MAINTENANCE,

CHECKING AND RECHARGING THE BATTERY

Check the level of electrolyte inside the batteries regularly.
The battery compartment is under the operator’s seat. Raise the
bonnet and open the caps on the cells. If necessary, top up with
distilled water.
The level of electrolyte is indicated in the battery instruction
handbook.

IMPORTANT: check the battery level every 100 hours.
After you have lled the battery, close the cells with their caps and
clean the top surface.
Pay the utmost attention when you are handling the battery liquid,
as it is corrosive. In the event of contact with your skin or eyes, wash
with plenty of fresh water and seek medical assistance.

Whenever necessary, charge the battery according to the following
instructions:

· Turn the machine o with the main key.

· Raise the bonnet.

· Disconnect the machine’s battery connector.

· The battery must be recharged in a suciently ventilated area

· Open up all the caps of the battery cells.

· Connect the battery connector to the battery charger.
Connect the battery charger to the mains (the mains voltage and
frequency ratings must correspond to those of the battery charger).

· After charging, disconnect the battery from the charger and hook it up
to the machine.
Put the caps back on and clean the top surface of the battery.

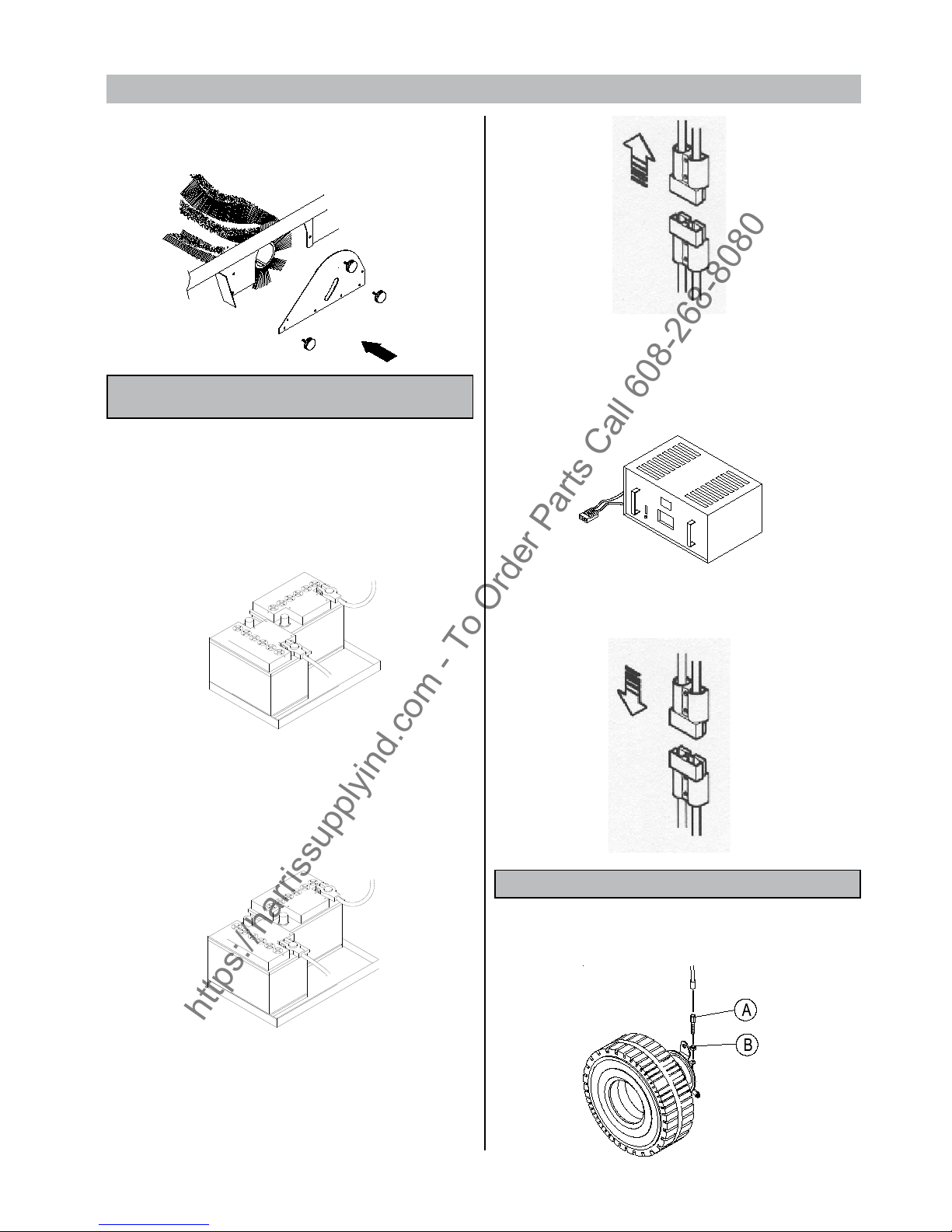

ADJUSTING THE BRAKE

If the service brake or parking brake is not eective enough, it can be
adjusted by acting on the front wheel. Loosen locknut B by turning
screw A and then tighten locknut B again.

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

- 9 -

English (Translation of original instructions)

NOTE: the engine oil must be replaced after the rst 20 hours of work
or in any case within a month.
It is then sucient to replace it every 100 hours of work or within 8
months.

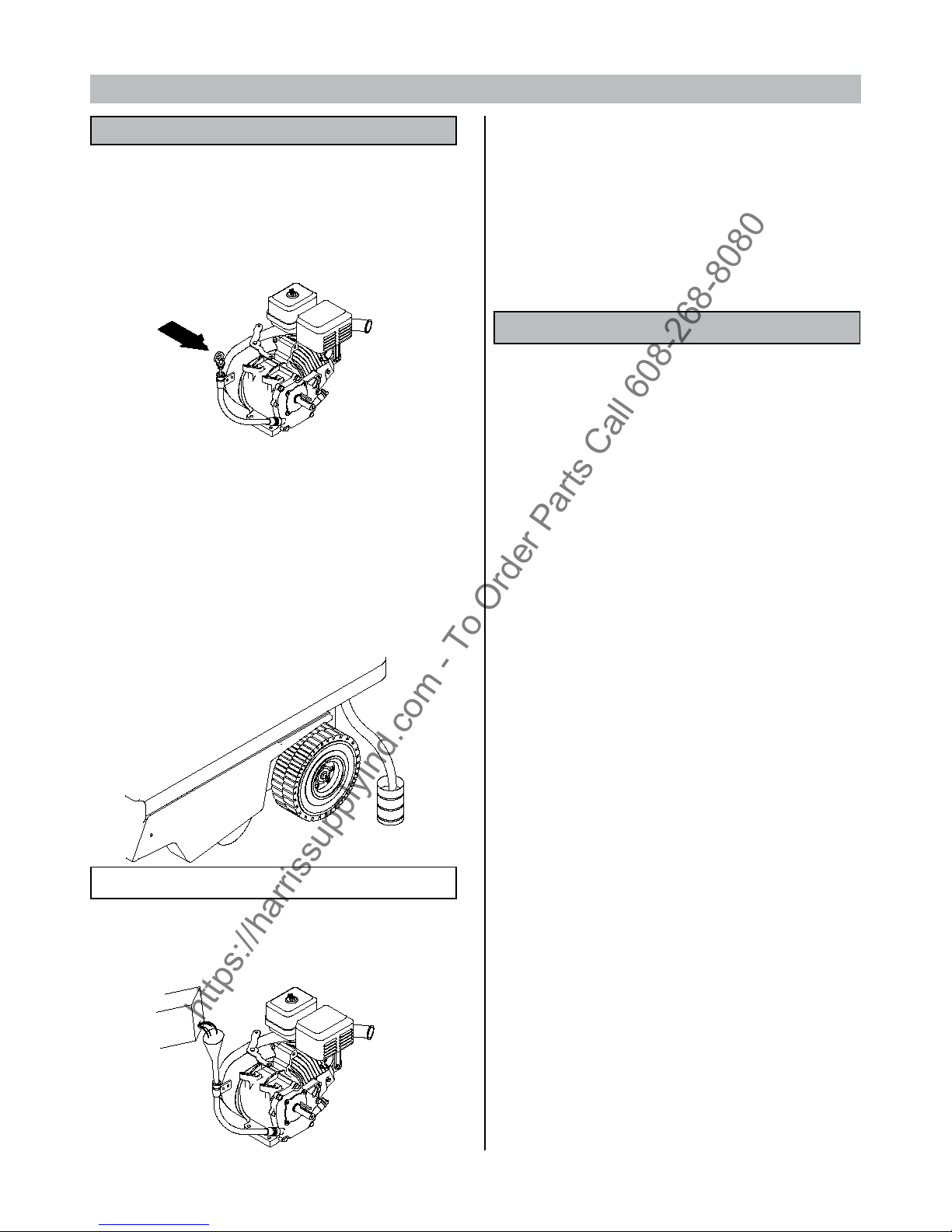

To replace the oil in the engine, proceed as follows:

- Remove the right hand side casing of the machine by loosening
the xing screws.

- Gain access to the oil drainage pipe.

- Unscrew the dipstick.

- Take the cap o the drainage pipe and let the exhaust oil drain
out.

NOTE: oil should preferably be drained when the engine is hot.

Pour in new oil of the type and in the quantity indicated on the
use and maintenance manual of the engine. Use only SAE 15/49
multigrade oil which ensures eective lubrication at an ambient
temperature ranging from –15°C to over 40°C.

AIR FILTER OF THE ENGINE

Check the state of the engine’s air lter regularly.
If necessary, wash the sponge (pre-lter) with water and soap or a
standard household detergent.
Rinse and dry.
When necessary, replace the air lter of the engine.
Ret the lter and cover.
Clean the fuel lter regularly.
Before carrying out any of the above operations, consult the use and
maintenance handbook of the engine.

“OIL CHANGE” ALARM CODE

The OIL ALARM error code informs users, every 100 hours of work,
that the oil of the endothermic engine needs to be replaced (this
function is active in D.P. versions only). By pressing the key on the
right of the display twice the endothermic engine partial working
hour counter appears. This is a four-digit display: the rst digit on
the left (0-9 range) and the three remaining digits display the actual
hours of work of the engine. When the engine has been running for
100 hours, the message “Oil change” starts ashing on the display. This
means that the oil must be replaced (see the maintenance chapter in
the engine handbook). After replacing the oil, users must reset the
hour meter (see the maintenance chapter in the engine handbook),
as described below:

A) press the key to the right of the display once to view the partial
hour counter
B) press the key to the right of the display again for at least ve
seconds (the partial hour counter will be reset) The rst digit on the
display increases by one unit, so that the operator will know how
many times oil has been replaced.

N.B.: If the engine oil is not replaced, every time the machine is
switched on the operator will hear ve acoustic warning signals,and
on the display the wording “OIL CHANGE” will ash. The wording
will disappear by pressing the key to the right of the display: in this
way the display will return to the voltmeter and total hour counter
screen.

ENGINE MAINTENANCE

Take into account that it is necessary to carefully read the use and
maintenance handbook of the engine. However, here is some practical
advice:

Check the level of oil in the engine at least once a month, using
the dipstick. Top up using the oil indicated on the instruction
handbook

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

SUMMARY TABLE

MAINTENANCE OF THE BATTERY VERSION

IMPORTANT: these operations must be carried out with the machine o and the key removed.
All routine and corrective maintenance operations must be eected by competent personnel or at an authorised service centre.

NOTE: the life of the battery strictly relates to regular periodic maintenance (checking the level and density of the electrolyte).
If the machine has not been used for a long time (for instance 4-6 weeks), it is in any case necessary to recharge the batteries to guarantee
that the voltage level never drops below the threshold value of 20.5 V.
If not used, batteries tend to lose their charge.

A : upon delivery
B : every 30 hours
C : every 50 hours
D : every 100 hours
E : every 400 hours

CHECK A B C D E

Battery liquid and voltage levels

□ □

or every 2

weeks

Check the brushes (or charcoal) of all electric mo­tors and replace if worn

□

Tightness of the belts

□ □

Brake adjustment

□ □

Filter shaker

Tightness of the nuts and screws

□

State of the side brush

□

Clean the panel lter

□

Tightness of the bin, lter, ap gaskets

□ □

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

SUMMARY TABLE

MAINTENANCE OF THE DUAL POW ER - PETROL VERSION

IMPORTANT: these operations must be carried out with the machine o and the key removed.
All routine and corrective maintenance operations must be eected by competent personnel or at an authorised service centre.
As far as maintenance work on the engine is concerned, refer to the relevant handbook.

NOTE: the life of the battery strictly relates to regular periodic maintenance (checking the level and density of the electrolyte).
If the machine has not been used for a long time (for instance 4-6 weeks), it is in any case necessary to recharge the batteries to guarantee
that the voltage level never drops below the threshold value of 20.5 V.
If not used, batteries tend to lose their charge.

A : upon delivery
B : twice a week
C : every week
D : every 20 hours
E : every 50 hours
F : every 100 hours
G : every 150 hours
H :

every 300 hours

I : every 400 hours

CHECK

A B C D E F G H I

Battery liquid and voltage levels

□ □

Clean the engine air lter

□

Clean the panel lter

□

Oil and engine

□ □

Replace the engine oil

1st

time

□

Check the brushes (or charcoal) of all electric motors and re­place if worn

□

Tightness of the belts

□ □

Brake adjustment

□ □

Filter shaker

Tightness of the nuts and screws

□

State of the side brush

□

Tightness of the bin, lter, ap gaskets

□ □

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

SECURITY CODE

TROUBLESHOOTING TABLE

MACHINE BEHAVIOUR

THE TRACTION IS BLOCKED

THE TRACTION IS BLOCKED

THE OPERATING FUNCTIONS STOP

THIS APPEARS ONLY IF THE MACHINE
IS FITTED WITH AN ENDOTHERMIC
ENGINE

WARNING THAT THE BATTERY IS
ALMOST FLAT

THE MA CH INE FUN CTION S ALL
STOP WITH THE EXCEPTION OF THE
TRACTION

THE MACHINE IS BLOCKED

THE MACHINE CONTINUES TO RUN

ERROR DESCRIPTION

TRACTION ENGINE OVERHEATS TO 95°C OR
THE ALTERNATOR OVERHEATS TO 150°C

THE ELECTR ONIC CONT RO L CIR CUIT
OVERHEATS TO > 85°C

EXCESSIVE POWER DRAW OR CENTRAL
BRUSH LOCK

IT IS ACTIVATED ONLY AFTER 99 WORKING
HOURS

TH IS HAP PEN S WHEN T HE B ATTE RY
VOLTAGE FALLS BELOW 21V

IF FOR 3 CONSECUTIVE SECONDS THE
VOLTAGE READ BY THE KEY IS LESS THAN
20, 3V

IF FOR 3 CONSECUTIVE SECONDS THE
VOLTAGE READ BY THE KEY IS LESS THAN
18V

THE BRUSH NO LONGER APPLIES SUITABLE
PRESSURE TO THE FLOOR AS IT IS WORN

OUT

POSSIBLE INTERVENTION

HAVING GONE UP A STEEP SLOPE, THIS
MAY BE NORMAL. LEAVE THE ENGINE TO
COOL DOWN FOR 20 MINUTES. CHECK
THAT THE COOLING FAN IS WORKING
CORRECTLY. CHECK THAT THE BRAKE IS
NOT BLOCKED. CHECK THAT THE TRACTION
WHEEL SPINS FREELY.

IF THE ATMOSP HE RIC TE MPERATURE
IS HIGH , STO P T HE MACH INE FOR 20
MINUTES AND THEN RESTART IT. IF THE
PROBLEM PERSISTS, CALL THE SERVICE
CENTRE

CHECK THE BRUSH RUNS SMOOTHLY AND
CHECK FOR ANY IMPEDIMENTS (STRING,
NYLON OR OTHER)

ENGINE OIL REPLACEMENT SIGNAL (TO
RESET PRESS THE DISPLAY BUTTON FOR
5 SECONDS ON THE OIL HOUR COUNTER
SCREEN)

NO INTE RV ENTION REQU IRED OTHER
THAN CHARGING THE BATTERY

RECHARGE THE BATTERY

RECHARGE THE BATTERY

REPLACE THE CENTRAL BRUSH

MOTOR PAUSE

TRACTION PAUSE

BRUSH CURRENT

CHANGE THE OIL

BATTERY RESERVE

FLAT BATTERY

BATTERY WORN OUT

BRUSH WORN OUT

https://harrissupplyind.com - To Order Parts Call 608-268-8080

English (Translation of original instructions)

Drive board alarms

If the machine drive is interrupted, the error code should be identied by means of the status LED.
In the absence of malfunctions, the status LED is steadily on while the machine is in operation. If a malfunction is detected, the status LED
provides two types of information, a slow ash (2 Hz) or a rapid ash (4 Hz) to indicate the severity of the malfunction.
Malfunctions with a slow ash are cancelled automatically once the malfunction has been repaired and the machine functions normally
again.
Malfunctions with a rapid ash (“*” in the table) are considered more serious. The machine must be turned of to reset operation after repairing
the malfunction.
The indication of severity remains active for 10 seconds, after which the status LED ashes constantly showing a two digit malfunction code
until the repairs have been carried out.
For example, error code “1,4” is displayed as follows:

□ □ □ □ □ example alarm code 1,4

LED CODES DESCRIPTION

1.1

□ □

Overheating > 92°

1.2

□ □ □

Accelerator malfunction

1.3

□ □ □ □

Speed limiter potentiometer malfunction

1.4

□ □ □ □ □

Undervoltage malfunction

1.5

□ □ □ □ □ □

Overvoltage malfunction

2.1

□ □ □

Principal contactor actuator opening failure

2.3

□ □ □ □ □

Principal contactor actuator closing failure

3.1

□ □ □ □

Accelerator potentiometer malfunction

3.2

□ □ □ □ □

Brake activation malfunction

3.3

□ □ □ □ □ □

Low battery voltage

3.4

□ □ □ □ □ □ □

Brake deactivation malfunction

3.5

□ □ □ □ □ □ □ □

HPD malfunction (incorrect regulation of accelerator potentiometer)

4.1

□ □ □ □ □

Motor short circuit

4.2

□ □ □ □ □ □

Incorrect motor voltage/short circuit in motor

4.3

□ □ □ □ □ □ □

EEPROM malfunction

4.4

□ □ □ □ □ □ □ □

Short circuit in motor/EEPROM error

https://harrissupplyind.com - To Order Parts Call 608-268-8080
