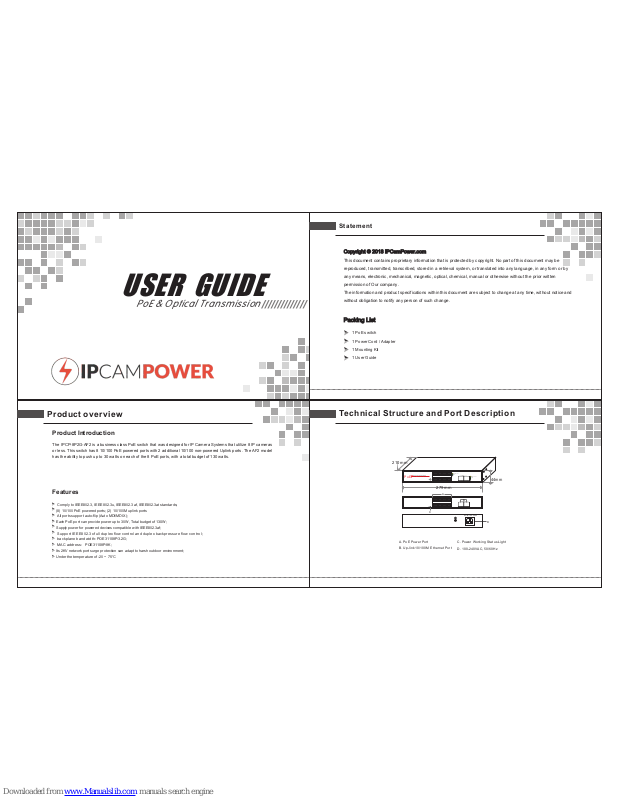

USER GUIDE
PoE & Optical Transmission
Statem ent
1 PoE switch
1 Power Cord / Adapter
1 Mounting Kit
1 User Guide
Copyright © 2018 IPCamPower.com
This document contains proprietary information that is protected by copyright. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written
permission of Our company.
The information and product specifications within this document are subject to change at any time, without notice and
without obligation to notify any person of such change.
Packing List
Produ ct over view
Product Introduction
The IPCP-8P2G-AF2 is a business class PoE switch that was designed for IP Camera Systems that utilize 8 IP cameras
or less. This switch has 8 10/100 PoE powered ports with 2 additional 10/100 non-powered Uplink ports. The AF2 model
has the ability to push up to 30 watts on each of the 8 PoE ports, with a total budget of 130 watts.
Features
Technical S truct ure and P ort Descri ption
AC/IN 100 -240V
279 mm
44mm
210 mm
A
D
C
3 5 7
2 4 6 8
1
9
10
Power
100M Act/Link
100M
100M Act/Link
PoE
B
8 Ports 100M + 2 Ports Ethernet 100M Uplink PoE Switch
9
10
Power
A. PoE P ower Po rt
B. Up- link 10/100M E thern et Port
C. Power Wor king St atus Lig ht
D. 100 -240VA C, 50/60 Hz
PoE
Comply to IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.3at standards;
(8) 10/100 PoE powered ports; (2) 10/100M uplink ports
All ports support auto-flip (Auto MDI/MDIX);
Each PoE port can provide power up to 30W, Total budget of 130W;
Supply power for powered devices compatible with IEEE802.3af;
Supp ort IEE E802. 3x full d uplex f low con trol an d duple x backp ressu re flow c ontro l;
back plane b andwi dth: POE31108P:3.2G;
MAC ad dress: POE31108P:8K;
Its 2KV network port surge protection can adapt to harsh outdoor environment;
Under the temperature of -20 ~ 75℃
Page 2
! Note：Please confirm that the all the PD devices are complying with IEEE802.3af standard.
PoE Priority: This function will protect the switch when it is overloaded, if all devices consumption are higher than specified, switch
ports will be sorted by priority, Port 1, Port 2, Port 3, etc. Then the power supply of lowest priority will be turned off.
Power Plug / Adapter: Please only use the included power supply as the switch may be damaged if mismatched power is applied.
PoE Port Indicator Lights: There are indicator lights on the front panel that will show you if the switch is supplying power to a PoE
capable device.
Network Traffic Indicator Lights: There are lights on the front panel that will show if your plugged in device is
transmitting / receiving network data at an appropriate rate.
Indic ator de scriptio n:
!
Insta llati on guide
Ple ase ins tall wi th the su pport ing dev ices.
Instal lat ion
Ple ase con firm th e follo wing th ings be fore in stall ation :
1.
If the POE ports meets the power requirement of the connecting devices.
2.
If the POE standard requirements and power supply matches with the power receiving device
(1/2+ 3/6-( End -span))
3 .If t he outpu t powe r of the ma tched p ower ad apter i s compa tible w ith the s pecif icati on in the l abel of t he POE sw itch
Ple ase ins tall th e POE swi tch acc ordin g to the fo llowi ng step s:
1. Pu t the PoE sw itch o n the sur face of a l arge an d stabl e table .
2. Pl ug the po wer ada pter in to the po wer con necto r, and th en conn ect the p ower ou tlet th rough t he powe r cord.
3.
Connect the network devices to the POE switch port with network cable.
1.P lease d o not put h eavy pr oduct s on the PO E switc h, and pl ease en sure go od vent ilati on envi ronme nt for th e POE swi tch.
2.P lease c ut off th e power f irst be fore pl uggin g the pow er adap ter.
Power
Con nect th e power c able, p lug it in to powe r socke t, turn o n the pow er, the n the swi tch wil l autom atica lly ini tiali ze,
and LED lights status will display as following:
1 All lights will flash brightly except for the PoE ports, which means a successful power boot has occured.
2 Power LED remains lit.
If in itial izati on is inc onsis tent wi th the ab ove, pl ease ch eck the p ower.
Note
!
Note
Conne ction D iagram
Model Descriptions and Insta llation
IPCP-8P2G-AF2:8x 10/100M ports +2x 10/100 M Uplink port PoE switch, 1-8 port supports PoE, IEEE 802.3af, has the ability to
push up to 30 watts per port, with a total budget of 130W, network port transmission distance is 100m
Wid
e Area Network
3 5 7
2 4 6 8
1
G1
G2
8 Port 100M + 2 Ports Ethernet Gigabit Uplink PoE Switch
Power
1000M Act/Link
1000M
PoE
100M Act/Link
PoE
Ind icato r
Sta tus
Des cript ion
Powe r In dicat or: PWR
Gree n LED ON
Norm al
PoE In dicat or: PoE
100/ 1000M I ndica tor:
Act/ Link
OFF Pow er OFF
Gree n LED ON
Con necte d PD, wor king pr operl y
Gree n LED Bl ink Sho rt circu it or cur rent ov erloa d
OFF No Co nnect ed PD or Po wer OFF
Yello w LED Bli nk
Dat a trans missi on prop erly
Yello w LED ON
Con necte d with 10 Mbps or 1 00Mbp s net work de vice
OFF
No co nnect ed netw ork dev ice
Gree n LED ON
Con necte d with 10 00Mbp s net work de vice
OFF
Con necte d with 10 /100M bps net work de vice
SPD In dicat or: 100 0M
Gree n LED ON
Con necte d with 10 0Mbps net work de vice
OFF
Con necte d with 10 Mbps ne twork d evice
SPD In dicat or: 100 M
Power
