IP Camera IP CAMERA, YUC-H696 User Manual

1/41

User Manual

IP CAMERA

2/41

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED

TO THEIR RESPECTIVE COMPANIES.

3/41

Content

I. PREFACE....................................................................................................................................... 4

II. PRODUCT SPECIFICATIONS....................................................................................................... 4

III. PRODUCT INSTALLATION ........................................................................................................... 6

A. MONITOR SETTING..................................................................................................................................... 6

B. HARDWARE INSTALLATION AND I/O PIN ASSIGNMENT ............................................................................... 8

C. IP ASSIGNMENT ....................................................................................................................................... 10

D. INSTALL ACTIVEX CONTROL:................................................................................................................... 12

IV. LIVE VIDEO.................................................................................................................................. 14

V. CONFIGURATION........................................................................................................................ 16

A. SYSTEM ................................................................................................................................................... 17

B. NETWOR K ................................................................................................................................................21

C. A/V SETTING ........................................................................................................................................... 27

D. EVENT LIST.............................................................................................................................................. 33

VI. NETWORK CONFIGURATION.................................................................................................... 39

VII. FACTORY DEFAULT ................................................................................................................... 41

VIII. PACKAGE CONTENTS ............................................................................................................... 41

APPENDIX I .......................................................................................................................................... 41

V1.2_100224

4/41

I. Preface

This is a CMOS IP camera with the web server built in. User can view real-time

video via IE browser. It supports H.264, JPEG and MPEG4(3GPP Only) video

compression which provides smooth and high video quality. The video can be

stored in the SD card and playback remotely.

With user friendly interface, it is an easy-to-use IP camera which is designed for

security application.

II. Product Specifications

z 2M-Pixel CMOS Sensor

z Power over Ethernet (Optional)

z H.264/ MJPEG/ MPEG4 (3GPP Only) Compression Format

z SD Card backup

z 2-way audio

z Support Cell phone/PDA/3GPP

z 2 Streaming (H.264/ M-JPEG)

z SDK for Software Integration

z Wireless ( Optional )

z Free Bundle 36 Channel Recording Software

Specifications

Hardware

CPU ARM 9 ,32 bit RISC

RAM 128MB

Flash 8MB

Image sensor 1/3” CMOS (2M-Pixel)

Lens Changeable Yes, CS Mount

Support DC IRIS Yes

I/O 1 in/ 1 Relay Out

RS-485 Yes

Video Out x1

5/41

Audio in Mic Built-in

Audio Out x1 (RCA Type)

Power over Ethernet Optional

Power DC 12V, 450mA

Dimensions 58mm (W) x 65mm (L) x 131.5mm (D)

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP,

DDNS, NTP, UPnP, 3GPP

Wireless (Optional)

Wireless 802.11b/g

Security WEP,WPA-PSK,WPA2-PSK

System

Video Resolution

1600x1200, 1280x1024, 1280x960,1280x720,

800x600,640x480, 320x240, 176x144

Triple Streaming Yes

CMOS setting Brightness, Contrast, Sharpness, BLC, Night

Mode

Image snapshot Yes

Full screen monitoring Yes

Privacy Mask Yes, 3 different areas

Compression format H.264/ M-JPEG/ MPEG4(3GPP only)

Video bitrates adjust CBR, VBR

Motion Detection Yes, 3 different areas

Triggered action Mail, FTP, Save to SD card, Relay

Pre/ Post alarm Yes, configurable

Security Password protection

Firmware upgrade HTTP mode, can be upgraded remotely

Simultaneous connection Up to 10

Audio Yes, 2-way

SD card management

Recording trigger Motion Detection, IP check, Network break down

(wire only), schedule, alarm

Video format AVI, JPEG

Video playback Yes

6/41

Delete files Yes

Web browsing requirement

OS Windows 2000, XP, 2003, Microsoft IE 6.0 or

above

Hardware Suggested

Intel Dual Core 1.66G,RAM: 1024MB, Graphic

card: 128MB

Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB

III. Product Installation

A. Monitor Setting

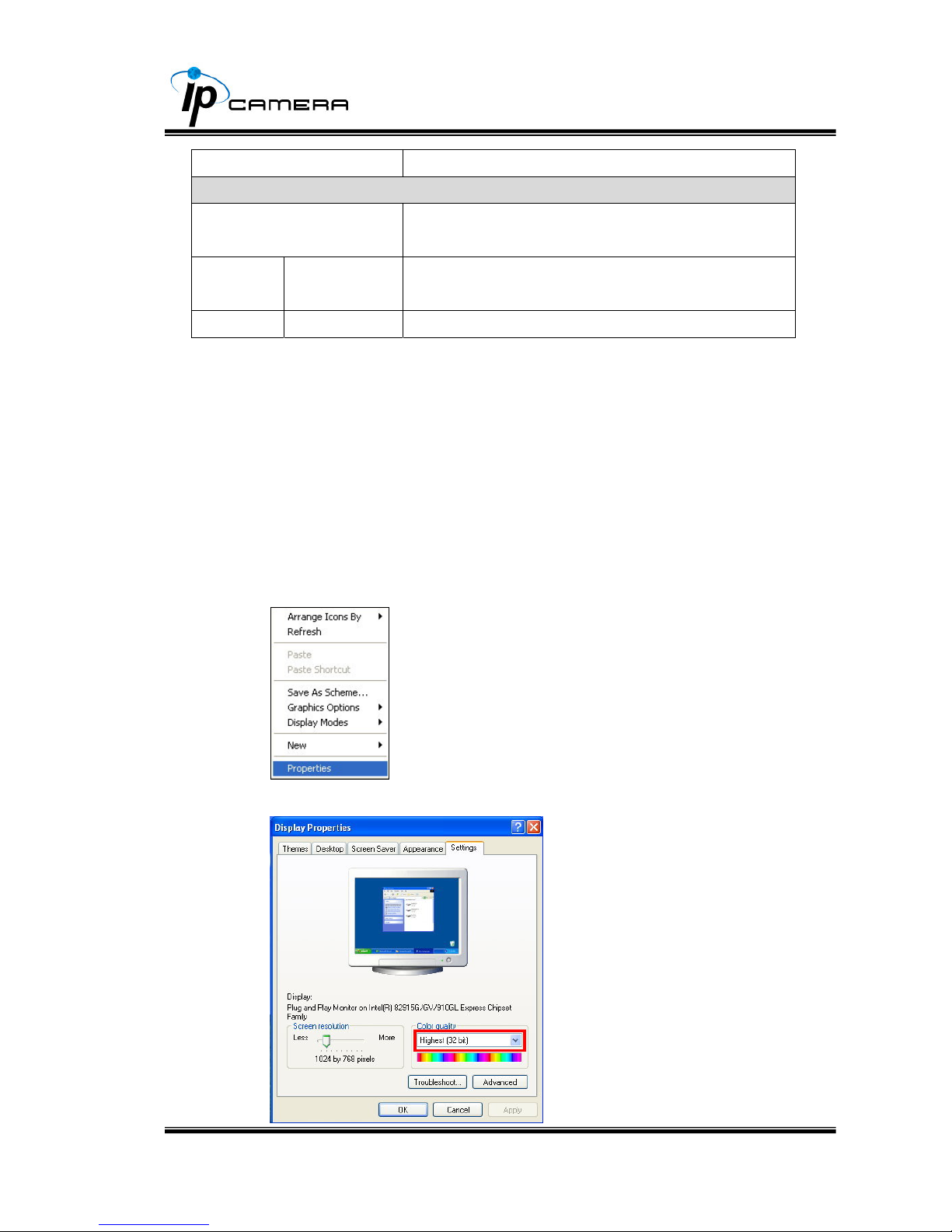

i. Right-Click on the desktop. Select “ Properties”

ii. Change color quality to highest (32bit).

7/41

8/41

B. Hardware Installation and I/O Pin

Assignment

i. Connect power adaptor

ii. Connect IP Cam to PC or network with Ethernet cable

iii. Set up the network configurations according to the network environment.

For further explanation, please refer to chapter VI, “Network

Configuration for IP CAMERA”.

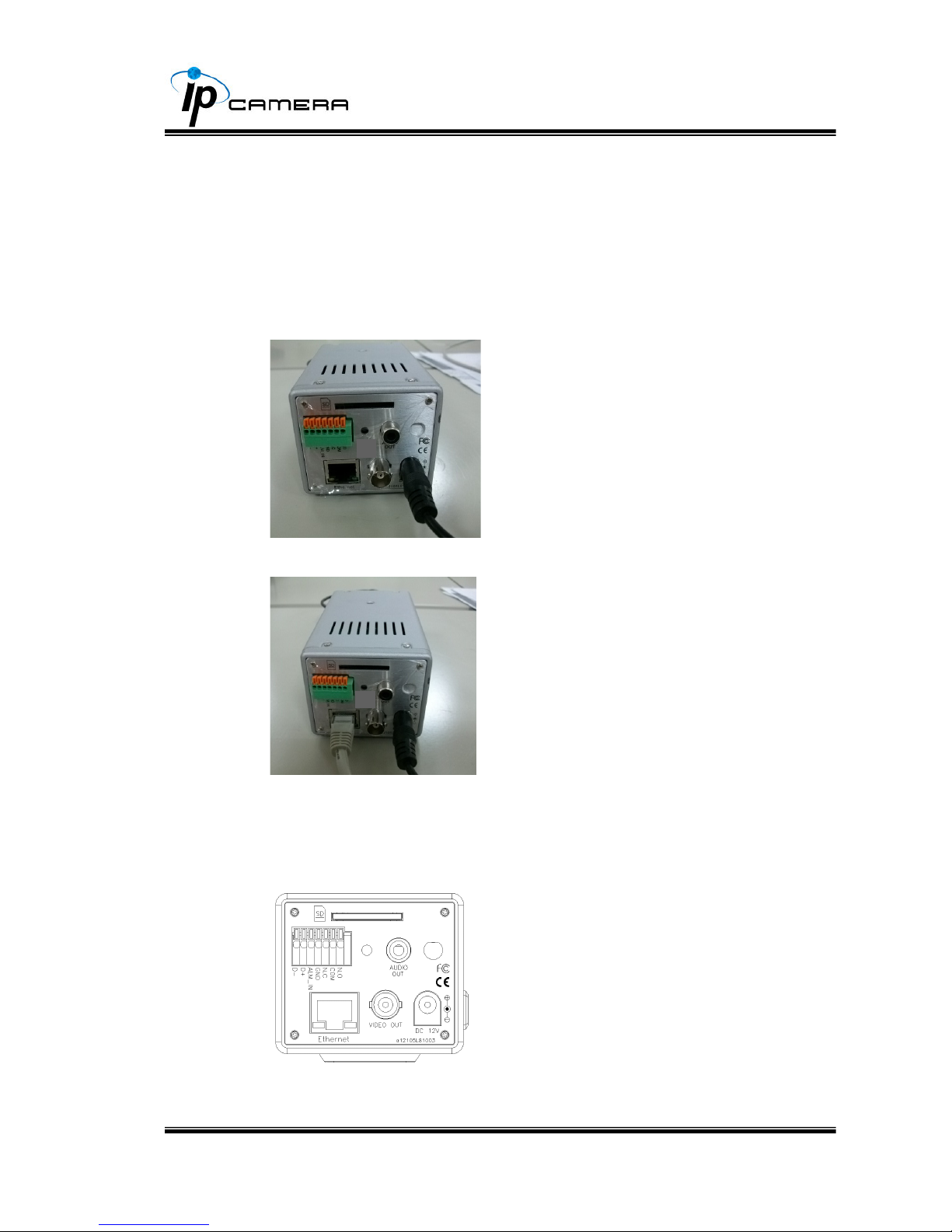

iv. Back panel instruction: Back panel diagram is shown in the following

9/41

v. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is

recommended

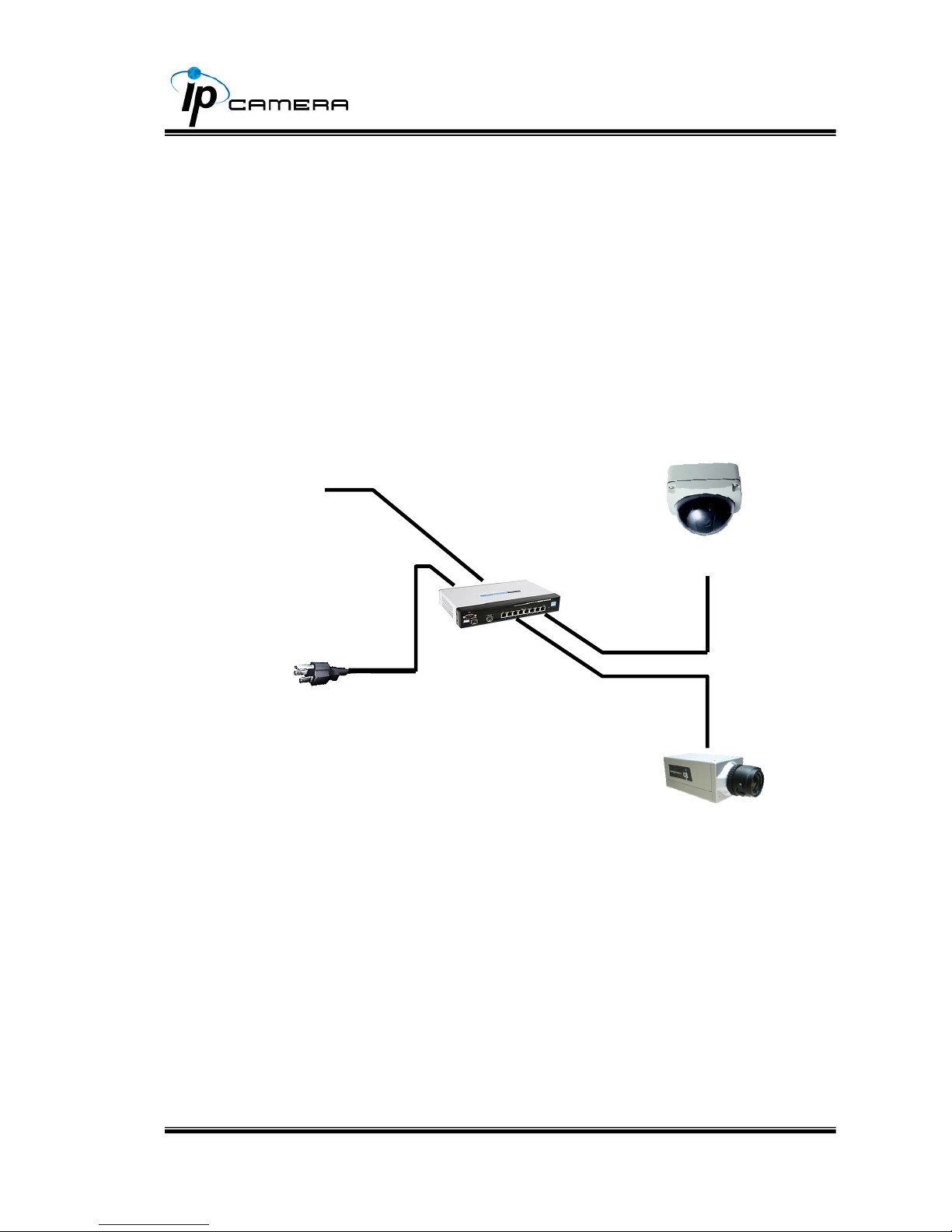

Power over Ethernet (PoE) is a technology that integrates power into a

standard LAN infrastructure. It enables power to be provided to the

network device, such as an IP phone or a network camera, using the

same cable as that used for network connection. It eliminates the need

for power outlets at the camera locations and enables easier application

of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days

a week operation.

Ethernet

PoE Switch

PoE IP Camera

PoE IP Camera

Ethernet Cable

Ethernet Cable

10/41

C. IP Assignment

i. Use the software, “IP Installer” to assign the IP address of IP CAMERA.

The software is in the attached software CD.

ii. IP installer supports two languages

a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version

iii. There are 3 kinds of IP configuration.

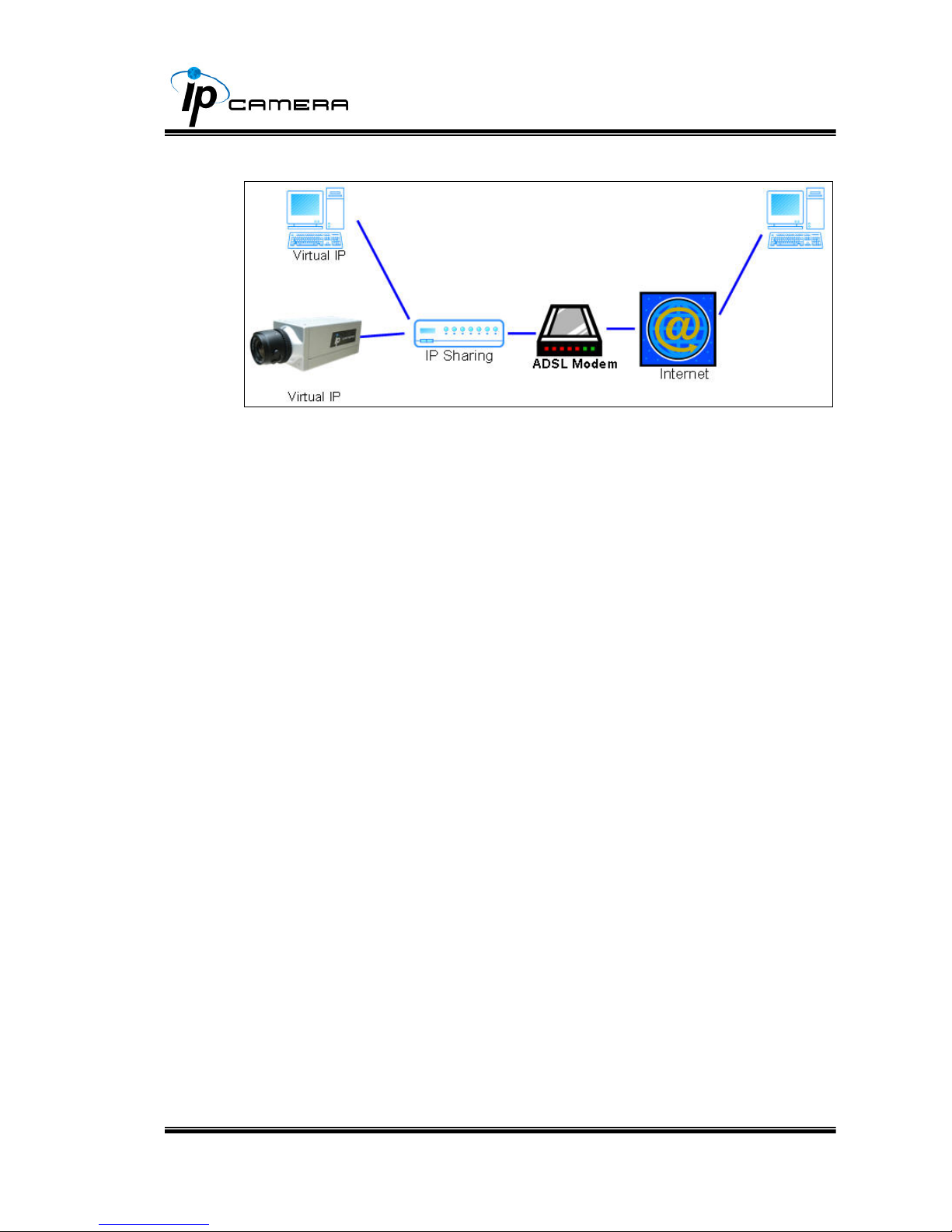

a. Fixed IP (Public IP or Virtual IP)

b. DHCP (Dynamic IP)

c. Dial-up (PPPoE)

iv. Execute IP Installer

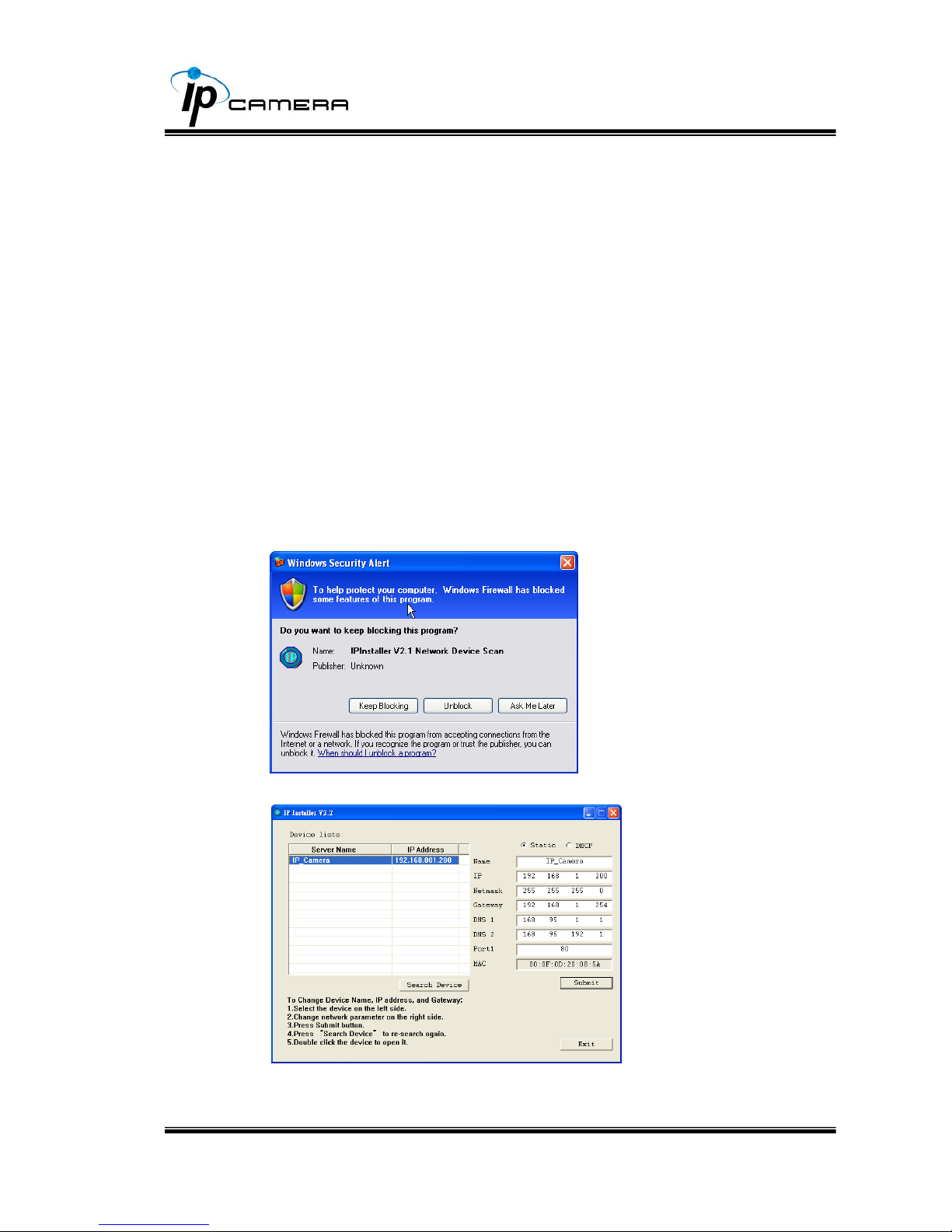

v. For Windows XP SP2 user, it may popup the following message box.

Please click “Unblock”.

vi. IP Installer configuration:

vii. IP Installer will search all IP Cameras connected on Lan. The user can

click “Search Device” to search again.

11/41

viii. Click one of the IP Camera listed on the left side. The network

configuration of this IP camera will show on the right side. You may
change the “name” of the IP Camera to your preference (eg: Office,
warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.

ix. Please make sure the subnet of PC IP address and IP CAM IP address

are the same.

The same Subnet:

IP CAM IP address: 192.168.1.200

PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200

PC IP address: 192.168.1.100

To Change PC IP address:

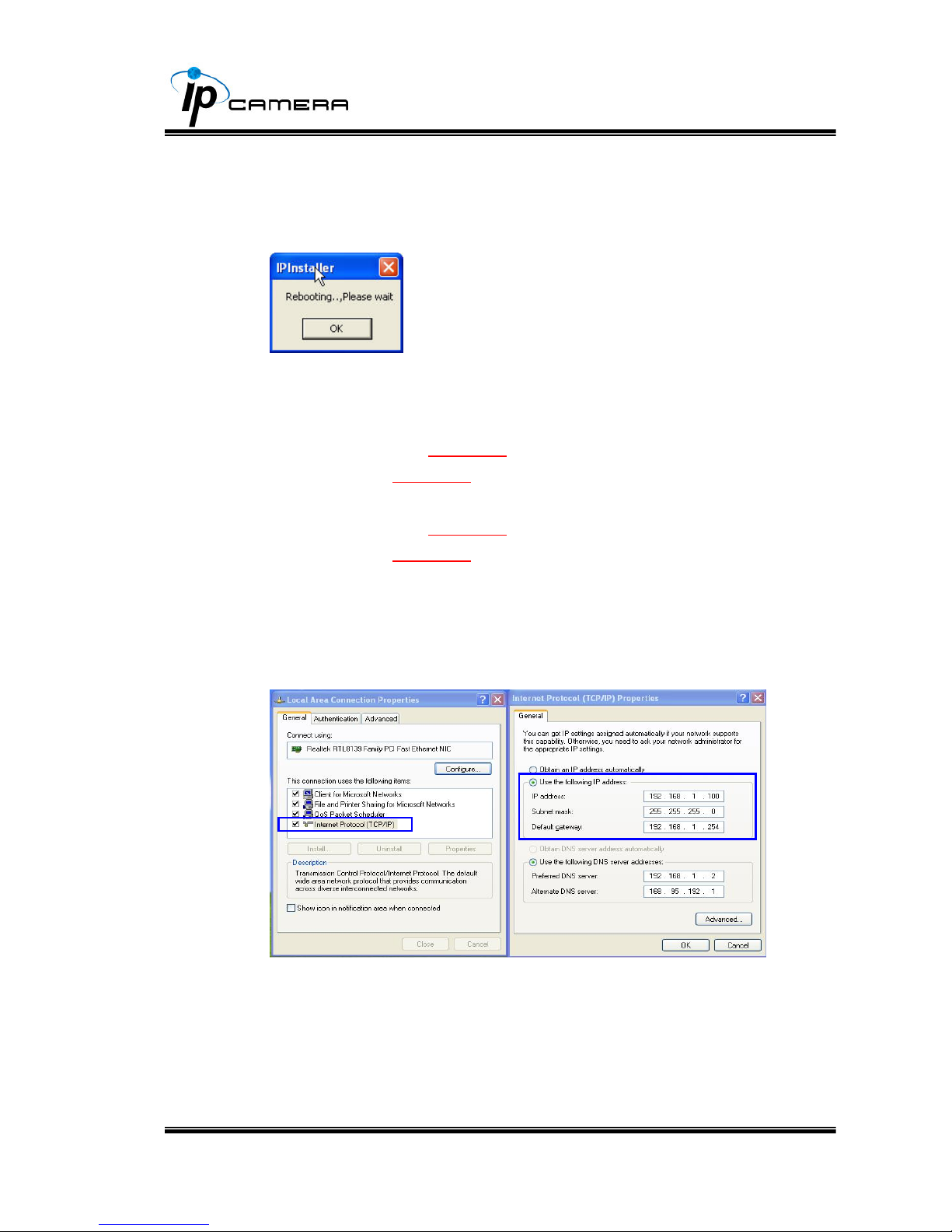

Control PanelÆNetwork ConnectionsÆLocal Area Connection
PropertiesÆInternet Protocol (TCP/IP) ÆProperties

Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.

x. A quick way to access remote monitoring is to left-click the mouse twice

on a selected IP Camera listed on “Device list” of IP Installer. An IE

browser will be opened.

12/41

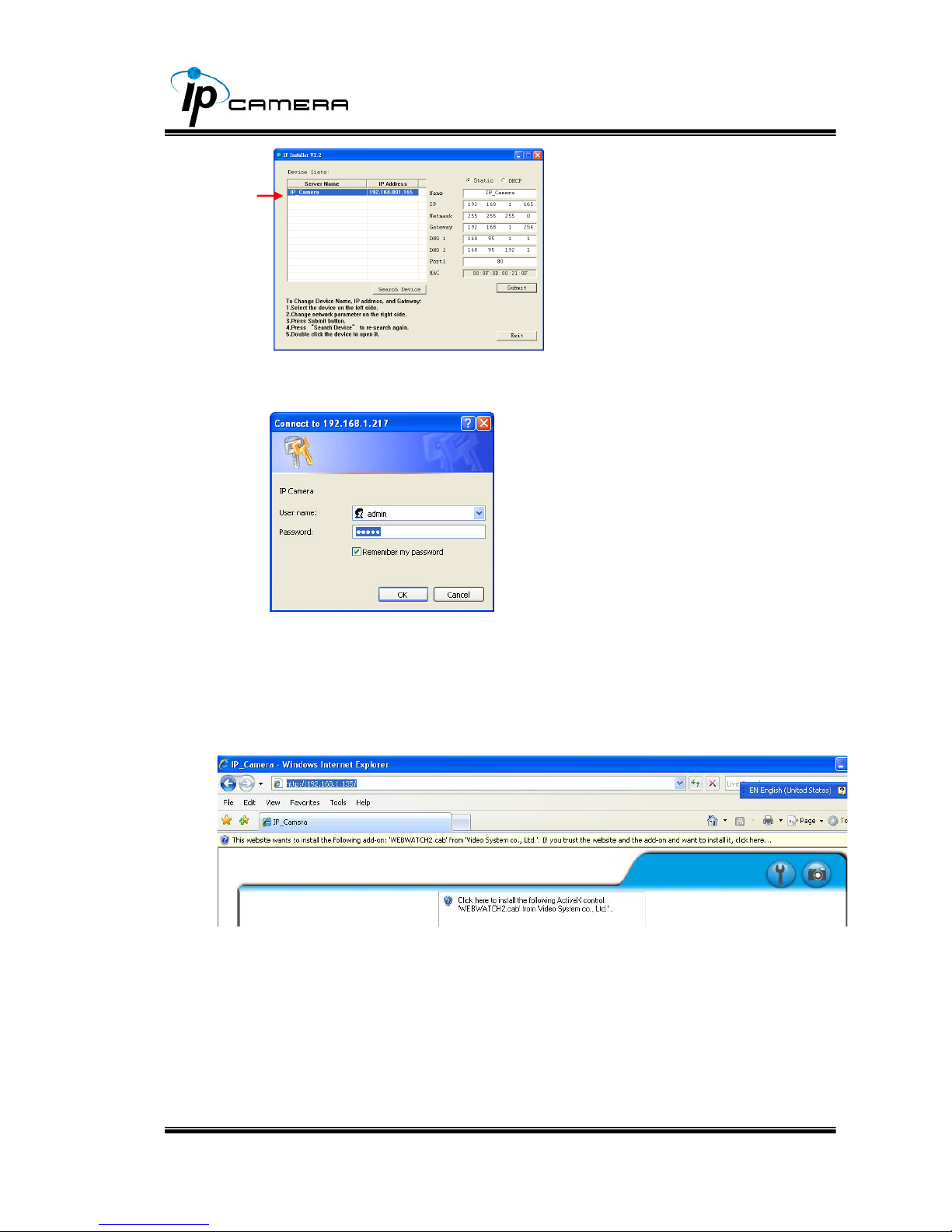

xi. Then, please key in the default “user name: admin” and “password:

admin”.

D. Install ActiveX control:

For the first time to view the camera video via IE, it will ask you to install the

ActiveX component.

If the installation failed, please check the security setting for the IE browser.

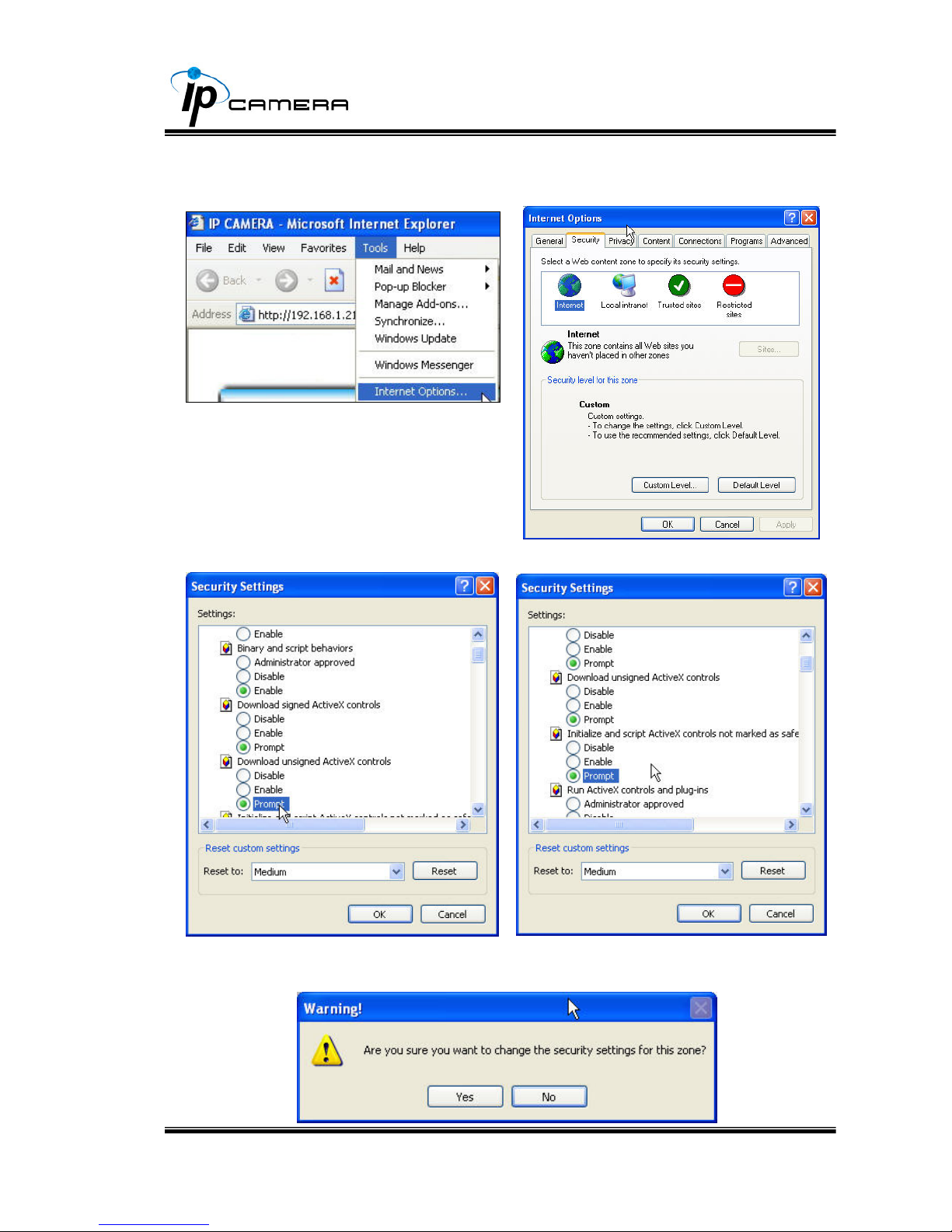

i. IE Æ Tools Æ Internet Options… Æ Security Tab Æ Custom Level… Æ

Security Settings Æ Download unsigned ActiveX controlsÆ Select

“Enable” or Prompt.

ii. IE Æ Tools Æ Internet Options… Æ Security Tab Æ Custom Level…

ÆInitialize and script ActiveX controls not marked as safe Æ Select

“Enable” or Prompt.

13/41

1 2

3 4

5

When popup the following dialogue box, click “Yes”.

14/41

IV. Live Video

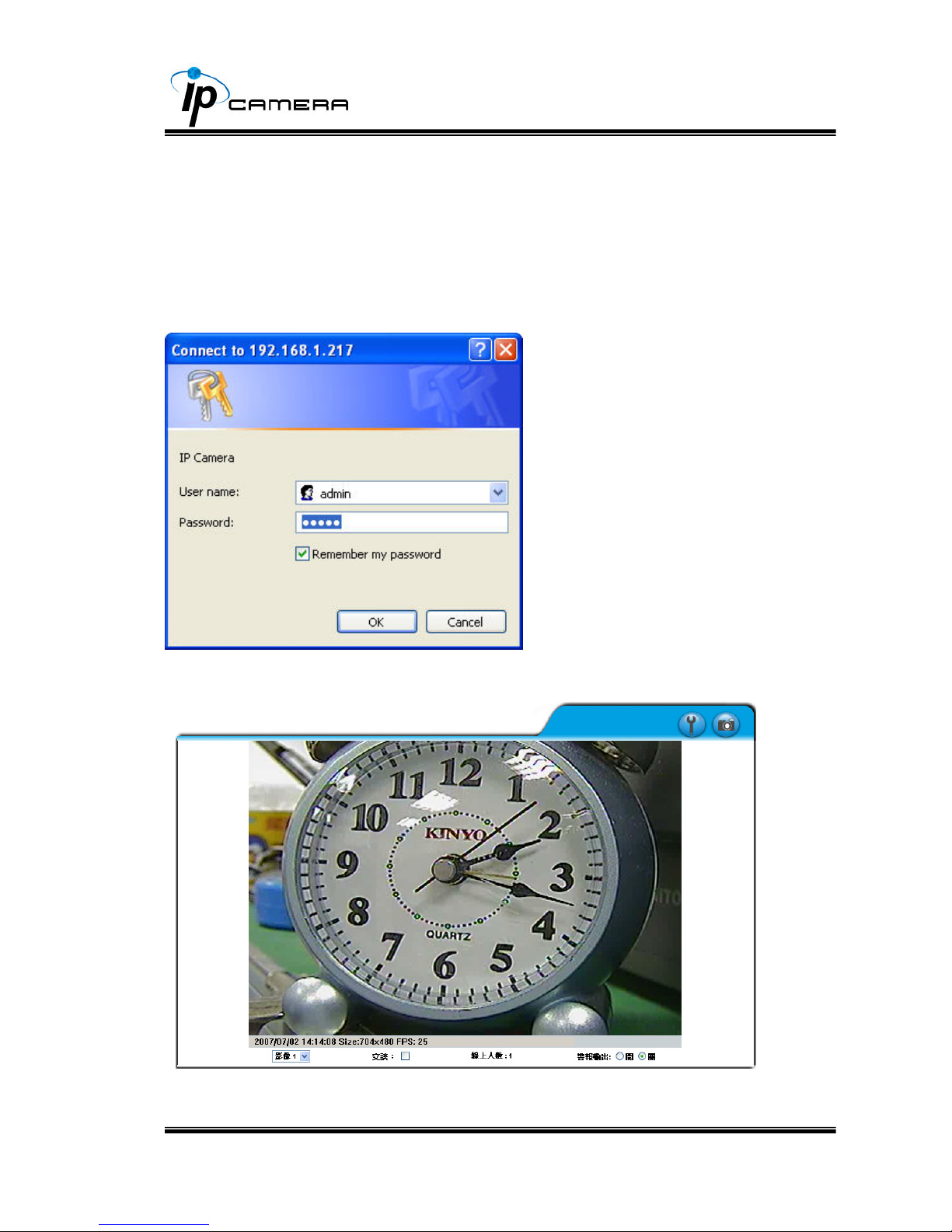

Start a IE browser, type the IP address of the IP camera in the address field. It will

show the following dialogue box. Key-in the user name and password. The default

user name and password are “admin” and “admin”.

When connect to the IP CAMERA。The following program interface shows.

1

2

3

4

5 6

7

15/41

1. ：Get into the administration page

2. ：Video Snapshot

3. Show system time, video resolution, and video refreshing rate

4. Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this

function will not display)

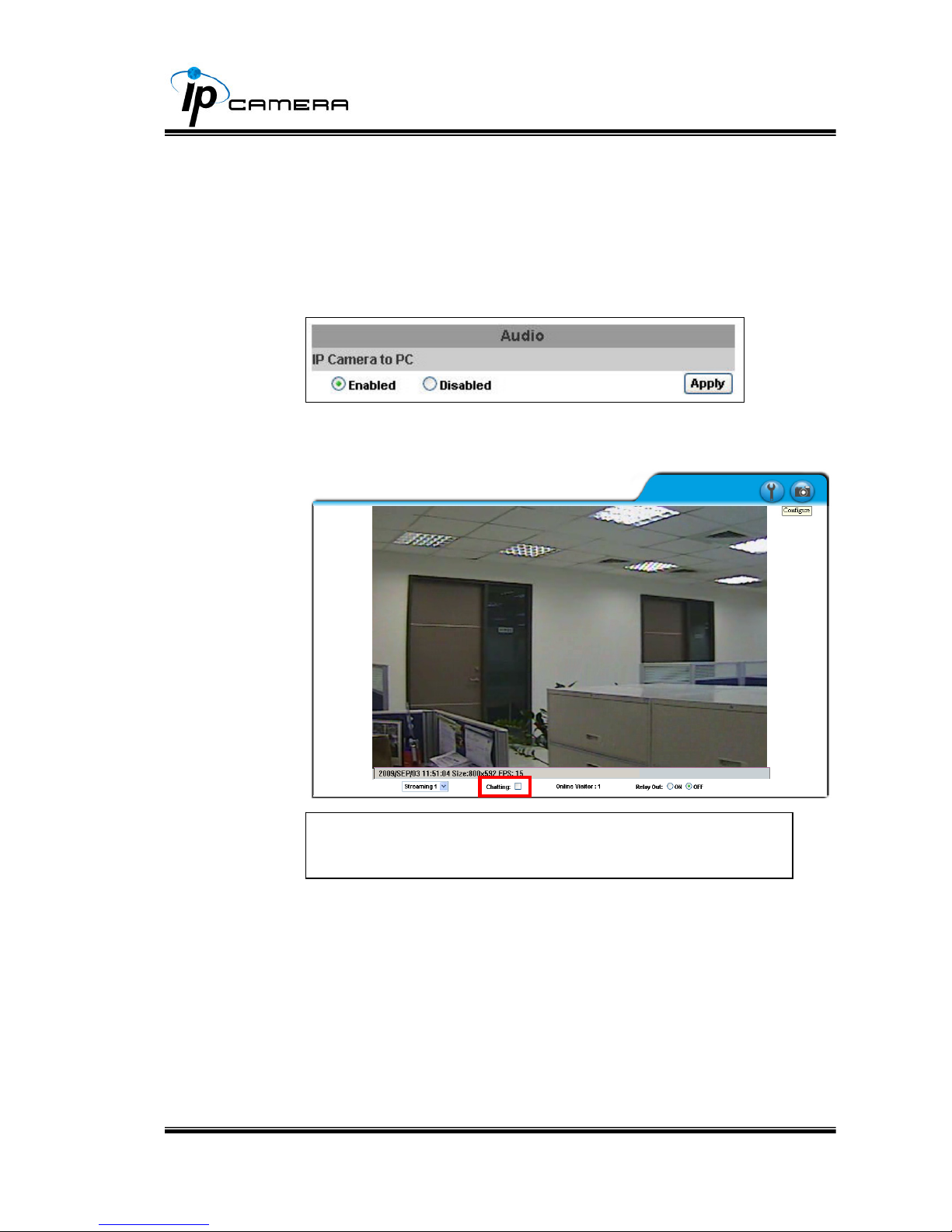

5. IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can

use microphone which connects to the PC to talk to server side, which is IP

Camera side

6. Shows how many people connect to this IP camera

7. Control the relay which is connected to this camera.

Double-click the video, it will change to full screen mode. Press “Esc” or double-click

the video again, it will change back to normal mode.

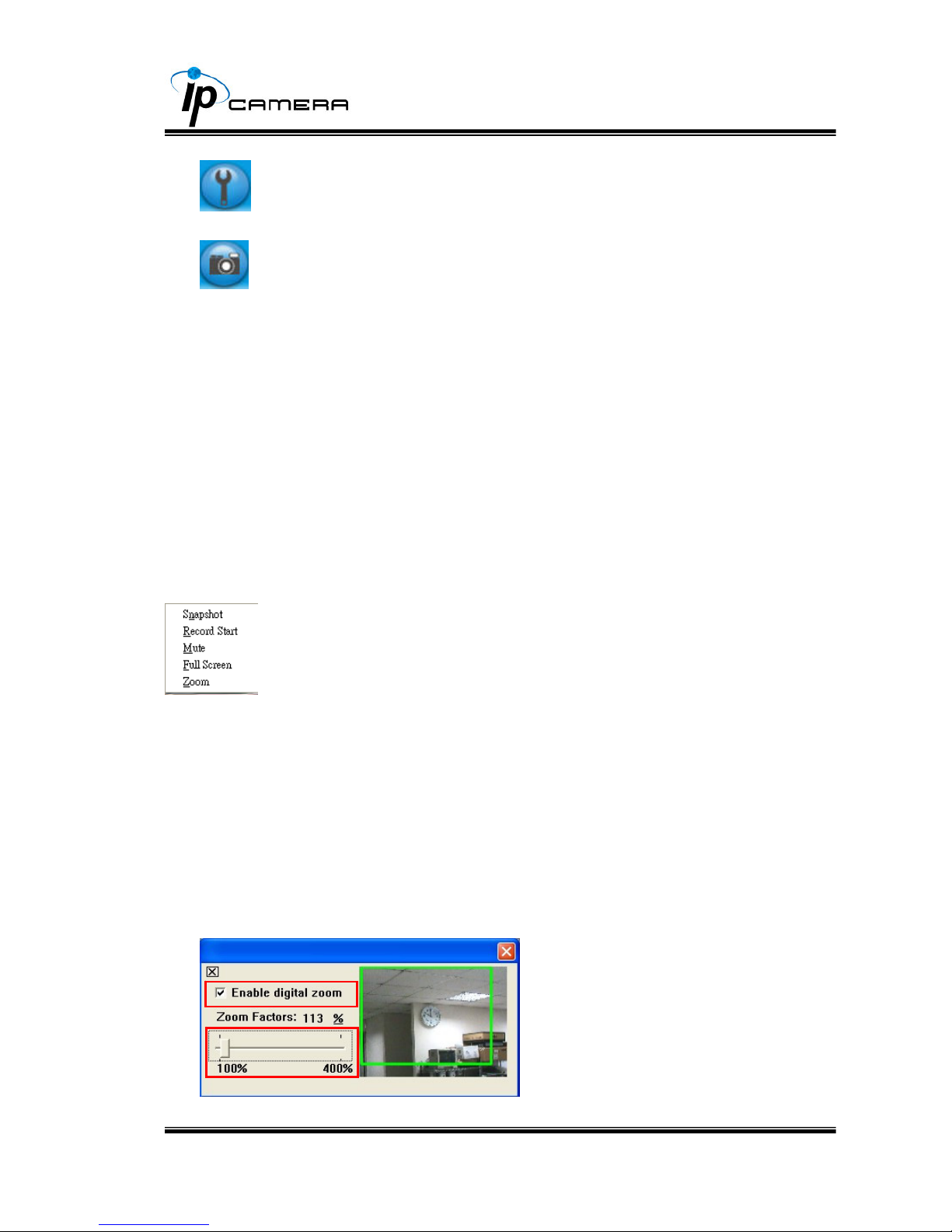

Right-Click the mouse on the video, it will show a pop-up menu.

1. Snapshot：Save a JPEG picture

2. Record Start：Record the video in the local PC. It will ask you where to save the

video. To stop recording, right-click the mouse again. Select “Record Stop”. The

video format is AVI. Use Microsoft Media Player to play the recorded file.

3. Mute：Turn of the audio. Click again to turn on it.

4. Full Screen：Full-screen mode.

5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”

option first within the pop-up dialogue box and then drag and drop the bar to

adjust the zoom factors.

16/41

V. Configuration

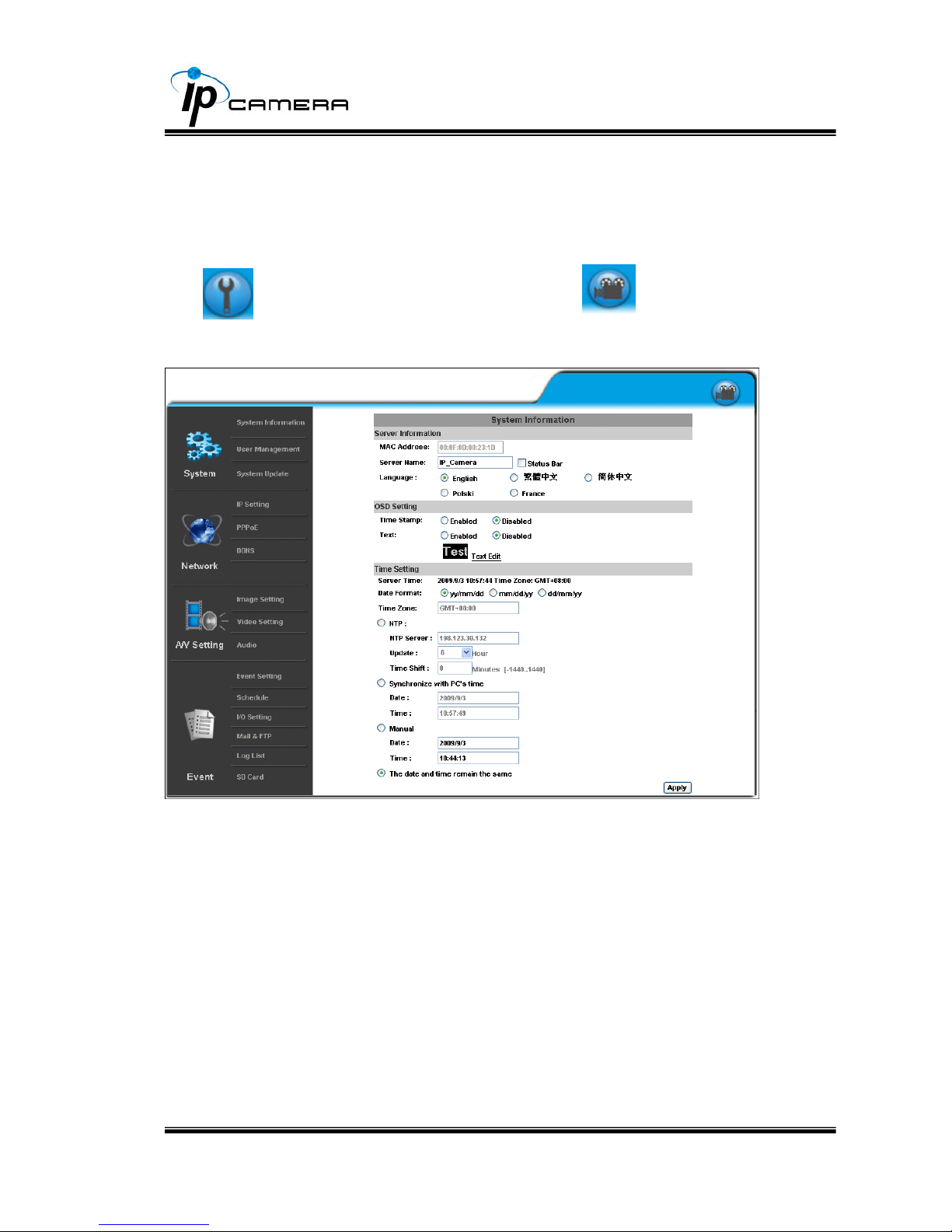

Click to get into the administration page. Click to go back to the live

video page.

17/41

A.System

i、 System Information

a. Server Information: Set up the camera name, select language, and

set up the camera time.

1. Server Name：This is the Camera name. This name will show

on the IP Installer.

2. Select language：There are English, Traditional Chinese, and

Simplified Chinese to select. When change, it will show the

following dialogue box for the confirmation of changing

language.

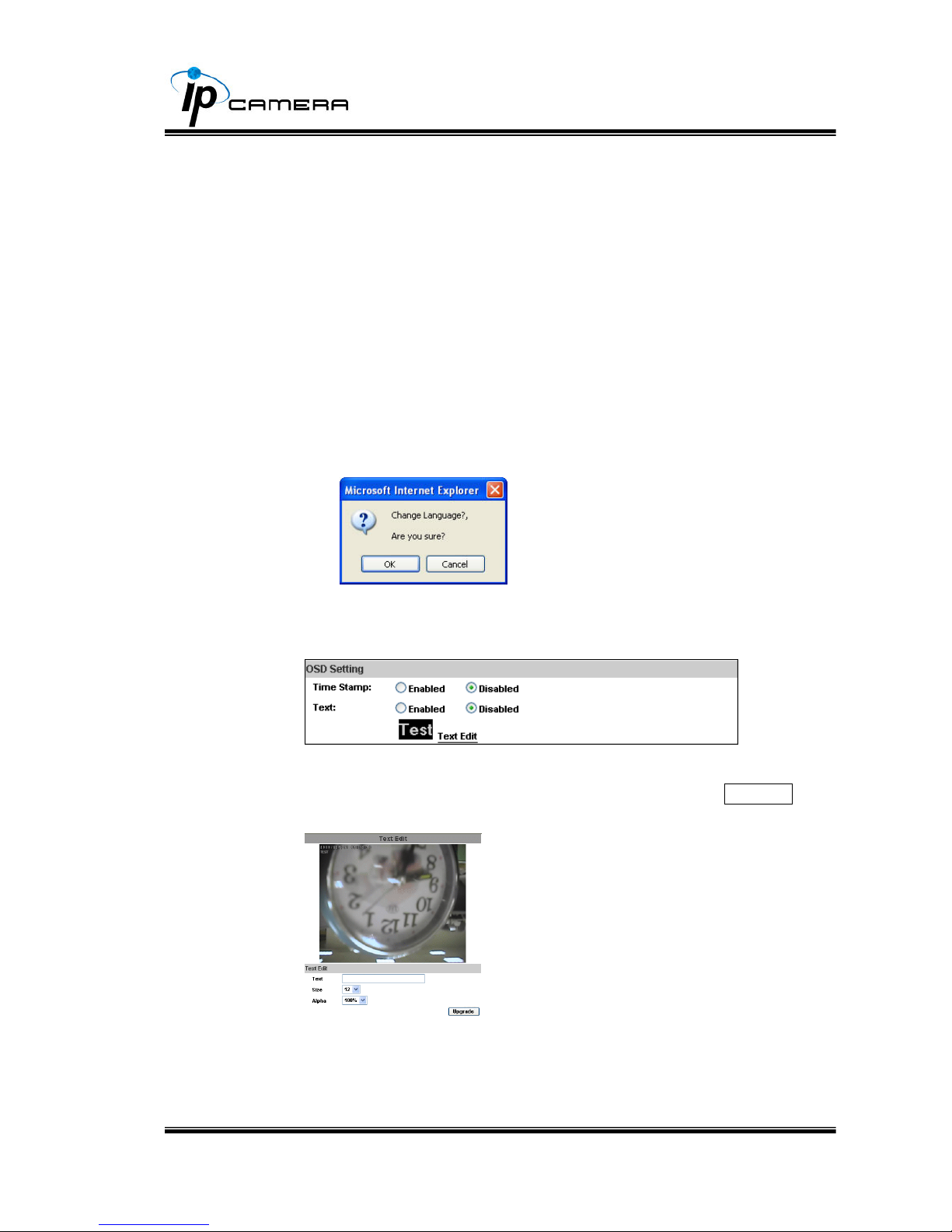

b. OSD Setting: Select a position where date & time stamp / text

showing on screen.

Moreover, click Text Edit can entry to adjust the OSD contents

which is including Size and Alpha of text. Finally, click Upgrade

button to reserve the setting.

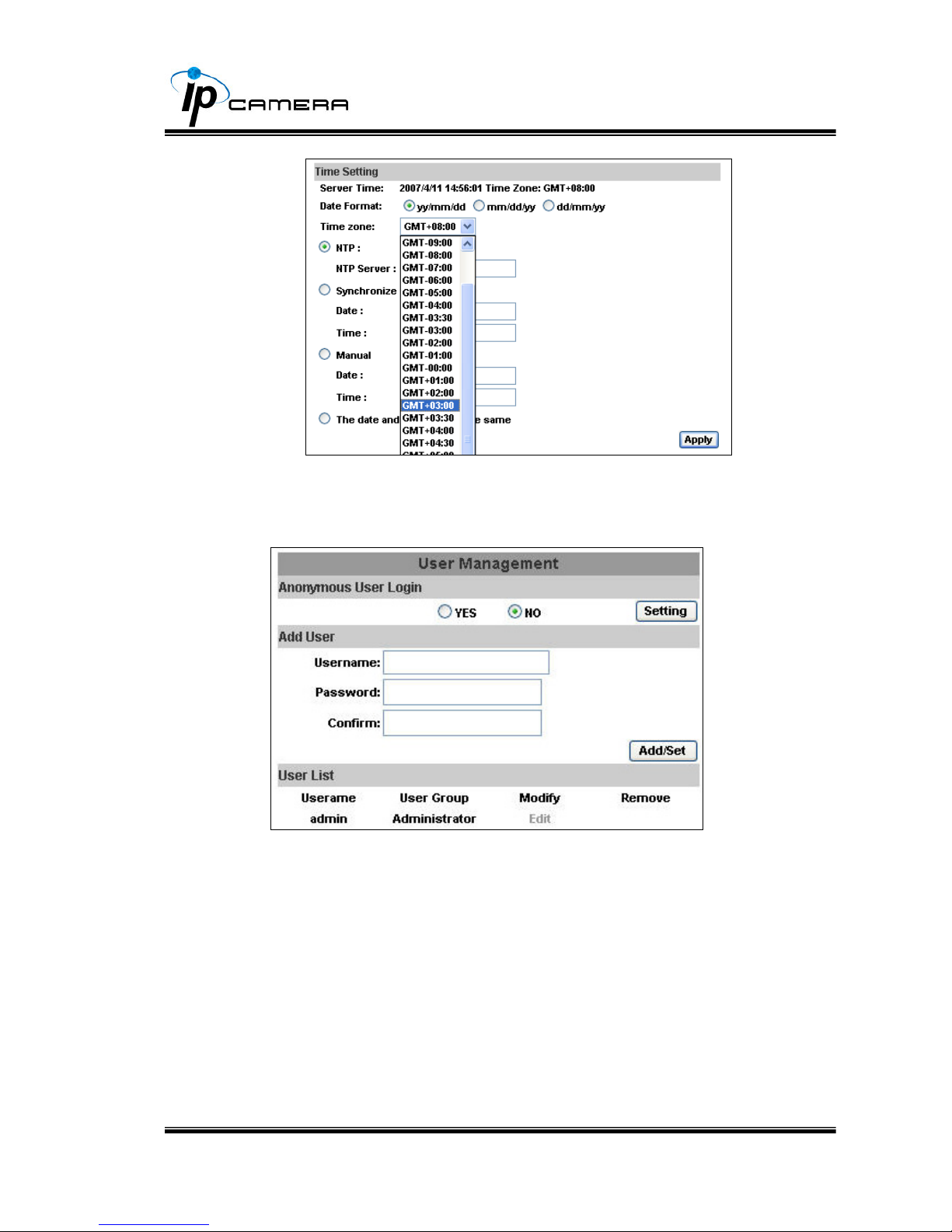

c. Server time setting：Select options to set up time - “NTP”,

“Synchronize with PC’s time”, “Manual”, “The date and time remain

the same”.

18/41

ii、 User Management

IP CAMERA supports three different users, administrator, general user,

and anonymous user.

a. Anonymous User Login：

Yes ：Allow anonymous login
No：Need user name & password to access this IP camera

b. Add user：

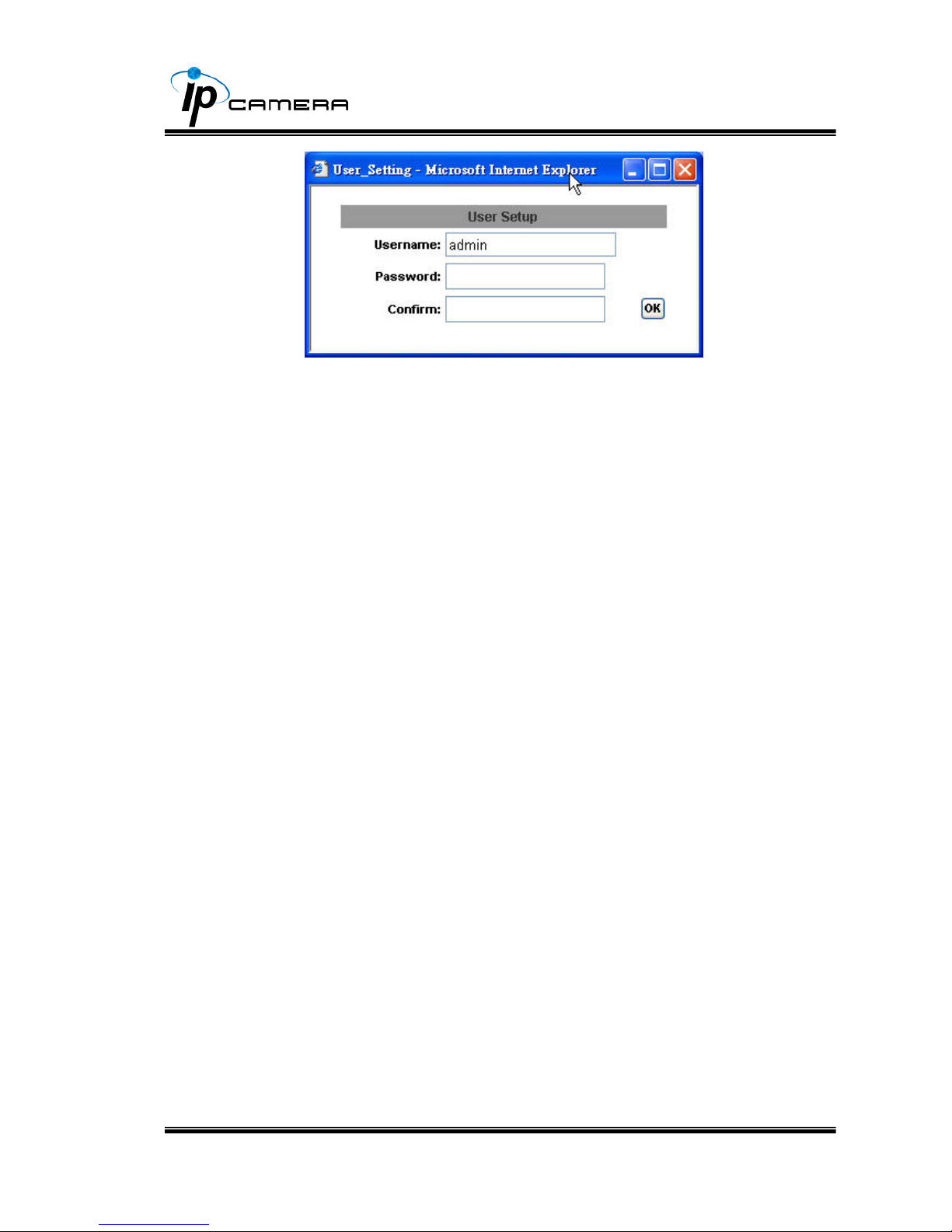

Type the user name and password, then click “Add/Set”.

c. Click “edit” or “delete” to modify the user.

19/41

20/41

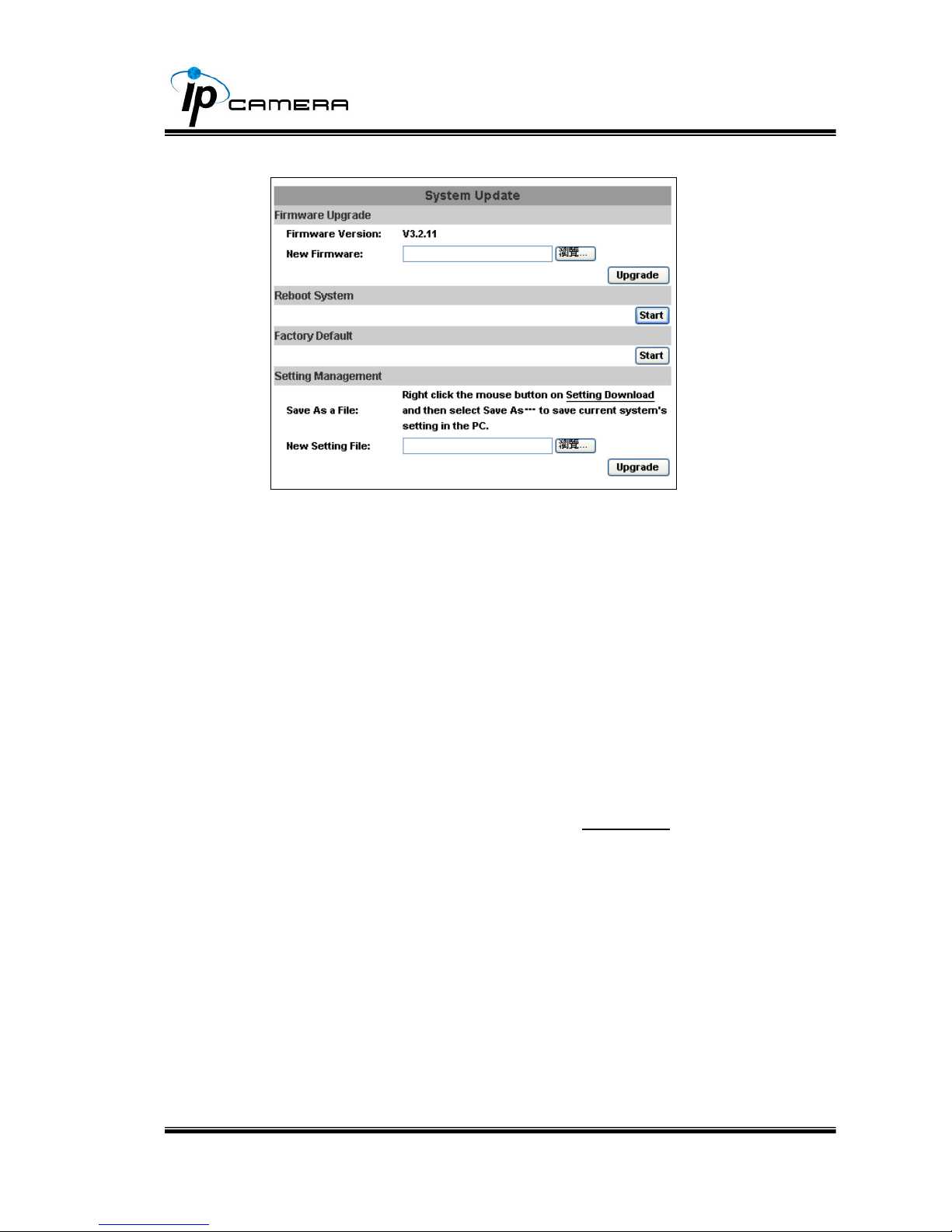

iii、 System update：

a. To update the firmware online, click “Browse…” to select the

firmware. Then click “Upgrade” to proceed.

b. Reboot system：re-start the IP camera
c. Factory default：delete all the settings in this IP camera.
d. Setting Management：User may download the current setting to PC,

or upgrade from previous saved setting.

1. Setting download:

Right-click the mouse button on Setting Download Æ Select

“Save AS…” to save current IP CAM setting in PC Æ Select

saving directory Æ Save

2. Upgrade from previous setting

Browse Æ search previous setting Æ open Æ upgrade Æ

Setting update confirm Æ click index.html

. to return to main

page

21/41

B.Network

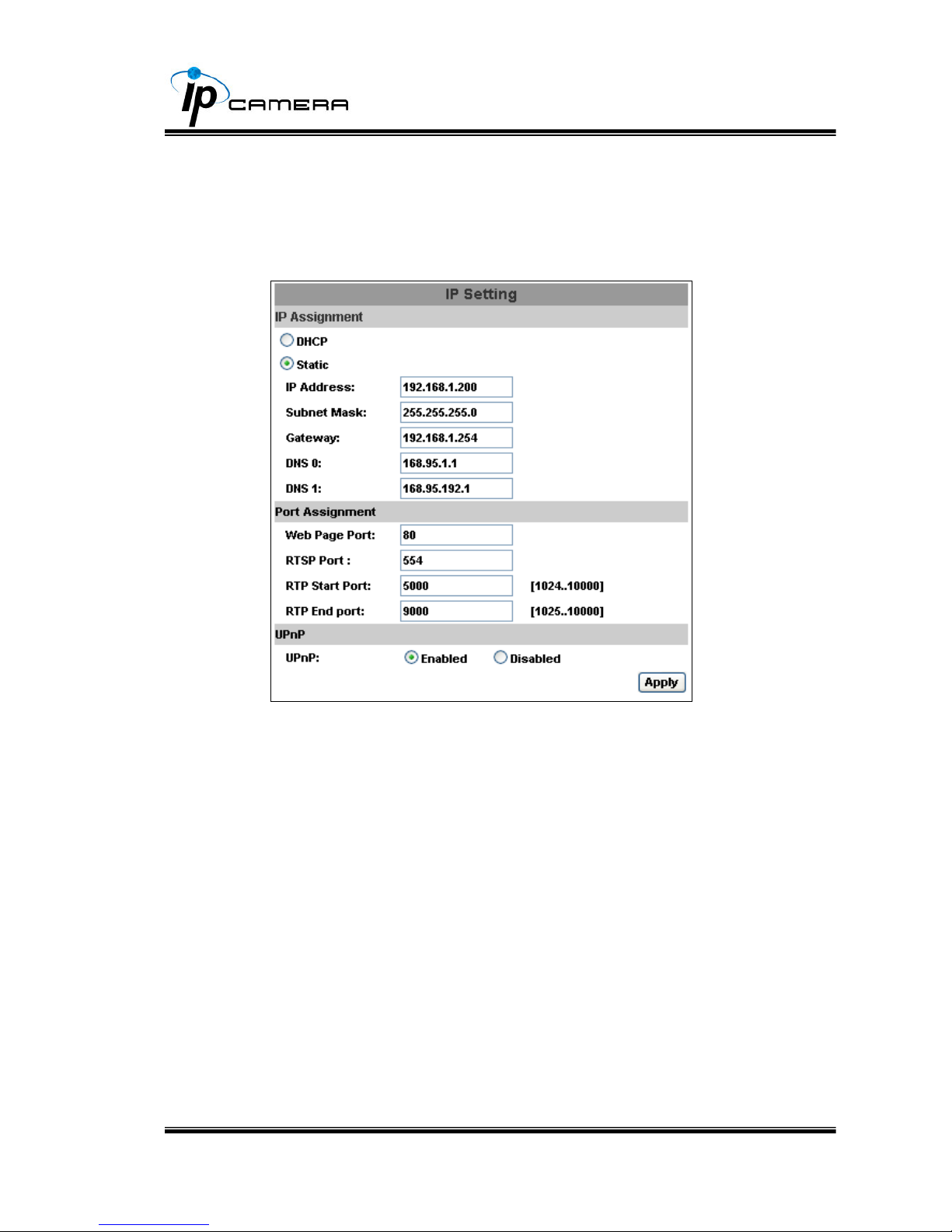

i、 IP Setting

IP Camera supports DHCP and static IP.

a. DHCP：Using DHCP, IP Camera will get all the network parameters

automatically.

b. Static IP：Please type in IP address, subnet mask, gateway, and

DNS manually.

c. Port Assignment: user may need to assign different port to avoid

conflict when setting up IP assignment.

1. Web Page Port: setup web page connecting port and video

transmitting port (Default: 80)

2. RTSP Port: setup port for RTSP transmitting (Default: 554)

3. RTP Start and End Port: in RTSP mode, you may use TCP and

UDP for connecting. TCP connection uses RTSP Port (554).

UDP connection uses RTP Start and End Port.

22/41

d. UPnP

This IP camera supports UPnP, If this service is enabled on your computer,

the camera will automatically be detected and a new icon will be added to

“My Network Places.”

Note: UPnP must be enabled on your computer.

Please follow the procedure to activate UPnP

1. open the Control Panel from the Start Menu

2. select Add/Remove Programs

3. Select Add/Remove Windows Components and open

Networking Services section

4. Click Details and select UPnP to setup the service

5. The IP device icon will be added to “MY Network Places”

6. User may double click the IP device icon to access IE browser

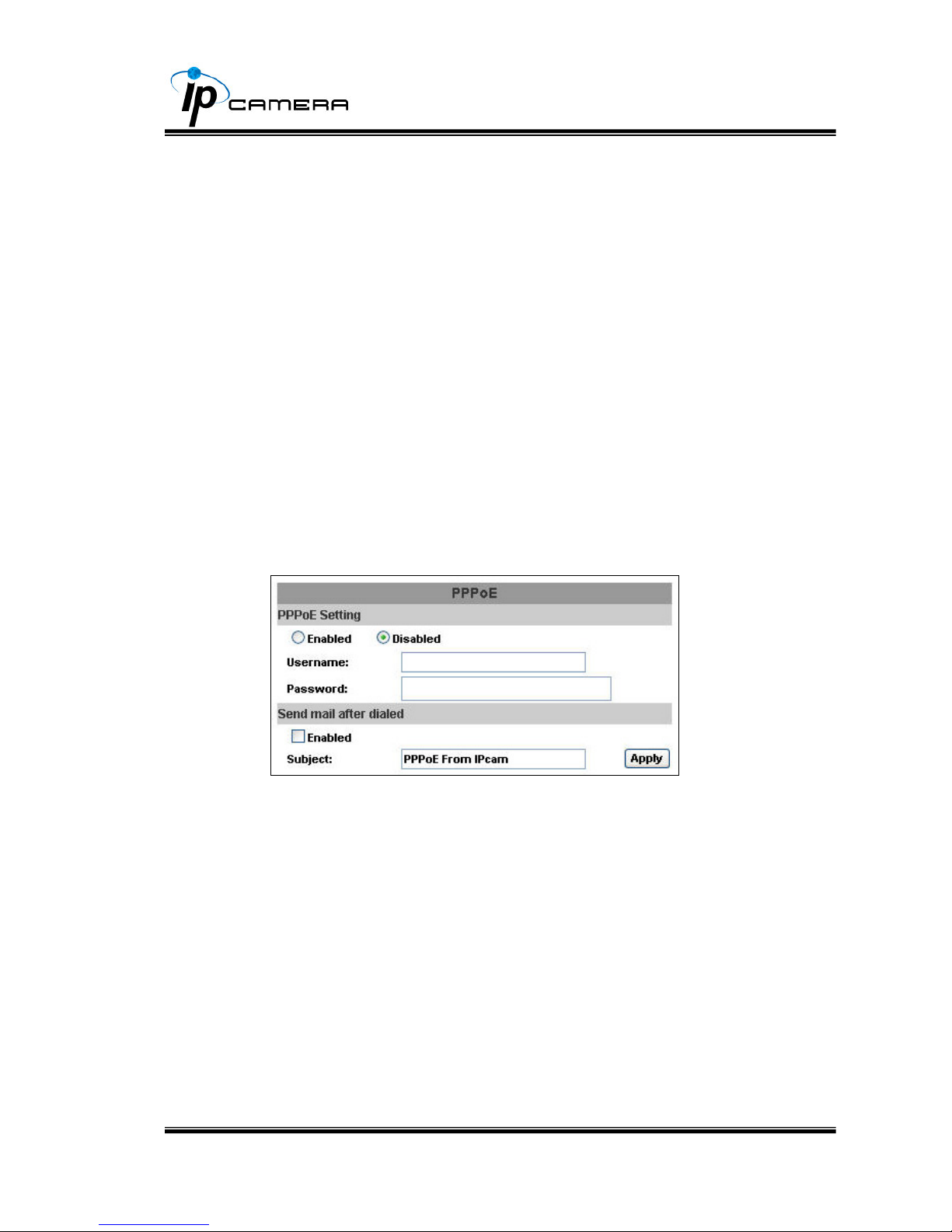

ii、 PPPoE：

Select “Enabled” to use PPPoE.

Key-in Username and password for the ADSL connection.
Send mail after dialed：When connect to the internet, it will send a mail

to a specific mail account. For the mail setting, please refer to “Mail and

FTP” settings.

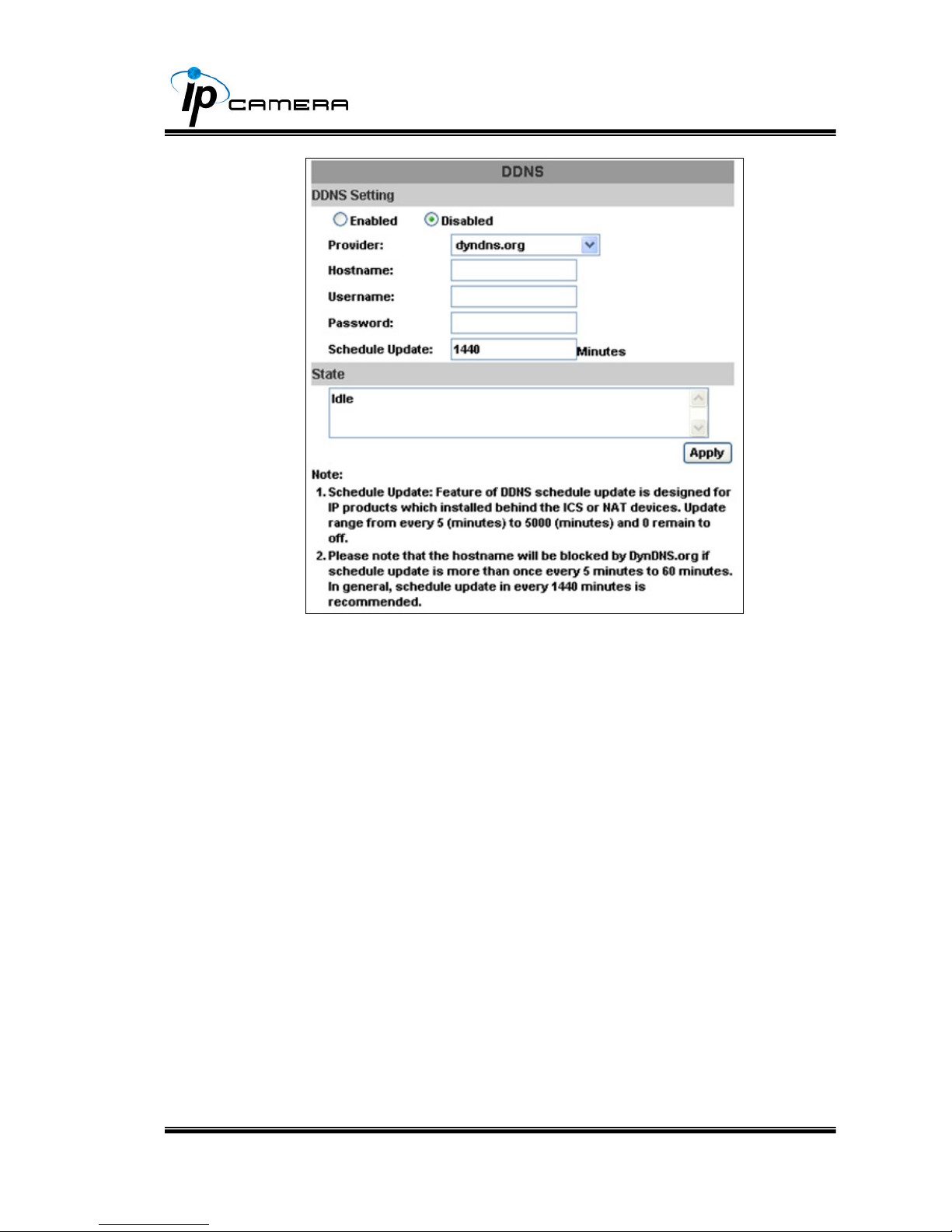

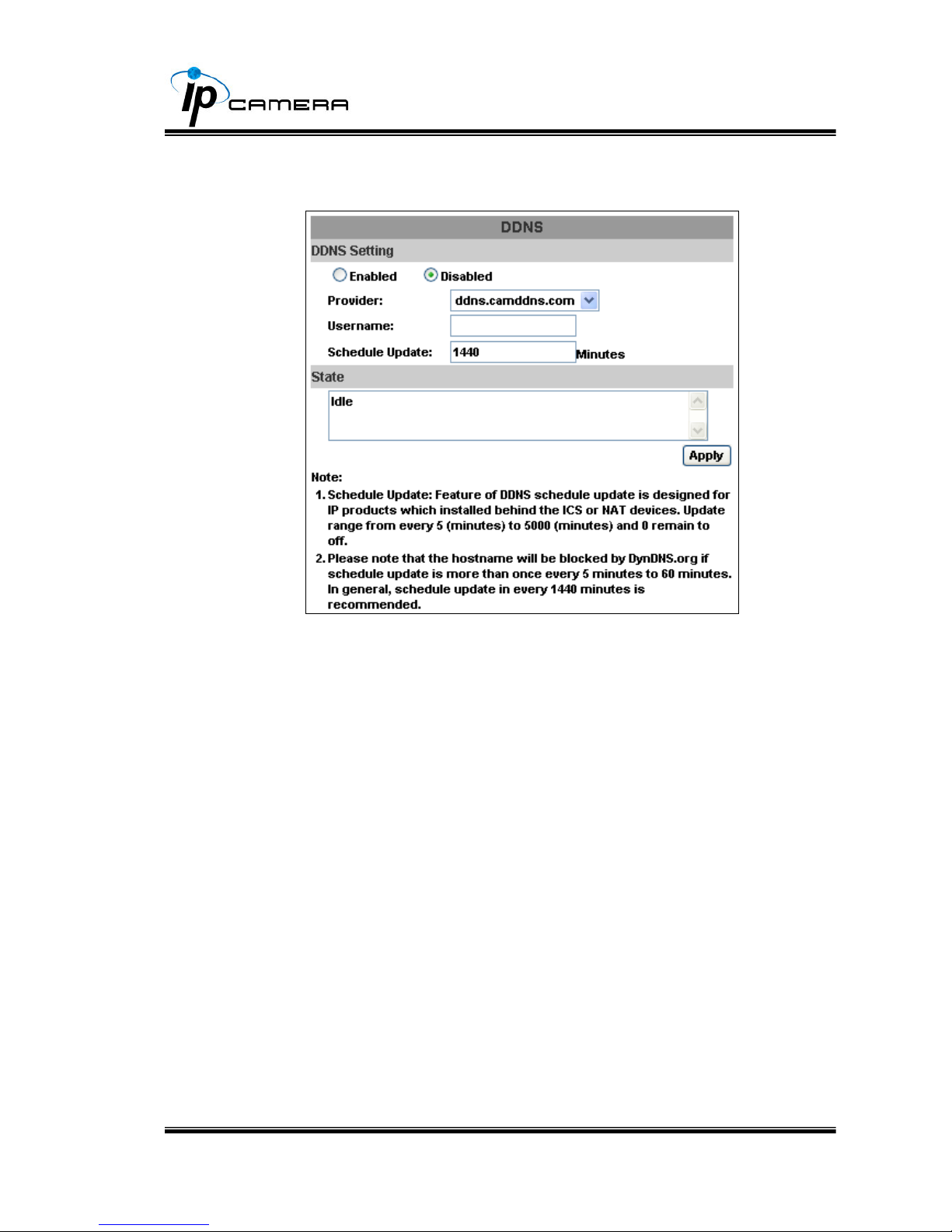

iii、 DDNS：

It supports DDNS (Dynamic DNS) service.

a. DynDNS：

23/41

1. Enable this service

2. Key-in the DynDNS server name, user name, and password.

3. Set up the IP Schedule update refreshing rate.

4. Click “Apply”

5. If setting up IP schedule update too frequently, the IP may be

blocked. In general, schedule update every day (1440 minutes)

is recommended.

24/41

b. Camddns service：

1. Please enable this service

2. Key-in user name.

3. IP Schedule update is default at 5 minutes

4. Click “Apply”.

c. DDNS Status

1. Updating：Information update

2. Idle：Stop service

3. DDNS registration successful, can now log by

http://<username>.ddns.camddns.com：Register successfully.

4. Update Failed, the name is already registered：The user name

has already been used. Please change it.

5. Update Failed, please check your internet connection：Network

connection failed.

6. Update Failed, please check the account information you

provide：The server, user name, and password may be wrong.

25/41

iv、 Wireless Setting (Wireless Network Optional)

Supports 802.11 b/g wireless connection.

Notice：Wireless network and Ethernet network use the same IP, the

user has to unplug Ethernet cable, if Ethernet cable is not unplug,

wireless setting can not be executed.

a. Status of Wireless Networks；

scan all wireless services.

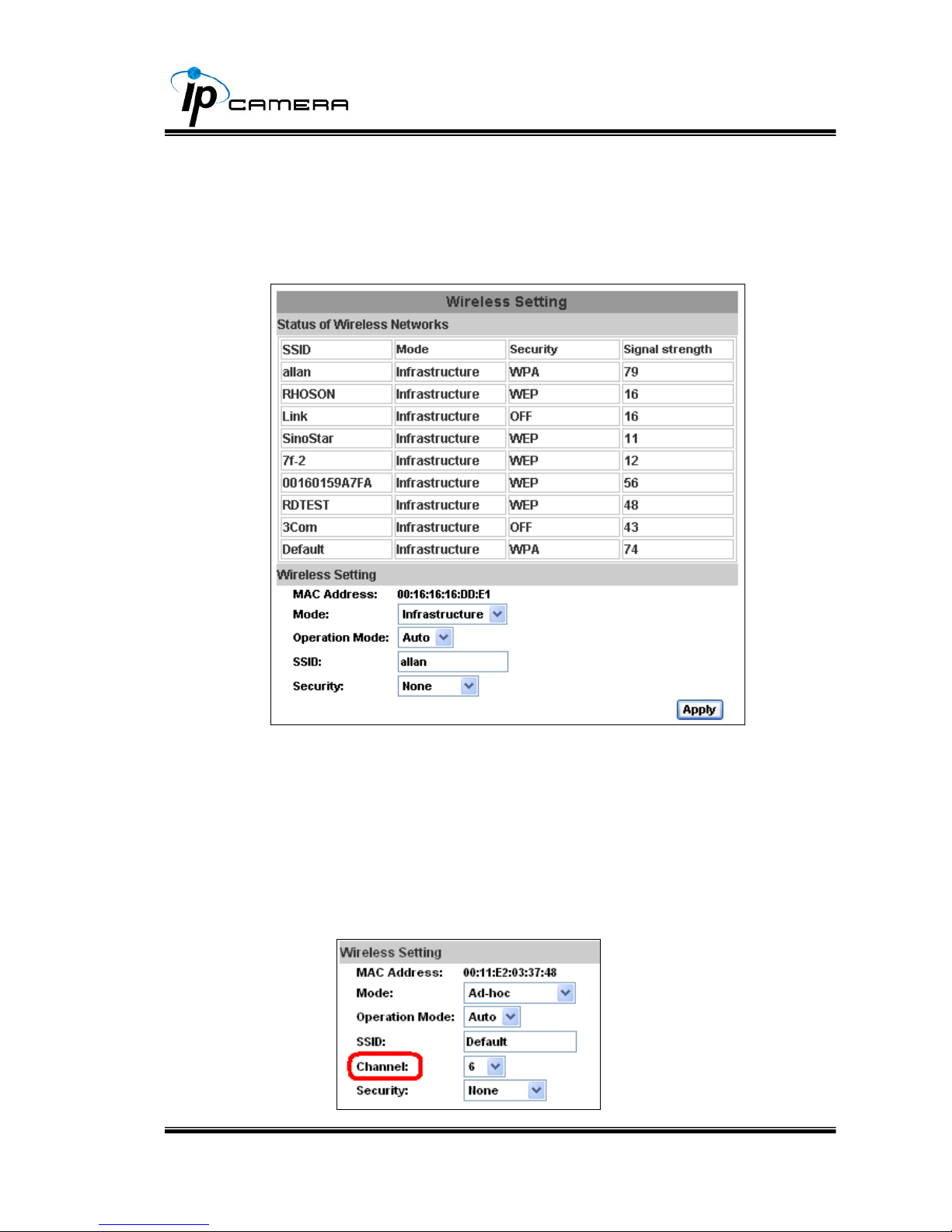

b. Wireless Setting：

1. Mode：There are Infrastructure and Ad-hoc. Infrastructure is for

connecting with the router. Ad-hoc is for connecting with PC.

There is “Channel” to select only when user uses Ad-hoc

mode.

e.g. If one PC’s channel is 1, the other’s channel has to 1, too.

26/41

2. SSID：Based on AP setting.

3. Channel：This is only be used when the user selects Ad-hoc

mode in order to avoid conflict.

4. Security：It supports “None”, “WEP”, “WPA-PSK” security

encryption based on the setting of the Router.

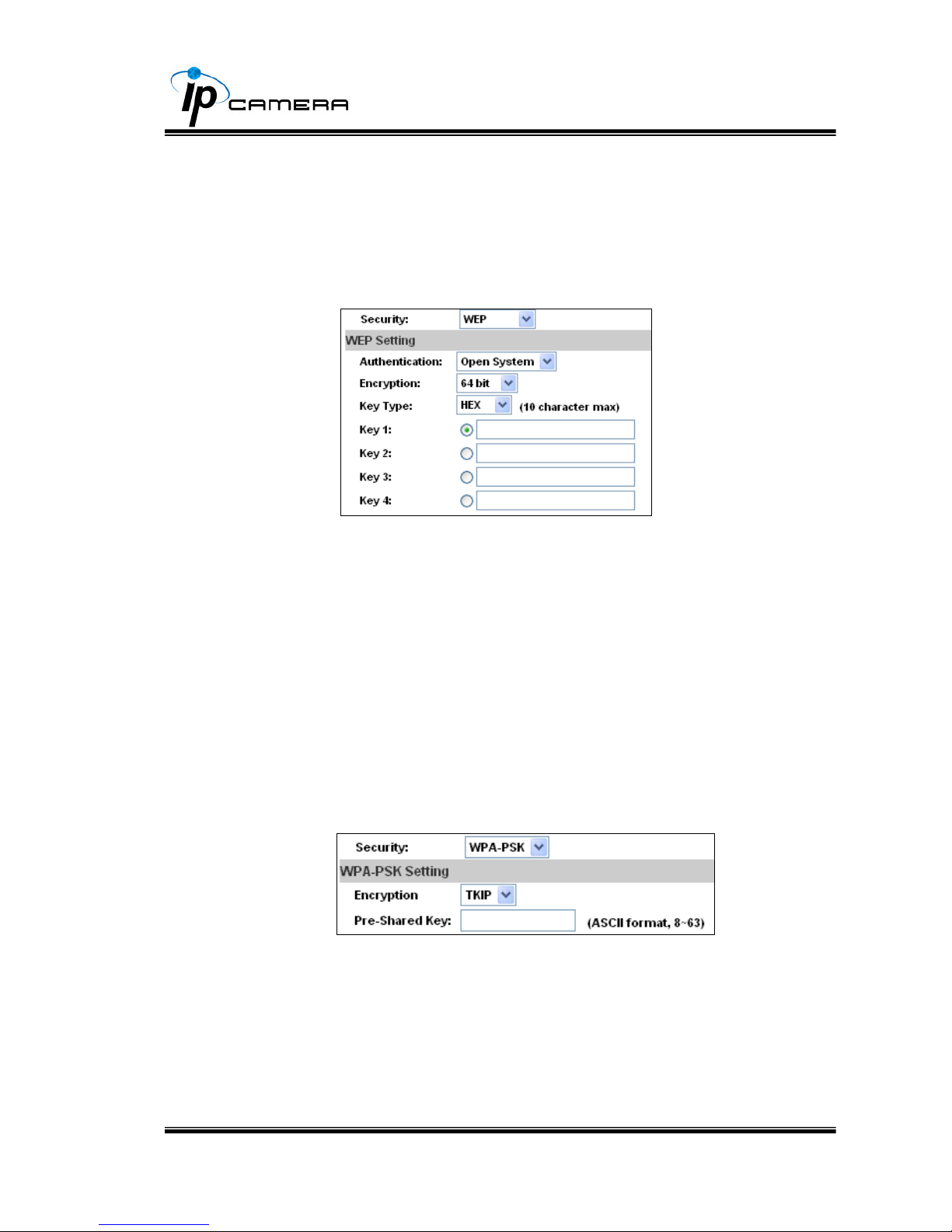

5. WEP：

z Authentication：There are Open System and Shared Keys,

it is based on different encryptions. This has to be the

same as the Router’s setting.

z Encryption：There are 64 bits and 128 bits. This is based

on Key Type based on the Router’s setting.

z Key Type：There are HEX and ASCII. When selecting HEX,

the user only can input 0~9 characters and use A, B, C, D,

E, and F.

z When selecting ASCII, the user can input any character.

(Case sensitive)

z Key 1~4：Based on Key Type to input characters.

6. WPA-PSK：

z Encryption：There are TKIP and AES.
z Pre-Shared Key：Allow any characters .(Case sensitive)

27/41

C.A/V Setting

i、 Image Setting

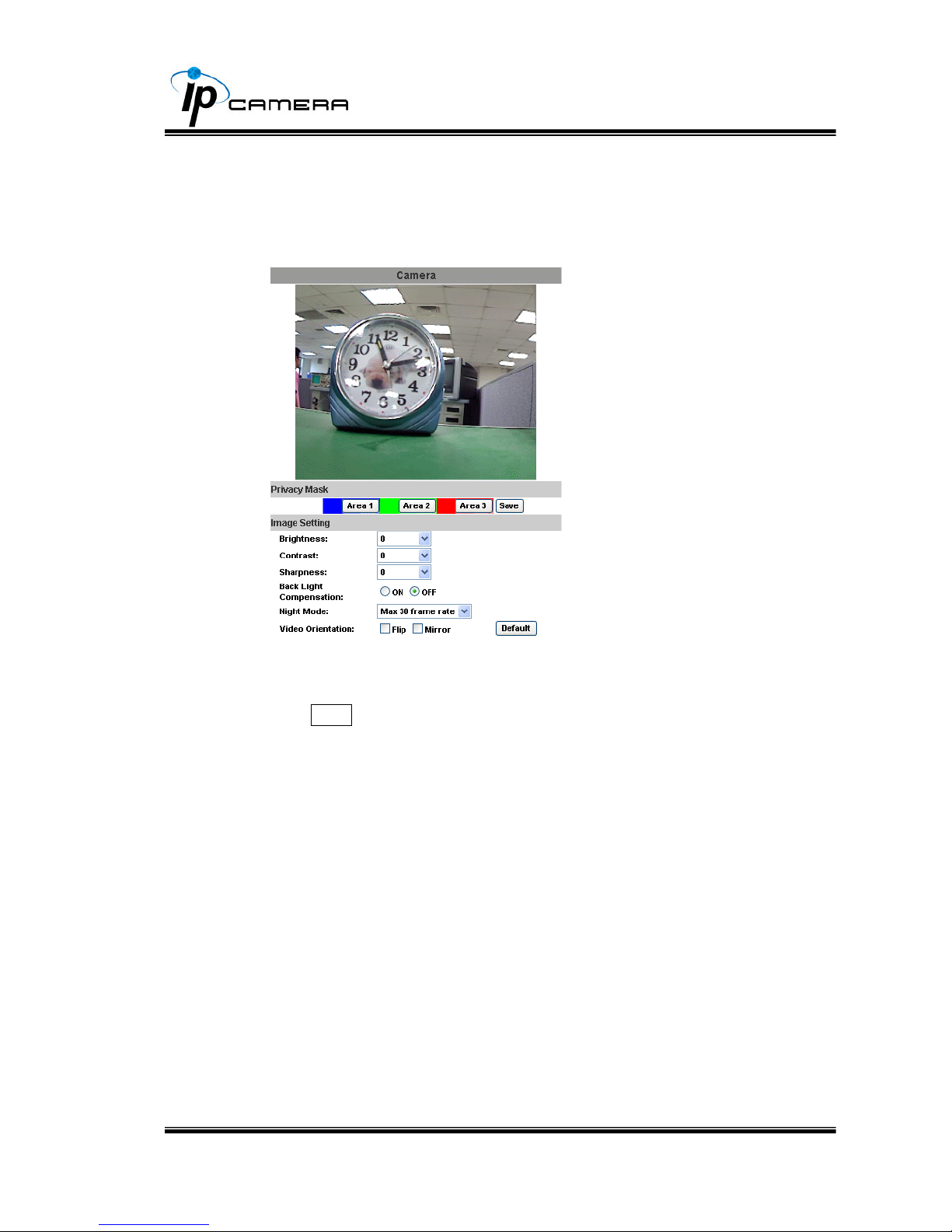

For the security purpose, there are three areas can be setup for privacy

mask. Click Area button first and pull a area on the above image. Finally,

click Save button to reserve the setting.

Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video.

Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video.

Moreover, IP CAMERA supports “Back Light Compensation”, “Night

Mode” and “Video Orientation”.

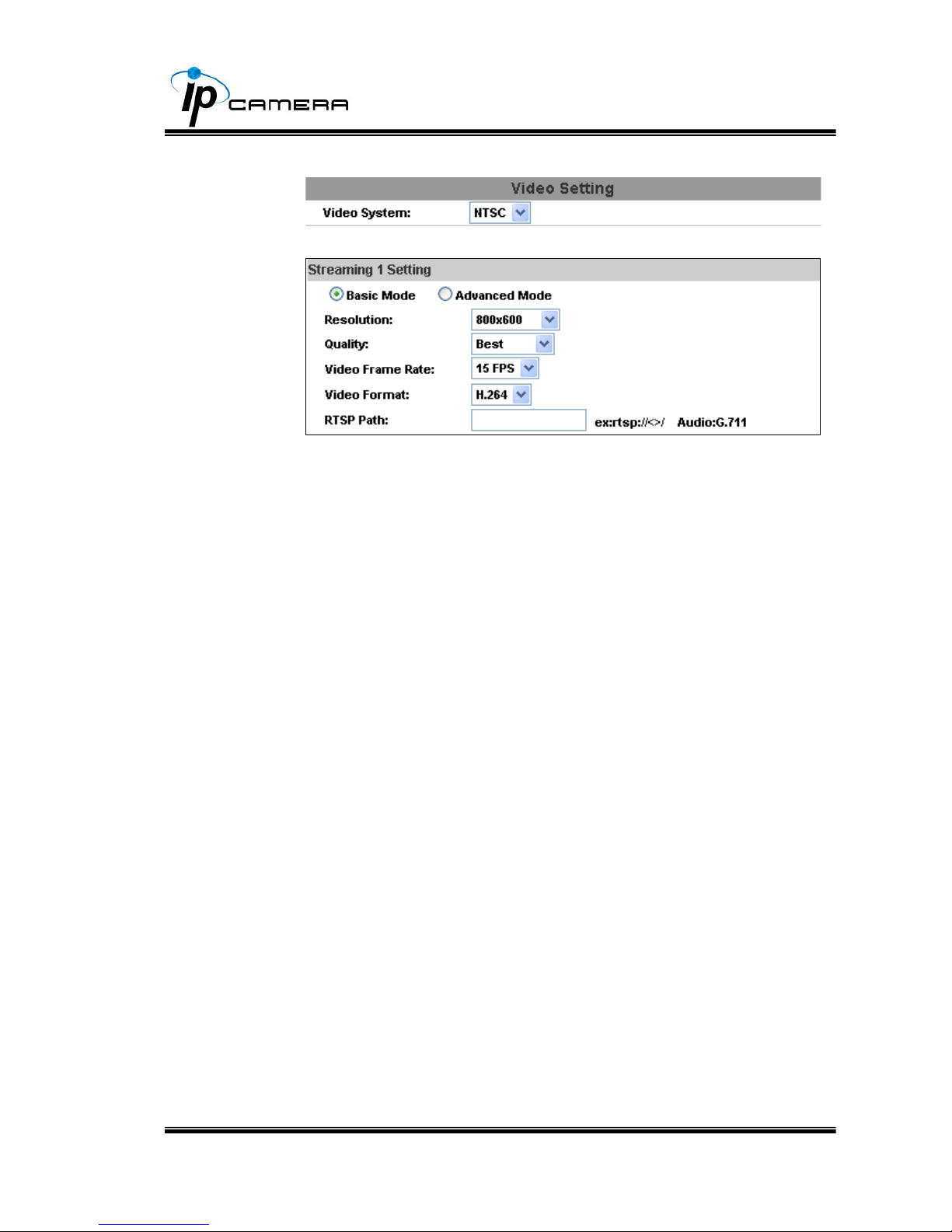

ii、 Video Setting

User may select 2 streaming output simultaneously:

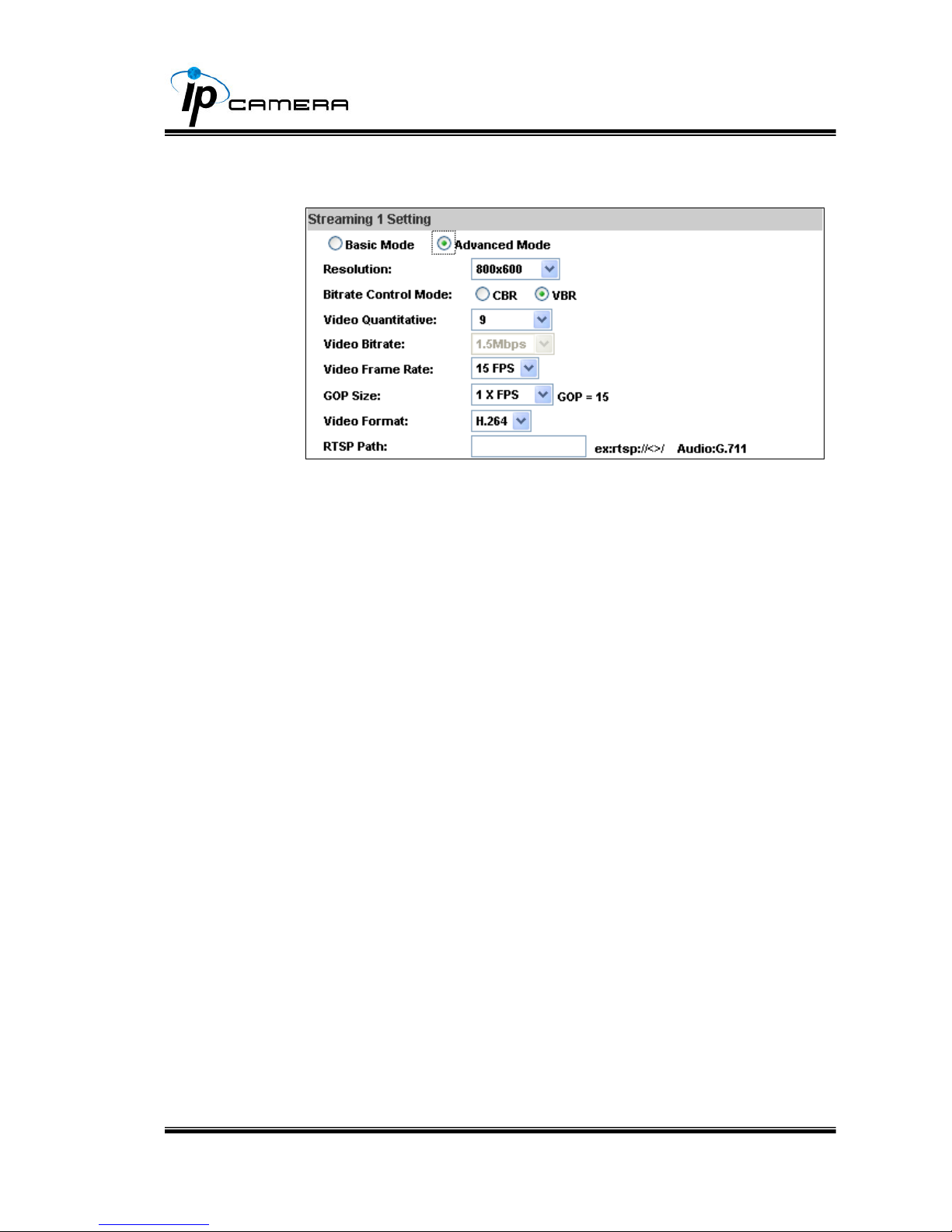

Streaming 1 Setting: Basic mode and Advanced mode

Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode

(Max Video Frame Rate for both streaming combined is 30 FPS)

28/41

a. Video System: click the drop down list to select the system type

b. Streaming 1 Basic Mode：

1. Resolution：

There are 8 resolutions can be chosen.

1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600,

640x480, 320x240, 176x144

2. Quality：

There are 5 levels to adjust:

Best/ High/ Standard/ Medium/ Low

The higher the quality is, the bigger the file size is. Also not

good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264 or JPEG

5. RTSP Path: RTSP output name

29/41

c. Streaming 1 Advanced Mode：

1. Resolution：

There are 8 resolutions can be chosen.

1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600,

640x480, 320x240, 176x144

2. Bitrate Control Mode

There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：32Kbps~4Mbps (the higher the CBR is, the better the

video quality is)
VBR：1(Low)~10(High) – Compression rate, the higher the

compression rate, the lower the picture quality is; vise versa.

The balance between VBR and network bandwidth will affect

picture quality. Please carefully select the VBR rate to avoid

picture breaking up or lagging.

3. Video Frame Rate

The video refreshing rate per second.

NTSC: Max 30 frames/second PAL: Max 25 frames/second

4. GOP Size

It means "Group of Pictures". The higher the GOP is, the better

the quality is.

5. Video Format：H.264 or JPEG

6. RTSP Path: RTSP output connecting route

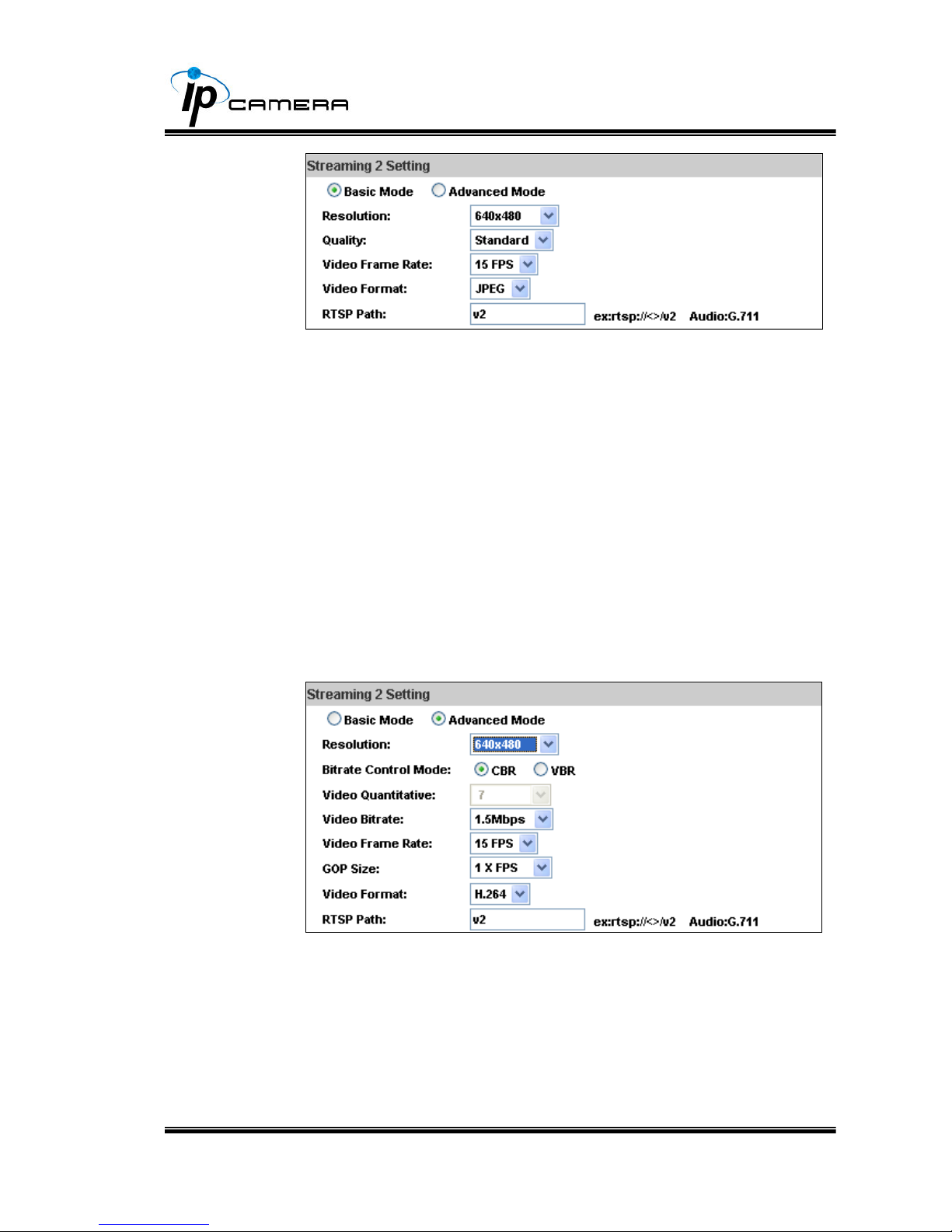

d. Streaming 2 Basic Mode：

30/41

1. Resolution：

There are 8 resolutions can be chosen.

1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600,

640x480, 320x240, 176x144

2. Quality：

There are 5 levels to adjust:

Best/ High/ Standard/ Medium/ Low

The higher the quality is, the bigger the file size is. Also not

good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264 or JPEG

5. RTSP Path: RTSP output connecting route

e. Streaming 2 Advanced Mode：

1. Resolution：

There are 8 resolutions can be chosen.

1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600,

640x480, 320x240, 176x144

2. Bitrate Control Mode

There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.

31/41

CBR：32Kbps~4Mbps (the higher the CBR is, the better the

video quality is)
VBR：1~10 (Compression Rate)

3. Video Frame Rate

The video refreshing rate per second.

4. GOP Size

It means "Group of Pictures". The higher the GOP is, the better

the quality is.

5. Video Format：MPEG4 or JPEG

6. RTSP Path: RTSP output name

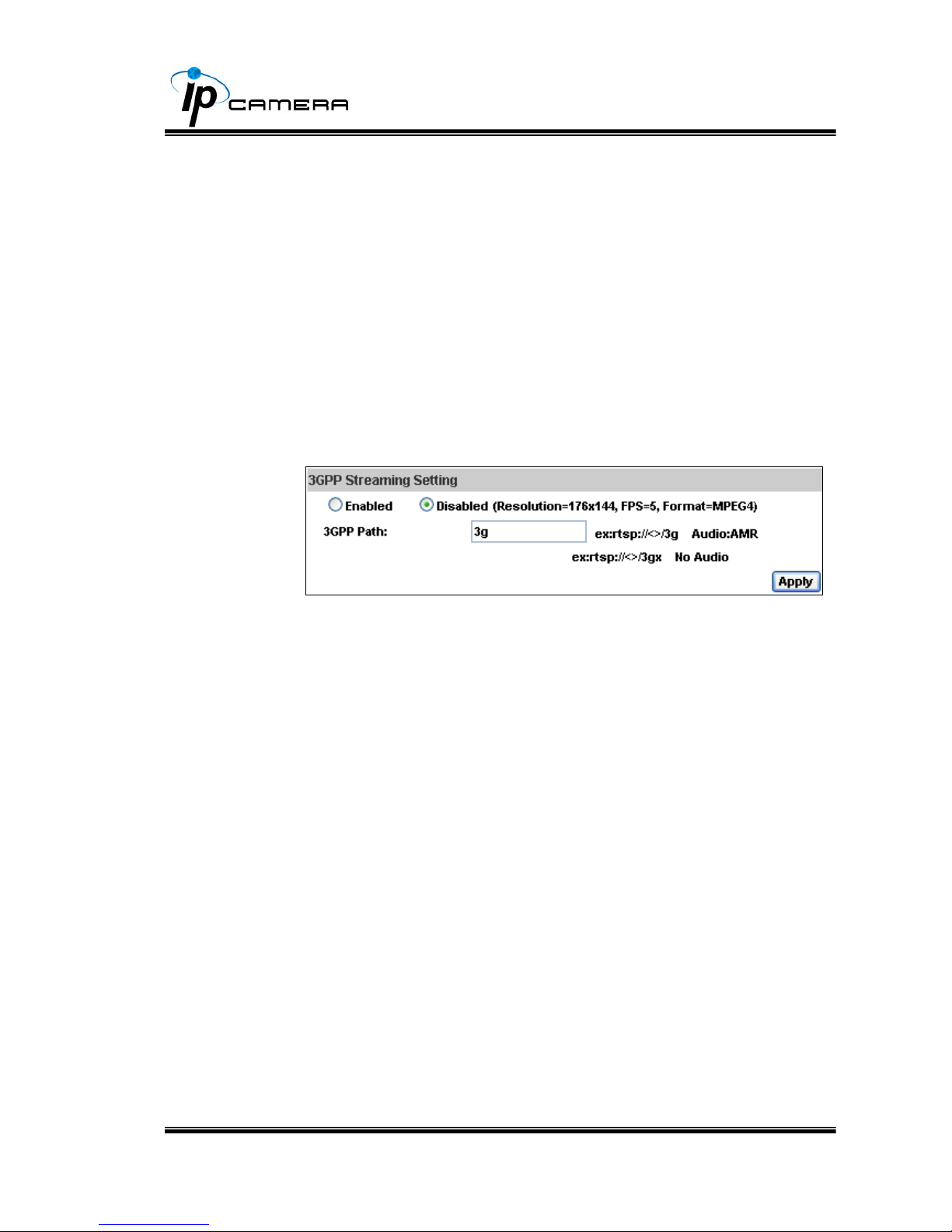

f. 3GPP Streaming mode:

3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format

1. Enable or Disable 3GPP Streaming

2. 3GPP: 3GPP output name

32/41

iii、 Audio：

IP CAMERA supports 2-way audio. User can send audio from IP

Camera Built-in mic to remote PC; User can also send audio from

remote PC to IP Camera’s external speaker.

a. Audio from IP camera built-in mic to local PC: select “Enable” to

start this function.

b. Audio from local PC to IP Camera: Check “chatting” in the browsing

page.

The Audio will not be smooth when enable SD card

recording function simultaneously.

33/41

D.Event List

IP CAMERA provides multiple event settings.

i、 Event Setting

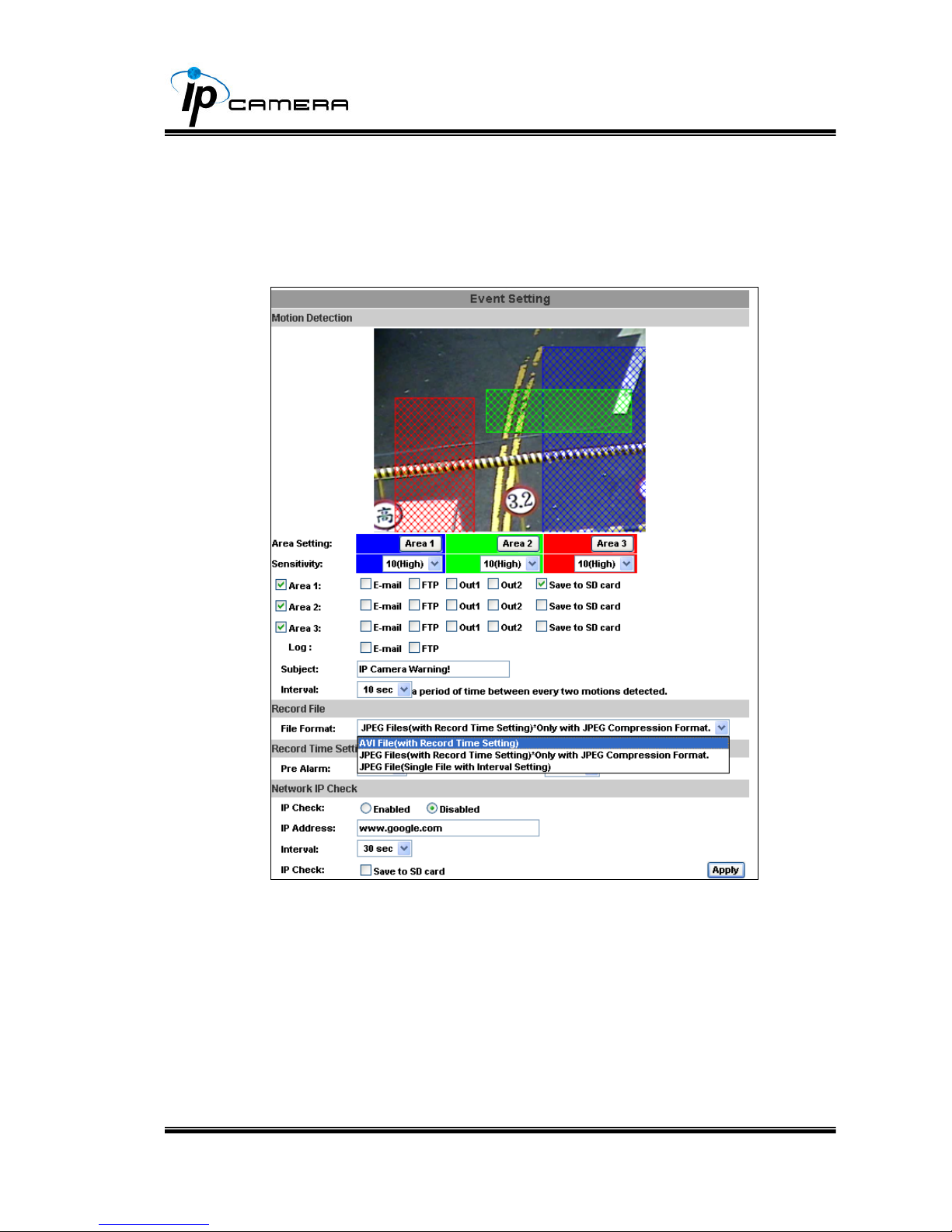

a. Motion Detection：

IP CAMERA allows 3 areas motion detection. When motion is

triggered, it can send the video to some specific mail addresses,

transmit the video to remote ftp server, trigger the relay, and save

video to local SD card. To set up the motion area, click “Area

Setting”. Using mouse to drag and draw the area. The same

operation for area 2 and 3.

b. Record File Setting: IP CAMERA allows 3 different types of

recording file to change its record size.

34/41

When motion/alarm is triggered, there are 3 different types of

record mode.

1. AVI File (With Record File Setting )

2. Multi-JPEG (With Record File Setting), only with JPEG

compression format.

3. Single JPEG (Single File with Interval Setting)

c. Record Time Setting：

Pre Alarm and Post Alarm setups for video start and end time when

motion detected, I/O, or other devices got triggered.

Note: Pre/Post Alarm record time is base on record time setting and IP Cam

built-in Ram memory. Limited by IP Cam built-in Ram Memory, When information

is too much or video quality set too high, it will cause recording frame drop or

decrease on post alarm recording time.

d. Network Dis-connected：

When the network is down, it will save the video to local SD card.

This function is only enabled in wire connection.

e. Network IP check

When the connection is down, it records the video to SD card. Make

sure the video recording is continuous. To use this function, key in

the IP address of the PC which has recording software installed.

Enable the function of “Save to SD card”, then click “Apply”.

The interval of two video files on SD card is fixed with 30

seconds.

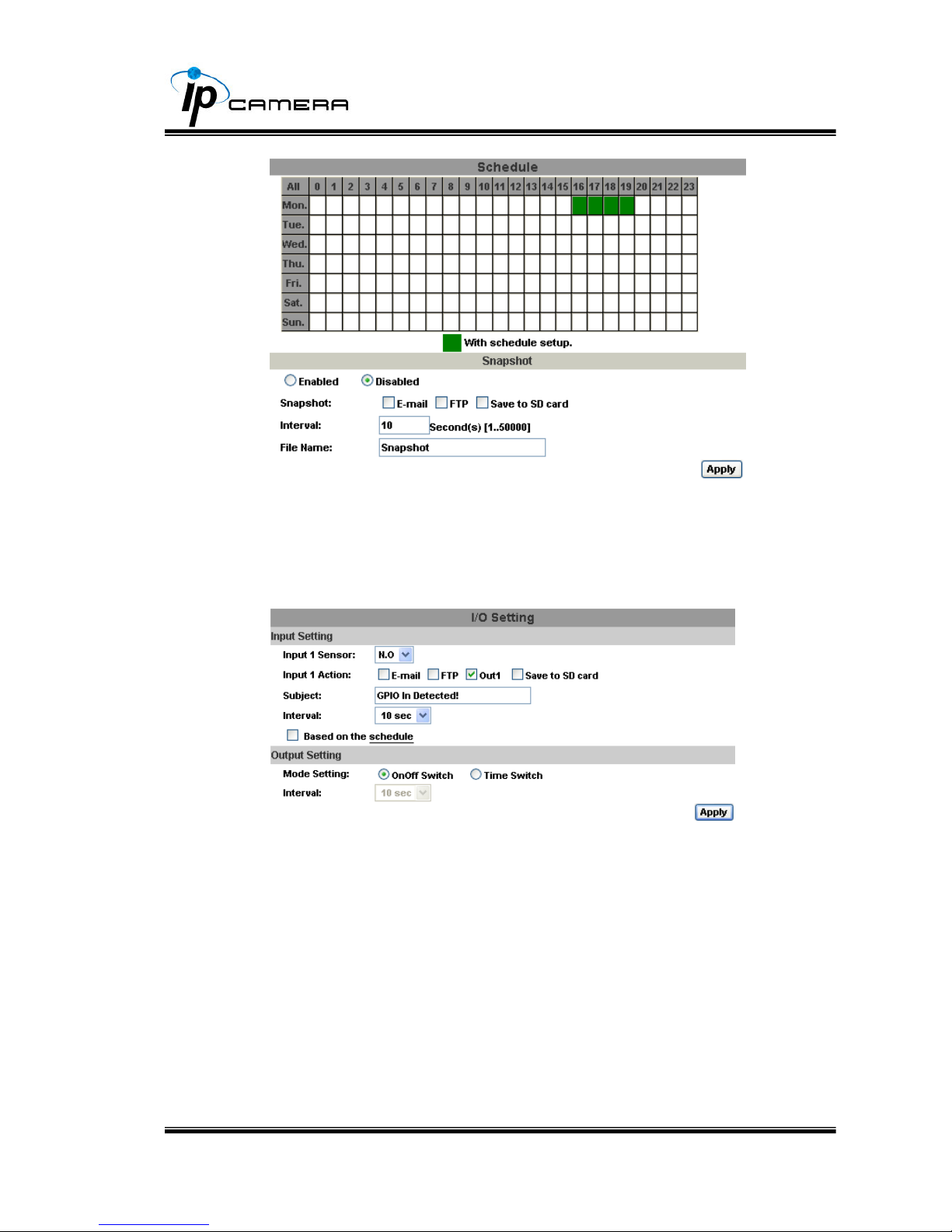

ii、 Schedule

a. Schedule: After complete the schedule setup, the camera data will

be recorded according to the schedule setup.

b. Snapshot: After enable the snapshot function, user can select the

storage position of snapshot file, the interval time of snapshot and

the reserved file name of snapshot.

35/41

iii、 I/O Setting

IP CAMERA supports 1 input/ 1 output. When input is triggered, it can

send the video to some specific mail addresses, transmit the video to

remote ftp server, trigger the relay, and save video to local SD card.

CATUTION!!

Please connect to propriety relay box to reduce the risk of electric

shock & damaged.

Alarm Input Setting

By GPIO I/O port input that provide related action while I/O input triggered.

GPIO Output Setting

By GPIO I/O port output that provide OnOff Switch, Slide Switch & Pan/Tilt

36/41

Module for using with relay box.

GPIO pin define please refer to the part of Front / Back plane & I/O

port pin assignment

GPIO 0

GPIO 1

ALARM INPUT

Normal: 3.3V (The voltage differential from GPIO pin & GND)

Active: 0V (GPIO 0 & GPIO1 link to PIN2 GND)

GPIO 2

GPIO 3

ALARM OUTPUT

Normal: 3.3V (The voltage differential from GPIO pin & GND)

Active: 0V (GPIO 0 & GPIO1 link to PIN2 GND)

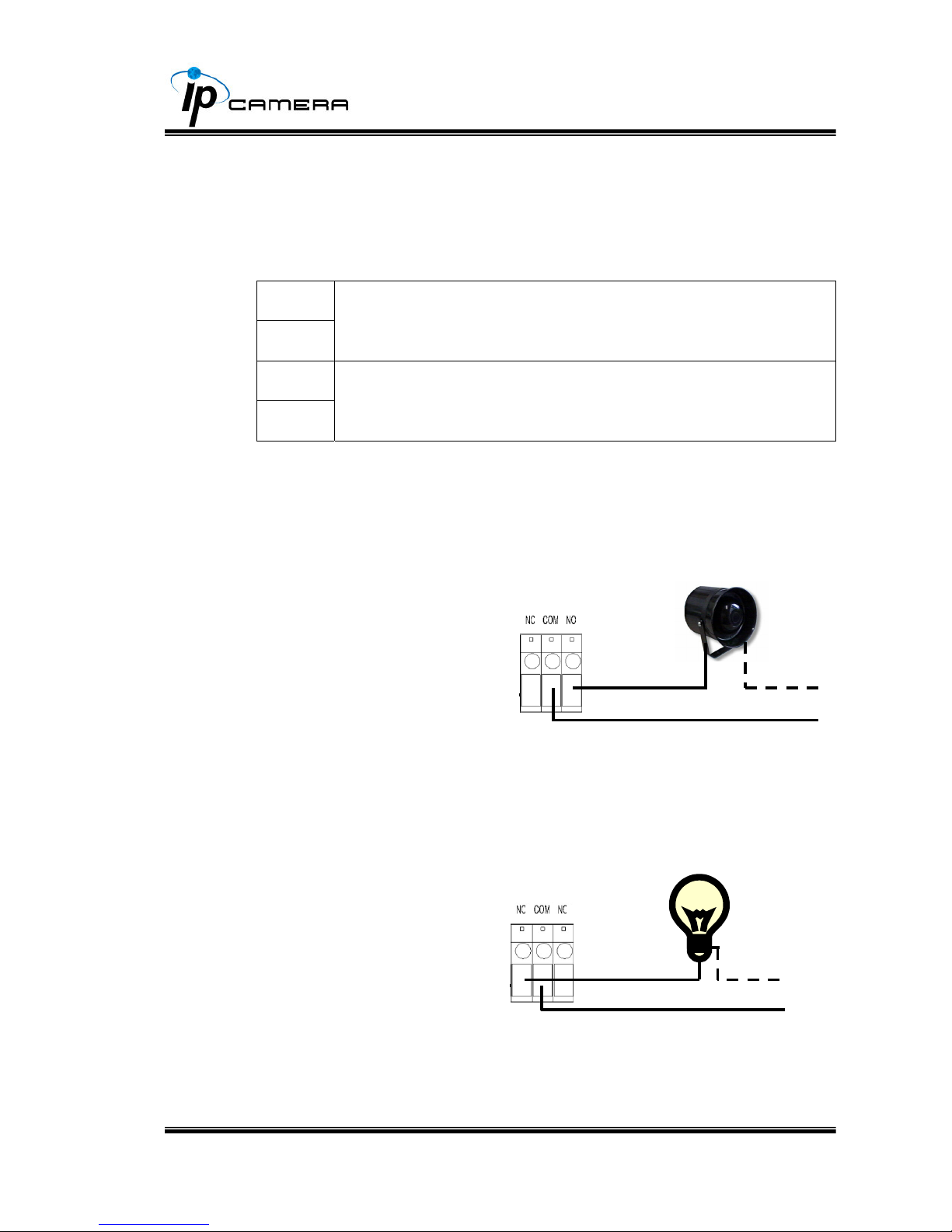

GPIO INSTALLATION EXAMPLE 1

Trigger a normal off (Normal Open) alarm siren on when event/motion

occur at COM:

GPIO INSTALLATION EXAMPLE 2

Trigger the normal on (Normal Close) indoor illumination off when event

/ motion occur at COM:

9PIN D-SUB

WEB SERVER / IP CAMERA

9PIN D-SUB

WEB SERVER / IP CAMERA

37/41

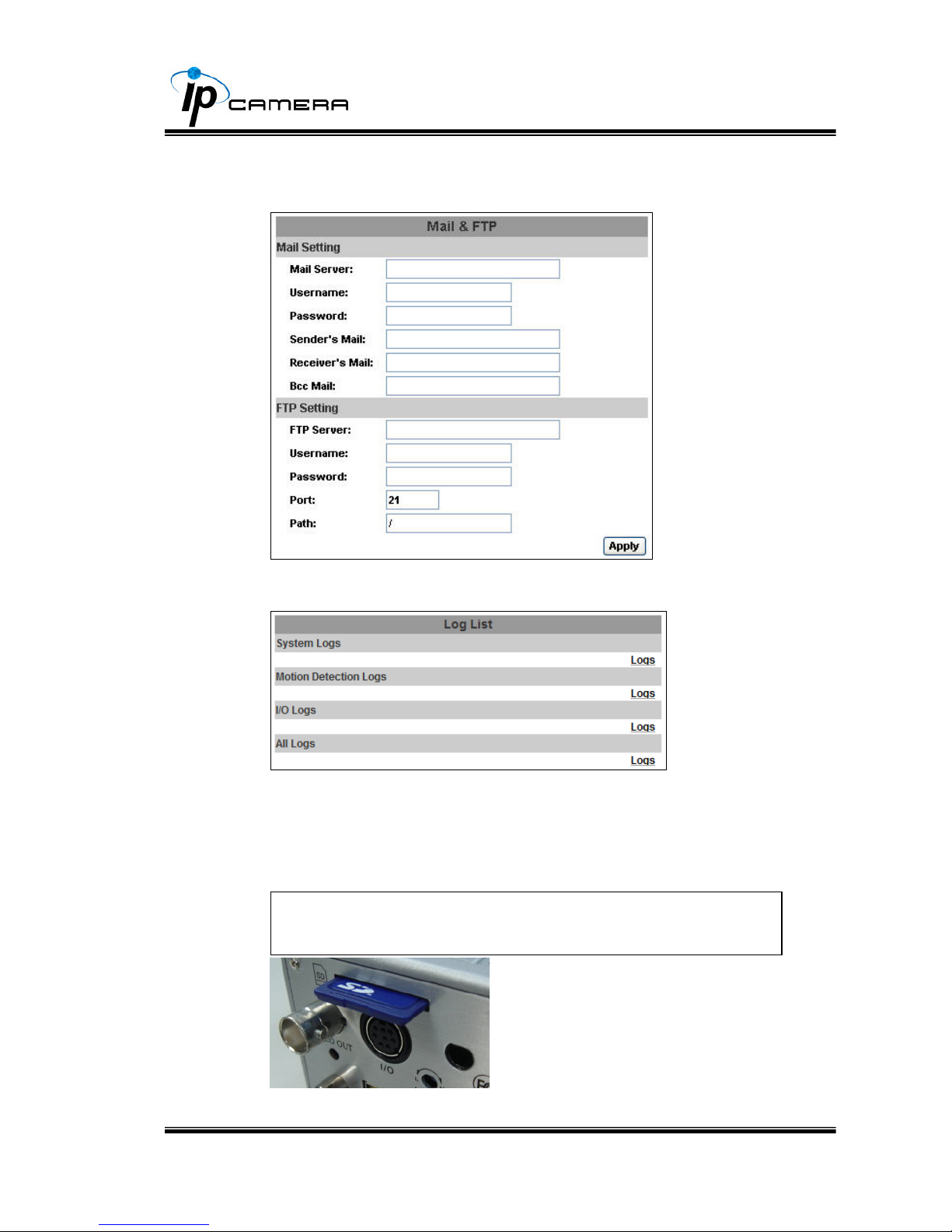

iv、 Mail & FTP

To send out the video via mail of ftp, please set up the configuration first.

v、 Log List

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure.

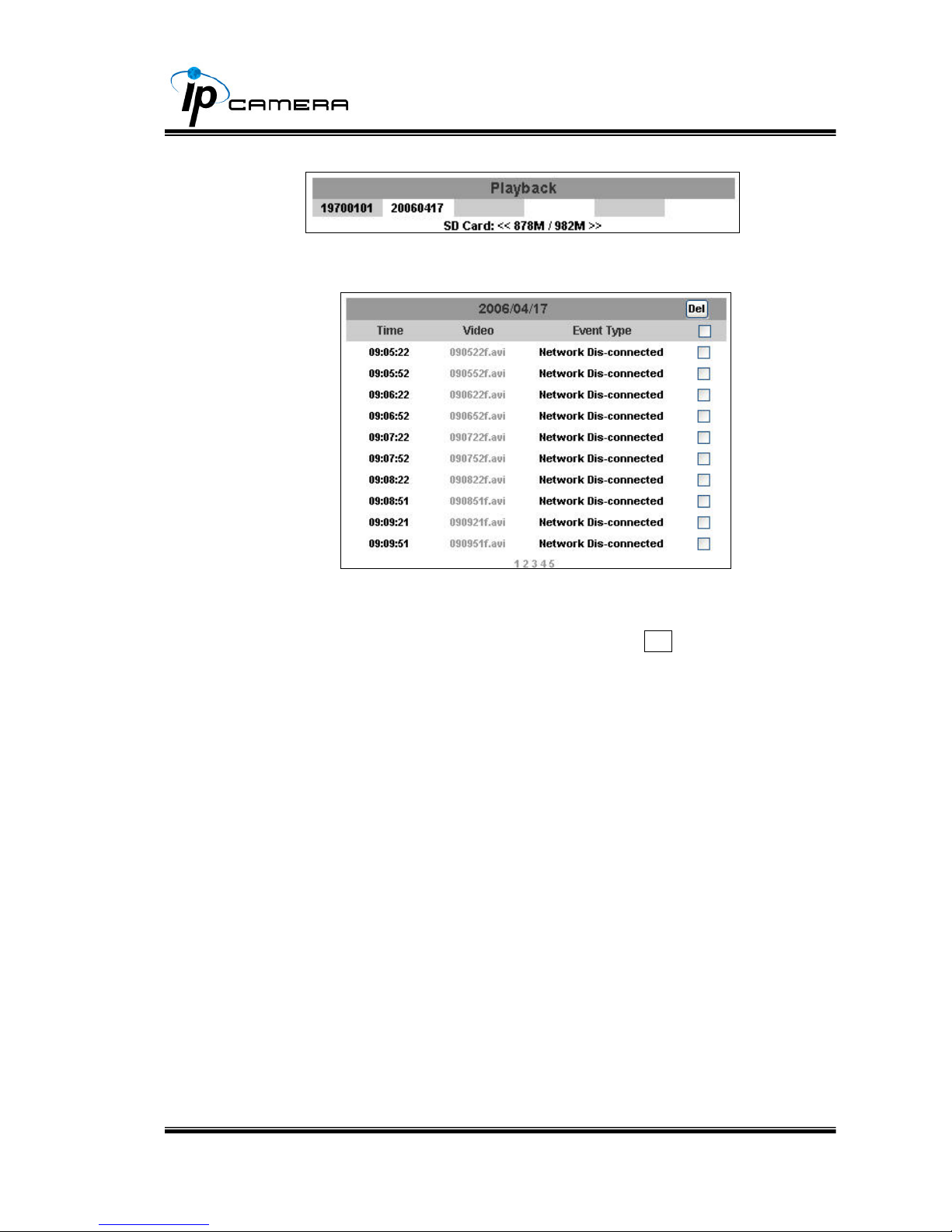

vi、 SD card

Please Insert SD card before use it. Make sure pushing SD card into the
slot completely.

Note：The use of the SD card will affect the operation of the IP

CAMERA slightly, such as affecting the frame rate of the video.

38/41

a. Playback：

1. It will show the capacity of the SD card. Click the date listed on

this page. It will show the list of the video.

2. The video format is AVI. Click the video to start Microsoft Media

Player to play it.

3. To delete the video, check it, then click Del. When the SD card

is full, it will remove the oldest video automatically.

39/41

VI. Network Configuration

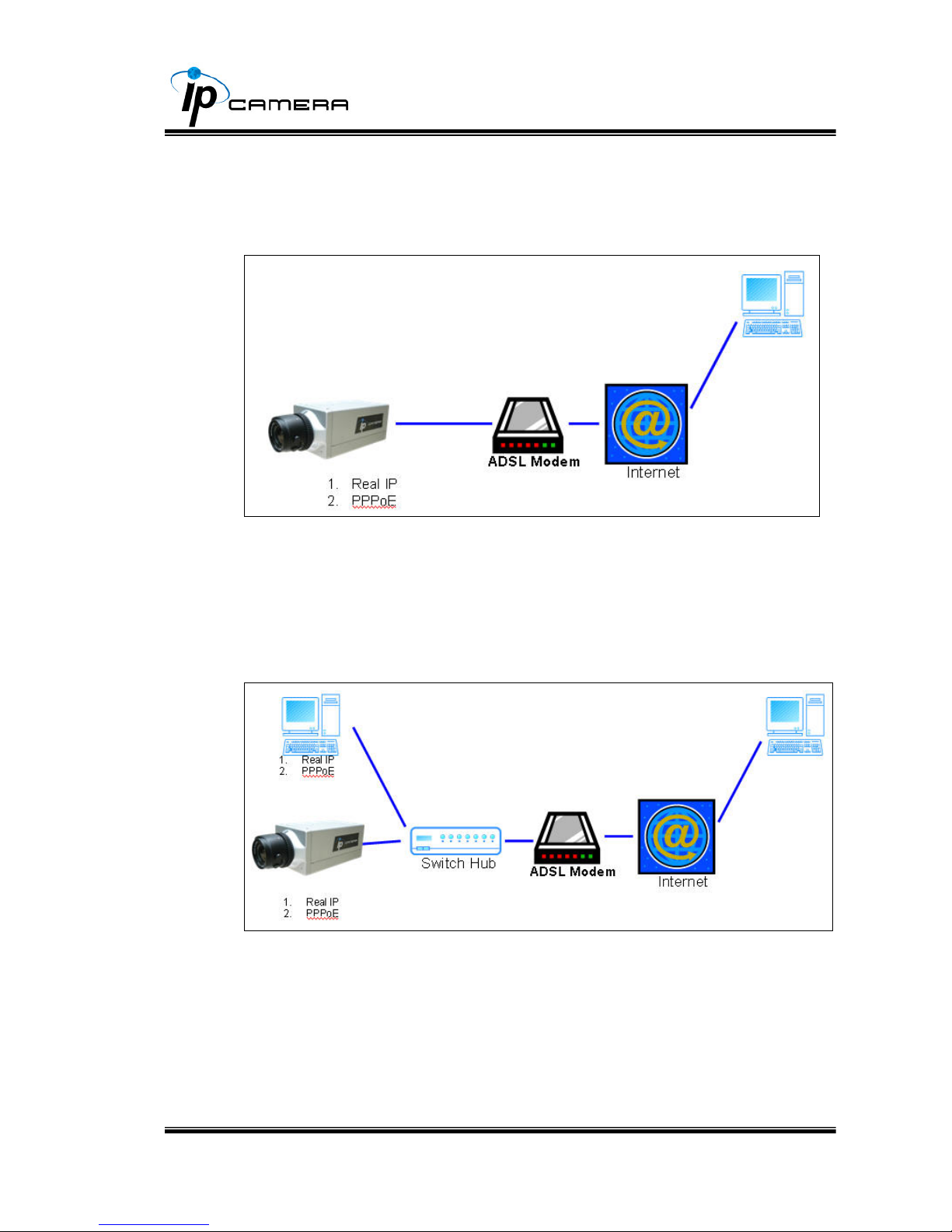

i、 Configuration 1：

a. Internet Access：ADSL or Cable Modem
b. IP address：One real IP or one dynamic IP

c. Only IP CAMERA connects to the internet

d. For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start

PPPoE.

ii、 Configuration 2：

a. Internet Access：ADSL or Cable Modem
b. IP address：More than one real IP or one dynamic IP

c. IP CAMERA and PC connect to the internet
d. Device needed：Switch Hub

e. For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP,

start PPPoE.

40/41

iii、 Configuration 3：

a. Internet Access：ADSL or Cable Modem
b. IP address：one real IP or one dynamic IP

c. IP CAMERA and PC connect to the internet
d. Device needed：IP sharing

e. Use virtual IP, set up port forwarding in IP sharing.

41/41

VII. Factory Default

i、 To recover the default IP address and password, please follow the following

steps.

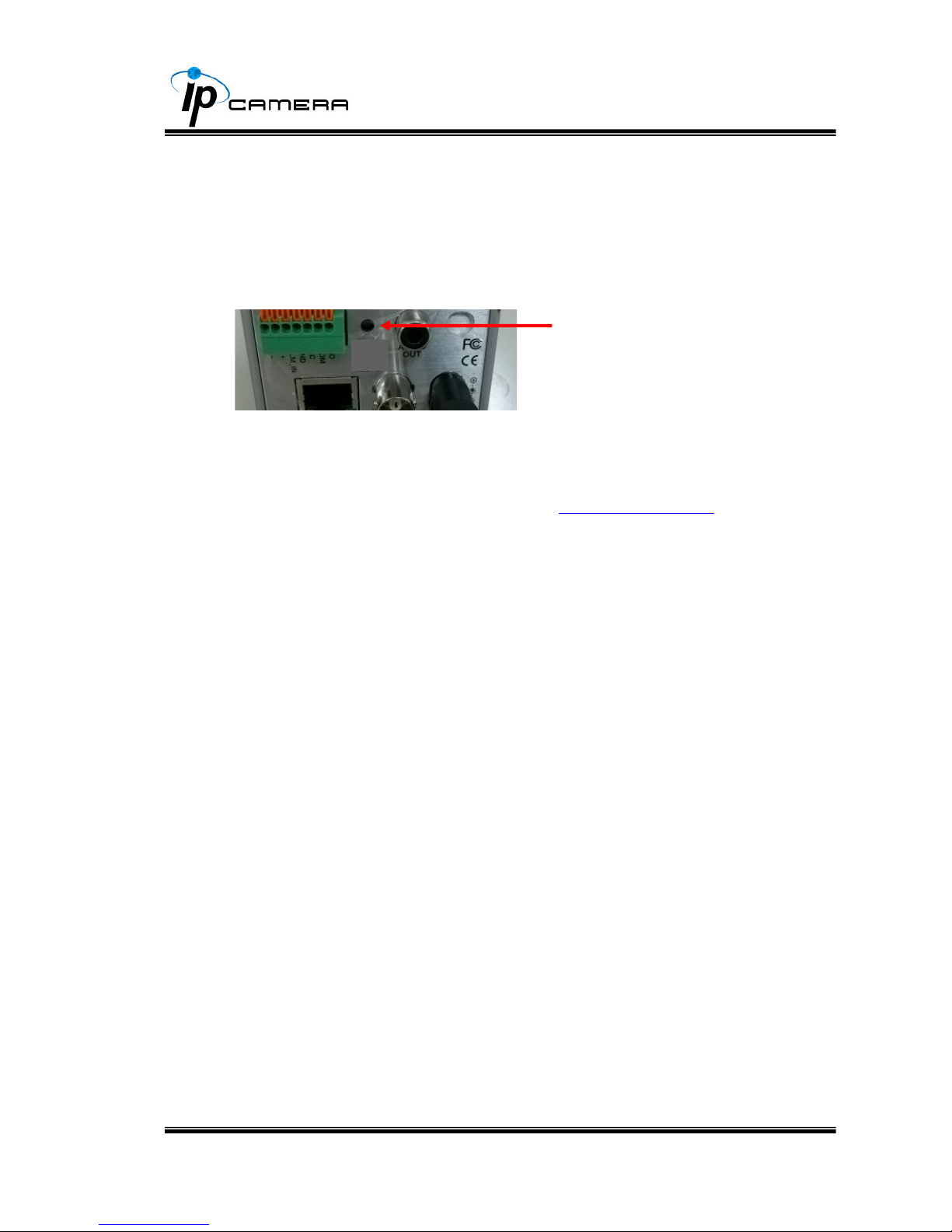

ii、 Remove power, and press and hold the button in the back of IP CAMERA.

iii、 Power on the camera. Don’t release the button during the system booting.
iv、 It will take around 30 seconds to boot the camera.
v、 Release the button when camera finishes proceed.
vi、 Re-login the camera using the default IP (http://192.168.1.200), and user

name (admin), password (admin).

VIII. Package contents

i、 IP CAMERA Network Camera
ii、 Adaptor
iii、 Ethernet Cable
iv、 CD title (User manual, IP installation Utility)

Appendix I

SD Card Recommended：
SanDisk 128M

SanDisk 256M
SanDisk 512M
SanDisk 1G
SanDisk 2G
SanDisk 4G

Tracend 128M 80X
Tracend 256M 80X
Tracend 512M 80X
Tracend 1G 80X
Tracend 2G 80X
Tracend 4G 80X

Factory Default
