User Manual
Pan-Tilt Zoom IP Camera
2/37
WARINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.
3/37
Content
I. PREFACE....................................................................................................................................... 4
II. PRODUCT SPECIFICATIONS ....................................................................................................... 4
III. PRODUCT INSTALLATION ........................................................................................................... 6
A. MONITOR SETTING..................................................................................................................................... 6
B. HARDWARE INSTALLATION ........................................................................................................................8
C. IP ASSIGNMENT ......................................................................................................................................... 9
D. INSTALL ACTIVEX CONTROL:................................................................................................................... 12
IV. LIVE VIDEO.................................................................................................................................. 14
V. IP CAMERA CONFIGURATION................................................................................................... 16
A. SYSTEM ................................................................................................................................................... 17
B. NETWOR K ................................................................................................................................................20
C. A/V SETTING ........................................................................................................................................... 25
D. EVENT LIST.............................................................................................................................................. 31
VI. NETWORK CONFIGURATION .................................................................................................... 34
VII. I/O CONFIGURATION .................................................................................................................. 35
VIII. FACTORY DEFAULT ................................................................................................................... 37
IX. PACKAGE CONTENTS ............................................................................................................... 37
APPENDIX I .......................................................................................................................................... 37
V1.1_100224
4/37
I. Preface
This IP Camera is a Pan-Tilt IP camera. It has the web server built in. User can
view real-time video via IE browser. IP Camera supports simultaneously
MPEG-4&JPEG video compression and dual streaming which provides smooth
and high video quality. The Pan-Tilt function can be controlled remotely. The video
can be stored in the SD card, and playback remotely. With user friendly interface, it
is an easy-to-use IP camera which is designed for security application.
II. Product Specifications
z Pan/Tilt remote control
z Support two streaming
z MPEG4&JPEG compression
z Supports SD card for local recording
z Power over Ethernet available ﹝Optional﹞
z Wireless network connection﹝Optional﹞
z 2-way audio
z Support Cell Phone/PDA
z Support 3GPP
z Online firmware upgrade
Specifications
Hardware
CPU ARM 9, 32 bit RISC
SDRAM 64MB
Flash 8MB
Image sensor 1/4” CCD
Lens 3.6mm,F2.0
Video Out 1-ch RCA type (CBVS Monitor output)
Audio in/ out 1 in/ 1 out (3.5 mm Phone Jack )
Alarm I/O 1 in/ 1 out
Power over Ethernet Yes (Optional)
5/37
Pan angle
270°
Tilt angle
120°
Power Consumption LAN: 5V, 1.3A / WLAN: 5V, 1.5A
Dimensions (W×H×D) 105x128.6x105 mm
Network
Ethernet 10/ 100 Base-T
Wireless 802.11b/g (Optional)
WEP 64/ 128 bit
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, 3GPP, UPnP
System
Video Resolution
NTSC：720x480, 704x480, 352x240, 176x120
PAL ：720x576, 704x576, 352x288, 176x144
Video adjust Brightness, Contrast, Saturation, Hue
Dual Streaming Yes
Image snapshot Yes
Full screen monitoring Yes
Pan/ Tilt control Yes, remotely
Preset Point 8
Patrol Yes
Auto Pan Yes
Pan/ Tilt speed control Yes
Compression format MPEG-4/ JPEG
Video bitrate adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to SD card
Pre/ Post alarm Yes, configurable
Security Password protection
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
Audio Yes, 2-way

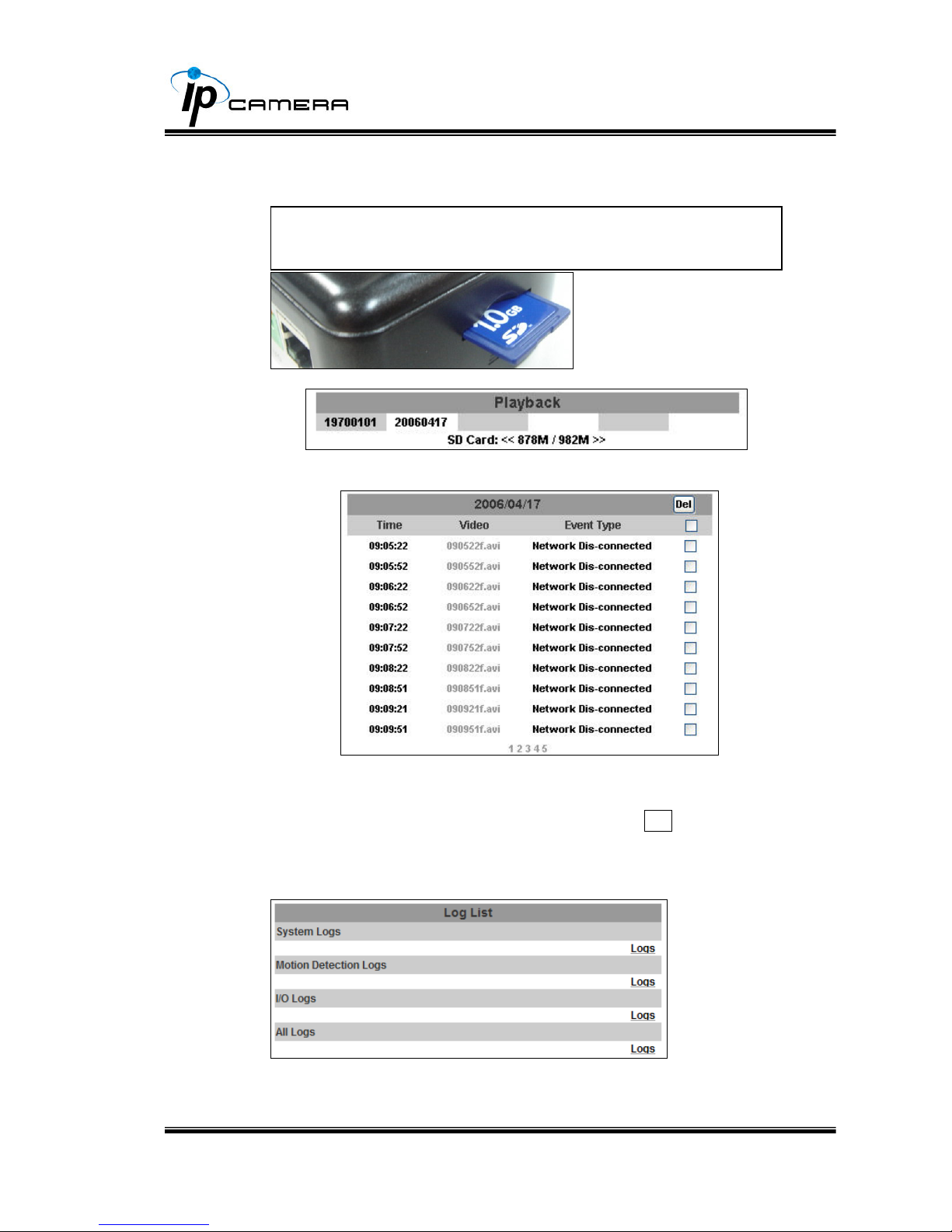

SD card management
Recording trigger Motion Detection, IP check, Network status (wire
connection only)
Video format AVI,JPEG
Video playback Yes
6/37
Delete files Yes
Web browsing requirement
OS Windows 2000, XP, 2003, IE 6 or above
Hardware Suggested
Intel-C 2.0G, RAM：512MB, Graphic card：64MB
Minimum
Intel-C 1.6G, RAM：256MB, Graphic card：32MB
III. Product Installation
A. Monitor Setting

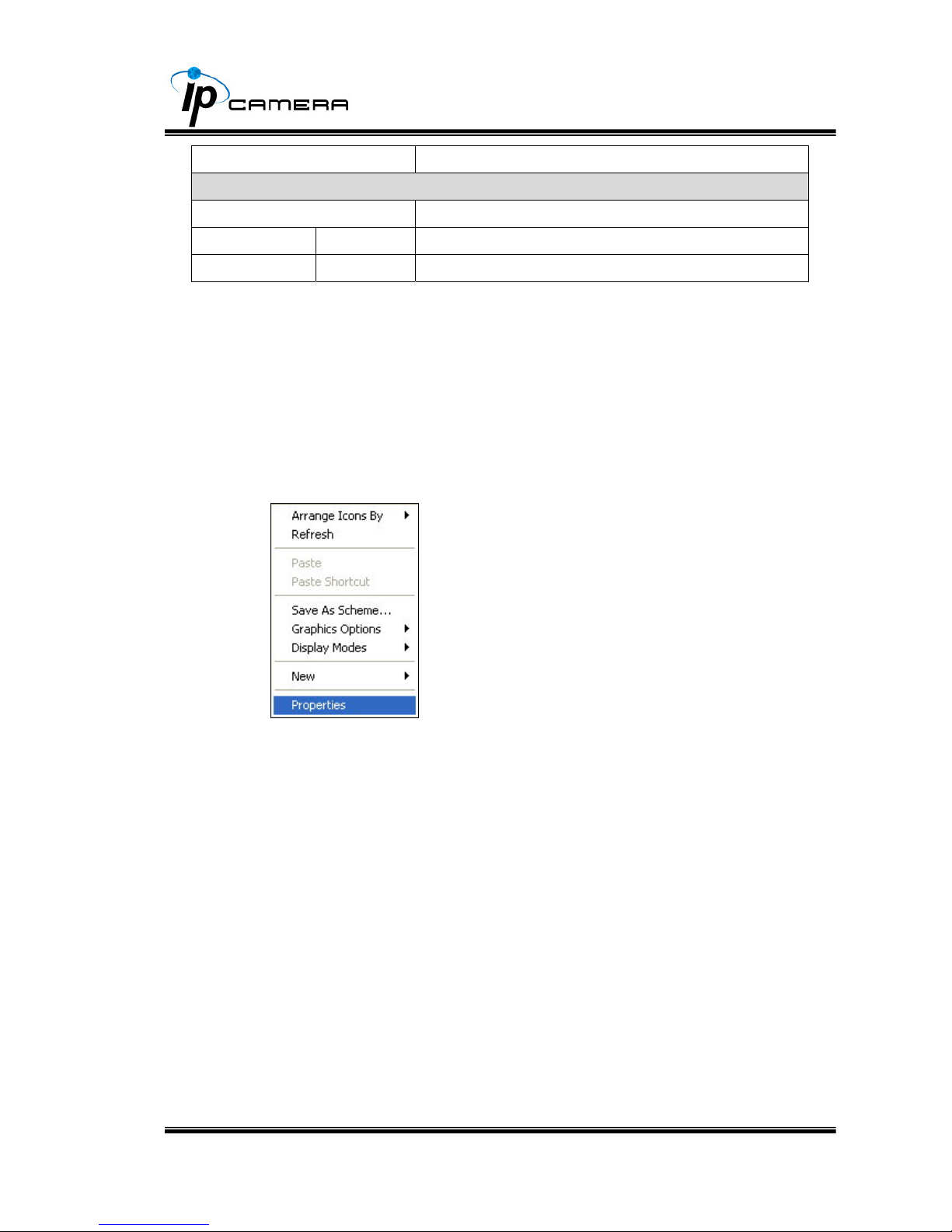

i. Right-Click on the desktop. Select “ Properties”

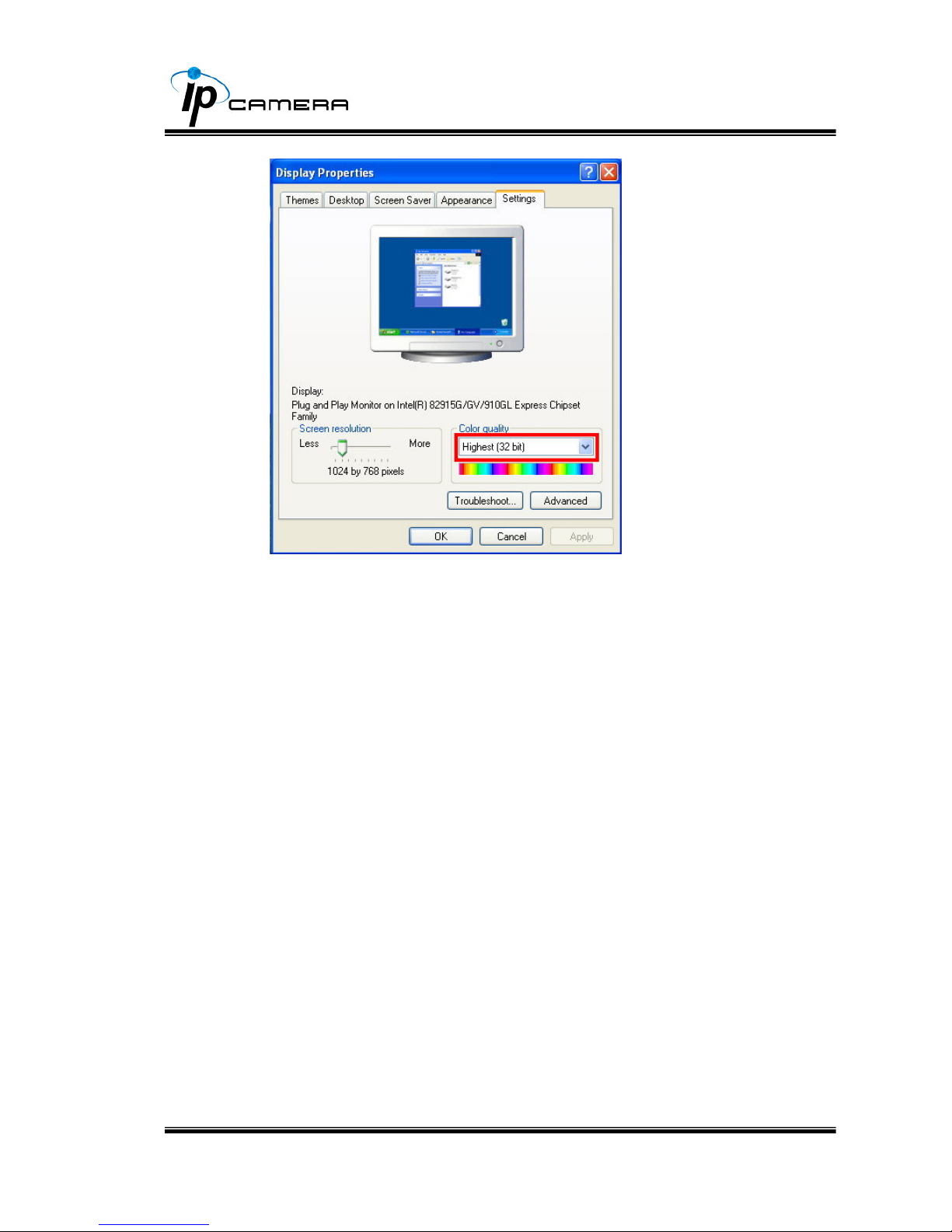

ii. Change color quality to highest (32bit).
7/37
8/37
B. Hardware Installation

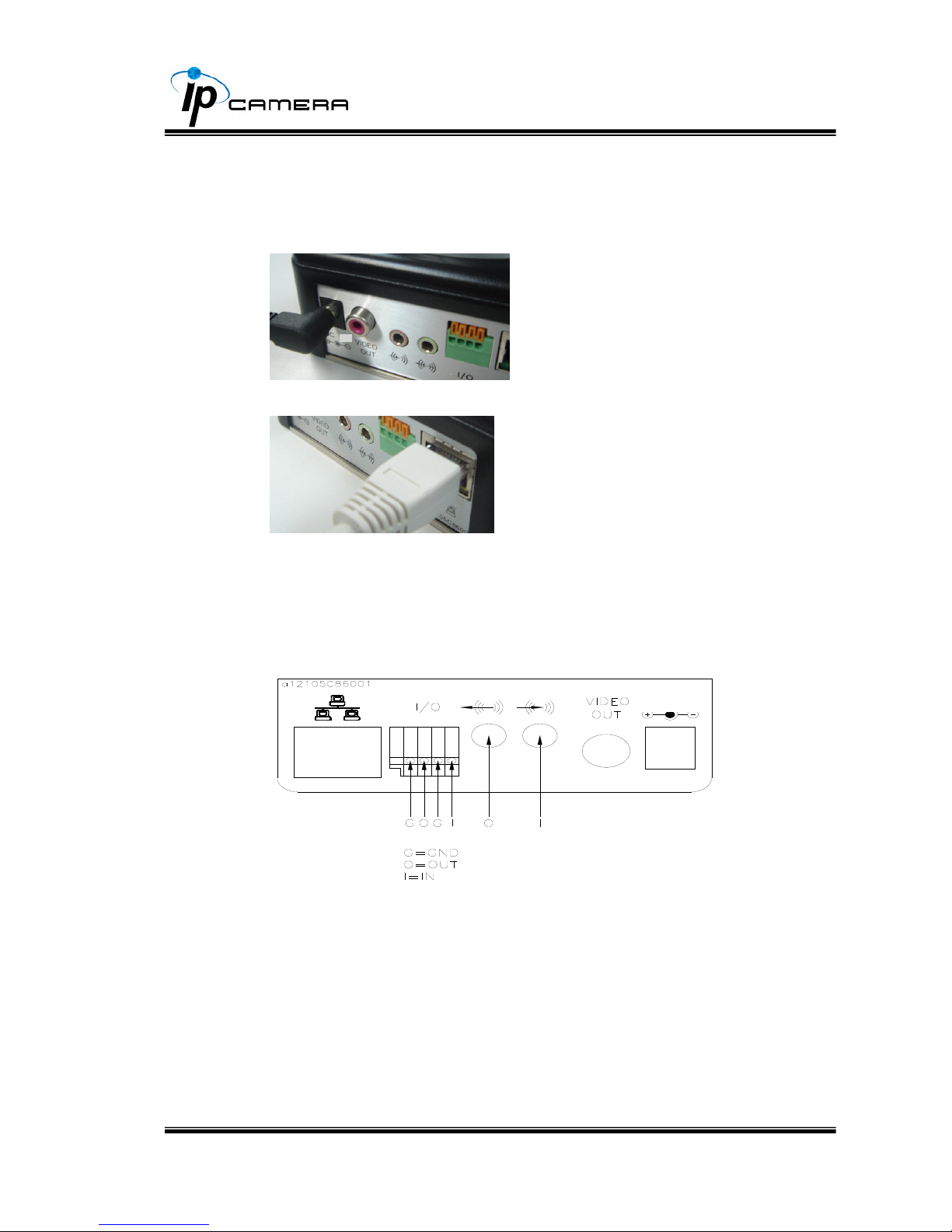

i. Connect power adaptor
ii. Connect IP Camera to PC or network with Ethernet cable
iii. Connect IP Camera to PC or network
iv. Set up the network configurations according to the network environment.
For further explanation, please refer to chapter VI, “Network
Configuration for IP Camera”.
v. Back Panel for your reference

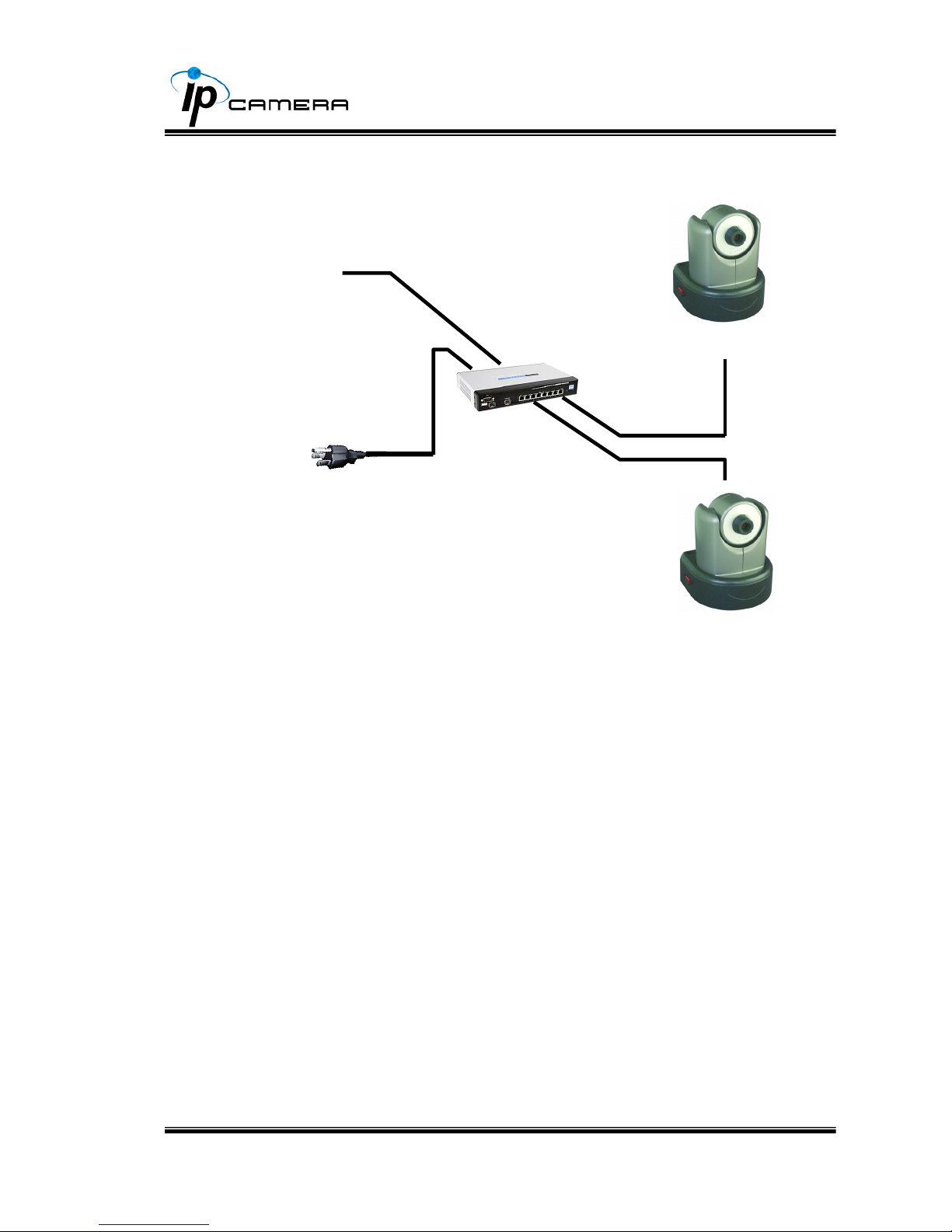

vi. PoE ( Power Over Ethernet)(Optional)
802.3af, 15.4W PoE Switch is
recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the
network device, such as an IP phone or a network camera, using the
same cable as that used for network connection. It eliminates the need
for power outlets at the camera locations and enables easier application
of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7
DC 12V
9/37
days a week operation.
C. IP Assignment
i. Use the software, “IP Installer” to assign the IP address of IP Camera.
The software is in the attached CD.
ii. There are two languages for the IP installer
a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version
iii. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
iv. Execute IP Installer

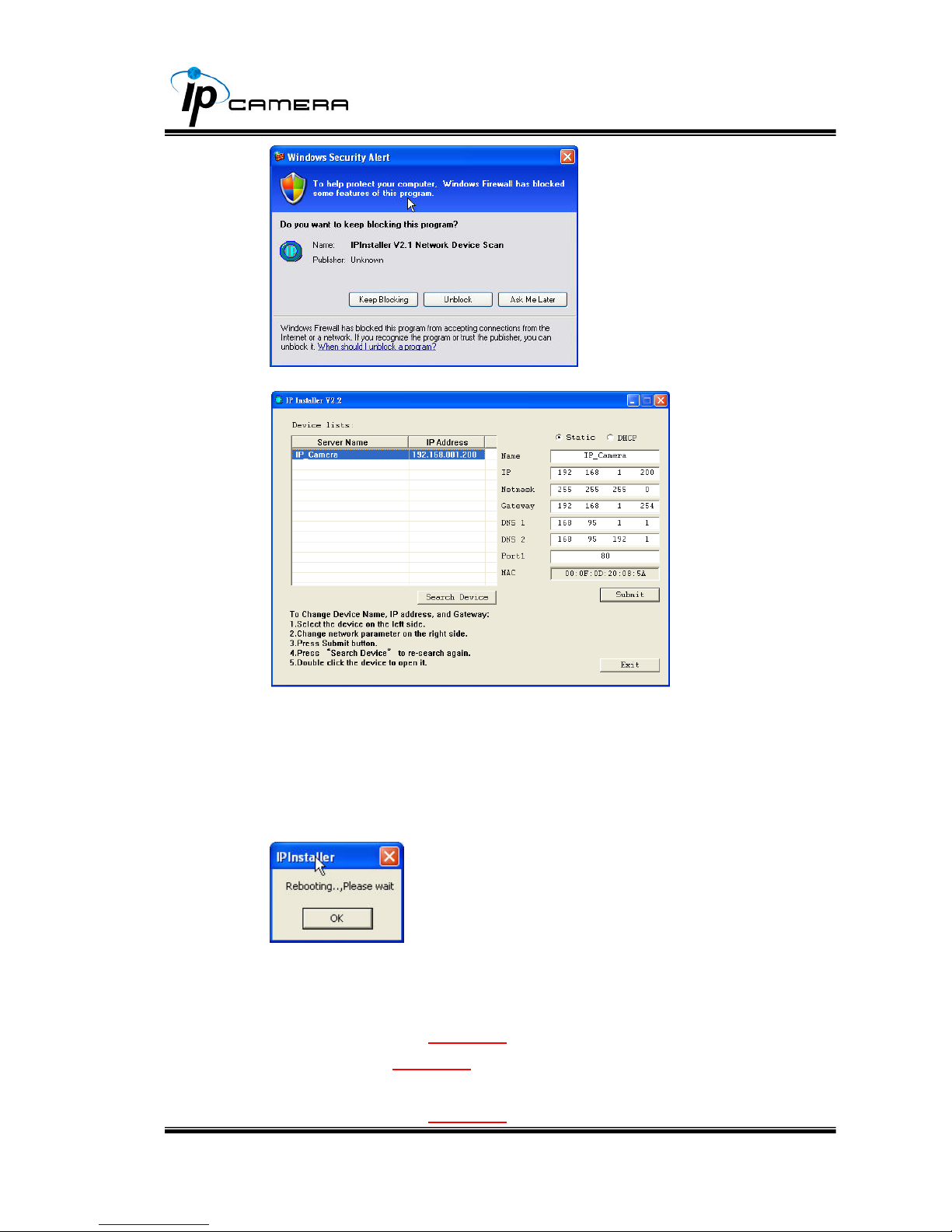

v. For Windows XP SP2 user, it may popup the following message box.
Please click “Unblock”.
Ethernet
PoE Switch
PoE IP Camera
PoE IP Camera
Ethernet Cable
Ethernet Cable
10/37
vi. IP Installer configuration:
vii. IP Installer will search all IP Cameras connected on Lan. The user can
click “Search Device” to search again.
viii. Click one of the IP Camera listed on the left side. The network
configuration of this IP camera will show on the right side. You may
change the “name” of the IP Camera to your preference (eg: Office,
warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.
ix. Please make sure the subnet of PC IP address and IP CAM IP address
are the same.
The same Subnet:
IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP CAM IP address: 192.168.2.200
11/3 7
PC IP address: 192.168.1.100

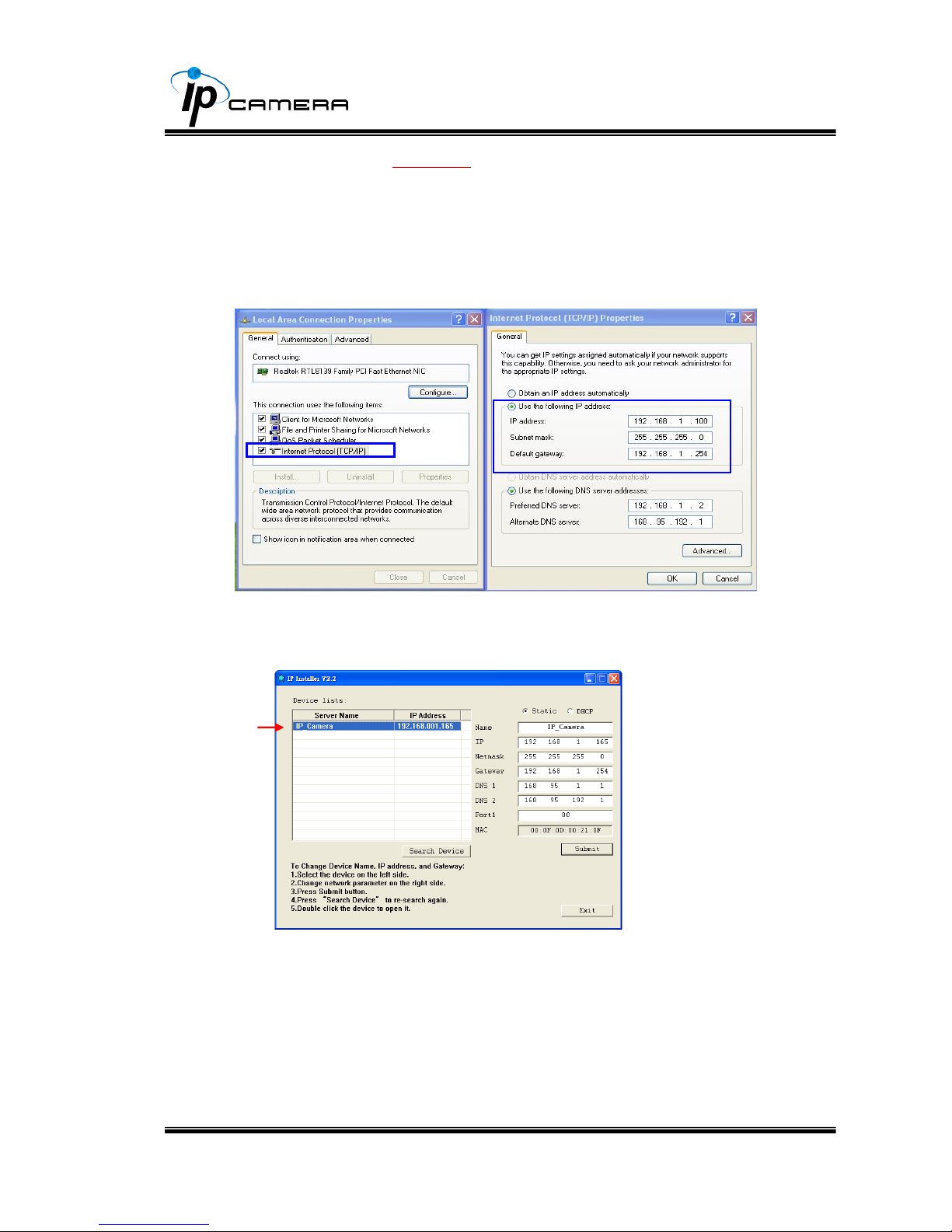

To Change PC IP address:
Control PanelÆNetwork ConnectionsÆLocal Area Connection
PropertiesÆInternet Protocol (TCP/IP) ÆProperties
Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.
x. A quick way to access remote monitoring is to left-click the mouse twice
on a selected IP Camera listed on “Device list” of IP Installer. An IE
browser will be opened.
xi. Then, please key in the default “user name: admin” and “password:
admin”.
12/37
D. Install ActiveX control:
For the first time to view the camera video via IE, it will ask you to install the
ActiveX component.

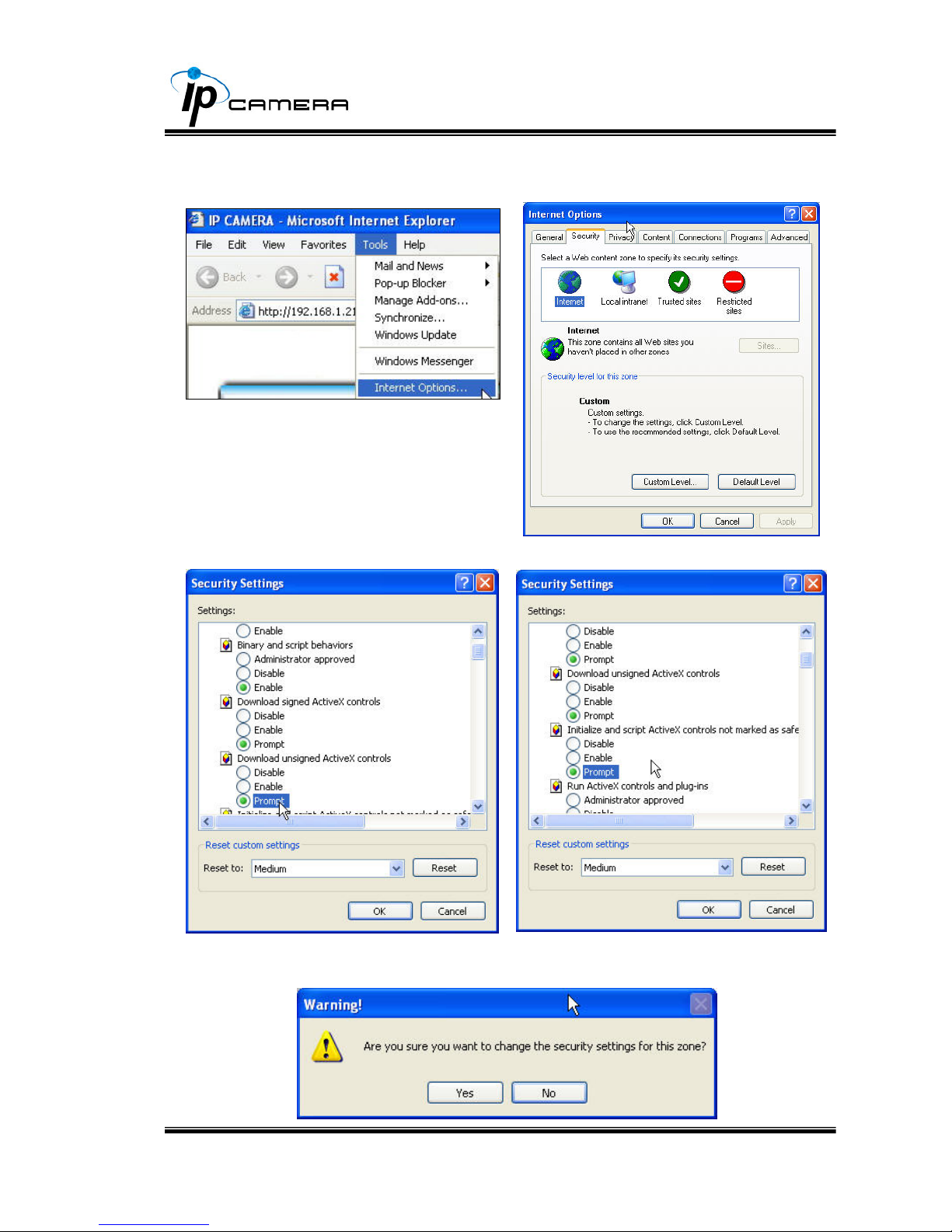

If the installation failed, please check the security setting for the IE browser.
i. IE Æ Tools Æ Internet Options… Æ Security Tab Æ Custom Level… Æ
Security Settings Æ Download unsigned ActiveX controlsÆ Select
“Enable” or Prompt.
ii. IE Æ Tools Æ Internet Options… Æ Security Tab Æ Custom Level…
ÆInitialize and script ActiveX controls not marked as safe Æ Select
“Enable” or Prompt.
13/37
1 2
3 4
5
When popup the following dialogue box, click “Yes”.
14/37
IV. Live Video

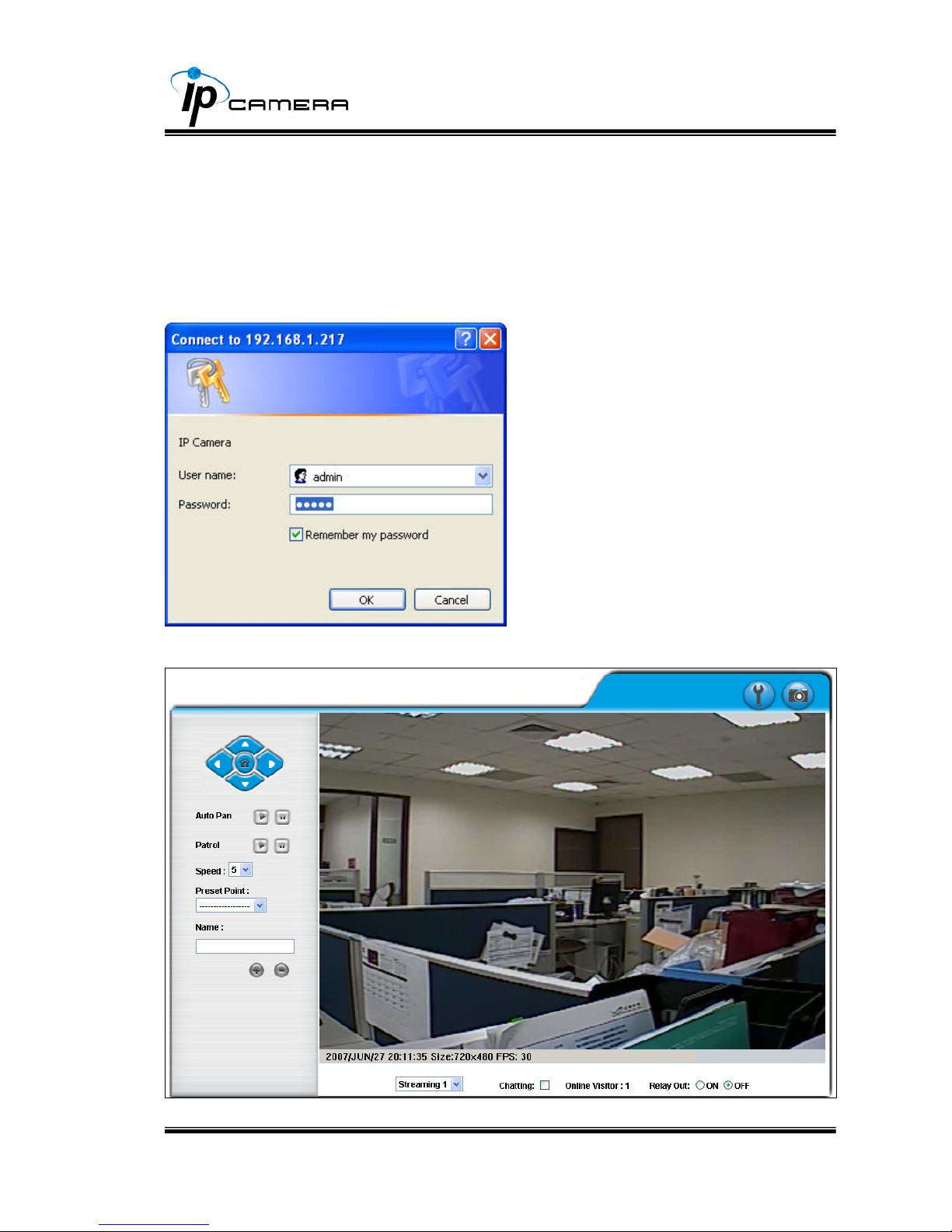

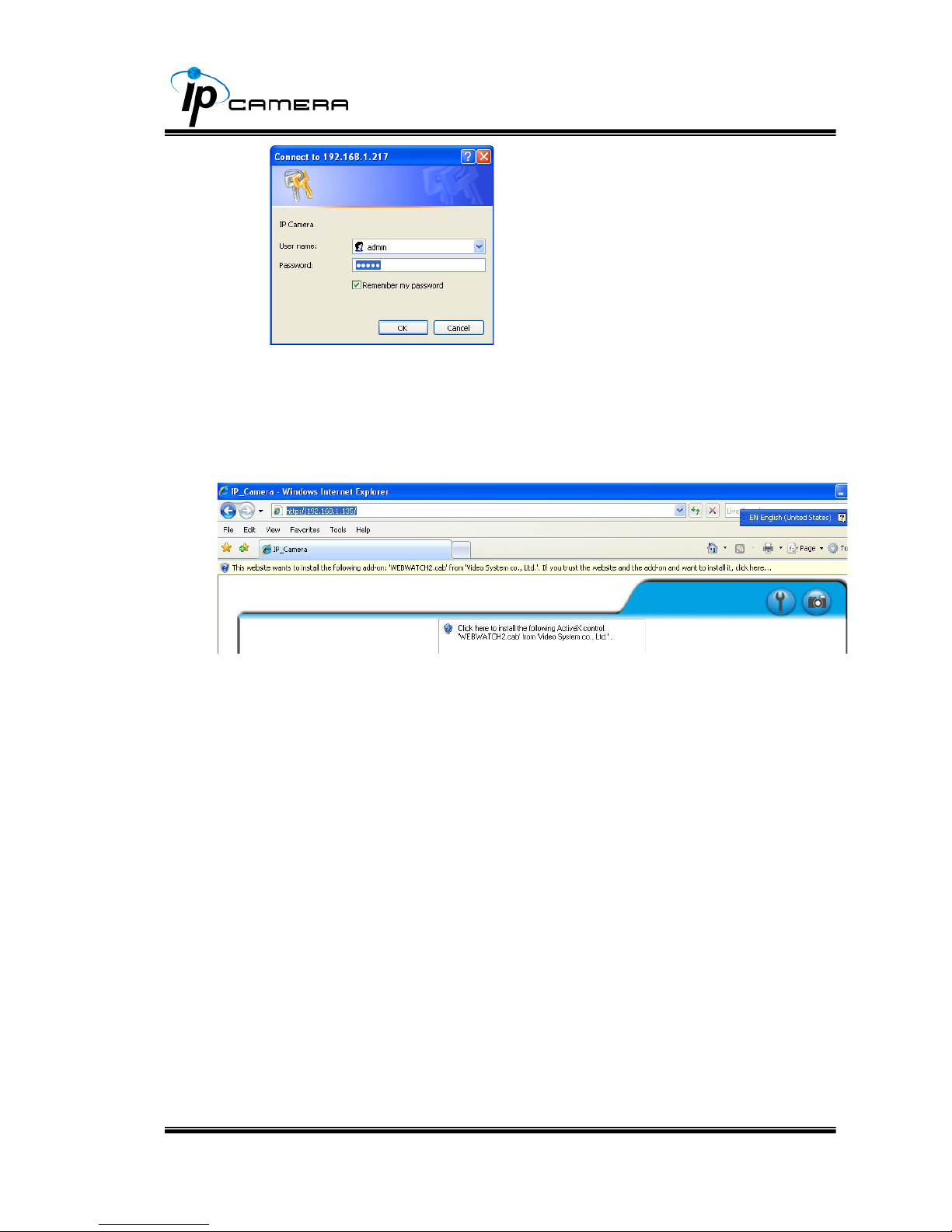

Start an IE browser, type the IP address of the IP camera in the address field. It will
show the following dialogue box. Key-in the user name and password. The default
user name and password are “admin” and “admin”.
When connect to the IP Camera。The following program interface shows.
8
9
10
1
4
11
12
13
14
5
6
7
2
3
15/37

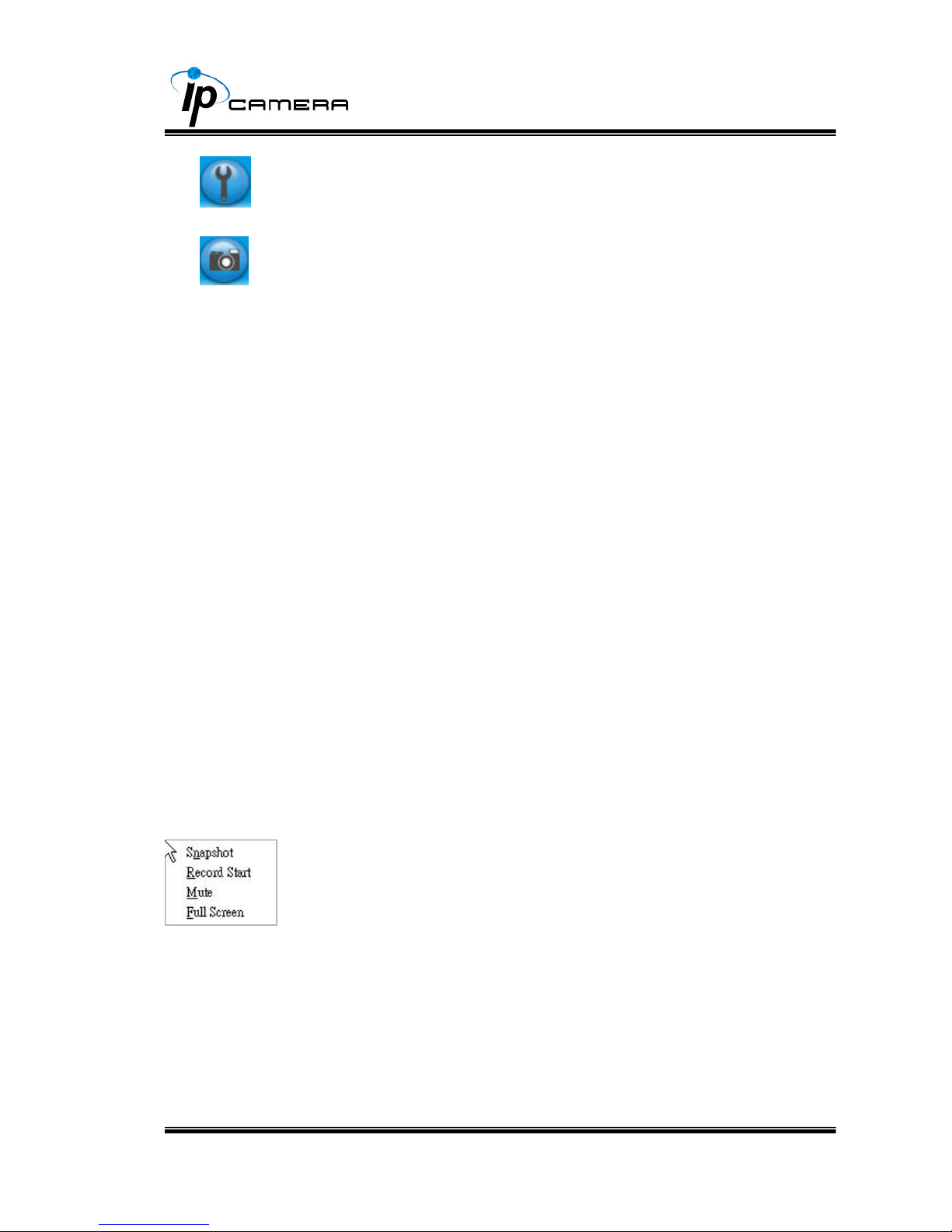

1. ：Get into the administration page
2. ：Video Snapshot
3. Show system time, video resolution, and video refreshing rate
4. Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this
function will not display)

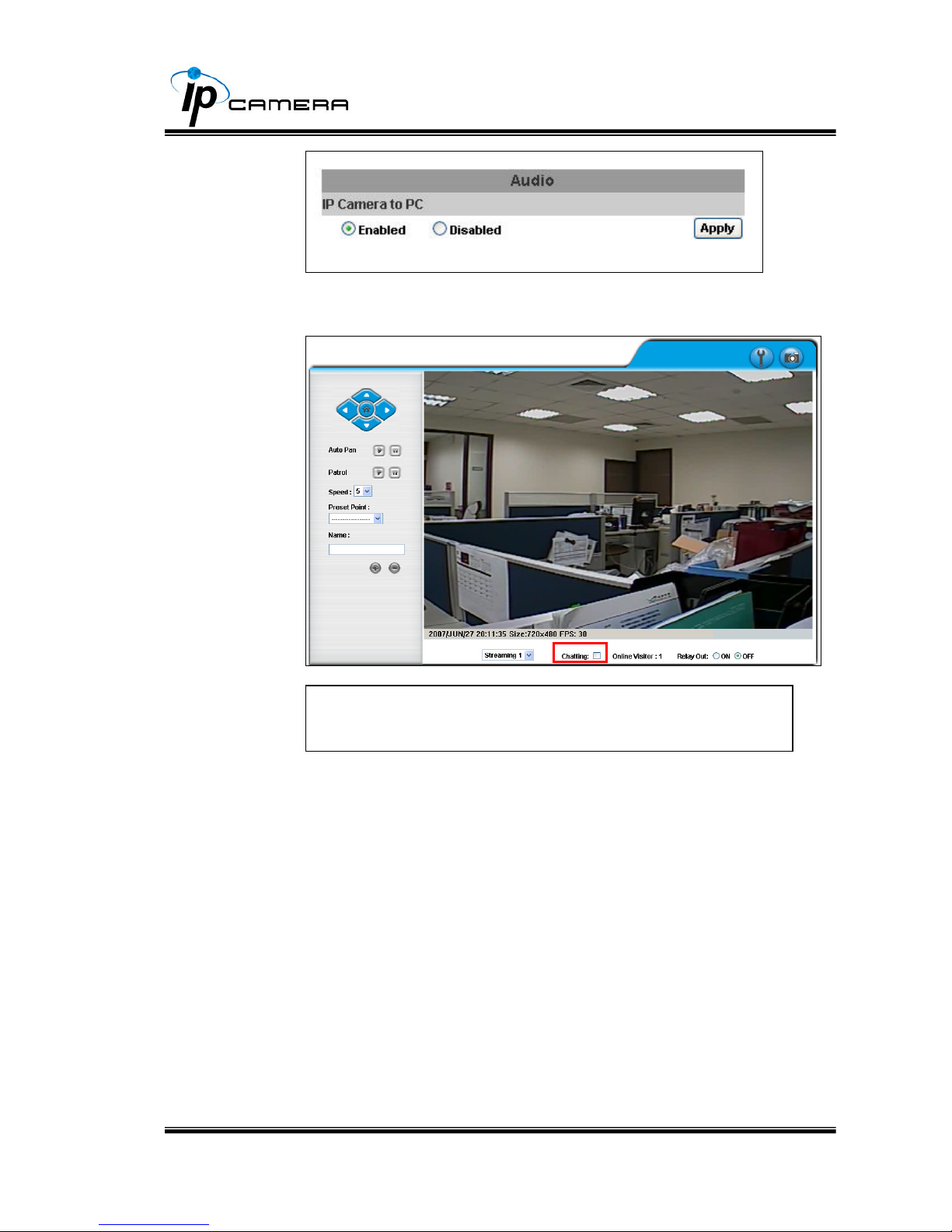

5. IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can
use microphone which connect to the PC to talk to server side, which is IP
Camera side.
6. Shows how many people connect to this IP camera

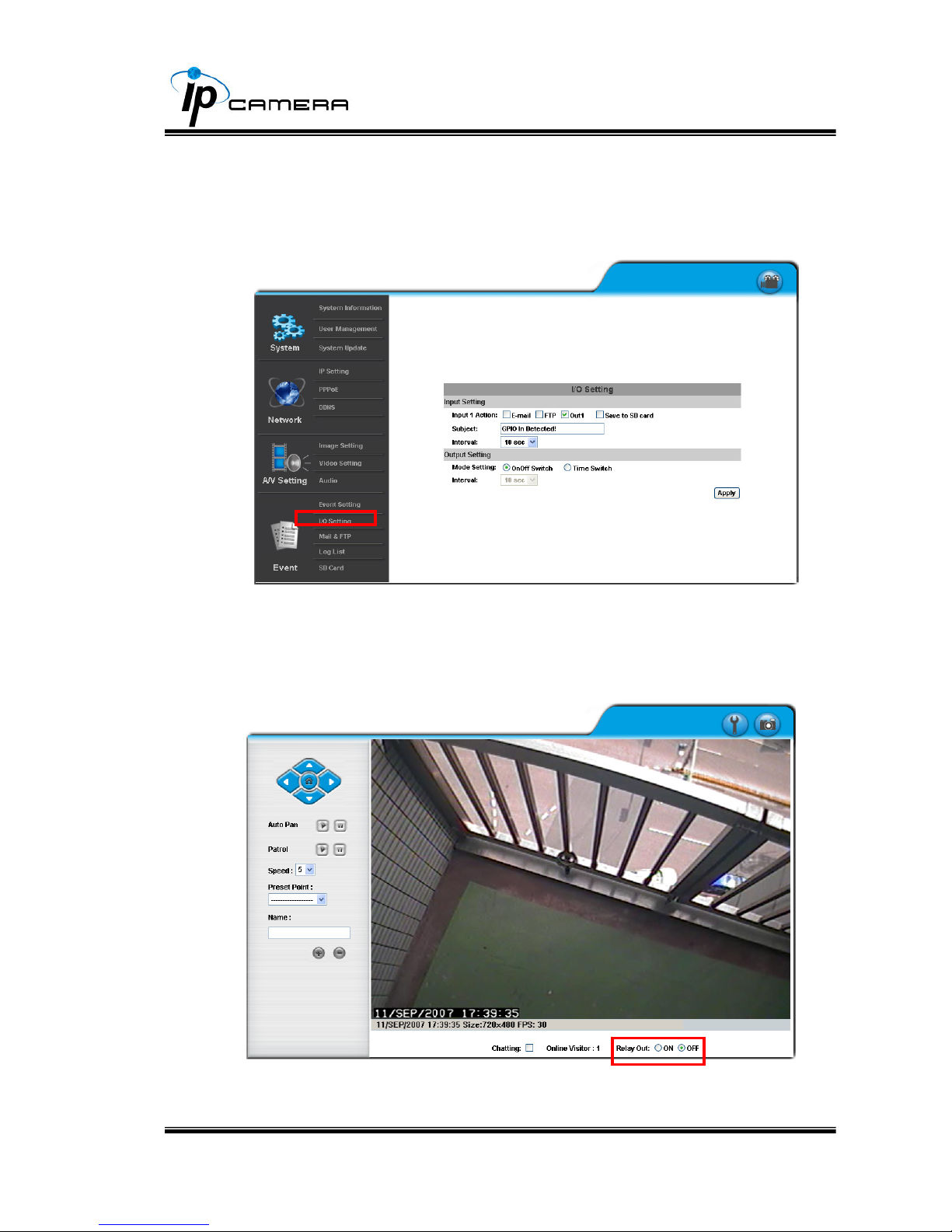

7. Relay out: On or Off
8. Pan Tilt control of this IP camera
9. Auto Pan：The camera will pan horizontally.
10. Patrol：The camera will move alone with the preset points.
11. Speed：The speed of the camera move.
12. Preset Point
13. Set up the name of the preset point
14. Add/ remove preset point
Double-click the video, it will change to full screen mode. Press “Esc” or double-click
the video again, it will change back to normal mode.
Right-Click the mouse on the video, it will show a pop-up menu.
1. Snapshot：Save a JPEG picture
2. Record Start：Record the video in the local PC. It will ask you where to save the
video. To stop recording, right-click the mouse again. Select “Record Stop”. The
video format is AVI. Use Microsoft Media Player to play the recorded file.
3. Mute：Turn of the audio. Click again to turn on it.
4. Full Screen：Full-screen mode.
16/37

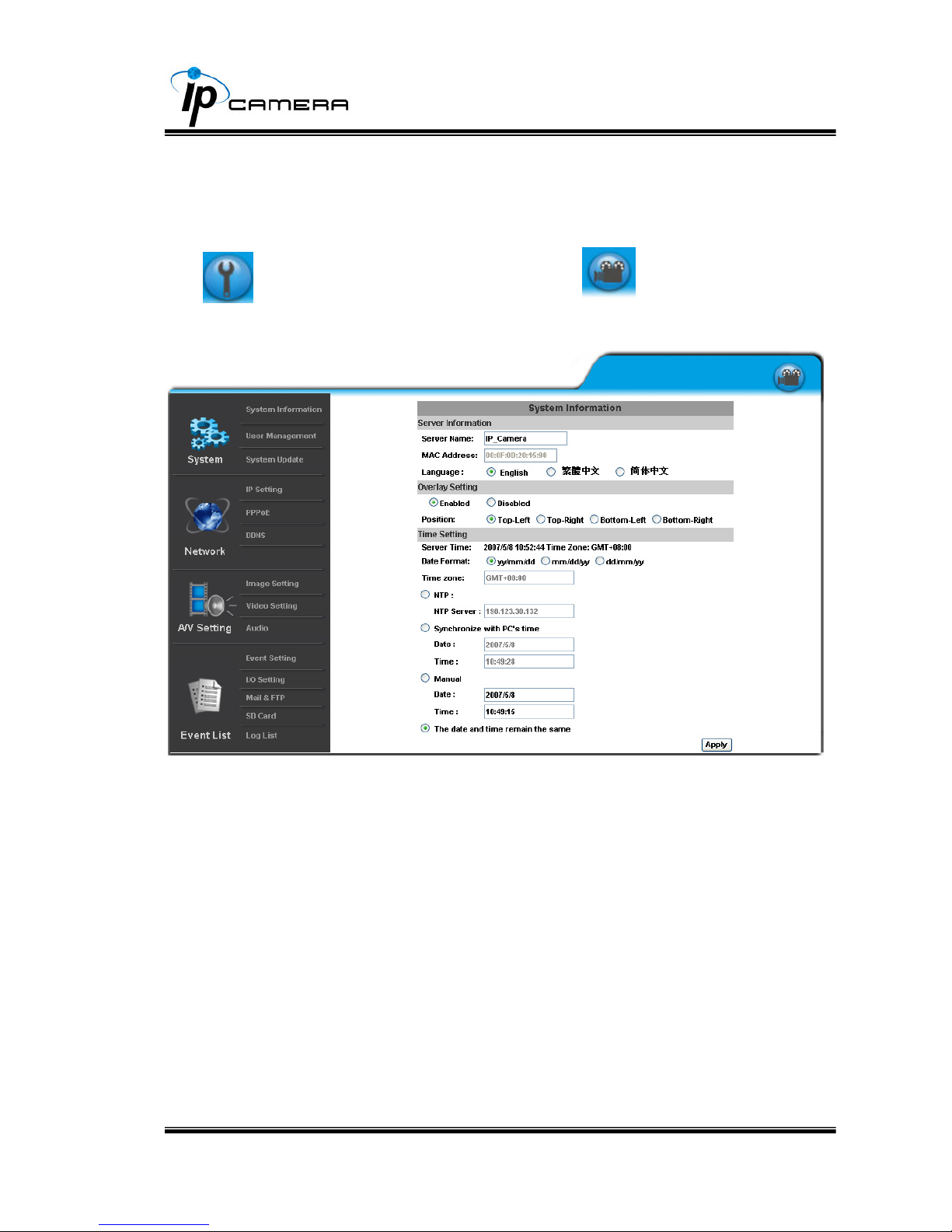

V. IP Camera Configuration
Click to get into the administration page. Click to back to the live video
page.
17/37
A. System
i、 System Information
a. Server Information：Set up the camera name, select language, and
set up the camera time.
1. Server Name：This is the Camera name. This name will show
on the IP Installer.

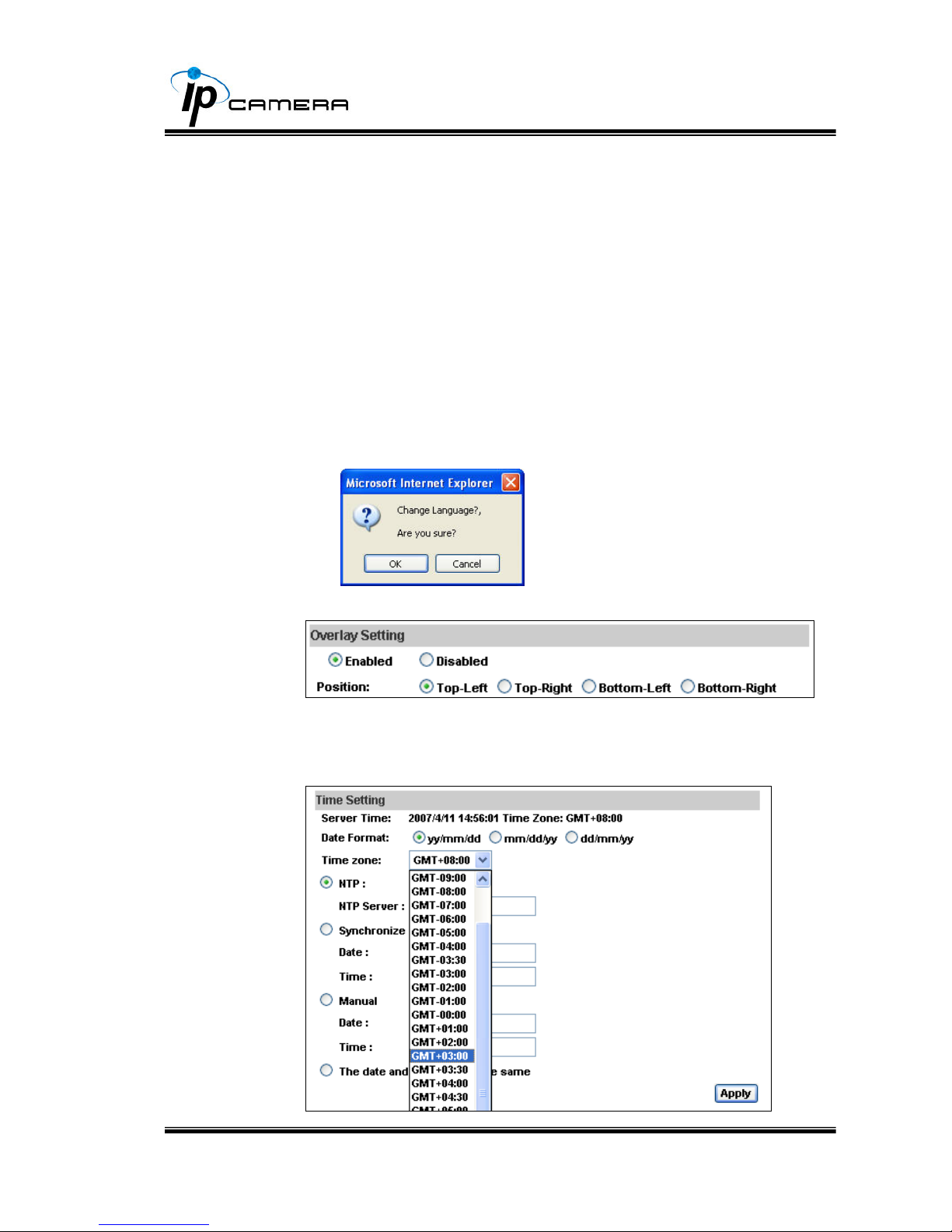

2. Select language：There are English, Traditional Chinese, and
Simple Chinese to select. When change, it will show the
following dialogue box for the confirmation of changing
language.
b. Overlay Setting (Display Time&Date on Screen)
c. Server time setting：Select options to set up time - “NTP”,
“Synchronize with PC’s time”, “Manual”, “The date and time remain
the same”.
18/37

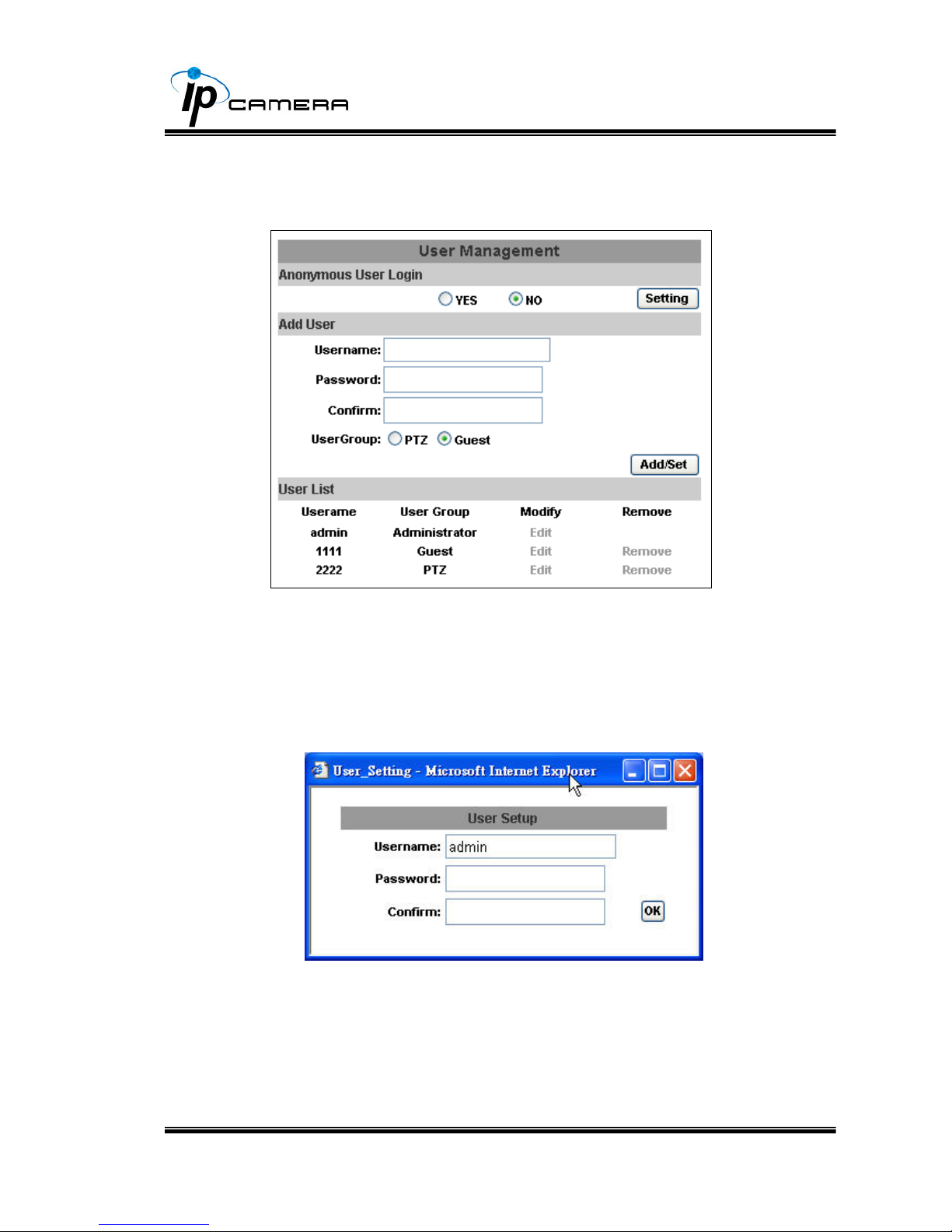

ii、 User Management
IP Camera supports three different users, administrator, general user,
and anonymous user.
a. Anonymous User Login：
Yes ：Allow anonymous login
No：Need user name & password to access this IP camera
b. Add user：
Type the user name and password, then click “Add/Set”.
c. Click “edit” or “delete” to modify the user.
19/37

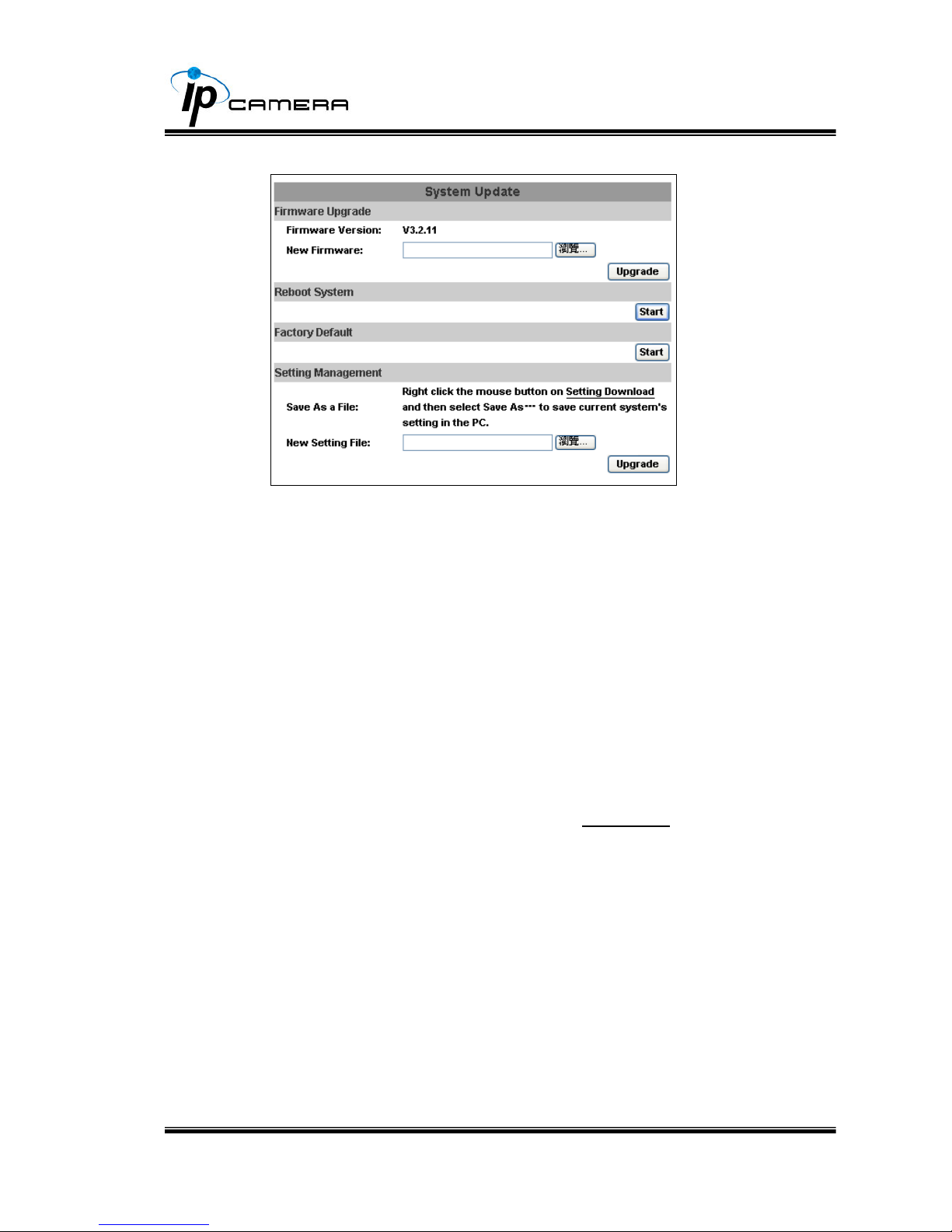

iii、 System update：
a. To update the firmware online, click “Browse…” to select the
firmware. Then click “Upgrade” to proceed.
b. Reboot system：re-start the IP camera
c. Factory default：delete all the settings in this IP camera.
d. Setting Management：User may download the current setting to PC,
or upgrade from previous saved setting.
1. Setting download:
Right-click the mouse button on Setting Download Æ Select
“Save AS…” to save current IP CAM setting in PC Æ Select
saving directory Æ Save
2. Upgrade from previous setting
Browse Æ search previous setting Æ open Æ upgrade Æ
Setting update confirm Æ click index.html. to return to main
page
20/37
B. Network

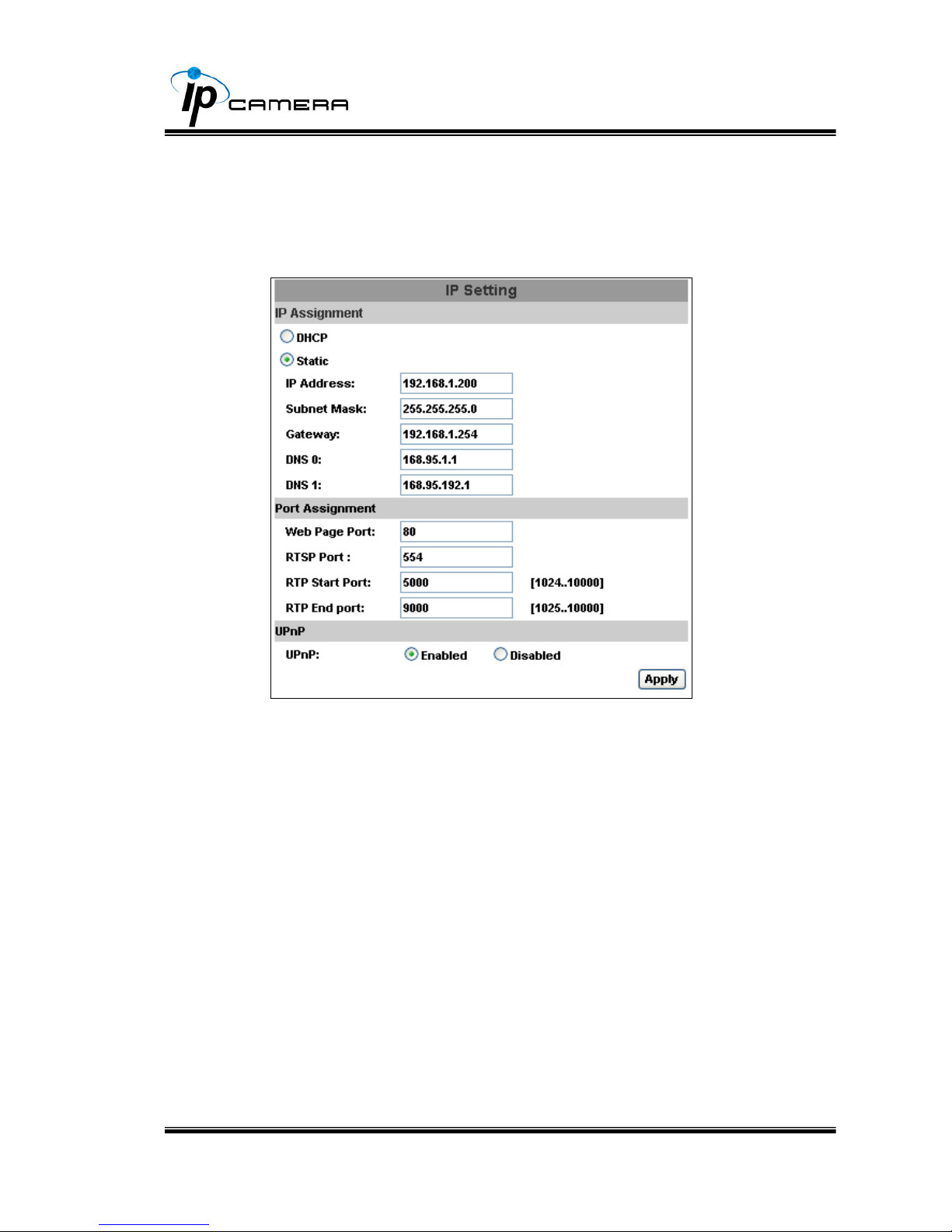

i、 IP Setting
IP Camera supports DHCP and static IP.
a. DHCP: Using DHCP, IP CAMERA will get all the network
parameters automatically.
b. Static IP: Please type in IP address, subnet mask, gateway, and
DNS manually.
c. Port assignment:
1. Web Page Port: setup web page connecting port and video
transmitting port (Default: 80)
2. RTSP Port: setup port for RTSP transmitting (Default: 554)
3. RTP Start and End Port: in RTSP mode, you may use TCP and
UDP for connecting. TCP connection uses RTSP Port (554).
UDP connection uses RTP Start and End Port.
d. UPnP (Universal Plug and play): Display UPnP device icon in 『My
Network Places』 for hyper link.
21/37

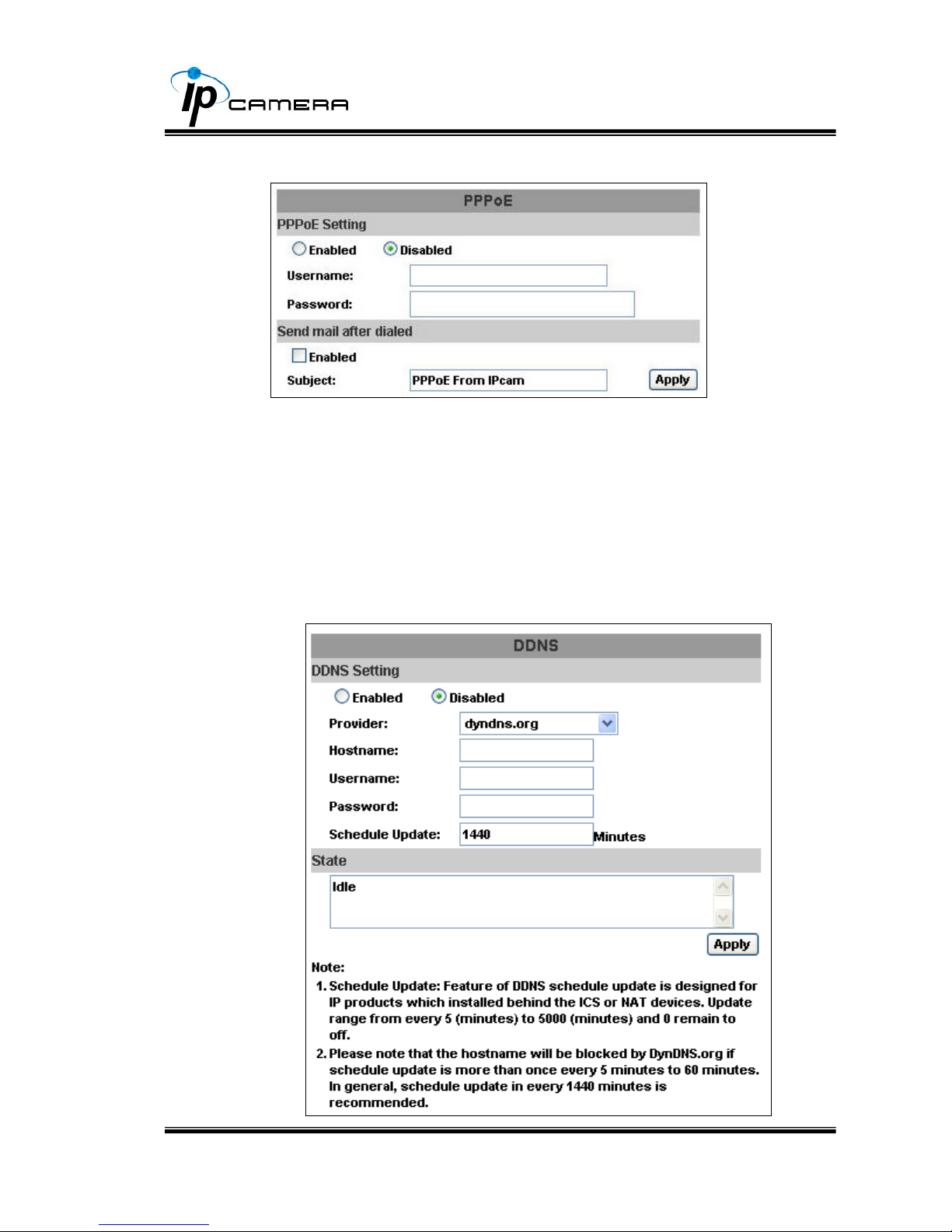

ii、 PPPoE：
Select “Enabled” to use PPPoE.
Key-in Username and password for the ADSL connection.
Send mail after dialed：When connect to the internet, it will send a mail
to a specific mail account. For the mail setting, please refer to “Mail and
FTP” settings.
iii、 DDNS：
IP Camera supports DDNS (Dynamic DNS) service.
a. DynDNS：
22/37
1. Enable this service
2. Key-in the DynDNS server name, user name, and password.
3. Set up the IP Schedule update refreshing rate.
4. Click “Apply”
5. If setting up IP schedule update too frequently, the IP may be
blocked. In general, schedule update every day (1440 minutes)
is recommended.

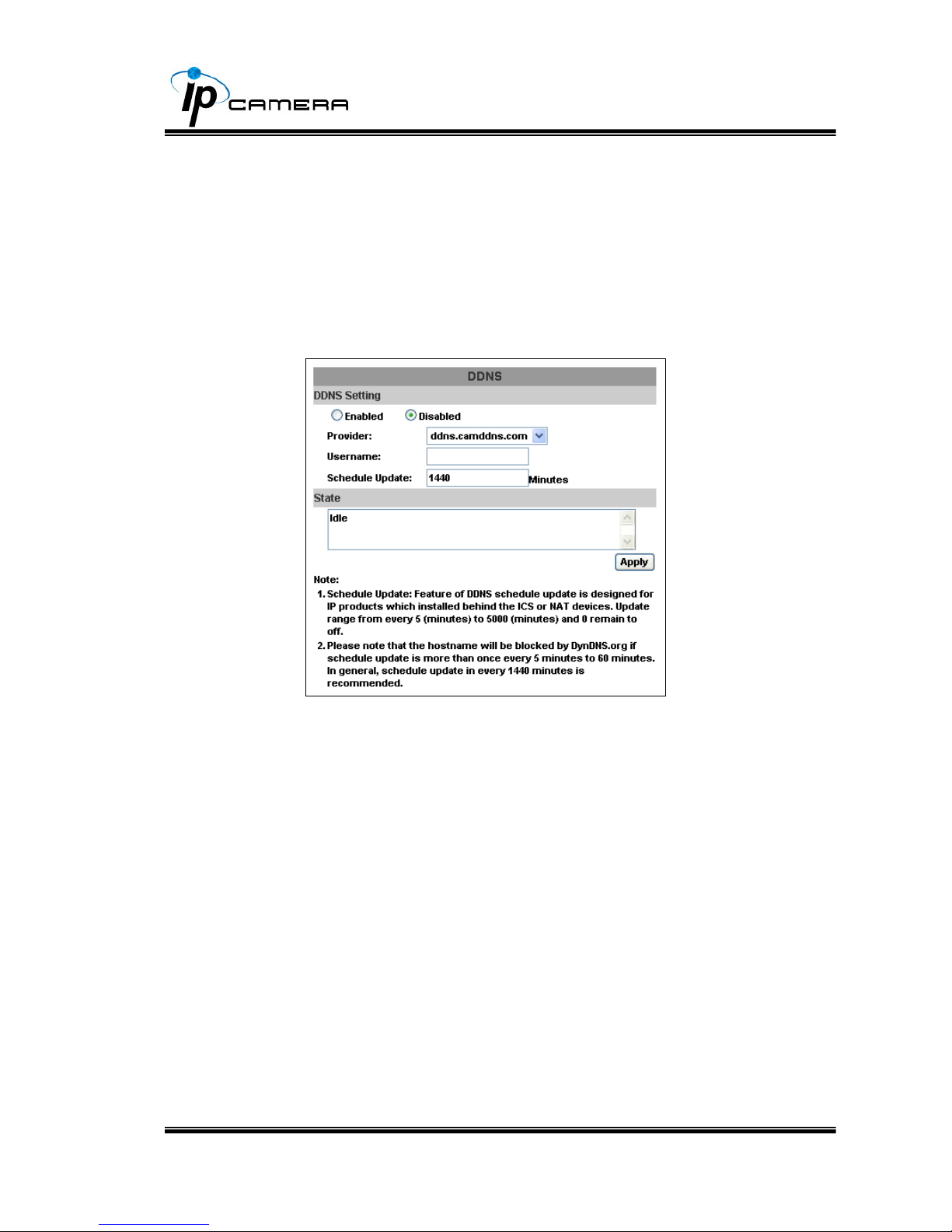

b. Camddns service：
1. Please enable this service
2. Key-in user name
3. IP Schedule update is default at 1440 minutes
4. Click “Apply”.
c. DDNS Status
1. Updating：Information update
2. Idle：Stop service
3. DDNS registration successful, can now log by
http://<username>.ddns.camddns.com：Register successfully.
4. Update Failed, the name is already registered：The user name
has already been used. Please change it.
5. Update Failed, please check your internet connection：Network
connection failed.
6. Update Failed, please check the account information you
provide：The server, user name, and password may be wrong
23/37

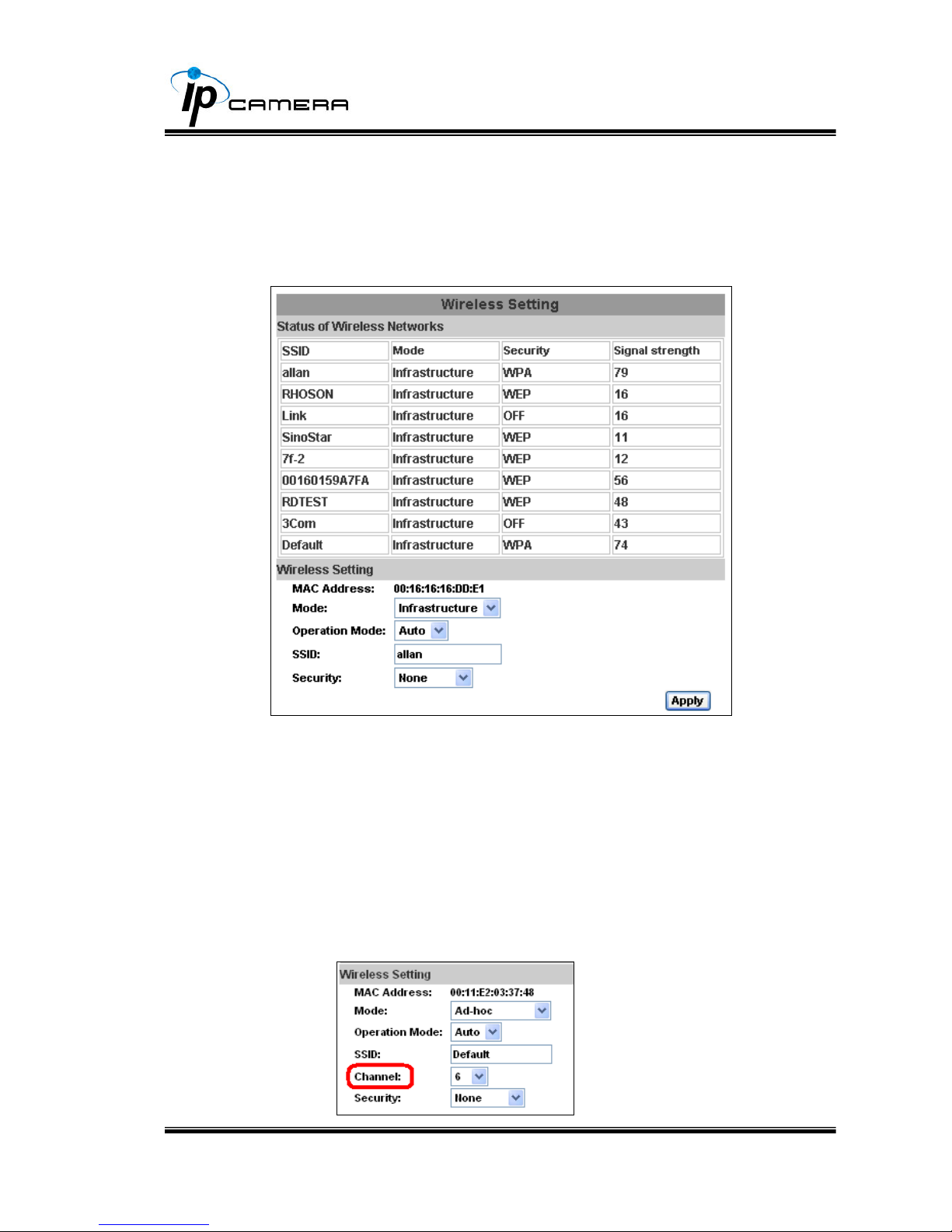

iv、 Wireless Setting (Wireless Network Optional)
Supports 802.11 b/g wireless connection.
Notice：Wireless network and Ethernet network use the same IP, the
user has to unplug Ethernet cable, if Ethernet cable is not unplug,
wireless setting can not be executed.
a. Status of Wireless Networks：
scan all wireless services.
b. Wireless Setting：
1. Mode：There are Infrastructure and Ad-hoc. Infrastructure is for
connecting with the router. Ad-hoc is for connecting with PC.
There is “Channel” to select only when user uses Ad-hoc
mode.
e.g. If one PC’s channel is 1, the other’s channel has to be 1,
too.
24/37
2. SSID：Based on AP setting.
3. Channel：This is used only when the user selects Ad-hoc mode
in order to avoid conflict.

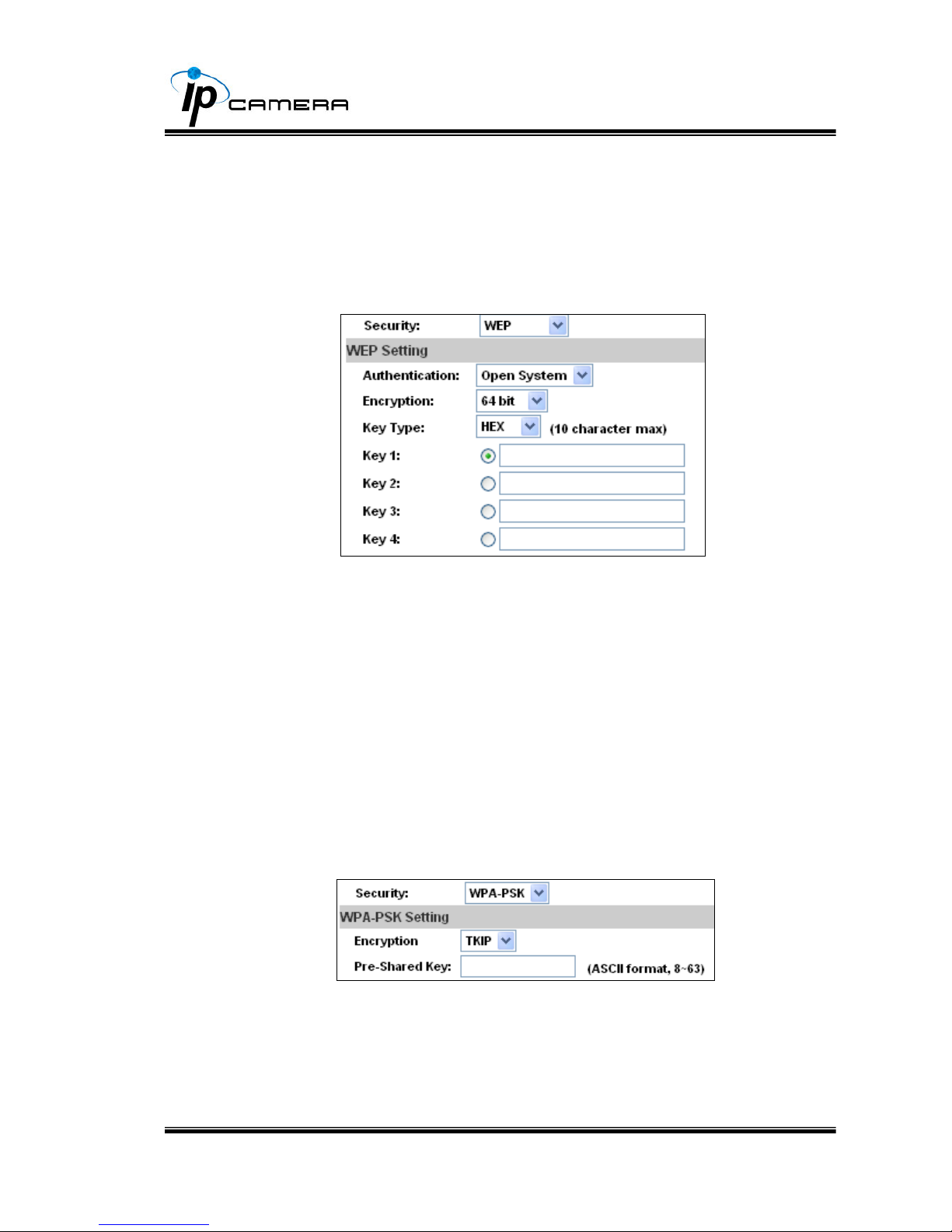

4. Security：It supports “None”, “WEP”, “WPA-PSK” security
encryption based on the setting of the Router.
5. WEP:
z Authentication：There are Open System and Shared Keys,
it is based on different encryptions. This has to be the
same as the Router’s setting.
z Encryption：There are 64 bits and 128 bits. This is based
on Key Type based on the Router’s setting.
z Key Type：There are HEX and ASCII. When selecting HEX,
the user only can input 0~9 characters and use A, B, C, D,
E, and F.
z When selecting ASCII, the user can input any character.
(Case sensitive)
z Key 1~4：Based on Key Type to input characters.
6. WPA-PSK：
z Encryption：There are TKIP and AES.
z Pre-Shared Key：Allow any characters. (Case sensitive)
25/37
C. A/V Setting

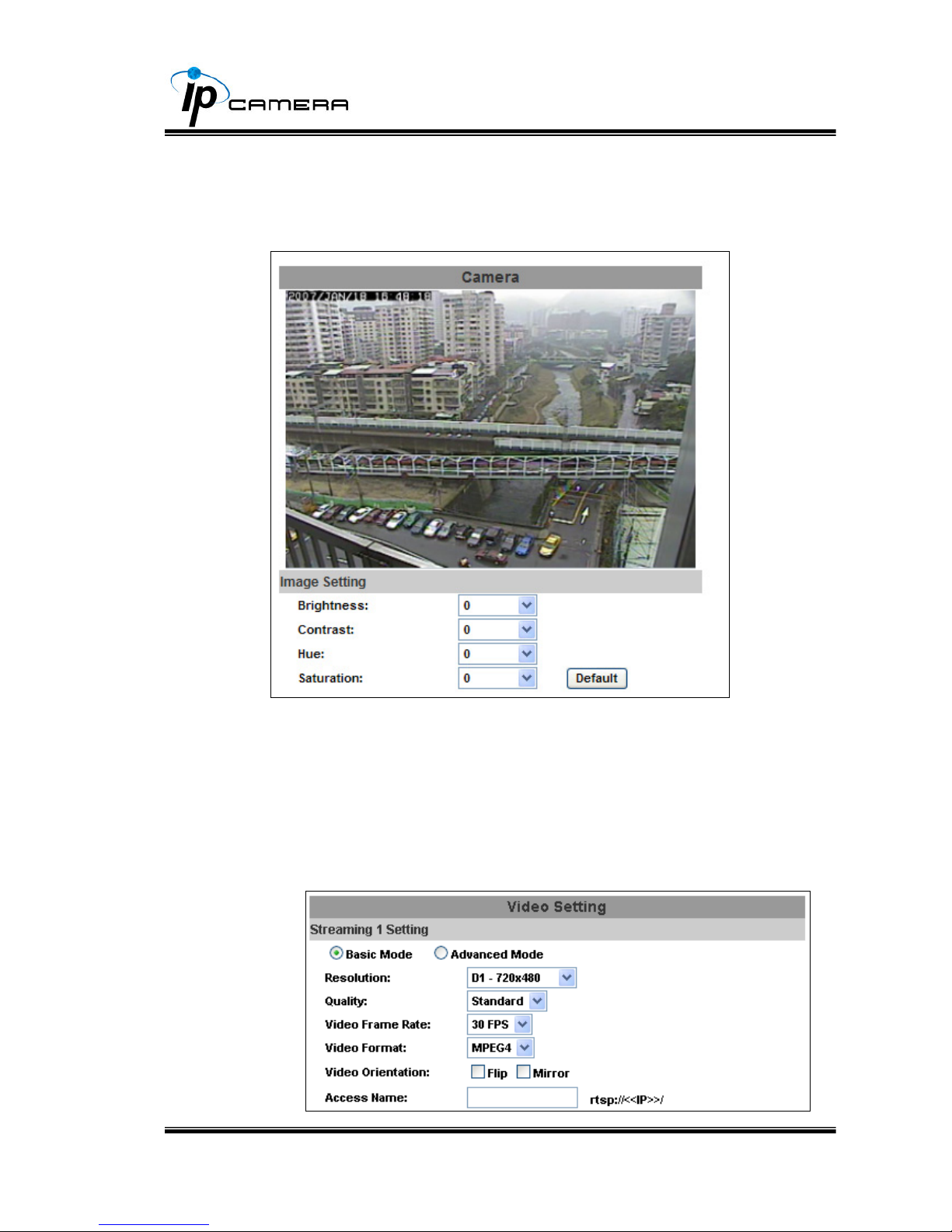

i. Image Setting
Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video.
ii. Video Setting
User may select 2 streaming output simultaneously:
Streaming 1 Setting: Basic mode and Advanced mode
Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode
(Max Video Frame Rate for both streaming combined is 30 FPS)
a. Streaming 1 Basic Mode：
26/37
1. Resolution：
There are 4 resolutions to choose.
NTSC / PAL
D1 – 720×480 / 720×576
4CIF – 704×480 / 704×576
CIF – 352×240 / 352×288
QCIF – 176×120 / 176×144
2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting
3. Video Format：MPEG4 or JPEG
4. Video Orientation：Flip or Mirror
5. Access Name: RTSP output name

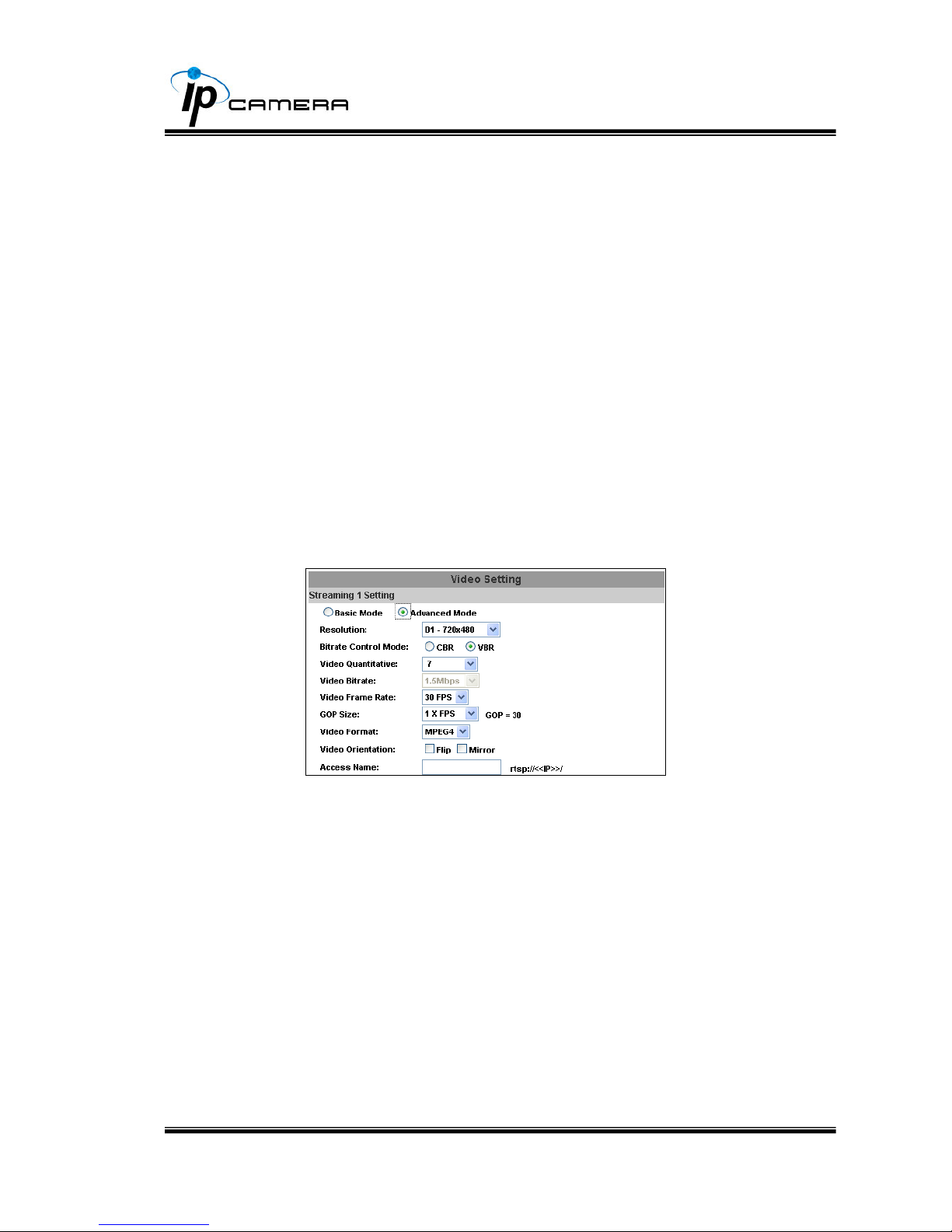

b. Streaming 1 Advanced Mode：
1. Resolution：
There are 4 resolutions to choose.
NTSC / PAL
D1 – 720×480 / 720×576
4CIF – 704×480 / 704×576
CIF – 352×240 / 352×288
QCIF – 176×120 / 176×144
2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：64Kbps~4Mbps (the higher the CBR is, the better the
video quality is)
VBR：1~10 (Compression Rate)
27/37
3. Video Frame Rate
The video refreshing rate per second.
4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.
5. Video Format：MPEG4 or JPEG
6. Video Orientation：Flip or Mirror
7. Access Name: RTSP output connecting route

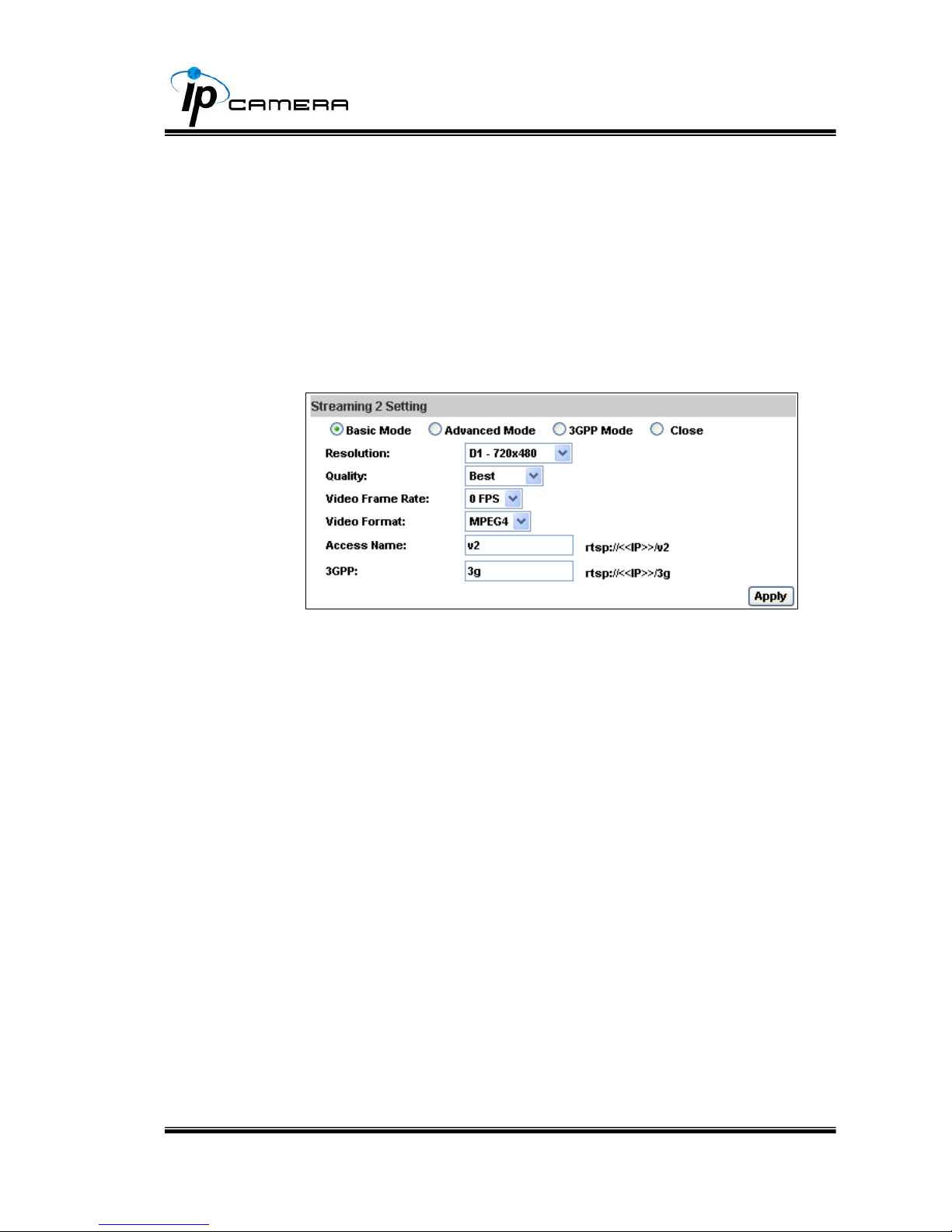

c. Streaming 2 Basic Mode：
1. Resolution：
There are 4 resolutions to choose.
NTSC / PAL
D1 – 720×480 / 720×576
4CIF – 704×480 / 704×576
CIF – 352×240 / 352×288
QCIF – 176×120 / 176×144
2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting
3. Video Format：MPEG4 or JPEG
4. Access Name: RTSP output connecting route
5. 3GPP: 3GPP output name
28/37

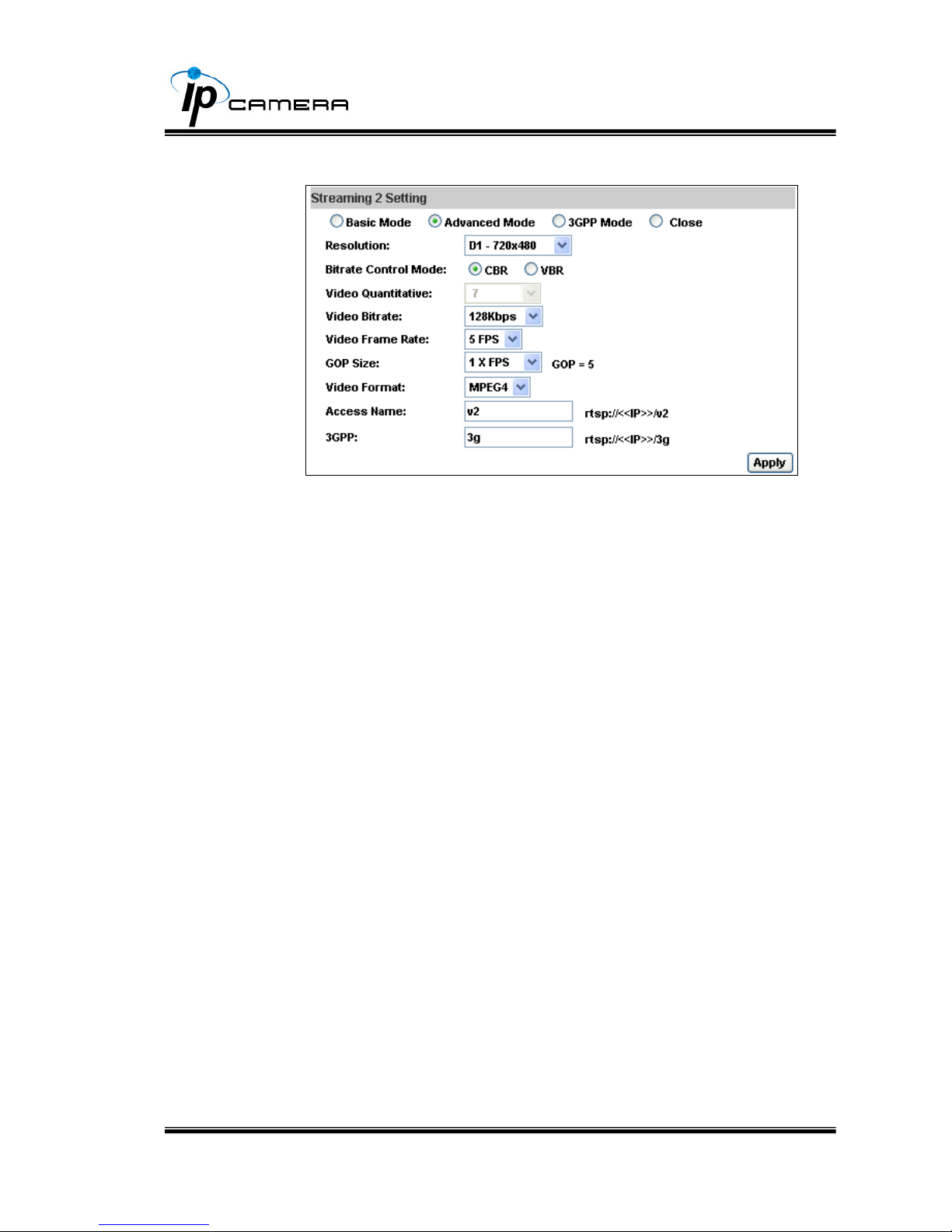

d. Streaming 2 Advanced Mode：
1. Resolution：
There are 4 resolutions to choose.
NTSC / PAL
D1 – 720×480 / 720×576
4CIF – 704×480 / 704×576
CIF – 352×240 / 352×288
QCIF – 176×120 / 176×144
2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：64Kbps~4Mbps (the higher the CBR is, the better the
video quality is)
VBR：1~10 (Compression Rate)
3. Video Frame Rate
The video refreshing rate per second.
4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.
5. Video Format：MPEG4 or JPEG
6. Access Name: RTSP output name
7. 3GPP: 3GPP output name
29/37

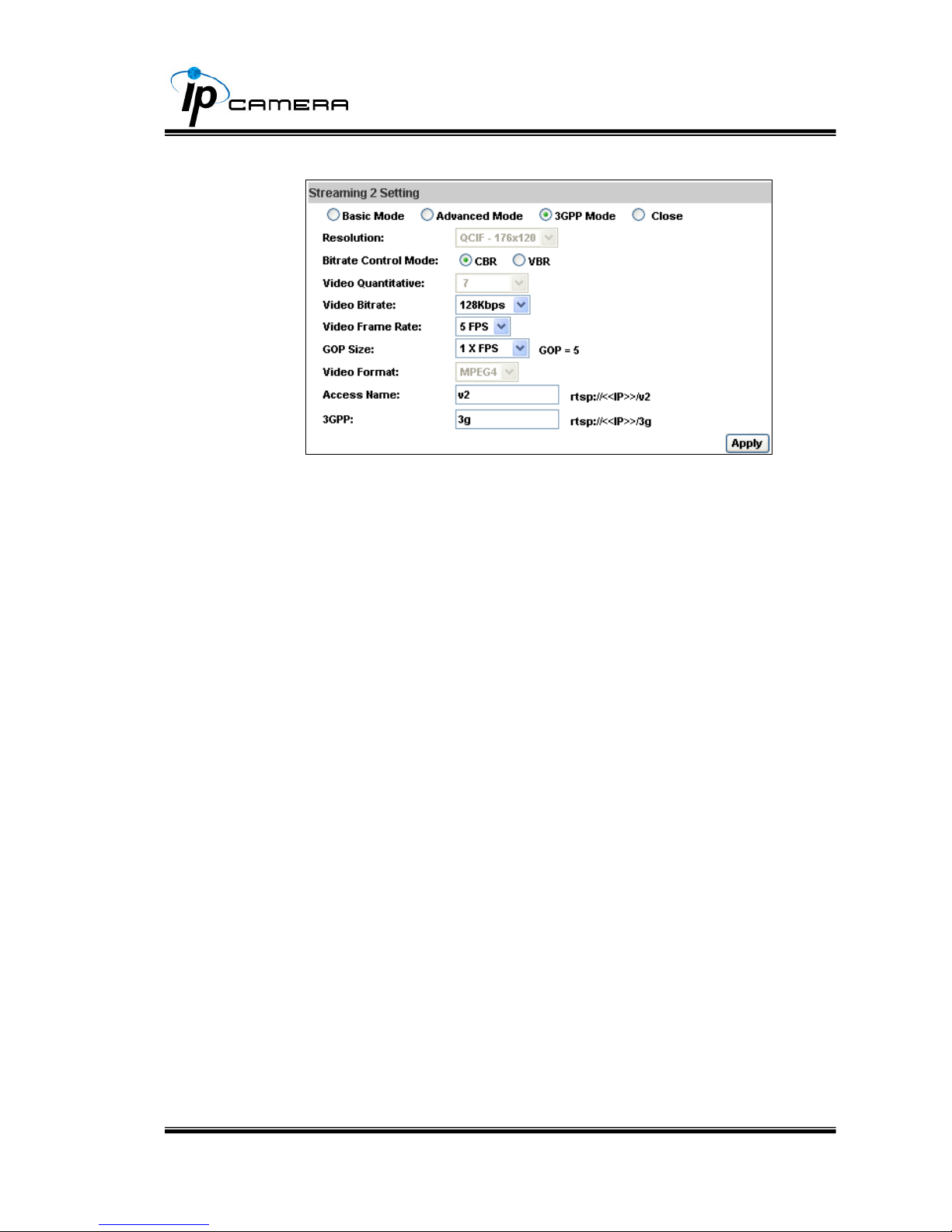

e. Streaming 2, 3GPP mode:
3GPP mode suggest setting: QCIF, lower than 128kbps, 5FPS, GOP= 1x FPS or 2x
FPS, MPEG4 format
1. Fix Resolution：
QCIF – 176×120 / 176×144
2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：64Kbps~4Mbps (the higher the CBR is, the better the
video quality is)
VBR：1~10 (Compression Rate)
3. Video Frame Rate
( 5 FPS is recommended )
The video refreshing rate per second.
4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.
5. Video Format：MPEG4 or JPEG
6. Access Name: RTSP output name
7. 3GPP: 3GPP output name
iii. Audio：
IP Camera supports 2-way audio. User can send audio from IP Camera
Built-in mic to remote PC; User can also send audio from remote PC mic
to IP Camera’s external speaker.
a. Audio from IP camera built-in mic to local PC: select “Enable” to
start this function.
30/37
b. Audio from local PC mic to IP camera, check “chatting” in the
browsing page.
The Audio will not be smooth when enable SD card
recording function simultaneously.
31/37
D. Event List
IP Camera provides multiple event settings.

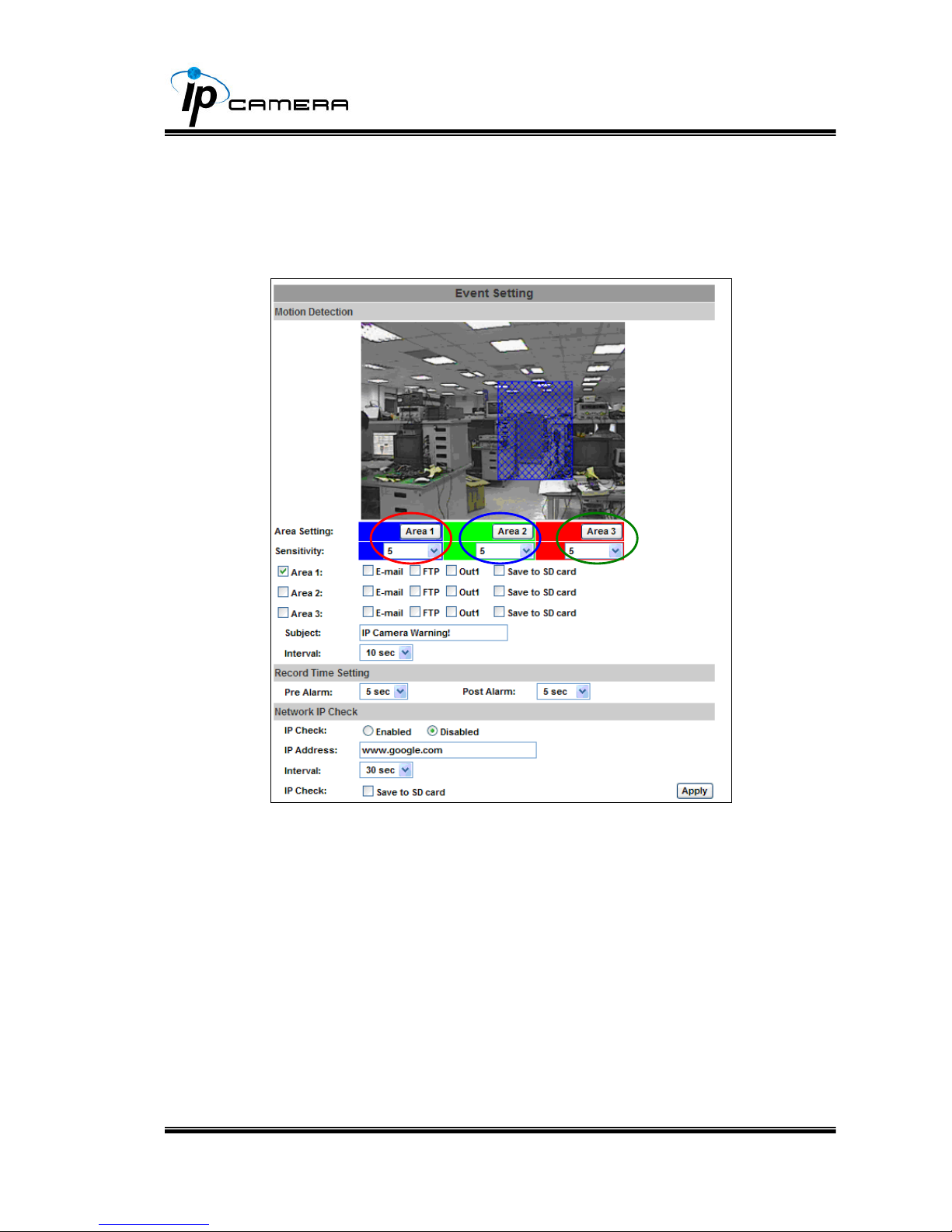

i. Event Setting
a. Motion Detection:
IP CAMERA allows 3 areas motion detection. When motion is
triggered, it can send video to some specific mail addresses,
transmit the video to remote ftp server, and save video to local SD
card. To set up the motion area, click “Area Setting”. Using mouse
to drag and draw the area. The same operation for area 2 and 3.
b. Record Time Setting：Pre Alarm and Post Alarm setups for video
start and end time when motion detected, I/O, or other devices got
triggered
c. Network Dis-connected
When the network is down, it will save the video to local SD card.
This function is only enabled in wire connection.
32/37
d. Network IP check:
Whenever the connection is down, it records the video to SD card.
Make sure the video recording is continuous. To use this function,
key in the IP address of the PC which has recording software
installed. Enable the function of “Save to SD card”, then click
“Apply”.
The interval of two video files recorded on SD card is fixed with 30 seconds.

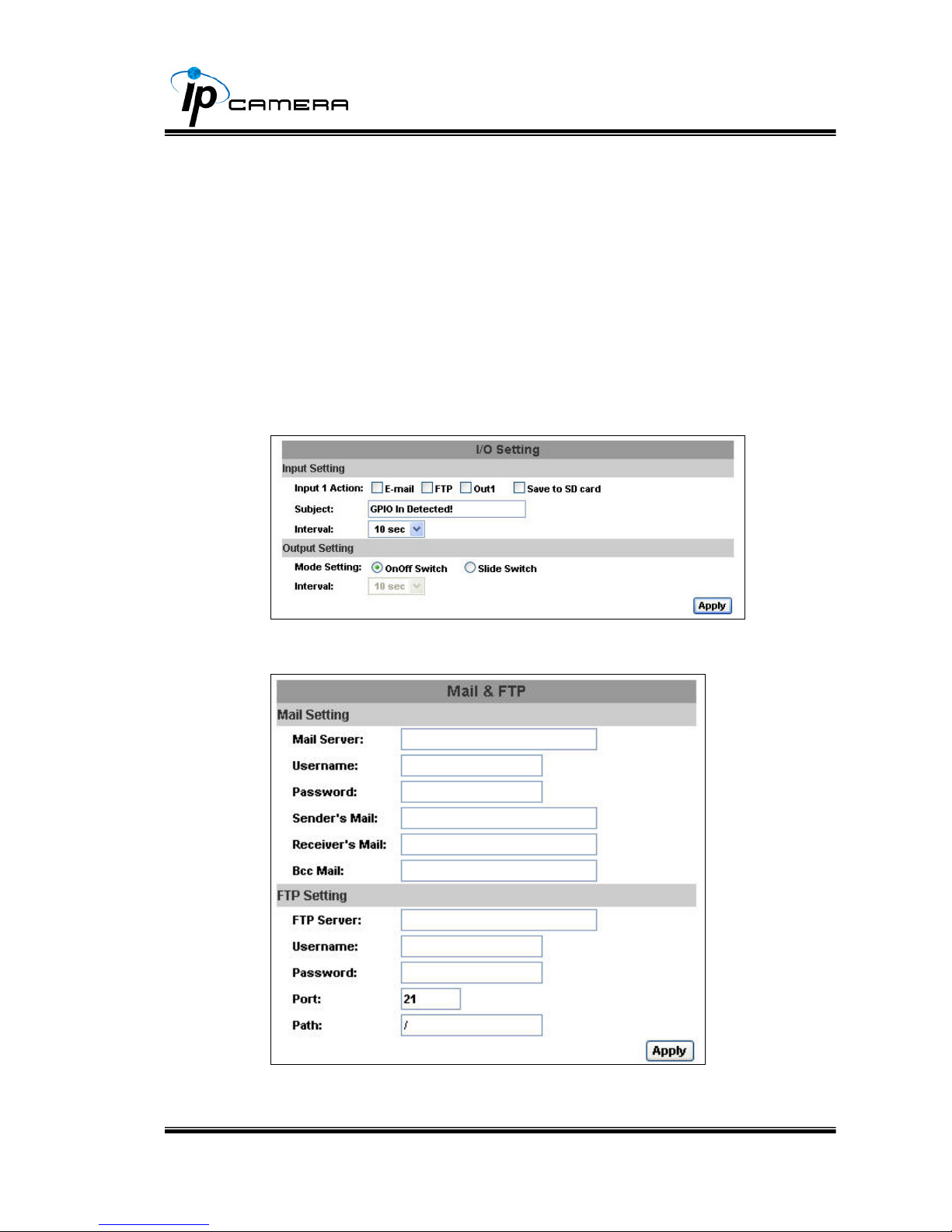

ii. I/O Setting
IP Camera supports 1 Input/ 1 Output. When input is triggered, it can
send the video to some specific mail addresses, transmit the video to
remote ftp server, trigger the relay, and save video to local SD card.
iii. Mail & FTP
To send out the video via mail of ftp, please set up the configuration first.
33/37
iv. SD card
Please Insert SD card before use it. Make sure pushing SD card into the
slot completely.
a. Playback:
1. It will show the capacity of the SD card. Click the date listed on
this page. It will show the list of the video.
2. The video format is AVI. Click the video to start Microsoft Media
Player to play it.
3. To delete the video, check it, then click Del. When the SD card
is full, it will remove the oldest video automatically.
v. Log List
Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure.
Note：The use of the SD card will affect the operation of the IP
Camera slightly, such as affecting the frame rate of the video.
34/37

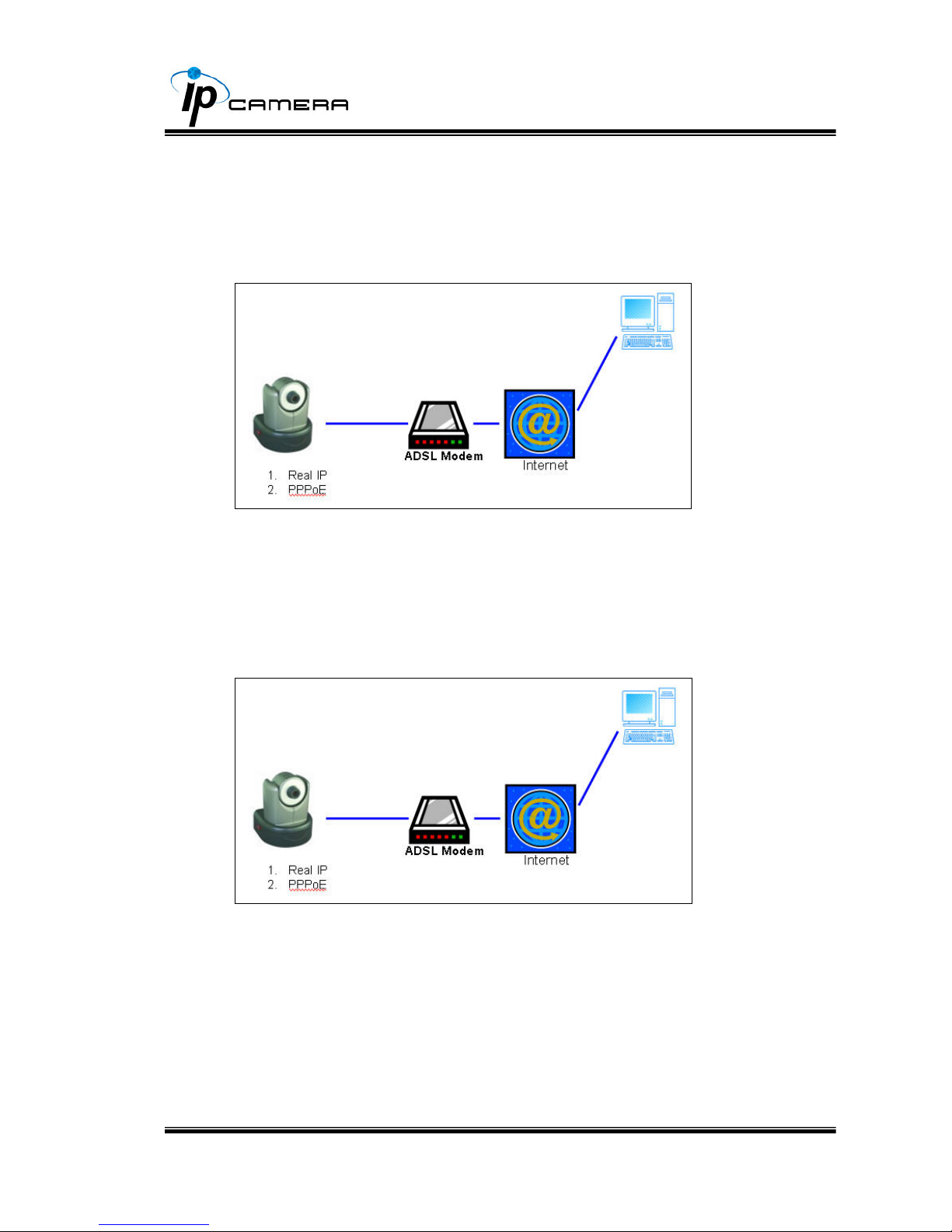

VI. Network Configuration
i、 Configuration 1：
a. Internet Access：ADSL or Cable Modem
b. IP address：One real IP or one dynamic IP
c. Only IP Camera connects to the internet
d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start
PPPoE.
ii、 Configuration 2：
a. Internet Access：ADSL or Cable Modem
b. IP address：More than one real IP or one dynamic IP
c. IP Camera and PC connect to the internet
d. Device needed：Switch Hub
e. For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP,
start PPPoE.
35/37

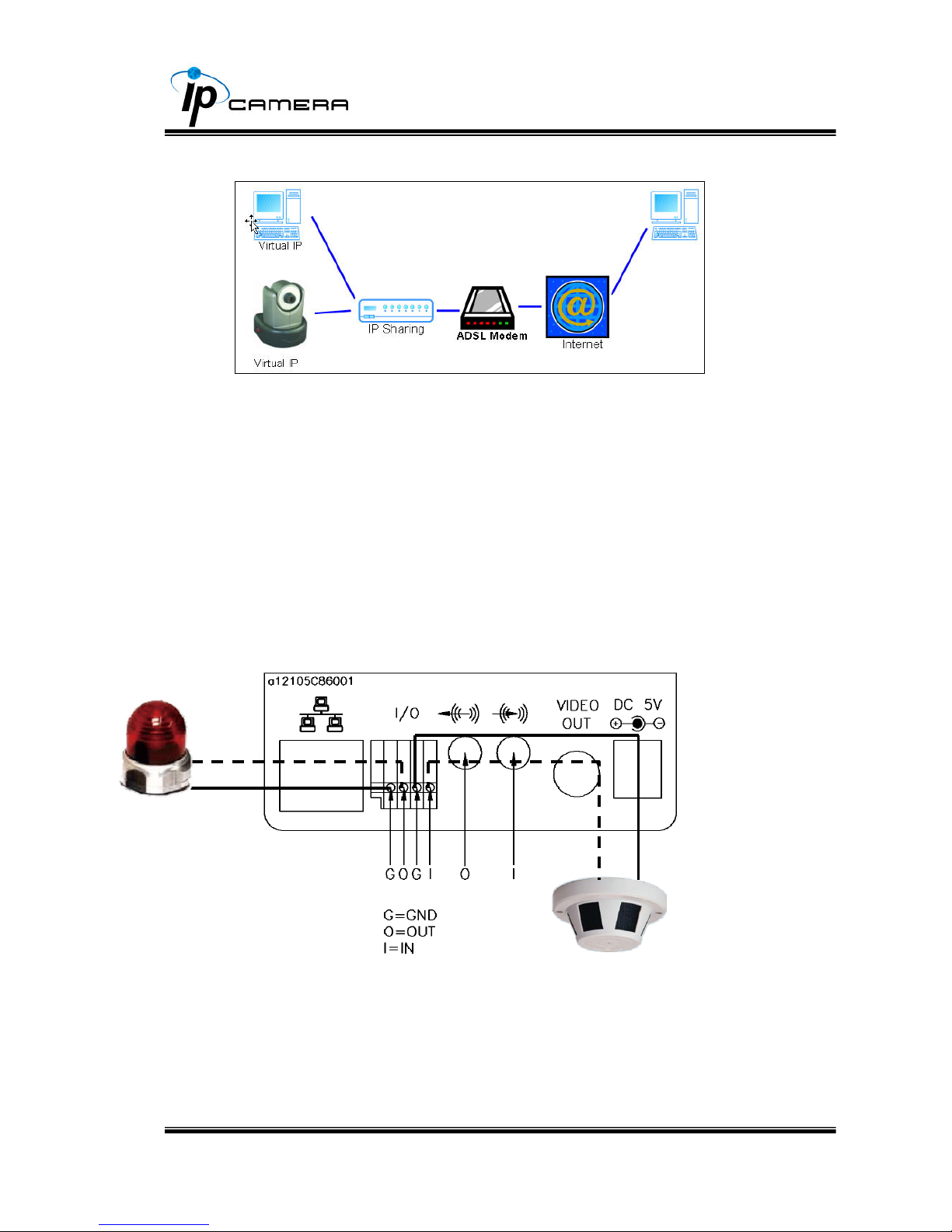

iii、 Configuration 3：
a. Internet Access：ADSL or Cable Modem
b. IP address：one real IP or one dynamic IP
c. IP Camera and PC connect to the internet
d. Device needed：IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.
VII. I/O Configuration
i、 I/O Connection：
a. Please connect the G &O pin ( as above figure) to the external relay
(buzzer) device.
b. Please connect the G &I pin ( as above figure) to the external
Trigger Device.
36/37
ii、 I/O Setup：
a. Click I/O Setting from the system setup page via IE, and check
“Out1” to enable I/O signal.
b. Click ON/OFF from the setup main page via IE to control relay out
signal.
37/37

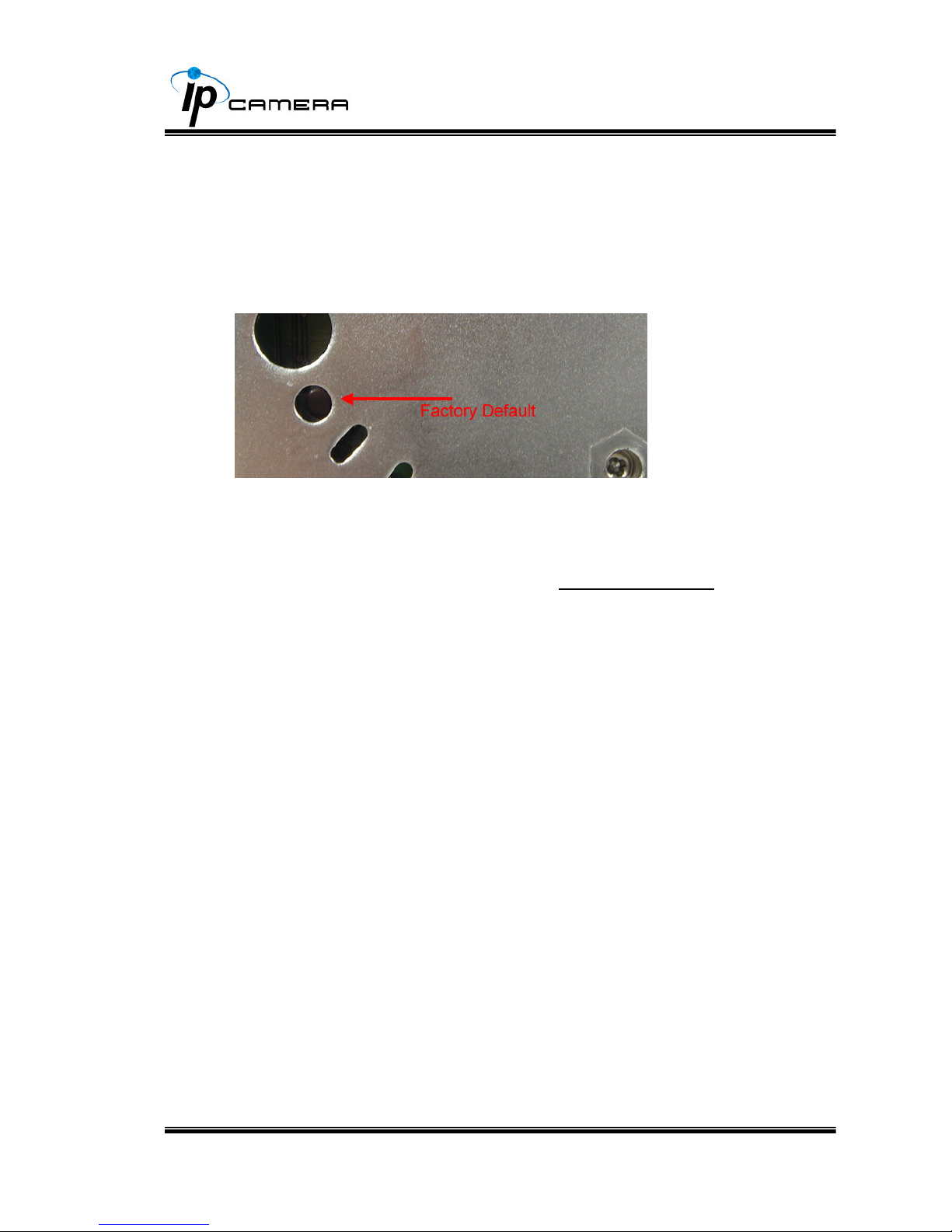

VIII. Factory Default
i、 To recover the default IP address and password, please follow the following
steps.
ii、 Remove power, and press and hold the button in the back of IP Camera.
iii、 Power on the camera. Don’t release the button during the system booting.
iv、 It will take around 30 seconds to boot the camera.
v、 Release the button when camera finishes proceed.
vi、 Re-login the camera using the default IP (http://192.168.1.200), and user
name (admin), password (admin).
IX. Package contents
i、 IP Camera Network Camera
ii、 Adaptor
iii、 Ethernet Cable
iv、 CD title (User manual, IP installation Utility)
Appendix I
SD Card Recommended：
SanDisk 128M
SanDisk 256M
SanDisk 512M
SanDisk 1G
SanDisk 2G
SanDisk 4G
Transcend 128M 80X
Transcend 256M 80X
Transcend 512M 80X
Transcend 1G 80X
Transcend 2G 80X
Transcend 4G 80X
Loading...
