IP Camera HLV-1WCF User Manual

1/75

User Manual

IP VANDAL DOME

CAMERA

2/75

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3/75

Content

I. PREFACE ............................................................................................................ 4

II. PRODUCT SPECIFICATIONS ................................................................ ............. 4

III. PRODUCT INSTALLATION ................................ ................................ ................. 7

A. MONITOR SETTING .............................................................................................. 7

B. HARDWARE INSTALLATION .................................................................................... 8

C. IP ASSIGNMENT ................................................................................................ 14

D. INSTALL ACTIVEX CONTROL: ............................................................................... 18

IV. LIVE VIDEO ....................................................................................................... 24

V. IP CAMERA CONFIGURATION ........................................................................ 28

A. SYSTEM ........................................................................................................... 29

B. NETWORK ........................................................................................................ 34

C. A/V SETTING ....................................................................................................... 46

D. EVENT LIST ...................................................................................................... 54

VI. NETWORK CONFIGURATION ................................................................ .......... 64

VIII. FACTORY DEFAULT ......................................................................................... 70

IX. UNIVERSAL PASSWORD .................................................................................. 71

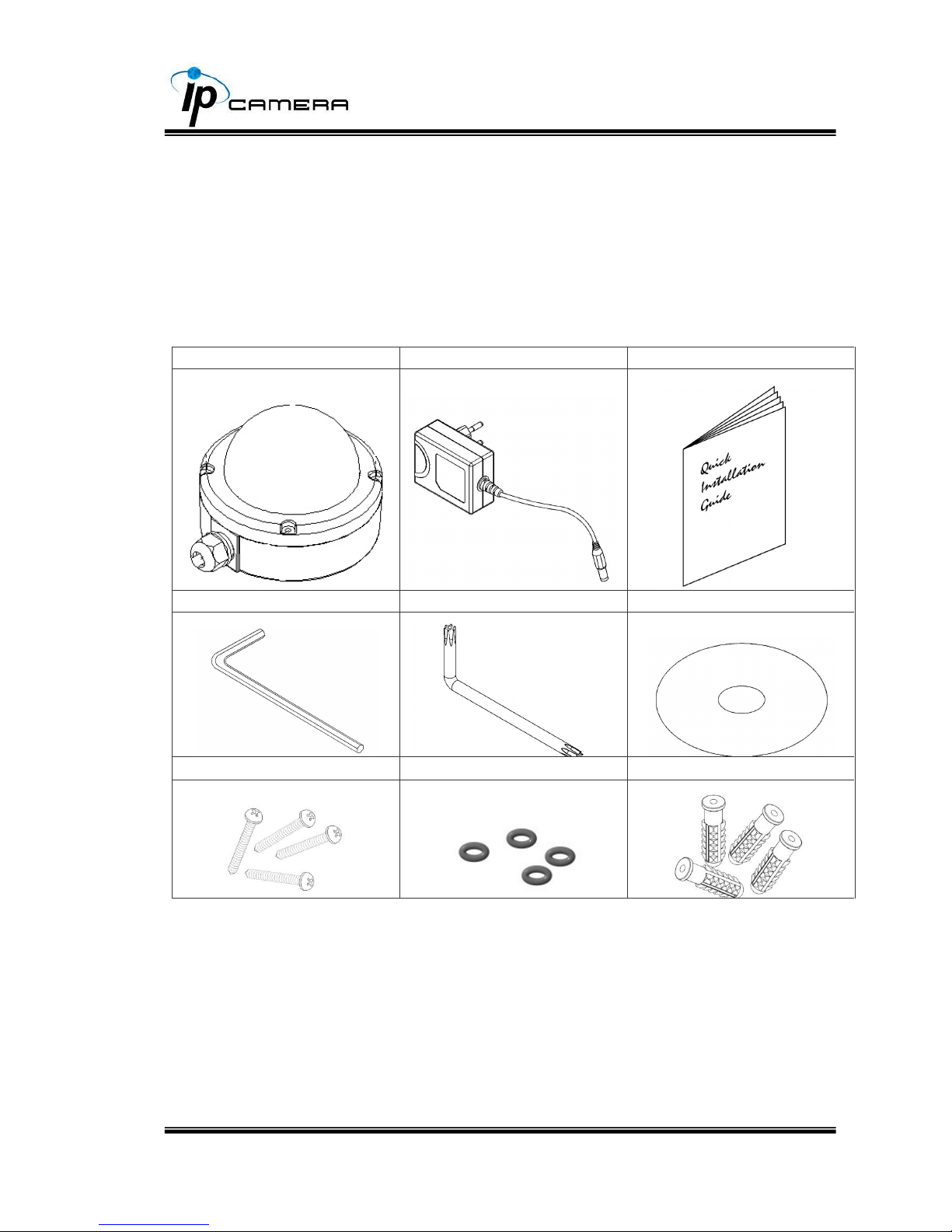

X. PACKAGE CONTENTS ........................................................................................ 74

XI. MICRO SD CARD COMPATIBILITY .................................................................. 75

V1.1_20131030

4/75

I. Preface

This is a 5 megapixel IP vandal dome Camera with a web server built in. The user
can view real-time video via IE browser. The IP Camera supports simultaneously
H.264, Motion JPEG & MPEG4 video compression and dual streaming, which
provides smooth and high video quality. The video can be stored in a micro SD
card and playback remotely. With a user friendly interface, it is an easy-to-use IP
Camera designed for security applications.

II. Product Specifications

 5 Megapixel Vandal Dome
 Support Full HD 1080P Real Time
 External Vari-focal Lens Adjustment
 3D+2D Digital Noise Reduction
 Support Digital Wide Dynamic Range
 Power over Ethernet Available
 IR LED Built in 15M Available
 Mechanism IR Cut Filter Available
 H.264/ M-JPEG/ MPEG4 Compression
 Micro SD Card Backup(Option)
 Support 2-way Audio
 Video Output
 Support iPhone/iPad/Android
 SDK for Software Integration

5/75

Specifications

Hardware

CPU

ARM 9 ,32 bit RISC

RAM

256MB

Flash

16MB

Image sensor

1/3.2” Megapixel CMOS sensor

Lens Type

Vari-focal Lens [email protected]

Sensitivity

B / W: 0.1 Lux (AGC ON)

Angle of View

27.31° ~ 75.22° (H)

19.09° ~ 54.16° (V)

ICR

Mechanism IR cut Filter (optional)

LED

Built-in 18 IR LED
IR Distance 15M

I/O

1 DI / 1 DO

Video Output

Yes

Audio

G.711(64K) and G.726(32K,24K) audio
compression
Input : External Audio in
Output: External Line out

Power over Ethernet

Yes, PoE Class 0 (IEEE802.3af)

Power

DC 12V Max: 4.8W(IR ON), 6.1W(IR OFF)
PoE Max: 802.3af, 5.8W(IR ON), 7.2W(IR OFF)

Operating Temperature

-10°C ~ 45°C

Dimensions

φ137mm x 102mm (H)

Weight

890 g

Network

Ethernet

10/ 100 Base-T

Network Protocol

IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP,
Access list, IEEE 802.1X, RTSP, TCP/ IP, UDP,
SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP,
3GPP, SAMBA, Bonjour

System

Video Resolution

2592x1944@15fps, 2048x1536@15fps,
1920x1080@30fps, 1280x720@30fps,
640x480@30fps, 320x240@30fps,
176x144@30fps

6/75

Video Adjust

Brightness, Contrast, Hue, Saturation,
Sharpness, Shutter Speed adjustable, AGC,
Sense-Up, D-WDR, Flip, Mirror, Noise reduction,
Day&Night adjustable, White Balance

Triple Streaming

Yes

Image snapshot

Yes

Full screen monitoring

Yes

Privacy Mask

Yes, 3 different areas

Compression format

H.264/ M-JPEG/ MPEG4(3GPP Only)

Video bitrates adjust

CBR, VBR

Motion Detection

Yes, 3 different areas

Triggered action

Mail, FTP, Save to SD card, DO, SAMBA

Pre/ Post alarm

Yes, configurable

Security

Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection

Firmware upgrade

HTTP mode, can be upgraded remotely

Simultaneous connection

Up to 10

SD card management

Recording trigger

Motion Detection, IP check, Network break down
(wire only), Schedule, DI

Video format

AVI, JPEG

Video playback

Yes

Delete files

Yes

Client System requirement

OS

Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or
above, Chrome, Safari, Firefox

Mobile Support

iOS 4.3 or above, Android 1.6 or above.

Hardware Suggested

Intel Dual Core 2.8G,RAM: 4GB

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

7/75

III. Product Installation

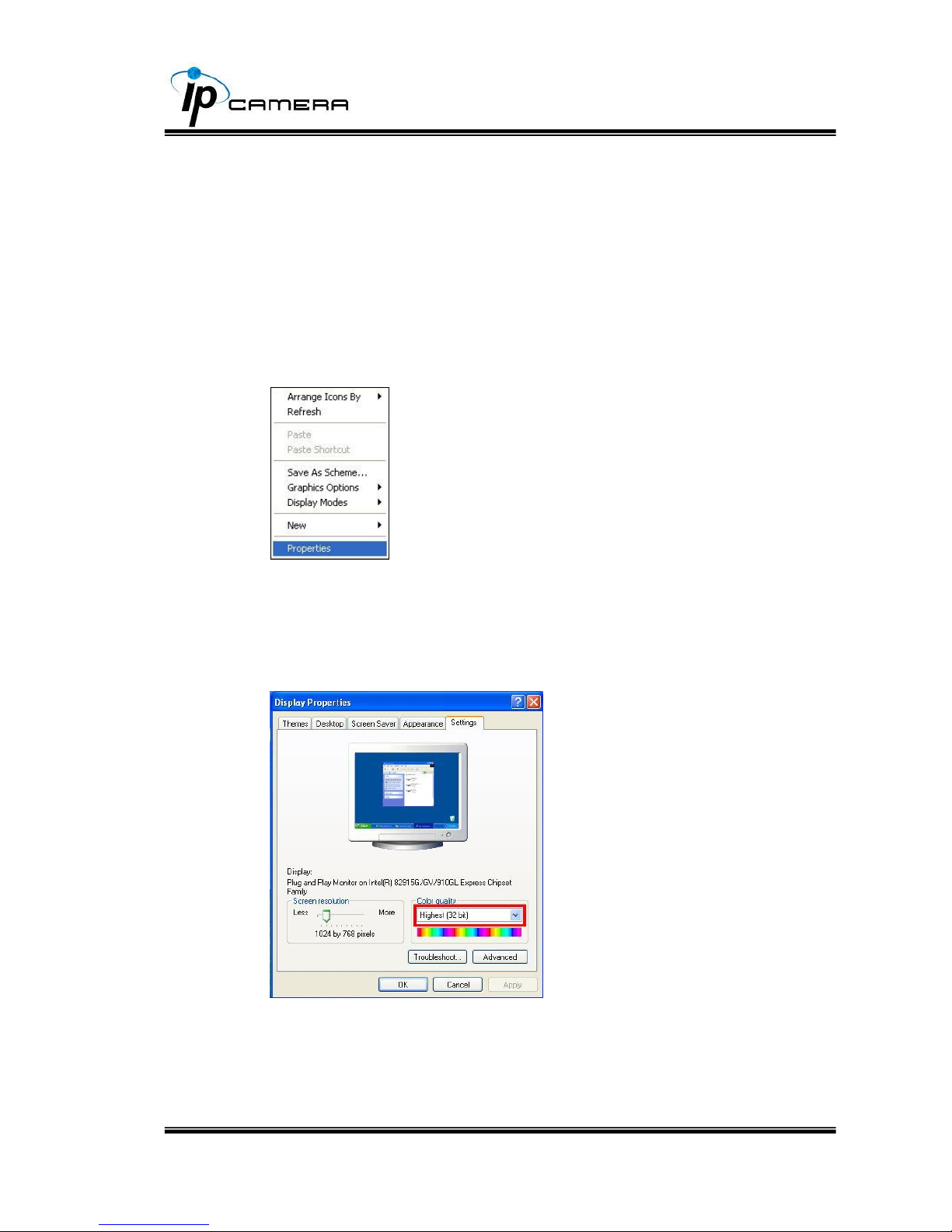

A. Monitor Setting

i. Right-Click on the desktop. Select “ Properties”

ii. Change color quality to highest (32bit).

8/75

B. Hardware Installation

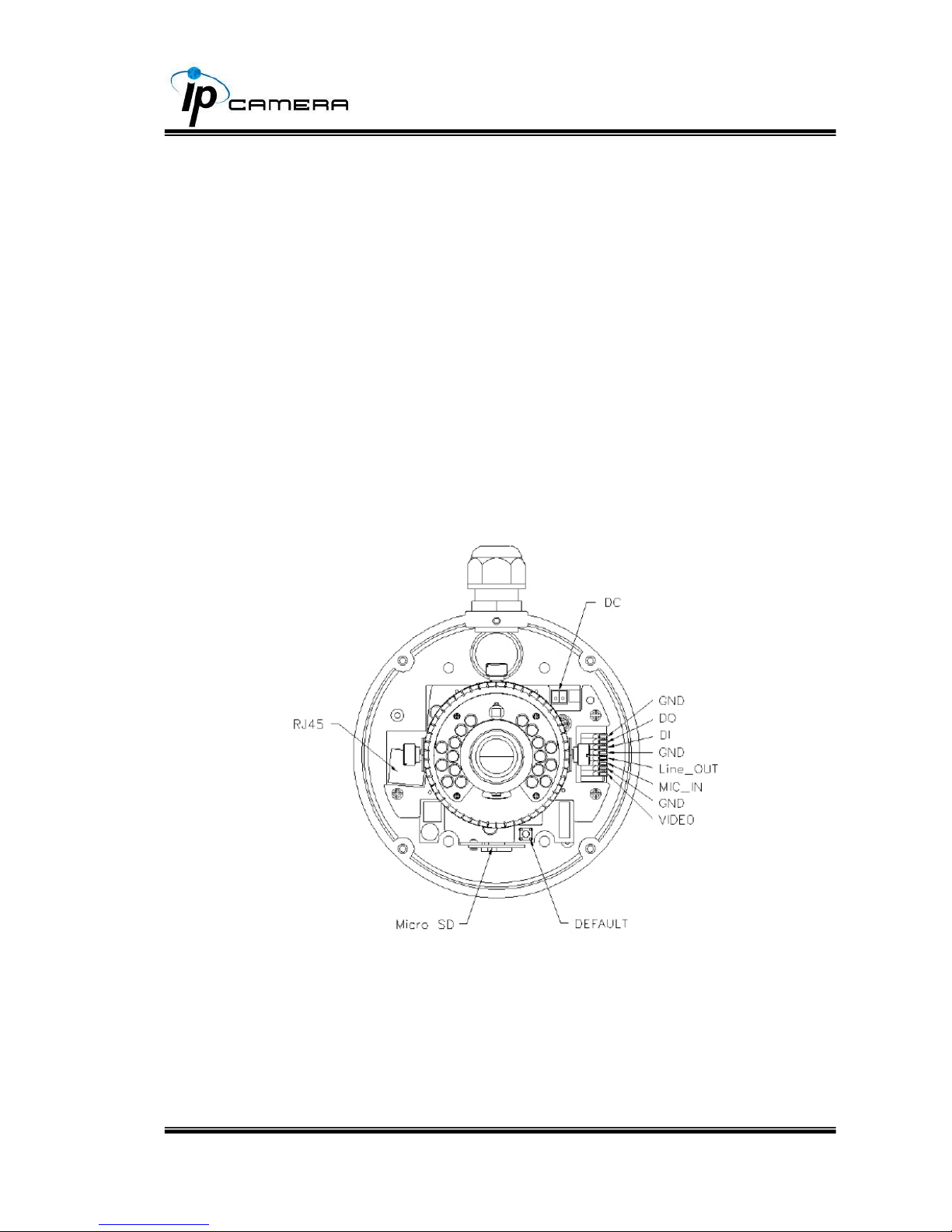

1. Connector Instruction

Open the cover to find the cable connector inside the Camera.
Connect power adaptor first, then connect the IP Camera to PC or
network, and set up the network configurations according to the network
environment.

9/75

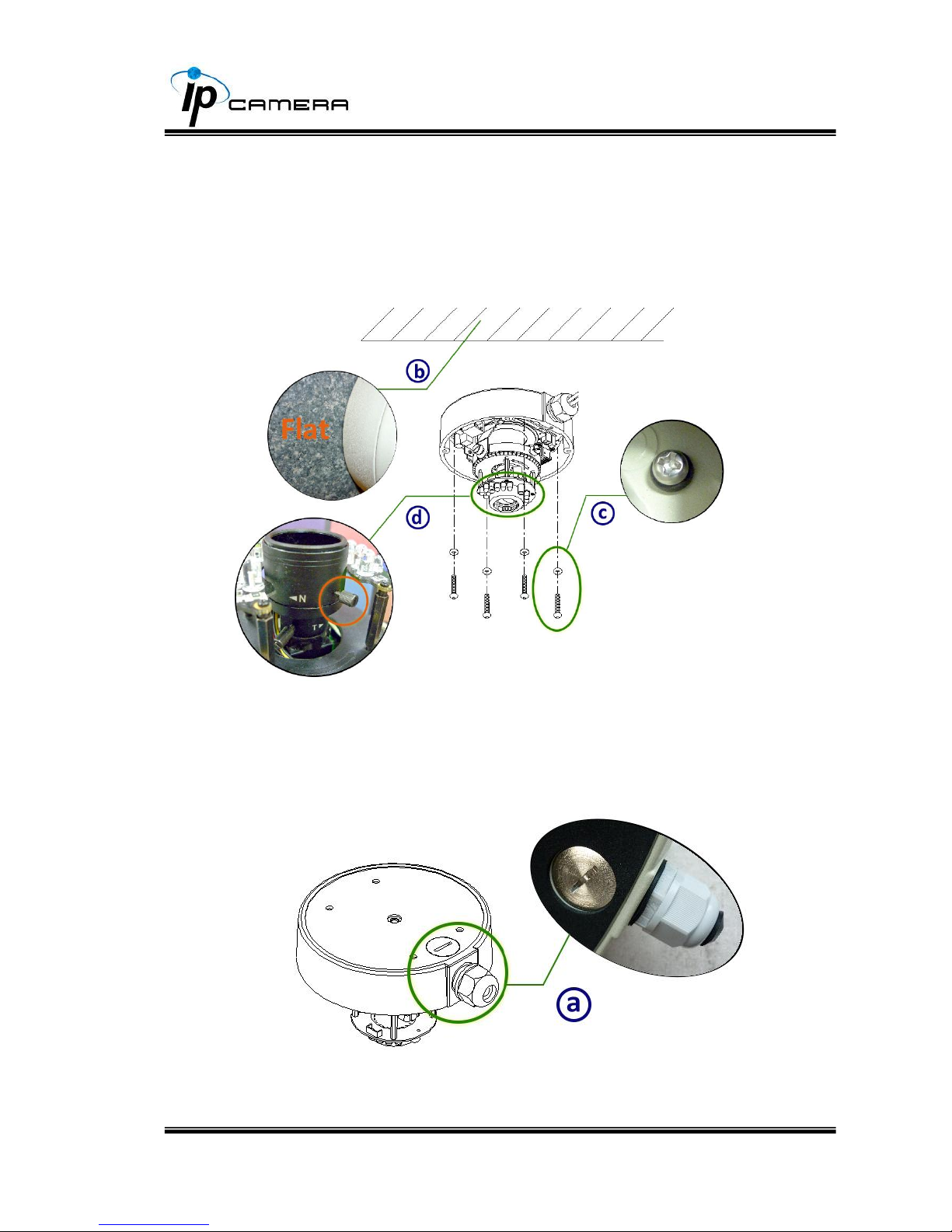

2. Vandal Dome Installation Tips

In order to ensure IP66 waterproof level, please install the vandal
dome according with following instructions.

a. The Unused cable outlet hole must be closed, and the

waterproof connector on the used hole must be locked
closely.

10/75

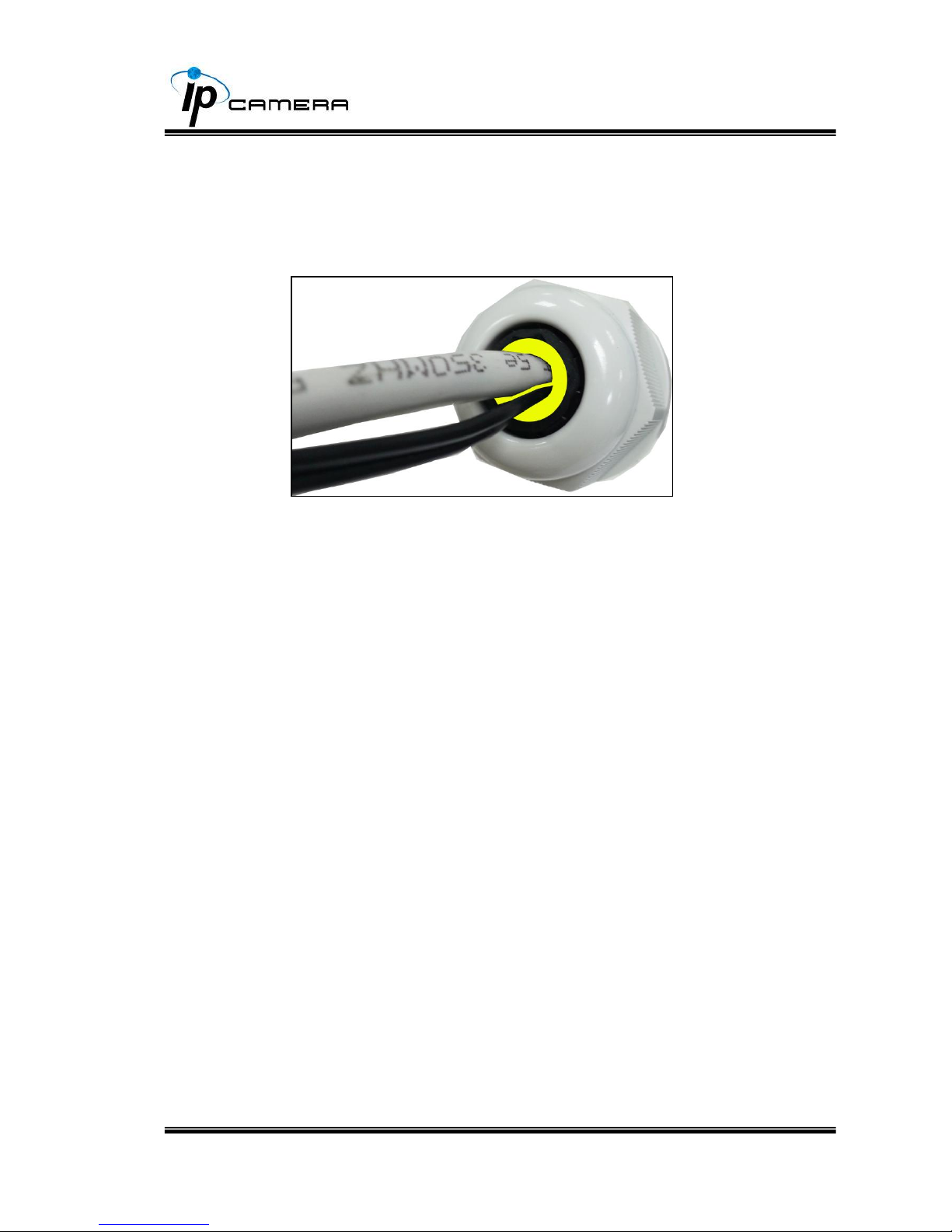

For keeping the IP, when using separate cables for Power and Internet, please use
silicon in the cable gland, around the cables, just as shown in the following picture,
indicated in yellow color.

b. It is recommended that the bottom of housing be set smooth and

closely flat with the surface.

c. When you mount the camera housing on the ceiling or wall, please use

the screws with the black rubber o-rings. Without the o-ring, the water
may seep into the machine.

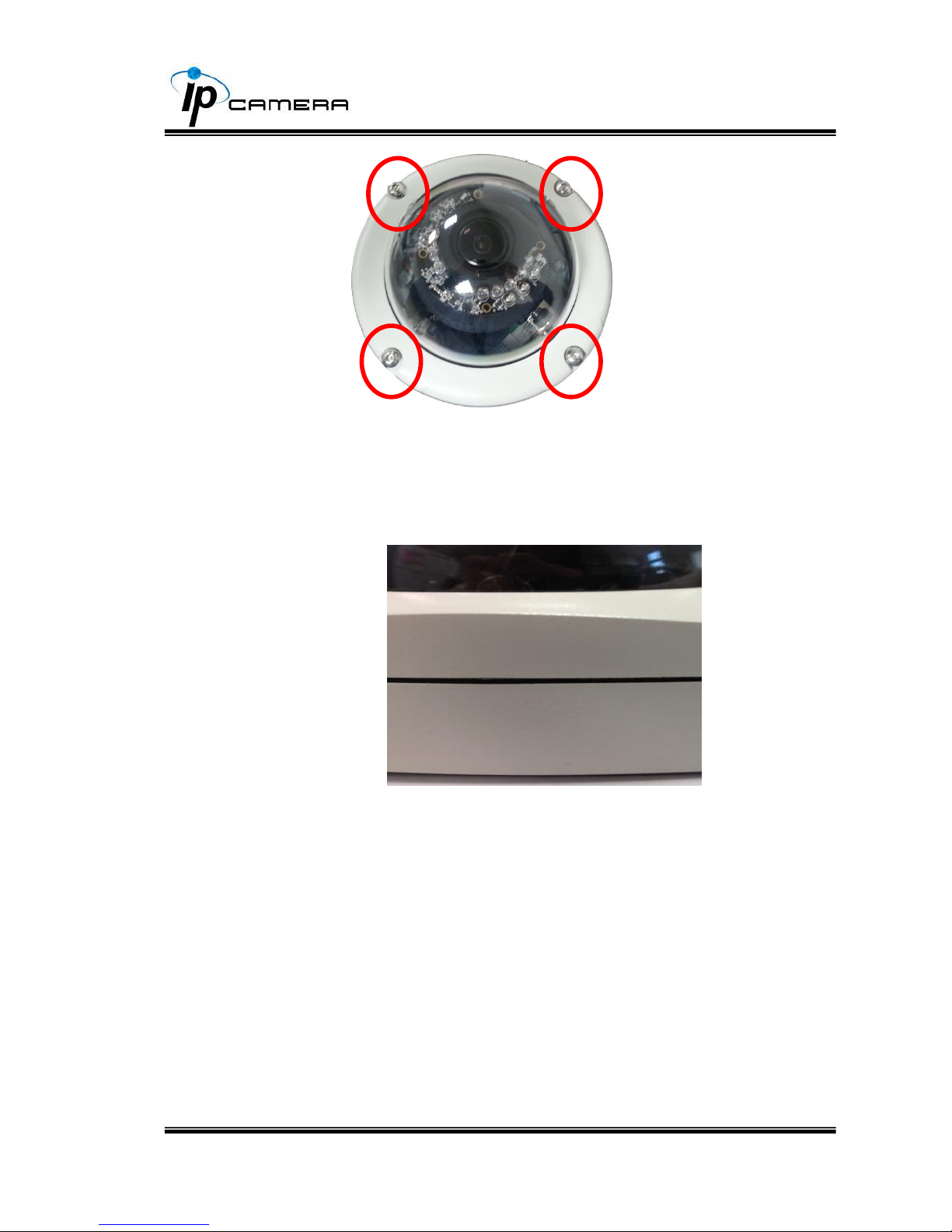

Make sure there are no cables around the screws, and slowly lock the
four corners at the same time, applying equal force in every corner. Do

not totally lock one screw at a time; otherwise the closing might not be

equal in all four screws.

11/75

After locking the four screws the space between top-bottom sides will
disappear.

d. Turn and loose the control stick, shift right and left to adjust the

vari-focal lens until the image becomes clear, then turn and tighten
the stick to fix it.

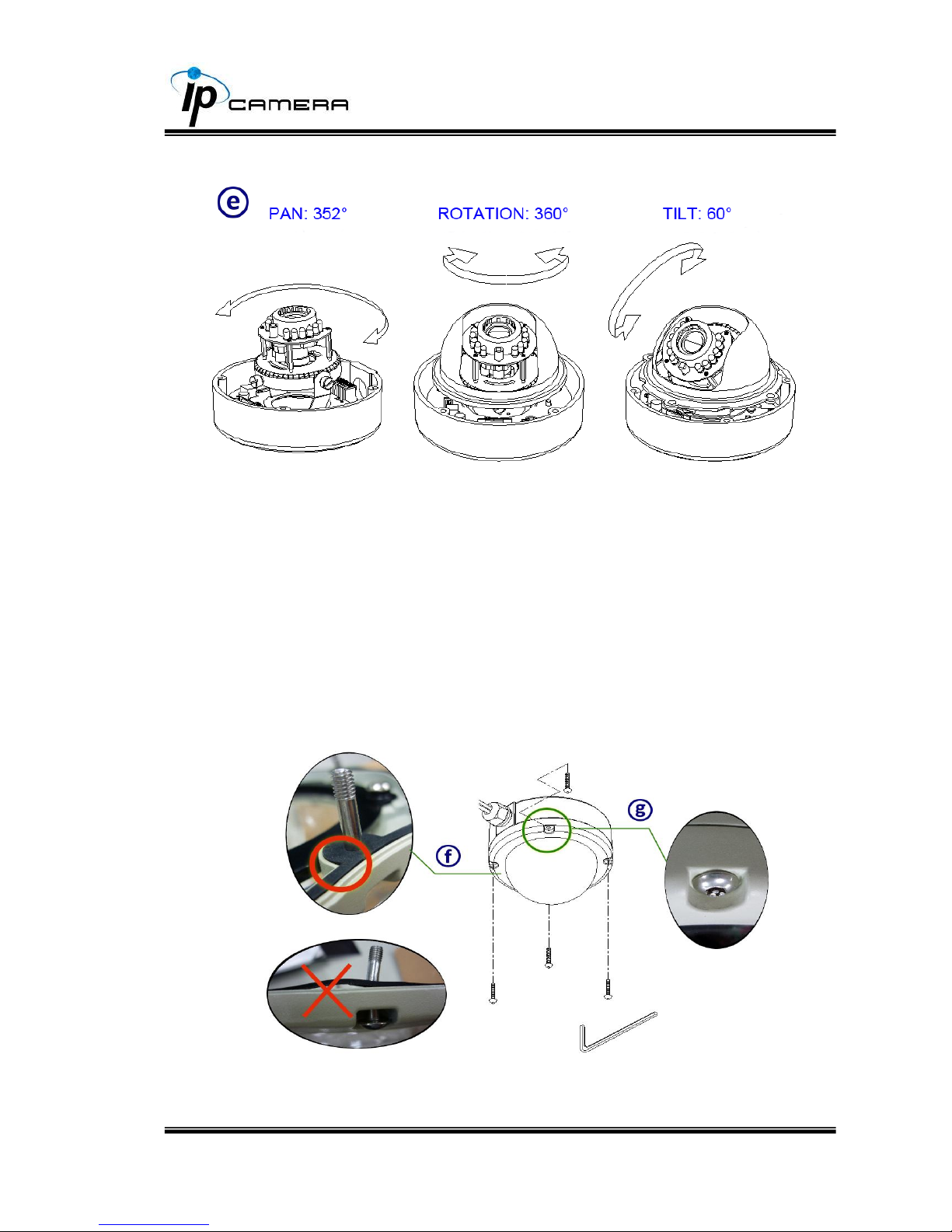

e. Use the 3-Axis bracket to adjust the camera to appropriate angle.

12/75

f. Before you close the dome cover, make sure that the black rubber

band sticks to the inside of the cover completely. Crook or uneven
rubber band may cause the waterproof defective.

g. Lock tightly the screws on the dome cover to ensure there's no

gap between the lid and base.

13/75

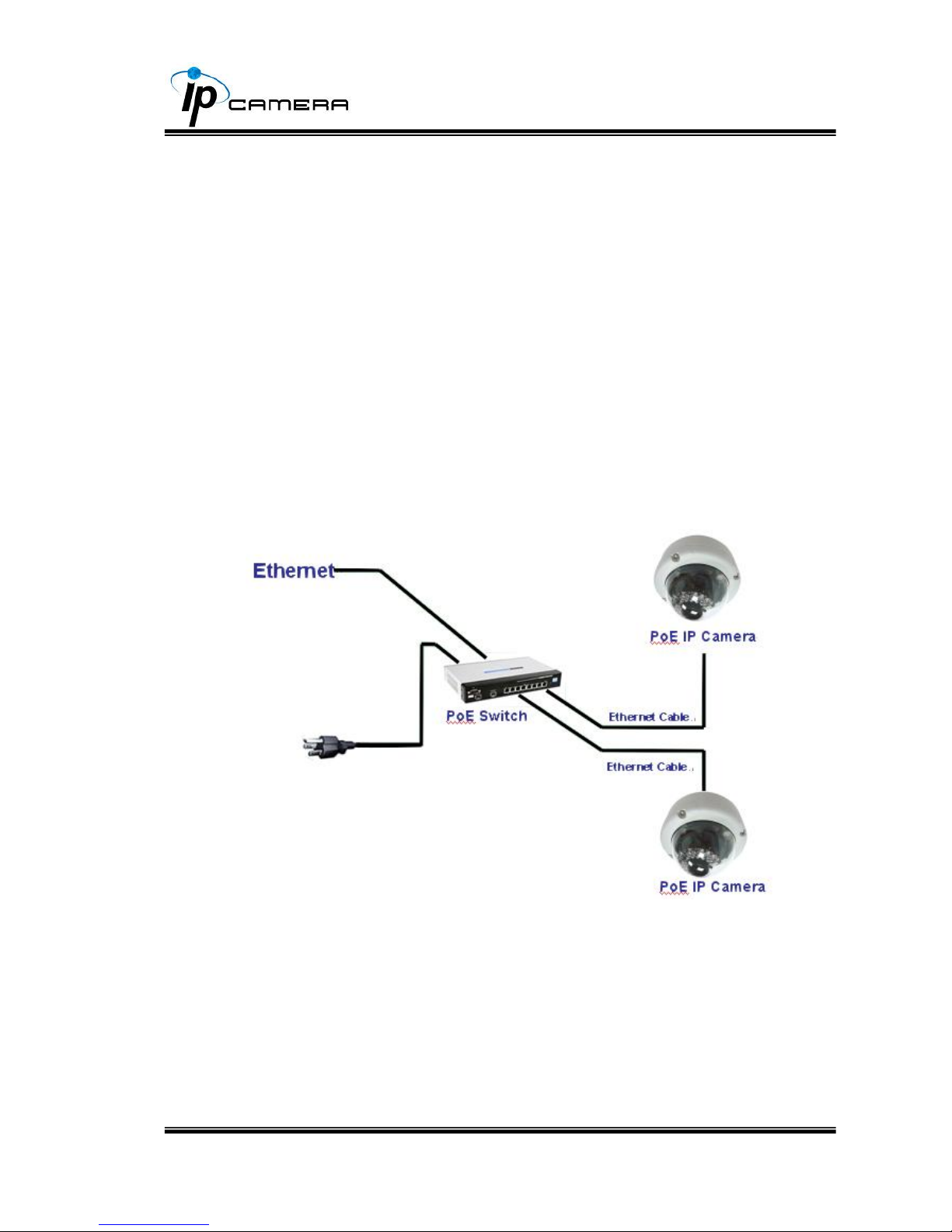

3. PoE (Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to a
network device, such as an IP phone or a network camera, using the
same cable as that used for network connection. It eliminates the need
for power outlets at the camera locations and enables easier application
of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days
a week operation.

14/75

C. IP Assignment

i. Use the software, “IP Installer” to assign the IP address of IP CAMERA.

The software is in the attached software CD.

ii. IP installer supports two languages

a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version

iii. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)

iv. Execute IP Installer

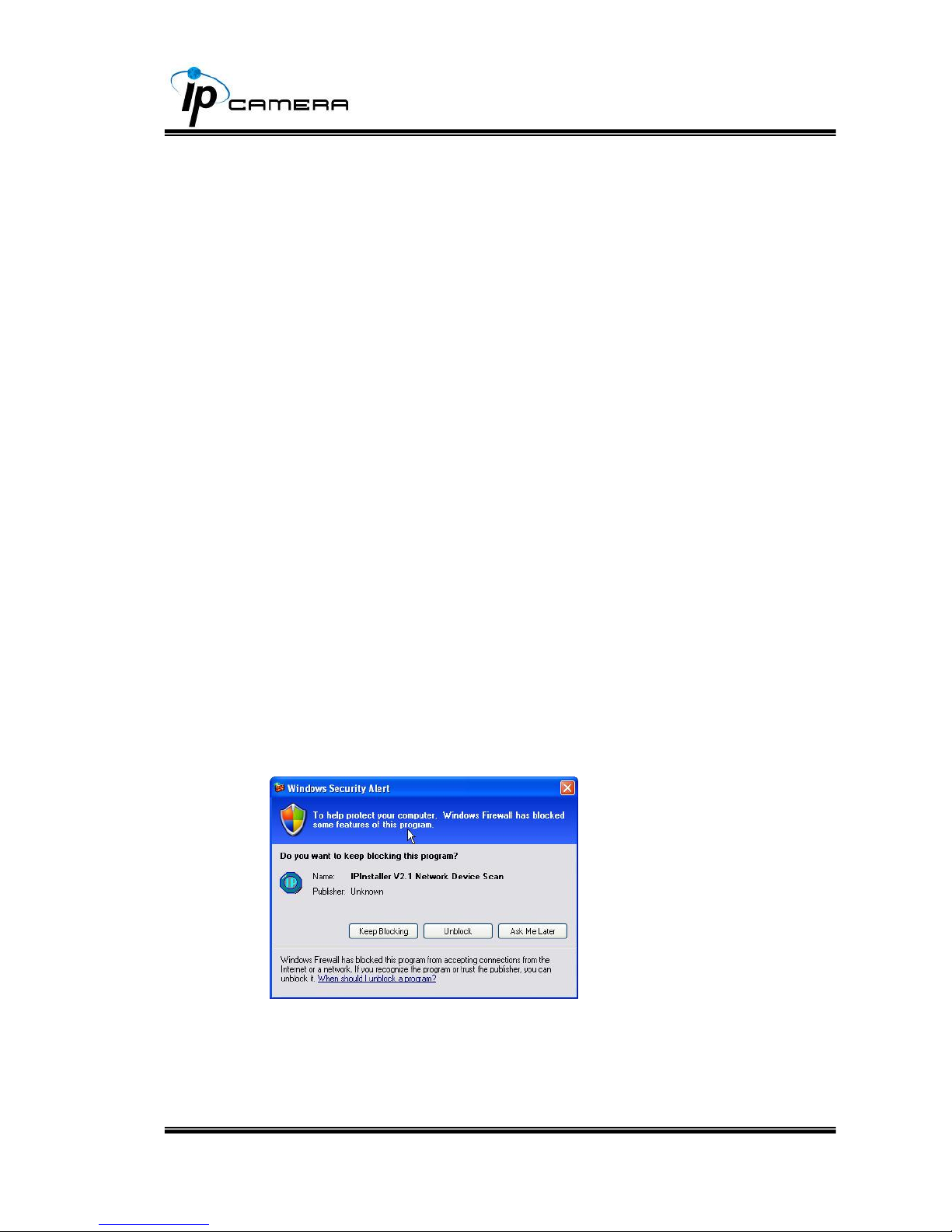

v. For Windows XP SP2 user, it may popup the following message box.

Please click “Unblock”.

15/75

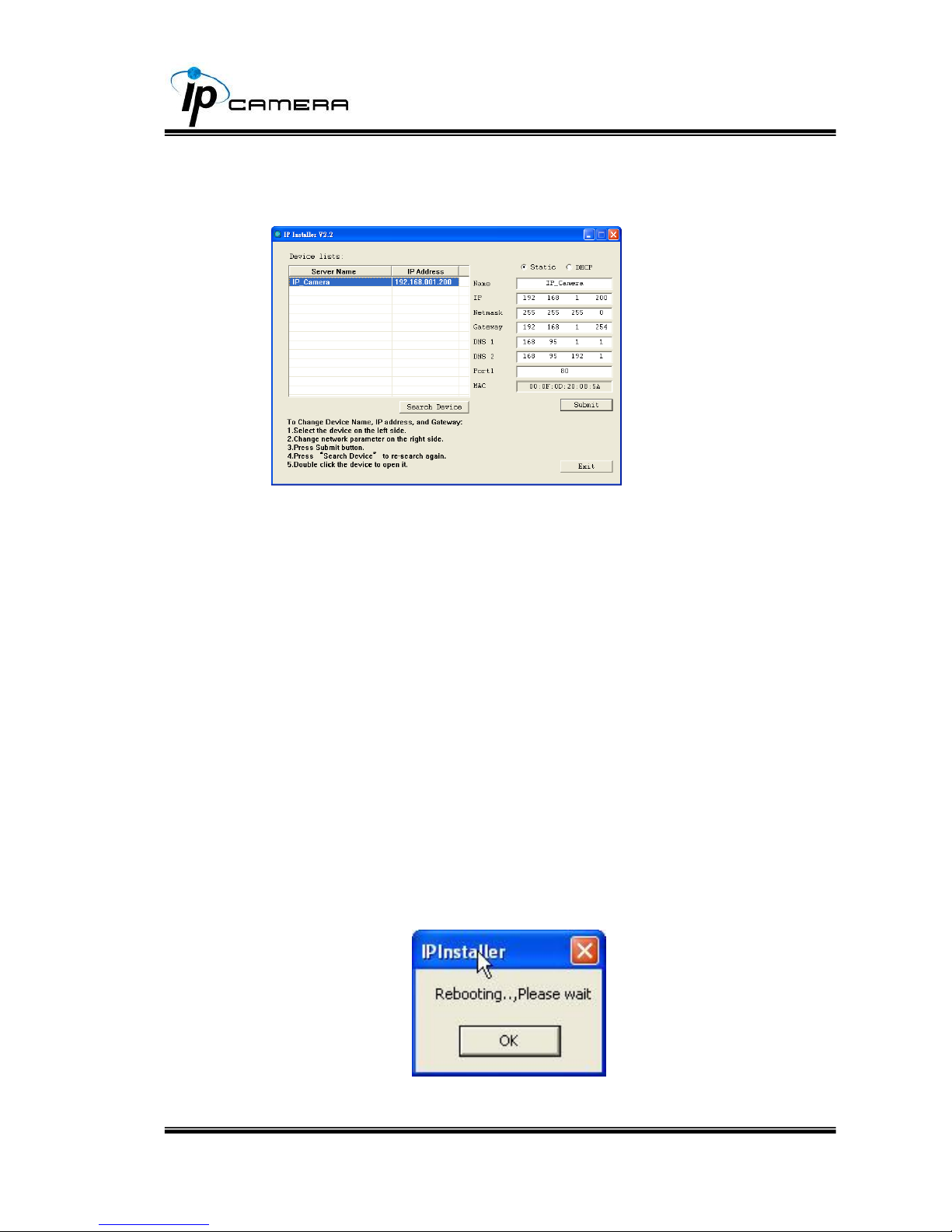

vi. IP Installer configuration:

vii. IP Installer will search all IP Cameras connected on LAN. The user can

click “Search Device” to search again.

viii. Click one of the IP Camera listed on the left side. The network

configuration of this IP camera will show on the right side. You may

change the “name” of the IP Camera to your preference (e.g.: Office,

warehouse). Change the parameter and click “Submit” then click “OK”. It

will apply the change and reboot the Device.

16/75

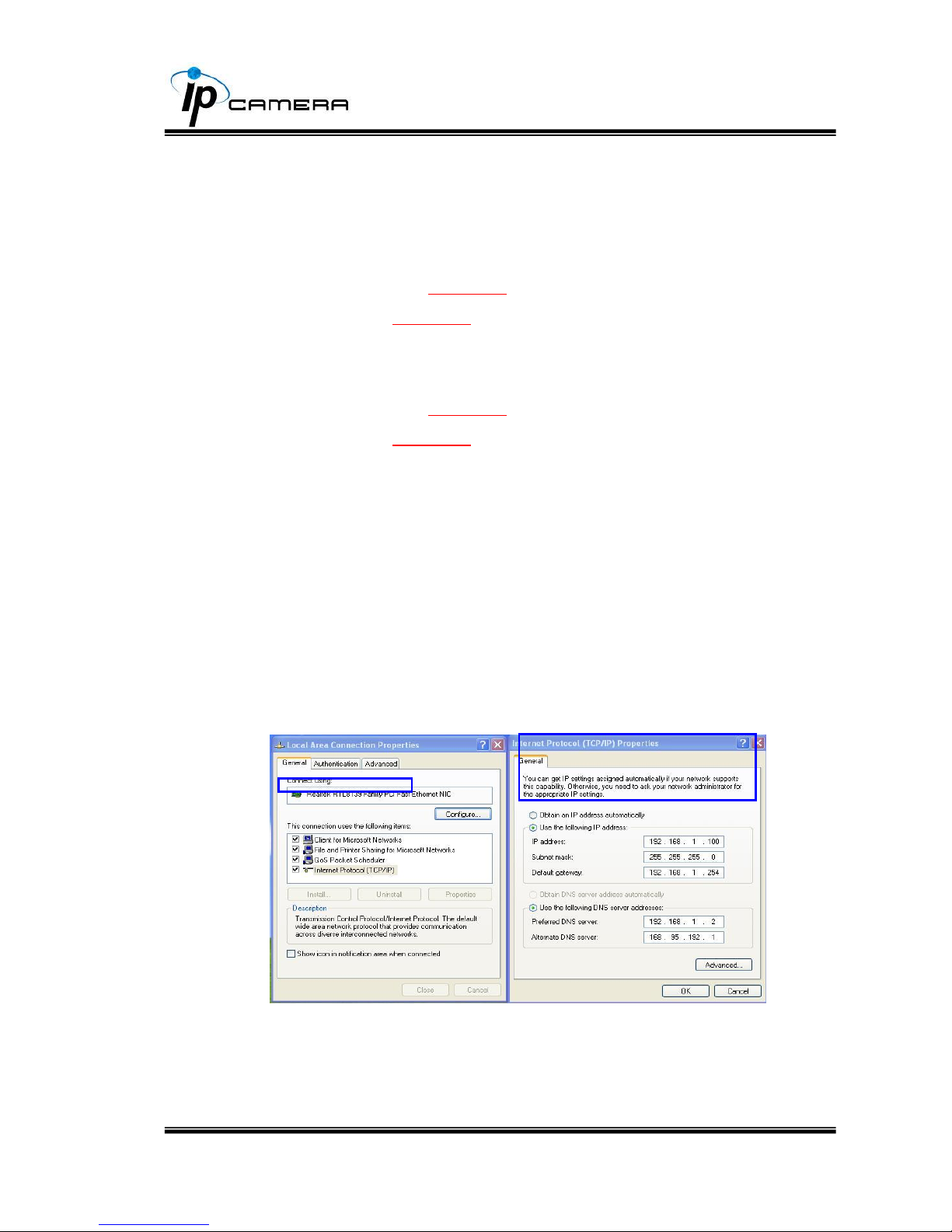

ix. Please make sure the subnet of PC IP address and IP CAM IP address

are the same.

The same Subnet:

IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200
PC IP address: 192.168.1.100

To Change the PC IP address:

Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties

Make sure your IP Camera and PC have the same Subnet. If not, change the
IP Camera subnet or PC IP subnet accordingly.

17/75

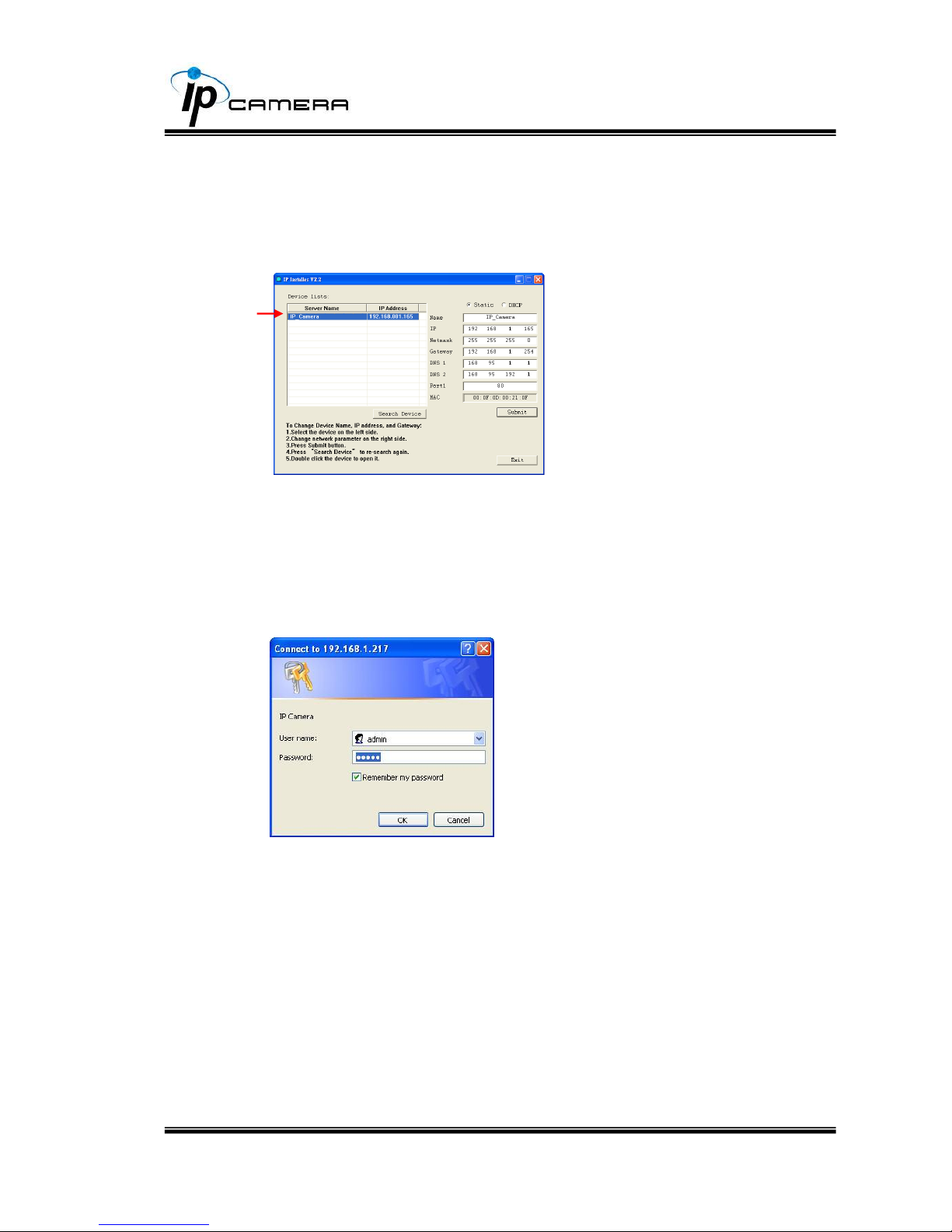

x. A quick way to access remote monitoring is to left-click the mouse twice

on a selected IP Camera listed on “Device list” of the IP Installer. An IE
browser will be opened.

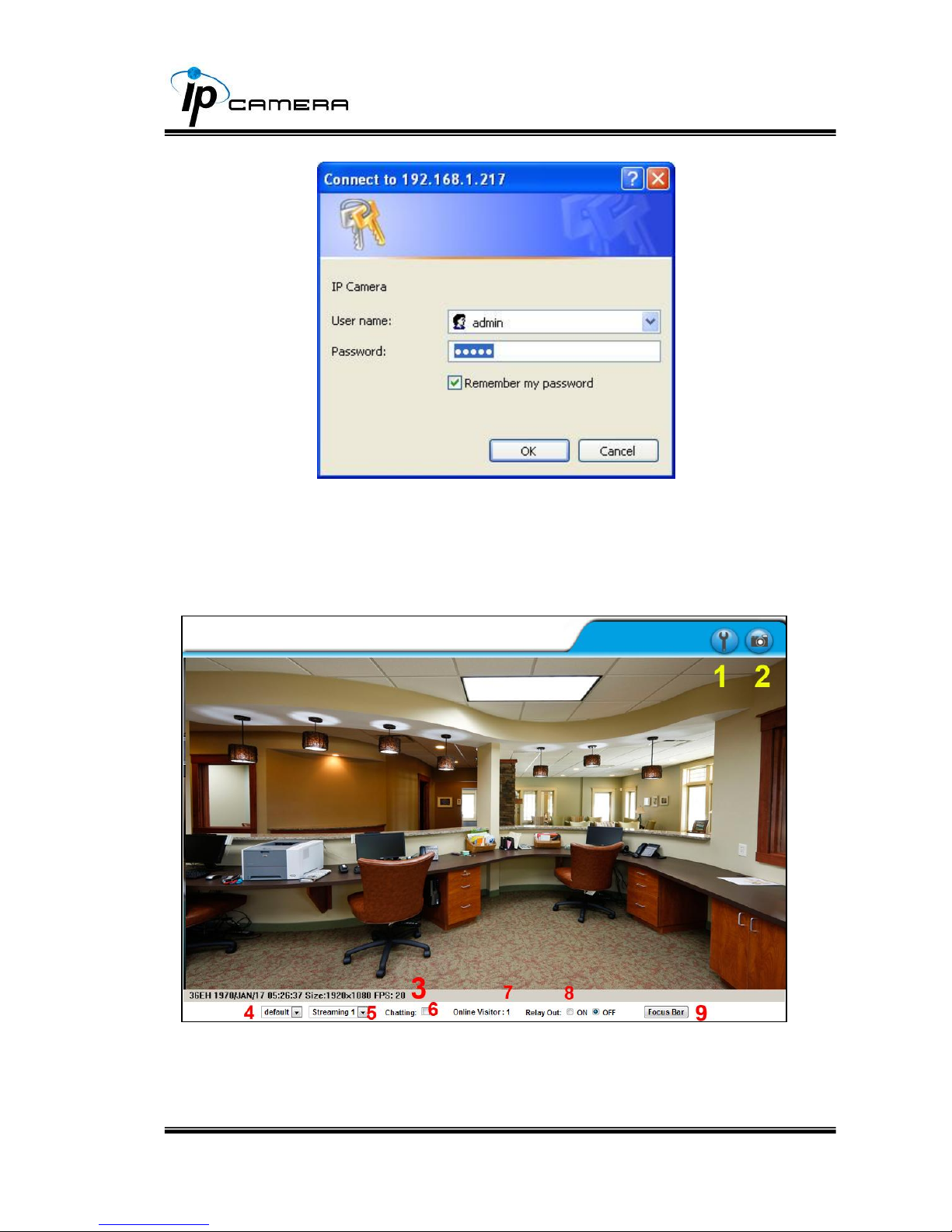

xi. Then, please key-in the default “user name: admin” and “password:

admin”.

18/75

D. Install ActiveX control:

1. To users of IE 6.0 above:

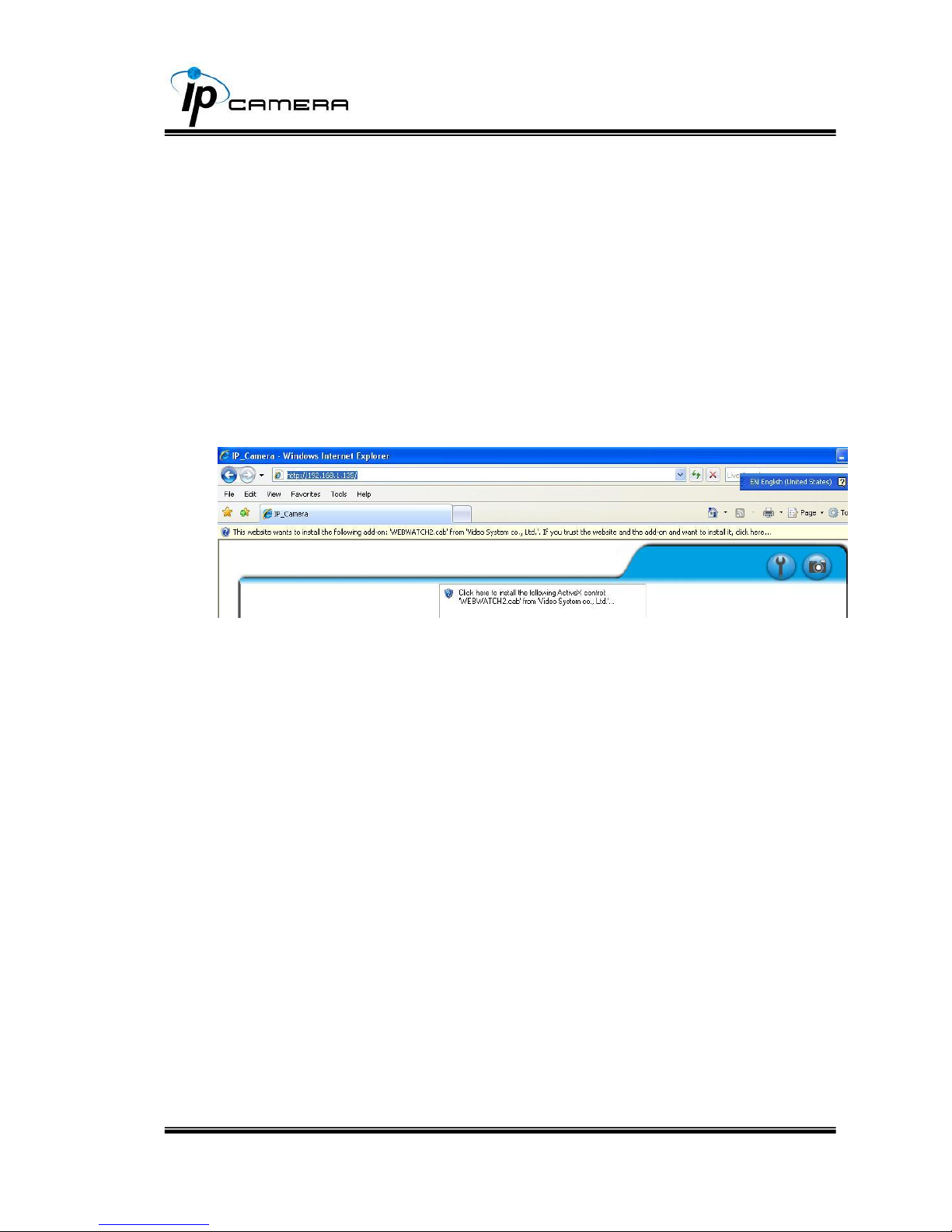

In the first time you access the camera via IE, it will ask you to install the
ActiveX component. If the installation failed, please check the security setting
for the IE browser.

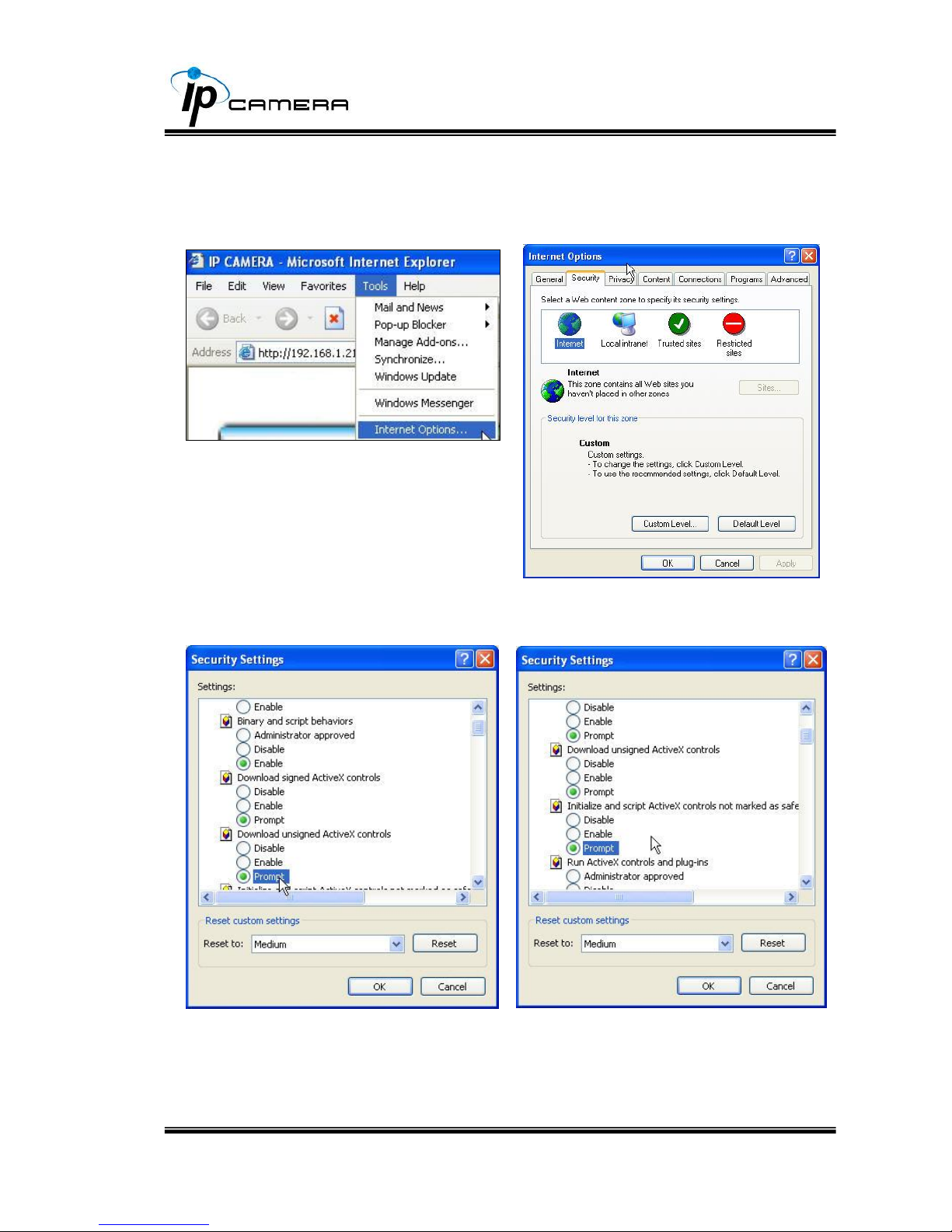

1. If the installation failed, please check the security setting for the IE browser.

i. IE  Tools  Internet Options…  Security Tab  Custom Level… 

Security Settings  Download unsigned ActiveX controls Select
“Enable” or Prompt.

ii. IE  Tools  Internet Options…  Security Tab  Custom Level…

Initialize and script ActiveX controls not marked as safe  Select
“Enable” or Prompt.

19/75

1

2

3

4

20/75

5

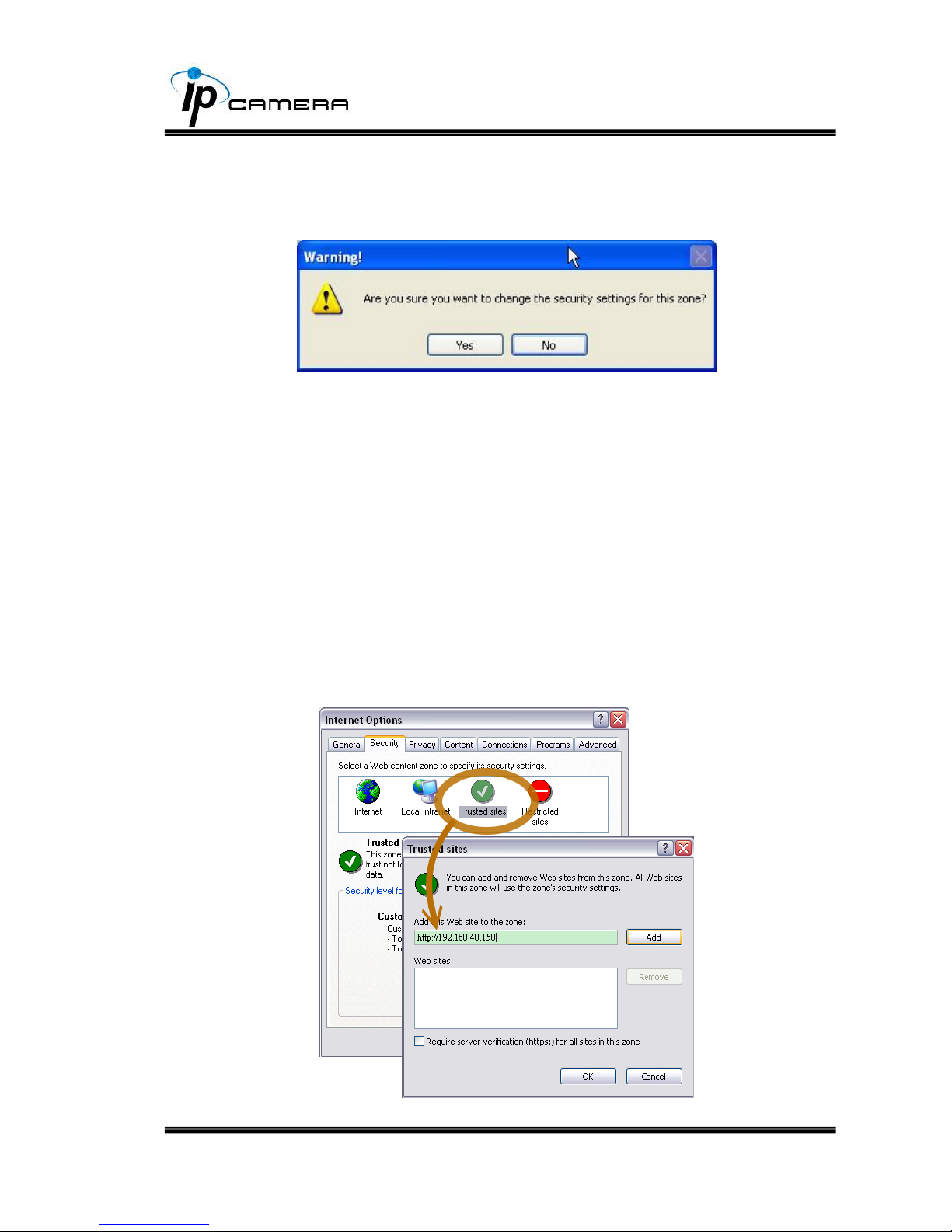

When pops up the following dialogue box, click “Yes”.

2. You can choose another way:

Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the

IP address and click "OK".

In the site list you can key one single IP address or a LAN address. For example,
if you add "192.168.21.*", all the IP address under .21 LAN will be regarded as
trusted sites.

21/75

2. Use Non-IE Web Browser

If you use Firefox or Google chrome to access the IP camera but fail to watch
the live video, please follow the steps to install necessary tools:
(The following pictures are based on chrome.)

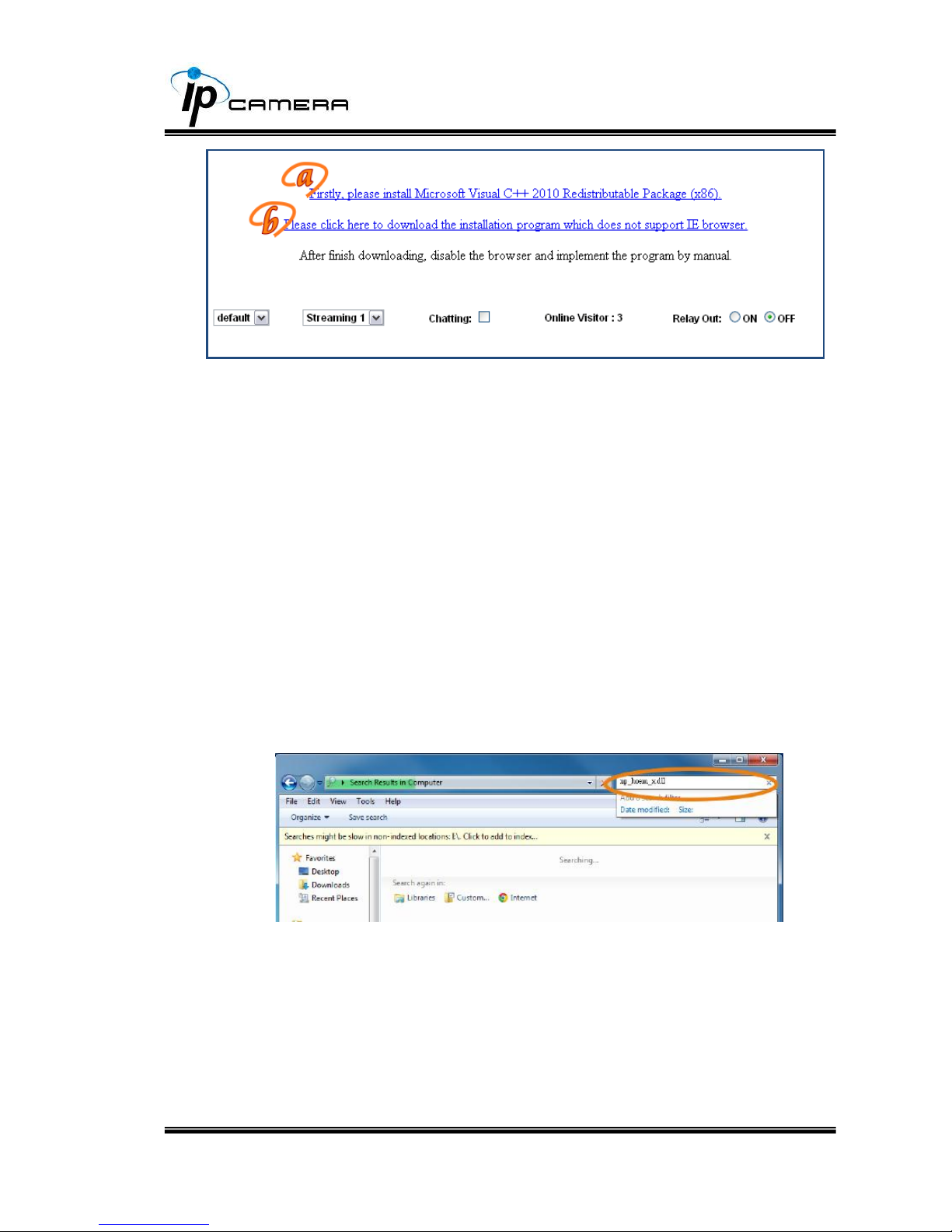

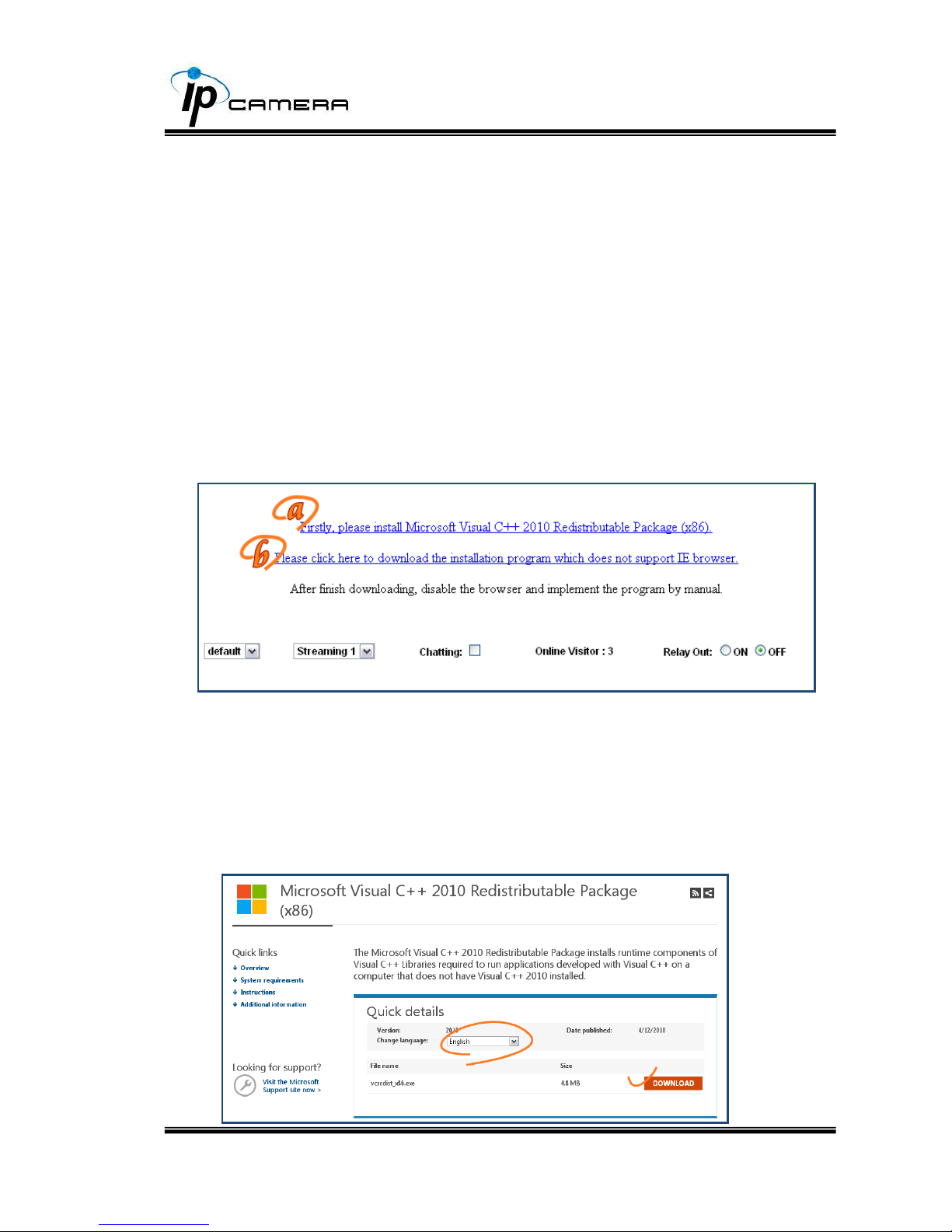

a. You may see the prompt message as the picture below. First, click the link:

"Firstly, please install Microsoft Visual C++ 2010 Redistributable Package
(x86)."

(i) The link conducts you to the Microsoft official site where you can download
the tools. Please select the language and click "download".

22/75

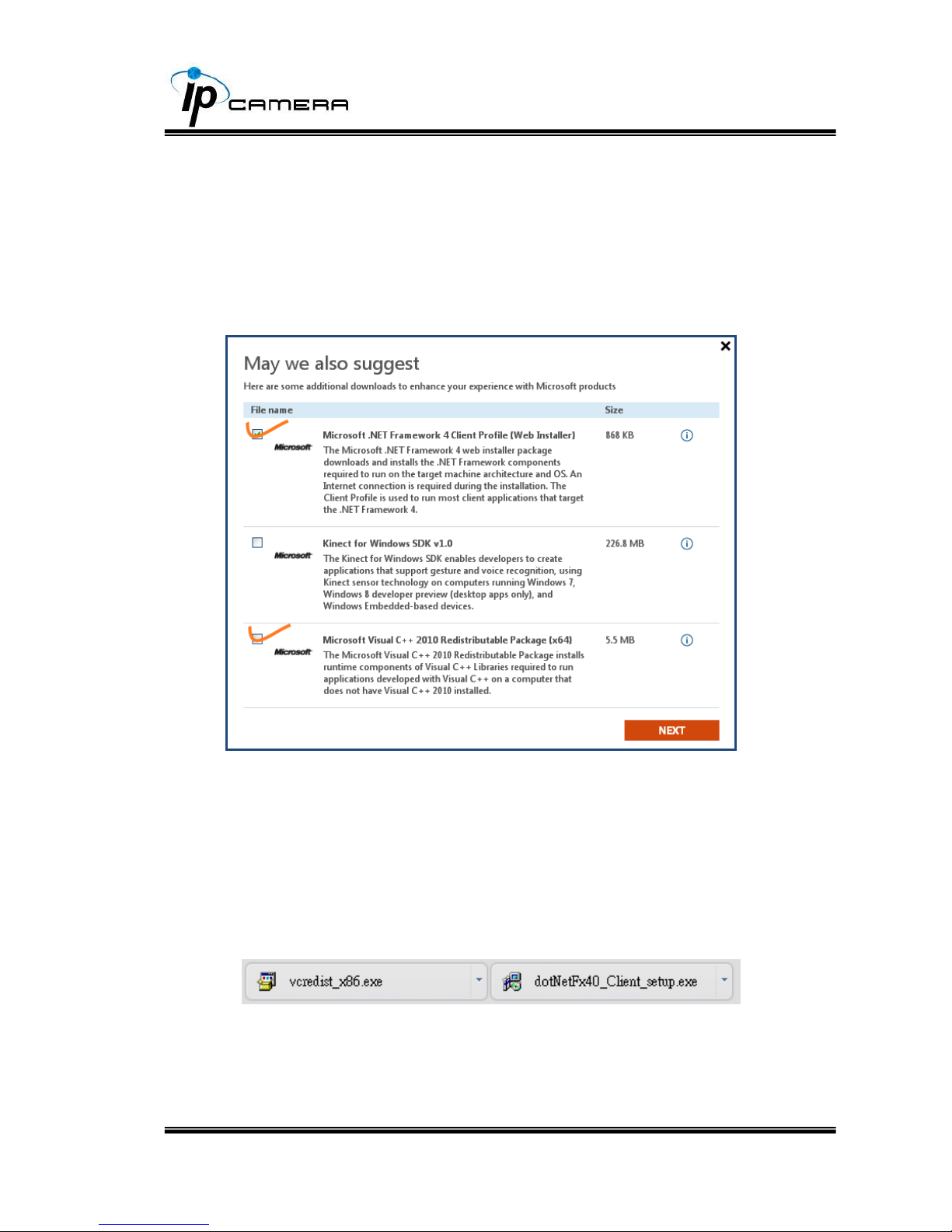

(ii) In the pop-up window, please tick the first and the third file as the picture
below. Click "Next" to download both "Microsoft .NET Framework 4 Client
Profile (Web Installer)" and "Microsoft Visual C++ 2010 Redistributable
Package (x64)".

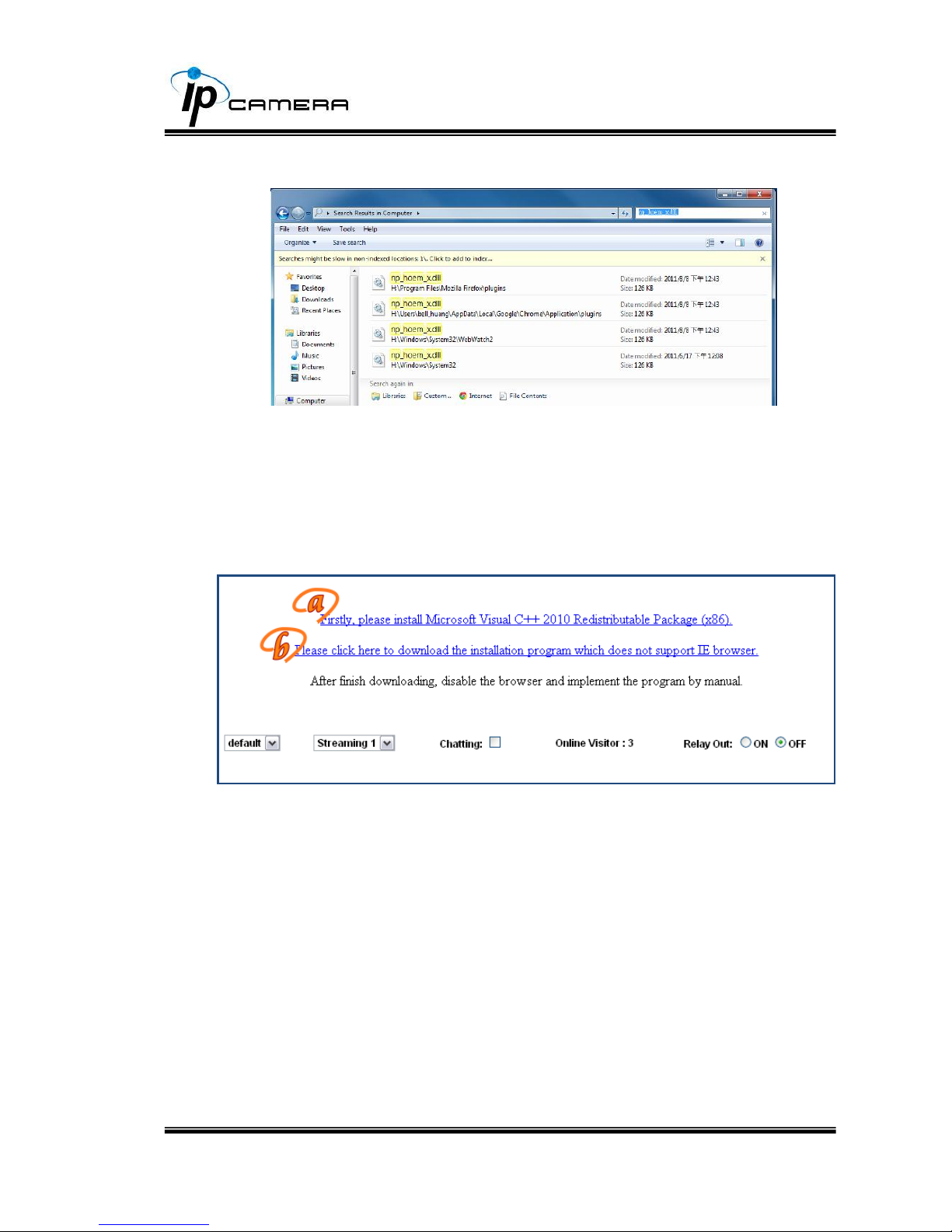

(iii) After finishing downloading, execute the two files respectively to install
them. The windows may ask you to reboot the PC when the installation is
finished.

b. Then, click the second link "Please click here to download the installation
program which does not support IE browser." to download Setup ActiveX.

23/75

After finishing the downloading, execute the files to install ActiveX. Then restart
the browser.

c. If you execute the steps above but still cannot see the live video normally,
please try the solution:

(i) Search for the file "np_hoem_x.dll" in your system disk. For Windows XP

users, please go to "Start" → "Search" → Search for "All files and folders" and

key-in "np_hoem_x.dll". For Windows 7 users, please use the search bar on the
top-right of the Windows Explorer.

(ii) Delete all the files named "np_hoem_x.dll". They're the ActiveX control
tools installed in your computer, but the old version of ActiveX might not
compatible with the new version of browser. Therefore, they need to be deleted
in order to install the latest ActiveX control.

24/75

(iii) Start your web browser, and repeat the step 2-b: "Download the installation
program which does not support IE browser" to download and install ActiveX.

IV. Live Video

Start an IE browser, type the IP address of the IP camera in the address field. It will
show the following dialogue box. Key-in the user name and password. The default
user name and password are “admin” and “admin”.

25/75

When the IP Camera is connected successfully, it shows the following program
interface:

Double-click the video to switch to full screen view. Press “Esc” or
double-click the video again back to normal mode.

26/75

1. Get into administration page

2. Video Snapshot

3. Show system time, video resolution, and video refreshing rate

4. Adjust image, 1/2x, 1x, 2x

5. Select video streaming source (If in”Video Setting” the streaming 2

setting is closed, this option will not appear here.)

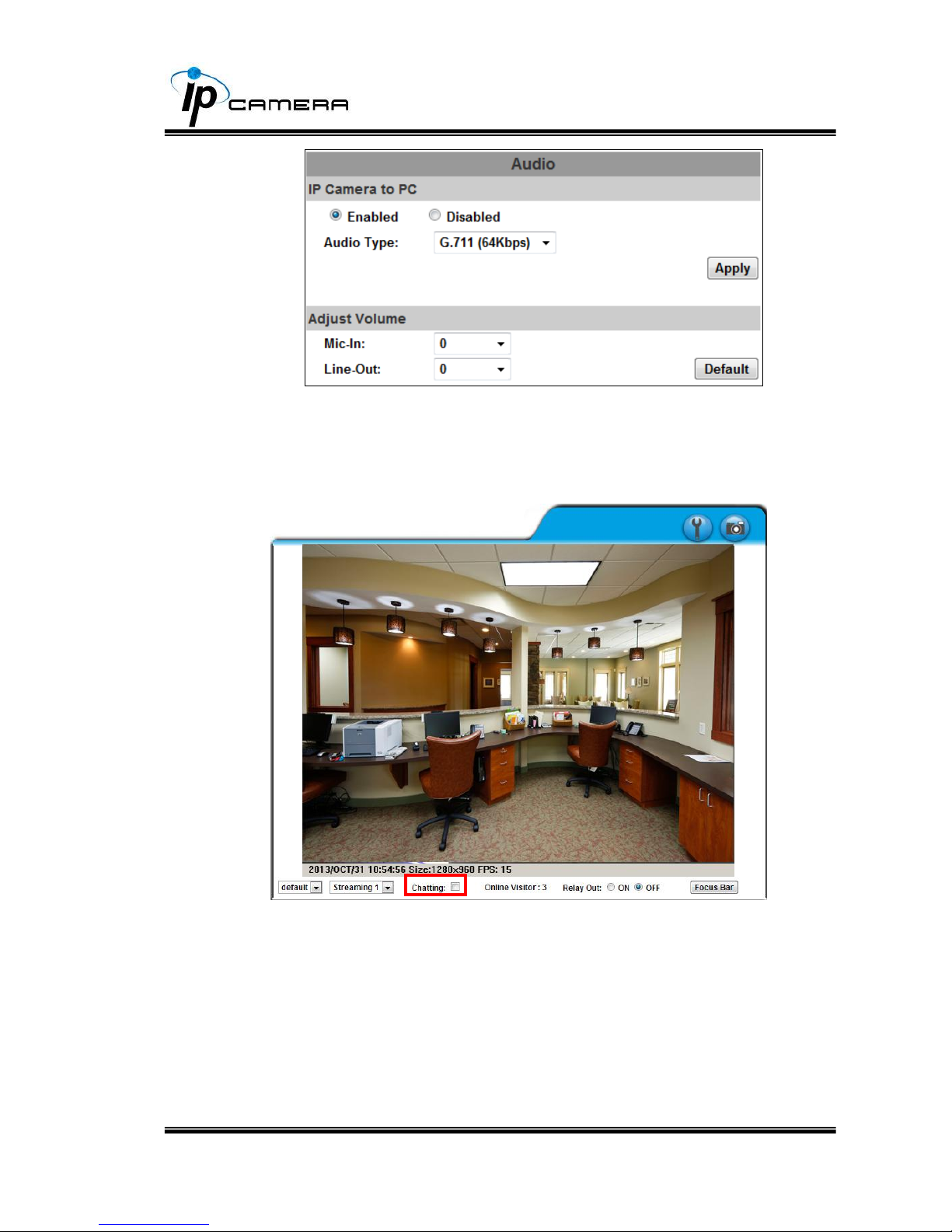

6. IP Camera supports 2-way audio. Click the “Chatting” check box for
using a microphone connected to the PC and talk to the Camera side.

7. Show how many people are connected to this IP camera.

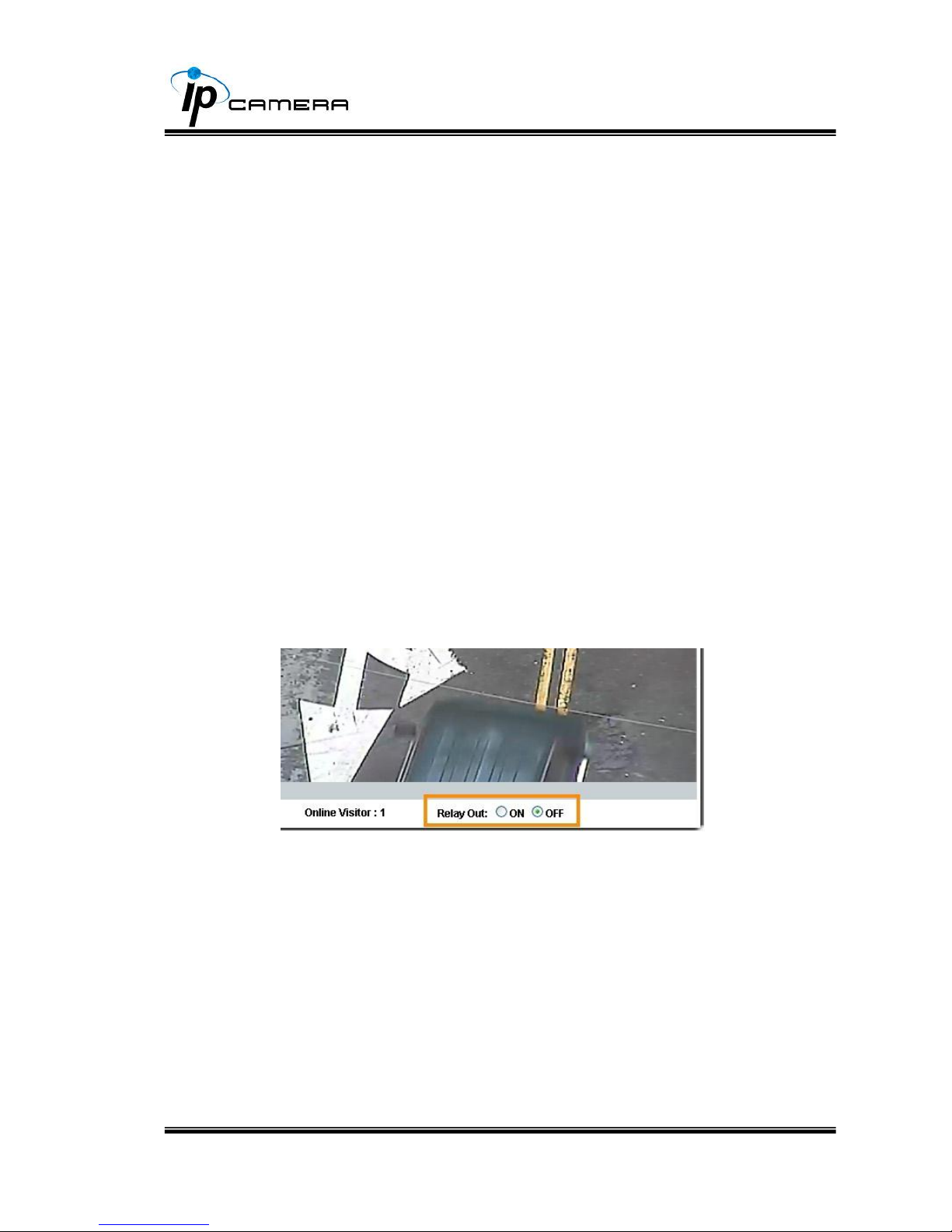

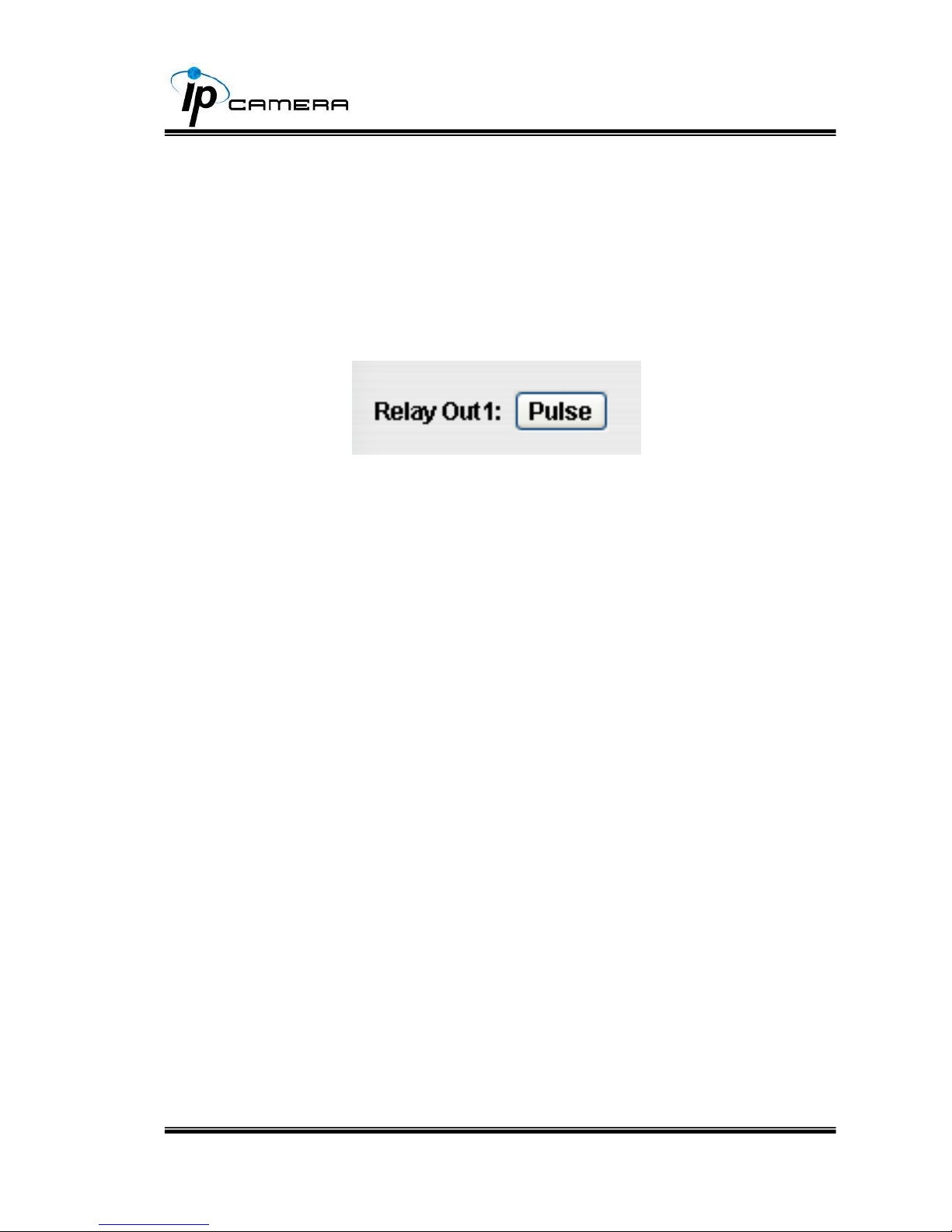

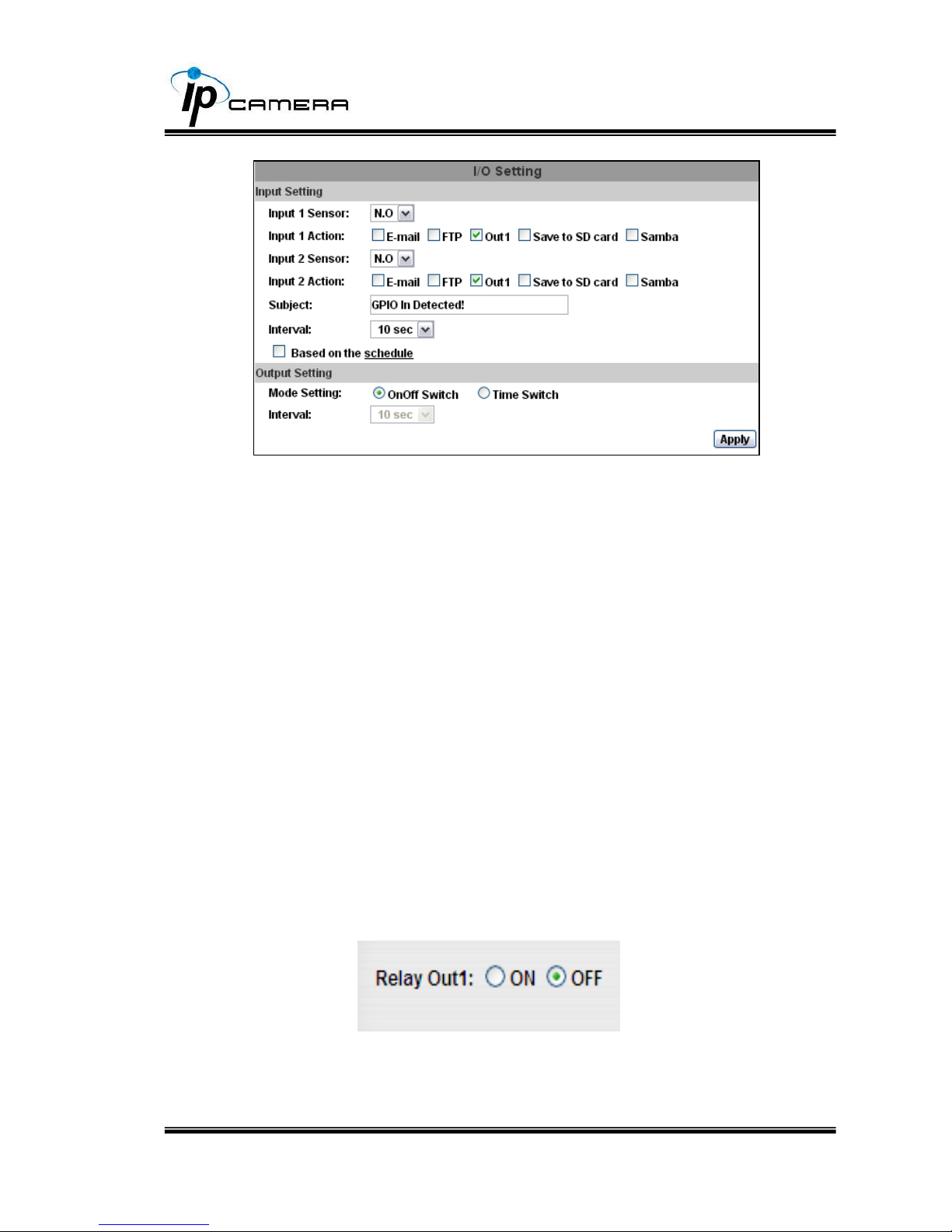

8. Tick the Relay out "ON" box to trigger the relay output for testing. Tick
"Off" to stop triggering.

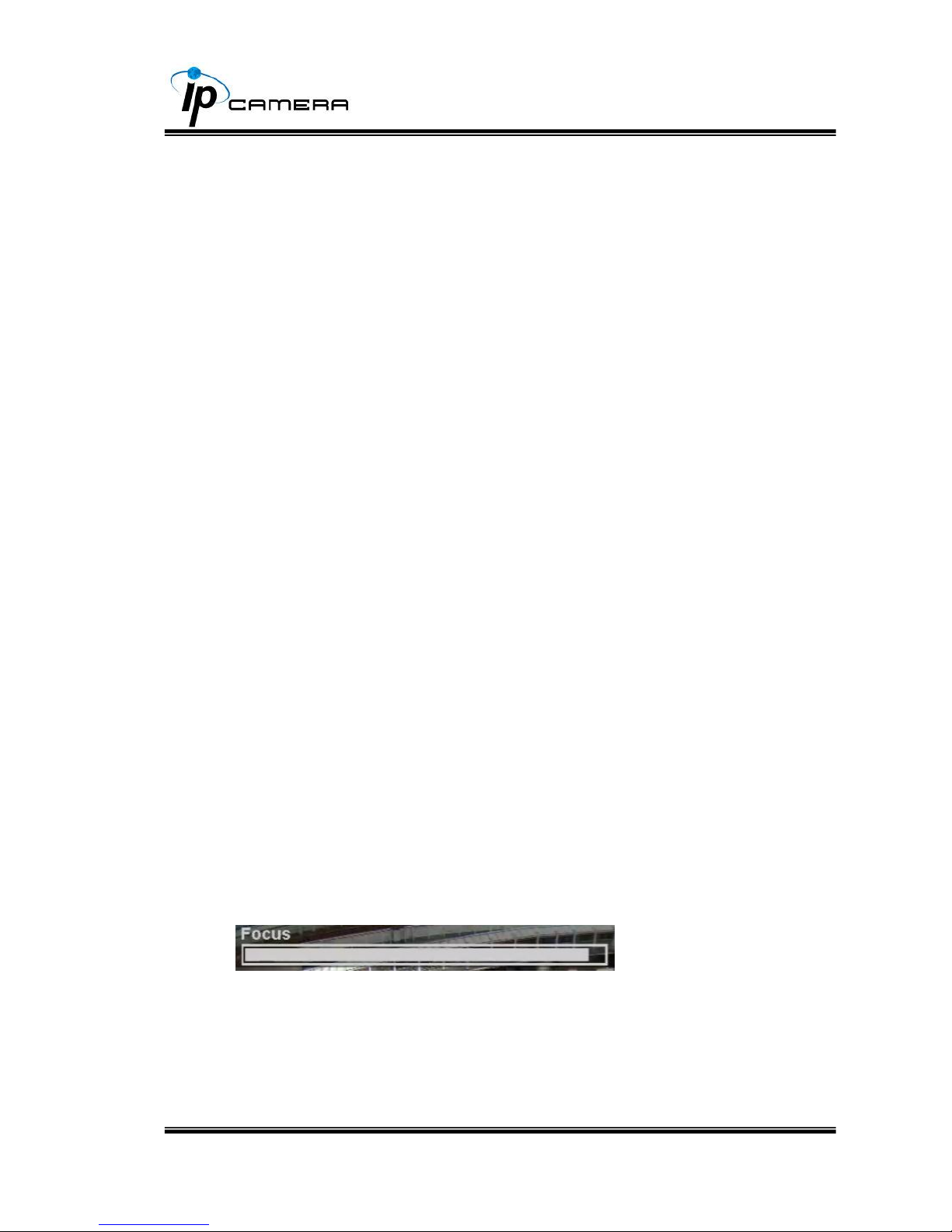

9. Focus Bar: a focus bar will appear on the top-left corner of live view.
The bar is for users’ reference when adjusting the lens focus. If the lens

focus is adjusted to clear, the bar will be filled.

When remote accessing an IPCam by web browser, the focus bar will be hidden after
3 minutes. When connecting the video out connecter to a monitor, the bar will keep
showing on the view.

27/75

Double-click the video; it will change to full screen mode. Press “Esc” or double-click
the video again, it will change back to normal mode.

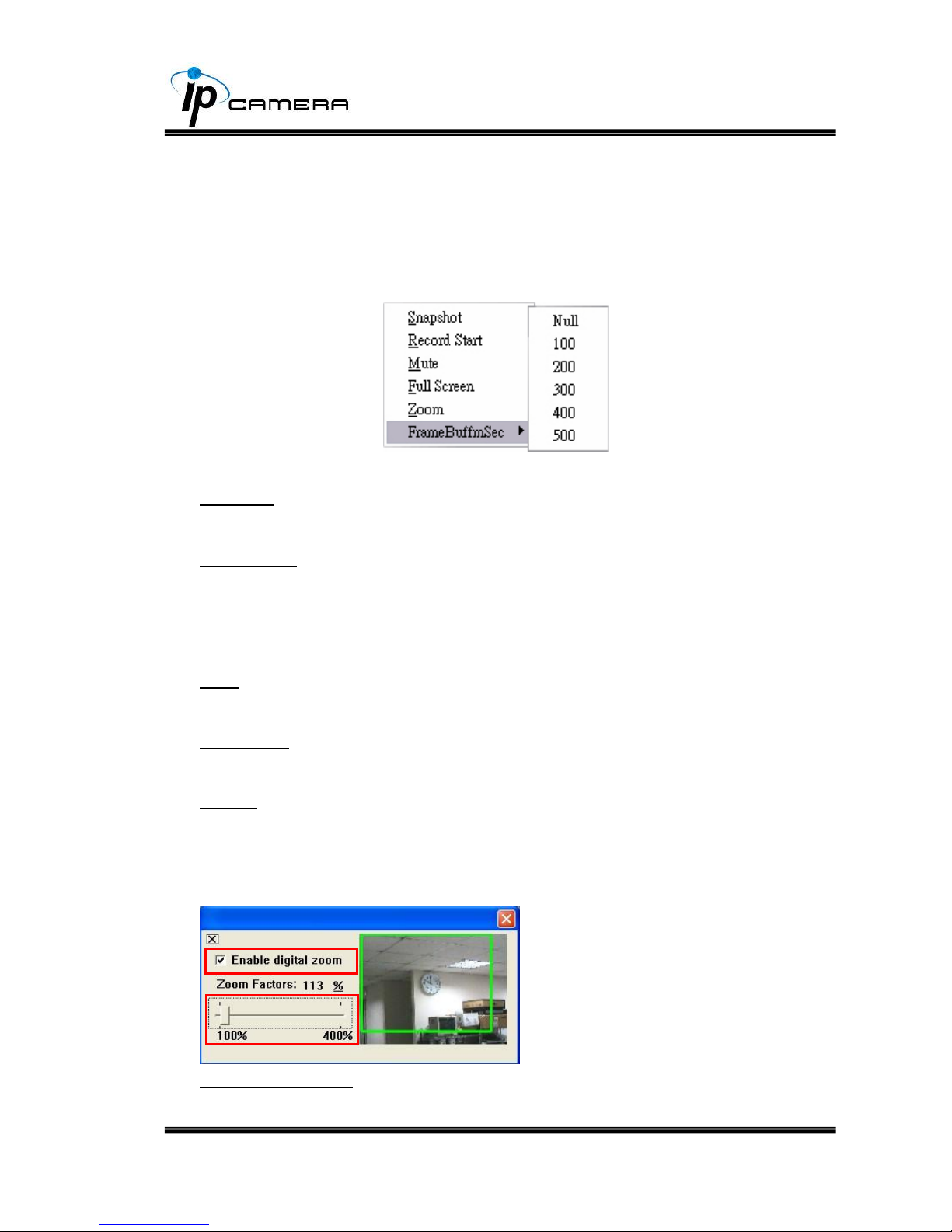

Right-Click the mouse on the video, it will show a pop-up menu.

1. Snapshot：Save a JPEG picture

2. Record Start: Record video in the local PC. It will ask you where to save the video.
To stop recording, right-click the mouse again. Select “Record Stop”. The video
format is AVI. Use Microsoft Media Player to play the recorded file.

3. Mute: Turn off the audio. Click again to turn it on.

4. Full Screen: Full-screen mode.

5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first on the pop-up dialogue box and then drag and drop the bar to adjust
the zoom factors.

6. Frame Buffm Sec: Build a buffm to accumulate several video frames and play
them at regular intervals. This function can keep the video smoothly when the

28/75

Network speed is slow. If you select “100”, the interval between every frame is
fixed to 100 mSec. The slower the Network is, the bigger value should be
selected. The default value is null.

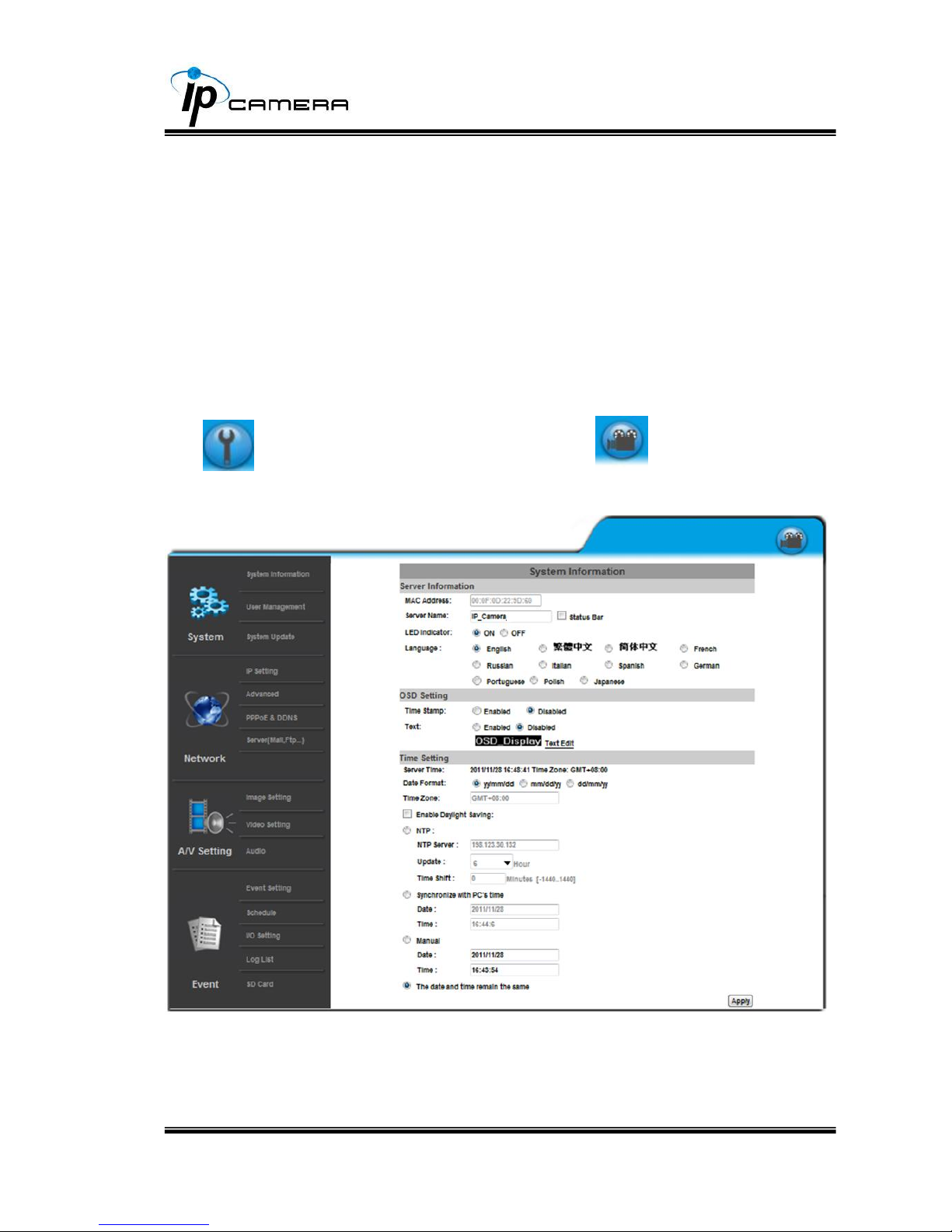

V. IP Camera Configuration

Click to get into the administration page. Click to go back to the live
video page.

29/75

A.System

i、 System Information

a. Server Information: Set up the camera name, select language, and

set up the camera time.

1. Server Name: This is the Camera name. This name will be
shown on the IP Installer.

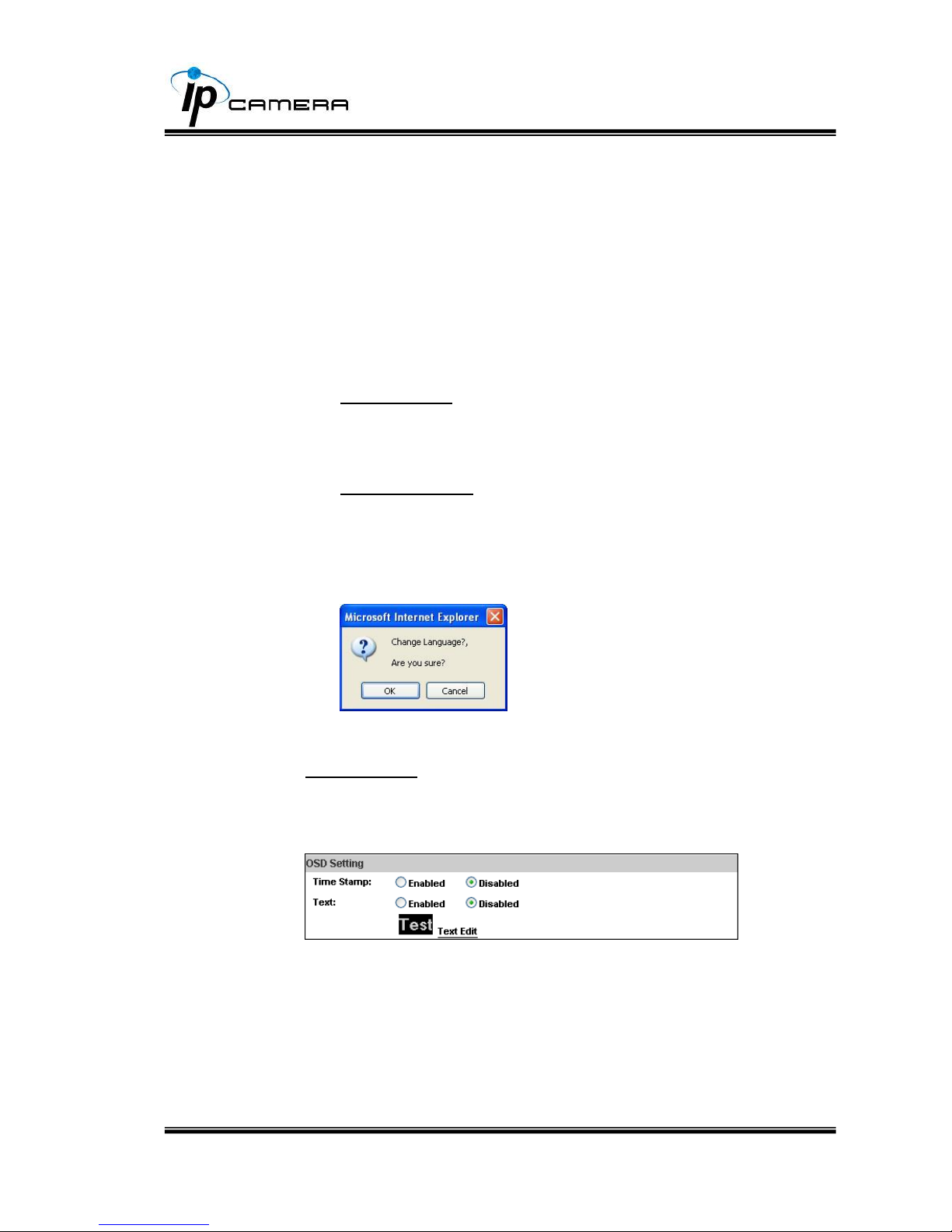

2. Select language: English, Traditional Chinese, and Simplified
Chinese can be selected. When it changes, it will show the
following dialogue box to confirm the language changing.

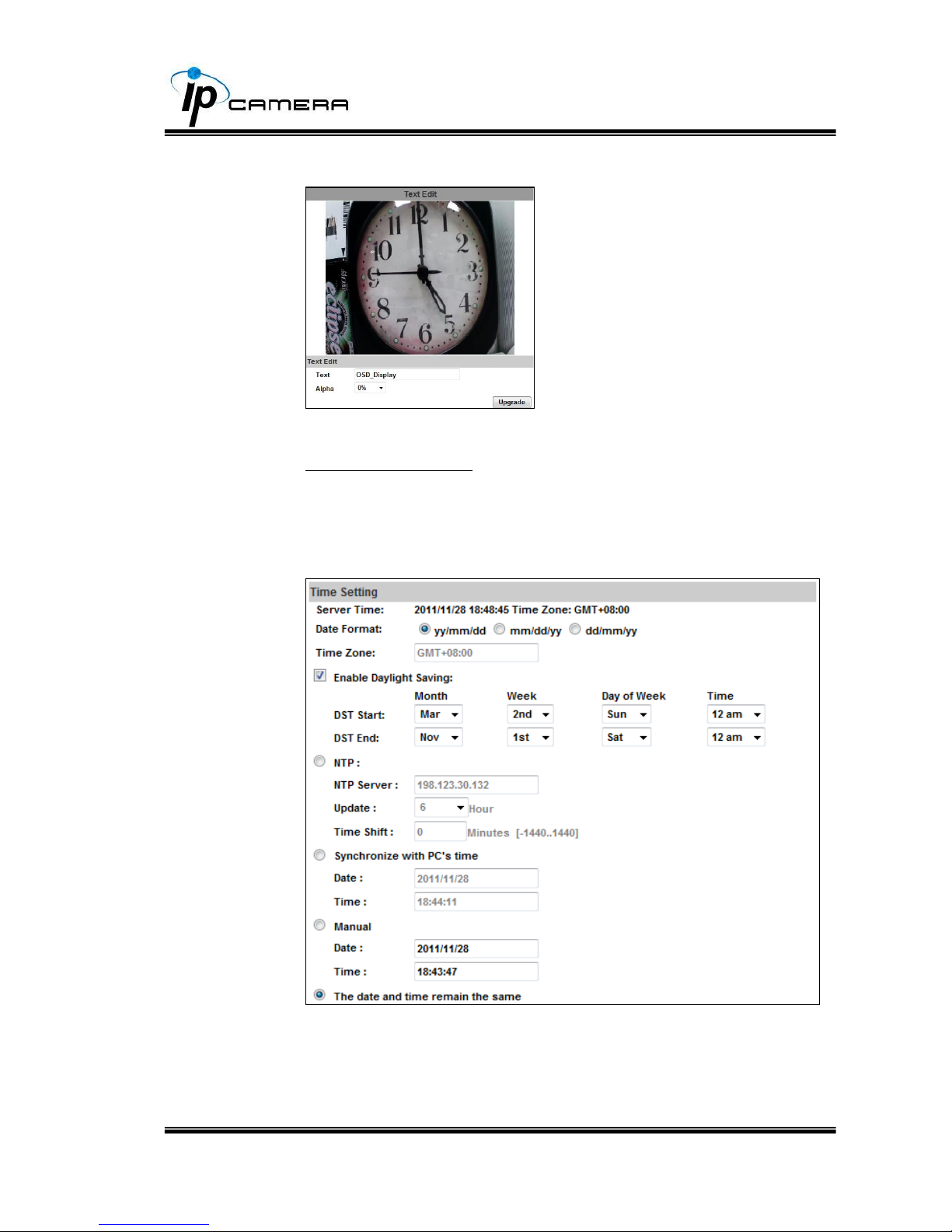

b. OSD Settings: Select a position where the date & time stamp / text

are shown on the screen.

Click ‘Text Edit’ to adjust the OSD text contents. Alpha means
background transparency of the text. If you select 100%, the text stamp
will be directly displayed on the live screen. If you select 0%, the text
stamp will be displayed with a black background.

30/75

c. Server time setting: Select options to set up time - “NTP”,

“Synchronize with PC’s time”, “Manual”, “The date and time remain

the same”.

31/75

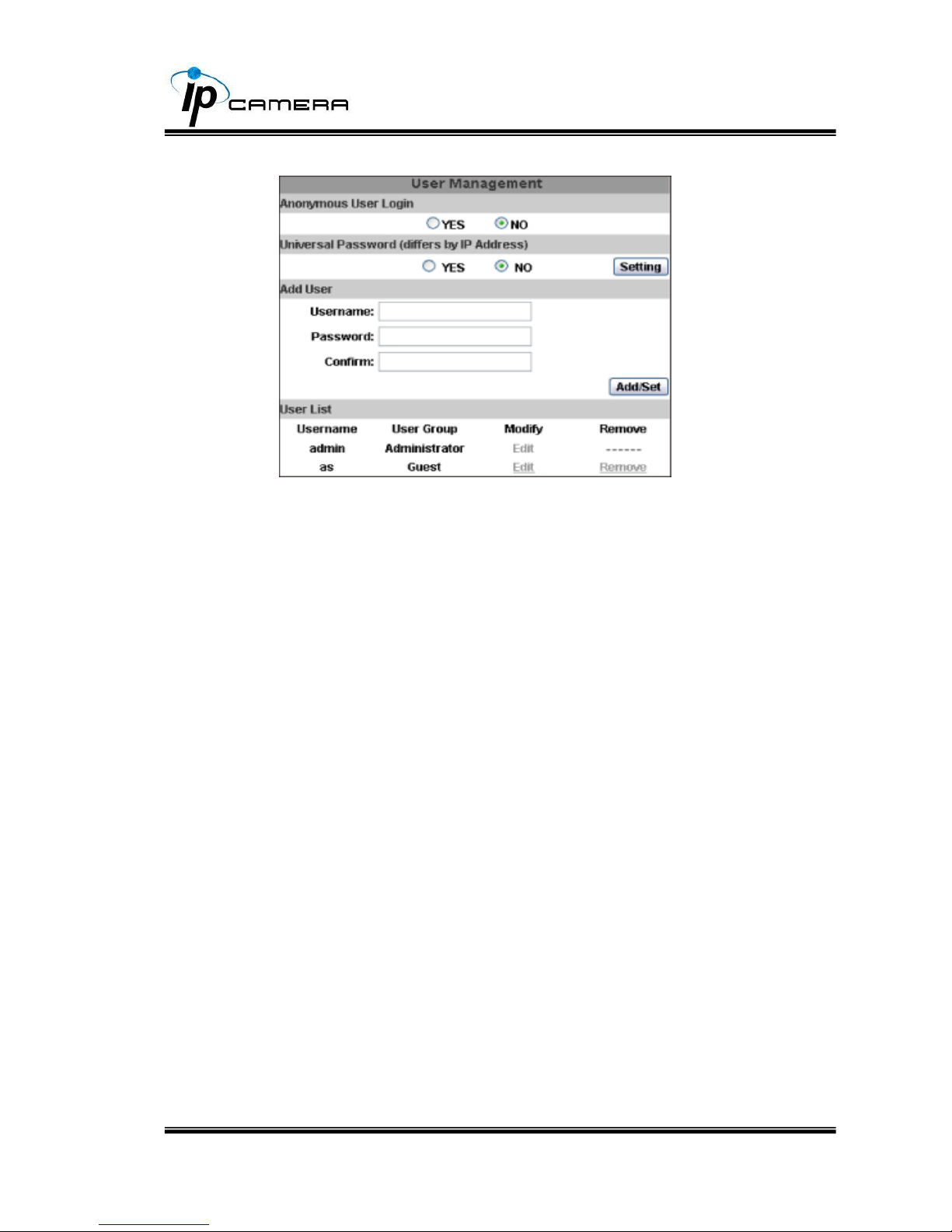

ii、 User Management

The IP Camera supports three different users: administrator, general
user and anonymous user.

a. Anonymous User Login:

Select “Yes” for allowing everybody to watch live video without needing a
username and password. However, if you try to enter the configuration
page the camera will ask to key-in username and password.

Select "No" for requiring a username and login to access the camera.

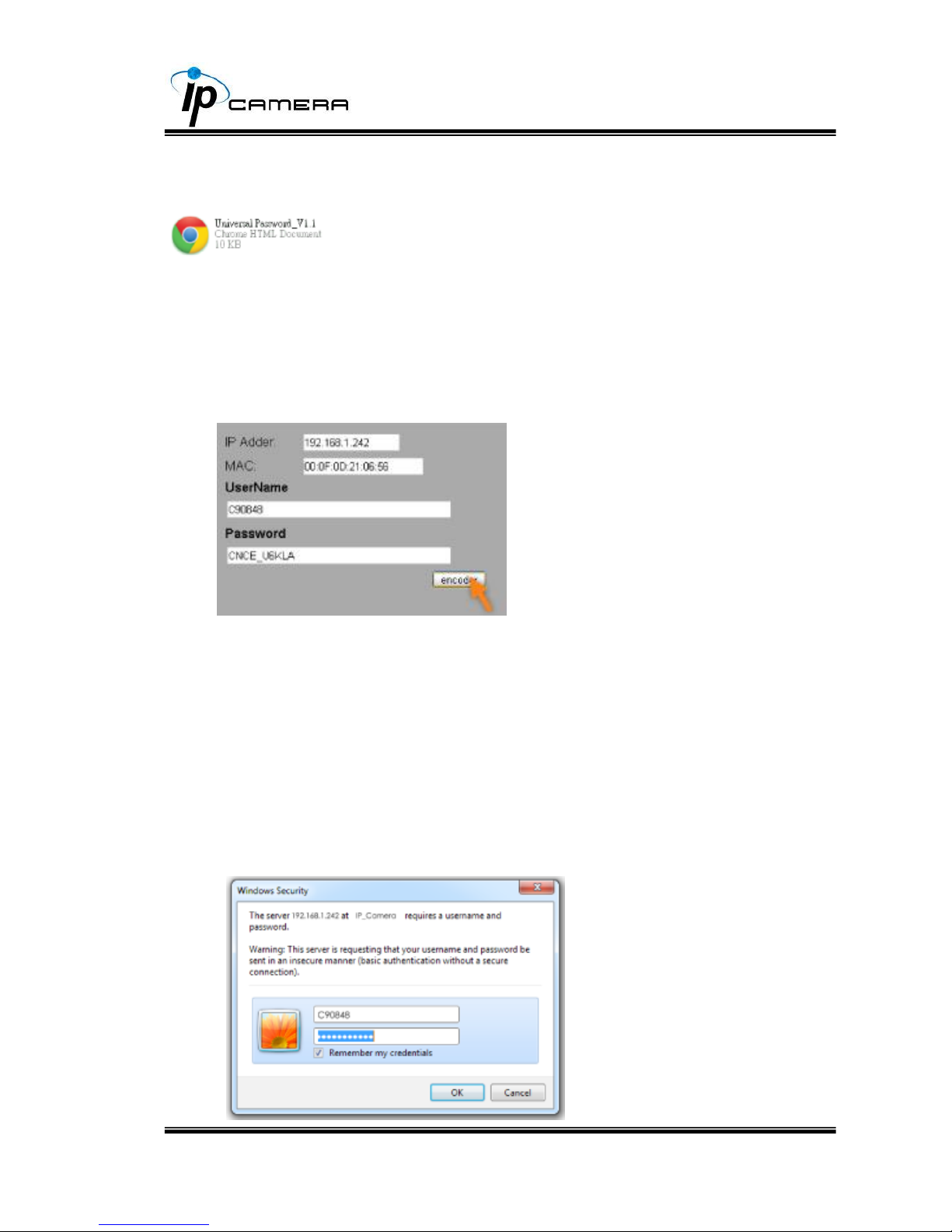

b. Universal Password:

Select “Yes” for allowing login to this IP Cam by universal password.
Select “No” for disabling universal password.

32/75

c. Add user:

Type the user name and password, then click “Add/Set”. The guest user
can only browse live video page and is not allowed to enter the
configuration page.

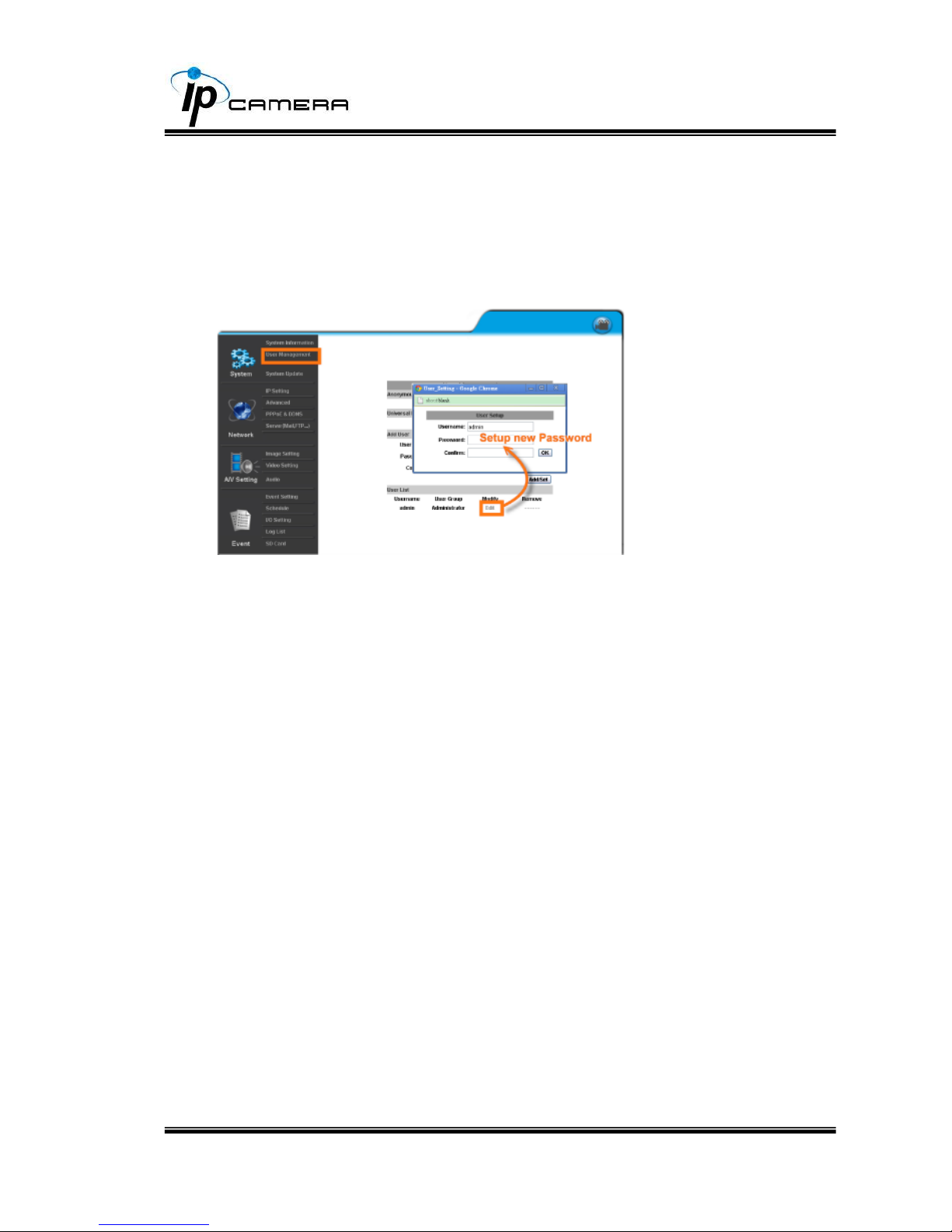

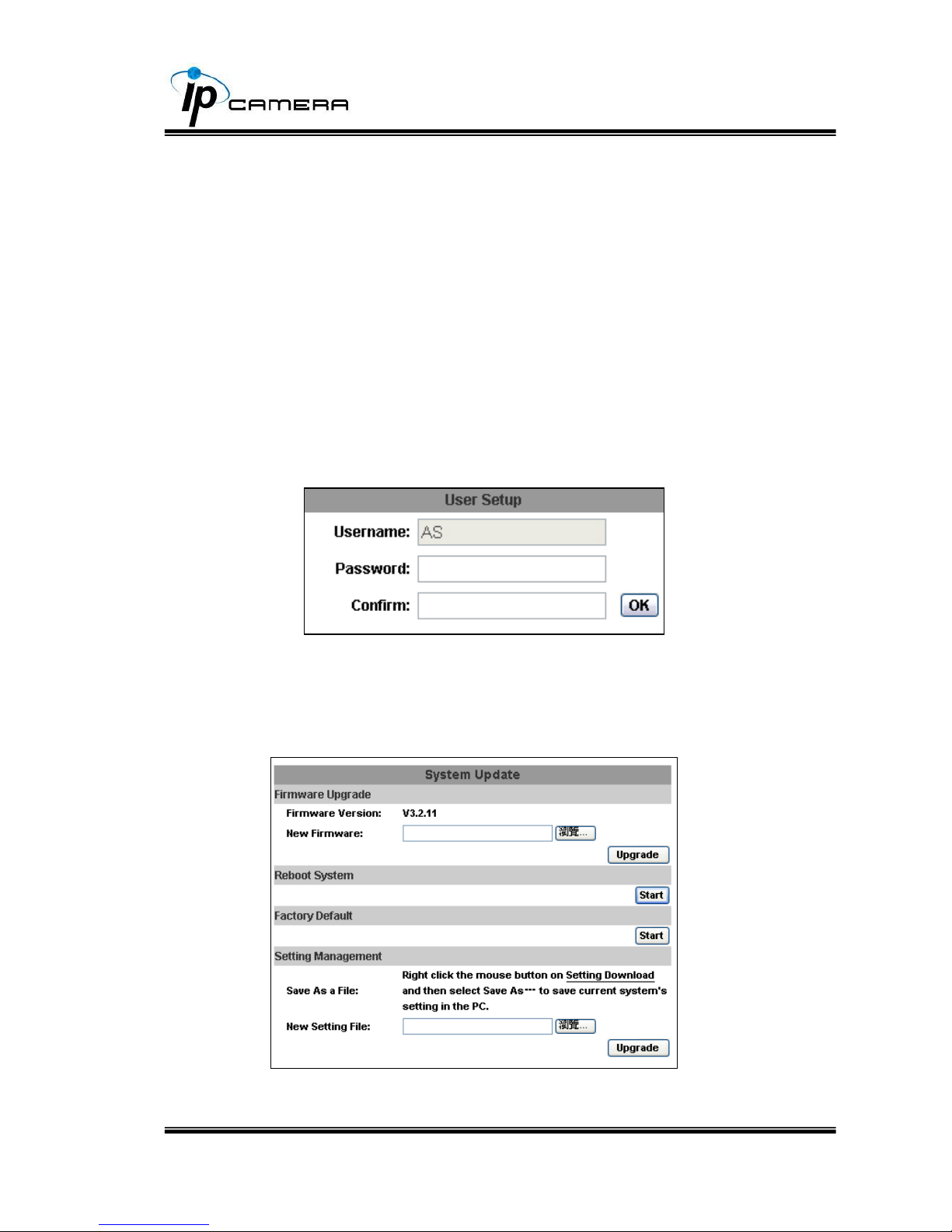

d. Click “edit” or “delete” in the user list to modify them. The system will
ask you to key-in the password in the pop-up window before you edit the
user information.

iii、 System update：

33/75

a. To update the firmware online, click “Browse…” to select the

firmware. Then click “Upgrade” to proceed.

b. Reboot system: re-start the IP camera

c. Factory default: delete all the settings in this IP camera.

d. Setting Management: The user may download the current settings

to PC, or upgrade from previous saved settings.

1. Settings download:

Right-click the mouse button on Setting Download  Select
“Save AS…” to save current IP Camera settings in PC 
Select saving directory  Save

2. Upgrade from previous settings

Browse  search previous settings  open  upgrade 
Settings update confirm  click index.html for returning to
main page

34/75

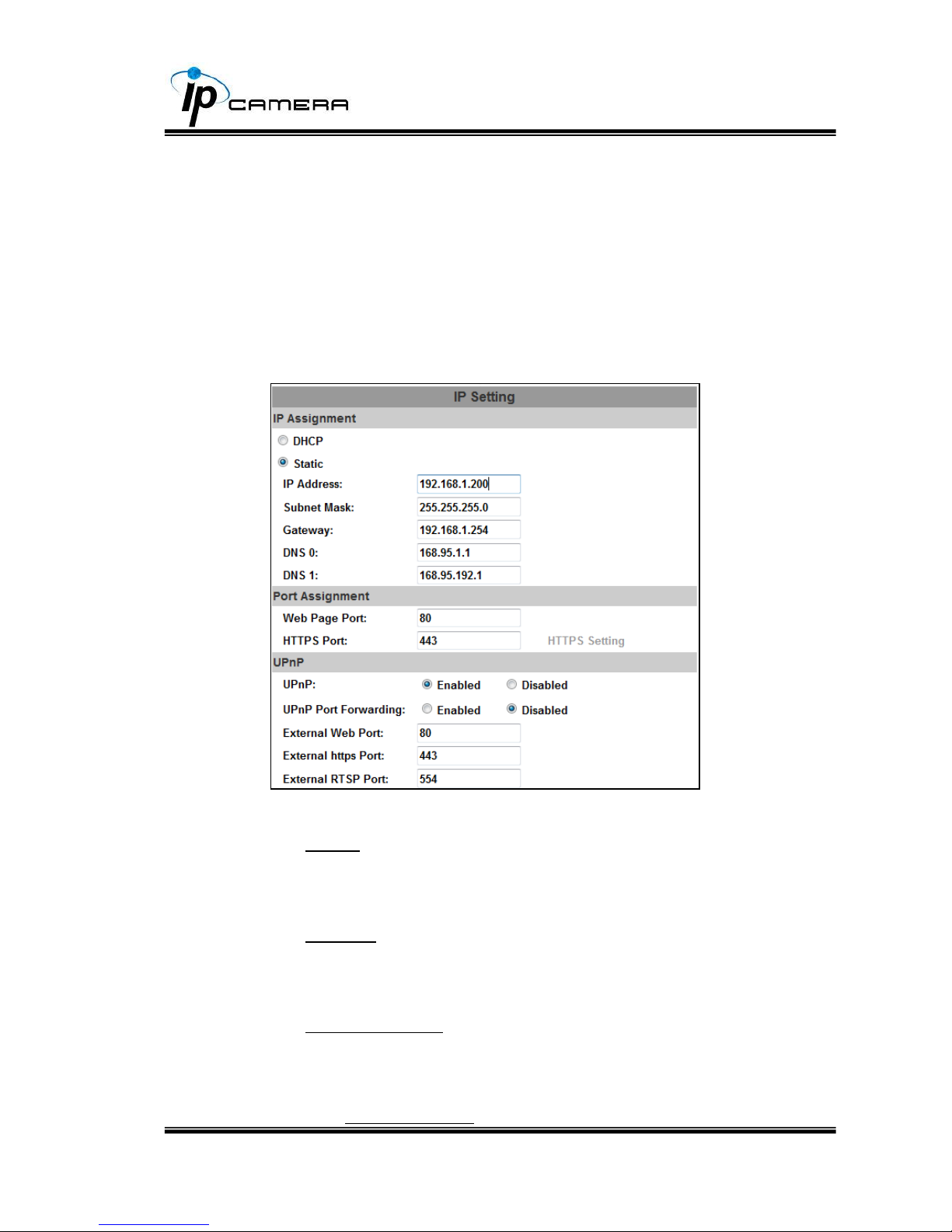

B. Network

i、 IP Settings

The IP Camera supports DHCP and static IP.

a. DHCP: The IP Camera will get all the network parameters

automatically.

b. Static IP: Type-in the IP address subnet mask, gateway, and DNS

manually.

c. Port Assignment: The user may need to assign different port to

avoid conflicts when setting up the IP.

1. Web Page Port: setup web page connecting port and video

35/75

transmitting port (Default: 80)

2. HTTPs Port: setup the https port(Default: 443)

d. UPnP

The IP camera supports UPnP, if this service is enabled on your
computer, the camera will automatically be detected and a new icon
will be added to “My Network Places.”

UPnP Port Forwarding ： Enable UPnP Port Forwarding for
accessing the IP Camera from the Internet; this option allows the IP
Cam to open ports on the router automatically so that video streams
can be sent out from a LAN. There are three external ports for being
set: Web Port, Http Port and RTSP port. To utilize of this feature,
make sure that your router supports UPnP and is activated.

Note: UPnP must be enabled on your computer.

Please follow the procedure to activate UPnP:

1. Open the Control Panel from the Start Menu

2. Select Add/Remove Programs

3. Select Add/Remove Windows Components and open
Networking Services section

4. Click Details and select UPnP to setup the service

5. The IP device icon will be added to “My Network Places”

36/75

6. User may double click the IP device icon to access IE browser

e. RTSP setting

1. RTSP Server: enable or disable

2. RTSP Port: setup port for RTSP transmitting (Default: 554)

3. RTP Start and End Port: in RTSP mode, you may use TCP
and UDP for connecting. TCP connection uses RTSP Port
(554). UDP connection uses RTP Start and End Port.

ii、 Advanced:

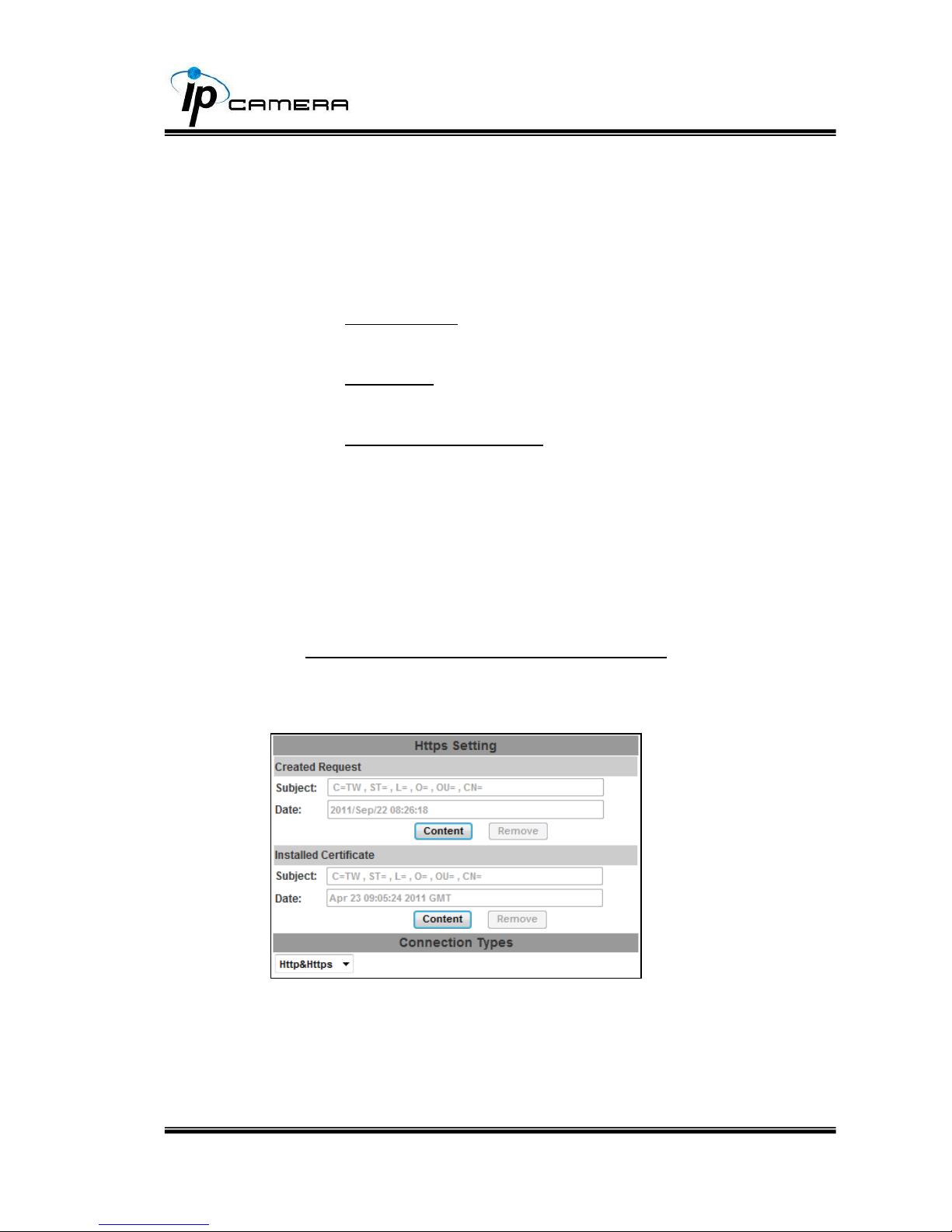

a. Https (Hypertext Transfer Protocol Secure): Https can help to

protect streaming data transmission on a higher security level.

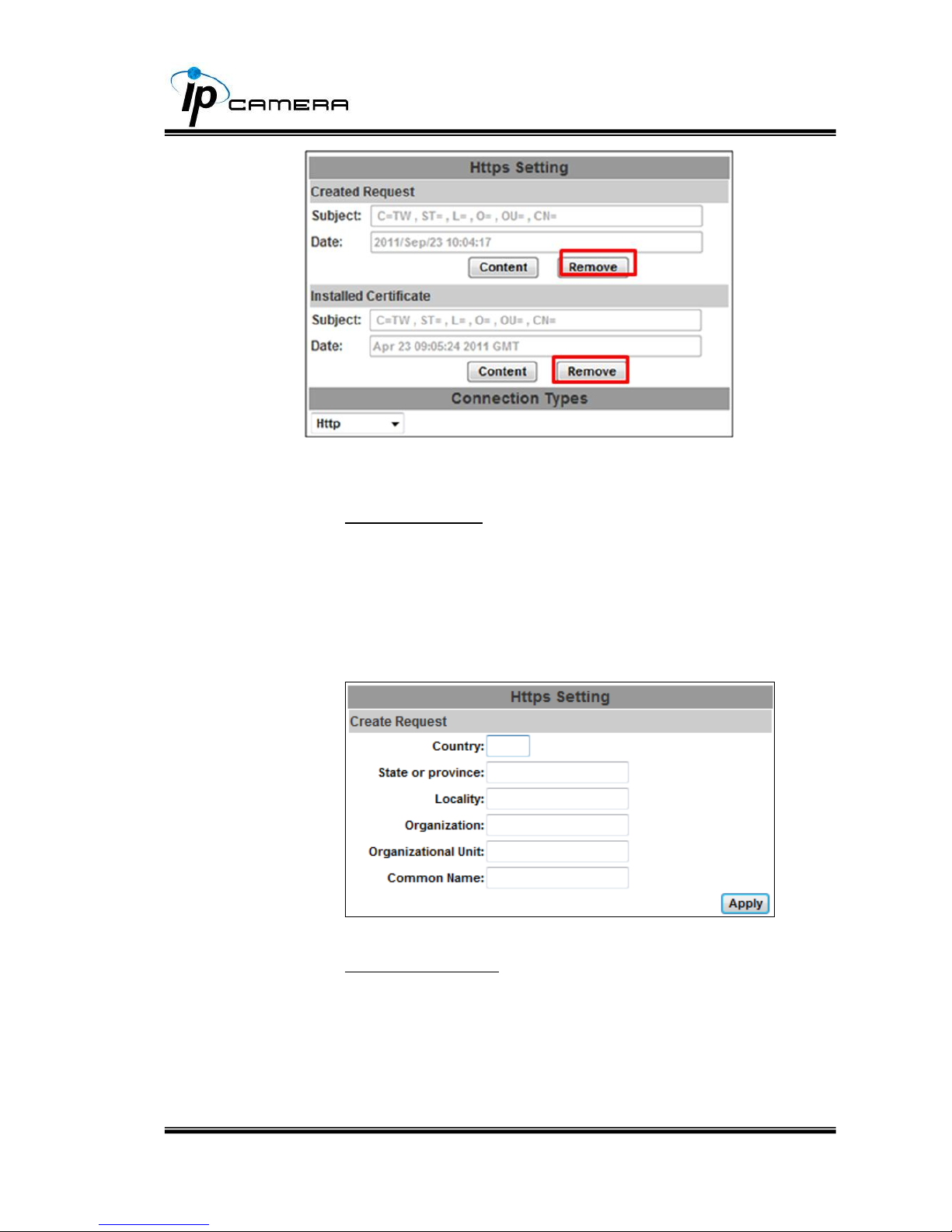

Https setting: Before setting a new request, please remove the old
security identification at the Http connection type.

37/75

1. Created Request: remove the security identification in Created
request mode. A warning message will be shown. Please set
“Yes” to remove the security identification.

2. Setting the security identification and apply it.

3. Installed Certificate: Another warning message will be shown.

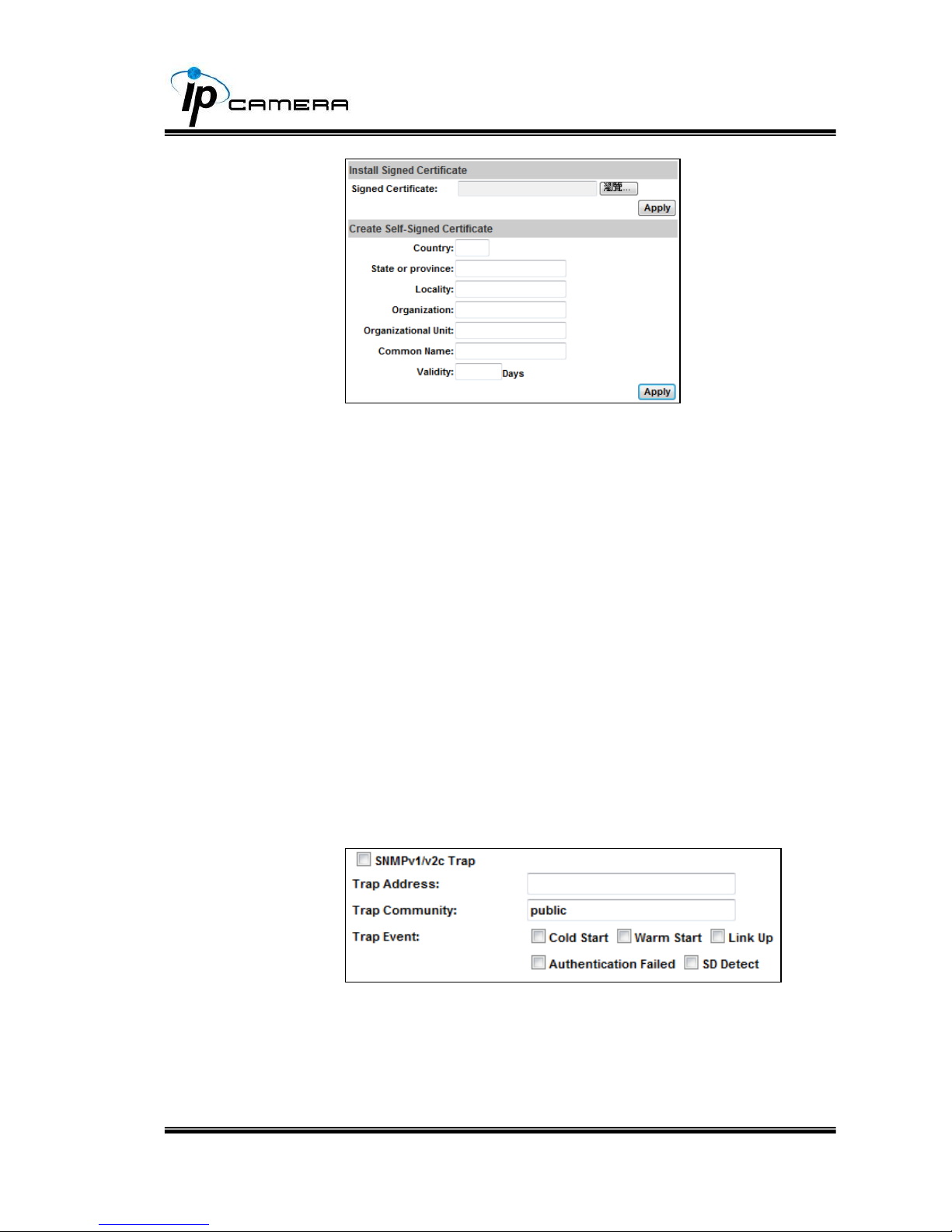

4. There are two ways to set: Install Signed Certificate and
Create Self-Signed Certificate.

38/75

b. SNMP(Simple Network Management Protocol):

1. Enable SNMPv1 or SNMPv2 and write the name of both Write
Community and Read Community.

2. Enable SNMPv3. Set Security Name, Authentication Type,
Authentication Password, Encryption Type, Encryption
Password of Write mode and Read mode.

3. Enable SNMPv1/SNMPv2 Trap for detecting the Trap server.
Please set what event needs to be detected.

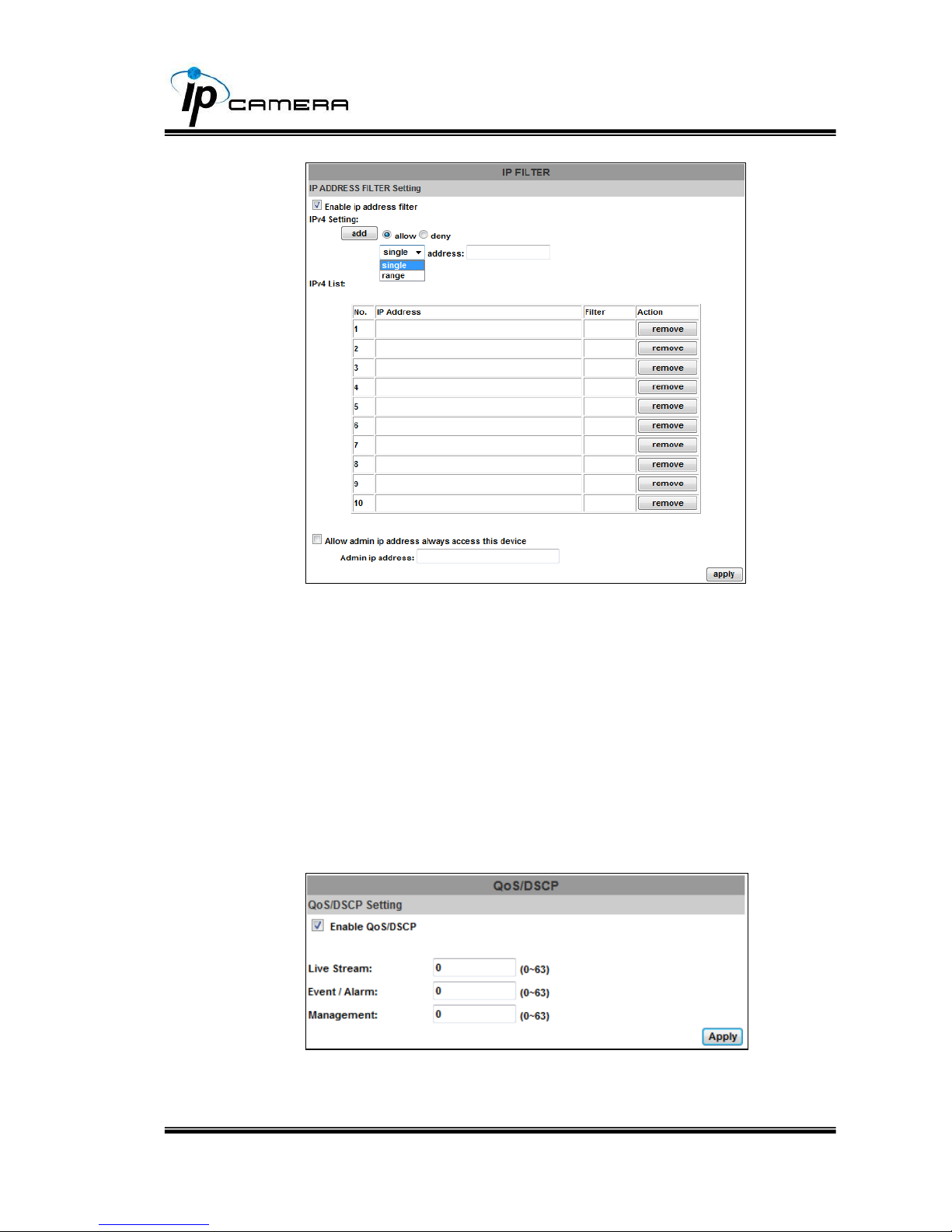

c. Access list:”Enable IP address filter” for setting the IP address

which allows or denies the IP Camera. There are two options, single
IP and range of IPs.

39/75

d. QoS/DSCP(Quality of Server/Differentiated Services Code-point):

DSCP specifies a simple mechanism for classifying and managing
network traffic and provide QoS on IP networks. DSCP is a 6-bit in
the IP header for packet classification purpose. Please define it for
Live Stream, Event / Alarm and Management.

40/75

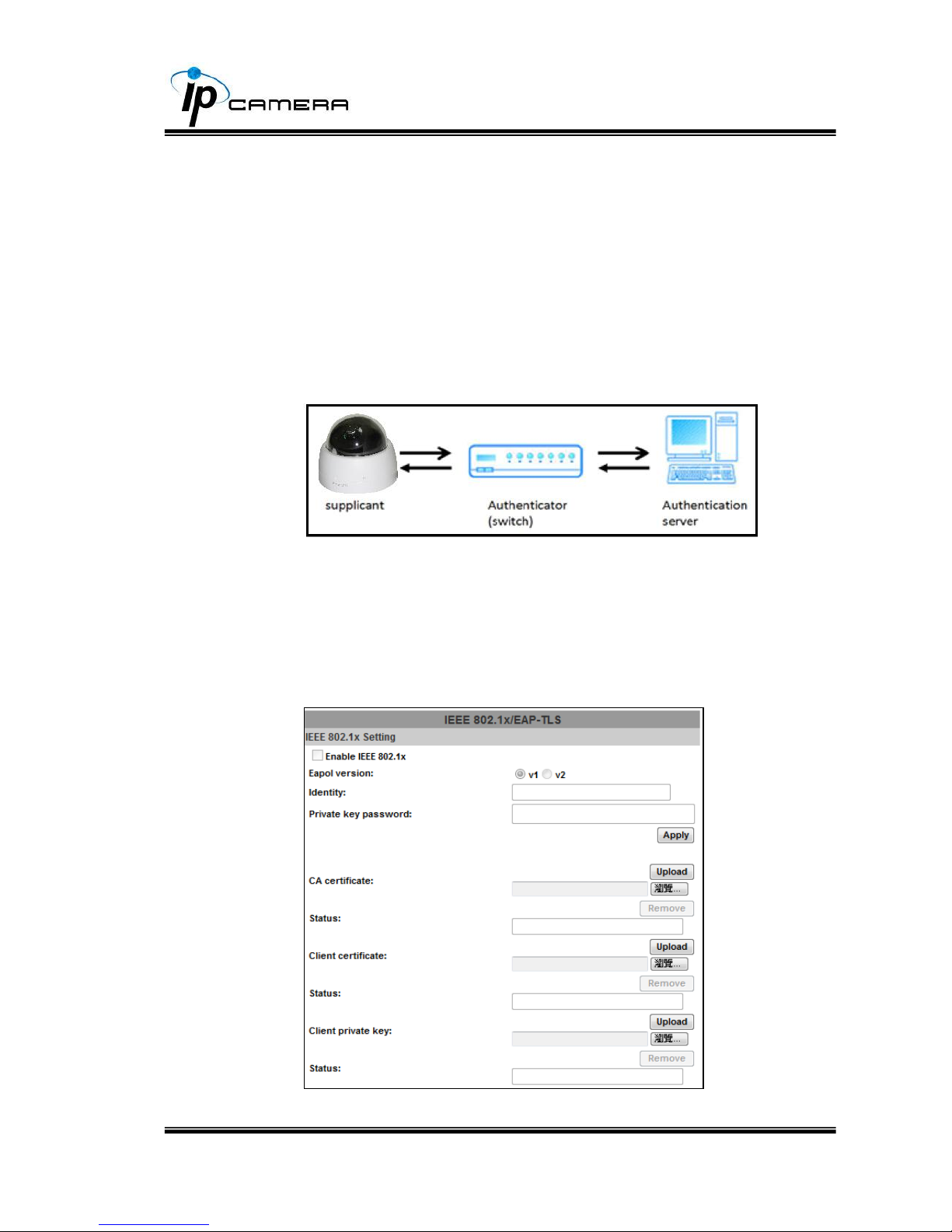

e. IEEE 802.1x:

IEEE 802.1x is an IEEE standard for port-based Network Access
Control. It provides an authentication mechanism to a device on a
LAN or WLAN.

The EAPOL protocol support service identification and optional
point to point encryption over the local LAN segment.

Please check what version of the authenticator and authentication
server is supported. This camera supports EAP-TLS method. Enter
the ID and password issued by the CA and then upload the related
certificates.

41/75

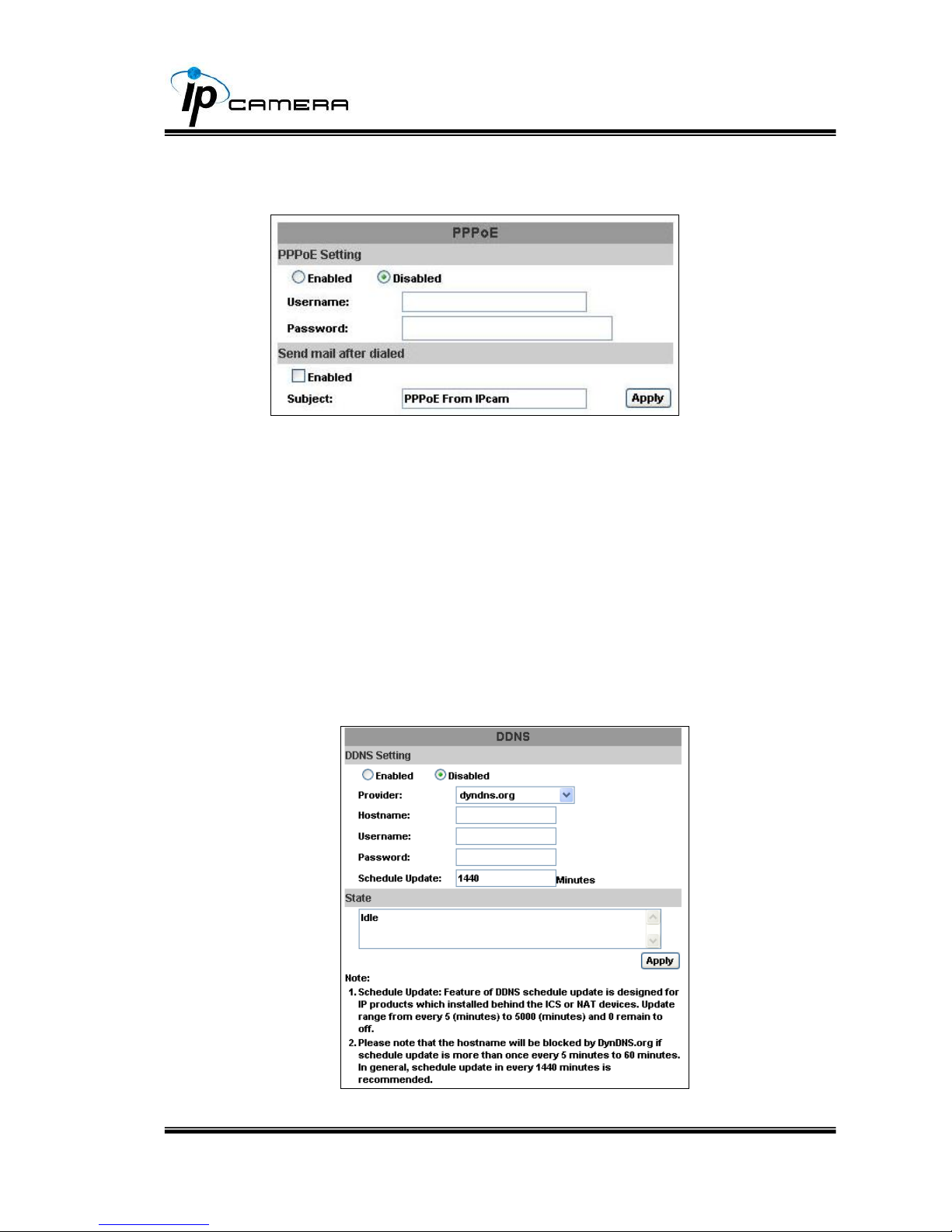

iii、 PPPoE & DDNS:

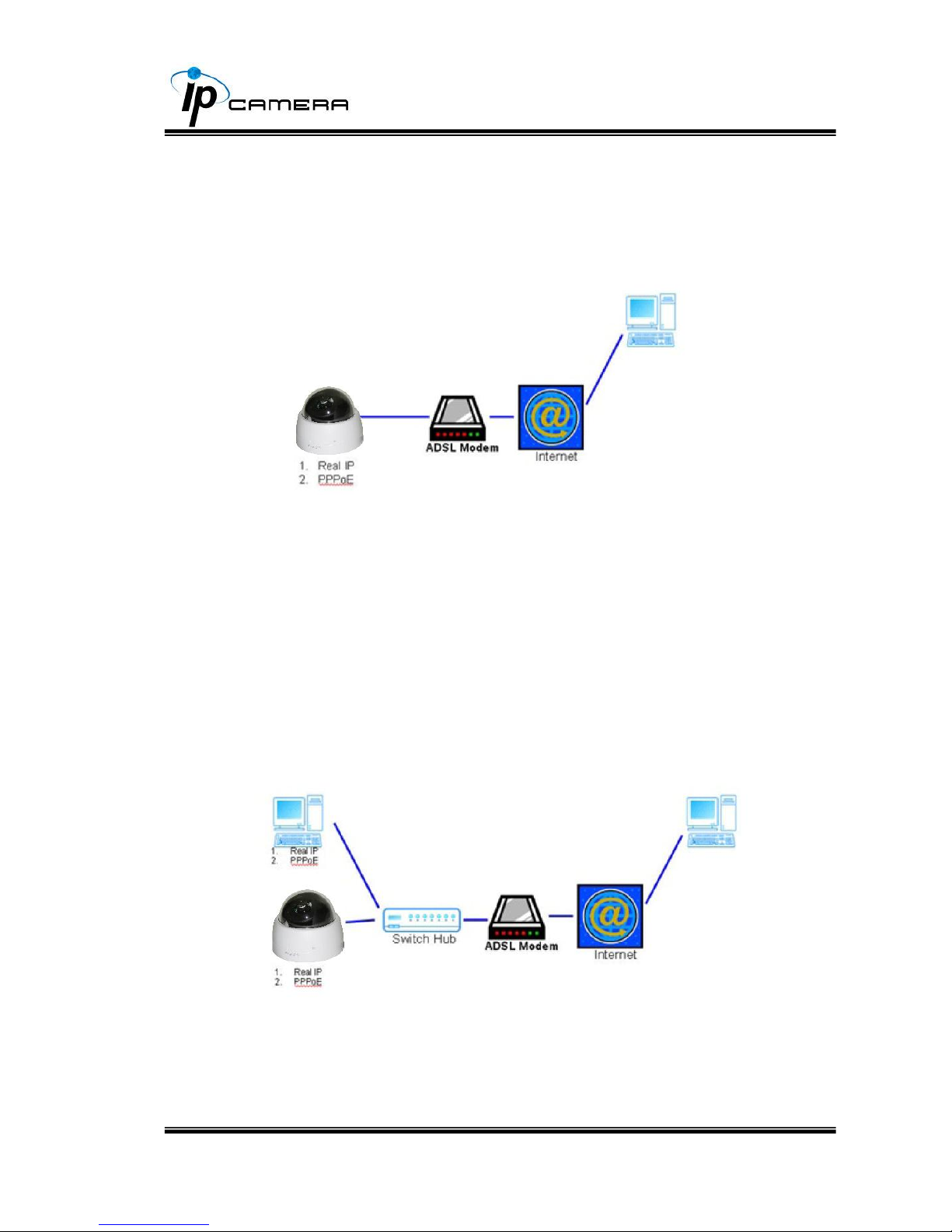

a. PPPoE: Select “Enabled” to use PPPoE. Key-in Username and
password for ADSL connection. Send mail after dialed: When it
connects to the internet it will send a mail to a specific mail account.

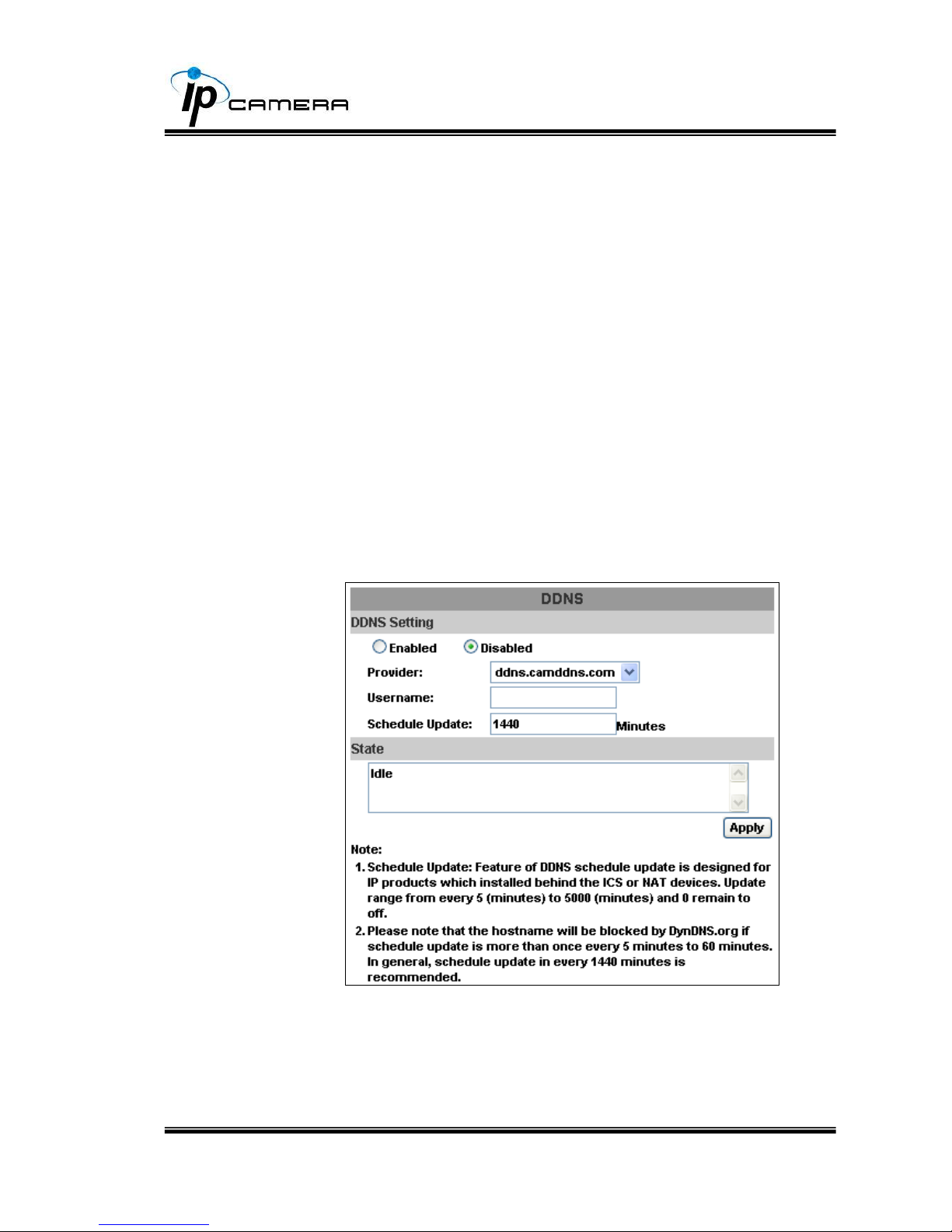

b. DDNS:

It supports DDNS (Dynamic DNS) service.

1. DynDNS:

42/75

(1) Enable this service

(2) Key-in the DynDNS server name, user name, and

password.

(3) Set up the IP Schedule update refreshing rate.

(4) Click “Apply”
(5) If the schedule update is too frequently, the IP may be

blocked. In general, an update every day (1440 minutes) is
recommended

2. Camddns service:

1. Please enable this service

2. Key-in user name.

43/75

3. The IP schedule update default is 5 minutes

4. Click “Apply”.

3. DDNS Status

(1) Updating: Information update

(2) Idle: Stop service

(3) DDNS registration successful, can now log by

http://<username>.ddns.camddns.com: Register

successfully.

(4) Update Failed, the name is already registered: The user

name has already been used. Please change it.

(5) Update Failed; please check your internet connection:

Network connection failed.

(6) Update Failed, please check the account information you

provided: The server, user name, and password may be
wrong.

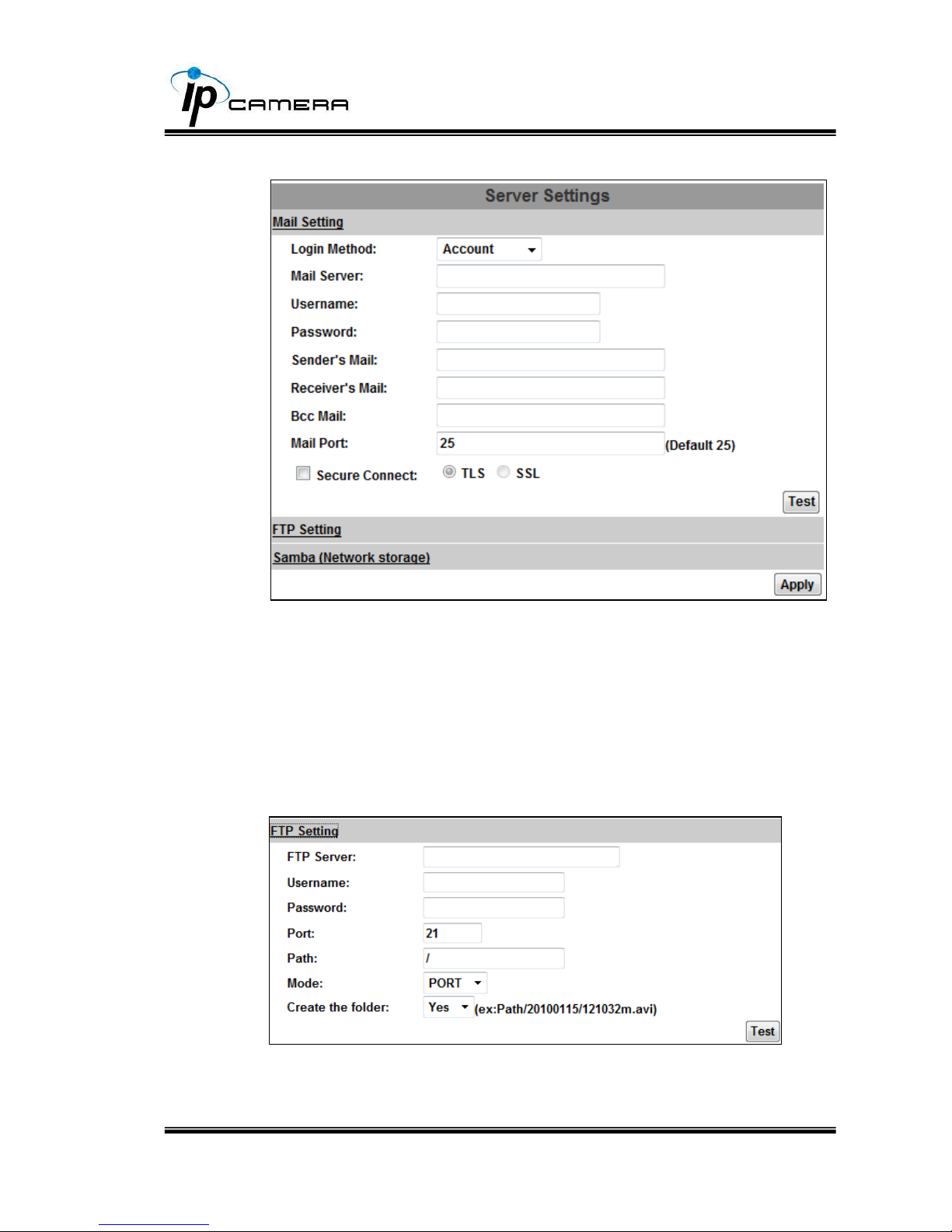

iv, Server settings

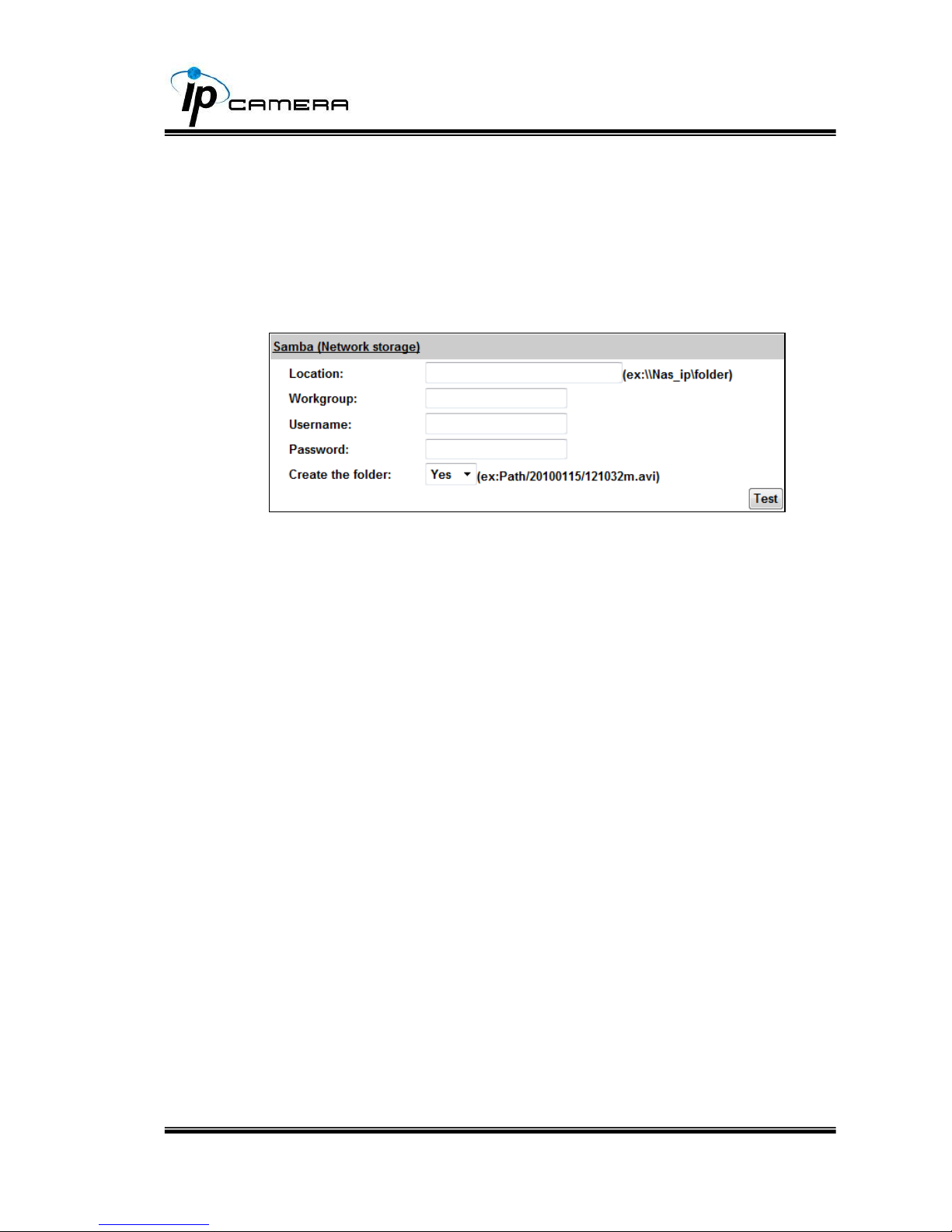

There are three choices of server: Email, FTP and SAMBA. Select the
item for displaying detailed configuration options. You can configure
either one or all of them.

To send out the video via mail of FTP, please set up the configuration
first.

44/75

FTP

To send out the video via mail of FTP, please set up the configuration
first.

45/75

Samba

Select this option to send the media files via a neighbor network when
an event is triggered

46/75

C. A/V Setting

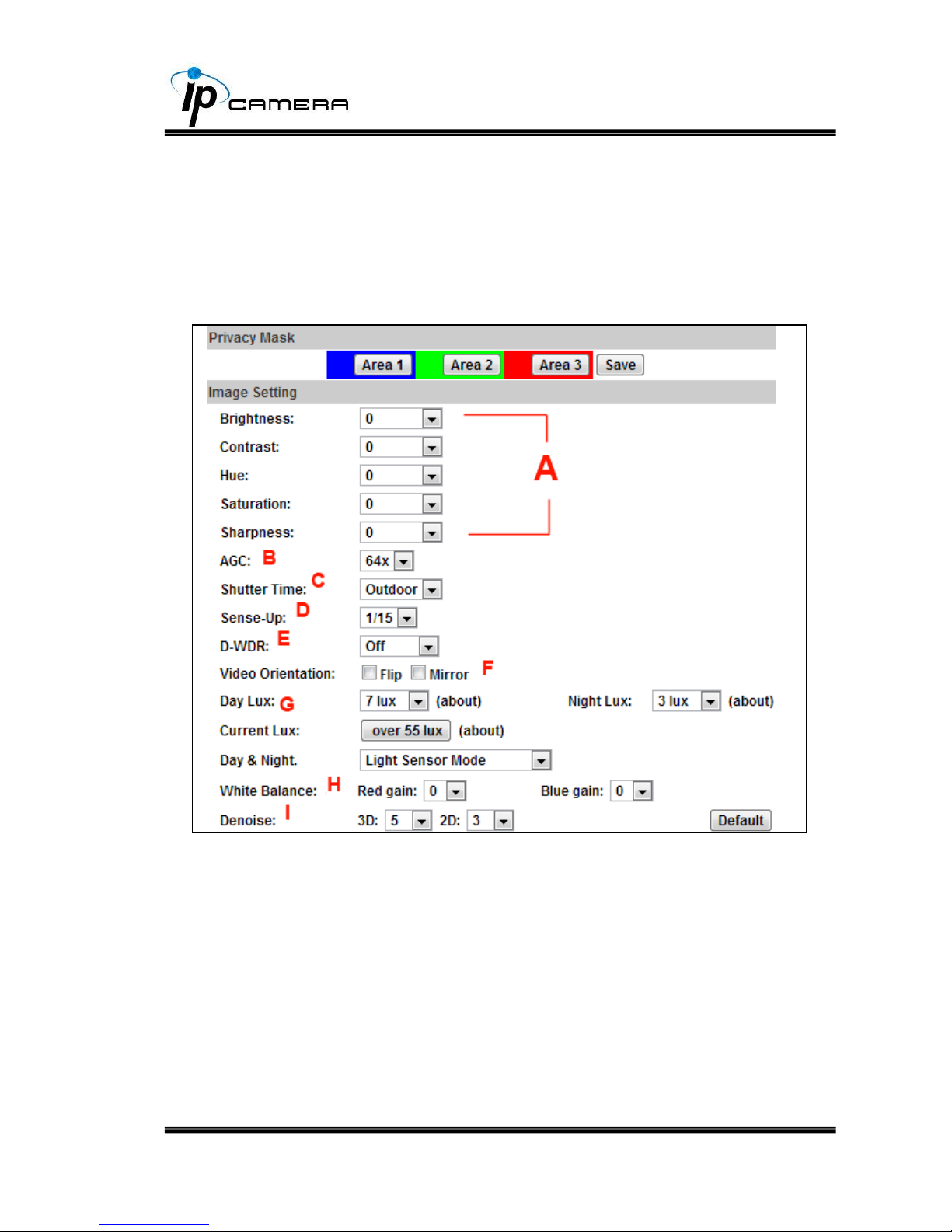

1. Image Setting

For security and privacy purposes, there are three areas that can be
set up for privacy. Click the Area button first, then drag an area on the
above image. Remember to save your settings. The masked area will
not shown on both live view and recording image.

Please refer to the details below for image settings:

47/75

a. Brightness, Contrast, Hue, Saturation, Sharpness can be adjusted
here.

b. AGC: The sensitivity of the camera can adjust to the environmental
lighting. Enable this function for getting brighter image on low light, but
the level of noise may also increase.

c. Shutter Time: Choose the location of your camera or fixed shutter time.
The shorter the shutter time is the less light the camera receives and the
image becomes darker.

d. Sense-Up: This function increases the sensitivity of camera to get
brighter image at night. The smaller the value you select, the slower the
shutter speed becomes so that the image will get brighter, and moving
subjects might be blurred.

e. D-WDR: This function enables the camera to reduce the contrast in the
view to avoid the dark zones resulting from over and under exposure. If
the Input resolution is 30fps, the default value is fixed on ENABLED.

If the D-WDR is enables. The values for bright, dark and contrast can be
adjusted.

f. Video Orientation: Flip or mirror the image.

g. Day & Night: The camera can detect the light level of the environment. If
you choose "Light Sensor Mode", the image will be turned black and white
at night in order to keep a clear image. To set light sensor mode, appoint a
lux standard of switching D/N. Current lux value is provided for reference.

48/75

Under "Times Mode" the switch time of Color / Black and white will be
according to the given time. You can also control it by choosing "Color" or
"B/W”.

h. White Balance: Adjust red / blue gain

i. Denoise: This function is able to filter the noise and blur from the image
and show a clearer view.

3D denoise analyzes successive pictures to detect the noise places while.
2D denoise analyzes only single picture.

Note: When you select a number in "Shutter Time", actually the shutter
time varies in a range and controlled by camera automatically. Following
table shows the shutter time option and corresponding range

Option

Shutter Time Range (sec.)

Outdoor

1/10000 ~ Selected number in "Sense-up"

Indoor

NTSC: 1/120 ~ Selected number in "Sense-up"
PAL: 1/100 ~ Selected number in "Sense-up"

1/30

1/10000 ~ 1/30

1/50

1/10000 ~ 1/50

1/60

1/10000 ~ 1/60

1/100

1/10000 ~ 1/100

1/125

1/10000 ~ 1/125

1/250

1/10000 ~ 1/250

1/500

1/10000 ~ 1/500

1/1000

1/10000 ~ 1/1000

1/10000

1/10000

* Sense-up options: 1/30, 1/15, 1/10, 1/5

49/75

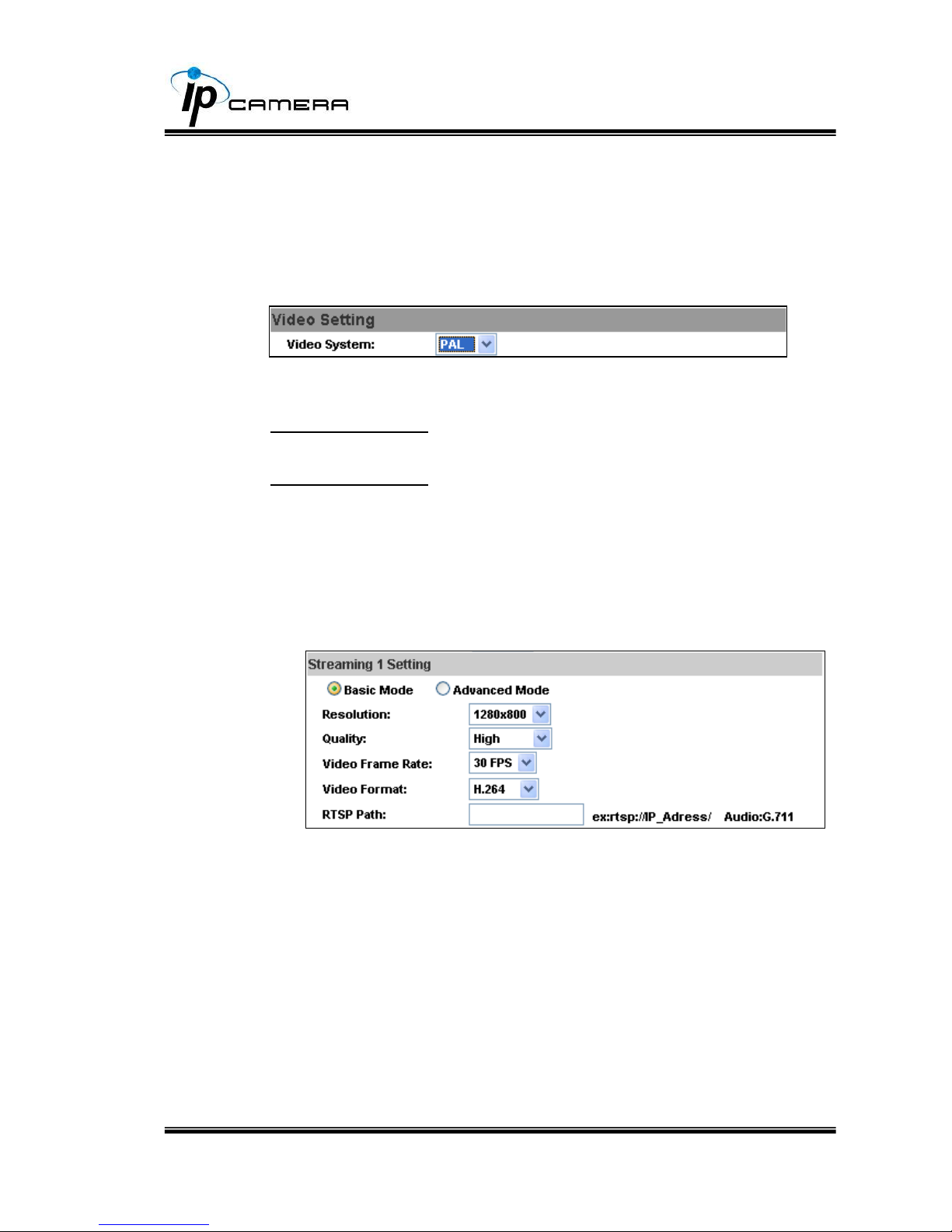

2. Video Setting

User may select the camera system type

Streaming 1 Setting: Basic mode and Advanced mode

Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode

(Max Video Frame Rate for both streaming combined is 30 FPS)

a. Streaming 1& 2 Basic Mode:

1. Resolution:

Stream 1
2592x1944@15fps, 2048x1536@15fps, 1920x1080@30fps,
1280x720@30fps, 640x480@30fps, 320x240@30fps,
176x144@30fps

Stream 2
640x480@30fps, 320x240@30fps, 176x144@30fps

50/75

2. Profile:

Profiles are different compression way of H.264. High profile
provides better coding efficiency. Note that some devices do
not support every profile. For example, iPhone4 only supports
Main profile.

3. Quality:

There are 5 levels:
Best/ High/ Standard/ Medium/ Low

The higher the quality is, the bigger the file size is. Not good for
internet transmission.

4. Video Frame Rate: The video refreshing rate per second.

5. Video Format: H.264, MPEG4 or M-JPEG

6. RTSP Path: RTSP output name

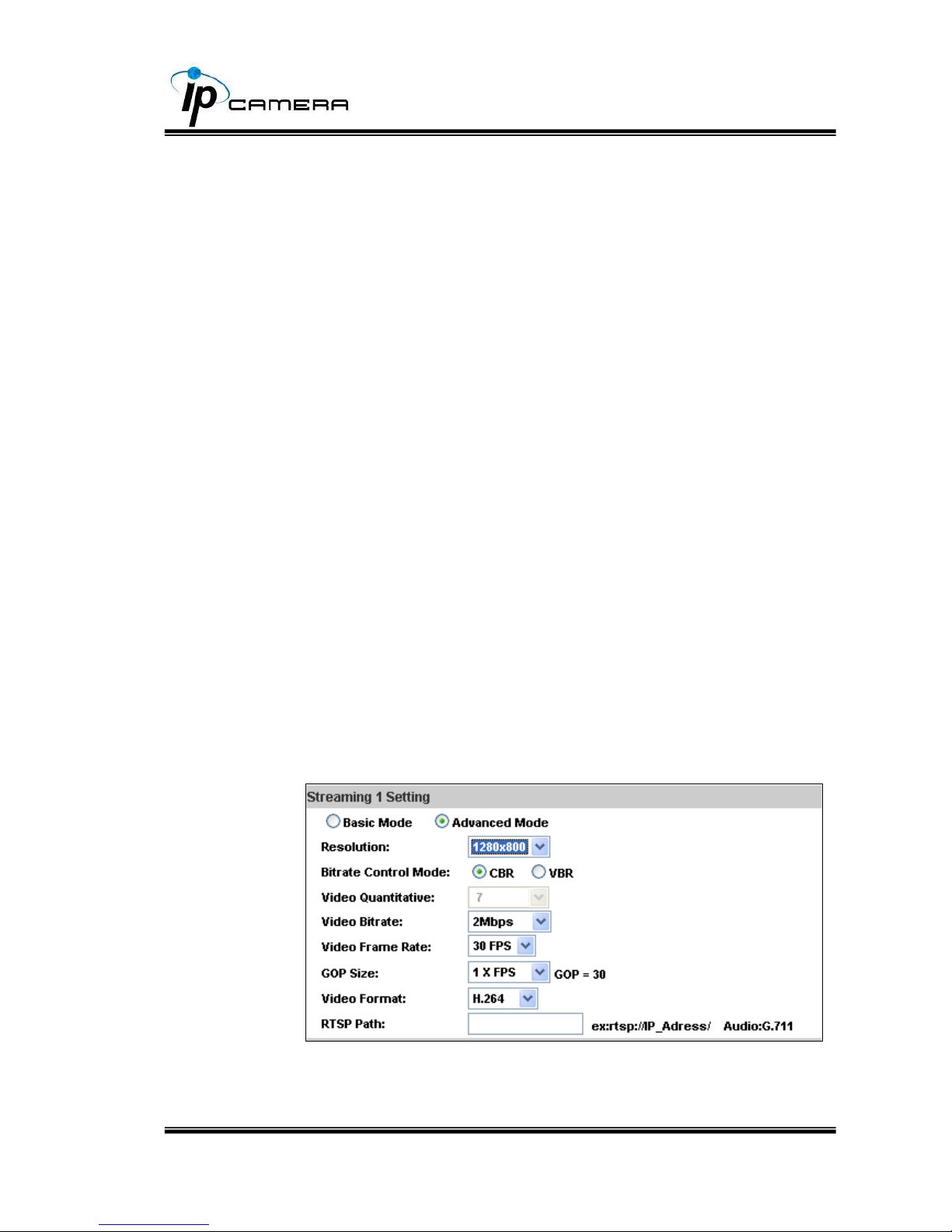

b. Streaming 1 & 2 Advanced Mode:

51/75

1. Resolution:

Stream 1
2592x1944@15fps, 2048x1536@15fps, 1920x1080@30fps,
1280x720@30fps, 640x480@30fps, 320x240@30fps,
176x144@30fps

Stream 2
640x480@30fps, 320x240@30fps, 176x144@30fps

2. Profile:

High profile provides better coding efficiency. Note that some
devices do not support every profile. For example, iPhone4
only sup- ports Main profile.

3. Bitrate Control Mode

There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞

CBR: 32Kbps~8Mbps (the higher the CBR is, the better the
video quality is)

VBR: 1(Low) ~10(High) – Compression rate, the higher the
compression rate, the lower the picture quality is; vise versa.
The balance between VBR and network bandwidth will affect
picture quality. Select the VBR rate to avoid picture breaking up
or lagging.

4. Video Frame Rate
The video refreshing rate per second.

5. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.

6. Video Format: H.264 or JPEG

52/75

7. RTSP Path: RTSP output connecting path

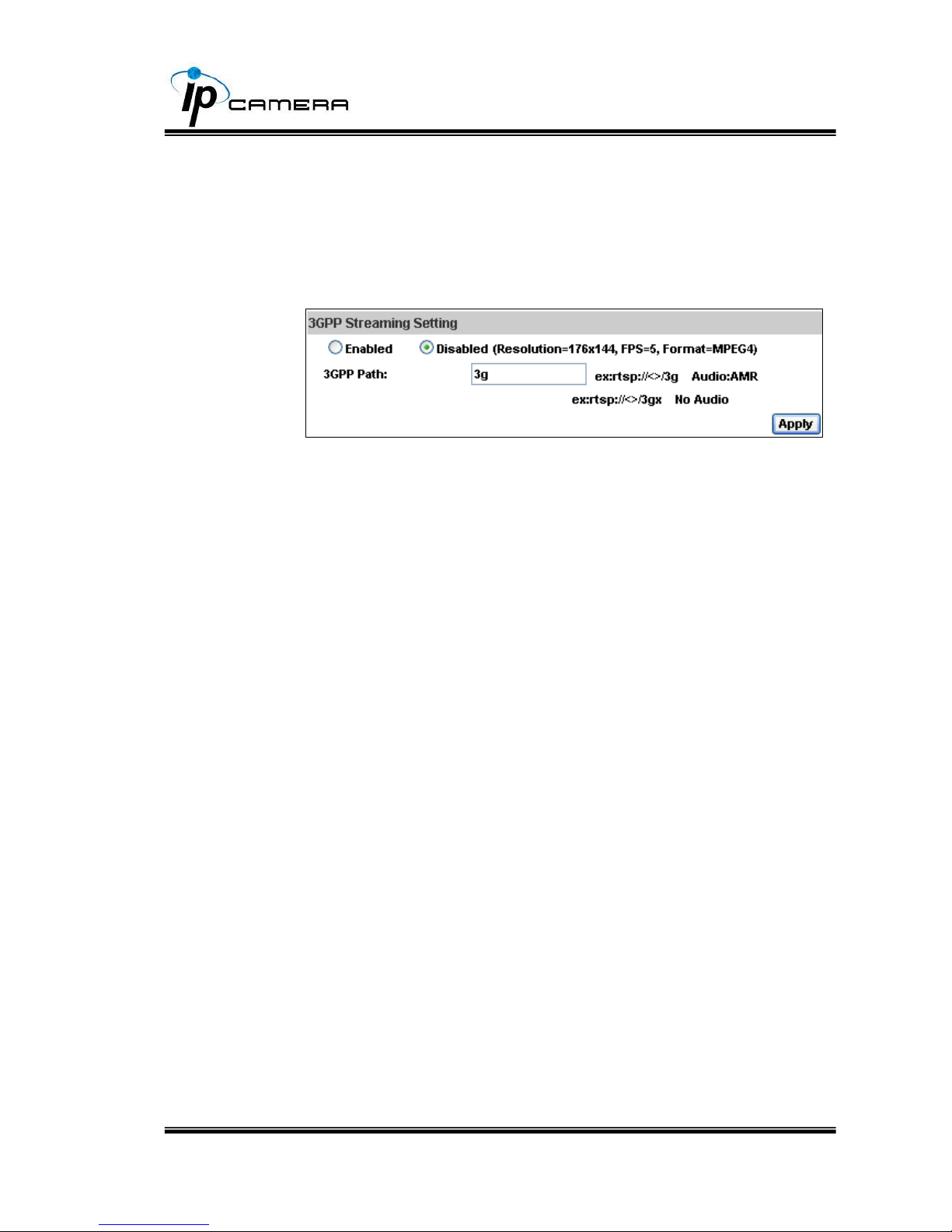

c. 3GPP Streaming mode:

The RTSP here is separated from the RTSP settings in the "IP
SETTINGs".

3GPP Streaming can still work even if you select "disabled" in the
RTSP server option of IP Setting.

1. Enable or Disable 3GPP Streaming

2. 3GPP Path: 3GPP output connecting path. If the IP address of
your camera is 192.168.40.150, and you key-in "3g" in the
column, the 3GPP path will be rtsp://192.168.40.150/3g.

3. Audio

The IP CAMERA supports 2-way audio. The user can send audio from the
IP Camera built-in mic to the remote PC; the user can also send audio
from remote PC to IP Camera’s external speaker.

b. Audio from IP camera built-in mic to local PC: select “Enable” to

start this function and also can select the audio type.

53/75

c. Audio from local PC to IP Camera: Check “chatting” in the browsing

page.

54/75

D. Event List

The IP Cam provides multiple event settings.

1. Event Setting

i. Motion Detection

To enable motion detection, please tick "Area 1/2/3". Click "Area
1/2/3" in Area Setting, and draw an area on the preview screen.
When motion in the area is detected, "Motion!" word will be marked
on the live screen, and the camera will send video or snapshot to
the specific mail addresses, trigger the output device, or save video
to FTP/ Micro SD card/ Samba.

If you select "save to SD card", the video or snapshot will be saved
to Micro SD card. If you also tick E-mail/ FTP/ Samba of "Log"
option, the motion detection log will be sent to E-mail/ FTP/ Samba
simultaneously.

• Interval: If you select "10 sec" here, once the motion is detected

and action is triggered, it cannot be triggered again within 10
seconds.

• Based on the schedule: When the option box is ticked, only during

the selected schedule time the motion detection is enabled.

55/75

ii. Tampering Detection

When the camera view is covered, moved, shot by strong light, or
out of focus, the tampering detection will be triggered, and send
snapshot or video to mail/FTP/Samba/SD card, or trigger the
external alarm. Please select the alarm action.

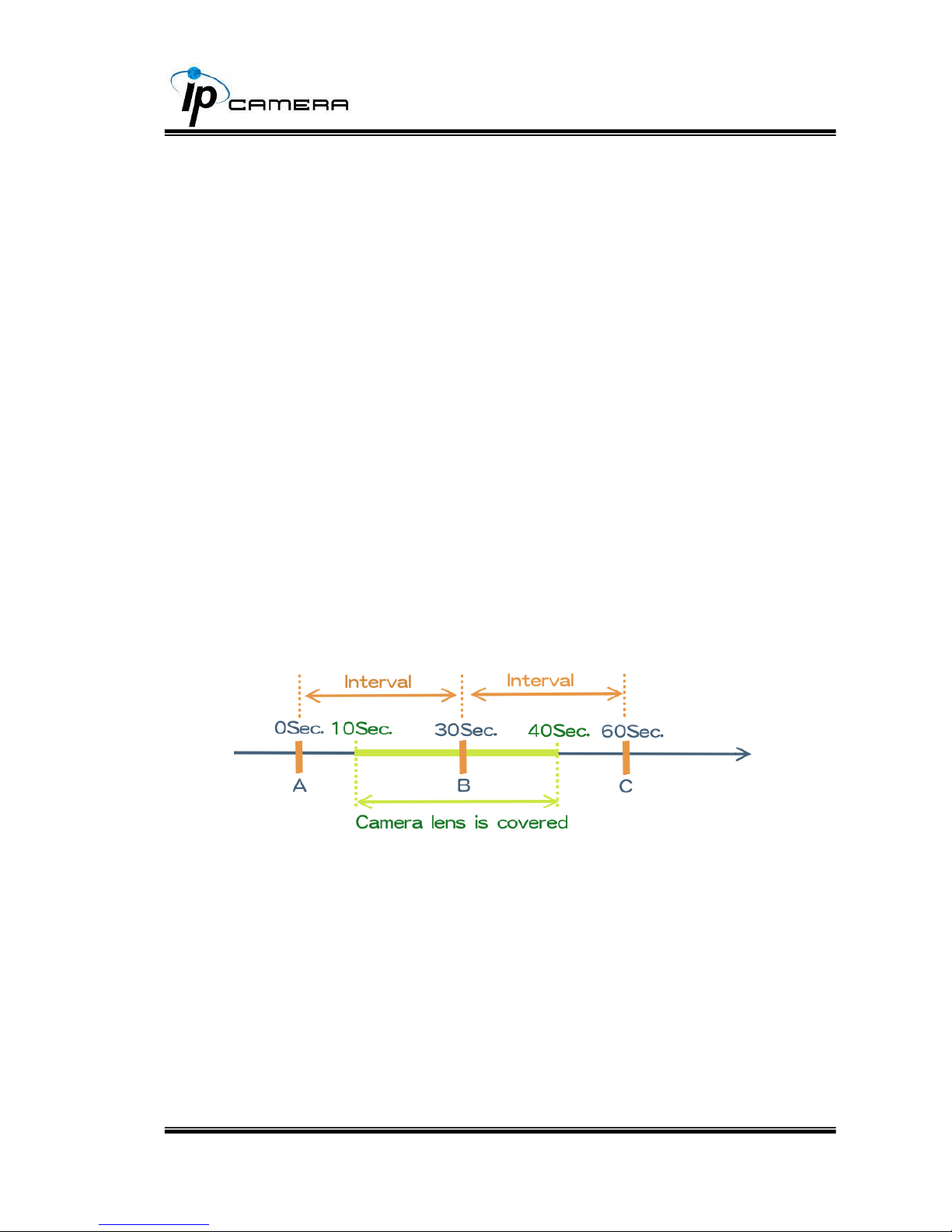

• Interval: The tampering detecting interval. Take the diagram below

as example. By setting the interval on 30 seconds, the camera lens
will be covered during 10- 40 sec. At time point B, the IP camera
compares the view with time point A, and sends an alarm when it
found that the lens is covered. At time point C, the camera
compares the view with time point B, and sends n alarm when it
found that the lens view is being blocked or uncovered.

iii. Record File Setting: The IP Cam allows 3 different types of

recording file to change its record size.

When motion/alarm is triggered, there are 3 different types of
recording mode.

56/75

1. AVI File (With Record File Setting )

2. JPEG Files (With Record File Setting), only with JPEG
compression format.

3. Single JPEG (Single File with Interval Setting)

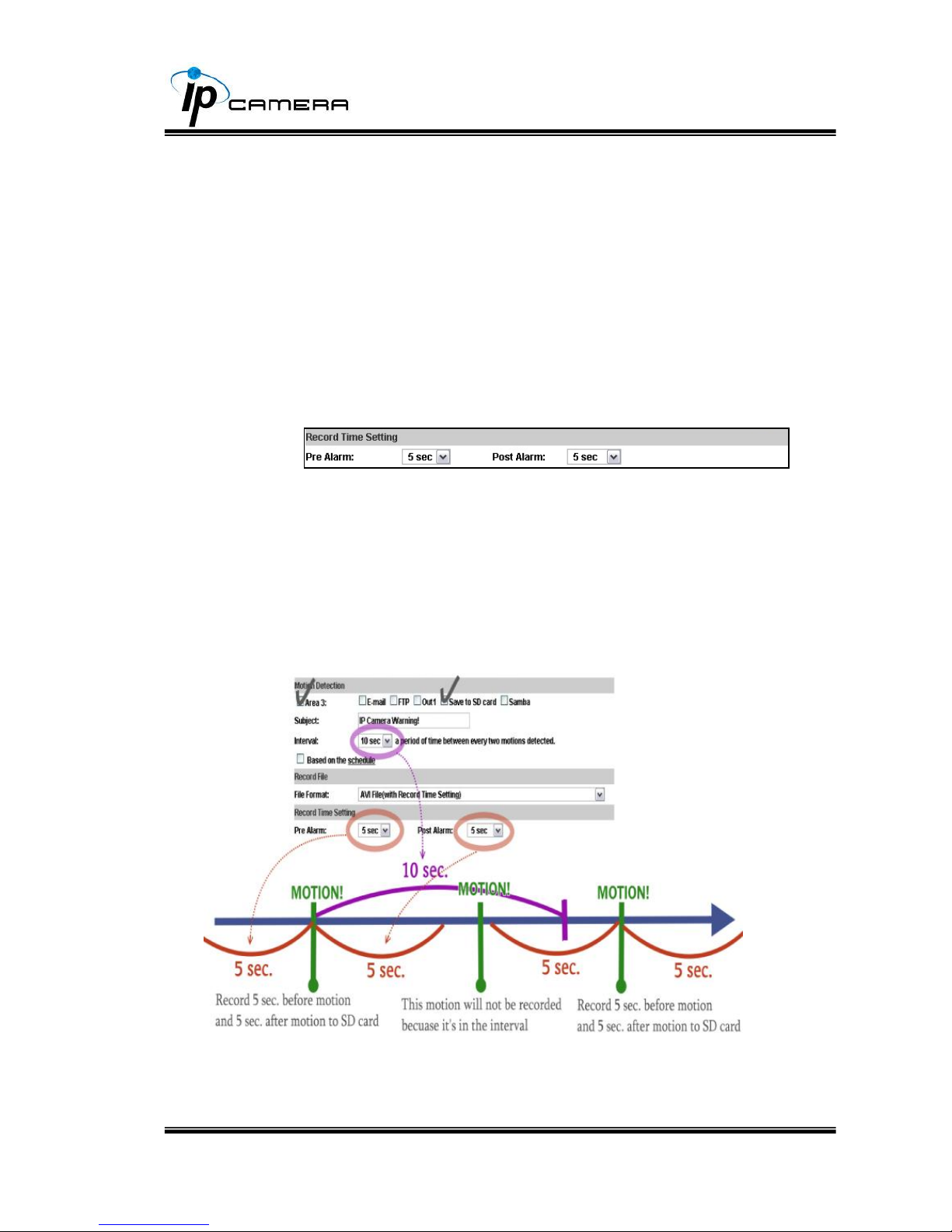

iv. Record Time Setting:

When an event occurs, the IP camera can record a video clip or take a
snapshot, and then send it via mail/ FTP/ Samba. Select the video recording
length before and after the event is detected.

57/75

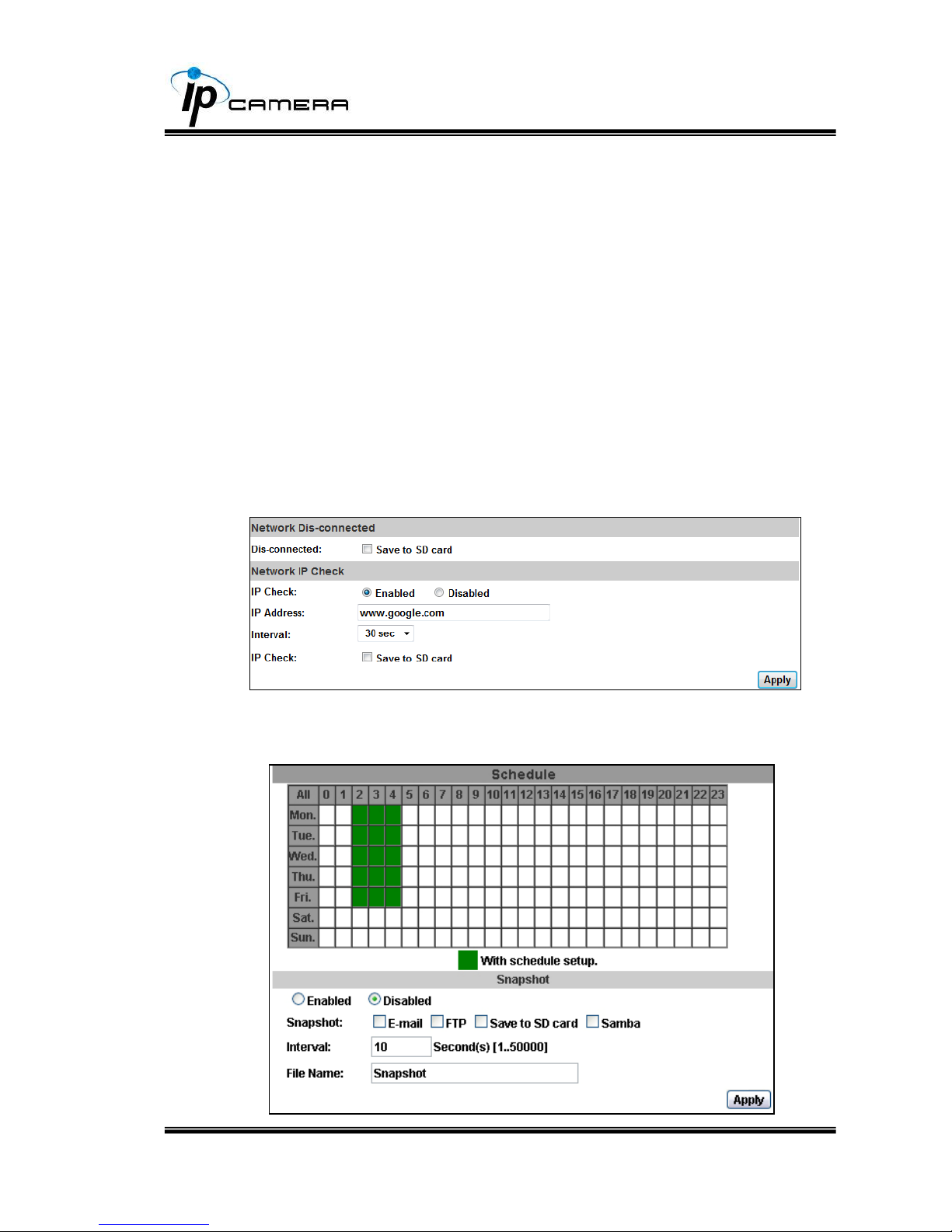

v. Network Dis-connected:

The IP Cam will scan the network. The image will be record to the
SD card after the IP Camera detects network dis-connected, if set
“Save to SD card”.

vi. Network IP check:

After enable IP Check, the IP camera can check if the network
server is connecting. If the IP camera checking failed, the image will
be recorded to the SD card.

2. Schedule

58/75

a. Schedule: After completing the schedule setup, the camera data

will be recorded according to the schedule setup.

b. Snapshot: After enabling the snapshot function; the user can select the

storage position of the snapshot file, the interval time of the snapshot
and the reserved file name of the snapshot.

c. Interval: The interval between two snapshots.

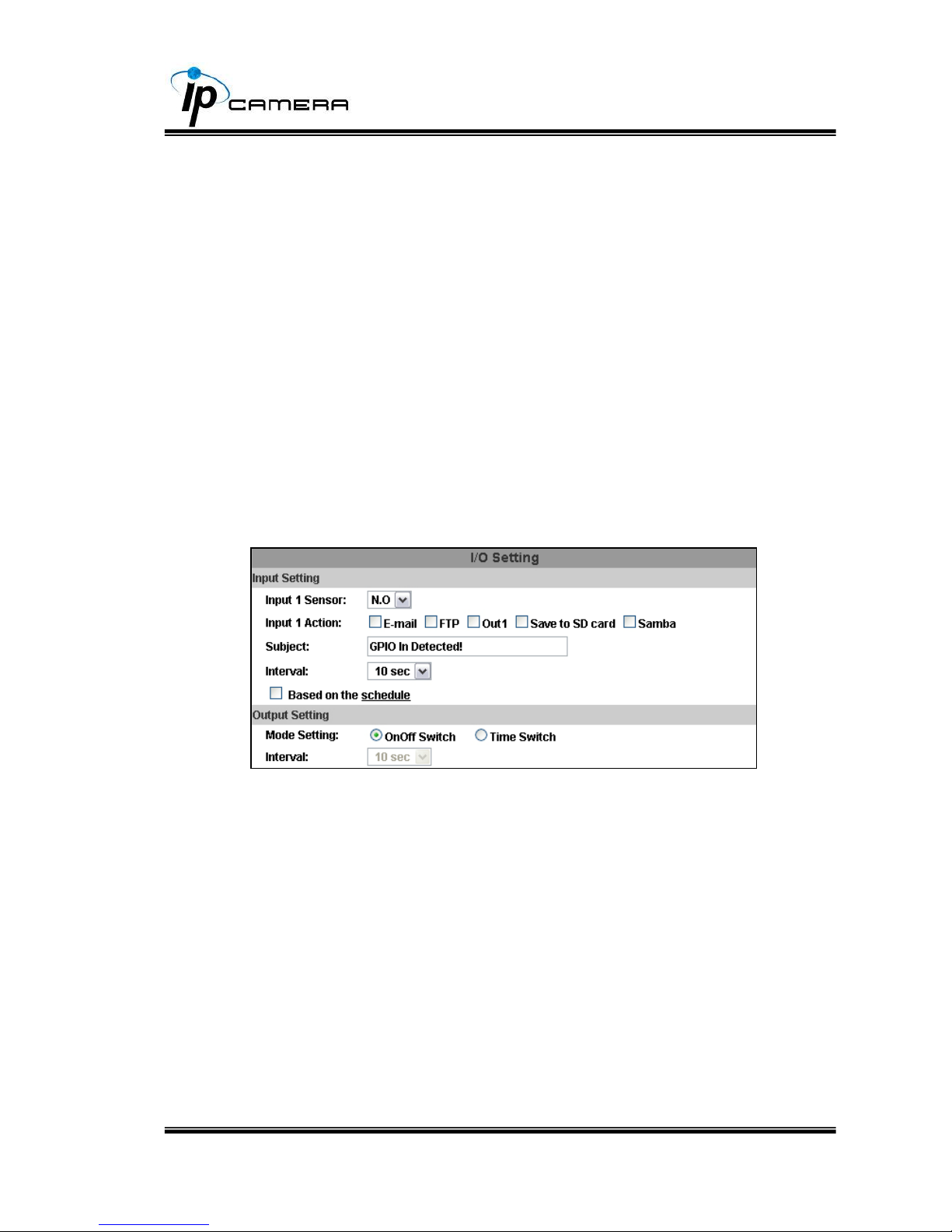

3. I/O Setting

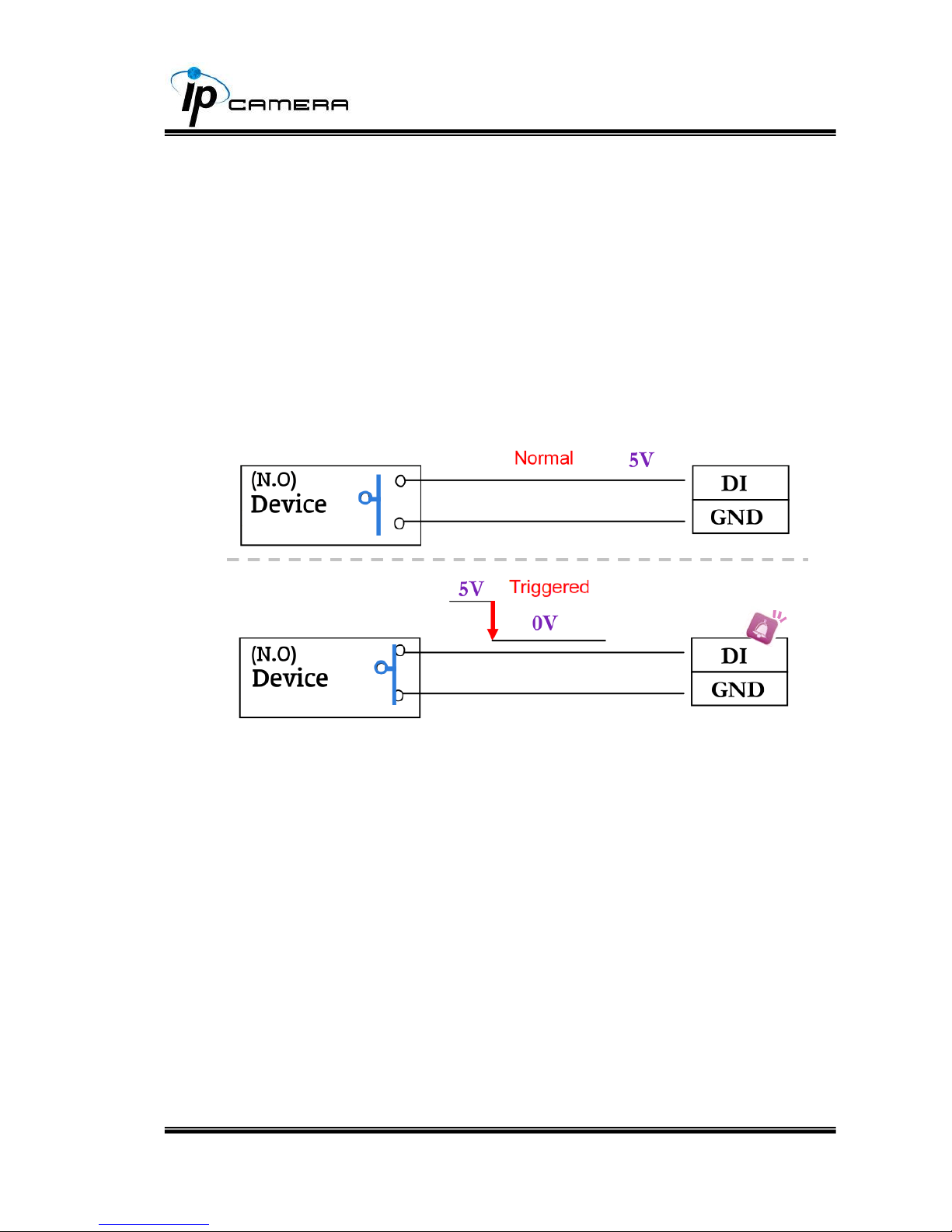

a. Input Setting:

The IP Cam supports input and output. When the input condition is
triggered, it will trigger the relay; and then send the video to mail
addresses /FTP server / SAMBA.

• Interval:

For example, if you select "10 sec" here, once the motion is
detected and the action is triggered, it cannot be triggered again

59/75

within 10 seconds.

• Based on the schedule:

When the option box is ticked, the I/O will be enabled only during
the selected schedule time.

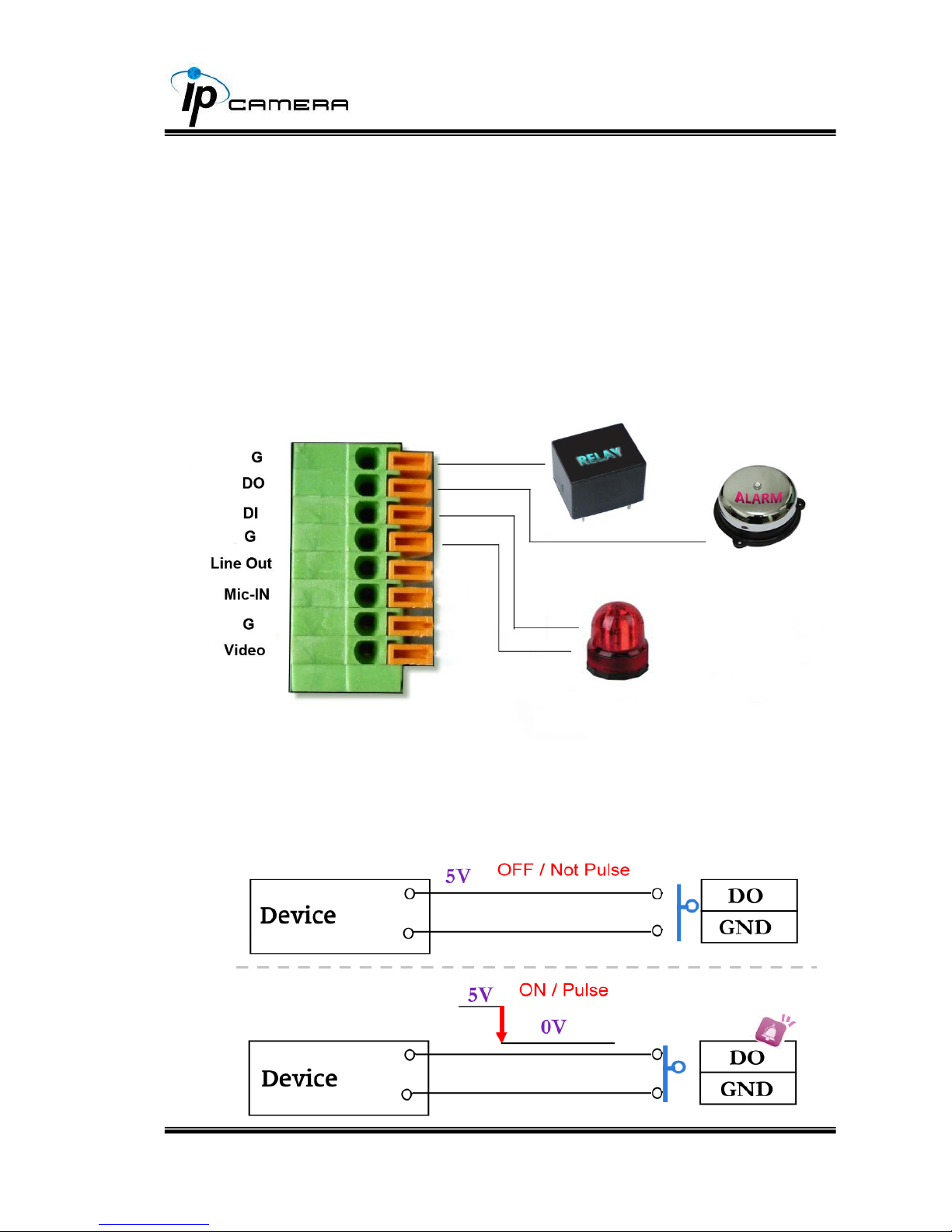

b. Output Setting:

The output mode affects the DO or relay out duration.

(i) ON/Off Switch: The camera triggers the external device for 10
seconds. You can turn off the alarm manually by clicking “off” at
the right bottom of the live video page.

(ii) Time Switch: The camera triggers the external device and lasts for
a certain time according to the internal setting; the user is not allowed
to break off the alarm manually.

60/75

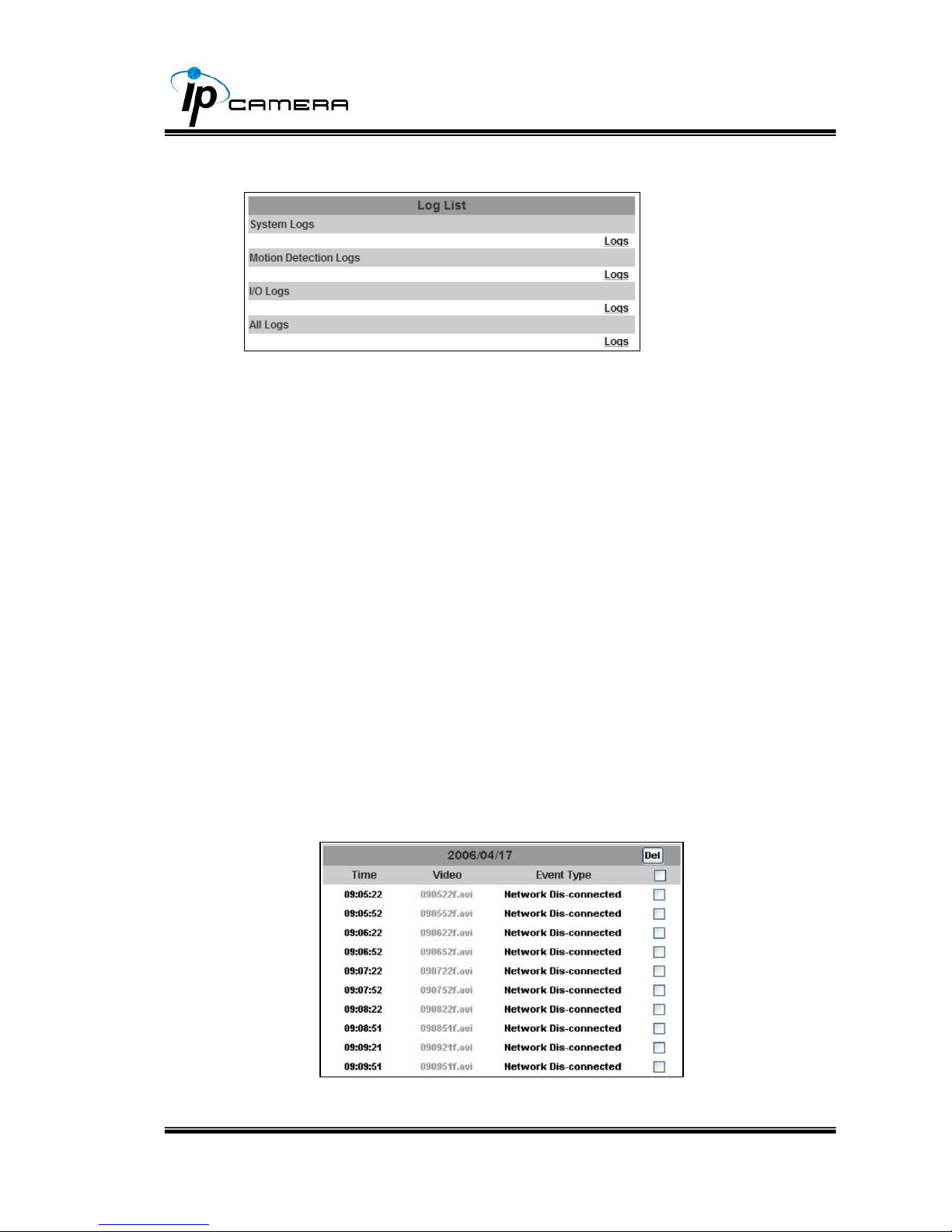

5. Log List

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure.

6. SD card

a. Playback

Please Insert the Micro SD card before use it. Make sure to push the
Micro SD card into the slot completely.

Click the date listed on this page and it shows the list of the video. Th e
video format is AVI. Click the video to start Microsoft Media Player to play it.
To delete the video, check it, and then click "Del".

61/75

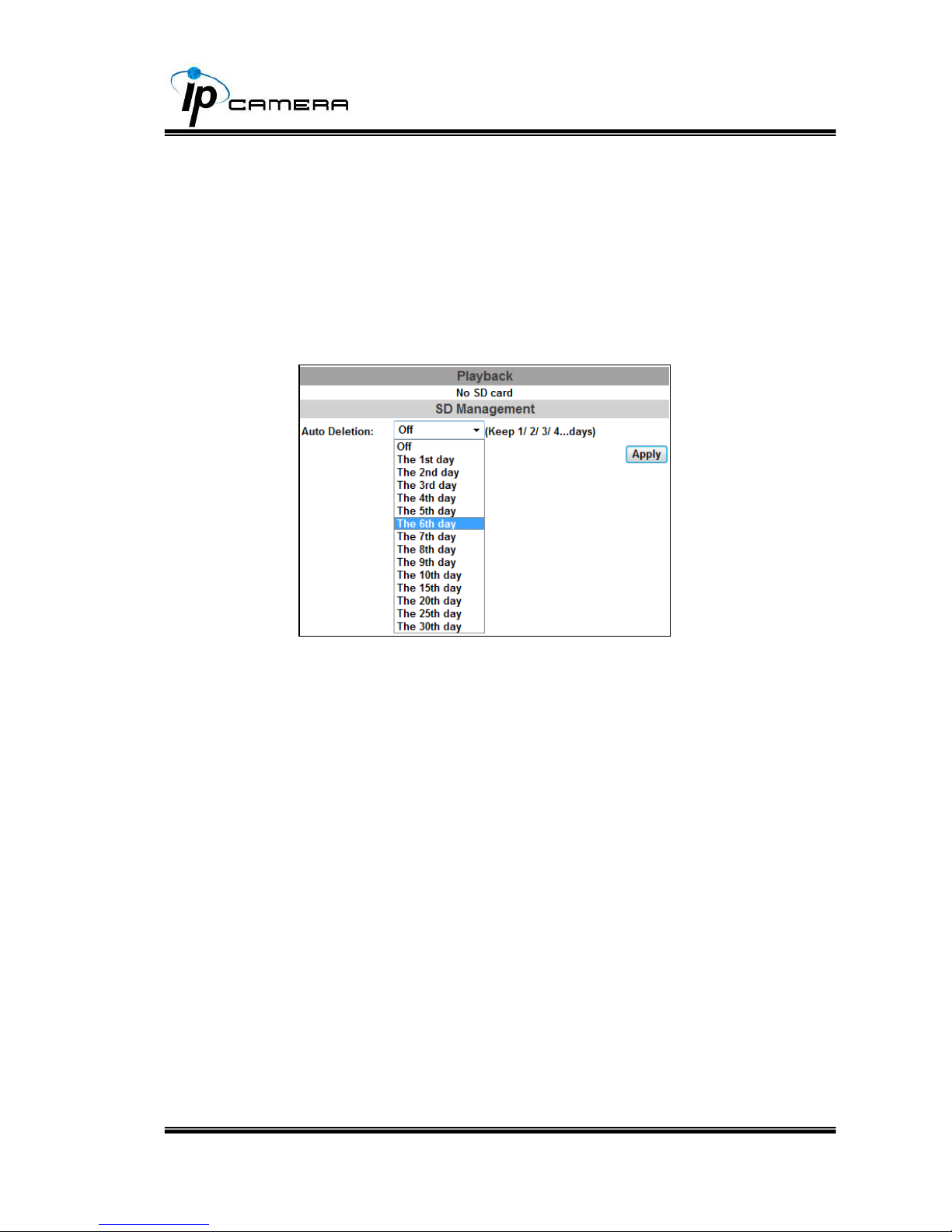

b. SD Management

When choosing “The 1st day “the recoding file will be kept for one
day. The oldest file will be deleted if the Micro SD card is full.

Note：The use of the SD card will slightly affect the operation of the
IP Camera, such as frame rate of the video.

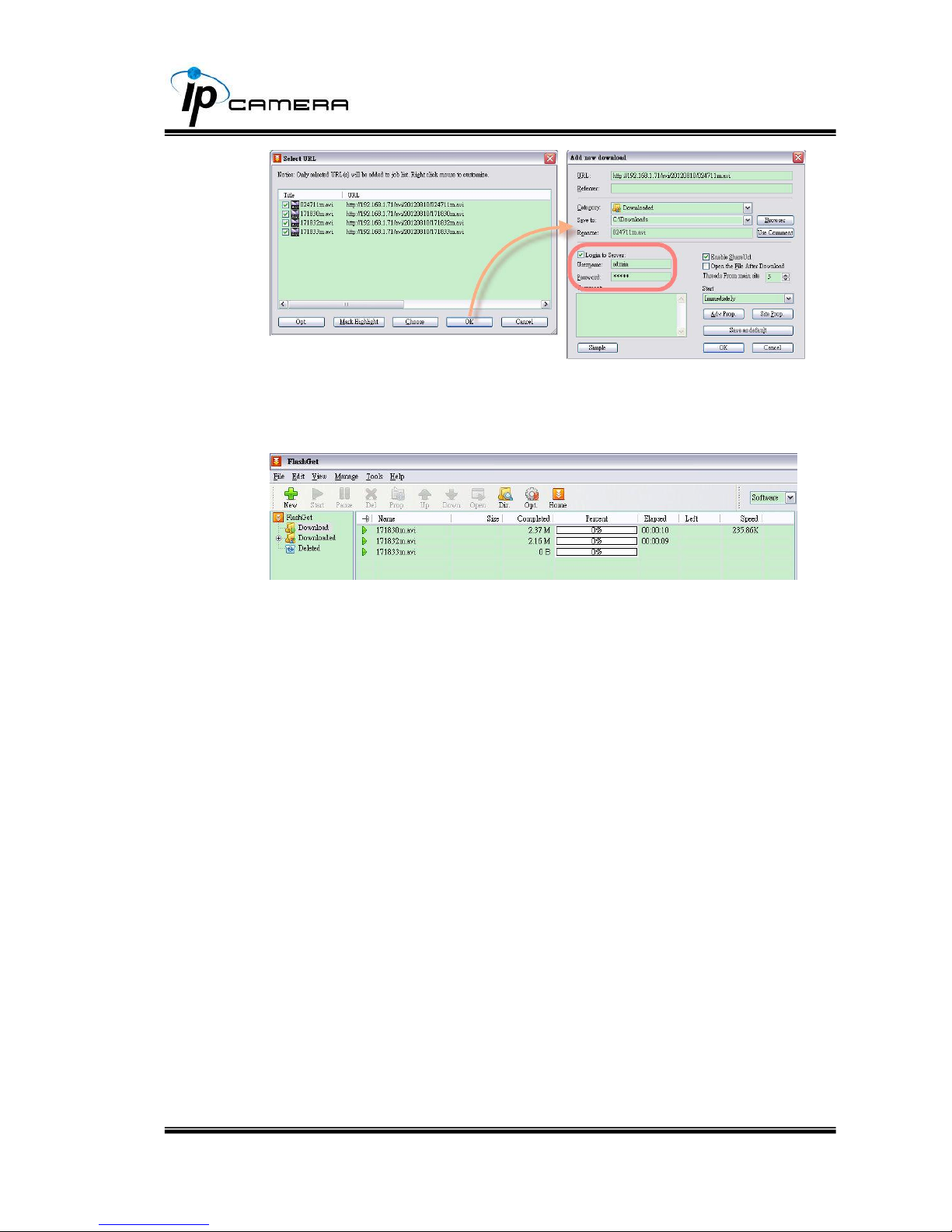

c. Copy to PC

You can insert the Micro SD card to the PC and read the files directly, or
use FlashGet instead to download the files from the IP camera. (In this
way you do not need to pull out the Micro SD card from the camera.)

To use FlashGet for downloading image and video data from the

Micro

SD card, please follow the steps:

62/75

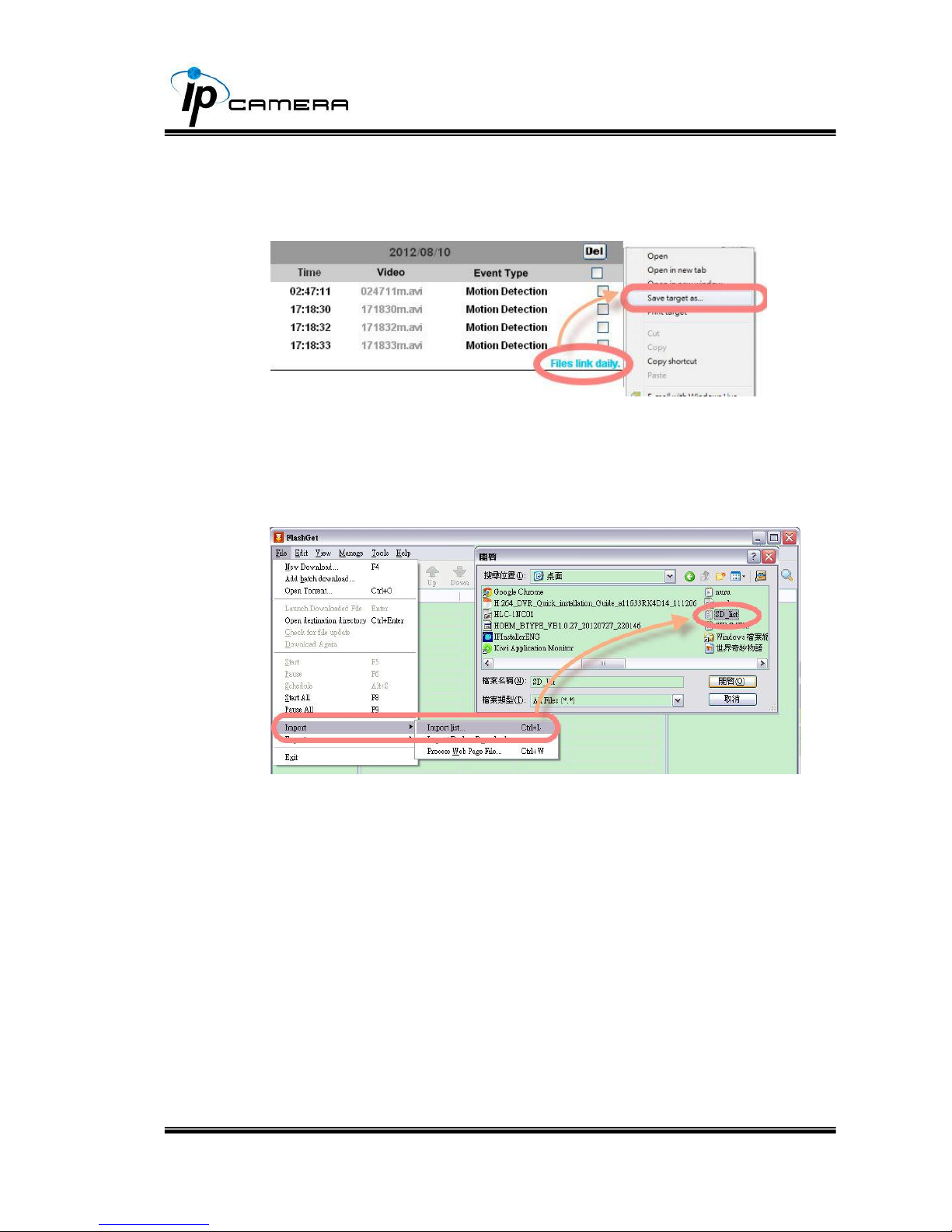

(i) Enter into the data list and right-click “Files link daily”, select “save
target as…” then save the link list to the PC.

(ii) Open FlashGet, select "File" → "Import" → "Import list", and find
the link list file you just saved. The file name may be called “SD_list”.

(iii) FlashGet will show you the link list, and you can tick the files you
want to copy to your PC. Provide the directory path in the new download
window, and remember to enable "Login to Server": Key-in the IP
Camera username and password.

63/75

(iv) Click OK to start download.

• FlashGet is a free software that can be downloaded from
FlashGet official website. The example above is based on
FlashGet ver.1.9.6.

64/75

VI. Network Configuration

i、 Configuration 1:

a. Internet Access: ADSL or Cable Modem
b. IP address: One real IP or one dynamic IP
c. Only the IP CAMERA is connected to the internet
d. For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start

PPPoE.

ii、 Configuration 2：

a. Internet Access: ADSL or Cable Modem
b. IP address: More than one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet

65/75

d. Device needed: Switch Hub
e. For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP,

start PPPoE.

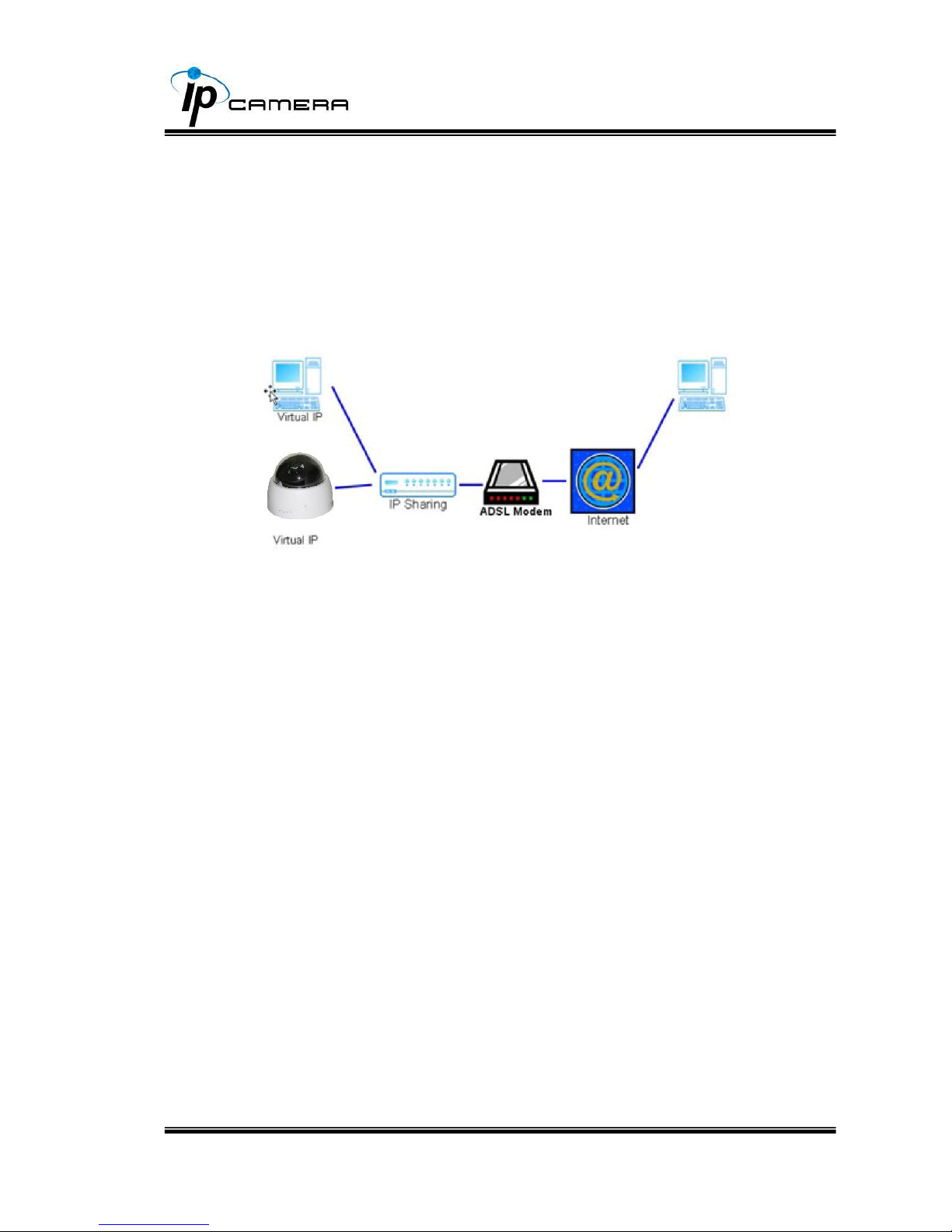

iii、 Configuration 3:

a. Internet Access: ADSL or Cable Modem
b. IP address: one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet
d. Device needed: IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.

66/75

VII. I/O Configuration

1. I/O Connection

a. Please connect the GND & DO pin to the external relay (buzzer) device.

Please connect the GND & DI pin to the external trigger device.

When no event occurs, DO output is 5V (DO and GND are disconnected).
When the camera detects event triggers the external alarm, DO output is
0V (DO and GND are connected).

67/75

If you select "N.O" in "Input sensor setting", when the device or circuit
makes DI and GND pin connected, the camera input alarm is triggered,
and executes the action user has set, for example, send snapshot to
E-mail address.

If you select "N.C" in "Input sensor setting", when the external device or
circuit makes DI and GND pin disconnected, the camera input alarm is
triggered, and executes the action user has set, for example, send
snapshot to E-mail address.

b. I/O PIN definition

• G (Ground): Initial state is LOW

• DO (Digital Output): DC 5V

• DI (Digital Input): Max. 50mA, DC 5V

2. I/O Setup

a. Click I/O Setting from the system setup page via IE, and check

“Out1” to enable I/O signal.

68/75

b.

Output Test

After the external input and output hardware is installed, you can use
the "Relay Out" bottom on the live video page to test if DO / Relay Out
works.

(i) On Off Switch mode:

Clicking "ON" will trigger the external output device for 10
seconds. For example, your alarm buzzer will
continuously ring for 10 seconds. After 10 seconds the
buzzer stops ringing, or you can

manually break off the

output signal by clicking "OFF".

69/75

(ii) Time Switch mode:

Click "Pulse", the camera will trigger the external output
device for several seconds; the duration length is
according to the "interval" setting in Output Setting.

70/75

VIII. Factory Default

If you forget your password, please follow the steps to revert back to default
value.

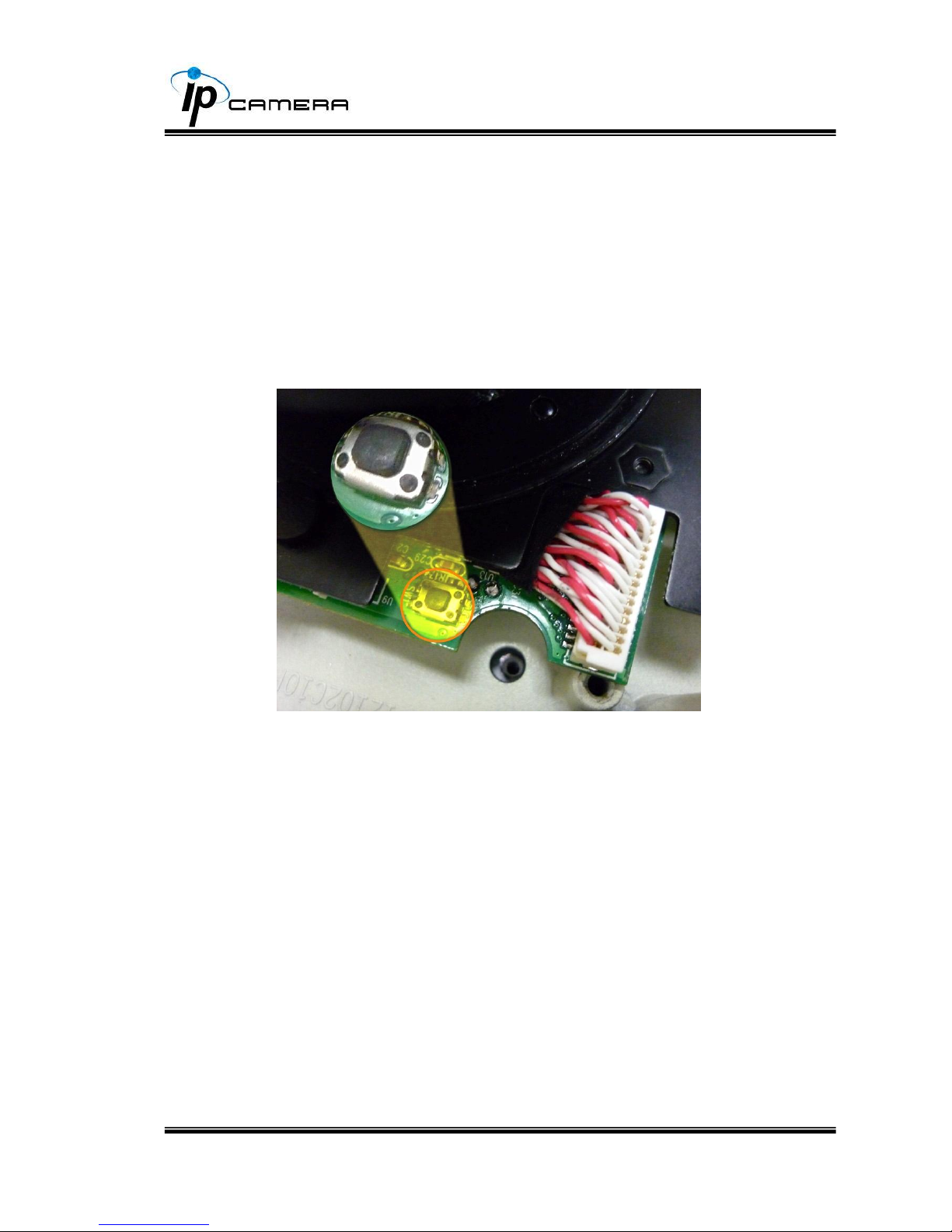

• Remove the power and Ethernet cable. Press and hold the button in the
picture below.

• Connect the power to the camera again, and do not release the button
during the system booting.

• It will take around 30 seconds to boot the camera.

• Release the button when camera finished booting.

• Plug-in the Ethernet cable. Re-login the camera using the default IP

(http://192.168.1.200), and user name (admin), password
(admin).

71/75

IX. Universal Password

If you forgot the password of your IP camera, you can reset the camera to factory
default, or follow the procedure below to generate a universal password.

Note: Universal password will be valid only when you enable the function in “User

Management”.

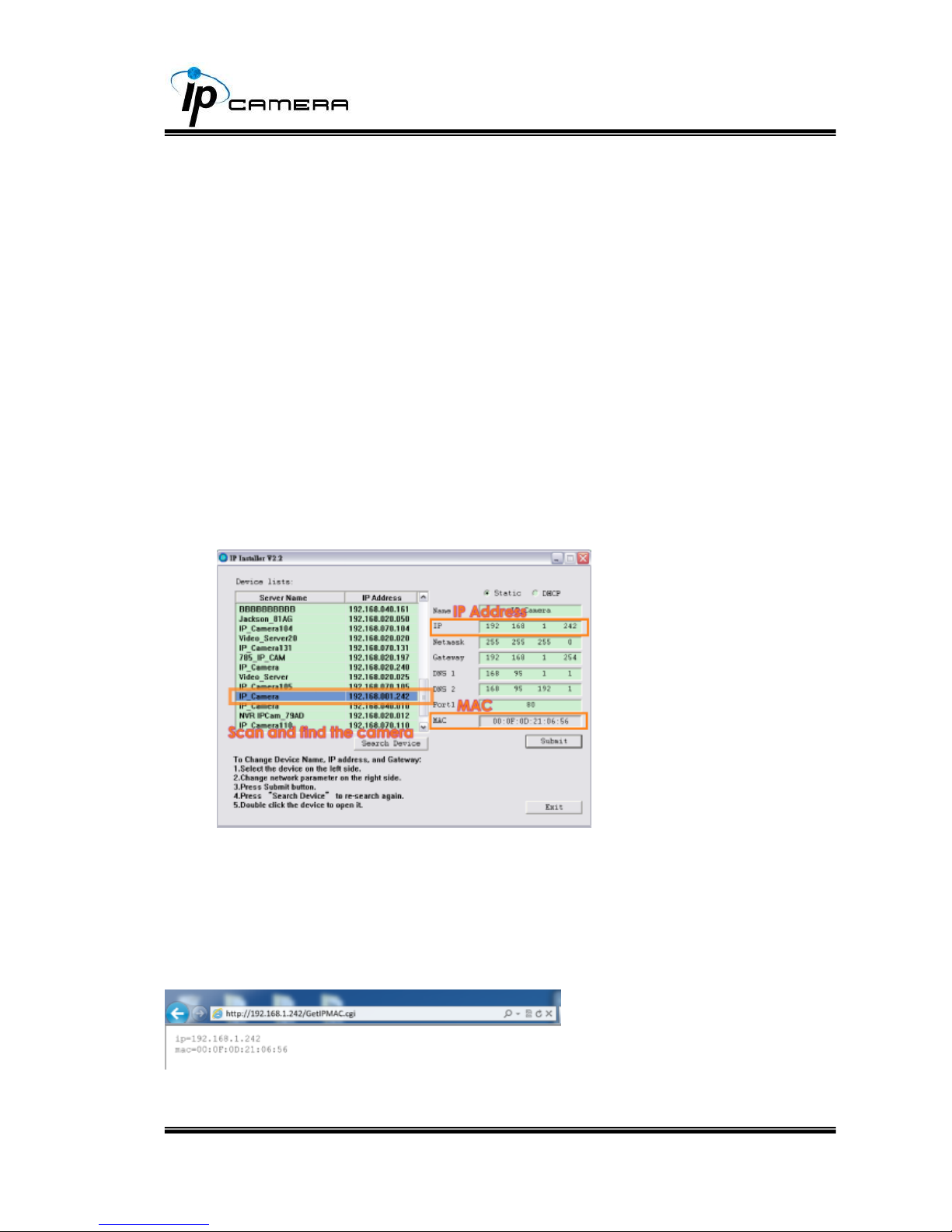

1. First, you need to know the IP address and MAC of your IP camera. You can
use IP installer to scan the LAN, and see the IP address and MAC on the side
column.

Or, if you already know the IP address of camera: Open the web browser, key in

“http:// (IP address) /GetIPMAC.cgi” and press enter. The IP address and MAC will be

displayed on browser.

72/75

2. Find the .html file named “Universal Password” in CD-ROM. Click to open it.

3. Key in the camera IP address “IP Adder.” column and MAC in “MAC” column,
and then click “encoder”. You will see a set of username and password appear,
as below:

The universal username and password are generated from the IP address and MAC
you key in, so if you change the camera IP address the universal password changes,
too.

4. Take the picture for example, the universal username is “C90848” and
password is “CNCE_U6KLA”. Use them to log in the camera.

73/75

5. Now you can login as the administrator. The use of universal password does
not affect the previous user settings, so the administrator account password
will not change until you edit it. Please click “Edit” to give a new administrator
password.

74/75

X. Package contents

• The CD includes user manual and software tools

IP Camera

Adaptor

Quick Installation Guide

Hex Wrench

Star Wrench

CD

Screws x4

O-ring x4

Wall Plug x4

75/75

XI. Micro SD Card Compatibility

The following Micro SD Cards are recommended:

Transcend

SDHC class4 16GB
SDHC class4 32GB
SD class4 16GB
SD class4 32GB
SDHC class6 4GB
SDHC class6 8GB
SDHC class6 16GB
SD class6 4GB
SD class6 8GB
SD class6 16GB

SanDisk

SDHC class4 4GB
SDHC class4 8GB
SDHC class4 16GB
