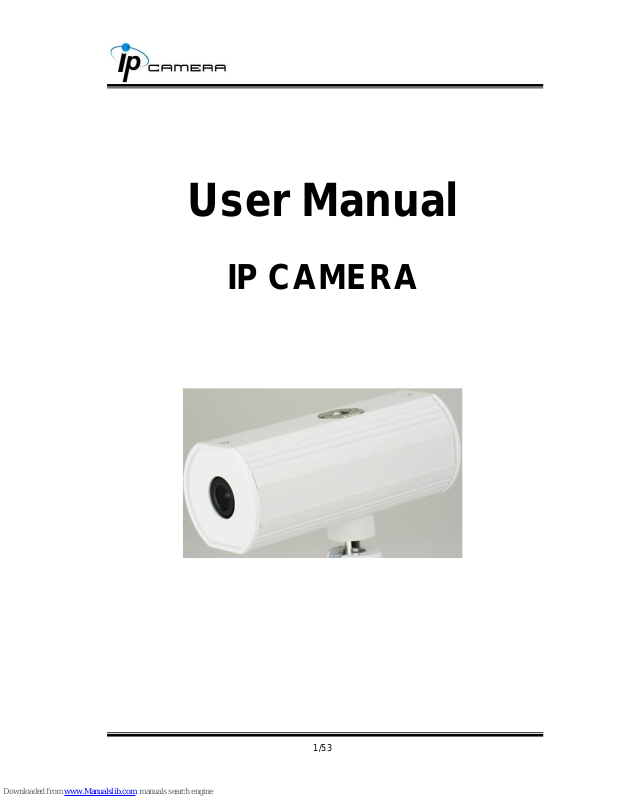

IP Camera CL-3FBMX User Manual

1/53

User Manual

IP CAMERA

2/53

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3/53

Content

I. PREFACE ............................................................................................................ 4

II. PRODUCT SPECIFICATIONS ............................................................................. 4

III. PRODUCT INSTALLATION ................................................................................. 7

A. MONITOR SETTING .......................................................................................................... 7

B. HARDWARE INSTALLATION .............................................................................................. 8

C. IP ASSIGNMENT ............................................................................................................. 10

D. INSTALL ACTIVEX CONTROL: ........................................................................................ 13

IV. LIVE VIDEO ....................................................................................................... 15

V. IP CAMARA CONFIGURATION ........................................................................ 18

A. SYSTEM ......................................................................................................................... 19

B. NETWORK ...................................................................................................................... 22

C. A/V SETTING ................................................................................................................. 32

D. EVENT LIST ................................................................................................................... 38

VI. NETWORK CONFIGURATION .......................................................................... 42

VII. I/O CONFIGURATION ....................................................................................... 42

VIII. FACTORY DEFAULT ......................................................................................... 48

IX. UNIVERSAL PASSWORD ................................................................................. 48

X. PACKAGE CONTENTS ..................................................................................... 52

XI. MICRO SD CARD COMPATIBILITY .................................................................. 52

V1.0_20130710

4/53

I. Preface

This is a 1/4’’ CMOS 1.3MegaPixel IP camera with the web server built in. User
can view real-time video via IE browser. It supports H.264, JPEG and MPEG4
video compression which provides smooth and high video quality. The video can
be stored in the SD card and playback remotely.
With user friendly interface, it is an easy-to-use IP camera which is designed for
security application.

II. Product Specifications

 HD 720P@30fps Real Time
 Mega-Pixel CMOS Sensor
 Digital Noise Reduction
 Digital Wide Dynamic Range
 Shutter Speed adjustable
 Sense Up adjustable
 Power over Ethernet
 H.264/ M-JPEG/ MPEG4 compression
 Micro SD card backup
 Support iPhone/Android/Mac
 SDK for Software Integration
 Free Bundle 36 ch recording software

Specifications

Hardware

CPU

ARM 9 ,32 bit RISC

RAM

128MB

Flash

16MB

Image sensor

1 / 4” Mega-Pixel CMOS sensor

Sensitivity

Color : 1 Lux (AGC ON)
B / W: 0.5 Lux (AGC ON)

Shutter Time

1 / 10 ~ 1 / 10,000 sec

5/53

Lens Type

[email protected]

Audio

G.711/G.726(24Kbps/32kbps) audio compression
Input : Built-in Mic
Output : 3.5mm phone jack, Support 2-way audio

I/O

DI/DO

Angle of View

52.6°(H), 32.9°(V)

Power over Ethernet

Yes

Power

PoE Power consumption
Max：2.88W

Operating Temperature

0°C ~ 45°C

Dimensions
φ 44x100mm
Weight

135g(IP camera), 255g (with bracket)

Network

Ethernet

10/ 100 Base-T

Network Protocol

HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE

802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP, SAMBA

System

Video Resolution

1280x800@30fps,1280x720@30fps , 640x480@30fps,
320x240@30fps, 176x144@30fps

Video Adjust

Brightness, Contrast, Hue, Saturation, Sharpness, AGC,
Shutter Speed adjustable, Sense-Up, D-WDR, Flip,
Mirror, Noise reduction, Exposure

Triple Streaming

Yes

Image Snapshot

Yes

Full Screen Monitoring

Yes

Privacy Mask

Yes, 3 different areas

Compression Format

H.264/ M-JPEG/ MPEG4

Video Bitrates Adjust

CBR, VBR

Motion Detection

Yes, 3 different areas

Triggered Action

Mail, FTP, Save to SD card, DO, SAMBA

Security

Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based

6/53

authentication for network protection, QoS/DSCP

Firmware Upgrade

HTTP mode, can be upgraded remotely

Simultaneous Connection

Up to 10

Micro SD card management

Recording Trigger

Motion Detection, IP check, Network break down (wire
only),Schedule, DI

Video Format

AVI, JPEG

Video Playback

Yes

Delete Files

Yes

Web browsing requirement

OS

Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, Safari, Firefox

Mobile support

iOS 4.3 or above, Android 1.6 or above

Hardware

Suggested

Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:

128MB

7/53

III. Product Installation

A. Monitor Setting

i. Right-Click on the desktop. Select “ Properties”

ii. Change color quality to highest (32bit).

8/53

B. Hardware Installation

i. Install the IP Camera together with its mounting bracket as shown in the

picture below.

ii. Prepare a PoE switch.

iii. Connect the IP Camera to local network with Ethernet cable

iv. If there is not having PoE switch, please add PoE injector between IP

camera and Ethernet switch.

9/53

v. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the
network device, such as an IP phone or a network camera, using the
same cable as that used for network connection. It eliminates the need
for power outlets at the camera locations and enables easier application
of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days
a week operation.

10/53

C. IP Assignment

i. Use the software, “IP Installer” to assign the IP address of IP CAMERA.

The software is in the attached software CD.

ii. IP installer supports two languages

a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version

iii. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)

iv. Execute IP Installer

v. For Windows XP SP2 user, it may popup the following message box.

Please click “Unblock”.

vi. IP Installer configuration:

vii. IP Installer will search all IP Cameras connected on Lan. The user can

click “Search Device” to search again.

11/53

viii. Click one of the IP Camera listed on the left side. The network

configuration of this IP camera will show on the right side. You may
change the “name” of the IP Camera to your preference (eg: Office,
warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.

ix. Please make sure the subnet of PC IP address and IP CAM IP address

are the same.

The same Subnet:

IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200
PC IP address: 192.168.1.100

To Change PC IP address:

Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties

Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.

x. A quick way to access remote monitoring is to left-click the mouse twice

on a selected IP Camera listed on “Device list” of IP Installer. An IE
browser will be opened.

12/53

xi. Then, please key in the default “user name: admin” and “password:

admin”.

13/53

D. Install ActiveX control:

For the first time to view the camera video via IE, it will ask you to install the
ActiveX component.

If the installation failed, please check the security setting for the IE browser.

i. IE  Tools  Internet Options…  Security Tab  Custom Level… 

Security Settings  Download unsigned ActiveX controls Select
“Enable” or Prompt.

ii. IE  Tools  Internet Options…  Security Tab  Custom Level…

Initialize and script ActiveX controls not marked as safe  Select
“Enable” or Prompt.

14/53

1

2

3

4

5

When popup the following dialogue box, click “Yes”.

15/53

IV. Live Video

Start a IE browser, type the IP address of the IP camera in the address field. It will
show the following dialogue box. Key-in the user name and password. The default
user name and password are “admin” and “admin”.

When connect to the IP CAMERA。The following program interface shows.

16/53

1. ：Get into the administration page

2. ：Video Snapshot

3. Show system time, video resolution, and video refreshing rate

4. Adjust image, 1/2x, 1x, 2x

5. Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this

function will not display)

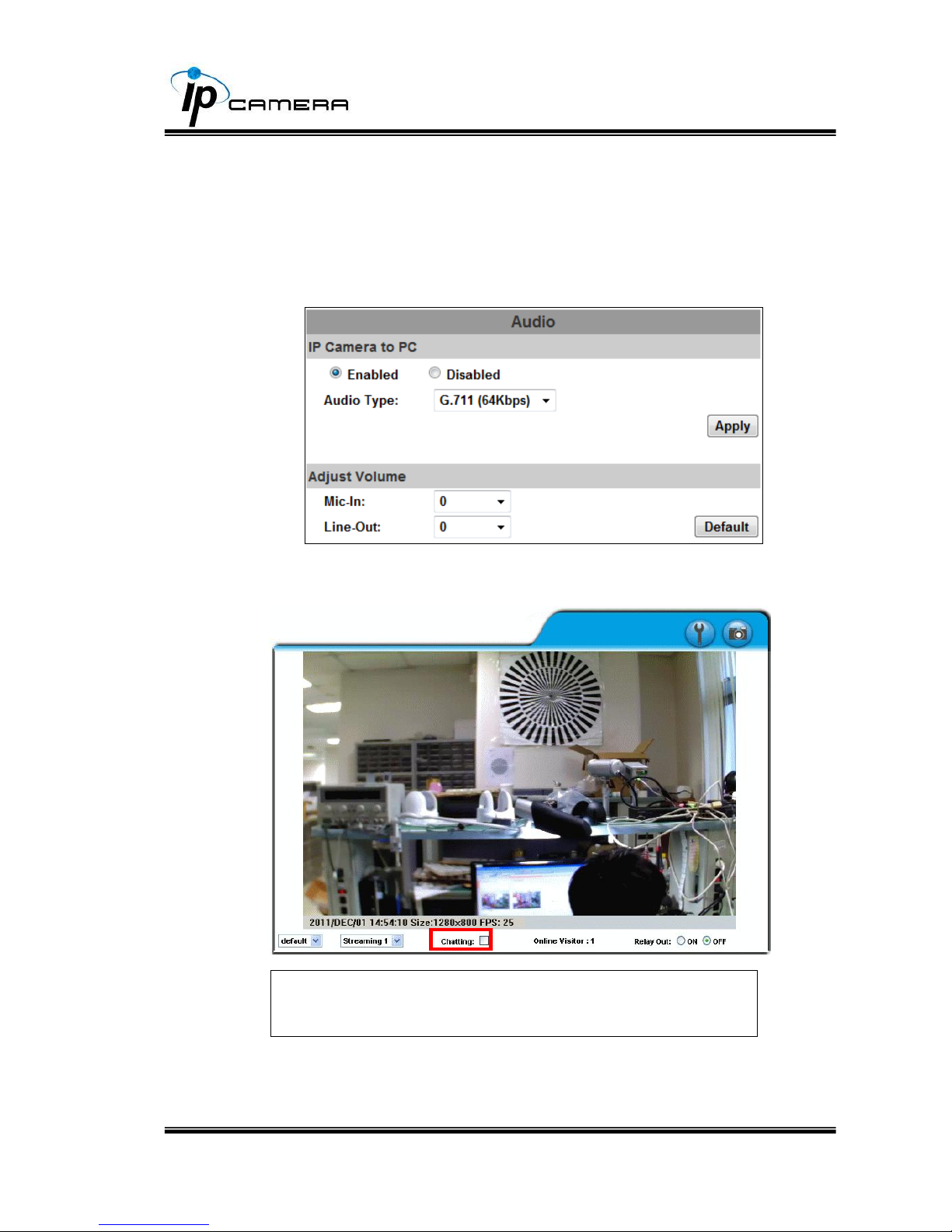

6. IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can
use microphone which connects to the PC to talk to server side, which is IP
Camera side

7. Shows how many people connect to this IP camera

8. Control the relay which is connected to this camera

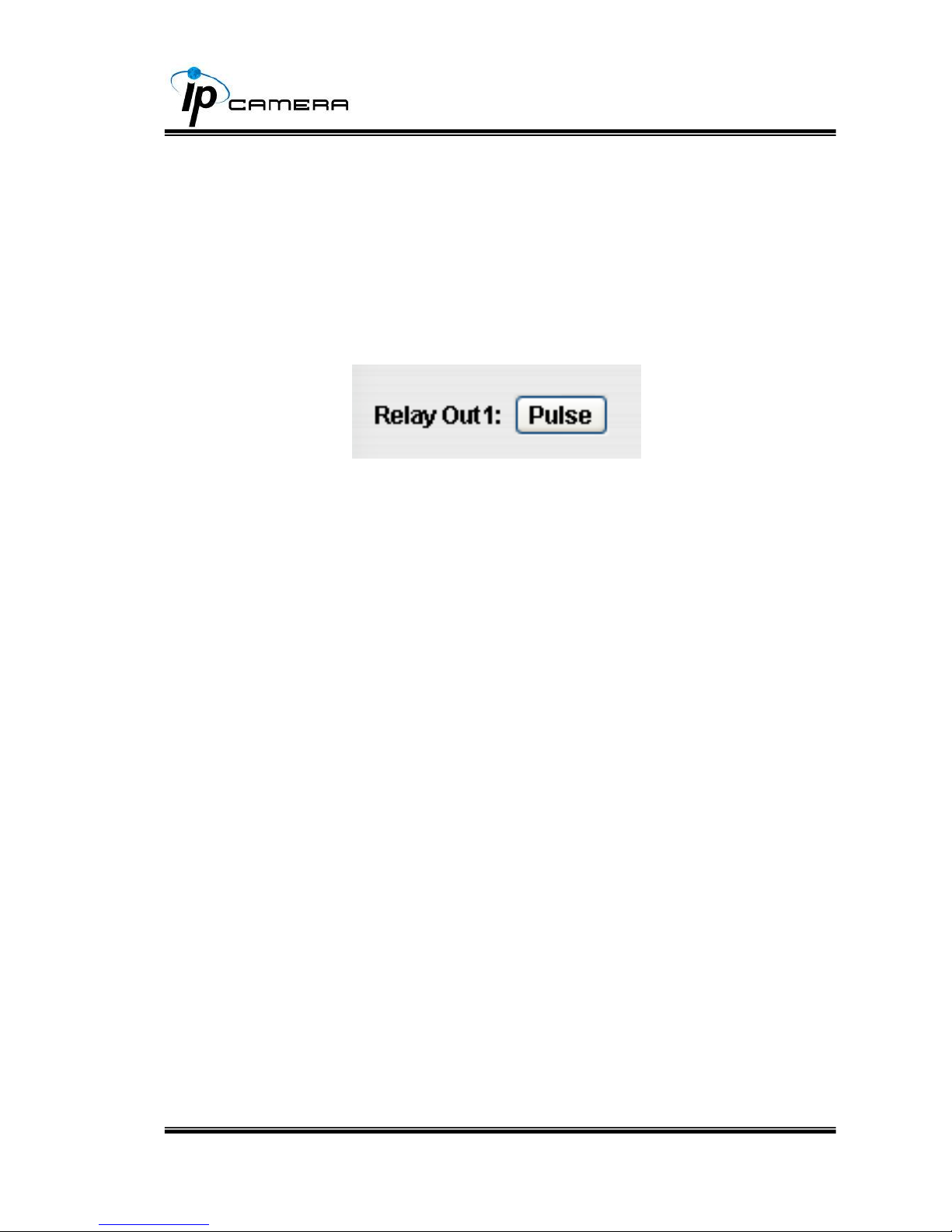

Double-click the video, it will change to full screen mode. Press “Esc” or double-click
the video again, it will change back to normal mode.
Right-Click the mouse on the video, it will show a pop-up menu.

1. Snapshot：Save a JPEG picture

2. Record Start：Record the video in the local PC. It will ask you where to save the
video. To stop recording, right-click the mouse again. Select “Record Stop”. The
video format is AVI. Use Microsoft Media Player to play the recorded file.

3. Mute：Turn of the audio. Click again to turn on it.

4. Full Screen：Full-screen mode.

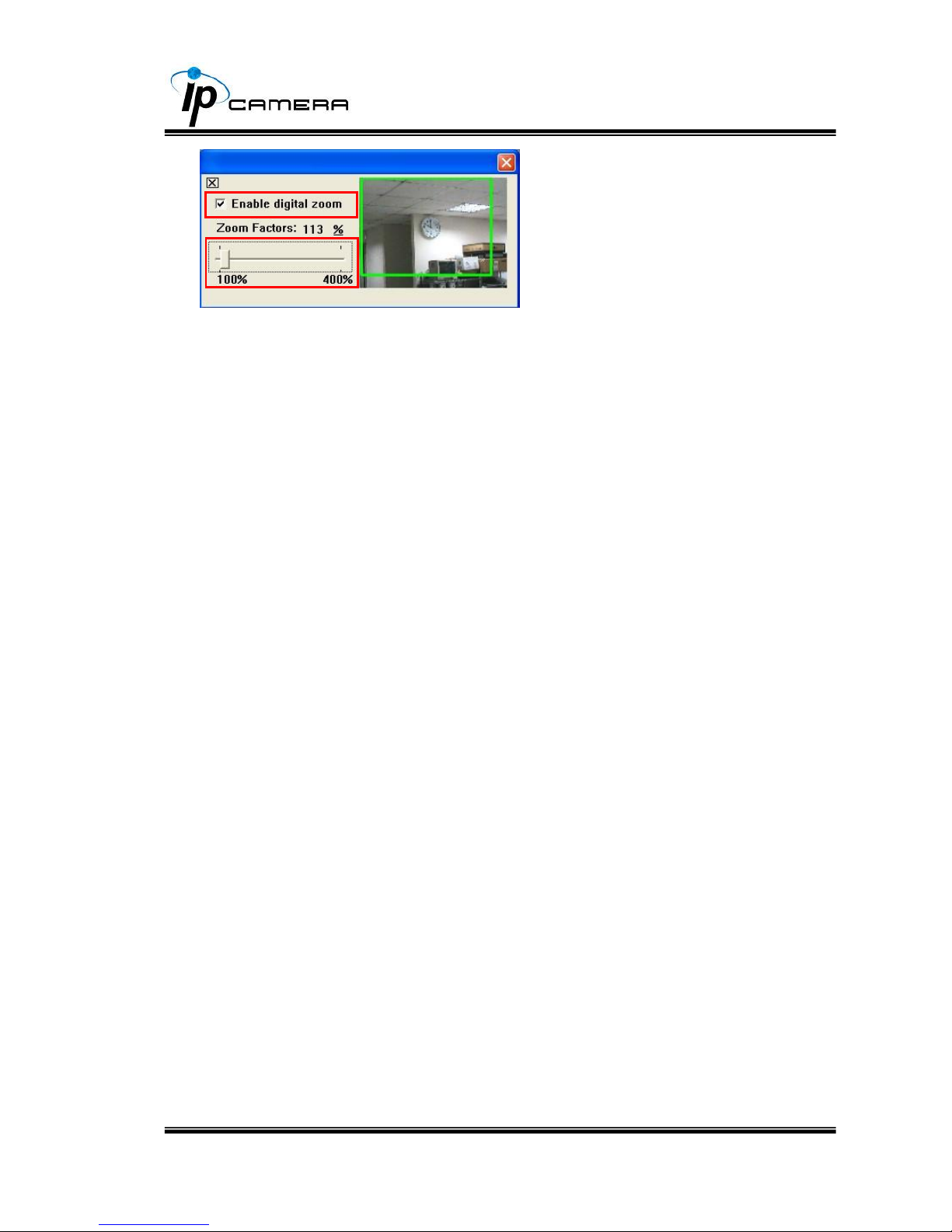

5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first within the pop-up dialogue box and then drag and drop the bar to
adjust the zoom factors.

17/53

18/53

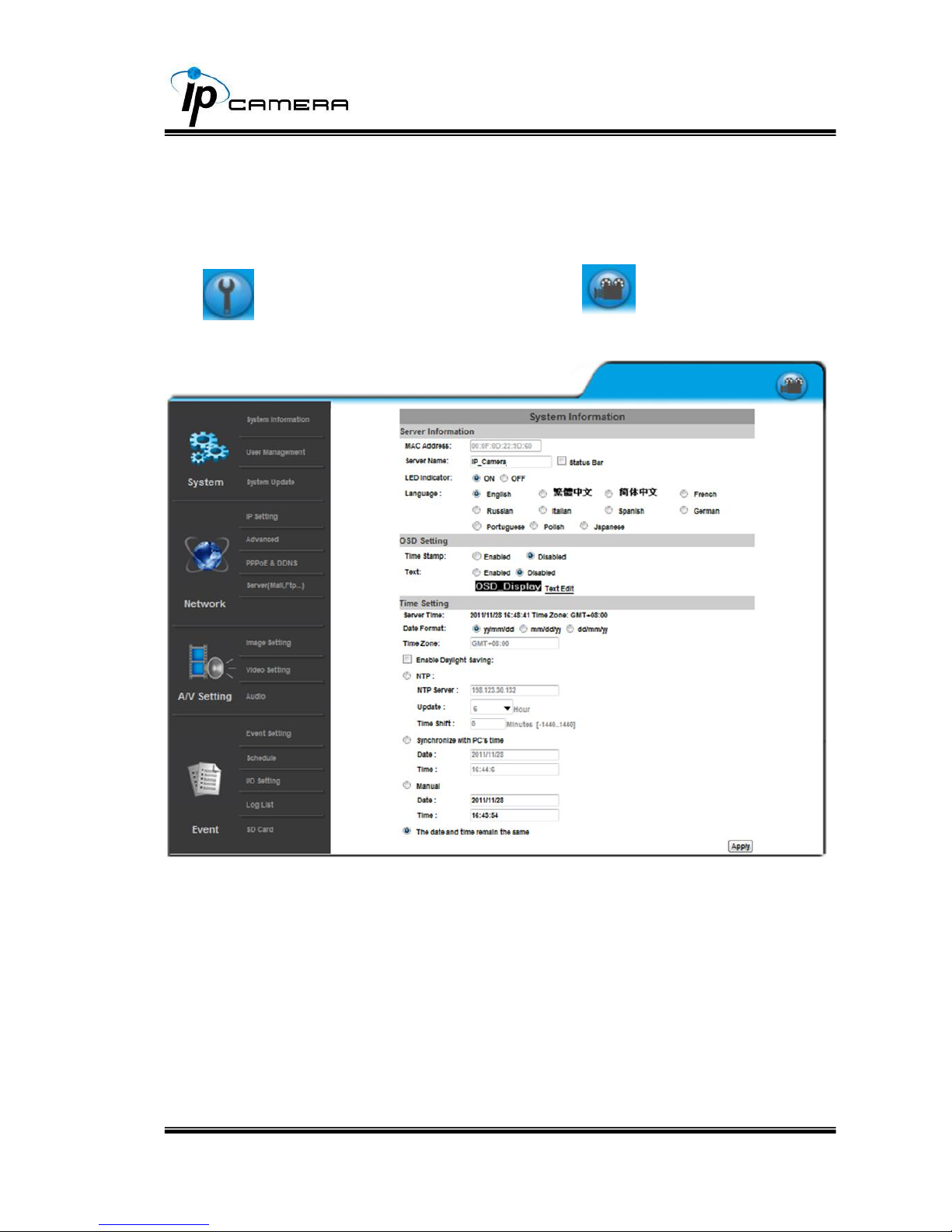

V. Configuration

Click to get into the administration page. Click to go back to the live
video page.

19/53

A.System

i、 System Information

a. Server Information: Set up the camera name, select language, and

set up the camera time.

1. Server Name：This is the Camera name. This name will show
on the IP Installer.

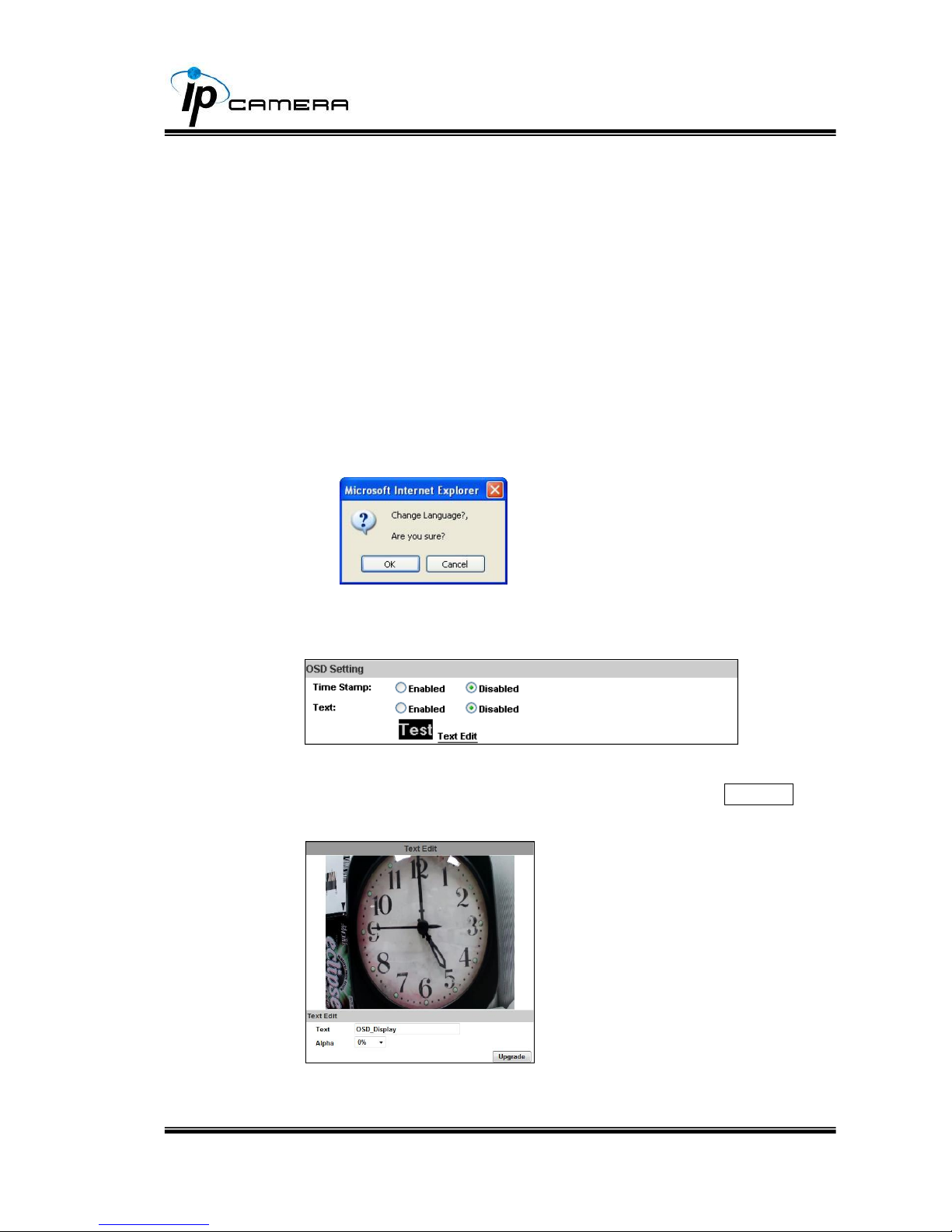

2. Select language：There are English, Traditional Chinese, and
Simplified Chinese to select. When change, it will show the
following dialogue box for the confirmation of changing
language.

b. OSD Setting: Select a position where date & time stamp / text

showing on screen.

Moreover, click Text Edit can entry to adjust the OSD contents
which is including Size and Alpha of text. Finally, click Upgrade
button to reserve the setting.

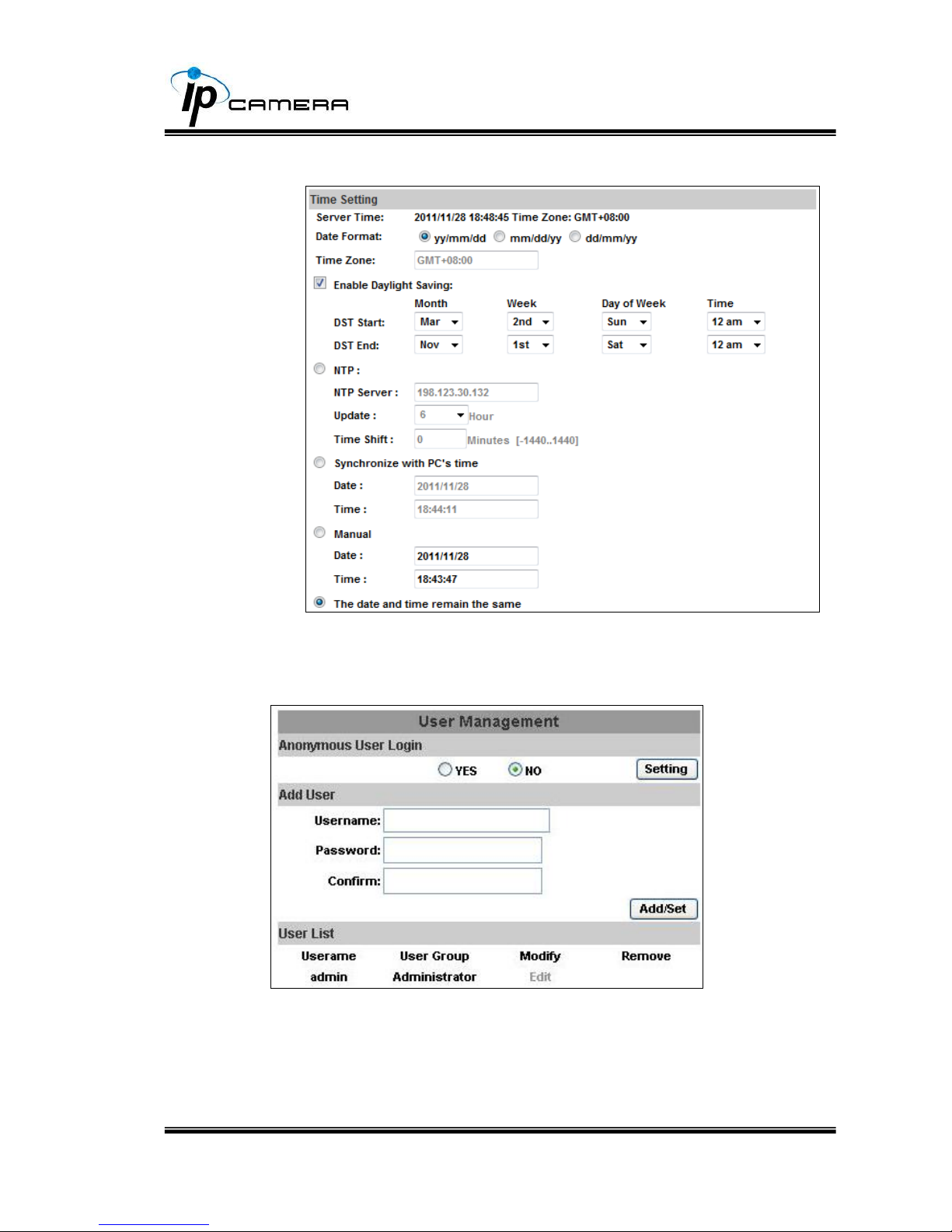

c. Server time setting：Select options to set up time - “NTP”,

“Synchronize with PC’s time”, “Manual”, “The date and time remain

20/53

the same”.

ii、 User Management

IP CAMERA supports three different users, administrator, general user,
and anonymous user.

a. Anonymous User Login：

Yes：Allow anonymous login
No：Need user name & password to access this IP camera

b. Add user：

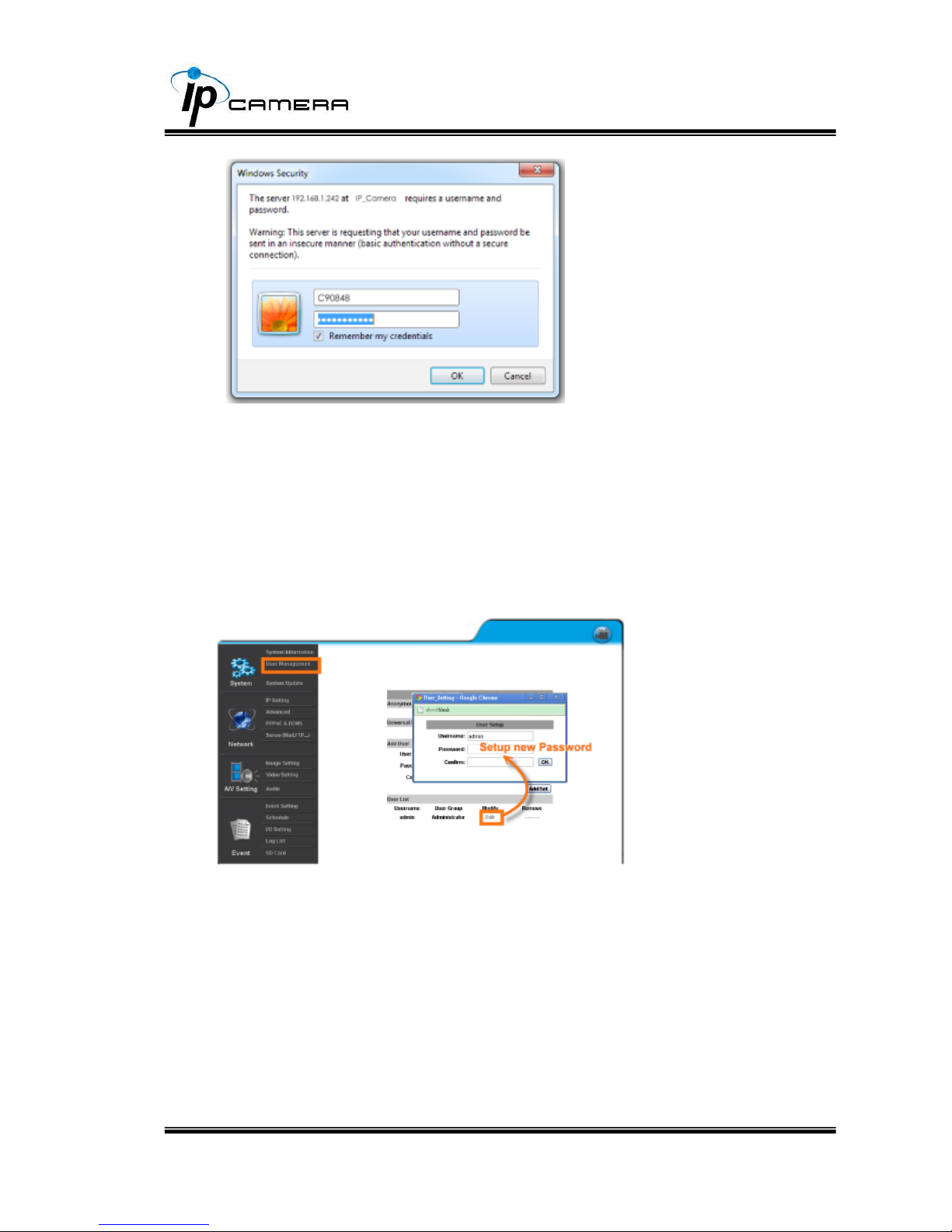

Type the user name and password, then click “Add/Set”.

21/53

c. Click “edit” or “delete” to modify the user.

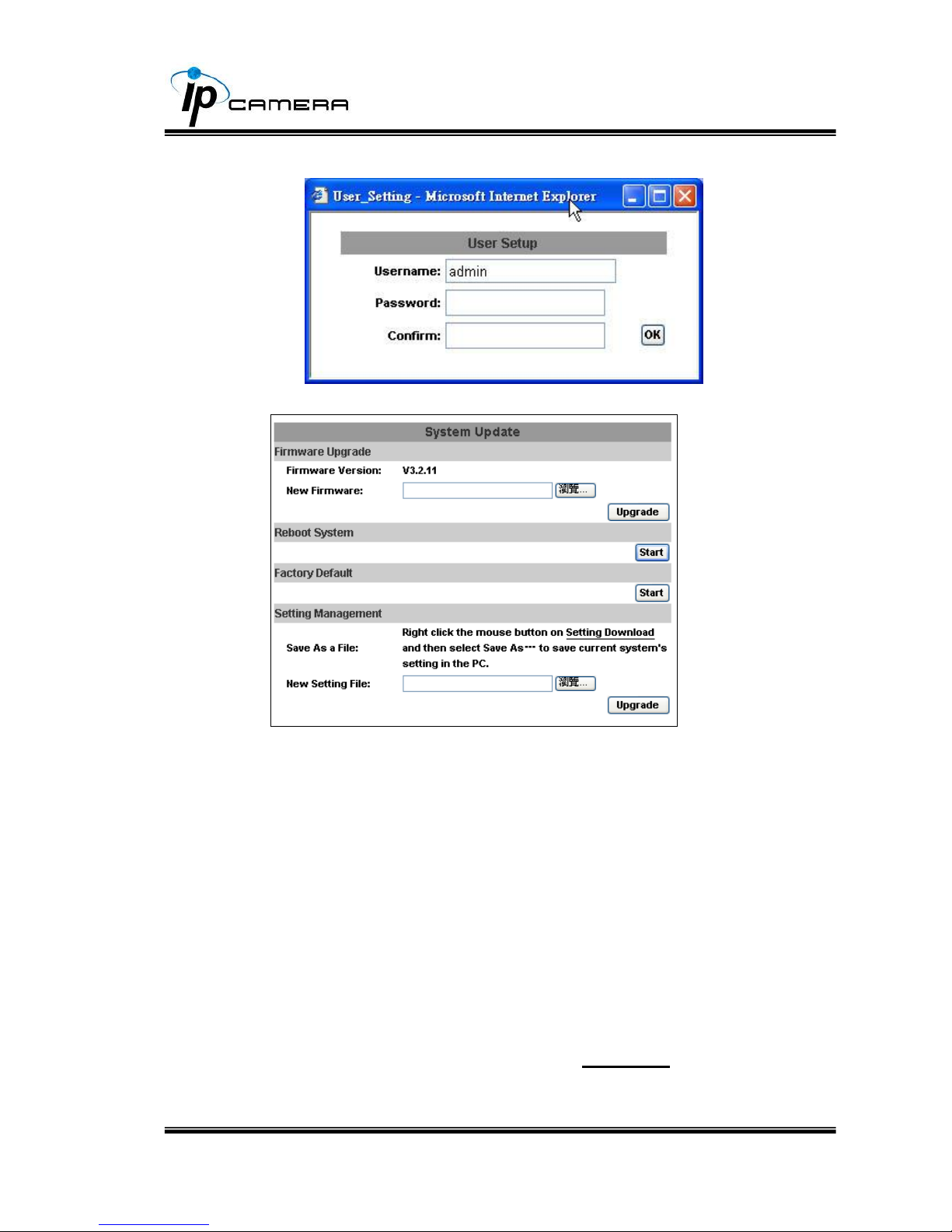

iii、 System update：

a. To update the firmware online, click “Browse…” to select the

firmware. Then click “Upgrade” to proceed.
b. Reboot system：re-start the IP camera
c. Factory default：delete all the settings in this IP camera.
d. Setting Management：User may download the current setting to PC,

or upgrade from previous saved setting.

1. Setting download:
Right-click the mouse button on Setting Download  Select
“Save AS…” to save current IP CAM setting in PC  Select
saving directory  Save

2. Upgrade from previous setting
Browse  search previous setting  open  upgrade 
Setting update confirm  click index.html. to return to main
page

22/53

B.Network

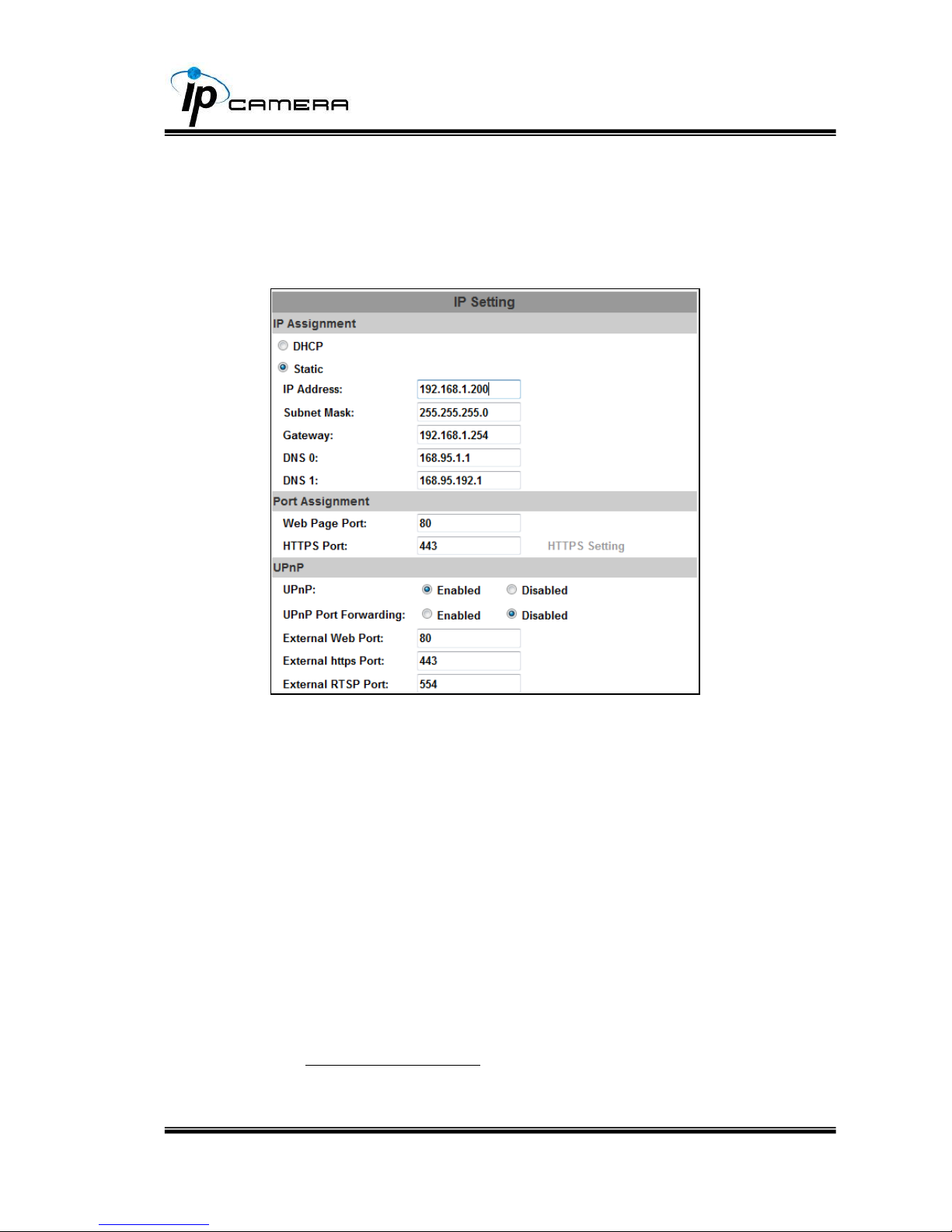

i、 IP Setting

IP Camera supports DHCP and static IP.

a. DHCP：Using DHCP, IP Camera will get all the network parameters

automatically.

b. Static IP：Please type in IP address, subnet mask, gateway, and

DNS manually.

c. Port Assignment: user may need to assign different port to avoid

conflict when setting up IP assignment.

1. Web Page Port: setup web page connecting port and video
transmitting port (Default: 80)

2. HTTPs Port: setup the https port(Default: 443)

d. UPnP

This IP camera supports UPnP, If this service is enabled on your
computer, the camera will automatically be detected and a new icon
will be added to “My Network Places.”
UPnP Port Forwarding：Enable UPnP Port Forwarding can access
the Network Camera from the Internet, select this option to allow
the Network Camera to open ports on the router automatically so

23/53

that video streams can be sent out from a LAN. There are three
External port can be set, Web Port, Http Port and RTSP port. To
utilize of this feature, make sure that your router supports UPnPTM
and it is activated.

Note: UPnP must be enabled on your computer.
Please follow the procedure to activate UPnP

1. open the Control Panel from the Start Menu

2. Select Add/Remove Programs

3. Select Add/Remove Windows Components and open
Networking Services section

4. Click Details and select UPnP to setup the service

5. The IP device icon will be added to “MY Network Places”

6. User may double click the IP device icon to access IE browser

e. RTSP setting

1. RTSP Server: enable or disable

2. RTSP Port: setup port for RTSP transmitting (Default: 554)

3. RTP Start and End Port: in RTSP mode, you may use TCP
and UDP for connecting. TCP connection uses RTSP Port
(554). UDP connection uses RTP Start and End Port.

ii、 Advanced：

a. Https (Hypertext Transfer Protocol Secure)：Https can help protect

streaming data transmission over the internal on the higher security
level.

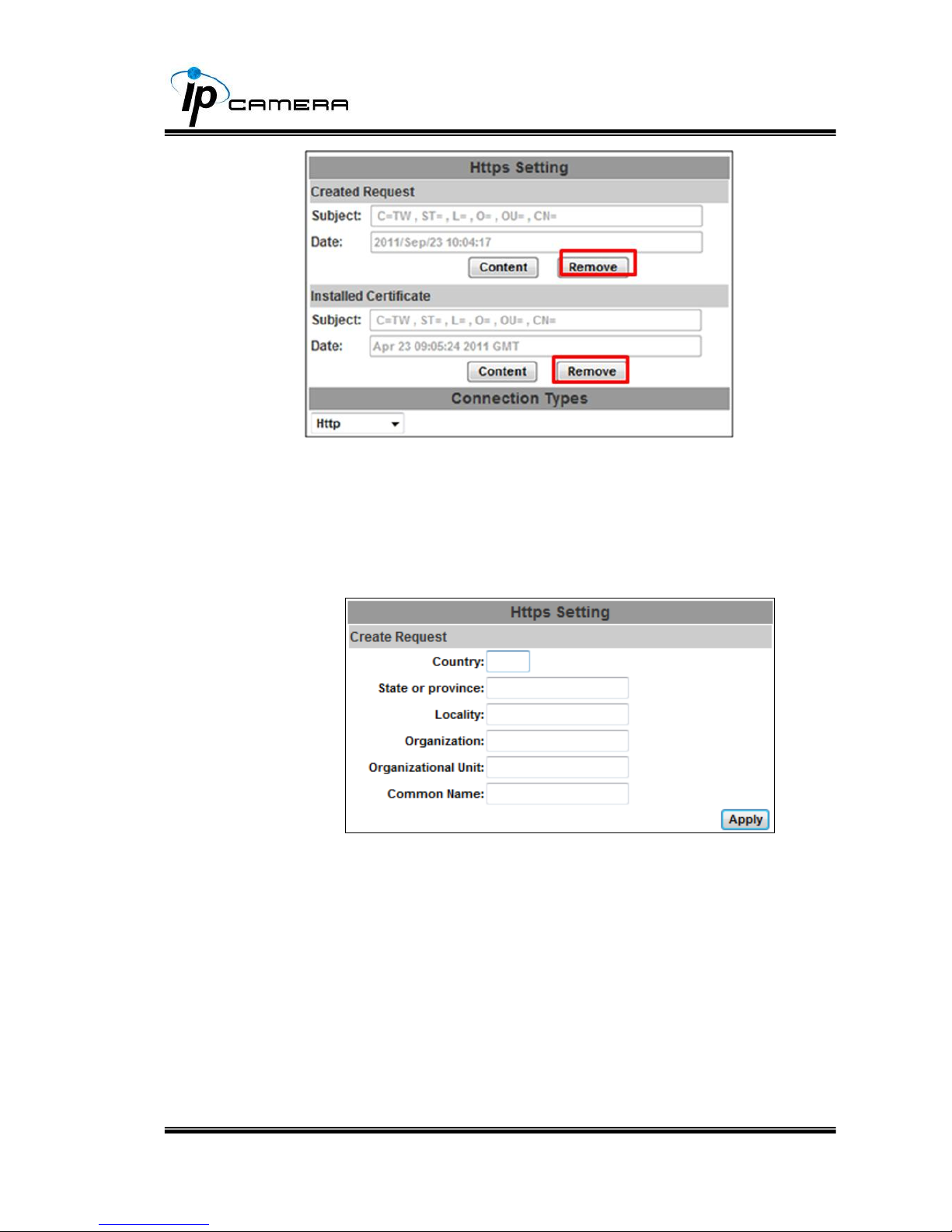

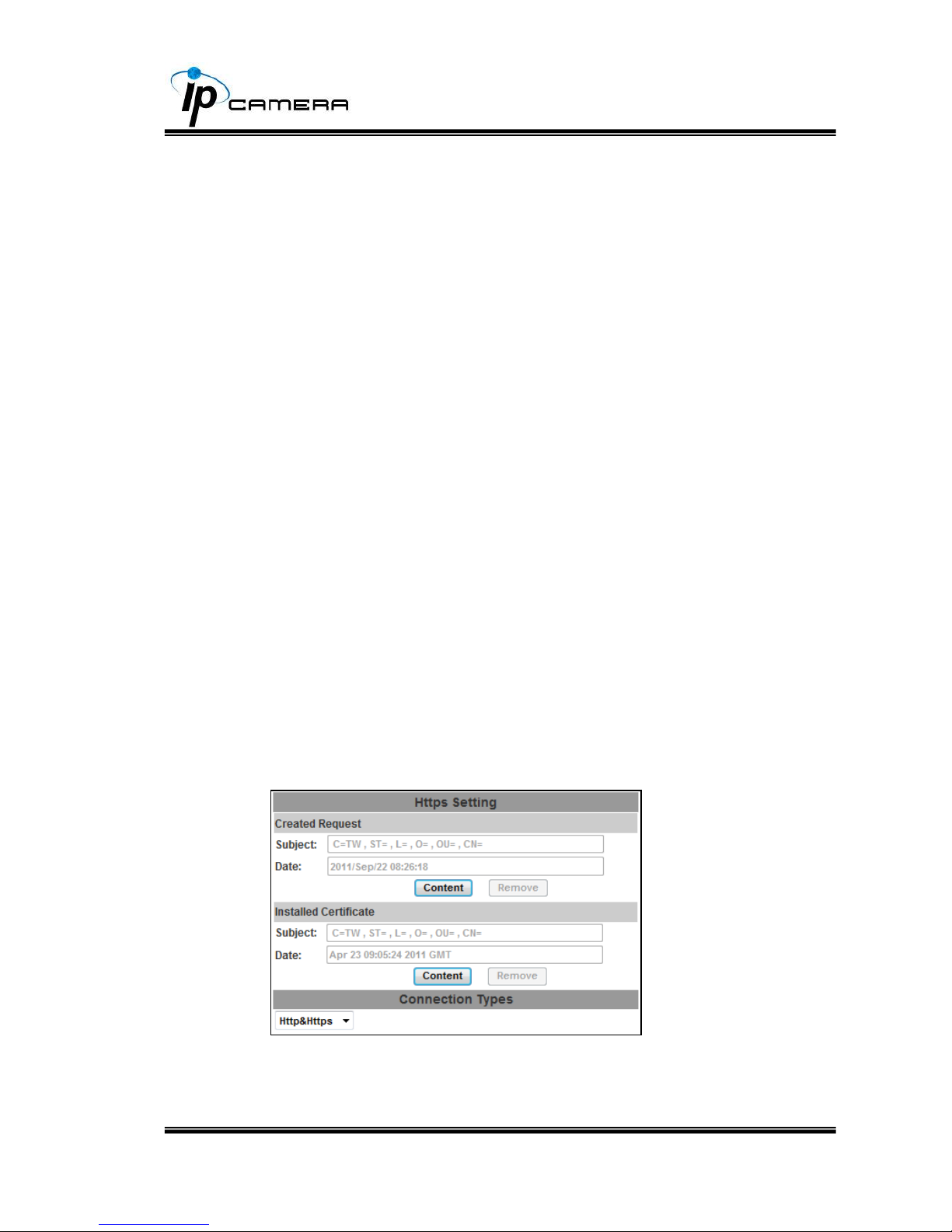

Https setting：Before setting new request, please remove old secure
identification at Http connection type.

24/53

1. Created Request: remove secure identification in Created
request mode. There is a warning message showing. Please
set “Yes” to remove secure identification.

2. Setting the secure identification and apply it.

3. Installed Certificate: remove Certificate in .Installed Certificate
mode. There will be a warning message to check again.

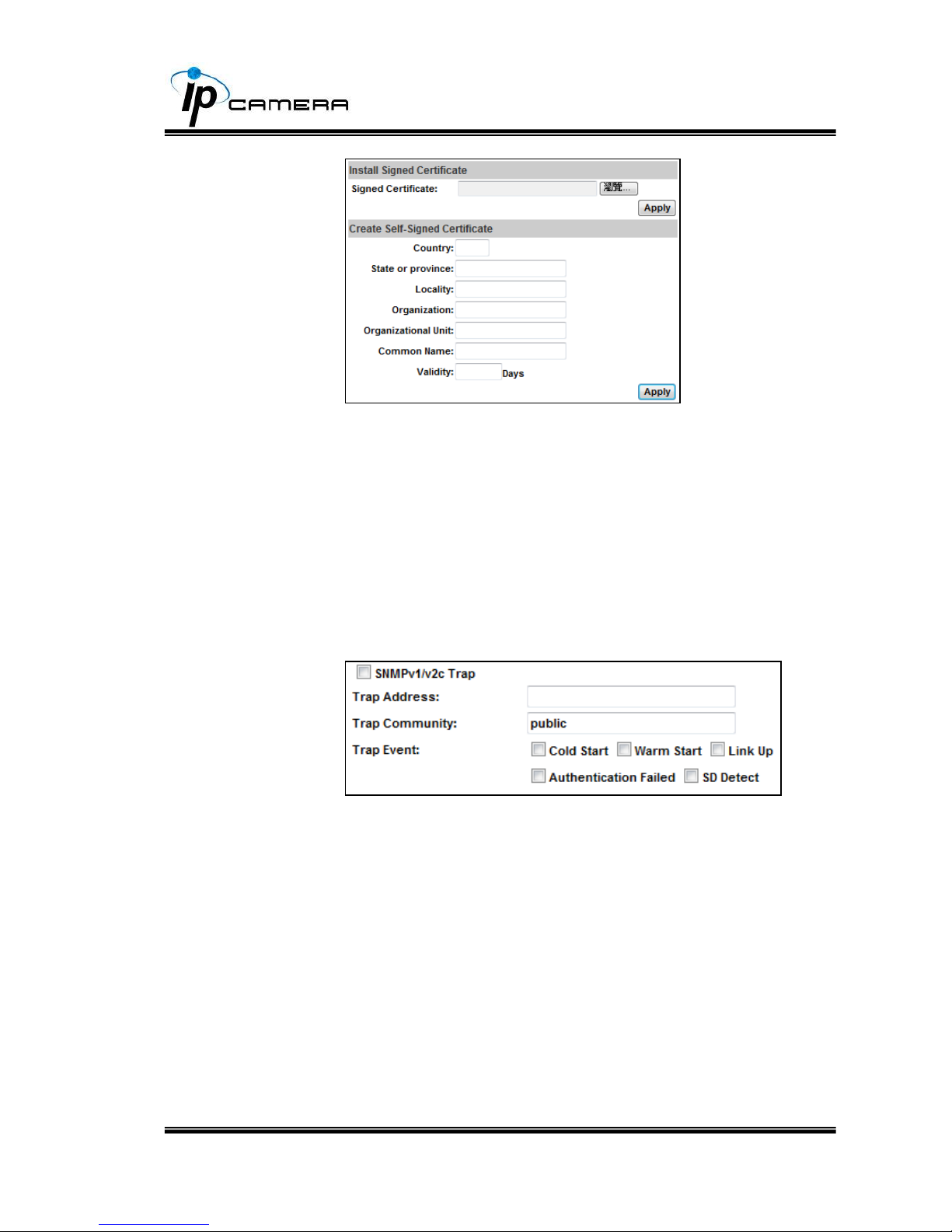

4. There are two ways to set Certificate- Install Signed Certificate
and Create Self-Signed Certificate.

25/53

b. SNMP(Simple Network Management Protocol)：

1. Enable SNMPv1 or SNMPv2 and write the name of Write
Community and Read Community.

2. Enable SNMPv3, please set Security Name, Authentication
Type, Authentication Password, Encryption Type, Encryption
Password of Write mode and Read mode.

3. Enable SNMPv1/SNMPv2 Trap can detect the Trap server.
Please set what event need to detect.

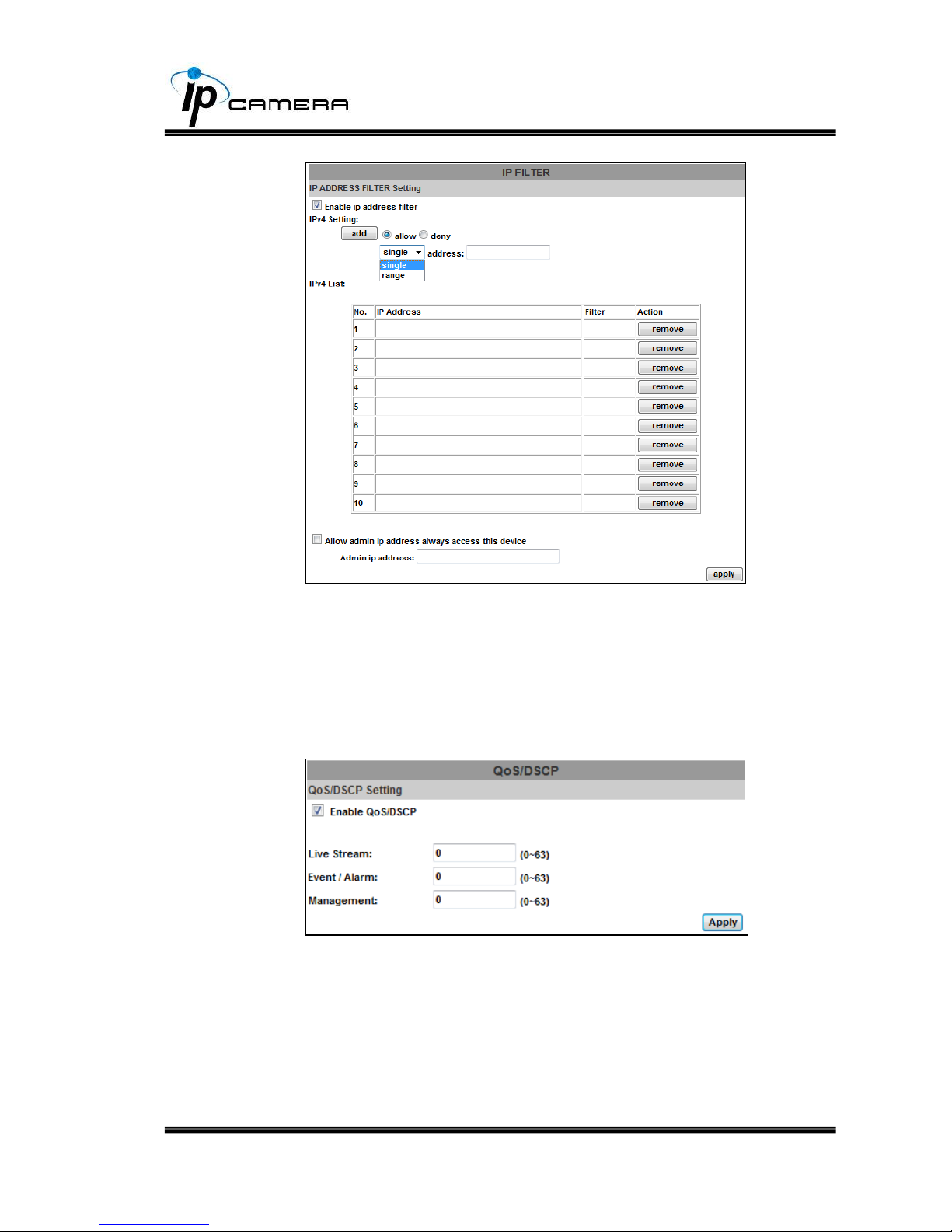

c. Access list：”Enable IP address filter” can set IP address which can

allow or deny to this camera. There are two options, single and
range, for user to set the IP address.

26/53

d. QoS/DSCP(Quality of Server/Differentiated Services Code-point)：

DSCP specifies a simple mechanism for classifying and managing
network traffic and provide QoS on IP networks. DSCP is a 6-bit in
the IP header for packet classification purpose. Please define the
reserve for Live Stream, Event / Alarm and Management.

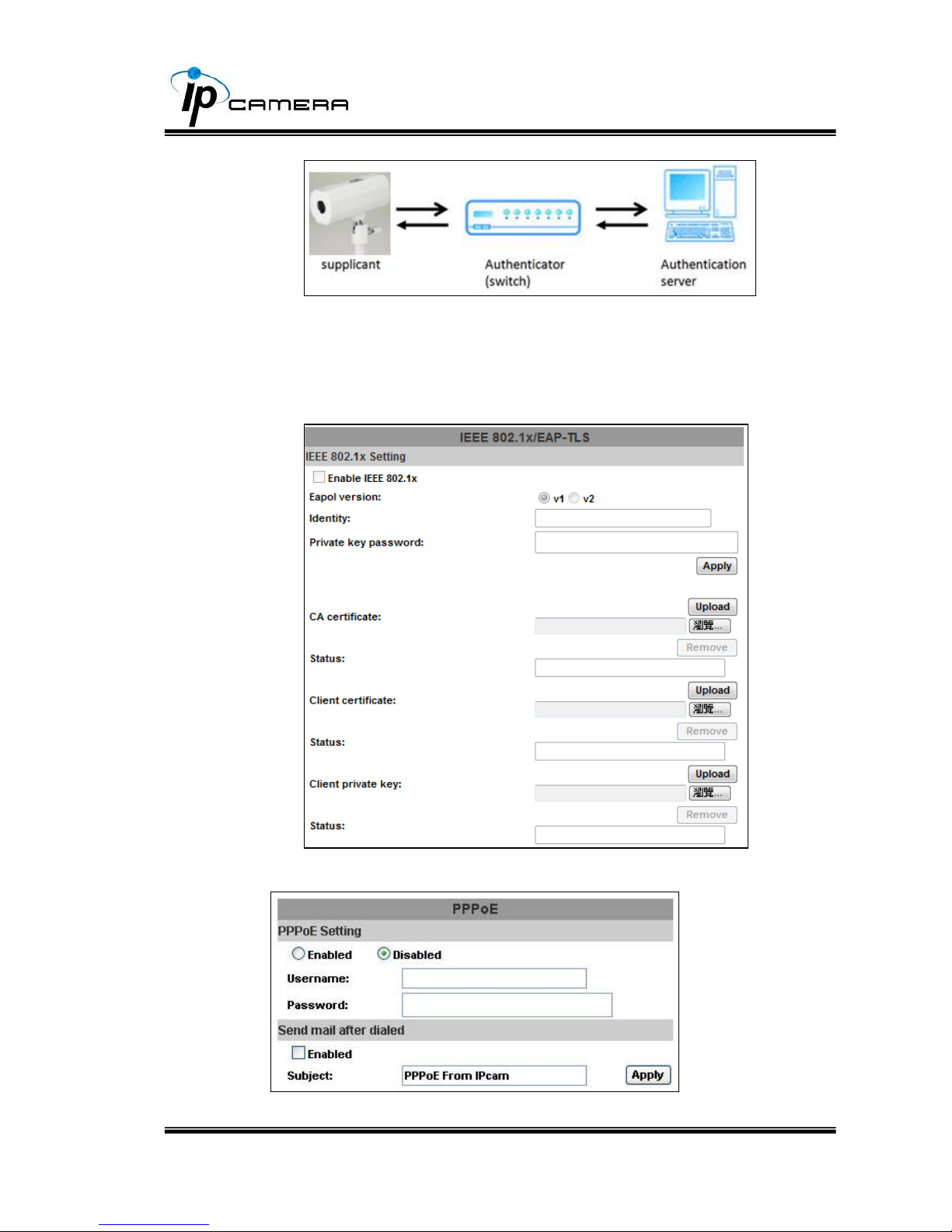

e. IEEE 802.1x：

IEEE 802.1x is an IEEE standard for port-based Network Access
Control. It provides an authentication mechanism to device wishing
to attach to a LAN or WLAN.
The EAPOL protocol support service identification and optional
point to point encryption over the local LAN segment.

27/53

Please check what version of the authenticator and authentication
server support. This camera supports EAP-TLS method. Please
enter ID, password issued by the CA, then upload related
certificates.

iii、 PPPoE & DDNS：

a. PPPoE：Select “Enabled” to use PPPoE. Key-in Username and

28/53

password for the ADSL connection. Send mail after dialed：When
connect to the internet, it will send a mail to a specific mail account. For
the mail setting, please refer to “Mail and FTP” settings.

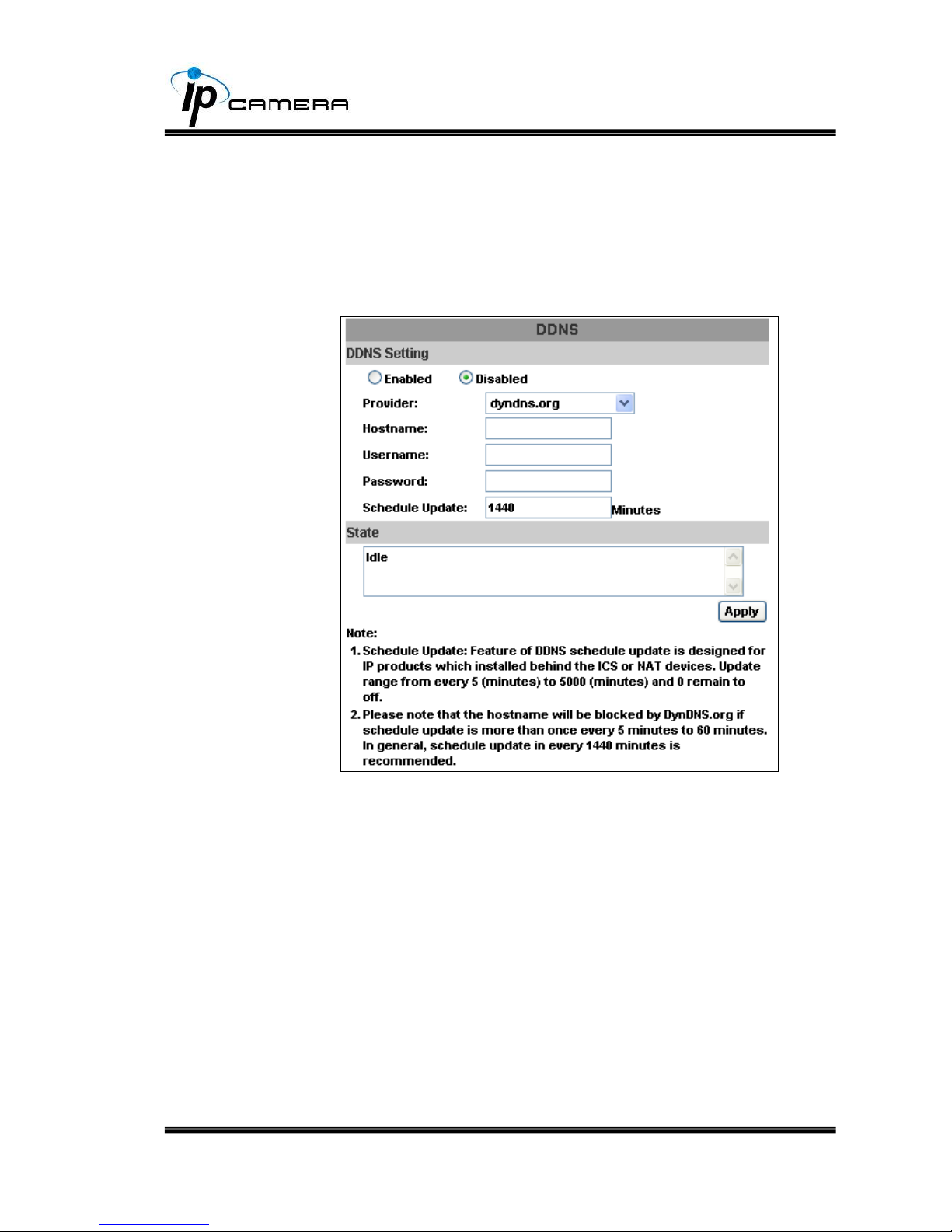

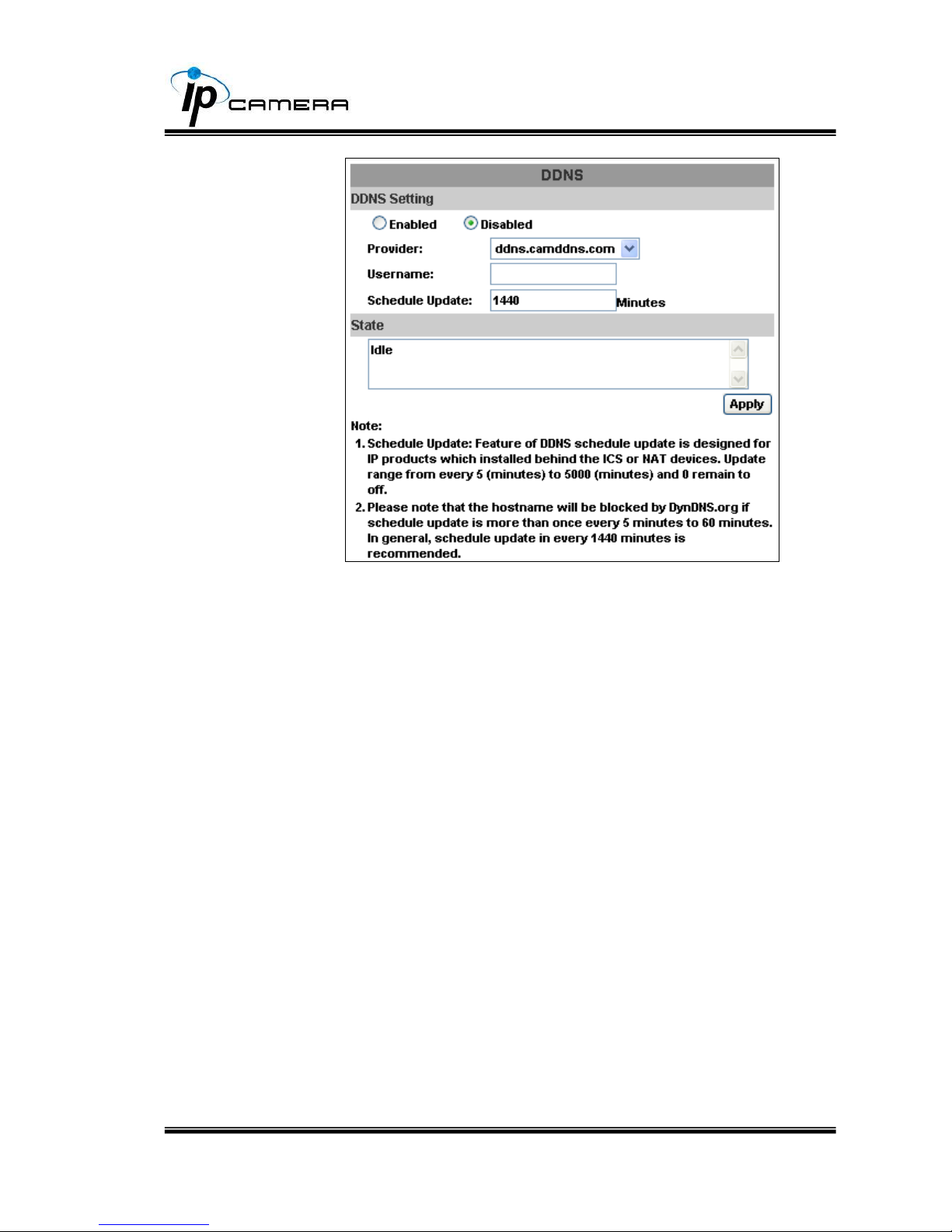

b. DDNS：

It supports DDNS (Dynamic DNS) service.

1. DynDNS：

(1) Enable this service
(2) Key-in the DynDNS server name, user name, and

password.
(3) Set up the IP Schedule update refreshing rate.
(4) Click “Apply”
(5) If setting up IP schedule update too frequently, the IP may

be blocked. In general, schedule update every day (1440

minutes) is recommended

2. Camddns service：

29/53

1. Please enable this service

2. Key-in user name.

3. IP Schedule update is default at 5 minutes

4. Click “Apply”.

3. DDNS Status
(1) Updating：Information update
(2) Idle：Stop service

(3) DDNS registration successful, can now log by

http://<username>.ddns.camddns.com：Register
successfully.

(4) Update Failed, the name is already registered：The user

name has already been used. Please change it.

(5) Update Failed, please check your internet connection：

Network connection failed.

(6) Update Failed, please check the account information you

provide：The server, user name, and password may be
wrong.

30/53

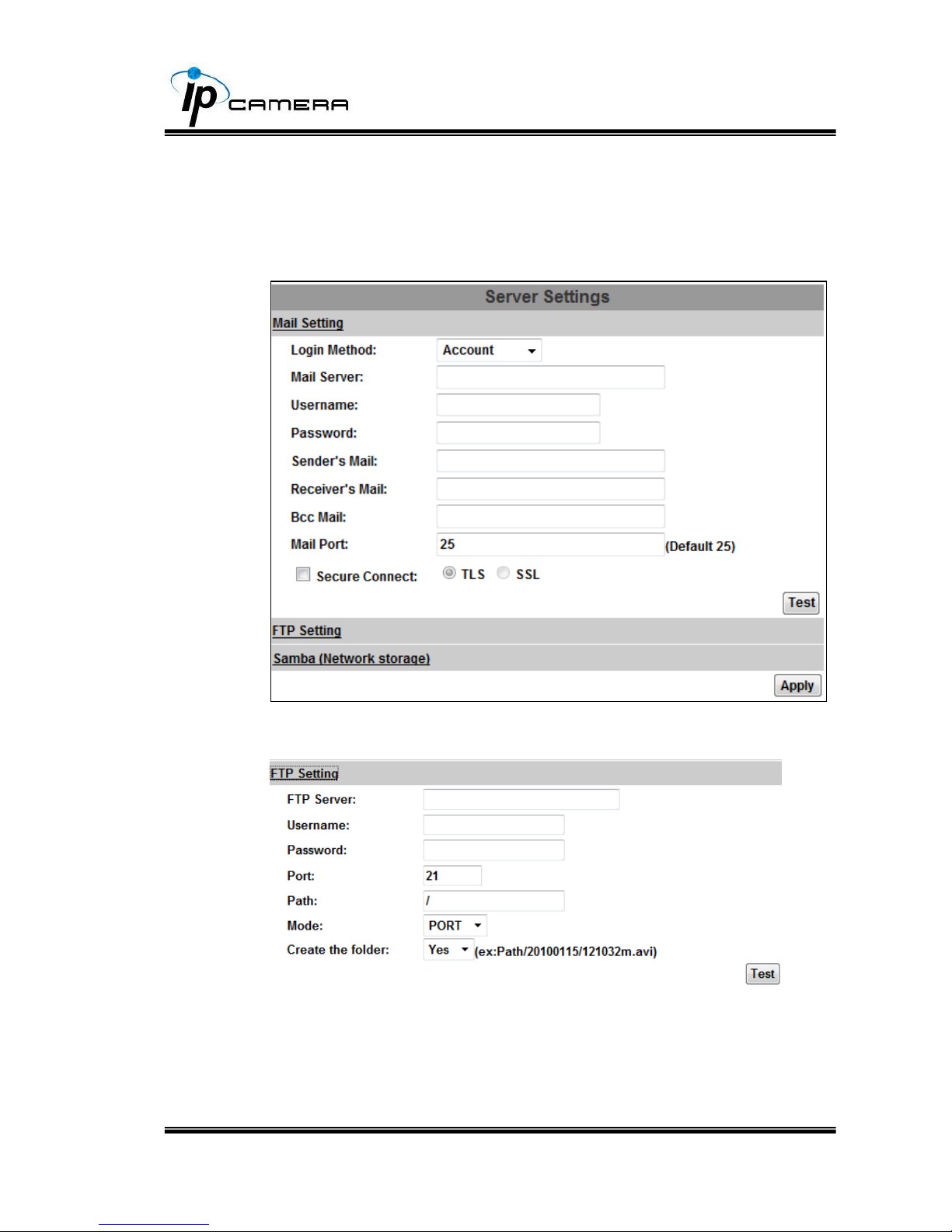

iv、 Server setting

There are three choices of server types available: Email, FTP and
SAMBA. Select the item to display the detailed configuration options.
You can configure either one or all of them.
To send out the video via mail of ftp, please set up the configuration first.

FTP
To send out the video via mail of ftp, please set up the configuration first.

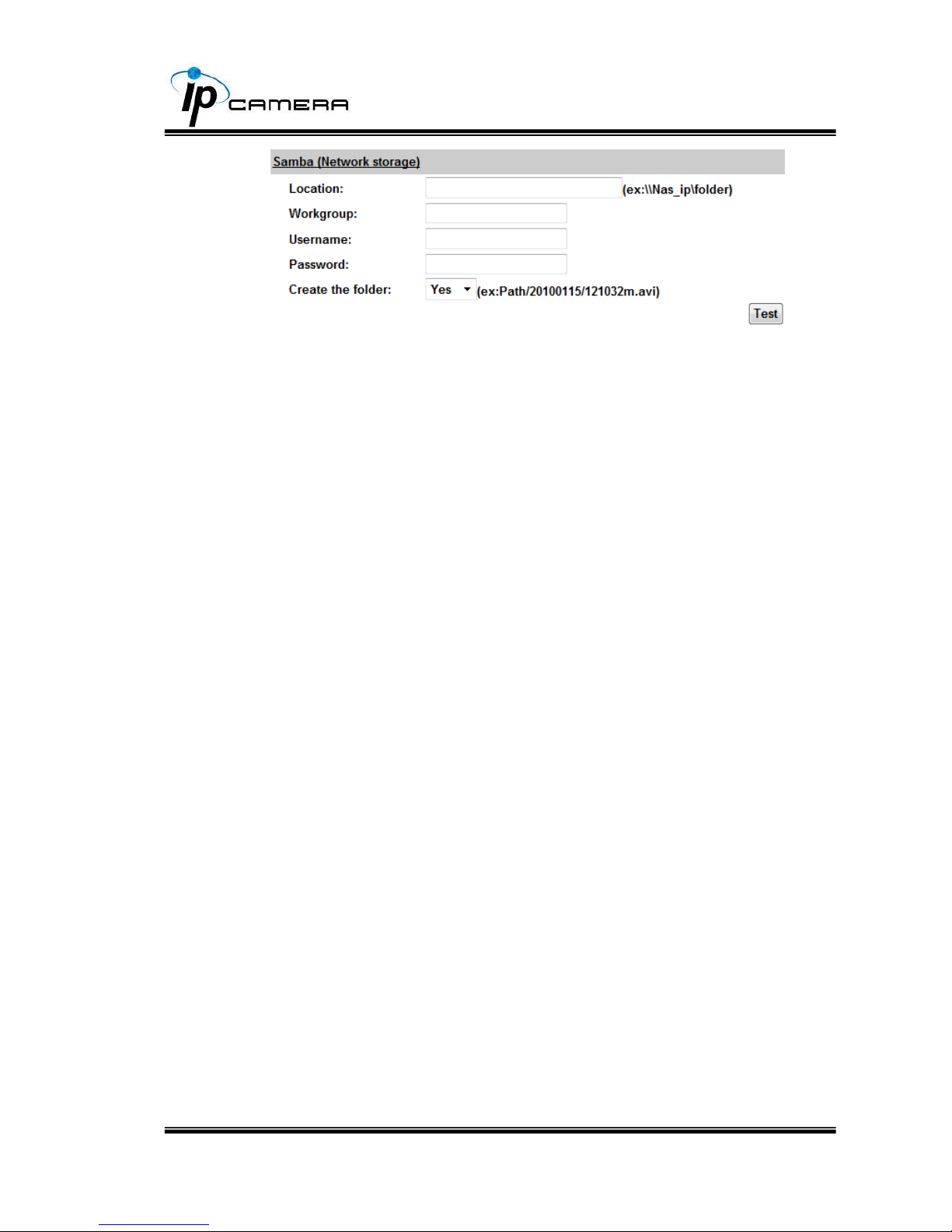

Samba
Select this option to send the media files via a network neighborhood
when an event is triggered

31/53

32/53

C.A/V Setting

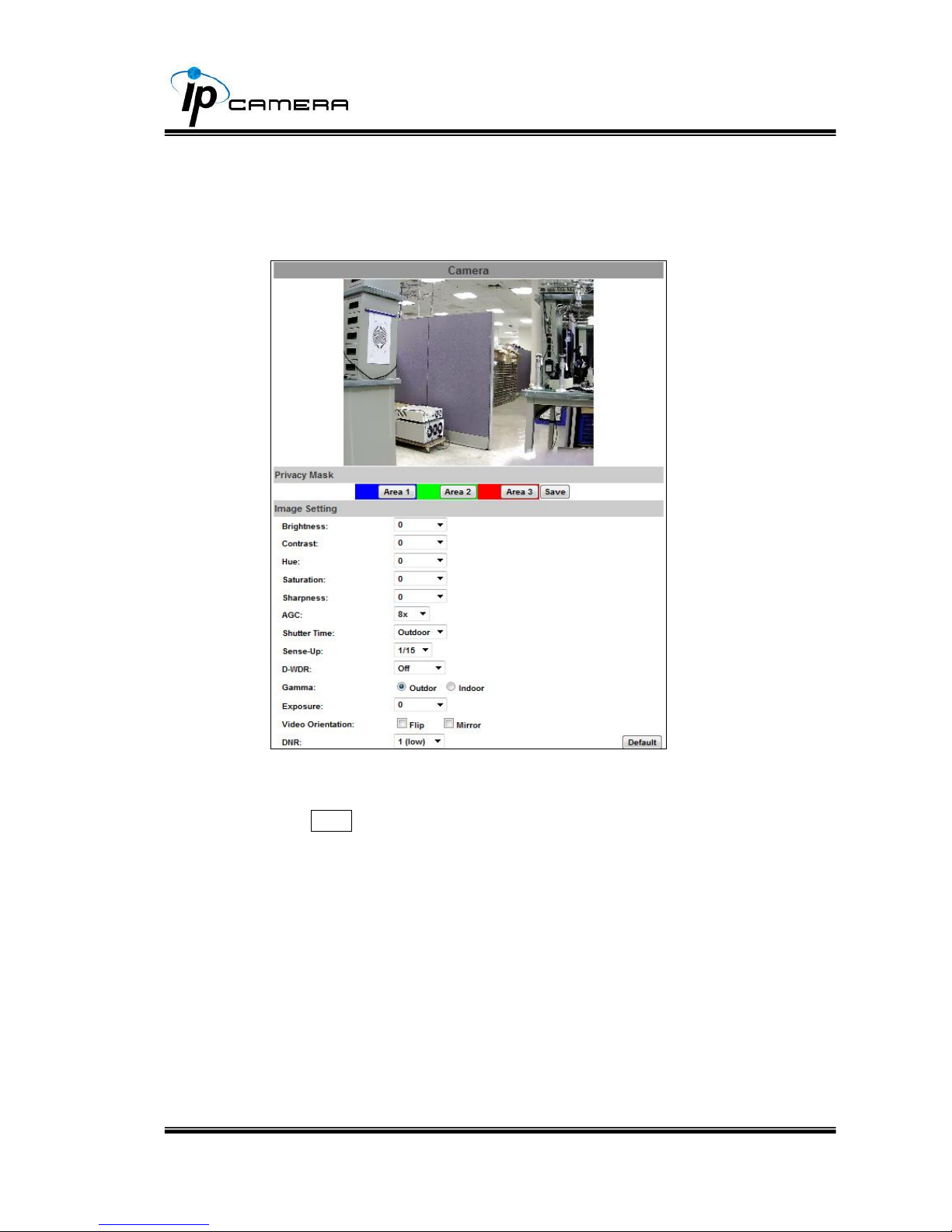

i、 Image Setting

For the security purpose, there are three areas can be setup for privacy
mask. Click Area button first and pull a area on the above image. Finally,
click Save button to reserve the setting.
Adjust “Brightness”, “Contrast”, “Saturation” , “Exposure”, “Sharpness”
to get clear video. Moreover, IP CAMERA supports “AGC”, “Shutter
Time”, “D-WDR”, “Noise reduction” and “Video Orientation”

33/53

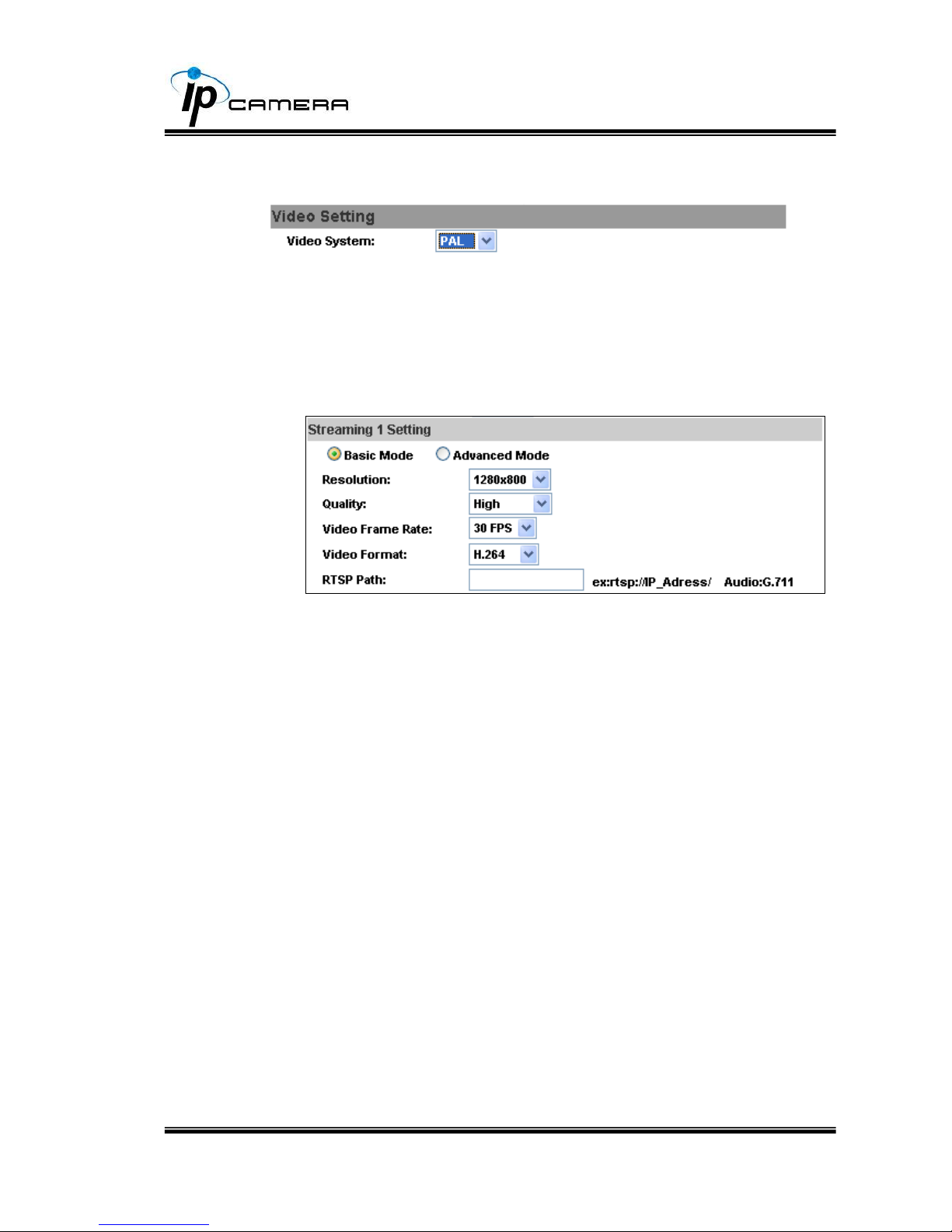

ii、 Video Setting

User may select the camera system type,

Streaming 1 Setting: Basic mode and Advanced mode
Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode

(Max Video Frame Rate for both streaming combined is 30 FPS)

a. Streaming 1 Basic Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1280x800@30fps, 1280x720@30fps, 640x480@30fps,
320x240@30fps, 176x144@30fps

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

5. RTSP Path: RTSP output name

34/53

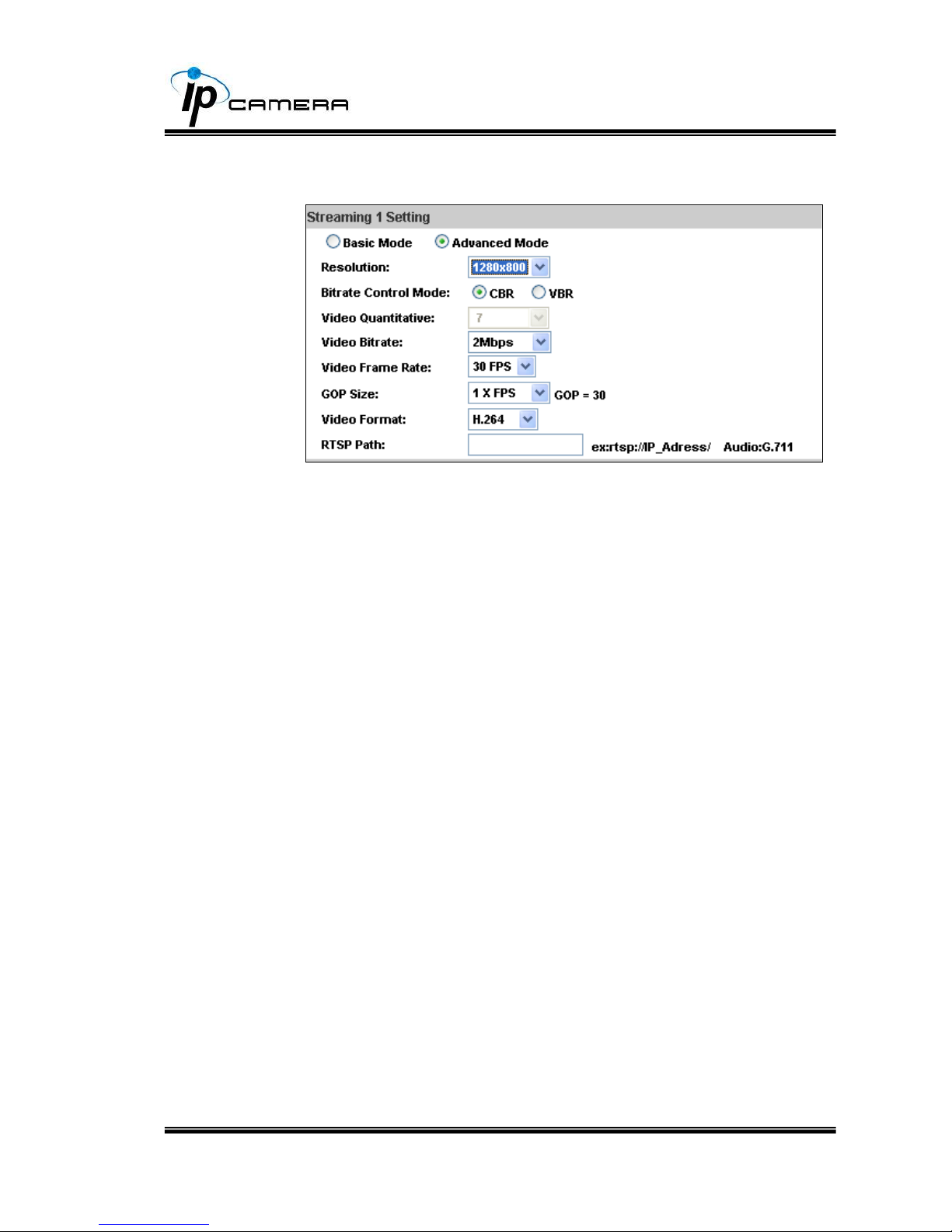

b. Streaming 1 Advanced Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1280x800, 1280x720, 640x480, 320x240, 176x144

2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：32Kbps~8Mbps (the higher the CBR is, the better the

video quality is)
VBR：1(Low)~10(High) – Compression rate, the higher the

compression rate, the lower the picture quality is; vise versa.
The balance between VBR and network bandwidth will affect
picture quality. Please carefully select the VBR rate to avoid
picture breaking up or lagging.

3. Video Frame Rate
The video refreshing rate per second.

4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.

5. Video Format：H.264, MPEG4 or M-JPEG

6. RTSP Path: RTSP output connecting route

35/53

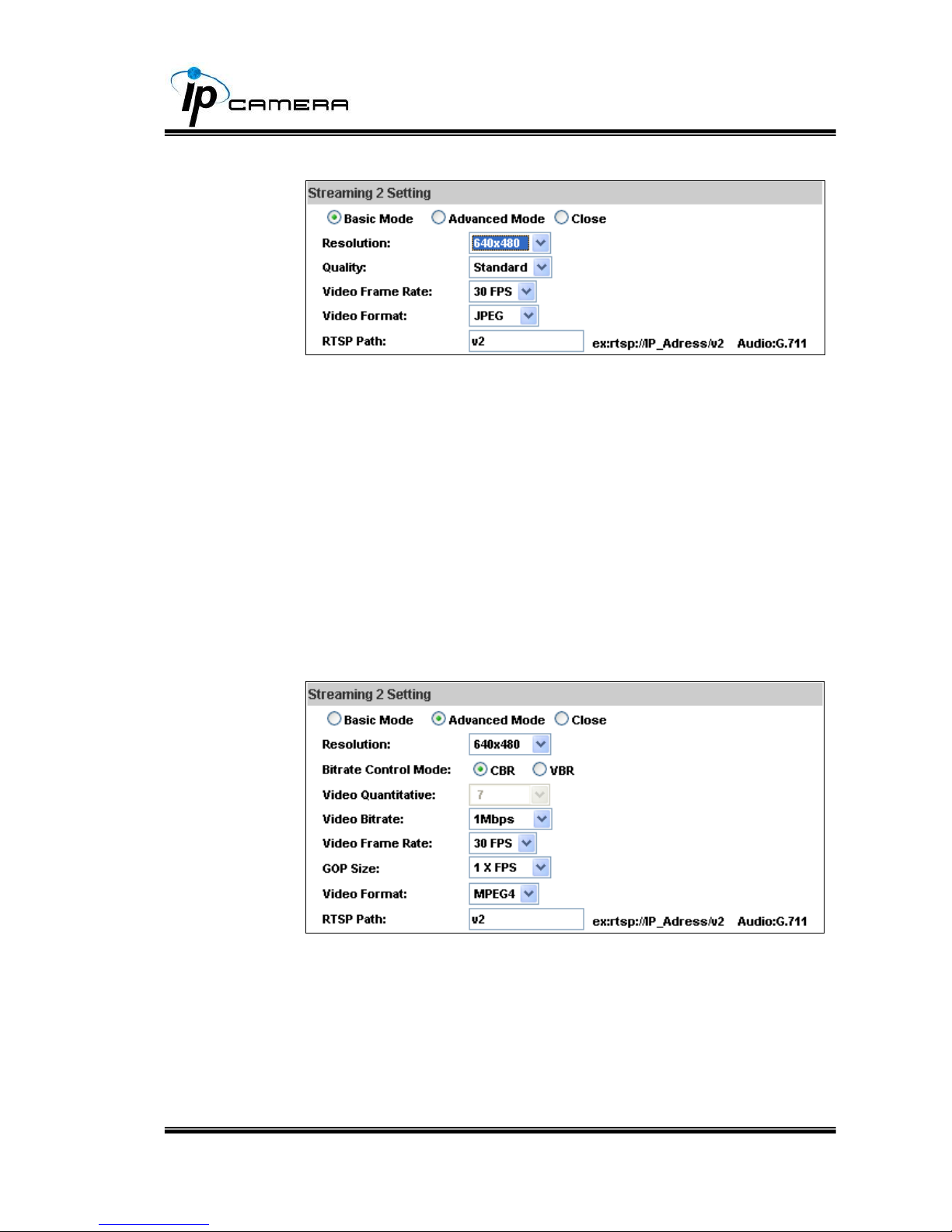

c. Streaming 2 Basic Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1280x800, 1280x720, 640x480, 320x240, 176x144

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

5. RTSP Path: RTSP output connecting route

d. Streaming 2 Advanced Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1280x800, 1280x720, 640x480, 320x240, 176x144

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not

36/53

good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

5. RTSP Path: RTSP output connecting route

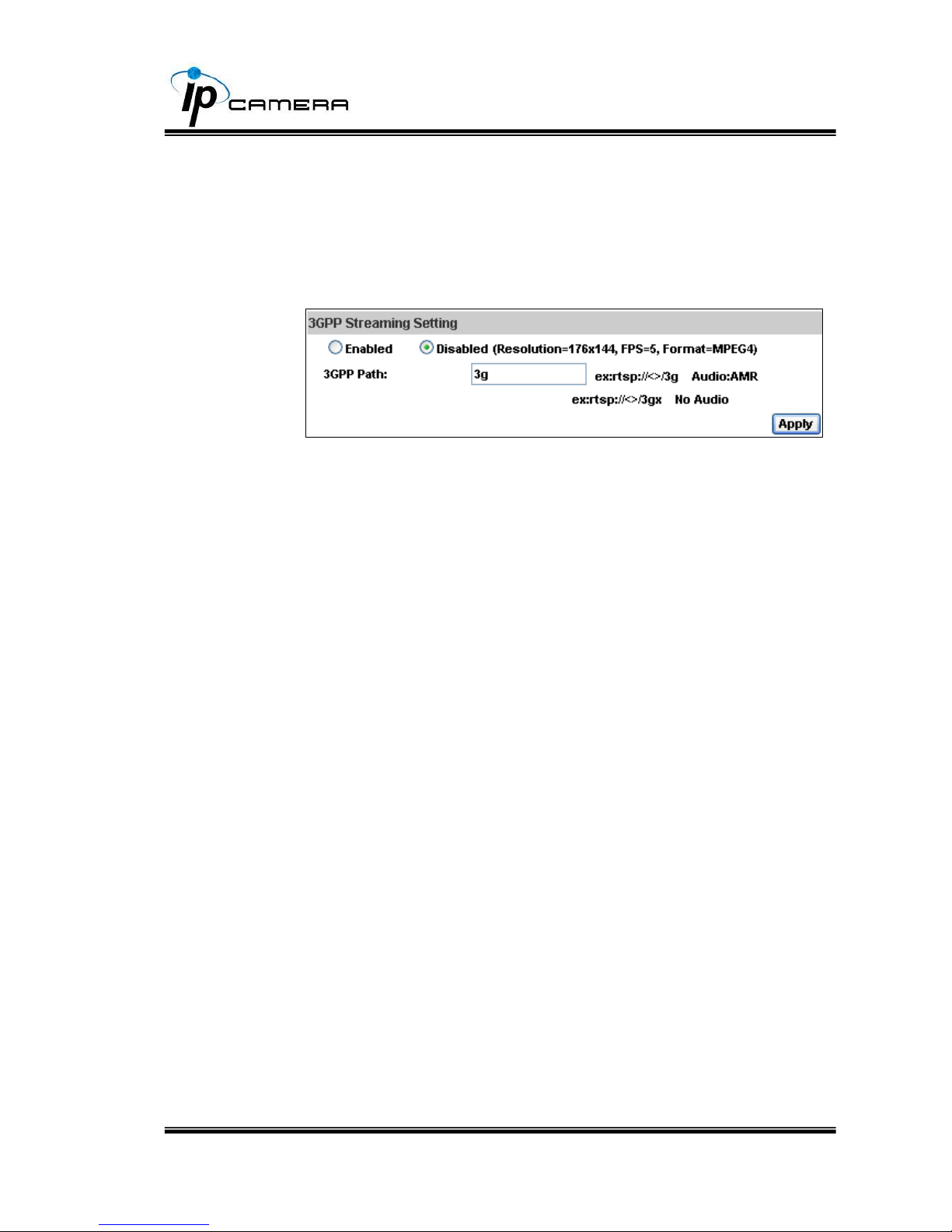

e. 3GPP Streaming mode:

3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format

1. Enable or Disable 3GPP Streaming

2. 3GPP: 3GPP output name

37/53

iii、 Audio：

IP CAMERA supports 2-way audio. User can send audio from IP
Camera Built-in mic to remote PC; User can also send audio from
remote PC to IP Camera’s external speaker.

a. Audio from IP camera built-in mic to local PC: select “Enable” to

start this function and also can select the audio type.

b. Audio from local PC to IP Camera: Check “chatting” in the browsing

page.

The Audio will not be smooth when enable SD card

recording function simultaneously.

38/53

D.Event List

IP CAMERA provides multiple event settings.

i、 Event Setting

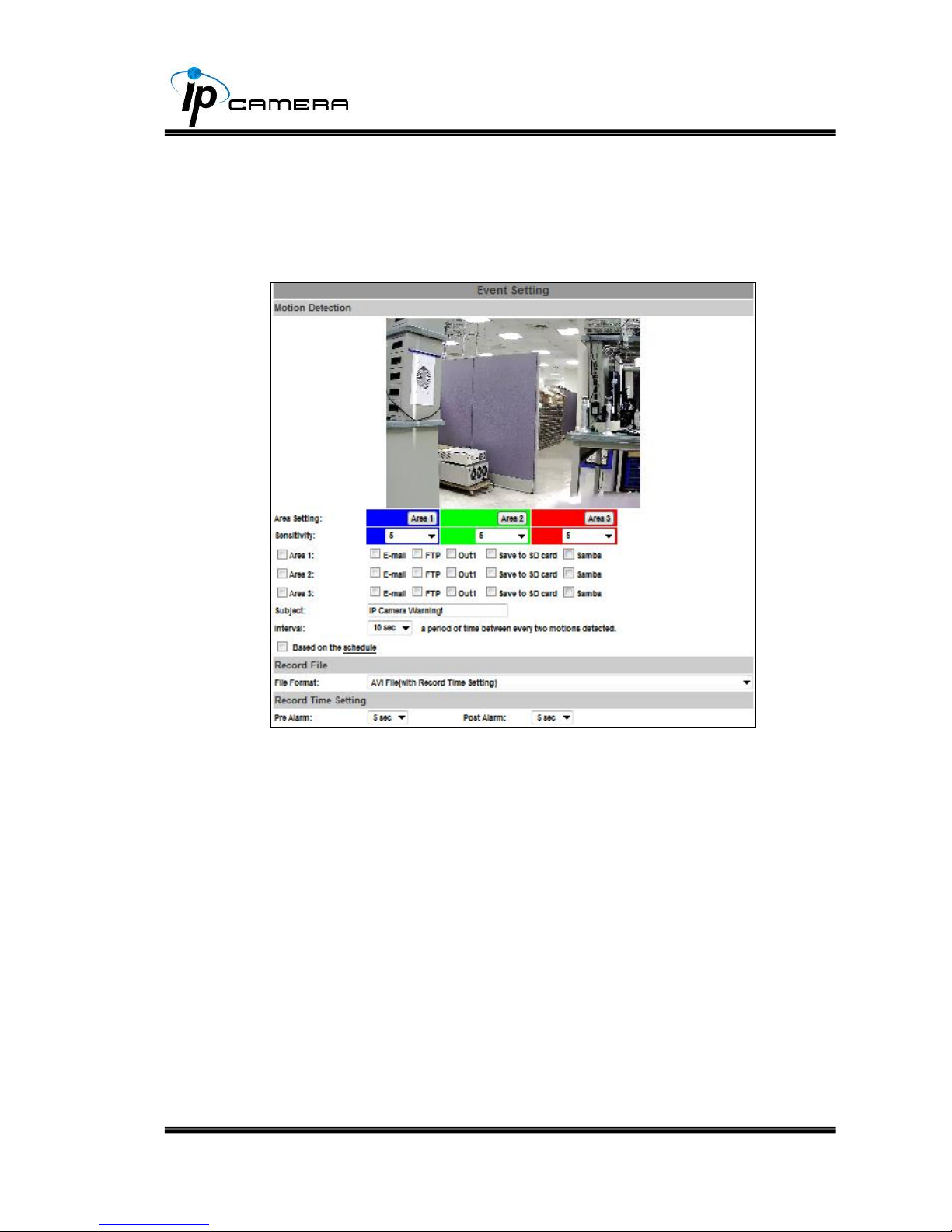

a. Motion Detection：

IP CAMERA allows 3 areas motion detection. When motion is
triggered, it can send the video to some specific mail addresses,
transmit the video to remote ftp server, trigger the relay, and save

video to local SD card. To set up the motion area, click “Area
Setting”. Using mouse to drag and draw the area. The same

operation for area 2 and 3.

b. Record File Setting: IP CAMERA allows 3 different types of

recording file to change its record size.

When motion/alarm is triggered, there are 3 different types of
record mode.

1. AVI File (With Record File Setting )

2. Multi-JPEG (With Record File Setting), only with JPEG
compression format.

3. Single JPEG (Single File with Interval Setting)

39/53

c. Record Time Setting：

Pre Alarm and Post Alarm setups for video start and end time when
motion detected, I/O, or other devices got triggered.

Note: Pre/Post Alarm record time is base on record time setting and IP Cam
built-in Ram memory. Limited by IP Cam built-in Ram Memory, When information
is too much or video quality set too high, it will cause recording frame drop or
decrease on post alarm recording time.

d. Network Dis-connected：

IP Camera will scan ones per second. Image will be record to SD
card after IP Camera detect network dis-connected, if set “Save to
SD card”.

e. Network IP check

After enable IP Check, IP camera can check network server
connecting. If IP camera check fail, image will record image to SD
card.

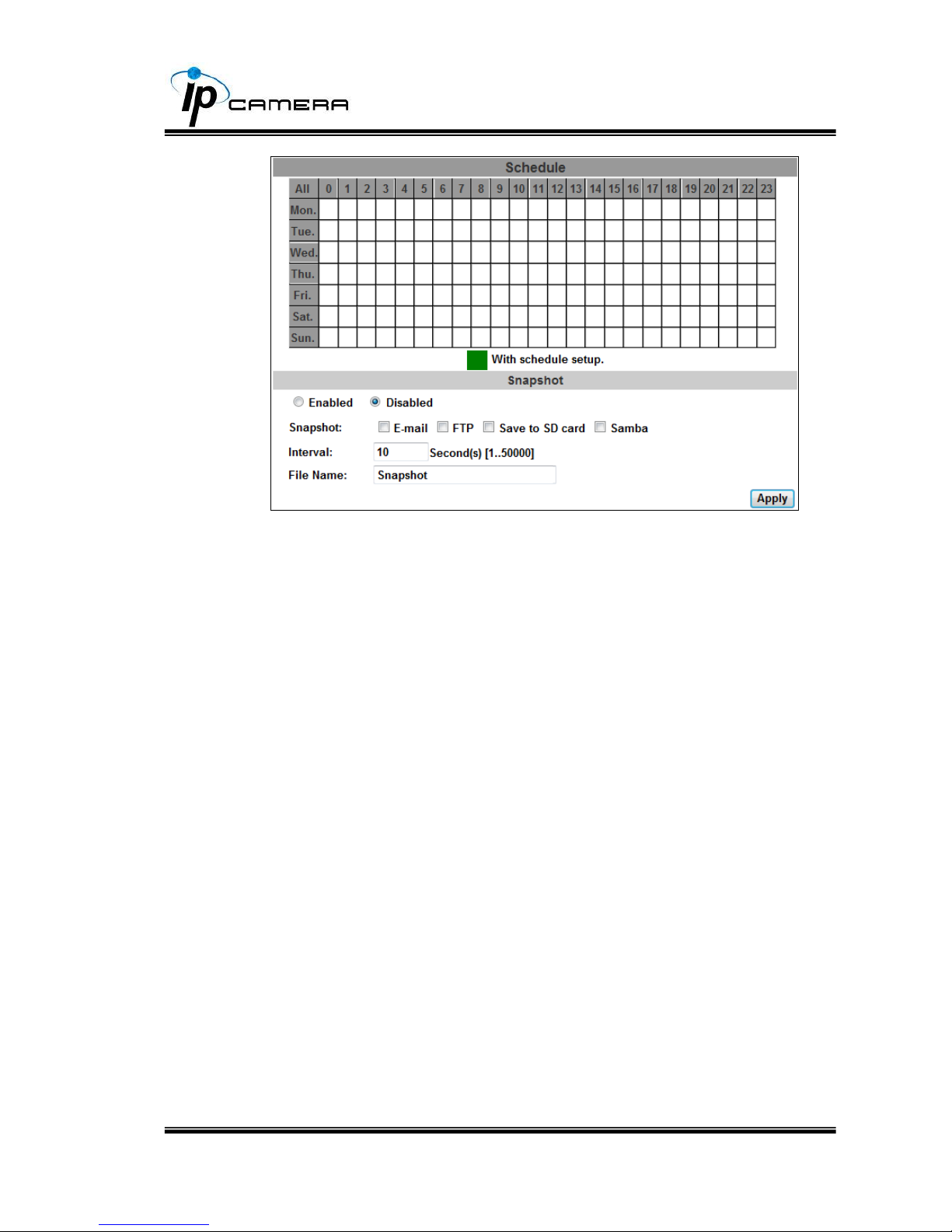

ii、 Schedule

a. Schedule: After complete the schedule setup, the camera data will

be recorded according to the schedule setup.

b. Snapshot: After enable the snapshot function, user can select the

storage position of snapshot file, the interval time of snapshot and
the reserved file name of snapshot.

40/53

41/53

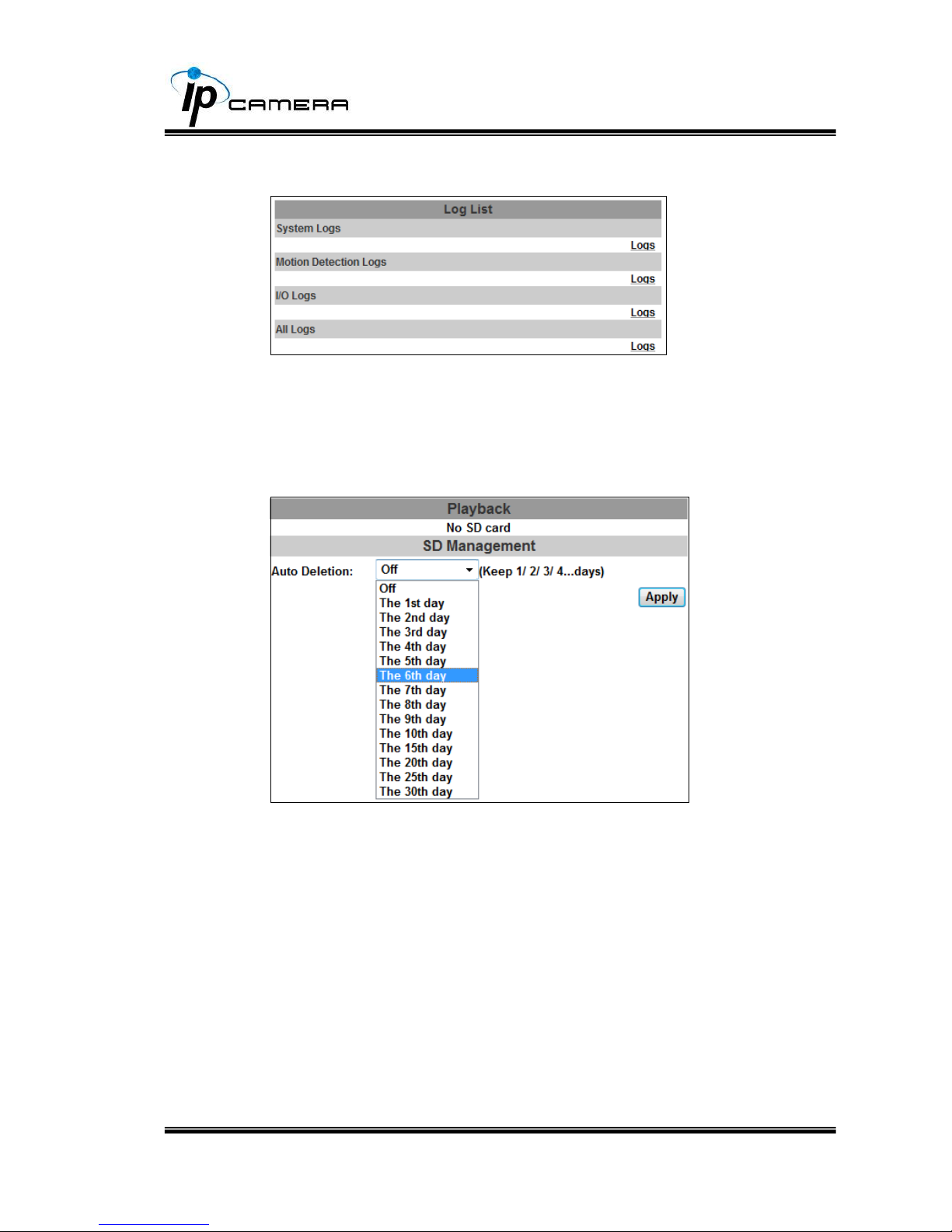

iii、 Log List

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure.

iv、 SD card

Choose “The 1st day” meads the recoding file will be keep one day.
Example: It is five o’clock now. Choose “The 1st day”. The files will be
kept from five o’clock yesterday to five o’clock today.

42/53

VI. Network Configuration

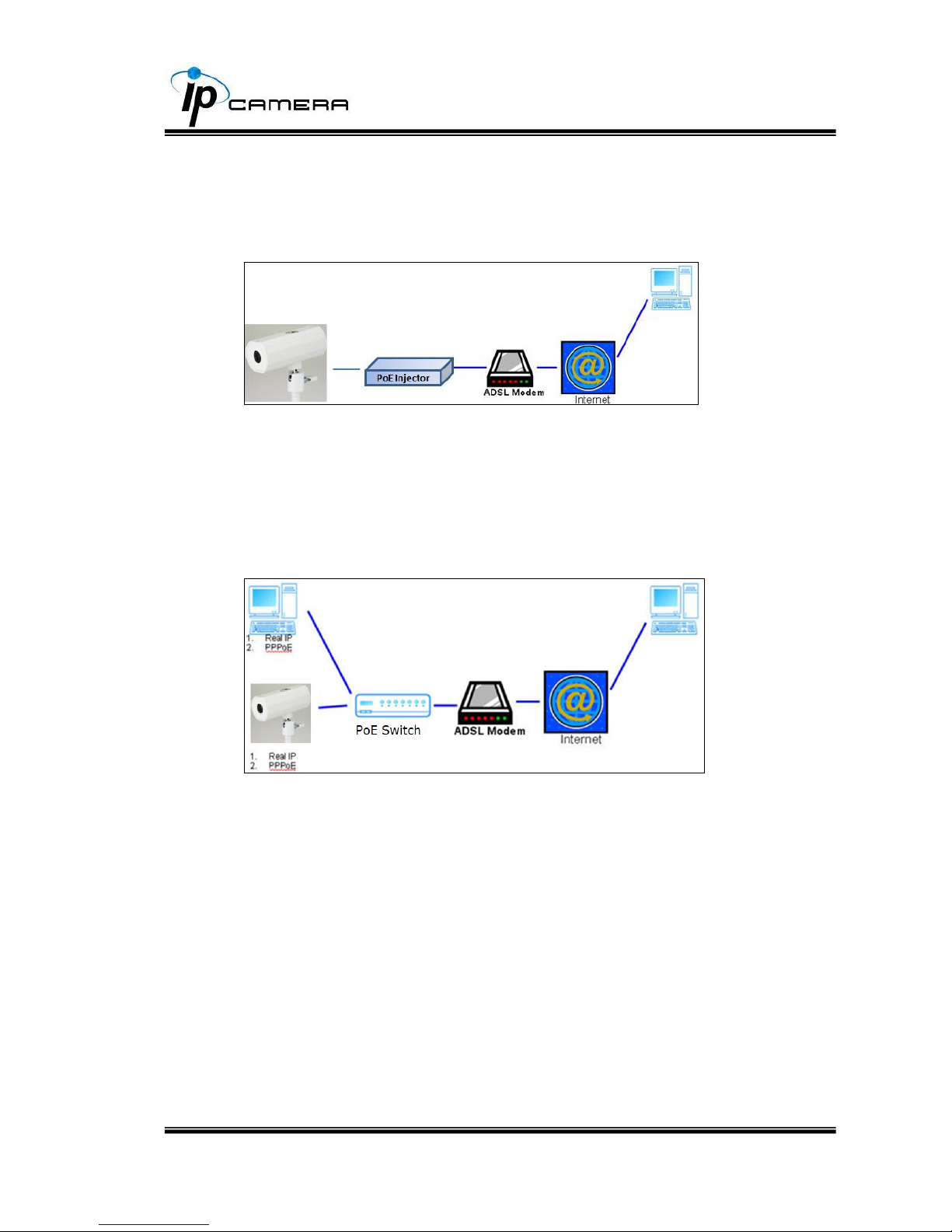

i、 Configuration 1：

a. Internet Access：ADSL or Cable Modem
b. IP address：One real IP or one dynamic IP
c. Only IP CAMERA connects to the internet
d. For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start

PPPoE.

ii、 Configuration 2：

a. Internet Access：ADSL or Cable Modem
b. IP address：More than one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet
d. Device needed：Switch Hub
e. For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP,

start PPPoE.

43/53

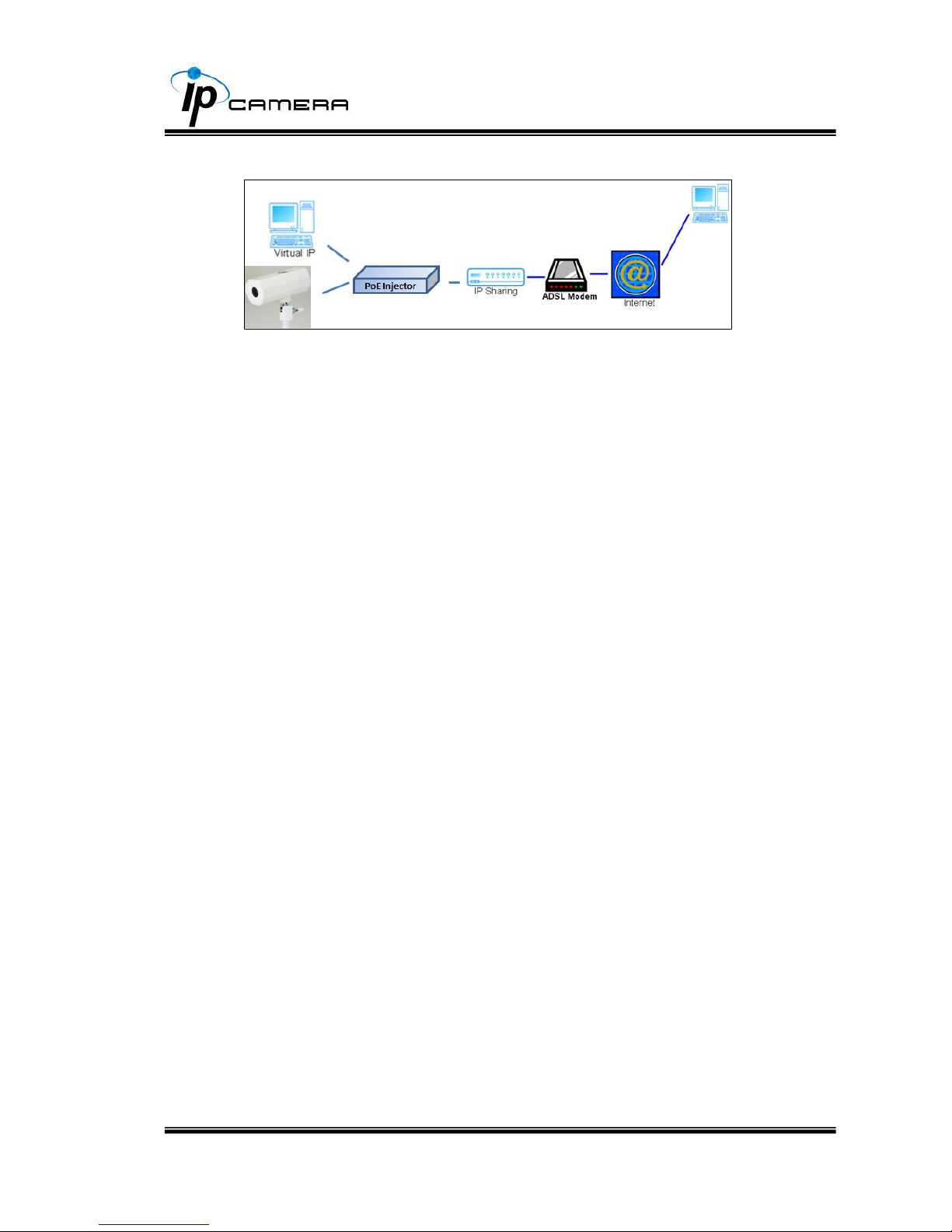

iii、 Configuration 3：

a. Internet Access：ADSL or Cable Modem
b. IP address：one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet
d. Device needed：IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.

44/53

VII. I/O Configuration

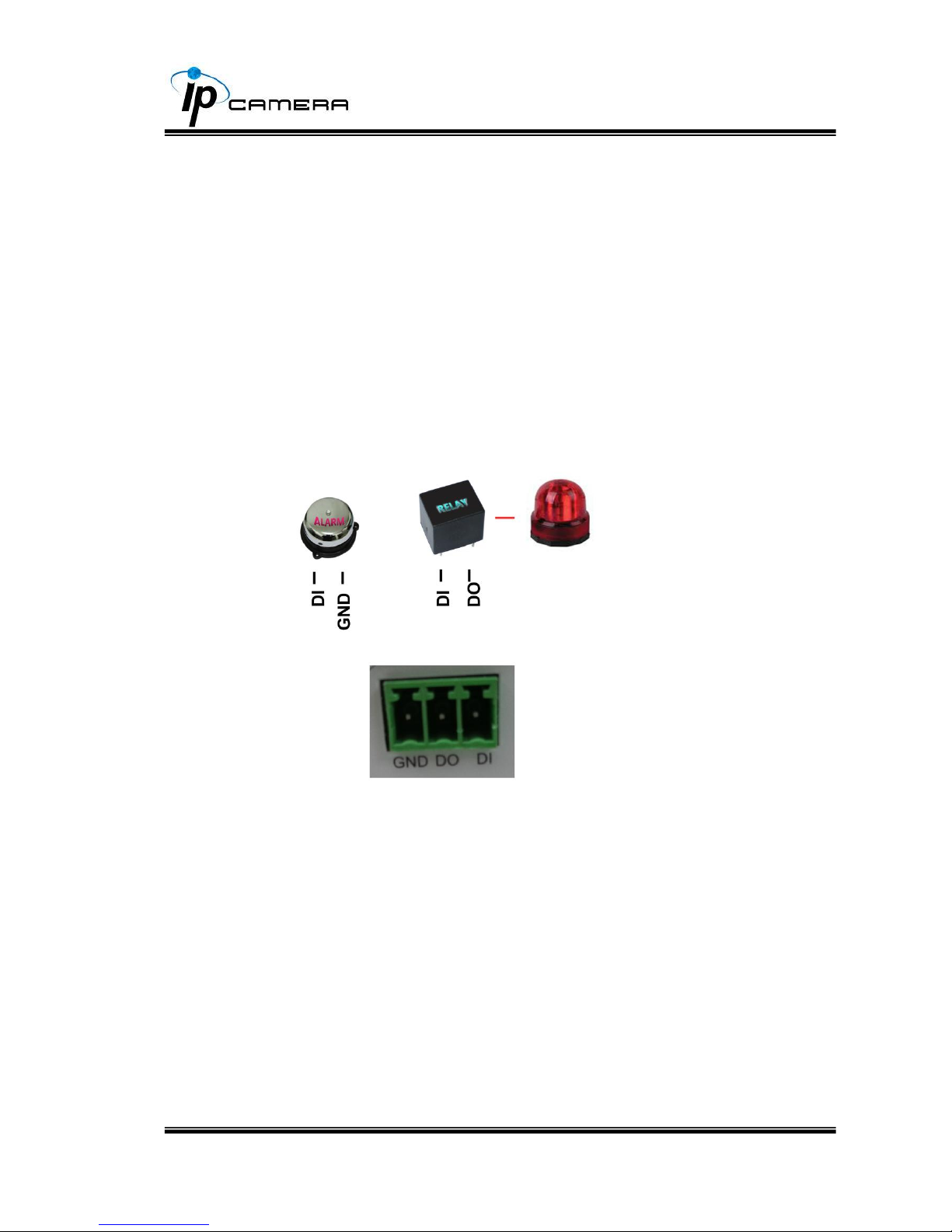

1. I/O Connection
a. Please connect the G & AO pin to the external relay (buzzer)

device
b. Please connect the G & A-I pin to the external trigger device.

c. I/O PIN definition

• GND (Ground)

• DO (Digital Output): DC 5V, initial state is High

• DI (Digital Input, DI): Max. 50mA, DC 5V, initial state is High

When no event happens, DO output is 5V (DO and GND are
disconnected). When the camera detects event happening and triggers
external alarm, DO output is 0V (DO and GND are connected).

45/53

If you select "N.O" in "Input sensor setting", when external device or
circuit makes DI and GND pin connected, the camera input alarm is
triggered, and then camera will execute the action user has set, for
example, send snapshot to E-mail address.
If you select "N.C" in "Input sensor setting", when external device or
circuit makes DI and GND pin disconnected, the camera input alarm is
triggered, and then camera will execute the action user has set, for
example, send snapshot to E-mail address.

46/53

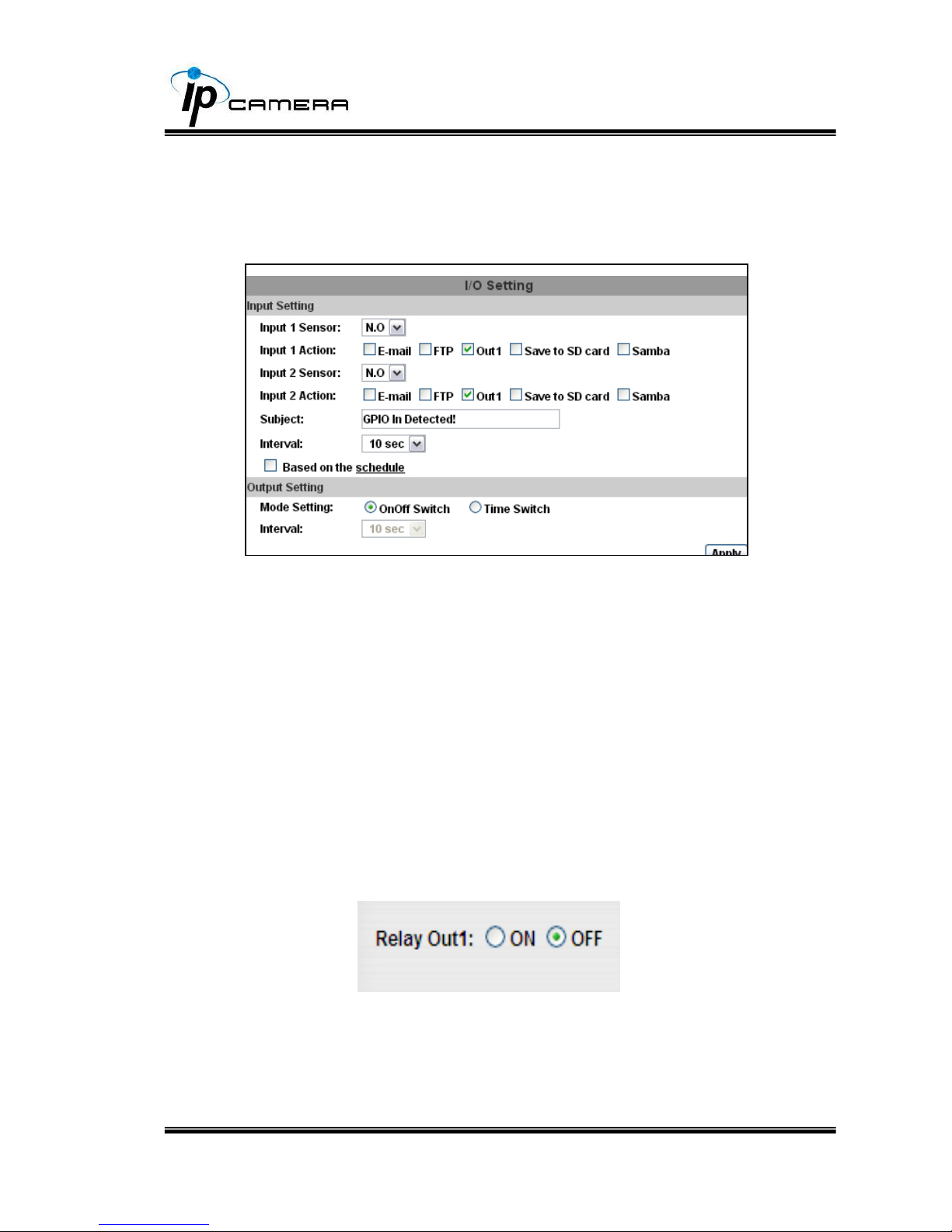

2. I/O Setup
a. Click I/O Setting from the system setup page via IE, and check

“Out1” to enable I/O signal.

b. Output Test

After the external input and output hardware is installed, you can use
the "Relay Out" bottom on the live video page to test if DO / Relay Out
works.

(i) On Off Switch mode:

Click "ON", the camera will trigger the external output
device for 10 seconds. For example, your alarm buzzer
will continuously ring for 10 seconds. After 10 seconds
the buzzer stops ringing, or you can

manually break off the

output signal by clicking "OFF".

47/53

(ii) Time Switch mode:

Click "Pulse", the camera will trigger the external output
device for several seconds; the duration length is
according to the "interval" setting in Output Setting.

48/53

VII. Factory Default

 If the user name, password, and IP address are lost, please follow the

following instructions.

 Unplug the power adapter first. Then, press the following button in the back

of IP Camera.

 Plug the Ethernet. Do not release the button during the IP Camera booting.
 It will take around 30 seconds to boot the IP Camera.
 Release the button after the IP Camera finishes booting.
 Reconnect the IP Camera with the default IP address (http://192.168.1.200),

user name (admin), and password (admin).

49/53

VIII. Universal Password

If you forgot the password of your IP camera, you can reset the camera to factory
default, or follow the procedure below to generate a universal password.

Note: Universal password will be valid only when you enable the function in User
Management.

1. First, you need to know the IP address and MAC of your IP camera. You can
use IP installer to scan the LAN, and see the IP address and MAC on the side
column.

Or, if you already know the IP address of camera: Open the web browser, key in

“http:// (IP address) /GetIPMAC.cgi” and press enter. The IP address and MAC will be

displayed on browser.

50/53

2. Find the .html file named “Universal Password” in CD-ROM. Click to open it.

3. Key in the camera IP address “IP Adder.” column and MAC in “MAC” column,

and then click “encoder”. You will see a set of username and password appear,

as below:

The universal username and password are generated from the IP address and MAC
you key in, so if you change the camera IP address, the universal password changes,
too.

4. Take the picture for example, the universal username is “C90848” and
password is “CNCE_U6KLA”. Use them to log in the camera.

51/53

5. Now you are logging in as administrator. Turn to User Management page. The
use of universal password does not affect the previous user setting, so the
administrator account password does not change until you edit it. Please click
“Edit” to give a new administrator password.

52/53

IX. Package contents

IP Camera

Quick Installation

Guide

CD

Mounting Bracket

Screws x3

Wall Plug x3

• The CD includes user manual and software tools

53/53

X. Micro SD Card Compatibility

The following is the Micro SD Card recommended:

Transcend

SDHC class4 16GB
SDHC class4 32GB
SD class4 16GB
SD class4 32GB
SDHC class6 4GB
SDHC class6 8GB
SDHC class6 16GB
SD class6 4GB
SD class6 8GB
SD class6 16GB

SanDisk

SDHC class4 4GB
SDHC class4 8GB
SDHC class4 16GB
