IP Camera ATCP-VM501 User Manual

User Manual

WATERPROOF IR

IP CAMERA

2

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED

TO THEIR RESPECTIVE COMPANIES.

CONTENT

V1.0_120710

Preface I. 4

Product Specications II. 4

Product Installation III. 7

Monitor Setting A. 7

Hardware Installation B. 8

IP Assignment C. 10

Install ActiveX control D. 12

Live Video IV. 14

IP Camera Conguration V. 16

System A. 17

Network B. 21

A/V Setting C. 29

Event List D. 35

Network Conguration VI. 42

I/O Conguration VII. 44

Factory Default VIII. 46

Package Contents IX. 47

SD Card Compatibility X. 48

4

PrefaceI.

This IP Camera is a 2 Megapixle CMOS IP camera with the web server

built in. User can view real-time video via IE browser. IP Camera supports

simultaneously H.264, Motion JPEG & MPEG4 video compression and dual

streaming which provides smooth and high video quality. The video can be

stored in the SD card and played back remotely. With user friendly interface, it is

an easy-to-use IP camera which is designed for security application.

Product SpecicationsII.

Main Features:

High Denition 30FPS support(720P)•

Support video out•

IP66•

External Vara-focal lens adjustment•

2M-Pixel CMOS Sensor•

Power over Ethernet available•

IR LED Built in 20M available•

Mechanism IR Cut Filter Available•

H.264/ JPEG/ MPEG4 compression•

SD card backup(option)•

2-way audio•

Support Cell Phone/PDA/3GPP•

SDK for Software Integration•

Free Bundle 36 Ch recording software•

HLC-79AD Specications

Hardware

CPU ARM 9 ,32 bit RISC

RAM 256MB

Flash 16MB

Image Sensor 1/3” CMOS(2M-Pixel)

Support DC IRIS Yes

Lens Type Vari-focal 3.6~16mm Lens

Angle of View

20.8∘~75.4∘(horizonal)

15.7∘~54.9∘(vertical)

5

ICR Mechanism IR cut Filter

LED Built-in 35 IR LED

IR Distance-20M

I/O 1 in/ 1 Relay Out

Video Out x1

Audio In x1

Audio Out x1

Power over Ethernet Yes (Optional)

Power Consumption DC 12V Power consumption :IR on 6.5W, IR 0ff 4.8W

POE Power consumption: IR on 9.3W, IR off 6.9W

Dimensions

∮

83mm * H180mm

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS,

NTP, UPnP, 3GPP

System

Video Resolution

1600x1200, 1280x1024, 1280x960,1280x720,

800x600,640x480, 320x240, 176x144

Video Adjust Brightness, Contrast, Sharpness, AGC, BLC, AWB R-Gain/

B-Gain, Flip, Mirror, Night Mode, Day/Night Adjustable

Triple Streaming Yes

Image Snapshot Yes

Full Screen Monitoring Yes

Privacy Mask Yes, 3 different areas

Compression Format H.264/ JPEG/ MPEG4 (3GPP only)

Video Bitrates Adjust CBR, VBR

Motion Detection Yes, 3 different areas

Triggered Action Mail, FTP, Save to SD card, Relay, Samba

Pre/ Post Alarm Yes, congurable

Security Password protection

Firmware Upgrade HTTP mode, can be upgraded remotely

Simultaneous

Connection

Up to 10

Audio Yes, 2-way

SD card management(option)

Recording Trigger Motion Detection, IP check, Network break down (wire

only),Schedule, Relay

Video Format AVI, JPEG

6

Video Playback Yes

Delete Files Yes

Client System requirement

OS Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above

Hardware

Suggested Intel

Dual Core 1.66G

,RAM: 1024MB, Graphic card:

128MB

Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

7

Product InstallationIII.

Monitor SettingA.

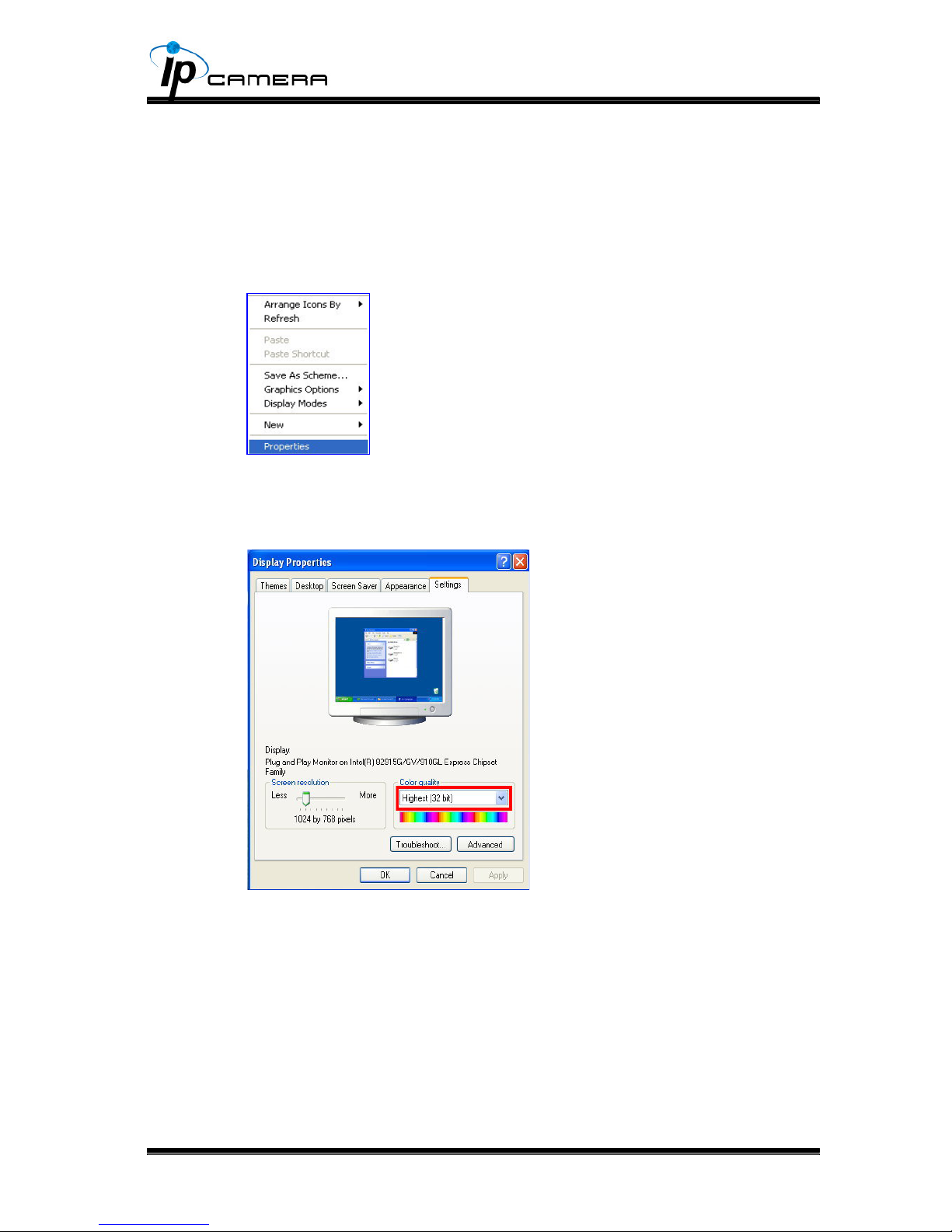

Right-Click on the desktop. Select “ Properties”1.

Change color quality to highest (32bit).2.

8

Hardware InstallationB.

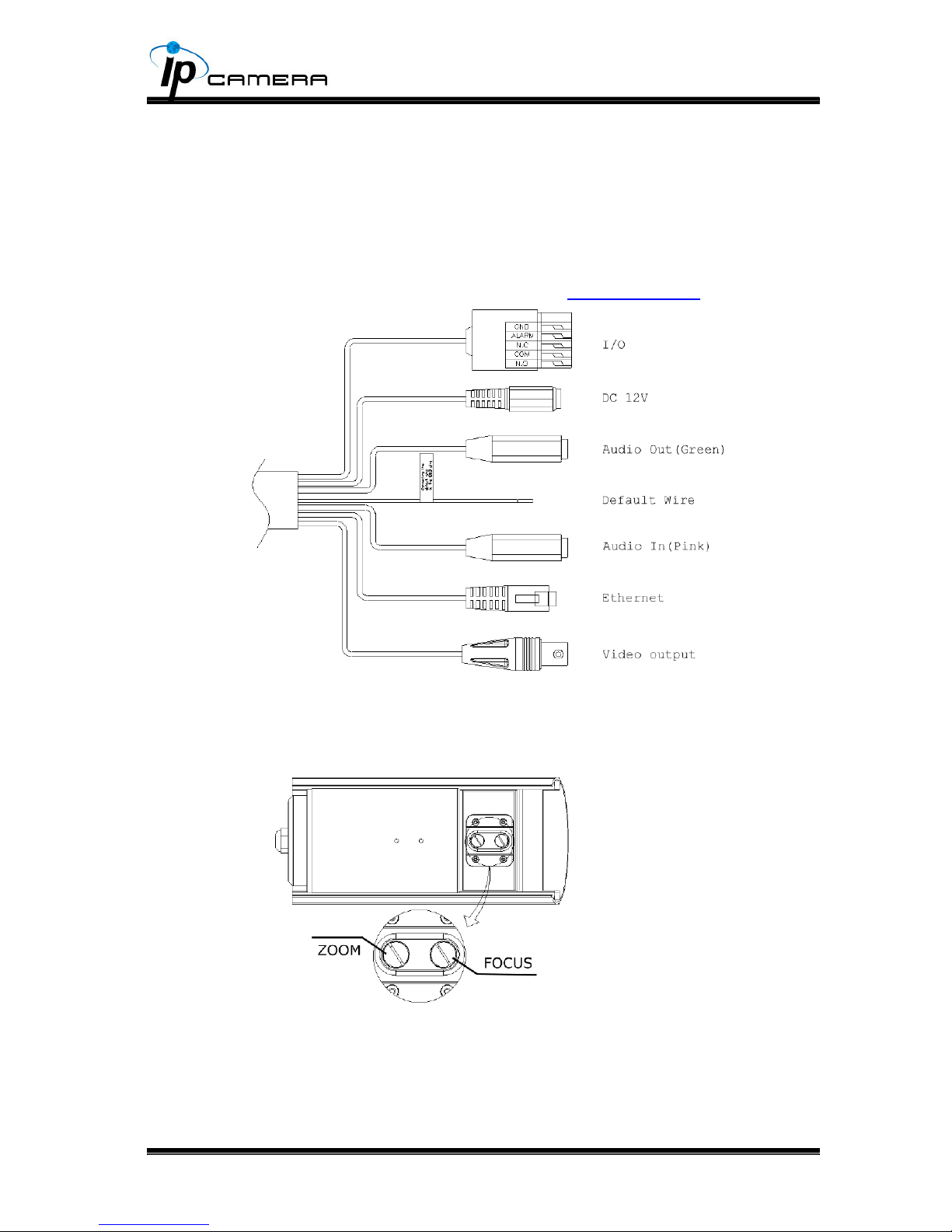

Connector Instruction1.

The Cable and connector is as below. Connect power adaptor first,

then connect the IP Camera to PC or network, and set up the network

configurations according to the network environment. About I/O setting,

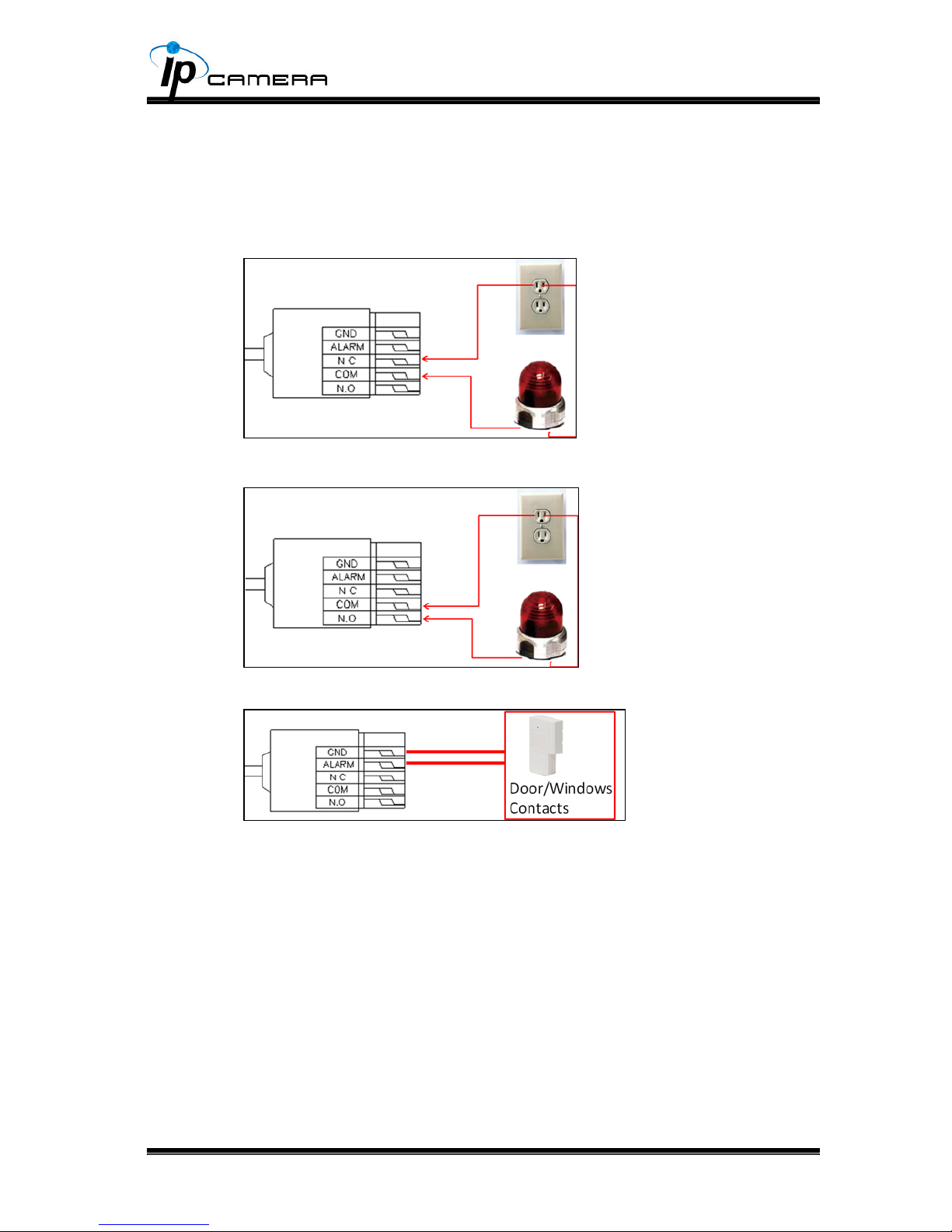

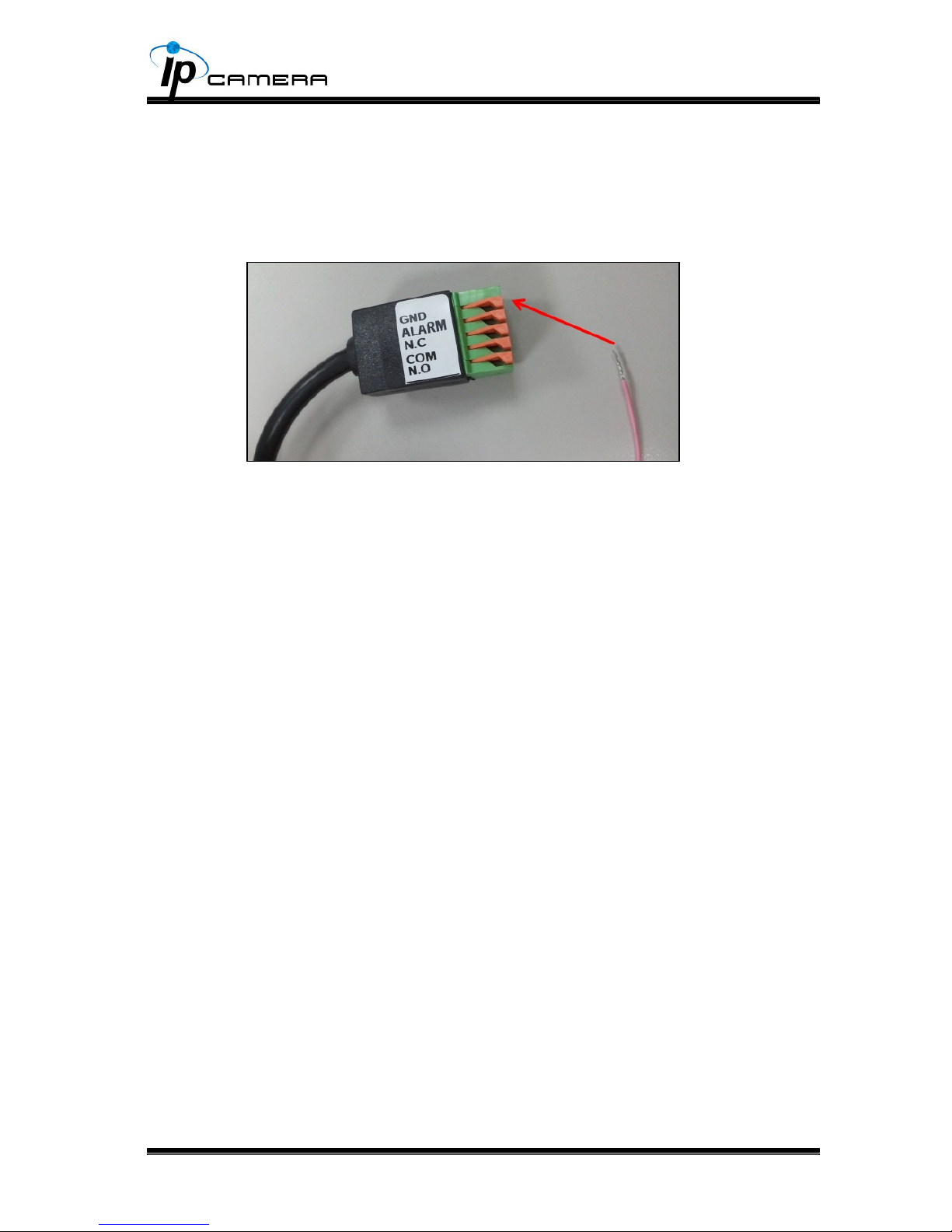

please refer to chapter VII in User Manual: "I/O Conguration" for detail.

This IP camera is equipped with an external vari-focal lens controller. Please 2.

adjust “ZOOM” and “FOCUS” as following picture until the image gets clear.

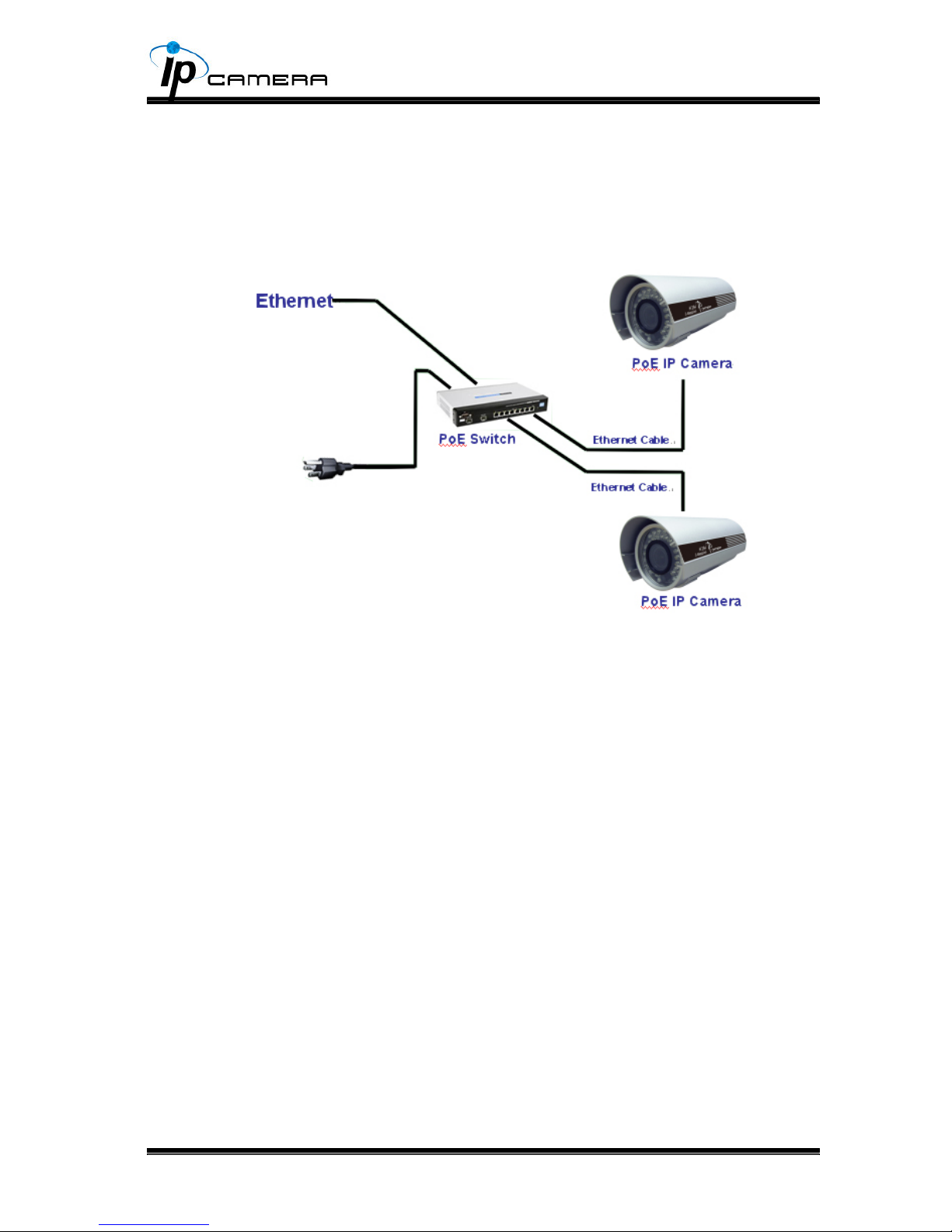

PoE (Power Over Ethernet) 3. 802.3at, 30.0W PoE Switch is recommended

Power over Ethernet (PoE) is a technology that integrates power into a

standard LAN infrastructure. It enables power to be provided to the network

9

device, such as an IP phone or a network camera, using the same cable as

that used for network connection. It eliminates the need for power outlets at

the camera locations and enables easier application of uninterruptible power

supplies (UPS) to ensure 24 hours a day, 7 days a week operation.

10

IP AssignmentC.

You can use the software“IP Installer” to assign the IP address of IP Camera. 1.

The software is in the attached CD.

There are two language versions of IP installer. Choose one as your need: 2.

IPInstallerCht.exe: Chinese version

IPInstallerEng.exe: English version

There are 3 kinds of IP conguration.3.

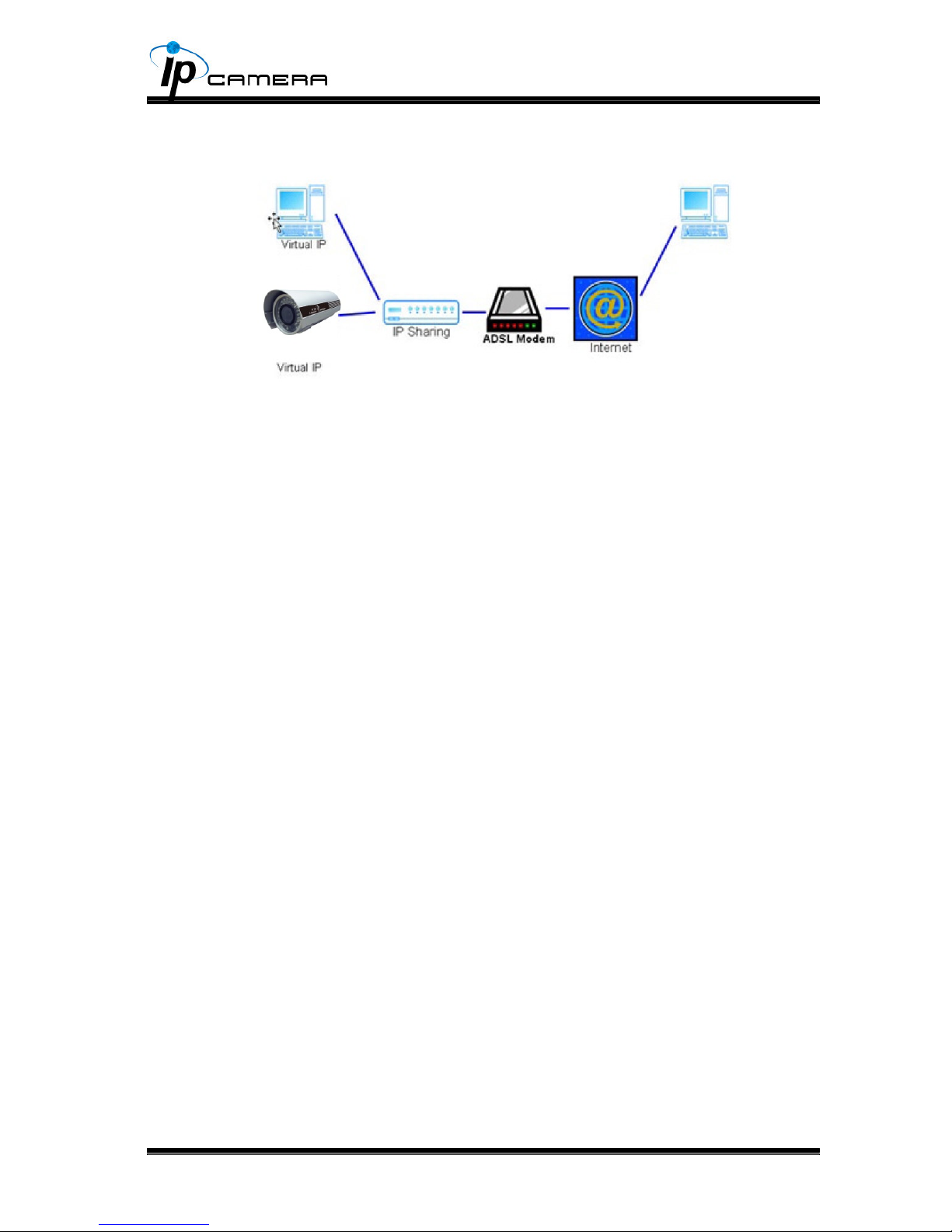

Fixed IP (Public IP or Virtual IP)a.

DHCP (Dynamic IP)b.

Dial-up (PPPoE)c.

Execute IP Installer4.

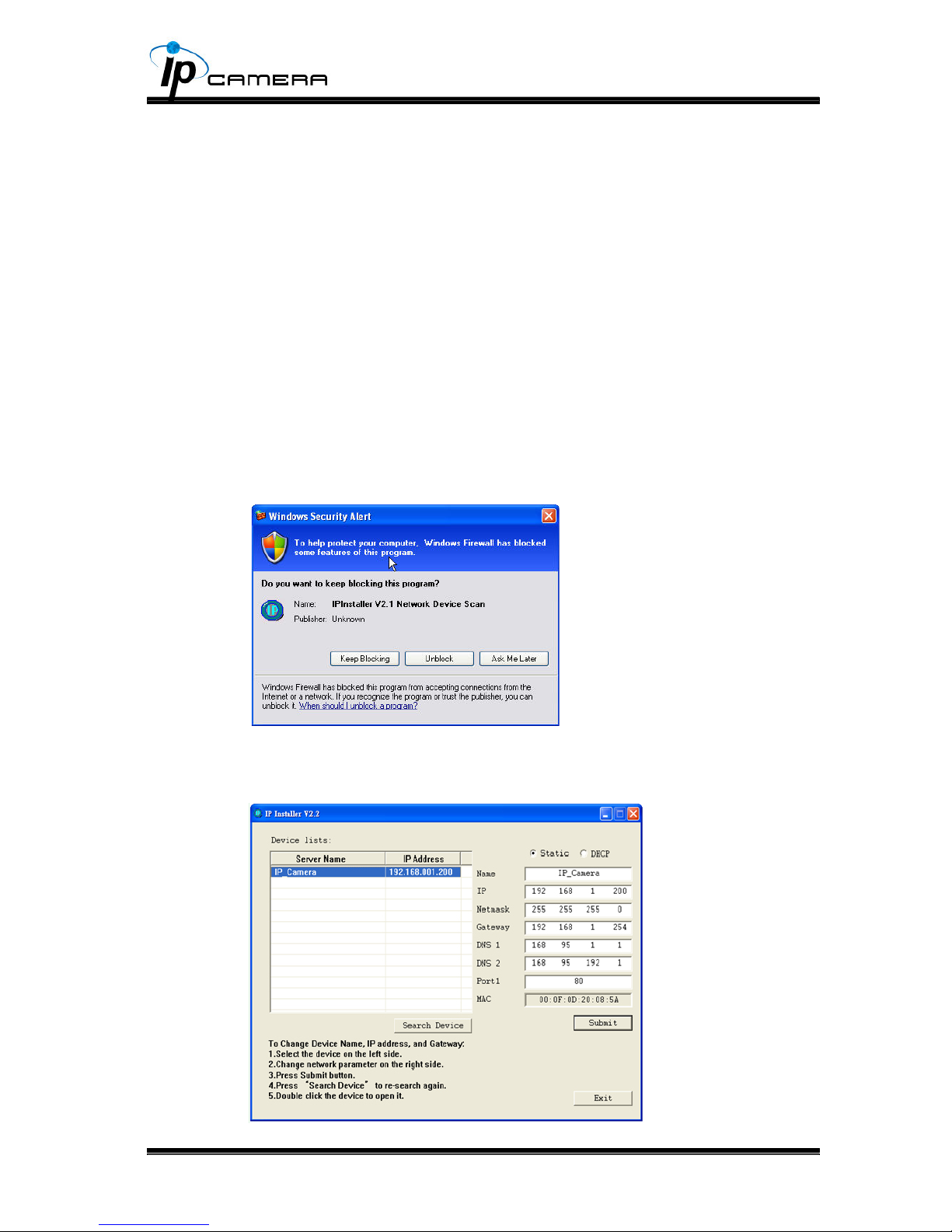

For Windows XP SP2 user, the following message box may pop up. Please 5.

click “Unblock”.

IP Installer conguration:6.

11

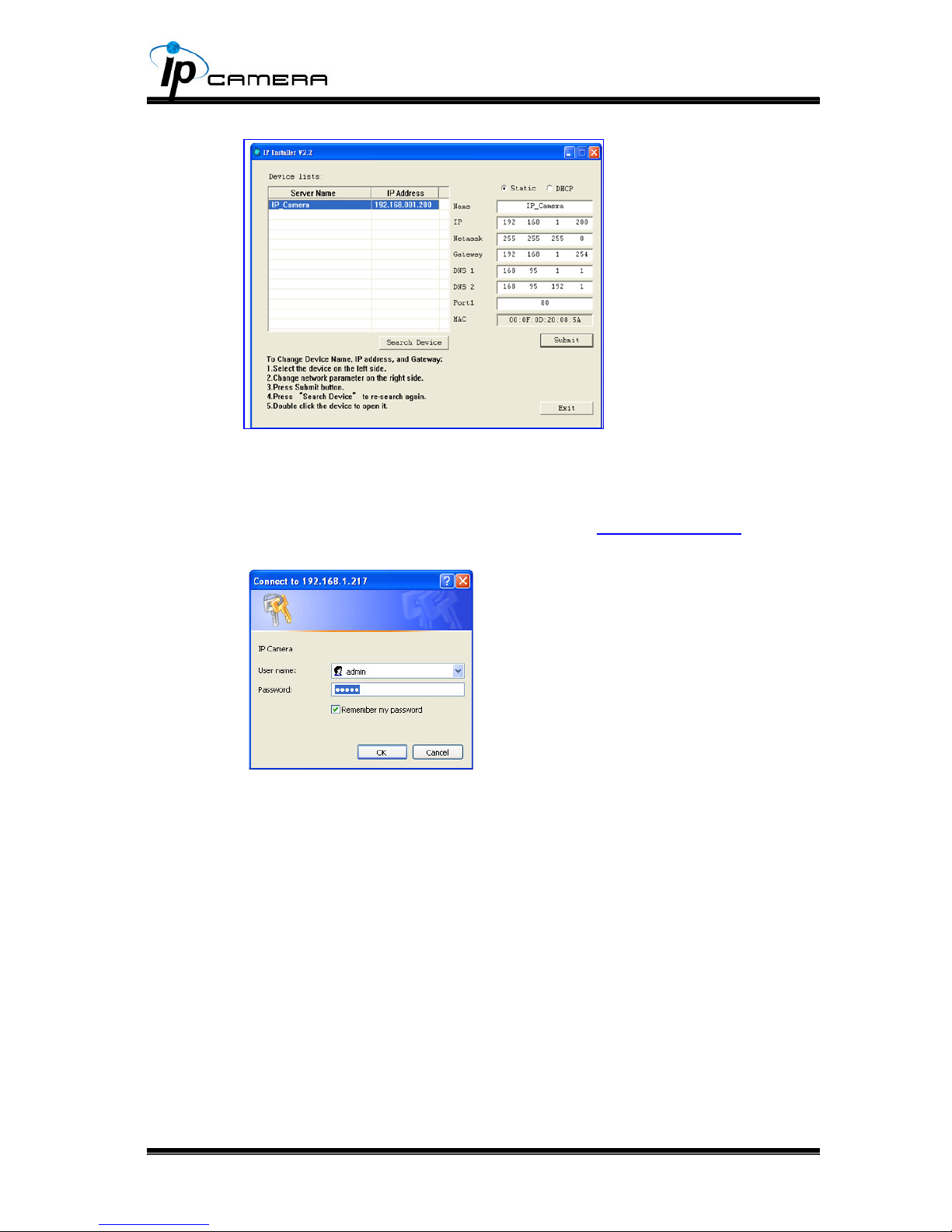

IP Installer will search for all IP Cameras connected on Lan. Click “Search 7.

Device” to refresh the result list.

Click one of the IP Camera listed on the left side. The network conguration 8.

of this IP camera shows on the right side. You may change the “name” of the

IP Camera as your preference (eg: Ofce, warehouse). Change the parameter

and click “Submit” . It will apply the change and reboot the Device.

Please make sure that the IP address of your PC and IP Camera are on the 9.

same subnet.

The same Subnet:

IP CAM IP address: 192.168.1.200

PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200

PC IP address: 192.168.1.100

To Change PC IP address:

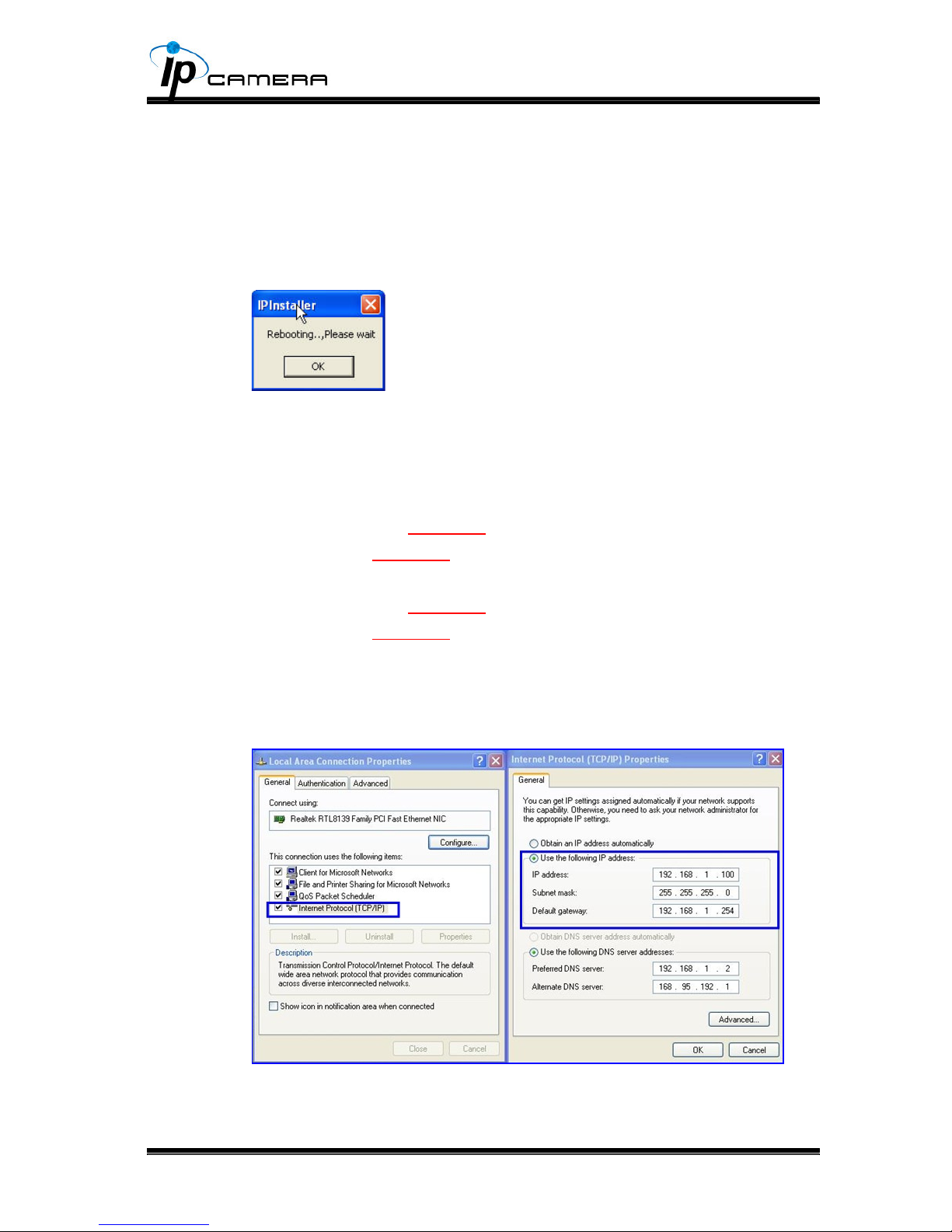

Control Panel→Network Connections→ Local Area Connection Properties→

Internet Protocol (TCP/IP) → Properties

A quick way to access remote monitoring is to double-click the selected IP 10.

Camera listed on “Device list” of IP Installer. An IE browser will be opened.

12

If you link to the IP Camera successgully, there pops a box asking you to log 11.

in. Please key in the default user name"admin" and password"admin" when

you link to the IP Camera for the rst time. You can revise the user name and

password later. Please refer to Chapter V: "A.2. User Management".

Install ActiveX controlD.

For the rst time to view the camera video via IE, it will ask you to install the

ActiveX component.

If the installation failed, please check the security setting for the IE browser.

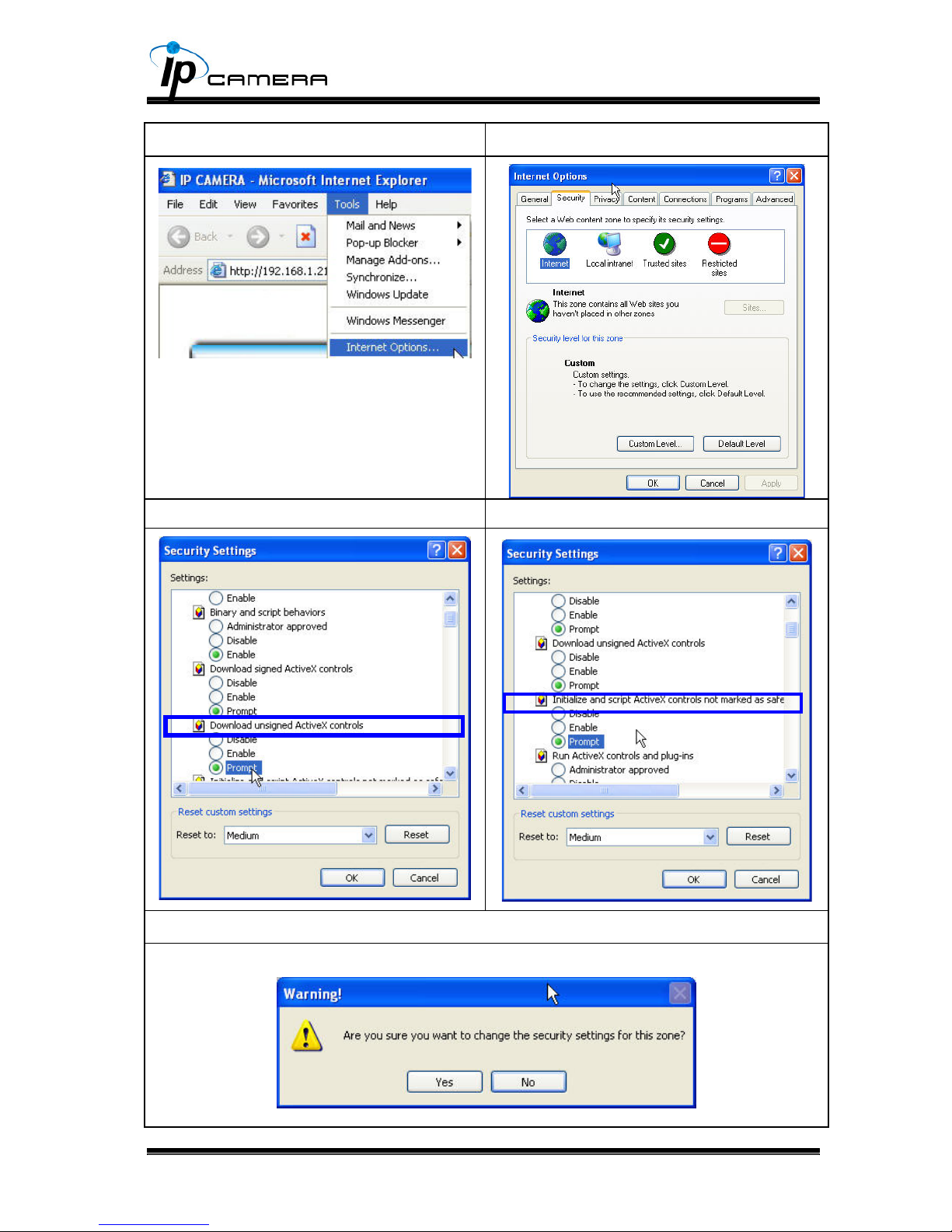

IE→Tools → Internet Options… → Security Tab → Custom Level… → 1.

Security Settings → Download unsigned ActiveX controls→ Select “Enable”

or Prompt.

IE → Tools → Internet Options… → Security Tab → Custom Level… 2.

→Initialize and script ActiveX controls not marked as safe → Select “Enable”

or Prompt.

13

1 2

3 4

5

When popup the following dialogue box, click “Yes”.

14

Live VideoIV.

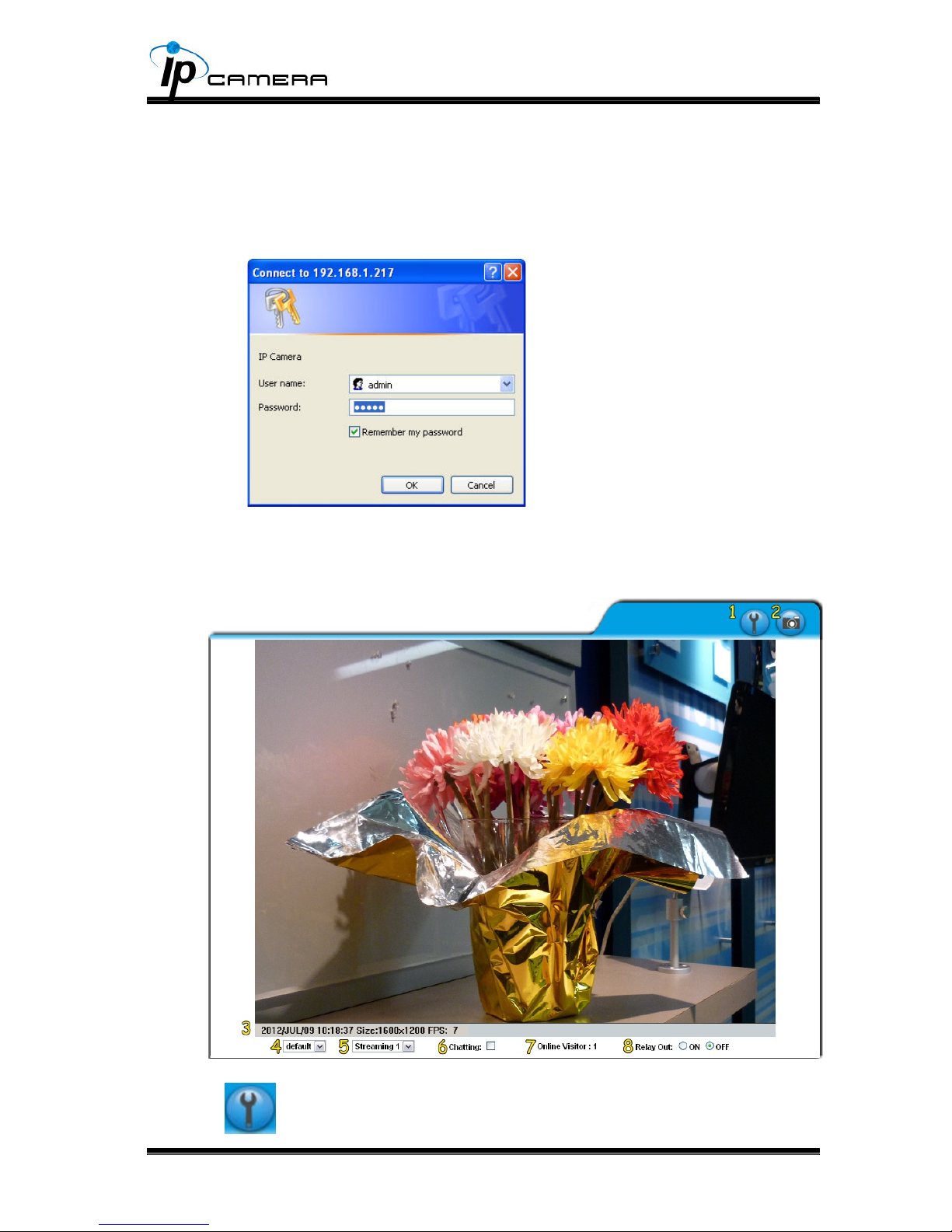

Start an IE browser, type the IP address of the IP camera in the address eld.

It will show the following dialogue box. Key-in the user name and password. The

default user name and password are “admin” and “admin”.

When the IP Camera is connected successfully, it shows the following

program interface.

1. : Get into the administration page

15

2. : Video Snapshot

Show system time, video resolution, and video refreshing rate3.

Adjust image, 1/2x, 1x, 2x4.

Select video streaming source 5. (If in”Video Setting” the streaming 2 setting is

closed, this option will not appear here.)

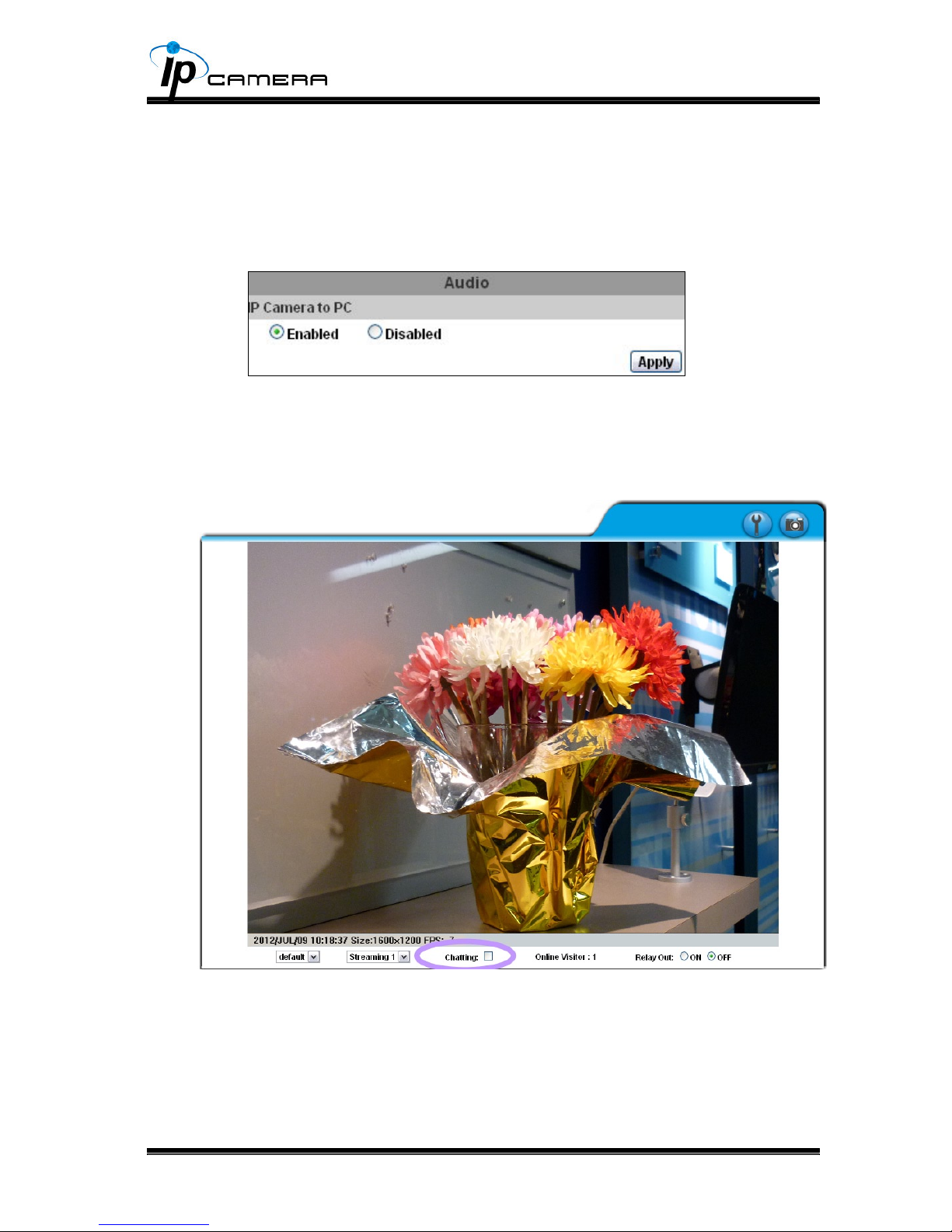

IP Camera supports 2-way audio. Click the “Chatting” check box, then you 6.

can use microphone connected to the PC to talk to the Camera side.

Show how many people connect to this IP camera.7.

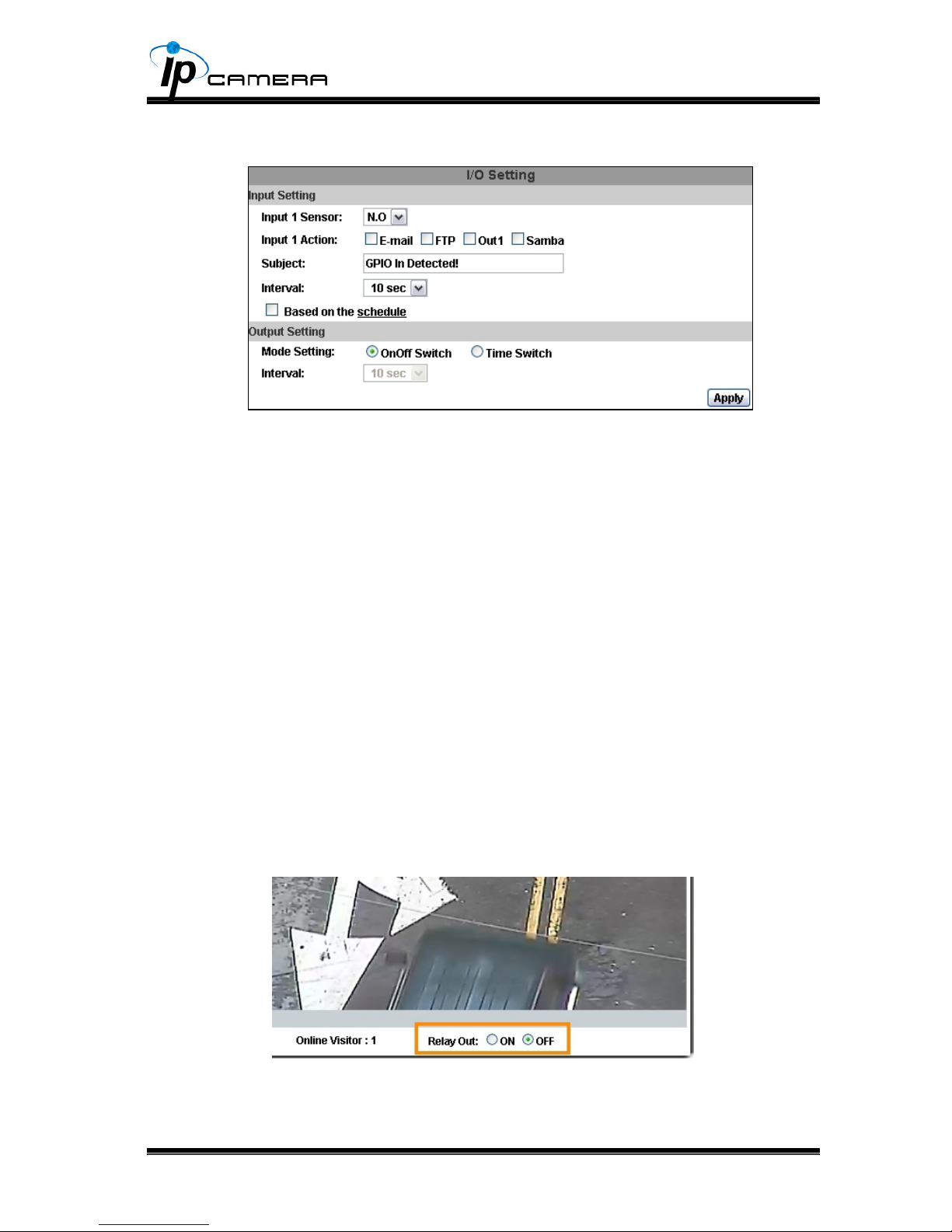

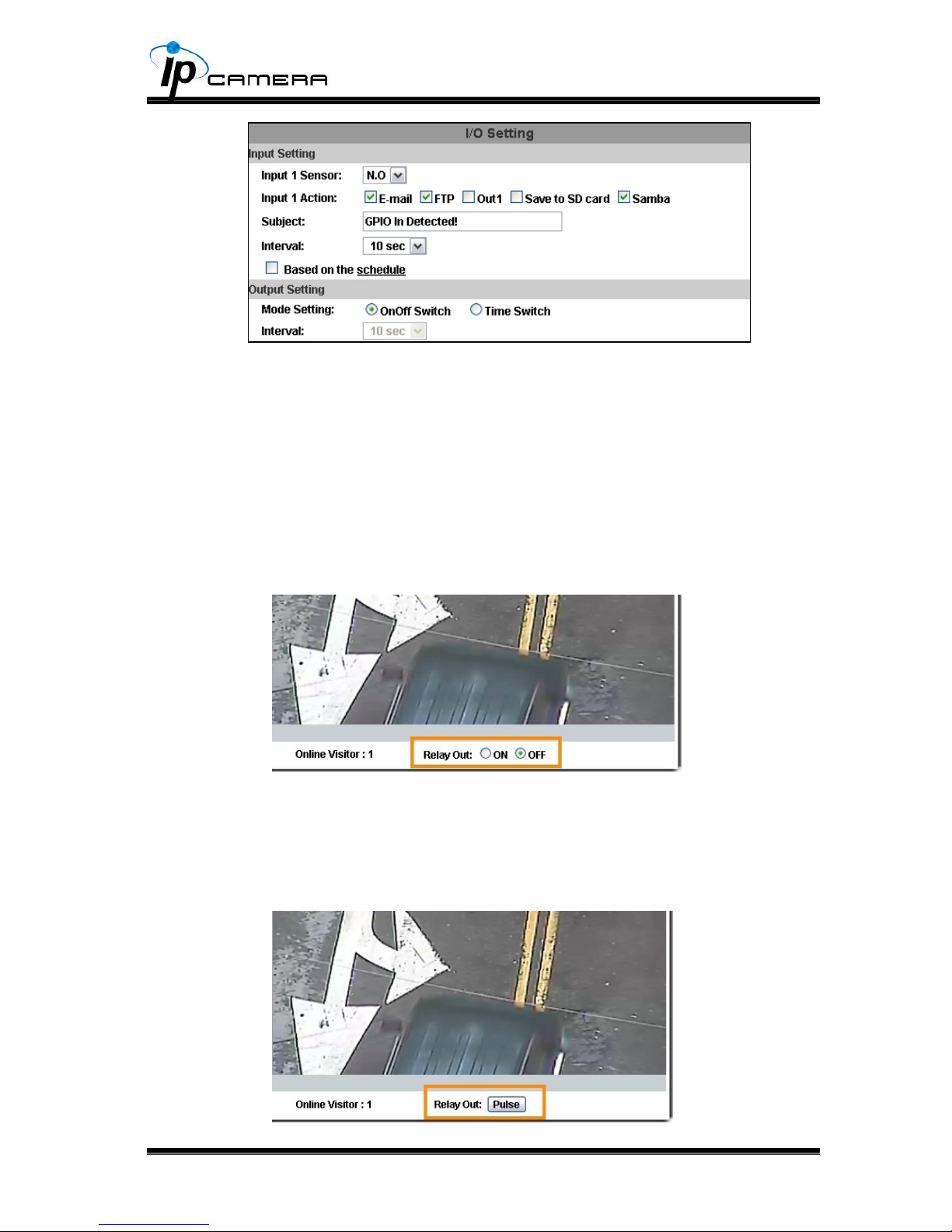

Tick the Relay out "ON" box to trigger the relay output for testing. Tick "Off" to 8.

stop triggering.

Double-click the video to switch to full screen view. Press “Esc” or double-click

the video again back to normal mode.

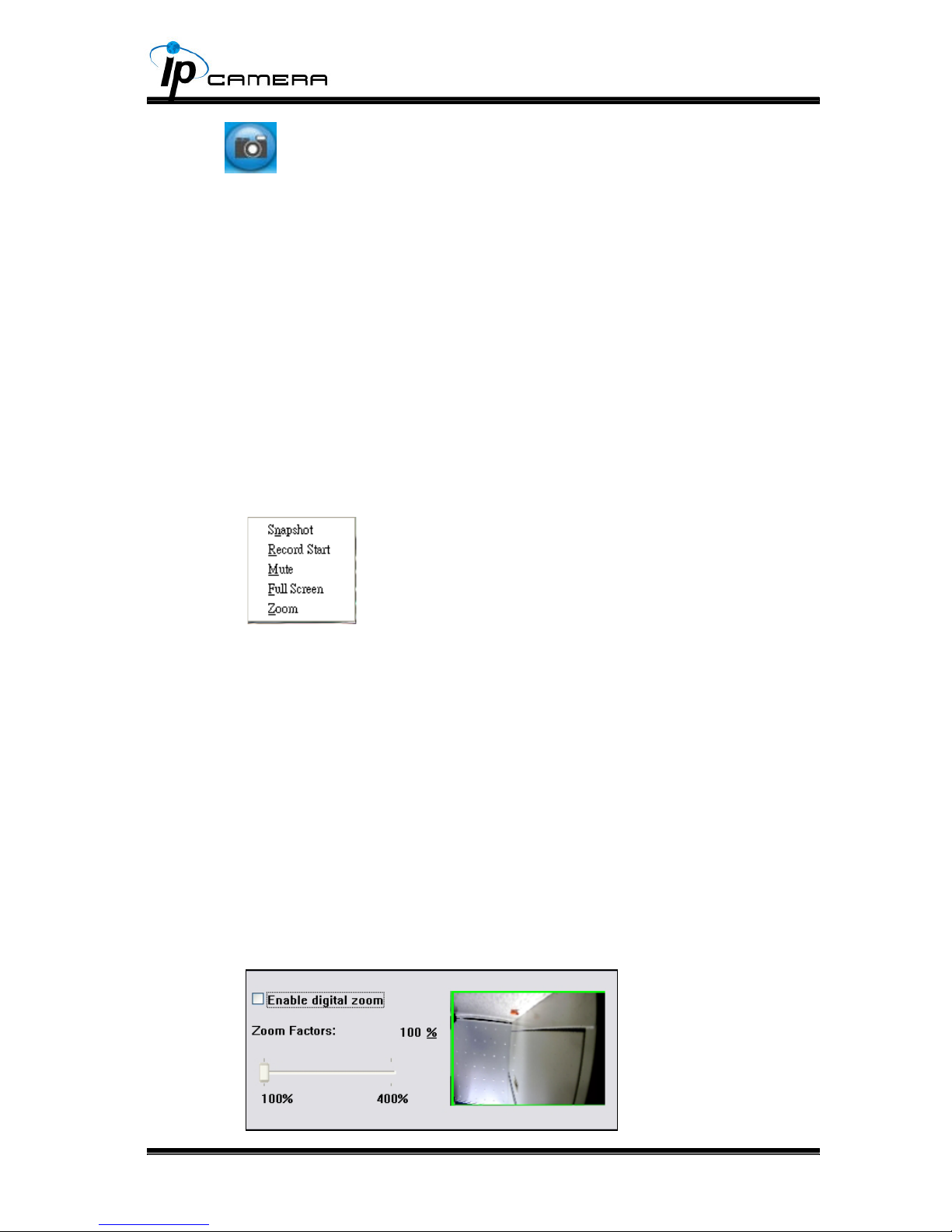

Right-Click the mouse on the video, it will show a pop-up menu.

Snapshot: Save a JPEG picture1.

Record Start: Record the video in the local PC. It will ask you where to save 2.

the video. To stop recording, right-click the mouse again. Select “Record

Stop”. The video format is AVI. Use Microsoft Media Player to play the

recorded le.

Mute: Turn off the audio. Click again to turn on it. 3.

The "mute" botton does not affect the playback recording video. As long as

the "IP Camera to PC" option in the audio setting is enabled, all the audio will

be recorded into the playback video even you click "mute" in the live page.

Full Screen: Full-screen mode.4.

ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom” 5.

option rst within the pop-up dialogue box and then drag and drop the bar to

adjust the zoom factors.

16

IP Camera CongurationV.

Click

to get into the administration page as below.

Click

to back to the live video page.

17

SystemA.

System Information1.

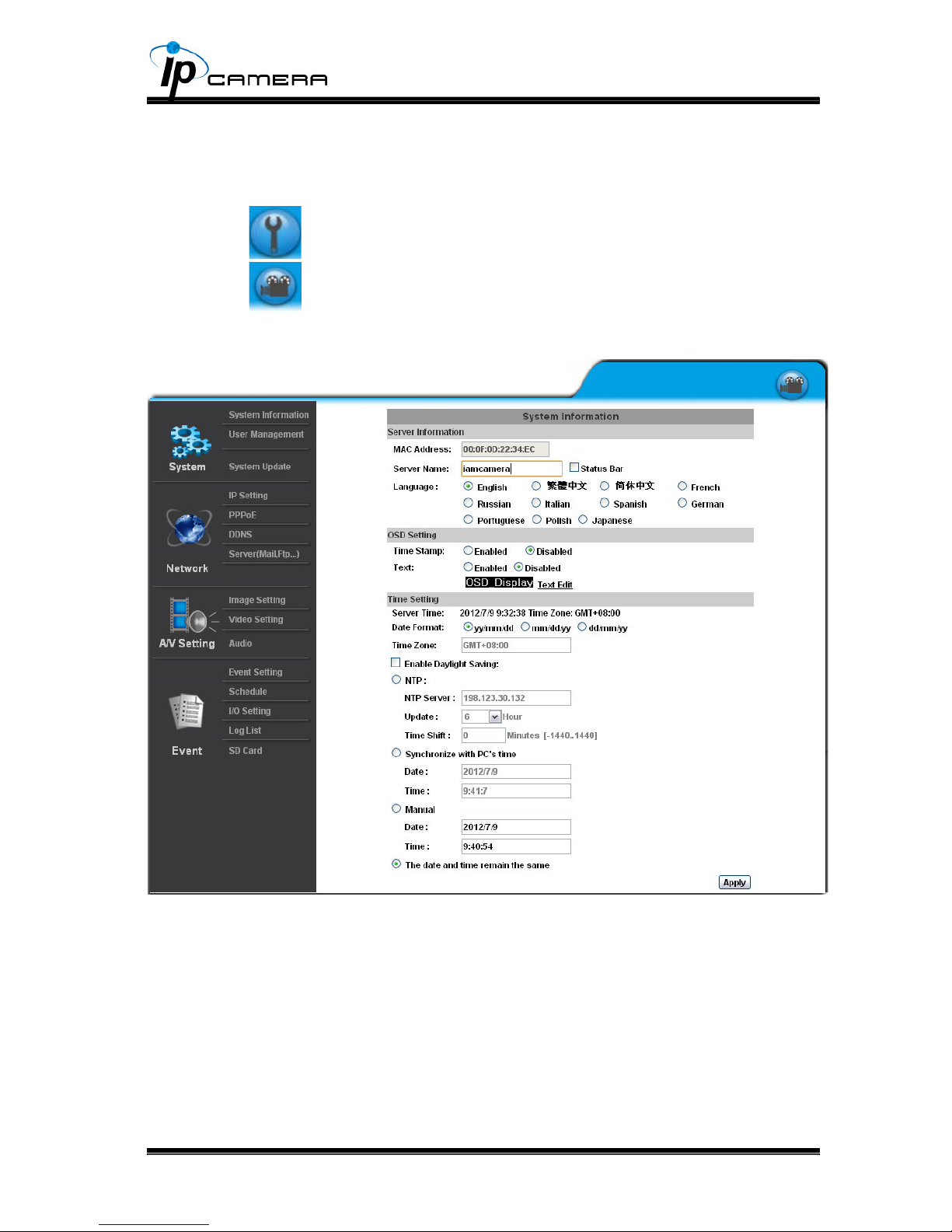

Server Information: Set up the camera name, select language, and set up a.

the camera time.

Server Name: This is the Camera name. This name will show on the IP (i)

Installer.

Select language: There are 11 languages to choose from. When you (ii)

change the language, it will show the following dialogue box for

conrmation.

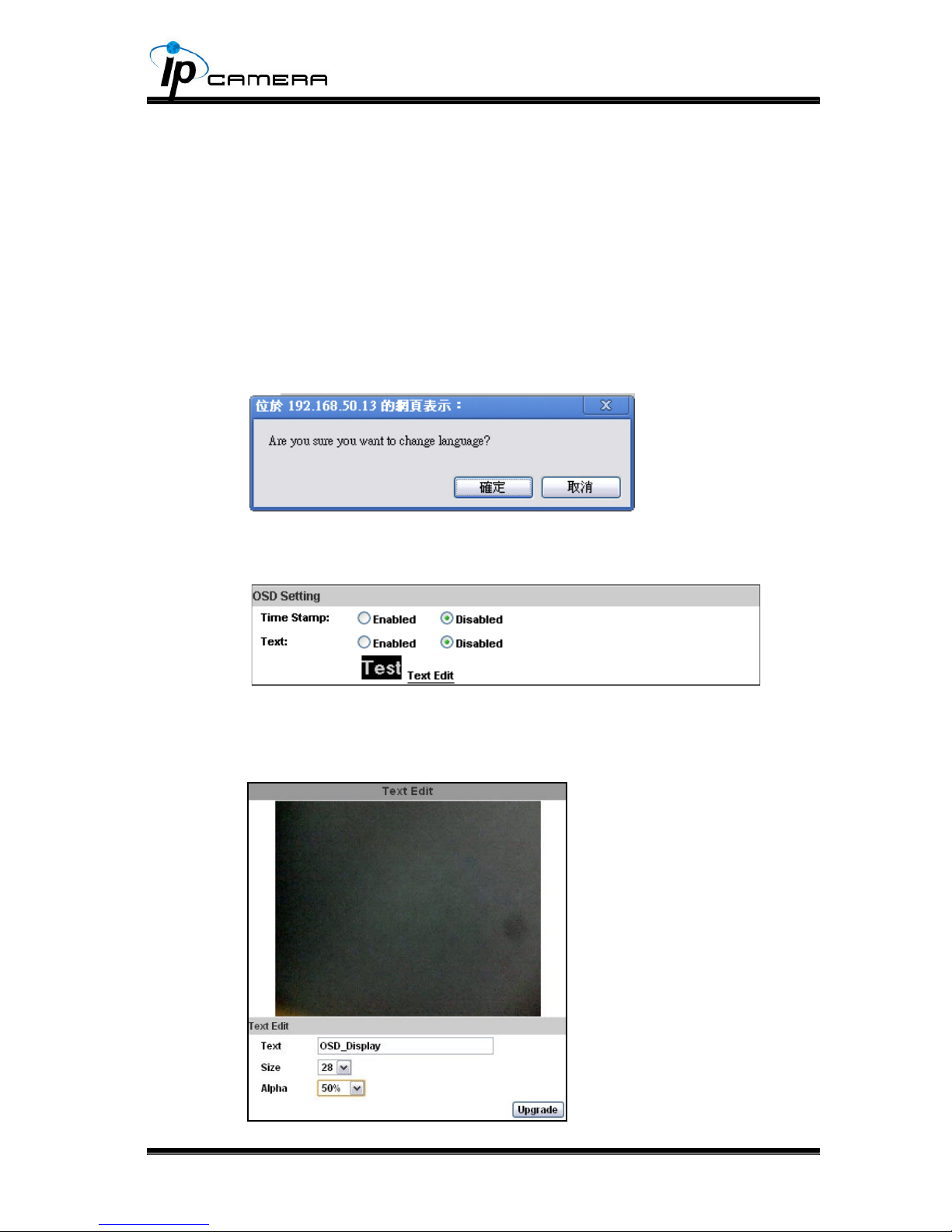

OSD Setting: Select a position where date & time stamp / text showing on b.

screen.

Moreover, click Text Edit can entry to adjust the OSD contents which is

Alpha of text. Finally, click Upgrade button to save the setting.

18

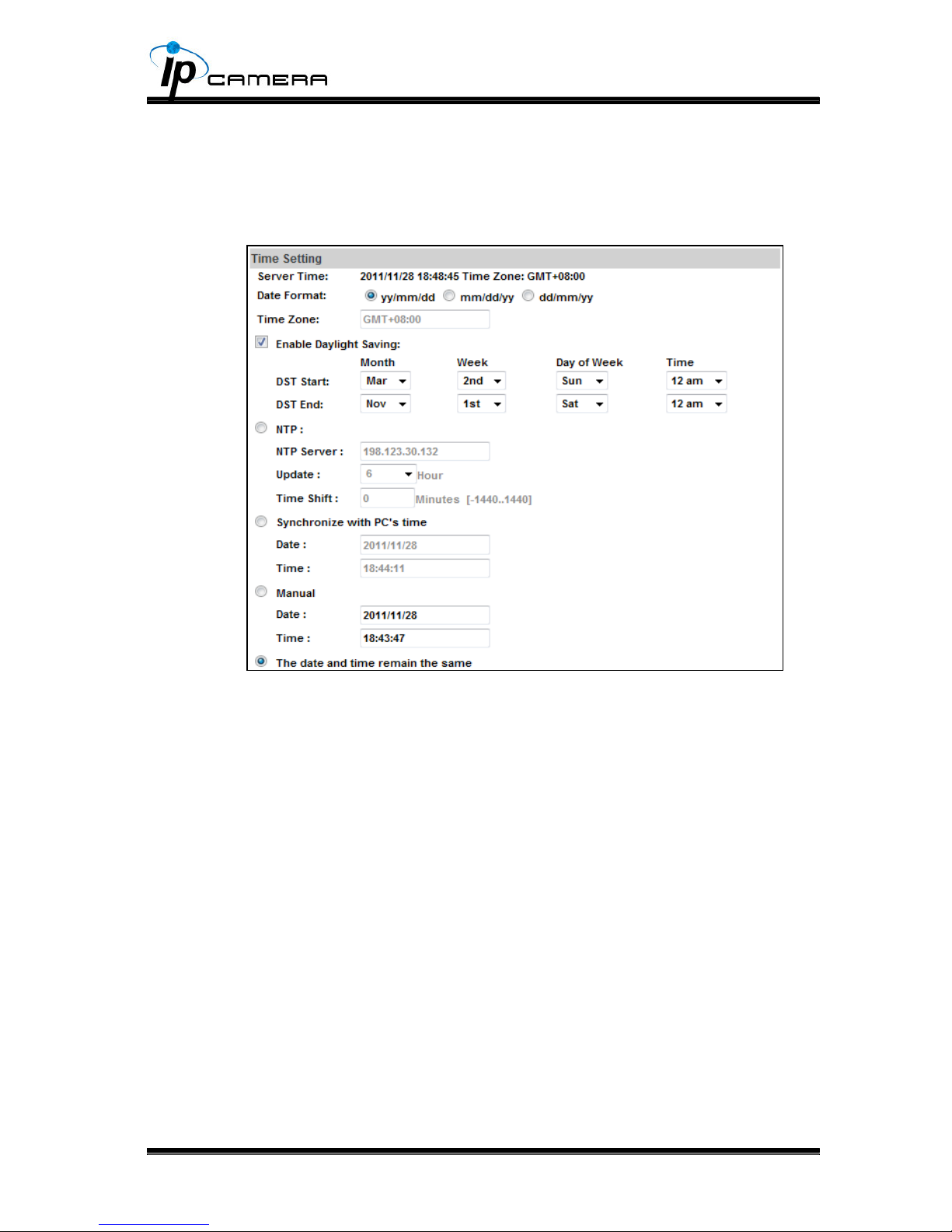

Server time setting: Select options to set up time - “NTP”, “Synchronize c.

with PC’s time”, “Manual”, “The date and time remain the same”.

Note: To synchronize with the NTP Server, please set the IP camera up on

the WAN instead of LAN.

19

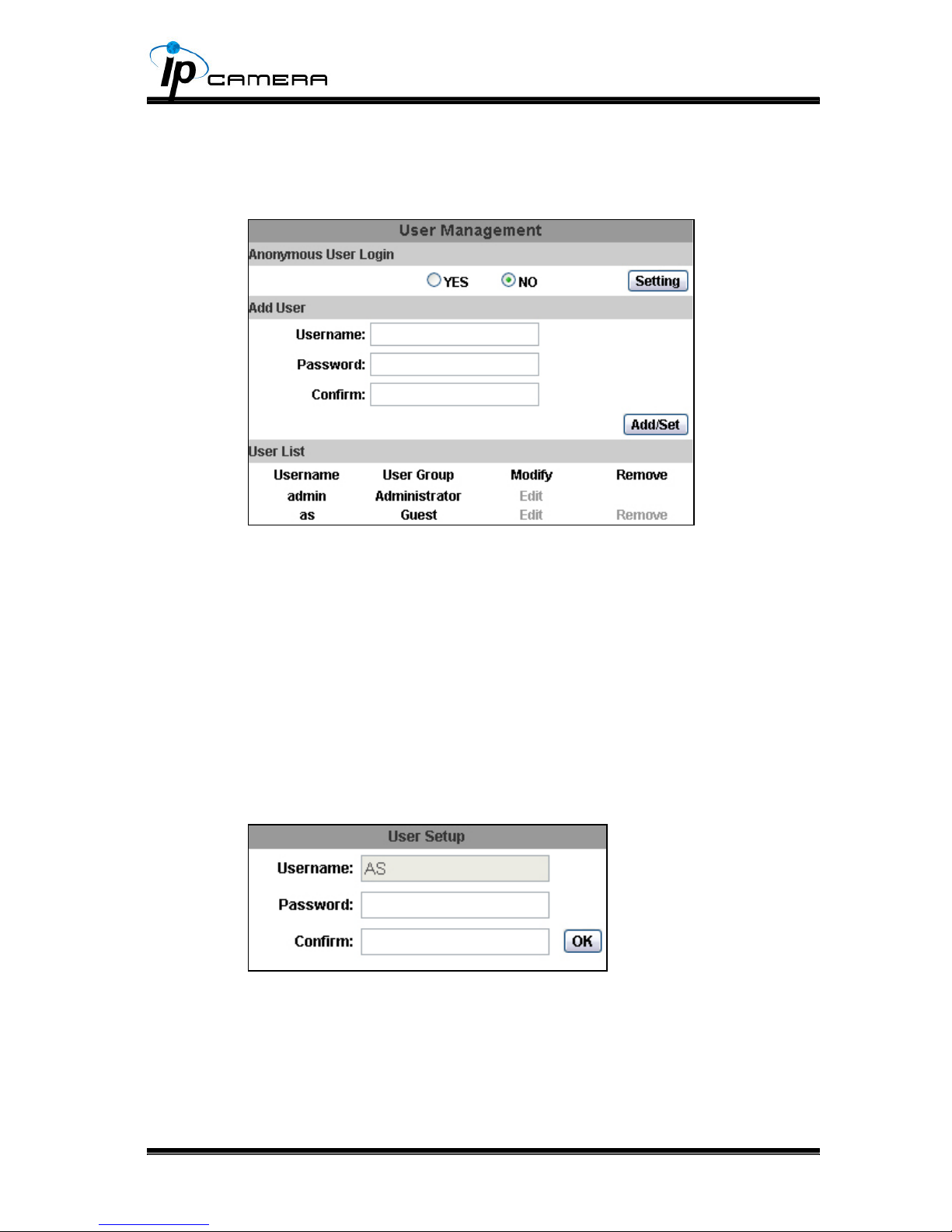

2. User Management

IP CAMERA supports three different users, administrator, general user, and

anonymous user.

Anonymous User Login: a.

Yes: anonymous login is allowed

No: Username & password are required to access this IP camera

Add user: b.

Type the user name and password, then click “Add/Set”.The guest user

can only browse the live video page and is not allowed to enter the

conguration page.

Click “edit” or “delete” in the user list to modify them. The system will ask c.

you to key in the password in the pop-up window before you edit the user

information.

20

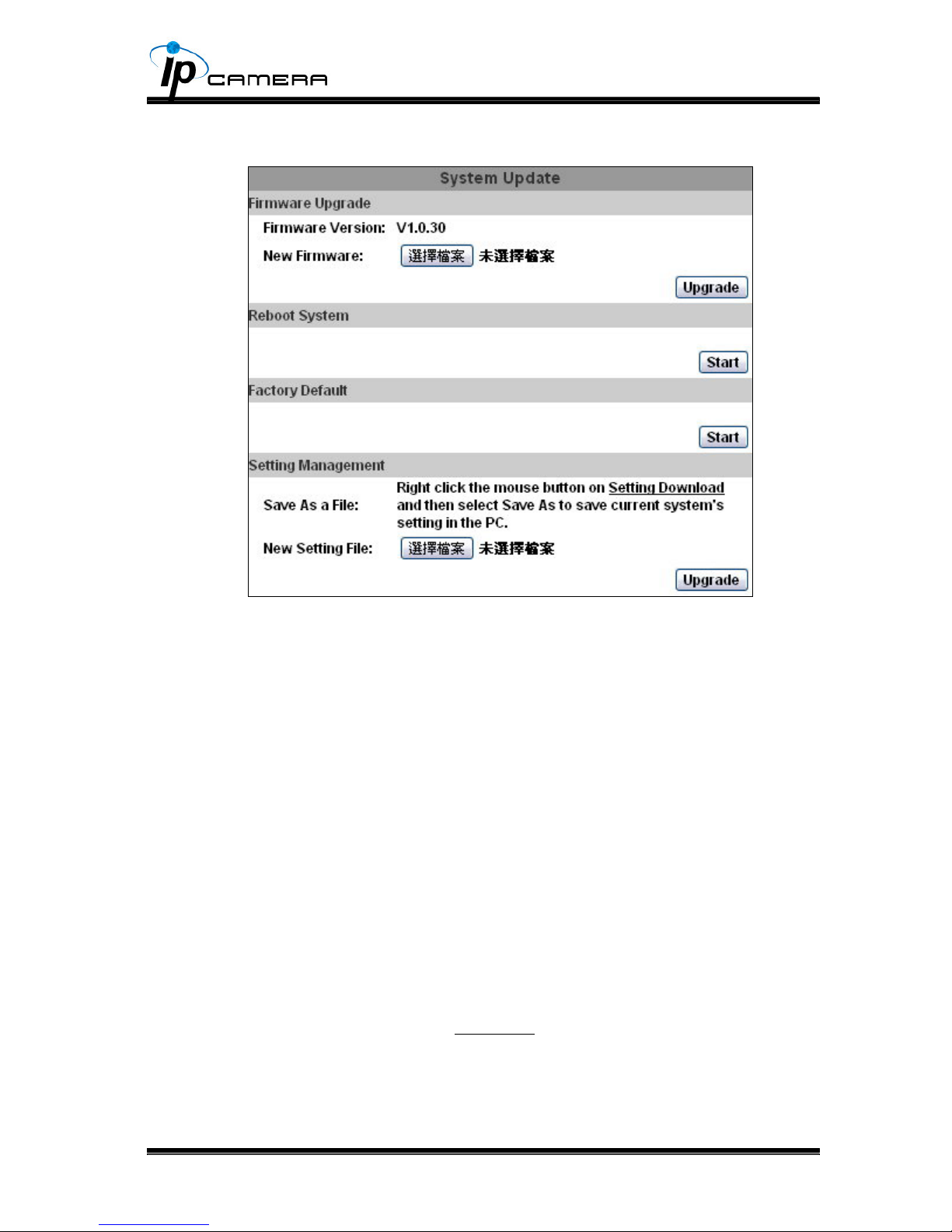

System update: 3.

To update the rmware online, click “Browse…” to select the rmware. a.

Then click “Upgrade” to proceed.

Note: The firmware upgrade might be accompanied by the changing of

some setting and function, and the setting options might become different

to the user manual that you're reading now.

Reboot system: Re-start the IP camerab.

Factory default: Delete all the settings in this IP camera.c.

Setting Management: User may download the current setting to PC, or d.

upgrade from previous saved setting.

Setting download: (i)

Right-click the mouse button on Setting Download → Select “Save

AS…” to save current IP CAM setting in PC → Select saving directory

→ Save

Upgrade from previous setting: (ii)

Browse → search previous setting → open → upgrade → Setting

update conrm → click index.html. to return to main page

21

NetworkB.

IP Setting1.

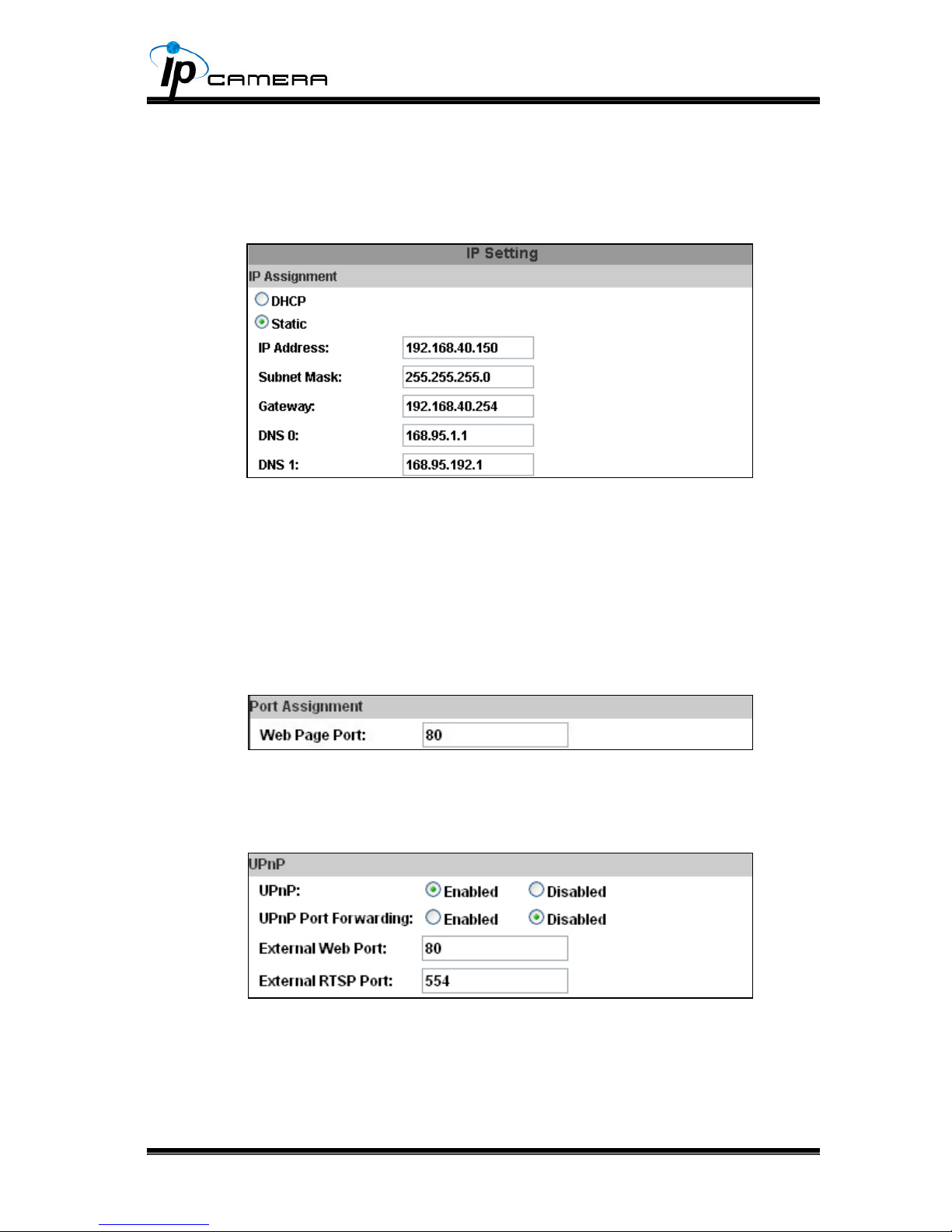

IP Assignment a.

IP Camera supports DHCP and static IP.

DHCP: Using DHCP, IP CAMERA will get all the network parameters (i)

automatically.

Static IP: Please type in IP address, subnet mask, gateway, and DNS (ii)

manually.

Port assignment b.

Web Page Port: setup web page connecting port and video transmitting (i)

port (Default: 80)

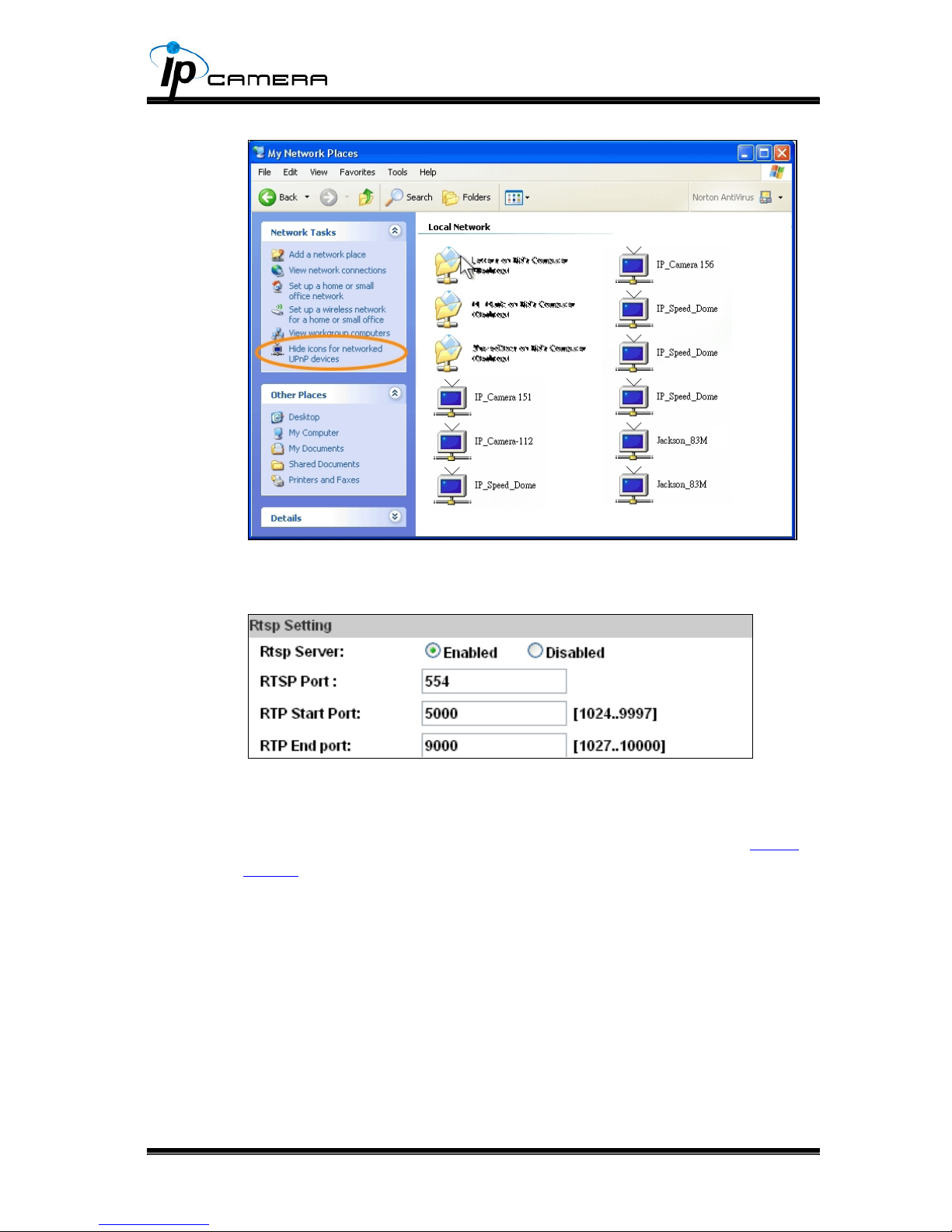

UPnP (Universal Plug and play) c.

This IP camera supports UPnP, If this service is enabled on your

computer, the camera will automatically be detected and a new icon will be

added to “My Network Places.”

UPnP Port Forwarding: (i)

When the camera is installed under a router, Enable UPnP Port

22

Forwarding to let the router open ports so that the video streams can

be sent out from a LAN. Set Web Port and RTSP port, and make sure

your router supports UPnPTM and the function has been activated.

Note: UPnP must be enabled on your computer. Please follow the (ii)

procedure to activate UPnP.

<Approach 1>

Open the Control Panel from the Start Menu•

Select Add/Remove Programs•

Select Add/Remove Windows Components and open Networking •

Services section

Click Details and select UPnP to setup the service•

The IP device icon will be added to “MY Network Places”•

User may double click the IP device icon to access IE browser•

<Approach 2>

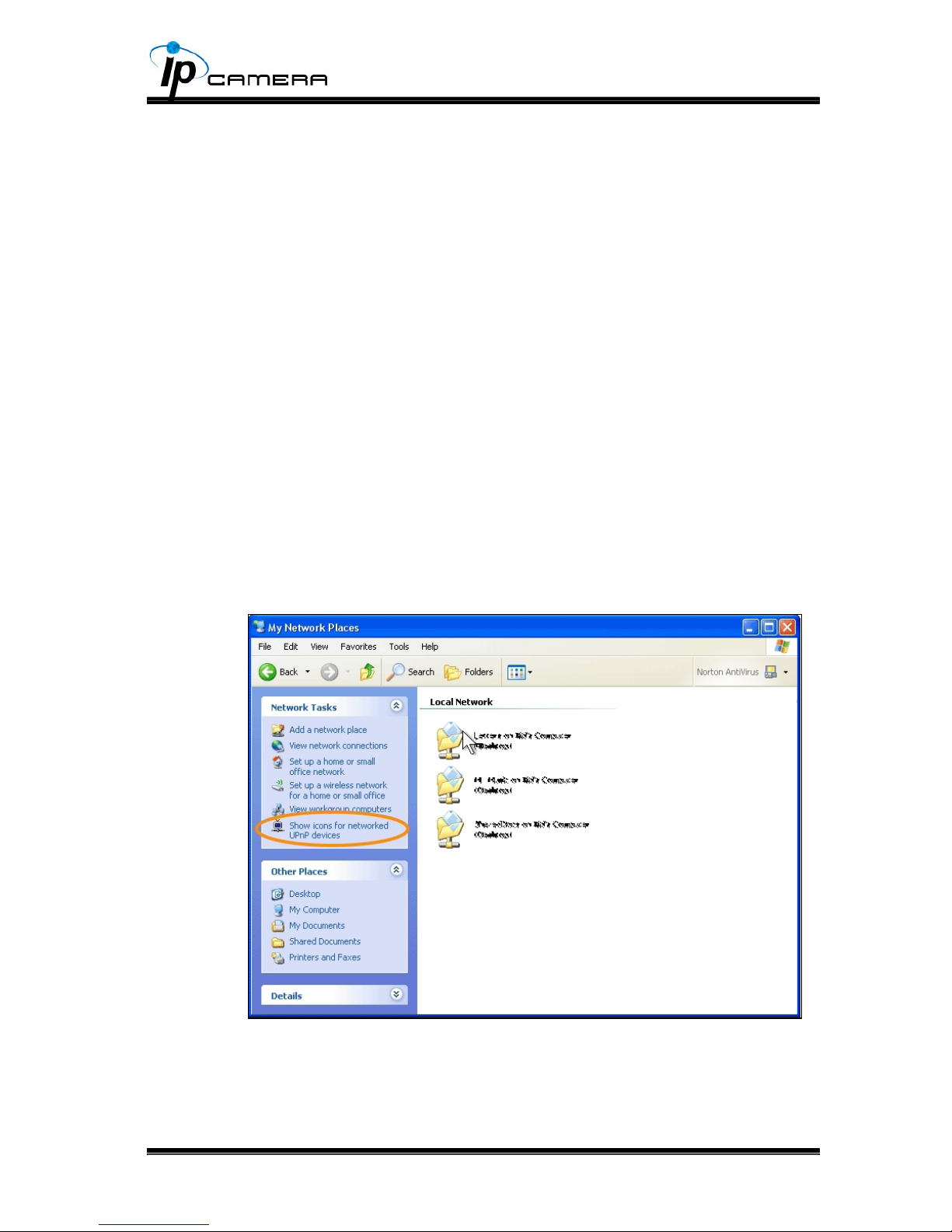

Open "My Network Space", and click "Show icons for networked •

UPnP devises" in the tasks column on the left of the page.

Windows may ask your conrmation for enabling the components.

Click "Yes".

Now you can see the IP devise under the LAN. Double-click the •

icon to access the camera via web browser. To disable the UPnP,

click "Hide icons for networked UPnP devises" in the tasks column.

23

RTSP setting d.

If you have a media player that supports RTSP protocal, you can use it

to receive the video streaming from IP camera. The RTSP address can be

set for two streamings respectively. Please jump to Chapter V-C:"Video

Setting". There're setting eld for RTSP address of two streamings.

RTSP Server: enable or disable(i)

RTSP Port: setup port for RTSP transmitting (Default: 554)(ii)

RTSP Start and End Port: in RTSP mode, you may use TCP and UDP (iii)

for connecting. TCP connection uses RTSP Port (554). UDP connection

uses RTSP Start and End Port.

24

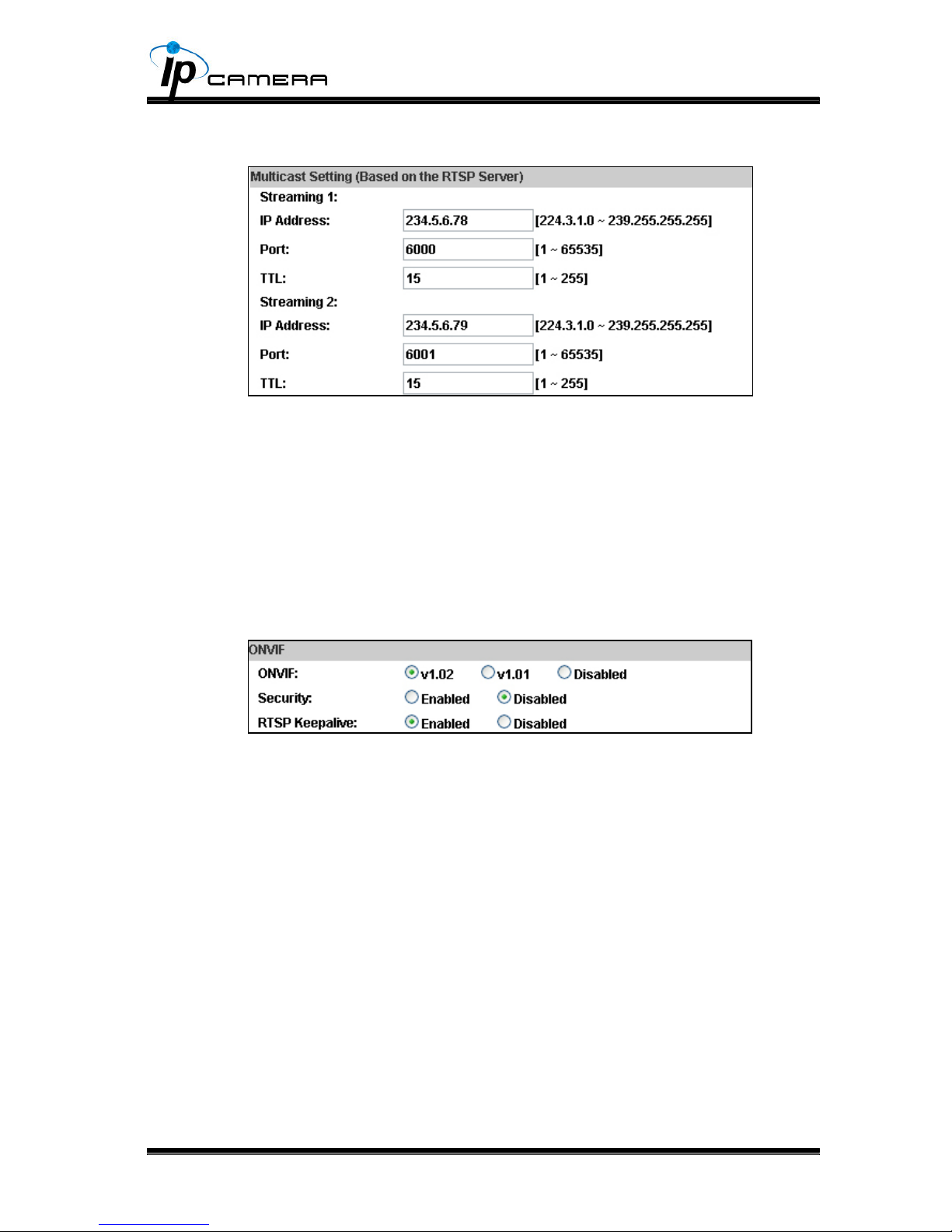

Multicast Setting (Based on the RTSP Server) e.

Multicast is a bandwidth conservation technology. This function allow

several user to share the same packet sent from IP camera. To use

Multicast, appoint IP Address and port here. TTL means the life time of

packet, The larger the value is, the more user can receive the packet.

To use Multicast, be sure to enable the function "Force Multicast RTP via

RTSP" in your media player. Then key in the RTSP path of your camera:

"rtsp://(IP address)/" to receive the multicast.

ONVIF f.

Choose your ONVIF version and settings.(i)

Under ONVIF connection, the video will be transmitted by RTSP.

Be sure to enable the RTSP server in IP setting, or you're not able to

receive the video via ONVIF.

RTSP Keepalive:(ii)

When the function is enabled, the camera checks once in a while

if the user who links to the camera via ONVIF still keeps connecting. If

the connection had been broken, the camera stop transmitting video to

user.

25

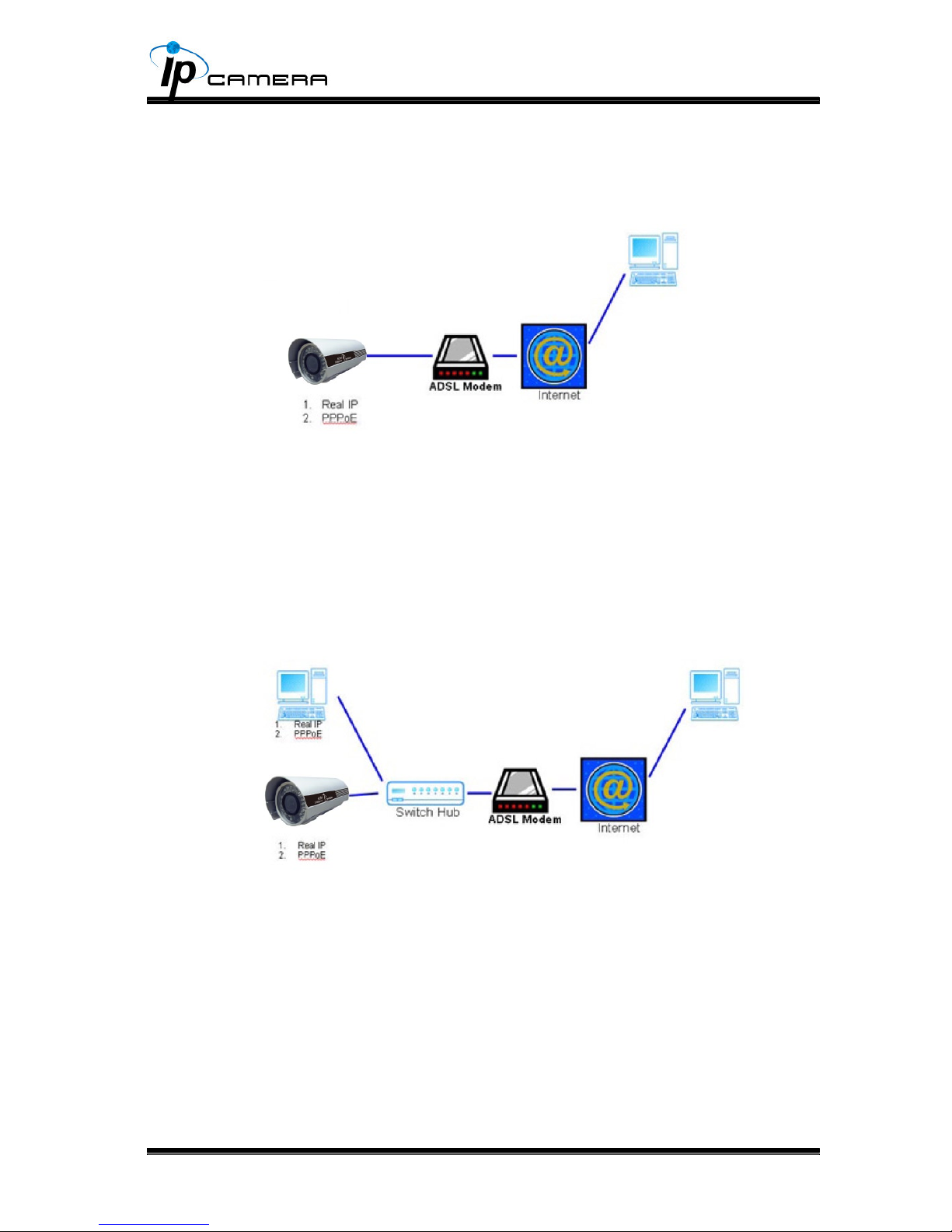

PPPoE 2.

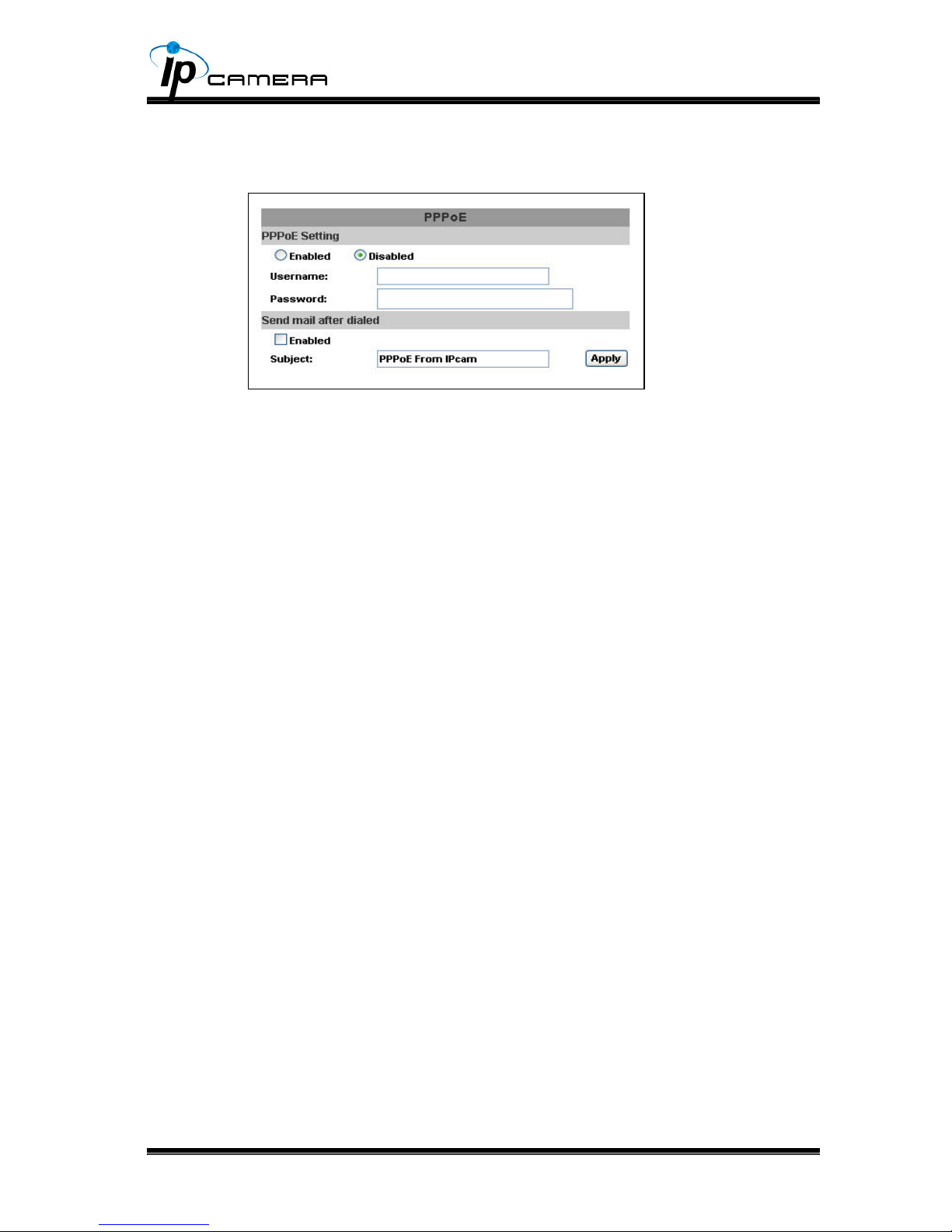

PPPoEa.

Select “Enabled” to use PPPoE. Key-in Username and password for the

ADSL connection.

Send mail after dialed: When connecting to the internet, it will send a

mail to a specic mail account. For the mail setting, please refer to Server

settings.

26

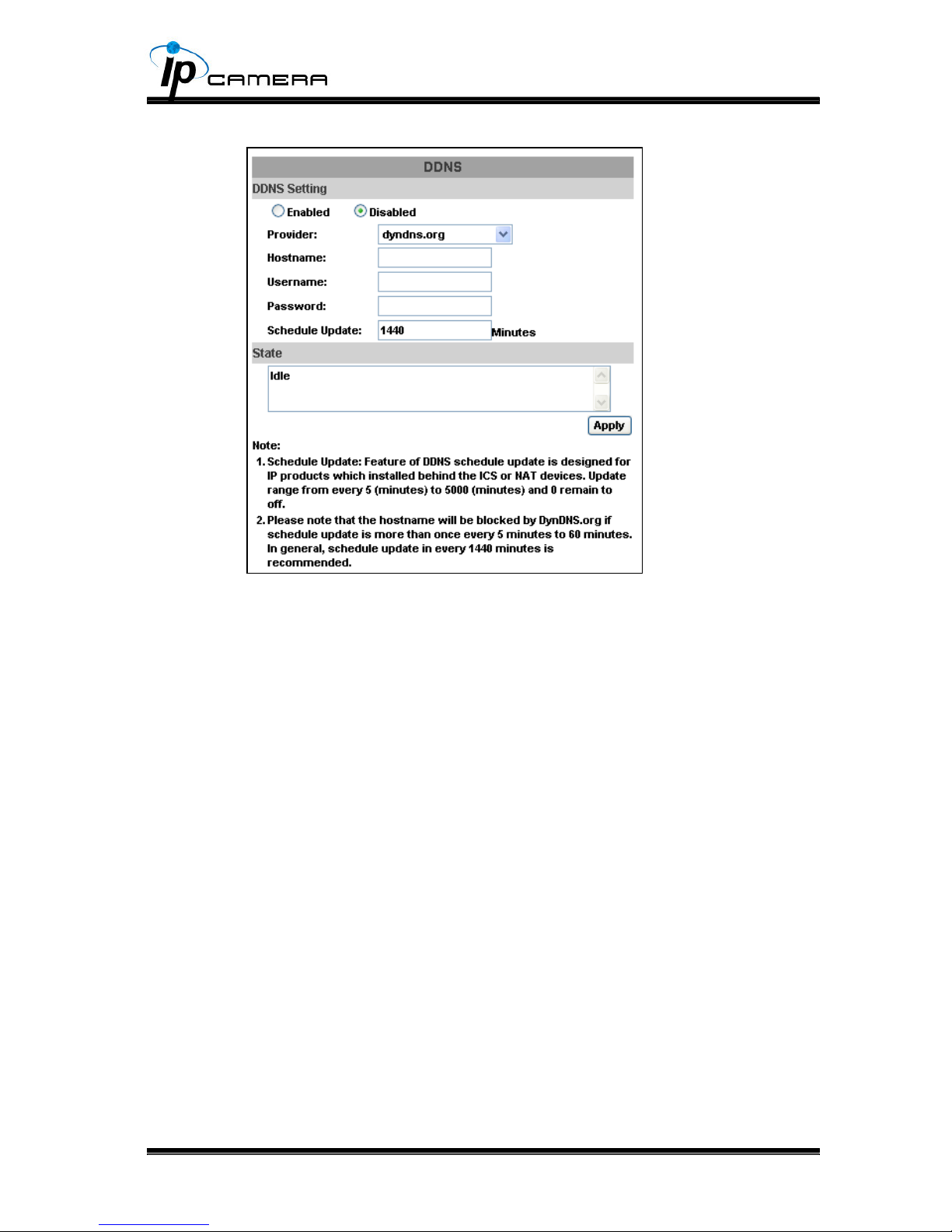

DDNS: 3.

The camera supports DDNS (Dynamic DNS) service.

Enable this service(i)

Key-in the DynDNS account host name, user name, and password (ii)

that you had applied to the service provider . (If you choose to use

Camddns, just key in any user name as you like.)

Set up the IP Schedule update refreshing rate.(iii)

Click “Apply”(iv)

If setting up IP schedule update too frequently, the IP may be blocked. (v)

In general, schedule update every day (1440 minutes) is recommended

DDNS Status(vi)

Updating: Information update•

Idle: Stop service•

DDNS registration successful, can now log by http://<username>.•

ddns.camddns.com: Register successfully.

Update Failed, the name is already registered: The user name has •

already been used. Please change it.

Update Failed, please check your internet connection: Network •

connection failed.

Update Failed, please check the account information you provide: •

The server, user name, and password may be wrong.

27

Server setting4.

The settings of Email, FTP and SAMBA are used when the event happens,

schedule snapshot executes, or the alarm input is triggered. Select the item

to display the detailed conguration options. You can congure either one or

all of them.

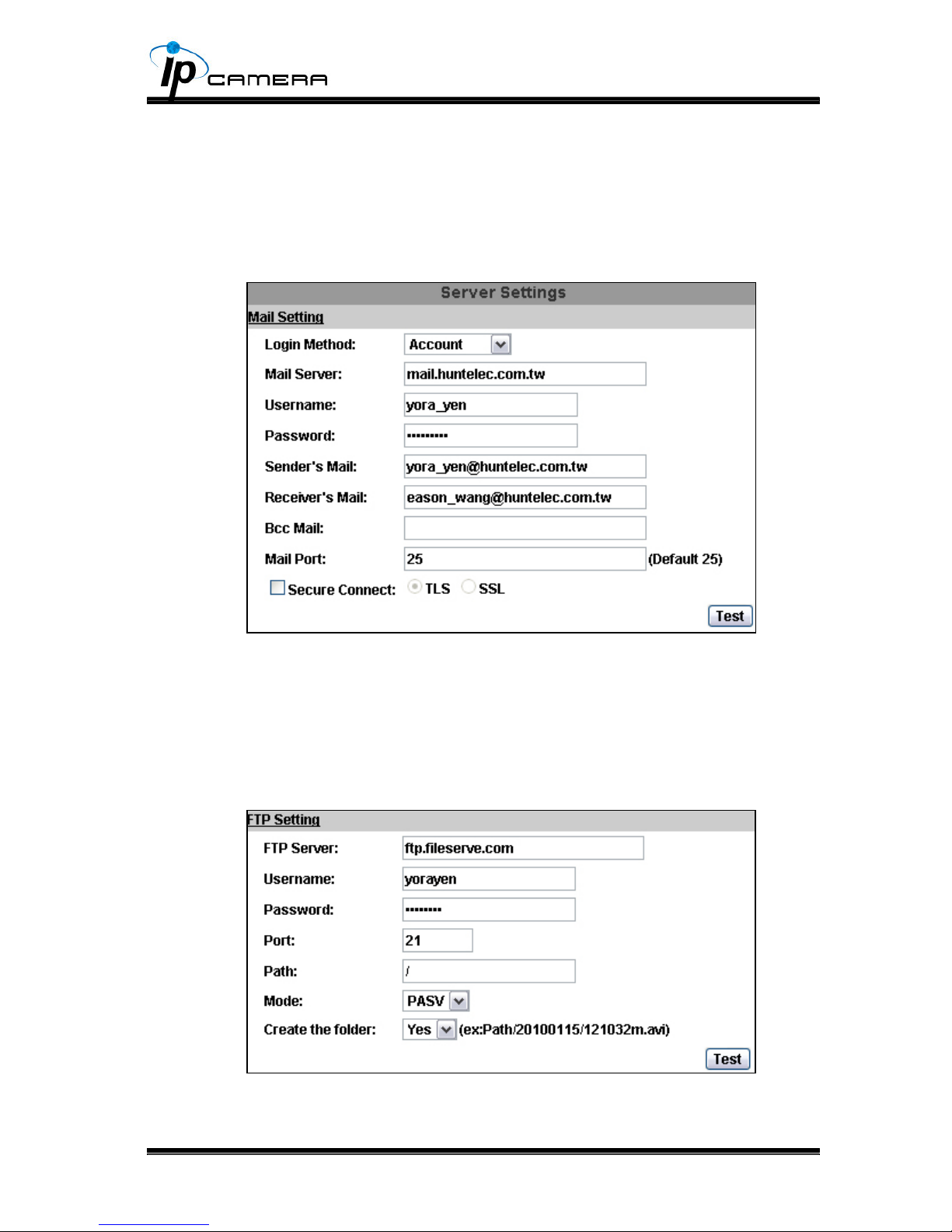

Mail Setting: a.

Set up the server address and account information of your e-mail.

Click “Apply” to save the setting, then use “Test” botton to test the server

connection. A message box will tell you “OK!” if it works, and a test e-mail

will be sent to receiver’s mail address.

FTP: b.

Set up the server address and account information of your FTP. Click

“Apply” to save the setting, then use “Test” botton to test the server

28

connection. A message box will tell you “OK!” if it works, and a test le will

be uploaded to FTP space.

In PORT mode, the FTP server builds the connection to the user's data

port actively. However, from the user-side rewall's standpoint, the action

of connecting from FTP server is often considered to be dangerous and

should be blocked. In PASV mode, the problem is solved: The FTP server

waits for the data transmission connection built by the user. Make sure that

the server supports the mode you select.

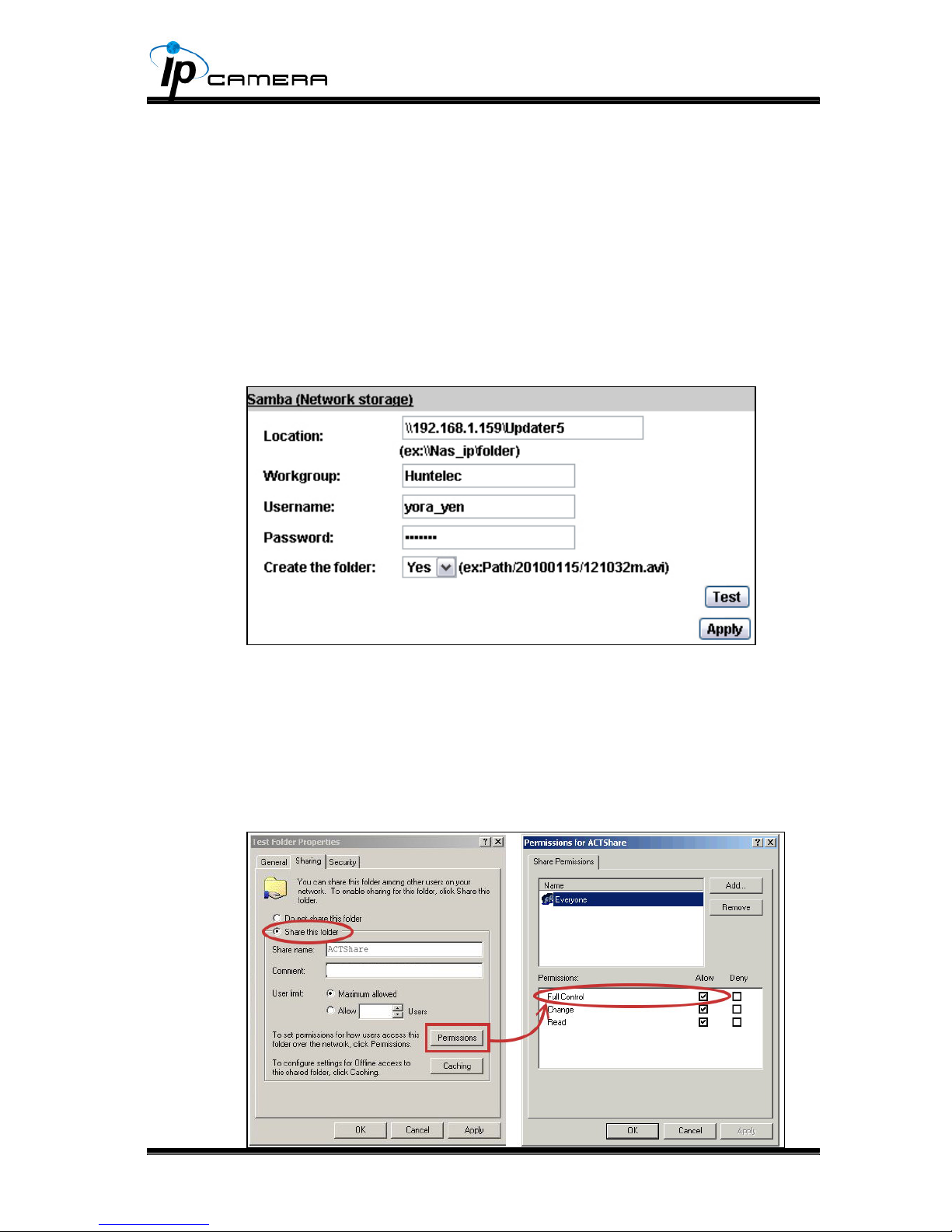

Samba: c.

Select this option to send the media les via a network neighborhood

when an event is triggered. Click “Apply” to save the setting, then use “Test”

botton to test the server connection. A message box will tell you “OK!” if it

works, and a test document will be created in the location.

If the test failed, check the sharing setting of your location folder. The

folder properties must be “shared” and the permissions must be “Full

Control” as the picture.

29

A/V SettingC.

Image Setting 1.

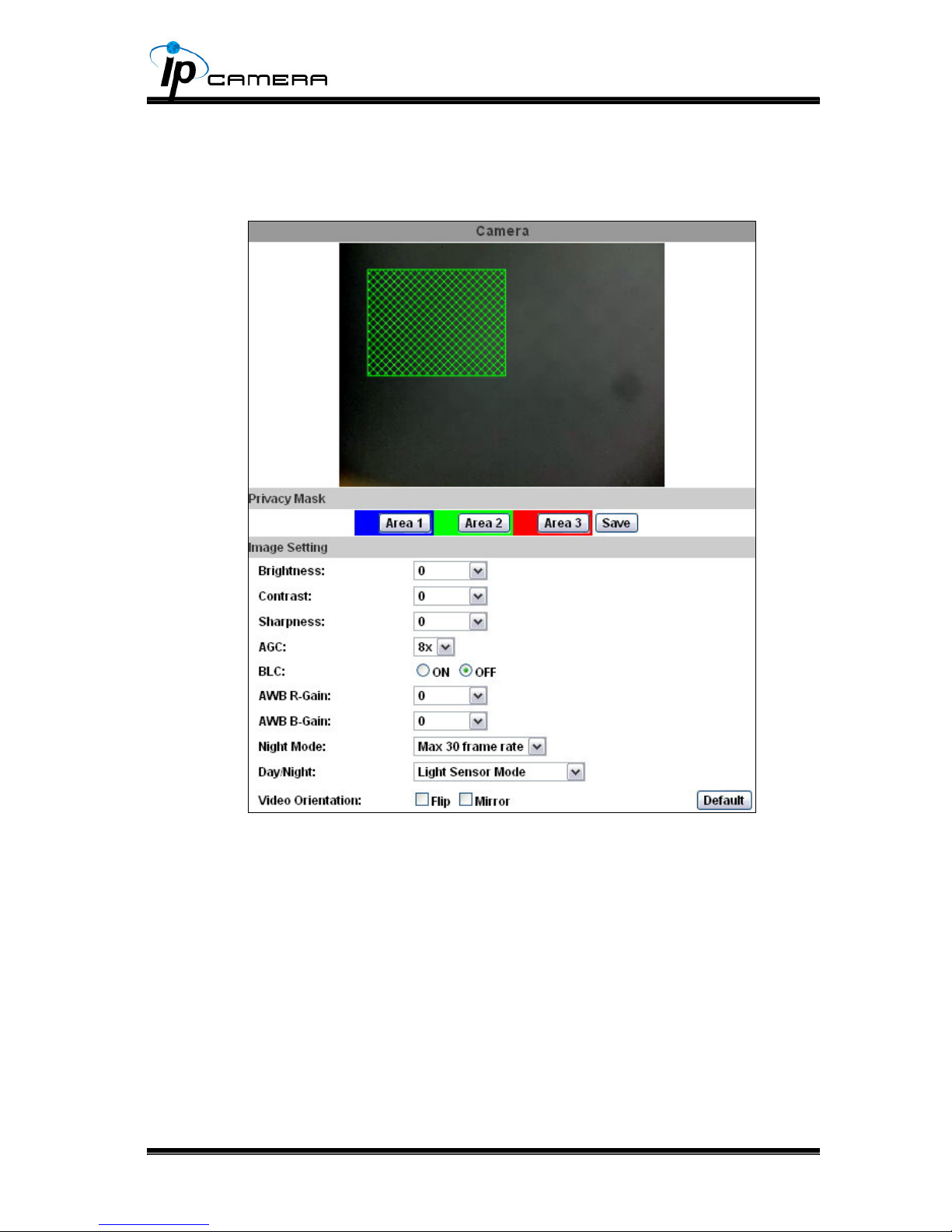

Privacy Mask:a.

For the security purpose, there are three areas can be setup for privacy

mask. Click Area button rst and drag an area on the above image. Finally,

click Save button to reserve the setting.

Brightness, Contrast, and Sharpness can be adjusted here.b.

AGC: The sensitivity of camera can adjusts with the environmental light in c.

order to avoid the images too light or too dark.

BLC: To make the dark zone resulting from back light lighter and clearer.d.

AWB R-Gain / B-Gain: Enhance red / blue color in the image.e.

Night Mode: This function increases the sensitivity of camera to get brighter f.

image at night. The smaller the Max frame rate you select, the slower

the shutter speed becomes so that the image will get lighter, and moving

30

subjects might be blurred.

Day & Night: The camera can detect the light level of environment. If you g.

choose "Light Sensor Mode", the image will be turned to black and white at

night in order to keep clear. To set light sensor mode, appoint a lux stantard

of switching D/N here. Current lux value is provided for reference. Under

"Times Mode" the switch time of Color / Black and white is according to the

given time. You can also control it by choosing "Color" or "B/W" .

Video Orientation: Flip or mirror the image as your requirement.h.

31

Video Setting2.

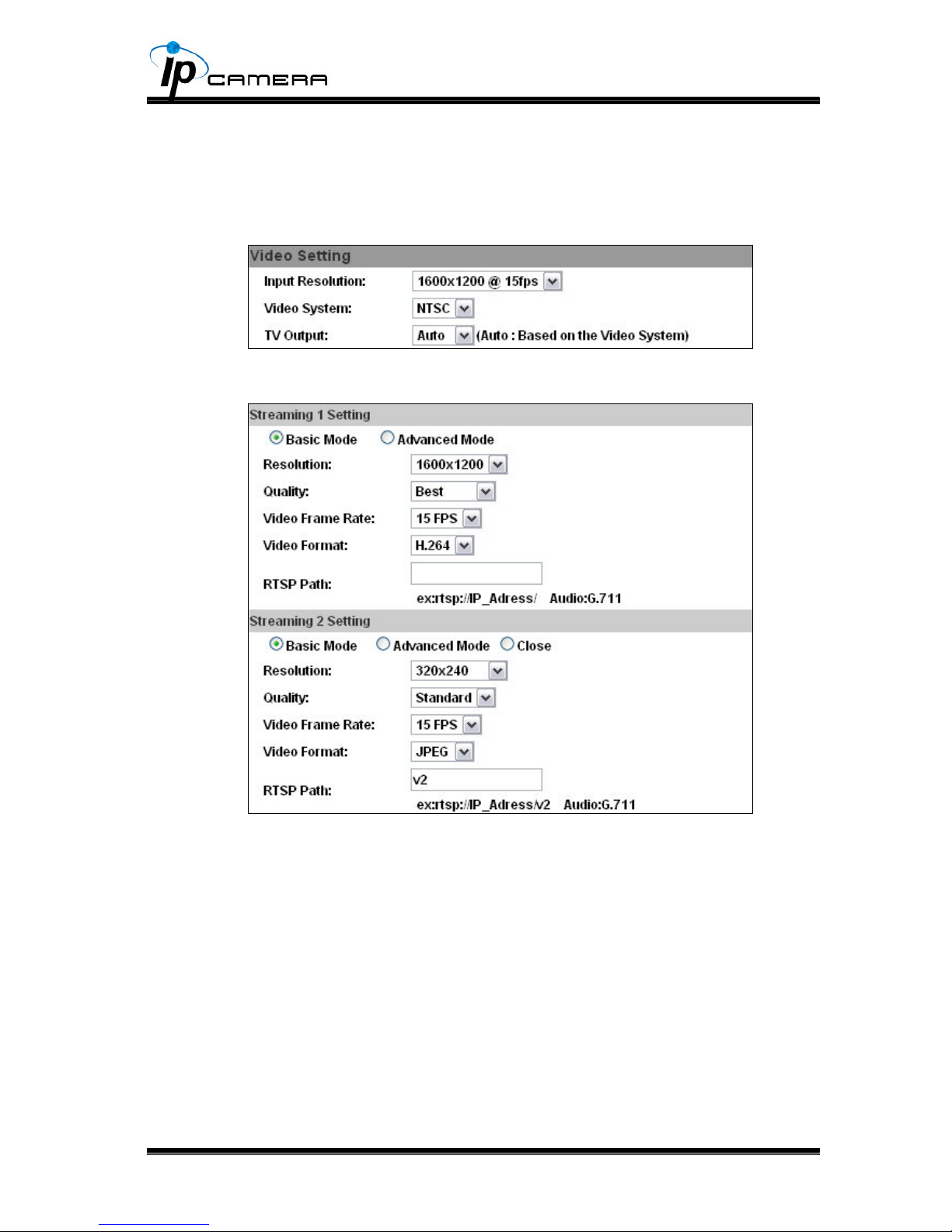

Video System Setting:a.

The Input resolution affects the video resolution and the frame rate options.

Choose the Video System (digital signal) and TV Output (analog signal).

b. Basic Mode of Streaming 1 and Streaming 2:

Resolution: (i) 1600x1200, 1280x1024, 1280x960, 1280x720, 800x592,

640x480, 320x240, or 176x144
Quality: The higher the quality is, the bigger the le size is. It might (ii)

affect Internet transmitting speed if the le gets too large.

Video Frame Rate: The video refreshing rate per second. The max (iii)

value is affected by the input resolution you choose.

Video Format: H.264 or M-JPEG(iv)

RTSP Path: Set the RTSP output connecting route(v)

32

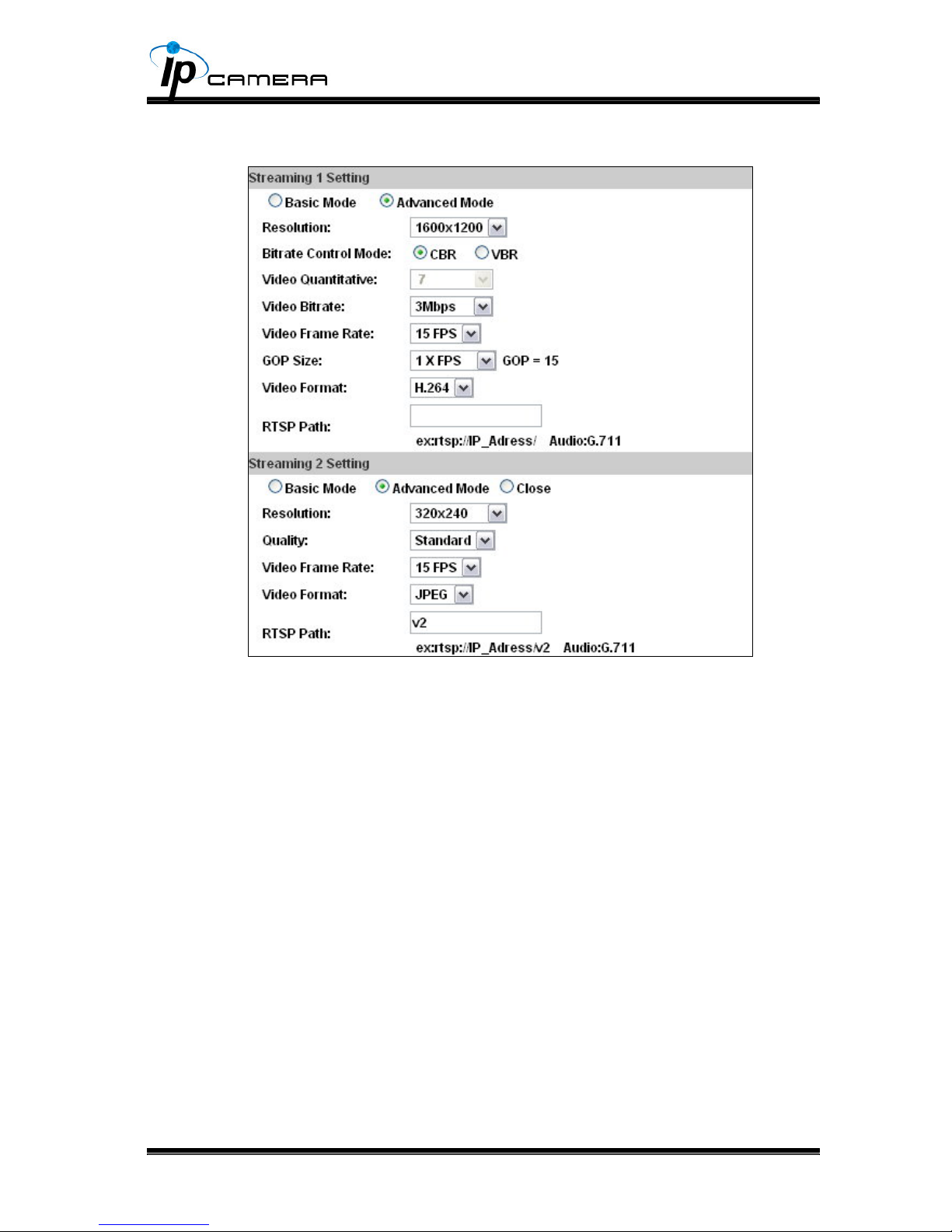

Advanced Mode of Streaming 1 and Streaming 2: c.

Resolution: (i) 1600x1200, 1280x1024, 1280x960, 1280x720, 800x592,

640x480, 320x240, or 176x144
Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate (ii)

keeps consistent all over the video. In VBR(Variable Bit Rate) mode,

the bitrate changes with the complexity extent of the video data.

VBR provides a better compression way and the le may be smaller.

However, the VBR le size cannot be predicted.

Video Quantitative: The quality parameter of VBR. You can choose 1~10 (iii)

compression rate

Video Bitrate: The quality parameter of CBR. You can choose (iv)

32kbps~8Mkbps. The higher the value is, the higher the image quality

is.

Video Frame Rate: The video refreshing rate per second. The max (v)

value is affected by the input resolution you choose.

GOP Size: It means “Group of Pictures”. The higher the GOP is, the (vi)

better the quality is.

Video Format: H.264 or M-JPEG(vii)

RTSP Path: RTSP output connecting route(viii)

33

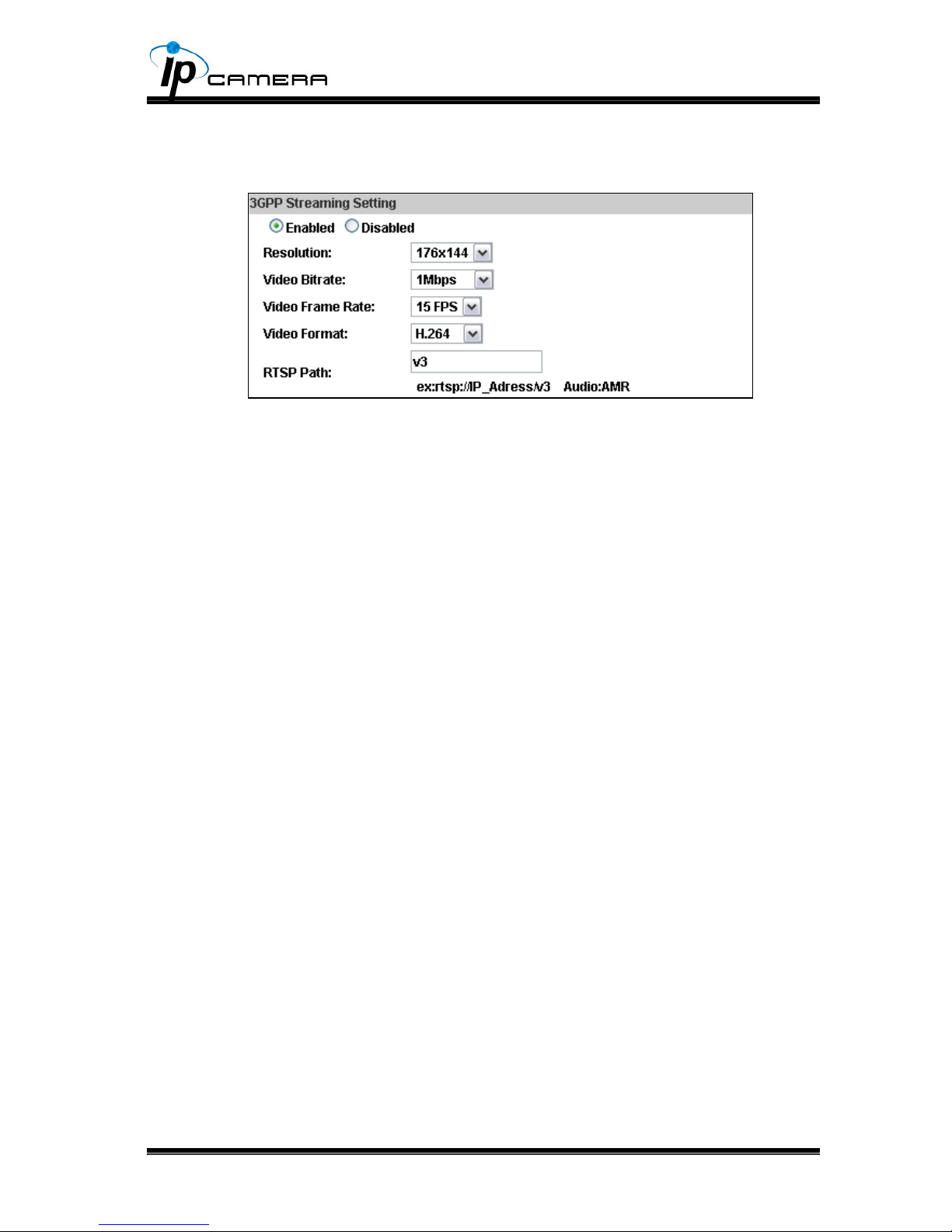

3GPP Streaming mode:d.

The rtsp here is seperated from the rtsp setting in the "IP SETTING".

3GPP Streaming can still work even you select "disabled" in the rtsp server

option of IP Setting.

3GPP mode fixed setting: 176x144 resolution, 5FPS, Video

compression: MPEG4, Audio compression: AMR.

Enable or Disable 3GPP Streaming(i)

3GPP Path: 3GPP output connecting route. If the IP address of your (ii)

camera is 192.168.40.150, and you key in "3g" in the column, the 3GPP

path will be rtsp://192.168.40.150/3g.

34

Audio: 3.

IP Camera supports 2-way audio. Audio can be receive by the built-in mic

in the IP camera and transmitted to remote PC. User can also send audio

from remote PC mic to IP Camera’s external speaker.

IP Camera to PCa.

To receive Audio from IP camera, select “Enable”.

PC to IP Camerab.

Tick “chatting” box in the browsing page, then your voice can be

propagated from PC to camera.

If "Chatting" and "Save to SD card" are enabled simultaneously, the sound

quaily might be affected and becomes not smooth.

35

Event ListD.

IP Camera provides multiple event settings.

Event Setting1.

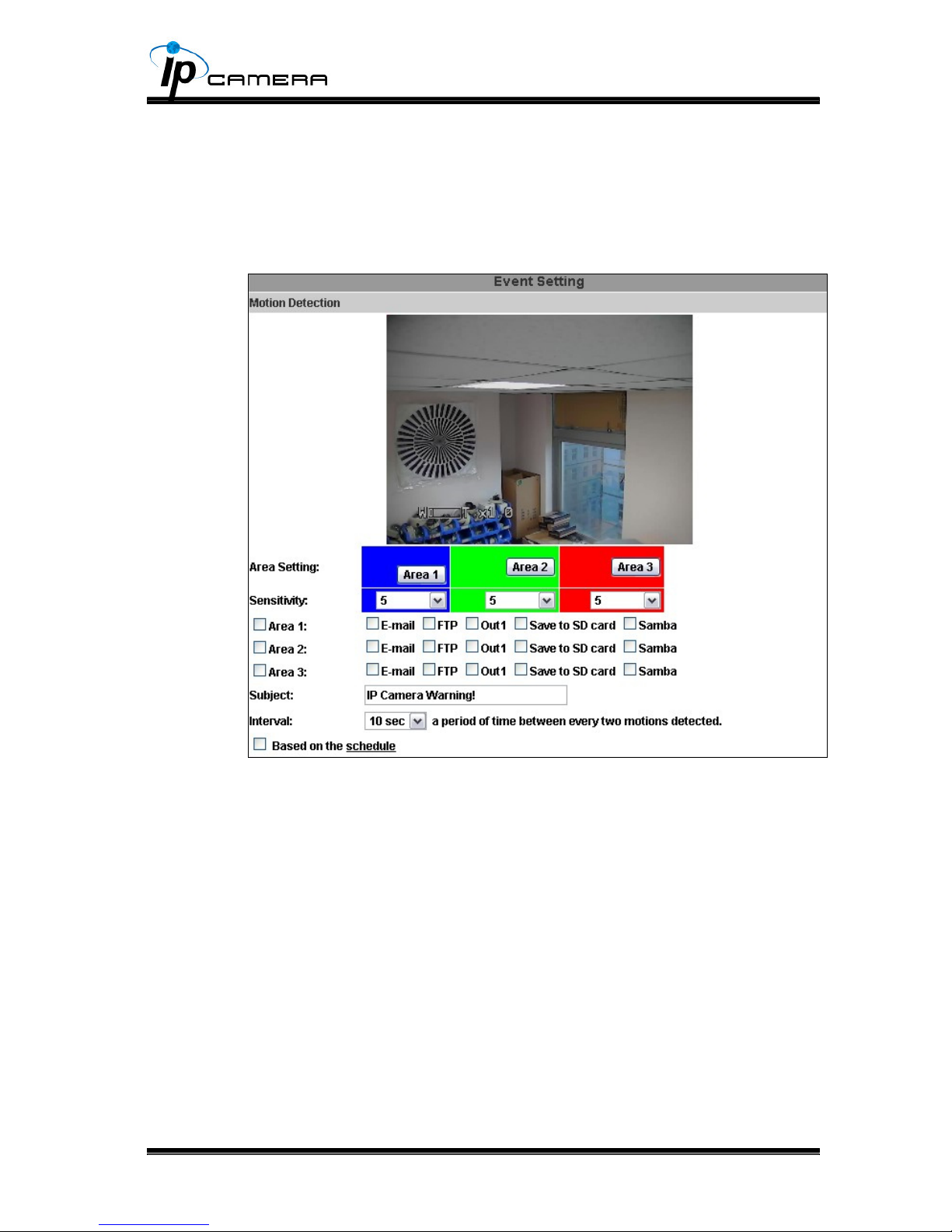

Motion Detectiona.

Motion Detection Area:(i)

IP CAMERA allows 3 areas motion detection. When motion is detected,

it can send video to specic mail addresses, trigger the output devise, or

save video to remote FTP / SD card / Samba. To set up the motion area,

click “Area Setting”. Use mouse to drag and draw the area.

Note the following conditions when you set up the motion detection

area:

We recommend the motion detection area cover part of the view instead •

of covering the whole view.

Only when the moving objects covers more than 70%~80% of the •

motion detection area that the user drew, the motion can be detected.

Regardless of the dimension of motion detection area, the moving •

objects must cover more than 1/15 of the full view so that the motion

can be detected.

36

Intervel: (ii)

For example, if you select "10 sec" here, once the motion is detected

and action is triggered, it cannot be triggered again within 10 seconds.

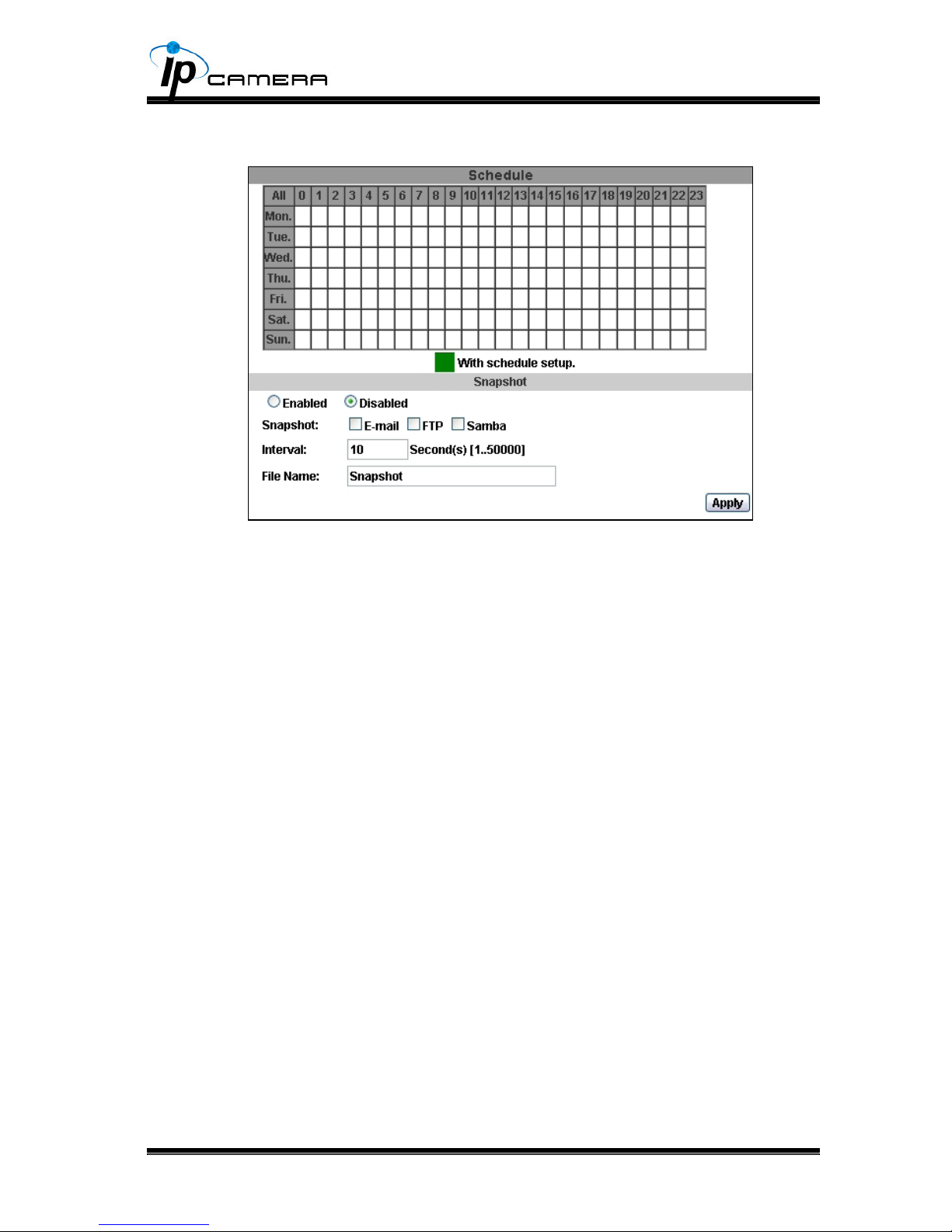

Based on the schedule: (iii)

When the option box is ticked, only during the selected schedule time

the motion detection is enabled. That is, for example, the 11th hour of

Monday has not been colored in the schedule table, then no action will

be triggered even the camera detects motion during 11:00~12:00 on

Monday.

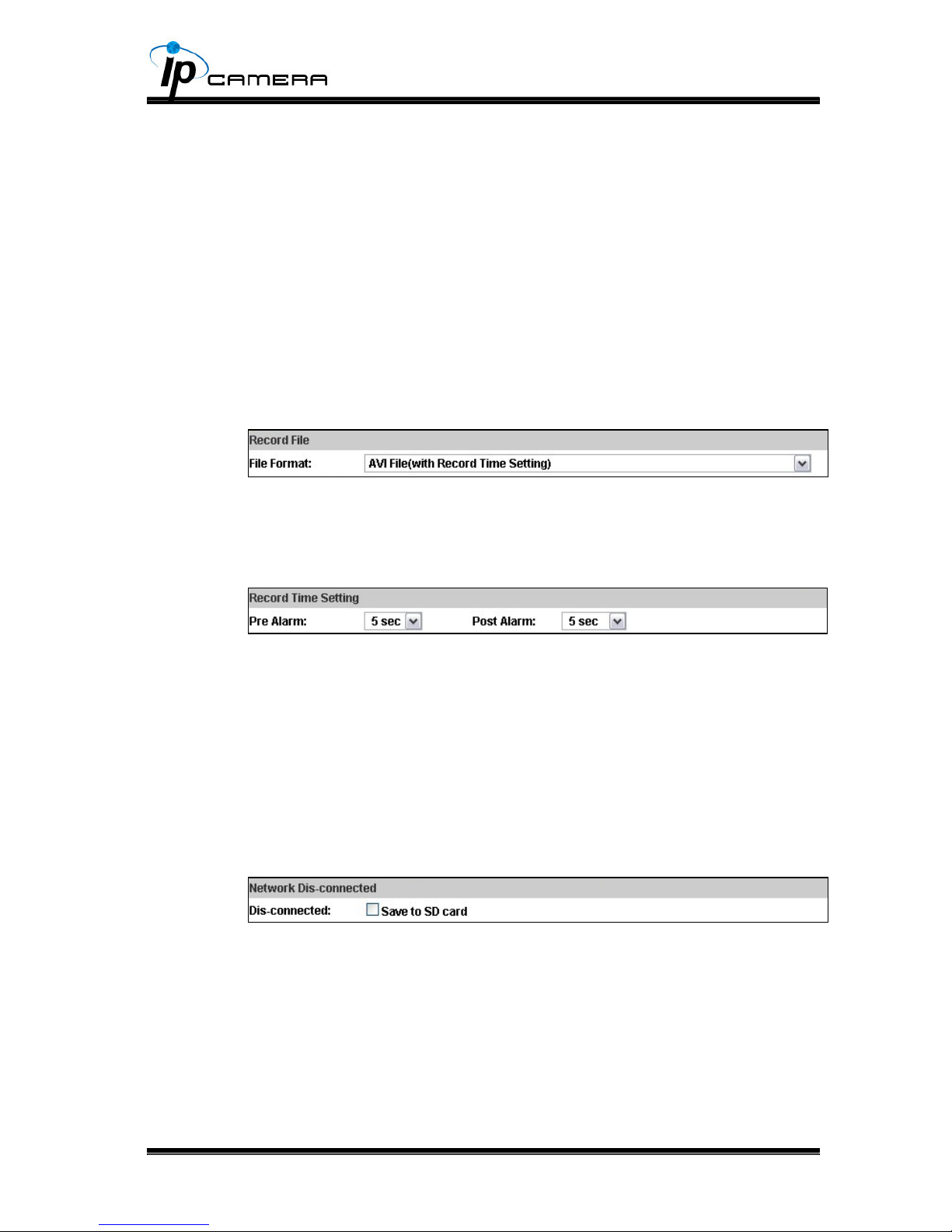

Record Fileb.

Choose one of the format, AVI or JPEG.

Record Time Settingc.

Set up the video recording time for Pre Alarm and Post Alarm when

motion is detected, I/O, or other devices is triggered.

Note: Pre/Post Alarm record time is base on record time setting and

restricted to IP Cam built-in Ram memory. If the quantity of data is too huge

or video quality too high, recording frame might drop or decrease on post

alarm recording time.

Network Dis-connectedd.

To avoid video loss, the camera will start to save the video to local

SD card when it detect no network connection. The video recording will

continuously be saved into SD card and divided into every 10 minutes a le

until the network is reconnected successfully. The oldest le will be deleted

if the capacity of SD card is full.

This function is only enabled under wire connection.

37

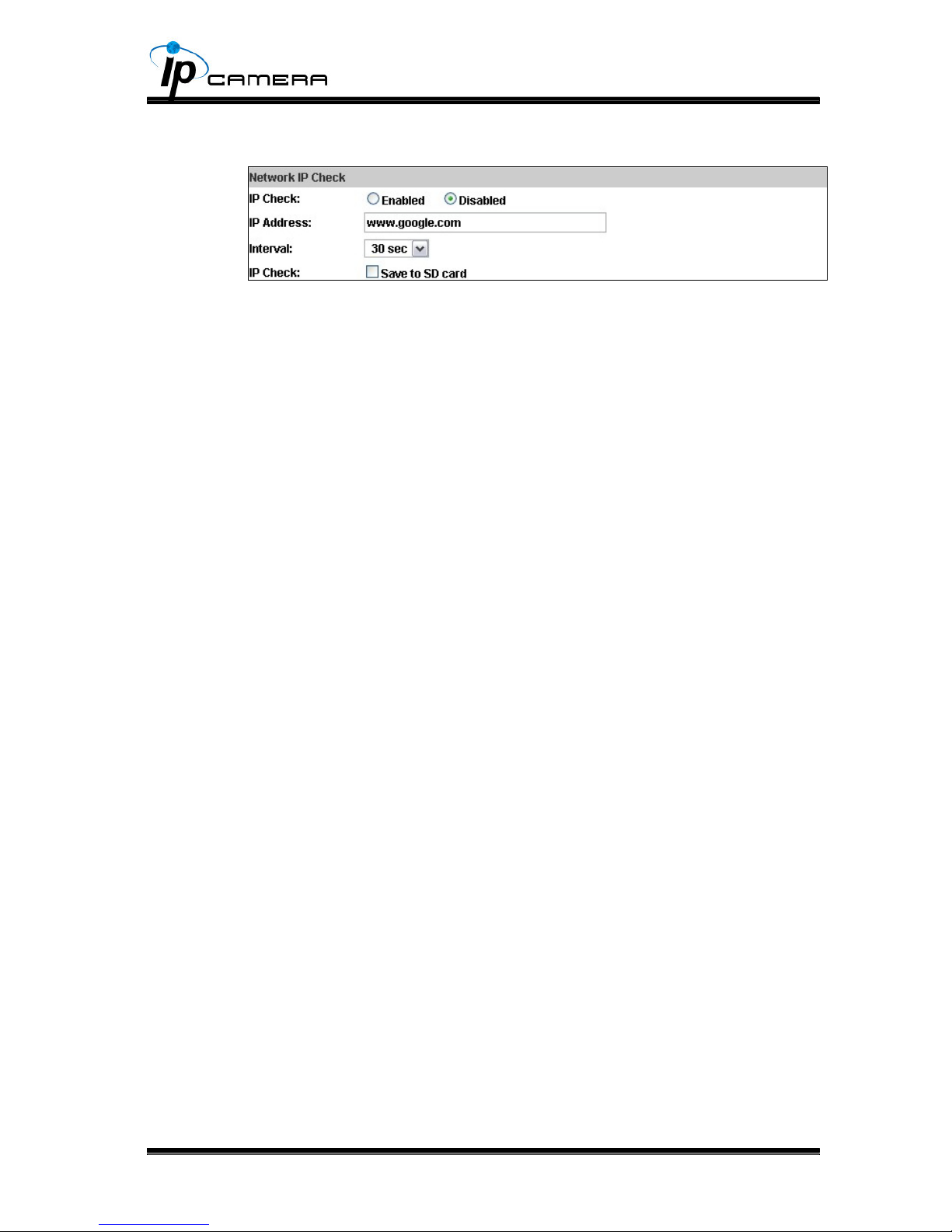

Network IP check:e.

Key in the target IP address and interval. The camera checks once in

a while according to the setting interval time that if itself can linked to the

target IP address. If connection failed, the camera starts to save the video

to SD card.

38

Schedule2.

Schedule: After complete the schedule setup, the camera data will be a.

recorded according to the schedule setup.

Snapshot: After enable the snapshot function, user can select the storage b.

position of snapshot le, the interval time of snapshot and the reserved le

name of snapshot.

Interval: The interval between two snapshots.c.

39

I/O Setting 3.

Input Setting:a.

IP Camera supports input and output. When the input condition is triggered,

it can trigger the relay, send the video to mail addresses /FTP server /

SAMBA.

Intervel: •

For example, if you select "10 sec" here, once the motion is detected

and action is triggered, it cannot be triggered again within 10 seconds.

Based on the schedule: •

When the option box is ticked, only during the selected schedule time

the I/O is enabled. That is, for example, the 11th hour of Monday has

not been colored in the schedule table, then no action will be triggered

even the camera detects input signal during 11:00~12:00 on Monday.

Output Setting:b.

The output mode affect the DO or relay out duration.

OnOff Switch: The camera triggers the external devise and lasts for 10 (i)

seconds. You can turn off the alarm manually by click "off" at the right

bottom of the live video page.

Time Switch: The camera triggers the external devise and lasts for (ii)

certain of time according to the interval setting, and the user is not

allowed to break off the alarm manually.

40

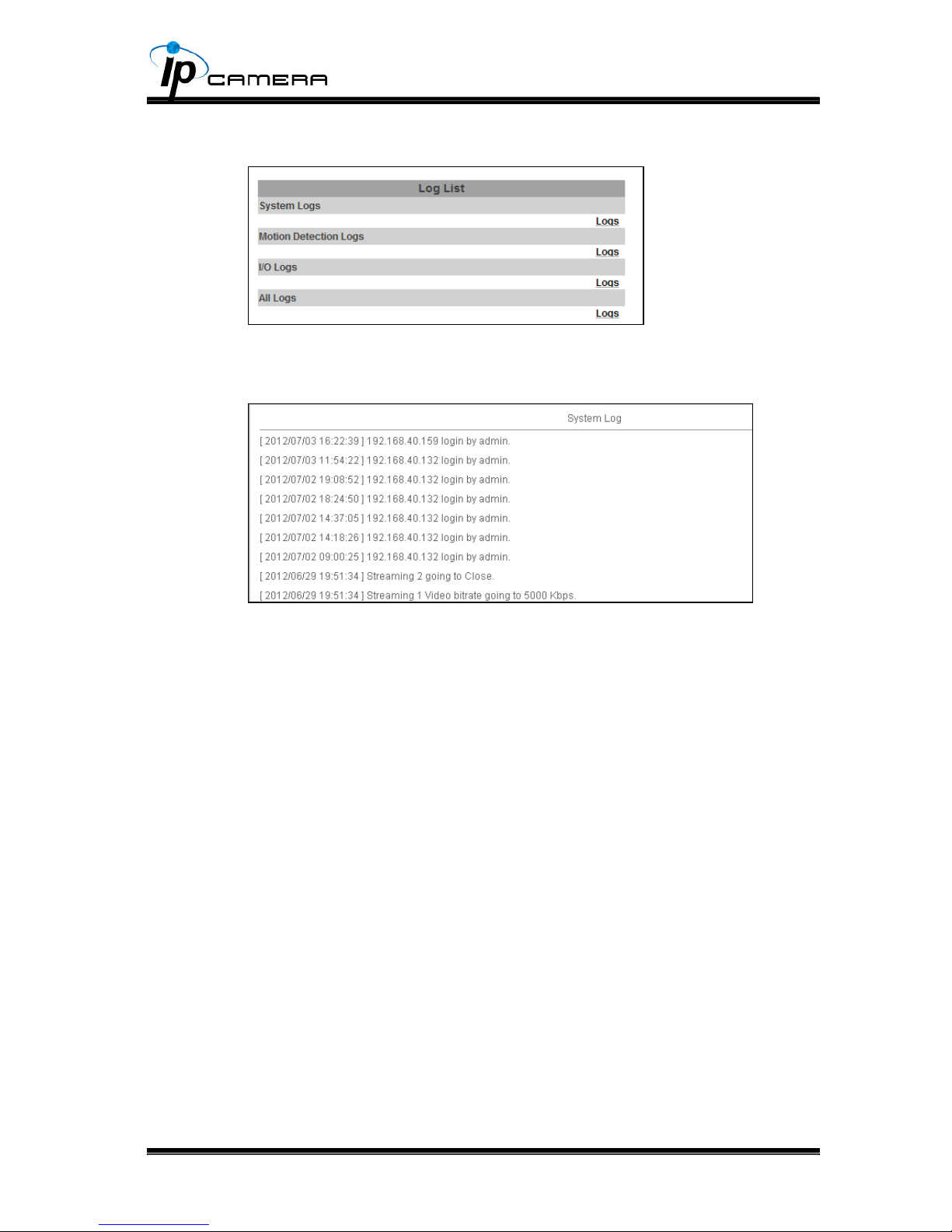

Log List4.

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,

System Logs and I/O Logs won’t lose data due to power failure.

41

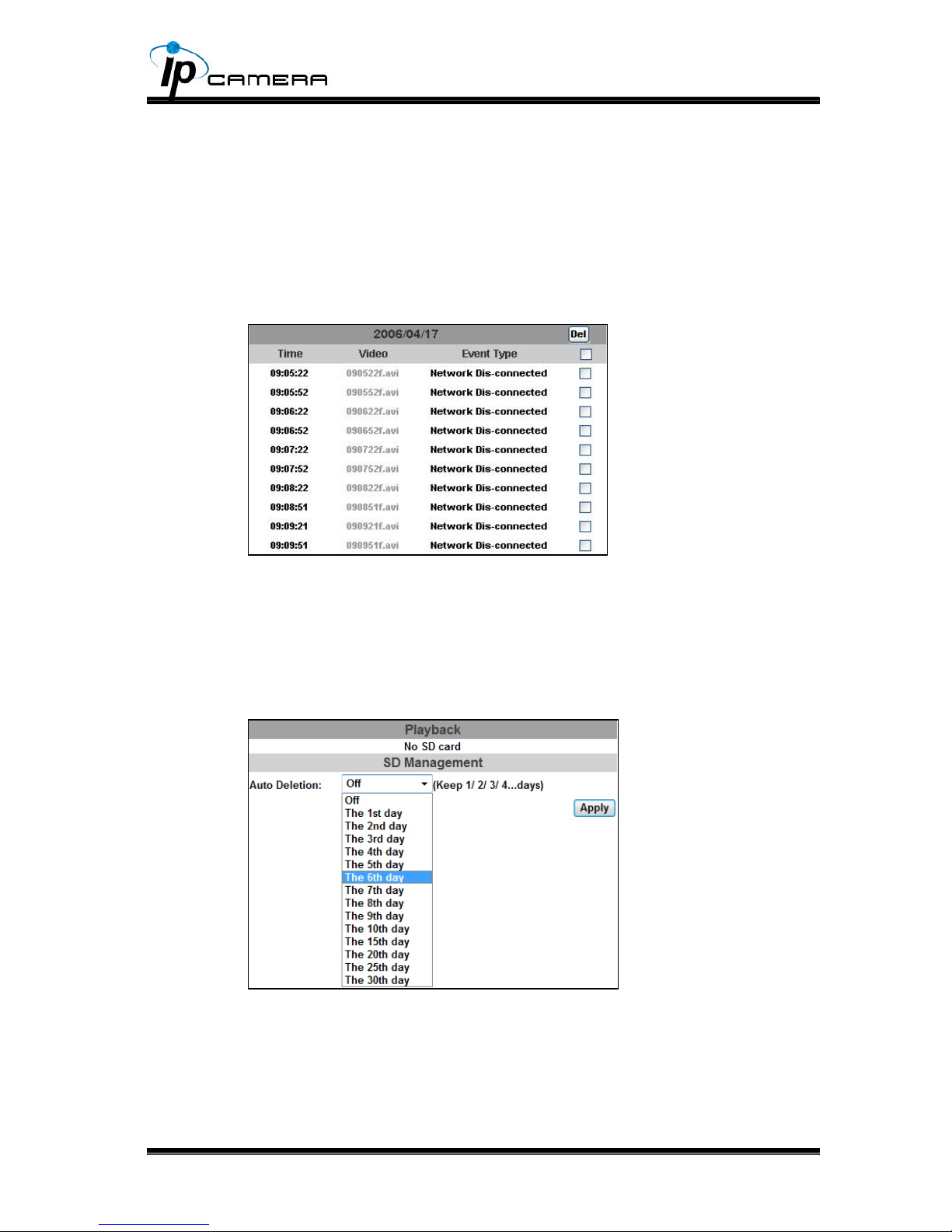

SD card5.

Playbacka.

Please Insert SD card before use it. Make sure pushing SD card into the

slot completely.

Click the date listed on this page, and it shows the list of the video. The

video format is AVI. Click the video to start Microsoft Media Player to play

it. To delete the video, check it, then click "Del".

SD Managementb.

Choose “The 1st day” means the recoding file will be keep one day.

Example: It is ve o’clock now. Choose “The 1st day”. The les will be kept

from ve o’clock yesterday to ve o’clock today.

The oldest le will be deleted if the SD card is full.

Note：The use of the SD card will affect the operation of the IP Camera

slightly, such as affecting the frame rate of the video.

42

Network CongurationVI.

Conguration 1: •

Internet Access: ADSL or Cable Modema.

IP address: One real IP or one dynamic IPb.

Only IP Camera connects to the internetc.

For xed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE.d.

Conguration 2: •

Internet AccessL: ADSL or Cable Modema.

IP address: More than one real IP or one dynamic IPb.

IP Camera and PC connect to the internetc.

Device needed: Switch Hubd.

For xed real IP, set up the IP into IP Camera and PC. For dynamic IP, start e.

PPPoE.

43

Conguration 3:•

Internet Access: ADSL or Cable Modema.

IP address: one real IP or one dynamic IPb.

IP Camera and PC connect to the internetc.

Device needed: IP sharingd.

Use virtual IP, set up port forwarding in IP sharing.e.

44

VII. I/O Conguration

I/O Connection 1.

Please connect the the external output device (ex.siren) to N.O & COM or a.

N.C & COM. (Depends on the output devise)

or

Please connect the GND & ALARM pin to the external trigger device.b.

I/O PIN denition c.

GND (Ground) : Initial state is LOW•

Alarm : Max. 50mA, DC 3.3V•

N.C. (Normally Close): Max. 1A, 24VDC or 0.5A, 125VAC•

COM (Common)•

N.O. (Normally Open): Max. 1A, 24VDC or 0.5A, 125VAC •

I/O Setup2.

Click I/O Setting from the system setup page via IE, and check “Out1” to a.

enable I/O signal.

45

Output Testb.

After the external input and output hardware is installed, you can use the

"Relay Out" bottom on the live video page to test if DO / Relay Out works.

OnOff Switch mode:(i)

Click "ON", the camera will trigger the external output devise for 10

seconds. For example, your alarm buzzer will continuously ring for

10 seconds. After 10 seconds the buzzer stops ringing, or you can

manually break off the output signal by clicking "OFF".

Time Switch mode:(ii)

Click "Pulse", the camera will trigger the external output devise for

several seconds, The duration length is according to the "interval"

setting in Output Setting.

46

Factory DefaultVIII.

If you forget your password, please follow the steps to revert back to default value.

Remove the power and ethernet cable. •

Plugging the pink "default wire” into “GND” as the picture below. •

Connect power to the camera again. It takes around 30 seconds to boot the •

camera.

Remove the default wire and plug in the ethernet cable after the camera •

nishes booting.

Re-login the camera using the default IP (• http://192.168.1.200), and user name

(admin), password (admin).

47

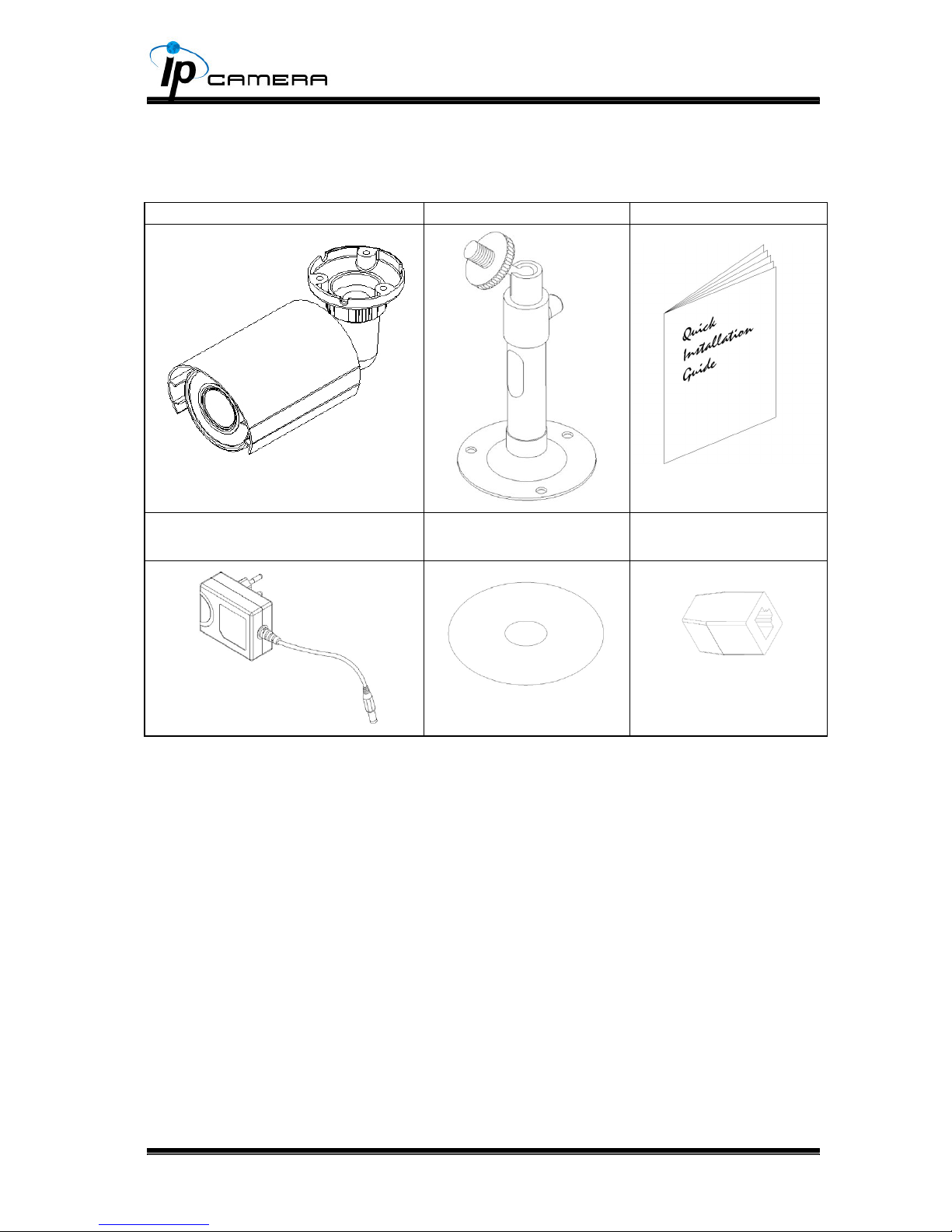

Package ContentsIX.

IP Camera Bracket Quick Installation Guide

Adapter CD RJ45 Female to Female

Connector

Adapter: AC100-240V DC12V/1A•

The CD includes User manual and software tools.•

48

SD Card CompatibilityX.

The following is the compatible SD Card, and those in red are especially
recommended:

SD CARD
ADATA 4G SanDisk 512M
ADATA 512M SanDisk 8G

Blast 128M SiliconPower 128M
GiGATEK 128M SiliconPower 256M
Kingmax 256M TEKQ 128M
Kingston 128M TEKQ 256M
Kingston 1G Toshiba 128M
Kingston 256M Toshiba 256M
Kingston 32G Toshiba 4GB
Kingston 512M Tracend 128M 80X
Phast 256M Tracend 1G 80X
Photofast 256M Tracend 256M 80X

PK 128M Tracend 2G 150X
PRETEC 128M Tracend 4G 150X
READY 128M Tracend 512M 80X

SanDisk 128M Transcend 16G

SanDisk 16G Transcend 32G

SanDisk 1G Transcend 4GB
SanDisk 256M Transcend 8G
SanDisk 2G TwinMOS 128M

SanDisk 32G TwinMOS 256M

SanDisk 4GB UMAX 128M

U-TEK 128M

SDHC CARD

SanDisk 4GB Transcend 4GB

SanDisk 8G Transcend 8G
SanDisk 16G Transcend 16G
SanDisk 32G Transcend 32G

Toshiba 4GB Kingston 32G
