CT15 - CT15R - CT30 - CT45 - CT46 CT15 ECS - Lavamatic 360 Lavamatic 460 - Lavamatic 15 Lavamatic 30 - Lavamatic 45
(IT) MANUALE ISTRUZIONI PER L’USO / (EN) OPERATOR’S MANUAL /
(FR) MANUEL D’INSTRUCTIONS / (DE) BEDIENUNGSANLEITUNG /
(ES) MANUAL DE INSTRUCCIONES / (NO) BRUKERHÅNDBOK /
(NL) GEBRUIKERSHANDLEIDING / (PT) MANUAL DE UTILIZAÇÃO /
(SE) INSTRUKTIONSBOK / (RU) РУКОВОДСТВО ОПЕРАТОРА /
(BG) РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ / (CN) 操作手册 /
(SL) PRIROČNIK Z NAVODILI ZA UPORABO / (SK) NÁVOD NA POUŽITIE /
(PL) PODRĘCZNIK OPERATORA / (HU) HASZNÁLATI ÚTMUTATÓ /
(HR) PRIRUČNIK ZA KORIŠTENJE / (RO) MANUAL DE UTILIZARE /
(CZ) NÁVOD PRO OBSLUHU / (TR) KULLANIM KILAVUZU
Consultare attentamente questo manuale prima di procedere a qualsiasi intervento sulla macchina
Read this manual carefully before carrying out any work on the machine
Lire attentivement ce manuel avant toute intervention sur la machine
Vorliegendes Handbuch vor jedem Eingri an der Maschine aufmerksam durchlesen
Consulte detenidamente este manual antes de llevar a cabo cualquier trabajo en la máquina
Konsulter denne håndboken nøye før du går i gang med noen som helst type inngrep på maskinen
Raadpleeg deze handleiding aandachtig alvorens met enige werkzaamheid aan de machine te beginnen
Consulte atentamente este manual antes de efectuar qualquer intervenção na máquina
Läs noggrant igenom denna handbok innan du utför något som helst ingrepp på maskinen
Прочетете внимателно това ръководство, преди да започнете работа с машината
Внимательно ознакомьтесь с данной инструкцией до проведения любой работы с машиной
操作机器之前请认真阅读本手册
Pozorno preberite to navodilo za uporabo, preden se lotite kakršnega koli poseganja v stroj
Tento návod si pozorne prečítajte pred každým zásahom na stroji.
Przed rozpoczęciem pracy z urządzeniem należy uważnie przeczytać niniejszy podręcznik
A géppel történő munkavégzést megelőzően gyelmesen olvassa el ezt az útmutatót
Pažljivo pročitajte ovaj priručnik prije izvođenja bilo kakvih radnji na uređaju.
Citiți cu atenție acest manual înainte de a efectua orice operațiuni asupra mașinii
Před jakoukoli manipulací se strojem si nejdříve pozorně přečtěte tento návod.
Makine ile herhangi bir işlem yapmadan önce bu kılavuzu dikkatle okuyun
ENGLISH
(Translation of original
instructions)
GB
2
CT15 TECHNICAL SPECIFICATIONS ................................................................... 5
CT30 TECHNICAL SPECIFICATIONS ................................................................... 7
CT45 TECHNICAL SPECIFICATIONS ................................................................... 9
CT46 TECHNICAL SPECIFICATIONS .................................................................. 11
MACHINE DIMENSIONS ....................................................................................... 13
SAFETY SYMBOLS ...............................................................................................15
Battery charger ..................................................................................................... 16
Figure .....................................................................................................................17
GENERAL INFORMATION .................................................................................... 24
Scope of the manual ..................................................................................................................... 24
Identifying the machine ................................................................................................................. 24
Documentation provided with the machine ................................................................................... 24
TECHNICAL INFORMATION ................................................................................. 25
General description .......................................................................................................................25
Legend .......................................................................................................................................... 25
Danger zones ................................................................................................................................ 25
Accessories ................................................................................................................................... 25
SAFETY INFORMATION .......................................................................................25
Safety regulations .........................................................................................................................25
HANDLING AND INSTALLATION ......................................................................... 27
Lifting and transporting the packaged machine ............................................................................27
Checks on delivery ........................................................................................................................ 28
Unpacking ..................................................................................................................................... 28
Electrical connections and earth (cable models)........................................................................... 28
Power supply batteries (battery models) ....................................................................................... 28
Batteries: preparation .................................................................................................................... 28
Batteries: installation and connection............................................................................................ 29
Batteries: removal ......................................................................................................................... 29
Battery charger (battery models)................................................................................................... 29
Choosing a battery charger (machines without ON-BOARD battery charger) .............................. 29
Preparing the battery charger .......................................................................................................30
Lifting and transporting the machine ............................................................................................. 30
PRACTICAL GUIDE FOR THE OPERATOR ......................................................... 30
Controls - Description.................................................................................................................... 30
Mounting and adjusting the squeegee .......................................................................................... 31
To move the machine, proceed as follows: ................................................................................... 32
Mounting and changing the brush/drive disks ............................................................................... 32
Detergents - Instructions ............................................................................................................... 32
Preparing the machine for work .................................................................................................... 33
Working ......................................................................................................................................... 33
At the end of work: ........................................................................................................................ 34
Some useful tips to get the most from your scrubber drier ..........................................................34
Carpet accessory .......................................................................................................................... 34
Combi accessory........................................................................................................................... 35
Draining the dirty water ................................................................................................................. 35
Draining the clean water ...............................................................................................................35
PERIODS OF INACTIVITY ....................................................................................35
BATTERY MAINTENANCE AND CHARGING ...................................................... 36
MAINTENANCE INSTRUCTIONS ......................................................................... 36
Maintenance - General rules ......................................................................................................... 36
Routine maintenance .................................................................................................................... 36
Squeegee blades: replacing ......................................................................................................... 37
Fuses: replacement (battery models) (Fig. L) ............................................................................... 37
Fuses: replacement (cable models) (g. M) .................................................................................. 37
Routine maintenance .................................................................................................................... 37
Six monthly operations .................................................................................................................. 38
TROUBLESHOOTING .......................................................................................... 38
How to resolve possible problems ................................................................................................38
Error codes displayed, battery version .......................................................................................... 40
CT15 TECHNICAL SPECIFICATIONS
CT15 B35
CT15 B35 ECS
CT15 C35
CT15 B35 R
Cleaning width mm 355 360 360
Squeegee width mm 450 430 430
Cleaning capacity per hour m
2
/h 1300 1300 1300
Number of brushes n° 1
Brush diameter mm 355 100
Maximum brush pressure g/cm
2
/
Brush rotation speed g/1° 140 600 140 1120 820
Brush motor power W 200 450 250 250 370
Drive motor power W /
Maximum speed Km/h /
Suction motor power W 550 200 400 550 400
Solution tank L 15
Dirty water tank L 16,5
Rear wheel diameter mm 250
Maximum slope % 2
Gross weight Kg 95 95 52,5 74,5 69,5
Transported weight Kg 36 36 15 36 15
Number of batteries n° 2 2 / 2 /
Battery voltage V 12 12 / 12 /
Individual battery capacity Ah (5h) 29 / 29 /
Power system voltage V 115 - 240 115 - 240
X=790
Machine dimensions mm
Battery compartment dimensions
(length, width, height)
mm 205x265x205 /
Z=1180
Z1=690
Y=468
115
220 220
115 - 240
X=750
Z=1180
Z1=690
Y=435
205x265x
205
115
X=750
Z=1180
Z1=690
Y=435
Packed size (length, width, height) mm 800x450x640 900x610x960
Sound pressure (EN 60704)
Measurement uncertainty
LpA
(dBA)
K
(dBA)
≤70 ≤70 ≤70 72 74
2,5 2,5 2,5 2,5 2,5
CT15 C35 R
/
GB
5
Vibration level (hand) (IEC 60335-2-72)
Measurement uncertainty, k m/sec
Vibration level (body)
Measurement uncertainty, k m/sec
Maximum water and detergent
temperature
Battery charger
Power supply frequency Hz / / 50 - 60 / 50 - 60
Power supply V 24 24 115 - 240 24
Rated power W 750 650 650 800 770
Rated current A 31 27 6,6 - 2,8 33
ahv
m/sec
HBV
m/sec
°C 4 - 55
V 100 - 240 / 100 - 240 /
Hz 50 - 60 / 50 - 60 /
≤2,5 ≤2,5 ≤2,5 ≤2,5 ≤2,5
2
2
0,5 0,5 0,5 0,8 0,8
/ / / / /
2
2
/ / / / /
115
110 - 240
6,7
3,3
Gross weight: maximum allowable weight with the machine fully loaded and ready for use. The
gross weight of the vehicle includes, when applicable, full clean water tanks, empty dirty water tanks
(half full in the case of recycling systems), empty dust bags, the hopper lled to its rated capacity,
the largest recommended batteries and all accessories such as cables, hoses, detergent, mops
and brushes.
Transported weight: the weight of the machine including the batteries, but excluding optionals (for
example, the operator’s cabin, FOPS, second and third side brushes and front brush attachment),
fresh water (in the case of scrubbers or combined machines) and the weight of a standard operator
(75 kg)
Data subject to variation without warning.
GB
6
CT30 TECHNICAL SPECIFICATIONS
CT30 B45
Cleaning width mm 455
Squeegee width mm 545
Cleaning capacity per hour m
Number of brushes n° 1
Brush diameter mm 455
Maximum brush pressure g/cm
Brush rotation speed g/1° 140 140
Brush motor power W 350 400
Drive motor power W /
Maximum speed Km/h /
Suction motor power W 550 400
Solution tank L 28
Dirty water tank L 30
Rear wheel diameter mm 250
Maximum slope % 2
Gross weight Kg 126 81
Transported weight Kg 76 28
Number of batteries n° 2
Battery voltage V 12
Individual battery capacity Ah (5h) 74 /
Power system voltage V 100-240
Machine dimensions mm
Battery compartment dimensions
(length, width, height)
Packed size (length, width, height) mm 900x610x960
Sound pressure (EN 60704)
Measurement uncertainty
2
/h 1670
2
mm 240x330x220 /
LpA
(dBA)
K
(dBA)
/
X=850
Z=1220
Z1=745
Y=568
≤70 72
2,5 2,5
115
220
CT30 C45
GB
7
Vibration level (hand) (IEC 60335-2-72)
Measurement uncertainty, k m/sec
Vibration level (body)
Measurement uncertainty, k m/sec
Maximum water and detergent
temperature
Battery charger
Power supply frequency Hz / 50 - 60
Power supply V 24 115 - 240
Rated power W 900 940
Rated current A 37,5 7 - 4,4
ahv
m/sec
HBV
m/sec
°C 4 - 55
V 100 - 240 /
Hz 50 - 60 /
2
2
2
2
≤2,5 ≤2,5
0,5 0,5
/ /
/ /
Gross weight: maximum allowable weight with the machine fully loaded and ready for use. The
gross weight of the vehicle includes, when applicable, full clean water tanks, empty dirty water tanks
(half full in the case of recycling systems), empty dust bags, the hopper lled to its rated capacity,
the largest recommended batteries and all accessories such as cables, hoses, detergent, mops
and brushes.
Transported weight: the weight of the machine including the batteries, but excluding optionals (for
example, the operator’s cabin, FOPS, second and third side brushes and front brush attachment),
fresh water (in the case of scrubbers or combined machines) and the weight of a standard operator
(75 kg)
Data subject to variation without warning.
GB
8
CT45 TECHNICAL SPECIFICATIONS
CT45 B50
CT45 BT50
Cleaning width mm 500
Squeegee width mm 730
Cleaning capacity per hour m
2
/h 1750
Number of brushes n° 1
Brush diameter mm 500
Maximum brush pressure g/cm
2
/
Brush rotation speed g/1° 160 140
Brush motor power W 400 450
Drive motor power W 180
Maximum speed Km/h 3,5
Suction motor power W 550 400
Solution tank L 40
Dirty water tank L 45
Rear wheel diameter mm 250
Maximum slope % 2
Gross weight Kg 140 145 105
Transported weight Kg 88 88 40
Number of batteries n° 2
Battery voltage V 12
Individual battery capacity Ah (5h) 74 /
Power system voltage V 100-240
Machine dimensions mm
Battery compartment dimensions
(length, width, height)
mm 265x335x255 /
X=980
Z=1290
Z1=806
Y=715
115
220
Packed size (length, width, height) mm
Sound pressure (EN 60704)
Measurement uncertainty
Vibration level (hand) (IEC 60335-2-72)
LpA
(dBA)
K
(dBA)
ahv
m/sec
72 72 72
2,5 2,5 2,5
≤2,5 ≤2,5 ≤2,5
2
CT45 C50
GB
9
Measurement uncertainty, k m/sec
Vibration level (body)
Measurement uncertainty, k m/sec
Maximum water and detergent
temperature
Battery charger
Power supply frequency Hz / / 50 - 60
Power supply V 24 24 115 - 240
Rated power W 950 1130 980
Rated current A 39,5 47 7 - 4,4
2
0,6 0,6 0,4
HBV
2
m/sec
2
°C 4 - 55
V 100 - 240 /
Hz 50 - 60 /
/ / /
/ / /
Gross weight: maximum allowable weight with the machine fully loaded and ready for use. The
gross weight of the vehicle includes, when applicable, full clean water tanks, empty dirty water tanks
(half full in the case of recycling systems), empty dust bags, the hopper lled to its rated capacity,
the largest recommended batteries and all accessories such as cables, hoses, detergent, mops
and brushes.
Transported weight: the weight of the machine including the batteries, but excluding optionals (for
example, the operator’s cabin, FOPS, second and third side brushes and front brush attachment),
fresh water (in the case of scrubbers or combined machines) and the weight of a standard operator
(75 kg)
Data subject to variation without warning.
GB
10
CT46 TECHNICAL SPECIFICATIONS
CT46 B50
Cleaning width mm 500
Squeegee width mm 730
Cleaning capacity per hour m
Number of brushes n° 1
Brush diameter mm 500
Maximum brush pressure g/cm
Brush rotation speed g/1° 155 140
Brush motor power W 360 450
Drive motor power W /
Maximum speed Km/h 3,5
Suction motor power W 550 400
Solution tank L 40
Dirty water tank L 45
Rear wheel diameter mm 250
Maximum slope % 2
Gross weight Kg 188 / 104
Transported weight Kg 128 / 40
Number of batteries n° 2
Battery voltage V 12
Individual battery capacity Ah (5h) 105 /
Power system voltage V 24 220-240
Power supply frequency Hz / / 50 - 60
Rated power W 910 / 850
Rated current A 38 / 3,8
Machine dimensions mm
Battery compartment dimensions
(length, width, height)
Packed size (length, width, height) mm 1270x680x1130
Sound pressure (EN 60704)
2
/h 1750
2
mm 340x355x305 /
LpA
(dBA)
70 / 73
16-20
X=1065
Z=1280
Z1=950
Y=715
CT46 C50
GB
11
Measurement uncertainty
Vibration level (hand) (IEC 60335-2-72)
Measurement uncertainty, k m/sec
Vibration level (body)
Measurement uncertainty, k m/sec
Maximum water and detergent
temperature
K
(dBA)
ahv
m/sec
HBV
m/sec
°C 4 - 55
V 100 - 240 /
2,5 / 2,5
≤2,5 / ≤2,5
2
2
0,6 / 0,4
2
2
/ / /
/ / /
Battery charger
Hz 50 / 60 /
A 5 - 2 /
Gross weight: maximum allowable weight with the machine fully loaded and ready for use. The
gross weight of the vehicle includes, when applicable, full clean water tanks, empty dirty water tanks
(half full in the case of recycling systems), empty dust bags, the hopper lled to its rated capacity,
the largest recommended batteries and all accessories such as cables, hoses, detergent, mops
and brushes.
Transported weight: the weight of the machine including the batteries, but excluding optionals (for
example, the operator’s cabin, FOPS, second and third side brushes and front brush attachment),
fresh water (in the case of scrubbers or combined machines) and the weight of a standard operator
(75 kg)
Data subject to variation without warning.
GB
12
MACHINE DIMENSIONS
Z
Z1
Y
Y
X-Y-Z: See “TECHNICAL SPECIFICATIONS” table
X
Z
Z1
X
GB
13
Z
Z1
Y
Y
X
Z
Z1
X
X-Y-Z: See “TECHNICAL SPECIFICATIONS” table
GB
14

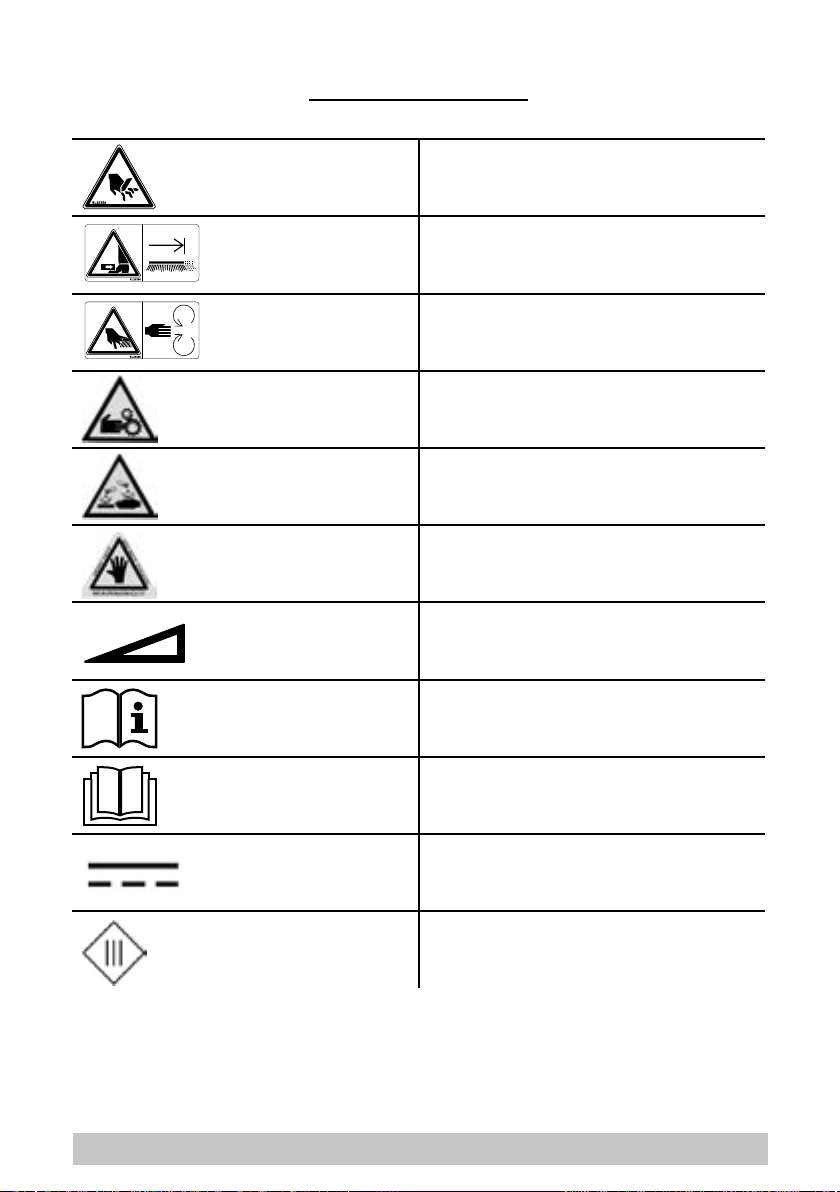

SAFETY SYMBOLS
WARNING! RISK OF CUTTING
WARNING! RISK OF CRUSHING LIMBS
WARNING! RISK OF ABRASION
WARNING! RISK OF ENTANGLEMENT
WARNING! RISK OF ACID BURNS
WARNING! RISK OF BURNS
MAXIMUM SLOPE
OPERATOR’S MANUAL, OPERATING INSTRUCTIONS
READ THE OPERATOR’S MANUAL
DIRECT CURRENT SYMBOL
INSULATION CLASS, THIS CLASSIFICATION ONLY APPLIES TO MACHINES POWERED BY BATTERIES.
GB
15

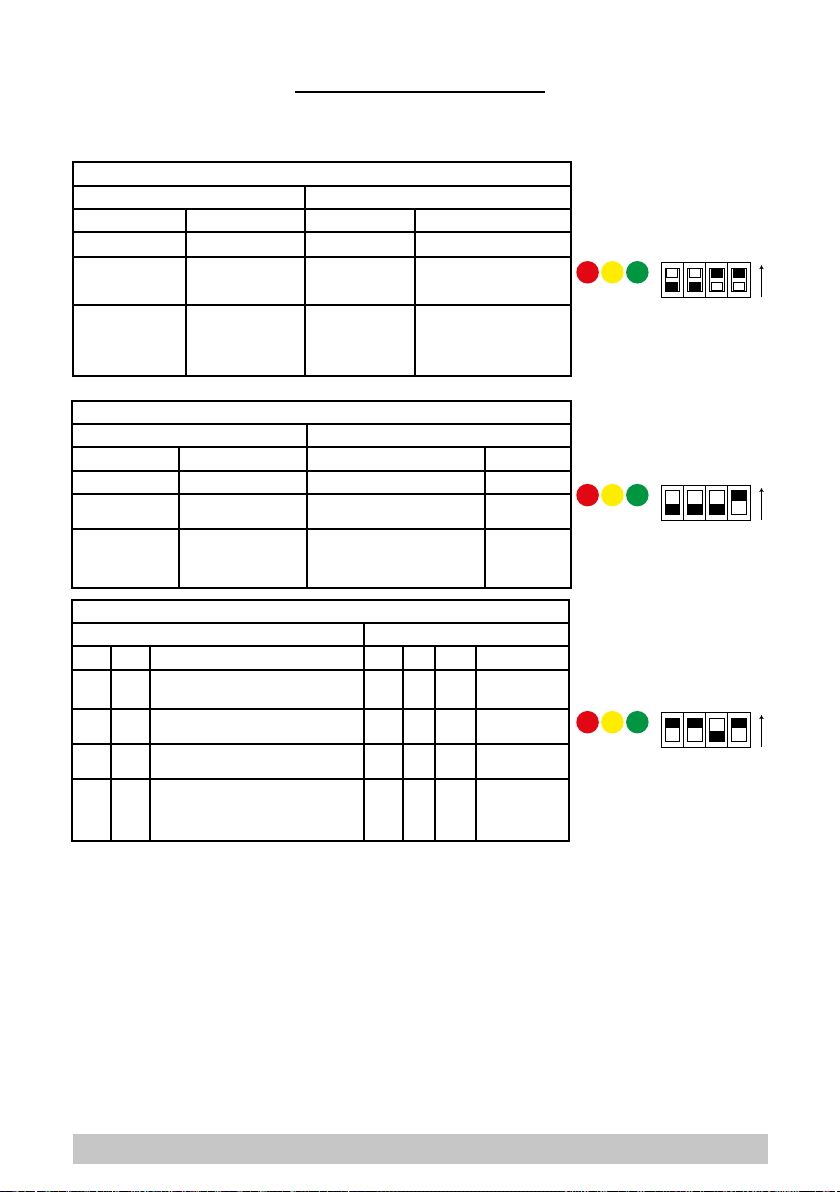

BATTERY CHARGER
LED
LED
LED
SW1
SW2
LED
LED
LED
Dipswitches are located behind the round black cap located on the front side of the charger and next
to the green led you will nd 2 sets of dipswitches (SW1 and SW2).
CT15
SW1 SW2
DP1 DP2 DP1 DP2
Charging current Charging Termination Curve TCL Function
ON: half charging
current (2,5A)
OFF: maximum char-
ging current (5A)
Default Setting
ON: stop charge OFF: IUUO-GEL for
OFF: oating charge
at 27,6V
Default Setting
generic GEL and
AGM batteries
ON: IUIa-AGM
DISCOVER for
DISCOVER AGM
batteries
Default Setting
OFF: TCL enabled
ON: TCL disabled
Default Setting
CT30 ECO
SW1 SW2
DP1 DP2 DP1 DP2
Charging current Charging Termination Curve TCL Function
ON: half charging
current (2,5A)
OFF: maximum
charging current
(5A)
Default Setting
ON: stop charge ON: IUIa-AGM DISCOVER for
OFF: oating charge
at 27,6V
Default Setting
DISCOVER AGM batteries
OFF: IUUO-GEL for generic GEL
and AGM batteries
Default Setting
OFF: TCL
enabled
ON: TCL
disabled
Default Setting
CT30 - CT45
SW1 SW2
DP1 DP2 Curve DP1 V DP2
ON OFF IUIa-ACD for Wet batteries OFF 24 ON
OFF OFF
OFF ON
ON ON
IUIa-GEL for GEL batteries of Exide-
Sonnenschein and Haze
IUOU-GEL for GEL and AGM batteries of
other manufacturers
IUIa-AGM for Discover AGM batteries
Default Setting
ON 12 OFF TCL enabled
TCL disabled
Default Setting
RED
YELLOW
RED
YELLOW
LED
LED
RED
YELLOW
GREEN
GREEN
GREEN
SW1
SW2
DP1
DP2
DP1
ON
OFF
DP1
ON
OFF
LED
DP1
ON
OFF
DP2
ON
ON
ON
OFF
OFF
OFF
DP2
DP1
DP2 ON
ON
ON
ON
OFF
OFF
OFF
SW1
SW2
DP2
DP1
DP2 ON
ON
ON
ON
OFF
OFF
OFF
ON
GB
16
FIGURE
2
3
8
6
7
5
4
1
2
8
2
8
1
5
5
4
4
1
5
A
GB
17
B
1
7
2
3
4
5
6
3
4
5
6
2
3
4
5
6
8
2
C
3
4
5
6
GB
C
18
5
1
1
3
4
2
D
14
10
8
7 - 13
4
1
2 - 12
6
3
3
11
9
5
E
GB
19

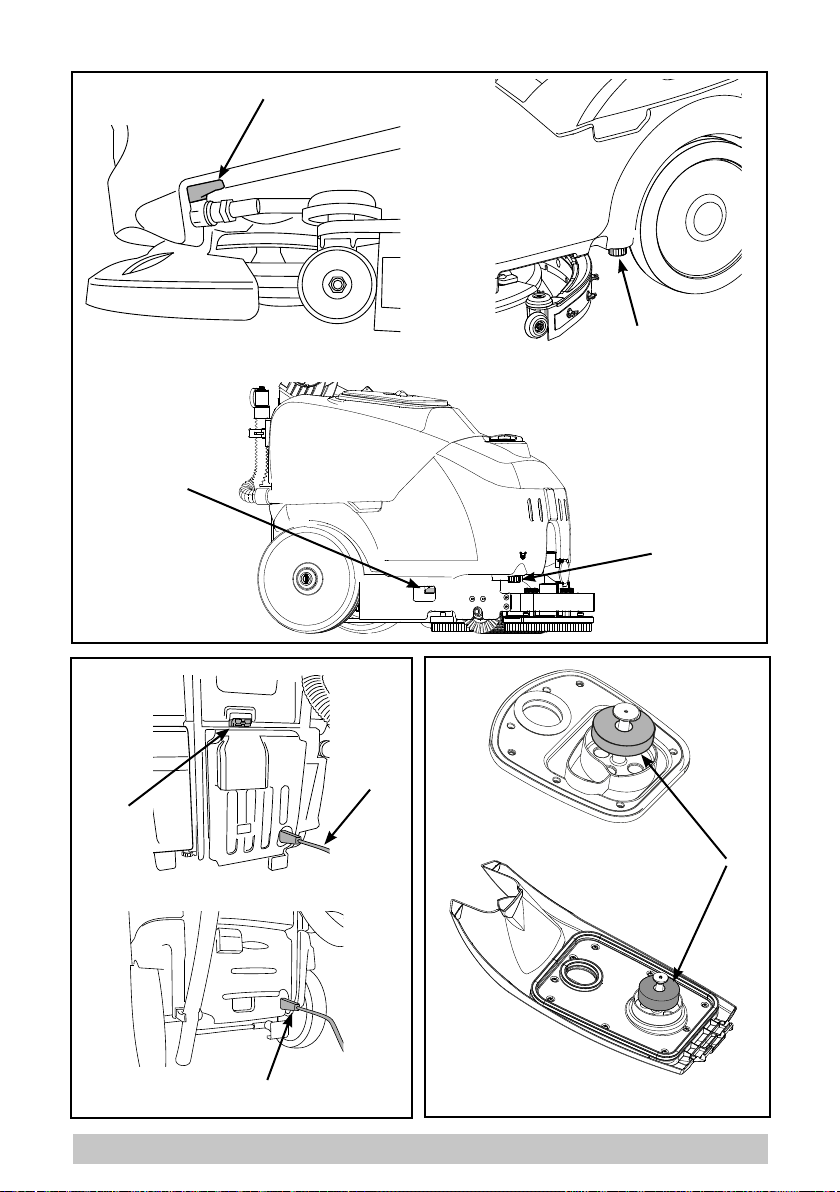

G
2
1
2
1
2
H
1
1
GB
I
20
1
N
L
M
4
1
2
1
GB

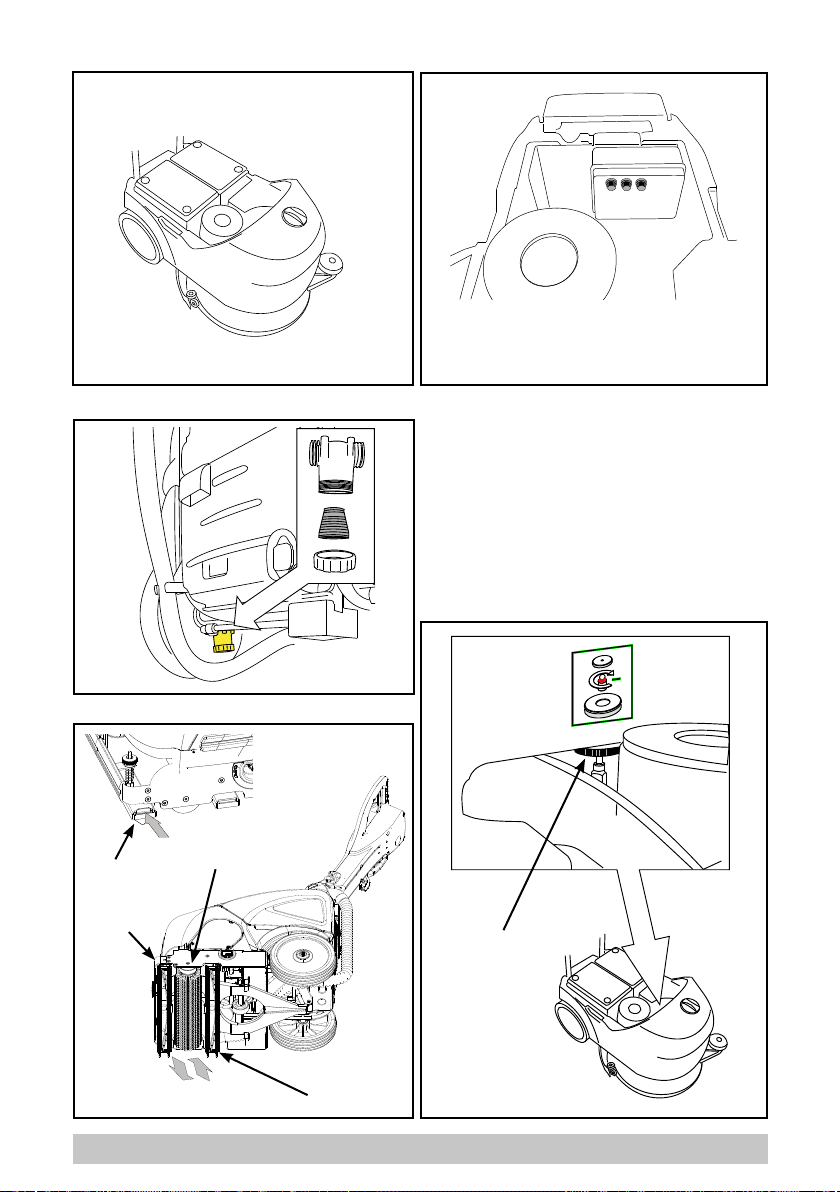

O
21
P
3
Q
R
1
3
1
STANDARD
CARPETLAVAMOQUETTE
2
S
1
2
3
GB
22
T
GB
23
GENERAL INFORMATION
Read this manual carefully before carrying out any work on the machine
Scope of the manual
This manual has been written by the Manufacturer and is an integral part of the machine1.
It denes the purpose for which the machine has been designed and constructed and contains all the information
required by
operators
2
.
In addition to this manual, which contains information for operators, other publications are available providing
specic information for
maintenance personnel
The terms “right” and “left”, “clockwise” and “anti-clockwise” refer to the forward movement of the machine.
Constant compliance with the instructions provided in this manual guarantees the safety of the operator and the
machine, ensures low running costs and high quality results and extends the working life of the machine. Failure
to follow these instructions may lead to injury to the operator or damage to the machine, oor and environment.
Consult the table of contents at the beginning of the manual to nd the section you need rapidly.
Parts of the text requiring special attention are printed in bold and preceded by the symbols illustrated and described here.
Indicates the need for attention in order to avoid a series of consequences which could cause death or
damage to the health of the operator.
Indicates the need for attention in order to avoid a series of consequences which could cause damage to
the machine or work environment or nancial loss.
Particularly important instructions.
In line with the company’s policy of constant product development and updating, the Manufacturer reserves the
right to make modications without warning.
Although your machine may dier appreciably from the illustrations in this document, safety and the information
contained in this manual are guaranteed.
Identifying the machine
The rating plate provides the following information:
► model;
► power supply;
► total nominal power;
► serial number;
► year of fabrication;
► dry weight;
► maximum slope;
► barcode with serial number;
► manufacturer’s identication.
Documentation provided with the machine
► User manual;
► guarantee certicate;
► EC certicate of conformity.
INFORMATION
3
.
DANGER
IMPORTANT
INFORMATION
Model :
Vac :
W :
A :
Hz :
Ser.N :
Date :
IP :
Kg :
1 The denition "machine" replaces the trade name covered by this manual.
2 Persons responsible for using the machine without performing any operations requiring precise technical skills.
3 Persons with experience, technical training and a knowledge of legislation and standards, able to perform all the neces-
sary operations and to recognise and avoid possible risks in handling, installation, use and maintenance of this machine.
GB
24
TECHNICAL INFORMATION
General description
This machine is a scrubber drier for sweeping, washing and drying at, horizontal, smooth or moderately rough,
even and obstacle free oors in civil and industrial premises. It is available in both battery and cable versions to
meet all running time and weight requirements.
The scrubber drier spreads a solution of water and detergent in the correct concentration on the oor and then
scrubs it to remove the dirt. By carefully choosing the detergent and brushes (or abrasive disks) from the wide range of accessories available, the machine can be adapted to a wide range of combinations of types of oor and dirt.
A suction system incorporated in the machine dries the oor after washing by means of the low pressure generated in the dirty water tank by the suction motor. The squeegee connected to the tank collects the dirty water.
Legend
The main parts of the machine are as follows (g. A):
► the detergent tank (g. A, ref. 1): contains and transports the mixture of clean water and detergent;
► the dirty water tank (g. A, ref. 2): collects the dirty water picked up from the oor after washing;
► control panel (g. A, ref. 3);
► head assembly (g. A, ref. 4): the main element is the brush which distributes the detergent solution on
the oor and remove the dirt;
► squeegee assembly (g. A, ref. 5): wipes and dries the oor by collecting the water.
Danger zones
► Tank assembly: when using certain detergents, danger of irritation for eyes, skin, mucous membranes
and respiratory tract and of asphyxia. Danger represented by the dirt collected from the environment
(germs and chemical substances). Danger of crushing between the two tanks when the dirty water tank
is replaced on top of the detergent tank.
► Control panel: danger of short circuit.
► Bottom of washing head: danger due to brush rotation.
► Rear wheels: danger of crushing between the wheel and chassis.
► Battery compartment (in the detergent tank): danger of short circuit between the battery poles and
presence of hydrogen during charging.
Accessories
► Bristle brushes: for washing delicate oors and polishing;
► Polypropylene brushes: for normal oor washing;
► Tynex brushes: for removing accumulated stubborn dirt on resistant oors;
► Drive disks: enable the following disks to be used:
► Yellow disks: for washing and polishing marble and similar surfaces;
► Green disks: for washing resistant oors;
► Black disks: for thorough washing of resistant oors with stubborn dirt.
► S.P.E. battery charger CBHD1
SAFETY INFORMATION
Safety regulations
Read the “User Manual” carefully before start-up and use or before performing maintenance or any other
Rigorously respect all instructions in the Manual (in particular those relating to danger and important
information) and on the safety plates tted to the machine.
The Manufacturer declines all liability for damage to people or things resulting from failure to observe
INFORMATION
work on the machine.
IMPORTANT
the instructions.
GB
25
The appliance must be used exclusively by persons trained in its use and/or who have demonstrated their ability
and have been expressly instructed to use the appliance.
The machine must not be used by minors.
The machine must not be used for purposes other than those for which it was expressly designed. Scrupulously
respect all safety standards and conditions applicable to the type of building in which the machine is to be opera-
ted (eg: pharmaceutical companies, hospitals, chemicals, etc).
Do not use the machine in places with inadequate lighting or explosive atmospheres, on public roads, in the presence of dirt hazardous to health (dust, gas, etc) and in unsuitable environments.
This machine is intended for use in commercial applications, such as hotels, schools, hospitals, factories, shops
and oces, or for hire.
The machine is designed for indoor use only. The machine must be kept indoors at all times.
The machine is designed for temperatures of between +4°C and +35°C when in use and between +0°C and
+50°C when not in use.
The machine must be used at altitudes below 2000 m.
The machine is designed to work in a humidity of between 0% and 95%.
Never use or pick up ammable liquids or explosives (e.g. petrol, fuel oil, etc), ammable gases, dry dusts, acids
and solvents (e.g. paint solvents, acetone etc) even if diluted. Never pick up aming or incandescent objects.
Never use the machine on slopes or ramps of more than 2%. In the case of slight slopes, do not use the machine
transversally, always manoeuvre with care and do not reverse. When transporting the machine on steeper ramps
or slopes, take the utmost care to avoid tipping up and/or uncontrolled acceleration. Tackle ramps and/or steps
with the front of the machine raised only.
Never park the machine on a slope.
The machine must never be left unattended with the motor or engine on. Before leaving it, turn the motor or engine
o, make sure it cannot move accidentally.
Always pay attention to other people, children in particular, present in the place where you are working.
Children must be supervised to make sure they do not play with the appliance.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Never use the machine to transport people or things or to tow things. Do not tow the machine.
Never rest objects of any weight on the machine for any reason.
Never obstruct ventilation and heat dispersion slits.
Never remove, modify or circumvent safety devices.
Numerous unpleasant experiences have shown that a wide range of personal objects may cause serious acci-
dents. Before beginning work, remove jewellery, watches, ties, etc.
The operator must always use personal protection devices - protective apron or overalls, non-slip waterproof
shoes, rubber gloves, protective goggles and ear protectors and mask to protect the respiratory tract.
Keep the hands away from moving parts.
Never use detergents other than those specied. Follow the instructions on the relative safety sheet. We recommend keeping detergents out of reach of children. In the event of contact with the eyes, wash immediately with
abundant water. If ingested, consult a doctor immediately.
Make sure the power sockets used for the models with cable or battery charger are connected to a suitable earth
system and protected by dierential thermal solenoid switches.
Make sure the electrical characteristics of the machine (voltage, frequency, absorbed power) given on the rating
plate are the same as those of the mains electricity supply. The machine with cable has a three-wire cable and
a three pin earthed plug for use in an appropriate earthed socket. The earth wire is yellow and green. Never
connect this wire to anything other than the earth contact of the socket.
Battery charger: check the power cable regularly for damage; if the power cable is damaged, do not use the
charger. To replace the cable, contact a specialist service centre.
To recharge the batteries, always use the battery charger supplied with the machine.
It is indispensable to respect the battery manufacturer’s instructions and current legislation. The batteries should
always be kept clean and dry to avoid surface leakage current. Protect the batteries from impurities such as
metal dust.
Never rest tools on the batteries as this could cause short circuit and explosion.
When using battery acid, always follow the relative safety instructions scrupulously.
When using cable models, take care not to crush or pull the power supply cable.
While using the machine, make sure the rotating brush does not come in contact with the power cable (cable
powered version).
Check the power cable regularly. If damaged, do not under any circumstances use the machine. Replace it with
one of the same type or contact a specialised service centre (cable powered version).
In the presence of particularly strong magnetic elds, assess the possible eect on the control electronics.
GB
26
Never wash the machine with water jets.
The uids collected contain detergent, disinfectant, water and organic and inorganic material. They must be disposed o in accordance with current legislation.
In the case of malfunction and/or faulty operation, turn the machine o immediately (disconnecting it from the
mains power supply or removing the fuse from the battery bridge). Do not tamper with it otherwise. Contact a
service centre authorised by the Manufacturer.
All maintenance operations must be performed in an adequately lit place and only after disconnecting the machine
from the power supply (in cable models, unplug the machine from the mains power socket, in battery models,
remove the fuse from the battery bridge). In cable models, the operator must always be in a position to verify that
the plug remains unplugged from the mains power socket throughout maintenance operations.
All work on the electrical system and all maintenance and repair operations other than those explicitly
described in this manual must be performed by specialised personnel expert in the sector only.
If the power cable, plug or terminals require replacing, make sure the electrical connections and cable grip are
tightly fastened to guarantee the resistance of the cable if pulled. Only original accessories and spare parts supplied by the Manufacturer may be used in order to guarantee safe problem-free operation of the machine. Never
use parts removed from other machines or from other kits.
This machine has been designed and constructed to provide ten years’ service from the fabrication date shown on
the rating plate. After this time, whether the machine has been used or not, it should be disposed of according to
current legislation in the country in which it is used:
the machine must be disconnected from the power supply, emptied of liquids and cleaned;
the product is classied as WEEE type special waste and is covered by the requisites of the new environmental
protection regulations (2002/96/EC WEEE). It must be disposed of separately from ordinary waste in compliance
with current legislation and standards.
Special waste. Do not dispose of with ordinary waste.
Alternatively the machine must be returned to the Manufacturer for a complete overhaul.
If you decide to stop using the machine, you are recommended to remove the batteries and dispose of them at
an authorised collection centre.
You should also make sure that all parts of the appliance which could represent a hazard, particularly to children,
are made safe.
HANDLING AND INSTALLATION
Lifting and transporting the packaged machine
During all lifting operations, make sure the packaged machine is rmly anchored to avoid it tipping up or
Always load/unload lorries in adequately lit areas.
The machine, packaged on a wooden pallet by the Manufacturer, must be loaded using suitable equipment (see
EC Directive 2006/42 and subsequent amendments and/or additions) onto the transporting vehicle. At destination,
it must be unloaded using similar means.
A fork lift truck must always be used to lift the packaged body of the machine. Handle with care to avoid knocking
or overturning the machine.
IMPORTANT
being accidentally dropped.
GB
27
Checks on delivery
When the carrier delivers the machine, make sure the packaging and machine are both whole and undamaged. If
the machine is damaged, make sure the carrier is aware of the damage and before accepting the goods, reserve
the right (in writing) to request compensation for the damage.
Unpacking
When unpacking the machine, the operator must be provided with the necessary personal protection
devices (gloves, goggles, etc) to limit the risk of accident.
Unpack the machine as follows:
► cut and remove the plastic straps using scissors or nippers;
► open the packaging;
► remove the bags included in the packaging and check the contents:
► guarantee slip;
► use and maintenance manual;
► battery bridges with terminals (battery model only);
► battery charger connector (battery models only);
► remove the machine (CT15 B35) from its packaging, lifting it at the handle folded forwards in the posi-
tion indicated in the gure (Fig. T), using a strap and a hoist. When lifting, make sure that the machine
remains stable in the horizontal position. Take the machine (CT15 B35R, CT30, CT45 and CT46) o the
pallet, using a ramp;
► clean the outside of the machine in respect of safety regulations;
► after unpacking the machine, install the batteries (battery models) or connect the electrical connec-
tions (cable models). See relevant sections.
The packaging may be kept as it can be reused to protect the machine if it is moved to another site or to a repair
workshop.
Otherwise it must be disposed o in compliance with current legislation.
IMPORTANT
Electrical connections and earth (cable models)
The electrical characteristics of the machine are given on the rating plate. Make sure the frequency and voltage
correspond to those of the mains supply where the machine will be operated. As far as voltage is concerned,
models where the rating plate species a voltage of 230 V can be used with voltages of between 220 V and 240
V. Similarly, models rated at 115 V can be used at between 110 V and 120 V. The frequency on the plate must
always correspond to the mains voltage.
Make sure the mains circuit is suitably earthed and that the sockets (and any adaptors used) ensure the
continuity of the earth conductors.
Failure to observe these instructions could cause possibly serious damage to people and things and
IMPORTANT
DANGER
invalidates the guarantee.
Power supply batteries (battery models)
Two dierent types of battery may be installed on these machines:
► tubular leak-proof batteries: the electrolyte level must be checked regularly. When necessary, top up
with distilled water until the plates are covered. Do not over ll (5 mm max. above the plates).
► gel batteries: this type of battery requires no maintenance.
The technical characteristics must correspond to those indicated in the paragraph on the technical specication of
the machine. The use of heavier batteries could seriously jeopardise manoeuvrability and lead to the brush motor
overheating. Batteries with a lower capacity and weight will require charging more frequently.
They must be kept charged, dry and clean and the connections must be tight.
Batteries: preparation
During installation of the batteries or any type of battery maintenance, the operator must be provided
with the necessary personal protection devices (gloves, goggles overalls, etc) to limit the risk of accident.
Keep away from naked ames, avoid short circuiting the battery poles, avoid sparks and do not smoke.
The batteries are normally supplied lled with acid and ready for use.
If the batteries are dry, before mounting them on the machine, proceed as follows:
DANGER
GB
28
► remove the caps and ll all elements with specic sulphuric acid solution until the plates are entirely
covered (this requires at least a couple of passes for each element);
► leave for 4-5 hours to allow the air bubbles to come to the surface and the plates to absorb the elec-
trolyte;
► make sure the level of electrolyte is still above the plates and if necessary top up with sulphuric acid
solution;
► close the caps;
► mount the batteries on the machine (following the procedure described below).
Before starting up the machine for the rst time, charge the batteries as follows.
Batteries: installation and connection
Make sure you connect the terminals marked with a “+” to the positive poles of the battery. Do not check
Check that all switches on the control panel are in the “0” (o) position.
the battery charge by sparking.
Meticulously follow the instructions given below as short circuiting the batteries could cause them to
► Make sure the dirty water tank is empty and empty if necessary (see relevant paragraph).
► Remove the dirty water tank (g. B, ref. 1) o the detergent tank by pulling it upwards, making sure you
have previously removed the suction hose and dirty water tank drain hose from their housings.
► Place the batteries in the battery compartment as shown in the drawing on the dirty water tank.
Mount the batteries on the machine using lifting means suitable for their weight.
The positive and negative poles have dierent diameters.
► Connect the battery wiring and bridge terminals to the battery poles.
► Tighten the terminals on the poles and cover with Vaseline.
► Put the dirty water tank back on the detergent tank.
► When using the machine, follow the instructions below.
DANGER
explode.
IMPORTANT
Batteries: removal
When removing the batteries, the operator must be equipped with suitable personal protection devices
(gloves, goggles, overalls, safety shoes, etc) to reduce the risk of accidents. Make sure the switches on
the control panel are in the “0” position (o) and the machine is turned o. Keep away from naked ames,
do not short circuit the battery poles, do not cause sparks and do not smoke. Proceed as follows:
DANGER
► disconnect the battery wiring and bridge terminals from the battery poles.
► if necessary, remove the devices xing the battery to the base of the machine.
► lift the batteries from the compartment using suitable lifting equipment.
Battery charger (battery models)
Never allow the batteries to become excessively at as this could damage them irreparably.
If the machine has an ON-BOARD battery charger (installed by the manufacturer), no operations are re-
quired as it will already be ready for use.
IMPORTANT
INFORMATION
Choosing a battery charger (machines without ON-BOARD battery charger)
Make sure the battery charger is compatible with the batteries to be charged:
► tubular lead acid batteries: an automatic battery charger is recommended, 24V - 5 A for model CT15,
24V - 10 A for models CT30 and CT45, and 24V - 15 A for model CT46. Consult the battery charger
manufacturer and manual to conrm the choice.
► gel batteries: use a charger specic for this type of battery.
GB
29
Use CE-marked battery chargers that comply with the relevant product standards (EN60335-2-29),
featuring double or reinforced insulation between input and output, and a SELV output circuit.
The CT46 B50 must only be powered by a low safety voltage.
DANGER
Preparing the battery charger
If you wish to use a battery charger not provided with the machine, you must t it with the connector supplied with
the machine (see paragraph “Unpacking” in this manual).
To install the connector, proceed as follows:
► remove about 13 mm of protective sheath from the red and black wires of the battery charger;
► insert the wires into the connector contacts and squeeze them forcefully with suitable pliers;
► respect the polarity (red wire + black wire –) when inserting the wires into the connector.
Lifting and transporting the machine
All phases must be performed in an adequately lit room and adopting
the safety measures most appropriate to the situation.
The operator must always use personal protection devices.
To load the machine onto a means of transport, proceed as follows:
► empty the dirty water and detergent tanks;
► place the machine in the packaging, then rest the packaging on a pallet and x it with plastic straps;
► lift the pallet (with the machine) using a fork lift truck and load it onto the means of transport;
► anchor the machine to the means of transport with cables connected to the pallet and machine itself.
IMPORTANT
PRACTICAL GUIDE FOR THE OPERATOR
Controls - Description

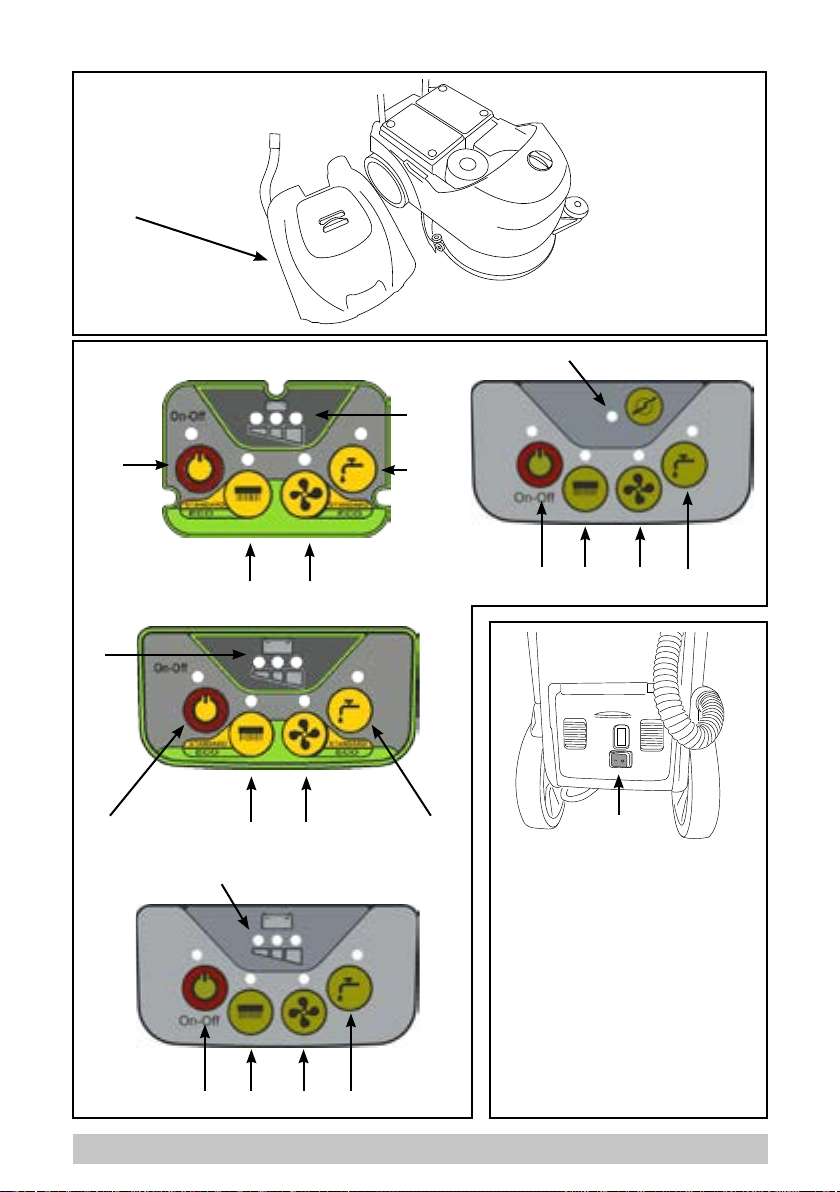

With reference to g. C, the machine has the following controls and indicator lights:
► Power on light (g. C, ref. 7 - cable model only): green, indicates that the machine’s power cable is
connected to the mains.
► Battery charge light (g. C, ref. 2 - battery models only): 3 LEDs (red, yellow and green) which indicate
the level of battery charge. There may be:
► red and green LEDs on, yellow LED ashing: battery voltage > 30.0 V;
► red, yellow, green LEDs on: battery voltage from 30.0-23.3 V;
► red, yellow LEDs on: battery voltage from 23.5-22.5 V;
► red LED on: battery voltage from 22.5-21.9 V;
► red LED ashing: battery voltage from 21.9-21.4 V, batteries completely discharged; after a few
seconds the brush and suction motor shut down;
► red, yellow, green LEDs ashing, ECS model and Roller model, excessive brush motor current
► Instrument panel main switch - (Fig. C, ref. 3): connects (LED on) and disconnects (LED o) power to
► Main switch - (Fig. C, ref. 8 - cable model only): connects and disconnects power to all the machine’s
► Brush button with light (g. C, ref. 4): enables (LED on) and disables (LED o) the “brush” function. The
When the brush button is pressed, suction and detergent delivery are also enabled automatically.
draw, excessive head pressure on working surface.
all the machine’s functions (to turn the machine o, hold the button down for at least 4 seconds). In the
BT version, the LED ashes during operation.
functions.
brush does not start rotating until the brush lever is operated. ECO function (battery models only), used
to reduce brush motor power by 20%, to activate this function, operate the “Brush lever” then press the
button for a few seconds, until the LED starts ashing.
i INFORMATION
GB
30
► Suction button with light (Fig. C, ref. 5): switches on (“LED on”) and o (“LED o”) the suction motor
to dry the oor being washed. The light is on when there is power to the suction motor. ECO operation
(battery models only), used to reduce suction motor power by 20%, to activate this function, operate
the “Brush lever” then press the button for a few seconds, until the LED starts ashing. Suction can be
activated without operating the brush control lever, by holding the button for a few seconds until the LED
starts ashing; detergent delivery can also be activated by pressing the button (Fig. C, ref. 6).
► Detergent button (Fig. C, ref. 6): enables (“LED on”) and disables (“LED o”) detergent delivery. Deter-
gent is only delivered when the brush is rotating. To enable high pressure delivery, use the CARPET
accessory (battery model only), activate the “brush control lever”, press the detergent button for at least
3 seconds (Fig. C, ref. 6), the LED will start ashing, the pump will deliver detergent at high pressure; to
restore standard delivery pressure, press the button for at least 3 seconds.
► Brush lever (g. D, ref. 1): enables brush rotation.
► Squeegee lever (g. D, ref. 2): raises (if lowered) or lowers (if raised) the squeegee.
► Handle regulation lever (g. D, ref. 3): allows the angle of the handle to be adjusted.
► Head pressure adjustment knob, ECS model (g. O, ref. 1): turn the knob clockwise to reduce the pres-
sure of the microbre on the work surface; turn the knob anticlockwise to increase the pressure of the
microbre on the work surface. To access the knob, remove the dirty water tank from the detergent tank.
► Brush roller pressure adjustment knob, roller model (Fig. Q, ref. 1): turning the knob adjusts the working
height of the brush roller; to access this device, remove the dirty water tank from the solution tank.
► Speed potentiometer (g. D, ref. 5, models with electric drive): regulates the machine’s forward or re-
verse speed.
► Direction buttons (g. D, ref. 4, models with electric drive): press these buttons to set movement of the
machine to forward or reverse.
► CARPET/FLOOR operation selector (Fig. R, ref. 1): when installed, selects the machine operating
mode, FLOOR or CARPET.
► Detergent tap (Fig. G, ref. 2): adjusts the ow of detergent delivered to the brush.
Mounting and adjusting the squeegee
The squeegee (g. A, ref. 5) is responsible for the rst phase of drying.
Depending on the type of squeegee mounted on the machine, follow the instructions below to install:
Parabolic squeegee
To mount the squeegee on the machine, proceed as follows:
► check that the squeegee mount (g. E, ref. 1) is lowered, otherwise lower it by means of the squeegee
lever (g. D, ref. 2);
► rotate the machine backwards and rest the handle on the oor;
► insert the two threaded pins (g. E, rif. 12) on the squeegee into the slots on the support (g. E, ref. 1);
► x the squeegee by tightening the two knobs (g. E, ref. 2);
► insert the sleeve of the suction hose (g. E, ref. 4) fully into the squeegee;
The squeegee blades scrape the lm of water and detergent from the oor and prepare the way for perfect drying.
With time, the constant rubbing makes the edge of the blade in contact with the oor rounded and cracked, reducing the drying eciency and requiring it to be replaced. The state of wear should be checked frequently.
For perfect drying, the squeegee must be adjusted in such a way that the edge of the rear blade bends during
operation by about 45° with respect to the oor at every point. Adjust the height of the blade during operation by
regulating the height of the wheels positioned behind and alongside the squeegee (g. E ref. 3).
“V” squeegee
► check that the squeegee mount (g. E, ref. 6) is lowered, otherwise lower it by means of the squeegee
lever (g. D, ref. 2);
► insert the two threaded pins (g. E, ref. 13) on the squeegee into the slots on the support (g. E, ref. 6);
► x the squeegee by tightening the two knobs (g. E, ref. 7);
► insert the sleeve of the suction hose (g. E, ref. 8) fully into the squeegee;
The squeegee blades scrape the lm of water and detergent from the oor and prepare the way for perfect drying.
With time, the constant rubbing makes the edge of the blade in contact with the oor rounded and cracked, reducing the drying eciency and requiring it to be replaced. The state of wear should be checked frequently.
For perfect drying, the squeegee must be adjusted in such a way that the edge of the rear blade bends during
operation by about 45° with respect to the oor at every point. Adjust the height of the blade during operation by
GB
31
regulating the height of the wheels positioned on the squeegee (g. E ref. 9). The slope of the squeegee can also
be varied by tightening or loosening the screw (g. E, ref. 10).
Moving the machine when not in operation.
Roller version
The squeegee blades scrape the lm of water and detergent from the oor and prepare the way for perfect drying.
With time, the constant rubbing makes the edge of the blade in contact with the oor rounded and cracked, reducing the drying eciency and requiring it to be replaced. The state of wear should be checked frequently. The
machine is tted with two squeegees, for washing and drying when moving both forwards and backwards. The
squeegees feature a pressure adjustment system to adapt them to all types of surface. Pressure is adjusted by
turning the knob provided (Fig. E, ref. 14):
► clockwise increases the pressure.
► anticlockwise decreases the pressure.
To move the machine, proceed as follows:
► lift the squeegee using the lever provided (Fig. D, ref. 2) for parabolic squeegee and “V” squeegee;
► raise the front of the machine o the oor using the handle, then move it to the destination; if the tran-
sport wheel is tted, lift the machine using the handle (standard on the roller version) so that it rests on
the wheel.
► on arrival, lower the front of the machine.
Mounting and changing the brush/drive disks
During brush/drive disk attachment and release, beware of brush rotation.
Never work without the brushes and drive disks correctly installed.
Standard version with brushes and drive disks
Brush/drive disk attachment: turn the machine on by pressing the main switch (g. C, ref. 3) (LED on), then press
the brush button (g. C, ref. 4 (LED on). Rest the brush on the oor in front of the machine. Raise the front of
the machine by levering on the handle, then lower it onto the brush, centring it with the brush cover. Operate the
brush lever (g. D, ref. 1) repeatedly until the brush automatically engages on the ange hub. If the manoeuvre
is not successful, press on the handle again and repeat the centring and repeated operation of the brush lever.
Brush/drive disk release: turn the machine on by pressing the main switch (g. C, ref. 3) (LED on), then press the
brush button (g. C, ref. 4 (LED on).
Raise the front of the machine by levering on the handle, then operate the brush lever (g. D, ref. 1) repeatedly.
After a few pulses, the brush (or drive disk) is released and falls to the ground.
Roller version
Attaching the brush roller:
► switch the machine o, unplug the cable version from the power socket;
► raise the front of the machine by hand;
► with the other hand, insert the brush and push it upwards until it is correctly in position (Fig. P, ref. 1);
► lower the machine
Releasing the brush roller:
► switch the machine o, unplug the cable version from the power socket;
► raise the front of the machine by hand;
► with the other, remove the brush by pulling it downwards (Fig. P, ref. 1);
► lower the machine.
DANGER
IMPORTANT
Detergents - Instructions
Always dilute the detergent according to the manufacturer’s instructions. Do not use sodium hypochlorite (bleach) or other oxidants, particularly in strong concentrations. Do not use solvents or hydrocarbons.
The temperature of the water and detergent must not exceed the maximum indicated in the technical
specication. They must be free of sand and/or other impurities.
IMPORTANT
GB
32
The machine has been designed for use with low-foam biodegradable detergents made specically for scrubber
driers.
For a complete and up-to-date list of the detergents and chemicals available, contact the Manufacturer.
Use products suitable for the oor and dirt to be removed only.
Follow the safety regulations on use of detergents given in the section “Safety regulations”.
Preparing the machine for work
Before starting work, wear overalls, ear protectors, non-slip waterproof shoes, mask to protect the respiratory tract, gloves and all other personal protection devices recommended by the supplier of the
detergent used or necessitated by the work environment.
Before starting work, proceed as follows:
► Battery models: check the battery charge (charge if necessary);
► make sure the dirty water tank (g. A, ref. 2) is empty. If necessary, empty it;
► via the opening at the front, ll the detergent tank (g. A, ref. 8) with a suitable concentration of clean
water and low-foam detergent. Leave at least 5 cm between the surface of the liquid and the opening of
the tank;
► mount the most suitable brushes or drive disks for the oor and work to be performed (see paragraph
3.4);
► make sure that the squeegee is securely attached, connected to the suction hose; make sure that the
front and rear blades are not worn.
► adjust the squeegee working height.
► roller version, adjust the brush roller working height, turning the corresponding knob (Fig. Q, ref. 1); the
adjustments must be made with the machine in operating mode (transport wheel disengaged), with the
power cable unplugged (cable model) from the mains power supply, or with the machine o, for battery
models.
If you are using the machine for the rst time, we recommend trying it on a large obstacle-free surface
rst to acquire the necessary familiarity.
Always empty the dirty water tank before lling the detergent tank again.
For eective cleaning and to extend the working life of the machine, follow a few simple rules:
► prepare the work area by removing all possible obstacles;
► begin working from the furthermost point to avoid walking on the area you have just cleaned;
► choose the straightest possible working routes;
► divide large oors into parallel rectangular sections.
If necessary, nish o by passing a mop or rag rapidly over parts inaccessible to the scrubber drier.
IMPORTANT
i INFORMATION
Working
After setting up the machine, proceed as follows.
► Connect the machine as follows:
► cable model: plug the machine into the mains power socket;
► lower the squeegee using the lever provided (Fig. D, ref. 2), standard version with brushes and drive
disks;
► press the main switch (g. C, ref. 3) (LED on);
► press the brush button (g. C, ref. 4) “LED on”, this will also automatically activate suction and solution
ow. To extend machine operating time, the ECO function can be activated (see the paragraph “Con-
trols - Descriptions”);
► select the direction of movement by pressing the button (g. D, ref. 4) (models with electric drive)
► adjust the forward/reverse speed by turning the potentiometer (g D, ref. 5) (models with electric drive)
► press the brush lever (g. D, ref. 1);
► check regularly that detergent is reaching the brushes and top up if necessary;
► while working, check the quality of washing and adjust the ow of detergent to the brushes using the
detergent tap (g. G, ref. 2), in the ECS model, the detergent tap must always be fully open.
GB
33
Empty the dirty water tank each time you ll the detergent tank.
► The oat switch in the dirty water tank (g. I, ref. 1) turns suction o when the tank is full. If the switch
trips, stop work and empty the tank;
► Battery models: if the red LED (g. C, ref. 2) starts ashing, the batteries are nearly at. After a few
seconds, the brush and suction motor shut down to prevent draining the batteries excessively. Charge
the batteries.
► ECS model and Roller model: when working, make sure that the microbre or roller pressure on the
working surface is within the allowed operating range. If during operation the battery charger control
lights (Fig. C, ref. 2 - battery models only) start ashing, decrease microbre/roller pressure by tur-
ning the knob (Fig. O, ref. 1) on the ECS version, or the knob (Fig. Q, ref. 1) on the roller version; the
adjustments must be made with the power cable unplugged (cable model) from the mains power supply,
or with the machine o, for battery models. To access this device, lift the dirty water tank.
IMPORTANT
At the end of work:
► release the brush lever (g. D, ref. 1);
► turn the machine o by pressing the button (g. C, ref. 3) for at least 4 seconds.
► use the lever provided (Fig. D, ref. 2) to raise the squeegee o the oor and prevent continuous pres-
sure from deforming the drying blades, standard version with brushes and drive disks;
► remove the brush (or drive disk) to prevent it from warping permanently;
► use the handle to raise the front of the machine and t the transport wheel, thus preventing continuous
pressure from deforming the drying blades and the brush roller, roller version.
► depending on the model, unplug from the mains socket or disconnect the batteries,
► empty and clean the dirty water tank.
Some useful tips to get the most from your scrubber drier
In the event of particularly stubborn dirt on the oor, washing and drying can be performed in two separate operations.
Prewashing with brushes or pads
► press the main switch (g. C, ref. 3) (LED on);
► press the brush button (g. C, ref. 4) (LED on);
► press the suction button (g. C, ref. 5) (LED o) to turn suction o;
► operate the brush lever (g. D, ref. 1) to enable brush rotation;
► make sure the suction motor is o and the squeegee is raised;
► begin washing.
► adjust the ow of detergent to the brush by means of the detergent tap (g. G, ref. 2). Flow speed
must be regulated according to the operator’s chosen advance speed. The slower the machine moves
forwards, the less water is needed.Persist when washing particularly dirty points to give the detergent
time to perform its chemical action detaching and suspending the dirt and the brushes time to exert an
Drying
Lower the squeegee and with the suction motor on, pass over the same area washed previously. The result is
equivalent to in-depth washing and subsequent ordinary maintenance will take less time.
To wash and dry at the same time, operate the brush, detergent ow, squeegee and suction motor simultaneously.
eective mechanical action.
Carpet accessory
This accessory comprises a slider that can wash and dry any type of carpet.
Assembly instructions:
► remove the two squeegees (Fig. P, ref. 2-3) from their housings.
► insert the slide (Fig. P, ref. 4) in position (Fig. P, ref. 2).
► lift the cover (Fig. R, ref. 2) and insert the cap (Fig. R, ref. 3) supplied for CARPET operation.
► close the cover to lock it in position.
GB
34
Operation:
► Turn the function selector to the Carpet position (Fig. R, ref. 1).
► Press the brush button (Fig. C, ref. 4), then with the pump operating, LED on (Fig. C, ref. 6), activate the
brush control lever (Fig D, ref. 1) and press the detergent button (Fig. C, ref. 6) for at least 3 seconds;
the LED will start ashing, the pump will deliver detergent at high pressure (BATTERY version only). To
restore standard delivery pressure, press the detergent button (Fig. C, ref. 6) for at least 3 seconds.
► Start working, the machine must only be used moving backwards.
Combi accessory
The Combi accessory is used for washing in positions that the oor scrubber cannot reach, such as corners, stairs
or around obstacles.
To use the accessory, proceed as follows:
► switch the machine o.
► lift the cover (Fig. R, ref. 2) and t the Combi attachment in position (Fig. S, ref. 1) with the hole facing
upwards.
► close the cover (Fig. R, ref. 2) on the Combi attachment to lock it in position.
► if installed, turn the function selector to FLOOR (Fig. R, ref. 1).
► activate the suction motor, pressing the suction button (Fig. C, ref. 5) for a few seconds, until the LED
starts ashing; detergent delivery can also be activated by pressing the button (Fig. C, ref. 6).
► holding the accessory, spray the detergent by activating the lever (Fig. S, ref. 2), and rub the oor with
the bristles (Fig. S, ref. 3) to remove the dirt.
► check at all times that the clean water tank is not empty, as operating the pump without water may cause
irreparable damage.
► after having washed the area using the accessory, switch the machine o.
Draining the dirty water
Drain the water with the machine disconnected from the power supply.
Use suitable personal protection devices.
The dirty water tank drain hose is at the back of the machine on the right.
To empty the tank:
► move the machine near a drain;
► detach the drain hose (g. A, ref. 7) from its seat by holding it near the xing spring and pulling horizon-
tally;
► keeping the end of the hose as high as possible and remove the cap;
► lower the end of the hose gradually, controlling the intensity of the ow of water by adjusting the height
from the ground;
► check the amount of dirt left in the dirty water tank and if necessary wash it out;
► close the drain hose with the cap. Check that it is tightly closed and replace the hose in its housing.
► You are then ready to wash and dry again.
DANGER
Draining the clean water
Drain the water with the machine disconnected from the power supply.
Use suitable personal protection devices.
To empty the tank:
► move the machine near a drain;
► unscrew the cap (g. G, ref. 1);
► when the detergent tank is completely empty, screw the cap back on (g. G, ref. 1).
The water and detergent solution can also be used to wash the dirty water tank.
DANGER
i INFORMATION
PERIODS OF INACTIVITY
If the machine is not used for some time, remove the squeegee and brush (or drive disk), wash them and put them
away in a dry place (preferably in a bag or wrapped in plastic lm) away from dust.
Make sure the tanks are completely empty and perfectly clean.
GB
35
Disconnect the machine from the power supply (depending on the model, unplug from the mains or disconnect
the connector from the battery wiring).
Battery models: charge the batteries completely before storing them. During long periods of inactivity, you should
charge the batteries regularly (at least once every two months) to keep them constantly at maximum charge.
If you do not charge the batteries regularly, they may be irrevocably damaged.
IMPORTANT
BATTERY MAINTENANCE AND CHARGING
The batteries give o ammable fumes. Put out all res and hot embers before checking or topping up
Do not check the batteries by sparking.
Perform the operations described above in a ventilated room.
To avoid permanent damage to the batteries, do not run them down completely.
Remember that when the corresponding red light (g. C, ref. 2) ashes on the control panel, you must charge
the batteries.
Charging procedure
► if the machine does not have an on-board charger (CT46), connect the external battery charger connec-
tor to the battery wiring connector (g. H, ref. 2).
► if the machine has an on-board battery charger, connect the on-board battery charger power cable (g.
H, ref. 1).
In the case of gel batteries, use a charger specic for gel batteries only.
► Charge the batteries as described in the battery charger manual;
► at the end of charging, disconnect the connectors;
► reconnect the battery wiring connector to the machine connector (machine with external battery char-
ger).
DANGER
the batteries.
IMPORTANT
MAINTENANCE INSTRUCTIONS
Never perform any maintenance operations without rst unplugging the machine from the mains (cable
version) or disconnecting the fuse on the battery bridge (battery version).
In cable models, the operator must be able to verify from any position that the machine remains unplug-
ged from the mains socket while maintenance is being carried out.
Maintenance of the electrical circuit and all other operations not expressly required by this manual must
be performed by specialised personnel only, in compliance with current safety legislation and as descri-
bed in the maintenance manual.
Maintenance - General rules
Performing regular maintenance according to the Manufacturer’s instructions improves performance and extends
the working life of the machine.
When cleaning the machine, respect the following:
► avoid the use of high pressure washers. Water could penetrate the electrical compartment or motors
leading to damage or the risk of short circuit;
► do not use steam to avoid the heat warping plastic parts;
► do not use hydrocarbons or solvents as they could damage the cowling and rubber parts.
Routine maintenance
Float switch and detergent tank lter: cleaning
► Remove the dirty water tank cap and clean the oat switch (g. I, ref. 1). Make sure it runs freely on the
pin.
► clean the detergent tank lter (g. N) by unscrewing the cap and extracting the lter assembly.
DANGER
GB
36
Squeegee blades: replacing
The squeegee blades collect the lm of water and detergent from the oor and prepare the way for perfect drying.
With time, the constant rubbing makes the edge of the blade in contact with the oor rounded and cracked, reducing the drying eciency and requiring it to be replaced.
Turning or replacing the blades:
Parabolic squeegee
► lower the squeegee by means of the squeegee lever (g. D, ref. 2);
► tip the machine backwards and rest the handle on the oor.
► remove the suction hose sleeve (g. E, ref. 4) from the squeegee;
► remove the squeegee (g. E ref. 1) from its mount by completely unscrewing the two knobs (g. E ref.
2)
► remove the blade retainers and blades by unscrewing the knobs (g. E, ref. 5);
► reuse the same blade by reversing the edge in contact with the oor until all four edges are worn out, or
replace with a new blade, tting it onto the screws on the body of the squeegee;
► replace the two blade retainers and the blades and screw up the knobs unscrewed previously;
► replace the squeegee in its support following the instructions in the section “Mounting and adjusting the
“V” squeegee
Roller version
squeegee”.
► lower the squeegee by means of the squeegee lever (g. D, ref. 2);
► remove the suction hose sleeve (g. E, ref. 8) from the squeegee;
► remove the squeegee from its mount (g. E ref. 6) by completely unscrewing the two knobs (g. E ref.
7)
► remove the blade pressing devices by opening the catch (Fig. E, ref. 11)
► reuse the same blade by reversing the edge in contact with the oor until all four edges are worn out, or
replace with a new blade, tting it onto the screws on the body of the squeegee;
► reposition the two blade pressing devices and the blades, closing the catch.;
► replace the squeegee in its support following the instructions in the section “Mounting and adjusting the
squeegee”.
► remove the two squeegees (Fig. P, ref. 2-3)
► turn the squeegees over;
► remove the worn blades by pulling them o, and then replace them with new ones, inserting the protru-
ding tooth into the socket;
► replace the squeegee on the its support.
Fuses: replacement (battery models) (Fig. L)
The fuses protecting the electrical circuit are located in the battery compartment.
Fuse table: for the complete fuse table, see the spare parts catalogue.
Fuses: replacement (cable models) (g. M)
The fuses protecting the electrical components are on the electrical components box.
Fuse table: for the complete fuse table, see the spare parts catalogue.
Never use a fuse with a higher amperage than specied.
If a fuse continues to blow, the fault in the wiring, boards (if present) or motors must be identied and repaired.
Have the machine checked by qualied personnel.
IMPORTANT
Routine maintenance
Daily operations
After each day’s work, proceed as follows:
► disconnect the machine from the power supply;
► empty the dirty water tank and clean if necessary;
► clean the squeegee blades and check for wear. If necessary, replace.
► check that the suction hole in the squeegee is not blocked, if necessary remove encrusted dirt;
► Battery model: charge the batteries according to the procedure described;
Weekly operations
► clean the dirty water tank oat switch and make sure it is working correctly;
► clean the suction hose;
► clean the dirty water tank and detergent tank;
► Battery model: check the level of battery electrolyte and top up with distilled water if necessary;
GB
37
Six monthly operations
Have the electrical circuit checked by qualied personnel.
TROUBLESHOOTING
How to resolve possible problems
[B]= battery machines
[C]= cable machines
Possible problems aecting the whole machine.
PROBLEM CAUSE REMEDY
The machine does not function [B]= battery connector disconnected [B]= connect the batteries to the ma-
[B]= the batteries are at [B]= charge the batteries.
[B] [C]= fuse blown [B] [C]= replace the fuse
[C]= the machine is not plugged into the mains
socket
The brush doesn’t rotate the brush button LED is o press the brush button
The brush motor has trouble in
starting (cable models only)
the LED in the brush button is ashing reduce the pressure of the microbre on
the brush lever has not been pressed press the brush lever
[B] [C] the brush motor thermal cutout has trip-
ped; the motor has overheated
the power supply or motor thermal cutout connectors are disconnected
[C]= fuse blown [B] [C]= replace fuse
[B]= the batteries are at [B]= charge the batteries
the reduction unit is faulty have the reduction unit replaced
the motor is faulty have the motor replaced
you are working with a dry brush on a very rou-
gh oor
you are working with power cable extensions
with an inadequate section, or the voltage is
considerably lower than the rated value for the
scrubber drier as shown on the rating plate (15%
less)
the motor is faulty have the motor replaced
chine
[C]= plug into the mains socket
the work surface
[B] [C] release the brush lever, press the
brush button (LED o), leave the machi-
ne to cool down for at least 45’
reconnect the power supply or motor
thermal cutout connectors
open the detergent tap
avoid the use of inappropriate exten-
sions. Increase the section of the electric
wires and locate sockets with a higher
voltage
The machine does not clean
evenly
No detergent is delivered the detergent button LED is o press the detergent button
The detergent ow does not stop the solenoid valve is faulty replace the solenoid valve
The suction motor does not start the suction button LED is o press the suction button.
the brush or disk is worn replace
detergent tank empty ll the detergent tank
• the brush motor is o turn the motor on by operating the brush
the hose delivering the detergent to the brush
is blocked
the tap is dirty or faulty have the tap cleaned or replaced
the solenoid valve is faulty replace the solenoid valve
the lter is dirty clean the lter
There is no power to the suction motor or the
motor is faulty
lever
unblock and open the circuit
check that the motor power connector is
correctly connected to the main wiring; if
it is correctly connected, have the motor
replaced
GB
38
The squeegee does not clean or
suction is ineective
The batteries do not provide the
normal work time (battery models
only)
The battery discharges too fast
during use, even though it has
been charged correctly and when
tested with a hydrometer at the end
of recharging, it turned out to be
uniformly charged (battery models
only)
the edge of the rubber blades in contact with the
oor is worn
the squeegee or hose is blocked or damaged unblock and repair the damage
the oat switch has tripped (dirty water tank), is
clogged by dirt or broken
the suction hose is blocked unblock the hose
the suction hose is not connected to the squeegee or is damaged
there is no power to the suction motor or the
motor is faulty
the battery poles and charging terminals are
dirty and oxidised
the electrolyte level is low top up all the elements with distilled wa-
the battery charger does not work or is unsuitable
there are considerable dierences in density
between the various elements of the battery
the battery is new and does not deliver 100% of
its expected capacity
the machine is being used at maximum capacity
for continuous periods and the working time is
not sucient
the electrolyte has evaporated and does not cover the plates completely
replace the rubber blade
empty the dirty water tank or reset the
oat switch
connect or repair the hose
see: “The suction motor does not start”
clean and grease the poles and termi-
nals, charge the batteries
ter as described in the instructions
see battery charger instructions
replace the damaged battery
the battery must be “run-in” by performing 20-30 charges and discharges to
obtain maximum performance
if possible, use batteries with a higher
capacity or replace the batteries with
others charged previously
top up all elements with distilled water
until the plates are covered then charge
the battery
The battery discharges too fast
during use, recharging with an
electronic battery charger is too
fast and after recharging the battery supplies the right voltage
(about 2.14V for each element
without load), but when tested with
a hydrometer is found not to be
uniformly charged (battery models
only)
At the end of charging with the
electronic battery charger, the battery does not provide the correct
voltage (about 2.14 V per element
without load) and appears to be
uniformly not charged when tested
with a hydrometer (battery models
only)
At the end of charging with the
electronic battery charger, the battery does not provide the correct
voltage (about 2.14 V per element
without load) and only one or a few
elements are found to be discharged when tested with a hydrometer
(battery models only)
the battery supplied lled with acid by the Manufacturer has been stored for too long before
being charged and used for the rst time
The battery has not been connected to the
battery charger (for example, because the low
voltage connector of the battery charger has
been erroneously connected to the machine
connector)
the battery charger and power socket to which
the battery is connected are not compatible
the battery charger has not been installed correctly
the battery charger is not working
one or more elements are damaged replace the damaged elements if pos-
if recharging with a normal battery charger is not eective, you must use a double recharging cycle:
- charge it slowly over a 10 hour period
at a current of 1/10 the nominal capacity
for 5 hours (e.g. for a 100Ah(5) battery
the current must be set at 10A, using a
manual battery charger);
- rest for one hour;
- charge it with the normal battery char-
ger.
connect the battery charger to the battery connector
check that the power supply characteristics indicated on the battery charger rating plate comply with those of the mains
power supply
taking the actual voltage available at
the socket into account, make sure that
the connections of the primary of the
transformer inside the battery charger
are correct (consult the battery charger
manual)
make sure there is voltage to the batte-
ry charger, that the fuses are not blown
and that the current reaches the battery;
try charging with another rectier. If the
battery charger is not working, contact
the technical service centre and indicate
the serial number of the battery charger
sible.
For 6 or 12 V single block batteries, re-
place the entire battery
GB
39
The electrolyte in the battery is turbid (battery models only)
the battery has reached the end of the charging/
discharging cycles declared by the manufacturer
the battery has been charged with too high a
current
the battery has been charged beyond the limit
suggested by the Manufacturer
replace the battery
replace the battery
replace the battery
Error codes displayed, battery version
Brush button LED (Fig. C, ref. 4), 2 fast ashes / pause / 2 fast ashes. Brush short circuit error.
Brush button LED (Fig. C, ref. 4),1 ash / pause / 1 ash. Overcurrent error
Suction button LED (Fig. C, ref. 5), 2 fast ashes / pause / 2 fast ashes. Suction motor short circuit error
Suction button LED (Fig. C, ref. 5), 1 ash / pause / 1 ash. Overcurrent error
Brush button LED (Fig. C, ref. 4) + suction button LED (Fig. C, ref. 5), ash in sync /
pause / ash in sync.
Brush button LED (Fig. C, ref. 4), 4 fast ashes / pause / 4 fast ashes. Brush cut-out error
Yellow battery charger control LED (Fig. C, ref. 2), 7 fast ashes / pause / 7 fast ashes. Machine on with battery charger po-
Yellow battery charger control LED (Fig. C, ref. 2), 5 fast ashes / pause / 5 fast ashes. Excessive battery voltage error
Red, yellow, green battery charger control LEDs ashing, (Fig. C, ref. 2) ECS model and Roller model, exces-
Electronic board temperature error
wered error, not featured on CT45
BT
sive brush motor current draw error.
GB
40
IP Cleaning S.p.A.
Viale Treviso 63
30026 Summaga di Portogruaro
Venezia (Italy)
T: +39 0421 205511
F: +39 0421 204227
E: www.ipcworldwide.com
W: info@ipcworldwide.com
PLDC01929_18
Loading...
