Mini Air Mouse and Keyboard
with IR Remote
Model: KP-810-16
English
Int r oduction:
Mini air mouse and keyboard with IR remote, named as iPazzPort, combo of wireless
keyboard, air mouse, and remote for other home electric appliance, is designed small
and portable, it is widely used for:
■ people who need to be apart from their personal computer and yet control it for their
training, teaching, presentation, lecturing.
■ Multi media home theater, people can sit in their easy chair or sofa even in bed to enjoy
the film, music, surf the internet instead of change its channel physically.
■ Remote of other home electric appliance, such as DVD PLAYER, CD PLAYER, TV, Air
Conditioner, with the feature of IR learning, Mini Air Mouse and Keyboard can quickly
learn original code from other home electric appliance remote.
Package:
Mini Air Mouse and Keyboard with IR Remote
USB Receiver
USB cable for recharge the unit
User manual
Feature and specifications:
■R.F 2.4G connection
■rechargeable lithium-ion battery
■backlit for operation in darken room
■Plug and play
■Ultra sensitive 3 axial Gyro-sensor - in-air cursor control using natural hand motions
■Battery capacity: 800mA
■charge voltage: DC 5V/300mA
■standby time: 400 hours
■QWERTY keyboard
■Quick learning original code from other remote
■Size: 110mm*65mm*13mm
Sys tem requir ement:
- Windows 2000/XP/ vista/ 7/win CE
- lINUX
-Android
- Mac
English
How to use

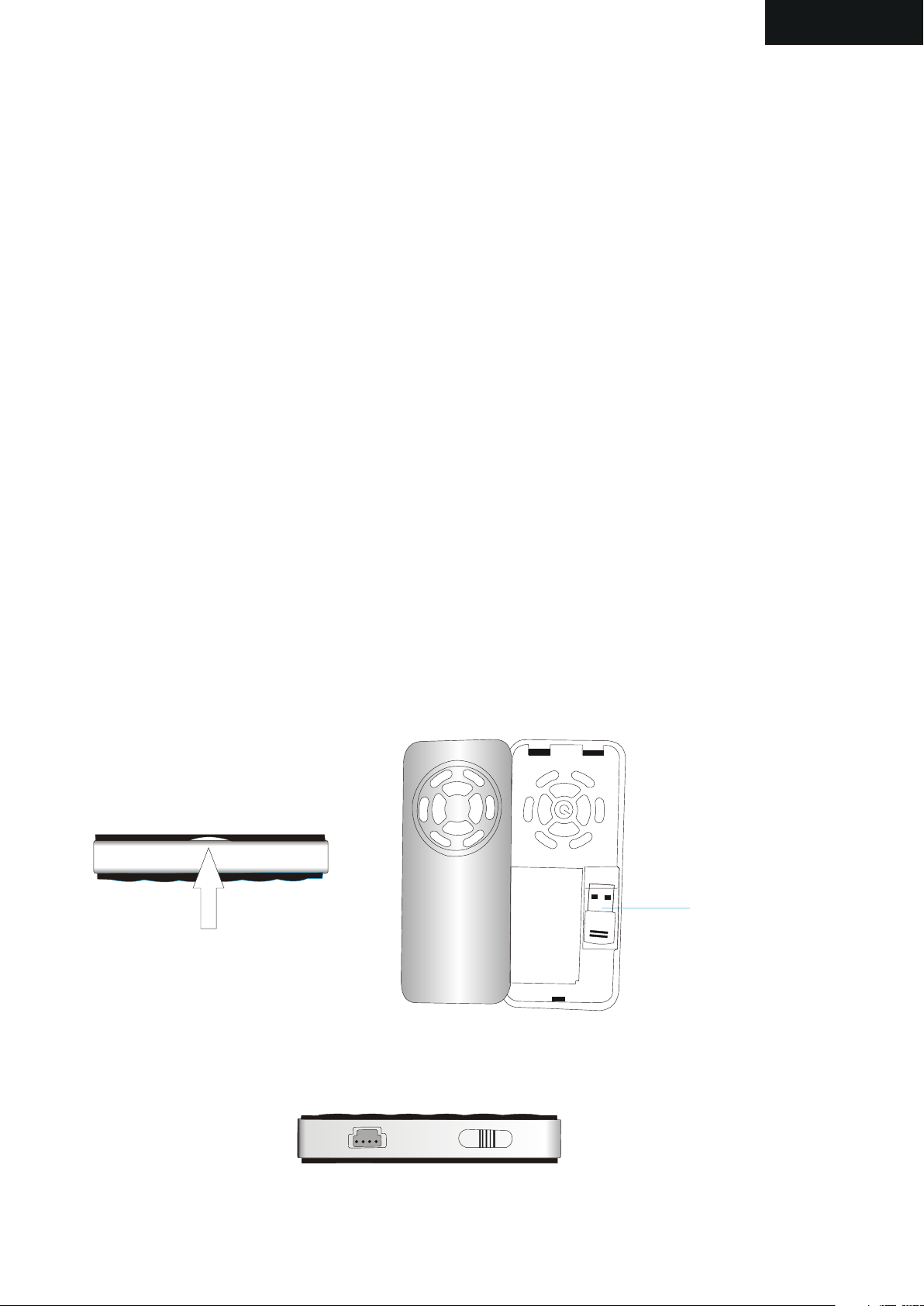

1. Lift up back case from the bottom, and take USB Receiver out, Insert
USB rceiver into USB port on the computer
USB RECEIVER
1. Lift back case up
2. Take USB Receiver out
2. Turn unit on by switching power button to on, Blue LED will flash one
time then go out.
off
ON
3. Bottom view
3. Recharge your keyboard: when your keyboard backlit flash without any
operation that means your keyboard is in low charge, and need to recharge
connect your keyboard to your computer with mini end of USB cable to
your keyboard and another end to computer, then orange led will light up
with steady on, and go out when it is fully recharged.
4. Bottom view
English
4. Ai r Mouse
4.1 air mouse has two mode:
a: press to move: in this mode, please press mouse button and move you hand, then mouse
cursor on the screen will move with your hand motion, when mouse cursor arrive the place
you want, then release mouse button and mouse cursor will stop where it is, no matter how
you move the keyboard, mouse cursor will not move with your hand motion.
B. Press-release to move, in this mode, press mouse button one time then release mouse
button, then mouse cursor will move with your hand motion,
you can switch between two mode by tapping mouse button one time.
Mouse button
Press to active mouse
Mouse left
Binds key:
Fn+Esc to cha nge
operation d irection
Mouse right
F12F12
F11F11
F1 0
Pr tSc
F9
F8
F7
F6
F5
F4
F3
F2
F1
5. Front view
4.2 Change mouse operation directions:
As we know, some times, we want to operate the wirelss keyboard vertically, and some
times horizontally, when operation direction is changed from vertical to horizontal, but
touchpad will not, for example and supposed your operation direction is vertical, now
change your operation direction to horizontal, then move your hand vertically, and moue
cursor still move horizontally, in this situation, press key Fn+Esc to change its operation
direction, then mouse cursor will move with your hand motions.
English
5. Feature of IR le ar ning:
with feature of IR learning, this Air Mouse and Keyboard can be used as remote for other
home electric appliance, such as DVD/CD player, TV, air conditioner, refrigerator. In order
to be a remote for other electric appliance, Air Mouse and Keyboard must learn the original
code from other electric appliance, take TV remote as an example:
5.1. Push the switch for remote to on,
5.2. set the device to be learned by pressing key “AV” or “TV”, if you want to learn TV Remote
please press key TV, LED blue will flash, if AV, LED orange will flash
5.3. Press key “set” for about 2 seconds till LED on to enter learning mode, then tap the key
you want and LED will flash one time then light on that means keyboard is waiting signal
to learning.(LED will go out and quit learning mode if no operation within 10seconds)
5.4. Take TV remote and aim them at IR Emitter, press KEY on the TV remote for about 1
seconds, then release this key and you will see LED on the keyboard flash 3 time quickly
then light up with a steady on, that means your keyboard has learned the original code
of the TV Remote successfully.
5.5. Repeat step 1 and 2 to complete other key original code learning.
5.6. Press key “set” to save and quit learning mode when all key finish original code learning
ME NU
Se
t
HC
+
Indicator
IR Sensor

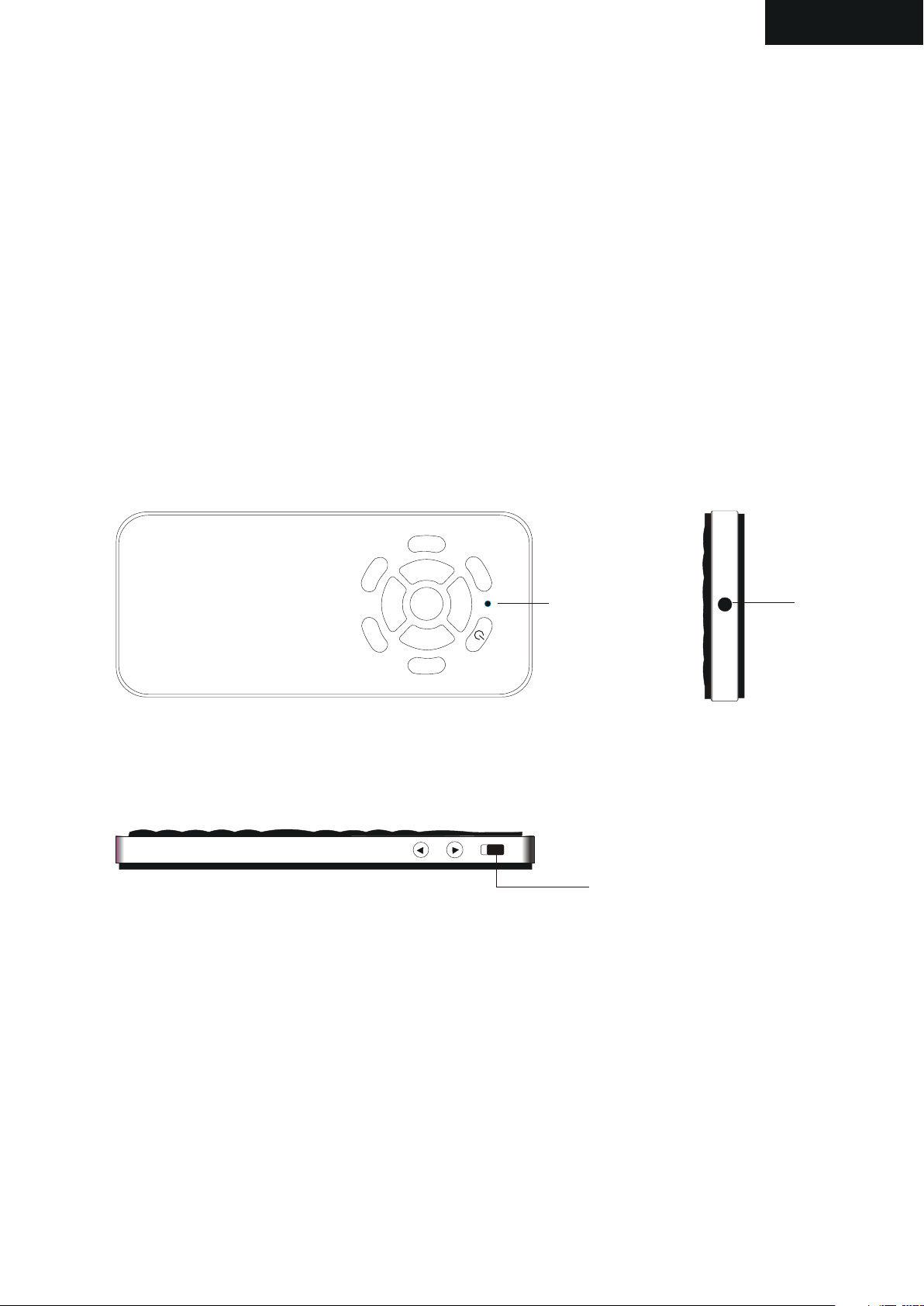

7. Top view
on
6. Back view
TV
VOL +
CH -
OK
A
V
VOL–
In put
8. Right view
Switch for remote
6. Fu nction d escription of keyboard
English
Key R.F
F1
F2
F3
F4
F5
F6
F7

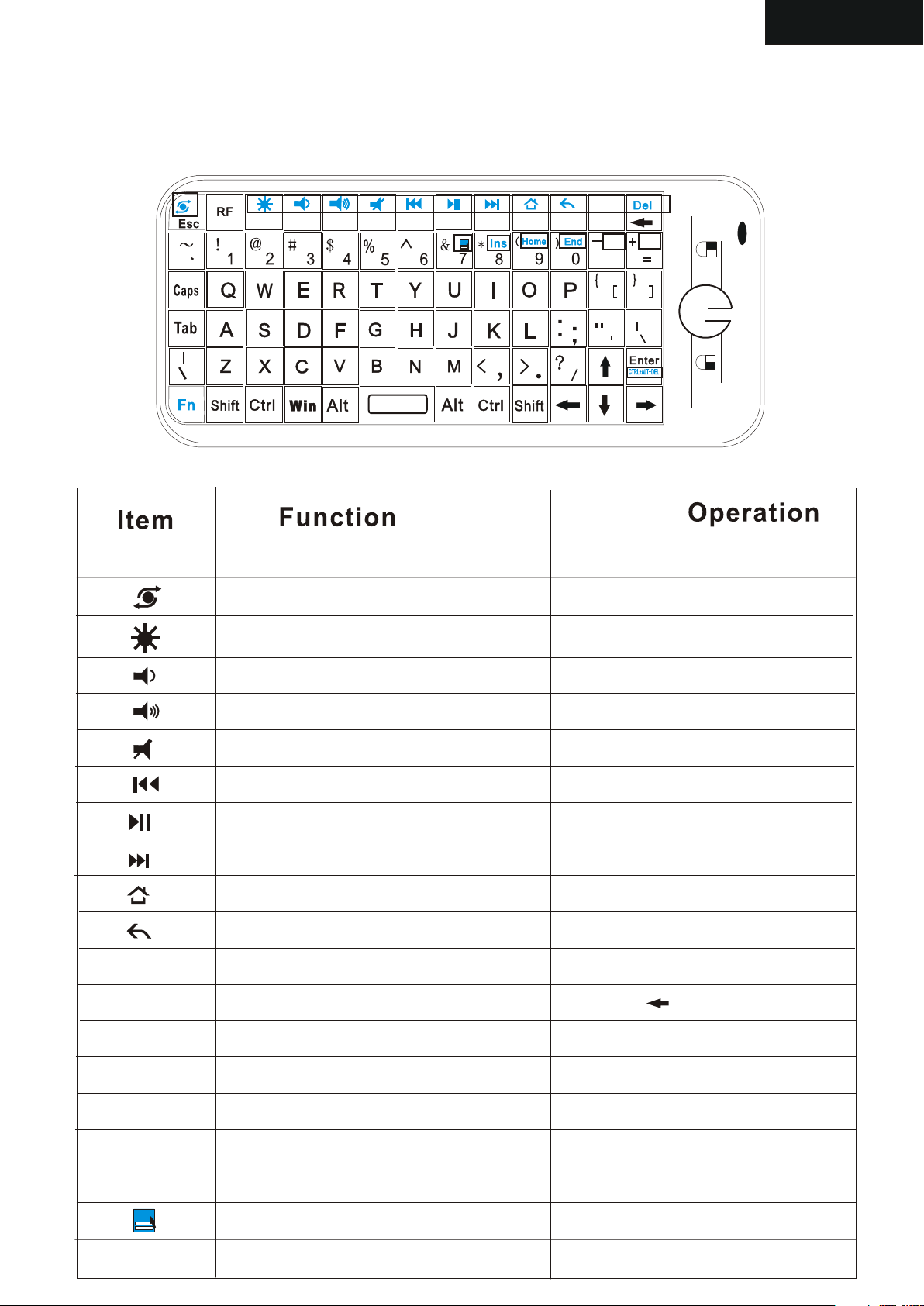

9. Front view
Back sapce
Pr tSc
F8
F9
F1 0
F11F11
Navigate key
Mouse left
F12F12
Mouse button
Mouse right
Item
R.F
Function
Mouse left
Mouse right
Key R.F
Cursor up,down
left, right
Page up
Page down
10. Right view
Operation
Press to operate like left mouse key
Press to operate like right mouse key
Press to pair keyboard and USB receiver
Press the four keys to move cursor up,
down, left,and right
Page up
Page down
Activate mouse
Equal “back space”
Press to scroll page up
Press to scroll page down
Press to activate mouse
Tap
English
7. Bi nds keys description
all binds key must work with Fn, for example: if you want to operate key “Home”, you
have to press key “Fn” and key “9” together,
Pr tSc
F1
F2
F3
F4
F5
11. Front view
F6
F7
F8
F9
F1 0
F11F1 1
F12F1 2
Fn
PrtScPrtSc
Work with other binds keys
Change operation directions
Press to turn backlit on/off
Volume down
Volume up
Mute
Previous
End
Next
Return to main page
Back to previous page
Print screen
Press this key and other
binds key together
Press “Esc” and “Fn” together
Press “F1” and “Fn” together
Press “F2” and “Fn” together
Press “F3” and “Fn” together
Press “F4” and “Fn” together
Press “F5” and “Fn” together
Press “F6” and “Fn” together
Press “F7” and “Fn” together
Press “F8” and “Fn” together
Press “F9” and “Fn” together
Press “F10” and “Fn” together
Del
Home
F12F12
F11
End
Ins
Ctrl+Alt+Del
Delete
Home
F12F12
F11
End
Insert
Hot key for shortcut
Ctrl+Alt+Del
Press “ ” and “Fn” together
Press “9” and “Fn” together
Press “= ” and “Fn” together
Press “- ” and “Fn” together
Press “0” and “Fn” together
Press “8” and “Fn” together
Press “7” and “Fn” together
Press “Enter” and “Fn” together
English
WEEE Directive & Product Disposal
At the end of its serviceable life, this product
should not be treated as household or general
waste. It should be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment, or returned to the supplier
for disposal
Not ice t o cus tom e rs:
This symbol on the battery indicates that the battery
is to be collected separately.
The following apply only to users in European countries.
This battery is designed for separate collection at
an appropriate collection point.
Do not dispose of as household waste
For more information, contact the retailer or local
authorities in charge of waste management.
Caution :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Compliance statement:
1: This device is verified to comply with Part 15 of the FCC Rules.
Operation subject to the following two conditions:
(1) this device may not cause harmful interference, and
English
(2) this device must accept any interference received, including interference
that may cause undesired operation.
2: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interferenc
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed
And used in accordance with the instructions, may cause harmful interference
to radio communications. However,there is no guarantee that interference
will not occur in a particular installation.If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
1.特 点 与规格：
a. R . F 2.4G无 线 连接， 最 远距离 达1 0米半径。
b.三 轴 螺陀仪设 计 ，精确 操 作鼠标
c. Q W ERTY键 盘 布局
d. U SB收发， 即 插即用
e.带 背 光灯，方 便 在黑暗 环 境操作
f.造 型 小巧, 85* 1 35* 1 0 毫米/重量: 6 0克
g.带 可 充电锂电 池 ：800毫 安,待 机时间 ：4 00小时
h.工 作 电压：3. 7 V
j.充 电 ：DC 5V/ 3 00m A
2.包 装 ：
a.无 线 语音键盘
b. U SB接收器
c. U SB充电线
d.说 明 书
中文
3.支持系统 ：
- Windows 2000/XP/ vista/ 7/win CE
- lINUX
-Android
- Mac
4.使用说明
4.1掀 开 后盖， 从 里面取 出USB接收器 ， 将USB 接收 插到电脑 的USB接口 上 ，
USB 接 收 器
图1
图2
4.2这 时 打开键 盘 的电源 开 关。 蓝色指 示 灯会闪 烁 一下然 后 熄灭，这 里 移动键 盘 ，蓝色 指 示
灯会 闪 ，如图:
off
ON
图3
中文
4.3, 充电 ： 当未进 行 任何操作 量 ，背光 灯 突然闪 烁 ，这说明 电池要进 行 充电， 用USB线将
键盘 与 电脑连接 起 来，红 色 指示灯 会 亮起来， 充电过程 中 ，红色 指 示灯长亮 。充满电
红色 指 示灯熄来 。 这时将USB线从电 脑 脑上拔下 来 。
图4
5 .空 中 鼠标的操 作 ：
5 . 1空 中鼠标有 两 种操作 模 式，一 种 是按住鼠 标按钮不 放 ，然后 移 动键盘， 这里显示 屏 上的
光标 会 随着你的 手 移动而 相 应的移 动 。在这种 模 式下， 当 你将鼠 标 移动到你 想要的位 置 ，然
后松 开 手指，这 里 光标在 停 住不动 ， 如果你再 移 动键盘 ， 显示屏 的 光标也不 会动。
5 . 2第 二种模式 就 是按一 下 鼠标按 钮 然后松开 ，这时移 动 键盘， 鼠 标会随着 手的移动 而 相应
的移 动 。
5 . 3 你 可以通过 按 一下鼠 标 按钮来 进 行两种模 式 的切换
F1
F2
F3
F4
F5
F6
F7
F8
F9
Pr tSc
F1 0
F12F12
F11F11
鼠标 右 键
鼠标 按 钮
鼠标 左 键
组合 键 ：
操作 方 向转换
（Fn+Esc)
图5
5.4 鼠 标 操作方 向 转换：
不同 人 有不同的 习 惯，有 人 喜欢竖 着 使用键盘 ，有人喜 欢 橫向使 用 键盘，比 方说，你 当 前
如果 是 橫向使用 键 盘，你 上 下左右 移 动键盘时 ，光标会 随 着你的 手 势而移动 ，但如果 你 突
然转 向 竖着使用 键 盘时， 这 时你如 果 上下移动 键盘时， 那 么光标 就 有可能与 你的手势 方 向
不一 致 ，这时你 只 需按住Fn+Esc一次进 行 转换就 可 以了。然 后 光标的 移 动方向 就 会与你的
手的 姿 势方向一 致 了。
中文
6 .红 外学 习功能
该键 盘 具有红外 学 习功能 ， 可以通 学 习其它遥 控器的源 代 码，当 作 其它的家 用电器的
遥控 器 使用，如 电 视，DVD/CD空 调等， 下 面 以电视的 遥 控器为 例 说明如 何 使用该键
盘的 红 外学习特 征 ：
6.1 打 开 遥控器 的 红外开 关 ，如图7。
6.2 指 定 设备， 如 果你想 学 习电视遥 控 器，则 按 一下TV键 ，蓝色 指 示灯会 闪 ，如果你
你的 遥 控器是AV的话， 就按一下AV 键， 则 橙色指 示 灯会闪 。
6.3 按 住 “SET”键 约2秒直到LED指 示灯亮， 说 明键盘 进 入到学 习 模式，按 住键盘上
的其 它 键,如MENU，约一 秒 钟的时间 ，LE D指示 灯 会闪一 次 然后长亮 ，这说明 键 盘进
入到 等 待信号的 模 式。
6 . 4将 电视遥控 器 红外感 应 器与键 盘 的红外感 应器对准 ， 然后按 住 电视遥控 器上的
M E N U键约1秒，你 会 看到L E D指 示灯闪 三 次，说明 键 盘成功 学 习电视 遥 控器的源 代码
6 . 5 重 复步骤5 . 2和5 . 3，完 成 其它键 的 学习。
6 . 6最 后按“S E T” 键保存 并 退出
图6
图8
ME NU
TV
VOL +
CH -
OK
A
V
VOL–
In put
Se
t
C
H+
LED指 示 灯
红外 感 应器
图7
on
遥控 器 红外开关
7.键盘功能 描述
R.F
F1
F2
F3
F4
F5
F6
F7
F8
F9
Pr tSc
F1 0
F11F11
中文
删除
鼠标 左 键
F12F12
鼠标 按 钮
导航 键
图9
向下 翻 页
图10
功能 描 述 操作
鼠标 左 键
鼠标 右 键
鼠标 左 键
鼠标 右 键
鼠标 右 键
向上 翻 页
R.F
R.F
上下 左 右移动光 标
向上 翻 页
向下 翻 页
激活 鼠 标
等于 标 准键盘上 的
Back Space
同时 按 住Fn+R.F与接 收 器配对
上， 下 ，左，右 移 动光标
向上 翻 页
向下 翻 页
按住 以 激活鼠标
单击
中文
8.组合键Fn:
所有 的 组合键都 必 须与Fn配合使 用 ，例如你 想操作Home键 ， 你就要按 住Fn+数字 键9
Pr tSc
F1
F2
F3
F4
F5
F6
图11
F7
F8
F9
F1 0
F11F1 1
F12F1 2
Fn
功能 说 明
配合 其 它的键使 用
鼠标 操 作方向转 换 键
背光 灯 开关
音量 减 小
音量 增 大
静音
前一 曲
最后 一 曲
下一 曲
返回 到 主页
返回 到 上一页
操作
按住 该 键以及其 它 的键
按住Fn+Esc
按住Fn+F1
按住Fn+F2
按住Fn+F3
按住Fn+F4
按住Fn+F5
按住Fn+F6
按住Fn+F7
按住Fn+F8
按住Fn+F9
PrtScPrtSc
Del
Home
F12F12
F11
End
Ins
Ctrl+Alt+Del
抓屏
删除
Home
F12F12
F11
End
Insert
菜单 快 捷键
Ctrl+Alt+Del
按住Fn+F10
按住Fn+
按住Fn+9
按住Fn+=
按住Fn+-
按住Fn+0
按住Fn+8
按住Fn+7
按住Fn+E nter
Loading...
