Mini Wireless Keyboard
User Manual
Rev. 1.0
Model(型号):KP-810-09
R
R
迷你无线键盘
w w w .i P a z z P o r t . c o m
Page 2
Introduction:
This Mini Wireless Keyboard consists of keyboard, mouse touchpad, and LED
(optional) which is designed small and portable size. It provides people a unique &
capable tool to operate their PC, Google/Android/Smart etc. device wirelessly.
it is widely used for:
■ The people who need to be apart from their devices yet must control it for their
presentation, teaching and lecturing with large screen or projector, up to 33 feet wireless
operation distance provides you big free space to communicate with your audience.
■ The people who want to sit at their easy and comfortable chair to view the internet content,
network television, such as IPTV, Google/Android/Smart TV, box or internet movies
instead of physically change its channel,it is a really computer remote controller,
of course not a TV remote controller.
What's in your Package?
In the package with Mini Wireless Keyboard you will find an USB extended cable
and this manual.
Features and specifications:
RF 2.4GHz wireless connection,
Portable size: 158*56*14mm
Working voltage: 3.3V
QWERTY keyboard
Google TV keyboard
Multi-language support
Multi-touch mouse pad
Battery: 2 x 3AAA
System Requirement:
- Windows
- Linux
- Mac OS
- Android/Google/Smart TV
Page 3

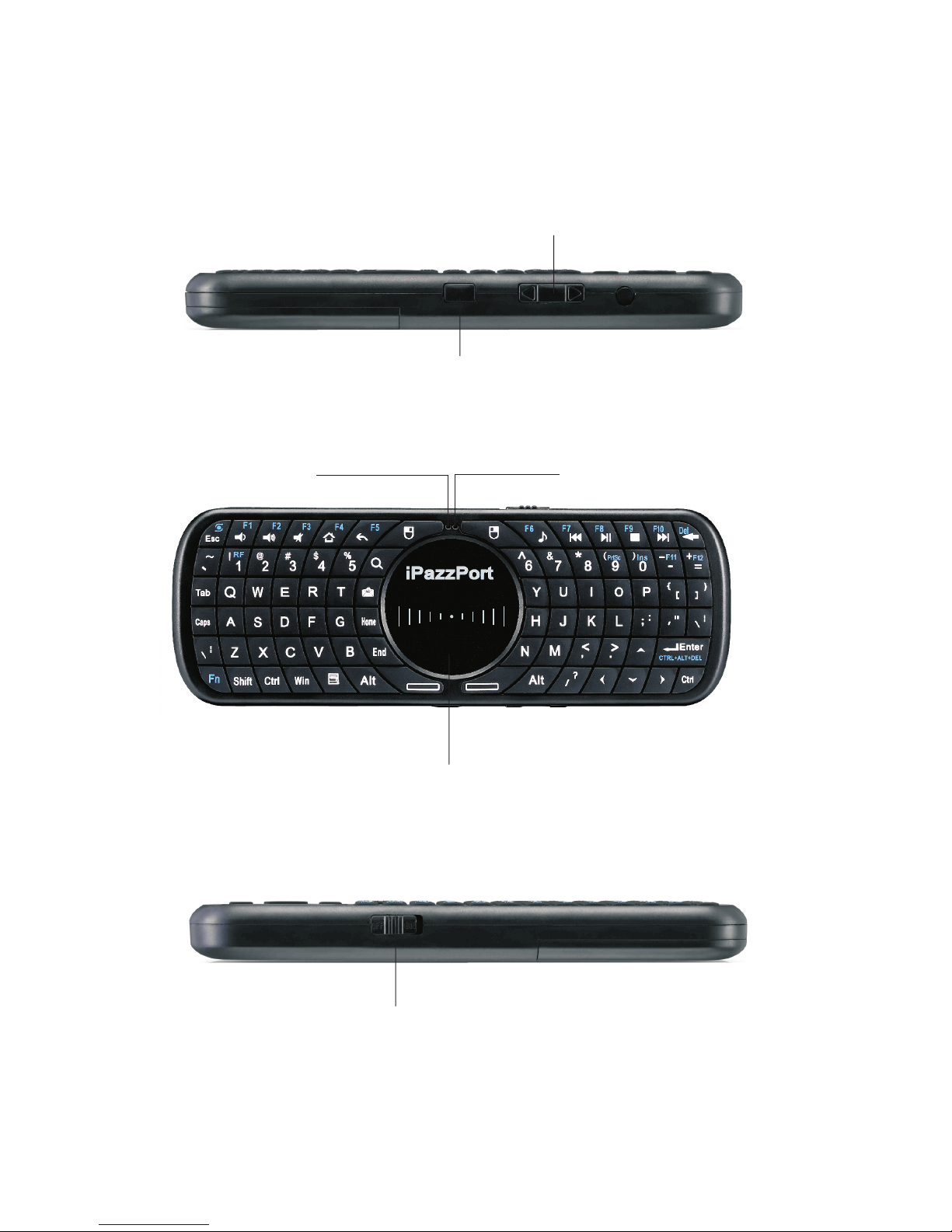

Page Up/Down
Touchpad
Power Switch
Caps Lock
Pair/Connect
LED Switch
Page 4
RF
Pair with USB receiver
Press Fn+1

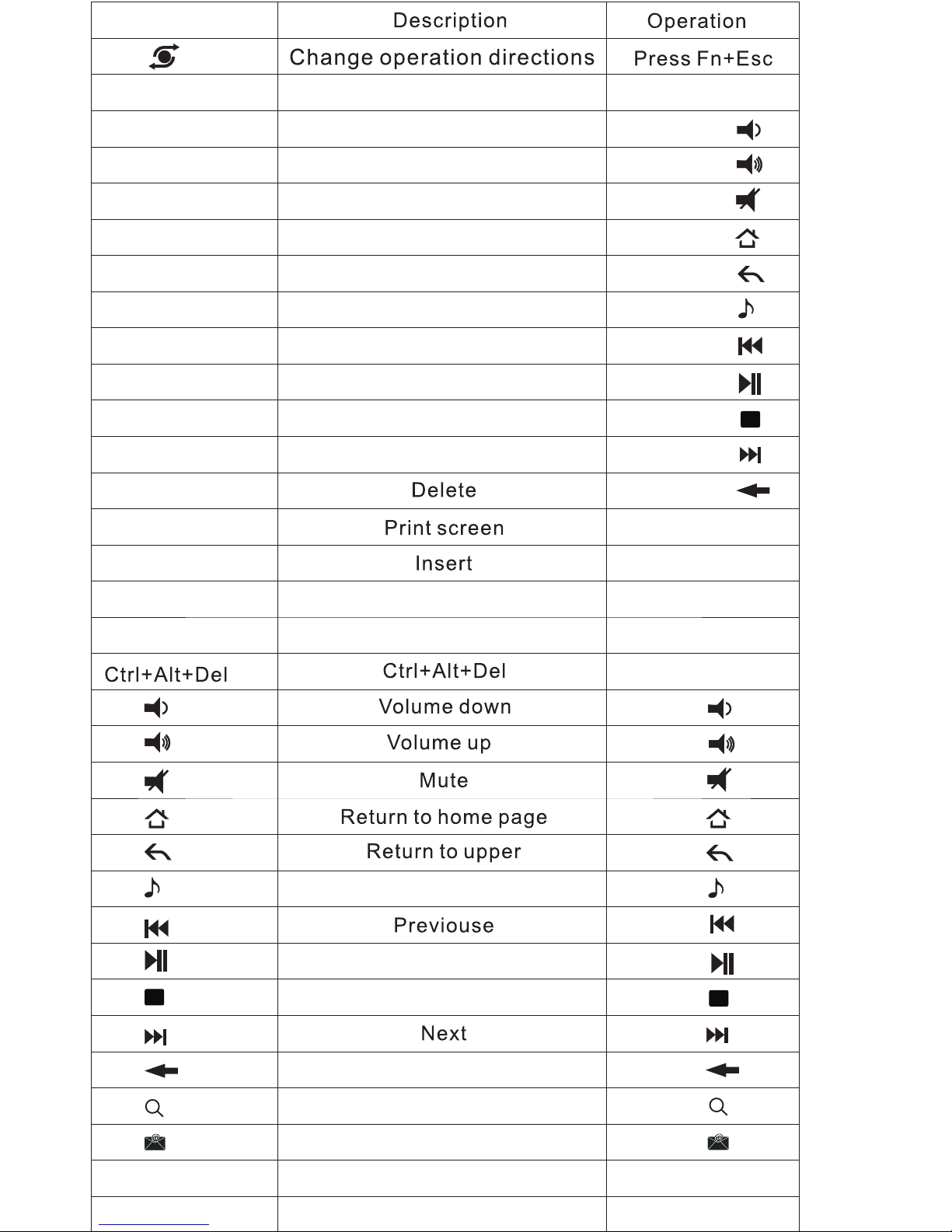

Function
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
Del
PrtSc
Ins
F11
F12
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
Home
End
Open the “music”
Play
Stop
Backspace
Search
Open the “email”
Home
End
Press Fn+
Press Fn+
Press Fn+
Press Fn+
Press Fn+
Press Fn+9
Press Fn+-
Press Fn+
Press Fn+
Press Fn+
Press Fn+
Press Fn+
Press Fn+
Press Fn+0
Press Fn+=
Press Fn+Enter
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Home
End
Page 5
How to use
1. Remove battery cover to install battery,and take USB dongle out
2. Turn unit on by switching power button to on, LED will flash one time
then go out.
Page Up / D own
3. Change operation directions:
times horizontally, when operation direction is changed from vertical to horizontal, but
touchpad will not, for example, supposed you operate unit vertically, and you slide your
finger on the touchpad vertically, the mouse cursor on the screen of computor will move
vertically but when operation direction is changed from vertical to horizontal, when you slide
your finger vertically and mouse cursor will move horizontally, now please press key Fn
together with key Esc to change its operation direction, and mouse cursor will move with
your finger direction.
As we know, some times, we want to operate the wirelss keyboard vertically, and some
Page 6
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal
Notice to customer:
This symbol on the battery indicates that the battery is to be
collected separately.
The following apply only to users in European countries.
This battery is designed for separate collection at an appropriate
collection point.
Do not dispose of as household waste
For more information, contact the retailer or local authorities in
charge of waste management.
Caution :
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Compliance statement:
1: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
2: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
Page 7
And used in accordance with the instructions, may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a
particular installation.If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help
Notes: When you device disturbs the mini bluetooth keyboard, you can use the USB
extended cable to connect the USB receiver to avoid the interference
Page 8
2.特 点 与 规 格：
a. R . F 2 . 4G无线 连 接 ，最远距 离 达1 0米半径。
b.超 灵 敏 触 摸板（ 支 持 多点触摸 和 滚 动条）
c. Q W E RTY键 盘 布 局
e.造 型 小 巧, 1 58x 5 6 x 14 毫米/重 量: 8 9克
f.电 源: 1 . 5V 2x 3 A A A
g.工 作 电 压 ：3.3 V
h.支 持 多 国 语言
3.包 装 ：
a.无 线 键 盘
b. U S B接 收器
c. U S B延 长线
d.说 明 书
4.支 持 系 统:
- Windows
- Linux
- Mac OS
- Android/Google/Smart TV
1.应 用 ：
- 多媒 体 家 庭 娱乐， 教 育 培训，会 议 演 讲，投影 仪
- HT P C遥 控 ，谷歌/安 卓/智 能 电视遥控 器
Page 9
上/下翻 页 键
电源 开 关
触模 板
信号 灯
大小 切 换 灯
LED 开关
Page 10
同时 按住Fn+R.F
与接 收器 配 对
功能 键
功能 说明
操作
鼠标 操作 方 向 转 换键
按住 EscFn+
RF
RF
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
Del
PrtSc
Ins
F11
F12
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
Home
End
打开 音 乐
Backspace
搜索
打开 邮 箱
Home
End
按住F n +
按住
Home
End
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +
按住F n +9
按住F n +0
按住F n +-
按住F n +=
按住Fn+Enter
按住
按住
按住
按住
按住
按住
按住
按住
按住
按住
按住
按住
按住
按住
下一 曲
播放
暂停
上一 曲
返回 到上 一 页
返回 到主 页
静音
增加 音量
减少 音量
抓屏
删除
Page 11
5.使 用 说明
5.1安 装 电 池 ，取 出US B接 收器
5.2 将U S B接 受 器插 到电 脑U SB接 口上 ，打 开 键盘 的电 源开 关 。
打开/关 闭 电 源
