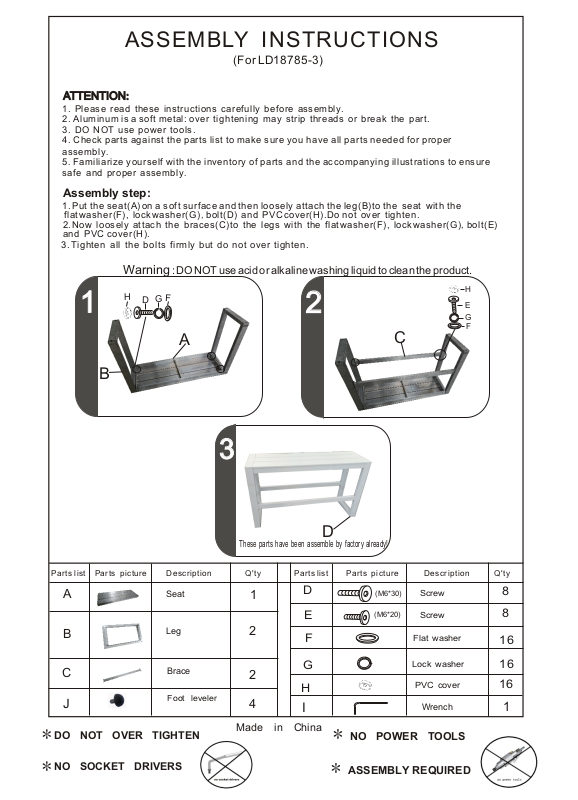

ASSEMBLY I NSTRUCTIONS
(For LD18785-3)
AATTENTIONTTENTION::
1. Please read these instructions carefully before assembly.
2. Aluminum is a soft metal : over tightening may strip threads or break the
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper
assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure
safe and proper assembly.
Assembly step:
1. Put the seat(A) on a soft surface and then loosely attach the leg(B)to the seat with the
flat washer(F), lock washer(G),bolt(D) and PVC cover(H).Do not over tighten.
2. Now loosely attach the braces(C)to the legs with the flat washer(F), lock washer(G),bolt(E)
and PVC cover(H).
3. Tighten al
Warning : DO NOT use acid or alkaline washing liquid to clean the product.
l the bolts firmly but do not over tighten.
part.
H
F
G
D
11
A
B
Parts l ist Parts p ictur e Descr iptio n
A
Seat
22
33
D
These parts have been assemble by factory already!
Q'ty
1
Parts l ist Parts p ictur e Descr iptio n
D
(M6*30)
C
Screw
H
E
G
F
Q'ty
8
B
Leg
C
J
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Brace
Foot leveler
E
2
F
G
2
H
4
Made in China
I
(M6*20)
NO POWER TOOLS
*
ASSEMBLY REQUIRED
*
Screw
Flat washer
Lock washer
PVC cover
Wrench
8
16
16
16
1
