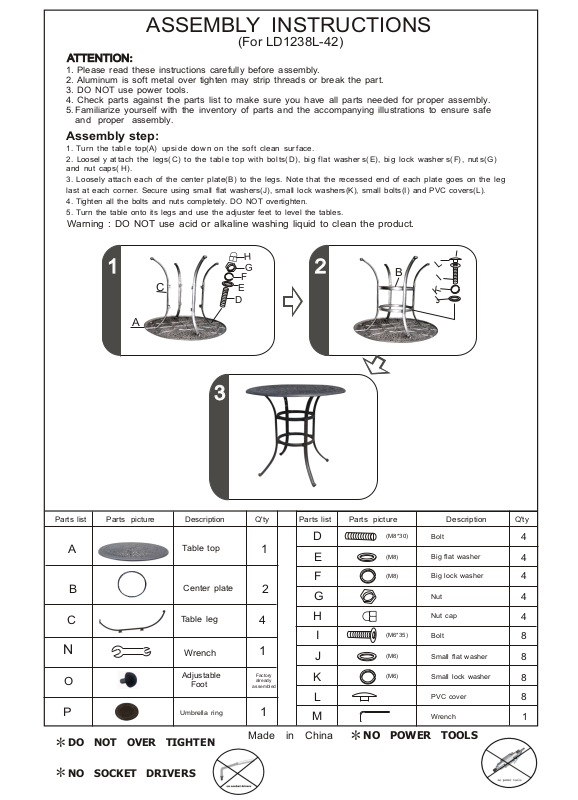

ASSEMBLY INSTRUCTIONS
(For LD1238L-42)
ATTENTION:ATTENTION:
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip threads or break the part.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure safe
and proper assembly.

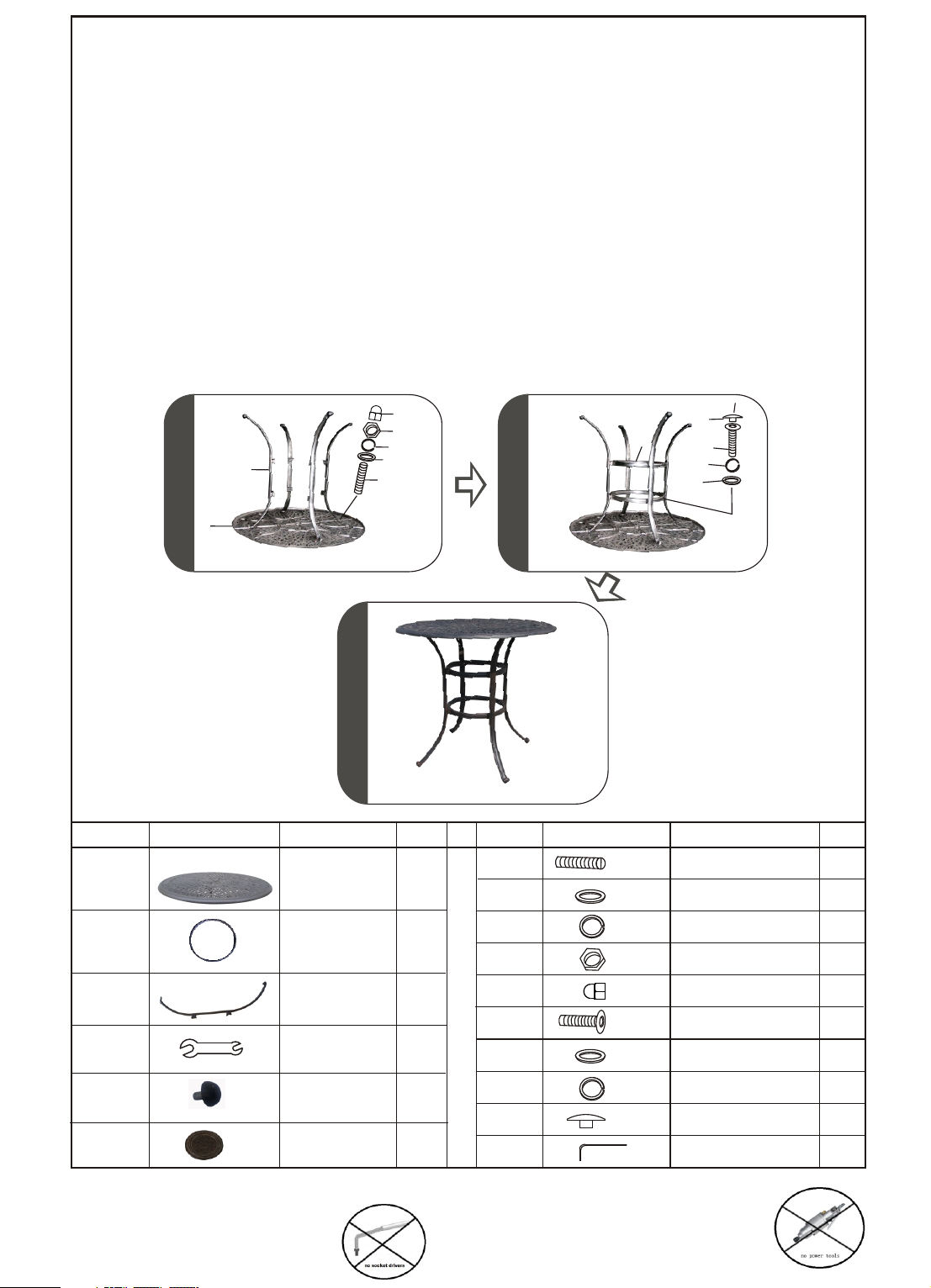

Assembly step:
1. Tur n the tabl e top(A) upsi de dow n on the soft clean surface.
2. Loosel y attach the legs( C) to the tabl e top w ith bol ts(D), big fl at washer s( E), bi g lock washer s(F) , nut s(G)
and nut caps( H).
3. Loosely attach each of the center plate(B ) to the legs. Note that the recessed end of each plate goes on the leg
last at each corner. Secure using small flat washers(J), small lock washers(K), small bolts(I) and PVC covers(L).
4. Tighten all the bolts and nuts completely. DO NOT overtighten.
5. Turn the table onto its legs and use the adjuster feet to level the tables.
Warning : DO NOT use acid or alkaline washing liquid to clean the product.
11
C
A
33
Parts list Parts picture Description
A 1
B 2
C 4
N
O
P
Table top
Center plate
Table leg
Wrench
Adjustable
Foot
Umbrella ring
H
G
F
E
D
Q'ty
22
Parts list Parts picture Description
D
E
F
B
(M8*30)
(M8)
(M8)
G
H
(M6*35)
(M6)
(M6)
1
Factory
already
assembled
I
J
K
L
1
M
L
I
K
J
Bolt
Big flat washer
Big lock washer
Nut
Nut cap
Bolt
Small flat washer
Small lock washer
PVC cover
Wrench
Q'ty
4
4
4
4
4
8
8
8
8
1
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Made in China
NO POWER TOOLS
*
