Page 1

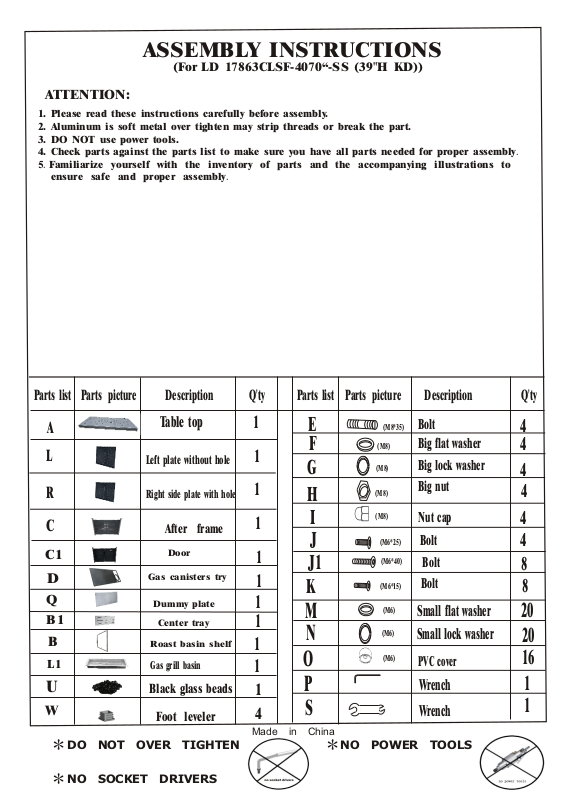

ASSEMBLY INSTRUCTIONS
(For LD 17863CLSF-4070“-SS (39"H KD))
ATTENTION:
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip threads or break the part.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to
ensure safe and proper assembly.
Parts list Parts picture Description
A
L
R
C
C1
D
Q
B1
B
L1
U
W
DO NOT OVER TIGHTEN
*
Table top
Left plate without hole
Right side plate with hole
After frame
Door
Gas canisters try
Dummy plate
Center tray
Roast basin shelf
Gas grill basin
Black glass beads
Foot leveler
Q'ty
1
Parts list Parts picture Description
E
F
1
G
1
1
H
I
J
1
1
1
J1
K
M
1
N
1
1
1
4
Made in China
O
P
S
(M8*35)
(M8)
(M8)
(M8)
(M8)
(M6*25)
(M6*40)
(M6*15)
(M6)
(M6)
(M6)
Bolt
Big flat washer
Big lock washer
Big nut
Nut cap
Bolt
Bolt
Bolt
Small flat washer
Small lock washer
PVC cover
Wrench
Wrench
NO POWER TOOLS
*
Q'ty
4
4
4
4
4
4
8
8
20
20
16
1
1
NO SOCKET DRIVERS
*
Page 2
PRODUCT INSTRUCTIONS
(For LD17863-17N)
WARNING!WARNING!
If cushion gets wet, hang over chair to dry to
prevent mold/mildew.
Remove all protective packing material and position
base on floor.Space after period adjust all the foot levelers
level, put on the cushion and attach the cushion on the
chair frame. Now the chair is ready to use!
Warning: DO NUT use acid or alkaline washing
liquid to clean the product.
A
C
A
B
B
C
CHAIR
FEET CAP
SEAT CUSHION
1
4
1
B
These parts have been assemble by factory already!
Made in China
Page 3
ASSEMBLY INSTRUCTIONS
(For LD 17863CLSF-4070“-SS (39"H KD))
Assembly steps:
1. Loosely attach the Left plate without hole (L)and Right side plate with hole(R) to the door(C1)and after
frame(C)with small flat washers (M),small lock washers(N),bolts(J1) and PVC covers(O).
2. Loosely attach the Barbecue basin(L1)to the Roast basin shelf(B)with small flat washers (M),small lock
washers(N),bolts(K) ,Roast basin shelf(B) to the side frame(C1)and after frame(C) with small flat washers
(M),small lock washers(N),bolts(J) and PVC covers(O). Gas basin switch with small flat washers (M),small
lock washers(N),bolts(K) andPVC covers(O).
3. Loosely attach the base to the table top(A) with bolts(E),big flat washers(F),lock washers(G),nuts(H) and
nut caps(I).
4. Turn the table onto its legs and put center tray(B1) on the table top, put the Dummy plate(Q) and
Center tray(B1) in the table.
5.Loosely attach the gas grill basin(L1) on the table. Connect the tank with gas grill basin(L1).Fire
resistance black glass beads(U) is poured into the gas grill basin(L1). Finally ,open the gas grill
basinappear to fire just fine.
Warning : please not using acid or alkaline washing liquid to clean the product.
11
L
C1
C
R
O
J
1
N
M
22
L
1
B
O
K
N
M
J
N
M
O
K
N
M
44
U
B
L
55
T
hi si e
s d
i
s
i
n
t
h
e
o
f
r nt
1
33
1
I
H
G
F
E
Q
D
A
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
W
V
These parts have been as semble by factory already!
Made in China
NO POWER TOOLS
*
