Page 1

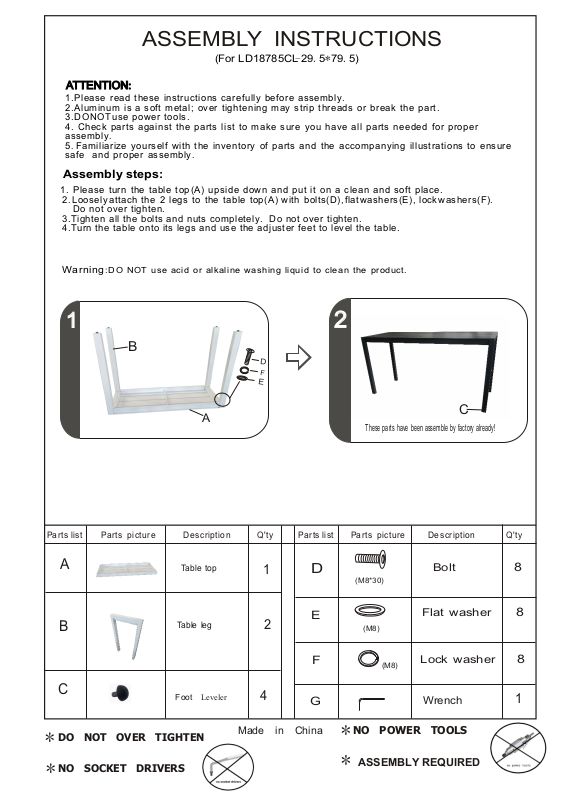

ASSEMBLY INSTRUCTIONS
(For LD18785CL-29.5*79.5)
AATTENTIONTTENTION::
Please read these instructions carefully before assembly.
1.
2. Aluminum is a soft metal; over tightening may strip threads or break the part.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper
assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure
safe and proper assembly.
Assembly steps:
1. Please turn the table top (A) upside down and put it on a clean and soft place.
2 . Loosely at
Do not over tighten.
3.Tighten all the bolts and nuts completely. Do not over tighten.
4.Tur
n the table onto its legs and use the adjuster feet to level the table.
Warning : DO NOT use acid or alkaline washing liquid to clean the product.
tach the 2 legs to the table top(A) with bolts(D), flat washers(E), lock washers(F).
11
B
A
Parts list Parts picture Description
A
B
Table top
Table leg
D
F
E
Q'ty
1
2
22
C
These parts have been assemble by factory already!
Parts list Parts picture Description
D
(M8*30)
E
(M8)
Bolt
Flat washer
Q'ty
8
8
C
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Foot Leveler
F
4
Made in China
G
(M8)
NO POWER TOOLS
*
ASSEMBLY REQUIRED
*
Lock washer
Wrench
8
1
Page 2
PRODUCT INSTRUCTIONS
(For LD17863-17N)
WARNING!WARNING!
If cushion gets wet, hang over chair to dry to
prevent mold/mildew.
Remove all protective packing material and position
base on floor.Space after period adjust all the foot levelers
level, put on the cushion and attach the cushion on the
chair frame. Now the chair is ready to use!
Warning: DO NUT use acid or alkaline washing
liquid to clean the product.
A
C
A
B
B
C
CHAIR
FEET CAP
SEAT CUSHION
1
4
1
B
These parts have been assemble by factory already!
Made in China
