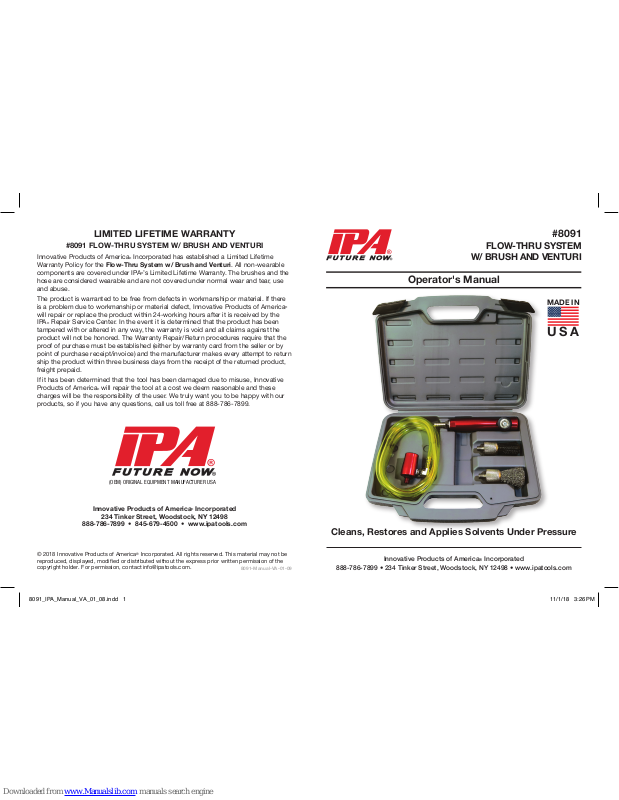

iPA 8091 Operator's Manual

Page 1

LIMITED LIFETIME WARRANTY

#8091 FLOW-THRU SYSTEM W/ BRUSH AND VENTURI

Innovative Products of America® Incorporated has established a Limited Lifetime Warranty Policy for the Flow-Thru System w/ Brush and Venturi. All non-wearable components are covered under IPA®’s Limited Lifetime Warranty. The brushes and the hose are considered wearable and are not covered under normal wear and tear, use and abuse.

The product is warranted to be free from defects in workmanship or material. If there is a problem due to workmanship or material defect, Innovative Products of America® will repair or replace the product within 24-working hours after it is received by the IPA® Repair Service Center. In the event it is determined that the product has been tampered with or altered in any way, the warranty is void and all claims against the product will not be honored. The Warranty Repair/Return procedures require that the proof of purchase must be established (either by warranty card from the seller or by point of purchase receipt/invoice) and the manufacturer makes every attempt to return ship the product within three business days from the receipt of the returned product, freight prepaid.

If it has been determined that the tool has been damaged due to misuse, Innovative Products of America® will repair the tool at a cost we deem reasonable and these charges will be the responsibility of the user. We truly want you to be happy with our products, so if you have any questions, call us toll free at 888-786-7899.

reproduced, displayed, modied or distributed without the express prior written permission of the

8091-Manual-VA-01-09

(OEM) ORIGINAL EQUIPMENT MANUFACTURER USA

Innovative Products of America® Incorporated

234 Tinker Street, Woodstock, NY 12498

888-786-7899 • 845-679-4500 • www.ipatools.com

Operator's Manual

Innovative Products of America® Incorporated

888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com

Cleans, Restores and Applies Solvents Under Pressure

#8091

FLOW-THRU SYSTEM

W/ BRUSH AND VENTURI

MADE IN

USA

8091_IPA_Manual_VA_01_08.indd 1 11/1/18 3:26 PM

Page 2

LETTER FROM THE PRESIDENT OF IPA

My name is Peter Vinci and I would like to thank you for your interest in

our products. In today’s world, we have all experienced the lack of service

and consideration demonstrated by many companies after you buy their products. They say whatever they can to make the sale, and then it’s like pulling teeth to get any service response out of them. I know this myself

rsthand and because of this, I want to be sure that your experience with

IPA ® meets your expectations and that IPA® never disappoints you with our service or customer response.

To prove my commitment to you, if for any reason you are not happy with one of our products, or more importantly, with the response from our customer service department, or any other member of the IPA® team, I invite you to contact me at [email protected] or call me at 888-786-7899. Your satisfaction is more important to me than the sale itself. We will not be in business for long if we don’t make you completely happy with our products and service. I want IPA® to be different and be known for its quality and service.

With that said, please take a look at our product line. You will see

innovative, rst-time tools that were created to help you do your job

faster and better than before. I would also like to invite you to critique our products. If you can think of a better way to make them or changes that will make them work better, please contact me directly and I will be sure to look into it. If you have an innovation and would like some feedback, give me a call.

From all of us at IPA®, we thank you for taking the time to review our product line and wish you and your family the very best of everything.

Peter Vinci President IPA

www.ipatools.com Toll Free: 888-786-7899 Phone: 845-679-4500 Fax: 845-679-4600

NOTES

8091_IPA_Manual_VA_01_08.indd 2 11/1/18 3:26 PM

Page 3

IMPORTANT SAFETY INSTRUCTIONS

IT IS IMPORTANT TO READ, UNDERSTAND AND FOLLOW ALL SAFETY MESSAGES AND INSTRUCTIONS PRINTED IN THIS MANUAL AND ON THE EQUIPMENT BEFORE OPERATING. IF SAFETY INFORMATION IS NOT HEEDED, SERIOUS INJURY OR DEATH TO THE OPERATOR OR BYSTANDERS MAY OCCUR.

DANGER

Indicates a hazardous situation, if not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or

explained in the text.

WARNING

Indicates a hazardous situation, if not avoided, could result in death or

serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.

CAUTION

Indicates a hazardous situation, if not avoided, may result in minor or

major injury. The possible hazards are shown in the adjoining symbols or explained in the text.

• Always wear safety glasses

• Always wear respirator

• WARNING: Risk of Explosion - Do not use with gasoline and other volatile liquids.

• WARNING/DANGER! DO NOT USE the venturi with volatile, or

explosive chemicals such as gasoline, diesel, mineral spirits, etc. The air pressure will atomize the solvent which can explode, catch fire and be

dangerous to breathe.

• WARNING: NEVER SMOKE or use this product around open flames or sources of ignition or spark.

TYPICAL USAGE EXAMPLES:

1. Degreasing: Use venturi and air pressure to blast surfaces with degreaser.

The air pressure combined with the degreaser and scrubbing action of the brush provides a superior cleaning than traditional methods.

Quick Tip: This does not have to be a messy job. Use the ow control

valve and an air regulator to limit the amount of overspray while working.

2. Descaling and wire brushing: Use with or without air pressure while

brushing surfaces. The air pressure helps dislodge materials and move them away from the work area while you clean.

3. Rust converter and restoration work: By combining brushing under

air pressure and applying solvents, common jobs can be performed

faster and more complete than ever. The air pressure helps to blast the solvents into hard-to-access areas that would otherwise go untouched.

CLEANING AND MAINTENANCE

The brush heads and valve components should be cleaned after usage to

ensure maximum life of the tool. Rust converters and dirt may clog valves if left to sit. After use, ush with clean water or paint thinner when necessary.

If possible, blow shop air through components to remove any solvents or debris before storage.

NOTES: Every component in the kit is designed to withstand standard shop chemicals. The materials used in this kit include anodized aluminum, stainless steel, nylon and nickel-plated brass components and fuel-rated

hose. When possible, ush the system with water or use paint thinner to

dislodge any solvents that may clog up the valve.

• WARNING: DO NOT USE WITH DIESEL EXHAUST FLUID (DEF)

8091_IPA_Manual_VA_01_08.indd 3 11/1/18 3:26 PM

Page 4

INSTRUCTIONS

INTRODUCTION:

The Flow-Thru System W/ Brush and Venturi is a powerful and versatile

product that features interchangeable components which can be congured for

a variety of uses. Prior to using, please read the warnings.

Typical uses include: parts cleaning, wire brushing, removing rust/debris, and applying degreasers and various solvents. It is always recommended that you follow rigid safety standards while using this product. Safety glasses are always required, and a respirator is recommended when using with any types of chemicals.

WHAT’S INCLUDED

• Ergonomic, anodized aluminum handle features an integrated flow control/shut-off valve and is made from quality components. It is rated for a maximum pressure of 175 psi and can be cleaned with paint thinner or other solvents. The input threads are ¼" NPT and the output is ⅞" x 20 straight-thread type. DO NOT attempt to screw fittings into the output threads unless they are the same thread type.

• Hose Barb: The supplied ¼" NPT x ⅜" hose barb can be inserted for

use with a standard parts-cleaning sink adapter hose.

Quick Tip: Your standard shop air tting may also slip t into a

parts-cleaning sink adapter hose. If so, you may choose to not use the

supplied barb tting.

• Venturi: For safety reasons, ONLY USE THE VENTURI with safe

liquids such as organic cleaners/degreasers, water, etc. The supplied venturi comes attached to a 6' long hose. To use the venturi, attach shop air pressure to the input of the handle. Ensure that the valve is closed. Screw the venturi into the output end of the handle. Place hose

into a container of solvent and slowly open the ow control valve. The

venturi will quickly create a vacuum through the hose and suck up the solvent. Once the solvent meets with the air pressure, it will spray out of the end of the tool. You may choose to equip the end of the tool with a brush or simply use it as a spray gun/pressure washer.

Part # Description

A #HDL0009-AS Aluminum Handle with Flow-Valve and Magnet

B #BRB-0009

¼" NPT x ⅜" Barbed Fitting

C #8091-VNT-AS Venturi Assembly

D #8091-8

⅛" NPT ¼" Barb Swivel Fitting

E #HS-FUELYLW6

6' Chemical Resistant ¼" ID Hose

F #8091-1S-AS Stainless Steel Flow-Thru Brush

G #8091-1N-AS Nylon Flow-Thru Brush

H #8091-11 #110 Viton O-Ring .375" ID

REPLACEMENT PART NUMBERS

• Brushes: Nylon and stainless steel brush attachments are both provided

with this kit. Use the nylon brush on softer materials such as plastic, brass and aluminum. Use the stainless steel on harder surfaces or for severe debris and/or dirt.

8091_IPA_Manual_VA_01_08.indd 4 11/1/18 3:26 PM
