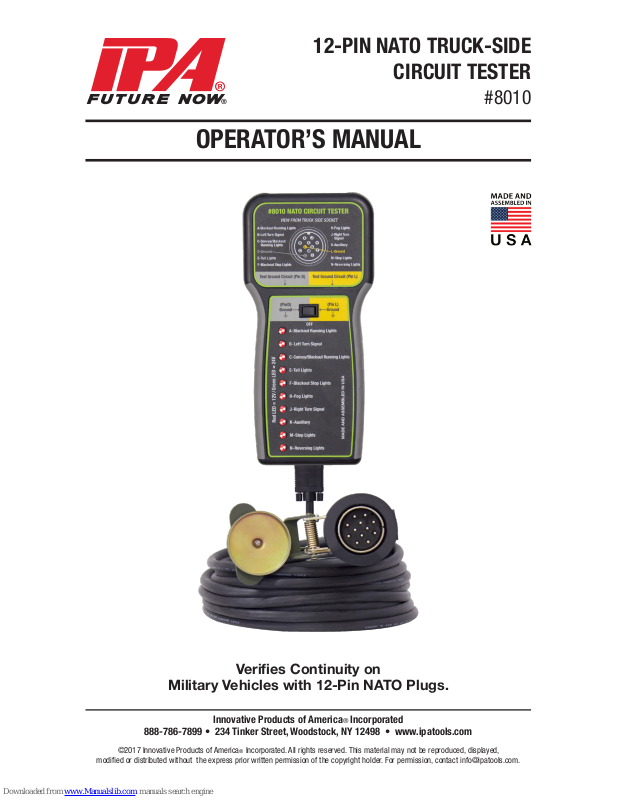

Page 1
OPERATOR’S MANUAL
12-PIN NATO TRUCK-SIDE
CIRCUIT TESTER
#8010
Innovative Products of America® Incorporated
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com
©2017 Innovative Products of America® Incorporated. All rights reserved. This material may not be reproduced, displayed,
modied or distributed without the express prior written permission of the copyright holder. For permission, contact [email protected].
Veries Continuity on
Military Vehicles with 12-Pin NATO Plugs.
Page 2
2

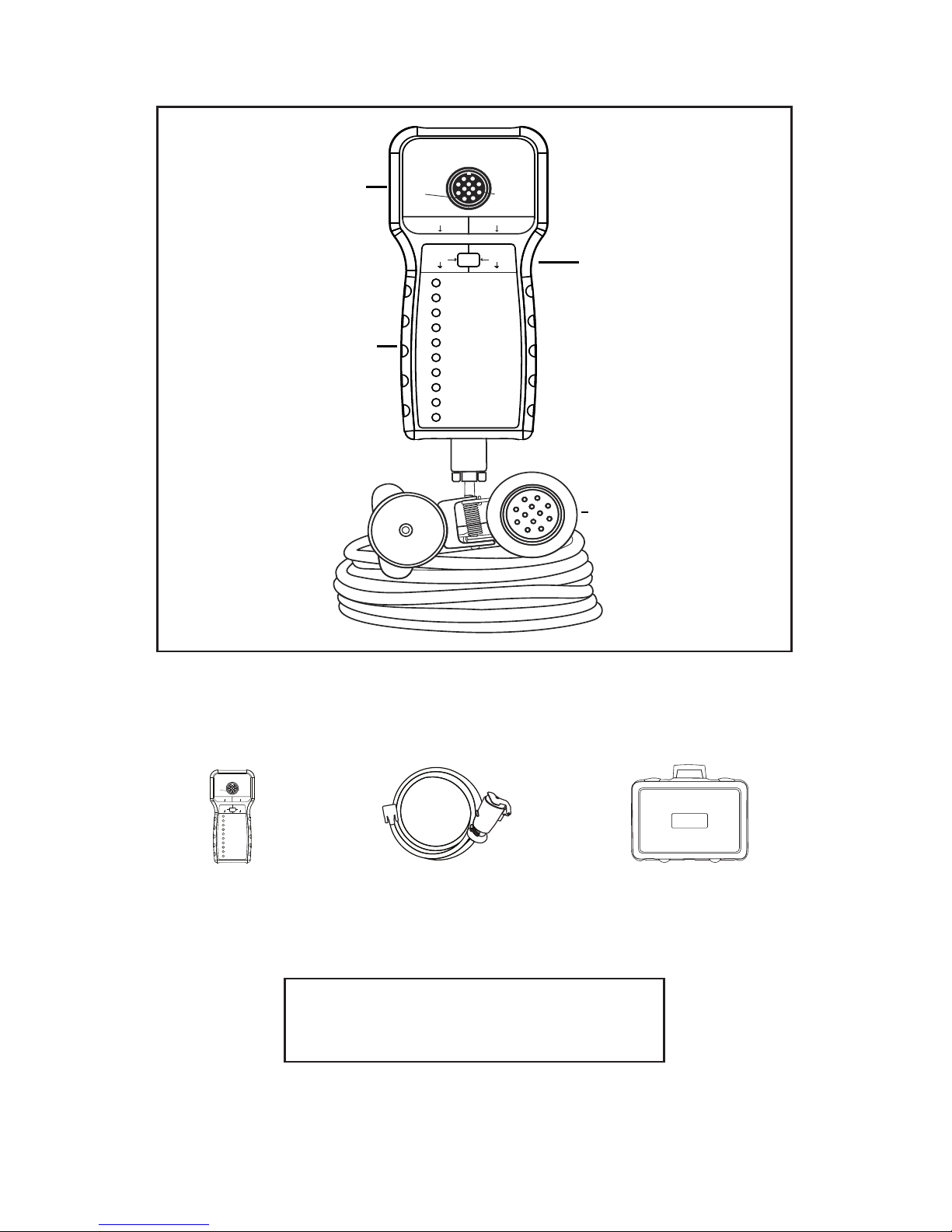

INCLUDED PARTS AND ACCESSORIES:
(Pin L)
Ground
OFF
Test Ground Circuit (Pin D) Test Ground Circuit (Pin L)
(Pin D)
Ground
A-Bl ackout Runni ng Lights
B-Left Turn Signal
C-Convoy/Bl ackout
Running Li ghts
D-Ground
E-Tail Lights
F-Blac kout Stop Light s
H-Fog Li ghts
J-Right Turn
Signal
K-Auxiliary
L-Ground
M-Stop Light s
N-Reve rsing Li ghts
A-Blackout Running Lights
B-Left Turn Signal
C-Convoy/Blackout Running Lights
E-Tail Lights
F-Blackout Stop Lights
H-Fog Lights
J-Right Turn Signal
K-Auxiliary
M-Stop Lights
N-Reversing Lights
Red LED = 12V/ Green LED = 24V
#8010 NATO CIRCUIT TESTER
VIEW FROM TRUCK SIDE SOCKET
A
B
C
K
H
N
M
E
F
L
D
J
MADE AND ASSEMBLED IN USA
Ground Selection
Switch
Towing Circuits
12-Pin
NATO Plug
NATO Circuit
Diagram
WHAT’S INCLUDED
Use the Provided Reference Numbers When
Ordering Products and Parts Above
Toll Free: 888-786-7899
Unit
#8010-AS
(Pin L)
Ground
OFF
Test Ground Circuit (Pin D) Test Ground Circuit (Pin L)
(Pin D)
Ground
A-Blackout Running Lights
B-Left Turn Signal
C-Convoy/Blackout
Running Lights
D-Ground
E-Tail Lights
F-Blackout Stop Lights
H-Fog Lights
J-Right Turn
Signal
K-Auxiliary
L-Ground
M-Stop Lights
N-Reversing Lights
A-Blackout Running Lights
B-Left Turn Signal
C-Convoy/Blackout Running Lights
E-Tail Lights
F-Blackout Stop Lights
H-Fog Lights
J-Right Turn Signal
K-Auxiliary
M-Stop Lights
N-Reversing Lights
Red LED = 12V/Green LED = 24V
#8010 NATO CIRCUIT TESTER
VIEW FROM TRUCK SIDE SOCKET
A
B
C
K
H
N
M
E
F
L
D
J
MADE AND ASSEMBLED IN USA
25-ft. Cable
#KCBL-8010-AS
Blow Molded Case
#ENC-0006
Page 3
3
INTRODUCTION
12-PIN NATO TRUCK-SIDE CIRCUIT TESTER
Verify continuity on vehicles utilizing a standard 12-pin NATO socket. The 25-ft
cable is long enough for the user to sit in the cab of the vehicle while testing all the
electrical circuits.
INSTRUCTIONS:
1. Plug the cable into the 12-pin NATO receptacle on the tow vehicle. Be sure to line
up the key-ways for proper engagement.
NOTE: It should be a tight t, but you should not have to force it. Try applying
dielectric grease to the mating rubber surfaces to achieve less friction.
2. Plug the computer connector into the bottom of the tester. Screw the binding
posts until they are snug.
3. Hold the tester in your hand and bring it into the cab of the tow vehicle. Select a
ground using the Ground Selection Switch.
WARNING: WHEN TESTING IN THE CAB, DO NOT PINCH THE CABLE IN A
WINDOW OR DOOR.
4. Activate each circuit (i.e., left turn, right turn, running and blackout lights, etc.).
The corresponding circuits should illuminate on the tester panel. Some circuits
may be unused by the tow vehicle. If a circuit does not illuminate, check the
wiring diagram to ensure it is a "factory" installed option.
NOTE: RED LEDs indicate 12 volt power is being supplied by the tow vehicle.
GREEN LEDs indicate 24 volt power is being supplied by the tow vehicle.
5. After activating each circuit and verifying correct operation, press the Ground
Selection Switch to alternate the ground. Then retest each circuit. Doing so will
verify that both grounds are properly working.
NOTE: NATO vehicles typically have two ground wires running back to the tow
connector. They should both be hooked up.
6. If any circuit does not illuminate on the tester, alternate the ground via the Ground
Selection Switch, then retest that circuit. If the circuit works on only one ground,
check your ground wires or connection at the plug on the tow vehicle.
NOTE: #8010 is wired to STANAG 4007 standards.

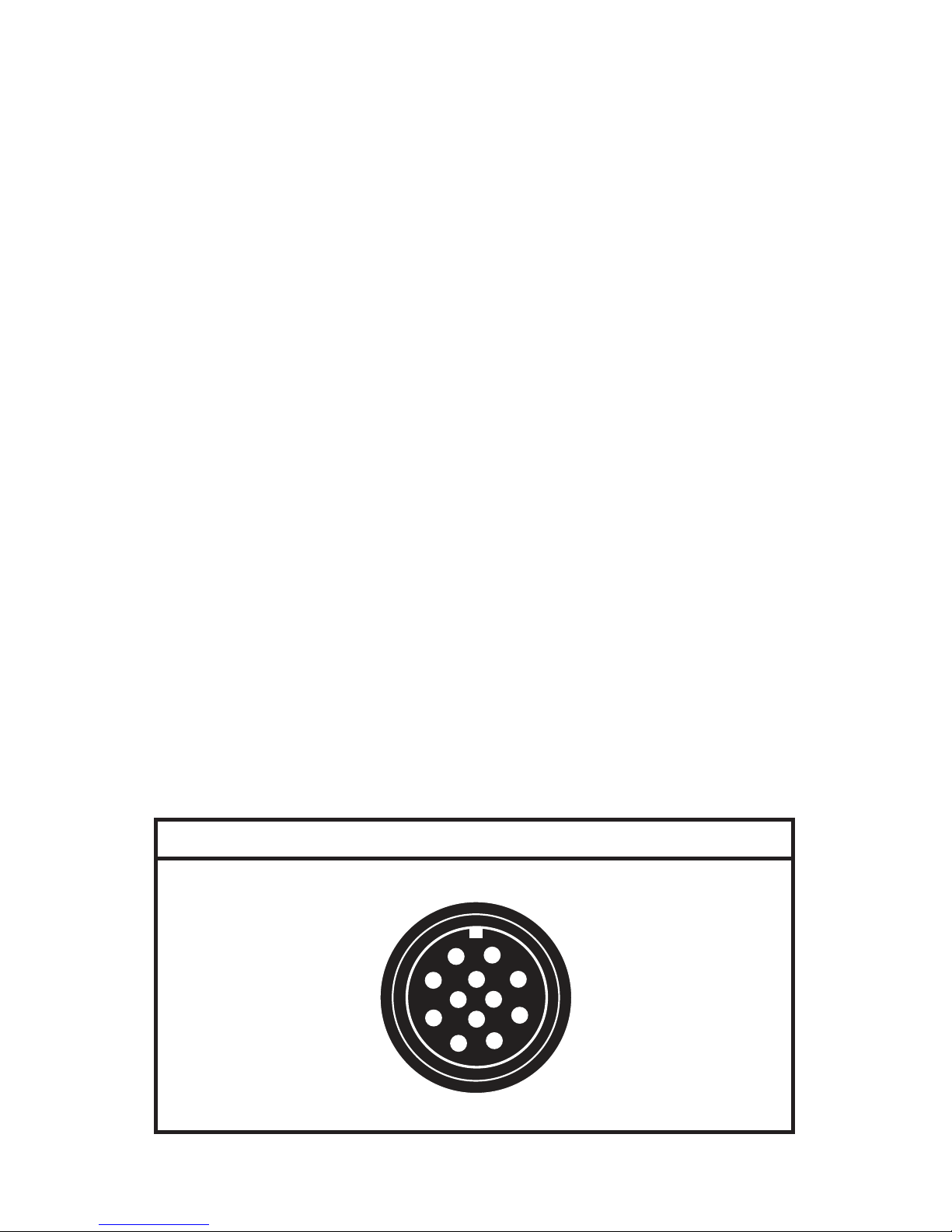

Trailer Wiring (View From Truck Side)
A-Blackout Runni ng Lights
B-Left Tur n Signal
C-Convoy/Blackout
Running Lights
D-Ground
E-Tail Lights
F-Blackout Stop Lights
H-Fog Lights
J-Right Turn
Signal
K-Auxiliary
L-Ground
M-Stop Lights
N-Reversing Lights
#8010 NATO CIRCUIT TESTER
VIEW FROM TRUCK SIDE SOCKET
A
B
C
K
H
N
M
E
F
L
D
J
Page 4
Limited One Year Warranty
#8010 12-PIN NATO TRUCK-SIDE CIRCUIT TESTER
Innovative Products of America® Incorporated has established a Limited One Year
Warranty Policy for the #8010 12-Pin NATO Truck-Side Circuit Tester, not including any
wearable parts, i.e. batteries (30 day warranty).
One Year Limited Warranty/Return or Replace Policy: The product is covered for
one year from the date of original user purchase under the stipulations of the Standard Warranty.
The product is warranted to be free from defects in workmanship or material. If there
is a problem due to workmanship or material defect, Innovative Products of America®
Incorporated will repair or replace the product within 24 working hours after it is
received by the IPA® Repair Service Center. In the event it is determined that the
product has been tampered with, or altered in any way, the warranty is void and all
claims against the product will not be honored. The Warranty Repair/Return procedures require that the proof of purchase must be established (either by warranty card
from the seller or by point of purchase receipt/invoice) and the manufacturer makes
every attempt to return ship the product within three business days from the receipt
of the returned product, freight prepaid.
If it has been determined that the tool has been damaged due to misuse, Innovative
Products of America® Incorporated will repair the tool at a cost we deem reasonable and
these charges will be the responsibility of the user. We truly want you to be happy with
our products, so if you have any questions, call us toll-free at 888-786-7899.
Innovative Products of America® Incorporated
234 Tinker Street, Woodstock, NY 12498
888-786-7899 • 845-679-4500 • www.ipatools.com
©2017 Innovative Products of America®, Incorporated. All rights reserved. This material may not be
reproduced, displayed, modied or distributed without the express prior written permission of the copyright holder.
For permission, contact [email protected].
(OEM) Original Equipment Manufacturer USA
8010-Manual-IPA-VA-05-05
