IoT Smart Home RF Series
User’s Manual
[ V 1.021]
Page 2
- 1 -
Table of Contents
1. Product Introduction ......................................................................................................................................... 3
1.1 8810S ........................................................................................................................................................ 3
2. Connecting the Camera to the Internet ...................................................................................................... - 4 -4
2.1 Downloading APP - “ALLCAM” ........................................................................................................... - 4 -4
2.2 Power on the Camera ............................................................................................................................... 5
2.3 First Time Setup .................................................................................................................................. - 5 -5
2.4 Adding a Camera (Multiple Cameras) ...................................................................................................... 7
2.5 Resetting the Camera ............................................................................................................................... 9
3. Introduction to Camera Operation .................................................................................................................... 9
3.1 Live View ................................................................................................................................................... 9
3.2 Camera Settings ...................................................................................................................................... 10
3.3 Sensors’ Diagram .................................................................................................................................... 13
3.4 Sensor Pairing ......................................................................................................................................... 15
3.5 Sensor Alarm Settings and Applications ................................................................................................. 16
4. FAQ ................................................................................................................................................................... 23
5. Maintenance and Service ................................................................................................................................ 23
Page 3
- 2 -
★ Smart Home System is the wisdom of life, and through the IoT
Camera allows the users to check, to confirm and to feel relieved
/at ease / reassured.
★ System Features：
1. Structured on an intelligent application of the Internet, low
operating costs.
2. Simple Installation and easy operation, suitable for all ages.
3. Ultra-low power and wireless sensors, a significant reduction in
the frequency of battery replacement.
4. Expandable system, a variety of wireless sensors gives coverage of
the Smart Home applications.
5. Supports multiple languages.
Page 4
- 3 -

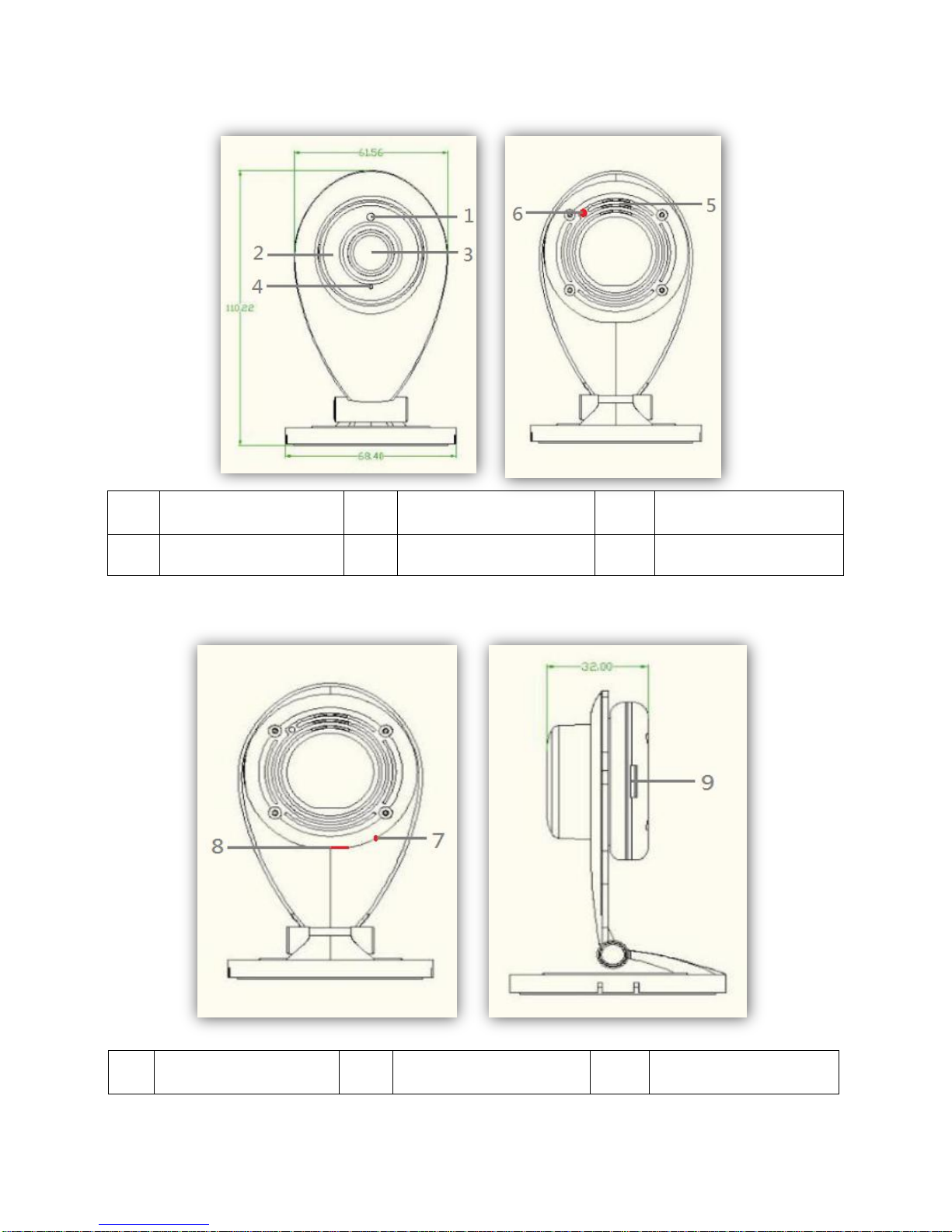

1. Product Introduction
1.1 8810S – RF IoT Camera
7
Microphone
8
USB Power
9
SD Card Slot
1
Photoresistor
2
Infrared lights
3
Lens
4
Indicator Light
5
Speaker
6
Reset Button
Page 5
- 4 -
2. Connecting the Camera to the Internet
2.1 Download “ALLCAM” APP
Search for the keyword "AllCam” in Google Play/Apple Store.
Please download it and install it on your smart phone/tablet.
“AllCam” APP Welcome Screen (As Shown Below)-
Page 6
- 5 -
2.2 Power on the Camera

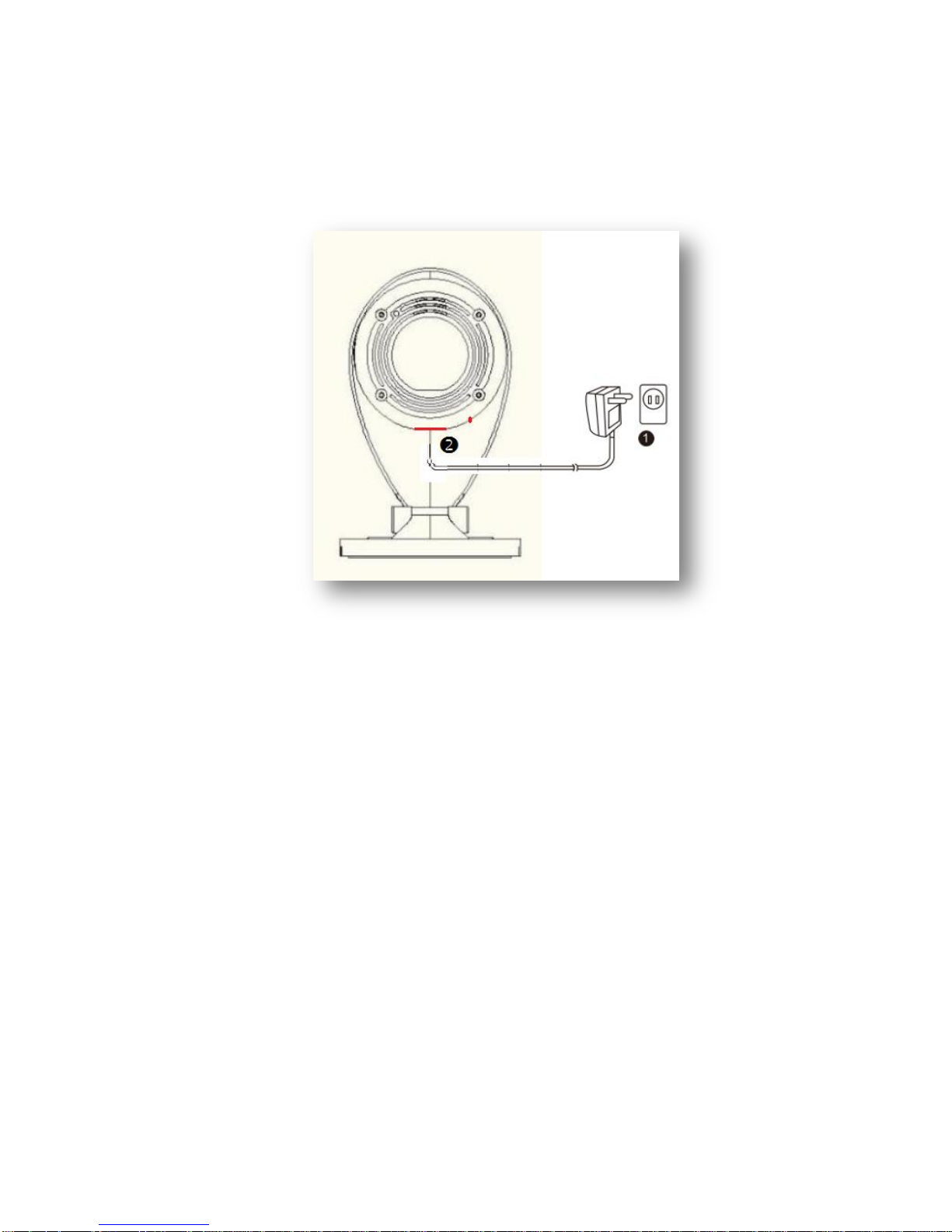

Connect the power supply to the IoT Camera and plug it into the power outlet. The indicator light on IoT
camera will turn red. Please wait 15 seconds for the startup test.，When the indicator light flashes green
and orange, camera will be in AP-mode.
2.3 First Time Setup
2.3.1 Connecting using a Smartphone or Tablet.

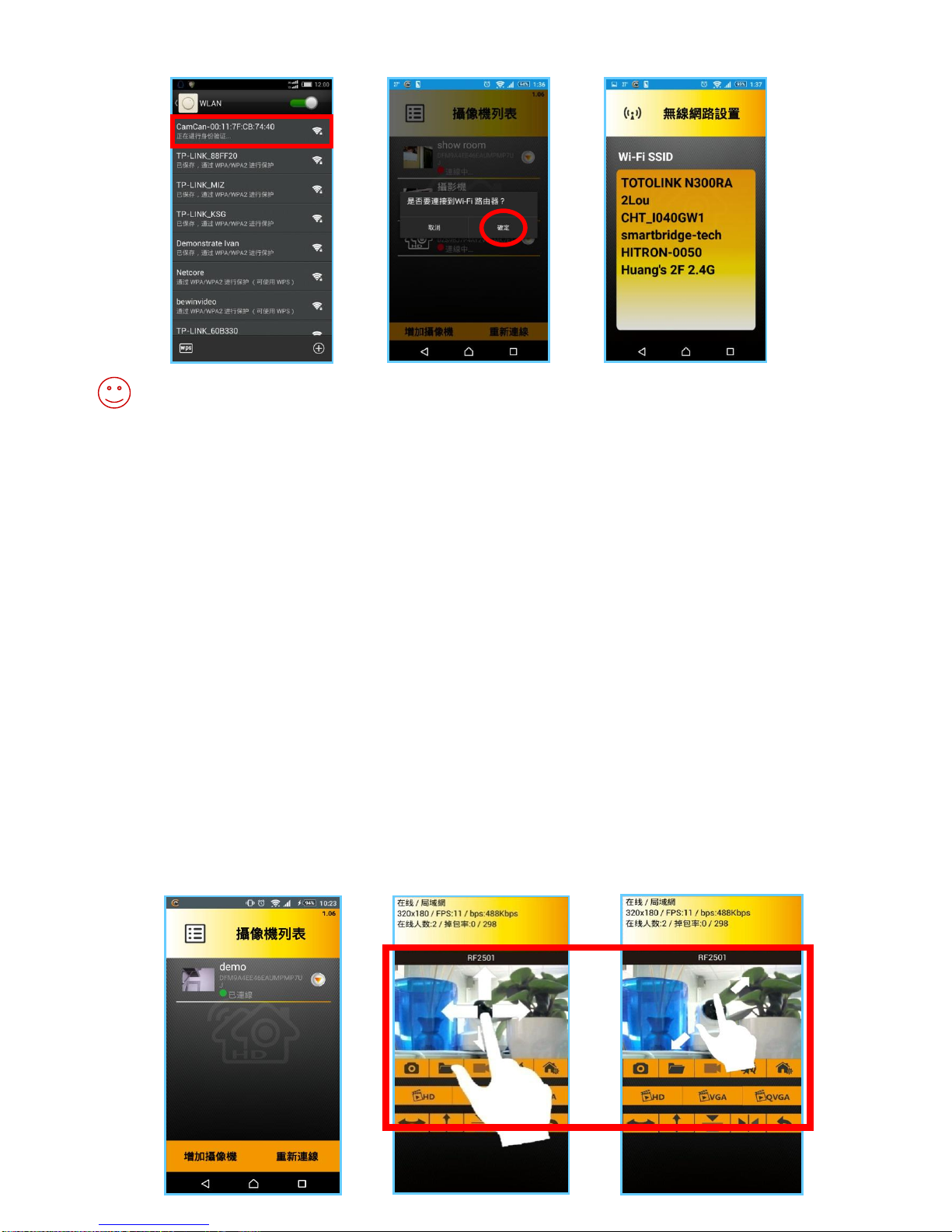

1. Turn on the Wi-Fi on your Smartphone or Tablet and wait for the indicator light to flash red/green.
2. Go to your Wi-Fi settings, find and connect to “AllCam - XX：XX：XX：XX：XX：XX” and enter the default
password “12345678”.
3. Open the installed “ALLCAM” APP. When it shows the message “Do you want to connect to Wi-Fi
Router?”; if you have an internet-ready Wi-Fi router, please select “OK”. If not, please select “Cancel”;
the camera will connect to your smartphone/tablet directly, but the functions are limited to the
camera’s wireless local area and you will not receive any push notifications.
4. Select the router you would like to connect to and enter the password. After the connection is
finalized, you will no longer see the Wi-Fi AP of the camera. (If the connected router does not
restrict the use of Cameras from its network, the indicator light will turn green.)
5. Connecting the Camera to the Internet is completed.
Page 7
- 6 -
Quick Reminders..
1. Wi-Fi SSID is the name of the wireless network, set by the router administrator.
2. If the Camera can not find the Wi-Fi network you wish to connect to, please make sure the camera
is within the Wi-Fi router’s effective range.
3. If you have entered the wrong password to connect to a Wi-Fi SSID, the camera will beep three
times, please close the APP and repeat step 3.
4. Please ensure your Smartphone/Tablet is on the same Wi-Fi network as the Camera.
2.3.2 Checking the Live View
1. Under the Camera List you can choose the camera you want to see the Live View of.
2. To control the PTZ, drag your finger in the Live View up, down, left or right and the camera will
rotate accordingly.
3. Please touch the live view and using the pinch-to-zoom; you adjust the zoom level in Live View.
When you turn your device to landscape; the live view will be full screen.
Page 8
- 7 -
Quick Reminders..
1. Only follow the steps for moving the Camera to another Wireless Network. There’s no need to
reset the camera if it will be on the same network.
2. The previously paired sensors should remain after the relocation. In the rare occurance and it
dissappears, please re-pair the sensors.
2.3.3 Moving the Camera to another Location (Different Network)
1. Press and hold the reset button and wait for the beeps, wait for the indicator light to flash red and
green and have entered AP-Mode.
2. Repeat the steps from “Connecting using a Smartphone or Tablet.

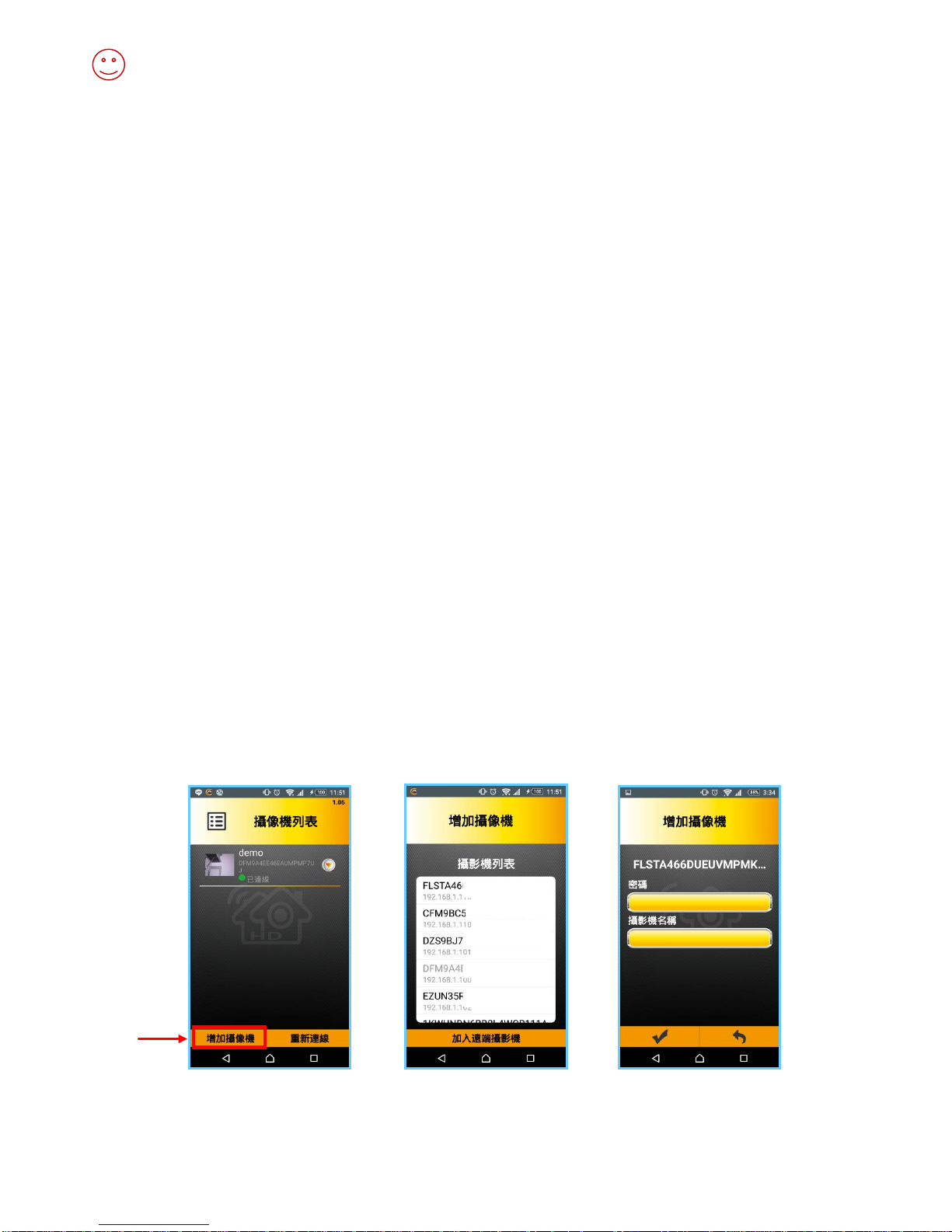

2.4 Adding a Camera (Multiple Cameras)
2.4.1 Adding a Camera already on the Same Network
1. Connect your smart phone/tablet to your Wi-Fi Network.
2. Open the “ALLCAM” APP, click the “Add Camera” button from the Camera List. The software will
automatically search for available cameras within the Network. Select the Camera you wish to add
by clicking on the UID to enter the password and add the camera to your Camera List. (The default
password is “admin”, please change the password in Camera Options for better security.)
3. Select the Camera icon from the Camera List to see the Live View.
Page 9
- 8 -
Quick Reminder..
If you entered the wrong password, simply click on the Camera Icon from the Camera List and it will
ask you to re-enter the password.
2.4.2 Adding a Remote Camera
1. Make sure your smartphone/tablet is connected to the internet.

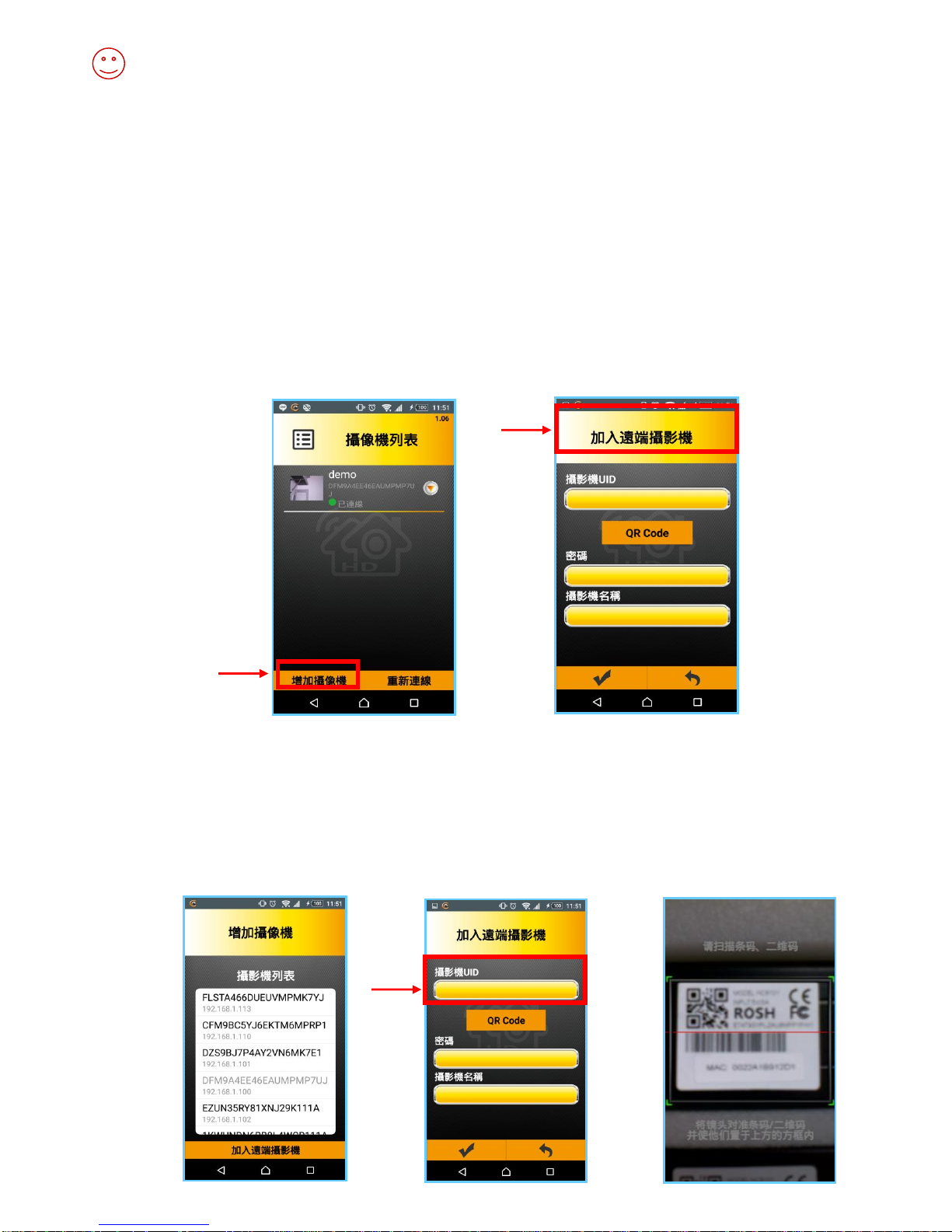

2. Turn on the “ALLCAM” APP, click “Add Camera”, and then click “Add Remote Camera”. Under this
page, you can enter the Camera’s 20 letter UID and password into their respective boxes, then click
the checkmark to add the Camera remotely. (The default password is “admin”.)
3. Select the Camera icon from the Camera List to see the Live View.
2.4.3 Using a QR Code to Add Remote Camera (Provided by Distributors.)
1. Make sure your smartphone/tablet is connected to the internet.
2. Turn on the “ALLCAM” APP, click “Add Camera”, and then click “Add Remote Camera”. Click on “QR
Code” and scan the UID sticker’s QR Code，then enter the password. (The default password is
“admin”.)
Page 10
- 9 -
Quick Reminder..
Your smartphone or tablet must have barcode scanning software installed. If you do not, please
install ”QR Code Scanner”.
2.5 Resetting the Camera
If you forgot your password it only takes one minute to reset the camera to its factory settings.
After powering on the camera for 20 seconds, hold the reset button down for five seconds and you will
hear three beeps and when the indicator lights flash red and green, it means the Camera has reset to its
factory settings. There’s no need to re-pair the sensors.
Quick Reminder..
if you do not hear the beeps, please try again after powering on the camera again.
3. Introduction to Camera Operation

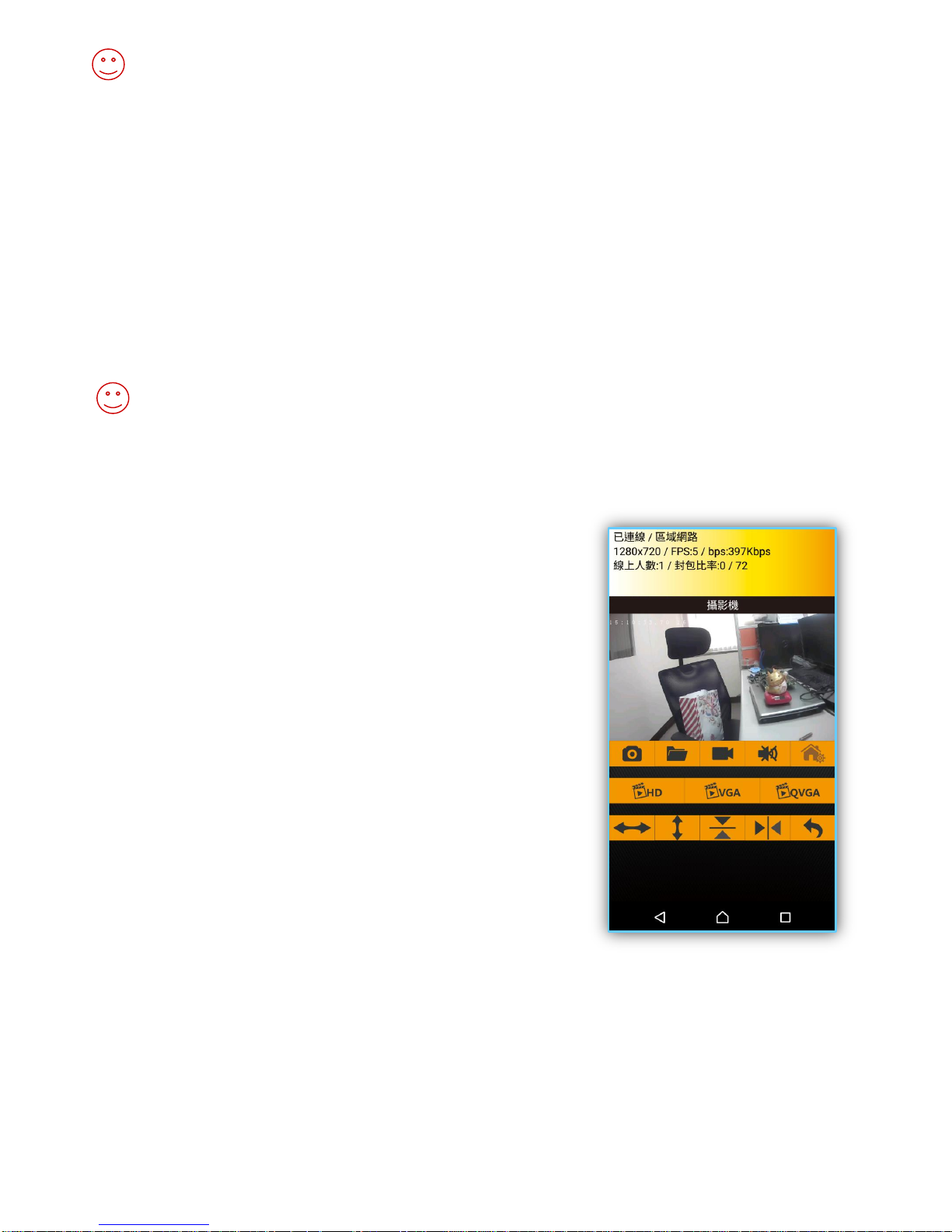

3.1 Watching the Live View Online
1. Snapshot
2. Snapshot Folder : Click the icon to enter the folder
(pictured on the right)
3. Video Record / Stop Video Record（SD card required.）
4. Mute, Listen and Speak Toggle Button
5. Smart Home（IoT Devices）
6. Video Resolution：
HD：1280*720、VGA：640*360、QVGA：320*180
7. Pan Cruise (Left and Right), Tilt Cruise (Up and Down).
Click again to stop (Only available for PTZ model.)
8. Vertical Mirror Flip (Live View)
9. Horizontally Mirror Flip (Live View)
1 2 3 4 5
6
7 8 9 10
Page 11
- 10 -
10. Return: Return to Camera List

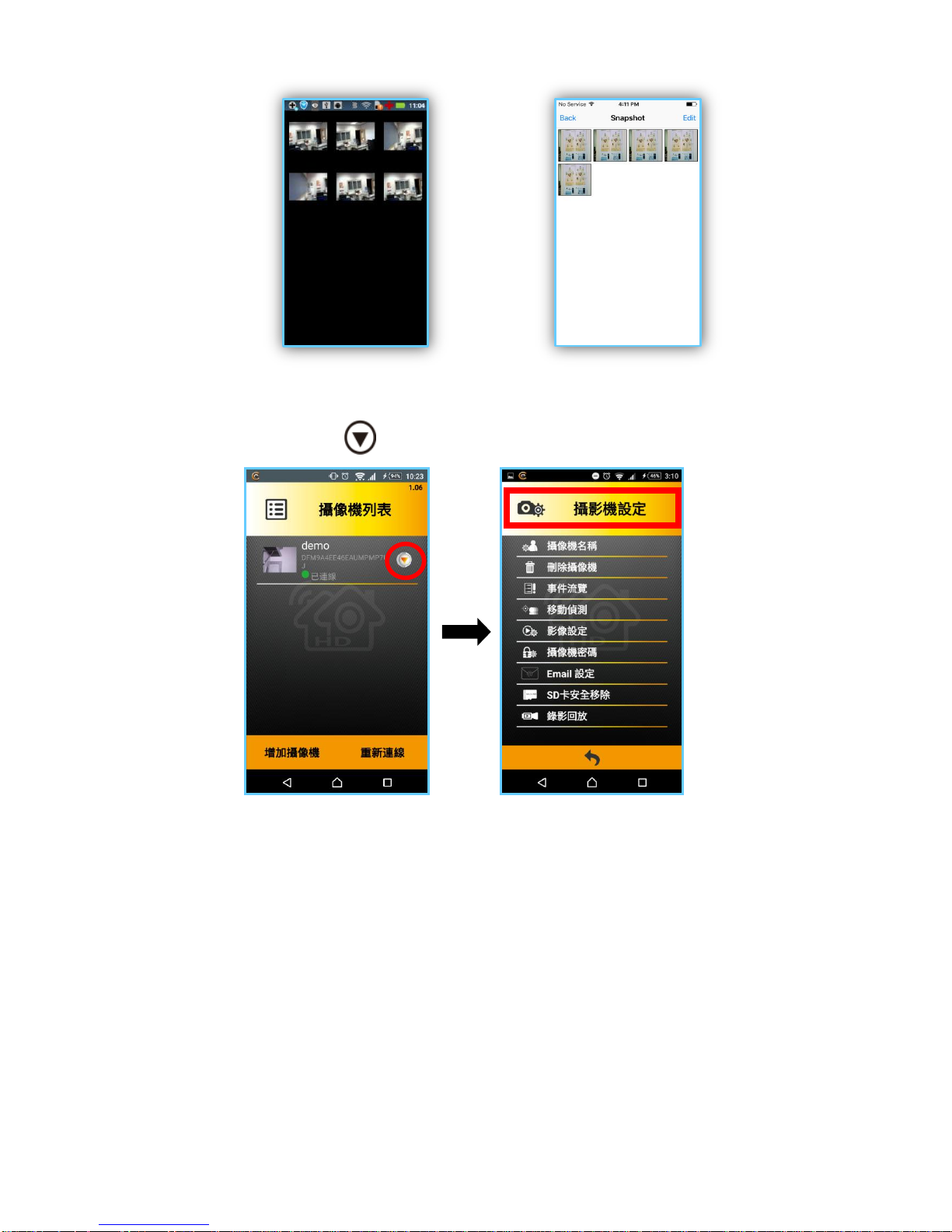

3.2 Camera Settings
In the Camera List, click the icon to enter Camera Settings.
1. Camera Name
2. Delete Camera
3. Event Viewer – logs all events, for example motion detection.
4. Motion Detection (pictured below)
When motion detection is triggered, the Camera will take the snapshot an send it to your
preconfigured email, and alert you by push notifications to your smartphone/tablet. If you have a SD
card in the Camera it will automatically record one minute of video. If the SD card is full it will
overwrite the oldest file.
-Android-
-iOS-
Page 12
- 11 -

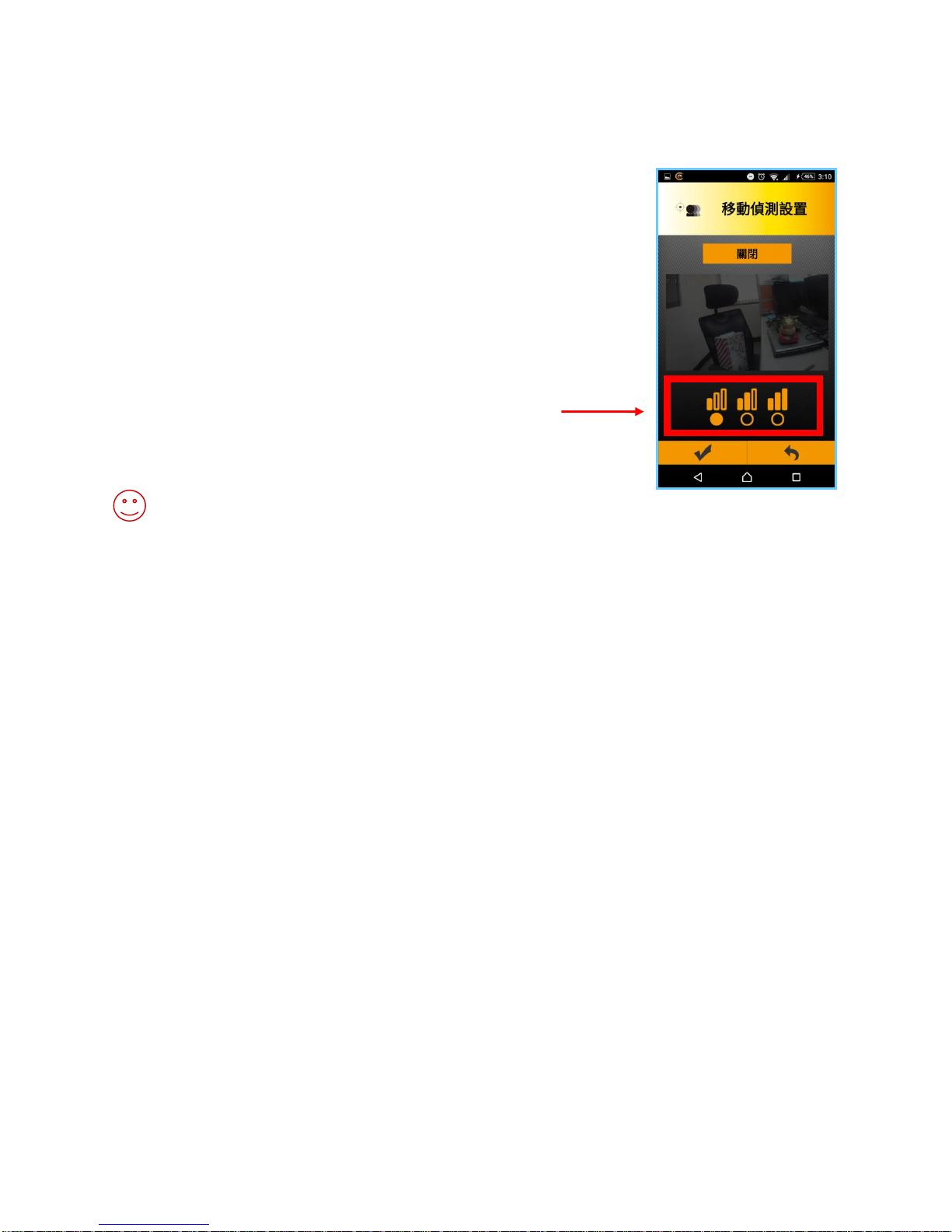

(1) Enable the Motion Detection
(2) Drag your fingers to set your area of motion detection.
(3) There are three sensitivity settings to choose from.
Quick Reminder..
To record video, the SD card must be inserted beforehand.

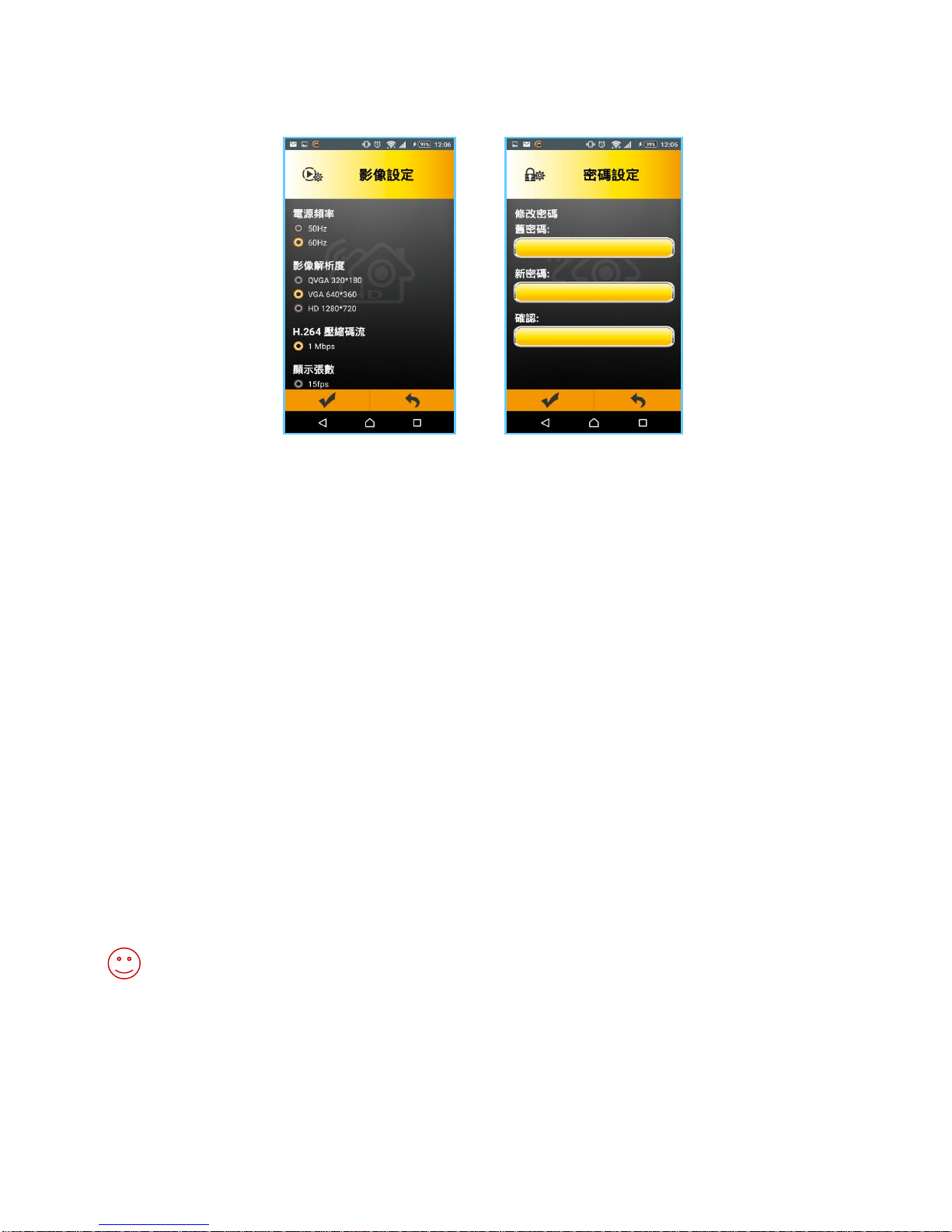

5. Video Settings/Configuration – Video
(1) Power Frequency: 50Hz, 60Hz.
(2) Video Resolution：QVGA(320X180), VGA(640X360), HD (1280X720).
(3) HD - H.264 Bit Rate： 2Mbps, 1.5Mbps, 1Mbps.
HD - Video Frame Rate： 8fps, 6fps, 5fps, 3fps, 1fps
VGA - H.264 Bit Rate： 1Mbps.
VGA - Video Frame Rate： 15fps,12fps,10fps,8fps,6fps, 5fps, 3fps
QVGA - H.264 Bit Rate： 512Kbps, 256 Kbps, 192Kbps.
QVGA - Video Frame Rate： 30fps, 25fps, 20fps, 15fps, 10fps, 5fps。
6. Camera Password/ Configuration Password
Modify the password to connect to your Camera, It is highly recommended to change your
Sensitivity：Low-Medium-High
Page 13
- 12 -
password immediately after installation, for security concerns.
7. Email SettingsEmail setting examples:
-Gmail
SMTP Server Name: stmp.gmail.com
Port Number: 465
SMTP Account: Your Gmail. [email protected]
SMTP Password: Your Gmail Password
Receiver Email: Who will receive this mail
Security Type = SSL/TLS
-Yahoo
SMTP Server Name: smtp.mail.yahoo.com
Port Number: 465
SMTP Account: Your Yahoo mail. [email protected]
SMTP Password: Your Yahoo mail Password
Receiver Email: Who will receive this mail
Security Type = SSL
Quick Reminder..
SMTP email may be mistaken for spam, please make sure your sender address is a trusted address
for your receiving address.
Page 14
- 13 -
8. SD Card Safety Remove
Please do not remove the SD card while the recording functions are engaged, or the video
files may be lost.

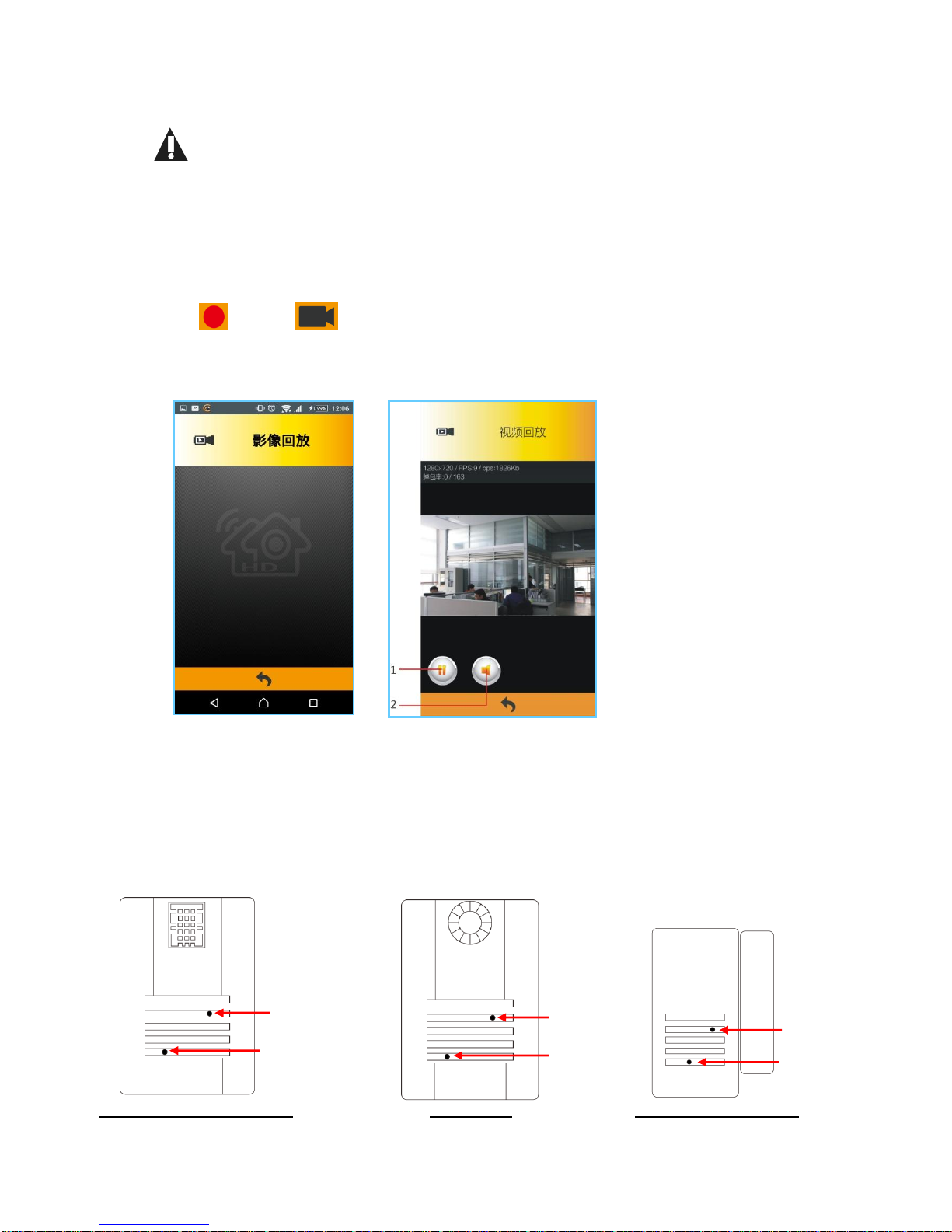

9. Video Playback-Replay a recorded video file.
(1) Play /Pause
(2) Mute On/Off
3.3 Sensors’ Diagram

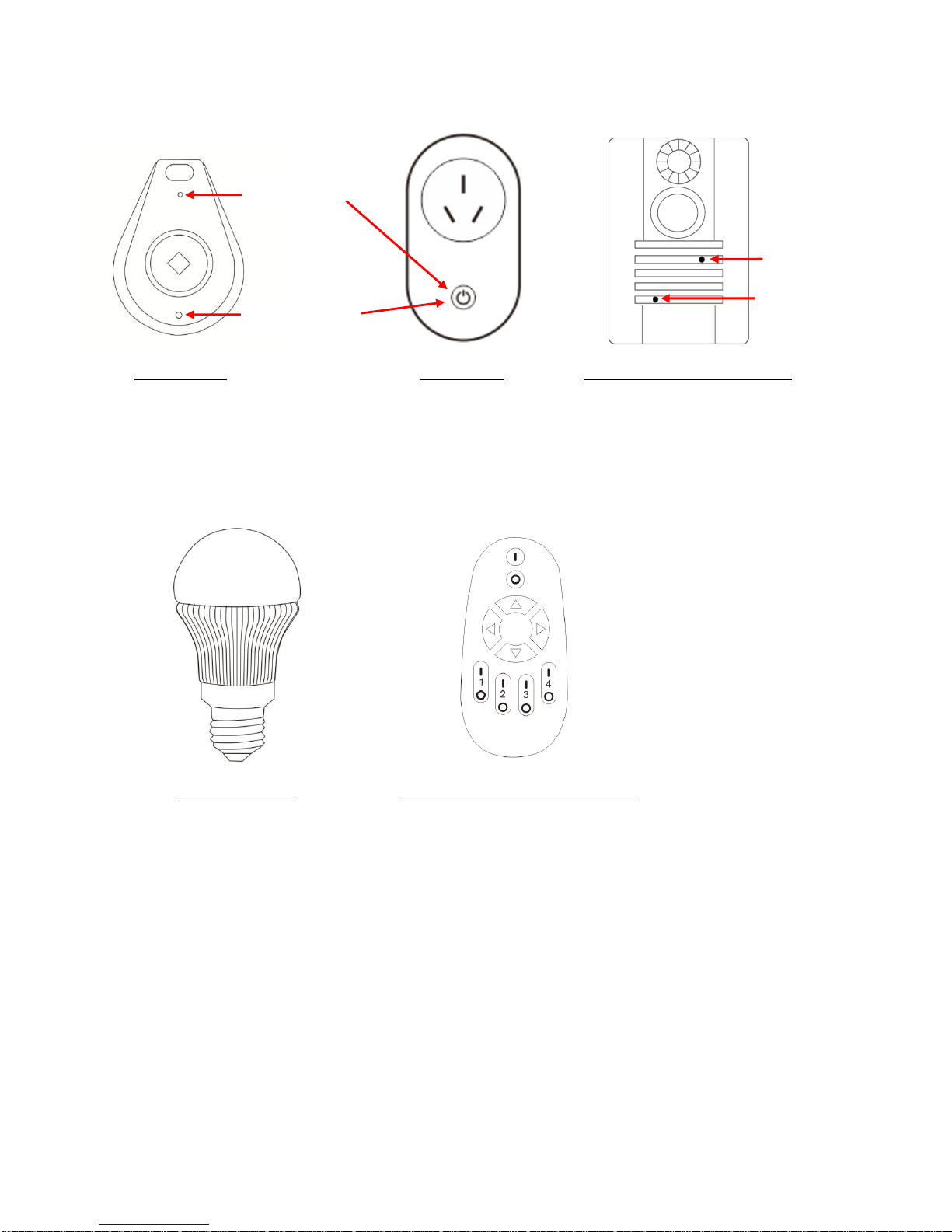

- RF Sensors / Pairing Buttons
-Thermal/Humidity Sensor -PIR Sensor -Door/Window Sensor
Indicator Light
Pairing Button
Pairing Button
Indicator Light
Pairing Button
Indicator Light
Page 15
- 14 -
-Remote Key -Smart Plug -Slip-Down Detection Sensor
- RF Sensors / Other Pairing Methods
-LED Smart Bulb -LED Smart Bulb Remote Control
Up to 8 of the same sensor can be paired to one of our IoT Camera system; if you need a 9th sensor of the
same type you will need a second IoT Camera. Some sensors come with an adhesive tape on the back,
simply remove the release liner and install it wherever you’d like to. (Please avoid direct contact with water,
as the sensors are not water-proof.)

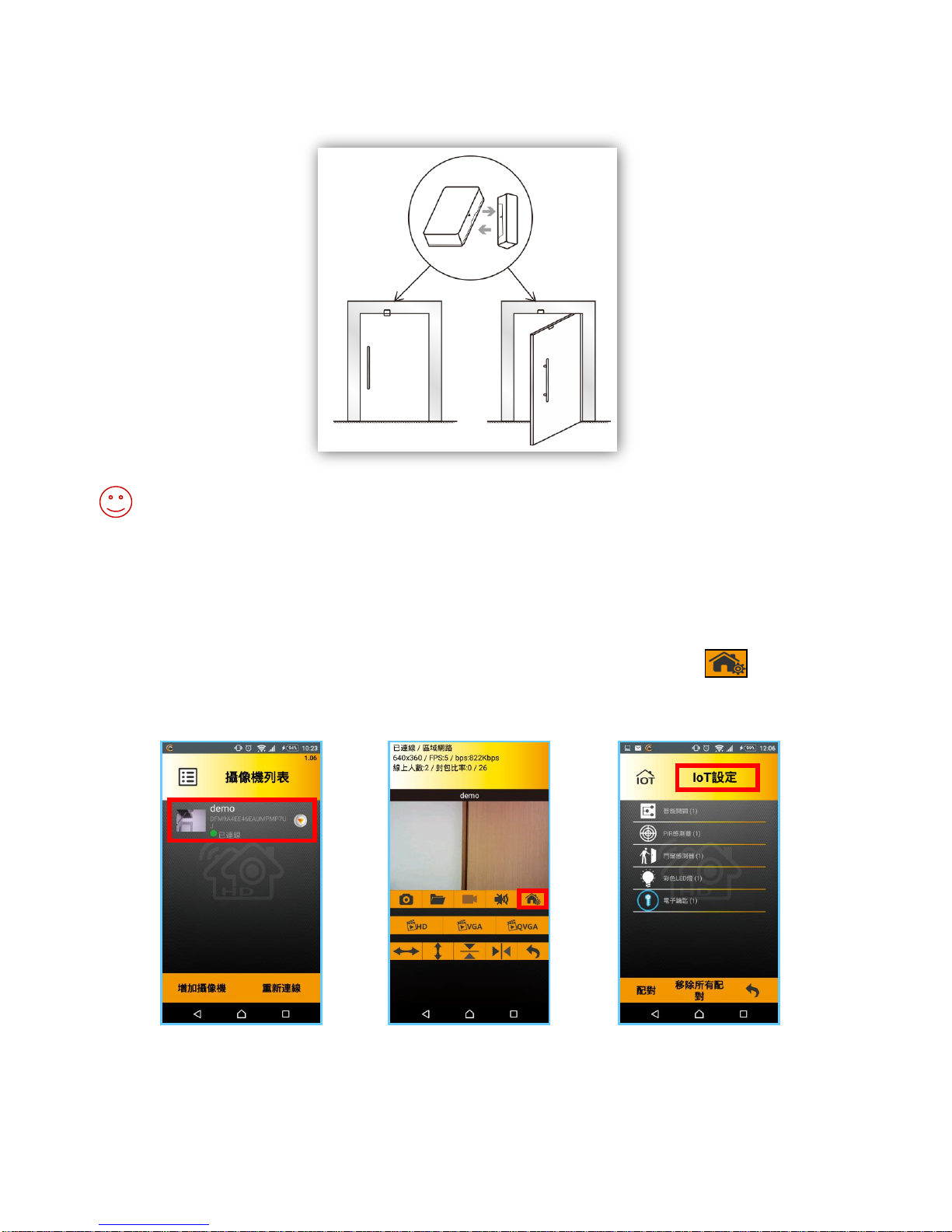

The Door/Window Contact Sensor consists of two parts; the small magnetic strip and the main sensor,
they’re installed on the interior of the house. We suggest installing the small magnetic strip on the actual
door or window, and installing the main sensor on the door frame or window frame. When the
Indicator Light
Pairing Button
Indicator Light
Pairing Button
Page 16
- 15 -
door/window is closed, the gap between the magnetic strip and the main sensor must not exceed 1.4 cm.
improper installation may lead to no alerts or erroneous alerts.
Quick Reminder..
3.4 Sensor Pairing

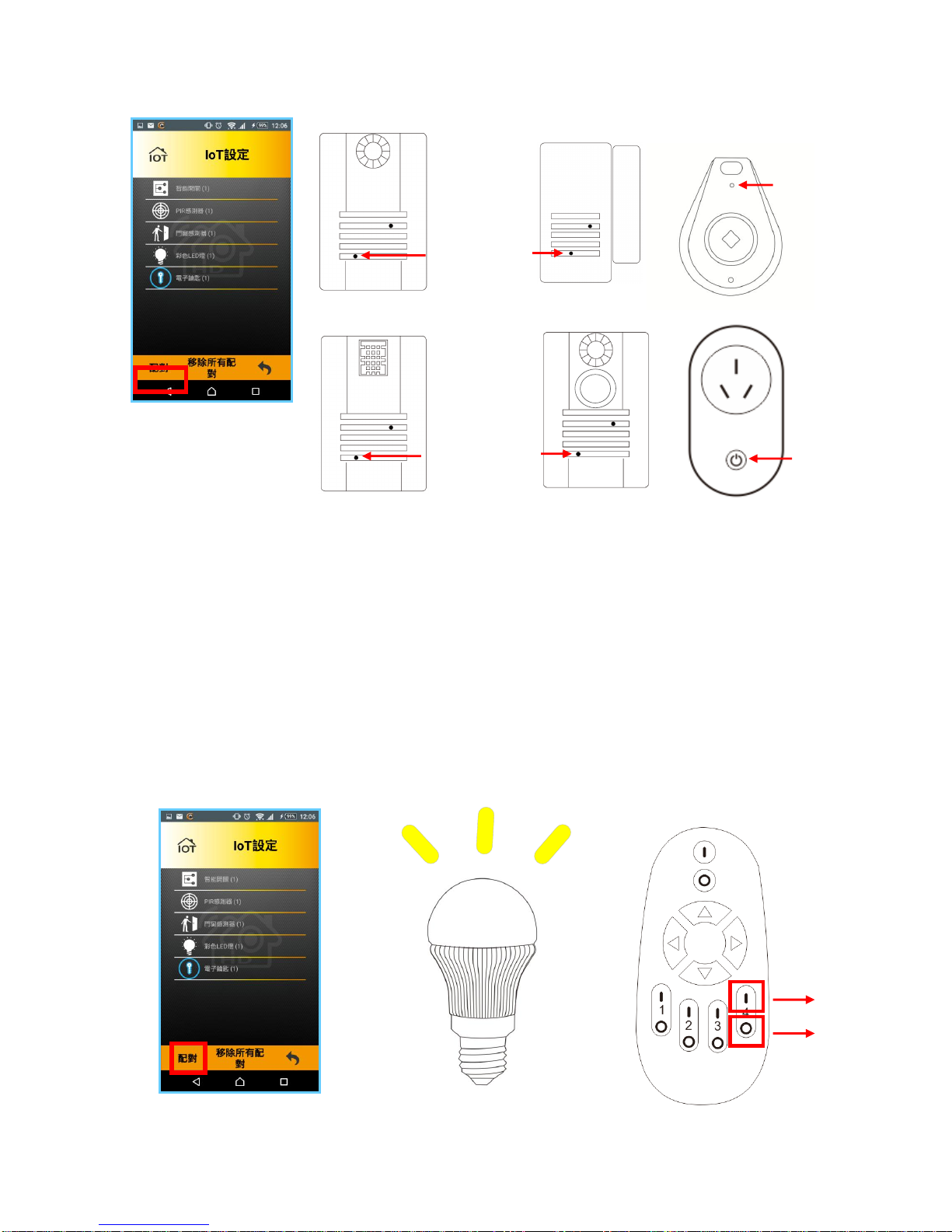

3.4.1 Sensor Pairing Instructions / Pairing Button
- Select an online Camera from the Camera List and enter the Live View, then select the “IOT
DEVICES” icon (pictured below), to enter the IoT Devices interface.
- Press the “Pair” icon and hold the Pairing Button on the sensor for 3 seconds, the indicator light will flash
red. (*It won’t flash red if you press the pair button first )
Page 17
- 16 -
- Hold the Pairing Button on the Smart Plug for three seconds and then release the button, it will
automatically be added to IoT devices if pairing was successful.

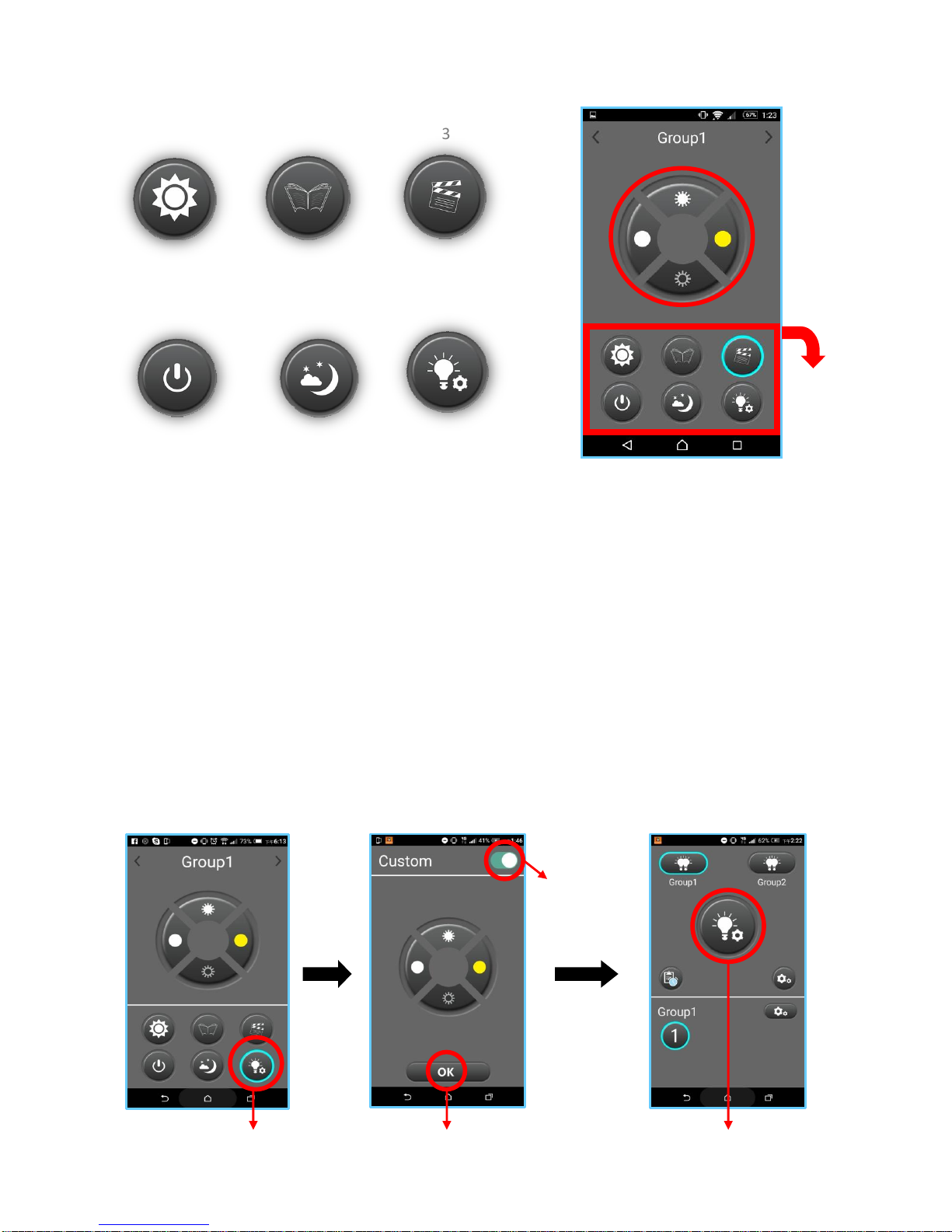

3.4.1 Sensor Pairing / Other Devices.

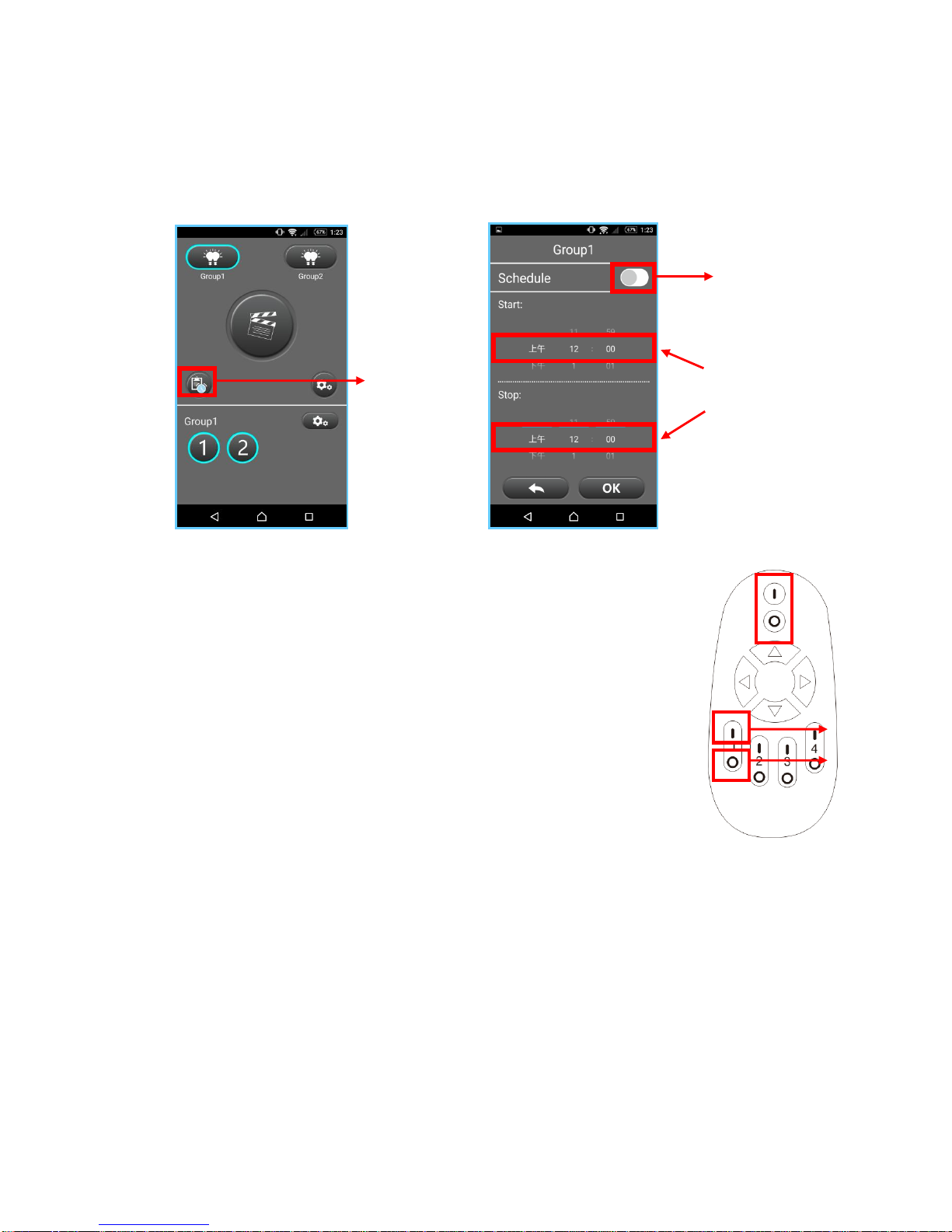

(1) When you power on the LED Smart Bulb, there will have a 10 second window for pairing. The first five
will be for pairing to the LED remote; the last five seconds will be pairing to the APP.
(2) The first five seconds are for pairing to the LED remote. Please hold the “I” for the group you wish to
assign the LED for three seconds, until you see the Indicator Light flash, then power on the LED Smart
Bulb. When you see the LED bulb flash yellow, the pairing was successful.
Pairing
Unpair
Pairing Button
Pairing Button
Pairing Button
Pairing Button
Page 18
- 17 -
3.5 Sensor Alarm Settings and Applications
3.5.1 PIR Sensor
- After pairing the sensor, click “PIR” to enter the settings interface.
- Unit: Sensor number, First one is 1，second one is 2, and so on.
- Nickname: Modify the name of the sensor; press “set” after you
have renamed the sensor.
- Alarm: Enable or Disable the sensor.

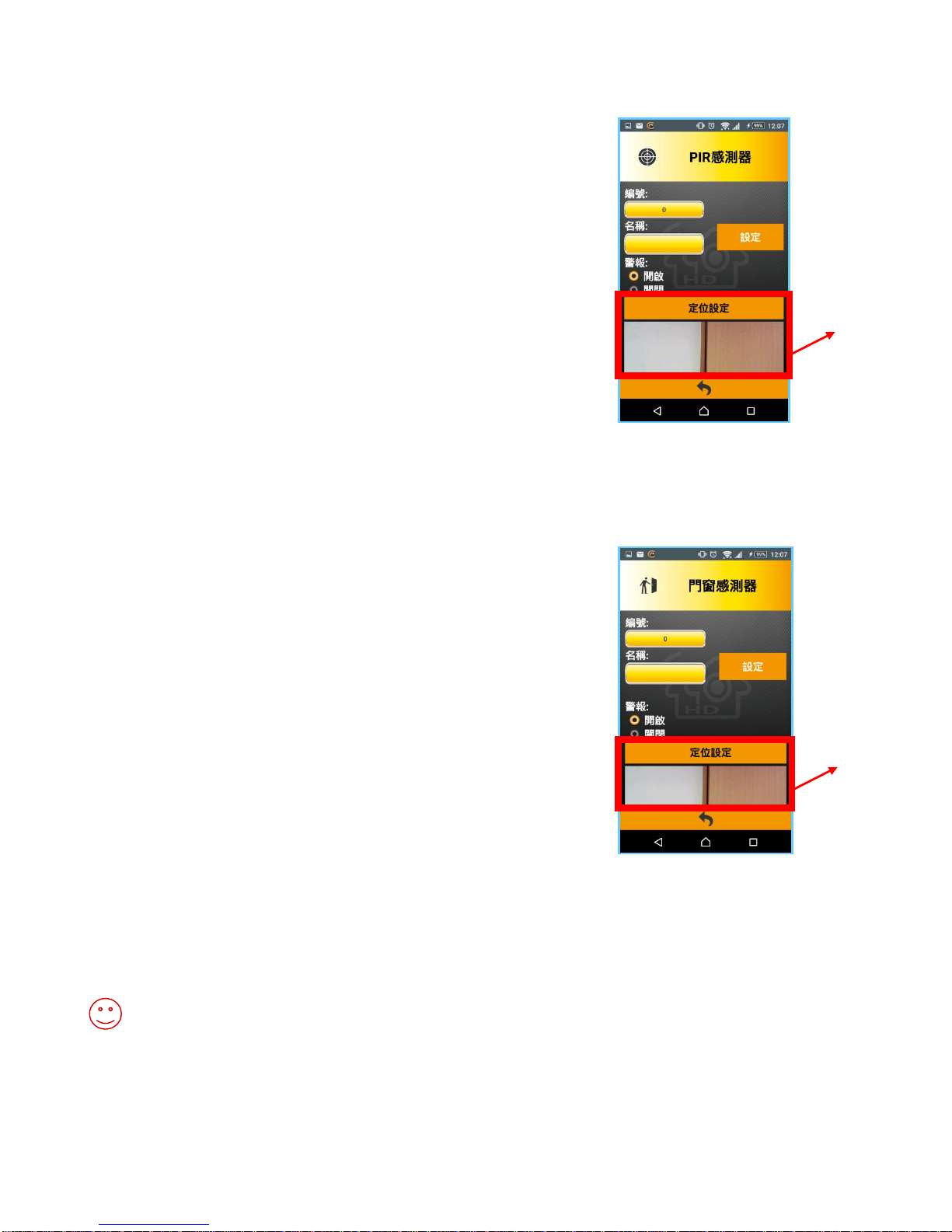

- Location：This is the position where the Camera will turn to when
this PIR unit is triggered.
- Using your finger in the Control Area, scroll the view to where you want the Camera to point to when this
sensor is triggered, then press the Location Icon to save the position.
3.5.2 Door/Window Contact Sensor
- After pairing the sensor, click “Door Open Detector” to enter the
settings interface.
- Unit: Sensor number, First one is 1，second one is 2, and so on.
- Nickname: Modify the name of the sensor; press “set” after you
have renamed the sensor.
- Alarm: Enable or Disable the sensor.
- Location：This is the position where the Camera will turn to when
this PIR unit is triggered.
- Using your finger in the Control Area, scroll the view to where you want the Camera to point to when
this sensor is triggered, then press the Location Icon to save the position.
Quick Reminder..
“Alarm” must be "Enabled" to save the “Location”. After setting the “Location”, please use
the APP function to pan or tilt the Camera. If you use external force to move the camera, the
“Location” setting will not work as intended.
Control Area
Control Area
Page 19
- 18 -
3.5.3 Thermal/Humidity Sensor

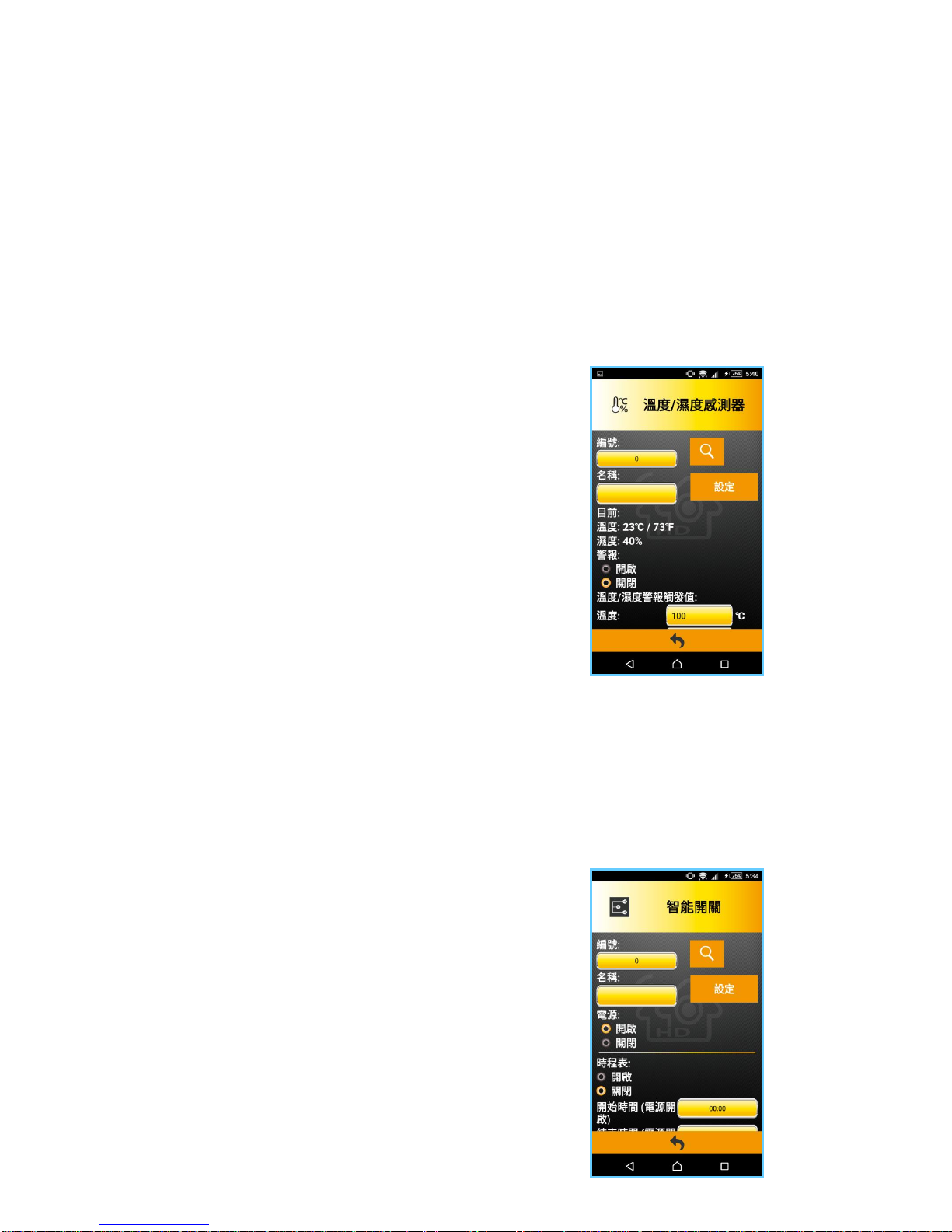

- After pairing the sensor, click “Thermal/Humidity” to enter the settings interface.
- Unit: Sensor number, First one is 1，second one is 2, and so on.
- Nickname: Modify the name of the sensor; press “set” after you have renamed the sensor.
- Alarm: Enable or Disable the sensor.
- Thermal, Humidity Threshold: used to set the temperature and/or humidity upper limit.
- When the temperature and/or humidity reaches the upper limit it will trigger an alarm.
3.5.4 Smart Plug
- After pairing the sensor, click “Smart Power Plug” to enter the settings interface.
- Unit: Sensor number, First one is 1，second one is 2, and so on.
- Nickname: Modify the name of the sensor; press “set” after you have renamed the sensor.
- Power：On or Off
- Schedule: Enter the schedule function to turn on and off.
Page 20
- 19 -
3.5.5 Remote Key
After pairing the Key, simply press the center button to turn the alarm system ON/OFF.
3.5.6 LED Smart Bulb
Employs “Grouping” concept, easy to use.

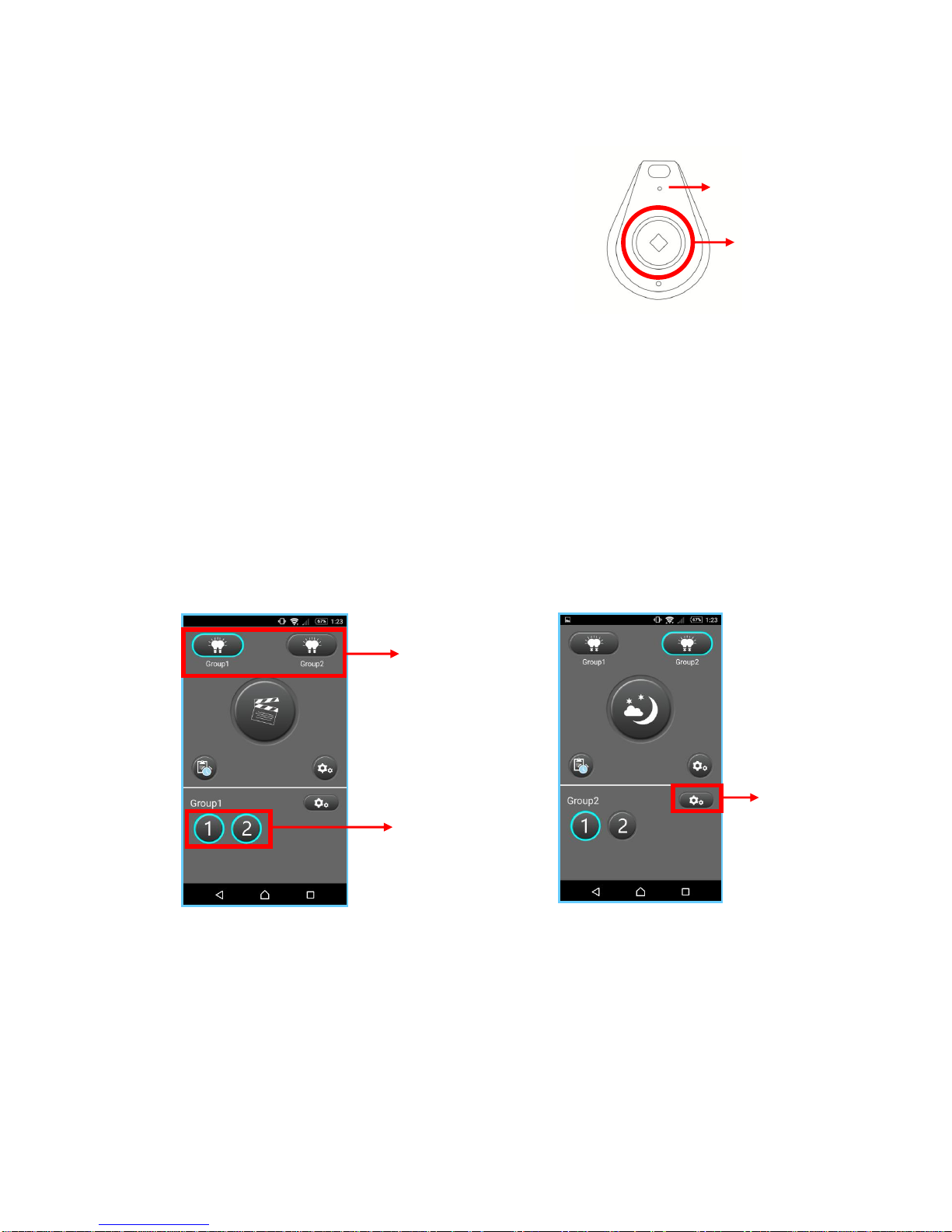

- After pairing the Smart LED Bulb, enter the settings menu. (Pictured below on left)
- First successfully paired LED will display as ○1 ，the second will display as ○2 and so on.
- The APP has two Groups, (Each Group can control 8 LEDs.)
- Group Control Settings: Select the LEDs you wish to assign to the group (the outline will be blue), then
press the save button (oblong button with gears) on the bottom-right.
The group control settings are finished. (Pictured below on the right)
- Brightness and Color Settings: (Pictured on top-half on right)
1. Up and Down: Brightness adjustment, 10 levels.
2. Left and Right: Warmth adjustment, 10 levels.
3. User can customize the desired mood lighting by adjusting the warmth and brightness.
Save Button
Group Selection
Paired LEDs
ON/OFF Button
Pairing
Page 21
- 20 -
○1 ○2 ○3
○4 ○5 ○6
- Preset Mood Light Modes:
1. ○1 ~ ○5 - are preset modes to choose from.
2. ○6 Custom Mode – First double click Custom Mode Button to enter the Custom Mode Menu.
(Pictured below, on the left)
3. User may adjust the warmth and brightness levels accordingly.
4. Press the “Custom mode On” slider to enable it. Then press the “OK” button (Save Custom Mode) on
the bottom to save the settings. (Pictured below, center)
5. Return to the main LED menu, cycle through the preset modes and the Custom Mode will show up.
(Pictured below, on the right)
the desired
mood
OFF Night Light Mode Custom Mode
Full White Mode Reading Mode Movie Mode
Custom Mode On
Page 22
- 21 -
- Schedule: Time table to choose when to turn LED ON or OFF.
1. Press the Schedule Setting Button to enter the interface.
2. User use the Time Setting Zone to choose when to turn LED ON/OFF
3. After making the adjustments, click the OK button on the bottom-right to save the schedule settings.
3.5.7 LED Remote Control
The user can also pair the LED Smart Bulb to the LED Remote Control directly,
more controls to make life more convenient.
- The first five seconds of powering on the LED Smart Bulb is for pairing to the
Remote Control. Please hold the pairing button of the desired group for three
seconds until the indicator light on the remote starts flickering, then power
on the LED Smart Bulb.
- If the LED Smart Bulb flashes yellow, it means the pairing was successful.
★ The l /O at the top is the master switch, The 4 below l/O below represent 4 different groups.
Each group can pair up to 16 LEDs; the user may pair 16 LEDs to one group, or spread them out into
the four different groups.
★ If you wish to remove the pairing(unpair) of the LED, please hold the “O” button that the LED bulb
belongs to for three seconds until the indicator light starts blinking on the remote, then power on the
LED Smart Bulb. If the LED Smart Bulb flashes white, it means the pairing was successfully removed.
Schedule Setting
Button
Pairing
Unpair
Master Switch
Time Setting Zone
Schedule ON/OFF
Switch
Custom Mode Button
Save Custom Mode
Custom Mode Setting Successful
Page 23
- 22 -
Quick Reminder..
◆ Maximum number of Smart Bulbs is 8 bulbs, when pairing to one Camera through the APP, with
two groups available for assignment.
◆ Maximum number of Smart Bulbs is 16 bulbs, when pairing directly to the Remote Control, with
four groups available for assignment.
3.5.8 Slippage Detection

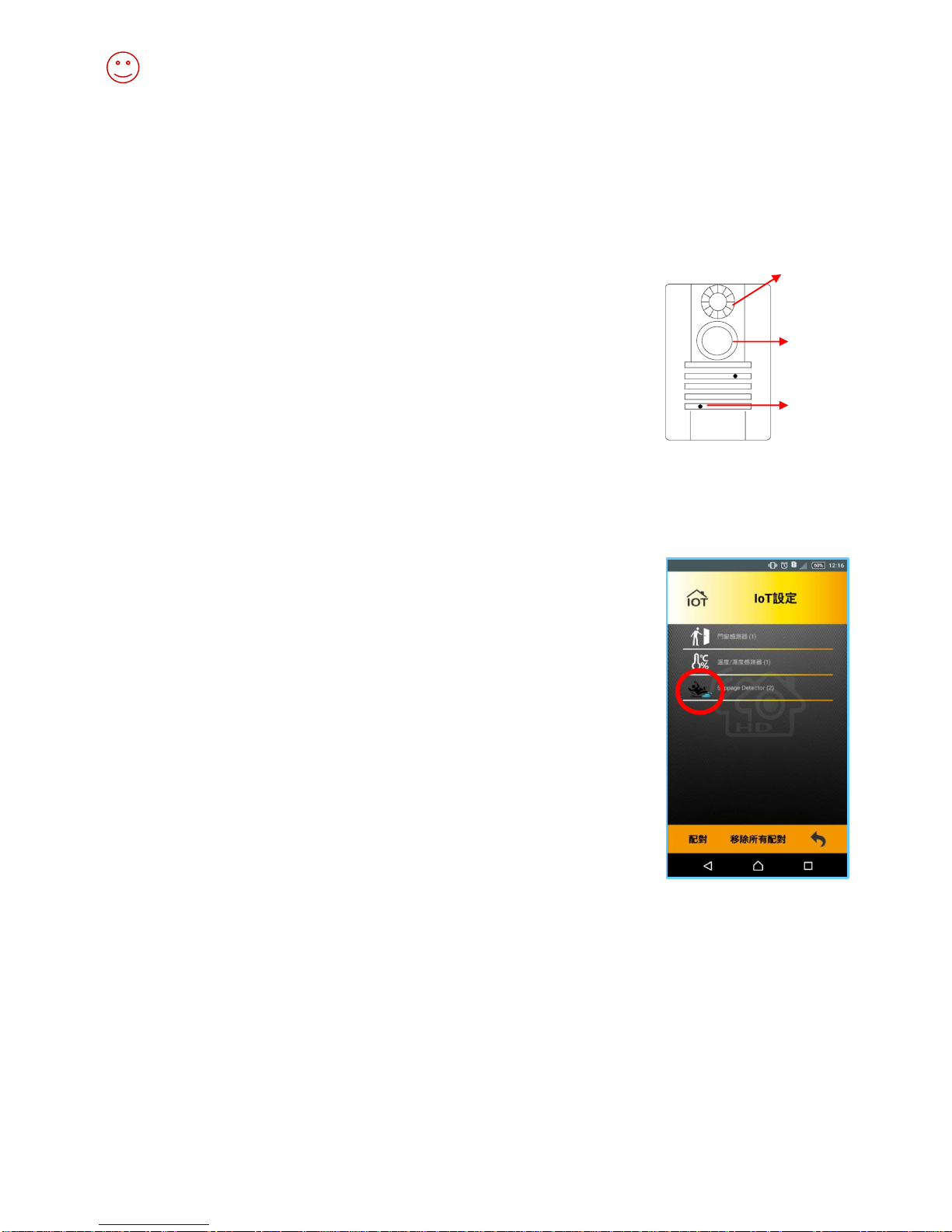

(1) Sensor Pairing
- Place the sensor within 2m of the camera and press the “Pair” button on
the APP. (Please make sure there are no obstructions between the sensor
and the camera, such as a wall partition.)
- Hold the “Pairing Button” for 3 seconds, when the indicator light turns
green the pairing was successful.
※ Supplementary Information: Sensor’s reaction to different events.
- If the PIR turns red, it means it has detected the presence of a person
and it working as intended.
- When someone slips in the the detection zone of the sensor, the indicator
light will turn red and flash twice, and turn on the Thermal Imaging Sensor.
- If someone stays still on the ground, in the detection zone for 10 seconds,
the indicator light will stay red for the 10 second detection duration.
- After the 10 second detection duration, the sensor will trigger and the
indicator light will flash red four times and at the same time send an alert
to the Camera and trigger a push notification alert.
★ Attention! The Slippage Detection must be paired first, before being installed.
PIR Sensor
Thermal Image Sensor
-Slippage Detection
Pairing Button
Page 24
- 23 -
Quick Reminder..
◆ If an elderly person has fallen down and is unable
to move for more than 10 seconds. At this point it
is recommended for the person to simply lie down
in the detection zone and not move. In order to
trigger the sensor and result in a push notification
alert.
◆ Special Situation: If the person’s waist size is too
large, detection may not be possible. Reason being the heat signature of the head may be blocked by
the stomach. Therefore in this specia situation the sensor may not be able to detect the slippage
event.
(2) Sensor Installation After Pairing.
○1 Please bring the sensor to your desired location or where slippage may
happen; for example the bathroom, or the bedside.
(Note：We will illustrate using the bathroom as an example.)
○2 After confirming the location for installation, please find a wall that is
suitable for installing the sensor where it will cover the best area to detect
a slippage.

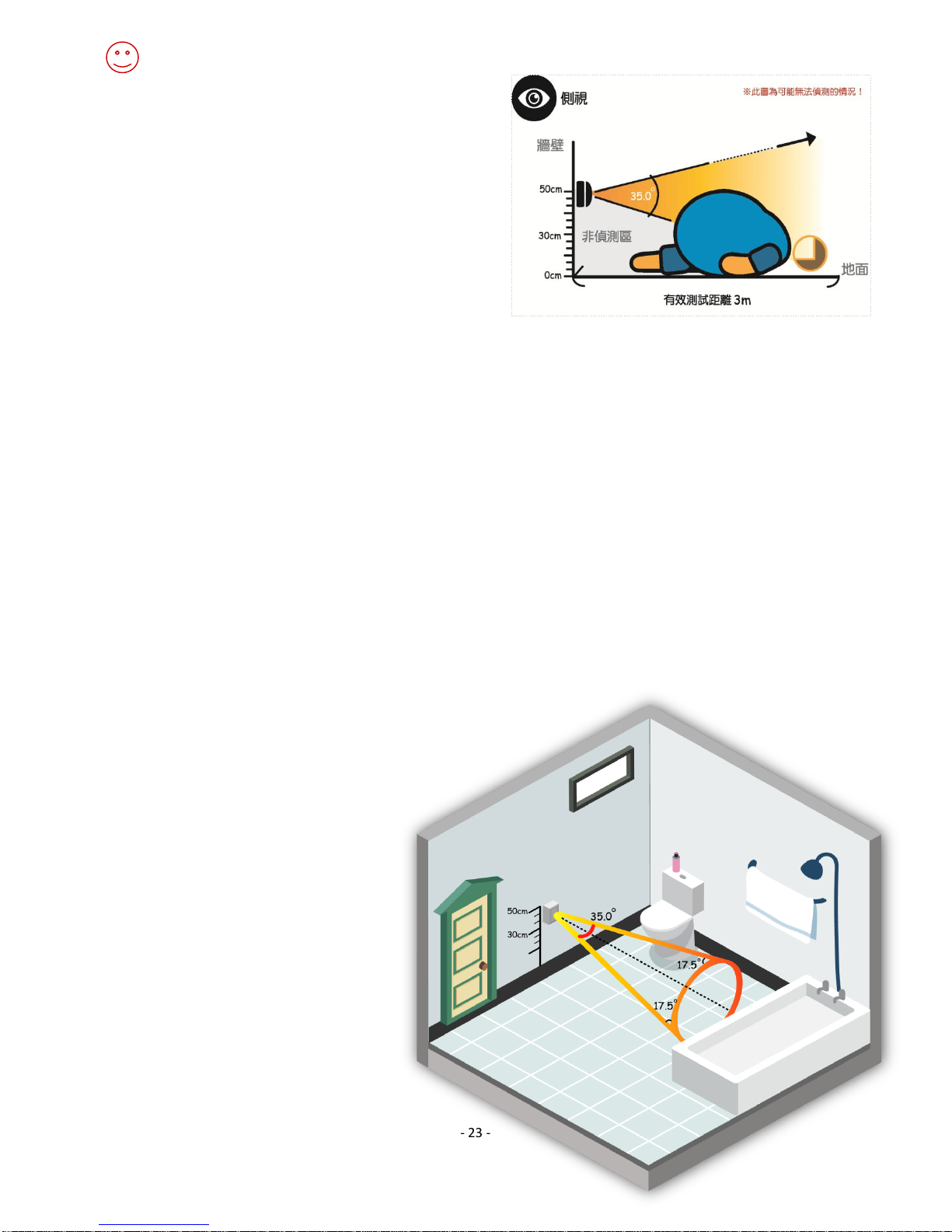

○3 Position of Sensor：Using a tape measure, find a location
40~50 cm from the base of floor. (You may make a marker)
○4 Place the top of the sensor where the marker
is, if there’s no obstruction in the way,
you may secure the sensor.
(*Refer to the following diagram
for standard installation)
★ Overall Standard
Installation Illustration
★
Page 25
- 24 -

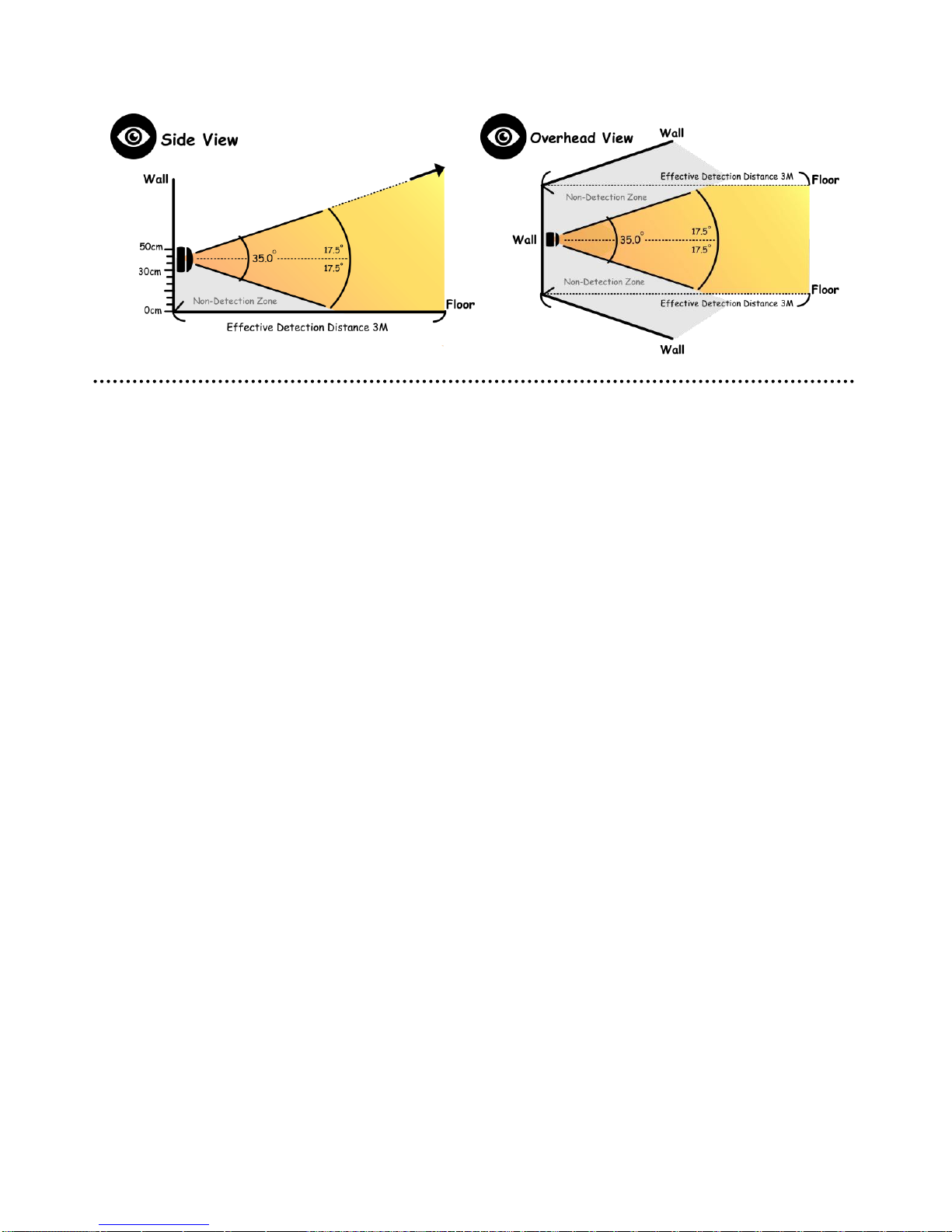

▲ Sensor Area of Effectiveness Illustration
★ Please make sure to pair the sensor within 2m of camera, place the sensor elsewhere after you have
finished pairing the sensor.
★ Please remember the sensor must be paired before installation.
Page 26
- 25 -
4. FAQ
(1) Unable to connect to the Camera under the same Router/Network.
● Please ensure the power supply has been plugged in.
● Please ensure the Camera is up and running, and the indicator light is green.
● Please ensure the Camera and the Smartphone/Tablet is within the effective range of each other.
● You may need to reset the camera, using a small object (such as a paperclip) and hold the reset button.
- Please refer to section 2.5 in the manual. (Resetting the Camera to factory settings.)
(2) In the Online Live View, smartphone/tablet is unable to connect via Wi-Fi or 3G/4G mobile networks.
● Please ensure the power supply has been plugged in.
● Please ensure the Camera is up and running, and the indicator light is green.
● Please Ensure you have entered the correct Wi-Fi password. (Please refer to section 2.Connecting the
Camera to the Internet.)
● Please Ensure the Camera is within the effective range of the Wi-Fi Router.
● Please Ensure your Smartphone/Tablet is connected to the Internet through Wi-Fi or 3G/4G Mobile
Data.
● You may need to reset the camera, using a small object (such as a paperclip) and hold the reset button.
- Please refer to section 2.5 in the manual. (Resetting the Camera to factory settings.)
- Then Refer to section 2 in the manual. (Connecting the Camera to the Internet.)
5. Maintenance and Service
● Keep children away from all parts and accessories.
● Fingerprints or dirt on the lens will have an adverse effects on picture quality, avoid touching the lens.
● If the lens is dirty, wipe the lens with a clean, soft cloth.
● Keep the Camera dry and away from precipitation, humidity, and other liquids containing minerals. They will
erode the circuits.
● Do not use in dusty, dirty areas.
● Do not place the Camera in high-temperature areas. High-temperature can shorten of the lifespan of the
electronic components and lead to deformation or melting of certain parts.
● Do not put in low-temperature areas. When the temperature warms back up and moisture is formed inside
the enclosure, it may cause damage to the circuit board.
● Do not open the enclosure, you may damage the system and void the warranty.
Page 27
- 26 -
● Avoid dropping the camera, as the impact will damage both the enclosure and the circuits.
● Operate using only the accessories and power supply that came with the original packaging.
● Do not overload the power outlets or extension cords, it will become an electric-shock hazard or fire hazard.
Loading...
