PhoCheck+ 1, 2, 3 & 5000Ex User Manual V2.1
_________
Part No 845221 www.ionscience.com
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Page 1 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Declaration of conformity
Manufacturer: Ion Science Ltd, The Way, Fowlmere, Cambridge, England. SG8 7UJ
Product: PhoCheck+ 1000, 2000, 3000 and 5000
Product description: Intrinsically safe photo-ionisation detector for detecting volatile organic compounds
Directive 94/9/EC ATEX
Identification: II 2 G Ex ia IIC T4 (-20°C ≤ Ta ≤ +60°C)
Notified Body: Baseefa Ltd, 1180, Buxton, UK
EC Type Examination Certificate(s)
Baseefa03ATEX742 latest supplement Baseefa03ATEX742/7X issued 19th November 2008
IECEx BAS 04.0033 latest revision no.4 issued 20th November 2008
Standards
BS EN 60079- 0:2006 Electrical Apparatus for Potentially Explosive Atmospheres – General Requirement
BS EN 60079- 1:2007 Explosive Atmospheres – Equipment Protection by Flameproof Enclosures ‘d’
BS EN 60079- 11:2007 Explosive Atmospheres – Equipment Protection by Intrinsic Safety ‘i’
BS EN 61010- 1:2001 Safety requirements for electrical equipment for measurement, control and
Laboratory use – General requirements
Directive 2004/108EC Electrical Equipment – Electromagnetic Compatibility (EMC)
BS EN 61326- 1:2006 Electrical equipment for measurement, control and laboratory use – EMC
Requirements (Class B and General Immunity)
Other Standards
BS EN ISO 9001:2000 Quality Management Systems – Requirements
BS EN 13980:2002 Potentially Explosive Atmospheres – Application of Quality Systems
On behalf of Ion Science Ltd, I declare that, on the date this product accompanied by this declaration is placed on the
market, the product conforms to all technical and regulatory requirements of the above listed directives.
Name: Mark Stockdale Position: Technical Director
Signature: Date: 20th November 2008
Page 2 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Contents Page
Declaration of Conformity . . . . 2
ATEX intrinsic safety ratings . . 2
EMC Emissions and Immunity . . 2
Statements . . . . . 5
Responsibility for use . . . 5
Warnings . . . . 5
Caution . . . . . 5
Quality Ass urance . . . 6
Disposal . . . . 6
Calibration Facility . . . 6
Ion Science Contact Details . . 6
Introduction to PhoCheck+. . . . 7
Getting Started . . . . . 8
Instrument Functions . . . . 10
Quick Reference . . . . . 13
Instrument Displays . . . . 15
Symbols Explained . . . 15
Instrument Menu . . . . . 18
Data logging . . . . 18
View Data . . . . 18
Zone Maintenance . . . 19
Data Transfer . . . . 20
Alarm . . . . . 20
Sound (Confidence Beep) . . 21
Calibration . . . . 21
Back-light . . . . 24
PID Gas Selection . . . 24
PID Lamp . . . . 25
Unit Selector . . . . 25
Data Log Memory Alarm . . . 25
Packing List . . . . 8
Removing PhoCheck+ from its case . 8
Setting alarm levels . . . 9
Setting date and time . . . 9
Selecting a gas . . . . 9
Rechargeable Batteries . . . 9
Alkaline Batteries . . . 9
Keypad Function Descriptions. . . 10
Function Locations . . . 11
How the PhoCheck+ Menu Works . 12

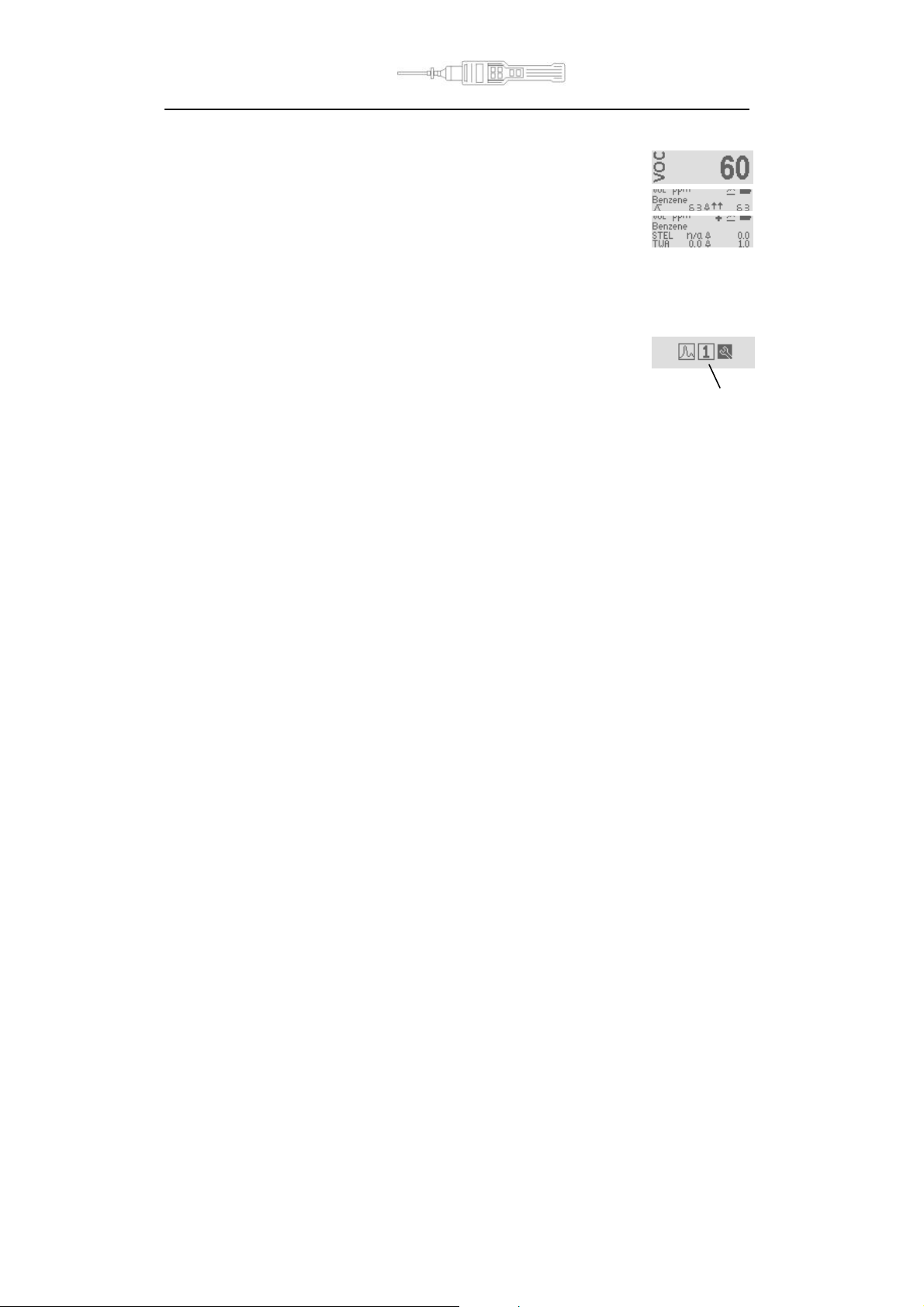

Graph Screen. . . . . 16
Large Number Screen . . . 17
Function Menu . . . . 17
Date / Time . . . . 24
Application (Health & Safety). . . 26
Application (Survey) . . . 26
Security . . . . 26
Page 3 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Contents Page
IonPC Software . . . . . 27
PC Requirements . . . 27
Installation . . . . 27
Connection . . . . 28
Starting . . . . . 28
IonPC Software Features . . . . 29
Download data logged readings . . 29
File . . . . . 30
Calibration . . . . 30
Data . . . . . 31

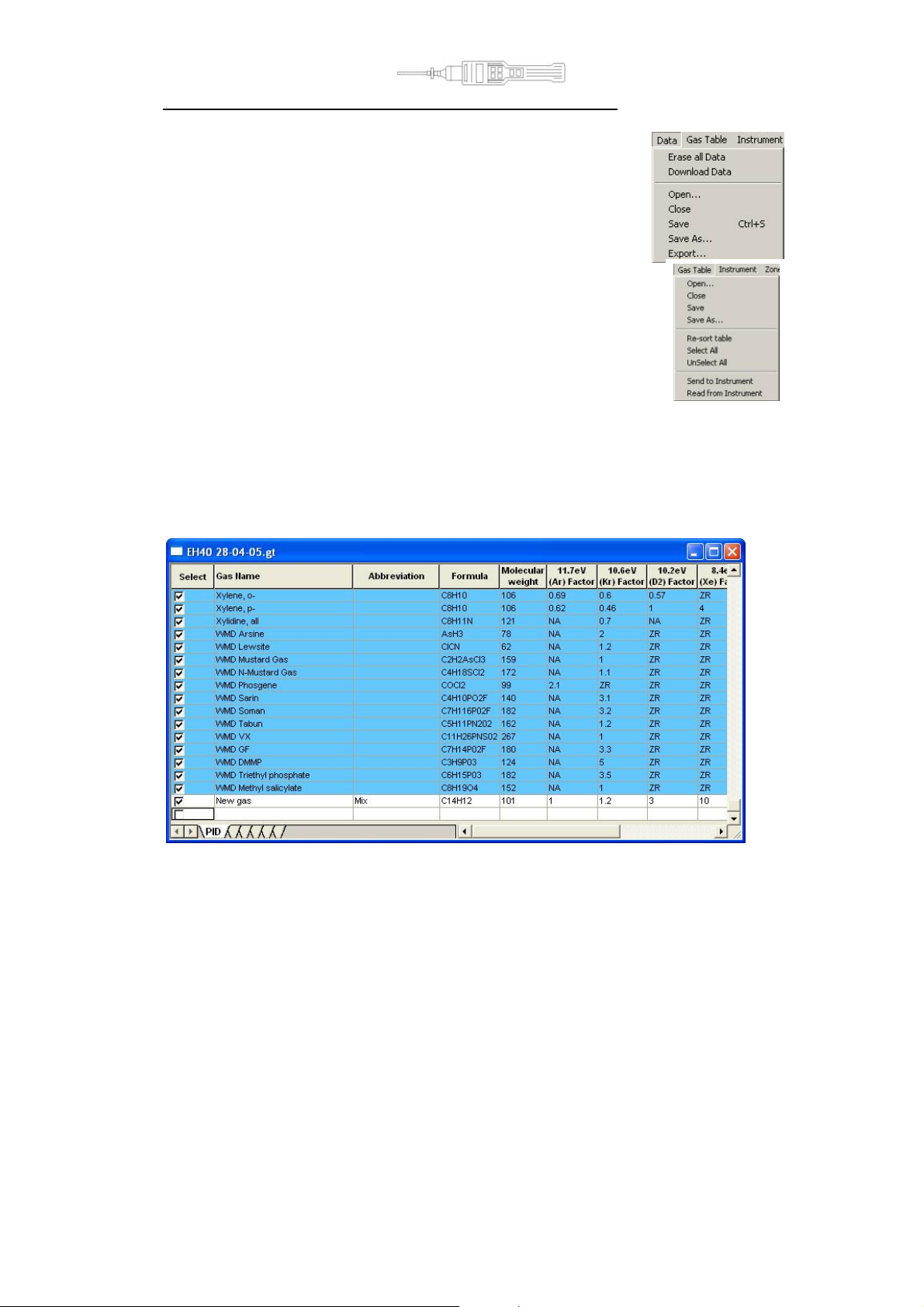

Gas Table (and setting alarm levels) . 31
Instrument . . . . 32

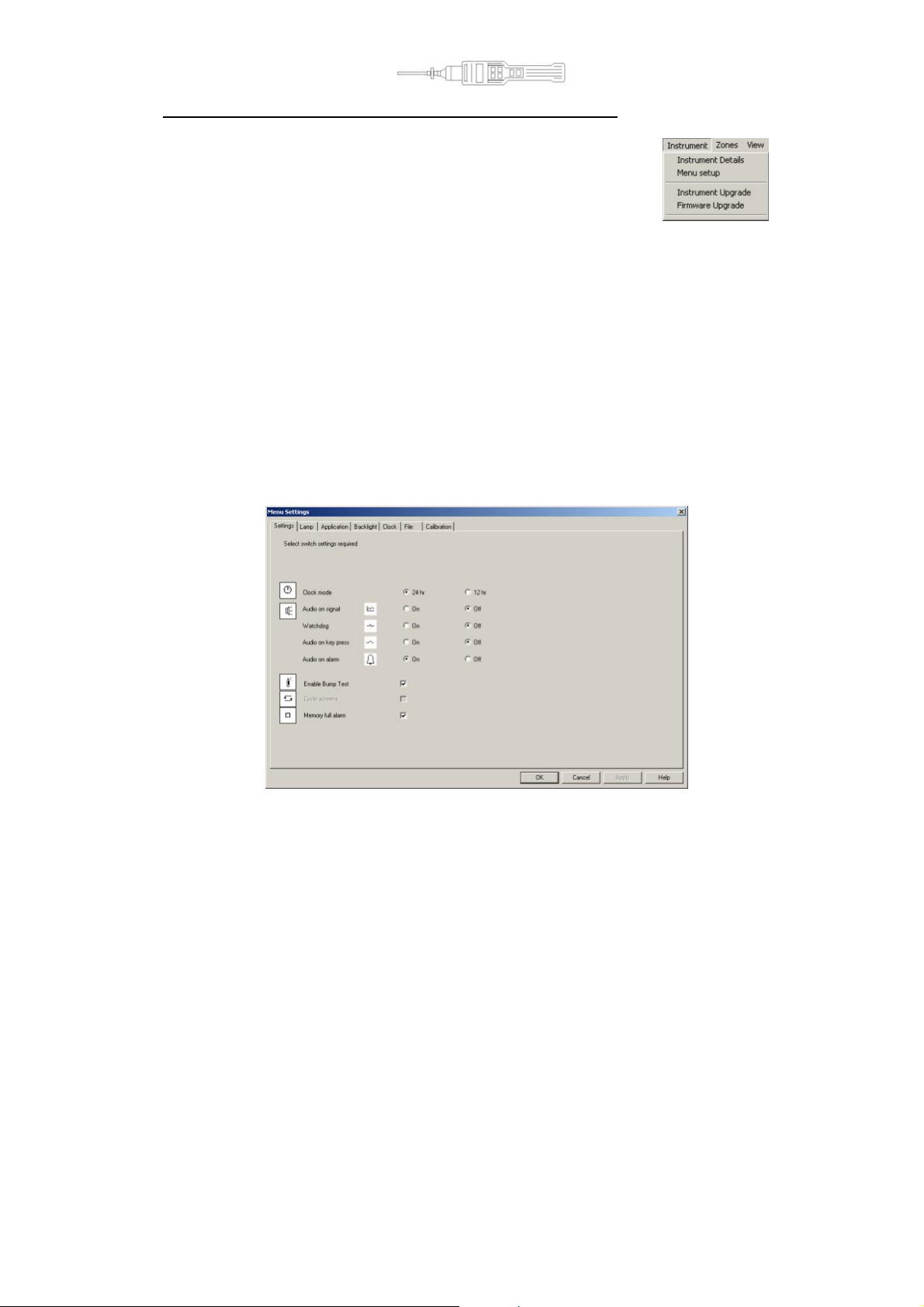

Menu Set-up . . . . 32
Settings. . . . 32

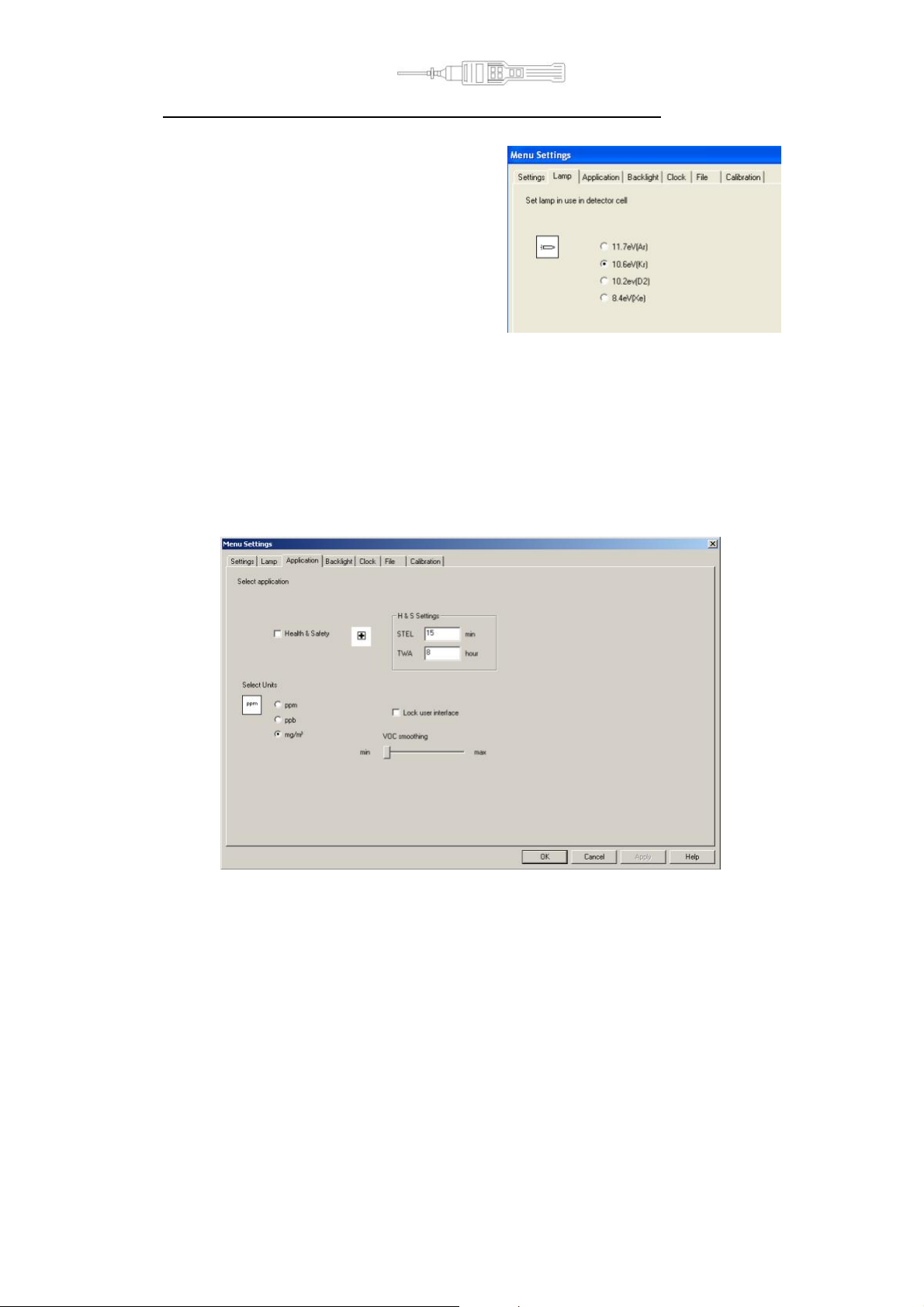

Lamp . . . . 33
Applications . . . 33

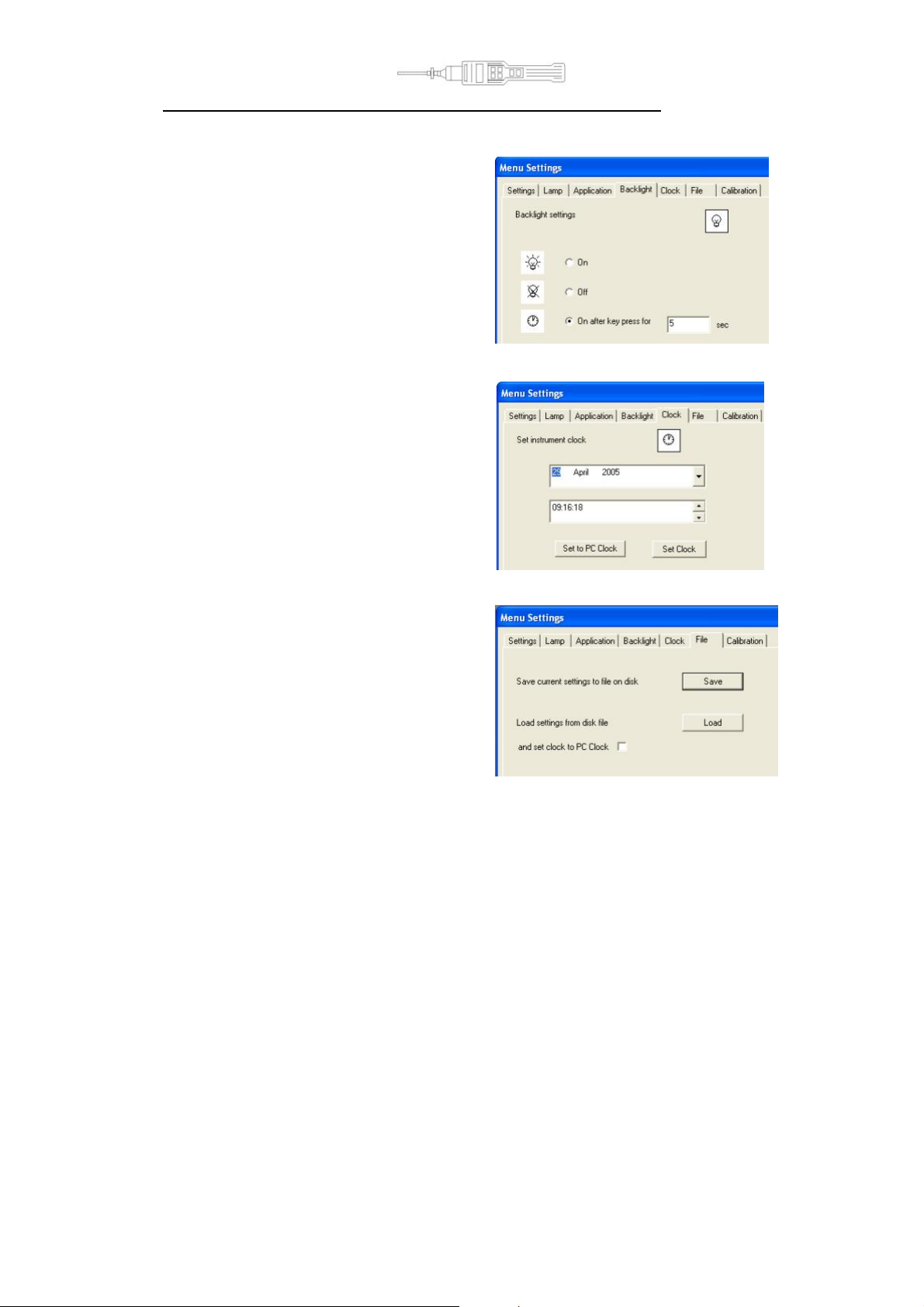

Backlight . . . 34
Setting the clock . . 34
File . . . . 34

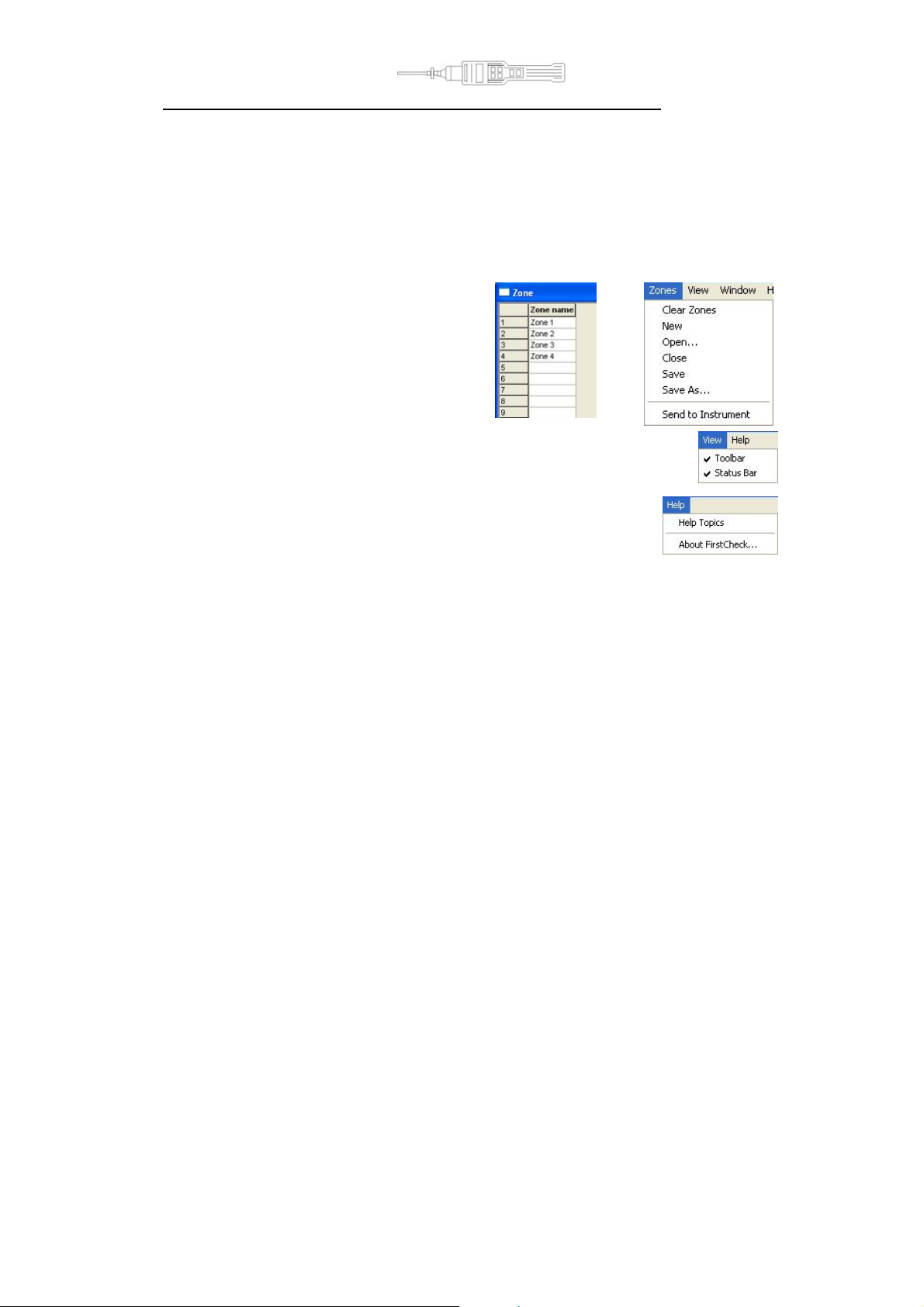

Zones . . . . . 35
View . . . . . 35
Help . . . . . 35
Software disclaimers . . . 36
Batteries . . . . . . 38
Diagnostics . . . . . 40
Maintenance . . . . . 43
Accessories . . . . . 46

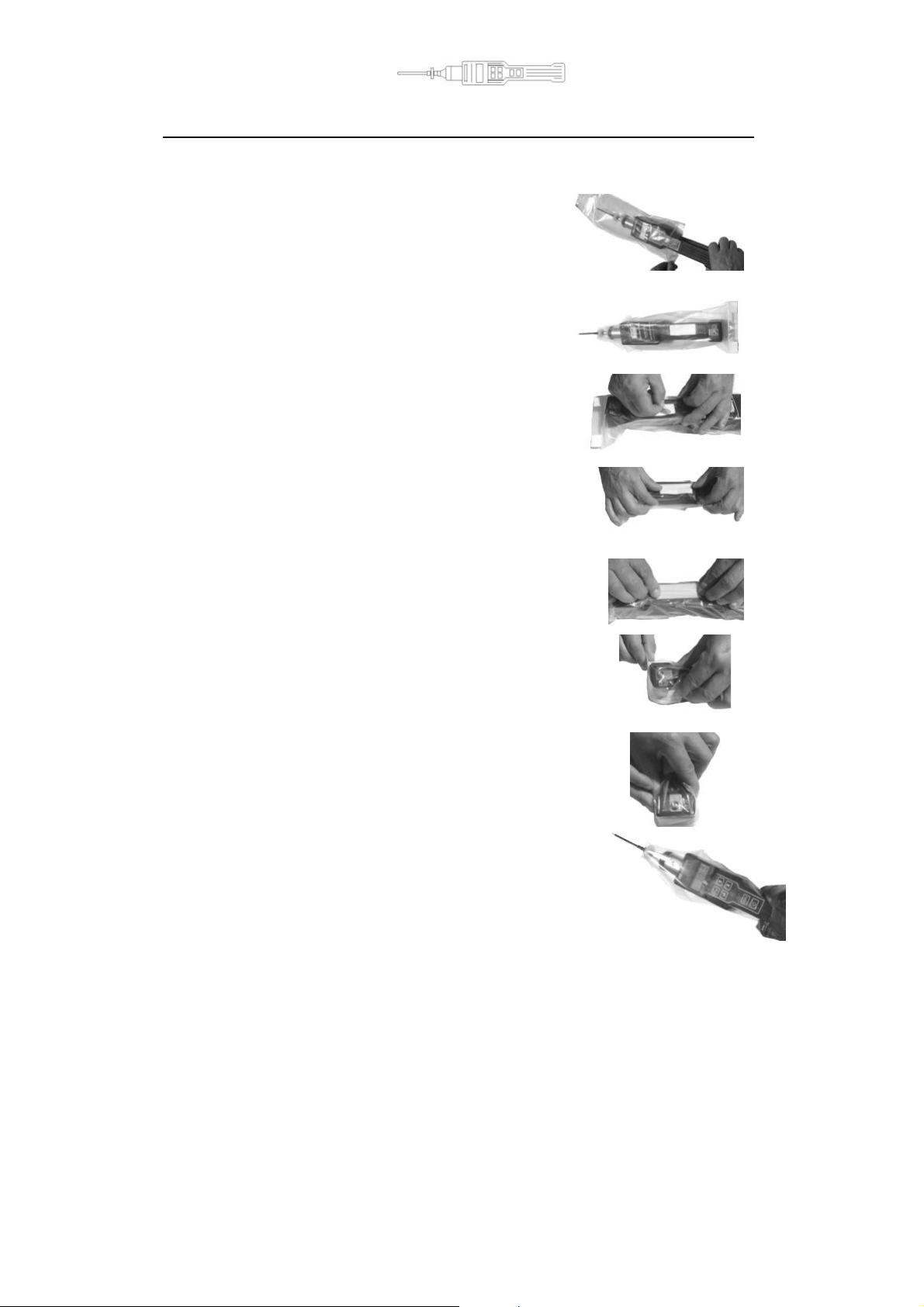

IS protective cover instructions . . . 47

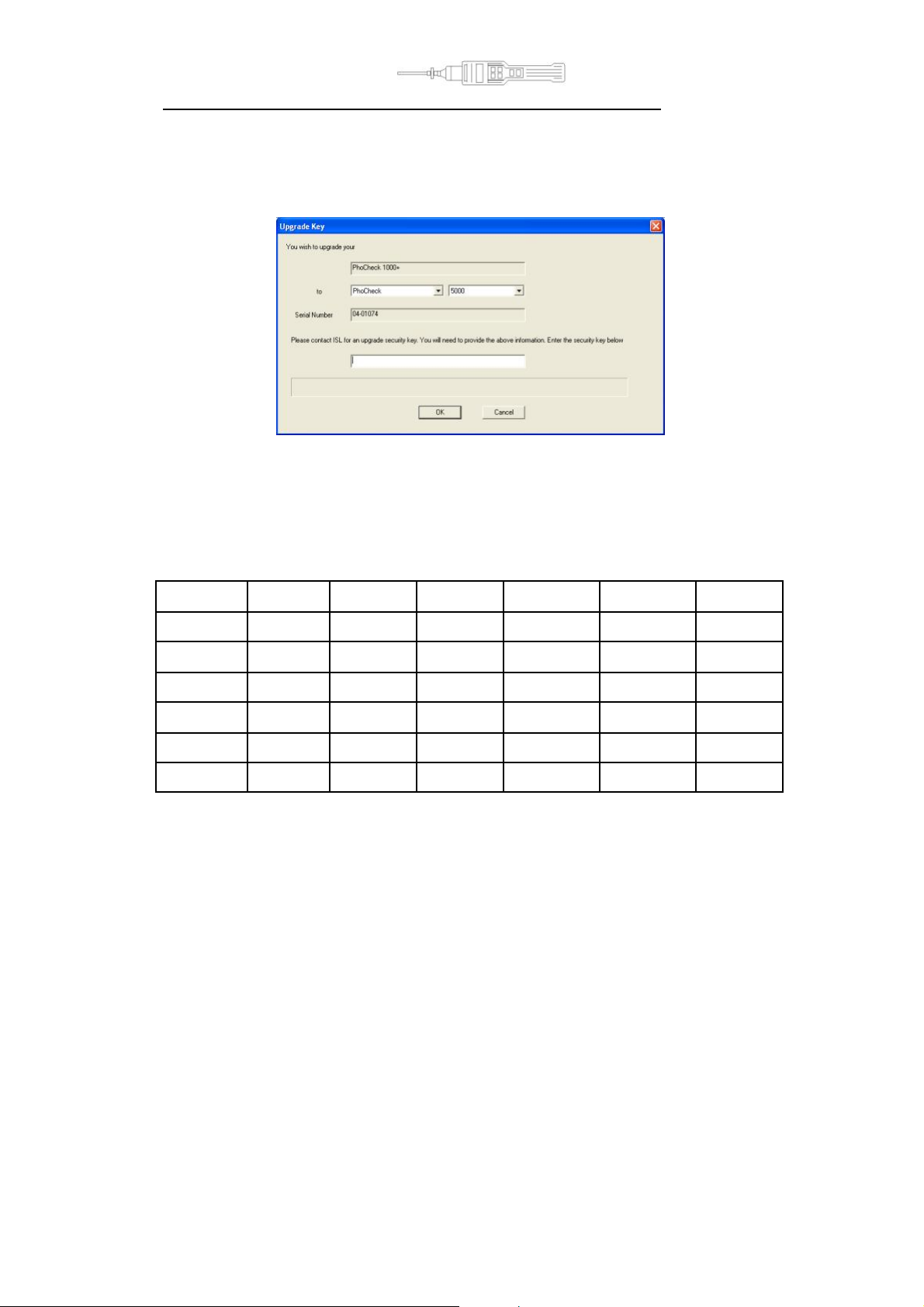

Upgrade Options . . . . . 48
Service Options . . . . . 49
Technical Specification . . . . 50
Page 4 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Statements _____
Responsibility for Use
PhoCheck+ instruments detect a large range of gases, w hich are potentially dangerous from both a
poisoning and/or a n explosive perspective. PhoCheck+ instruments have many adjustable and selectable
features allowing the detector to be used in a variety of ways.
Ion Science Ltd can accept no responsibility for the incorrect adjustment of features that cause harm or
damage to persons or property.
PhoCheck+ can be used as a personal safety device. It is the user’s responsibility to respond appropriately t o
an alarm situation.
! WARNINGS!
1. For reasons of Intrinsic Safety, batteries MUST NOT be charged or replaced within potentially
flammable areas. Ensure you are in a SAFE area before carrying out any type of maintenance on
the PhoCheck+ instrument.
2. Substitution of components may impair intrinsic safety and result in unsafe conditions.
3. For safety reasons, the PhoCheck+ must only be operated and serviced by qualified personnel.
4. Please read and understand this User Manual fully before operating or servicing the PhoCheck+.
! CAUTION!
It is essential that the PhoCheck+ is always used with a supplied PTFE 0.5 micron filter fitted to the front of
the instrument. The PhoCheck+ internal pump draws over 200 ml/min of air into the instrument and without
a filter; particles of debris and dust will be drawn into the cell inhib iting the correct function of the
instrument. These filters are consumable and should be changed every 100 hours of use. The frequency of
replacement should be increased for dusty or moisture laden environments. Filters are available for purchase
from Ion Science; see our accessories page (pg 46) for more information.
Page 5 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Statements _____
Quality Assurance
PhoCheck+ has been ma nufactured in compliance with ISO9001:2000, which ensures that t he e quipme nt
supplied to our customers has been designed and assembled reproducibly, from traceable components, and
leaves Ion Science calibrated to stated standards.
Disposal
Dispose of PhoCheck+, its components and any used batteries in accordance with all local and national
safety and environmental requirements. This includes the European W EEE (Waste Electrical and Electronic
Equipment) directive. Ion Science Ltd offers a take back service. Please contact us for more information.
The PhoCheck+ field case material is recyclable polypropylene.
Calibration Facility
Ion Science Ltd offers a calibration service including the issue of certification confirming calibration with
equipment traceable to UK national standards.
A PhoCheck+ Calibration Kit is available from Ion Science to allow a two-point calibration to be carried out in
the field as a custom calibration. However Ion Science does recommend the annual return of all instruments
for a yearly service and calibration.
Contact Ion Science Ltd
By Post Ion Science Ltd
The Way
Fowlmere
Cambridge
SG8 7UJ
By Telephone +44 (0) 1763 208503
By Fax +44 (0) 1763 208814
By Email info@ionscience.com
UK
Page 6 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Introduction to PhoCheck+_________________________________________
PhoCheck+ is a portable gas detector, suitable for the detection of a large range of Volatile Organic
Compounds (VOC's), which are dangerous from both a poisoning and explosive perspective. Total VOC’s are
detected using PID (Photo Ionisation Detection) technology.
The PhoC heck+ versions are fully upgradeable in the field (i.e. PhoCheck+ 1000 to a 5000 or a 2000 to a
3000 etc). Also available is the option to upgrade to the FirstCheck+ multigas range of instruments upo n
return of your instrument to Ion Science. Please see page 48 for more details relating to upgrade options.
PhoCheck+ has two principle modes of operation, Health & Safety and Survey mode.
Health & Safety mode is used to check for conformity of short-term exposure levels (STEL) or time-weighted
averages (TWA) that are specific for particular hazardous e nvironments (for example EH40 in the UK and
OSHA in the USA). In this mode of operation STEL's and TWA's are continually calculated and compared t o
levels set in the instruments gas table.
Survey is the default mode of operation whenever the Health & Safety mode is NOT selected. This mode is
often used in applications where several areas (or Zones) are to be monitored and readings data logged. All
sensor readings are real time measurements and alarm levels are set manually.
For more information on these modes of operation please see page 25.
PhoCheck+ versions 2000, 3000 and 5000 automatically data log the instruments readings every second.
These readings are stored in the instrument's memory with a date a nd time stamp. For more i nformation
please see page 17.
Page 7 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Getting started _____
Packing List
Please take a little time to check the contents in the PhoCheck+ case.
Item Description Qty.
1. PhoCheck+ instrument 1
2. PID lamp (fitted) 1
3. Probe - 100mm (fitted) 1
4. PTFE filter - 50 micron (fitted) 1
5. Battery charger (if rechargeable type) 1
6. Battery clip (if non-rechargeable) 1
7. Screw driver (if non-rechargeable) 1
8. Manual 1
9. IonPC software CD 1
10. IS Protective Cover 1
11. Cal Kit Sample containing:
· PID lamp cleaning Kit (Includes alumina
powder and 2 applicators f or 1 clean) 1
· Carbon canister 1
· PTFE filter – 50 micron 1
· Cal adaptor* 1
·
Lamp removal tools (neoprene sleeves) 2
* Please note that the Cal adaptor is to be used in conjunction with a PhoCheck+ Calibration Kit accessory
(part number A-845213). WARNING: when fitting the Cal adaptor onto the gas tube (part of the
Calibration kit) ensure that the small breather hole of the Cal adaptor is not covered as this will cause the
instruments internal pump to be damaged beyond repair. Your warranty will be invalidated if the pump is
damaged in this way.
Removing the PhoCheck+ from its case
Carefully remove the PhoCheck+ instrument from its case being careful not to damage the filter and probe
assembly. 'Luer' type connectors are used to connect the PhoCheck+, filter and probe together and require a
quarter-turn ONLY to connect / disconnect them. Do not over tighten.
To avoid drawing dust or particulate matter into the detector cell we suggest always fitting the filter with the
Ion Science logo facing away from the instrument, therefore dust only collects on the same one side of the
filter and is not inadvertently drawn into the instrument if the filter is attached the other way round.
Page 8 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Getting started
1. Turn the instrument on by pressing the key.
2. Press and hold the key and check the correct gas, alarm levels and zero mode are selected.
3. The screen will flash for 1 minute while the detector warms up – check for a reading on the display
Between 0.2ppm and 2ppm.
4. Replace the probe and filter with the blue carbon f ilter – check for a reading from 0.0 to 0.2ppm.
5. Remove the carbon filter and replace the probe and filter.
6. If the results are not as expected, perform a custom calibration first ensuring the correct gas is
selected.
Setting alarm levels
We recommend that alarm levels are set to user specifications as soon as possible before being used f or the
first time. Please see page 19 for details of how to set alarm levels.
Setting date and time
We recommend that the correct local date and time be set to the instrument as soon as possible before
being used for the first time. Please see page 23 for details on how to set the date and time.
Selecting a gas from the internal gas table
PhoCheck+ instruments leave Ion Science pre-set for gas type TVOC (total volatile organic compounds).
Instruments are factory calibrated against isobutylene and all response factors are equivalent to this . By
changing the gas from the gas table all readings will be given using that gases response factor. To change
the selected gas please see pages 23 & 24.

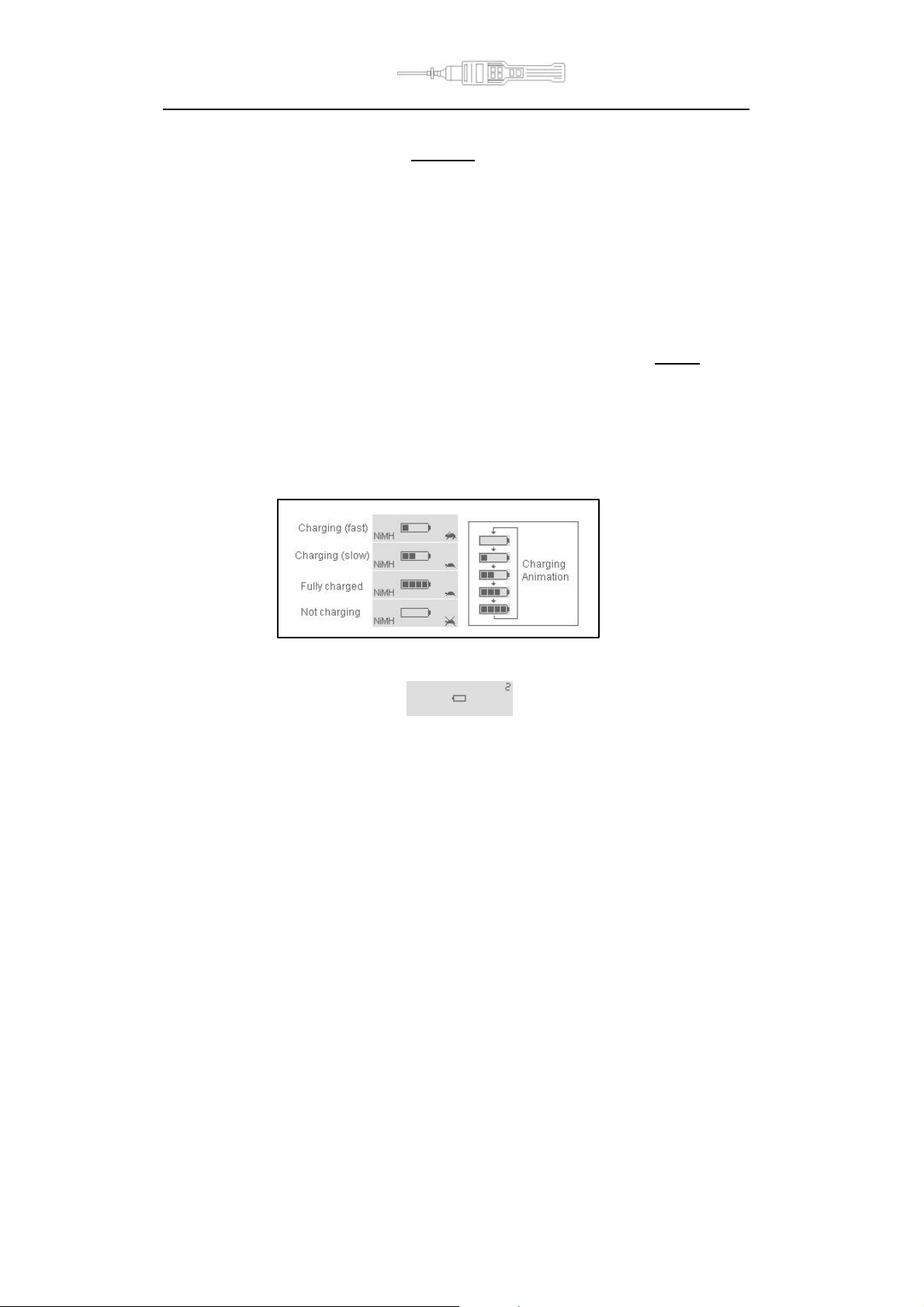

Rechargeable Batteries
Although PhoCheck+ instruments leave the factory fully charged, prolonged periods of storage may result in
the battery pack discharging. We recommend charging the instrument for 12 hours before use. See the
battery section of this manual page 38.
Alkaline Batteries
Fit the battery pack supplied with the PhoCheck+. For more information please see the battery s ection of
this manual page 38.
Page 9 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Delay
Instrument Functions _____
Keypad function descriptions
On/Off.
To switch the PhoCheck+ instrument 'ON' - Press the 'ON/OFF' key.
To switch the PhoCheck+ instrument 'OFF' - Ensure you are on the ‘Display/Function
Selection screen’ or a Display s creen. Press and hold the 'ON/OFF' key. A 'Timer' symbol
will appear and a line will travel across the bottom on the screen, release the 'ON/OFF'
button once the line has travelled the length of the screen. The ‘Delay’ symbol will briefly
appear before the instrument turns ‘OFF’ completely. This procedure has been designed
to avoid accidental switch OFF.
ENTER
This key selects options and confirms settings.
ESCAPE
This key is used to return the display to the previous screen and to abort an adjustment.
Repeated pressing of this key will return the display to the 'Display/Function Selection
screen'.
UP
Use to scroll up or changes selection
DOWN
Use to scroll down or changes selection
ZERO
Pressing the Zero key Zeros -out background readings. See the 'Instrument
Displays' section of this manual for mor e detail (Page 15)
Symbol
Page 10 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
LEL Gas Selection (P26)
Display/Function
View Data (P 17)
Zone Maintenance (P 18)
Data Transfer (P 19)
Alarm (P 19)
Sound (P 20)
Calibration (P 20)
Back-light (P 23)
Date & Time (P 23)
Gas Selection (P 23)
PID Lamp (P 24)
Units (P 24)
Data Log Memory Alarm
Application mode -
Instrument Functions _____
Function locations
Selection (P 14)
H & S or Survey (P 25)
From the ‘Display/Function Selection' screen highlight the function menu icon then press ‘Enter’, use the
'Up/Down' keys to view the available functions then press 'Enter' to select the function options
(P 25)
Page 11 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Fig 1
Fig 2
Instrument Functions _____
How the PhoCheck+ Menu Works
Once in the function menu with the function-s ymbol you require on the screen press
the 'Enter' key to select it. (See Figure 1.)
A cursor (highlighted symbol or number) can be moved from one selection
to another by using the 'UP' and 'DOWN' keys. (See Fi gure 2.) Pressin g
'Enter' will cause the selection to flash.
When flashing use the 'UP' and 'DOWN' keys to adjust it.
When you have adjusted the parameter to an acceptable level press the 'Enter' key. The adjusted parameter
will be stored. In many cases a tick (ü) will appear to confirm the action.
Although there is a variation in complexity of some functions, this basic concept of selection, adjustment and
confirmation is common throughout this instrument.
You can abort a selection by pressing the 'Escape' (Esc) key.
Page 12 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Quick Reference _____
This quick reference indicates which functions are relevant to which instruments.
1 = PhoCheck+ 1000 2 = PhoCheck+ 2000 3 = PhoCheck+ 3000 5 = PhoCheck+ 5000
Display/Function Selection 1, 2, 3, & 5(Page 14)
Allows the user to view detected VOC levels in either graph or number
format and to adjust the instrument functions and parameters.
View Data 2, 3 & 5 (Page 17)
Allows viewing of stored data in the instruments internal memory.
Zone Maintenance 2, 3 & 5 (Page 18)
Allows the creation, selection and deletion of Zone names.

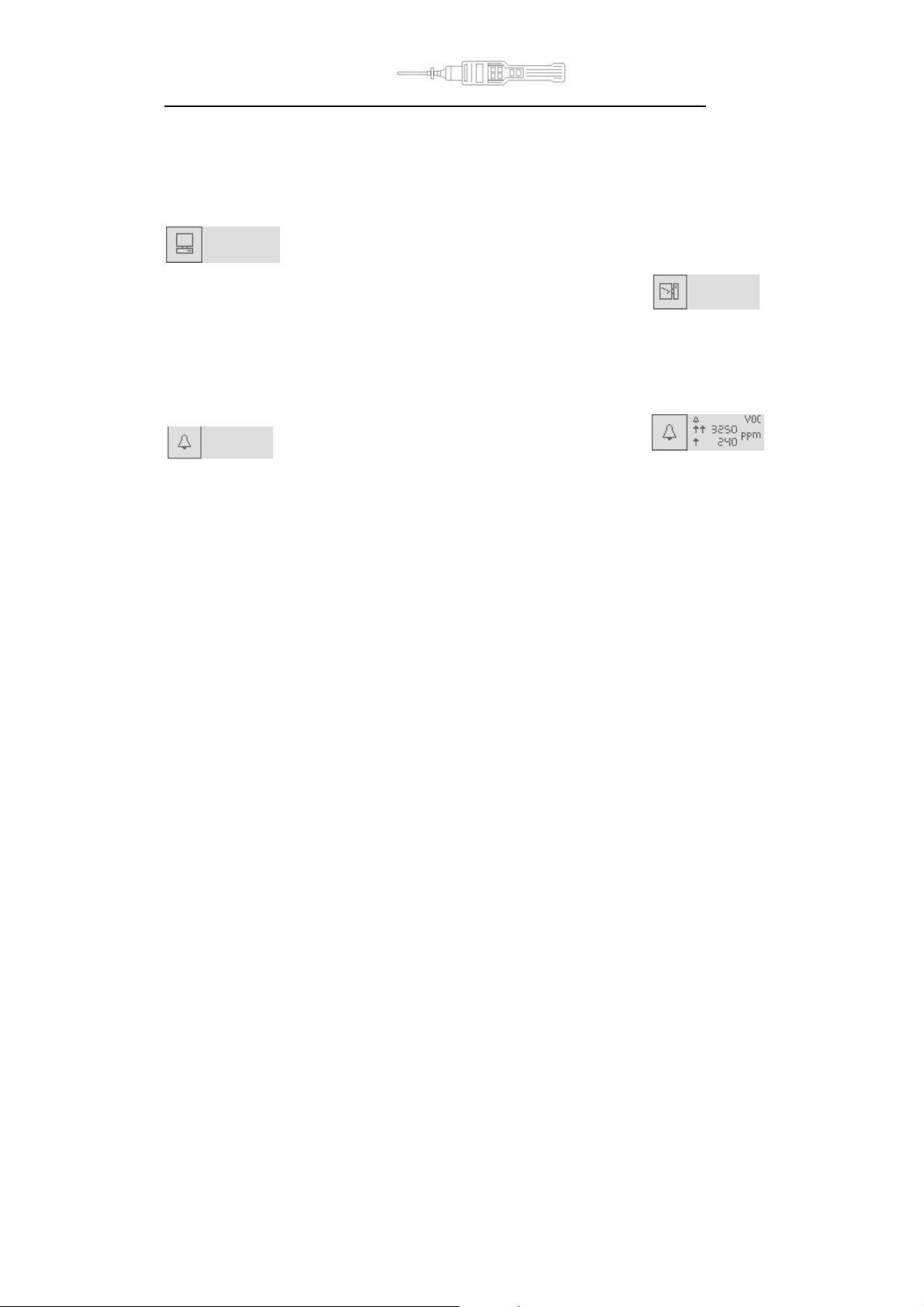

Data Transfer 1, 2, 3 & 5 (Page 19)
Enables data transfer between instrument and PC/laptop.
Alarm 1, 2, 3 & 5 (Page 19)
Allows the adjustment of upper and lower Alarm levels in survey mode.
Sound 1, 2, 3 & 5 (Page 20)
Allows the selection of audible indicators including a confidence beep.
Calibration 1, 2, 3 & 5 (Page 20)
Allows the selection of Factory or Custom calibration
.
Page 13 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Quick Reference _____

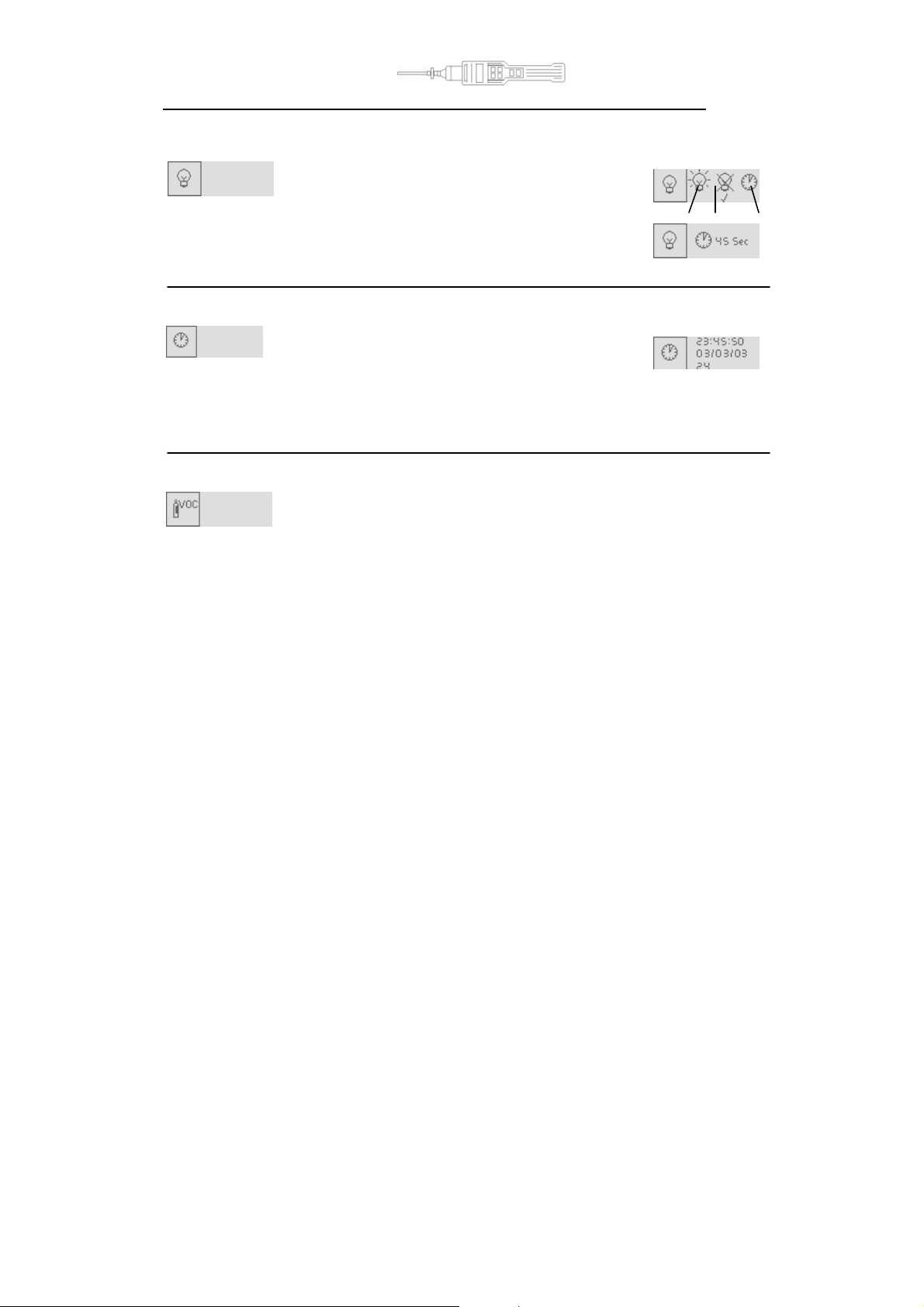

Back-ligh t 1, 2, 3 & 5 (Page 23)
Allows the selection of back-light options.
Date / Time 2, 3 & 5 (Page 23)
Allows the adjustment of the date and time.
PID Gas Selection 1, 2, 3 & 5 (Page 23)
Allows the selection of gases from the internal gas table.
PID Lamp 2, 3 & 4 (Page 24)
Allows the selection of different PID lamps.
Units 1, 2, 3 & 5 (Page 24)
Allows the selection of ppb, ppm or mg/m3 as measurement units.
Data log Memory Alarm 2, 3, & 5 (Page 25)
Allows the setting of an alarm to warn t he user when the data logging
memory is full.
Application 3 & 5 (Page 25)
Allows the selection of modes of operation, ‘Health and Safety’ for STEL and
TWA monitoring or ‘Survey’ for general use. The PhoCheck+ 1000 & 2000
instruments do not have Health & Safety mode as standard and are Survey
instruments only, however Health and Safety mode is an upgradeable
feature.
Page 14 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Graph
Large Number
Funct io n menu
Charged
Discharge d
Instrument Displays
Display/Function Selection Screen
The 'Display/Function Selection screen' is s hown when the PhoCheck+ is switched on and can always be
located by repeatedly pressing the 'Esc' (Escape) key. The 'Display/Function screen' allows the user to view
detected gas levels in a variety of formats or to adjust the instruments functions and parameters. The
symbols shown on this screen can be selected using the UP and DOWN keys. The highlighted symbol
appears as shown in the example below for the function menu.
Screen
Instrument Symbols Explained
A number of symbols are used to indicate various features when in the viewing screens. Please see an
explanation of each below.
Bump test
This symbol of a gas bottle can be set via the IonPC software to be displayed once a week when th e
instrument is turned on. This is to remind the user to test the instrument responses accurately when it is
supplied with gas. See page 32 of the software section for more information.
Battery Status
The battery status indicator can be accessed by pressing and holding Enter on the graph and the large number
screens.
Peak Hold
The numerical measurement to the right of this symbol indicates the highest gas concentration reached by
the instrument since being switched ON. This 'Peak' reading can be reset by pressing and holding the 'Enter'
key for 5 seconds.
Page 15 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Relative
Absolute
Indicates that 'He alth & S afety ' mode is s elected
Instrument Displays _____
Background Zero Reference
When in 'Survey' mode pressing the 'Zero' key alternates
between 'Relative' and 'Absolute' modes. There is a constant
level of detectable gas in ambient air, w hich is detectable with
PhoCheck+. 'Absolute mode' displays the entire sensor signal.
'Relative' mode 'removes' the background signal and sets the
'Zero' point at an artificial level.
Alarm arrows
The arrows represent the importance level of the alarm. The single arrow represents the lower alarm and
the two arrows represent the upper alarm.
Upper a nd lo wer
alarm levels
Application
When the symbol is present the instrument is in 'Health & Safety' mode. When it is absent the instrument reverts
to 'Survey' mode. Please see Application section of this manual for more information (page 25).
Display Screens Explained
Graph Screen
Allows the viewing of real-time measurements in graph format
relative to the set alarm levels.
When in 'Survey' mode (see page 25) the type of gas being
detected, the measured units, the peak hold and real-time
readings are also displayed.
Additional information such as alarm levels and battery status
can be viewed by pressing and holding the Enter key.
When i n 'Health & Safety' mode (see page 25) the on screen inf ormation is slightly
different as STEL and TWA calculations are displayed in figures and the graph
remains in real time. Again additional information can be viewed by pressing and
holding the Enter Key.
Page 16 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
menu
Instrument Displays __
Large Number Screen
Enables the viewing of real time measurements in large numerical format for easy
viewing in difficult conditions.
Additional information such as alarm levels, battery status and a
peak hold reading can be viewed by pressing and holding the ENTER
key.
When in 'Health & Safety' mode the STEL and TWA alarm
levels and calculated values are shown when holding the Enter key.
Function Menu
Once selected use the ‘UP’ and ‘DOWN’ keys to highlight the function you require and press ‘ENTER’ to
select. Many features can be adjusted in this section including gas selection, zone maintenance, data transfer
and alarm levels. Details of these and other functions are to be found on the following pages.
Funct io n
The instrument has 8Mb of memory, which is divided into 1Mb segments. When a segment becomes full,
data is then stored in the next s egment.
Each time the user starts data logging, a new file is created. So, for example, six data logging sessions will
create six data files.
When a data logging session records data which spans across two or more 1Mb segments, a corresponding
number of files will be created and stored within the instrument and will apply to that particular data logging
session only. So, for example, two 1Mb segments spanned will result in two files created.
When the data is to be downloaded via the IonPC software, any files that have spanned two or more 1Mb
segments (i.e. two or more files) will be recognised and downloaded as a s ingle file.
Page 17 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Date/Time
Alarm
Reading
Alarm In dicator
Cursor
Zone
Delete
View Data
File
Instrument Menu _____
General
In the function menu use the ‘Up’ and ‘Down’ keys to find the function you require. To enter the function,
press the ‘Enter’ key.
Data Logging, Zones & Files
PhoCheck+ versions 2000, 3000 and 5000 automatically data log the instruments readings every s econd.
These readings are stored in the instrument's memory with a date and time stamp. The instrument has been
designed to continuously store data; once the memory has reached its full capacity (8 Mb) it will
automatically begin to over write previous readings. An alarm can be set (see page 25) to inform the user
that this is due to happen giving time to download any data that may be over written.
Data logged measurements are stored in files created automatically and issued a number that is
incremented each time a new file is opened. Stored data can be viewed on the PhoCheck+ instrument or it
can be downloaded to a PC for a nalysis and to be archived. I on Science recommends downloading saved
readings once a week.
In some applications readings need to be recorded in many different locations leading to many hundreds of
stored files. PhoCheck+ was designed with these requirements in mind and has the facility to store files into
'Zones'. The PhoC heck+ has a default Zone called Zone 0 (which can not be deleted), unless specified all
readings will automatically be stored under this Zone. The PhoCheck+ has an additional 199 Zones whic h
the user can name themselves, either direct via the instrument or by using the IonPC software.
________________________________________________________________

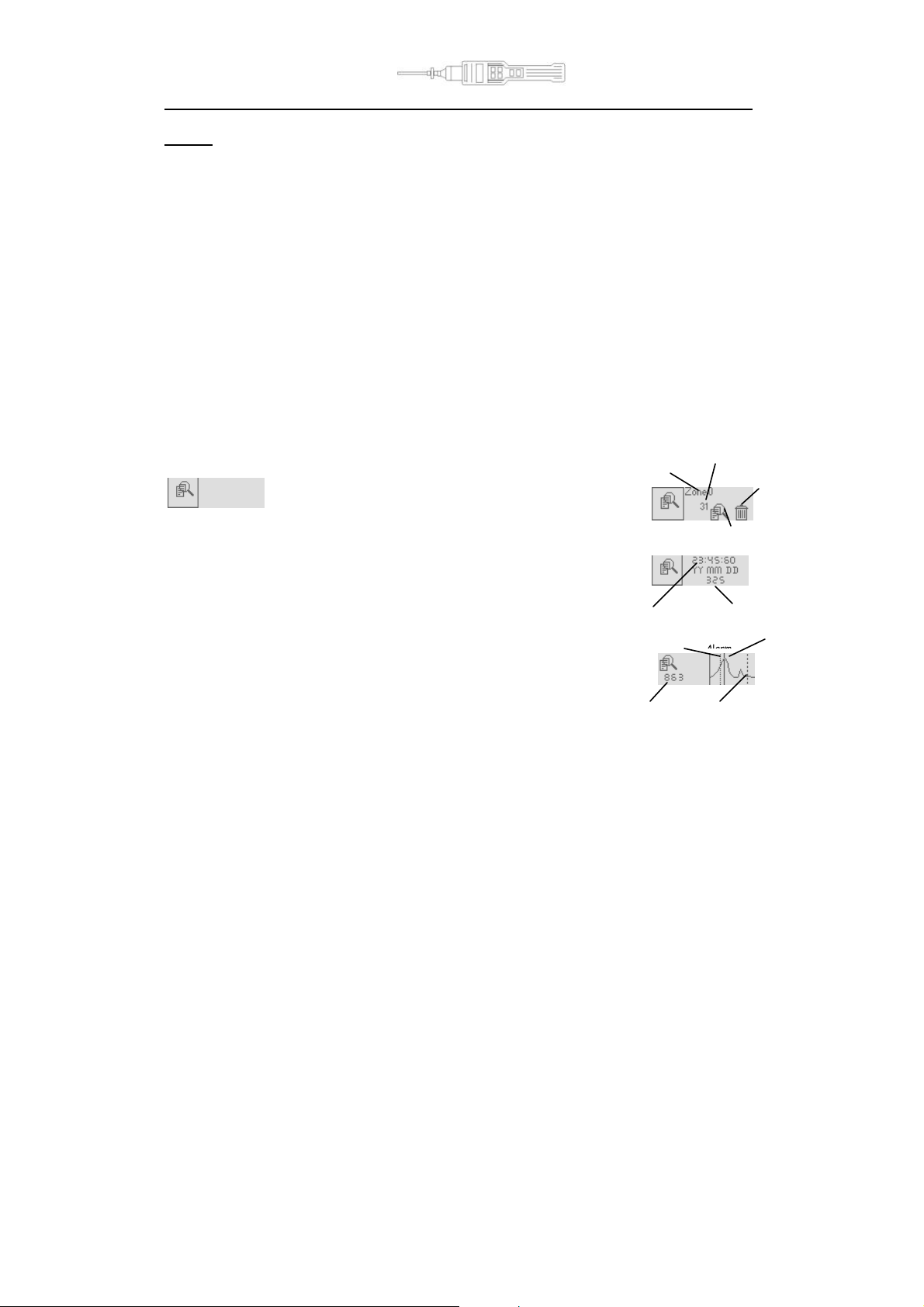

View Data (2, 3 & 5)
of Data Logged Files within the PhoCheck+
memory.
First select the Zone of interest by moving the cursor using the
‘up' and 'down' keys, press 'enter' to select it. Then select the
required File in the same way. Now select the View Data symbol,
this will show the first reading logged with a date and time stamp
and the number of logged readings within the selected file.
To view the stored data in a graphical form press the 'enter' key.
A graph representing the stored readings within the selected file
will be displayed. The flashing cursor can be moved along the graph
to a reading of interest. When the cursor stops the reading will be
displayed in the units selected, press the enter key to see the date
and time stamp of that reading if required.
This function allows the viewing and detection
Number of logged
readings
cknowlea dgeme nt
Page 18 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Files
New L ist De lete
e
Delete
View data
File
Instrument Menu _____
View Data (Continued)
The Alarm Indicator dotted line is present on a graph to show that this is the exact point at which an alarm
was set off. The instrument will continue to alarm until the alarm is acknowledged by the user by pressing
the 'Enter' key, this is shown on the graph as a dashed line (Alarm acknowledgement).
Deleting a File
Should you wish to delete a File, select the Zone and file to be deleted
as if you were about to view the data. Now select the delete symbol
(Trash can) in the View Data screen. Options are given to delete the
currently selected File or All Files .
WARNING: Selecting All Files will delete all files stored in all Zones.
A tick 'ü' confirms the function has been carried out.
Zon
Zone Maintenance (2, 3 & 5)
Zones can be created, selected or deleted in this
function. Select the 'New' symbol to create a
new zone name, the 'List' symbol to select an
existing 'Zone' and the Delete symbol to delete an existing
zone name.
Single File Al l
________________________________________________________________
Selecting the 'New' symbol allows the creation of Zone names made
up of 8 characters consisting of letters, numbers and symbols. Use
the up and down keys to choose the characters and press enter
to confirm your selection. Letter order on the instrument is
shown on the right, the highlighted ‘a’ is the start letter.
Incorporating a useful memory recall the following character wil l
always start as the previous selected aiding your navigation
through the letters, numbers and symbols.
Selecting the 'List' symbol allows you to view existing Zone
names, and to select the zone under which you wish to save data.
Selecting the 'Delete' symbol allows the previously created Zone names to be deleted. A
tick 'ü' confirms a Zone has been deleted.
Page 19 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Instrument Menu
Zone Maintenance (Continued)
Please note that when deleting a zone all data saved under this zone will be deleted. If you wish to keep the
data ensure you download it to a PC before it is deleted.
Zones can also be added, edited and deleted via the IonPC software, see pg 35
.
________________________________________________________________
Data Transfer (1, 2, 3 & 5)
Allows the transfer of data between a PhoCheck+ instrument and an IonPC software
enabled PC.
To begin communication between the instrument and the computer
select the Data Transf er option. When the instrument is
communicating with a PC a 'ü' will be displayed in the data transfer
symbol and when not communicating an 'X' will be shown. Place the instrument on its side with its infrared
window approximately 40 mm from the PC's IRDA link.
To exit the data transf er option press 'Esc', the delay symbol will appear for a f ew seconds before returning
to the function menu
.
________________________________________________________________
Alarm (1, 2, 3 & 5)
Both alarms give an audible and visible output (flashing LED) but with increased urgency with the upper
alarm. An alarm state indicates that PhoCheck+ has detected the user set alarm level has been exceeded.
The alarm will continue to sound and flash until the user acknowledges the alarm by pressing Enter. Please
note that it is the user’s responsibility to respond appropriately to an alarm condition.
Upper and lower alarm levels in survey mode are simple to set via the instrument. Use the up and down keys
to select the Alarm graphic in the function menu and press Enter. Then select the alarm you wish to adjust
(Upper or Lower), press enter then again use the up and down keys to change the alarm setting. These
alarms can also be easily adjusted on a PC via the Gas Table in the IonPC software that is then downloaded
to the instrument via the IRDA link (see page 31 for more details). Please note that for safety reasons the
lower alarm cannot be set above the upper alarm and the upper alarm cannot be set below the lower alarm.
When in Health and Safety mode, alarms are triggered by STEL and TWA alarm levels pre-programmed into
the instruments gas table. An Alarm in Health & Safety mode indicates the user has been exposed to levels
exceeding those set within the PhoCheck+ gas table. When PhoCheck+ alarms in Health and Safety mode,
the relevant TWA or STEL figure shown on the display will flash. These values cannot be changed.
When in 'Survey' mode, upper and lower alarm
levels can be set by the user to indicate particular
levels of detection specific to their needs.
Page 20 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Factory
Signal Confide nce Ke y Alarm
Instrument Menu ___________
Alarm (Continued)
Either via the instrument or the PhoCheck+ software. However additional entries can be entered into the
gas table via the PhoCheck+ software with their own STEL and TWA values see page 31 for more
information.
_______________________________________________________________

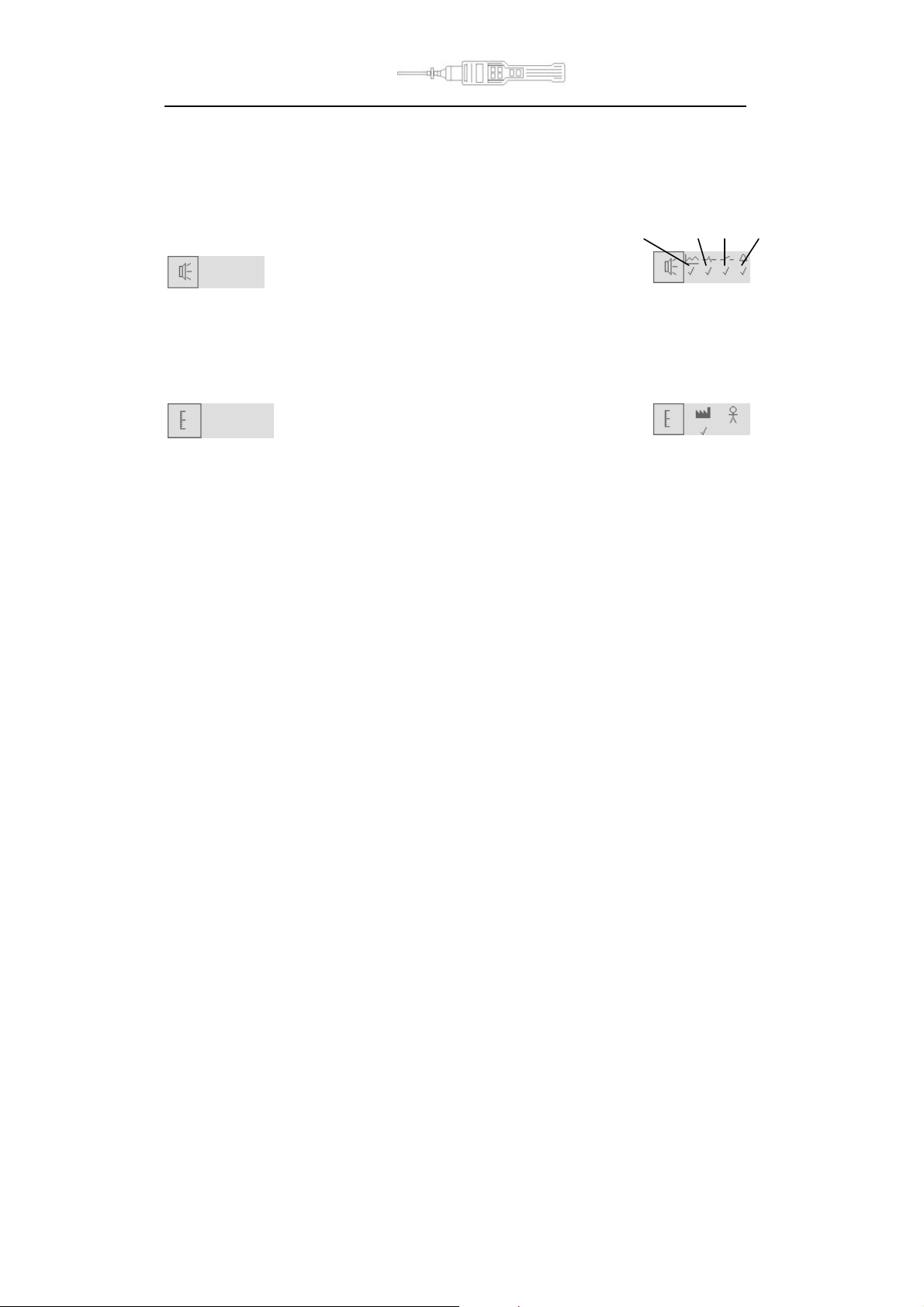

Sound (1, 2, 3 & 5)
which the instrument 'Beeps' increases with the detected gas. When Confidence is selected the instrument
'Beeps' every 15 seconds to indicate it is functioning. This feature can be useful if the instrument is out of
sight. When Key is selected the instrument 'Beeps' when a key on the keypad is pressed. Alarm can only be
adjusted using the IonPC software to avoid the accidental switch off.
Audible outputs can be selected to indicate
functions. When Signal is selected, the rate at
________________________________________________________________
Calibration (1, 2, 3 & 5)
'Factory calibration' is set by Ion Science during
instrument manufacture. 'Custom calibration' can be
set by the instrument user.
General description
Due to the linear output of the Ion Science PID detector cell, PhoCheck+ instruments only require a two-
point calibration. The PhoCheck+ scales its linear output across a 'Zero' level (clean air reference) and the
'Span' (a user defined gas concentration).
Factory Calibration
When 'Factory' calibration is selected the PhoCheck+ will measure according to the factory set fixed points
and display the selected signal reading according to this reference.
'Factory' calibration offers a constantly repeatable reference, however prolonged use may mean these
reference points become less accurate. It is recommended that the PhoCheck+ be returned to Ion Science
once a year for an annual calibration and service.
Page 21 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Instrument Menu _____
Calibration (continued)
Custom calibration
When 'Custom Calibration' is selected a 'Zero' and 'Span' can be set by the user. This allows the user to
calibrate the PhoCheck+ PID to a n alternative gas (other than Isobutylene). Ion Science provide a
Calibration kit accessory (Part number A-845213) which is recommended for use with PhoCheck+, however
other gases specific to your needs can also be used.
If performing a custom calibration using the Ion Science Calibration Kit accessory you will need you use the
Cal Adaptor supplied with your PhoCheck+ in the Cal Kit sample box. WARNING: when fitting the Cal
adaptor onto the gas tube (part of the Calibration kit) ensure that the small breather hole of the Cal adaptor
is not covered as this will cause the instruments internal pump to be damaged beyond repair. Failure to
adhere to this warning will invalidate your warranty should your instrument pump become damaged.
In order to carry out a custom calibration the appropriate parameters need to first be set via the PhoCheck+
Ion PC software and downloaded to the instrument. Please see the PhoCheck+ software calibration section
(pg 30) for details on how this can be achieved. Once these parameters have been set a custom calibration
can be completed, please see the recommended procedure below.
Ion Science suggests Custom calibrating when detection in ppb is required or when high accuracy is needed
for a specific gas other than Isobutylene.
Custom Calibration Procedure
Please read ALL of this procedure before attempting a custom calibration and ensure this procedure is
carried out in a clean air environment. Steps 2-4 should only be carried out by an experienced service
engineer. If you are not in a clean environment or not confident removing the lamp please move straight
from point 1 to point 5.
The ‘lamp’ calibration is only really necessary if the instrument is to be used for ppb applications.

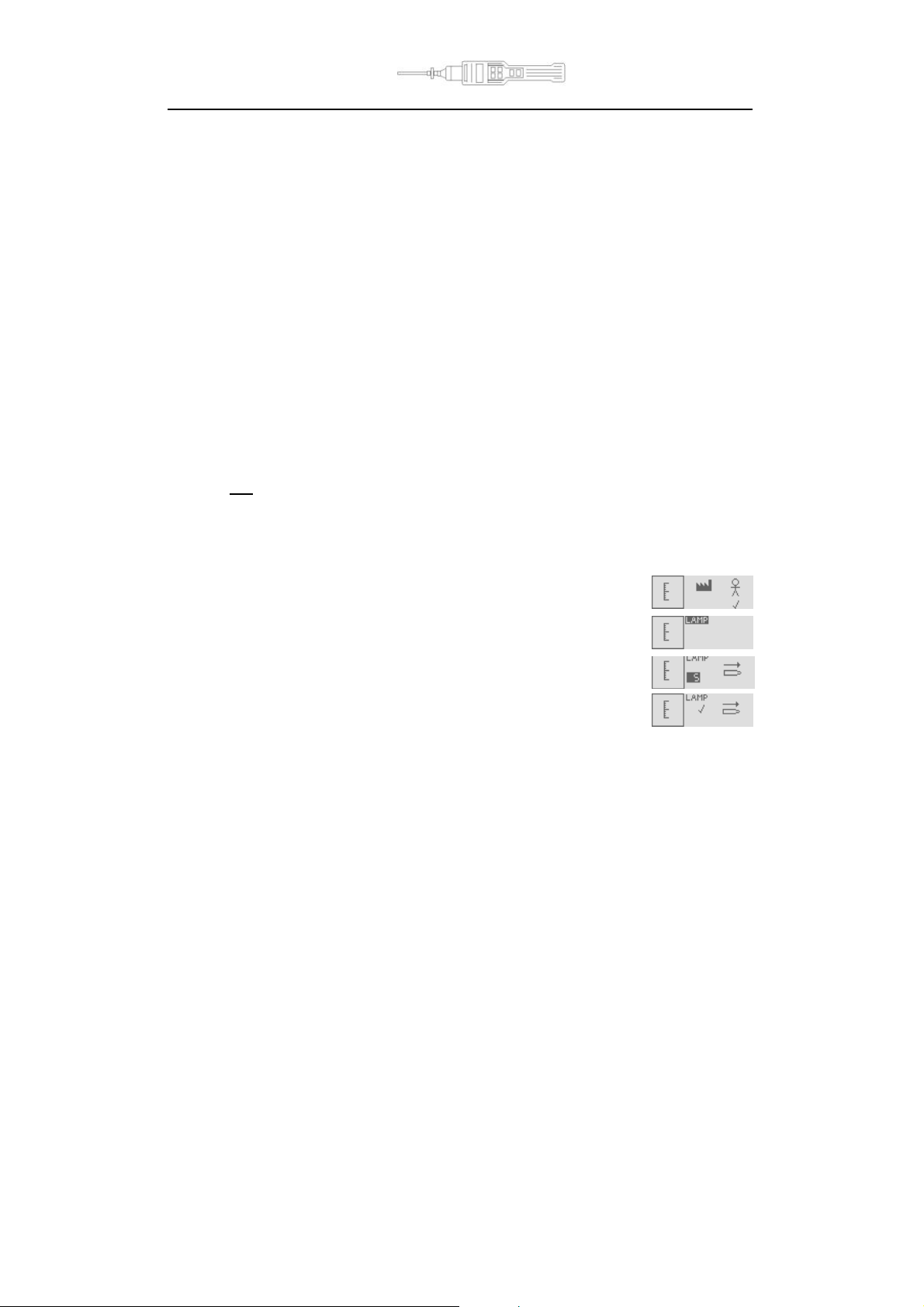

1. Select Custom Calibration procedure – a tick 'ü' will appear to confirm the
selection. Pressing Enter allows the user to enter the Custom calibration
menu.
2. Select the flashing ‘LAMP’ by pressing Enter.
3. The screen will then s how the image to the right with a flashing number and
a lamp with an arrow. This is asking you to remove the instruments lamp then
select Enter. The flashing number will then count down once complete the delay
symbol will appear briefly before a tick symbol to show that the test has been
completed successfully.
Page 22 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Instrument Menu
Calibration (continued)
4. Refit the lamp and select Escape.

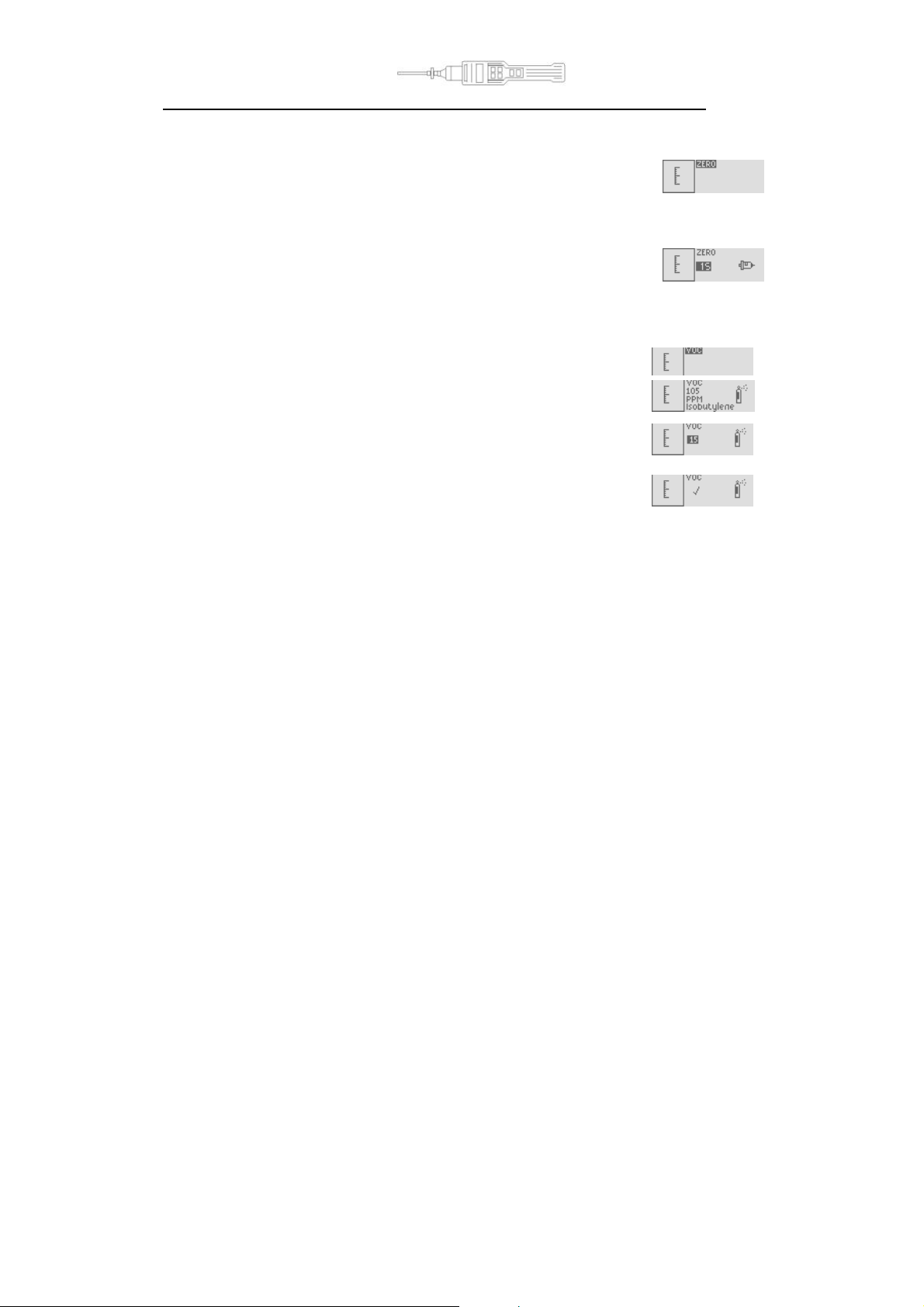

5. Scroll down and select the flashing ZERO
6. Remove the caps from both ends of the carbon canister included in the Cal Kit Sample supplied with
your PhoCheck+, remove the probe and filter from the instrument and fit the carbon canister.
Alternatively a known clean air supply can be used. Note – the carbon canister simply pushes onto end
fitting - do not force and no turning is required.
7. Press the Enter key to start the 'Zero' process. A counter will count down showing
how long the canister needs to remain connected.
8. At the end of the count down a tick 'ü' will appear, indicating that the Zero has
been accepted. Press Escape.
9. Disconnect the carbon canister and replace the cap ends. The useful life of the
carbon canister will be shortened if the canister is open to atmosphere for
prolonged periods.
10. Scroll down and select the flashing VOC.
11. The next screen shows the gas and gas concentration you have previously set up
via the IonPC software. Select Enter.
12. A screen will show VOC, a gas bottle and a flashing highlighted number.
13 .Present the instrument with the calibration gas and press enter, the number will
begin to count down showing how long the instrument needs to be presented
with the gas. A tick 'ü' will appear indicating that the calibration has been
accepted. Escape out of the calibration menu.
14. Now replace the instruments filter and probe ready for use.
15. Carry our a Bump Test to ensure calibration was successful. Instrument is now
ready for use.
If you are not successful in calibrating the instrument check the following points:-
· The carbon canister may be contaminated
· The calibration gas canister may be low or empty
· If using a connector pipe there may be a kink restricting the flow of gas
· PID lamp may require cleaning
· PID lamp may need replacing
Page 23 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
On Off Ti me d
Instrument Menu
Back-ligh t (1, 2, 3 & 5)
The instrument display can be illuminated when in low light
conditions. When On is selected the back-light is on when ever
the instrument is switched on. When Off is selected the back-light is permanently off.
When Timed is selected the back-light illuminates for a pre-set time after every key
press. When timed is selected pressing enter allows the user to adjust the on time
from 1 to 60 seconds.
Date / Time (2, 3 & 5)
date used within the PhoCheck+ internal clock. The internal
clock is used for the data logging date / time stamp. When readings are being stored
for download and future use and record keeping ensure that the clock and date are accurately set.
The 12/24 hour time format is also adjustable. Ion Science recommends that you set your date and time
before using your instrument for the first time.
PID Gas Selection (1, 2, 3 & 5)
The Date / Time f unction allows the adjustment of the time and
The PhoCheck+ photoionisation detector (PID) is non-selective. Although many
the gases. When you select the VOC gas you wish to measure from the PhoCheck+ internal gas list,
the instrument will calculate the equivalent level for that selected gas against an isobutylene
calibration.
Please note that there may be other detectable gases present that may effect the measurement.
WARNING: Ion Science Ltd makes every effort to ensure the gas tables held within the PhoCheck+ memory
and supplied on CD are accurate at the time of manufacture. In critical applications alarm levels must be
checked, compared and adjusted to local legislation before use.
VOC gases are detectable, the PhoCheck+ PID cannot differentiate between
Page 24 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Custom List
Instrument Menu
PID Gas Selection (continued)
Custom offers a quick route to the last 10 selected gases. When selected, use the UP
and DOWN keys to change the gas then press ENTER to select.
List allows selection of any gas f rom within the gas table held in the PhoCheck+
memory.
After selecting the List symbol, select the first letter of the gas you wish to select and
press ENTER. The P hoCheck+ will then list all gases starting with that letter. WMD
gases are prefixed with the letters WMD.
Alarm levels that are set in the Gas table will be automatically selected. Should a gas be
selected that is not compatible with the selected lamp the following symbol will appear
to highlight the incompatibility.
PID Lamp (2, 3 & 5)
An alternative lamp to the Krypton 10.6eV (standard) can be
purchased, fitted and s elected. A tick 'ü' confirms the selection.
gas the following symbol will appear to highlight the incompatibility.
Should a Lamp be selected that is not compatible with the selected
Unit Selector (1, 2, 3 & 5)
The PhoCheck+ photoionisation detector can be selected to
measure VOC's in either ppm (Parts per million, by volume),
ppb (Parts per billion) or mg/m3 (Milligrams per cubic meter).
NB: the ppb option is available on the PhoCheck+ 5000 and is upgradeable on the 1, 2 and 3000 versions.
Data Log Memory Alarm (2, 3 & 5)
automatically begin to over write previous readings. An alarm can be set to inform the user that this is due
to happen giving the user time to download any data that may be over written if they wish to do so.
PhoCheck+ has been designed to continuously store data once
the memory has reached its full capacity (8 Mb) it will
Page 25 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
When sel ected
Instrument Menu
Application - Health & Safety Mode (3 & 5)
conformity of short-term exposure levels (STEL) or time-weighted averages (TWA)
that are specific for particular hazardous environments (for example EH40 in the UK
and OSHA in the USA). In this mode of operation STEL’s and TWA’s are continually
calculated and compared to levels set in the instruments gas table
adjust settings or parameters of the instrument while in Health & Safety mode as
these could effect the ongoing calculations. Should you want to proceed with an
adjustment a WARNING screen will appear. You have the option to continue with
the adjustment by pressing Enter or abort and continue monitoring by pressing the
'Esc' key. Continuing with the adjustment will reset the instrument, calculations will
begin again from 0 once back in Health & Safety mode.
Application - Survey Mode
'Survey' is the default mode of operation whenever the 'Health & Safety' mode is NOT selected. All functions
can be adjusted or selected in this mode unless the 'Security mode' is set via the IonPC software. 'Survey'
mode is often used in applications where several areas (or Zones) can be monitored and readings data
logged. Saved data can then be downloaded to a PC for long-term storage and review. High and low alarm
levels can be set.
Security
When the PhoCheck+ is connected to a PC via the PhoCheck+ software package (see pg 33), the instrument
can be locked in the Menu Settings area of the software package. This facility allows the instrument to be
set-up by a qualified or competent person locked and then handed to an operator for use. When in secure
mode the PhoCheck+ functionality cannot be changed or adjusted. The user can only view the display
screens and switch the instrument On and Off.
Modes of operation are selected to suit how the instrument is
being used
.
Health & Safety mode is used to check for
.
You can not
Page 26 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software _____
PC Requirements
PhoCheck+ Software must be used in conjunction with a PC/laptop using Windows XP. An IRDA port is
required for communication with the instrument. Many laptops are supplied with this facility. Alternatively
IRDA modules can be purchased from most computer retailers for use with your instrument.
Before connecting your PhoCheck+ to a PC f or the first time confirm that the PC’s IRDA works correctly with
another devise.
Installation of IonPC Software
1. Insert Ion Science software CD into your CD rom drive
2. The CD will automatically start up
3. Click on the Download Software button
4. The PhoCheck+ setup wizard will start.
7. Follow the instructions on screen.
8. The installer will automatically create a folder in your C drive to save IonPC into if you do not want
to save it there Browse for the location you would like it to be saved in and click Next
9. Select Next again and on to install the software
10. The software will take a few seconds to install then click Finished
11. You will now be able to open your IonPC software from the Icon on your desk top or from your Start
Menu/Pr ograms/IonPC
Page 27 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features __________
Connecting PhoCheck+ with a PC
Switch on your PhoCheck+ instrument, enter the function menu and select the Data Transfer symbol by pressing
the enter key. When communicating with a computer the PhoCheck+ displays a 'ü' within the data transfer
symbol. When not communicating an 'X' will appear.
Place the PhoCheck+ on its side with the instruments infrared window approximately 40 mm from the PC
IRDA, then s tart the PhoCheck+ software.
Starting PhoCheck+ Software
Start the IonPC software either from your desktop via the shortcut or from the Start menu/Programs/Ion PC.
The instrument has 8Mb of memory, which is divided into 1Mb segments. When a segment becomes f ull,
data is then stored in the next s egment.
Each time the user starts data logging, a new file is created. So, for example, six data logging sessions will
create six data files.
When a data logging session records data which spans across two or more 1Mb segments, a corresponding
number of files will be created and stored within the instrument and will apply to that particular data logging
session only. So, for example, two 1Mb segments spanned will result in two files created.
When the data is to be downloaded via the IonPC software, any files that have spanned two or more 1Mb
segments (i.e. two or more files) will be recognised and downloaded as a s ingle file.
Page 28 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
IonPC software has many features allowing the transfer for data and function specifications to and from the
instrument and the PC.
Downloading data logged readings
PhoCheck+ should always be presented to the IRDA
port before the PhoCheck+ software is run.
When the software is opened like this it will immediately
begin communicating with the instrument and will give
you the option to download data logged readings, as
shown here.
Select 'Finished' if you do not wish to download the data.
If you do wish to download data, highlight the files you
require, and then select Download data. The screen on the right
will appear.
The data will then download f rom your PhoCheck+ to your
PC in numerical and graph format once the downloaded is
complete select Finished. You then have the ability to zoom in on the graph data for a closer look by double
clicking anywhere on the graph. You can also store the data f or future reference.
Page 29 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
File
Allows the printing of files downloaded from your PhoCheck+
instrument.
Calibration
Refers to the 'Custom' calibration of PhoCheck+. Enables the
download of calibration data from the instrument to a PC, the
erasing of the Custom calibration settings, the opening of
previously saved calibration settings and the adjustment of the
'Custom' Calibration Setup.
Calibration Setup
The gas table provided with the s oftware will be shown. However if you wish to use a different gas
table previous selections will be shown on the drop down menu or click 'Browse' and search for and
select the table you require.
You can now choose to set up your Custom calibration to your s pecific gas and concentration
requirements. Click 'Apply' to send your specifications to the instrument. You are now ready to
calibrate your PhoCheck+, see page 21 for details. The greyed out areas apply to the FirstCheck
software, required if you upgrade your instrument.
Page 30 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
Data
Data logged information can be cleared from your instrument or
downloaded from the instrument to your PC.
Once downloaded to your PC files can be saved for
future reference and exported as CSV files.
Gas Table (Including setting alarm levels)
Select a gas table stored in the PhoCheck+ directory. You are able to modify this table and
then download it to your instrument.
If you wish to add new gases to the table ensure you use the next available line, leaving
no spaces as shown below.
Upper and lower alarm levels in Survey mode can be adjusted via the gas table. Type the desired alarm level in the
appropriate column (either high or low alarm) against the gas you wish to change.
Use the tick boxes beside each gas to select / deselect the gases to be downloaded to your PhoCheck+ then select
‘Send to Instrument’ from the dropdown menu shown abov e.
Always save modified gas tables under a different file name, keeping the original complete.
Page 31 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
Instrument
Instrument details such as serial number and data logged memory used can be
downloaded from your PhoCheck+ to your PC.
Instrument upgrade allow the upgrade of your instrument to other
PhoCheck+ variants once you have purchased the pass code from ISL.
Firmware upgrade allows you to upgrade your actual instrument software directly s hould an upgrade be made
available.
'Menu Set-up' allows you to change PhoCheck+ settings from your PC. These settings can be saved for future use.
Menu Set-up
Adjustable features found on your PhoC heck+ instrument can also be changed via your PC along with some
additional features. These features can be adjusted and then downloaded to your instrument by selecting Apply.
Settings
Within this tab there are a number of additional f eatures including the clock (24 hr or 12 hr), sound controls
on signal, confidence (a beep sounds every 15 seconds), on key press and on alarm.
When selected the Enable Bump Test sets the instrument to show a gas bottle image once a week when the
instrument is turned on as a reminder to test the instruments response. Memory full alarm will ensure an
alarm sounds if the PhoCheck+ data log memory is full to enable you to download the data or continue and
overwrite previously saved data. Cycle screen is blocked out as this is an upgrade feature on the FirstCheck.
Page 32 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
Lamp
Enables the selection of different lamp types you may have
purchased to use with your instrument.
Application
Enables the selection and de-selection of Health & Safety mode and the selection of ppm, ppb or mg/m3. In
Health & Safety mode STEL and TWA timings can be adjusted to reflect the changes in legislation between the
US and Europe.
The instrument can be set to security mode which enables the locking of the user interface so that the
instrument functions can not be changed manually. To de-select s ecurity mode, switch the instrument Off then
On, you then have 2 minutes from 'switch on' to connect your instrument to a PC and select Instrument /
Menu set up. This will automatically place your instrument in PC mode ready for download or further
adjustment. VOC smoothing relates to the PID reading and is used to have a dampening affect on the
measurements for high gain factor gases. In effect increasing the T90 time to create a smoother graph. This
affect can only be applied when in 'Survey' mode it does not apply in Heath & Safety.
Page 33 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software
Backlight
Gives you the option of turning the back light
on or off permanently or setting it on a timer
after every key press.
Clock
Set the instruments clock and date for the purposes of
data logging. Either set it manually or if your PC clock is
correct you
can simply set your instrument to the same time as your
PC clock.
File
Allows you to save the settings you have created to your
PC for future use. It also enables you to open previously
saved settings to then download to your instrument.
Page 34 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software Features
Calibration
The calibration settings can also be adjusted under the Menu Settings and it is the same layout as described
on page 30.
Once you have selected all of your settings you can either choose to 'Apply' them, which will download the
information straight to the instrument and leave the screen open, or select OK, and they will be transferred to
the instrument and the screen will close automatically.
Zones
Clear / Delete existing Zones from your instrument or
create new Zones for download to your PhoCheck+.
Please note data files stored within a Zone to be deleted
will be lost. Always download Data from your instrument
before deleting Zones.
View
Select or hide the PhoCheck+ s oftware toolbar or status bar.
Help
Off er advice on the use of PhoCheck+ software.
Page 35 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software _________________
Software Discla imers
Termination of Software Licence
This License is effective until terminated. This License will terminate automatically without notice from Ion
Science Ltd if you fail to comply with any provision of this License. Upon termination, you agree to destroy,
delete or purge the written materials and all copies of the SOFTWARE, including modified copies, if any.
PhoCheck+ is a portable gas-detector suitable for the detection of; volatile organic compounds (VOC's) using
PID (Photo Ionisation Detection) technology.
Disclaimer of Warranty
The SOFTWARE and accompanying materials (including the user’s manual) are provided “as is” without
warranty of any kind including the implied warranties of merchantability and fitness for a particular purpose,
even if Ion Science Ltd have been advised of that pur pose. Furthermore Ion Science Ltd does not warrant,
guarantee, or make any representation regarding the use, or the results of the use, of the SOFTWARE or
written materials in terms of correctness, accuracy, reliability, current revision, or otherwise. Ion Science Ltd
specifically does not warrant the SOFTWARE after you assume operation. If the SOFTWARE or written
materials are defective, you and not Ion Science Ltd or its dealers, distributors, agents, or employees,
assume the entire risk and costs of all necessary servicing, repair, or correction, except as stated below.
Defective CD
As the only warranty under this Agreement, Ion Science Ltd warrants, to the original Licensee only, that the
CD(s) on which the software is recorded is free from defects in materials and workmanship under normal
use and service f or a period of ninety (90) days from the date of delivery as evidenced by a copy of the
Receipt. This limitation will apply where allowed.
Replacement of Defective CD
Ion Science Ltd entire liability and the original Licensee’s exclusive remedy under this agreement are at Ion
Science Ltd discretion, to either (a) return of payment as evidenced by a copy of the Receipt, or (b)
replacement of the disk that does not meet Ion Science Ltd limited warranty and which is returned to Ion
Science Ltd with a copy of the Receipt. If failure of the disk has resulted from accident, abuse, or
misapplication, Ion Science Ltd will have no responsibility to either replace the disc
Page 36 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IonPC Software __________
or refund payment. Any replacement disk will be warranted for the remainder of the original warranty period
or thirty (30) days, whichever is longer. This warranty gives you limited, specific legal rights. You may have
other rights in some places.
No Right to Rely
No oral or written information or advice given by Ion Science Ltd, its dealers, distributors, agents or
employees will create a warranty or in any way increase the scope of Ion Science Ltd obligations under this
agreement, and you may not rely on any s uch information or advice.
Limitation of Liability
Ion Science Ltd will not be liable for any direct, indirect, consequential or incidental damages (including
damages for loss of business profits, business information, possibility of such damages). The above
limitation will apply where allowed under local laws.
Governing Law
The laws of the United Kingdom govern this Agreement.
Page 37 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Batteries
WARNING:
For reasons of Intrinsic Safety, batteries MUST NOT be charged or replaced within potentially
flammable areas. Ensure you are in a SAFE area before carrying out any type of maintenance on your
PhoCheck+ instrument.
Instrument battery type identification
Non-rechargeable PhoCheck+ instruments have a removable battery cover on the rear of the handle area. A
security tool is required to remove it.
Rechargeable PhoCheck+ instruments have no removable battery cover but have a charging socket on the
instruments end.
Non-rechargeable battery types to be used
For Intrinsic Safety of T4 rating and reduced risk of explosion you must only use Duracell Standard,
Procell Alkaline, Zinc Carbon R6, R6B, R6PP or an ION SCIENCE APPROVED battery pack. DO NOT mix
old / used batteries or batteries from different manufacturers.
Rechargeable battery instruments*
Ensure rechargeable PhoCheck+ instruments are charged for at least 12 hours before using it for the
first time. To ensure optimum charging the charger should be attached to the PhoCheck+ when the
instrument is switched off.
When the instrument is on charge the screen will display the instruments charging status.
When the battery power is very low the following symbol will appear.
NB: Only use the charger supplied with your PhoCheck+ to charge your instrument.
*Note: Ion Science recommends keeping your PhoCheck+ on charge at all times when not in use, as
batteries can loose power over time. Loss of battery power can result in the instrument’s charge indicator
showing a ‘non-charging’ status when trying to charge the unit. If this occurs, leave the charger connected
for two minutes, then remove and reconnect the charger as soon the timer symbol disappears. You will now
see the instrument charge as normal.
Page 38 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Removable
Batteries

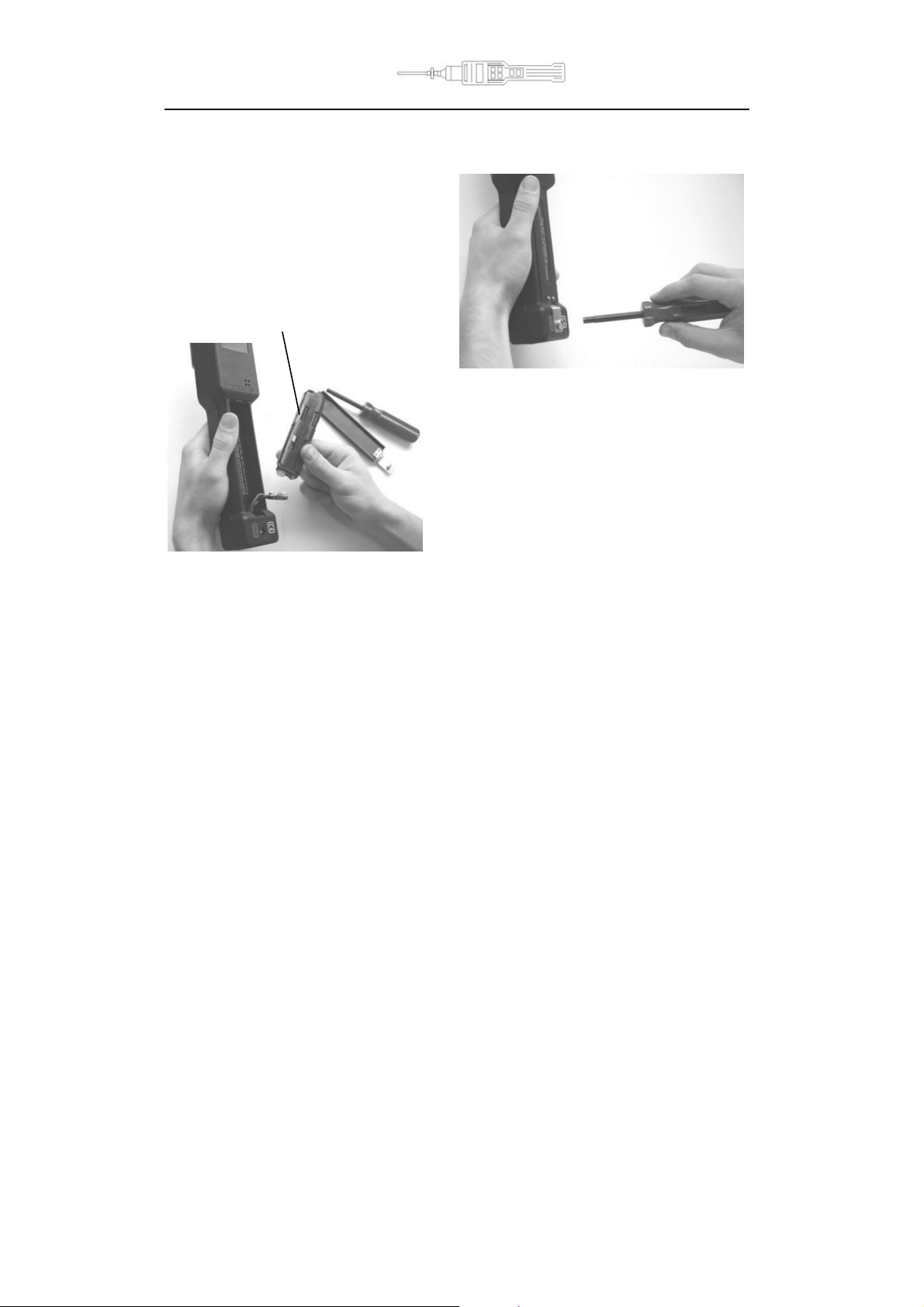

Replacement of Non-rechargeable batteries
1. Ensure the PhoCheck+ is switched Off.
2. Using the battery cover removal tool provided,
remove the battery cover at the rear of the
instrument casing. This reveals a set of 4 x AA
cells contained in a removable battery clip.
battery clip
3. Remove the battery clip.
4. Replace the exhausted batteries using the guidelines
stated above.
5. Check all batteries have the correct polarity before
reconnecting the clip to the instrument.
WARNING: Fitting batteries or connecting the clip with
the wrong polarity may result in damage to the
instrument!
NB: When loading batteries check for correct battery polarity before connecting batteries.
Page 39 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Diagnostics
Basic faults or diagnostics are presented as symbols with a more detailed description of the f ault
indicated by the number in the top right hand corner of the display. Should a fault occur correct the
issue and then press 'Enter' or 'Esc' to clear the fault message.
General fault
1. Main PCB failure.
Return the instrument to manufacturer.
Pump
1. Pump failure
Check the probe, filter and cell cap are fitted.
If the error persists return the instrument to the manufacturer.
2 & 3. Sample gas flow is low.
Check the probe and filter for signs of blockage.
If the error persists return the instrument to the manufacturer.
Battery
Battery is low or:
1. Not charging.
Check charger is connected and switched ON at supply.
2. Slow charge current is low.
Check the battery settings.
3. Slow charge current is high.
Disconnect the charger immediately and contact ISL.
4. Fast charge current is low
Check the battery settings.
5. Fast charge current is high.
Disconnect the charger immediately and contact ISL.
With all battery related faults, if the fault persists return the instrument to
the manufacturer.
Page 40 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Diagnostics
Sensor
1. Detector cell fuse failure
If the error persists return the instrument to the manufacturer.
2. Contaminated detector cell
If the PhoCheck+ is used without its filter or filters are not replaced on a
regular basis, particles of dust or dirt can cause a range of eff ects.
Remove the detector lamp as shown on page 43 and use low pressure oil-
free compressed air to blow out the contamination via the small pipe.
Replace cleaned lamp and try again. If the error persists return the
instrument to the manufacturer.
Gas Selection
The gas being selected is not compatible with the selected lamp.
The lamp being s elected is not compatible with the selected gas.
Press Esc and select a compatible gas and lamp.
Health & Safety
When in Health & Safety mode the selected gas has no STEL or TWA alarm
values.
This provides a warning in Health & S afety mode that the change you are
making could effect the ongoing calculations. You can proceed with the
adjustment by pressing enter or return to the display screens by pressing
Esc.
Memory Alarm
The data logging memory is full and will begin to write over write previous
readings.
Will only show if the data logging memory alarm has been set to ON (see
pg 25 & 32).
Press Esc and either continue and previous readings will be over written or
down load saved data to a PC before continuing.
Page 41 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Diagnostics
Clock
The internal clock has failed.
Return the instrument to the manufacturer.
Delay
This symbol will appear during the manual adjustment and selection of
functions of the instrument. It indicates that data within the memory is
being moved. Please wait and the symbol will disappear after a few
seconds depending on the change being made.
Bump test
This symbol will appear on switch on if the Enable Bump Test setting has
been selected via the PC software (see pg 32). The symbol is a prompt
that will appear once a week to remind the user to test the instrument
responds accurately when supplied with gas.
Page 42 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Passed the
Move freely in
Maintenance
1. Keep the PID detector lamp window clean.
2. Replace the sample filters on a regular basis.
Frequency of cleaning the detector lamp and replacement of the filter depends on the type of
gas being detected and the quality of the background air. See page 51 for details of parts
expected life time.
Cleaning the PhoCheck+ Lamp
The PhoCheck+ PID relies on an ultraviolet light source ionising VOC gases as they pass across the lamp
window. This process may result in a very fine layer of contamination appearing on the detector window that
must be removed on a regular basis.
CAUTION!
The PhoCheck+ is a sensitive detector. Internal components must be handled with clean hands and
clean tools. The PhoCheck+ lamp is fragile. Handle with great care!
1. Ensure that the PhoCheck+ is switched OFF.
2. Remove the probe and filter
3. Unscrew the black knurle d ring to expose the
detector lamp.
4. Push a lamp-removing sleeve over the end of the
lamp. This allows the user to grip the glass.
5. Extract the lamp from its socket by pulling it in a
straight line away from the PID cell. Force is only
required when pulling the lamp past the O ring.
Once past the O ring the lamp will move freely.
W ARNING!
NEVER REFIT A DAMAGED LAMP!
.
O-ring
a straight line
Page 43 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Maintenance
Cleaning the PhoCheck+ Lamp (Continued)
6. Inspection of the lamp may reveal a layer of
contamination on the detection window that presents itself
as a 'blue hue.' To check for contamination, hold the lamp
in front of a light source and look across the w indow
surface.
USE of PID lamp cleaning kit A-31063
1. The vial of cleaning compound contains Aluminium Oxide as a very fine power (CAS Number 1344-28-
1). A full material safety data sheet MSDS is available on request from Ion science ltd. The key issues
are listed below:
Hazard identification:
· May cause irritation of respiratory tract and eyes.
Handling:
· Do not breathe vapour/dust. Avoid contact with skin, eyes and clothing
· Ware suitable protective clothing
· Follow industrial hygiene practices: Wash face and hands thoroughly with soap and water after use and
before eating, drinking, smoking or applying cosmetics.
· The Compound has A TVL(TWA) of 10 mg/m
Storage:
· Keep container closed to prevent water adsorption and contamination.
3
2. Open the vial of Aluminium Oxide polishing compound.
With a clean cotton bud collect a small amount of compound
.
3. Use this cotton bud to polish the PID lamp window. Use a circular action
applying light pressure to clean the lamp window. Never touch the lamp
window with fingers.
4. Continue polishing until an audible “squeaking” is made by the cotton bud with
compound moving over the window surface. (usually within 15 seconds)
Page 44 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Maintenance
5 Remove the residual powder with a clean cotton bud. Care must be taken not to touch the tips of
cotton buds that are to be used to clean the lamps as this may contaminate them with finger oil.
6. Ensure the lamp is completely dry and any visible signs of contamination are removed before refitting.
7. The instrument MUST now be re-calibrated.
Blowing out the PID Cell
When using the PID instrument in conditions of high ambient humidity, the PID may show unexpected
readings a ppearing to increase. This occurs d ue to d ust or other small particles within the detector
becoming hydrated with humidity. This causes these particles to conduct a signal between the
electrodes. This issue can be resolved by the user in the field using the following procedure and a can
of computer duster air.
First remove the lamp, following the instructions on lamp removal from the cleaning the lamp section
above (steps 1 – 5). Using a can of computer duster, spray air down the small metal tube. Replace the
lamp and cap and test the instrument.
Page 45 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Accessories
Ion Science Ltd has developed a n exclusive range of high quality accessories to compliment the PhoCheck+.
Please see a selection of these below.
Part Number Accessory Description
A-830206 IS Protective Cover II 1 G EEx ia IIC T4/
II 2 G EEx iad IIC T4
Baseefa 02ATEX0093X, Baseefa 03ATEX0742X PK of 10
A-845213 Calibration Kit
A-31064 25mm (1") diameter 0.5 micron probe filter PK of 5
A-31066 Std probe attachment PK of 5
A-31063 PID Lamp Cleaning Kit (20 Cleans)
A-30555 5 m (16 ft) flexible extension hose
A-30556 10 m (33 ft) flexible extension hose
A-31153 Exhaust barb, Tedlar bag connector
A-31057 Carbon filter
30618 PID lamp, type 8.4 eV Xenon
30619 PID lamp, type 10.2 eV Deuterium
30620 PID lamp, type 10.6 eV Krypton
30621 PID lamp, type 11.7 eV Argon
31052 Leather instrument jacket
40052 Leather instrument jacket with magnetic attachment
4/VH-01 Instrument chest harness for hands free operation
1/VS-18 Universal 9 volt power supply without plug
1/VS-16 9 V power supply UK moulded plug
1/VS-17 9 V power supply Euro moulded plug
1/VS-19 9 V power supply US moulded plug
Page 46 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Protective / Decontamination Cover
General Description
This unique accessory enhances the base intrinsically safe approval of Ion Science instruments, including
FirstCheck and PhoCheck, from category 2 (Zone 1) to category 1 (Zone 0) classification. The cover also
increases instrument's ingress protection rating to IP66 allowing the instruments to be used in applications
where the instruments are likely to get wet such as arson investigation, emergency response and in heavy
rainfall.
The cover being very low in cost has the advantage when used in HazMat applications, including possible
WMD exposure, in that it is simply removed after use and replaced with a fresh one keeping both the user
and instrument safe from exposure long after the event.
NB: the IS protective cover must be used only once. If it becomes torn or damaged the intrinsically s afe
certification and ingress protection ratings revert to that of the instrument inside it.
Technical Specifications
Made from anti-static material
Baseefa02ATEX0093X / Baseefa03ATEX0742X
ll 1G, EEx ia llC T4 (-20 °C £ Ta £ +60 °C)
Dimensions: 430 mm (L) x 126 mm (W)
Please note double sided sticker adhisive must be applied in a dry atmos phere which
is > 5 °C, it will then remain effective down to -20 °C.
Page 47 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
IS Protective Cover __________
Fitting Instructions
1. Insert instrument into the IS protective cover ensuring that the
probe tip exits through the small slit at the top of the cover and
that the cover labelling and stickers are on the reverse of the
instrument.
2. Seal the cover at its base and lay the instrument on a flat
surface with the label and stickers facing upwards.
3. Peel off the backing to the large section of double-sided tape in
the middle of the instrument.
4. Gather the excess plastic on one side of the instrument and stick it
on the midway point of the double-sided tape.
5. Gather the excess plastic on the other side of the instrument and
stick it to the remainder of the double-sided tape.
6. Now remove the backing from one of the small pieces of tape and
secure it to the side of the instrument.
7. Remove the final piece of backing and secure it to the other side of the
instrument.
8. The instrument is now ready to use in Category 1 (zone 0) areas and in
applications where it is likely to get wet.
Page 48 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Upgrade Options
All PhoCheck+ instruments have the ability to be upgraded in the field to the other variants within the
PhoCheck+ range. T his change ca n simply be achieved by contact Ion Science for a quote and
placing an order. We will supply you with a unique security key code for your specific instrument
which can be downloaded to the instrument via the Ion PC software to make the change:
It is also possible to upgra de any PhoCheck+ instrument to a FirstCheck+ instrument to incorporate
the multigas sensors for O2, H2S, CO a nd L EL gas detection for the ultimate in gas detection. This
upgrade will require the return of the instrument to Ion Science or an Ion Science approved service
centre. Please do not hesitate to contact Ion Science if you require any more information or would like
a quote.
PhoCheck
+ 1000
PhoCheck+
1000
PhoCheck+
2000
PhoCheck+
3000
PhoCheck+
5000
FirstCheck+
4000
FirstCheck+
6000
Upgrade Upgrade Upgrade Upgrade Upgrade
Upgrade Upgrade Upgrade Upgrade
Upgrade Upgrade Upgrade
Upgrade
Upgrade
PhoCheck+
2000
PhoCheck+
3000
PhoCheck+
5000
FirstCheck+
4000
FirstCheck
+ 6000
Page 49 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Service Options _____________
Ion Science is pleased to offer a number of service options on our PhoCheck+ product range. The
options below allow you to choose the cover provided for your instrument that best suits your needs.
At Ion Science we recommend t hat all of our gas detection instruments be returned for recalibration
on an a nnual basis to ensure optimal performance. For your convenience re-calibration has been built
into both service options. C hoose between our Gold and Platinum Service levels giving you piece of
mind in a fixed cost solution.
Gold Service
· Includes annual calibration after 12 months
· Includes all repair costs and required spare parts
· All calibrations and repairs will be carried out in 3 working days – if not a replacement instrument
will be sent out of equal or greater specification.
·
Instrument will be upgraded to the latest software
Platinum Service
·
Never be without your instrument!
·
Should your instrument fail or need to be returned for annual re-calibration Ion Science will first
ship you a replacement instrument, of equal or greater specification with the latest software, by
courier who will also collect your returning instrument.
·
Includes your annual calibration and any required spare parts.
Both Gold and Platinum options can be purchased on a yearly basis or on a 5 y ear service contract
option. By entering into either service contract, this will entitle you to various accessories, discounts
and promotions.
For more information please contact our service department:
Telephone: +44 (0) 1763 207228
Fax: +44 (0) 1763 208814
Email: calibration@ionscience.com
versions upon return to Ion Science.
Page 50 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Technical Specifications ______
Detector Range Re sponse Time*
PID (VOC detector) 1 ppb - 10,000 ppm (5000Ex) T90 < 1 second
0.1 ppm – 10,000 ppm (3000Ex)
0.1 ppm – 4,000 ppm (1000Ex and 2000Ex)
Accuracy +/- 5% displayed reading +/- one digit**
Linearity +/- 5% displayed reading +/- one digit**
Battery 4 x AA size Specified Alkaline or 1.2V
Rechargeable NiMH
Alarm Flashing LED and 90 dBA (10 cm)
audible sounder
Flow Rate (Approx) 220 ml/min or 220 cc/min
Temperature Operating -20 to 60 °C (-4 to 140 °F)
Storage -25 to 60 °C (-13 to 140 °F)
Dimensions Instrument 340 x 60 x 50 mm
Weight Instrument 0.640 kg (1.4 lb)
Materials Instrument Conductive carbon-loaded
*Response time of the instrument is affected by the use of a length of tubing in applications such as
confined space entry. The following response times show the affect on the PID detector based on 213
ml/min with a filter attached with a tube internal diameter of 1.6 mm at 20 °C:
Length of tube Flow ml/min Response time in seconds
Standard probe 213 0.1
1 m 212 0.8
2 m 212 1.7
3 m 211 2.6
5 m 209 4.3
10 m 199 9.0
20 m 190 19.0
30 m 172 32.0
** Assumes constant environmental conditions
Standard Carry Case: 420 x 320 x 97 mm
Packed in case 3.1 kg (6.8 lb)
polypropylene-based resin
casing.
Standard Carry Case Polypropyle ne, with a
polyester foam insert
Page 51 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Technical Specifications
Expected lifetime of parts
Batteries
On the condition of normal use battery capacity will be reduced to approximately 70% after 250 full
battery cycles or 1 year (whichever comes first).
New fully charged (rechargeable) batteries at 20 °C > 10 hours normal use.
Affects on battery capacity:
10% less per 10 °C drop in temperature.
As the batteries age they may self discharge to half capacity from fully charged state.
At 25 °C – 50 days
37 °C – 25 days
48 °C – 5 days
60 °C – 1 day
The back light will consume an additional 50% power and significantly reduce the instrument ‘on
time’.
Filter
The filter should be changed every 100 hours of use. This frequency should be increased for dusty or
moisture laden environments.
PID Lamps
10.6 eV, 10.2 eV and 8.4 eV expected life of 3 years and 11.7 eV 1 month. Lamps are very fragile
please handle with care at all times, never touch the window and do not drop!
Lamp cleaning for normal use is every 100 hours of use (based on 30 ppm for 100 hours). Reduce this
if used in heavily gas contaminated environments. Please note that some esters, amines and
halogenated compounds may accelerate window fouling cleaning may be required for every 20 hours
of use. Cleaning frequency will also depend upon alarm levels set and prevailing environmental
conditions.
PID Cell
Electronic cell has an indefinite life however it may suffer contamination problems – it is essential that
a clean filter is attached during use. Some gases such as methelene chloride in high concentrations
may condense on to the walls of the cell. If condensing is severe and cannot be cleaned, then a
replacement may be required.
NB: PID specifications relate to an isobutylene 100 ppm in air calibration at 20 °C and 90% RH.
LEL specifications relate to a methane (CH4) calibration, other gases are available upon request.
Other gas sensors as specified at appropriate international alarm standards.
Page 52 of 52
PhoCheck+ 1, 2, 3 & 5000 Ex Ion Science Ltd
Update Log
Manual Version Amendment Date Updated Instrument Firmware PC Software
PhoCheck+ V1.6 Ion Science recommends
keeping your PhoCheck fully
charged at all times, in some
circumstances batteries can
loose power overtime while not
in use.
PhoCheck+ V1.7 If batteries are extremely low
the instrument will not turn on
and indicates the battery is fully
charged. To remedy this leave
charger connected for 2
minutes, then remove charger
and reconnect as soon as the
hour glass disappears. You will
now see the instrument charge
as normal.
PhoCheck+ V1.7 Add information for IS
Protective Cover and change
version to 1.8
PhoCheck+ V1.8 Add new software installation
routine and save as 1.9
PhoCheck_ V2.0 • Declaration of conformity
updated
• Include note regarding lamp
cleaning ie. Blowing out the
lamp will resove 95% of
contamination issues
• Additional bump test after
custom calibration
PhoCheck+ V2.1 Log added to back of manual 09/01/09 V51 V1.24
V51 V1.24
9/6/08 V51 V1.24
18/6/08 V51 V1.24
24/10/08 V51 V1.24
27/11/08 V51 V1.24
Page 53 of 52
Loading...
