Unrivalled Detection. www.ionscience.com

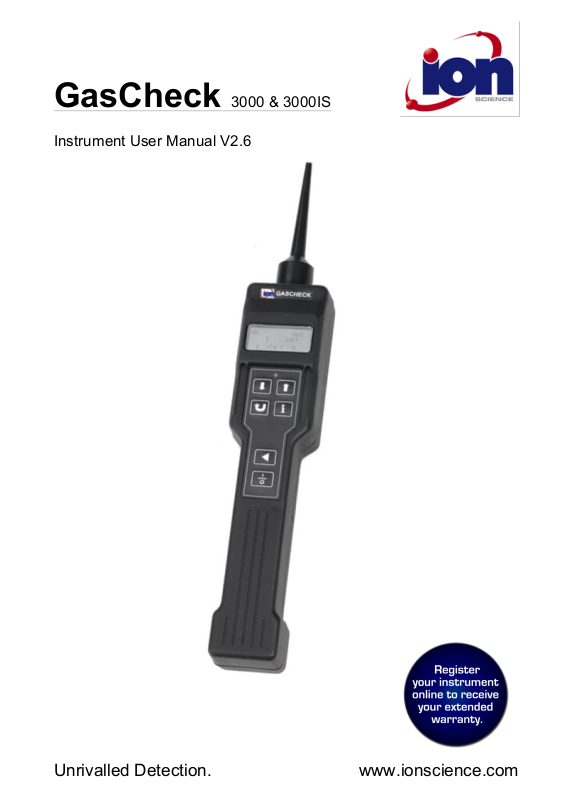

GasCheck 3000 & 3000IS
Instrument User Manual V2.6
Part number: 28052
Register your instrument online for extended warranty
Thank you for purchasing your Ion Science product.
The standard warranty of your instrument can be extended to up to five years
on the Tiger and two years on other Ion Science instruments.
To receive your extended warranty, you must register your instrument online
within one month of purchase (terms and conditions apply.)
Visit www.ionscience.com/instrument-registration
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 3 of 28
Unrivalled Detection. www.ionscience.com
Declaration of conformity
GasCheck 3000
Manufacturer: Ion Science Ltd, The Way, Fowlmere, Cambridge, England. SG8 7UJ
Product: GasCheck 3000 (Grey Case)
Product description: a handheld micro thermal conductivity sensor used to detect gas leaks. This
has been designed specifically for search and location of non-flammable gases such as helium and
CFC’s.
Directives: 89/336/EC EMC
Standards: BS EN 61010-1:2010 Safety requirements for measurement, control & lab equipment
BS EN ISO 9001:2008 Quality management systems
BS EN 61326-1:1997 EMC – Equipment for measurement, control and laboratory use
Signed By:
Name: Mark Stockdale,
Position: Technical Director
Date: 23rd April 2007
Safety: GasCheck complies with the requirements of 73/23 EEC low voltage directive and, apart from
a low voltage pump, there are no moving parts within the instrument so that the machinery directives
are not applicable.
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 4 of 28
Unrivalled Detection. www.ionscience.com
Declaration of conformity
GasCheck 3000IS
Manufacturer: Ion Science Ltd, The Way, Fowlmere, Cambridge, England. SG8 7UJ
Product: GasCheck 3000is (Black Case) (intrinsic version only)
Product description: an intrinsically safe handheld micro thermal conductivity sensor designed
specifically for use in potentially explosive atmospheres and for the search and location of flammable
gas leaks.
Marking: ll 2 G Ex ia IIC T4 (-20°C ≤ Ta ≤ +60°C)!
Certificate Number Baseefa 02ATEX0093
Notified body: ATEX: Baseefa 2001 Ltd, Rockhead Business Park, Staden Lane, Buxton, Derbyshire, SK17
9RZ
Notified body No: EC1180
Directives: 94/9/EC ATEX 100A
89/336/EC EMC
Standards: BS EN 13908:2002 ATEX – Application of quality systems
BS EN 50014:1998 ATEX – general requirements
BS EN 50020:2002 ATEX – Intrinsic safety “i”
BS EN 61010-1:2001 Safety requirements for measurement, control & lab equipment
BS EN ISO 9001:2008 Quality management systems
BS EN61326-1:1997 EMC – Equipment for measurement, control and laboratory use
Signed By:
Name: Mark Stockdale,
Position: Technical Director
Date: 23rd April 2007
Safety Rating: This intrinsic safety rating permits its deployment in all potentially explosive
atmospheres of the quoted (or less demanding) rating. That is, in areas where explosive gases (of
Group IIA, IIB and IIC) are intermittently present (Zone 1), within an ambient temperature range of 20°C and +60°C.
GasCheck complies with the requirements of 73/23 EEC low voltage directive and, apart from a low
voltage pump, there are no moving parts within the instrument so that the machinery directives are not
applicable.
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 5 of 28
Unrivalled Detection. www.ionscience.com
Contents
Declaration of conformity ............................................................................................................................... 3!
GasCheck 3000 ............................................................................................................................................. 3!
GasCheck 3000IS .......................................................................................................................................... 4!
Statements ....................................................................................................................................................... 6!
Responsibility for Use .................................................................................................................................... 6!
Legal Notice ................................................................................................................................................... 6!
Introduction ..................................................................................................................................................... 7!
Scope and definitions .................................................................................................................................... 7!
Description ..................................................................................................................................................... 7!
Principal of operation ..................................................................................................................................... 7!
Applications ................................................................................................................................................... 8!
Technical data ................................................................................................................................................. 9!
General .......................................................................................................................................................... 9!
Performance ................................................................................................................................................ 10!
Battery data ................................................................................................................................................. 11!

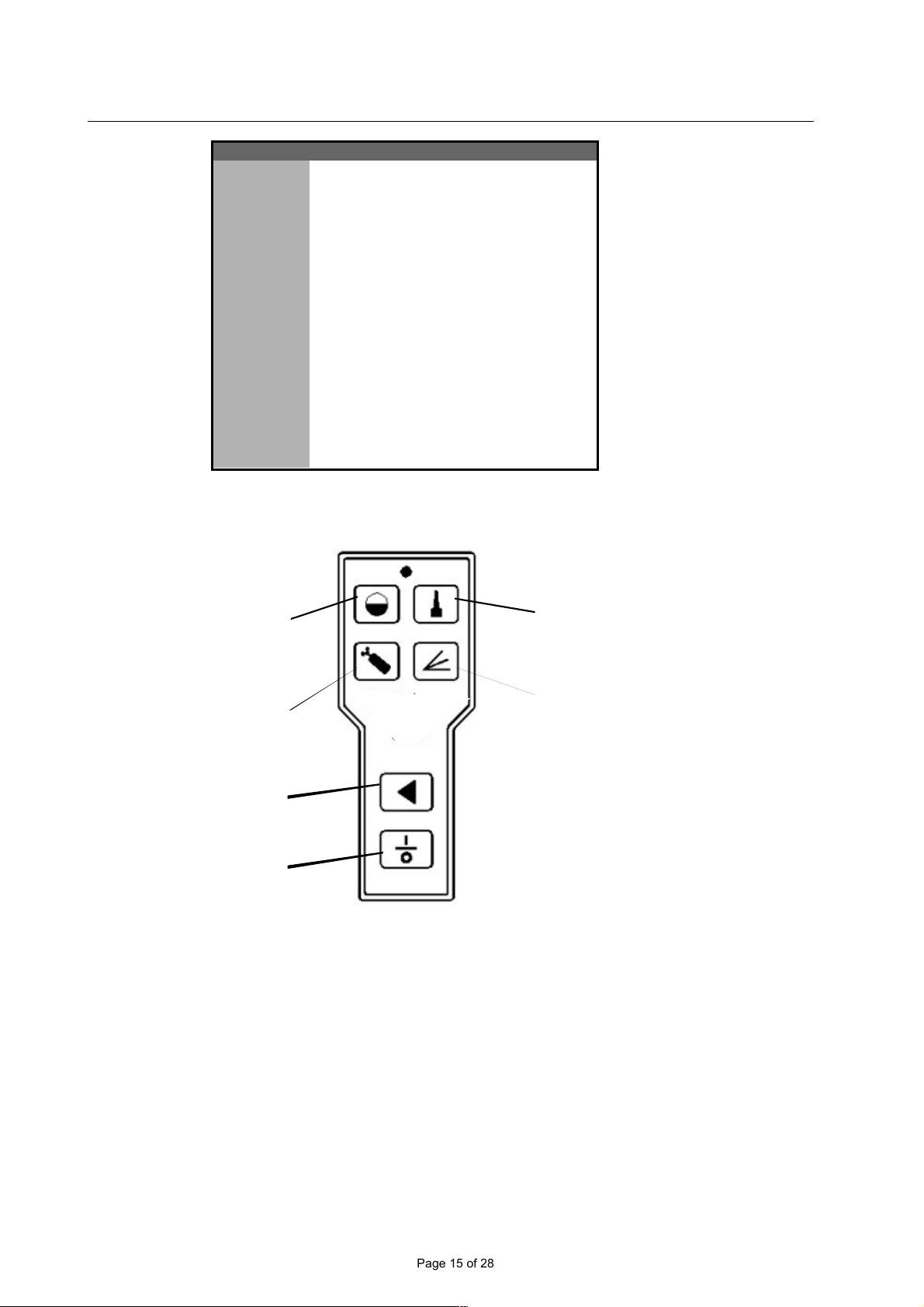

Control buttons ............................................................................................................................................ 14!
Operation ....................................................................................................................................................... 15!
Display ......................................................................................................................................................... 16!
Leak rate indication ...................................................................................................................................... 16!
Other display symbols ................................................................................................................................. 17!
Audio and visual outputs .............................................................................................................................. 17!
Prepare the GasCheck ................................................................................................................................ 17!

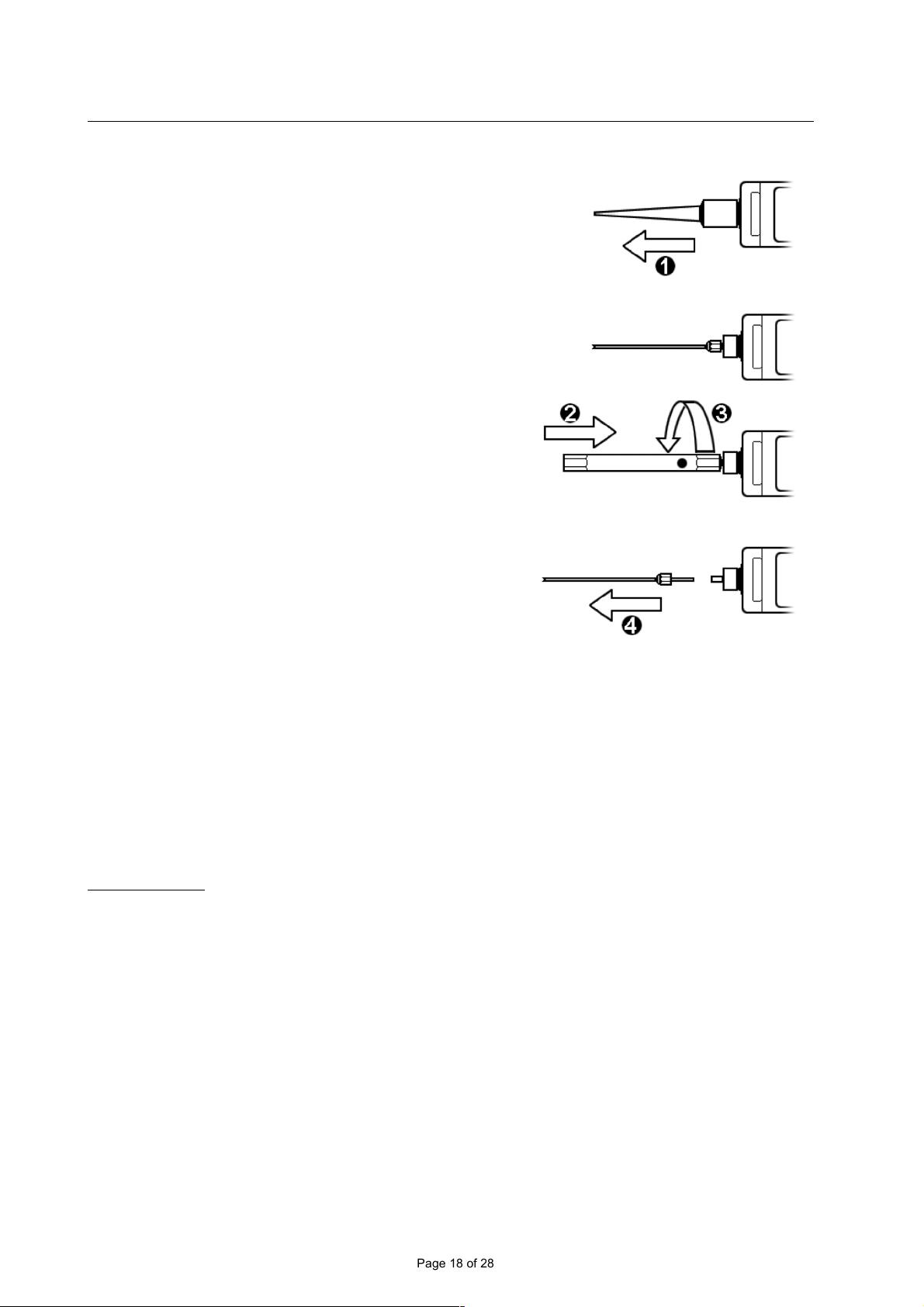

Remove the Gas Check nozzle or change the probe (if required) ............................................................... 18!
Switch on the Gas Check ............................................................................................................................ 19!
Recommended leak search procedure ........................................................................................................ 19!
Switch off the GasCheck ............................................................................................................................. 20!
Inspect and clean the GasCheck ................................................................................................................. 21!
Fault finding ................................................................................................................................................. 24!
Storage and Disposal .................................................................................................................................... 25!
Storage ........................................................................................................................................................ 25!
Disposal ....................................................................................................................................................... 25!
Spares and Accessories ............................................................................................................................... 26!
Introduction .................................................................................................................................................. 26!
Spares ......................................................................................................................................................... 26!
Accessories ................................................................................................................................................. 26!
Calibration .................................................................................................................................................... 26!
Refurbish program ....................................................................................................................................... 26!
Instrument warranty and service ................................................................................................................. 27!
Warranty ...................................................................................................................................................... 27!
Service ......................................................................................................................................................... 27!
Contact details ............................................................................................................................................. 27!
Manual log ...................................................................................................................................................... 28!
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 6 of 28
Unrivalled Detection. www.ionscience.com
Statements
Responsibility for Use
Inadequate performance of the gas detection equipment described in this manual may not necessarily be
self-evident and consequently equipment must be regularly inspected and maintained. Ion Science
recommends that personnel responsible for equipment use institute a regime of regular checks to ensure it
performs within calibration limits, and that a record be maintained which logs calibration check data. The
equipment should be used in accordance with this manual, and in compliance with local safety standards.
Legal Notice
Whilst every attempt is made to ensure the accuracy of the information contained in this manual, Ion Science
accepts no liability for errors or omissions, or any consequences deriving from the use of information
contained herein. It is provided "as is" and without any representation, term, condition or warranty of any
kind, either express or implied. To the extent permitted by law, Ion Science shall not be liable to any person
or entity for any loss or damage which may arise from the use of this manual. We reserve the right at any
time and without any notice to remove, amend or vary any of the content which appears herein.
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 7 of 28
Unrivalled Detection. www.ionscience.com
Introduction
Scope and definitions
This manual provides installation, operation and maintenance instructions for the GasCheck 3000 and
3000is. You must use the GasCheck as specified in this manual.
Read this manual before you install and operate the GasCheck. Important safety information is highlighted
as WARNING and CAUTION instructions; you must obey these instructions. The use of WARNINGS and
CAUTIONS is defined below.
The units of measurement used throughout this manual conform to the SI international system of units of
measurement
Description
Refer to Figure 1. The GasCheck is a portable, battery-powered, hand-held gas leak detector. Indications of
a leak are shown on the digital display (2) and are also given by a front panel mounted LED flasher (3) and
as audible clicks from the rear panel loud speaker (6). Two versions of GasCheck 3000 are available:
• The standard GasCheck 3000 - suitable for leak detection of all non-flammable gases other than air.
• The GasCheck 3000is - intrinsically safe and is suitable for leak detection of hydrogen and other
flammable gases, and for leak detection in hazardous areas of Ex ia IIC T4 rating.
The GasCheck has a convenient storage and carrying case, together with a spare battery holder, a long
flexible probe (for leak detection in areas where access is restricted) and a box-spanner for probe changing.
Principal of operation
When the GasCheck is switched on, a small internal fan draws gas samples through the probe and into the
GasCheck. The GasCheck measures the thermal conductivity of the gas samples.
When you first switch on the GasCheck (or when you press the manual zero key: see Section 4.1), an auto
zero is made. If further samples have a different thermal conductivity from the zeroed sample, the Gas
Check calculates and displays the difference as a leak rate.
This means that you can use the GasCheck to detect any gas other than that in which the Gas Check is
zeroed.
WARNING
Warnings are given where failure to observe the instruction could result in
injury or death to people.
CAUTION
Cautions are given where failure to observe the instruction could result in
damage to the equipment, associated equipment and process.
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 8 of 28
Unrivalled Detection. www.ionscience.com
Introduction
Applications
You can use the GasCheck on many types of applications, including those listed below.
• Quality assurance testing on manufactured component seals.
• Laboratory applications, such as the detection of leaks from gas chromatographs, from mass
spectrometers, from gas cylinders and fittings.
• Industrial applications, such as the detection of leaks from gas installations, in cylinder receiving
rooms, from pipeline assemblies, the detection of leaks from stored gases and the detection of
vapours released from stored chemicals.
• Medical applications, such as the detection of leaks from anaesthetic gas bottles and pipelines and
leak testing of membrane materials, glove boxes and so forth.
• Valve emission evaluation to EPA (Environmental Protection Agency) method 2.1
• Leak testing of pipeline joints, gaskets, chamber windows and so forth
Figure 1 – The GasCheck 3000 and 3000is
A Gas Check with short probe and nozzle fitted
B Long probe
1 Nozzle 4 Tactile keys
2 Display 5 Battery compartment
3 LED flasher 6 Loudspeaker
5
6
4
3
2
A
B
1
GASCHECK 3000 & 3000IS MANUAL Ion Science Ltd
Page 9 of 28
Unrivalled Detection. www.ionscience.com
Technical data
General
Operating temperature range
GasCheck 3000 0 to 50 °C 32 to 122 °F.
GasCheck 3000is -20 to +60 °C -4 to 140 °F.
Storage temperature range
-25 to 70 °C -13 to 158 °F.
Materials of construction
Storage case Polypropylene with polyester foam insert
GasCheck Polyurethane casing on 3000 only
Conductive polypropylene resin with metal bracket on 3000is only
Dimensions
Storage case 420 x 320 x 97 mm 16.5” x 12.5” x 3.75 “
GasCheck see Figure 2
Mass
Complete storage case 1.6 kg 3.5 lb.
GasCheck 0.5 kg 1.0 lb.
Ingress ratings
Minimum IP20
Figure 2 – Dimensions (mm)
* Length of short probe and nozzle. Length of long probe = 300 mm (12”)
50
*110
275
