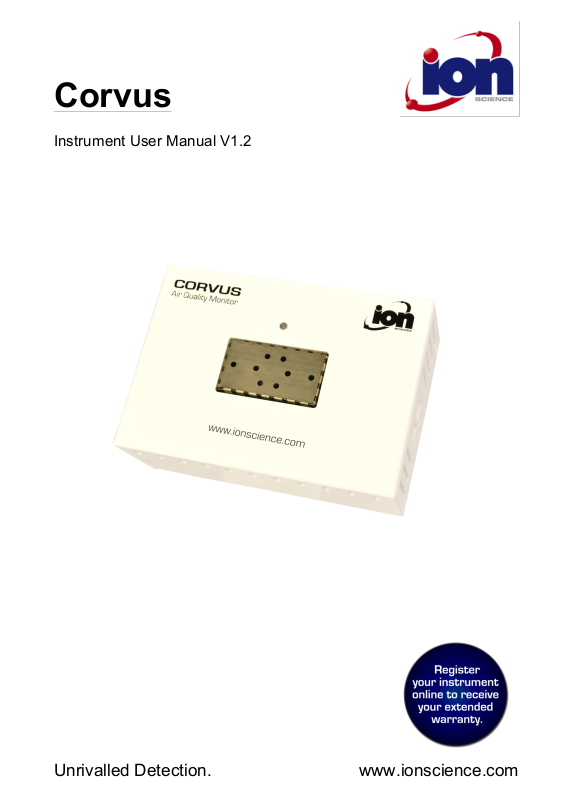

Corvus
Instrument User Manual V1.2
Register your instrument online for extended warranty
Thank you for purchasing this Corvus indoor air quality monitor from Ion
Science Ltd.
The standard warranty of the Corvus is 1 year however the warrantee can be
extended.
To extend the Corvus warranty to 2 years, you must register your instrument
online within one month of purchase (terms and conditions apply.)
Visit: http://www.ionscience.com/customer-support/instrument-registration
CORVUS MANUAL Ion Science Ltd
Page 3 of 27
Unrivalled Detection. www.ionscience.com
Declaration of conformity
Manufacturer:
Ion Science Ltd, The Way, Fowlmere, Cambridge, UK. SG8 7UJ
Product:
Corvus Indoor Air Quality Monitor
Product description:
Indoor air quality monitor for VOC detection with wireless data download,
humidity and barometric pressure.
Standards
BS EN 61326-1:2006
Electrical equipment for measurement, control and laboratory use – EMC
requirements. Group 1, Class B equipment – (emissions section only)
BS EN 61326-1:2006
Electrical equipment for measurement, control and laboratory use – EMC
requirements. Industrial location immunity – (immunity section only)
BS EN 50270:2006
Electromagnetic compatibility – Electrical apparatus for the detection and
measurement of combustible gases, toxic gases or oxygen. Immunity Type 2 –
industrial environments.
BS EN 61010-1:2010
Safety requirements for measurement, control & lab equipment
CFR 47:2008
Class A Code of Federal Regulations: 15 Subpart B- Radio Frequency Devices
– Unintentional Radiators
BS EN ISO 9001:2008
Quality Management System – Requirements
On behalf of Ion Science Ltd, I declare that, on the date this product accompanied by this declaration is
placed on the market, the product conforms to all technical and regulatory requirements of the above listed
directives.
Name: Mark Stockdale
Position: Technical Director
Signature:
Date: 17th April 2014
CORVUS MANUAL Ion Science Ltd
Page 4 of 27
Unrivalled Detection. www.ionscience.com
Contents
Declaration of conformity ............................................................................................................................... 3!
Statements ....................................................................................................................................................... 5!
Responsibility for Use .................................................................................................................................... 5!
Quality Assurance .......................................................................................................................................... 5!
Disposal ......................................................................................................................................................... 5!
Calibration Facility .......................................................................................................................................... 5!
Legal Notice ................................................................................................................................................... 5!
Warranty ........................................................................................................................................................ 6!
Contact Ion Science Limited .......................................................................................................................... 6!
Introduction ...................................................................................................................................................... 7!
CorvusPC ......................................................................................................................................................... 9!
Main screen ................................................................................................................................................... 9!
Button functionality ......................................................................................................................................... 9!
Upgrade ....................................................................................................................................................... 10!
Serial number ............................................................................................................................................... 10!
Push button (See location on page 3) .......................................................................................................... 10!
Settings ........................................................................................................................................................ 10!
Name ........................................................................................................................................................... 11!
Units ............................................................................................................................................................. 11!
Data log ........................................................................................................................................................ 11!
Interval ......................................................................................................................................................... 11!
Network - Set master ................................................................................................................................... 11!
Log Duration ................................................................................................................................................ 11!
Write to Device ............................................................................................................................................. 11!
Group name ................................................................................................................................................. 11!
View data ..................................................................................................................................................... 11!
Scales .......................................................................................................................................................... 12!
Select data ................................................................................................................................................... 13!
Zoom to fit .................................................................................................................................................... 13!
Zoom ............................................................................................................................................................ 13!
Print .............................................................................................................................................................. 13!
Photo ............................................................................................................................................................ 13!
AirVision ....................................................................................................................................................... 13!
Sequence Slider ........................................................................................................................................... 14!
Border highlight ............................................................................................................................................ 14!
Border range ................................................................................................................................................ 14!
Sequence Play ............................................................................................................................................. 14!
Sequence Stop ............................................................................................................................................ 14!
Map save ..................................................................................................................................................... 14!
Using the Corvus power supply ................................................................................................................... 15!
Corvus Deployment ....................................................................................................................................... 16!
Deployment check list ................................................................................................................................... 17!
Installation best practices ............................................................................................................................ 18!
The importance of a site survey ................................................................................................................... 18!
Site survey – Choosing locations ................................................................................................................. 18!
Maintenance ................................................................................................................................................... 20!
Lamp Cleaning ............................................................................................................................................. 20!
Technical specification ................................................................................................................................. 22!
Calibration ...................................................................................................................................................... 23!
PID output .................................................................................................................................................... 24!
Accessories ................................................................................................................................................... 26!
Spares .......................................................................................................................................................... 26!
Manual log ...................................................................................................................................................... 27!
CORVUS MANUAL Ion Science Ltd
Page 5 of 27
Unrivalled Detection. www.ionscience.com
Statements
Responsibility for Use
The Corvus instrument detects and data logs a wide range of Volatile Organic Compound gases. It also
measures and Data logs Temperature, Relative humidity and Barometric pressure. The Corvus instrument
has many selectable features allowing it to be used in a variety of ways. Ion Science Ltd accepts no
responsibility for the incorrect adjustment of features that cause harm or damage to persons or property.
Inadequate performance of the gas detection equipment described in this manual may not necessarily be
self-evident and consequently equipment must be regularly inspected and maintained. Ion Science Ltd
recommends that personnel responsible for equipment use a regime of regular checks to ensure it performs
within calibration limits, and that a record be maintained which logs calibration check data. The equipment
should be used in accordance with this manual, and in compliance with local safety standards.
IMPORTANT
It is important the responses from the sensors are checked before being deployed.
Quality Assurance
Corvus has been manufactured in compliance with ISO9001:2008, which ensures that the equipment
supplied to our customers has been designed and assembled reproducibly, from traceable components, and
leaves Ion Science Ltd calibrated to stated standards.
Disposal
Dispose of Corvus and its components in accordance with all local and national safety and environmental
requirements. This includes the European WEEE (Waste Electrical and Electronic Equipment) directive. Ion
Science Ltd offers a take back service. Please contact us for more information.
Calibration Facility
Ion Science Ltd offers a calibration service including the issue of certification confirming calibration with
equipment traceable to national standards. A Corvus calibration kit is available from your distributor or
service centre or at www.ionscience.com. Ion Science Ltd recommends annual return of all instruments for
yearly service and calibration.
Legal Notice
Whilst every attempt is made to ensure the accuracy of the information contained in this manual, Ion Science
Ltd accepts no liability for errors or omissions, or any consequences deriving from the use of information
contained herein. It is provided "as is" and without any representation, term, condition or warranty of any
kind, either express or implied. To the extent permitted by law, Ion Science Ltd shall not be liable to any
person or entity for any loss or damage which may arise from the use of this manual. We reserve the right at
any time and without any notice to remove, amend or vary any of the content which appears herein.
CORVUS MANUAL Ion Science Ltd
Page 6 of 27
Unrivalled Detection. www.ionscience.com
Statements
Warranty
The standard warranty can be extended from 1 to 2 years on the Corvus when registering your
instrument via our website:
http://www.ionscience.com/customer-support/instrument-registration
To receive your Extended Warranty, you need to register within one month of purchase (Terms
and Conditions apply). You will then receive a confirmation email that your Extended Warranty
Period has been activated and processed.
Full details, along with a copy of our Warranty Statement can be found by visiting:
www.ionscience.com/instrument-registration
Contact Ion Science Limited
USA Office
Ion Science Inc
4153 Bluebonnet Drive
Stafford
TX 77477
USA
Tel: +1 (877) 864 7710
Fax: +1 802 244 8942
Email: info@ionscienceusa.com
Web: www.ionscienceusa.com
UK Head Office
Ion Science Ltd
The Way, Fowlmere
Cambridge
SG8 7UJ
UK
Tel: +44 (0)1763 207206
Fax: +44 (0) 1763 208814
Email: info@ionscience.com
Web: www.ionscience.com
German Office
Ion Science Messtechnik GMBH
Laubach 30
Metmann-Neandertal
40822
GERMANY
Tel: +49 2104 14480
Fax: +49 2104 144825
Email: info@ism-d.de
Web: www.ism-d.de
CORVUS MANUAL Ion Science Ltd
Page 7 of 27
Unrivalled Detection. www.ionscience.com
Introduction
Corvus is a Photo Ionisation Detector (PID) specifically designed to monitor VOC gas concentrations within
indoor environments. It also logs temperature, relative humidity and barometric pressure to help diagnose
potential sources of VOC’s.
Multiple Corvus instruments communicate together via a low power wireless mesh network, this offers the
convenience of downloading data from multiple slave instruments from a single Master instrument.
CorvusPC software also offers a dynamic range of tools that make analysing data and creating reports quick
and easy.
Setup
Please download and install CorvusPC software from the Ion Science website:
http://www.ionscience.com/customer-support/instrument-software
CorvusPC software is compatible with Microsoft Windows XP or later versions.
IMPORTANT
* All Corvus instruments are supplied setup as ‘Slave’ instruments with the Group name ‘A’.
* To create a network of Corvus instruments a Master is required; any Corvus Slave can be setup as a
Master using the CorvusPC software. Settings can be sent to multiple Corvus Slave instruments wirelessly
via a Master if it shares the same network Group name.
* Slave or Master Corvus instruments will not communicate with other Corvus instruments with different
group names.
* Before deploying Corvus instruments in a location make a note of which Corvus instrument is placed in
which location. Each Corvus has a unique serial number (eg. CV 000001) that can be used as a reference.
* Ion Science strongly recommends creating and testing a Corvus network before it is deployed.
Connect Corvus to CorvusPC software
Open CorvusPC software on a computer. Connect power to a Corvus instrument using the power adaptor
supplied with the instrument. The LED on the Corvus will flash BLUE and RED. Use the USB cable from the
accessory kit (Part number: A-877206) connect between the Corvus and the Computer.
Failure to use the supplied USB cable may invalidate the EMC certificate.
Corvus used in isolation.
There may be applications where a network of instruments is not required or not possible.
All Corvus instruments can be used in Isolation. Simply connect each Corvus to the CorvusPC software via
the USB cable and set a unique Group name. Data will be stored in the Corvus instrument and must be
downloaded via the USB connection.
Corvus used in a network
It is strongly recommended a network is setup and tested before deployment.
When each Corvus is connected to CorvusPC for the first time a message will appear asking if this
instrument is to be set as a Master.
A Master instrument is required to control each group of up to 20 Corvus instruments.
Data logging
Data is stored on each Corvus and is transmitted to the Master of that group. Should wireless transmission
be interrupted data will be stored on each Corvus and then forwarded to the master when wireless
connection is regained.
If wireless communication is permanently lost, data can be downloaded via USB from each Corvus
instrument. CorvusPC recognises when an instrument is in a group and will collate data from separate
instruments together. Data can therefore be viewed as if downloaded from a Master instrument.
CORVUS MANUAL Ion Science Ltd
Page 8 of 27
Unrivalled Detection. www.ionscience.com
Front Right Side
Back
Introduction
Weight 450 g (15.9 oz)
www.ionscience.com
CORVUS
Air Quality Monitor
122mm
( 4.8” )
175mm ( 6.9” )
67mm ( 2.63” )
Push button
USB
Power input
Right side
Right side
80mm ( 3.1” )
Fixing: M4
(Screw head <9mm)
Right side
CORVUS MANUAL Ion Science Ltd
Page 9 of 27
Unrivalled Detection. www.ionscience.com
CorvusPC
The CorvusPC software program is required to setup, calibrate and deploy the Corvus instrument; it is
available for download from the Ion Science website: http://www.ionscience.com/customer-support/instrument-software
!
Main screen
!
CorvusPC has 4 large buttons that appear on all main screens.
!
Live view
Show Corvus instruments currently in communication with CorvusPC. A Master Corvus must be
connected via USB, other Corvus slave in that group will also be displayed.
!
! History view
Show all Corvus instrument currently connected and previously connected.
Information
Displays software version information, offers access to software upgrades and access to the user
manual. If a new version of software is available it will appear in a dialogue box, to upgrade simply
press the ‘Install Upgrade’ button.
Archive
Access previously saved data and facility to analyse and export data.!!
!
Button functionality
Settings
This button gives access to the setup screen. Changes to settings are transmitted to all Corvus in
the group.
View data
Allows the user to view downloaded data in graphical form
Export data
Data from a single data is exported as a csv format allowing it data to be used in MS Excel.
Export multi data
Data from multiple instruments can be exported csv format allowing it data to be used in MS
Excel.
!
Delete Data
This button deletes previously saved data .!
Air Vision
Data can be analysed by importing a user defined map and placing Corvi monitors in the
monitoring location. The presence of VOC’s is then highlighted on the map offering a quick
method of identifying gas presence and migration.
Start logging
When pressed all Corvus connected to the group will start logging.
Please note: Corvus setting cannot be adjusted while logging.
Loading...
