User Manual
Page 2
INDEX
IMPORTANT SAFETY INSTRUCTIONS ..................................................................................
FEATURES ..............................................................................................................................
SPECIFICATIONS.....................................................................................................................2
PRODUCT DESCRIPTION ......................................................................................................
THE CONTROL PANEL ...........................................................................................................
UNIT SETUP.............................................................................................................................
TO OPERATE SAFELY ............................................................................................................
OPERATING INSTRUCTIONS ..............................................................................................
EMPTYING THE WATER TANK .............................................................................................
CONTINUOUS DRAINAGE OPTION........................................................................................
MAINTENANCE ......................................................................................................................
TROUBLESHOOTING .................................................................................................................
WARRANTY DETAILS ............................................................................................................
WARRANTY REGISTRATION.................................................................................................13
5-7
10
11
12
1
2
3
3
4
4
8
9
Page 3
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.
WARNING - This appliance is intended for use in a domestic environment only. Any other
use is not recommended by the manufacturer and may cause fire, electrical shocks or
other injury to person or property.
When using electrical appliances, basic safety precautions should always be followed:
1. Do not operate the unit with a damaged cord or plug, after it malfunctions or has been
dropped or damaged in any way. Return to an authorised service facility for examination
and repair.
2. This unit should always be kept in an upright position to avoid any damage. Place the
unit on a flat stable surface.
3. Check the household voltage to ensure it matches the unit’s rated specification before
operating.
4. Operate this unit in an ambient temperature between 5°C and 35°C.
5. Ensure that the air inlets and outlets are not blocked or covered.
6. Do not place the unit too close to curtains or other objects - min 40cm.
7. When using the dehumidifier to speed up the drying of wet clothes in the room,
please keep the clothing at a safe distance from the unit to prevent water from dripping
onto the unit.
8. Never place anything on top of the unit and do not cover with any kind of material while
in use.
9. This product is intended for domestic and light office use ONLY and not for commercial,
industrial or outdoor use.
10. To protect against electrical shocks, do not immerse unit, plug or cord in water, or spray
with liquids.
11. Never unplug the power cord without pressing the "ON/OFF" button to switch it off first,
as this could damage the unit.
12. Always unplug the unit when not in use or moving location. To disconnect from the
power supply, grip the plug and pull from the power socket. Never pull by the cord.
13. Always empty the water tank before storing the unit away.
14. Close supervision is necessary when any appliance is used by or near children and pets.
15. Do not run power cord under carpeting, or cover with rugs or runners. Arrange the
cord away from areas where it may be tripped over.
16. Never operate or store the unit in direct sunlight.
17. To repair the unit, take it to a qualified service engineer. Repairs carried out by
unqualified people may cause damage to the unit or injury to persons or property and
void the warranty.
18. Where possible, avoid the use of an extension cable as they may overheat and cause
a risk of fire. Only use an extension cord after ensuring it is in perfect condition.
19. Do not use the unit without the air filter.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
SAVE AND READ THESE IMPORTANT SAFETY INSTRUCTIONS
1
1
Page 4
FEATURES
• Compressor dehumidifier - uses CFC-free R134a refrigerant
•
Environmentally friendly - no harmful gases and quiet in operation
Moisture removal - 12 litres/day (30°C RH80%)
•
Water tank capacity - 1.8 litres
•
Humidity level control - from 40 to 70%RH or continuously
•
Up to 24 hour timer - for added convenience
•
•
Temperature range for use ~ 5°C - 35°C
•
Large, ergonomic carry handle and castor wheels for easy portability
•
Removable water tank
•
Auto pause and restart function to save energy
•
Pauses dehumidification once the desired humidity level has been reached
and restarts on previous settings if the humidity level increases.
LCD backlight dimming
•
Washable pre-filter
•
Removes large particles such as dust and hair from dehumidified air.
Continuous drainage option
•
- 5 levels
SPECIFICATIONS
Model: Ionmax Ion622
Voltage: 220-240V ~ 50Hz
Power consumption: 230W (30°C, 80%RH)
Net weight: 9.9kg
Dimensions (W x D x H): 278mm x 180mm x 465mm
2
Page 5
PRODUCT DESCRIPTION
LCD
Air outlet
Control panel
Handle

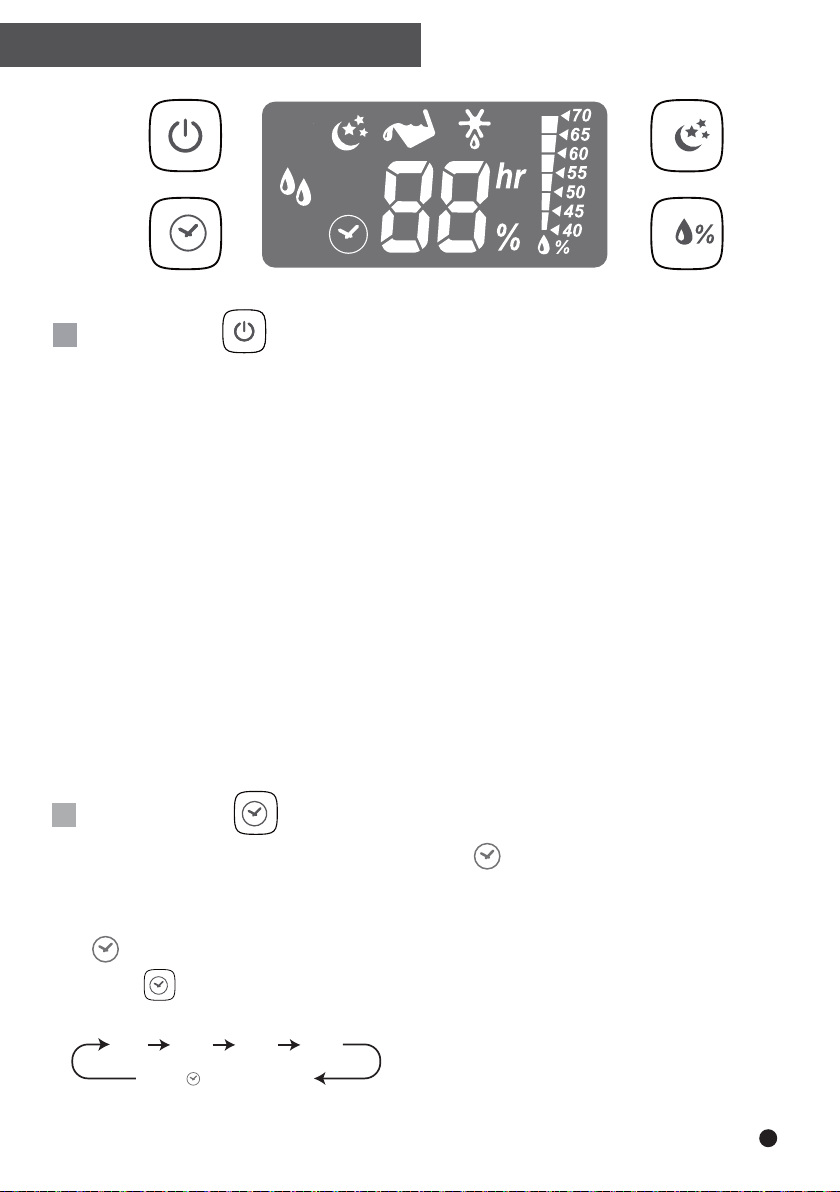

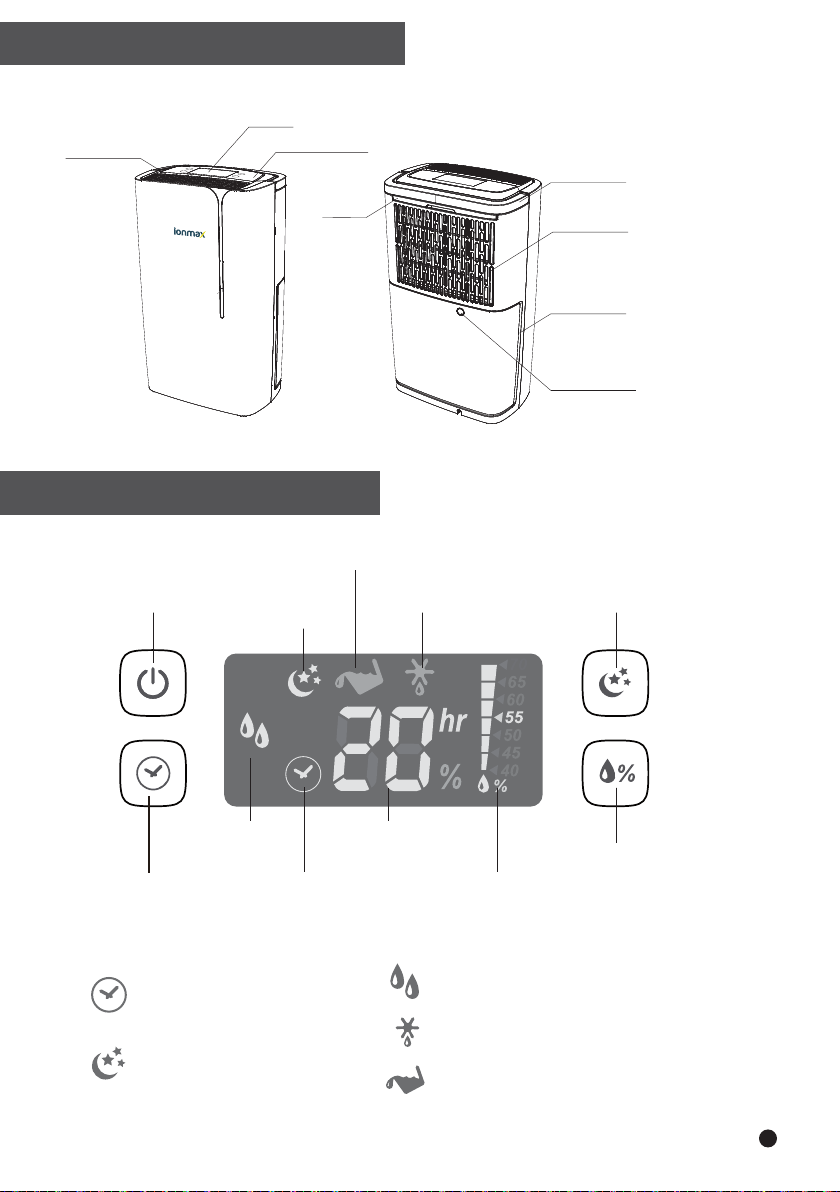

THE CONTROL PANEL
Water tank full indicator
Power button
Dimming
indicator
Filter
Defrost indicator
Air inlet
Water tank
Continuous drainage hole
Backlight dimming
button
Dehumidifying
Timer button
Displays only when
timer is set
Displays when LCD
backlight is dimmed
Timer
indicator
Room humidity /
Setting
indicator
Humidity setting
indicator
Dehumidifying mode
Blinks when defrosting
Blinks when water tank is full
Relative Humidity
button
3
Page 6
UNIT SETUP
Air outlet
above 20cm
above 50cm
!
Top above 60cm
Air inlet
(Back)
above 20cm
above 20cm
CAUTION: Do not place the dehumidifier in a broom cupboard,
boiler room, small unventilated rooms etc. Avoid placing the
dehumidifier in small confined areas or in close proximity to a
radiator or heat source such as tumble driers and cookers to
prevent the dehumidifier from overheating.
Do not use this dehumidifier in dusty or industrial
environments where particles can get into the dehumidifier.
This will cause a malfunction and void your warranty.

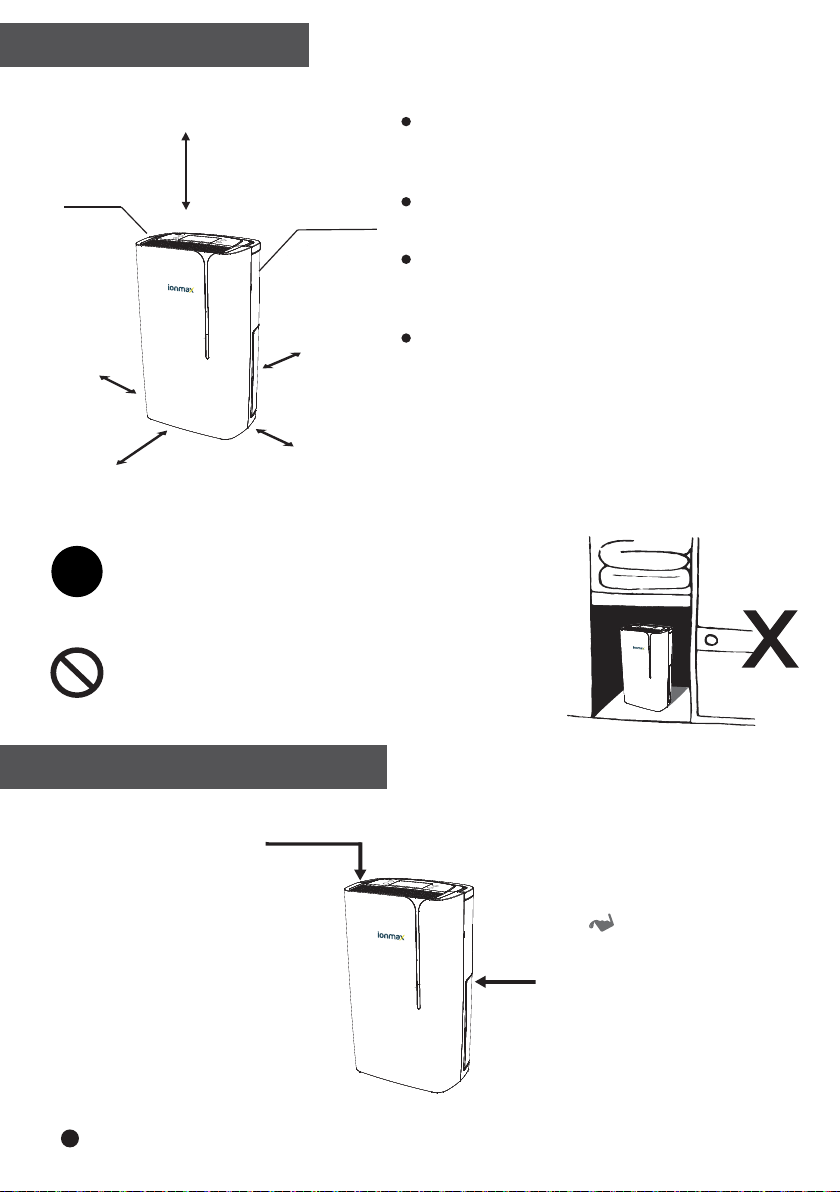

Place the unit in an upright position on a
stable, level surface. (Please ensure unit
is not sitting on its own cable)
Please ensure the unit is a safe distance away
from walls and furniture (see image on the left).
Please keep clothes at a safe distance of
60cm from air outlet of the unit to prevent
water dripping into the unit.
For best results, position the dehumidifier
somewhere central like a landing or a hallway.
As long as the internal doors are open,
the excess moisture from all of the rooms
in the house will migrate naturally towards
the dehumidifier and be processed.
TO OPERATE SAFELY
Do not insert small
objects into the unit as
this will damage it and
cause a hazard
Maintain safe clearance
space as shown in
Unit Setup above
4
Ensure water tank is
fitted correctly. If the
tank is full or not in place,
the indicator will
blink and the machine
will stop operating.
Do not attempt to remove
the water tank while unit is in
operation to prevent water
leakage.
Page 7
OPERATING INSTRUCTIONS
ON and OFF
Connect the power plug to the appropriate electrical outlet.
Press the ON / OFF button to turn the appliance ON.
The LCD panel will light up.
If the unit has been switched off and on again, it will resume operation with the
settings for mode, humidity and backlight from its last use. Only the timer setting
will be reset to zero.
If the power is restored after a power failure, the unit (including the timer) will resume
operation at the settings that were selected prior to the power failure.
To switch off the unit, press the ON / OFF button first before unplugging the power
plug from the electrical outlet.
TIMER MODE
Press to set timer from 1 to 24 hours or off (the indicator will switch off).
After setting the timer, the indicator and digits on the LCD panel will blink for
5 seconds and then return to display the room humidity level.
The indicator lights up only when the timer has been set.
Press the button once to check the time remaining.
1H 2H
OFF
( INDICATOR OFF)
... 24H
5
Page 8
OPERATING INSTRUCTIONS
RELATIVE HUMIDITY
Press to set your desired humidity level from 40% to 70% RH (at 5% increments)
or CO (continuous mode).
For example, if 50% RH is selected, the unit will operate and dehumidification will
occur when the room humidity level is detected at above 50% RH.
After setting the desired humidity level, the indicator and digits on the LCD panel
will blink for 5 seconds and then return to display the room humidity level.
40% 70%
Continuous
HUMIDITY LEVEL RECOMMENDATIONS
> 60%
50%
40%
Continuous
Note:
RH indicated has a ±10% RH tolerance and may vary depending on room temperature.
Once the desired humidity level is reached, the unit will pause dehumidification to save energy
(see next page on auto pause and restart function).
45% ...
(ALL LED’S LIGHT UP)
Maintain the room at a comfortable indoor humidity level
Inhibit mould and bacteria growth
For daily normal household use to maintain humidity at a healthy level of
55%RH (Bacteria and mould will not breed at this level).
Super dry mode to prevent condensation
To control a very damp room in the first couple of days. Then, switch to 50%
or 60% to save energy.
Suitable in winter to dry clothes faster
The unit continues to dehumidify regardless of the humidity level (unless the
water tank is full).
We recommend operating this mode along with a timer setting to save energy.
6
Page 9
OPERATING INSTRUCTIONS
LCD BACKLIGHT DIMMING
Press to change backlight from H (no dimming), L5 (slightly dim) to L1 (dimmest)
or L0 (no backlight).
The indicator lights up only when the unit has been set between L0 and L5.
H
(no dimming)
L5
(slightly dim)
L0
(no backlight)
...
L1
(dimmest)
AUTO PAUSE AND RESTART FUNCTION
Once the desired humidity level is reached, the unit will pause dehumidification for
60 minutes (LCD panel will display “ ”). After 60 minutes, the unit will run on fan
mode (LCD panel will display “ ”) for 5 minutes to monitor the room humidity level.
If the room humidity level increases by 5% or more during the pause “ ” or fan “ ”
mode, the unit will start dehumidifying again.
If the room humidity level does not increase, the unit will repeat the 60-minute pause
“ ” and 5-minute fan “ ” cycle.
7
Page 10
EMPTYING THE WATER TANK

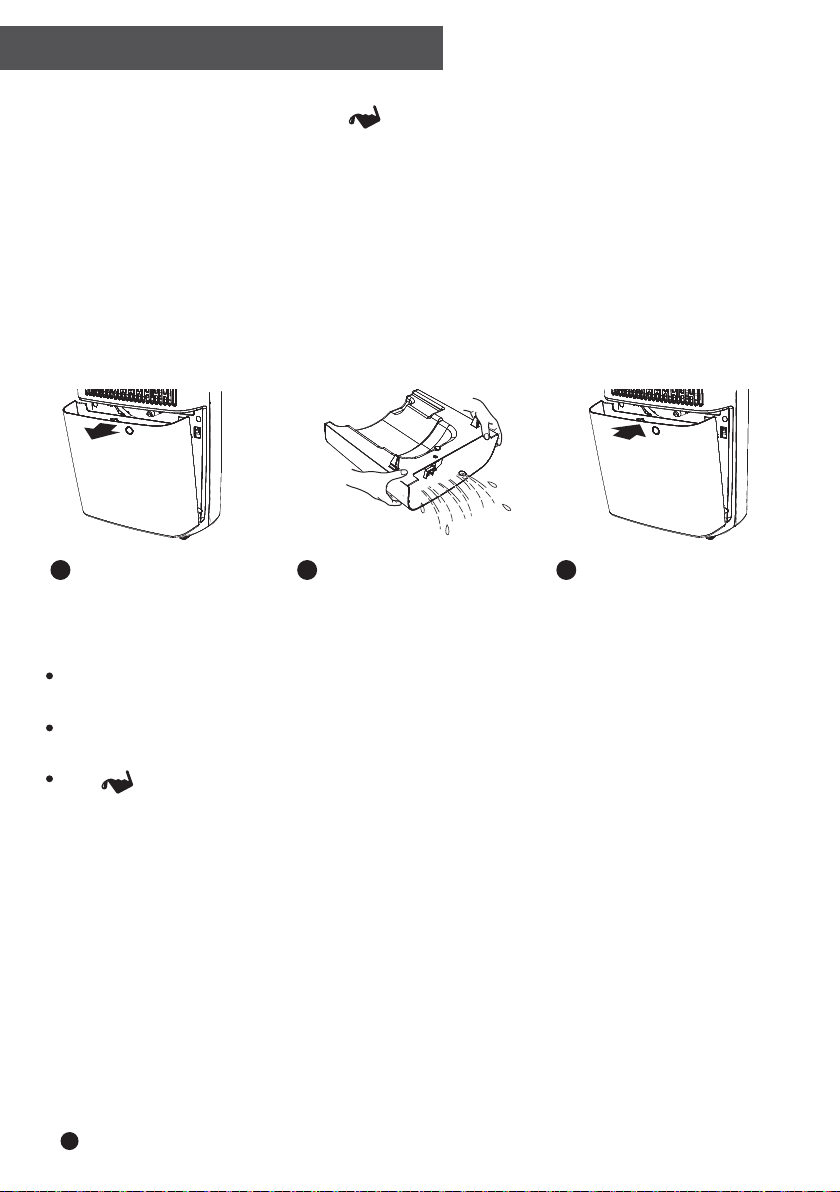

1. When the water tank is full, the indicator light blinks and the unit will stop
operating.
2. Do not move the unit or remove the water tank if the machine is still operating a s
water may leak, damage the unit or cause an electric shock.
3. To remove the water tank, pull it out by
lifting it carefully.
4. Pour the water away, clean the water tank and install the water tank back into
the unit.
gripping the sides of the water tank and
A B C
Pull water tank out
NOTE:
Clean the water tank with clean water if needed. Do not use detergent, solvents,
abrasives or hot water to avoid damage to the appliance.
Do not remove or damage the float in the water tank; the unit will not work
correctly.
The indicator light blinks if the water tank is not positioned correctly.
8
Pour the water contents Reinstall the water tank
Page 11
CONTINUOUS DRAINAGE OPTION
A hose with an inner diameter of 12mm can be connected
for continuous drainage:

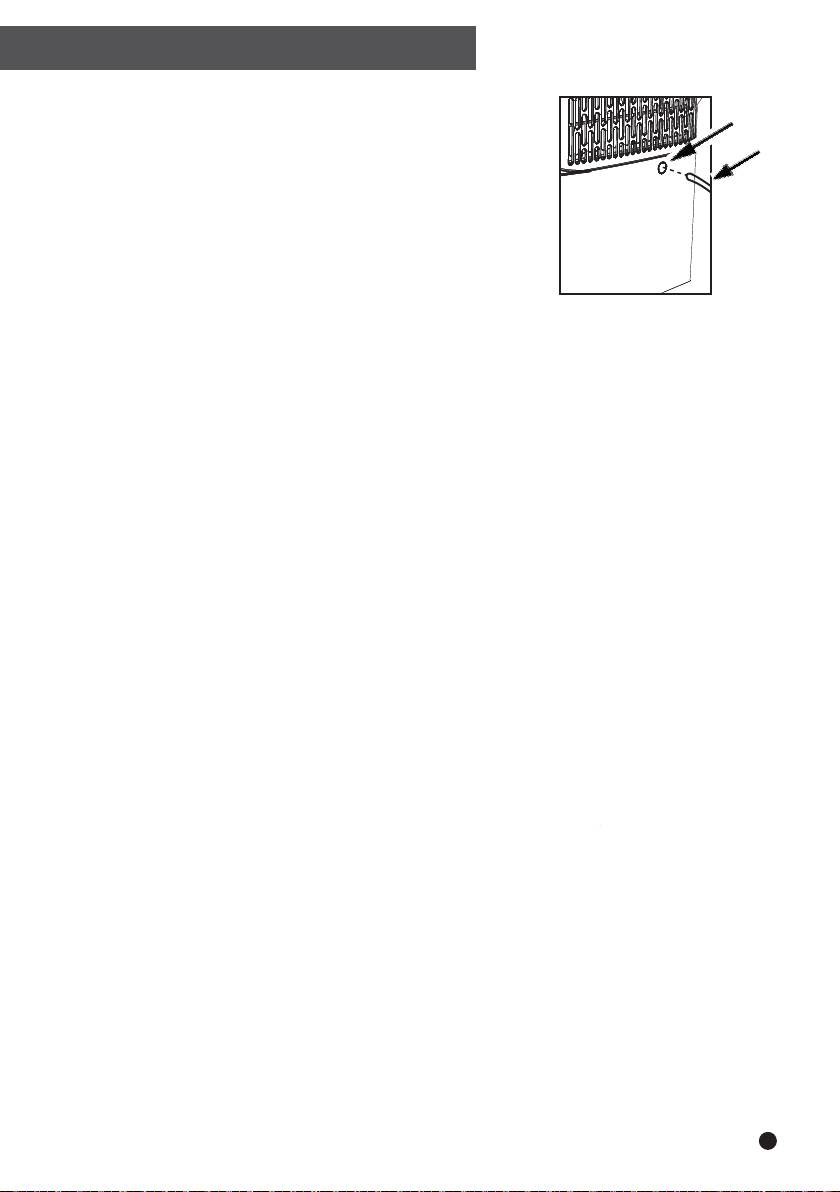

1. Use a screwdriver to remove the knockout at the
back (on the tank).
Attach the hose to the connector through the hole.
2. The hose must lead to an appropriate drain at a
downward slope with no sharp bends.
Note:
1. Ensure the water tank is well fitted in position before inserting
the hose.
2. Before removing the water tank, ensure the hose is disconnected.
Knockout
Hose
9
Page 12
MAINTENANCE

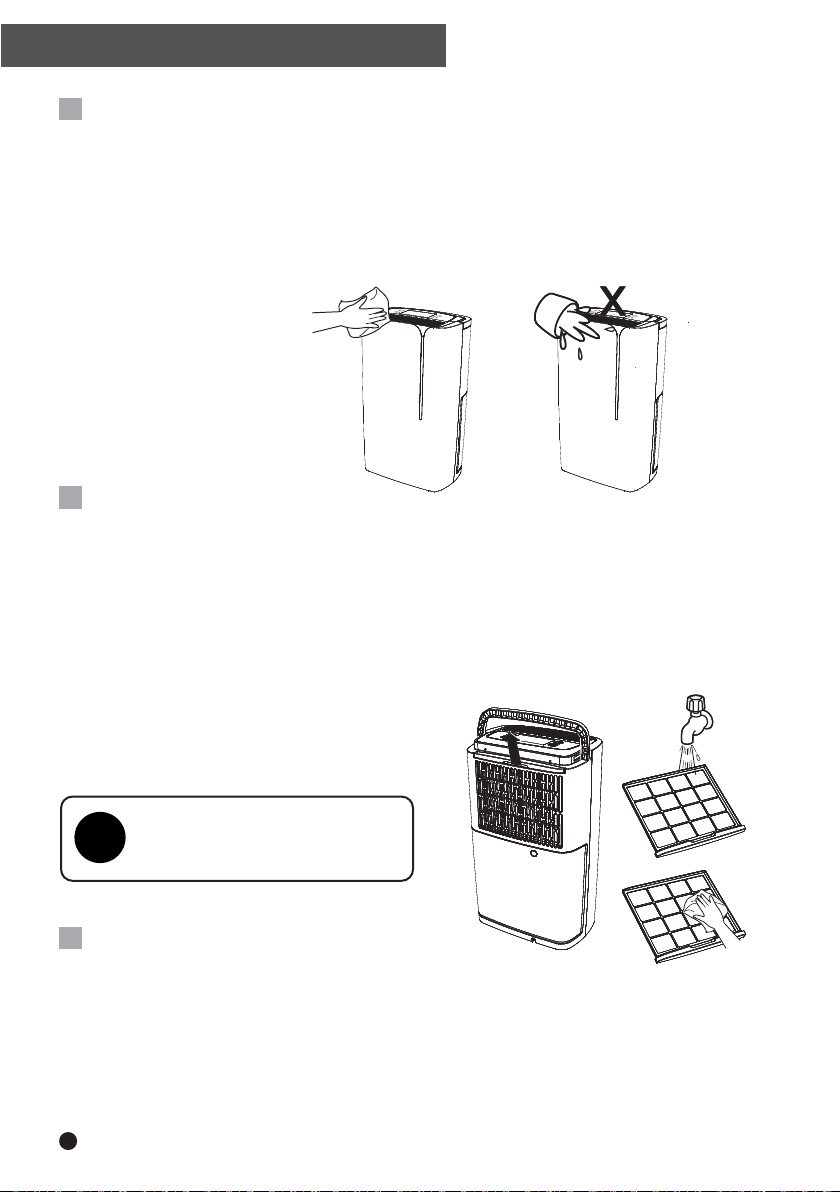

Cleaning the unit
1. Turn off the unit, wait for the fan to stop and unplug from the electrical outlet.
2. Clean the casing using a soft damp cloth with warm water and mild detergent.
Do not use solvents or abrasive materials.
3. Dry thoroughly with a soft dry cloth after cleaning.
4. In order to avoid damage, do not wash the machine with water or let water drip
into the air inlet or outlet.
Cleaning the filter
If the filter is covered with dust, the airflow and the performance of the unit
will be affected. Check the filter periodically to ensure any dust is removed
(It is recommended to check and clean the air filter every month or at an
appropriate frequency depending on your usage and air environment).
1. Turn the appliance OFF and ensure the plug is removed from the electrical outlet.
2. Remove the filter located at the back of the appliance.
3. Wash and wipe the filter gently.
4. Leave the filter to dry completely.
5. Restore the filter into the appliance.
CAUTION: Never run the unit without the
filter. Dust build up in the unit can cause
!
malfunction and overheating.
Before storing
1. Turn off the unit and unplug from the electrical outlet.
2. Clean and dry the water tank. Leave the unit to drain for approximately one day.
3. Clean the filter and the unit. Cover the unit to prevent it from gathering dust.
Store upright in a cool dry place.
4. Do not expose to direct sunlight.
10
Page 13
TROUBLESHOOTING
The following conditions are normal:
1.
The compressor will stop or rest for 3 minutes every time the unit shuts down or is
plugged in to the electrical outlet. This helps ensure a smooth start for the dehumidifier.
2. The unit works within room temperature of about 5 ~ 35ºC. It may stop operation when
the room temperature is out of this range or when the air inlet or outlet is covered.
3. The unit could increase the room temperature by 1 ~ 3ºC.
If your dehumidifier is not operating as expected, please check the following items first:
Problem
Dehumidifier
not operating
Very little
water is
collected
Leaking
Unit is noisy
Possible Causes What to Do
The unit is unplugged
The water tank is full or not in
place (the indicator is blinking)
The unit is defrosting (the
indicator is blinking)
The room humidity has reached
the setting
The ambient temperature is too
low (the unit is defrosting
often)
The ambient temperature is
too high that it causes
overheating
Air filter is dirty
The air inlet or outlet is covered
The unit is not level
The drainage is clogged or
loose
Unit is not on a flat and level
surface
Air filter is dirty
Make sure the plug is pushed completely
into the electrical outlet.
Empty the water tank, check that the float is
in position, and reinstall the water tank.
This is normal. The unit will restart its operation
after it has finished defrosting.
This is normal. Choose a lower relative
humidity setting (e.g. 40%RH) for drier air.
This is normal if the temperature is low.
Do not use the unit in small and closed
spaces where heat may accumulate. Move
the unit to a cooler place and wait at least
10 minutes before resuming operation.
Clean the filter.
Ensure nothing is obstructing the unit’s air
inlets and outlets and that the unit is set up
correctly according to the Unit Setup guide.
Ensure that the unit is placed on a level
surface and not accidentally sitting on a
cable etc.
Check the drainage hose and its
connection.
Move and restart the unit.
Clean the filter.
Please contact your retailer if any problem continues. Do not try to repair the unit yourself, as
as this could cause an electrical shock and void your warranty.
11
Page 14
12
Page 15
WARRANTY REGISTRATION
Register your Ionmax Ion622 online at my.andatech.com.au
Alternatively, fill out this form and forward to the address below
with a copy of your proof of purchase.
Andatech Pty Ltd
PO Box 3038, Nunawading VIC 3131, Australia.
Product : Ionmax Ion622
Date of Purchase : ____________________________________
Place of Purchase : ____________________________________
Serial No. : ____________________________________
Surname : ____________________________________
Given Name : ____________________________________
Address : ____________________________________
Suburb : ____________________________________
Postcode : ____________________________________
State : ____________________________________
Contact No. : ____________________________________
Email : ____________________________________
13
0
Page 16
14
Version 1.0. Updated 04.01.2018.
Loading...
