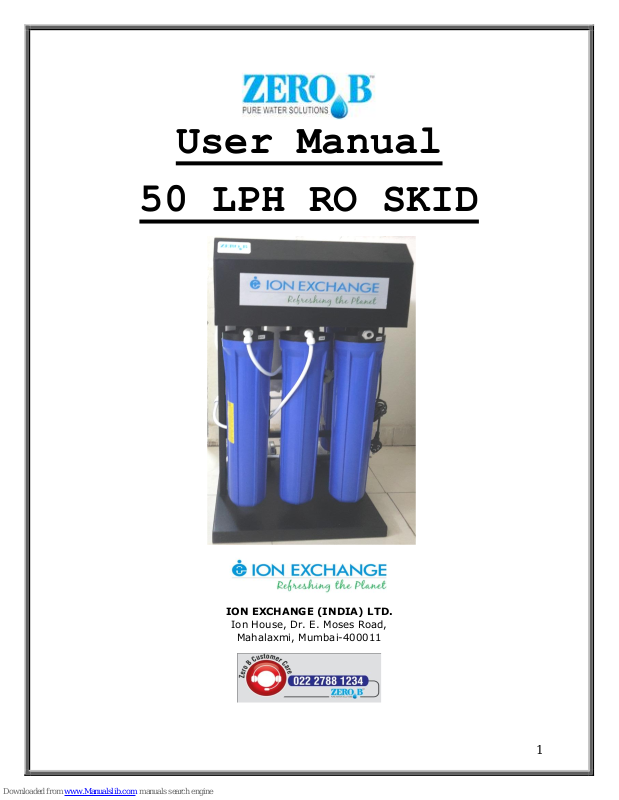

User Manual

50 LPH RO SKID

ION EXCHANGE (INDIA) LTD.

Ion House, Dr. E. Moses Road,

Mahalaxmi, Mumbai-400011

2

Specification

Dimension in mm W*D*H

470*490*860

Net Weight in Kg. (Approx.)

32 kgs

Gross Weight in Kg. (Approx.)

62 kgs

Reservoir Capacity

Not Provided

Production Capacity

50 LPH

RO Membrane (Thin Film Composite)

80 GPD*4 Nos.

Power Consumption

120 W

Input Power Rating

230 V AC,50 Hz

System Operating Voltage

48 V DC

Operating Temperature

5 TO 45 °C

% Of Recovery of Purifier Water

25 %

% Of Rejection in TDS

90 % (min.)

RO Membrane Flushing

Auto Flush @ Every Start, every stop and
every one hour of working for 1 minute

Stages of Filtration

Particulate FilterMembrane Life
Enhancer FilterSediment FilterPre­carbon FilterR.O.Membrane Filter Post
Carbon Filter

Technical Specifications of RO 50 LPH

Reverse Osmosis water purifier with up to 50 Liters per hour purification
capacity

Reverse osmosis system designed to deliver up to 50 liters of purified water per hour
through a 6 stage purification process. Its membrane have a pore size of 0.0001
micron size which prevents the passage of micro organisms and total dissolved salts
making the water lighter, taste natural and safe to drink.

3

Water Flow Schematic

4

TECHNICAL SPECIFICATION FOR RO SYSTEM
The RO water purifier units have 6 purifier stages in a CRCA steel skid frame

powder coated for corrosion protection.

Stage 1: Particulate Filter

Size : 2.5” Dia 20” Height
MOC of Cartridge : PP Yarn
Nominal rating of Cartridge : 10 microns
Qty : : 1 No

Stage 2: Membrane Life Enhancer Filter

Size : 2.5” Dia 10” Height
Weight of Content : 250Gms of Membrane Anti-scalent
Qty : 1 No

Stage 3: Sediment Filter

Size : 2.5” Dia 20” Height
Cartridge : PP Yarn
Nominal rating : 10 microns
Qty : 1 No

Stage 4: Pre Carbon filter

Size : 2.5” Dia 20” Height
Type : Carbon Block
Qty : 1 No

Stage 5: RO Membrane Filter

Type : Membranes 80 GPD X 4 in concealed housing.
Salt rejection% : 90% or more, which effectively removes input

Qty : 4 Nos

Stage 6: Post Carbon Filter

Type : Carbon Block
Size : 2.5: Dia 20” Height
Qty : 1 No

TDS, Chemical Impurities, bacteria and Virus.

5

Stage 1:
Particulate
filter

Inlet Water

Stage 3:
Sediment
filter

Stage 4:
Pre carbon
filter

6

Stage 6:
Post Carbon
filter

Stage 5: RO

Membrane filter

Booster Pumps 2 nos
driven by 48V DC

Stage 2:

Membrane Life
Enhancer Filter

Auto Flush
Timer Valve

Tank level
control valve

7

Stage 2:

Membrane Life
Enhancer Filter

Rejected
water out

Flow Restrictor

1.2 mm here

Flow Restrictor

0.5 mm here

8

***NOTE: Remove this short wire and connect
Electrical float switch (NC -normally closed)
OR connect HP Switch (NC -normally closed)

***Note: 1. Preferably Install electrical float switch (NC Type) for tank level

control
Install HP switch in the output permeate water line, adjust at switch OFF

pressure between 1.5~ 2 kg.

2. Insist on installing NRV (non returnable valve) in the permeate line before the
HP Switch.

3. Use Ion Exchange (ZERO B) genuine spare parts only.

4. Allow only ZERO B authorized persons to service this machine.

5. Insist on cleaning the Flow restrictors during the servicing the machine.

OR
