9F, # 75, Se . 1, Hsin Tai Wu Rd. Hsichih, Taipei Hsien,Taiwan, R.O.C.(Far East World Center-Bldg. A)
Messrs:

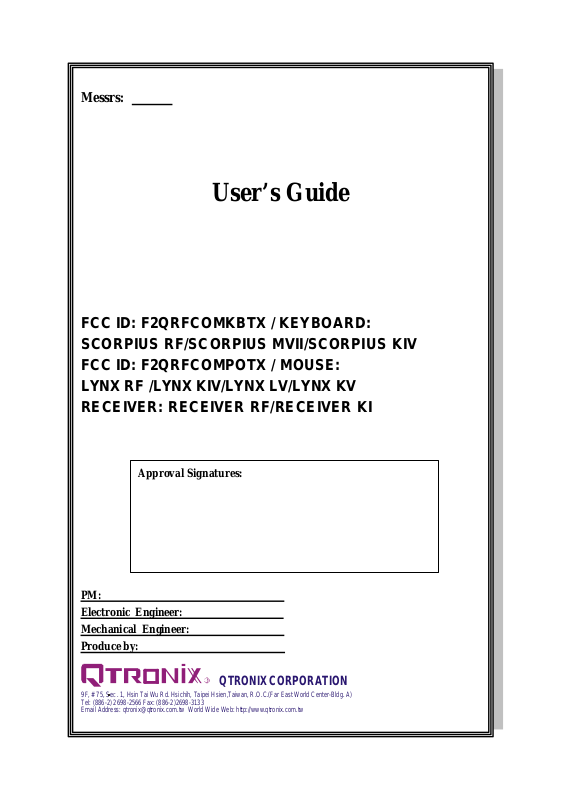

User’s Guide
FCC ID: F2QRFCOMKBTX / KEYBOARD:
SCORPIUS RF/SC ORPIUS MVII/SCORPIUS KIV
FCC ID: F2QRFCOMPOTX / MOUSE:
LYNX RF /LYNX KIV/LYNX LV/LYNX KV
RECEIVER: RECEIVER RF/RECEIVER KI
PM:
Electronic Engineer:
Mechanical Engineer:
Produce by:
Tel: (886-2) 2698-2566 Fax: (886-2)2698-3133
Email Address: qtronix@qtronix.com.tw World Wide Web: http://www.qtronix.com.tw
Approval Signatures:
QTRONIX CORPORATION
C
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
ence
WARNING
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection. This equipment generates, uses and
can radiated radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not cause
harmful interference, and (2) this device must accept any interfer
received, including interference that may cause undesired operation.
2
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
tep 2 within 8
, the
ⅠSetup Guide
Reset ID before using
Step 1: Connect the receiver to your computer
Step 2: Push the “CONNECT” button on the receiver.
Step 3: Push the button on the back of the mouse (in upper left corner).
Please note that this step must be completed after S
seconds.
Step 4: Move pointer,when the receiver and the mouse are connected
LED will blink , the setting has been completed.
Step 5: Please go back to Step 2 if the LED does not behave as that in
Step 4.
Step 6: Push the “CONNECT” button on the receiver.
Step 7: Push the button on the back of the keyboard (in upper left
corner). Please note that this step must be completed after Step 6
Step 8: Push “Space” key ,when the receiver and the keyboard are
Note: If same ID is used by other users and causes interference, just
within 8 seconds.
connected, the LED will blink , the setting has been completed.
repeat this reset procedure.
3
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
Ⅱ GENERAL
Description
keyboard has an enhanced NedMedia design and can work with any IBM PC
PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch
technology, Keyboard offers durability and style that will enhance any system
for years to come. 21 Extra rubber buttons (Windows ACPI keys included) let
keyboard link more closer with PC, touch one button to make some functions
work immediately.
Features
•Radio Frequency technology
•Netmedia for easy Internet and Multimedia control
•Low power consumption
•400dpi resolution
•High quality Rubber-Membrane key switches
•Tactile key stroke
•1,000,000 life cycles per switch
•104,105,106,107,109 key layout
Package Contents:
˙color box
˙Package dimension(L*W*H): 485*315*50 mm
˙Pcs /Carton: 10pcs
˙Package contents
- RF Keyboard
- RF Mouse
- Receiver
- 2AAA & 2AA batteries
- 12 CD-ROM driver
- User Manual
System requirements
• Designed to work with IBM PC PS/2 Compatible Computer
• Perfected for using with Windows® 98 / 2000 / ME / XP.
4
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
Ⅲ Electrical sp ecification
Environmental of Temperatures
Operating temperature
Non-operation temperature
0℃ to 50℃.
-10℃ to 60℃.
Humidity Test
Condition temperature 25C~55C
Operating humidity 10% to 85%
Non-operation Humidity 10% to 85%
Heat storage
Cool storage
60℃, 24Hours
-10℃, 24Hours
Humidity storage 85%, 24Hours
Performance specification/ Keyboard
Switch Life 1,000,000 cycle life
Performance specification/ Mouse
X,Y Encoder Opto-Mechanical
Scroll Encoder Mechanical
Switch Life 1,000,000 cycle life
Scroll Encode Life 100,000 cycle life
Hardware Resolution 400dpi
Power Requirements
Keyboard
Voltage Max Nom Min
Working Mode 3V 7mA
Sleeping Mode 3V 0.14 0.1mA 0.06
Power Consumption Mode Operation
Operation voltage 3.5V~1.5V
Mouse
Working Mode 3V 10mA
Sleeping Mode 3V 3mA 0.2mA 0.16mA
Operation voltage 3.5V~1.5V
Power Consumption 30mA Receive
Operation Voltage 5Vdc+5%
EMI / EMC
FCC The mouse shall meet the requirements of
FCC Part 15 for Class B Computing
Devices.
CE
1.EN55022: 1998 Class B
5
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
2.EN 61000-3-2: 1995+A1: 1998+A2: 1998
3.EN 61000-3-3:1995
4.EN 55024; 1998
BSMI
ESD
CNS13438.
Contact discharge: +2 / +4 KV
Air Discharge: +2/ +4 / +6 / +8 KV
Environmental of electrical
Shock test The mouse shall withstand a shock equal
to 20G forces, half sine wave for 11 msec
duration in all three (3) orthogonal axes.
Drop test (unpackage) Drop the mouse from 60 cm height above
a wood board 15mm thick placed on a
concrete floor, 3 times in the same
direction.
6
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
Ⅳ Mechanical specification
Material
Cover HIPS
Key top HIPS
Body Weight & Dimension Keyboard Mouse Receiver
Weight 800g 100.5grams 88.5grams
Length 475.5mm 130.1mm 102.8mm
Width 172mm 73.1mm 82.2mm
High 32mm 39.5 mm 30.3mm
Body colors Keyboard Mouse Receiver
Upper color 3361 877C 3361
Lower color 3361 Blue (Pantone:
3361
8181C )
Key color 3361 - Left and Right key color - Blue (Pantone:
-
8181C)
Roller color - Cool Gray 10C Cable color - - 3361
Windows - - SP237
Rubber key color Grey Grey Grey
Model Label color White White White
Rubber/ Membrane
Rubber Dome contact
100Ω(max)
Resister
Membrane Contact
100Ω
Resister
Membrane Open Resister
10MΩ
Box Dimension:
Length 485mm
Width 315mm
High 50mm
7
Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS
Ⅴ RF SPEC
Keyboard Mouse Receive
FREAUENCY 27.092MHZ 27.042MHZ 26.64MHZ/26.59MHZ
MODULATION
DATA RATE 4.8K 4.8K 4.8K
POWER LEVEL
SENSITIVITY -90 dBm
TRANSISSION
DISTANCE
FSK FSK FSK
ID 256 256 256
0 dB 0 dB
1.5M 1.5M 1.5M
