IOGear GWHDLRKIT Quick Start Manual
GWHDLRKIT
PART NO. Q1410-a
www.iogear.com
Quick Start Guide
Ultra Long Range Wireless HD Transmitter and
Receiver Kit
Guide de demarrage rapide
Ensemble d'émetteur et de récepteur HD sans fil à
portée ultra longue
Guia de confirguarcion rapide
Kit de transmisión y recepción inalámbricas HD de
alcance ultra largo
1 x Ultra Long Range Wireless Transmitter
1 x Ultra Long Range Wireless Receiver
1 x IR In Cable
1 x IR Out Cable
2 x HDMI Cables
2 x Power Adapters
1 x Quick Start Guide
1 x Warranty Card
Package Contents
System Requirements
Display:
HDTV, HD Display or HD Projector with HDMI Input
Media Source:
1 HDMI Output
Cables:
2 HDMI Cables
Contact
WE’RE HERE TO HELP YOU!
NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support
www.iogear.com
iogear.custhelp.com
support@iogear.com
15365 Barranca Pkwy, Irvine, CA 92618
1
ULTRA LONG RANGE WIRELESS
HDMI TRANSMITTER

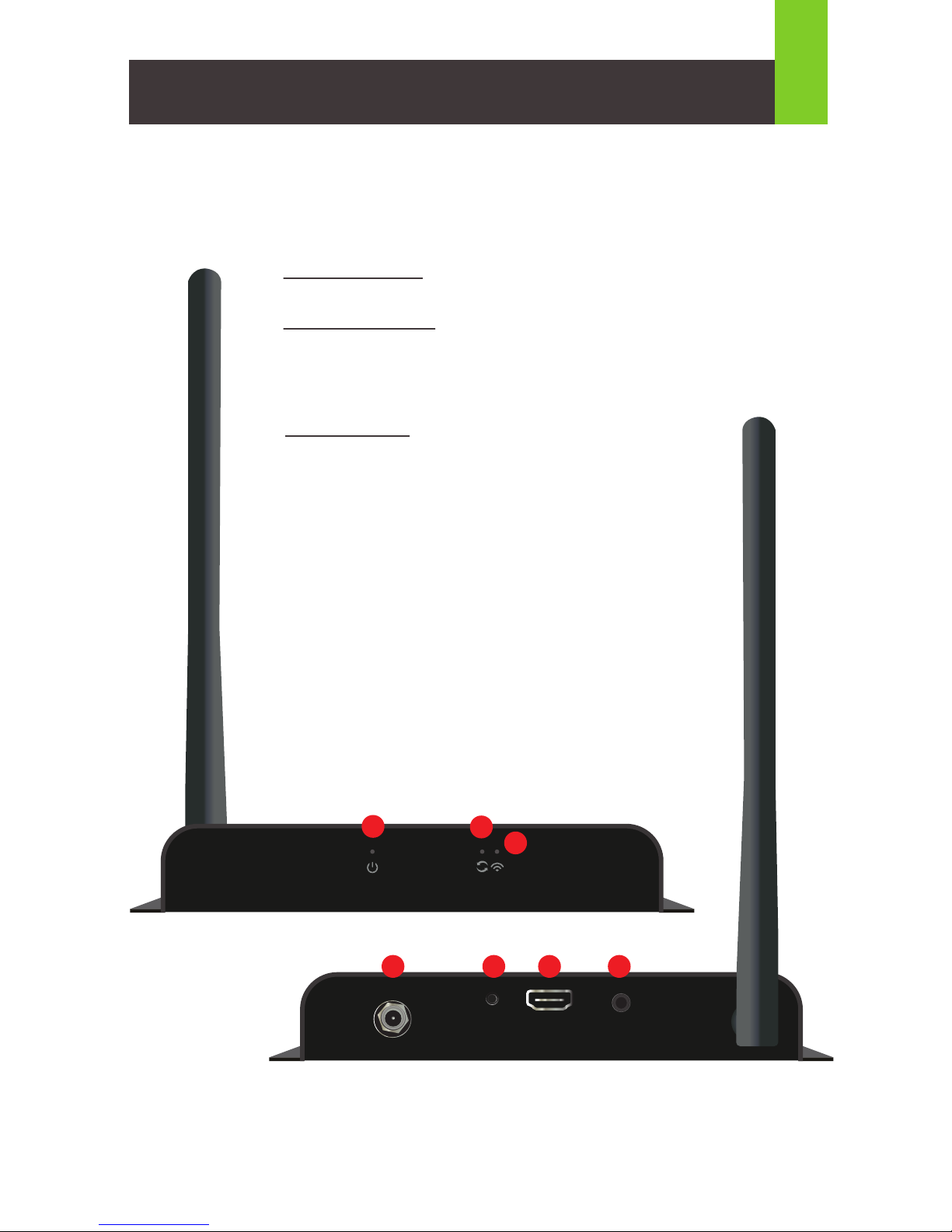

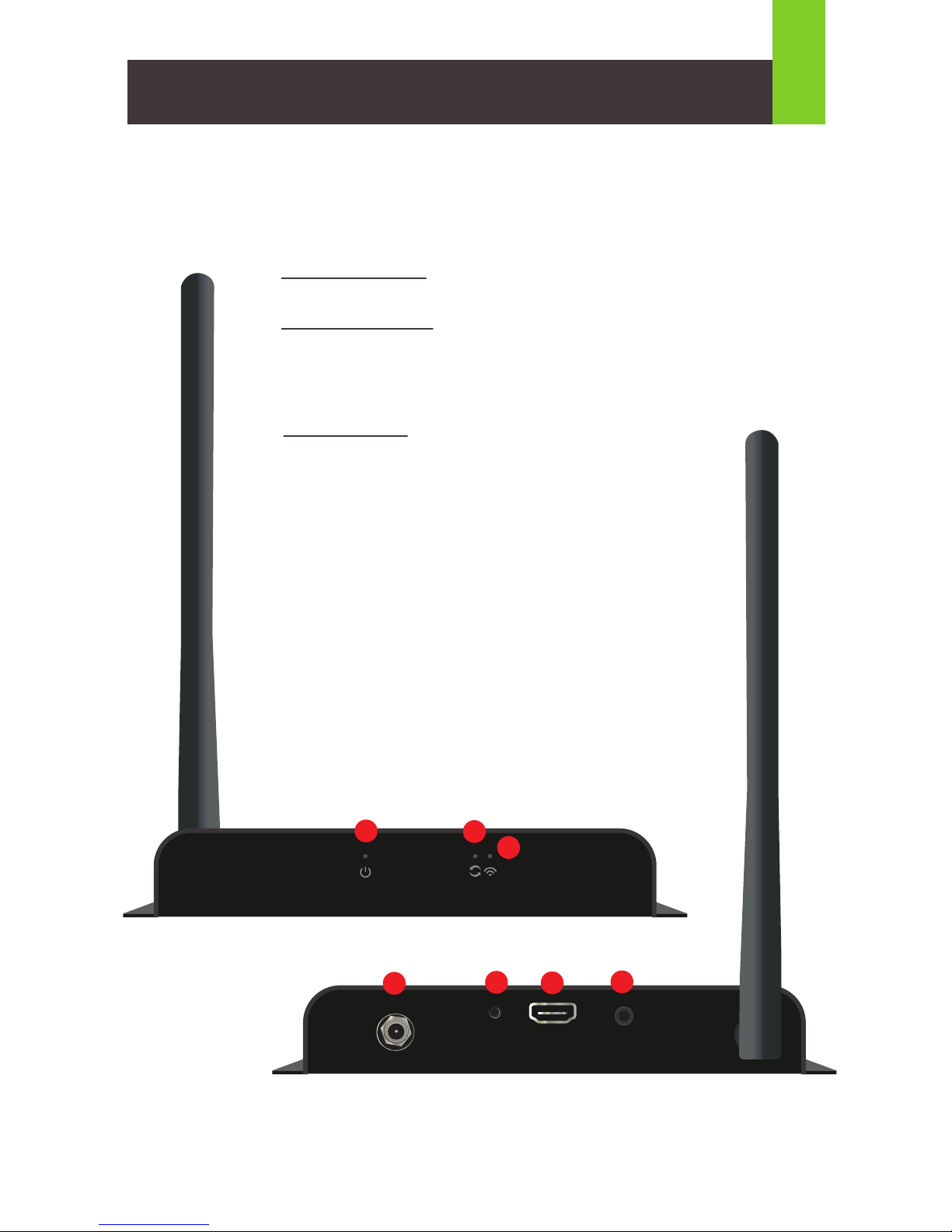

Overview
Transmitter
Back
1) Power LED
2) Data Transmission LED
Slow Blinking
Establishing wireless connection
Fast Blinking
Successful wireless connection and transmitting data
3) Connection LED
Lights Solid
Wireless connection established
4) Power Input
5) Reset Button
Press for 1 second to restart the Transmitter
6) HDMI Input Port
7) IR Out Port
RESET
HDMI IN
IR OUT
DC IN
1
2
3
Front
4 5
6 7
2

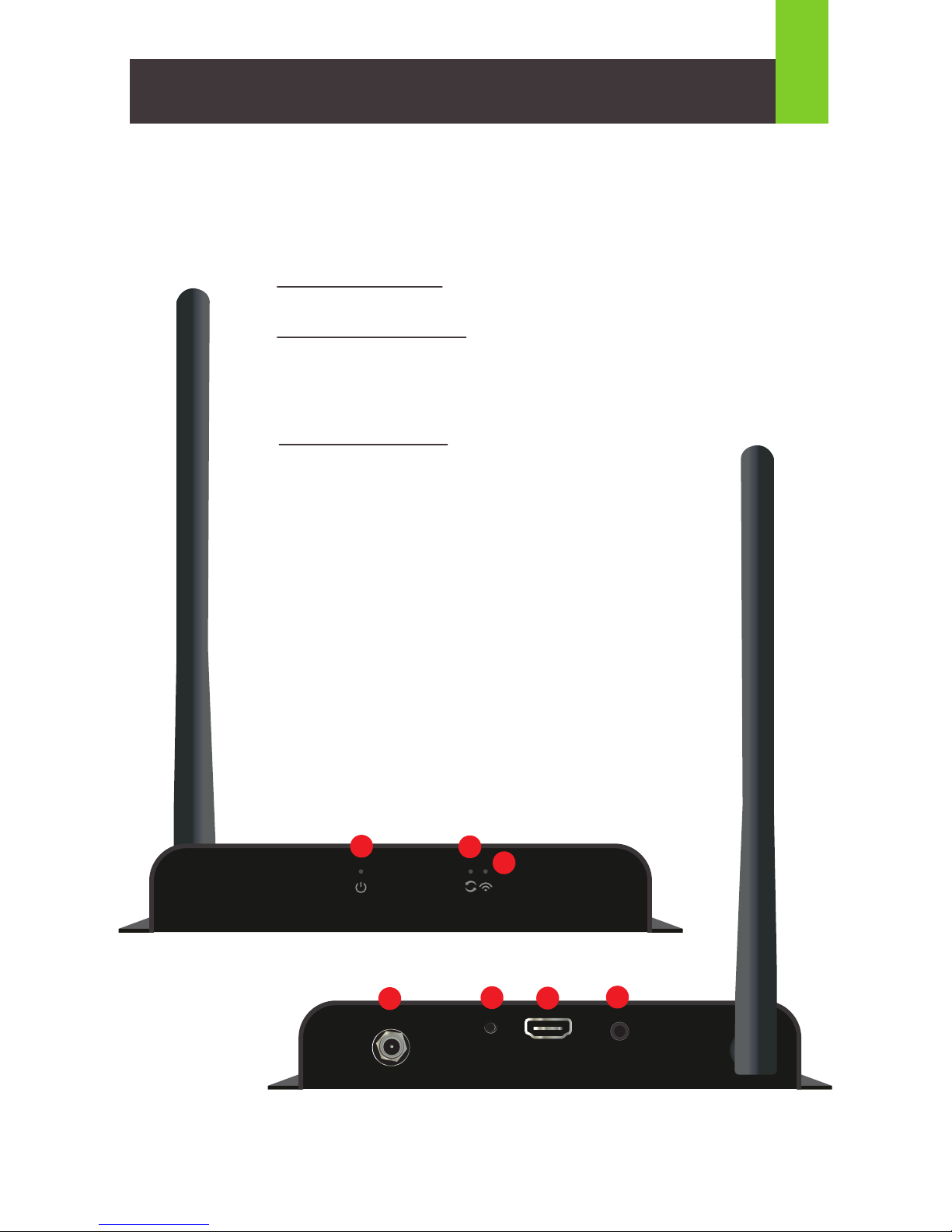

ULTRA LONG RANGE WIRELESS
HDMI RECEIVER

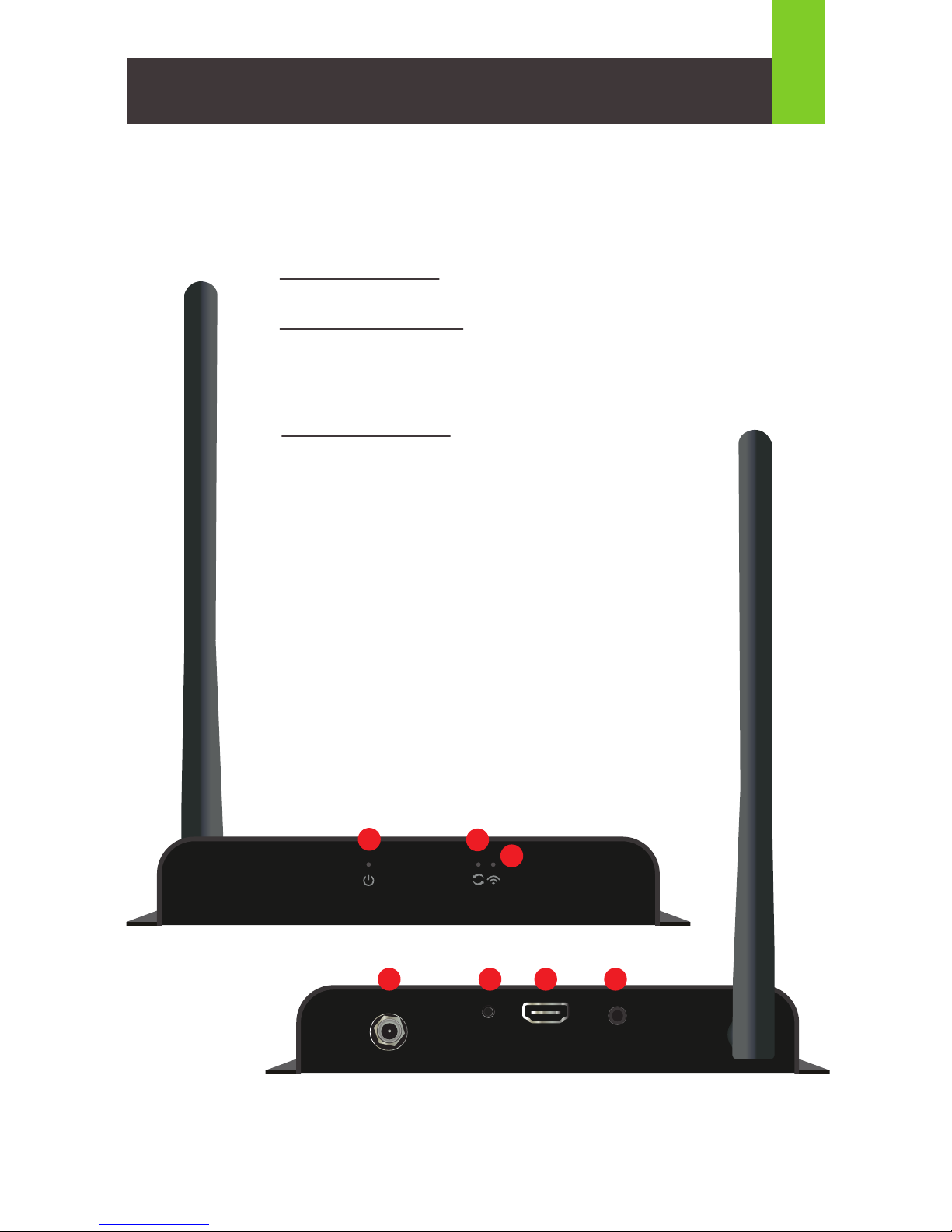

Receiver
RESET
HDMI OUT
IR IN
DC IN
1
2
3
Front
1) Power LED
2) Data Transmission LED
Slow Blinking
Establishing wireless connection
Fast Blinking
Successful wireless connection and
transmitting data
3) Connection LED
Lights Solid
Wireless connection established
4) Power Input
5) Reset Button
Press for 1 second to restart the Receiver
6) HDMI Output Port
7) IR In Port
Back
5
6
7
4
3

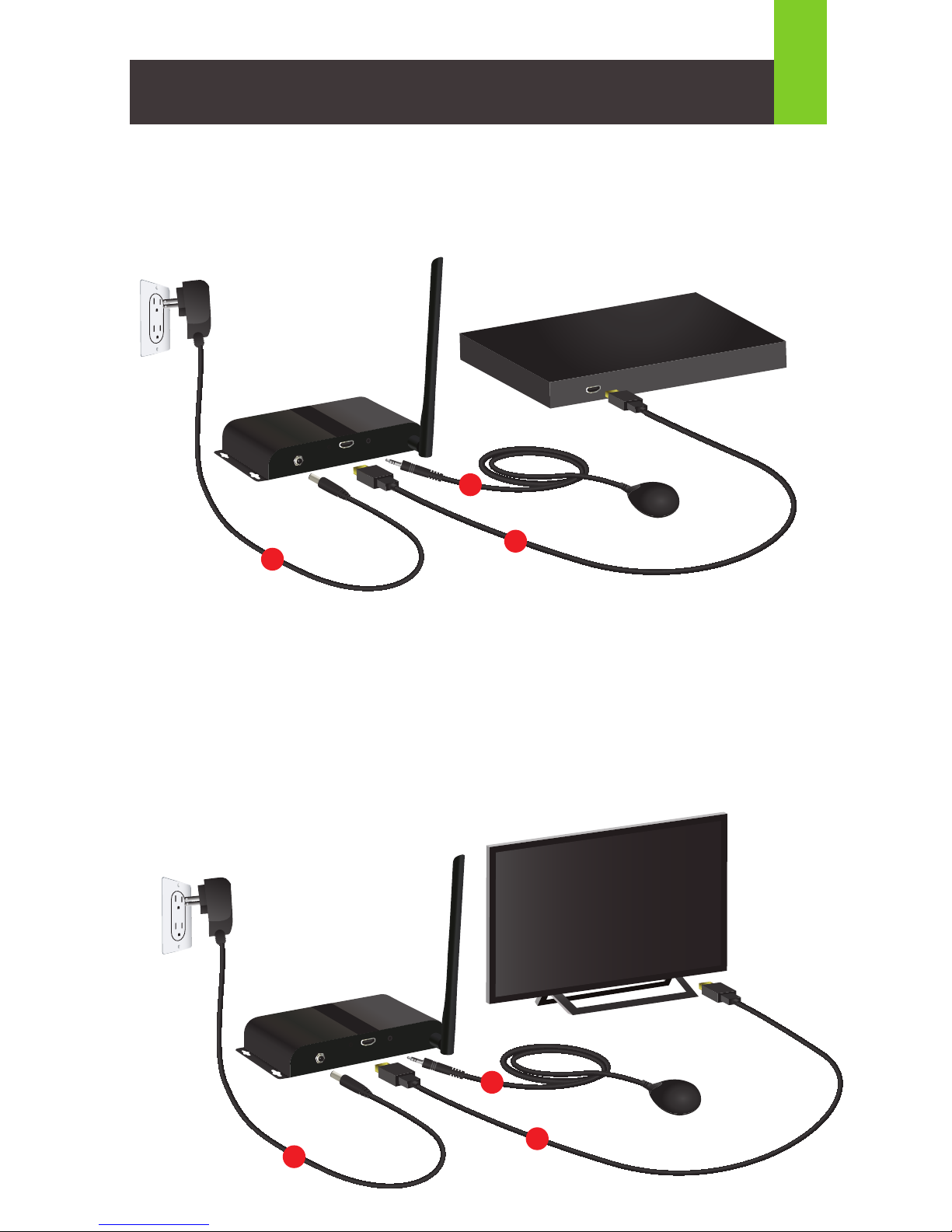

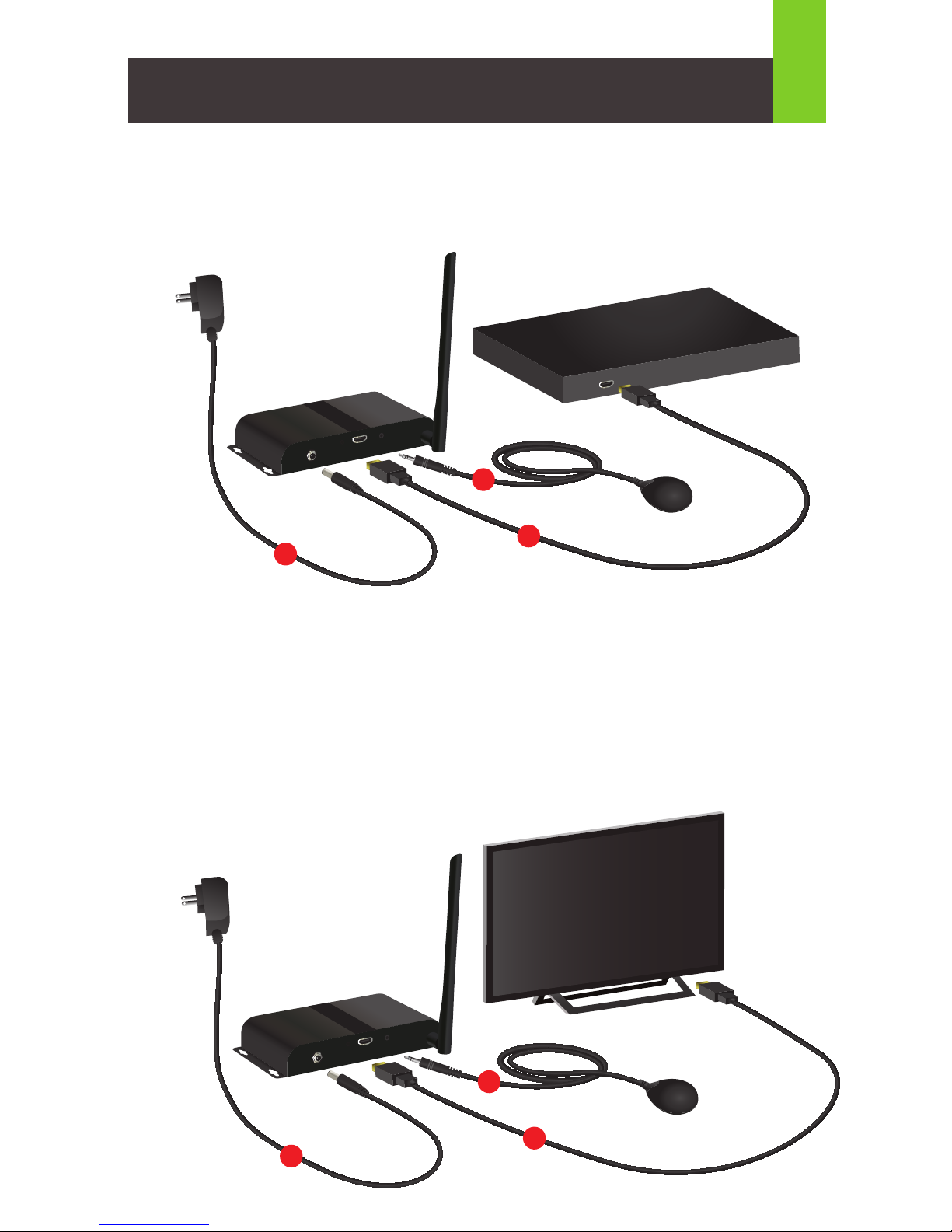

Hardware Installation
1
2
5
3
4
5
Transmitter
Video source
Receiver
4
1. Connect an HDMI cable from the HDMI Out port on your video
source to the HDMI IN port on the transmitter.
2. Connect the IR out cable to the IR OUT port on the transmitter.
3. Connect an HDMI cable from the HDMI In port on your video
display to the HDMI OUT port on the receiver.
4. Connect the IR in Cable to the IR IN port on the Receiver.
5. Plug the power adapter cable into the power jack on both the
transmitter and receiver. Plug the power adapters into an
available power outlet.
