iogear GWHD11 Quick Start Guide
Quick Start Guide
Wireless HDMI Transmitter and Receiver Kit
GWHD11
PART NO. Q1292-b
www.iogear.com
Package Contents
1 x Wireless HDMI Transmitter
1 x Wireless HDMI Receiver
1 x Mini USB to USB Cable
2 x USB Power Adapters
1 x Remote Control
System Requirements
1
2 x AAA Battery
1 x HDMI Cable
1 x Quick Start Guide
1 x Warranty Card
Display:
• TV or Projector
• HDMI Input
Optional: Additional Wireless HDMI Transmitters (up to 3 additional
units), sold separately – Part# GWHDSTX
Media Source:
• HDMI Output
Overview
Wireless HDMI Transmitter:
1. LED Status Indicator:
- Solid blue when powered on and wireless link established
- 1 flash/sec when in pairing mode
- 3 flashes/sec when establishing the link with the Receiver
2. HDMI Output Connector
3. Pairing Button
4. Mini USB Power Jack
Top View Side View
3 4
2
1
Overview
Wireless HDMI Receiver:
1. Power Button with LED Indicator:
- Lights green when powered on
- - Lights red when in Standby Mode or when pairing
2. Source Button
3. Video Status LED
- Off when in Standby Mode
- Blinks at initial boot up / warm up (15~20 seconds)
- When in wireless linked mode:
a. Blinks quickly when there’s no input from a
selected source
b. Blinks slowly when the video format is not recognized
c. Static green when the video format is recognized
4. Wireless Status LED
- Off when in Standby Mode
- Blinks at initial boot up / warm up
- Blinks when searching for available channels
- Static green when in wireless linked mode
5. Mini USB Power Jack
6. HDMI Output (To Display HDMI Connector)
2
Top View
1
2
3
4
Back View
5
6 7
Hardware Installation
Step 1: Setup the Wireless HDMI Transmitter
1. Power on your PC or media source (Bluray, Sattelite box, etc.)
2. Power the transmitter through one of two options:
a. If used with a Blu-Ray player or similar device, connect the
Wireless HDMI Transmitter to the USB power adapter first,
then plug the transmitter’s HDMI connector into the Blu-Ray
HDMI output port.
b. If used with a computer, connect the Mini USB connector of
the power cable to the transmitter’s Mini USB port and USB-A
connector (the other end of the power cable) to the USB port
on the computer.
3. Connect the Wireless HDMI Transmitter to the HDMI output port
of the computer or media source.
4. The LED will start to flash to start the pairing process, once
paired the LED will turn solid. Please note that this process could
take up to 1 minute.
3
HDMI
1
2
or
USB
Hardware Installation
Step 2: Setup the Wireless HDMI Receiver

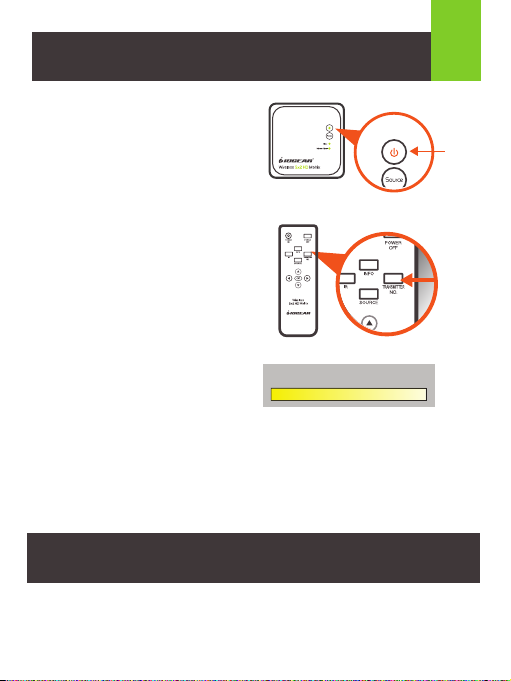

1. Power on the TV / projector.
2. Connect the USB power adapter to the Mini-USB power jack on
the receiver and a wall outlet for power supply.
3. Connect the HDMI cable to the HDMI connector on the receiver
and to the HDMI Input on the TV / Projector.
4. LEDs for wireless and video will start to flash. The wireless LED
will turn solid and then the video LED will turn solid

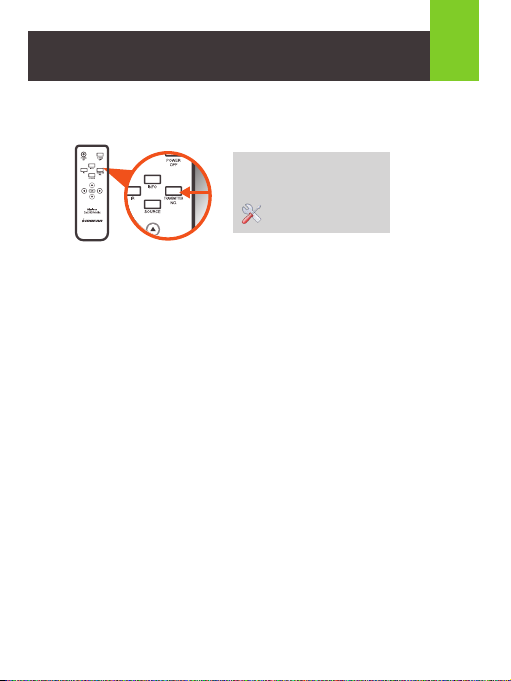

5. Once the link has been established between the transmitter and
receiver, video from the connected computer or HDMI media
source will be displayed on the TV / Projector. The connection
could take up to a minute to be established.
3
2
1
HDMI
HDMI Display
USB
