IOGear GUWH104KIT User Manual

Installation

Installation Guide

Installation

Wireless USB Hub and Adapter

GUWH104KIT

PART NO. M0427

Welcome

Thank you for purchasing one of the most user-friendly Wireless USB devices on the market. IOGEAR’s Wireless USB Hub and Wireless USB Host Adapter are top of the line when it comes to Wireless USB connectivity, implementing the use of Ultra-Wideband (UWB) to achieve data transfer speeds comparable to USB 2.0 without the need of wires between peripherals and the computer.

To better serve you, IOGEAR offers an array of additional USB 2.0, USB 1.1, FireWire, KVM, and other peripheral products. For more information or to purchase additional IOGEAR products, visit us at www. IOGEAR.com

We hope you enjoy using your IOGEAR Wireless USB Host Adapter and Wireless USB Hub, another ﬁ rst- rate connectivity solution from IOGEAR.

Table of Contents

Welcome 3

Introduction 5

Features 6

Requirements 7

Package Contents 8

Device Overview 9

Installation 10

Hardware Preparation 11

Software Installation 12

Driver Installation 18

Advanced Settings 25

Frequently Asked Questions 28

Technical Support 32

Limited Warranty 34

Federal Communications Commission (FCC) Statement

Contact 36

Introduction

IOGEAR’s Wireless USB allows you to connect your USB peripherals and computer with all the ease and speed of USB 2.0 without the use of USB cables and extenders between the PC and your Wireless USB Hub. Gain all of the advantages of USB 2.0 without the hassle of wires cluttering up your workspace. Plug your USB devices into the Wireless USB Hub and within seconds you have wireless access and control over the devices with no delay, purely plug-and-play.

The Ultra-Wideband combo provides the ability for in-room Wireless USB connectivity at distances of up to 30 feet. It offers a data transmission speed of up to 480 Mbit/s at distances of up to 3 meters.

Features

Wireless USB 2.0 speed through UWB medium•

Simple hardware interface•

Easy Installation has you connected in minutes•

Solid 3-year limited warranty•

Requirements

PC System requires Windows XP (with SP2 and .NET Framework 2.0) or Windows Vista•

Available AC outlets in the room•

Available USB ports•

Software requires Windows and CD-ROM drive•

Package Contents

1 x Wireless USB Hub GUWH104

1 x Wireless USB Host Adapter GUWA100U

1 x Wireless USB Hub Antenna

1 x Wireless USB Hub Power Supply

1 x USB Type A to mini-B Cable

1 x Extension / Swivel Adapter

1 x Software CD (with Electronic Manual)

1 x Quick Start Guide

Device Overview

HUB

ASSOC.

WIRELESS

MANUAL

AUTO

1. Host Selection button

2. Active Host LEDs

4. Switch 1 (S1)

5. Switch 2 (S2)

3. Power LED

The default and recommended setting is to operate in Auto Association mode. In this mode, the Wireless USB Hub

will automatically connect to the Wireless USB Host Adapter.

The Host Selection button is used in Manual Association mode. This mode is only needed if your Wireless USB Hub has already been successfully associated with more than one Wireless USB Host Adapter-PC combination. The Wireless USB Hub can support up to three such associations. Set S2 to Manual Association mode and then use the Host Selection button to manually cycle through the three choices for which Wireless USB Host Adapter-PC combination to connect to. Using this button, you can force the Wireless USB Hub to connect to one of three pre-associated PCs of your choosing.

S1 S2

Wired Wireless

(recommended)

Auto (recommended)

Manual

Top View:

Side View:

4 5

Installation

Before we get started, please NOTE:

Do not place Wireless USB devices under direct sunlight or near high heat emitting devices;

Do not place Wireless USB devices near water or wet surfaces to avoid electric hazards;

Do not place Wireless USB devices on any moving or unstable surfaces;

Hardware Preparation

Do not connect the Wireless USB Host Adapter to your computer until you are instructed to do so 1. later in the section titled “Driver Installation.”

Remove the Wireless USB Host Adapter, Wireless USB Hub, USB 2.0 A to Mini B Cable, power 2. adapter, antenna, extension/swivel adapter, and the installation CD from the package.

Allocate a space for the Wireless USB Host Adapter’s placement. Make sure you avoid the places 3. mentioned above. You will need to make available a USB 2.0 port on your PC where the extension/swivel adapter can be securely inserted and where there is room for the Wireless USB Host Adapter to be inserted in the extension/swivel adapter at a 45 degree angle. Use only the extension/swivel adapter to test at this time. Do not connect the Wireless USB Host Adapter to your computer at this time. If using a Desktop PC, do not use a port on the back of the PC. Select a USB

2.0 port on the front of the system to ensure a good line-of-site signal with the Wireless USB Hub.

Allocate a space for the Wireless USB Hub. During a one-time-only installation, the Wireless USB 4. Hub needs to be close to your PC. After installation the Wireless USB Hub can be moved to a more permanent location. Make sure you avoid the places mentioned above. Do not plug in to an AC outlet at this time.

Attach the antenna to the Wireless USB Hub.5.

Attach the power adapter connector to the Wireless USB Hub. Do not plug in to an AC outlet at this 6. time.

Software Installation

Please always check www.iogear.com for the latest drivers.

IMPORTANT NOTE:

If your PC already has a version of this software installed, please be sure to un-install it before proceeding.

Use Control Panel -> Add or Remove Programs. Scroll to “Ultrasuite with WiCenter Basic.” Click “Ultrasuite with WiCenter Basic,” then click Remove.

Restart your PC after the software has successfully un-installed.

You may now proceed with the installaion of new software.

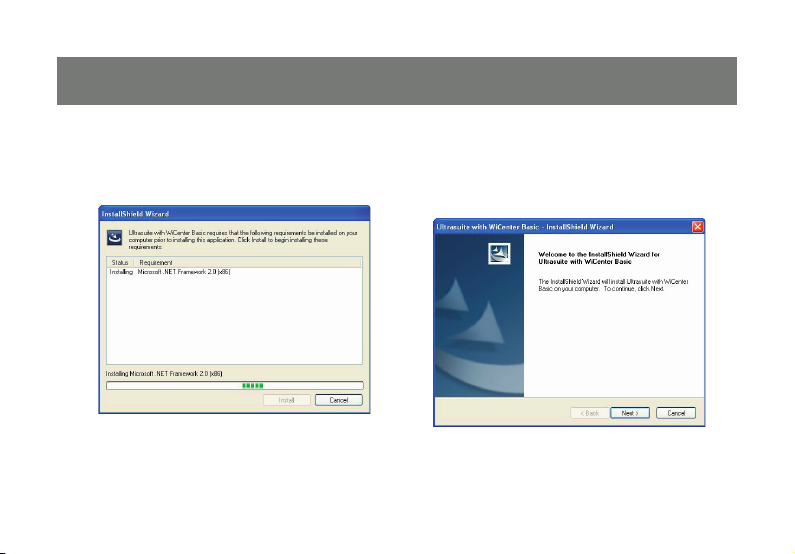

If installing on Windows XP, Service Pack 2 (SP2) is required. Verify that this has been installed before installing the UWB software.

To install the UWB software, insert the included 1. CD into your computer. The following menu should appear automatically. If not, select “Run CD_Start.exe” OR navigate to the CD Rom drive containing the installation CD and doubleclick on CD_Start.exe to bring up the user menu. Click on Software Installation to begin the installation process.
