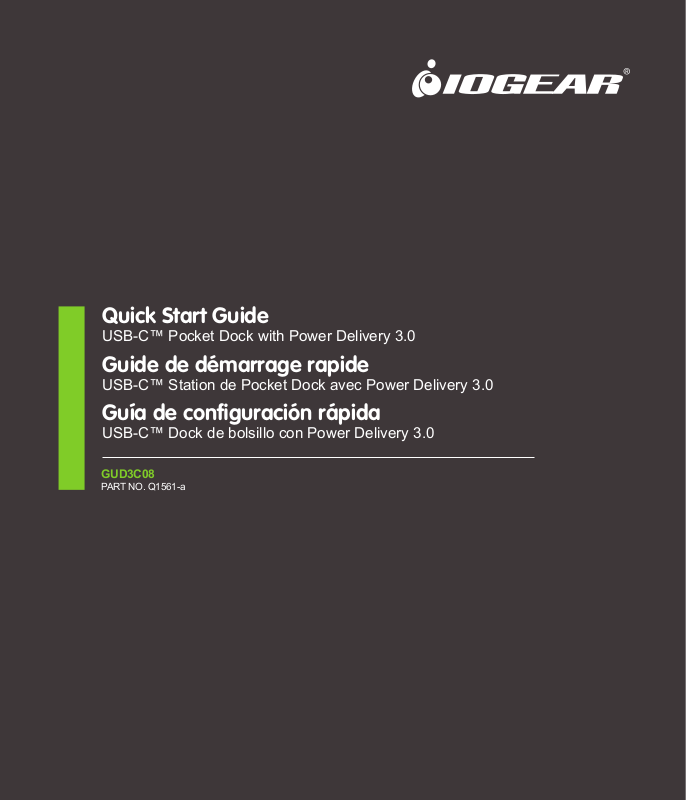

Quick Start Guide
USB-C™ Pocket Dock with Power Delivery 3.0
Guide de démarrage rapide
USB-C™ Station de Pocket Dock avec Power Delivery 3.0
Guía de configuración rápida
USB-C™ Dock de bolsillo con Power Delivery 3.0
GUD3C08
PART NO. Q1561-a
Package Contents
1
1 x GUD3C08
1 x USB-C Cable
1 x Quick Start Guide
1 x Warranty Card
System Requirements
• USB-C (Thunderbolt 3 compatible) Host System with DP Alt Mode support
• Windows 7/8/8.1/10
• Chrome OS
®
X 10.7+
• MacOS
Product Overview
1. Detached USB-C cable
2. USB-C port (to the host laptop)
3. Micro SD Card Slot
4. SD/MMC Card Slot
5. USB-A 3.0
(BC 1.2 charging port with max 1.5A)
6. USB-A 3.0
7. GbE LAN port
8. HDMI port (up to 4K resolutoin)
9. VGA port
10. USB-C port
(Power Delivery Pass-Through up to 100W)
(Maximum of up to 85W of power can be
delivered to the laptop after deduction of
15W used by the docking station)
3
4
5
6
7
10
8
9
1
2
Hardware Installation
Please follow steps below to ensure the optimal performance:
Step 1
Turn on the host computer. Then plug in the laptop’s USB-C Power adapter to the
USB-C port with Power Delivery Pass-Through*
Step 2
Connect external devices to appropriate ports as needed (refer to product overview
for ports call out).
Step 3
Connect external monitor(s) to the video output with HDMI port or VGA port for single
monitor. Please note that VGA port cannot be used with HDMI at the same time.
Step 4
Connect the detach USB-C cable on GUD3C08 USB-C port (the port for the host) to
the USB-C port on the host computer. The computer screen might appear to flicker
few times before GUD3C08 can recognize all the connected devices.
USB-C
4
8
GB
SD
32
GB
2
HDD
3
1
2
*Note: Without plugging the laptop’s USB-C power adapter, GUD3C08 can still function in step 2-3, but GUD3C08
will not provide power to charge the laptop.
**Note: Maximum resolution of 4K is dependent on the capability of the video display and its computer host sources.
Compliance Information
WARNING: This product may expose you to chemicals including styrene which is
known to the State of California to cause cancer, birth defects or other reproductive
harm. For more information, go to www.P65Warnings.ca.gov
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential setting. This product
generates, uses, and can radiate radio frequency energy and, if not installed and used as
directed, it may cause harmful interference to radio communications. Although this product
complies with the limits for a Class B digital device, there is no guarantee that interference
will not occur in a particular installation.
CE Statement
This device has been tested and found to comply with the following European Union
directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and
R&TTED (1999/5/EC).
Limited Warranty
This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty,
please go to http://www.iogear.com/support/warranty
Register online at http://www.iogear.com/register
Important Product Information
Product Model Serial Number
Contact
WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support
IOGEAR
iogear.custhelp.com | support@iogear.com | www.iogear.com
