Controller Emulator for use with Game
Consoles
User Manual
www.IOGEAR.com
KeyMander User Manual
ii
FCC Information
Federal Communication Commission Interference Statement: This equipment
has been tested and found to comply with the limits for a Class B digital
service, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. Any changes or modifications made to this equipment may void
the user’s authority to operate this equipment. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
RoHS
This product is RoHS compliant.
KeyMander User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
International
https://www.iogear.com/registration/index.php
Technical Support
For technical support, please follow the provided:
http://iogear.custhelp.com
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of
all necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
KeyMander User Manual
iv
Package Contents
Package
KeyMander Package Contents:
1 x KeyMander Controller Emulator for Game Consoles
2 x USB A to USB B Mini Cables
1 x KeyMander Software Installation CD
1 x Quick Start Guide
1 x Warranty Card
Check to make sure that all the components are present and that nothing was
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
* Features may have been added to the KeyMander since this manual was
published. Please visit our website to download the most up-to-date version.
© Copyright 2014 IOGEAR®
F/W Version: V1.0.096
S/W Version: V1.0.093
Manual Date: 7-31-2014
IOGEAR and the IOGEAR logo are registered trademarks of ATEN International Co., Ltd. All rights
All other brand names and trademarks are the registered property of their respective owners.
Manual Edited by PF, RT
reserved.
KeyMander User Manual
v
Contents
FCC, CE Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Game Console / Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Keyboard and Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Setup
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Laptop Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mouse Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Report Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Basic Operation
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mouse Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Keyboard Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Direct Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Beeps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Direct Mapping Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mouse Sensitivity Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switch Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Keyboard / Controller Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Turbo Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
KeyMander User Manual
vi
Macro Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Play Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. KeyMander Software
O
verview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Downloading Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting the KeyMander Software . . . . . . . . . . . . . . . . . . . . . . . . . 20
KeyMander Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Profiles & Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Customizing Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mouse Movements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Turn Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Adjusting the Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Mapping a controller button to the keyboard: . . . . . . . . . . . . . . . . 40
Setting Turbo: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Creating Macros: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
KeyMander User Manual
vii
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1: Introduction, introduces you to the KeyMander. Its purpose,
features, benefits, and requirements are presented, and its front and back panel
components are described.
Chapter 2: Setup, describes how to set up your KeyMander. The necessary
steps for configuring the mouse settings and hardware setup are provided.
Chapter 3: Basic Operation, describes how to use the keyboard, mouse,
and PS3/Xbox game controller with your KeyMander device.
Chapter 4: KeyMander Software, explains the how to use the KeyMander
software, as well as how to create Groups and Configuration Profiles.
Appendix: provides specifications, troubleshooting, and other technical
information regarding the KEYMANDER.
KeyMander User Manual
viii
Conventions
This manual uses the following conventions:
Mono Spaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
→ Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start → Run means to
open the Start menu, and then select Run.
Product Information
For information about all IOGEAR products and how they can help you
connect without limits, visit IOGEAR on the Web or contact an IOGEAR
Authorized Reseller. Visit IOGEAR on the Web for a list of locations and
telephone numbers:
International www.IOGEAR.com
North America www.IOGEAR.com
1
Chapter 1
Introduction
Overview
The KeyMander is a USB Controller Emulator that allows you to use a
keyboard and mouse with a PS3/Xbox game console. The KeyMander can be
connected to your PS3/Xbox and used straight out of the box. The
KeyMander has an easy to use software interface that allows you to
customize all game controller buttons for use on a keyboard and mouse.
Advanced features allow you to custom map keys, create macros, set turbo
buttons, and calibrate controller sensitivity; with settings for delay,
movement, and velocity. Quick macro setup allows up to 16 button
combinations - set to one key.
The KeyMander allows you to map, set controller sensitivity and switches
profiles directly from the keyboard, and alerts you with a beep.
With the KeyMander, you can create an unlimited number of keyboard and
mouse configuration profiles - each suited for specific game play. Profiles can
be switched and configured during game play for quick access. The
KeyMander gives gamers the ability to customize and fine tune all controls for
the expert advantage with every game.
The KeyMander allows you to:
Use a keyboard and mouse on a PS3 and Xbox game consoles
Customize all Controller commands for use on a keyboard and mouse
Create custom keyboard/mouse profiles for different games
Quickly setup controller buttons on-screen or in-hand
Simultaneously use a keyboard, mouse, and PS3/Xbox controller
Map controls directly from the keyboard and controller
Plug and Play - no software required
2
KeyMander User Manual
Features
Controller Emulation transforms keyboard and mouse signals into
game controller signals for keyboard and mouse use on a PS3 and
Xbox game consoles
Easy controller to keyboard key mapping and advanced configuration
via GUI based software
Macro editor allows for detailed configuration and command
sequence control of a Controller’s controller buttons
o Macros can combine up to 16 controller commands into a single
key
Supports direct configuration and control from a laptop’s keyboard
Hot Swap between the PS3/Xbox controller and keyboard/mouse
instantly
Controller and Keyboard mode allow you to instantly switch
between typing and gameplay
Self-Powered – No need to use an additional power supply while
connected to a game console
KeyMander software supports: Windows Vista®, Windows® 7,
Windows® 8, Windows® 8.1 Operating Systems
3
Chapter 1: Introduction
OS
Version
Windows
Vista, 7, 8, 8.1
Requirements
Game Console / Controller
PS3
Compatible with wired and wireless controller
Xbox 360
Requires Official Microsoft Xbox 360 Wired Controller
Xbox One Console
Requires Micro USB wired controller
Keyboard and Mouse
USB Keyboard
USB Mouse
Operating Systems
Supported operating systems for the KeyMander software GUI, are shown
in the table, below:
4
KeyMander User Manual
No.
Component
Description
1
Gamepad Port
Plug the PS3/Xbox game controller into this port.
2
Keyboard Port
Plug a USB keyboard into this port.
3
Mouse Port
Plug a USB mouse into this port.
4
Turbo/KB Mode
LED
Lights Orange when Turbo Mode is on.
Flashes Orange when Keyboard Mode is on.
5
Setting LED
Lights Blue to indicate the KeyMander software is
connected to the KeyMander.
Flashes (fast) Blue when uploading a profile from a
computer to the KeyMander.
Flashes (slow) Blue when Direct Mapping mode is on.
6
Power LED
Lights Blue when the Game Port or Power Port is connected
to a power source indicating the unit is on.
Components
Front View
4
5
6
3
2
1
5
Chapter 1: Introduction
No.
Component
Description
1
Reset
This switch resets the device. While connected to a power
source, press and release to reset the KeyMander.
2
Game Port
The Game Port is used to connect the KeyMander to a
PS3 or Xbox game console. This port also provides power
to the unit when connected to a game console.
3
PC Port
Use the PC port to connect the KeyMander to a computer.
This connection is used to configure the KeyMander with
the KeyMander software, or connecting a laptop for game
play.
Note: The PC Port does not power the unit.
4
Power Port
This port provides power to the unit. You must use this port
for power when connected to a computer; or if you are using
an advanced keyboard that requires additional power during
gameplay.
Use a mini USB to USB cable to connect this port to a 5V
power source.
Rear View
1
2
3
4
Chapter 2
Setup
Getting Started
To begin using the KeyMander with your PS3/Xbox requires two steps:
1. Connecting Hardware
Configuring Mouse Settings
2.
Connecting Hardware
To connect the KeyMander for gameplay follow steps 1-5.
Use steps 6-8 for connecting the KeyMander to a computer to use the
KeyMander software. Instructions for laptop use are found on page 8.
Use the diagram on the next page and do the following:
1. Connect a PS3/Xbox controller to the Gamepad Port.
Xbox 360: Requires Official Microsoft Xbox 360 wired controller
Xbox One: Requires Micro USB wired controller
2. Connect a USB keyboard to the Keyboard Port.
3. Connect a USB mouse to the Mouse Port.
4. Use the Mini USB to USB cable included with this package to connect the
Game Port to the PS3/Xbox’s controller port #1.
5. Power on the PS3/Xbox console. The unit is ready for use.
Steps 6-8 are to connect the KeyMander to a computer to use the
KeyMander software, and for advanced keyboards that require
6. Use the Mini USB to USB cable included with this package to connect the
PC Port* to a computer.
7. Use a Mini USB to USB cable (not included) to connect the Power Port*
to a computer, or 5V USB power source.
See KeyMander Software, page 19 for software instructions.
8.
* Note: The PC Port and Power Port must be connected to the PC to power
the KeyMander in order to use with the KeyMander software.
additional power.
6
Chapter 2: Setup
7
5
1
3
2
4
7
6
3
2
KEYMANDER User Manual
Laptop Setup
You can connect the KeyMander to a laptop for gameplay and switch keyboard
use between the PS3/Xbox and laptop. A laptop also allows you to configure
the KeyMander using the KeyMander software and quickly switch back to
gameplay. Use the diagram and steps below to connect a laptop:
1. Connect a PS3/Xbox controller to the Gamepad Port.
2. Use the Mini USB to USB cable included with this package, to connect the
PC Port to a laptop.
3. Use the Mini USB to USB cable included with this package to connect the
Game Port to the PS3/Xbox’s controller port #1.
4. Power on all devices.
5. Press [F12]
Note: You can use the laptop’s touchpad or a USB mouse connected to the
laptop or KeyMander for gameplay.
1
3
2
to enable Play Mode (See Play Mode, page 18).
8
Chapter 2: Setup
9
Mouse Settings
If you are using a mouse with software such as Setpoint (Logitech), you will
need to adjust the DPI (Dots-per-inch) and Report Rate settings for better
gameplay. This can only be done with the software utility that came with the
mouse.
DPI
If your mouse came with software - use the utility to set the mouse DPI to the
highest possible setting. This will allow you to have a greater range of mouse
sensitivity when adjusting the controls with the KeyMander software.
If there is an adjustable DPI button on your mouse, be sure to set the maximum
DPI setting (using the DPI button) every time it’s plugged into the KeyMander.
Report Rate
The report rate sets how often the computer requests the current position and
button values of the mouse. Use the software utility that came with your mouse
to set the report rate to its highest setting. The report rate is typically 125~1000.
You can start with the highest setting and adjust accordingly to what feels best
when using your mouse on the PS3/Xbox game console with the KeyMander.
Note: Check each game’s “Look Sensitivity” settings to ensure it is set to the
maximum level to get the greatest range of adjustment with the
KeyMander.
Chapter 3
Basic
Operation
Overview
This chapter explains how to use a keyboard and mouse for gameplay on the
PS3/Xbox and how to configure basic modes from the keyboard and
controller. For information on mapping, profiles, and advanced settings, see
Chapter 4 (page 19).
Basic Operation
This section explains how to use the keyboard and mouse on the PS3/Xbox
game console. Once the hardware is connected, the keyboard, mouse, and
game controller will work on the PS3/Xbox. Here is how the game controller
is mapped to your mouse and keyboard for use:
Mouse Map
The mouse is used for vertical (up/down) and horizontal (right/left)
movements, just like the PS3/Xbox Right Stick control, as shown below.
Xbox
Right Mouse click Left Mouse click
LT RT
Players R
Movement
PS3
Players
Movement
L
Right Mouse click Left Mouse click
L1 R1
L R
Mouse
Movement
Mouse
Movement
10
Chapter 3: Basic Operation
11
Keyboard Map
The PS3/Xbox controller buttons and directional pads are mapped to the
keyboard, as shown below.
Xbox
PS3
KeyMander User Manual
12
Hotkey
Function
Description
Page
[F1] ~ [F8]
Switch Profile
Switches to a Profile in the Group in Use -
according to the Profile Selection Hotkey
assigned to the profile.
[F1]: Default PS3 Profile
[F2]: Default Xbox Profile
17
[F9]
Keyboard /
Controller
Mode
Toggles between Keyboard and Controller
Mode.
Keyboard Mode: Allows you to type
text during gameplay.
Controller Mode: Allows you to use the
keyboard as a game controller on the PS3/
Xbox.
17
[F10]
Turbo Mode
Turns Turbo Mode on and off. When
Turbo mode is on, controller buttons with
Turbo settings work.
(See Turbo, page 41, for details on
Turbo settings)
17
[F11]
Macro Mode
Turns Macro Mode on and off. When
on, Macro keys that are pressed will
execute macro commands.
(See Macros, page 42, for details on
Macro settings)
18
[F12]
Play Mode
Play Mode allows you to use a
laptop’s keyboard and touchpad for
gameplay.
18
Function Keys
The function keys on the keyboard and the game controller are used to enable
modes, switch profiles, and map keys - without the KeyMander software. Below
is a table explaining each function key and the page where more information
about the key is found.
Chapter 3: Basic Operation
13
Select + Start
(PS3 Controller)
or
Back + Start
(Xbox Controller
)
or
View + Menu
(Xbox One
Controller)
Mouse
Sensitivity
This allows you to adjust the Aim/Look
and ADS sensitivity of the mouse.
16
Select + Start
&
PS3 Button
(PS3 Controller)
or
Back + Start
&
Xbox Guide
Button
(Xbox Controller
)
or
View + Menu
&
Xbox Button
(Xbox One
Controller)
Direct Mapping
Mode
Direct Mapping allows you to set
controller button to keyboard mappings
directly from the PS3/Xbox game
controller and keyboard connected to the
KeyMander.
15
KeyMander User Manual
14
Direct Configuration
The KeyMander allows you to configure settings directly from the keyboard
and PS3/Xbox controller connected to it. This allows you to map keyboard
controls, enable game modes, and adjust mouse sensitivity - without the
KeyMander software. Each control is explained in detail starting on the next
page.
Beeps
The KeyMander will notify you with beeps when you make changes from
your keyboard and PS3/Xbox game controller. This lets you know when
settings are changed or when functions are turned on and off.
Single Beep is a positive reply, meaning that a change is successful or that a
mode has been turned on.
Double Beep is a negative reply, meaning that a setting has reached its limit, a
mode was turned off, or a mode was exited.
Chapter 3: Basic Operation
15
Direct Mapping Mode
Direct Mapping allows you to change how PS3/Xbox game controller buttons
are mapped to the keyboard - directly from the keyboard and controller. For
example, you can map a controller button to the spacebar. For default
mappings see Keyboard Map, page 11.
To enter Direct Mapping mode:
1. From the game controller connected to the KeyMander, press Select + Start
(PS3), Back + Start (Xbox) or View + Menu (Xbox One) at the same time.
2. Press the PS, Xbox Guide, or Xbox Button.
3. Press a PS3/Xbox controller button.
4. Press a key on the keyboard to map the controller button to.
5. Single Beep - Direct Mapping successful.
Repeat steps 3-4 to continue mapping buttons.
6. Press: Select + Start (PS3), Back + Start (Xbox) or
One)
7.
to exit.
Double Beep - Exit Direct Mapping successful.
Note: Direct Mapping changes are not permanently saved to a Profile.
View + Menu (Xbox
KeyMander User Manual
16
Mouse Sensitivity Mode
Mouse Sensitivity allows you to change the Aim/Look and ADS sensitivity of
the mouse using the PS3/Xbox game controller connected to the KeyMander.
For more information on mouse sensitivity see Mouse Movements, page 32.
To enter Mouse Sensitivity mode:
1. From the game controller connected to the KeyMander, press Select +
Start
(PS3), Back + Start (Xbox) or View + Menu (Xbox One) at the
same time.
2. To adjust Aim/Look sensitivity - use the Direction Up (more sensitive) or
Direction Down (less sensitive) buttons on the PS3/Xbox controller.
3. To adjust ADS sensitivity - use the Direction Left (more sensitive) or
Direction Right (less sensitive) buttons on the PS3/Xbox controller.
4. Press Select + Start (PS3), Back + Start (Xbox)
(Xbox One)
Double Beep - Exit Mouse Sensitivity successful.
5.
Note: These changes are not permanently saved to a Profile.
or View + Menu
at the same time to exit.
Chapter 3: Basic Operation
17
Switch Profile
Profile Selection Hotkeys are assigned to profiles when they are created with
the KeyMander software (see Creating Profiles, page 26). You can switch
Profiles during gameplay using the Profile Selection Hotkeys [F1] ~ [F8].
The Profile Selection Hotkey is found under each profile, as shown here:
To switch profiles, press the Profile Selection Hotkey assigned to the profile. A
single beep will alert you that the profile has changed. [F1]: Default
PS3Controller Profile. [F2]: Default Xbox Controller Profile.
Keyboard / Controller Mode
Use [F9] to switch between Keyboard Mode and Controller Mode.
Keyboard Mode allows you to use the keyboard to type during gameplay - for
chatting or typing information that requires text.
Controller Mode is for normal gameplay with the keyboard.
Pressing [F9] switches modes:
Single Beep - Controller Mode ON
Double Beep - Keyboard Mode ON
Turbo Mode
Use [F10] to turn Turbo Mode on or off.
Turbo Mode on: All controller buttons set with Turbo will work (see Turbo,
page 41), and the orange Turbo LED lights up.
Pressing [F10] switches:
Single Beep - Turbo Mode ON
Double Beep - Turbo Mode OFF
KeyMander User Manual
18
Macro Mode
Use [F11] to turn Macro Mode on or off.
Macro Mode on: Macros will execute when the command key is pressed (see
Macros, page 42). The default is Macro mode off.
Pressing [F11] switches:
Single Beep - Macro Mode ON
Double Beep - Macro Mode OFF
Play Mode
Use [F12] to turn Play Mode ON or OFF.
Play Mode allows you to use a laptop for gameplay. For instructions on using
a laptop for gameplay - see Laptop Setup, page 8.
Play Mode on: Keyboard use on the laptop is locked out and the keyboard
signals are sent to the game console. The default is Play Mode off.
Pressing [F12] switches modes:
Single Beep - Play Mode on
Double Beep - Play Mode off
Note: With Play Mode on you can use a keyboard connected to the Keyboard
Port, but it’s [F12] key will not turn Play Mode off.
19
Chapter 4
KeyMander
Overview
The KeyMander software allows you to configure custom keyboard and mouse
settings for use on your PS3/Xbox game console. This chapter explains how to
use the KeyMander software, in four sections:
Downloading & Connecting the KeyMander Software
Software Overview
Profiles and Groups
Customizing Controls
Sof
tware
Downloading Software
To download the KeyMander software, do the following:
1. Go to: www.IOGEAR.com/software/GE1337P/
2. Select the KeyMander software link to begin the download.
3. Once the download is completed, unzip the file to your hard drive.
4. Drag the application icon to the desktop or to a desired file folder.
5. Launch the software by double clicking on the KeyMander icon.
20
KeyMander User Manual
Connecting the KeyMander Software
To connect the KeyMander to the KeyMander Software:
1. Connect the KeyMander to the computer and open the KeyMander
software:
2. Connected should appear at the top right corner. If Disconnected appears
see steps 6~7 of Connecting Hardware, page 6.
3. Click Connect and the main page appears:
21
Chapter 4: KeyMander Software
#
Name
Description
1
Groups
This section lists the Groups.
A Group stores up to 8 Profiles.
Group in Use is the active Group of profiles on the
KeyMander.
2
Profile
A Profile is a unique keyboard and mouse configuration.
All Profiles are saved in a Group.
Click New under the Profile menu to create a Profile.
3
Upload Button
This button uploads a Group to the Group in Use.
Group in Use Profiles are active for use.
When you Upload a Group it over-writes the current
Group in Use.
You can Edit the Group in Use Profiles, but if another
Group is uploaded, all the changes are lost.
KeyMander Interface
This is the main page of the KeyMander software. The table below provides a
brief description of each section.
22
KeyMander User Manual
#
Name
Description
4
Menu
Click Menu to display the options:
System Setting:
Keyboard Mapping: Select the keyboard type you’re
using (Default: US 104-Key)
Menu Language: Select the language you would like
to use for the software interface.
Beeper: Select On to sound a beep when a change is
successful or unsuccessful.
Upgrade Firmware: Click to start the firmware upgrade
process.
Import Profile: Import a previously saved profile.
Export Profile: Export the select profile as a *.prof file.
Import All: Import a previously saved configuration file.
Export All:
Export all the current KeyMander
configuration data as a *.conf file.
About: Displays Software Version, Firmware Version, and
Copyright of the KeyMander.
4
Play Mode (F12)
When using a laptop, click Play Mode to send all
keyboard signals to the PS3/Xbox for game play.
In Play Mode the keyboard won’t work on the laptop.
Click Play Mode (F12) or press [F12] to exit Play
Mode (See Play Mode, page 18, for details)
5
Group Menu
The Group Menu allows you to:
New: Create a Group.
Copy: Create a Group by copying an existing Group.
Delete: Delete a Group.
Groups are named Group 1, Group 2, Group 3, etc.
by default.
6
Profile Menu
The Profile Menu allows you to:
Startup: Set a default startup Profile for the Group.
New: Create a keyboard/mouse configuration profile.
Edit: Make changes to an existing Profile.
Delete: Remove a Profile from a Group.
Copy/Paste: Select a Profile, click Copy, then select and
Paste a copy into a new Group.
23
Chapter 4: KeyMander Software
Software Overview
To use the KeyMander software:
1. Create a Profile for your keyboard/mouse settings. The Profile is saved in
a Group.
2. Upload the Group to the Group in Use.
3. Select a Profile to use from the Group in Use.
4. Use the keyboard and mouse settings with your PS3/Xbox game console.
Detailed instructions for profiles, groups, and uploading are found on the
pages that follow.
24
KeyMander User Manual
Profiles & Groups
The main page of the KeyMander software is used to create Profiles and
Groups. A Profile is a unique keyboard/mouse configuration that is created
and saved in a Group. Each Profile has custom settings for your keyboard and
mouse. A Group (of profiles) is uploaded to the Group in Use - one at a time.
Group in Use profiles can be selected for use during gameplay.
The following sections explain how to create Groups and Profiles, how to
upload a Group to the Group in Use, and how to select a Profile for use. To
configure the keyboard and mouse settings, see Customizing Controls,
page 30.
25
Chapter 4: KeyMander Software
Creating Groups
Groups
3, etc. by default. You can create up to 31 groups.
To create a Group:
1. Click New under the Group menu, as shown here:
are used to store
Profiles. Groups are named Group 1, Group 2, Group
2. A new Group appears on the left, as shown above.
Note: Select a Group and click Copy to create a duplicate of any Group.
26
KeyMander User Manual
Creating Profiles
A Profile is a custom keyboard/mouse configuration that is saved in a Group.
To create a Profile for your keyboard/mouse settings:
1. Select a Group for the Profile:
2. Click New or double click an empty slot, as shown above.
3. The New Profile screen appears. Choose the default Icon or you can Add
an Icon (*.bmp, *.jpeg, *.gif, *.png) to use for the profile.
27
Chapter 4: KeyMander Software
4. Click on PS3 or X360 to select the game platform.
5. The Key Mapping Editor appears allowing you to configure the keyboard
and mouse settings.
6. Click X to close and save. The Profile is added to the Group:
Note: Information about this screen is found on page 30.
28
KeyMander User Manual
Uploading to Group in Use
A Group needs to be uploaded to the Group in Use, so you can select a Profile
to use for your keyboard and mouse settings. Group in Use is the active Group
of Profiles you can select from.
To Upload a Group and select a Profile:
1. Select a Group, and click Upload.
2. Click YES to over-write the Group in Use.
Note: You can save the Group in Use first, by selecting Group in
Use and clicking Copy.
29
Chapter 4: KeyMander Software
3. The uploaded Group appears in the Group in Use, as shown here:
The Blue box indicates the Startup Profile for the Group.
4. Click to select a Profile to use:
An Orange box around a Profile means it’s selected for use.
5. After a Group has been successfully uploaded, a time stamp will appear
under the Upload button, as shown above. A Star denotes the most recent
group that has been uploaded to the KeyMander.
30
KeyMander User Manual
Customizing Controls
This section explains how to configure the keyboard and mouse controls of a
profile with the KeyMander Editor. To get to the KeyMander Editor screencreate a new Profile, or double click a Profile from the main screen.
The instructions are split into the Movement and Mapping Sections of the
KeyMander Editor, as shown below:
The Movement section is for profile and mouse settings. The Mapping
section is for controller to keyboard/mouse mappings, turbo settings, and
macro setup.
31
Chapter 4: KeyMander Software
Name
Details
Menu
Click Menu to display the options:
New Profile: Creates a new Profile.
Save Profile: Saves changes made to this Profile.
Save As Another Profile: Saves changes when a new
Profile name is typed in the Name box.
System Setting:
Keyboard Mapping:
Select the keyboard type you’re
using (Default: US 104-Key).
Menu Language:
Select the language you would like to
use for the software interface.
Beeper: Select On
to sound a beep when a change is
successful or unsuccessful.
About: Displays Software Version, Firmware Version, and
Copyright of the KeyMander.
Movement Section
The Movement section of the KeyMander Editor screen has 4 sections:
Profile, Mouse Movement, Turn Assist, and Calibration, all discussed
below.
Profile
The Profile section allows you to view and change details of the Profile.
32
KeyMander User Manual
Name
Details
Group
Displays the name of the Group that the Profile is in.
Name
This box displays the Profile name and allows you to change
it. After changing it click OK, or Save As Another Profile from
the drop-down Menu.
Profile Selection
Hotkey
Every Profile is assigned a unique Profile Selection Hotkey
(F1~F8). The hotkey is used from the keyboard to quickly
switch between Profiles in the Group in Use.
Name
Details
Invert Vertical Mouse
Movement
This reverses the up/down movements of the mouse. So
that pushing the mouse forward causes a down movement,
and pulling the mouse back causes an up movement.
Aim/Look
The Aim/Look sensitivity bar sets how quick or slow mouse
movements respond. The higher the number the more
loose the movements will feel and the lower the number
the more tight the movements will feel.
Aim/Look is the normal view as your character walks
around during game play.
ADS (Aim Down Sight)
The ADS sensitivity bar sets how quick or slow the mouse
movements respond when you Aim Down Sight. The higher
the number the more loose the movements will feel. The
lower the number the more tight the movements will feel.
ADS (Aim Down Sight) is the view when you zoom-in or
look through a scope during first person shooting games.
Delay
Delay sets the amount of time it takes to switch between
Aim/ Look and ADS (Aim Down Sight), or a normal view to
Zooming-in with a scope and back again.
Mouse Movements
This section allows you to set how the mouse responds during game play.
33
Chapter 4: KeyMander Software
Device Turn Assist Button
Keyboard
Enter a key you want to use as the Turn Assist button.
Mouse
Select a Mouse function to use as the Turn Assist button.
Joystick
Select a button 1~12 to use as the Turn Assist button.
None
No Turn Assist device assigned.
Turn Assist
Turn Assist helps you continue long mouse movements without having to
move the mouse. Turn Assist works by holding down the Turn Assist Button
and moving the mouse. The turn continues automatically until you let go of
the Turn Assist Button. Select a device and assign the Turn Assist Button.
34
KeyMander User Manual
Function
Description
Aim/Look
Aim/Look is the adjustment of on-screen movements
during normal game play, when the view is not zoomedin.
ADS (Aim-Down-Sight)
ADS (Aim-Down-Sight) is the adjustment of on-screen
movements during game play when the view-mode is
zoomed-in; such as when you are looking through a
scope.
Curve
The Curves are used to fine tune how on-screen
movements will respond to actual physical mouse
movements. The default is a 1:1 ratio. Adjustments can
limit movements, stretch movements, and increase or
decrease relative movements.
Sensitivity
Sensitivity adjusts how loose or tight mouse movements
are during play.
Copy Curve to Clipboard
After customizing the Curve you can copy your
adjustments and save them to a text document.
Note: Many sites on the internet share and discuss
custom curves.
Paste Curve from
Clipboard
Paste a saved Curve copied from a text file here.
Note: Many sites on the internet share and discuss
custom curves.
Reset
Resets the Curve back the default values.
Calibration
Calibration allows you to adjust the relationship between Mouse Velocity
(physical mouse speed) and Aim Velocity (on-screen speed). Click and drag
any point of the curve to make adjustments.
35
Chapter 4: KeyMander Software
Curve
The Curve shows the relationship between Mouse Velocity (physical mouse
speed) and Aim Velocity (on-screen speed). When the physical mouse and on-
screen speed are the same, the curve looks like this:
Mouse Velocity increases from left to right and Aim Velocity bottom to top.
A perfect diagonal line means the mouse and on-screen speeds match. As you
adjust the curve up and down, the relationship between physical mouse speed
and on-screen speed changes. Two sections represent different movements:
A: Close Aiming Movement B: Turning - Long Movement
Pulling the Curve up makes the on-screen movements faster, pulling the Curve
down restricts the speed of A or B - as the physical mouse is moved.
36
KeyMander User Manual
Adjusting the Curve
Adjusting the curve allows you to fine tune turn acceleration or deceleration,
tune high/low speeds with limits, and boost velocity. Use the graph points to
adjust the curve to suit your needs. Use the examples below to understand how
changes to Aiming (A) and Turning (B) movements affect game play:
Low Aim Speed (A) / High Turn Speed (B):
Increase Thrust of Aiming (A) / Prevent High Turn Speed (B):
37
Chapter 4: KeyMander Software
Normal Aim Speed (A) / Increasing - High Turn Speed (B):
Normal Aim Speed (A) / Prevent High Turn Speed (B):
38
KeyMander User Manual
Decrease Aim Speed (A) / Normal Turn Speed (B):
39
Chapter 4: KeyMander Software
Mapping Section
The Mapping section of the KeyMander Editor screen is used for Mapping
the PS3/Xbox controller buttons to the keyboard, setting Turbo, and creating
Macros.
Mapping
Each PS3/Xbox controller button can be mapped to a keyboard, mouse, or
joystick. Each controller button has a box: Green displays the controller
button, White displays the key mapping, and Light Blue K, M, or J displays
the device it’s mapped to: Keyboard , Mouse, or Joystick.
Quick Map: Click a button’s box, press a key on the keyboard, and click OK
to map that controller button to a key on your keyboard. Mapping instructions
are provided on the next page.
40
KeyMander User Manual

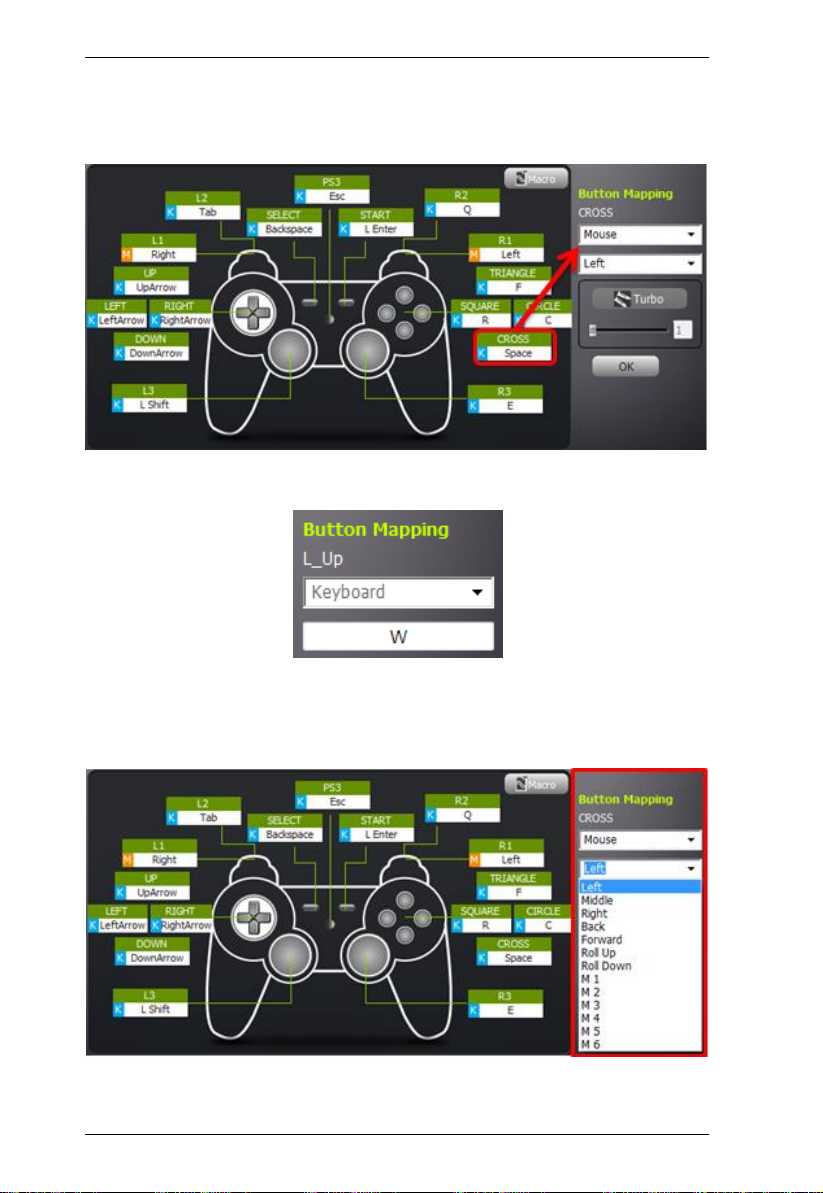

Mapping a controller button to the keyboard:
1. Click on a controller button’s box and Press a key on the keyboard:
2. The Button Mapping displays the key you pressed:
3. Click OK to save.
4. You can also use the Button Mapping drop-down menu to select other
devices and buttons to map to:
41
Chapter 4: KeyMander Software
Tu
rbo
Turbo allows continuous rapid fire of a controller button. You can enable or
disable turbo on any controller button and set the level (1~3) of rapid fire
intensity. Turbo Mode [F10] must be on for turbo buttons to work (see Turbo
Mode, page 17).
Setting Turbo:
1. Click a controller button’s box, then click Turbo:
2. Set the level (1~3) of rapid fire you want to use:
Clicking Turbo enables/disables turbo for the controller button. You
3. Click OK to save.
can only slide the bar when turbo is enabled.
42
KeyMander User Manual

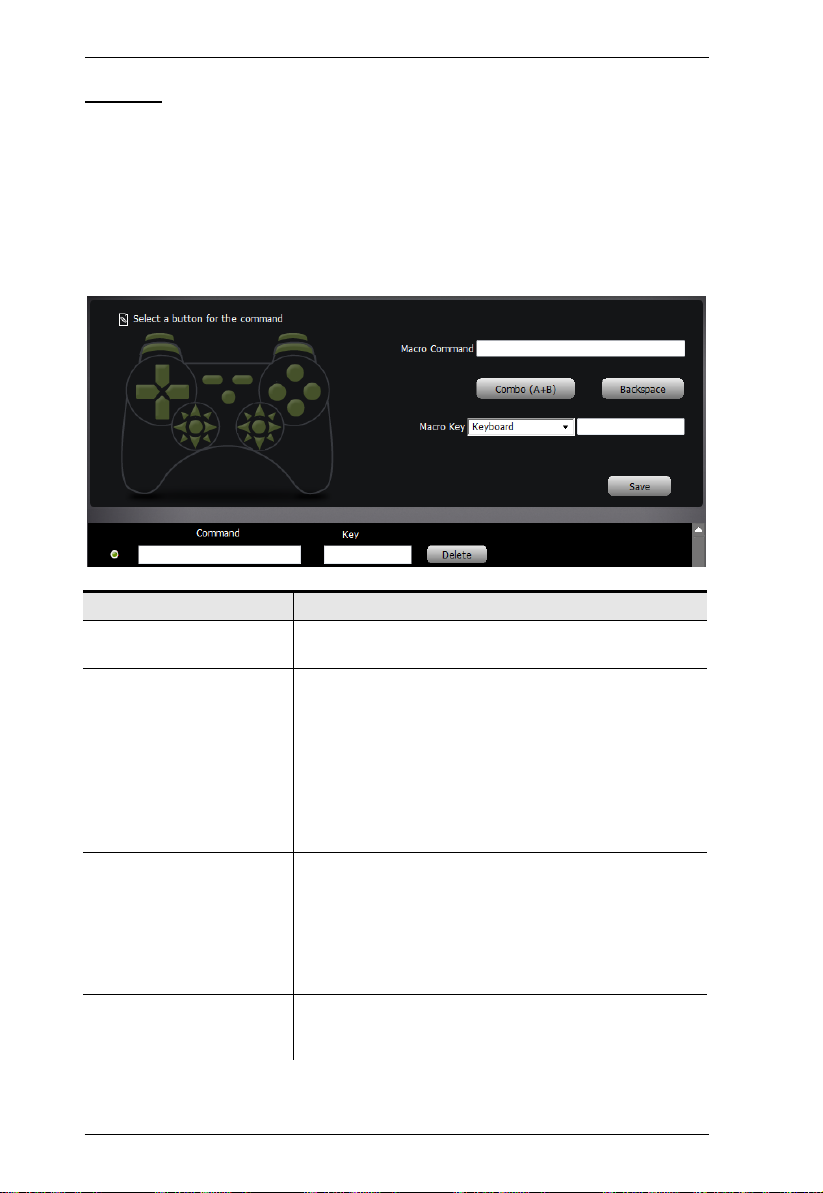

Function Description
Select a Button for the
Command
The controller image allows you to click the controller
buttons to enter them into the Macro Command box.
Macro Command
This is where your macro commands appear when you
click the controller image, enter up to 16 commands.
Combo (A+B): Use this button to combine two or
more controller buttons - that are pressed at the same
time.
Backspace: If you make a mistake, use this button to
delete the previous command.
Note: Combos are not considered a single command.
Macro Key
The Macro Key is a key or button used to execute the
macro during gameplay. Select a device and choose the
key or button to use:
Keyboard: Press a key from the keyboard.
Mouse: Select a button from the drop-down menu.
Joystick: Select a button from the drop-down menu.
Save
After you enter the Macro Command and select its
Macro Key, click Save and the command will appear in
the Command list.
Macros
Macros are a way to set multiple controller actions into a single key or mouse
click. For example you can set: “UP, UP, DOWN, LEFT, RIGHT, X, O” to
execute by pressing the [Y] key. You can set combos within macros, where
multiple buttons are pushed at the same time such as: “X+O,” or
“R3+L3+R2”. Each macro can have up to 16 controller actions.
Macro Mode [F11] must be on for Macros to run (see Macro Mode, page 18).
43
Chapter 4: KeyMander Software
Function Description
Command List
Lists the saved macro commands. Use the radio button
to select a command for editing or deleting.
Key
Lists the macro key used to run a command. Use the
button to select a key for editing.
Note: The key must be changed in the Macro Key box.
Delete
Select a radio button and click Delete to remove the
macro.
Creating Macros:
1. Click the Macro button.
2. Click the controller image to add buttons to the macro. They appear in the
Macro Command box:
3. To create a combo click Combo (A+B) between the controller buttons you
want to combine.
44
KeyMander User Manual
4. Single button and button combos can be added in any order with a
maximum of 16 commands.
5. From the Macro Key drop-down menu, select Keyboard, Mouse, or
Joystick:
6. Press a key or select a button from second Macro Key box to use to
execute the macro command.
7. Click Save. The macro appears in the Command list:
45
Appendix
Safety Instructions
General
This product is for indoor use only.
Read all of these instructions. Save them for future reference.
Follow all warnings and instructions marked on the device.
Do not place the device on any unstable surface (cart, stand, table,
etc.). If the device falls, serious damage will result.
Do not use the device near water.
Do not place the device near, or over, radiators or heat registers.
The device cabinet is provided with slots and openings to allow for
adequate ventilation. To ensure reliable operation, and to protect
against overheating, these openings must never be blocked or
covered.
The device should never be placed on a soft surface (bed, sofa, rug,
etc.) as this will block its ventilation openings. Likewise, the device
should not be placed in a built in enclosure unless adequate ventilation
has been provided.
Never spill liquid of any kind on the device.
Unplug the device from the wall outlet before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning.
The device should be operated from the type of power source indicated
onthe marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
To prevent damage to your installation it is important that all devices
are properly grounded.
Do not allow anything to rest on the power cord or cables. Route the
power cord and cables so that they cannot be stepped on or tripped
over.
To help protect your system from sudden, transient increases and
decreases in electrical power, use a surge suppressor, line
conditioner, or un-interruptible power supply (UPS).
Position system cables and power cables carefully; Be sure that
nothing rests on any cables.
46
KeyMander User Manual
Never push objects of any kind into or through cabinet slots. They
may touch dangerous voltage points or short out parts resulting in a
risk of fire or electrical shock.
Do not attempt to service the device yourself. Refer all servicing to
qualified service personnel.
If the following conditions occur, unplug the device from the wall
outlet and bring it to qualified service personnel for repair.
o The power cord or plug has become damaged or frayed.
o Liquid has been spilled into the device.
o The device has been exposed to rain or water.
o The device has been dropped, or the cabinet has been
damaged.
o The device exhibits a distinct change in performance,
indicating a need for service.
o The device does not operate normally when the operating
instructions are followed.
Only adjust those controls that are covered in the operating
instructions. Improper adjustment of other controls may result in
damage that will require extensive work by a qualified technician to
repair.
47
Appendix
Email Support
support@IOGEAR.com
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://iogear.custhelp.com
Technical Support
International
For online technical support – including troubleshooting, documentation,
and software updates: http://iogear.custhelp.com
North America
When you contact us, please have the following information ready beforehand:
Product model number, serial number, and date of purchase.
Your computer configuration, including operating system, revision
level, expansion cards, and software.
Any error messages displayed at the time the error occurred.
The sequence of operations that led up to the error.
Any other information you feel may be of help.
48
KeyMander User Manual
Function
KeyMander
Connectors
Front
Keyboard
1 x USB Type A Female (White)
Mouse
1 x USB Type A Female (White)
Controller
1 x USB Type A Female (White)
Rear
Game
1 x Mini USB Type A Female (black)
PC
1 x Mini USB Type A Female (black)
KB Power
1 x Mini USB Type A Female (black)
Switches
Reset
1 x Semi-recessed Push Button
LEDs
Turbo / *KB Mode
1 (Blue)
Setting
1 (Blue)
Power
1 (Blue)
Emulation
Keyboard
USB, Emulation
Mouse
USB, Emulation
Controller
USB, Bypass
Power Consumption
5v, W
Environment
Operating Temp.
0–50°C
Storage Temp.
-20–60°C
Humidity
0–80% RH, Non-condensing
Physical
Properties
Housing
Metal
Weight
TBD
Dimensions (L x W x H)
TBD
Specifications
49
Appendix
Limited Warranty
