IOGear GCN1000 User Manual

Installation

Installation Guide

Installation

GCN1000 PCPortal

GCN1000

PART NO. M0566

Table of Contents

Package Contents 4

Conventions

System Requirements 5

Video

Operating systems

Components 6

Computer Preliminary Setup 8

GCN1000 Preliminary Setup 9

GCN1000 Initial Conﬁ guration 11

Hardware Setup 13

Table of Contents

Normal Logon 14

Utility Icons 15

Administration Icons 16

Network 17

Access ports

IP Address 18

DNS server

IP Change Notiﬁ cation

Security 19

Overview

Filtering

User Station Filtering: IP Address 20

User Station Filtering: MAC Address

User Manager 21

Customization 22

Firmware 23

Windows Client 25

Operation 27

Windows Client Control PNEL

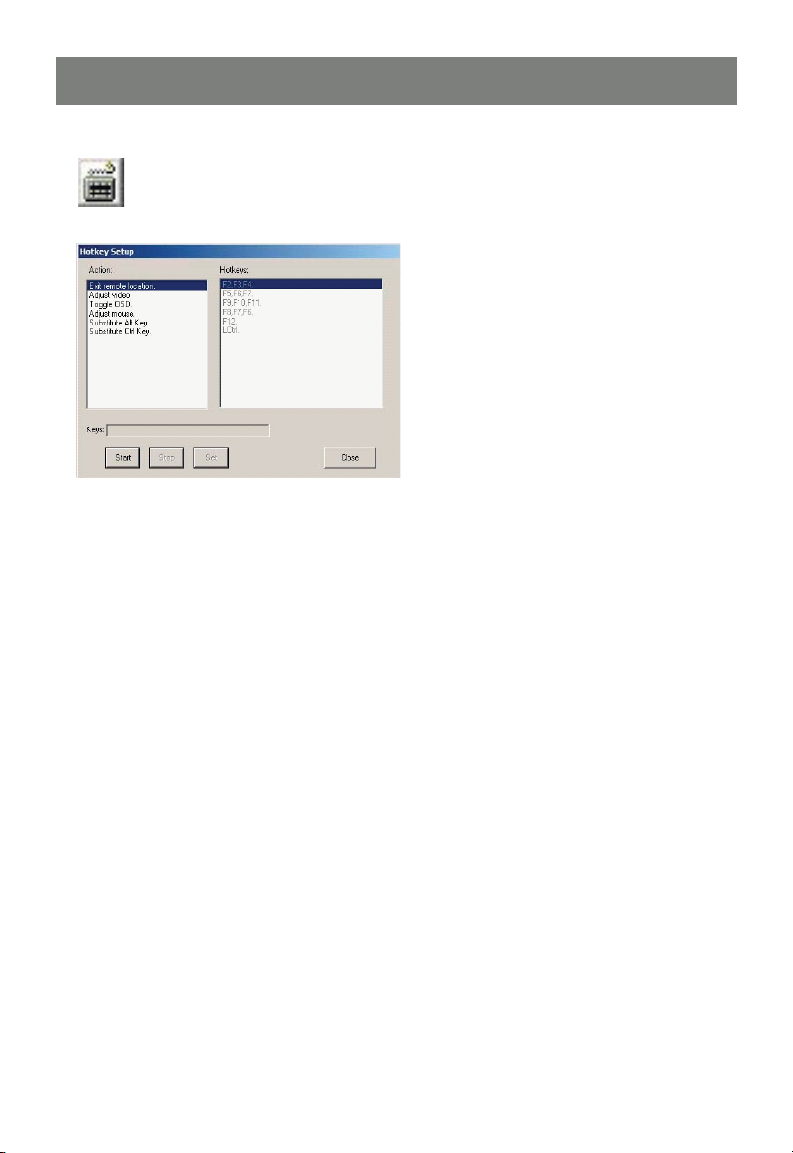

Hotkey setup 29

Video ADJUSTMENT 30

Message Board 31

Virtual Media 33

The Java Client 35

Java Applet Tool Bar 36

Video Parameters

Keypad 38

Mouse Synchronization

Message Board

Administrator Reset 40

Connecting from the internet 41

Troubleshooting 43

General Operation

Java Applet

Windows Client 44

Additional Mouse Synchronization Procedures 45

Windows 2000

Windows XP / Vista / Server / Server 2003 46

Optional Cable

Package Contents

The GCN1000 package Contains:

• 1 GCN1000

• 1 USB Custom KVM Cable Set

• 1 Ethernet cable (6ft)

• 1 Custom USB Console Cable Set

• 1Virtual Media USB Cable (mini B to A)

• 1 User Manual

Check to make sure that all the components are present and that nothing was damaged in

shipping. If you encounter a problem, contact your dealer.

Caution

Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it.

Conventions :

This manual uses the following conventions:

Monospaced Indicates text that you should key in.

[ ] Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be

chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

1. Numbered lists represent procedures with sequential steps.

• Bullet lists provide information, but do not involve sequential steps.

−> Indicates selecting the option (on a menu or dialog box, for example), that comes next. For

example, Start −> Run means to open the Start menu, and then select Run.

Indicates critical information.

NOTE: Because of the uniqueness of the GCN1000 and its operation: at any given time either computer

can be considered the local or the remote computer. To avoid confusion the following convention is used: Local computer: The computer the GCN1000 is physically attached to Remote computer The computer that is accessing the GCN1000 from the network or internet.

System Requirements

• For best results, we recommend that the computers used to access, the GCN1000 control unit have at least a P III 1 GHz processor, with the screen resolution set to 1024 x 768.

• Browsers must support 128-bit SSL data encryption.

• We recommend that the internet connection speed be at least 128 kbps.

• For the browser-based Windows Client, you must have DirectX 7.0 or higher installed.

• For the browser-based Java Applet, you must have Sun’s Java Runtime Environment Version 6 Update 3 or higher.

• Your router and ISP must support Port Forwarding to allow access from the internet.

Video

The unit supports the following resolutions and refresh rates.

Resolution Refresh Rates

640x480 60, 72, 75, 85

720x400 70

800x600 56, 60, 72, 75, 85

1024x768 60, 70, 75, 85

1152x864 75

1280x1024 60, 75

Operating Systems

Supported operating systems:

OS Version

Windows 2000 and higher

Linux RedHat 9 and higher

SuSE 10 and higher

Mandriva (Mandrake) 2007 and higher

UNIX AIX 4.3 and higher

FreeBSD 6 and higher

Novell Netware 6 and higher

Components

Front View

No. Component Description

1 Reset Switch System Reset: Pressing and holding this switch in for more that

three seconds performs a system reset. Restore Factory Default Settings: Power off the GCN1000, then press and hold the reset switch for at least 3 seconds while reconnecting power. Note: This will not reset users or passwords

2 10/100 Mbps LED The LED lights ORANGE to indicate a 10 Mbps connection, and

3 Link LED Flashes GREEN to indicate that a

4 Power LED Lights ORANGE when the GCN1000 is powered and ready to operate.

5 LAN Port The network’s Ethernet cable

GREEN to indicate a 100 Mbps connection.

Client program is accessing the device.

connection

PCI Interface

No. Component Description

1 Power Jack The power adapter connection.

2 PC/KVM Port The connection for the cable that links the GCN1000 to your computer.

3 USB Console Port This is the connection for the local console cable (USB keyboard,

monitor, and USB mouse). Each port is color coded and marked with an appropriate icon for identiﬁ cation. *

4 Virtual Media Port The connection for the virtual media cable that connects the GCN1000

to a USB port on your computer. It allows ﬁ le transfers to occur

5 LAN Port The network’s Ethernet cable

connection

* Note: if you are using a wireless keyboard/mouse set, connect the receiver to the Keyboard port of the KVM cable

Computer Preliminary setup

Find your computer’s IP address and default Gateway

1. Go to Start −> RUN

3. Enter CMD in the box

4. [OK] or [Enter]

A command line window opens

5. Type ipconﬁ g

Package Contents

6. [Enter]

Look for the heading that says Ethernet adapter Local Area Connection:

7. Write down the IP Address and Default Gateway.

If the ﬁ rst three groups of numbers of your IP Address happens to be 192.168.0.

Proceed to Hardware set up

IP Address ....................................................................................................................................

Default Gateway ...........................................................................................................................

Exit the command line by clicking on the “X” on the top right corner of the Command line window

GCN1000 preliminary setup

Connect the GCN1000 and your computer to your network using the following diagram. This is a preliminary set up so no other connections are needed.

What Is RAID?

Most home networks use automatic IP Addressing, and the GCN1000 is provided with a default ﬁ xed IP address of 192.168.0.60: so to log in for the ﬁ rst time, you must have your computer and the GCN1000 on the same network.

Be sure to write down your existing settings prior to changing anything so you can return to them after the initial set up

The following instructions will explain how to put your computer and GCN1000 on the same network, the ﬁ rst set of instructions cover Windows XP and 2000, the second set explains Vista.

Windows XP and 2000

1. Go to control panel look for the Network

Connections icon

2. Double click on the icon

3. Right click on Local Area Connection

(or Wireless network connection)

4. Select Properties

5. Under the General tab highlight Internet

Protocol TCP/IP

6. Click on properties

Click on the Radio button “Use the following 7. IP address” In the top block labeled “IP Address”

Enter: 192.168.0.65

In the center block labeled “Subnet Mask”

Enter: 255.255.255.0

Click on OK – your computer will take a few moments to change its IP address

Windows Vista

1. Go to control panel

2. Select “Network and Sharing Center”

3. Select “Manage network connections”

4. Select “Local area Connection” right click select “Properties”

5. Highlight “Internet Protocol Version 4 (TCP/IPv4)

6. Select [Properties]

7. Select “Use the following IP address” In the top block labeled IP address type 192.168.0.65

Enter 255.255.255.0 for the Subnet mask Leave the default Gateway blank

8. Click [OK] – your computer will take a few moments to change its IP address

GCN1000 Initial conﬁ guration

1. Open your web browser. You will get a “Page cannot be displayed” error message, this is normal.

2. Type http:// 192.168.0.60 in address bar of your web browser, then [ Enter ]

3. When the certiﬁ cate windows pop up, accept them.

4. When the below screen appears, log into the GCN1000:

User name: administrator (lowercase)

Password: password (lowercase).

5. After logging in, click on the Network icon along the top of the Window. This is where the GNS1000’s network conﬁ guration settings and information are located.

6. Select Set IP address manually (A static IP Address is preferred)

The actual address you use is dependent on your network’s address range:

The following is an example: In the preliminary set up, the IP Address noted is 192.168.1.16, so the IP Address you would enter would be 192.168.1.60

IP Address assigned ………………………….

6. Select Obtain DNS server address automatically,

7. For now leave the rest of the settings at their default values (they will be covered latter)

8. Click on Apply then Logout, The GCN1000 will reset. (It is important to log out so the GCN1000

will close the connection)

NOTE:

Change your computer’s IP address and Default Gateway back to the original settings as noted in the preliminary Steps (if both are obtained automatically, click on the radio button to restore your settings). Reconnect the computer to your network; connect the GCN1000 into your system as described in the following section:

Hardware Setup

Ensure that power has been removed from all devices in the installation. You must unplug the power cords of any computers that support Keyboard Power On function.

Installation

To install the GCN1000, refer to the installation diagram:

1. Use the Console cable provided to connect the GCN1000’s Console port, to the

local keyboard, monitor and mouse, they are color coded for identiﬁ cation.

2. Use the KVM cable provided to connect the GCN1000’s PC/KVM port, to the video

and a USB port on the computer.

3. Connect your network cable between the GCN1000’s LAN port and your router.

4. Connect your computer to the network.

Note: Both the GCN1000 and your computer must be connected to your router. If you are using a wireless

network , switch to a wired connection to set up the GCN1000, once you know everything is working you can switch back to wireless

Note: The GCN1000 to router connection must be wired.

5. Connect the mini B to A -USB connector between GCN1000 Virtual Media port and a USB port on

your computer.

6. Connect the power adapter cable to the GCN1000’s power jack

Installation Diagram:

Normal Logon

To operate the GCN1000 from an Internet browser, begin by logging in: Open your browser and specify the IP address (assigned in the preliminary set up) of the GCN1000 in the browser’s Address bar.

1. A Security Alert dialog box, similar to the one below, appears.

Accept the certiﬁ cate. If a second certiﬁ cate appears, accept it as well.

The GCN1000 login page appears:

Provide a valid Username and Password

Default:

User name : administrator

Password : password

Click on Login

The GCN1000 Main Screen appears:

The Main Screen consists of:

Utility icons arranged vertically down the left side Administration icons arranged across the top;

Utility icons

Icon Purpose

Apply: Saves the changes you make in the administration dialog boxes, but does not implement the changes, which go into effect when you enable Reset on exit (see Customization) and log out.

Windows Client: Allows users with the proper permission (see User Manager) to connect to the GCN1000 using Windows software, to remotely control the server.

Java Applet: For platform independence, the Java applet allows users with the proper permission (see User Manager ) and Java installed on the remote computer, to connect to the GCN1000 and remotely control the sever.

Log: All the events that take place on the GCN1000 are recorded in a log ﬁ le. If you have the proper permission clicking on this Icon displays the contents of the log ﬁ le Note: See the next page for an explanation of the Log utility.

Logout: Click this icon to log out and end your session Note: It is important to end your session, so the CN1000 can terminate the session. If you get a “System in use” error message its because the session ended with out Logging out, Logon with the other Client.
