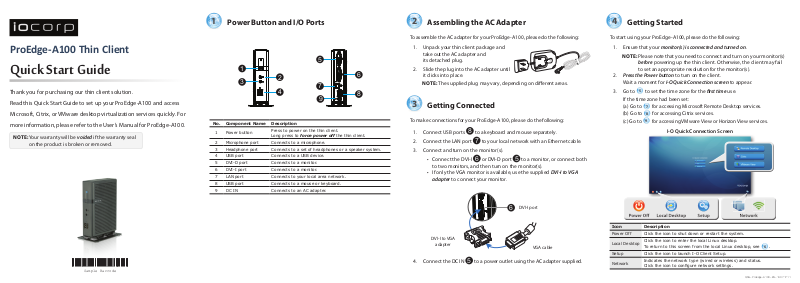

ioCorp ProEdge-A100 thin client Quick Start Manual

1 2
8
7
6
Sample Barcode
6
Power Button and I/O Ports
Assembling the AC Adapter
4
Getting Started
ProEdge-A100 Thin Client
Quick Start Guide
Thank you for purchasing our thin client solution.
Read this Quick Start Guide to set up your ProEdge-A100 and access
Microsoft, Citrix, or VMware desktop virtualization services quickly. For
more information, please refer to the User’s Manual for ProEdge-A100.
NOTE: Your warranty will be voided if the warranty seal
on the product is broken or removed.
5
1
3
2
7
4
No. Component Name Description
1 Power button
2 Microphone port Connects to a microphone.
4 USB port Connects to a USB device.
5 DVI-D port Connects to a monitor.
6 DVI-I port Connects to a monitor.
7 LAN port Connects to your local area network.
8 USB port Connects to a mouse or keyboard.
9 DC IN Connects to an AC adapter.
Press to power on the thin client. Long press to force power off the thin client.
9
6
8
To assemble the AC adapter for your ProEdge-A100, please do the following:
1. Unpack your thin client package and take out the AC adapter and its detached plug.
2. Slide the plug into the AC adapter until it clicks into place.
NOTE: The supplied plug may vary, depending on dierent areas.
3
Getting Connected
To make connections for your ProEdge-A100, please do the following:
1. Connect USB ports
2. Connect the LAN port
3. Connect and turn on the monitor(s).
• Connect the DVI-I to two monitors, and then turn on the monitor(s).
• If only the VGA monitor is available, use the supplied DVI-I to VGA adapter to connect your monitor.
DVI-I to VGA
adapter
4. Connect the DC IN 5 to a power outlet using the AC adapter supplied.
to a keyboard and mouse separately.
to your local network with an Ethernet cable.
or DVI-D port 5 to a monitor, or connect both
DVI-I port
9
VGA cable
To start using your ProEdge-A100, please do the following:
1. Ensure that your monitor(s) is connected and turned on.
NOTE: Please note that you need to connect and turn on your monitor(s)
before powering up the thin client. Otherwise, the client may fail
2. Press the Power button to turn on the client.
3. Go to
Icon Description
Power Off Click the icon to shut down or restart the system.
Local Desktop
Setup Click the icon to launch I-O Client Setup.
Network
to set an appropriate resolution for the monitor(s).
Wait a moment for I-O Quick Connection screen to appear.
5
to set the time zone for the rst time use.
If the time zone had been set: (a) Go to (b) Go to (c) Go to
7
for accessing Microsoft Remote Desktop services.
8
for accessing Citrix services.
9
for accessing VMware View or Horizon View services.
I-O Quick Connection Screen
Click the icon to enter the local Linux desktop.
To return to this screen from the local Linux desktop, see
Indicates the network type (wired or wireless) and status.
Click the icon to congure network settings.
QSG-ProEdge-A100-EN-14071711
6
.
5
Conguring the Time Zone
Accessing Microsoft Remote Desktop Services
I-O Citrix Connection Screen
97
Accessing VMware View Services
To set the time zone for your ProEdge-A100, please do the following:
1. Click the Setup
2. On I-O Client Setup, click System > Time Zone.
3. Click the Time Zone drop-down menu to select the desired time zone.
4. Click Save to apply, and then close I-O Client Setup.
6
Returning to the Quick Connection Screen
To return to I-O Quick Connection screen when on local Linux desktop, please double click I-O Quick Connection on that desktop.
icon to launch I-O Client Setup.
I-O Client Setup
Time Zone drop-down menu
To access Microsoft Remote Desktop services, please do the following:
1. Click
2. On the appeared window, type in the computer name or IP address of the remote computer, user name, password, and domain (if any), and then click Connect.
NOTE: To discover available MultiPoint Server systems over your network,
click Type in data manually if the desired system cannot be found.
NOTE: To return to I-O Quick Connection screen (see
3. The remote desktop will be displayed on the screen.
8
Accessing Citrix Services
Connecting to the Server
To connect to the server where the Citrix Web Interface is hosted, please do the following:
1. Click
2. On the appeared I-O Citrix Connection screen, enter the IP address / URL / FQDN of the server, and then click Log On.
NOTE: FQDN is the acronym of Fully Qualied Domain Name.
, select the desired system, and then click OK.
on I-O Quick Connection screen.
4
), press Esc.
on I-O Quick Connection screen.
NOTE: To return to I-O Quick Connection screen (see 4), press Esc.
Logging On to Citrix Services
When connected, the Citrix Logon screen appears. The appeared screen may vary with the service type and version.
NOTE: A message ‘This Connection is Untrusted’ might appear. Consult the IT administrator for details and ensure the connection is secure rst. To import a
certicate, click Setup click I Understand the Risks > Add Exception > Conrm Security Exception.
The following is an example of Citrix Logon screens.
Type the
required user
name, password,
domain, and click
Log On to access
virtual desktops
or applications.
NOTE: To return to I-O Citrix Connection screen, press Esc.
NOTE: On Desktop Selection or Application selection screen, you can
• Use Alt + Tab to select and restore a hidden or minimized application.
• Click Log o on the top of the screen to return to Citrix Logon screen.
• Press Esc to return to I-O Citrix Connection screen directly.
> System > Certicate Manager > Add. To bypass,
Citrix Logon Screen
This area will display Citrix
XenDesktop or Citrix XenApp,
depending on your Citrix service type.
To access VMware View or Horizon View services, please do the following:
1. Click
2. On the opened window, enter the FQDN or IP address of the VMware View Connection Server, and then click Connect.
NOTE: A window might appear with a certicate
message about the remote server. Consult the IT administrator for details and ensure the connection is secure rst. To import a certicate, click
Setup click Connect Insecurely.
NOTE: To return to I-O Quick Connection screen (see
opened window.
3. A Welcome window might appear, click OK to continue.
4. A window appears prompting for the credentials. Enter your user name, password, click the Domain drop-down menu to select the domain, and then click OK.
5. A window appears with available desktops for the provided credentials. Double click to select the desired desktop.
6. The virtual desktop will be displayed on the screen.
> System > Certicate Manager > Add. To bypass,
on I-O Quick Connection screen.
4
), close the
QSG-ProEdge-A100-EN-14071711
