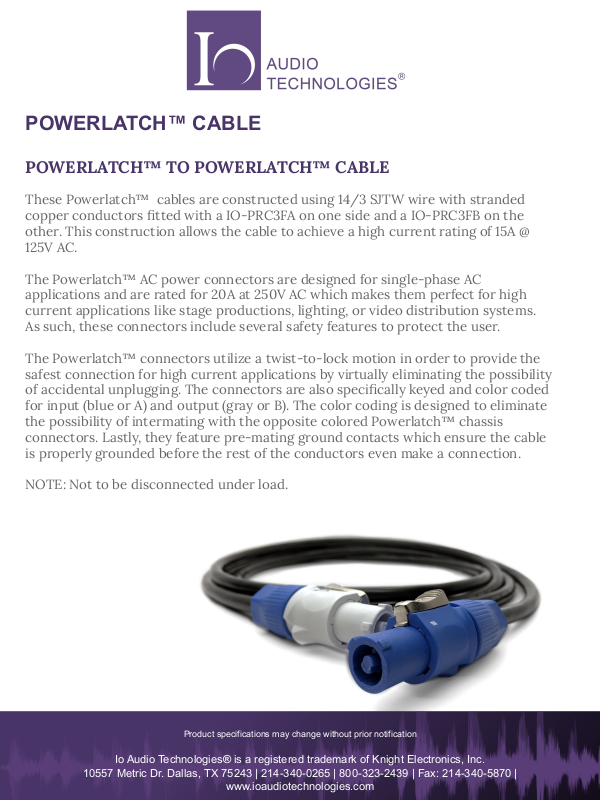

POWERLATCH™ CABLE

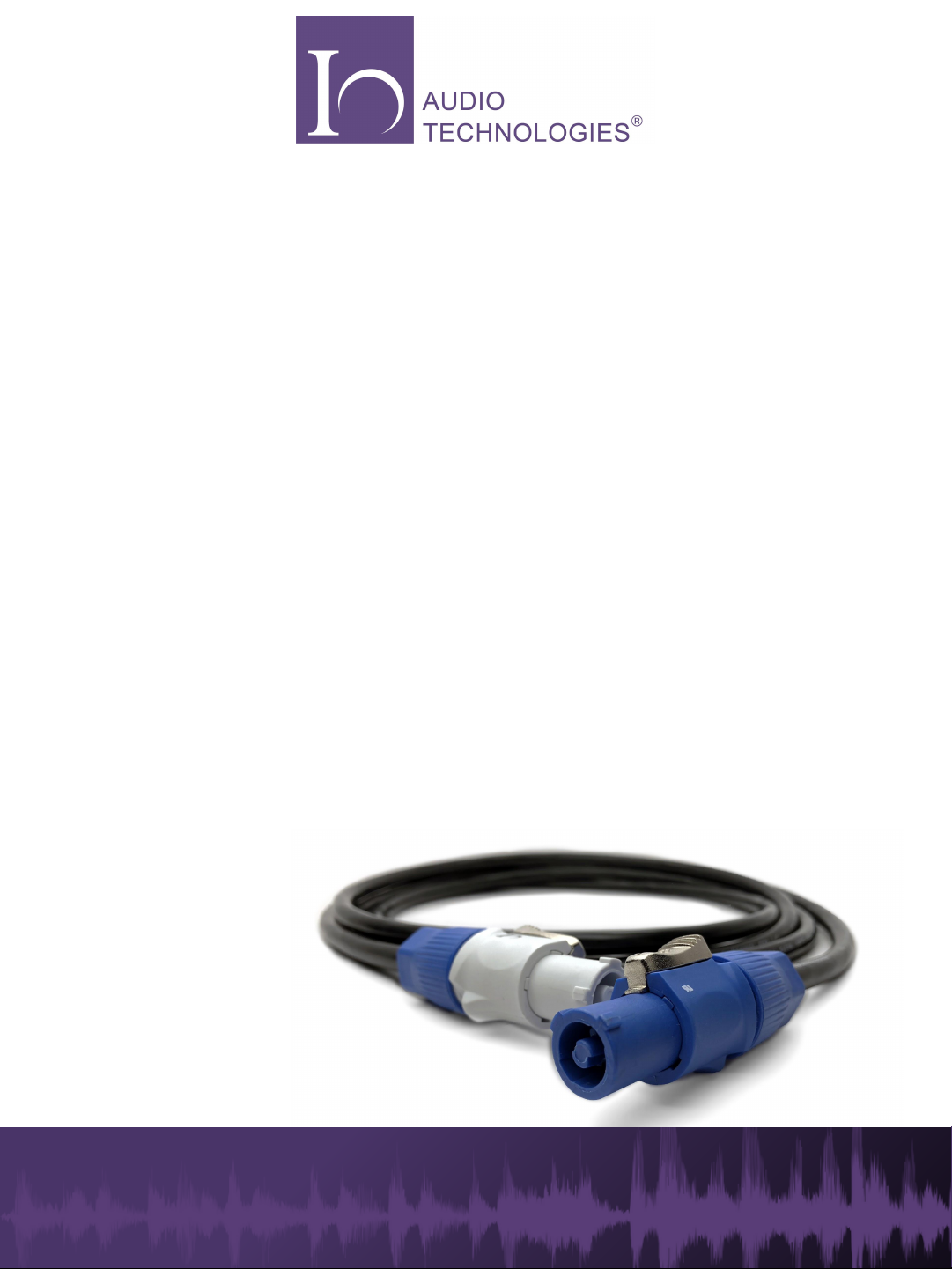

POWERLATCH™ TO POWERLATCH™ CABLE
These Powerlatch™ cables are constructed using 14/3 SJTW wire with stranded
copper conductors fitted with a IO-PRC3FA on one side and a IO-PRC3FB on the
other. This construction allows the cable to achieve a high current rating of 15A @
125V AC.
The Powerlatch™ AC power connectors are designed for single-phase AC
applications and are rated for 20A at 250V AC which makes them perfect for high
current applications like stage productions, lighting, or video distribution systems.
As such, these connectors include several safety features to protect the user.
The Powerlatch™ connectors utilize a twist-to-lock motion in order to provide the
safest connection for high current applications by virtually eliminating the possibility
of accidental unplugging. The connectors are also specifically keyed and color coded
for input (blue or A) and output (gray or B). The color coding is designed to eliminate
the possibility of intermating with the opposite colored Powerlatch™ chassis
connectors. Lastly, they feature pre-mating ground contacts which ensure the cable
is properly grounded before the rest of the conductors even make a connection.
NOTE: Not to be disconnected under load.
Product specifications may change without prior notification
Io Audio Technologies® is a registered trademark of Knight Electronics, Inc.
10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 |
www.ioaudiotechnologies.com
Page 2
SPECIFICATIONS
Product
Part Number: IO-PRCPTP-14-XX-P
Number of Conductors: 2 plus ground
Electrical and Mechanical
Characteristics
Conductor DC Resistance: < 8.88 Ω/km
Insulation Resistance: > 120 MΩ/kft
Dielectric Strength: 2.0 KV/1 min
Current Rating: 15A @ 125V
Voltage Breakdown: 300 V
Applicable Temperature: -20°C ~ +60° C (-4°F ~ +140°F)
Peak Temperature: -40°C ~ +70° C (-40°F ~ +158°F)

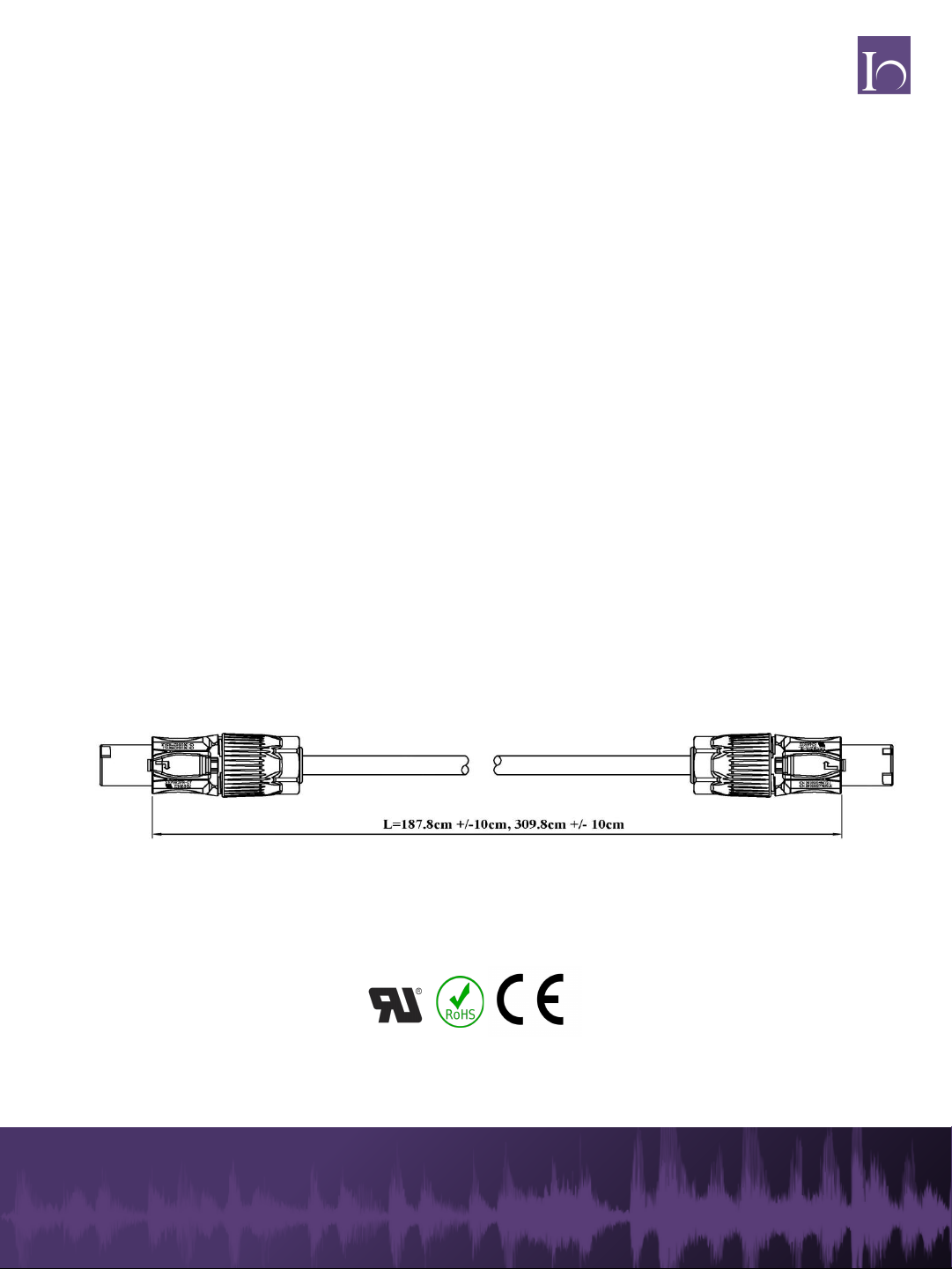

DRAWING
Insulation
Material: PVC
Colors: Black, White, Green
Conductors
Details: 48/0.2 ABC
Size: 14 AWG
Jacket
O.D.: 9.0mm
Material: PVC
Rating: SJTW
Color: Black
STANDARDS & CLASSIFICATIONS
