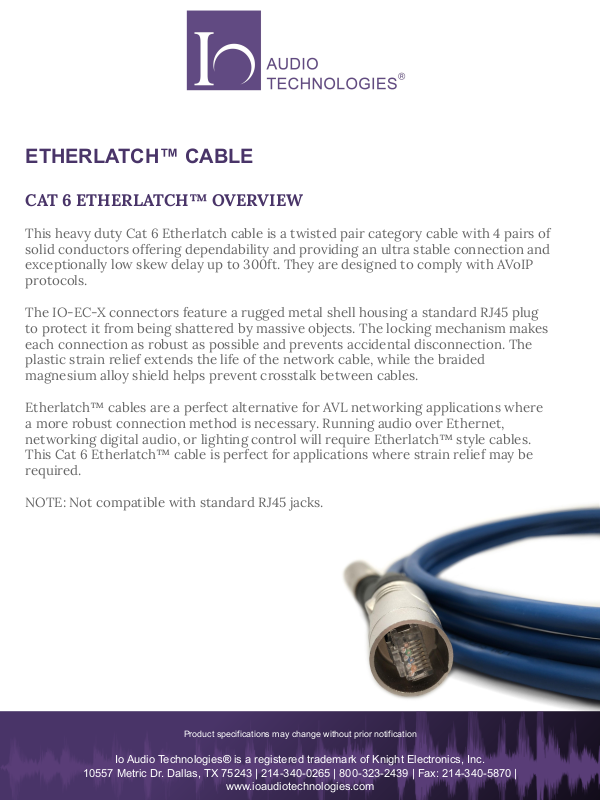

ETHERLATCH™ CABLE
CAT 6 ETHERLATCH™ OVERVIEW
This heavy duty Cat 6 Etherlatch cable is a twisted pair category cable with 4 pairs of
solid conductors offering dependability and providing an ultra stable connection and
exceptionally low skew delay up to 300ft. They are designed to comply with AVoIP
protocols.
The IO-EC-X connectors feature a rugged metal shell housing a standard RJ45 plug
to protect it from being shattered by massive objects. The locking mechanism makes
each connection as robust as possible and prevents accidental disconnection. The
plastic strain relief extends the life of the network cable, while the braided
magnesium alloy shield helps prevent crosstalk between cables.
Etherlatch™ cables are a perfect alternative for AVL networking applications where
a more robust connection method is necessary. Running audio over Ethernet,
networking digital audio, or lighting control will require Etherlatch™ style cables.
This Cat 6 Etherlatch™ cable is perfect for applications where strain relief may be
required.
NOTE: Not compatible with standard RJ45 jacks.
Product specifications may change without prior notification
Io Audio Technologies® is a registered trademark of Knight Electronics, Inc.
10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 |
www.ioaudiotechnologies.com
Page 2
SPECIFICATIONS
Product
Part Number: IO-CAT6-XX-P
Number of Conductors: 8 (4 Shielded Pairs)
Conductors
Details: 1/0.57mm Solid Bare Copper
Size: 23 AWG
Electrical and Mechanical
Characteristics
Conductor DC Resistance: < 75 Ω/km
Shield DC Resistance: < 100 Ω/km
Capacitance Between Conductors: 12.3 pF/ft
Capacitance Between Conductors / Shield: 23.8 pF/ft
Skew Delay: < 6nS@100m
Impedance: 100 Ω
Insulation
Material: FPE
Colors: White/Orange,
Orange, White/Green, Blue,
White/Blue, Green,
White/Brown, Brown
Shield
Details: Braided Magnesium
Alloy & Aluminum Foil
Construction: 16*4/0.10
(Shield continuity is present
between both ends of the
cable.)
Jacket
O.D.: 8.0mm
Material: PVC
Voltage Breakdown: 500 V
Flex Life: ≥ 13,000
Applicable Temperature: -20°C ~ +60° C (-4°F ~ +140°F)
Peak Temperature: -40°C ~ +70° C (-40°F ~ +158°F)

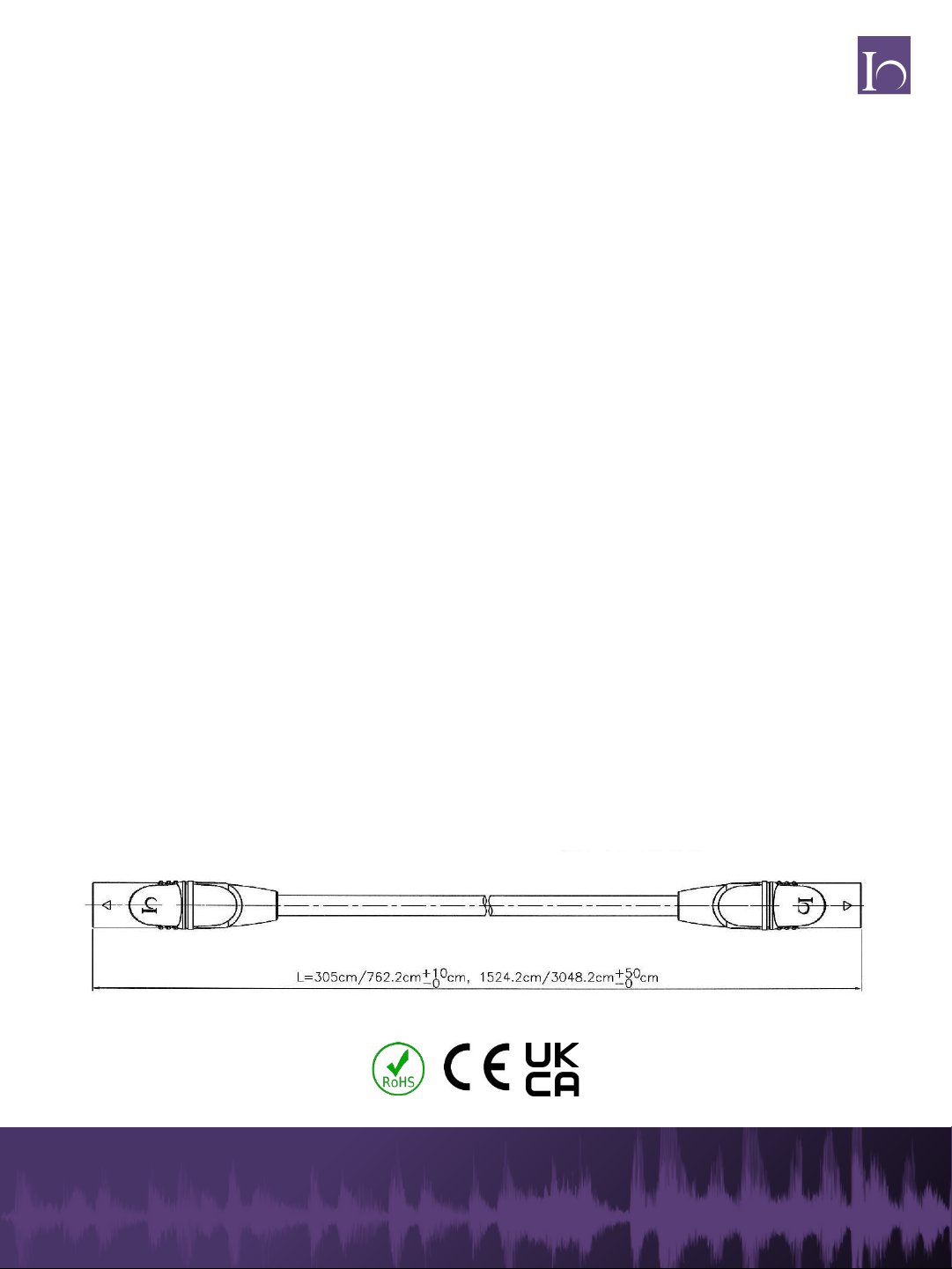

DRAWING
STANDARDS & CLASSIFICATIONS
Product specifications may change without prior notification
Color: Blue
Drain Wire
Details: 1/.40 TC
