Inzinious Z HUD User Manual

World Wide Head-Up Display

ENGLISH

Inzinious, Inc.

Z-HUD

Power cable

Non-slip pad

Dedicated reflective film

Configuration of the product

Product Specifications

Product Size

135 x 85 x 12 mm

Use power

DC5V, 1A (Ability to use the USB port)

Operation temperature

-30 ~ 65 ℃ / -22 ~ 149 ℉

Communication method

Bluetooth UART

Display method

5“ LCD

800 x 600 Resolution

24bit RGB full Color

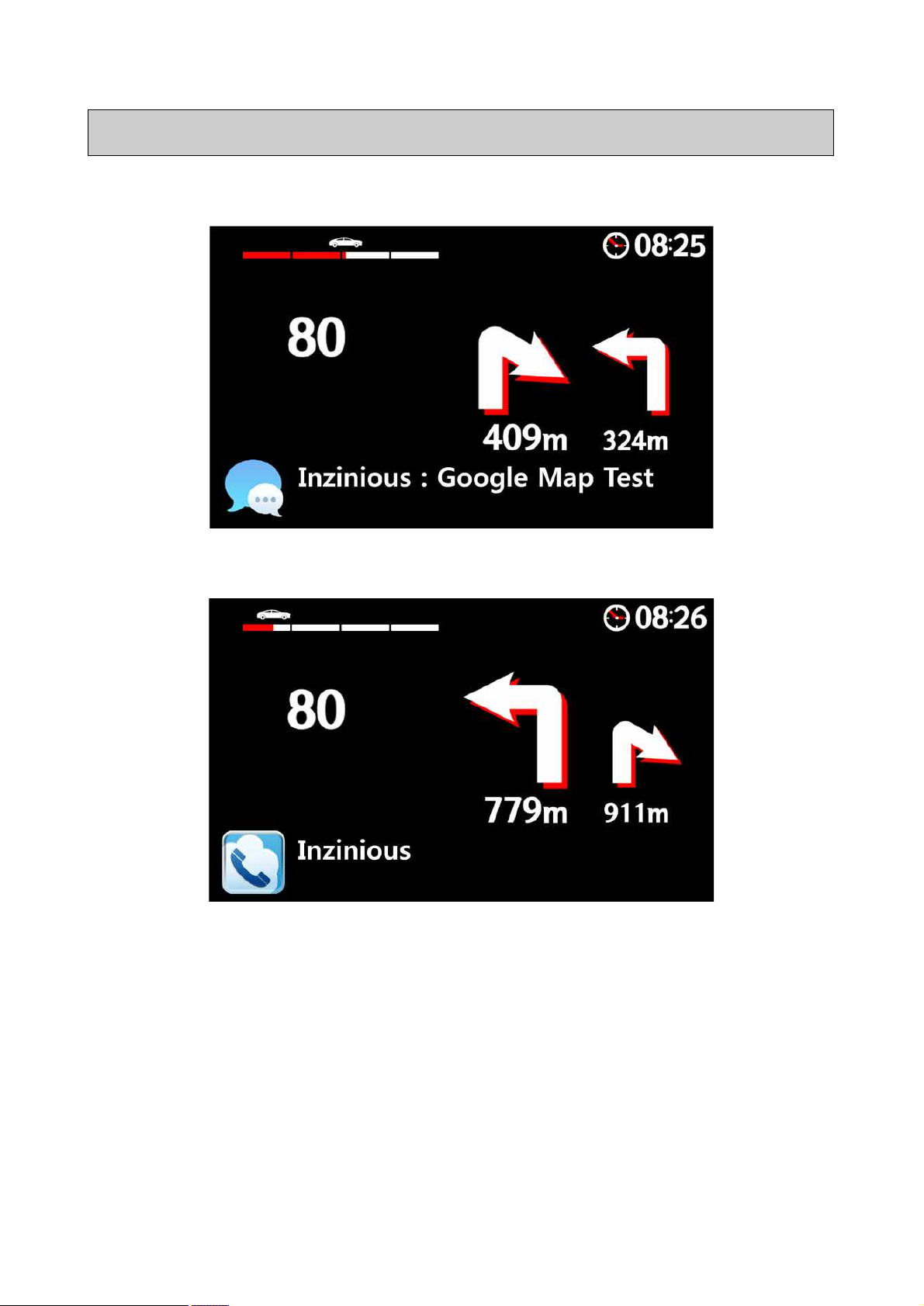

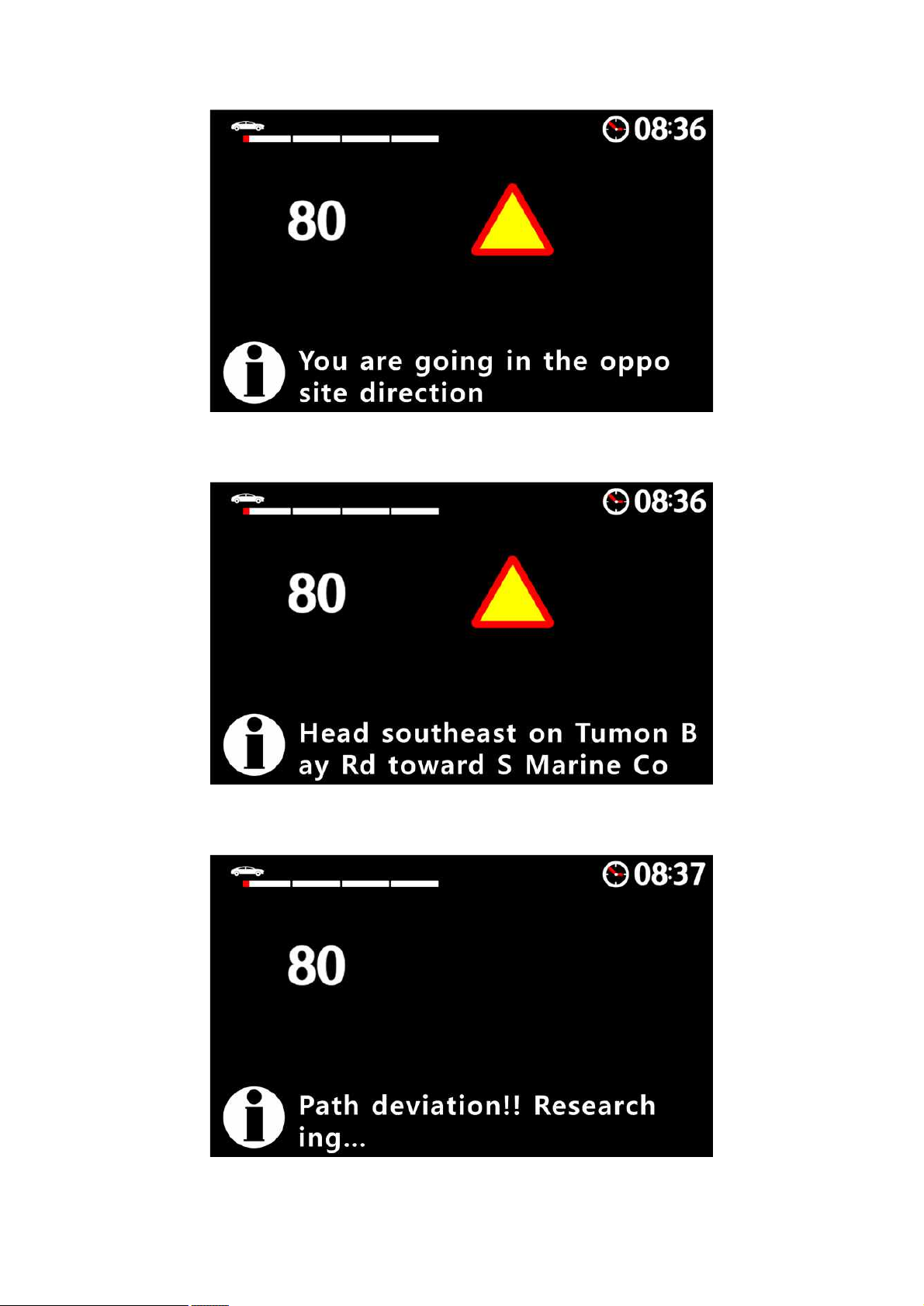

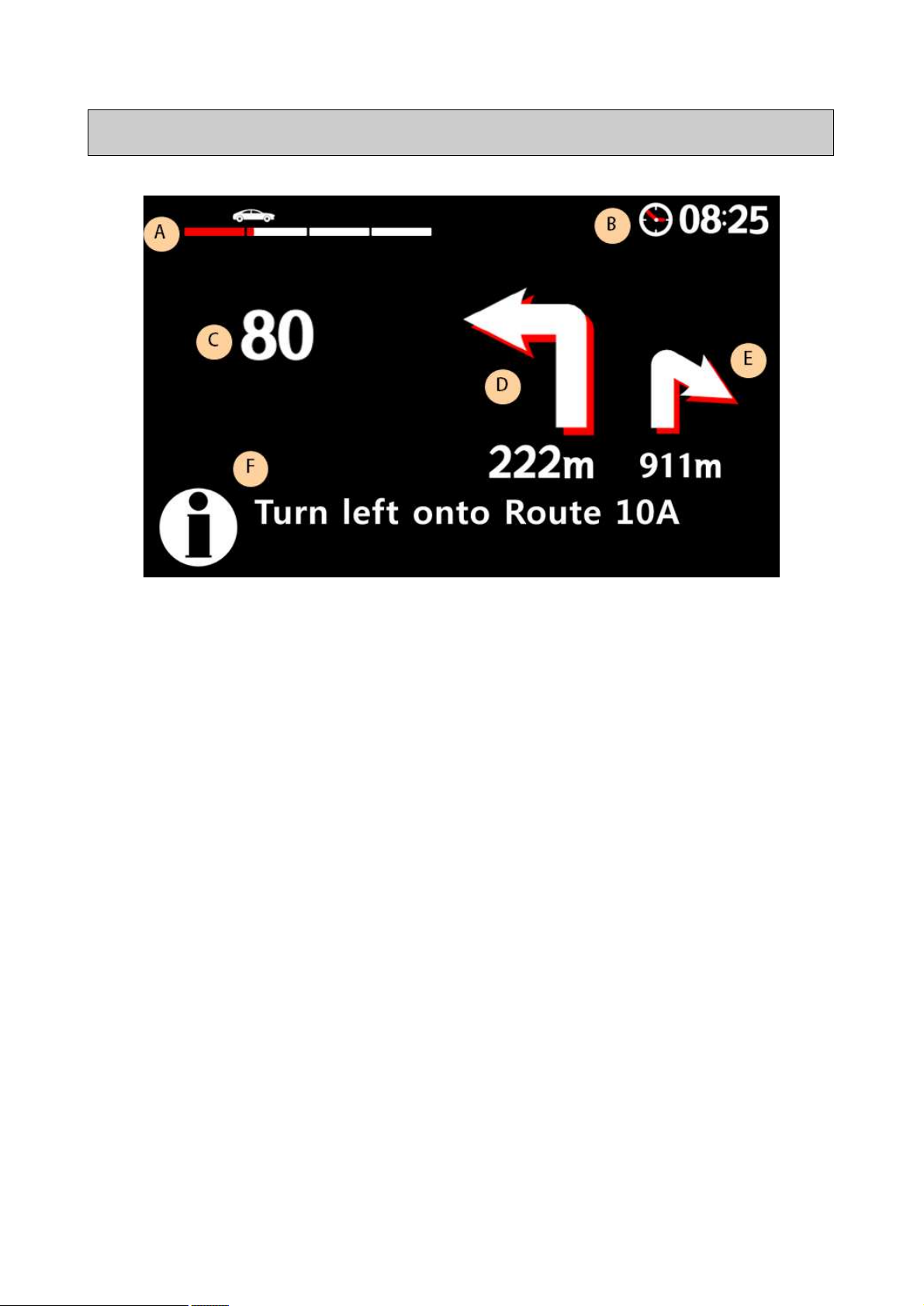

It provides a variety of additional services

Multi-Language Support.

Navigation function. (Z-NAV app used)

Provides time and speed of the current.

Telephone call notification.

The characters are received, notification of the contents.

Instructions for use and installation of the product

① HUD the choice of location

A. Selected as the installation location of the HUD sitting in the driver's seat.
B. HUD installation by attaching to the window as possible.
C. Installed power connection port of the HUD to come to the left on top of the

non-slip pad.

② Reflective film with

A. Reflection film, install it with the maximum HUD.
B. Wipe clean the location where you want to paste the reflection in the window

film.
C. And removing the protective film of stickers in a single reflection film.
D. Put to match the bottom of the HUD under the reflective film.
E. The removal of air bubbles between the window and the film.
F. And removing the protective film sticker twice in the reflective film.

③ Connecting the Power Cable

A. Connect with HUD connectors smaller power cable.
B. And connected to the USB port of the vehicle connector of the larger of the

power cable.

④ Install the Z-NAV navigation app

A. Only compatible smartphone Android 3.0 or higher.
B. Install after a search of the A-NAV from Google Play Store.

⑤ Pairing of Bluetooth

A. Power of Z-HUD.
B. Enabling Bluetooth smartphone.
C. In the Bluetooth settings of the smartphone, search for the new equipment,

Z-NAV registration.

⑥ Z-HUD registration of Z-NAV
A. Power of Z-HUD.
B. Check the status of the Bluetooth pairing of Z-HUD smartphone.

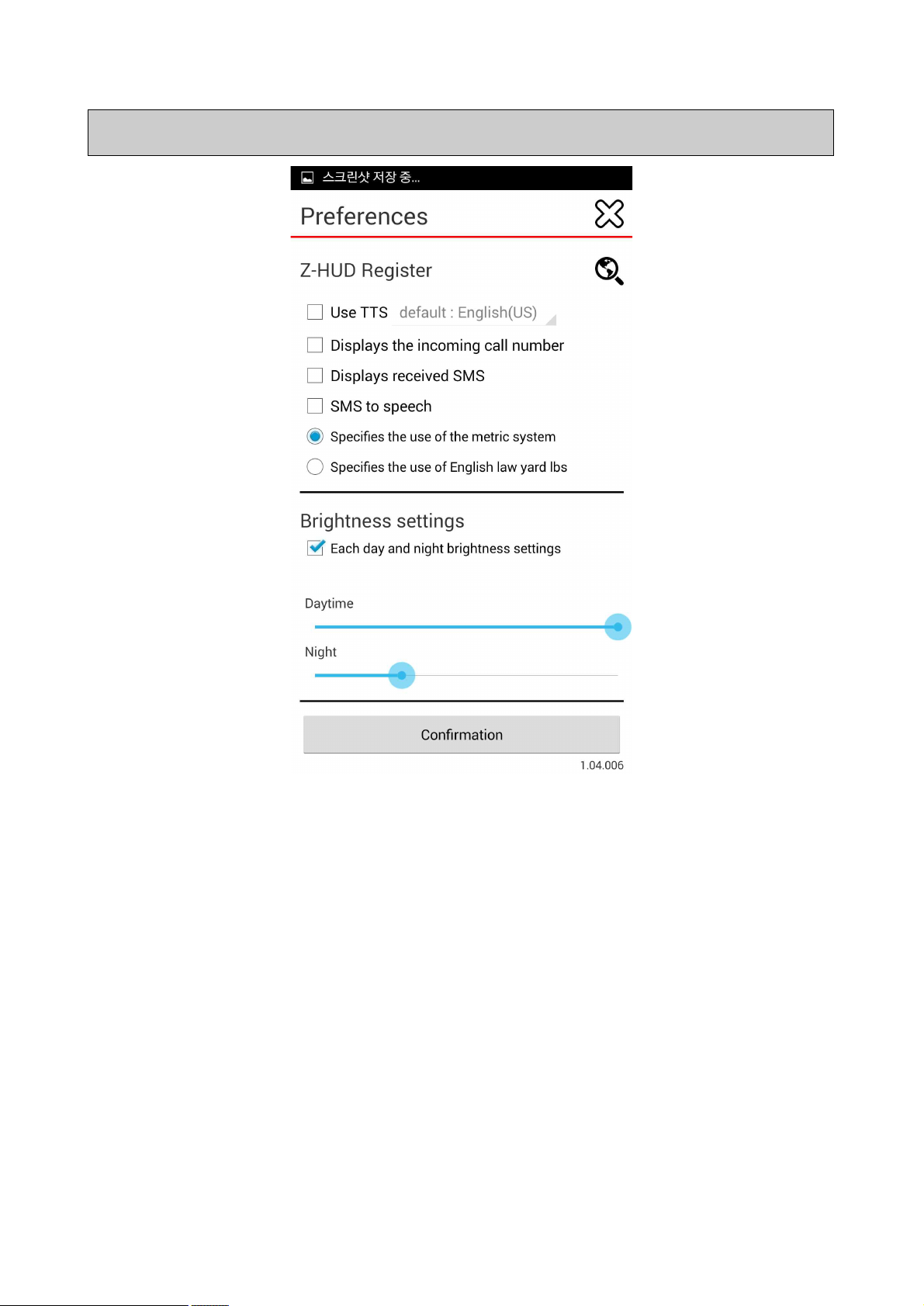

C. In the preferences of the Z-NAV after running, the selection of the Z-HUD after

you run the [Z-HUD Register].

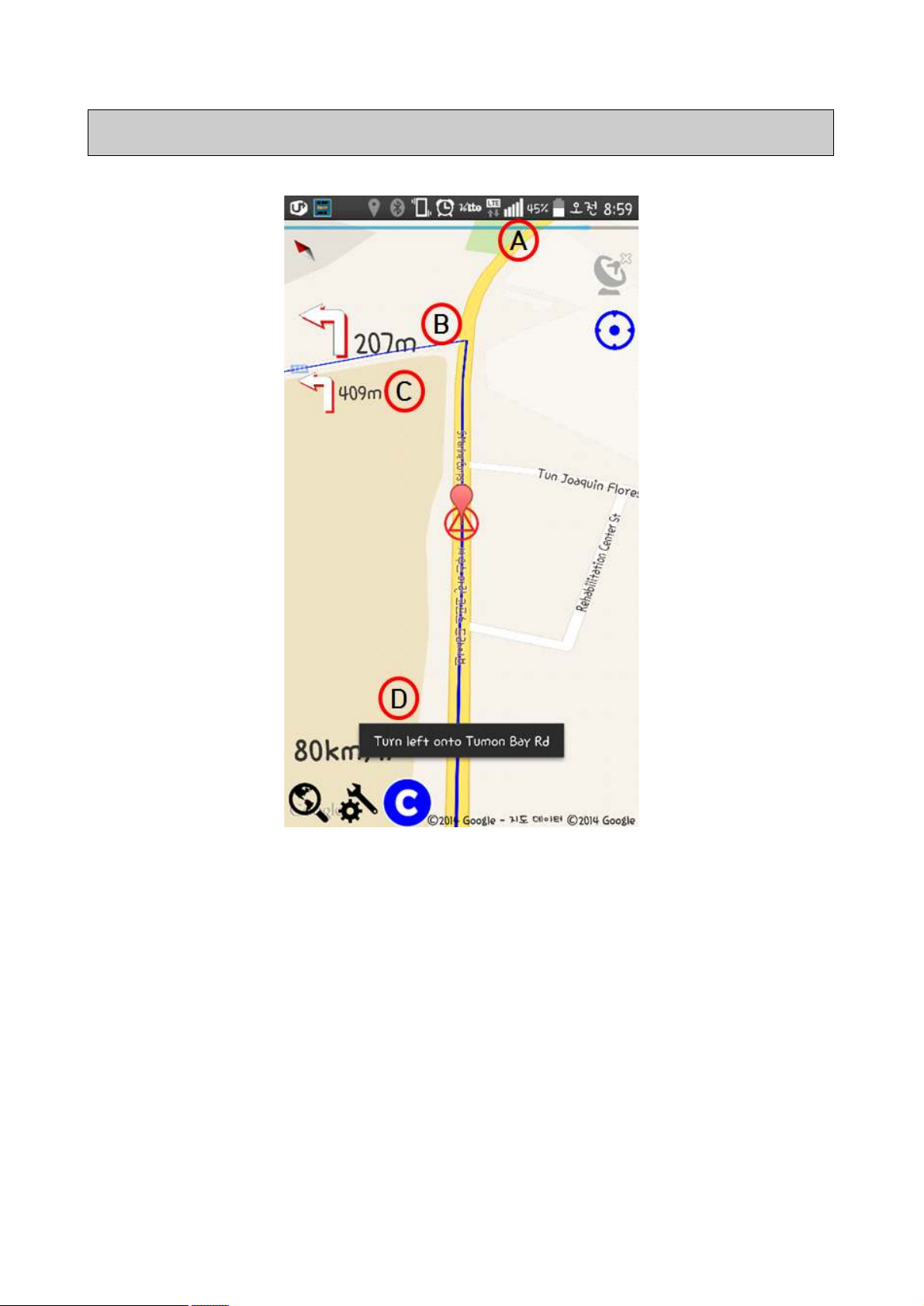

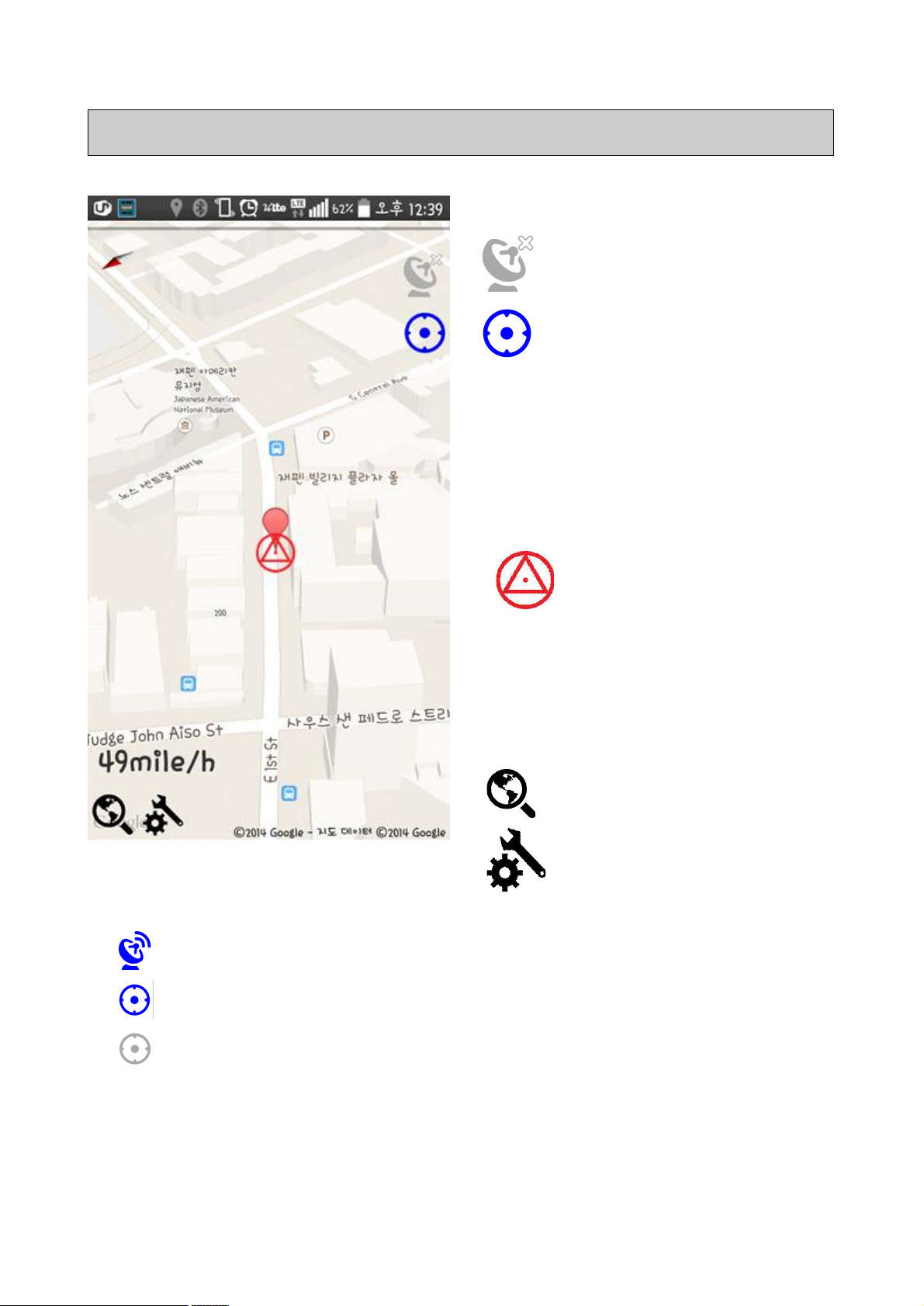

⑦ Use Z-NAV

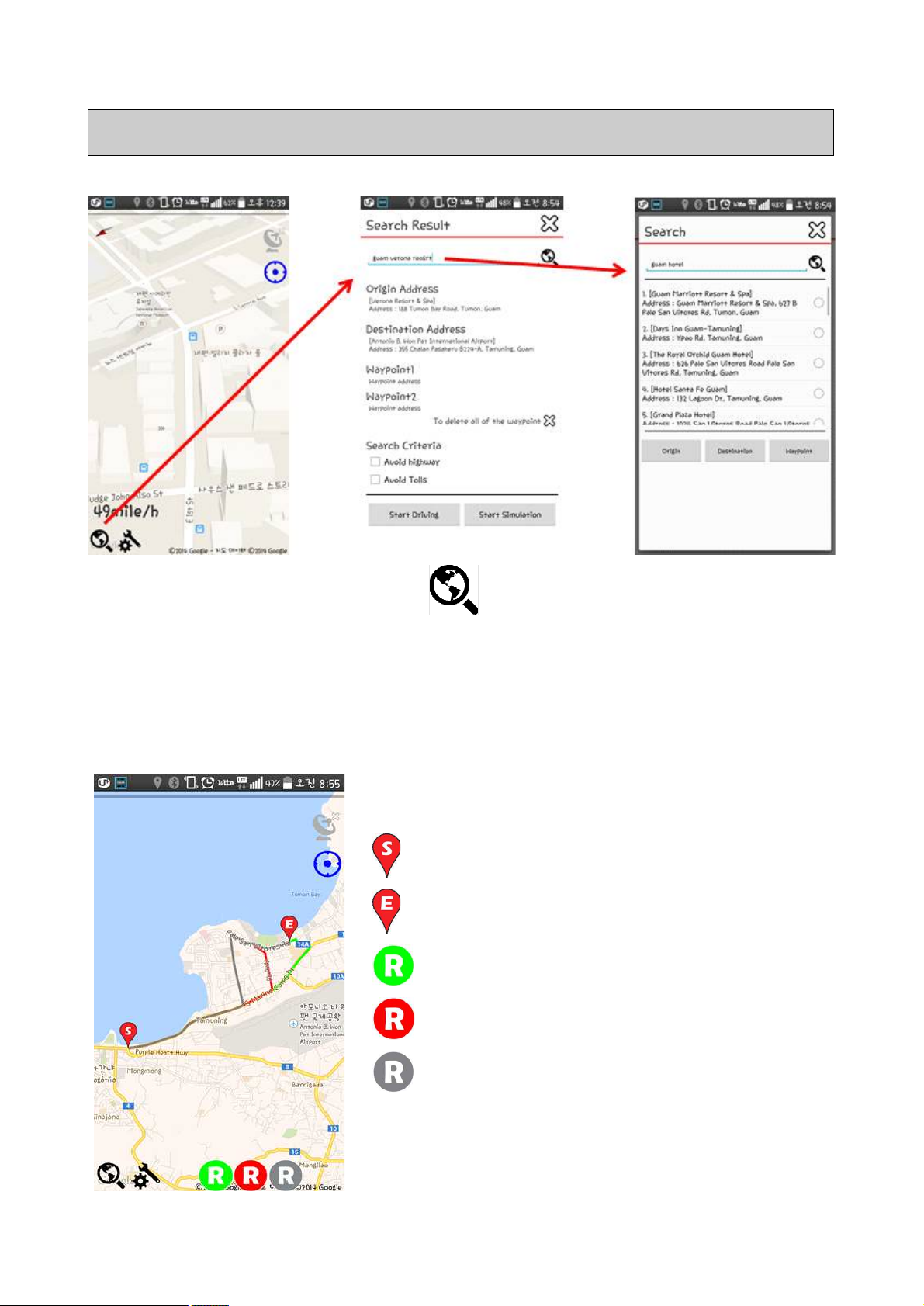

A. You want to use by setting the destination in the Z-NAV.

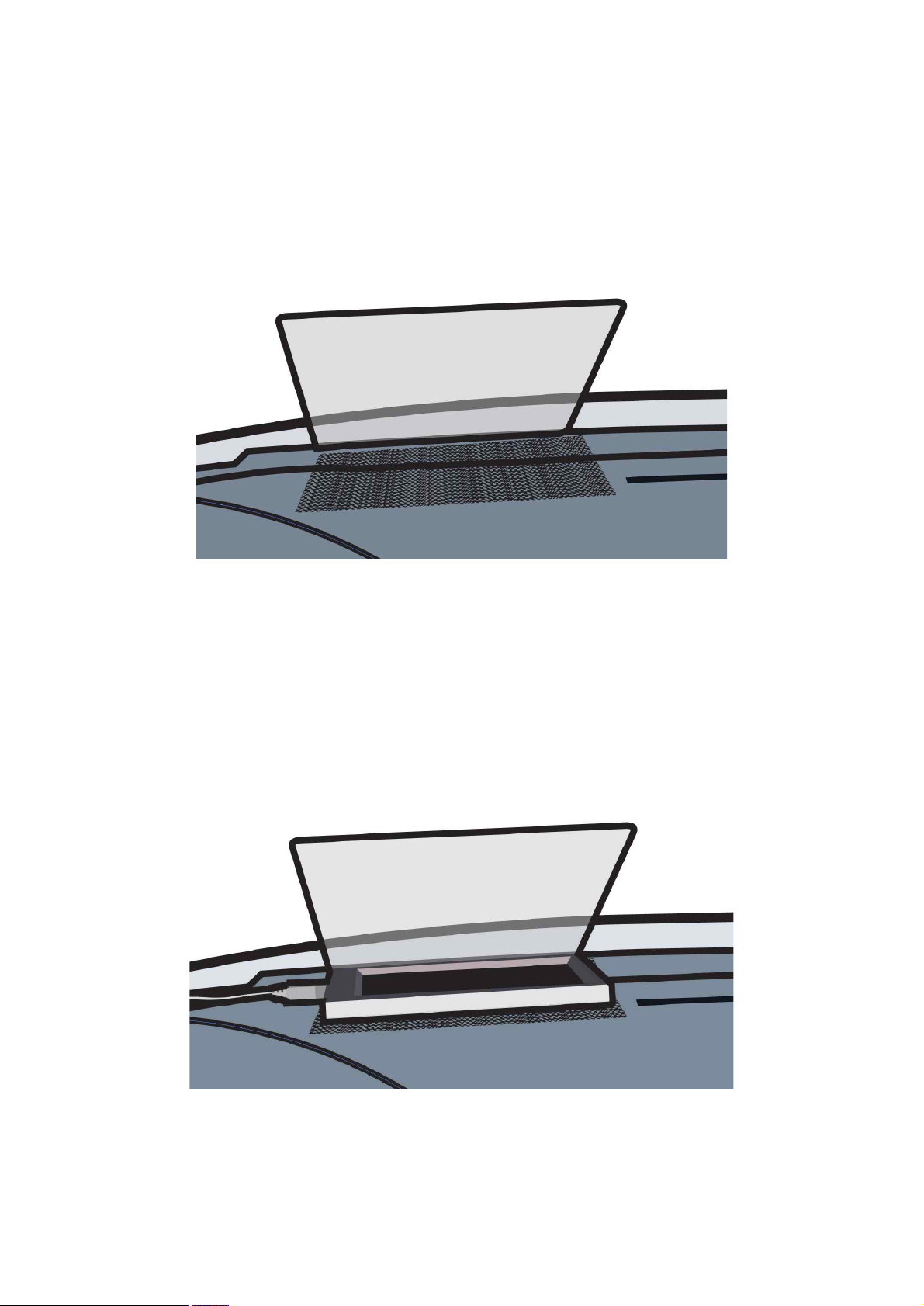

Product installation location

① Selection of the installation location of the Z-HUD

A. Mounting position of the Z-HUD, it is recommended that you install in front of

the driver's seat.
B. Put temporarily at the place where it is to be installed to be pasted on the

window power connection port of Z_HUD is facing left.

② Dedicated reflective film with

A. I will wipe clean the window where you want to attach a reflection film

dedicated.

At this time attention, it does not take moisture from the left in the window.

B. Removing the protective film of one of the reflective film and give maximum

attached to the Z-HUD lower part of the film.
C. Paste of the film, you can remove the protective film twice.
