Read entire instruction guide before starting installation.
5
10
20
30

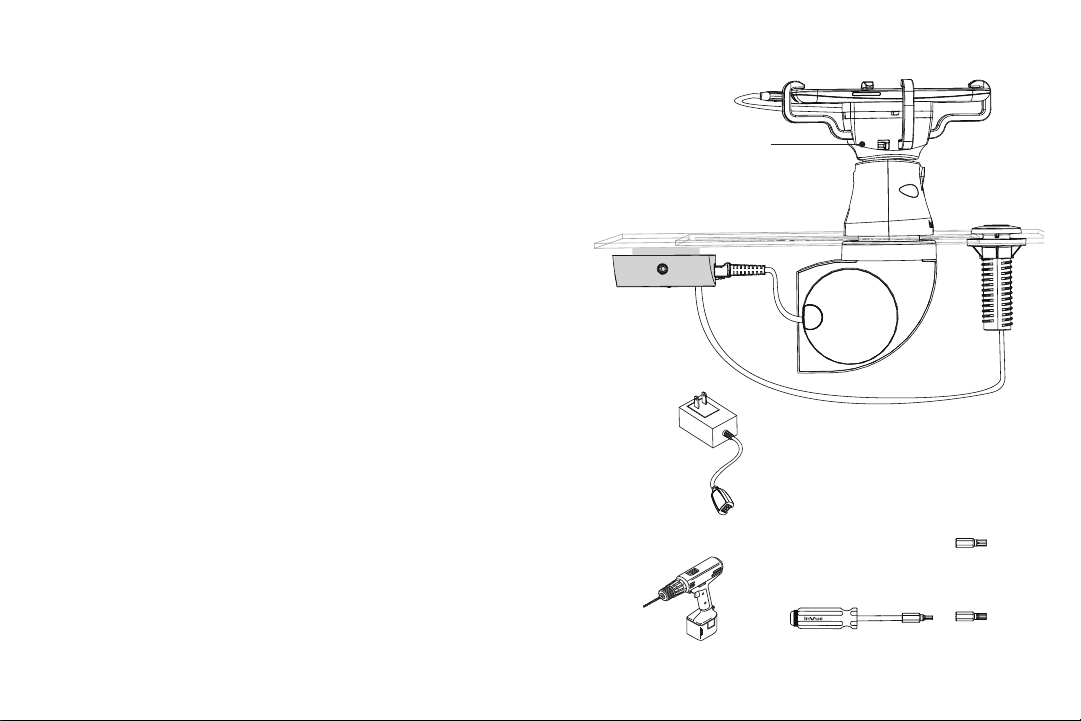

System Components
1. HS300 Alarming Recoiler (MP600)
2. Handheld Alarm Unit (MP100)
3. Handheld Sensor (MP604)
4. Puck (MP217, MP218)
5. IR Dot (MP207)
6. 5V Power Supply
7. IR Key (not included)
Handheld Sensor
MP604
Puck
MP217
MP218
IR Dot
MP207
System Components
AF6313
HS300
Alarming
Recoiler
MP600
T-27 Bit
(included with
Multi Tool)
T-20 Bit
(included with
Multi Tool)
H.S. Bit
AF6315
High Security 300 is designed for the toughest security for smartphones in the most high risk environment.
Alarm Unit
MP100
This system provides mechanical security plus alarming
security.
18V Power Supply
PS18VUS
PS18VEU
PS18VAUS
PS18VUK
PS18VARG
23
DrillMulti Tool
Page 3
RECOILER & PUCK INSTALLATION
Puck
Spacer
(For display counters
between 3.175 mm, 0.125”
and 12.7 mm, 0.5” thick.)
Recoiler
Drill a 45 mm (1.75”) diameter hole in display
1
counter.
30
20
10
5
45
Page 4

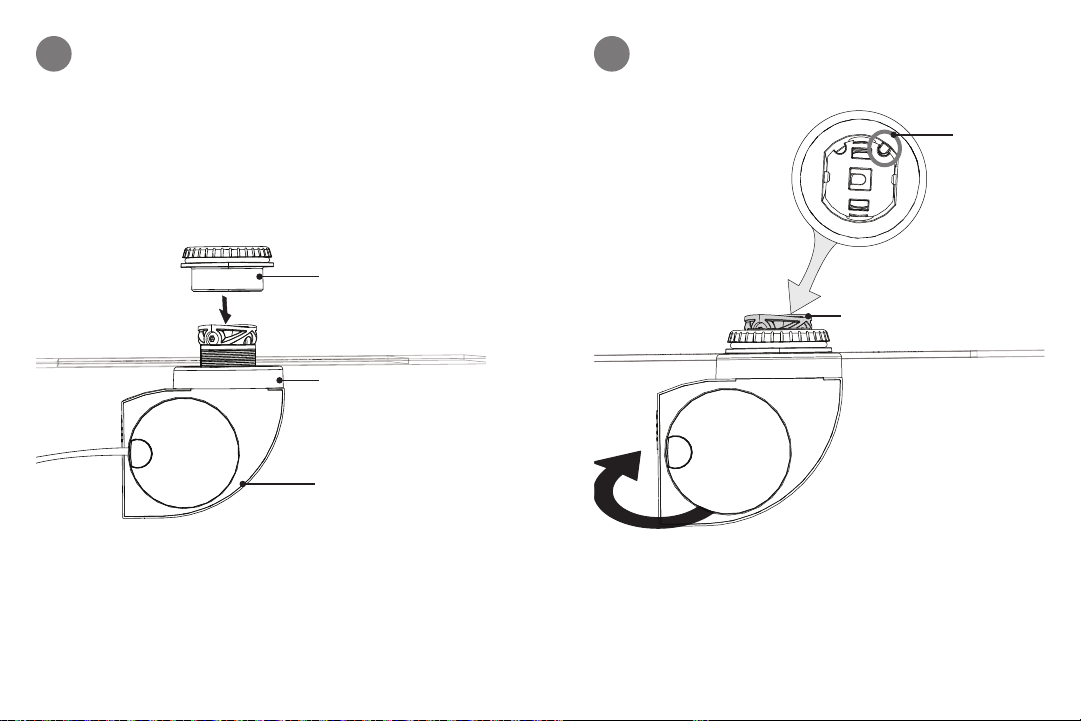

Slide recoiler up through hole in display counter. Use
2a
spacer if needed. Loosely hand tighten cap above
counter onto recoiler.
Cap
Spacer
(For display counters
between 3.175 mm, 0.125”
and 12.7 mm, 0.5” thick.)
Recoiler
Rotate recoiler until cut out in recoiler is towards back
2b
of display counter. Fully tighten cap.
Front of
display
counter
Recoiler
Cut out in
recoiler
Back of
display
counter
67
Page 5

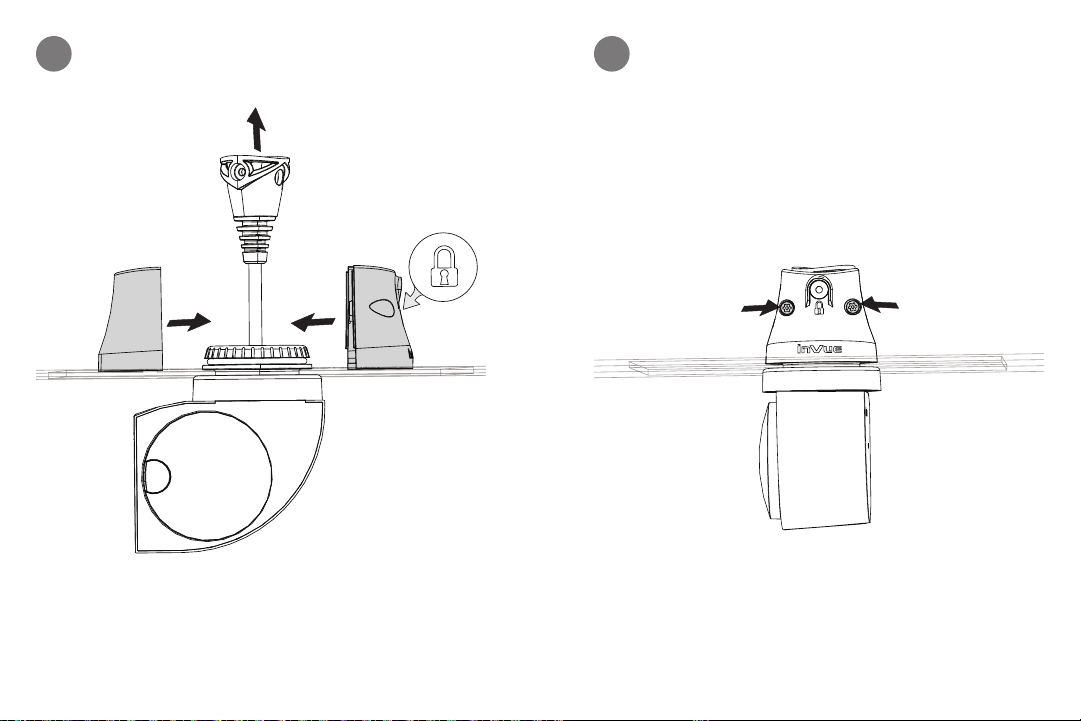

Pull recoiler up and slide both parts of puck together
3a
on cap. Confirm lock is at back of display counter.
Fully tighten screws on puck with T-20 bit.
3b
Front of
display
counter
89
Back of
display
counter
Page 6

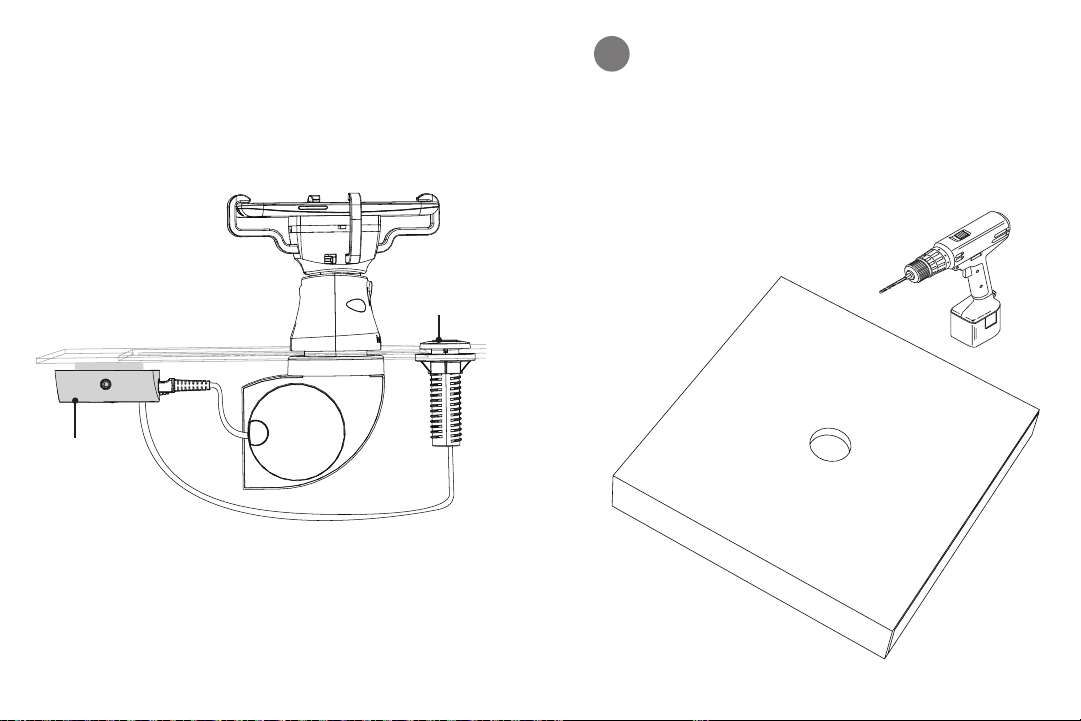

ALARM & IR DOT INSTALLATION
Alarm Unit
IR Dot
Drill a 20.5 mm (0.8125”) diameter hole in display
1
counter at preferred location for IR Dot.
30
20
10
5
1011
Page 7

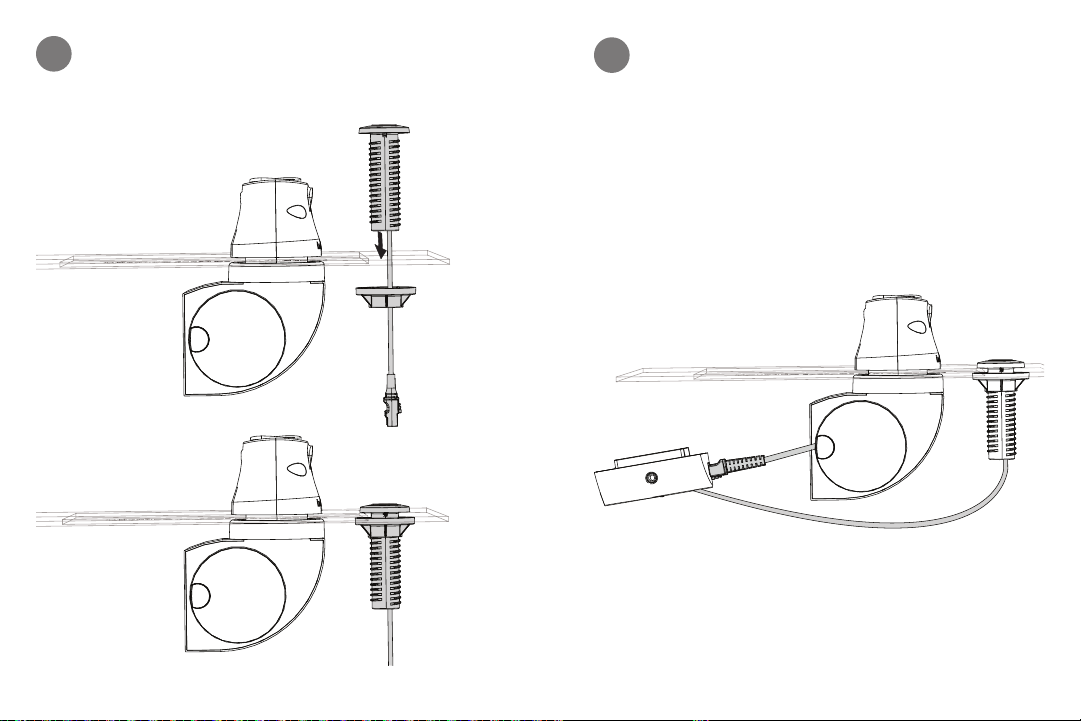

Slide IR dot down through display counter and
2
tighten nut below counter.
Plug cord from recoiler and IR dot into alarm unit.
3
1213
Page 8

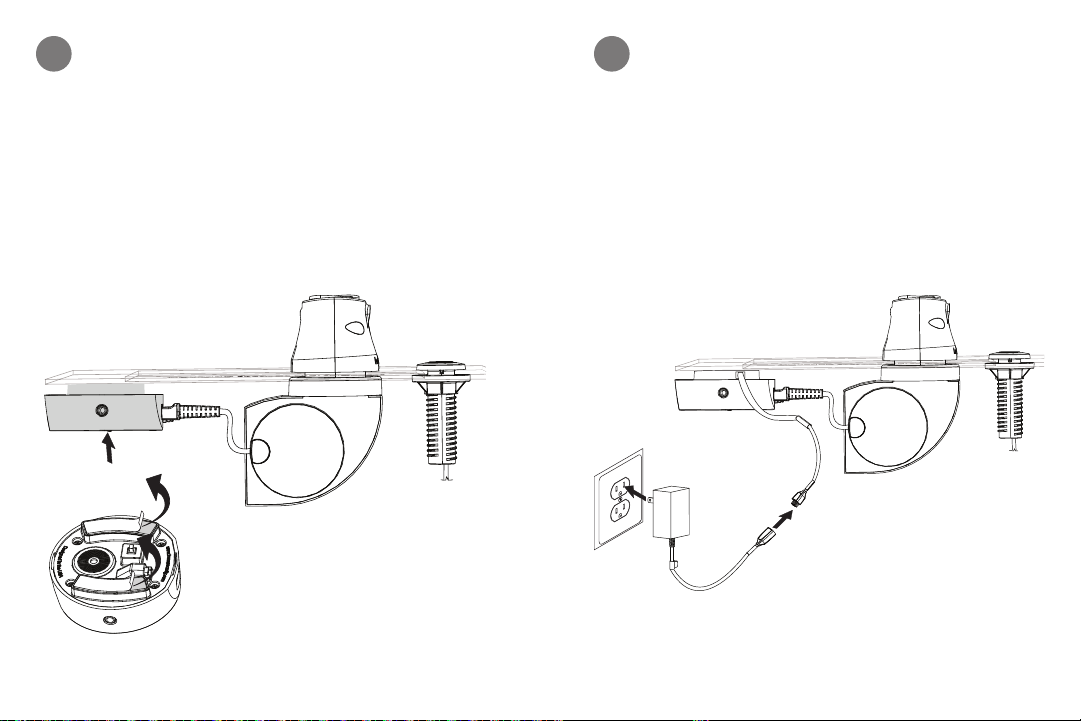

Remove clear film from Alarm Unit. Attach Alarm Unit
45
below counter near puck. Press firmly for at least 10
seconds.
Plug cord from alarm unit into power supply. Plug
power supply into outlet.
1415
Page 9
ATTACHING MERCHANDISE
Power
Connector
Arms
Spacer
(For phones thinner than
11.75 mm, 0.46”)
Sensor

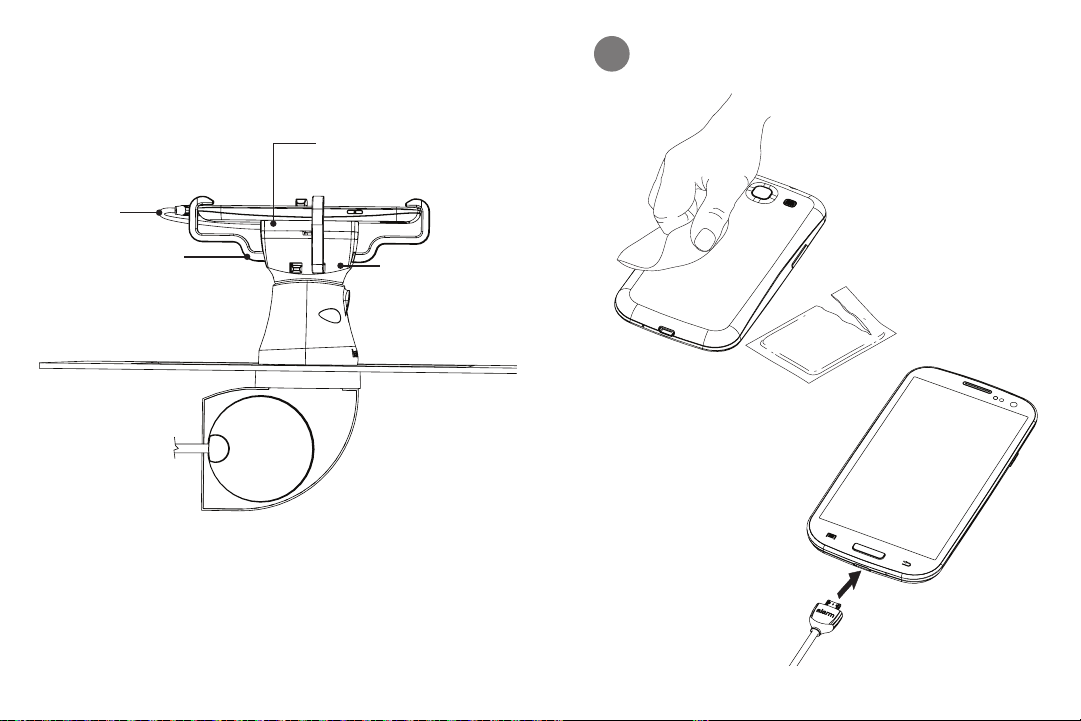

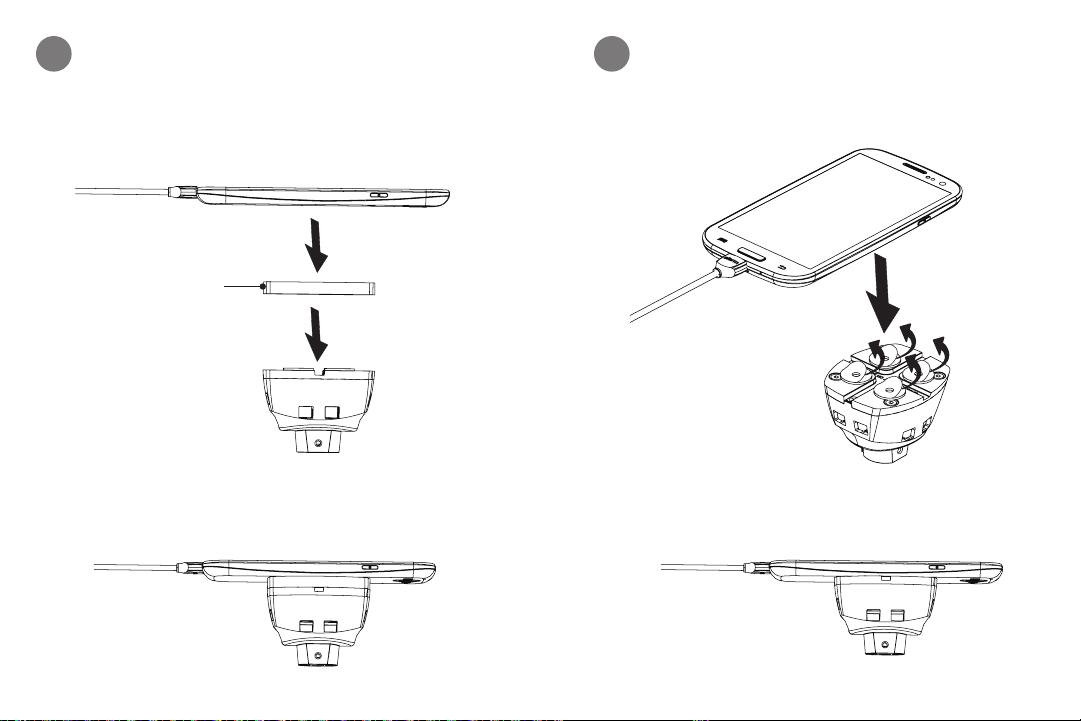

Wipe back of phone with alcohol wipe provided. Let it
1
dry completely. Plug power connector into phone.
CONTENTS: One pad saturated in
Isopropyl Alcohol
FOR EXTERNAL USE ONLY
KEEP OUT OF REACH OF
CHILDREN
75%
KEEP AWAY FROM EYES
DIRECTIONS: Apply topically as
needed to cleanse surface mounting area.
AND FIRE
1617
Page 10
Route power connector cable through if phone charg-
23
ing port is at the bottom or side of the phone.
Confirm phone is placed on sensor correctly so orientation of phone is correct on recoiler. Make sure cut out
in sensor is towards top of phone.
Top of Phone
Cut out in
sensor
1819
Page 11
If phone is thinner than 11.75 mm (0.46”): Use
4a4b
spacer. Remove film from spacer and place around rim
of sensor. Remove film from spacer. Center phone on
sensor and press firmly for at least 10 seconds.
Spacer
If phone is thicker than 11.75 mm (0.46”): DO NOT
use spacer. Remove clear film off adhesives. Center phone on sensor and press firmly for at least 10
seconds.
2021
Page 12

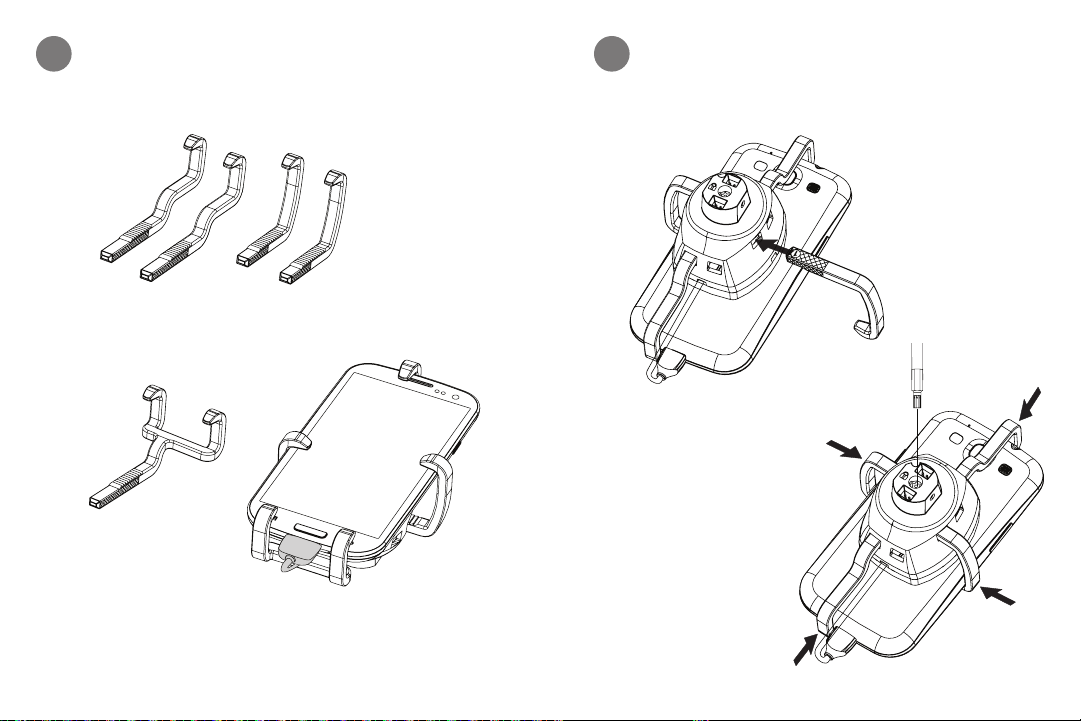

Choose correct arms for phone. Slide all 4 arms into slots on sensor. Place arms
56
opposite of each other. Squeeze all arms and tighten
screw with T-20 bit to lock arms in sensor.
MP053 – Standard Arms
MP054 – Large Arms
(For phones with wider
power port)
2223
Page 13

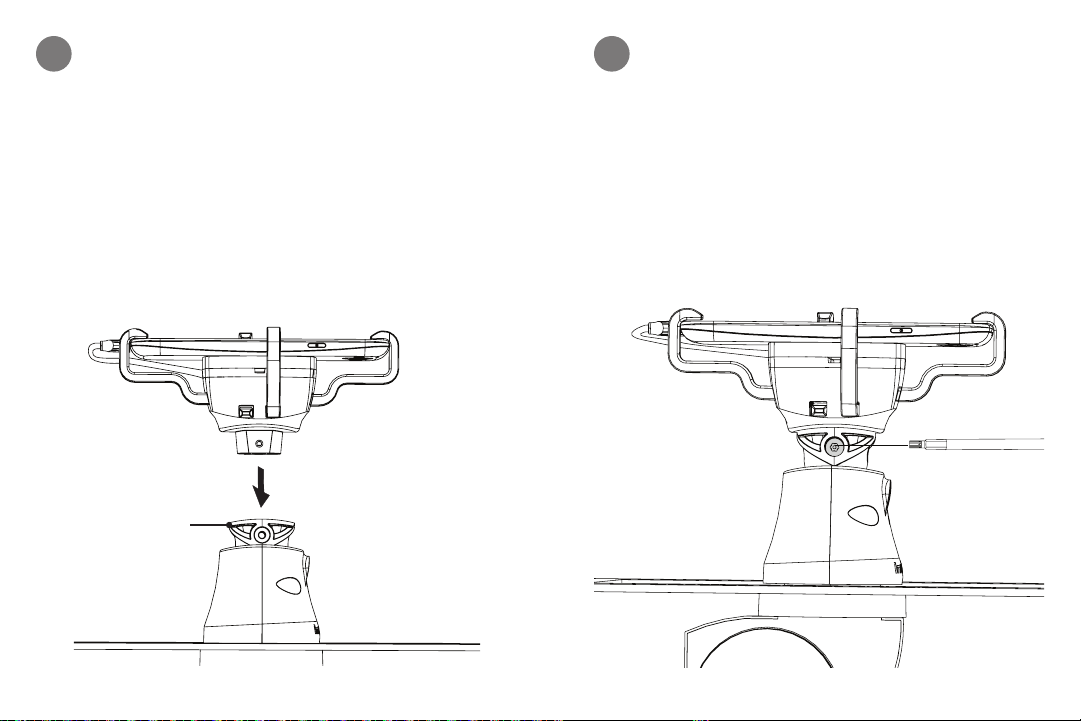

Pull recoiler out of puck and attach sensor to recoiler.
78
Recoiler
Fully tighten both screws with H.S. Bit (AF6315).
2425
Page 14

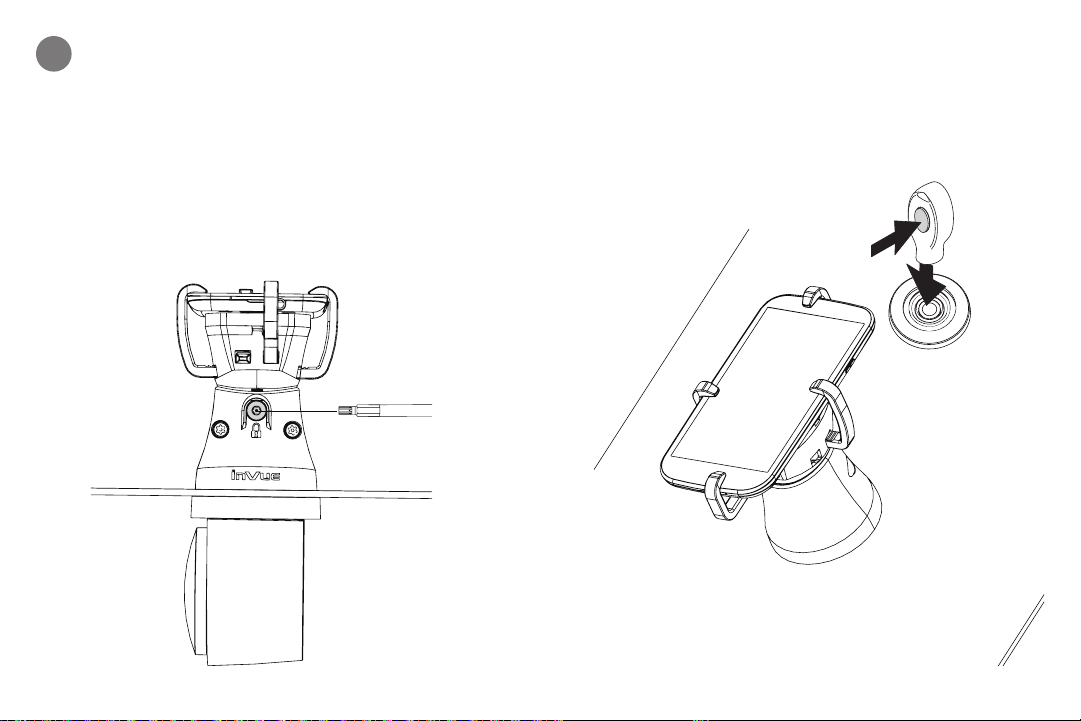

Optional: Lock screw with T-27 bit to prevent from
9
lifting recoiler.
Arm/Disarm Alarm
Place key on lens of IR Dot.
Press grey button once to
arm and disarm alarm.
2627
Page 15
