Page 1

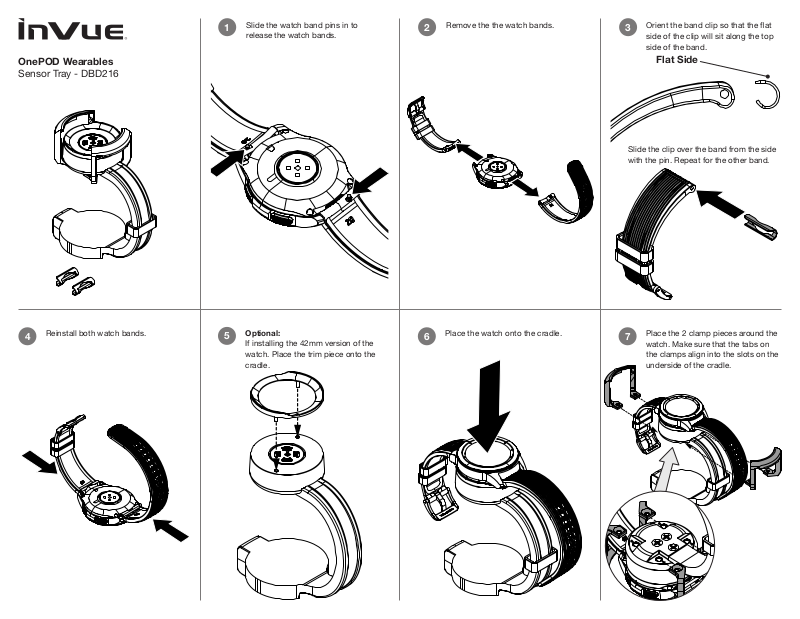

OnePOD Wearables
Remove the the watch bands.
Slide the watch band pins in to
Sensor Tray - DBD216
1
release the watch bands.
2
Orient the band clip so that the at
3
side of the clip will sit along the top
side of the band.
Flat Side
Slide the clip over the band from the side
with the pin. Repeat for the other band.
Reinstall both watch bands.
4
2
1
Optional:
5
If installing the 42mm version of the
watch. Place the trim piece onto the
cradle.
Place the watch onto the cradle.
6
Place the 2 clamp pieces around the
7
watch. Make sure that the tabs on
the clamps align into the slots on the
underside of the cradle.
Page 2
Secure the clamps to the cradle
8
using the 4 provided screws. Tighten
fully.
Plug the sensor cable from a previously
12
installed OnePOD stand into the
bottom of the sensor.
Insert the watch band through the
9
hoop on the stem and under the
sensor.
Place the sensor onto the stand.
13
Connect the wearable sensor to the
10
OnePOD sensor.
PMN: ONEPOD WEARABLE GALAXY SENSOR
FCC ID: 2AFR8F1748A
IC: 23313-F1748A
FCC WARNING STATEMENT
FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. FCC Part 15.21 Any changes
or modications (including the antennas) to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equip-
ment.
FCC RADIATION EXPOSURE STATEMENT
(Wireless Charger Dock)
This equipment complies with FCC Radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter. This equipment
should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
IC WARNING STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est
conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil
ne doit pas produire de brouillage, et (2) L’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
IC RADIATION EXPOSURE STATEMENT
(Wireless Charger Dock)
This equipment complies with IC RF Radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter. This equipment
should be installed and operated with a minimum distance of 20cm between
the radiator and your body. Cet équipement est conforme aux limites établies
par Industrie Canada en matière d’exposition aux radiofréquences dans un
environnement non contrôlé. Cet appareil etson antenne ne doivent pas être
colocalisés ou fonctionner en conjonction avec tout autre antenne ou émetteur. Cet
équipement doit être installé et utilisé avec une distance minimale de 20cm entre le
radiateur et votre corps.
Use the 2 provided screws to secure
11
the 2 sensors together..
SD0684 Rev0 06/18/19
www.invue.com
NA / LATAM // 70 4.75 2.6513 • 888.55.INVUE
EMEA // +31.23.8 90 0150
APAC // +852.3127.6811
© 2019 InVue Security Products Inc. All rights reserved.
InVue is a registered trademark of InVue Security Products.
