CHV Series Close loop Vector

Control Inverter

Operation Manual

z Thank you very much for your buying CHV series close loop vector control

inverter.

z Before use, please read this manual thoroughly to ensure proper usage. Keep

this manual at an easily accessible place so that can refer anytime as necessary.

WARNING

CAUTION

Safety Precautions

Please read this operation manual carefully before installation, operation, maintenance

or inspection.

In this manual, the safety precautions were sorted to “WARNING” or “CAUTION”.

Indicates a potentially hazardous situation which, if not

avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not

avoided, will result in minor or moderate injury and

physical damage. This

sign is also used for alert of any un-safety operation.

In some cases, the contents of “CAUTION” could cause serious accident. Please follow

these important precautions in any situation.

★ NOTE is the necessary step to ensure the proper operation.

Warning Marks were shown on the front keypad of inverters.

Please follow these indications when using the inverter.

WARNING

z May cause injury or electric shock.

Please follow the instructions in the manual before installation or operation.

Disconnect all power line before opening front cover of unit. Wait at least 5

minute until DC Bus capacitors discharge.

Use proper grounding techniques.

Never connect AC power to output UVW terminals

TABLE OF CONTENTS

TABLE OF CONTENTS.....................................................................................................II

LIST OF FIGURES........................................................................................................... IV

1. INTRODUCTION .........................................................................................................1

1.1 Technology Features ..........................................................................................1

1.2 Description of Name Plate ..................................................................................2

1.3 Selection Guide ..................................................................................................3

1.4 Parts Description ................................................................................................4

1.5 Description of Extension Card ............................................................................6

1.6 External Dimension.............................................................................................8

2. UNPACKING INSPECTION ......................................................................................10

3. DISASSEMBLE AND INSTALLATION .....................................................................11

3.1 Environmental Requirement .............................................................................12

3.2 Installation Space..............................................................................................13

3.3 Dimensions of External Keypad........................................................................14

3.4 Disassembly .....................................................................................................14

4. WIRING .....................................................................................................................16

4.1 Connections of Peripheral Devices...................................................................17

4.2 Terminal Configuration ......................................................................................18

4.2.1 Main Circuit Terminals............................................................................ 18

4.2.2 Control Circuit Terminals ........................................................................ 19

4.3 Typical Wiring Diagram.....................................................................................20

4.4 Specifications of Breaker, Cable, Contactor and Reactor .................................21

4.4.1 Specifications of breaker, cable and contactor....................................... 21

4.4.2 Specifications of AC input/output and DC reactor .................................. 22

4.4.3 Specification of braking resistor ............................................................. 23

4.5 Wiring the Main Circuits....................................................................................24

4.5.1 Wiring at the side of power supply ......................................................... 24

4.5.2 Wiring for inverter................................................................................... 25

4.5.3 Wiring at motor side of main circuit........................................................ 26

4.5.4 Wiring of regenerative unit ..................................................................... 26

4.5.5 Wiring of Common DC bus .................................................................... 27

4.5.6 Ground Wiring (PE)................................................................................ 28

4.6 Wiring Control Circuit Terminals........................................................................28

4.6.1 Precautions ............................................................................................ 28

4.6.2 Control circuit terminals.......................................................................... 29

4.6.3 Jumper on control board ........................................................................ 30

4.7 Installation Guidline to EMC Compliance .........................................................30

4.7.1 General knowledge of EMC ................................................................... 30

4.7.2 EMC features of inverter ........................................................................ 31

4.7.3 EMC Installation Guideline..................................................................... 31

5. OPERATION..............................................................................................................34

III

5.1 Operating Keypad Description..........................................................................34

5.1.1 Keypad schematic diagram.................................................................... 34

5.1.2 Button function description..................................................................... 34

5.1.3 Indicator light description ....................................................................... 35

5.2 Operation Process ............................................................................................36

5.2.1 Parameter setting................................................................................... 36

5.2.2 Shortcut menu setting ............................................................................ 37

5.2.3 Shortcut menu operation........................................................................ 37

5.2.4 Fault reset .............................................................................................. 38

5.2.5 Motor parameter autotune...................................................................... 38

5.2.6 Password setting.................................................................................... 38

5.3 Running State ...................................................................................................39

5.3.1 Power-on initialization ............................................................................ 39

5.3.2 Stand-by................................................................................................. 39

5.3.3 Operation ............................................................................................... 39

5.3.4 Fault ....................................................................................................... 39

5.4 Quick Start ........................................................................................................40

6. DETAILED FUNCTION DESCRIPTION ....................................................................41

6.1 P0 Group--Basic Function ................................................................................41

6.2 P1 Group--Start and Stop Control .....................................................................50

6.3 P2 Group--Motor Parameters ...........................................................................54

6.4 P3 Group--Vector Control .................................................................................56

6.5 P4 Group --V/F Control .....................................................................................59

6.6 P5 Group--Input Terminals................................................................................62

6.7 P6 Group -- Output Terminals ...........................................................................71

6.8 P7 Group --Display Interface ............................................................................75

6.9 P8 Group --Enhanced Function ........................................................................79

6.10 P9 Group --PID Control ..................................................................................87

6.11 PA Group --Simple PLC and Multi-step Speed Control ...................................92

6.12 PB Group -- Protection Parameters................................................................97

6.13 PC Group --Serial Communication ...............................................................101

6.14 PD Group --Supplementary Function ...........................................................101

6.15 PE Group –Factory Setting...........................................................................101

7. TROUBLE SHOOTING ...........................................................................................102

7.1 Fault and trouble shooting ..............................................................................102

7.2 Common Faults and Solutions........................................................................105

8. MAINTENANCE ......................................................................................................106

8.1 Daily Maintenance ..........................................................................................106

8.2 Periodic Maintenance .....................................................................................108

8.3 Replacement of wearing parts ........................................................................108

9. LIST OF FUNCTION PARAMETERS .....................................................................109

LIST OF FIGURES

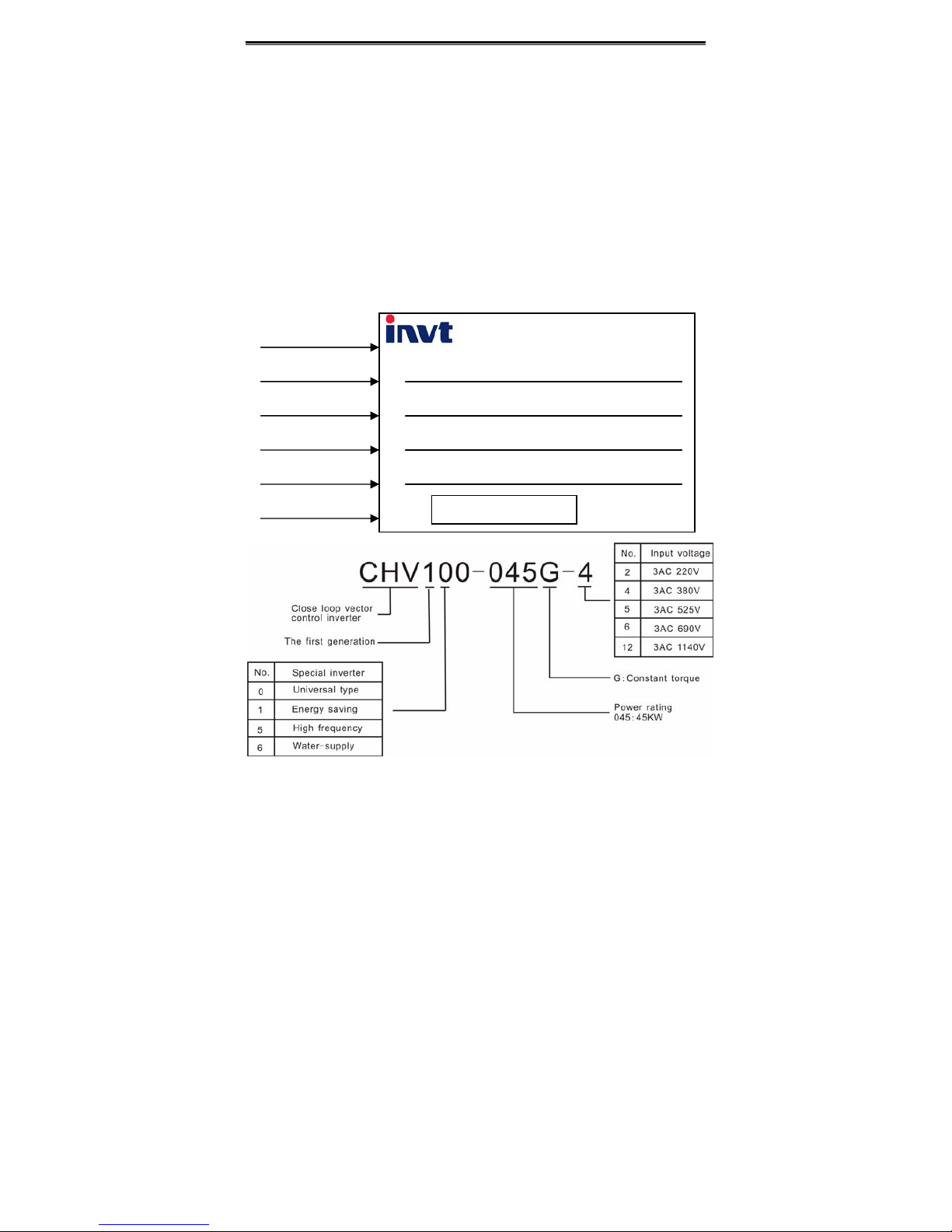

Figure 1.1 Nameplate of inverter. ................................................................................ 2

Figure 1.2 Parts of inverter (15kw and below). ............................................................ 4

Figure 1.3 Parts of inverters (18.5KW and above). .....................................................5

Figure1.4 Dimensions (15kW and below)……………………………………………7

Figure 1.5 Dimensions (18.5~110kW). ........................................................................8

Figure 1.6 Dimensions (132~315kW). .........................................................................8

Figure 1.7 Dimensions (350kw~630KW). ....................................................................9

Figure 3.1 Relationship between output current and altitude. ...................................12

Figure 3.2 Safety space.............................................................................................13

Figure 3.3 Installation of multiple inverters. ...............................................................13

Figure 3.4 Dimension of small keypad....................................................................... 14

Figure 3.5 Dimension of big keypad. .........................................................................14

Figure 3.6 Disassembly of plastic cover. ...................................................................14

Figure 3.7 Disassembly of metal plate cover............................................................. 15

Figure 3.8 Open inverter cabinet. .............................................................................. 15

Figure 4.1 Connections of peripheral devices. ..........................................................17

Figure 4.2 Main circuit terminals (1.5~5.5kW). ..........................................................18

Figure 4.3 Main circuit terminals (7.5~15kW). ...........................................................18

Figure 4.4 Main circuit terminals (18.5~110kW). .......................................................18

Figure 4.5 Main circuit terminals (132~315kW). ........................................................ 18

Figure 4.6 Main circuit terminals (350~630kW). ........................................................ 18

Figure 4.7 Control circuit terminals. ........................................................................... 19

Figure4. 8 Wiring diagram. ........................................................................................ 20

Figure4.9 Wiring at input side. ................................................................................... 25

Figure 4.10 Wiring at motor side................................................................................ 26

Figure 4.11 Wiring of regenerative unit...................................................................... 27

Figure 4.12 Wiring of common DC bus...................................................................... 28

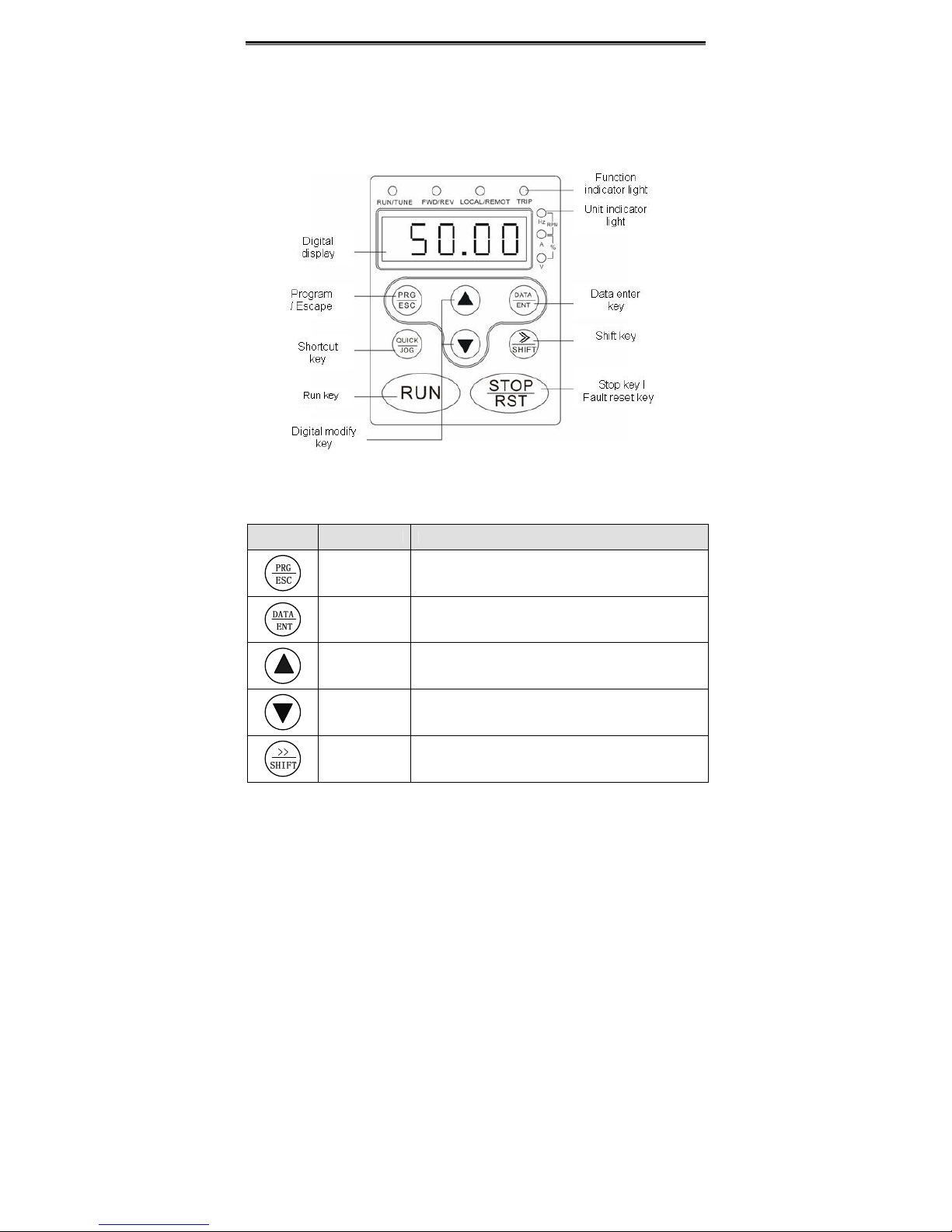

Figure 5.1 Keypad schematic diagram. ..................................................................... 34

Figure 5.2 Flow chart of parameter setting. ............................................................... 36

Figure 5.3 Shortcut menu operation. ......................................................................... 37

Figure 5.4 Quick start diagram. .................................................................................40

Figure 6.1 Reference frequency diagram. ................................................................. 45

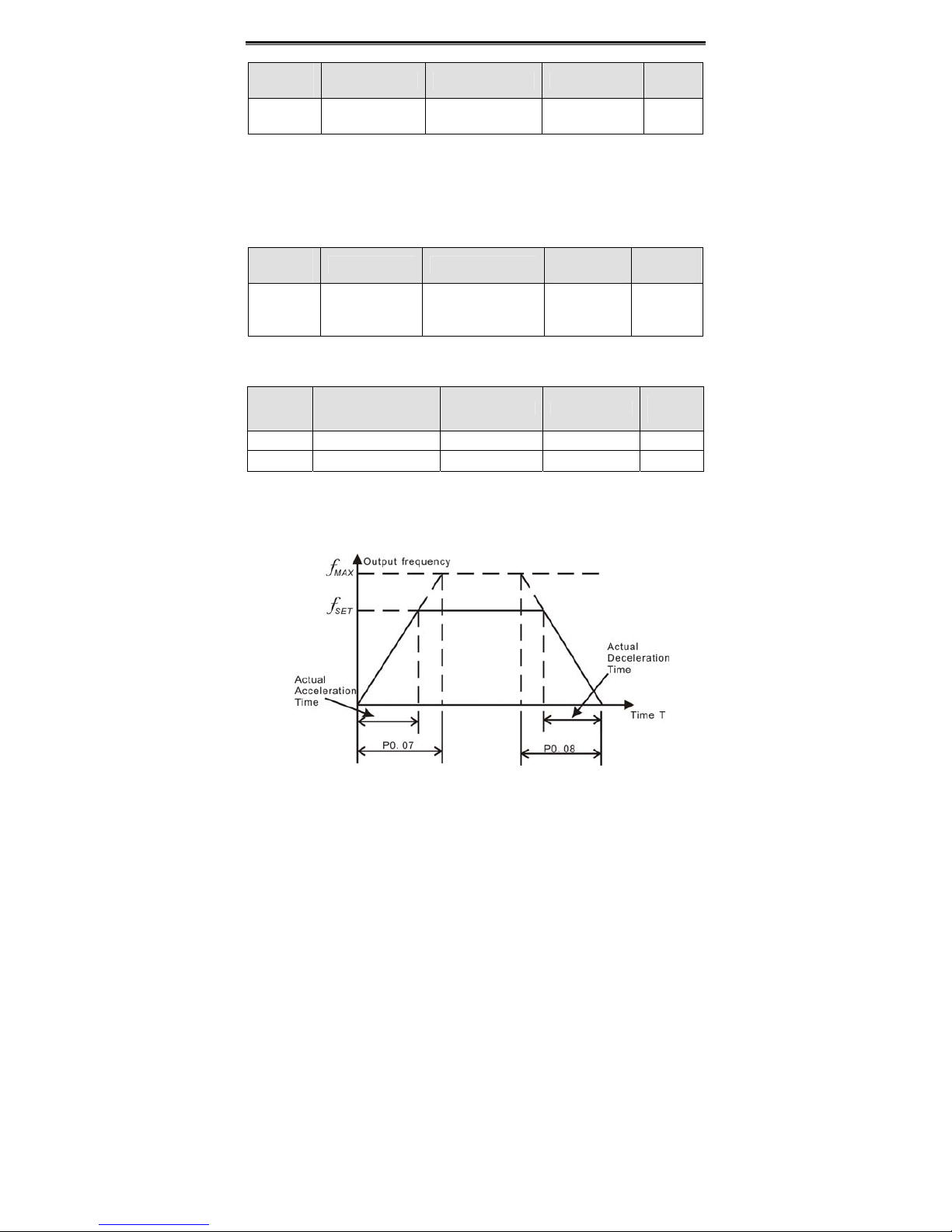

Figure 6.2 Acceleration and Deceleration time..........................................................46

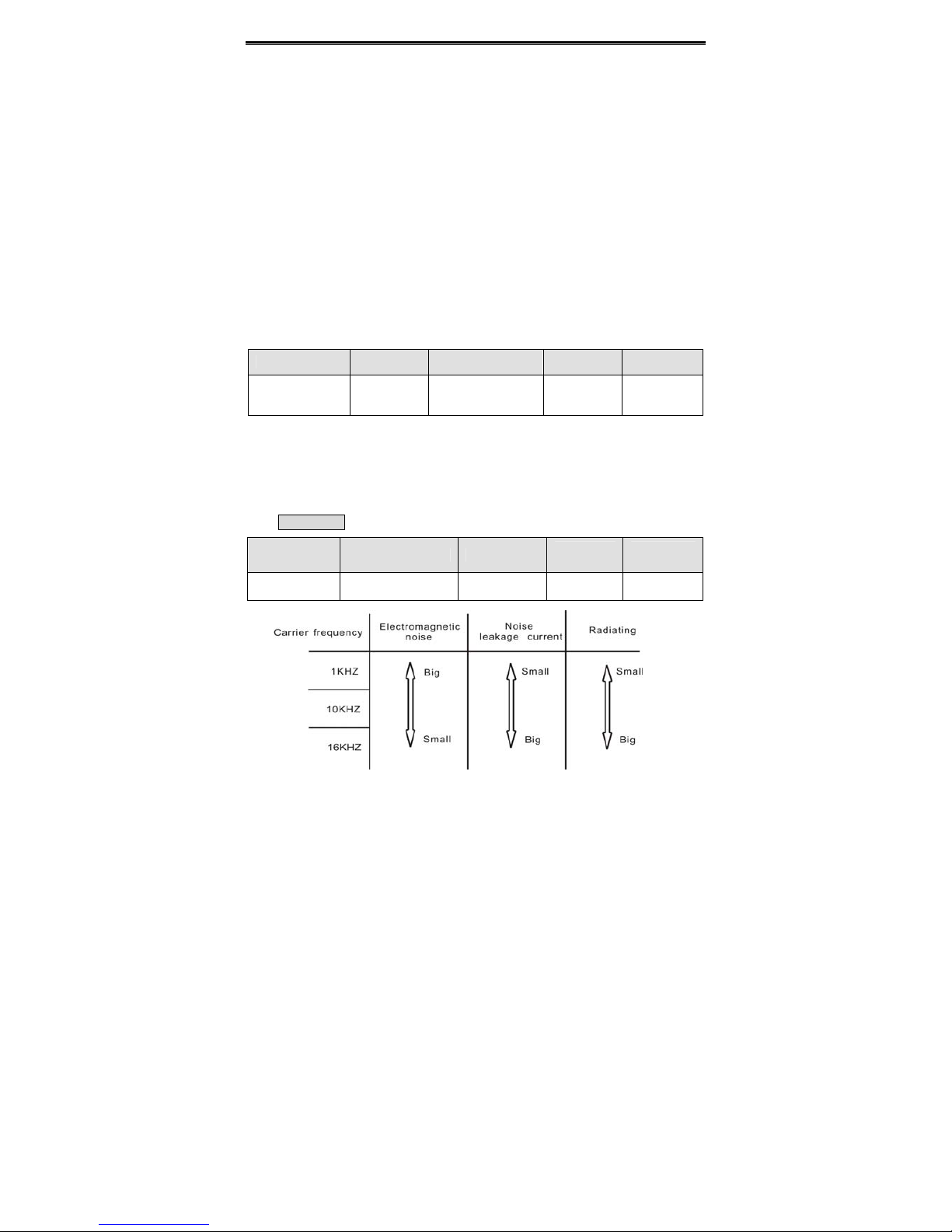

Figure 6.3 Effect of carrier frequency. .......................................................................47

Figure 6.4 Starting diagram. ......................................................................................50

Figure 6.5 S curve diagram. ......................................................................................52

Figure 6.6 DC braking diagram..................................................................................53

Figure 6.7 FWD/REV dead time diagram. .................................................................53

Figure 6.8 ASR diagram. ...........................................................................................56

Figure 6.9 PI parameter diagram. .............................................................................. 56

Figure 6.10 Multiple V/F curve diagram.....................................................................59

Figure 6.11 Torque boost diagram. ...........................................................................60

Figure 6.12 V/F curve setting diagram....................................................................... 61

Figure 6.13 2-wire control mode 1. ............................................................................ 67

Figure 6.14 2-wire control mode 2. .............................................................................. 67

Figure 6.15 3-wire control mode 1. ............................................................................ 67

Figure 6.16 3-wire control mode 2. ............................................................................ 68

Figure 6.17 Relationship between AI and corresponding setting. .............................69

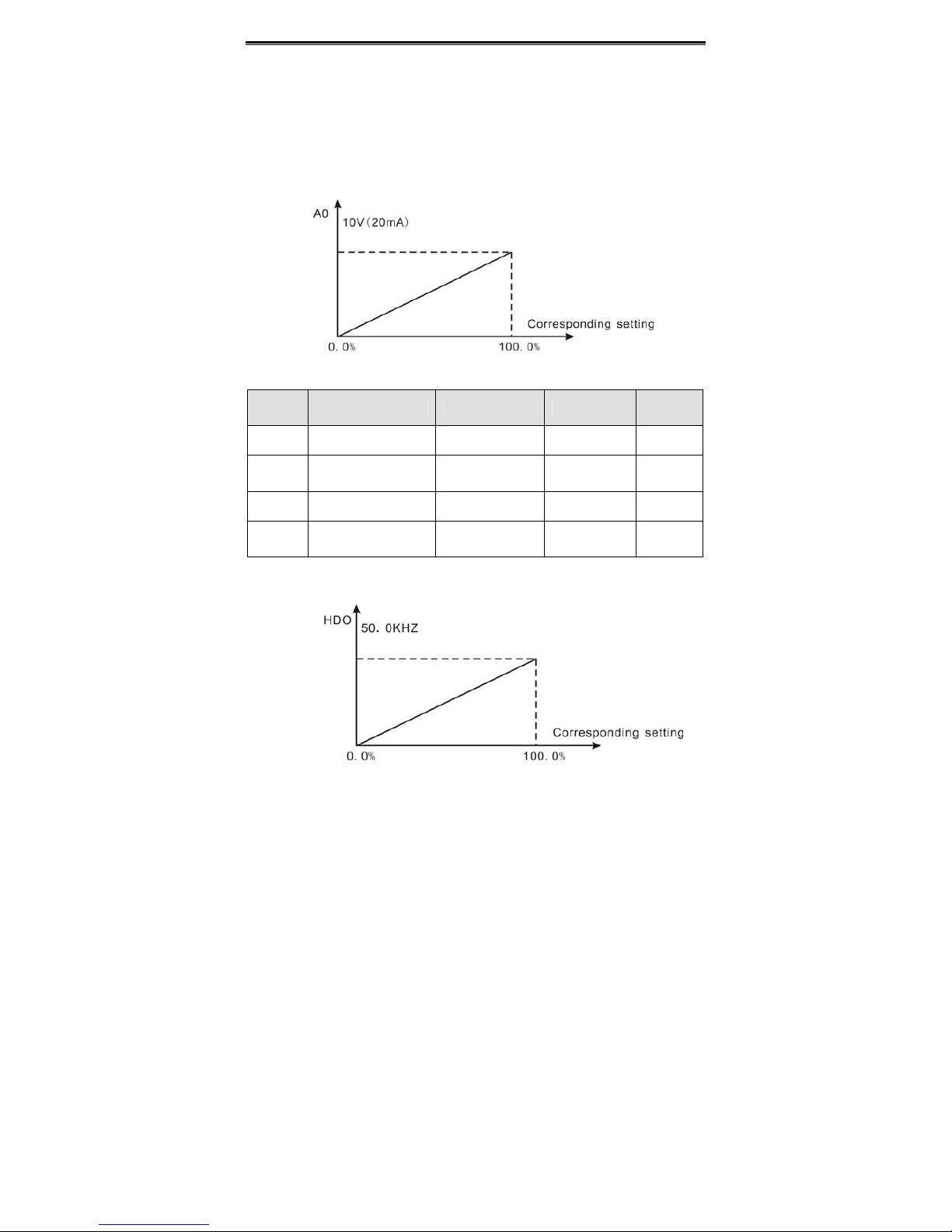

Figure 6.18 Relationship between AO and corresponding setting............................. 74

Figure 6.19 Relationship between HDO and corresponding setting..........................74

Figure 6.20 Skip frequency diagram. ......................................................................... 80

Figure 6.21 Traverse operation diagram. ..................................................................81

Figure 6.22 Timing chart for preset and specified count reached.............................. 83

Figure 6.23 FDT Level diagram. ................................................................................84

Figure 6.24 Frequency arriving detection diagram. ...................................................84

Figure 6.25 Droop control diagram. ........................................................................... 85

Figure 6.26 Simple water-supply function logical diagram. .......................................86

Figure 6.27 PID control diagram. ............................................................................. 87

Figure 6.28 Reducing overshooting diagram.............................................................89

Figure 6.29 Rapidly stabilizing diagram. .................................................................... 89

Figure 6.30 Reducing long-cycle oscillation diagram. ...............................................90

Figure 6.31 Reducing short-cycle oscillation diagram. ..............................................90

Figure 6.32 Relationship between bias limit and output frequency. .......................... 91

Figure 6.33 Simple PLC operation diagram............................................................... 92

Figure 6.34 Multi-steps speed operation diagram.................................................... 94

Figure 6.35 Motor overload protection curve. ............................................................ 97

Figure 6.36 Overload pre-warning schematic diagram..............................................98

Figure 6.37 Over-voltage stall function. ..................................................................... 99

Figure 6.38 Over-current stall function. ...................................................................100

Introduction

1. INTRODUCTION

1.1 Technology Features

● Input & Output

◆Input Voltage Range: 1140/690/380/220V±15%

◆Input Frequency Range: 47~63Hz

◆Output Voltage Range: 0~rated input voltage

◆Output Frequency Range: 0~400Hz

● I/O Features

◆ Programmable Digital Input: Provide 5 terminals which can accept ON-OFF inputs,

and 1 terminal which can accept high speed pulse input (HDI1). 4 inputs can be

extended by I/O extension card.

◆ Programmable Analog Input: AI1 can accept input of 0 ~10V, AI2 can accept input

of 0~10V or 0~20mA. AI3 (-10V~10V) and AI4 (0~10V or 0~20mA) can be

extended by I/O extension card.

◆ Programmable Open Collector Output: Provide 1 output terminal. 1 output (open

collector output or high speed pulse output) can be extended by I/O extension

card.

◆ Relay Output: Provide 2 output terminals. 1 output can be extended by I/O

extension card.

◆ Analog Output: Provide 1 output terminal, whose output scope can be 0/4~20 mA

or 0~10 V, as chosen. 1 AO (0/4~20mA or 0/2~10V) can be extended by I/O card.

● Main Control Function

◆ Control Mode:

Sensorless vector control (SVC), Vector control with PG (VC), V/F control.

◆ Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current.

◆ Starting Torque: 150% of rated torque at 0.5Hz (SVC);

180% of rated torque at 0Hz(VC).

◆ Speed Adjusting Range: 1:100 (SVC); 1:1000 (VC)

◆ Speed Accuracy: ± 0.5% of maximum speed (SVC); ± 0.02% of maximum speed

(VC)

◆ Carrier Frequency: 1.0kHz~16.0kHz.

◆ Frequency reference source: keypad, analog input, HDI, serial communication,

multi-step speed, simple PLC and PID. The combination of multi- modes and the

switch between different modes can be realized.

◆ Torque Control Function: Provide multiple torque setting source.

◆ PID Control Function

Introduction

◆ Simple PLC or Multi-steps Speed Control: 16 steps speed can be set.

◆ Traverse Control Function

◆ Length and Time Control

◆ Non-Stop Function while instantaneous power failure

◆Speed Trace Function: Smoothly start the running motor.

◆ QUICK/JOG Function: User defined shortcut key can be realized.

◆ Automatic Voltage Regulation (AVR): Automatically keep the output voltage stable

when input voltage fluctuating

◆ Up to 29 fault protections:

Protect from over current, over voltage, under voltage, over temperature, phase

failure, over load etc.

1.2 Description of Name Plate

Figure 1.1 Nameplate of inverter.

Model number

Input specification

Bar code

Power

Company name SHENZHEN INVT ELECTRIC CO.，LTD

MODEL：CHV100-045G-4 SPEC：V1

POWER：45kW

OUTPUT：90A AC 3PH 0~380V 0~400HZ

INPUT：AC 3PH 380V

15% 50/60HZ

Bar code

MADE IN CHINA

Introduction

1.3 Selection Guide

Model No.

Rated Power

(kW)

Rated Input

Current (A)

Rated Output

Current (A)

Size

3AC 380V ±15%

CHV100-1R5G-4 1.5 5 3.7 C CHV100-2R2G-4 2.2 5.8 5.0 C

CHV100-004G-4 4 10 9 C CHV100-5R5G-4 5.5 15 13 C CHV100-7R5G-4 7.5 20 17 D

CHV100-011G-4 11 26 25 D

CHV100-015G-4 15 35 32 D

CHV100-018G-4 18.5 38 37 E

CHV100-022G-4 22 46 45 E

CHV100-030G-4 30 62 60 E

CHV100-037G-4 37 76 75 F

CHV100-045G-4 45 90 90 F

CHV100-055G-4 55 105 110 F

CHV100-075G-4 75 140 150 G

CHV100-090G-4 90 160 176 G

CHV100-110G-4 110 210 210 G

CHV100-132G-4 132 240 250 H

CHV100-160G-4 160 290 300 H

CHV100-185G-4 185 330 340 H

CHV100-200G-4 200 370 380 I

CHV100-220G-4 220 410 415 I

CHV100-250G-4 250 460 470 I

CHV100-280G-4 280 500 520 I

CHV100-315G-4 315 580 600 I

3AC 220V ±15%

CHV100-1R5G-2 1.5 7.7 7 C CHV100-2R2G-2 2.2 11 10 C

CHV100-004G-2 4 17 16 C CHV100-5R5G-2 5.5 21 20 C CHV100-7R5G-2 7.5 31 30 D

CHV100-011G-2 11 43 42 E

CHV100-015G-2 15 56 55 E

CHV100-018G-2 18.5 71 70 E

CHV100-022G-2 22 81 80 F

CHV100-030G-2 30 112 110 F

CHV100-037G-2 37 132 130 F

CHV100-045G-2 45 163 160 G

Introduction

1.4 Parts Description

Figure 1.2

Parts of inverter (15kw and below).

Introduction

Figure 1.3 Parts of inverters (18.5KW and above).

Introduction

1.5 Description of Extension Card

Thanks to advanced modular design, CHV series inverters can achieve specific

functionality by using extension card to meet customer demand. This feature is useful to

enhance applicability and flexibility of CHV series inverter.

For details, please refer to operation manual of extension card.

Introduction

Extension Card Description

Communication Card

Offer RS232 and RS485 dual physical communication interface

1. RS232 adopts standard DB9 master seat.

2. 3-hole RS485 interface, two communication mode can be switched by short-connecting module.

Receive high-speed pulse from encoder to realize high- accuracy close-loop vector control.

3. Both push-and-pull input and open-circuit collector input.

4. Offer frequency division output, the frequency-division factor can be selected by dial switch.

Connect to the encoder by soft wire. Communication Card Offer RS232 and RS485 dual physical communication interface

5. RS232 adopts standard DB9 master seat.

6. 3-hole RS485 interface, two communication mode can be switched by short-connecting module.

PG Card

Receive high-speed pulse from encoder to realize high- accuracy close-loop vector control.

1. Both push-and-pull input and open-circuit collector input.

2. Offer frequency division output, the frequency-division factor can be selected by dial switch.

3. Connect to the encoder by soft wire.

Injection Molding Card

Achieve energy saving function for injection molding machine by collecting and processing pressure and flow signal,Customer can select current or voltage injection molding card according to electromagnetic valve signal.

Tension Control Card

Wind and unwind control, compensation of moment of inertia, multiple tension setting mode, automatic winding diameter calculation and display, linear speed collect and display, prevent wire broken, prevent overdrive, RS 485 port.

Water Supply Control Card

Realize functions such as close-loop constant pressure water supply, multi-pumps automatic switch, timing and multi-segment water supply, dormant control, prevent water hammer, water level control and synthetic process of supply-discharge, RS 232 and RS485 port.

I/O Extension Card

Offer more input/output terminals to enhance the external function of inverter. RS 485 port is available.

Introduction

1.6 External Dimension

Figure1.4 Dimensions (15kW and below). Figure 1.5 Dimensions (18.5~110kW).

Figure 1.6 Dimensions (132~315kW).

Introduction

Figure 1.7 Dimensions (350kw~630KW).

(mm)B (mm)H (mm)W (mm)D (mm)

Power

(kW)

Size

Installation Dimension

External Dimension

Installation

Hole

(mm)

1.5~5.5 C 147.5 237.5 250 160 175 5

7.5~15 D 206 305.5 320 220 180 6.0

18.5~30 E 176 454.5 467 290 215 6.5

37~55 F 230 564.5 577 375 270 7.0

75~110 G 320 738.5 755 460 330 9.0

H(without

base)

270 1233 1275 490 391 13.0

132~185

H(with

base)

— — 1490 490 391 —

I(without

base)

500 1324 1358 750 402 12.5

200~315

I(with base) — — 1670 750 402 —

350~630 J(with base) See Figure 1.7

Unpacking Inspection

2. UNPACKING INSPECTION

● Never install or operate any inverter that is damaged or missing

components. Doing so can result in injury.

Check the following items when unpacking the inverter,

1． Inspect the entire exterior of the Inverter to see if there are any scratches or

other damage resulting from shipping.

2． Ensure there is operation manual and warranty card in the packing box.

3． Ensure the nameplate that it is you ordered.

4． Ensure the optional parts are what you need if you ordered any optional parts.

Please contact the local agent if there is any damage of inverter or optional parts.

CAUTION

Disassemble and Installation

3. DISASSEMBLE AND INSTALLATION

● Any untrained person working on any parts/systems of inverter or any rule in the

“Warning” being violated, that will cause severe injury or property damage. Only

licensed person, who has been trained on design, installation, commissioning and

operation of inverter, is permitted to operate this equipment.

● Input power cable must be connected tightly, and the equipment must be grounded

securely.

● Even if the inverter is not in operating situation, the following terminals still have

dangerous voltage:

- Power Terminals: R, S, T

- Motor Connection Terminals: U, V, W.

● Can not install the inverter until discharged completely after the power supply is

switched off for 5 minutes.

● The section area of grounding conductor must be no less than that of power supply

cable.

● Lift the cabinet by its base; do not lift it by holding its panel. Otherwise the main

unit will fall off to result in personal injury.

● Install the inverter on top of the fireproofing material (such as, metal) to prevent

fire.

● When need install two or more inverters in one cabinet, cooling fan should be

applied to make sure that the air temperature is lower than 45°C. Otherwise it

could cause fire or damage the device.

WARNING

CAUTION

Disassemble and Installation

3.1 Environmental Requirement

3.1.1 Temperature

Environment temperature range: -10°C ~ +40°C. Inverter will be derated if ambient

temperature exceeds 40°C.

3.1.2 Humidity

Less than 95% RH, without dewfall.

3.1.3 Altitude

Inverter can output the rated power when installed with altitude of lower than 1000m. It

will be derated when the altitude is higher than 1000m. For details, please refer to the

following figure:

Figure 3.1 Relationship between output current and altitude.

3.1.4 Impact and Oscillation

It is not allowed that the inverter falls down or suffers from fierce impact or the inverter

installed at the place that oscillation frequently.The maximum swing should less than

5.8m/S

(0.6g).

3.1.5 Electromagnetic Radiation

Keep away from the electromagnetic radiation source.

3.1.6 Water

Do not install the inverter at the wringing or dewfall place.

3.1.7 Air Pollution

Keep away from air pollution such as dusty, corrosive gas.

3.1.8 Storage

Do not store the inverter in the environment with direct sunlight, vapor, oil fog and

vibration.

(m)

Disassemble and Installation

3.2 Installation Space

Figure 3.2 Safety space.

Figure 3.3 Installation of multiple inverters.

Notice: Add the air deflector when apply the up-down installation.

Inverte

Air

Disassemble and Installation

3.3 Dimensions of External Keypad

Figure 3.4 Dimension of small keypad.

Figure 3.5 Dimension of big keypad.

3.4 Disassembly

Figure 3.6 Disassembly of plastic cover.

Disassemble and Installation

Figure 3.7 Disassembly of metal plate cover.

Figure 3.8 Open inverter cabinet.

Wiring

4. WIRING

● Wiring must be performed by an authorized person qualified in electrical work.

● Do not test the insulation of cable that connects the inverter with high-voltage

insulation testing devices.

● Can not install the inverter until discharged completely after the power supply is

switched off for 10 minutes.

● Be sure to ground the ground terminal.

(200V class: Ground to 100Ω or less, 400V class: Ground to 10Ω or less, 660V

class: Ground to 5Ω or less)

Otherwise, an electric shock or fire can occur.

● Connect input terminals (R, S, T) and output terminals (U, V, W) correctly.

Otherwise it will cause damage the inside part of inverter.

● Do not wire and operate the inverter with wet hands.

Otherwise there is a risk of electric shock.

● Check to be sure that the voltage of the main AC power supply satisfies the rated

voltage of the Inverter.

Injury or fire can occur if the voltage is not correct.

● Connect power supply cables and motor cables tightly.

WARNING

CAUTION

Wiring

4.1 Connections of Peripheral Devices

Figure 4.1 Connections of peripheral devices.

Wiring

4.2 Terminal Configuration

4.2.1 Main Circuit Terminals (380VAC)

R S T U V W

(+) PB (-)

POWER MOTOR

Figure 4.2 Main circuit terminals (1.5~5.5kW).

R S T U V W

(+) PB (-)

POWER MOTOR

Figure 4.3 Main circuit terminals (7.5~15kW).

R S T U V W

POWER

P1 (+) (-)

MOTOR

Figure 4.4 Main circuit terminals (18.5~110kW).

R S T U V W

POWER MOTOR

P1 (+) (-)

Figure 4.5 Main circuit terminals (132~315kW).

R S T U V W

POWER

MOTOR

(resistor)

P1 (+) (-)

Figure 4.6 Main circuit terminals (350~630kW).

Wiring

Main circuit terminal functions are summarized according to the terminal symbols in the

following table. Wire the terminal correctly for the desired purposes.

4.2.2 Control Circuit Terminals

GND

R01A

R02A

R01C

R01B

R02C

R02B

AI1

HDI1

GND

COM

AI2

10V

24V

COM

CME

AO1HDO

Figure 4.7 Control circuit terminals.

Terminal Description

R、S、T

Terminals of 3 phase AC input

(+)、(-)

Spare terminals of external braking unit

(+)、PB

Spare terminals of external braking resistor

P1、(+)

Spare terminals of external DC reactor

(-)

Terminal of negative DC bus

U、V、W

Terminals of 3 phase AC output

Terminal of ground

Wiring

4.3 Typical Wiring Diagram

Figure4. 8 Wiring diagram.

Notice:

1. Inverters between 18.5KW and 90KW have built-in DC reactor which is used

to improve power factor. For inverters above 110KW, it is recommended to

install DC reactor between P1 and (+).

2. The inverters below 18.5KW have build-in braking unit. If need braking, only

need to install braking resistor between PB and (+).

3. For inverters above (including) 18.5KW, if need braking, should install

external braking unit between (+) and (-).

4. +24V connect with PW as default setting. If user need external power supply,

disconnect +24V with PW and connect PW with external power supply.

Wiring

4.4 Specifications of Breaker, Cable, Contactor and Reactor

4.4.1 Specifications of breaker, cable and contactor

Model No.

Circuit

breaker (A)

Input/output cable (mm2)

(Coppery wire)

Rated current of

contactor (A)

(380V or 220V)

3AC 220V ±15%

CHV100-0R7G-2 16 2.5 10 CHV100-1R5G-2 20 4 16 CHV100-2R2G-2 32 6 20

CHV100-004G-2 40 6 25 CHV100-5R5G-2 63 6 32 CHV100-7R5G-2 100 10 63

CHV100-011G-2 125 25 95

CHV100-015G-2 160 25 120

CHV100-018G-2 160 25 120

CHV100-022G-2 200 35 170

CHV100-030G-2 200 35 170

CHV100-037G-2 200 35 170

CHV100-045G-2 250 70 230

3AC 380V ±15%

CHV100-1R5G-4 16 2.5 10 CHV100-2R2G-4 16 2.5 10

CHV100-004G-4 25 4 16 CHV100-5R5G-4 25 4 16 CHV100-7R5G-4 40 6 25

CHV100-011G-4 63 6 32

CHV100-015G-4 63 6 50

CHV100-018G-4 100 10 63

CHV100-022G-4 100 16 80

CHV100-030G-4 125 25 95

CHV100-037G-4 160 25 120

CHV100-045G-4 200 35 135

CHV100-055G-4 200 35 170

CHV100-075G-4 250 70 230

CHV100-090G-4 315 70 280

CHV100-110G-4 400 95 315

CHV100-132G-4 400 150 380

CHV100-160G-4 630 185 450

CHV100-185G-4 630 185 500

CHV100-200G-4 630 240 580

CHV100-220G-4 800 150x2 630

CHV100-250G-4 800 150x2 700

CHV100-280G-4 1000 185x2 780

CHV100-315G-4 1200 240x2 900

Wiring

4.4.2 Specifications of AC input/output and DC reactor

AC Input reactor AC Output reactor DC reactor

Model No.

Current

（A）

Inductance

（mH）

Current

（A）

Inductance

（mH）

Current

（A）

Inductance

（mH）

3AC 380V ±15%

CHV100-1R5G-4

5 3.8 5 1.5

－－

CHV100-2R2G-4

7 2.5 7 1

－－

CHV100-004G-4

10 1.5 10 0.6

－－

CHV100-5R5G-4

15 1.4 15 0.25

－－

CHV100-7R5G-4

20 1 20 0.13

－－

CHV100-011G-4

30 0.6 30 0.087

－－

CHV100-015G-4

40 0.6 40 0.066

－－

CHV100-018G-4

50 0.35 50 0.052 40

1.3

CHV100-022G-4

60 0.28 60 0.045 50

1.08

CHV100-030G-4

80 0.19 80 0.032 65

0.8

CHV100-037G-4

90 0.19 90 0.03 78

0.7

CHV100-045G-4

120 0.13 120 0.023 95

0.54

CHV100-055G-4

150 0.11 150 0.019 115

0.45

CHV100-075G-4

200 0.12 200 0.014 160

0.36

CHV100-090G-4

250 0.06 250 0.011 180

0.33

CHV100-110G-4

250 0.06 250 0.011

250

0.26

CHV100-132G-4

290 0.04 290 0.008

250

0.26

CHV100-160G-4

330 0.04 330 0.008

340 0.18

CHV100-185G-4

400 0.04 400 0.005

460 0.12

CHV100-200G-4

490 0.03 490 0.004

460 0.12

CHV100-220G-4

490 0.03 490 0.004

460 0.12

CHV100-250G-4

530 0.04 530 0.005

650 0.11

CHV100-280G-4

600 0.04 600 0.005

650 0.11

CHV100-315G-4

660 0.02 660 0.002

800 0.06

Wiring

4.4.3 Specification of braking unit and braking resistor

Braking unit

Braking resistor

(100% braking torque) Model No.

Order No. Quantity Specification Quantity

3AC 220V ±15%

CHV100-1R5G-2

138Ω/150W 1

CHV100-2R2G-2

91Ω/220W 1

CHV100-004G-2

52Ω/400W 1

CHV100-5R5G-2

37.5Ω/550W 1

CHV100-7R5G-2

Build-in 1

27.5Ω/750W 1

CHV100-011G-2

19Ω/1100W 1

CHV100-015G-2

13.6Ω/1500W 1

CHV100-018G-2

12Ω/1800W 1

CHV100-022G-2

9Ω/2200W 1

CHV100-030G-2

DBU-055-2 1

6.8Ω/3000W 1

CHV100-037G-2

11Ω/2000W 2

CHV100-045G-2

DBU-055-2 2

9Ω/2400W 2

3AC 380V ±15%

CHV100-1R5G-4 400Ω/260W 1

CHV100-2R2G-4

CHV100-004G-4

150Ω/390W 1

CHV100-5R5G-4 100Ω/520W 1

CHV100-7R5G-4

CHV100-011G-4

50Ω/1040W 1

CHV100-015G-4

Build- in 1

40Ω/1560W 1

CHV100-018G-4

CHV100-022G-4

CHV100-030G-4

20Ω/6000W 1

CHV100-037G-4

CHV100-045G-4

CHV100-055G-4

DBU-055-4 1

13.6Ω/9600W 1

CHV100-075G-4

CHV100-090G-4

DBU-055-4 2

13.6Ω/9600W 2

Wiring

CHV100-110G-4

CHV100-132G-4

CHV100-160G-4

DBU-160-4 1

4Ω/30000W 1

CHV100-185G-4

CHV100-200G-4

CHV100-220G-4

DBU-220-4 1

3Ω/40000W 1

CHV100-250G-4

CHV100-280G-4

CHV100-315G-4

DBU-315-4 1

3Ω/40000W 2

Notice:

1. Above selection is based on following condition: 700V DC braking voltage

threshold, 100% braking torque and 10% usage rate.

2. Parallel connection of braking unit is helpful to improve braking capability.

3. Wire between inverter and braking unit should be less than 5m.

4. Wire between braking unit and braking resistor should be less than 10m.

5. Braking unit can be used for braking continuously for 5 minutes. When

braking unit is working, temperature of cabinet will be high, user is not allowed to

touch to prevent from injure.

For more details, please refer to DBU and RBU user manual.

4.5 Wiring the Main Circuits

4.5.1 Wiring at the side of power supply

z Circuit breaker

It is necessary to connect a circuit breaker which is compatible with the capacity of

inverter between 3ph AC power supply and power input terminals (R, S, T ). The

capacity of breaker is 1.5~2 times to the rated current of inverter. For details, see

<Specifications of Breaker, Cable, and Contactor>.

z Contactor

In order to cut off the input power effectively when something is wrong in the system,

contactor should be installed at the input side to control the ON-OFF of the main circuit

power supply.

z AC reactor

In order to prevent the rectifier damage result from the large current, AC reactor should

Wiring

be installed at the input side. It can also prevent rectifier from sudden variation of power

voltage or harmonic generated by phase-control load.

z Input EMC filter

The surrounding device may be disturbed by the cables when the inverter is working.

EMC filter can minimize the interference. Just like the following figure.

Figure4.9 Wiring at input side.

4.5.2 Wiring for inverter

z DC reactor

Inverters from 18.5kW to 90kW have built-in DC reactor which can improve the power

factor,

z Braking unit and braking resistor

• Inverters of 15KW and below have built-in braking unit. In order to dissipate the

regenerative energy generated by dynamic braking, the braking resistor should be

installed at (+) and PB terminals. The wire length of braking resistor should be less than

5m.

• Inverter of 18.5KW and above need connect external braking unit which should be

installed at (+) and (-) terminals. The cable between inverter and braking unit should be

less than 5m. The cable between braking unit and braking resistor should be less than

10m.

• The temperature of braking resistor will increase because the regenerative energy will

be transformed to heat. Safety protection and good ventilation is recommended.

Wiring

Notice: Be sure that the electric polarity of (+) (-) terminals is right; it is not allowed

to connect (+) with (-) terminals directly, Otherwise damage or fire could occur.

4.5.3 Wiring at motor side of main circuit

z Output Reactor

When the distance between inverter and motor is more than 50m, inverter may be

tripped by over-current protection frequently because of the large leakage current

resulted from the parasitic capacitance with ground. And the same time to avoid the

damage of motor insulation, the output reactor should be installed.

z Output EMC filter

EMC filter should be installed to minimize the leakage current caused by the cable and

minimize the radio noise caused by the cables between the inverter and cable. Just see

the following figure.

Figure 4.10 Wiring at motor side.

4.5.4 Wiring of regenerative unit

Regenerative unit is used for putting the electricity generated by braking of motor to the

grid. Compared with traditional 3 phase inverse parallel bridge type rectifier unit,

regenerative unit uses IGBT so that the total harmonic distortion (THD) is less than 4%.

Regenerative unit is widely used for centrifugal and hoisting equipment.

Wiring

Figure 4.11 Wiring of regenerative unit.

4.5.5 Wiring of Common DC bus

Common DC bus method is widely used in the paper industry and chemical fiber industry

which need multi-motor to coordinate. In these applications, some motors are in driving

status while some others are in regenerative braking (generating electricity) status. The

regenerated energy is automatically balanced through the common DC bus, which

means it can supply to motors in driving status. Therefore the power consumption of

whole system will be less compared with the traditional method (one inverter drives one

motor).

When two motors are running at the same time (i.e. winding application), one is in driving

status and the other is in regenerative status. In this case the DC buses of these two

inverters can be connected in parallel so that the regenerated energy can be supplied to

motors in driving status whenever it needs. Its detailed wiring is shown in the following

figure:

Wiring

Figure 4.12 Wiring of common DC bus.

Notice: Two inverters must be the same model when connected with Common DC

bus method. Be sure they are powered on at the same time.

4.5.6 Ground Wiring (PE)

In order to ensure safety and prevent electrical shock and fire, terminal PE must be

grounded with ground resistance. The ground wire should be big and short, and it is

better to use copper wire (>3.5mm

). When multiple inverters need to be grounded, do

not loop the ground wire.

4.6 Wiring Control Circuit Terminals

4.6.1 Precautions

z Use shielded or twisted-pair cables to connect control terminals.

z Connect the ground terminal (PE) with shield wire.

z The cable connected to the control terminal should leave away from the main

circuit and heavy current circuits (including power supply cable, motor cable, relay

and contactor connecting cable) at least 20cm and parallel wiring should be

avoided. It is suggested to apply perpendicular wiring to prevent inverter

malfunction caused by external interference.

Wiring

4.6.2 Control circuit terminals

Terminal Description

S1~S5

ON-OFF signal input, optical coupling with PW and COM. Input voltage range: 9~30V Input impedance: 3.3kΩ

HDI1（HDI2）

High speed pulse or ON-OFF signal input, optical coupling with PW and COM. Pulse input frequency range: 0~50kHz Input voltage range: 9~30V Input impedance: 1.1kΩ

External power supply. +24V terminal is connected to PW terminal as default setting. If user need external power supply, disconnect +24V terminal with PW terminal and connect PW terminal with external power supply.

+24V

Provide output power supply of +24V. Maximum output current: 150mA

AI1（AI3，AI4）

Analog input, 0~10V Input impedance: 10kΩ

AI2

Analog input, 0~10V/ 0~20mA, switched by J18. Input impedance:10kΩ (voltage input) / 250Ω (current input)

GND

Common ground terminal of analog signal and +10V. GND must isolated from COM.

Y1（Y2）

Open collector output terminal, the corresponding common ground terminal is CME. External voltage range: 0~24V Output current range: 0~50mA

CME Common terminal of open collector output

COM

Common ground terminal for digital signal and +24V (or external

power supply).

+10V Supply +10V for inverter.

HDO

High speed pulse output terminal. The corresponding common ground terminal is COM. Output frequency range: 0~50 kHz

AO1（AO2）

Provide voltage or current output which can be switched by J19. Output range: 0~10V/ 0~20mA

PE Ground Terminal.

RO1A、RO1B、

RO1C

RO1 relay output: RO1A—common; RO1B—NC; RO1C—NO. Contact capacity: AC 250V/3A, DC 30V/1A.

RO2A、RO2B、

RO2C

RO2 relay output: RO2A—common; RO2B—NC; RO2C—NO. Contact capacity: AC 250V/3A, DC 30V/1A.

RO3A、RO3B、

RO3C

RO3 relay output: RO3A—common; RO3B—NC; RO3C—NO. Contact capacity: AC 250V/3A, DC 30V/1A.

Wiring

4.6.3 Jumper on control board

Jumper Description

J2, J4, J5

It is prohibited to be connected together, otherwise it will cause inverter malfunction.

J13, J14

Do not change factory default connection of J13 (marked with ATX)

and J14 (marked with ARX), otherwise it will cause communication malfunction.

J18

Switch between (0~10V) voltage input and (0~20mA) current input.

V connect to GND means voltage input;

I connect to GND means current input.

J19

Switch between (0~10V) voltage output and (0~20mA) current

output.

V connect to OUT means voltage output;

I connect to OUT means current output..

4.7 Installation Guidline to EMC Compliance

4.7.1 General knowledge of EMC

EMC is the abbreviation of electromagnetic compatibility, which means the device or

system has the ability to work normally in the electromagnetic environment and will not

generate any electromagnetic interference to other equipments.

EMC includes two subjects: electromagnetic interference and electromagnetic

anti-jamming.

According to the transmission mode, Electromagnetic interference can be divided into

two categories: conducted interference and radiated interference.

Conducted interference is the interference transmitted by conductor. Therefore, any

conductors (such as wire, transmission line, inductor, capacitor and so on) are the

transmission channels of the interference.

Radiated interference is the interference transmitted in electromagnetic wave, and the

energy is inverse proportional to the square of distance.

Three necessary conditions or essentials of electromagnetic interference are:

interference source, transmission channel and sensitive receiver. For customers, the

solution of EMC problem is mainly in transmission channel because of the device

attribute of disturbance source and receiver can not be changed.

Wiring

4.7.2 EMC features of inverter

Like other electric or electronic devices, inverter is not only an electromagnetic

interference source but also an electromagnetic receiver. The operating principle of

inverter determines that it can produce certain electromagnetic interference noise. And

the same time inverter should be designed with certain anti-jamming ability to ensure the

smooth working in certain electromagnetic environment. The following is its EMC

features:

z Input current is non-sine wave. The input current includes large amount of

high-harmonic waves that can cause electromagnetic interference, decrease the

grid power factor and increase the line loss.

z Output voltage is high frequency PMW wave, which can increase the temperature

rise and shorten the life of motor. And the leakage current will also increase, which

can lead to the leakage protection device malfunction and generate strong

electromagnetic interference to influence the reliability of other electric devices.

z As the electromagnetic receiver, too strong interference will damage the inverter

and influence the normal using of customers.

z In the system, EMS and EMI of inverter coexist. Decrease the EMI of inverter can

increase its EMS ability.

4.7.3 EMC Installation Guideline

In order to ensure all electric devices in the same system to work smoothly, this section,

based on EMC features of inverter, introduces EMC installation process in several

aspects of application (noise control, site wiring, grounding, leakage current and power

supply filter). The good effective of EMC will depend on the good effective of all of these

five aspects.

4.7.3.1 Noise control

All the connections to the control terminals must use shielded wire. And the shield layer

of the wire must ground near the wire entrance of inverter. The ground mode is 360

degree annular connection formed by cable clips. It is strictly prohibitive to connect the

twisted shielding layer to the ground of inverter, which greatly decreases or loses the

shielding effect.

Connect inverter and motor with the shielded wire or the separated cable tray. One side

of shield layer of shielded wire or metal cover of separated cable tray should connect to

ground, and the other side should connect to the motor cover. Installing an EMC filter

can reduce the electromagnetic noise greatly.

Wiring

4.7.3.2 Site wiring

Power supply wiring: the power should be separated supplied from electrical transformer.

Normally it is 5 core wires, three of which are fire wires, one of which is the neutral wire,

and one of which is the ground wire. It is strictly prohibitive to use the same line to be

both the neutral wire and the ground wire

Device categorization: there are different electric devices contained in one control

cabinet, such as inverter, filter, PLC and instrument etc, which have different ability of

emitting and withstanding electromagnetic noise. Therefore, it needs to categorize these

devices into strong noise device and noise sensitive device. The same kinds of device

should be placed in the same area, and the distance between devices of different

category should be more than 20cm.

Wire Arrangement inside the control cabinet: there are signal wire (light current) and

power cable (strong current) in one cabinet. For the inverter, the power cables are

categorized into input cable and output cable. Signal wires can be easily disturbed by

power cables to make the equipment malfunction. Therefore when wiring, signal cables

and power cables should be arranged in different area. It is strictly prohibitive to arrange

them in parallel or interlacement at a close distance (less than 20cm) or tie them

together. If the signal wires have to cross the power cables, they should be arranged in

90 angles. Power input and output cables should not either be arranged in interlacement

or tied together, especially when installed the EMC filter. Otherwise the distributed

capacitances of its input and output power cable can be coupling each other to make the

EMC filter out of function.

4.7.3.3 Ground

Inverter must be ground safely when in operation. Grounding enjoys priority in all EMC

methods because it does not only ensure the safety of equipment and persons, but also

is the simplest, most effective and lowest cost solution for EMC problems.

Grounding has three categories: special pole grounding, common pole grounding and

series-wound grounding. Different control system should use special pole grounding,

and different devices in the same control system should use common pole grounding,

and different devices connected by same power cable should use series-wound

grounding.

4.7.3.2 Leakage Current

Leakage current includes line-to-line leakage current and over-ground leakage current.

Its value depends on distributed capacitances and carrier frequency of inverter. The

over-ground leakage current, which is the current passing through the common ground

Wiring

wire, can not only flow into inverter system but also other devices. It also can make

leakage current circuit breaker, relay or other devices malfunction. The value of

line-to-line leakage current, which means the leakage current passing through

distributed capacitors of input output wire, depends on the carrier frequency of inverter,

the length and section areas of motor cables. The higher carrier frequency of inverter,

the longer of the motor cable and/or the bigger cable section area, the larger leakage

current will occur.

Countermeasure:

Decreasing the carrier frequency can effectively decrease the leakage current. In the

case of motor cable is relatively long (longer than 50m), it is necessary to install AC

reactor or sinusoidal wave filter at the output side, and when it is even longer, it is

necessary to install one reactor at every certain distance.

4.7.3.5 EMC Filter

EMC filter has a great effect of electromagnetic decoupling, so it is preferred for

customer to install it.

For inverter, noise filter has following categories:

z Noise filter installed at the input side of inverter;

z Install noise isolation for other equipment by means of isolation transformer or

power filter.

4.7.4 If user install inverter and EMI filter according to the installation guideline, we

believe inverter system comply with following compliance.

z EN61000-6-4

z EN61000-6-3

z EN61800-3

Operation

5. OPERATION

5.1 Operating Keypad Description

5.1.1 Keypad schematic diagram

Figure 5.1 Keypad schematic diagram.

5.1.2 Button function description

Button Name Description

Programming

Key

Entry or escape of first-level menu.

Enter Key Progressively enter menu and confirm parameters.

UP Increment

Key

Progressively increase data or function codes.

DOWN

Decrement

Key

Progressive decrease data or function codes.

Shift Key

In parameter setting mode, press this button to select the bit to be modified. In other modes, cyclically displays parameters by right shift

Operation

Button Name Description

Run Key Start to run the inverter in keypad control mode.

STOP/RESET

Key

In running status, restricted by P7.04, can be used to

stop the inverter.

When fault alarm, can be used to reset the inverter without any restriction.

Shortcut Key

Determined by Function Code P7.03: 0: Jog operation 1: Switch between forward and reverse 2: Clear the UP/DOWN settings. 3: Quick debugging mode1 (by menu) 4: Quick debugging mode2 (by latest order) 5: Quick debugging mode3 (by non-factory setting

parameters)

Combination

Key

Pressing the RUN and STOP/REST at the same time can achieve inverter coast to stop.

5.1.3 Indicator light description

5.1.3.1 Function Indicator Light Description

Function indicator Description

RUN/TUNE

Extinguished: stop status Flickering: parameter autotuning status Light on: operating status

FWD/REV

Extinguished: forward operation Light on: reverse operation.

LOCAL/REMOT

Extinguished: keypad control Flickering: terminal control Light on: communication control

TRIP

Extinguished: normal operation status Flickering: overload pre-warning status

5.1.3.2 Unit Indicator Light Description

Unit indicator Description

Hz Frequency unit

A Current unit

V Voltage unit

RPM Rotating speed unit

% Percentage

Operation

5.1.3.3 Digital Display

Have 5 digit LED , which can display all kinds of monitoring data and alarm codes such

as reference frequency, output frequency and so on.

5.2 Operation Process

5.2.1 Parameter setting

Three levels of menu are:

z Function code group (first-level);

z Function code (second-level);

z Function code value (third-level).

Remarks:

Press both the PRG/ESC and the DATA/ENT can return to the second-class menu from

the third-class menu. The difference is: pressing DATA/ENT will save the set parameters

into the control panel, and then return to the second-class menu with shifting to the next

function code automatically; while pressing PRG/ESC will directly return to the

second-class menu without saving the parameters, and keep staying at the current

function code.

Figure 5.2 Flow chart of parameter setting.

Under the third-class menu, if the parameter has no flickering bit, it means the function

code cannot be modified. The possible reasons could be:

Operation

z This function code is not modifiable parameter, such as actual detected

parameter, operation records and so on;

z This function code is not modifiable in running status, but modifiable in stop

status.

5.2.2 Shortcut menu setting

Shortcut menu, in which parameters in common use can be programmed, provides a

quick way to view and modify function parameters. In the shortcut menu, a parameter

being displayed as “hP0.11” means the function parameter P0.11. Modifying parameters

in the shortcut menu has the same effect as doing at normal programming status.

Maximum 16 function parameters can be saved into the shortcut menu, and these

parameters can be added or deleted when P7.03 is set to be 0.

5.2.3 Shortcut menu operation

Shortcut menu has two levels of menus, which are corresponding to the second-level

and the third-level menus of general menu, and has no corresponding with first-level

menu.

Remarks:

In stop or running status, press QUICK/JOG to enter the shortcut first-level menu, use

UP/DOWN to select different shortcut parameter, and then press DATA/ENT to enter the

shortcut second-level menu. The method to modify parameter at the shortcut

second-level menu is the same as that at the general third-level menu. If want to return

to last display, press QUICK/JOG.

The operation example is as following:

Figure 5.3 Shortcut menu operation.

Operation

5.2.4 Fault reset

If the inverter has fault, it will prompt the related fault information. User can use

STOP/RST or according terminals determined by P5 Group to reset the fault. After fault

reset, the inverter is at stand-by state. If user does not reset the inverter when it is at fault

state, the inverter will be at operation protection state, and can not run.

5.2.5 Motor parameter autotune

If “Sensorless Vector Control” or “Vector Control with PG” mode is chosen, motor

nameplate parameters must be input correctly as the autotuning is based on it. The

performance of vector control depends on the parameters of motor strongly, so to

achieve excellent performance, firstly must obtain the parameter of motor exactly.

The procedure of motor parameter autotuning is as follows:

Firstly, choose keypad command as the run command source (P0.01).

And then input following parameters according to the actual motor parameters:

P2.01: motor rated frequency;

P2.02: motor rated speed;

P2.03: motor rated voltage;

P2.04: motor rated current

P2.05: motor rated power.

Notice: the motor should be uncoupled with its load; otherwise, the motor

parameters obtained by autotuning may be not correct.

Set P0.17 to be 1, and for the detail process of motor parameter autotuning, please refer

to the description of Function Code P0.17. And then press RUN on the keypad panel,

the inverter will automatically calculate following parameter of the motor:

P2.06: motor stator resistance;

P2.07: motor rotor resistance;

P2.08: motor stator and rotor inductance;

P2.09: motor stator and rotor mutual inductance;

P2.10: motor current without load;

then motor autotuning is finished.

5.2.6 Password setting

CHV series inverter offers user’s password protection function. When P7.00 is set to be

nonzero, it will be the user’s password, and After exiting function code edit mode, it will

become effective after 1 minute. If pressing the PRG/ESC again to try to access the

function code edit mode, “-----”will be displayed, and the operator must input correct

user’s password, otherwise will be unable to access it.

If it is necessary to cancel the password protection function, just set P7.00 to be zero.

Notice: Password is not effective for parameters in shortcut menu

Operation

5.3 Running State

5.3.1 Power-on initialization

Firstly the system initializes during the inverter power-on, and LED displays “8888”. After

the initialization is completed, the inverter is on stand-by status.

5.3.2 Stand-by

At stop or running status, parameters of multi-status can be displayed. Whether or not to

display this parameter can be chosen through Function Code P7.06 (Running status

display selection ) and P7.07 (Stop status display selection) according to binary bits, the

detailed description of each bit please refer the function code description of P7.06 and

P7.07.

In stop status, there are fourteen parameters which can be chosen to display or not.

They are: reference frequency, DC bus voltage, Input-Output terminal status, open

collector output status, PID setting, PID feedback, AI1 voltage, AI2 voltage, AI3

voltage/current, AI4 voltage, HDI1 frequency, HDI2 frequency, step number of simple

PLC or multi-step speed, length value. Whether or not to display can be determined by

setting the corresponding binary bit of P7.07. Press the 》/SHIFT to scroll through the

parameters in right order . Press DATA/ENT + QUICK/JOG to scroll through the

parameters in left order.

5.3.3 Operation

In running status, there are twenty one running parameters which can be chosen to

display or not. They are: running frequency, reference frequency, DC bus voltage, output

voltage, output current, rotating speed, output power, output torque, PID setting, PID

feedback, ON-OFF input status, open collector output status, length value, count value,

step number of PLC or multi-step speed, AI1 voltage, AI2 voltage, AI3 voltage/current,

AI4 voltage, HDI1 frequency, HDI2 frequency. Whether or not to display can be

determined by setting the corresponding binary bit of P7.06. Press the 》/SHIFT to scroll

through the parameters in right order . Press DATA/ENT + QUICK/JOG to scroll through

the parameters in left order.

5.3.4 Fault

In fault status, inverter will display parameters of STOP status besides parameters of

fault status. Press the 》/SHIFT to scroll through the parameters in right order . Press

DATA/ENT + QUICK/JOG to to scroll through the parameters in left order.

Operation

5.4 Quick Start

Figure 5.4 Quick start diagram.

Start

Select run command source

Set P0.01

Select frequency command source

Set P0.03, P0.04, P0.05, P0.06

Set starting frequency P1.01

Set ACC time P0.11 and

DEC time P0.12

Start to run and check

Operation is OK

Set rated parameter of

motor

(

P2.01~P2.05)

Motor parameter

autotuning

Select control mode

Set P0.00

Vector control

V/F control

End

Detailed Function Description

6. DETAILED FUNCTION DESCRIPTION

6.1 P0 Group--Basic Function

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.00

Speed

control

mode

0:Sensorless vector control

1:Vector control With PG

2:V/F control

0~2 0

0: Sensorless vector control: It is widely used for the application which requires high

torque at low speed, higher speed accuracy, and quicker dynamic response, such as

machine tool, injection molding machine, centrifugal machine and wire-drawing machine,

etc.

1: Vector control with PG: Close-loop vector control can achieve high precision speed

control and torque control. Therefore it is suitable for the application requiring high

accuracy speed and torque, such as textile, paper, lifting and elevator, etc.

If vector control with PG mode is applied, it is needed to equip with PG card and to

correctly select and install the encoder.

2: V/F control: It is suitable for general purpose application such as pumps, fans etc.

Notice:

z Inverter can drive only one motor when P0.00 is set to be 0 or 1. When P0.00

is set to be 2, inverter can drive multi motors.

z The autotuning of motor parameters must be accomplished properly when

P0.00 is set to be 0 or 1.

z In order to achieve better control characteristic, the parameters of speed

regulator (P3.00~P3.05) must be adjusted according to actual situation when

P0.00 is set to be 0 or 1.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.01

Run

command

source

0: Keypad (LED extinguished)

1: Terminal (LED flickering)

2: Communication (LED lights on)

0~2 0

The control commands of inverter include: start, stop, forward run, reverse run, jog, fault

reset and so on.

0: Keypad (LED extinguished);

Both RUN and STOP/RST key are used for running command control. If Multifunction

Detailed Function Description

key QUICK/JOG is set as FWD/REV switching function (P7.03 is set to be 1), it will be

used to change the rotating orientation. In running status, pressing RUN and

STOP/RST in the same time will cause the inverter coast to stop.

1: Terminal (LED flickering)

The operation, including forward run, reverse run, forward jog, reverse jog etc. can be

controlled by multifunctional input terminals.

2: Communication (LED lights on)

The operation of inverter can be controlled by host through communication.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.02

UP/DOWN

setting

0: Valid, save UP/DOWN value

when power off

1: Valid, do not save UP/DOWN

value when power off

2: Invalid 3 ： Valid during running, clear

when power off

0~2 0

0: Valid, save UP/DOWN value when power off.

User can adjust the reference frequency by UP/DOWN. The value of UP/DOWN can be

saved when power off.

1: Valid, do not save UP/DOWN value when power off.

User can adjust the reference frequency by UP/DOWN, but the value of UP/DOWN will

not be saved when power off.

2: Invalid.

User can not adjust the reference frequency by UP/DOWN. The value of UP/DOWN will

be cleared if P0.02 is set to 2.

3: Valid during running, clear when power off

User can adjust the reference frequency by UP/DOWN when inverter is running. When

inverter power off, the value of UP/DOWN will be cleared

Notice:

z UP/DOWN function can be achieved by keypad (∧ and ∨) and

multifunctional terminals.

z Reference frequency can be adjusted by UP/DOWN.

z UP/DOWN has highest priority which means UP/DOWN is always active no

matter which frequency command source is.

z When the factory setting is restored (P0.18 is set to be 1), the value of

UP/DOWN will be cleared.

Detailed Function Description

Function

Code

Name Description

Setting Range

Factory

Setting

P0.03

Frequency

A command

source

0: Keypad 1: AI1

2. AI3 3: HDI1 4:Simple PLC

5. Multi-Step speed 6: PID 7: Communication

0~7 0

0: Keypad: Please refer to description of P0.10

1: AI1

2: AI3

The reference frequency is set by analog input. AI1 is 0~10V voltage input terminal,

while AI3 is -10V~10V voltage input.

Notice:

z For detailed relationship between analogue input voltage and frequency,

please refer to description of P5.15~P5.19.

z 100% of AI is corresponding to maximum frequency.

3: HDI1

The reference frequency is set by high speed pulse input.

Pulse specification : pulse voltage range 15~30V, and pulse frequency range 0.0~50.0

kHz.

Notice: High speed pulse can only be input through HDI. P5.00 must be set to be 0

(HDI), and P5.35 must be set to be 0 (reference input). For detailed relationship

between HDI input and frequency, please refer to description of P5.37~P5.41.

4: Simple PLC

User can set reference frequency, hold time, running direction of each step and

acceleration/deceleration time between steps. For details, please refer to description of

PA group.

5: Multi-steps speed

The reference frequency is determined by PA group. The selection of steps is

determined by combination of multi-step speed terminals.

Notice:

z Multi-step speed mode will enjoy priority in setting reference frequency if

P0.03 is not set to be 4 or 5. In this case, only step 1 to step 15 are available.

z If P0.03 is set to be 5, step 0 to step 15 can be realized.

z Jog has highest priority.

Detailed Function Description

6: PID

The reference frequency is the result of PID adjustment. For details, please refer to

description of P9 group.

7: Communication

The reference frequency is set through RS485. For details, please refer to operation

manual of communication card.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.04

Frequency B

command

source

0:AI2

1:AI4

2:HDI2

0~2 0

P0.05

Scale of

frequency B

command

0: Maximum frequency

1: Frequency A command

0~1 0

Frequency B command can act as the independent reference frequency source.

Moreover, it can also act as offset of frequency A command.

0: AI2

If P0.05 is set to 0, reference frequency B = AI2 (%) * P0.04 (maximum frequency).

If P0.05 is set to 1, reference frequency B = AI2 (%) * reference frequency A

Notice: AI2 is percentage of range determined by P5.20~P5.24.

1: AI4

The principle is the same as AI2.

Notice:

z AI4 is percentage of range determined by P5.30~P5.34

z When AI2 or AI4 is set as 0~20mA current input, the corresponding voltage

range is 0~5V.

2. HDI2

The principle is the same as AI1.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.06

Frequency

command

selection

0: A

1: B

2: A+B 3: Max（A, B）

0~3 0

This parameter can be used to select the reference frequency command.

0: Only frequency command source A is active.

1: Only Frequency command source B is active.

2: Both Frequency command source A and B are active.

Detailed Function Description

Reference frequency = reference frequency A + reference frequency B.

3: Both Frequency command source A and B are active.

Reference frequency = Max (reference frequency A, reference frequency B).

Notice: The frequency command source can be selected not only P0.06 but also

by multifunctional terminals. Please refer to description of P5 Group.

Figure 6.1 Reference frequency diagram.

Function

Code

Name Description Setting Range

Factory

Setting

P0.07

Maximum frequency

10~400.00Hz 10.0~400.00 50.00Hz

Notice:

z The frequency reference should not exceed maximum frequency.

z Actual acceleration time and deceleration time are determined by maximum

frequency. Please refer to description of P0.11 and P0.12.

Function

Code

Name Description Setting Range

Factory

Setting

P0.08

Upper frequency

limit

P0.09~P0.07 P0.09~P0.07 50.00Hz

Notice:

z Upper frequency limit should not be greater than the maximum frequency

(P0.07).

z Output frequency should not exceed upper frequency limit.

Detailed Function Description

Function

Code

Name Description Setting Range

Factory

Setting

P0.09

Lower frequency

limit

0.00Hz~ P0.08 0.00~P0.08 0.00Hz

Notice:

z Lower frequency limit should not be greater than upper frequency limit

(P0.08).

z If frequency reference is lower than P0.09, the action of inverter is

determined by P1.14. Please refer to description of P1.14.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.10

Keypad

reference

frequency

0.00 Hz ~ P0.08 0.00~P0.08 50.00Hz

When P0.03 is set to be 0, this parameter is the initial value of inverter reference

frequency.

Function

Code

Name Description Setting Range

Factory

Setting

P0.11 Acceleration time 0 0.0~3600.0s 0.0~3600.0 20.0s

P0.12 Deceleration time 0 0.0~3600.0s 0.0~3600.0 20.0s

Acceleration time is the time of accelerating from 0Hz to maximum frequency (P0.07).

Deceleration time is the time of decelerating from maximum frequency (P0.07) to 0Hz.

Please refer to following figure.

Figure 6.2 Acceleration and Deceleration time.

Detailed Function Description

When the reference frequency is equal to the maximum frequency, the actual

acceleration and deceleration time will be equal to the P0.11 and P0.12 respectively.

When the reference frequency is less than the maximum frequency, the actual

acceleration and deceleration time will be less than the P0.11 and P0.12 respectively.

The actual acceleration (deceleration) time = P0.11 (P0.12) * reference frequency/P0.07.

CHV series inverter has 4 groups of acceleration and deceleration time.

1st group: P0.11, P0.12

2nd group: P8.00, P8.01

3rd group: P8.02, P8.03

4th group: P8.04, P8.05.

The acceleration and deceleration time can be selected by combination of

multifunctional ON-OFF input terminals determined by P5 Group. The factory setting of

acceleration and deceleration time is as follow:

z 5.5kW and below: 10.0s

z 7.5kW~30kW: 20.0s

z 37kW and above: 40.0s

Function Code Name Description Setting Range Factory Setting

P0.13

Running direction

selection

0: Forward 1: Reverse 2: Forbid reverse

0~2 0

Notice:

z The rotation direction of motor is corresponding to the wiring of motor.

z When the factory setting is restored (P0.18 is set to be 1), the rotation

direction of motor may be changed. Please be cautious to use.

z If P0.13 is set to 2, user can not change rotation direction of motor by

QUICK/JOG or terminal.

Function Code Name Description

Setting

Range

Factory

Setting

P0.14 Carrier frequency 1.0~16.0kHz 1.0~16.0

Depend on

model

Figure 6.3 Effect of carrier frequency.

Detailed Function Description

Carrier frequency

Model

Highest Carrier

Frequency( kHz )

Lowest Carrier

Frequency( kHz )

Factory

Setting

( kHz )

G Model: 1.5kW~11kW 16 1 8

G Model: 15kW~55kW 8 1 4

G Model: 75kW~630kW 6 1 2

Carrier frequency will affect the noise of motor and the EMI of inverter.

If the carrier frequency is increased, it will cause better current wave, less harmonic

current and lower noise of motor.

Notice:

z The factory setting is optimal in most cases. Modification of this parameter

is not recommended.

z If the carrier frequency exceeds the factory setting, the inverter must be

derated because the higher carrier frequency will cause more switching loss,

higher temperature rise of inverter and stronger electromagnetic

interference.

z If the carrier frequency is lower than the factory setting, it is possible to

cause less output torque of motor and more harmonic current.

Function

Code

Name Description

Setting Range

Factory Setting

P0.15 PWM mode

0: Fixed 1: Random

0~1

0: Fixed: The noise frequency of motor is fixed.

1: Random: This mode can restrain the noise of motor effectively, but may increase the

harmonic of motor.

Function

Code

Name Description

Setting

Range

Factory Setting

P0.16

Carrier frequency adjust

based on temperature

0: Disabled 1: Enabled

0~1

0: Disabled: Carrier frequency is fixed.

1: Enabled: Carrier frequency will be adjusted based on internal temperature of the

inverter. The higher the temperature, the lower the carrier frequency.

Function

Code

Name Description

Setting

Range

Factory

Setting

P0.17

Motor parameters

autotuning

0: No action 1: Rotation autotuning 2: Static autotuning

0~2 0

Detailed Function Description

0: No action: Forbidding autotuning.

1: Rotation autotuning:

z Do not connect any load to the motor when performing autotuning and ensure

the motor is in static status.

z Input the nameplate parameters of motor (P2.01~P2.05) correctly before

performing autotuning. Otherwise the parameters detected by autotuning will be

incorrect; it may influence the performance of inverter.

z Set the proper acceleration and deceleration time (P0.11 and P0.12) according

to the motor inertia before performing autotuning. Otherwise it may cause

over-current and over-voltage fault during autotuning.

z The operation process is as follow:

a. Set P0.17 to be 1 then press the DATA/ENT, LED will display “-TUN-” and

flickers. During “-TUN-” is flickering, press the PRG/ESC to exit autotuning.

b. Press the RUN to start the autotuning. LED will display “TUN-0”.

c. After a few seconds the motor will start to run. LED will display “TUN-1” and

“RUN/TUNE” light will flicker.

d. After a few minutes, LED will display “-END-”. That means the autotuning is

finished and return to the stop status.

e. During the autotuning, press the STOP/RST will stop the autotuning.

Notice: Only keypad can control the autotuning. P0.17 will restore to 0

automatically when the autotuning is finished or cancelled.

2: Static autotuning:

z If it is difficult to disconnect the load, static autotuning is recommended.

z The operation process is the same as rotation autotuning except step c.

Notice: The Mutual inductance and current without load will not be detected by

static autotuning, if needed user should input suitable value according to

experience.

Function

Code

Name Description

Setting Range

Factory

Setting

P0.18

Restore

parameter

0: No action 1: Restore factory setting 2: Clear fault records 3:Restore parameters for injection

molding machine

0~3 0

0: No action

1: Inverter restores all parameters to factory setting except P2 group.

2: Inverter clear all fault records.

3: Inverter restores special parameters for injection molding machine.

This function code will restore to 0 automatically when complete the function operation.

Detailed Function Description

6.2 P1 Group--Start and Stop Control

Function

Code

Name Description

Setting

Range

Factory

Setting

P1.00

Start

Mode

0: Start directly 1: DC braking and start 2: Speed tracking and start

0~2 0

0: Start directly: Start the motor at the starting frequency determined by P1.01.

1: DC braking and start: Inverter will output DC current firstly and then start the motor at

the starting frequency. Please refer to description of P1.03 and P1.04. It is suitable for

the motor which have small inertia load and may reverse rotation when start.

2: Speed tracking and start: Inverter detects the rotation speed and direction of motor,

then start running to its reference frequency based on current speed. This can realize

smooth start of rotating motor with big inertia load when instantaneous power off.

Notice: It only applies on the inverter of 7.5kW and above.

Function

Code

Name Description

Setting

Range

Factory

Setting

P1.01 Starting frequency 0.00~10.0Hz 0.00~10.00 0.00Hz

P1.02

Hold time of starting

frequency

0.0~50.0s 0.0~50.0 0.0s

z Set proper starting frequency can increase the starting torque.

z If the reference frequency is less than starting frequency, inverter will be at

stand-by status. The indicator of RUN/TUNE lights on, inverter has no

output.

z The starting frequency could be less than the lower frequency limit (P0.09).

z P1.01 and P1.02 take no effect during FWD/REV switching.

Figure 6.4 Starting diagram.

Detailed Function Description

Function

Code

Name Description

Setting Range

Factory Setting

P1.03

DC Braking

current before start

0.0~150.0% 0.0~150.0 0.0%

P1.04

DC Braking time

before start

0.0~50.0s 0.0~50.0 0.0s

When inverter starts, it performs DC braking according to P1.03 firstly, then start to

accelerate after P1.04.

Notice:

z DC braking will take effect only when P1.00 is set to be 1.

z DC braking is invalid when P1.04 is set to be 0.

z The value of P1.03 is the percentage of rated current of inverter. The

bigger the DC braking current, the greater the braking torque.

Function

Code

Name Description

Setting

Range

Factory

Setting

P1.05

Acceleration

/Deceleration mode

0:Linear

1:S curve

0~1 0

0: Linear: Output frequency will increase or decrease with fixed acceleration or

deceleration time.

1: S curve: Output frequency will increase or decrease according to S curve. This

function is widely used in applications which require smooth start and stop, such as

elevators, belt conveyor etc. For details, please refer to description of P1.06 and P1.07.

Notice: CHV inverter offers 4 groups of specific acceleration and deceleration time,

which can be determined by the multifunctional ON-OFF input terminals (P5

Group).

Function

Code

Name Description

Setting

Range

Factory

Setting

P1.06

Start section of S

curve

0.0~40.0%

(ACC/DEC time)

0.0~40.0 30.0%

P1.07 End section of S curve

0.0~40.0%

(ACC/DEC time)

0.0~40.0 30.0%

P1.06 and P1.07 are only active when P1.05=1. During t1 period, the change rate of

output frequency increases from 0; During t2 period, the change rate of output frequency

decrease to 0; During the period between t1 and t2, the change rate of output frequency

remain constant.

The curvature of S curve is codetermined by ACC/DEC time, start section time and end

section time.

Detailed Function Description

Figure 6.5 S curve diagram.

Function

Code

Name Description Setting Range

Factory

Setting

P1.08 Stop Mode

0:Deceleration to stop 1:Coast to stop

0~1 0

0: Deceleration to stop

When the stop command takes effect, the inverter decreases the output frequency

according to P1.05 and the selected acceleration/deceleration time till stop.

1: Coast to stop

When the stop command takes effect, the inverter blocks the output immediately. The

motor coasts to stop by its mechanical inertia.

Function

Code

Name Description

Setting Range

Factory

Setting

P1.09

Starting frequency of DC

braking

0.00~P0.07 0.00~10.00 0.00Hz

P1.10

Waiting time before DC

braking

0.0~50.0s 0.0~50.0 0.0s

P1.11 DC braking current 0.0~150.0% 0.0~150.0 0.0%

P1.12 DC braking time 0.0~50.0s 0.0~50.0 0.0s

Starting frequency of DC braking: Start the DC braking when running frequency reaches

starting frequency determined by P1.09.

Waiting time before DC braking: Inverter blocks the output before starting the DC braking.

After this waiting time, the DC braking will be started. It is used to prevent over-current

fault caused by DC braking at high speed.

DC braking current: The value of P1.11 is the percentage of rated current of inverter. The

bigger the DC braking current, the greater the braking torque.

Detailed Function Description

DC braking time: The time used to perform DC braking. If the time is 0, the DC braking

will be invalid.

Figure 6.6 DC braking diagram.

Function

Code

Name Description Setting Range

Factory

Setting

P1.13

Dead time of

FWD/REV

0.0~3600.0s 0.0~3600.0 0.0s

Set the hold time at zero frequency in the transition between forward and reverse

running.

It is shown as following figure:

Figure 6.7 FWD/REV dead time diagram.

Detailed Function Description

Function

Code

Name Description

Setting

Range

Factory

Setting

P1.14

Action when running

frequency is less than

lower frequency limit

0: Running at the lower

frequency limit

1: Stop

2: Stand-by

0~2 0

0: Running at the lower frequency limit (P0.09): The inverter runs at P0.09 when the

running frequency is less than P0.09.

1: Stop: This parameter is used to prevent motor running at low speed for a long time.

2: Stand-by: Inverter will stand-by when the running frequency is less than P0.09. When

the reference frequency is higher than or equal to P0.09 again, the inverter will start to

run automatically.

Function

Code

Name Description

Setting Range

Factory Setting

P1.15

Restart after

power off

0: Disabled 1: Enabled

0~1 0

P1.16

Delay time for

restart

0.0~3600.0s 0.0~3600.0 0.0s

0: Disabled: Inverter will not automatically restart when power on again until run

command takes effect.

1: Enabled: When inverter is running, after power off and power on again, if run

command source is keypad control (P0.01=0) or communication control (P0.01=2),

inverter will automatically restart after delay time determined by P1.16; if run command

source is terminal control (P0.01=1), inverter will automatically restart after delay time

determined by P1.16 only if FWD or REV is active.

Notice:

z If P1.15 is set to be 1, it is recommended that start mode should be set

as speed tracing mode (P1.00=2).

z This function may cause the inverter restart automatically, please be

cautious.

6.3 P2 Group--Motor Parameters

Function

Code

Name Description

Setting

Range

Factory

Setting

P2.00 Inverter Model

0:G model

1: P model

0~1 0

0: Applicable to constant torque load

1: Applicable to variable torque load such as pumps and fans.

Detailed Function Description

Function

Code

Name Description Setting Range

Factory

Setting

P2.01

Motor rated

frequency

0.01Hz~P0.07 0.01~P0.07 50.00Hz

P2.02

Motor rated

speed

0~36000rpm 0~36000 1460rpm

P2.03

Motor rated

voltage

0~3000V 0~3000

Depend on

model

P2.04

Motor rated

current

0.1~2000.0A 0.1~2000.0

Depend on

model

P2.05

Motor rated

power

1.5~900.0kW 1.5~900.0

Depend on

model

Notice:

z In order to achieve superior performance, please set these parameters

according to motor nameplate, then perform autotuning.

z The power rating of inverter should match the motor. If the bias is too

big, the control performances of inverter will be deteriorated distinctly.

z Reset P2.05 can initialize P2.06~P2.10 automatically.

Function

Code

Name Description Setting Range Factory Setting

P2.06

Motor stator

resistance

0.001~65.535Ω 0.001~65.535 Depend on model

P2.07

Motor rotor

resistance

0.001~65.535Ω 0.001~65.535 Depend on model

P2.08

Motor leakage

inductance

0.1~6553.5mH 0.1~6553.5 Depend on model l

P2.09

Motor mutual

inductance

0.1~6553.5mH 0.1~6553.5 Depend on model

P2.10

Current

without load

0.01~655.35A 0.01~655.35 Depend on model

After autotuning, the value of P2.06~P2.10 will be automatically updated.

Notice: Do not change these parameters, otherwise it may deteriorate the control

performance of inverter.

Detailed Function Description

6.4 P3 Group--Vector Control

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.00 ASR proportional gain Kp1 0~100 0~100 20

P3.01 ASR integral time Ki1 0.01~10.00s 0.01~10.00 0.50s

P3.02 ASR switching point 1 0.00Hz~P3.05 0.00~P3.05 5.00Hz

P3.03 ASR proportional gain Kp2 0~100 0~100 25

P3.04 ASR integral time Ki2 0.01~10.00s 0.01~10.00 1.00s

P3.05 ASR switching point 2 P3.02~P0.07 P3.02~P0.07 10.00Hz

P3.00～P3.05 are only valid for vector control and torque control and invalid for V/F

control. Through P3.00～P3.05, user can set the proportional gain K

and integral time Ki

of speed regulator (ASR), so as to change the speed response characteristic. ASR's

structure is shown in following figure.

Figure 6.8 ASR diagram.

P3.00 and P3.01 only take effect when output frequency is less than P3.02. P3.03 and

P3.04 only take effect when output frequency is greater than P3.05. When output

frequency is between P3.02 and P3.05, K

and KI are proportional to the bias between

P3.02 and P3.05. For details, please refer to following figure.

Figure 6.9 PI parameter diagram.

Detailed Function Description

The system's dynamic response can be faster if the proportion gain Kp is increased;

However, if K

is too large, the system tends to oscillate.

The system dynamic response can be faster if the integral time K

is decreased;

However, if K

is too small, the system becomes overshoot and tends to oscillate.

P3.00 and P3.01 are corresponding to K

and Ki at low frequency, while P3.03 and P3.04

are corresponding to K

and Ki at high frequency. Please adjust these parameters

according to actual situation. The adjustment procedure is as follow:

1. Increase the proportional gain (K

) as far as possible without creating oscillation.

2. Reduce the integral time (K

) as far as possible without creating oscillation.

For more details about fine adjustment, please refer to description of P9 group.

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.06 ACR proportional gain P 0~65535 0~65535 500

P3.07 ACR integral gain I 0~65535 0~65535 500

The bigger the proportional gain P, the faster the response, but oscillation may easily

occur. If only proportional gain P is applied in regulation, the bias cannot be eliminated.

In order to eliminate the bias, apply the integral gain I to achieve PI regulator.

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.08

Speed detection

filter time

0.00~5.00s 0.00~5.00 0.00s

The noise along with speed detection signals can be filtered by setting the time constant

of filter (P3.08). The bigger the time constant, the better the immunity capability, but the

response becomes slow, vice versa.

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.09

Slip compensation rate of

50.0~200.0% 50~100 100%

The parameter is used to adjust the slip frequency of vector control and improve the

precision of speed control. Properly adjusting this parameter can effectively restrain the

static speed bias.

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.10 PG parameter 1~65535 1~65535 1000

P3.11

PG direction

selection

0: Forward 1: Reverse

0~1 0

Detailed Function Description

P3.10 defines the number of pulse per cycle of PG or encoder.

Notice: When P0.00 is set to be 1, P3.10 must be set correctly according to the

encoder parameter, otherwise the motor will run abnormally. If the motor still run

abnormally when P3.10 has been set correctly, please change the PG direction

(P3.11).

Function

Code

Name Description

Setting

Range

Factory

Setting

P3.12

Torque setting

source

0:Disabled 1: Keypad 2:AI1 3:AI2 4:AI3 5:AI4 6:HDI1 7:HDI2 8:Communication

0~8 0

P3.13

Keypad torque

setting

-100.0%~100.0%

-100.0%~100 .0%

50.0%

P3.14 Torque limit 0.0~200.0% 0.0~200.0 150.0%

0：Torque control is disabled. Inverter will run at speed control mode. Output torque of

inverter which should not greater than torque limit (P3.14) matches the torque of load

automatically. When the torque of load is greater than torque limit, output torque will

remain as torque limit and output frequency will decrease automatically.

1~8: Torque control is enabled.

z When torque control takes effect,

if T

set

> T

load

, output frequency will increase continuously until it reaches upper

frequency limit.

If T

set

< T

load,

output frequency will decrease continuously until it reaches lower

frequency limit.

Inverter can run at any frequency between upper and lower frequency limit only

when T

set

= T

load.

z Torque control can be switched to speed control, vice versa.

 Switching by multifunctional terminal: For example, if torque setting source is

AI1 (P3.12=2), the value of multifunction terminal S5 is set to 31 (Disable

torque control). When S5 is valid, control mode will switch from torque

control to speed control, vice versa.

 When running at torque control mode, press STOP/RST, it will switch to

speed control automatically.

z If torque setting is positive, inverter will run forward; otherwise it will run reverse.

Detailed Function Description

Notice:

z When running at torque control mode, the acceleration time has nothing to

do with P0.11.

z The 100% of torque setting is corresponding to 100% of P3.14 (Torque limit).

For example, if torque setting source is keypad (P3.12=1), P3.13=80% and

P3.14=90%, then

Actual torque setting = 80% (P3.13) * 90% (P3.14) = 72%.

6.5 P4 Group --V/F Control

Function

Code

Name Description

Setting

Range

Factory

Setting

P4.00

V/F

curve

selection

0:Linear curve

1: User-defined curve

2: Torque_stepdown curve (1.3 order)

3: Torque_stepdown curve (1.7 order)

4: Torque_stepdown curve (2.0 order)

0~4 0

0: Linear curve. It is applicable for normal constant torque load.

1: User-defined curve. It can be defined through setting (P4.03~P4.08).

2~4: Torque_stepdown curve. It is applicable for variable torque load, such as blower,

pump and so on. Please refer to following figure.

Figure 6.10 Multiple V/F curve diagram.

Function

Code

Name Description

Setting Range

Factory

Setting

P4.01 Torque boost

0.0%: auto

0.1％~10.0％

0.0~10.0 1.0％

P4.02

Torque boost

cut-off

0.0%~50.0% (motor rated frequency)

0.0~50.0 20.0%

Detailed Function Description

Torque boost will take effect when output frequency is less than cut-off frequency of

torque boost (P4.02). Torque boost can improve the torque performance of V/F control at

low speed.

The value of torque boost should be determined by the load. The heavier the load, the

larger the value.

Notice: This value should not be too large, otherwise the motor would be

over-heat or the inverter would be tripped by over-current or over-load.

If P4.01 is set to 0, the inverter will boost the output torque according to the load

automatically. Please refer to following diagram.

Figure 6.11 Torque boost diagram.

Function

Code

Name Description Setting Range

Factory

Setting

P4.03 V/F frequency 1 0.00Hz~ P4.05 0.00~P4.05 5.00Hz

P4.04 V/F voltage 1 0.0%~100.0% 0.0~100.0 10.0%

P4.05 V/F frequency 2 P4.03~ P4.07 P4.03~ P4.07 30.00Hz

P4.06 V/F voltage2 0.0%~100.0% 0.0~100.0 60.0%

P4.07 V/F frequency 3 P4.05~ P2.01 P4.05~ P2.01 50.00Hz

P4.08 V/F voltage 3 0.0%~100.0% 0.0~100.0 100.0%

This function is only active when P4.00 is set to be 1. P4.03~P4.08 are used to set the

user-defined V/F curve. The value should be set according to the load characteristic of

motor.

Notice:

z 0＜V1＜V2＜V3＜rated voltage.

z 0＜f1＜f2＜f3＜rated frequency.

z The voltage corresponding to low frequency should not be set too high,

otherwise it may cause motor overheat or inverter fault

Detailed Function Description

Figure 6.12 V/F curve setting diagram.

Function

Code

Name Description

Setting

Range

Factory

Setting

P4.09

V/F slip

compensation

0.00~10.00Hz 0.00~10.00 0.0Hz

The motor’s slip changes with the load torque, which results in the variance of motor

speed. The inverter’s output frequency can be adjusted automatically through slip

compensation according to the load torque. Therefore the change of speed due to the

load change can be reduced. The value of compensated slip is dependent on the motor’s

rated slip which can be calculated as below:

4.09 * /60

PfnP=−

Where

is motor rated frequency (P2.01), nis motor rated speed (P2.02),

and

P is pole pairs of motor.

Function

Code

Name Description

Setting

Range

Factory Setting

P4.10 AVR function

0: Disabled 1: Enabled all the time 2: Disabled during deceleration

0~2 1

AVR ( Auto Voltage Regulation) function ensure the output voltage of inverter stable no

matter how the DC bus voltage changes. During deceleration, if AVR function is disabled,

the deceleration time will be short but the current will be big. If AVR function is enabled

all the time, the deceleration time will be long but the current will be small.

Function

Code

Name Description

Setting Range

Factory Setting

P4.11

Auto energy

saving selection

0: Disabled 1: Enabled

0~1 0

Detailed Function Description

When P4.11 is set to be 1, while there is a light load, it will reduce the inverter output

voltage and saves energy.

Function

Code

Name Description

Setting

Range

Factory

Setting

P4.12

FWD/REV enable

option when power on

0: Disabled

1: Enabled

0~1 0

Notice:

z This function only takes effect if run command source is terminal control.

z If P4.12 is set to be 0, when power on, inverter will not start even if FWD/REV

terminal is active, until FWD/REV terminal disabled and enabled again.

z If P4.12 is set to be 1, when power on and FWD/REV terminal is active,

inverter will start automatically.

z This function may cause the inverter restart automatically, please be

cautious.

6.6 P5 Group--Input Terminals

Function

Code

Name Description

Setting

Range

Factory

Setting

P5.00

HDI

selection

0: HDI1 and HDI2 are high speed

pulse input.

1: HDI1 is ON-OFF input, HDI2 is

high speed pulse input.

2: HDI2 is ON-OFF input, HDI1 is

high speed pulse input.

3: HDI1 and HDI2 are ON-OFF input.

0~3 0

Please refer to description of HDI in P0.03.

Function

Code

Name Description

Setting Range

Factory Setting

P5.01 Input selection

0: Concrete 1: Virtual

0~1 0

0: ON-OFF signal is input through external input terminals. 1: ON-OFF signal is set through serial communication by host device.

Function

Code

Name Description

Setting Range

Factory

Setting

P5.02 S1 Terminal function

Programmable

multifunction terminal

0~55 1

P5.03 S2 Terminal function

Programmable

multifunction terminal

0~55 4

P5.04 S3 Terminal function

Programmable

multifunction terminal

0~55 7

Detailed Function Description

Function

Code

Name Description

Setting Range

Factory

Setting

P5.05 S4 Terminal function

Programmable

multifunction terminal

0~55 0

P5.06 S5 Terminal function

Programmable

multifunction terminal

0~55 0

P5.07

HDI1 terminal

function

Programmable

multifunction terminal

0~55 0

P5.08

HDI2 terminal

function

Programmable

multifunction terminal

0~55 0

P5.09 S6 Terminal function

Programmable

multifunction terminal

0~55 0

P5.10 S7 Terminal function

Programmable

multifunction terminal

0~55 0

P5.11 S8 Terminal function

Programmable

multifunction terminal

0~55 0

Notice: P5.07 is only used when P5.00 is set to be 1 or 3. P5.08 is only used when

P5.00 is set to be 2 or 3.

The meaning of each setting is shown in following table.

Setting

value

Function Description

0 Invalid

Please set unused terminals to be invalid to avoid

malfunction.

1 Forward

2 Reverse

Please refer to description of P5.13.

3 3-wire control Please refer to description of P5.13.

4 Jog forward

5 Jog reverse

Please refer to description of P8.06~P8.08.

6 Coast to stop

The inverter blocks the output immediately. The motor

coasts to stop by its mechanical inertia.

7 Reset fault

Resets faults that have occurred. It has the same function

as STOP/RST.

8 Pause running

When this terminal takes effect, inverter decelerates to

stop and save current status, such as PLC, traverse

frequency and PID. When this terminal takes no effect,

inverter restores the status before pause.

External fault

input

Stop the inverter and output a alarm when a fault occurs in

a peripheral device.

Detailed Function Description

Setting

value

Function Description

Up command

DOWN

command

Clear

UP/DOWN

The reference frequency of inverter can be adjusted by UP

command and DOWN command.

Use this terminal to clear UP/DOWN setting. Please refer

to description of P0.02.

Switch

between A

and B

Switch

between A

and A+B

Switch

between B

and A+B

P0.06

Terminal action

A B A+B

13 valid B A

14 valid A+B A

15 valid A+B B

Multi-step

speed

reference1

Multi-step

speed

reference 2

Multi-step

speed

reference 3

Multi-step

speed

reference 4

16 steps speed control can be realized by the combination

of these four terminals. For details, please refer to

following multi-step speed reference terminal status and

according step value table:

Such as:

0000: select the multi-speed 0; 1111: multi-speed 15.

Notice: multi-speed 1 is low bit, and multi-speed 4 is high

bit.

Multi-speed

terminal 4

Multi-speed

terminal 3

Multi-speed

terminal 2

Multi-speed

terminal 1

BIT3 BIT2 BIT1 BIT0

Multi-step

speed pause

Can shield the function of multi-speed terminals and

keep the set value as the current status.

Detailed Function Description

Setting

value

Function Description

ACC/DEC

time

selection1

ACC/DEC

time selection

4 groups of ACC/DEC time can be selected by the

combination of these two terminals.

ACC/DEC

time

selection 2

ACC/DEC

time

selection1

ACC/DEC time

OFF OFF

ACC/DEC time 0

(P0.11、P0.12)

OFF ON

ACC/DEC time 1

(P8.00、P8.01)

ON OFF

ACC/DEC time 2

(P8.02、P8.03)

ON ON

ACC/DEC time 3

(P8.04、P8.05)

Reset simple

PLC when

stop

When simple PLC stops, the status of PLC such as

running step, running time and running frequency will be

cleared when this terminal is enabled.

Pause simple

PLC

Inverter runs at zero frequency and PLC pauses the timing

when this terminal is enabled. If this terminal is disabled,

inverter will start and continue the PLC operation from the

status before pause.

25 Pause PID

PID adjustment will be paused and inverter keeps output

frequency unchanged.

Pause

traverse

operation

Inverter keeps output frequency unchanged. If this

terminal is disabled, inverter will continue traverse

operation from current frequency.

Reset

traverse

operation

Reference frequency of inverter will be forced as center

frequency of traverse operation.

28 Reset counter Clear the value of counter.

29 Reset length Clear the value of actual length (P8.20).

ACC/DEC

ramp hold

Pauses acceleration or deceleration and maintains output

frequency. When this terminal is disabled,

acceleration/deceleration is restarted.

Disable torque

control

Torque control is disabled. Inverter will work in speed

control mode.

32~52 Reserved Reserved for water supply control.

Detailed Function Description

Setting

value

Function Description

3-wire jog

control

Combine with FWD/REV operation to be 3-wire jog control.

K1 K2 K3 Command

ON OFF

Forward running

OFF ON

OFF

Reverse

running

ON OFF

Forward

jogging

OFF ON

Reverse

jogging

54~55 Reserved Reserved

Function

Code

Name Description

Setting

Range

Factory

Setting

P5.12

ON-OFF filter times

1~10 1~10 5

This parameter is used to set filter strength of terminals (S1~S8,HDI1,HDI2). When

interference is heavy, user should increase this value to prevent malfunction.

Function

Code

Name Description

Setting

Range

Factory

Setting

P5.13

FWD/REV

control

mode

0: 2-wire control mode 1

1: 2-wire control mode 2

2: 3-wire control mode 1

3: 3-wire control mode 2

0~3 0

This parameter defines four different control modes that control the inverter operation

through external terminals.

0: 2-wire control mode 1: Integrate START/STOP command with run direction.

Detailed Function Description

K1 K2 Run command

OFF OFF Stop

ON OFF FWD

OFF ON REV

ON ON Stop

Figure 6.13 2-wire control mode 1.

1: 2-wire control mode 2: START/STOP command is determined by FWD terminal. Run

direction is determined by REV terminal.

Figure 6.14 2-wire control mode 2.

2: 3-wire control mode 1: SB1: Start button. SB2: Stop button (NC), K: Run direction

button, Terminal SIn is the multifunctional input terminal of S1~S8, HDI1 and HDI2. The

terminal function should be set to be 3 (3-wire control).

Figure 6.15 3-wire control mode 1.

3: 3-wire control mode 2:

SB1: Forward run button

SB2: Stop button (NC)

SB3: Reverse run button

Terminal SIn is the multifunctional input terminal of S1~S8, HDI1 and HDI2. The terminal

function should be set to be 3 (3-wire control).

K1 K2 Run command

OFF OFF Stop

ON OFF FWD

OFF ON Stop

ON ON REV

K Run command

OFF FWD

ON REV

Detailed Function Description

Figure 6.16 3-wire control mode 2.

Notice: When 2-wire control mode is active, the inverter will not run in following

situation even if FWD/REV terminal is enabled:

z Coast to stop (press RUN and STOP/RST at the same time).

z Stop command from serial communication.

z FWD/REV terminal is enabled before power on. Please refer to description

of P4.12.

Function

Code

Name Description

Setting

Range

Factory

Setting

P5.14

UP/DOWN setting

change rate

0.01~50.00Hz/s 0.01~50.00 0.50Hz/s

This parameter is used to determine how fast UP/DOWN setting changes.

Function

Code

Name Description Setting Range

Factory

Setting

P5.15

AI1 lower limit

0.00V~10.00V 0.00~10.00 0.00V

P5.16

AI1 lower limit

corresponding setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.17

AI1 upper limit

0.00V~10.00V 0.00~10.00 10.00V

P5.18

AI1 upper limit

corresponding setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.19

AI1 filter time constant

0.00s~10.00s 0.00~10.00 0.10s

These parameters determine the relationship between analog input voltage and the

corresponding setting value. When the analog input voltage exceeds the range between

lower limit and upper limit, it will be regarded as the upper limit or lower limit.

The analog input AI1 can only provide voltage input, and the range is 0V~10V.

For different applications, the corresponding value of 100.0% analog setting is different.

For details, please refer to description of each application.

Notice: AI1 lower limit must be less or equal to AI1 upper limit.

Detailed Function Description

Figure 6.17 Relationship between AI and corresponding setting.

Function

Code

Name Description Setting Range

Factory

Setting

P5.20 AI2 lower limit 0.00V~10.00V 0.00~10.00 0.00V

P5.21

AI2 lower limit

corresponding setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.22 AI2 upper limit 0.00V~10.00V 0.00~10.00 5.00V

P5.23

AI2 upper limit

corresponding setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.24 AI2 filter time constant 0.00s~10.00s 0.00~10.00 0.10s

P5.25 AI3 lower limit -10.00V ~10.00V -10.00~10.00 0.00V

P5.26

AI3 lower limit

corresponding setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.27 AI3 upper limit -10.00V ~10.00V -10.00~10.00 10.00V

P5.28

AI3 upper limit

corresponding setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.29 AI3 filter time constant 0.00s~10.00s 0.00~10.00 0.10s

P5.30 AI4 lower limit 0.00V~10.00V 0.00~10.00 0.00V

P5.31

AI4 lower limit

corresponding setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.32 AI4 upper limit 0.00V~10.00V 0.00~10.00 10.00V

P5.33

AI4 upper limit

corresponding setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.34 AI4 filter time constant 0.00s~10.00s 0.00~10.00 0.10s

Detailed Function Description

Please refer to description of AI1.

Notice: When AI2 is set as 0~20mA current input, the corresponding voltage range

is 0~5V.

Function

Code

Name Description

Setting

Range

Factory

Setting

P5.35

HDI1 function

selection

0~4 0

P5.36

HDI2 function

selection

0: Reference input

1: Counter input

2: Length input

3: Reserved

4: Reserved

0~4 0

0: Reference input, such as frequency, PID setting and PID feedback.

1: Counter input: Input of counter pulse.

2: Length input: Input of length pulse.

Notice: When P5.35 or P5.36 is set to be 0, P5.37~P5.46 will take effective

accordingly.

Function

Code

Name Description Setting Range

Factory

Setting

P5.37 HDI1 lower limit 0.0 kHz ~50.0kHz 0.0~50.0 0.0kHz

P5.38

HDI1 lower limit

corresponding

setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.39

HDI1 upper limit

0.0 kHz ~50.0kHz 0.0~50.0 50.0kHz

P5.40

HDI1 upper limit

corresponding

setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.41

HDI1 filter time

constant

0.00s~10.00s 0.00~10.00 0.10s

P5.42 HDI2 lower limit 0.0 kHz ~50.0kHz 0.0~50.0 0.0kHz

P5.43

HDI2 lower limit

corresponding

setting

-100.0%~100.0% -100.0~100.0 0.0%

P5.44

HDI2 upper limit

0.0 kHz ~50.0kHz 0.0~50.0 50.0kHz

P5.45

HDI2 upper limit

corresponding

setting

-100.0%~100.0% -100.0~100.0 100.0%

P5.46

HDI2 filter time

constant

0.00s~10.00s 0.00~10.00 0.10s

The description of P5.37~P5.46 is similar to AI1.

Detailed Function Description

6.7 P6 Group -- Output Terminals

Function

Code

Name Description

Setting

range

Factory

Setting

P6.00

HDO

selection

0: High-speed pulse output

1: ON-OFF output

0~1 0

0: High-speed pulse output: The maximum pulse frequency is 50.0 kHz. Please refer to

description of P6.09.

1: ON-OFF output: Please refer to description of P6.03.

Notice: The output of HDO terminal is multi-function ON-OFF output.

Function

Code

Name Description

Setting

Range

Factory

Setting

P6.01 Y1 output selection

Open-collector

output

0~31 1

P6.02 Y2 output selection

Open-collector

output

0~31 0

P6.03

HDO ON-OFF

output selection

Open-collector

output

0~31 0

P6.04

Relay 1 output

selection

Relay output 0~31 3

P6.05

Relay 2 output

selection

Relay output 0~31 0

P6.06

Relay 3 output

selection

Relay output 0~31 0

OC/Relay output functions are indicated in the following table:

Setting

Value

Function Description

0 No output Output terminal has no function.

1 Run forward ON: During forward run.

2 Run reverse ON: During reverse run.

3 Fault output ON: Inverter is in fault status.

4 Motor overload Please refer to description of PB.04~PB.06.

5 Inverter overload Please refer to description of PB.04~PB.06.

6 FDT reached Please refer to description of P8.25, P8.26.

Detailed Function Description

Setting

Value

Function Description

Frequency

reached

Please refer to description of P8.27.

Zero speed

running

ON: The running frequency of inverter is zero.

Preset count

value reached

Please refer to description of P8.22.

Specified count

value reached

Please refer to description of P8.23.

11 Length reached ON: Actual length (P8.20) reach the value of P8.19.

PLC cycle

completed

After simple PLC completes one cycle, inverter will

output ON signal for 200ms.

Running time

reached

ON: The accumulated running time of inverter reaches

the value of P8.24.

Upper frequency

limit reached

ON: Running frequency reaches the value of P0.08.

Lower frequency

limit reached

ON: Running frequency reaches the value of P0.09.

16 Ready ON: Inverter is ready (no fault, power is ON).

Auxiliary motor 1

started

Auxiliary motor 2

started

In the case of simple water supply system with one

inverter driving three pumps, it is used to control

auxiliary pumps. For details, please refer to

descriptions of P8.29, P8.30 and P8.31.

19 Motor running ON: Inverter has output signal

Stop pulse

output

Output pulse signal for 2s when running frequency is

lower than 0.1Hz

21~31 Reserved Reserved

Function

Code

Name Description

Setting Range

Factory

Setting

P6.07 AO1 function selection

Multifunctional analog

output

0~14 0

P6.08 AO2 function selection

Multifunctional analog

output

0~14 0

P6.09 HDO function selection

Multifunctional

high-speed pulse

output

0~14 0

AO/HDO output functions are indicated in the following table:

Detailed Function Description

Setting

Value

Function Range

0 Running frequency 0~maximum frequency (P0.07)

1 Reference frequency 0~ maximum frequency (P0.07)

2 Motor speed 0~2* rated synchronous speed of motor

3 Output current 0~2* inverter rated current

4 Output voltage 0~2* inverter rated voltage

5 Output power 0~2* rated power

6 Output torque 0~2*rated torque

7 AI1 voltage 0~10V

8 AI2 voltage/current 0~10V/0~20mA

9 AI3 voltage -10V~10V

10 AI4 voltage 0~10V

11 HDI1 frequency 0.1~50.0kHz

12 HDI2 frequency 0.1~50.0kHz

13 Length value 0~preset length (P8.19)

14 Count value 0~preset count value (P8.22)

Function

Code

Name Description

Setting Range

Factory

Setting

P6.10 AO1 lower limit 0.0%~100.0% 0.0~100.0 0.0%

P6.11

AO1 lower limit

corresponding output

0.00V ~10.00V 0.00~10.00 0.00V

P6.12 AO1 upper limit 0.0%~100.0% 0.0~100.0 100.0%

P6.13

AO1 upper limit

corresponding output

0.00V ~10.00V 0.00~10.00 10.00V

P6.14 AO2 lower limit 0.0%~100.0% 0.0~100.0 0.0%

P6.15

AO2 lower limit

corresponding output

0.00V ~10.00V 0.00~10.00 0.00V

P6.16 AO2 upper limit 0.0%~100.0% 0.0~100.0 100.0%

P6.17

AO2 upper limit

corresponding output

0.00V ~10.00V 0.00~10.00 10.00V

Detailed Function Description

These parameters determine the relationship between analog output voltage/current and

the corresponding output value. When the analog output value exceeds the range

between lower limit and upper limit, it will output the upper limit or lower limit.

When AO is current output, 1mA is corresponding to 0.5V.

For different applications, the corresponding value of 100.0% analog output is different.

For details, please refer to description of each application.

Figure 6.18 Relationship between AO and corresponding setting.

Function

Code

Name Description Setting Range

Factory

Setting

P6.18 HDO lower limit 0.0%~100.0% 0.0~100.0 0.0%

P6.19

HDO lower limit

corresponding output

0.0 ~ 50.0kHz 0.0~50.0 0.0kHz

P6.20 HDO upper limit 0.0%~100.0% 0.0~100.0 100.0%

P6.21

HDO upper limit

corresponding output

0.0 ~ 50.0kHz 0.0~50.0 50.0kHz

The description of P6.18~P6.21 is similar to AO.

Figure 6.19 Relationship between HDO and corresponding setting.

Detailed Function Description

6.8 P7 Group --Display Interface

Function

Code

Name Description Setting Range

Factory

Setting

P7.00 User password 0~65535 0~65535 0

The password protection function will be valid when set to be any nonzero data. When

P7.00 is set to be 00000, user’s password set before will be cleared and the password

protection function will be disabled.

After the password has been set and becomes valid, the user can not access menu if the

user’s password is not correct. Only when a correct user’s password is input, the user

can see and modify the parameters. Please keep user’s password in mind.

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.01

LCD language

selection

0: Chinese 1: English

0~1 0

P7.02

Parameter copy

0: Invalid 1: Upload parameters to LCD 2: Download parameters from

LCD

0~2 0

P7.02 will take effect when LCD keypad is used.

1: All value of parameters will be uploaded from inverter to LCD.

2: All value of parameters will be downloaded from LCD to inverter.

Notice: When upload or download operation completes, P7.02 will be set to 0

automatically.

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.03

QUICK/JOG

function

selection

0: Quick debugging mode

1: FDW/REV switching

2: Jog

3: Clear UP/DOWN setting

0~3 0

QUICK/JOG is a multifunctional key, whose function can be defined by the value of

P7.03.

0: Quick debugging mode: Please refer to description of Chapter 5.

1: FWD/REV switching: Press QUICK/JOG, the running direction of inverter will reverse.

It is only valid if P0.01 is set to be 0.

2: Jog: Press QUICK/JOG , the inverter will jog.

3: Clear UP/DOWN setting: Press QUICK/JOG, the UP/DOWN setting will be cleared.

Detailed Function Description

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.04

STOP/RST

function

selection

0: Valid when keypad control (P0.01=0) 1: Valid when keypad or terminal control (P0.01=0 or

1) 2: Valid when keypad or communication control (P0.01=0 or 2) 3: Always valid

0~3 0

Notice:

z The value of P7.04 only determines the STOP function of STOP/RST.

z The RESET function of STOP/RST is always valid.

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.05

Keypad

display

selection

0: Preferential to external keypad

1: Both display, only external key

valid.

2: Both display, only local key

valid.

3: Both display and key valid.

0~3 0

0: When external keypad exists, local keypad will be invalid.

1: Local and external keypad display simultaneously, only the key of external keypad is

valid.

2: Local and external keypad display simultaneously, only the key of local keypad is

valid.

3: Local and external keypad display simultaneously, both keys of local and external

keypad are valid. This function should be used cautiously, otherwise it may cause

malfunction.

Notice:

z When P7.05 is set to be 1, local keypad is valid if external keypad is not

connected.

z When LCD keypad is connected, P7.05 must be set to be 0.

Function

Code

Name Description Setting Range

Factory Setting

P7.06

Running status

display selection

0~0xFFFF 0~0xFFFF 0x00FF

Detailed Function Description

P7.06 defines the parameters that can be displayed by LED in running status. If Bit is 0,

the parameter will not be displayed; If Bit is 1, the parameter will be displayed. Press 》

/SHIFT to scroll through these parameters in right order . Press DATA/ENT +

QUICK/JOG to scroll through these parameters in left order.

The display content corresponding to each bit of P7.06 is described in the following

table:

BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

AI1

Output

terminal

status

Input

terminal

status

PID

feedback

PID

preset

Output

torque

Output

power

Rotation

speed

BIT15 BIT14 BIT13 BIT12 BIT11 BIT10 BIT9 BIT8

Count

value

Length

value

Step No.

of PLC or

multi-step

HDI2

frequency

HDI1

frequency

AI4 AI3 AI2

For example, if user wants to display rotation speed, output power, output torque, PID

preset and AI1, the value of each bit is as the following table:

BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

1 0 0 0 1 1 1 1

BIT15 BIT14 BIT13 BIT12 BIT11 BIT10 BIT9 BIT8

0 0 0 0 0 0 0 0

The value of P7.06 is 008Fh.

Notice: I/O terminal status is displayed in decimal. For details, please refer to

description of P7.19 and P7.20.

Function

Code

Name Description

Setting Range

Factory

Setting

P7.07

Stop status display

selection

1~0xFFFF 1~0xFFFF 0x00FF

P7.07 determines the display parameters in stop status. The setting method is similar

with P7.06.

The display content corresponding to each bit of P7.07 is described in the following

table:

Detailed Function Description

BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

AI2 AI1

PID

feedback

PID preset

Output

terminal

status

Input

terminal

status

DC bus

voltage

Reference

frequency

BIT15 BIT14 BIT13 BIT12 BIT11 BIT10 BIT9 BIT8

Reserved Reserved

Length

value

Step No. o

PLC or

multi-step

HDI2

frequency

HDI1

frequency

AI4 AI3

Function

Code

Name Description

Setting

Range

Factory Setting

P7.08

Rectifier module temperature

0~100.0℃

P7.09

IGBT module temperature

0~100.0℃

P7.10

MCU software version

P7.11

DSP software version

P7.12

Accumulated running time 0~65535h

Rectifier module temperature: Indicates the temperature of rectifier module. Overheat

protection point of different inverter may be different.

IGBT module temperature: Indicates the temperature of IGBT module. Overheat

protection point of different inverter may be different.

MCU Software version: Indicates current software version of MCU.

DSP Software version: Indicates current software version of DSP

Accumulated running time: Displays accumulated running time of inverter.

Notice: Above parameters are read only.

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.13 Third latest fault type 0~30 0~30

P7.14 Second latest fault type 0~30 0~30

P7.15 Latest fault type 0~30 0~30

These parameters record three recent fault types. For details, please refer to description

of chapter 7.

Detailed Function Description

Function

Code

Name Description

Setting

Range

Factory

Setting

P7.16

Output

frequency

at current

fault

Output frequency at current fault.

P7.17

Output

current at

current

fault

Output current at current fault.

P7.18

DC bus

voltage at

current

fault

DC bus voltage at current fault.

P7.19

Input

terminal

status at

current

fault

This value records ON-OFF input terminal status at current fault. The meaning of each bit is as below:

9 876543210

S8 S7 S6 HDI2 HDI1 S5 S4 S3 S2 S1

1 indicates corresponding input terminal is ON, while 0 indicates OFF. Notice: This

value is displayed as decimal.

P7.20

Output

terminal

status at

current

fault

This value records output terminal status at current fault. The meaning of each bit is as below:

BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

RO3 RO2 RO1 HDO Y2 Y1

1 indicates corresponding output terminal is ON, while 0 indicates OFF. Notice: This

value is displayed as decimal.

6.9 P8 Group --Enhanced Function

Function

Code

Name Description Setting Range

Factory

Setting

P8.00 Acceleration time 1 0.0~3600.0s 0.0~3600.0 20.0s

P8.01 Deceleration time 1 0.0~3600.0s 0.0~3600.0 20.0s

P8.02 Acceleration time 2 0.0~3600.0s 0.0~3600.0 20.0s

P8.03 Deceleration time 2 0.0~3600.0s 0.0~3600.0 20.0s

P8.04 Acceleration time 3 0.0~3600.0s 0.0~3600.0 20.0s

P8.05 Deceleration time 3 0.0~3600.0s 0.0~3600.0 20.0s

Detailed Function Description

For details, please refer to description of P0.11 and P0.12.

Function

Code

Name Description Setting Range

Factory

Setting

P8.06

Jog reference 0.00~P0.07 0.00~ P0.07 5.00Hz

P8.07

Jog acceleration time

0.0~3600.0s

0.0~3600.0 20.0s

P8.08

Jog deceleration time

0.0~3600.0s

0.0~3600.0 20.0s

The meaning and factory setting of P8.07 and P8.08 is the same as P0.11 and P0.12. No

matter what the value of P1.00 and P1.08 are, jog will start as start directly mode and

stop as deceleration to stop mode.

Function

Code

Name Description Setting Range

Factory

Setting

P8.09

Skip frequency 1 0.00~P0.07 0.00~P0.07 0.00Hz

P8.10

Skip frequency 2 0.00~P0.07 0.00~P0.07 0.00Hz

P8.11

Skip frequency

bandwidth

0.00~P0.07 0.00~P0.07 0.00Hz

By means of settinzg skip frequency, the inverter can keep away from the mechanical

resonance with the load. P8.09 and P8.10 are centre value of frequency to be skipped.

Notice:

z If P8.11 is 0, the skip function is invalid.

z If both P8.09 and P8.10 are 0, the skip function is invalid no matter what

P8.11 is.

z Operation is prohibited within the skip frequency bandwidth, but changes

during acceleration and deceleration are smooth without skip.

The relation between output frequency and reference frequency is shown in

following figure.

Figure 6.20 Skip frequency diagram.

Detailed Function Description

Function

Code

Name Description

Setting

range

Factory

Setting

P8.12

Traverse

amplitude

0.0~100.0%

0.0~100.0 0.0%

P8.13

Jitter frequency

0.0~50.0%

0.0~50.0 0.0%

P8.14

Rise time of

traverse

0.1~3600.0s

0.1~3600.0 5.0s

P8.15

Fall time of

traverse

0.1~3600.0s

0.1~3600.0 5.0s

Traverse operation is widely used in textile and chemical fiber industry. The typical

application is shown in following figure.

Figure 6.21 Traverse operation diagram.

Center frequency (CF) is reference frequency.

Traverse amplitude (AW) =center frequency (CF) * P8.12%

Jitter frequency = traverse amplitude (AW) * P8.13%

Rise time of traverse: Indicates the time rising from the lowest traverse frequency to the

highest traverse frequency.

Fall time of traverse: Indicates the time falling from the highest traverse frequency to the

lowest traverse frequency.

Notice:

z P8.12 determines the output frequency range which is as below:

(1-P8.12%) * reference frequency ≤ output frequency ≤ (1+P8.12%) *

reference frequency

z The output frequency of traverse is limited by upper frequency limit (P0.08)

and lower frequency limit (P0.09).

Detailed Function Description

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.16 Auto reset times 0~3

0~3 0

P8.17 Fault relay action

0: Disabled 1: Enabled

0~1 0

P8.18 Reset interval 0.1~100.0s

0.1~100.0 1.0s

Auto reset function can reset the fault in preset times and interval. When P8.16 is set to

be 0, it means “auto reset” is disabled and the protective device will be activated in case

of fault.

P8.17 defines if fault relay active or not during auto reset. If continuous production

without interruption is needed, please set P8.17=0.

Notice:

z The fault such as OUT 1, OUT 2, OUT 3, OH1 and OH2 cannot be reset

automatically.

z If fault has not occurred for ten minutes after the fault is reset, inverter will

automatically clear the previous times of auto reset.

Function

Code

Name Description Setting Range

Factory

Setting

P8.19 Preset length 1~65535 1~65535 1000

P8.20 Actual length 0~65535 0~65535 0

P8.21

Number of pulse

per cycle

0.1~6553.5 0.1~6553.5 100.0

These parameters are mainly used for fixed-length control.

The length is calculated by input pulse signal. If input pulse frequency is high, it is

required to use HDI1 or HDI2 input (P5.35 or P5.36 = 2)

Actual length (P8.20) = Accumulated input pulse number / Number of pulse per cycle

(P8.21).

When the value of P8.20 exceeds the value of P8.19, if multifunctional output terminal is

set to be 11 (Length reached), ON signal will be output.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.22 Preset count value 1~65535 1~65535 1000

P8.23 Specified count value 1~65535 1~65535 1000

Detailed Function Description

The count pulse input channel can be S1~S5 (≤200Hz) and HDI.

If function of output terminal is set as preset count reached, when the count value

reaches preset count value (P8.22), it will output an ON-OFF signal. Inverter will clear

the counter and restart counting.

If function of output terminal is set as specified count reached, when the count value

reaches specified count value (P8.23), it will output an ON-OFF signal until the count

value reaches preset count value (P8.22). Inverter will clear the counter and restart

counting.

Notice:

z Specified count value (P8.23) should not be greater than preset count value

(P8.22).

z Output terminal can be RO1, RO2 or HDO.

This function is shown as following figure.

Figure 6.22 Timing chart for preset and specified count reached.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.24 Preset running time 0~65535h 0~65535 65535 h

If function of output terminal is set as running time reached, when the accumulated

running time reaches the preset running time, it will output an ON-OFF signal.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.25 FDT level 0.00~ P0.07 0.00~ P0.07 50.00Hz

P8.26 FDT lag 0.0~100.0% 0.0~100.0 5.0%

When the output frequency reaches a certain preset frequency (FDT level), output

terminal will output an ON-OFF signal until output frequency drops below a certain

frequency of FDT level (FDT level - FDT lag), as shown in following figure.

Detailed Function Description

Figure 6.23 FDT Level diagram.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.27

Frequency arrive

detecting range

0.0~100.0%

(maximum

frequency)

0.0~100.0 0.0%

When output frequency is within the detecting range of reference frequency, an ON-OFF

signal will be output.

Figure 6.24 Frequency arriving detection diagram.

Detailed Function Description

Function

Code

Name Description

Setting Range

Factory

Setting

P8.28

Droop

control

0.00~10.00Hz 0.00~10.00 0.00Hz

When several motors drive the same load, each motor's load is different because of the

difference of motor's rated speed. The load of different motors can be balanced through

droop control function which makes the speed droop along with load increasing.

When the motor outputs rated torque, actual frequency drop is equal to P8.28. User can

adjust this parameter from small to big gradually during commissioning. The relation

between load and output frequency is in the following figure.

Figure 6.25 Droop control diagram.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.29

Auxiliary motor

selection

0: Invalid 1: Motor 1 valid 2: Motor 2 valid 3: Both valid

0~3 0

P8.30

Auxiliary motor1

START/STOP delay

time

0.0~3600.0s 0.0~3600.0 5.0s

P8.31

Auxiliary motor2

START/STOP delay

time

0.0~3600.0s 0.0~3600.0 5.0s

Detailed Function Description

Above parameters are used to realize simple water supply control function which one

inverter drives three pumps (one variable-frequency pump and two power-frequency

pumps). The control logic is shown in the following figure.

Figure 6.26 Simple water-supply function logical diagram.

Notice:

z Delay time of start auxiliary motor and stop auxiliary motor are the same.

z PID control (P0.03=6) is necessary for simple water supply control.

z P1.14 should not be set to be 1.

Function

Code

Name Description Setting Range

Factory

Setting

P8.32

Brake threshold

voltage

320.0~750.0V 320.0~750.0 700.0V

When the DC bus voltage is greater than the value of P8.32, the inverter will start dynamic braking.

Detailed Function Description

Notice:

z Factory setting is 380V if rated voltage of inverter is 220V.

z Factory setting is 700V if rated voltage of inverter is 380V.

z The value of P8.32 is corresponding to the DC bus voltage at rated input

voltage.

Function

Code

Name Description

Setting

Range

Factory

Setting

P8.33

Low-frequency threshold of

restraining oscillation

0~9999 0~9999 1000

P8.34

High-frequency threshold of

restraining oscillation

0~9999 0~9999 1000

The smaller the value of P8.33 and P8.34, the stronger the restraining effect.

Notice: Most motor may have current oscillation at some frequency point. Please

be cautious to adjust these parameters to weaken oscillation.

6.10 P9 Group --PID Control

PID control is a common used method in process control, such as flow, pressure and

temperature control. The principle is firstly detect the bias between preset value and

feedback value, then calculate output frequency of inverter according to proportional

gain, integral and differential time. Please refer to following figure.

Figure 6.27 PID control diagram.

Notice: To make PID take effect, P0.03 must be set to be 6.

Function

Code

Name Description

Setting

Range

Factory

Setting

P9.00

PID preset

source

selection

0: Keypad 1: AI1 2: AI2

0~8 0

Detailed Function Description

Function

Code

Name Description

Setting

Range

Factory

Setting

3: AI3 4: AI4 5: HDI1 6: HDI2 7: Communication 8: Simple PLC

P9.01

Keypad

PID preset

0.0%~100.0% 0.0~100.0 0.0%

P9.02

PID

feedback

source

selection

0: AI1 1: AI2 2: AI3 3: AI4 4: AI1-AI2 5: AI3-AI4 6: HDI1 7: HDI2 8: HDI1-HDI2 9: Communication

0~9 0

These parameters are used to select PID preset and feedback source.

Notice:

z Preset value and feedback value of PID are percentage value.

z 100% of preset value is corresponding to 100% of feedback value.

z Preset source and feedback source must not be same, otherwise PID will be

malfunction.

Function

Code

Name Description

Setting

Range

Factory

Setting

P9.03

PID output

characteristics

0: Positive

1: Negative

0~1 0

0：Positive. When the feedback value is greater than the preset value, output frequency

will be decreased, such as tension control in winding application.

1: Negative. When the feedback value is greater than the preset value, output frequency

will be increased, such as tension control in unwinding application.

Function

Code

Name Description Setting Range

Factory

Setting

P9.04

Proportional gain

(Kp)

0.00~100.00 0.00~100.00 0.10

P9.05 Integral time (Ti) 0.01~10.00s 0.01~10.00 0.10s

P9.06 Differential time (Td) 0.00~10.00s 0.00~10.00 0.00s

Detailed Function Description

Optimize the responsiveness by adjusting these parameters while driving an actual load.

Adjusting PID control:

Use the following procedure to activate PID control and then adjust it while monitoring

the response.

1. Enabled PID control (P0.03=6)

2. Increase the proportional gain (Kp) as far as possible without creating oscillation.

3. Reduce the integral time (Ti) as far as possible without creating oscillation.

4. Increase the differential time (Td) as far as possible without creating oscillation.

Making fine adjustments:

First set the individual PID control constants, and then make fine adjustments.

z Reducing overshooting

If overshooting occurs, shorten the differential time and lengthen the integral time.

Figure 6.28 Reducing overshooting diagram.

z Rapidly stabilizing control status

To rapidly stabilize the control conditions even when overshooting occurs, shorten the

integral time and lengthen the differential time.

Figure 6.29 Rapidly stabilizing diagram.

Detailed Function Description

z Reducing long-cycle oscillation

If oscillation occurs with a longer cycle than the integral time setting, it means that

integral operation is strong. The oscillation will be reduced as the integral time is

lengthened.

Figure 6.30 Reducing long-cycle oscillation diagram.

z Reducing short-cycle oscillation

If the oscillation cycle is short and oscillation occurs with a cycle approximately the same

as the differential time setting, it means that the differential operation is strong. The

oscillation will be reduced as the differential time is shortened.

Figure 6.31 Reducing short-cycle oscillation diagram.

If oscillation cannot be reduced even by setting the differential time to 0, then either

lower the proportional gain or raise the PID primary delay time constant.

Function

Code

Name Description Setting Range

Factory

Setting

P9.07 Sampling cycle (T) 0.01~100.00s

0.01~100.00 0.50s

P9.08 Bias limit 0.0~100.0%

0.0~100.0 0.0%

Detailed Function Description

Sampling cycle T refers to the sampling cycle of feedback value. The PI regulator

calculates once in each sampling cycle. The bigger the sampling cycle, the slower the

response is.

Bias limit defines the maximum bias between the feedback and the preset. PID stops

operation when the bias is within this range. Setting this parameter correctly is helpful to

improve the system output accuracy and stability.

Figure 6.32 Relationship between bias limit and output frequency.

Function

Code

Name Description Setting range

Factory

Setting

P9.09 PID output filter time 0.00~10.00s 0.00~10.00 0.00

The bigger the filter time, the better the immunity capability, but the response becomes

slow, vice versa.

Function

Code

Name Description

Setting

Range

Factory

Setting

P9.10

Feedback lost

detecting value

0.0~100.0% 0.0~100.0 0.0%

P9.11

Feedback lost

detecting time

0.0~3600.0s 0.0~3600.0 1.0s

When feedback value is less than P9.10 continuously for the period determined by P9.11,

the inverter will alarm feedback lost failure (PIDE).

Notice: 100% of P9.10 is the same as 100% of P9.01.

Detailed Function Description

6.11 PA Group --Simple PLC and Multi-step Speed Control

Simple PLC function can enable the inverter change its output frequency and directions

automatically according to preset running time. For multi-step speed function, the output

frequency can be changed only by multi-step terminals.

Notice:

z Simple PLC has 16 steps which can be selected.

z If P0.03 is set to be 5, 16 steps are available for multi-step speed. Otherwise

only 15 steps are available (step 1~15).

Function

Code

Name Description

Setting Range

Factory

Setting

PA.00

Simple

PLC mode

0: Stop after one cycle 1: Hold last frequency after one cycle 2: Circular run

0~2 0

0: Stop after one cycle: Inverter stops automatically as soon as it completes one cycle,

and it is needed to give run command to start again.

1: Hold last frequency after one cycle: Inverter holds frequency and direction of last step

after one cycle.

2: Circular run: Inverter continues to run cycle by cycle until receive a stop command.

Figure 6.33 Simple PLC operation diagram.

Function

Code

Name Description

Setting Range

Factory

Setting

PA.01

Simple PLC

status saving

selection

0: Not saved 1: Saved 2: Not saved when power off, saved when stop

0~1 0
