KRYPTON TRIDENT 3000 (300G)
KRYPTON TRIDENT 1500 (150G)
NEPTUNE TRIDENT (1000B)
Ovo uputstvo sadrži važne informacije bezbednosti i rada laserskog
sistema. Pročitajte uputstvo pre upotrebe, da bi izbegli povrede oka od
lasera. Držite ovo uputstvo na sigurnom mestu za buduću upotrebu.
LUNAR ASTEROID
UPOZORENJE VEZANO ZA KUĆIŠTE LASERA
Ova jedinica sadrži interno veliku snagu laserskih uređaja. Nemojte otvarati
kućište lasera, zbog potencijalne izloženosti nebezbednih nivoa laserskog
zračenja. Dostupna laserska nivoa snage ukoliko je jedinica otvorena mogu
izazvati slepilo, trenutne
opekotine i požar.
PODACI EMISIJE LASERA
Klasa lasera Klasa 3B
Crveni Laser L650nm LD
Zeleni Laser DPSS Nd:YVO4, 532nm
Prečnik snopa <5mm u otvoru
Podaci pulsa Svi pulsevi < 4Hz (>0.25sec)
Divergencija(svaki snop) <2 mrad
Divergencija (puno svetlo) <160 stepeni
Snaga lasera Crveni>100mW, Zeleni>30mW
* Mereno prema IEC klasifikaciji merenja.
Ovo uputstvo sadrži važne informacije bezbednosti i rada laserskog sistema.
Pročitajte uputstvo pre upotrebe, da bi izbegli povrede oka od lasera. Držite
ovo uputstvo na sigurnom mestu za buduću upotrebu.
1
SURPASS-1SD(150G)
SURPASS-1SD(300G)
SURPASS-1SD(1000B)
VERSION:SD 2.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.
USER MANUAL
1

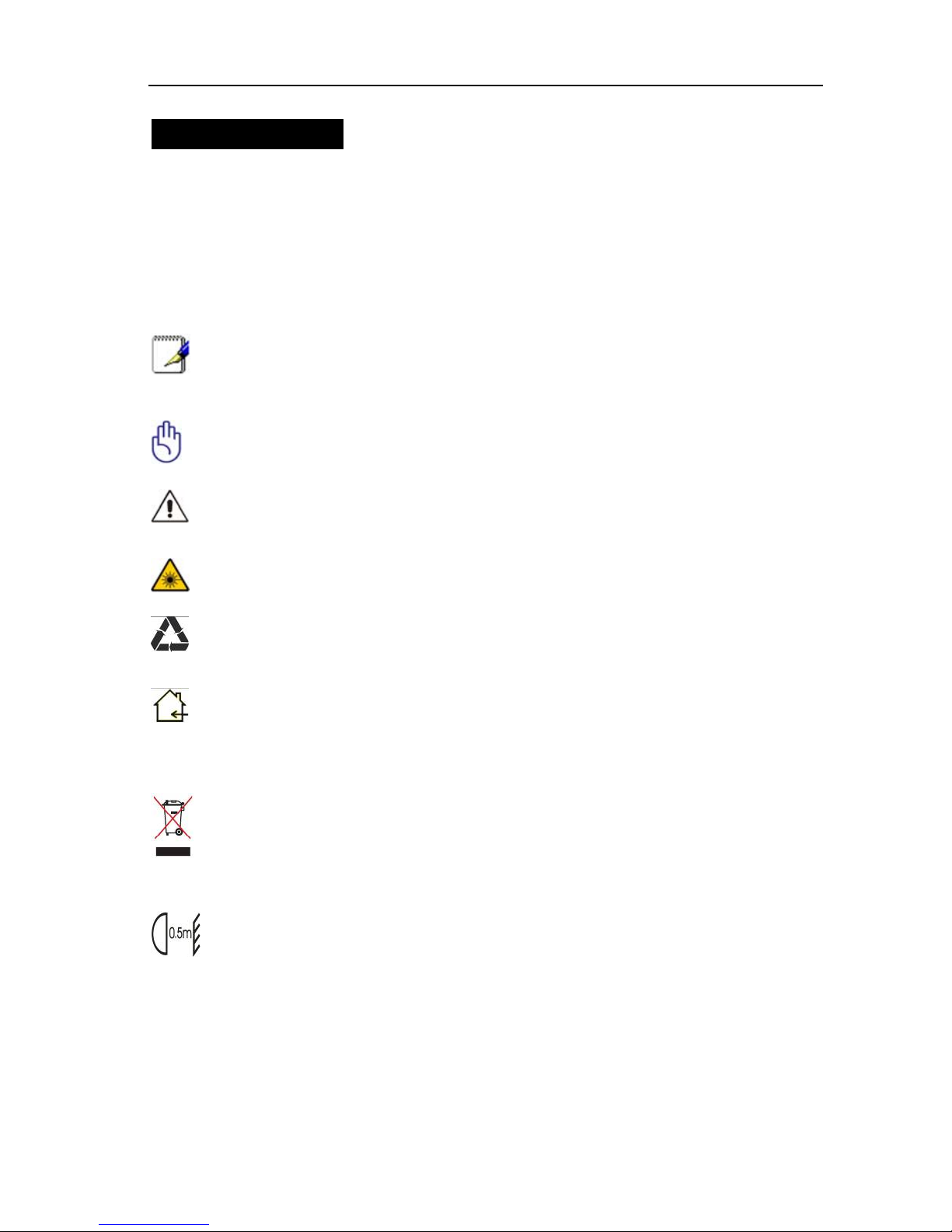

WARNING DATA
Lasers can be hazardous and have unique safety considerations.
Permanent eye injury and blindness is possible if lasers are used
incorrectly. Pay close attention to each safety REMARK and
WARNING statement in the user manual. Read all instructions
carefully BEFORE operating this device.
Attention!
Important!
Caution!
Laser!
Recycle
Indoor
Wastebin
LLocation
Indicates a skill or other useful information for special
situations.
Indicates important information, to protect people from laser
incident or damage
Prevent damage or injury from incorrect operation.
Laser safety warming labels.
To protect the environment, recycle packing material
wherever possible.
The projector is for indoor use only, IP20. Use only in dry
locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with
water or any other fluids, or metallic objects.
Don’t throw this product away just as general trash, please
dispose of this product following the abandon electronic
product regulation in your country.
The projector must be installed in a location with adequate
ventilation, at least 50cm (20inches) from adjacent surfaces.
Be sure that no ventilation slots are blocked.
USER MANUAL
2
LASER SAFETY WARNINGS
Caution Avoid direct eye contact with laser 了 light. Never
intentionally expose your eyes or others to direct laser
radiation.
Caution This laser product can potentially cause instant eye
injury or blindness if laser light directly strikes the eyes.
Caution It is illegal and dangerous to shine this laser into
audience areas, where the audience or other personnel
could get direct laser beams or bright reflections into
their eyes.
Caution It is a US Federal offense to shine any laser at aircraft.
Caution There are no user serviceable parts inside the unit. Do
not open the housing or attempt any repairs yourself. In
the unlikely event your unit may require service, pleas e
contact the dealer nearest to you..
Caution Use of controls or adjustments or performance of
procedures other than those specified herein may resu lt
in hazardous radiation exposure.
NON-INTERLOCKED HOUSING WARNING
This unit contains high power laser devices internally. Do not open the laser
housing, due to potential exposure to unsafe levels of laser radiation. The
laser power levels accessible if the unit is opened can cause instant
blindness, skin burns and fires.
Potential laser injury hazard exists with this product! Read these
Instructions carefully, which include important information about
installation
,
safe use and service!
USER MANUAL
3
LASER SAFETY AND OPERATING INSTRUCTIONS
STOP AND READ ALL LASER SAFETY DATA
Laser light is different from any other light source witch you may be familiar. The
light from this product can potentially cause eyes injury if not set up and used
properly.
Laser light is thousands of times more concentrated than light from any other kind
of light source. This concentration of light po wer can cause instant eye injuries,
primarily by burning the retina (the light sensitive portion at the back of the eye).
Even if you can not feel “heat” from a laser beam, it can still potentially injure or
blind you or your audience. E ven very sm all amounts of laser light are potentiall y
hazardous even at long distances. Laser eye injuries can happen quicker than
you can blink.
It is incorrect to think that because these laser entertainment products split the
laser into hundreds of beams or laser beam is scanned out in high speed, that an
individual laser beam is safe for eye e xposur e. T his laser pr oduct us es d ozens of
milliwatts of laser power (Class 3B levels internally). Many of the individual beams
are potentially hazardous to the eyes.
It is also incorrect to assume that because the laser light is moving, it is safe. This
is not true. Nor, do the laser beams always move. Since eye injuries can occur
instantly, it is critical to prevent the possibility of any direct eye exposure. In the
laser safety regulation, it is not legal to aim Class 3B lasers in areas which people
can get exposed. This is true even if it is aimed below people’s faces, such as on
a dance floor.
Do not operate laser without first reading and understanding all safety and
technical data in this manual.
Always set up and install all laser effects so that all laser light is at least 3
meters (9.8 feet) above the floor on which people can stand. See “Proper
Laser Set-up & Usage” section later in this manual.
USER MANUAL
4
After set up, and prior to public use test laser to ensure proper function. Do not
use if any defect is detected. Do not use if laser emits only one or two laser
beams rather than dozens/hundreds, as this could indicate damage to the
diffraction grating optic, and could allow emission of higher laser levels.
Do not point lasers at people or animals.
Never look into the laser aperture or laser beams.
Do not point lasers in areas in which people can potentially get exposed. such
as uncontrolled balconies, etc.
Do not point lasers at highly reflective surfaces such as windows, mirrors and
shiny metal. Even laser reflections can be hazardous
Never point a laser at aircraft, this is a federal offense.
Never point un-terminated laser beams into the sky.
Do not expose the output optic (aperture) to cleaning chemicals.
Do not use laser if the laser appears to be emitting only one or two beams.
Do not use laser if housing is damaged or open, or if optics appear damaged
in any way.
Never open the laser housing. The high laser power levels inside of the
protective housing can start fires, burn skin and will cause instant eye injury.
Never leave this device running unattended.
The operation of a Class 3B laser show laser is only allowed if the sho w is
controlled by a skilled and well-trained operator familiar with the data included
in this manual..
The legal requirements for using laser entertainment products vary from
country to country.The user is responsible for the legal requirements at the
location/country of use.
Always use appropriate lighting safety cable s when hangin g lights and effects
overhead.
LASER EXPOSURE WARNING
LASER LIGHT
AROVID DIRECT EYE EXPOSURE
Further guidelines and safety programs for safe use of lasers can be found in the
ANSI Z136.1 Standard “For Safe Use of Lasers”, available from
“www.laserinstitute.org”. Many local governments, corporations, agencies,
military and others, require all lasers to be used under the guidelines of ANSI
Z136.1. Laser Display guidance can be obtained via the International Laser
Display Association, www .laserist.org.
USER MANUAL
5
LASER SAFETY LABEL REPRODUCTIONS
The label indicates the laser
beam output aperture
Caution – Class 3B LASER
RADIATION, WHEN OPEN,
AVOID EXPOSURE TO BEAM
LASER RADIOATION AVOID
EXPOSURE TO BEAM CLASS
3B LASER PRODUCT.
LASER EMISSION DATA
* As measured under IEC measurement conditions for classification.
Laser Classification Class 3B/Class4
Green Laser Medium DPSS Nd:YVO4,532nm
Blue Laser Medium LD GeAs 450nm, typical
Beam Diameter <5mm at aperture
Divergence(each beam) <2 mrad
Divergence(total light) <40 degrees
Transverse Beam Mode TEM00
Cooling TEC & Fan Cooling
Scanning ILDA Standard: 25Kpps
USER MANUAL
6
LASER COMPLIANCE STATEMENT
This laser product complies with EN/IEC 60825-1 Ed 2,2007-03.
GENERAL SAFETY INSTRUCTIONS
Every person involved with installation and maintenance of this device have to
Be qualified.
Follow the instructions of this manual.
This device has left out premises in absolutely perfect condition. In order to
maintain this condition and to ensure a safe operation, it is necessary for the user
to follow the safety instructions and warning notes written in this manual.
Important! The manufacturer will not accept liability for any resulting
damages caused by the non-observance of this manual or any
unauthorized modification to the device.
Please consider that damages caused by manu al modifications to the devise
are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the
power-cord and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear
panel.
Always plug in the power plug least. Make sure that the power-switch is set to
off-position before you connect the device to the mains. The power-plug has
to be accessed after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges.
Check the device and the power-cord from time to time.
Always disconnect from the mains, when the devise is not in use or before
CAUTION! Be careful with your operations. With a high voltage
you can suffer a dangerous electric shock when
touching the wires!
USER MANUAL
7
cleaning it. Only handle the power-cord by the plug. Never pull out the plug by
tugging the power-cord.
It is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a
qualified employee.
Do not switch the fixture on and off in short intervals as this would reduc e the
laser diode life.
For replacement, please use fuses of same type and rating only.
If the device has been exposed to drastic temperature fluctuation, do not
switch it on immediately. The arising condensation water might damage your
device. Leave the device switched off until it has reached room temperature..
Do not shake the device. Avoid brute force when installing or operating the
device.
When choosing the installation-spot, please make sure that the device is not
exposed to extreme heat, moisture or dust. There should not be any cables
lying around. You enda nger your own and the safety of others!
The minimum distance between the fixture and surrounding walls must be
more than 50cm.
Always fix the fixture with an appropriate saf ety-rope. Fix the safety-rope at
the safety-rope only.
The ambient temperature must be between 10℃ to 40℃.
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden
due to safety reasons!
CAUTION! Operate the device only after having familiarized with
its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the
result of unprofessional operation
CAUTION! If this device will be operated in any way different to the
one described in this manual, the product may suffer
dama
g
es and the warranty word.
USER MANUAL
8
BEFORE OPERATION
Unpacking Instructions
CAUTION! Immediately upon receiving a fixture, carefully unpack the
carton, check the contents to ensure that all parts are present,
and have been received in good condition. Notif y the shipper
immediately and retain packing material for inspection if any
parts appear damage from shipping or the package itself
shows signs of mishandling. Save the package and all packing
materials. In the event that a fixture must be returned to the
factory, it is important that the fixture be returned in the original
factory box and packing.
What is included
The carton or flight case contain following items:
Power Supply
To determine the power requirements for a particular fi xture, see the lab el affixed
to the back plate of the fixture of refer to the fixture’s specifications chart. A
fixture’s listed current rating is its average current draw under normal conditions.
All fixtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch. Before applying power to a fixture,
check that the source voltage matches the fixture’s requirement.
NAME QTY
Laser Light 1 PCS
KEYs (for key switch) 2PCS
Power Cord 1 PCS
Interlock Connector 1 PCS
USER MANUAL 1 PCS
USER MANUAL
9
The unit is supplied with a power plug appropriate to its voltage and
destination. Should any other connections be required they must be
carried out with the following configuration.
DMX-512 connection between fixtures
The fixture is equipped with 2-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable des igned for
3-pin XLR-plugs and connectors in order to connect the controller with the fixture
or one fixture with another.
Occupation of the XLR-connection
Caution: At the laser fixture, the DMX-cable has to terminated with a
terminator. Solder a 120 Ohm resistor between Signal (-) and
Signal (+) into a 3-pin XLR-plug and plug and plug it in the
DMX-output of the last fixture.
Cable(EU) Cable(US) Pin International
Brown Black Live L
Liht blue White Neutral N
Yellow/Green Green Earth
USER MANUAL
10
Building a serial DMX-chain
If you are using the standard DMX-controllers, you can connect the
DMX-output of the controller directly with the DMX-input of the first fixture in
the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter cables.
Connect the DMX-output of the first fixture in the DMX-chain with the
DMX-input of the next fixture. Always connect output with the input of the next
fixture until all fixtures are connected.
If you use a controller with 5 pins DMX connector, you need to use a 5 to 3
pins adpter
At last fixture, the DMX cable has to be terminated with a terminator. Solder a
120 Ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3 pins
XLR-plug and plug it in the DMX-output of the last fixture.
Connect the fixture together in a daisy chain by XLR plug cable from the
output of the fixture to the input of the next fixture. The cable cannot be
branched or split to a Y cable. DMX 512 is a very high speed signal.
Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
The DXM output and input connectors are pass-through to maintain the DMX
circuit, when power is disconnected to the unit.
Each fixture needs to have a DMX address to receive the data from the
controller. The DMX address number which could be read from rear panel of
each fixture is between 000~511.
The end of the DMX 512 chain should be terminated to reduce signal errors.
USER MANUAL
11
Proper Laser Set Up & Usage
This fixture has been designed to be hung. It is recommended for safety purposes,
your lighting effect are properly mounted using a suitable hanging clamp and
safety cable. Items appropriate for safe and effective mounting are easily
sourced from your lighting vendor.
International laser safety regulations require that lasers must be operated in the
fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation
between the floor and the lowest laser light vertically. Additionally, 2.5 meters of
horizontal separation is required between laser lig ht and audience or other public
spaces.
USER MANUAL
12
Rigging the Fixture
The installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming deformation..
The installation must always be secured with a secondary safety attachment,
e.g. an appropriate catch net. This secondary safety attachment must be
constructed in a way that no part of the installation can fall down if the main
attachment fails.
Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
The operator has to make sure that safety-relating and machine-technical
installations are approved by an expert before taking into operation for the first
time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical
installations are approved by a skilled person once a ye ar.
The fixture should be installed in the position where persons cannot reach and
where persons may walk by or be seated.
CAUTION! Please consider the respective national norms during
the installation! The installation must only be carried out
b
y
an authorized employee or dealers!
CAUTION! When installing the device, make sure there is no highly
in inflammable material (decoration articles, etc.) in
between a distance of min 0.5 meter.
USER MANUAL
13
PRODUCT OVERVIEW
This device has left out premise in absolutely perfect condition. In order to
maintain this condition and to ensure safe operation, it is necessary for the
user to follow the safety instructions and warning notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modification to the
device.
Front Panel
NO NAME FUNCTION
1 POWER
Main power indicated LED. Red is ON.
2 MUSIC
Synchronize to detected music signal
3 Laser output
Laser output aperture.
4 HANDING BAND
Product handing band
5
HANGING
BRACKET
with 2 knobs on both sides to fasten the unit
and a mounting hole to fix a mounting hook.
USER MANUAL
14
Rear Panel
NO NAME FUNCTION
6 Mains input
With socket and integrated fuse holder
7 Switch
Switch on and off the power
8 DMX output
3PIN Female XLR port，using for DMX
9 SD card Storage RAM
SD MMC storage RAM (less than 2G)
10 DMX input
3PIN Male XLR port, using for DMX
11 ILDA / Hardware Setting
Music, ILDA, Patterns Setting
12 Cooling fan
Cooling and never cover this fan outlet
13 Key switch
Make sure the professional person use
14 Safety eye
Attach the safety cable
15 Urgent and safe switch
Switch off the laser manually if error occurs
USER MANUAL
15
ILDA / Hardware Setting Panel
NO NAME FUNCTION
16 MUSIC
Turn the knob to adjust the audio respond
sensitivity.
17 X SIZE
The Size of X axis adjustment
18 Y SIZE
The Size of Y axis adjustment
19 ILDA THROUGH
Standard ILDA DB25 Output(through)
20 ILDA INPUT
Standard ILDA DB25 Input
21 ILDA
ILDA connection indicator LED. Red is
connection and green is disconnection.
22 R G B
Laser beam output indicator LED.
23 MIC
Microphone. Turn the knob to adjust the
sound activated sensitivity.
24 LCD control Panel
Intelligent LCD control panel of the system
USER MANUAL
16
IMPORTANT
For your own safely and full laser safety
Regulation, we do strongly recommend
You to take this optional switch!
CONTROL & FUNCTION
Regular breaks during operation are essential to maximize the life of this
device as it is not designed for continual use.
Do not switch the unit on and off in short time intervals
Always unplug the unit when it is not used for a longer time. Or before
replacing the bulb or start servicing.
In the event of serious operation problems, s top using the fixture and co ntact
your dealer immediately.
Attention Laser Safety Scanner Board is included in the system.
The Laser light will be turned off when the scan ned angle
is less than 1 degree.
Operating Mode
Attention Once after every power on laser, the VERSION and
MANUFACTURE INFORMATION will be shown in LCD
monitor of rear panel.
When laser is powered on, LCD monitor on rear panel shows the current
operating standalone mode or DMX address of DMX mode. With help of LCD
control panel, is very easy to set and change the operating mode of laser. After
every resetting and saved, the new mode information will be shown on LCD
monitor at next power on.
Mode Option, to choose the operating mode of laser.
USER MANUAL
17
Confirmation, to confirm the laser to show the present mode at the
next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
OPERATION
USER MANUAL
18
AUTO SHOW 1
Press FUNC to enter MODE OPTION
Till to AUTO SHOW 1 shown on LCD monitor.
The laser is set at AUTO SHOW 1 standalone mode and it will play the
preprogrammed show until next setting is changed. AUTO SHOW 1 is fast
and hot show which is better for
DISCO.
Press ENTER to confirm the laser to
show the present mode at the next
operation.
AUTO SHOW 2
Press FUNC to enter MODE OPTION
Till to AUTO SHOW 2 shown on LCD monitor.
The laser is set at AUTO SHOW 2 standalone mode and it will play the
preprogrammed show until next setting is change d. AUTO SHOW 2 is slow
and soft show which is better for
MUSIC BAR.
Press ENTER to confirm the laser to
show the present mode at the next
operation.
MUSIC SHOW 1
Press FUNC to enter MODE OPTION
Till to MUSIC SHOW 1 shown on LCD
monitor.
The laser is set at MUSIC SHOW 1
standalone mode and it will play the
preprogrammed show until next setting is chan ged. MUSIC SHOW 1 is fast
and hot show which is better for DISCO.
Press ENTER to confirm the laser to show the present mode at the next
operation.
USER MANUAL
19
MUSIC SHOW 2
Press FUNC to enter MODE OPTION
Till to MUSIC SHOW 2 shown on LCD
monitor.
The laser is set at MUSIC SHOW 2
standalone mode and it will play the
preprogrammed show until next setting is changed. MUSIC SHOW 2 is slow
and soft show which is better for MUSIC BAR.
Press ENTER to confirm the laser to show the present mode at the next
operation.
Attention In preprogrammed standalone MUSIC SHOW mode, the
laser beam will be blank-out in 3 seconds without
AUDIO/MIC activated signal.
SD SHOW
Press FUNC to enter MODE OPTION
Press UP/DOWN to choose folder, the folder name have to be 8 characters
including letter or numbers. Any folder name with more than 8 characters can
not be displaced on LED monitor. Press ENTER to choose the folder.
Press UP/DOWN to choose show mode: ILDA single show or PRG
preprogrammed show.
Press ENTER to confirm the laser to show the present mode at the next
peration.
Attention: Please put ‘ild’ format laser show in SD card only. DO NOT
Save any other files in it. SD maximum support 100 folders with less
than 255 files in each folder. The SD has to be FAT32 format system.
Attention: PRG preprogram show
In SD card in folder ANIMATION, for example, to do the PRG
preprogrammed show, a TXT file (with WINDOW SYSTEM) has to be
done in the same folder. The TXT file has to be renamed to *.PRG
For example:
USER MANUAL
20
In folder ANIMA folder, there are 3 ild file show. They are ANIMA1.ild,
ANIMA2.ild, ANIMA3.ild. If you want to do a preprogram show with
them, you should do the TXT files as:
ANIMA1.ild,12,3
ANIMA2.ild,20,1
ANIMA3.ild,18,4
Save this TXT file with name ANIMA.TXT, change the file name from
ANIMA.TXT to ANIMA.PRG
IMPORTANT NOTES: “ANIMA1.ild” is the ild show name, “12” is
scanner speed, “3” is how many times you want this show to repeat.
DMX MODE
Press FUNC to enter MODE OPTION
Till to DMX address shown on LCD monitor.
Press UP/DOWN to change the DMX
address that you wanted.
Press ENTER to confirm the laser
to show the present mode at the
next operation.
Attention When the laser is connected with DMX controlled or under
control by DMX signal, the DMX indicated LED on front
panel is in RED.
USER MANUAL
21
SLAVE MODE
Press FUNC to enter MODE OPTION
Till to SLAVE shown on LCD monitor.
Connect MASTER and SLA VE lasers with DMX cable. The SLAVE lasers are
in SLAVE MODE. Check XLR Control cable connection
section for your
reference.
Press ENTER to confirm the laser to show the present mode at the next
operation.
SETTING MODE
Press FUNC to enter MODE OPTION
Till to SETTING shown on LCD monitor.
Press UP/DOWN to choose MODE. You will have COLOR, MIRROR, MUSIC
modes. Press ENTER to confirm the mode.
COLOR MODE：SINGLE COLOR – single white color show，DOUBLE
COLOR – RGY three color show. MULTICOLOR – full color show
MIRROR MODE ： Press UP/DOWN to change
scanned world mirror. UP is for Y direction mirror
setting and DOWN is for X direction mirror setting.
MUSIC MODE：To set the sensitivity of SOUND mode.
ILDA Control Mode
This unit has the ILDA DB25 port, and it can be controlled by the PC, There is
auto transform set in the inside of the unit to transform the ILDA and
preprogrammed show. when connecting by the 25 pin cable, the unit will be
control by PC, when disconnect the unit, it will be preprogrammed pr ogram
control。
In the theory, as long as it is ILDA B25， It can control this unit, but in the
reality, some of the software can not control this unit, for the 4 pin and the 17
pin of the output card has not connect. In fact this is an easy problem. As
long as you connect them. It can control this unit.
USER MANUAL
22
DMX Channels Chart
DMX CHANNEL 1 CHART
CHANNEL VALUE FUNCTION
CH 1
MODE
000-073
Laser Block Out
074-110
PRG show in SD card
111-147
ILD show in SD card
148-165 AUTO SHOW 1
166-184 AUTO SHOW 2
185-202 MUSIC SHOW 1`
203-221 MUSIC SHOW 2
222-255 DMX MODE (Other channels activated)
PRG or ILD mode
CHANNEL VALUE DESCRIPTION
CH 2
000-255 Folders
CH 3
000-255 Shows (PRG or ILD)
DMX PATTERN MODE
CHANNEL VALUE FUNCTION
CH 2
PATTERN
000-255 86 Patterns as shown in PATTERN LIST
CH 3
000-010 NO strobing
Several optional operating modes were preprogrammed set into this
laser projector at DMX channel 1. Before control other DMX chan nels,
please be sure that the channel 1 was set in proper mode (value).
USER MANUAL
23
Strobe
011-199 Strobing from slow to fast
200-255 Strobing to Sound
CH4
X Moving
000-125 X position
126-185 Moving from slow to fast
186-225 Moving with random speed
226-245 Random position
246-255 Sound to random position
CH5
Y Moving
000-125 Y position
126-185 Moving from slow to fast
186-225 Moving with random speed
226-245 Random position
246-255 Sound to random position
CH6
Zooming
000-010 Original size
011-100 Fixed Sizing
101-150 Zooming out
151-200 Zooming in
201-255 Zooming out and in
CH 7
Y AXIS
ROLLING
000-010 No rolling
011-110 Fixed rolled position
111-255 Rolling from slow to fast
CH 8
X AXIS
ROLLING
000-010 No rolling
011-110 Fixed rolled position
111-255 Rolling from slow to fast
CH 9
Z AXIS
ROLLING
000
No rolling
000-180 Fixed rolled position
181-217
Rolling to clockwise
USER MANUAL
24
218-255
Rolling to anticlockwise
CH 10
CLIPING
000-010
Original pattern
010-074
Fixed cliping
075-104
Clipping out
105-144
Clipping in
145-184
Clipping out and in
185-224
Clipping on
224-255
Clipping off
CH11
WAVE
000-009
Original pattern
010-199
Wave effect in pattern with speed control
200-255
Wave effect in pattern with amplitude control
CH12
000-255
Strobing
CH13
000-063 Original pattern
064-127 Pattern with bright points
128-191 Pattern with blanking
192-255 Points to make pattern
USER MANUAL
25
PATTERN LIST
DMX
000-050 051-101 102-152 153-203 204-254 255
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
USER MANUAL
26
LASER POWER
SURPASS-1SD(150G): 150mW-G 532nm
SURPASS-1SD(300G): 300mW-G 532nm
SURPASS-1SD(1000B): 1000mW-B 450nm
SPECIFICTAIONS
Mains Input:
Fuse:
Total Power:
X/Y Axis Beam Angle:
Music Control:
Laser Classification:
Laser Safety Standard:
Condition Temperature:
DMX Connections:
DMX Channels
Measurement:
N Weight:
AC100~240V, 50/60Hz
250V /1.6A Slow Blow (20mm Glass)
40W
±20°
Audio / Sound Activated
150G/300G Class 3B
1000B Class 4
EN60825-1 2007
10~40℃
3 pins XLR Male/Female
Max 13 channels
See picture below
8Kg
Every information is subject to change without prior notice.
The availability of particular products may vary by region. Please check with the dealer.
UPUTSTVO ZA UPOTREBU
SPECIFIKACIJA
Snaga lasera
KRYPTON TRIDENT1500
(150G): 150mW-G 532nm
KRYPTON TRIDENT 3000 (300G): 300mW-G
NEPTUNE TRIDENT (1000B): 1000mW-B 450nm
Loading...
