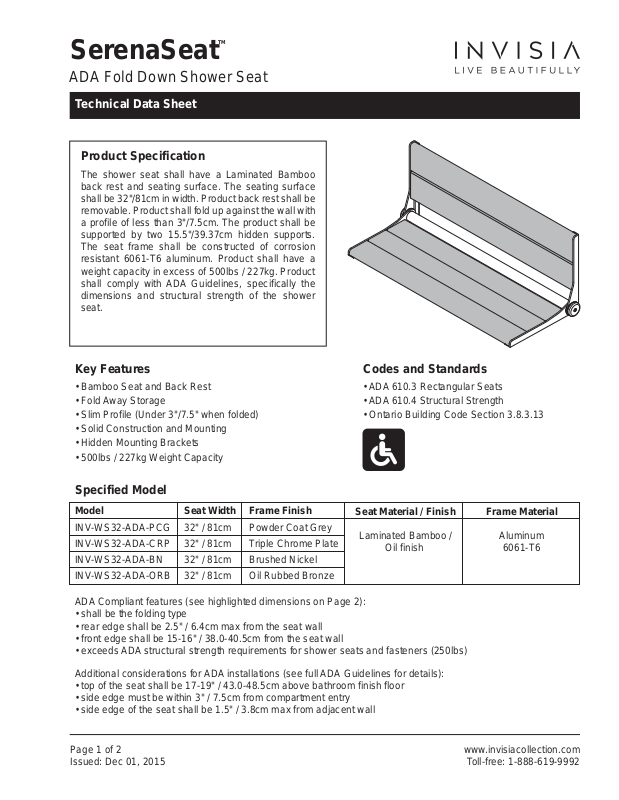

Page 1
TM
SerenaSeat
ADA Fold Down Shower Seat
Technical Data Sheet
Product Specification
The shower seat shall have a Laminated Bamboo
back rest and seating surface. The seating surface
shall be 32"/81cm in width. Product back rest shall be
removable. Product shall fold up against the wall with
a profile of less than 3"/7.5cm. The product shall be
supported by two 15.5"/39.37cm hidden supports.
The seat frame shall be constructed of corrosion
resistant 6061-T6 aluminum. Product shall have a
weight capacity in excess of 500lbs / 227kg. Product
shall comply with ADA Guidelines, specifically the
dimensions and structural strength of the shower
seat.
Key Features
• Bamboo Seat and Back Rest
• Fold Away Storage
• Slim Profile (Under 3"/7.5" when folded)
• Solid Construction and Mounting
• Hidden Mounting Brackets
• 500lbs / 227kg Weight Capacity
Codes and Standards
• ADA 610.3 Rectangular Seats
• ADA 610.4 Structural Strength
• Ontario Building Code Section 3.8.3.13
Specified Model
Model
INV-WS32-ADA-PCG
INV-WS32-ADA-CRP
INV-WS32-ADA-BN
INV-WS32-ADA-ORB
ADA Compliant features (see highlighted dimensions on Page 2):
• shall be the folding type
• rear edge shall be 2.5" / 6.4cm max from the seat wall
• front edge shall be 15-16" / 38.0-40.5cm from the seat wall
• exceeds ADA structural strength requirements for shower seats and fasteners (250lbs)
Seat Width
32" / 81cm
32" / 81cm
32" / 81cm
32" / 81cm
Frame Finish
Powder Coat Grey
Triple Chrome Plate
Brushed Nickel
Oil Rubbed Bronze
Laminated Bamboo /
Oil finish
Frame MaterialSeat Material / Finish
Aluminum
6061-T6
Additional considerations for ADA installations (see full ADA Guidelines for details):
• top of the seat shall be 17-19" / 43.0-48.5cm above bathroom finish floor
• side edge must be within 3" / 7.5cm from compartment entry
• side edge of the seat shall be 1.5" / 3.8cm max from adjacent wall
Page 1 of 2
Issued: Dec 01, 2015
www.invisiacollection.com
Toll-free: 1-888-619-9992
Page 2
TM
SerenaSeat
ADA Fold Down Shower Seat
Technical Data Sheet
Product Dimensions
Model
WS32
BACK
A (Back Rest)
32.58" / 82.8cm
C
B (Seat)
31.96" / 81.2cm
SIDE SIDE
1.19"/
3.02cm
15.50"/
39.37cm
C (Hole Spacing)
30.83" / 78.3cm
TOP
2.50"/
6.4cm
4.25"/
10.8cm
FRONT
5.38"/
13.65cm
1.19"/
3.02cm
D (Overall Width)
33.74" / 85.7cm
A
Weight
40lbs / 18.1kg
0.625"/1.6cm
1.75"/4.4cm
(FOLDED UP)
Shipping Dimensions
Model
WS32
Page 2 of 2
Issued: Dec 01, 2015
Height (H)
17.5" / 44.5cm
15.75"/
40.00cm
Width (W)
35" / 88.9cm
W
B
D
Depth (D)
3.5" / 8.9cm
H
D
www.invisiacollection.com
Toll-free: 1-888-619-9992
Weight
34.5lbs / 15.6kg
2.75"/
6.99cm
